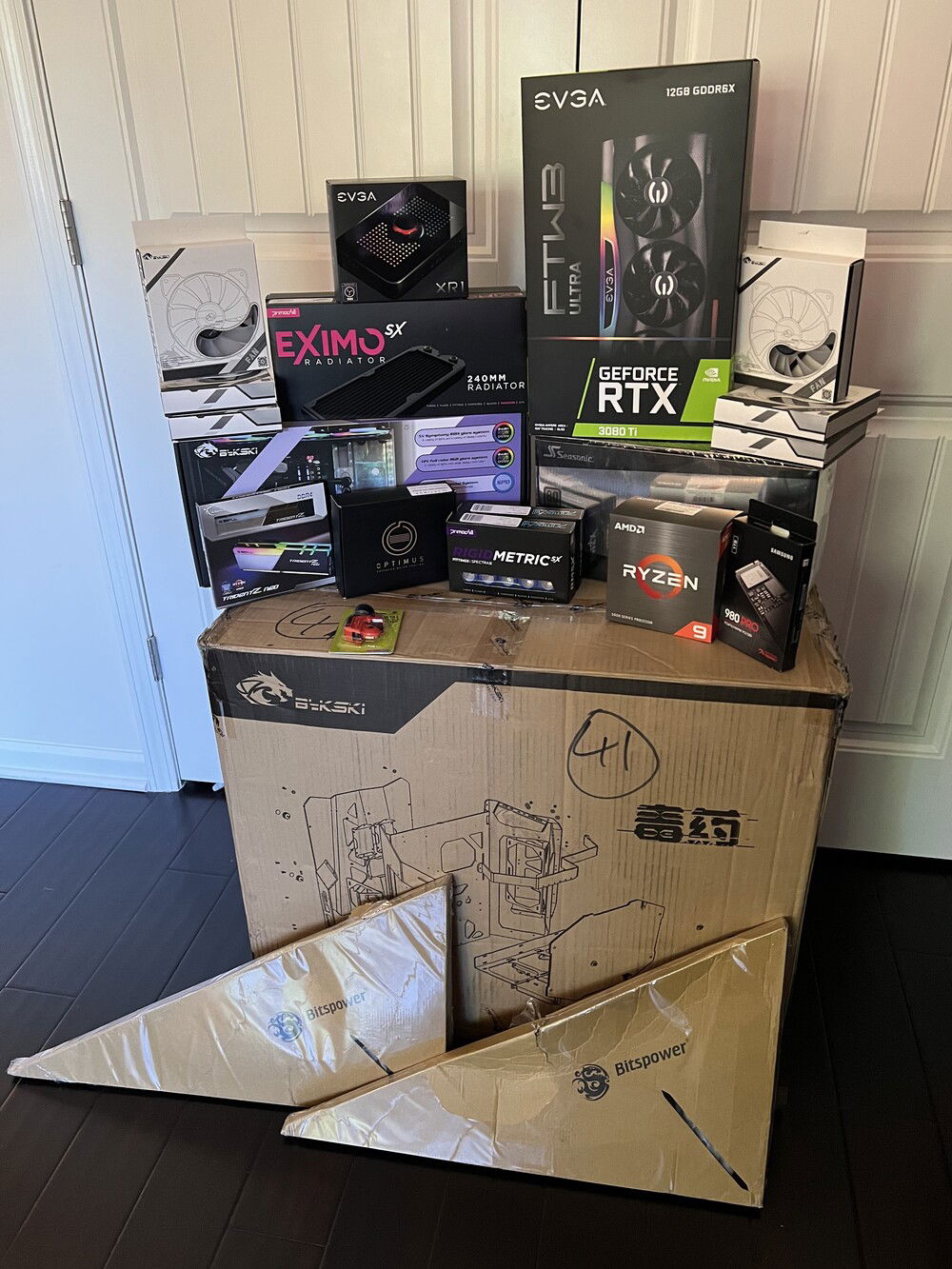

All components onsite except GPU Waterblock and Motherboard which are due next week and next month respectively
All components onsite except GPU Waterblock and Motherboard which are due next week and next month respectively

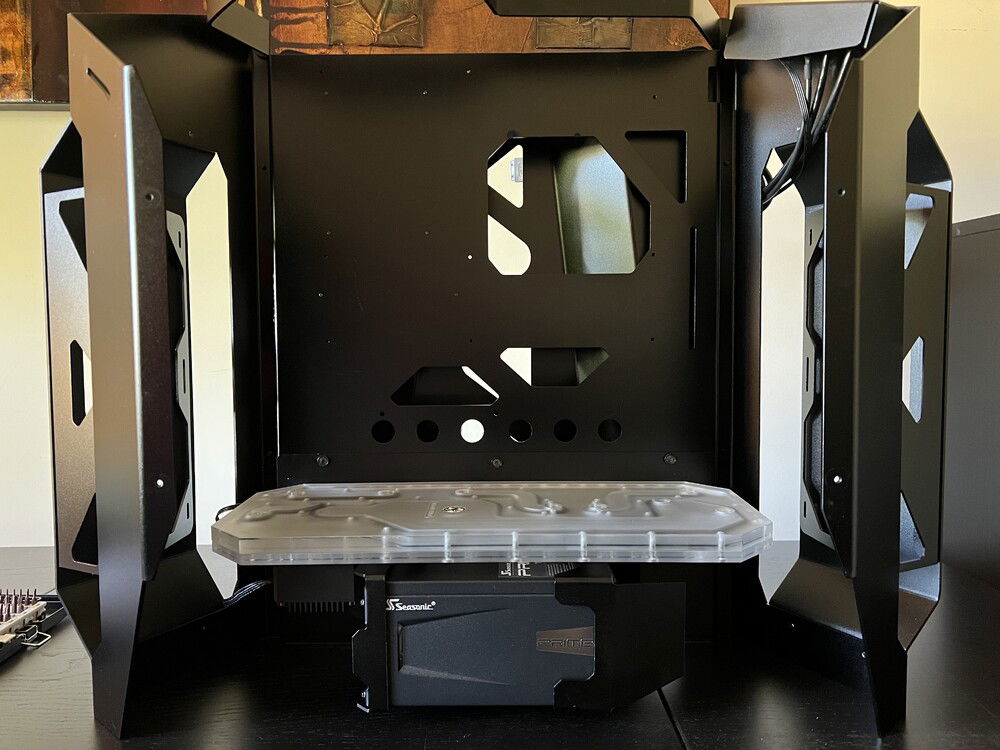

Bykski Poison Mod case after test fit of Bykski distribution plate/pump and Seasonic PSU. Its a very tight fit!
Bykski Poison Mod case after test fit of Bykski distribution plate/pump and Seasonic PSU. Its a very tight fit!

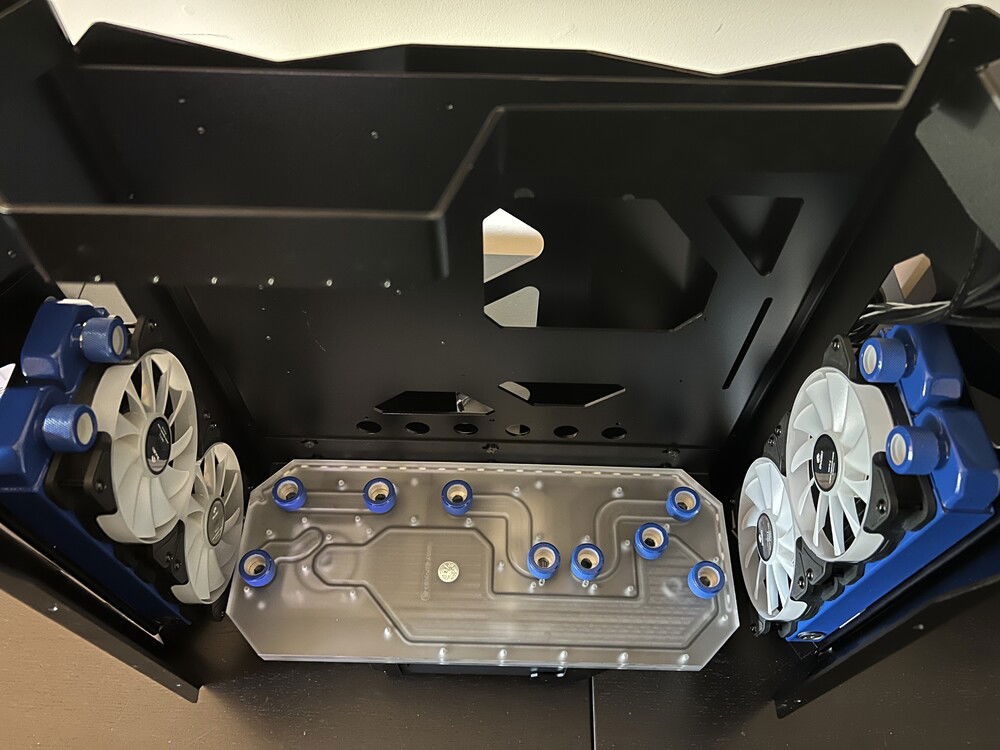

Radiators, fans and fittings have been placed on distribution plate
Radiators, fans and fittings have been placed on distribution plate

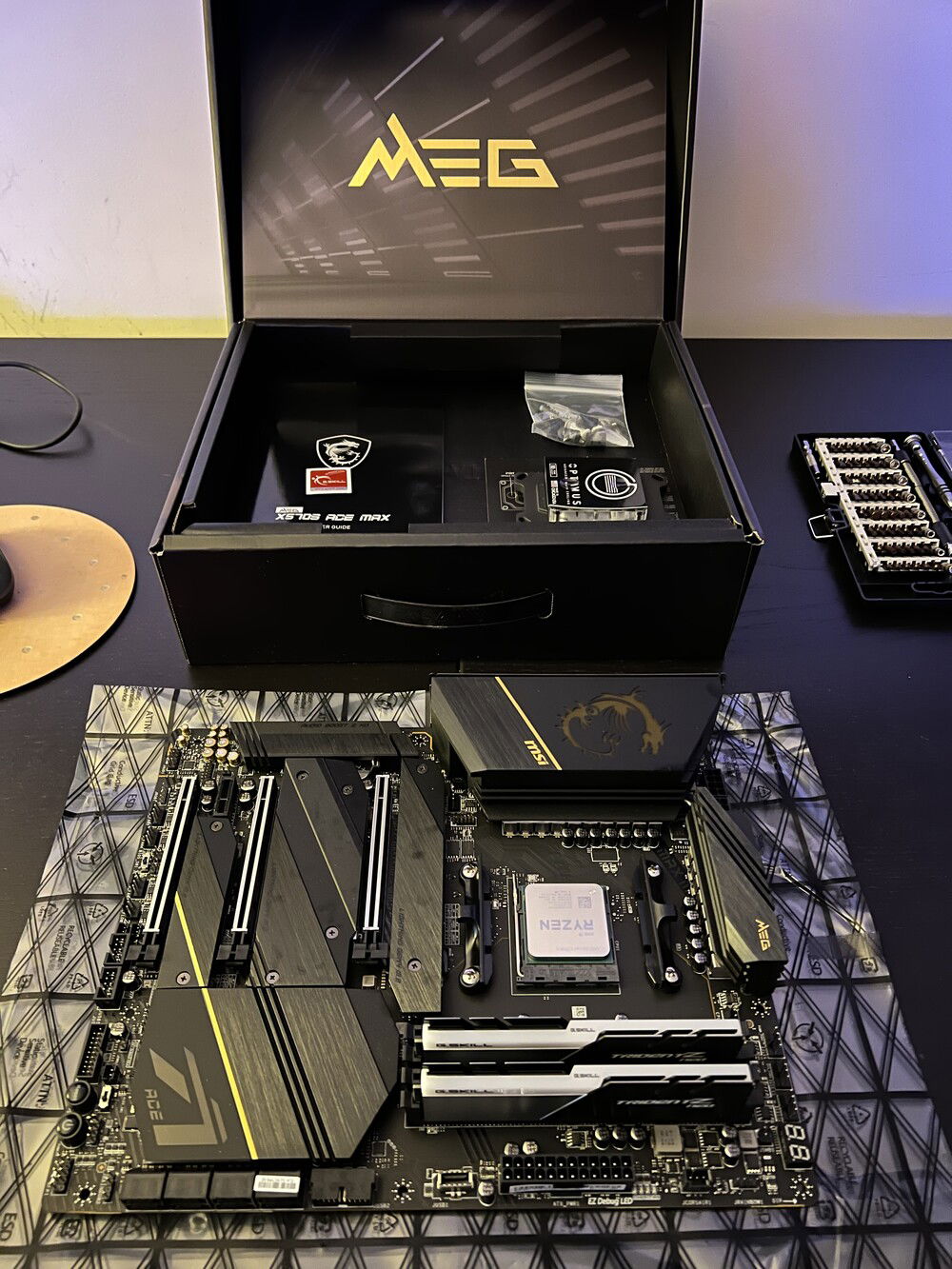

Motherboard has arrived, CPU, M2_1 SSD and RAM installed. Next step is mounting the CPU waterblock and then putting the board into the case shown last week.
Motherboard has arrived, CPU, M2_1 SSD and RAM installed. Next step is mounting the CPU waterblock and then putting the board into the case shown last week.

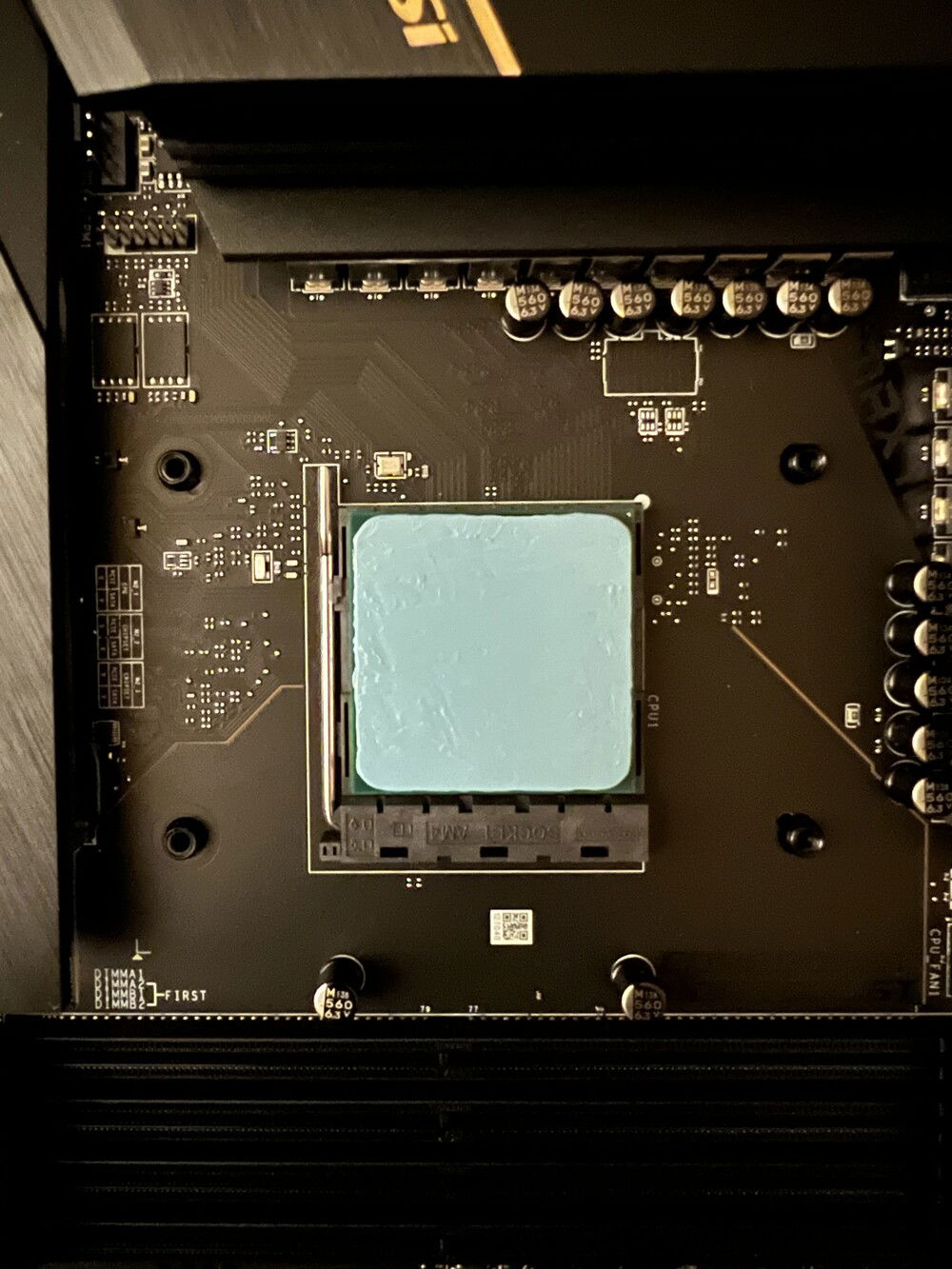

Thermal paste from Optimus PC applied
Thermal paste from Optimus PC applied

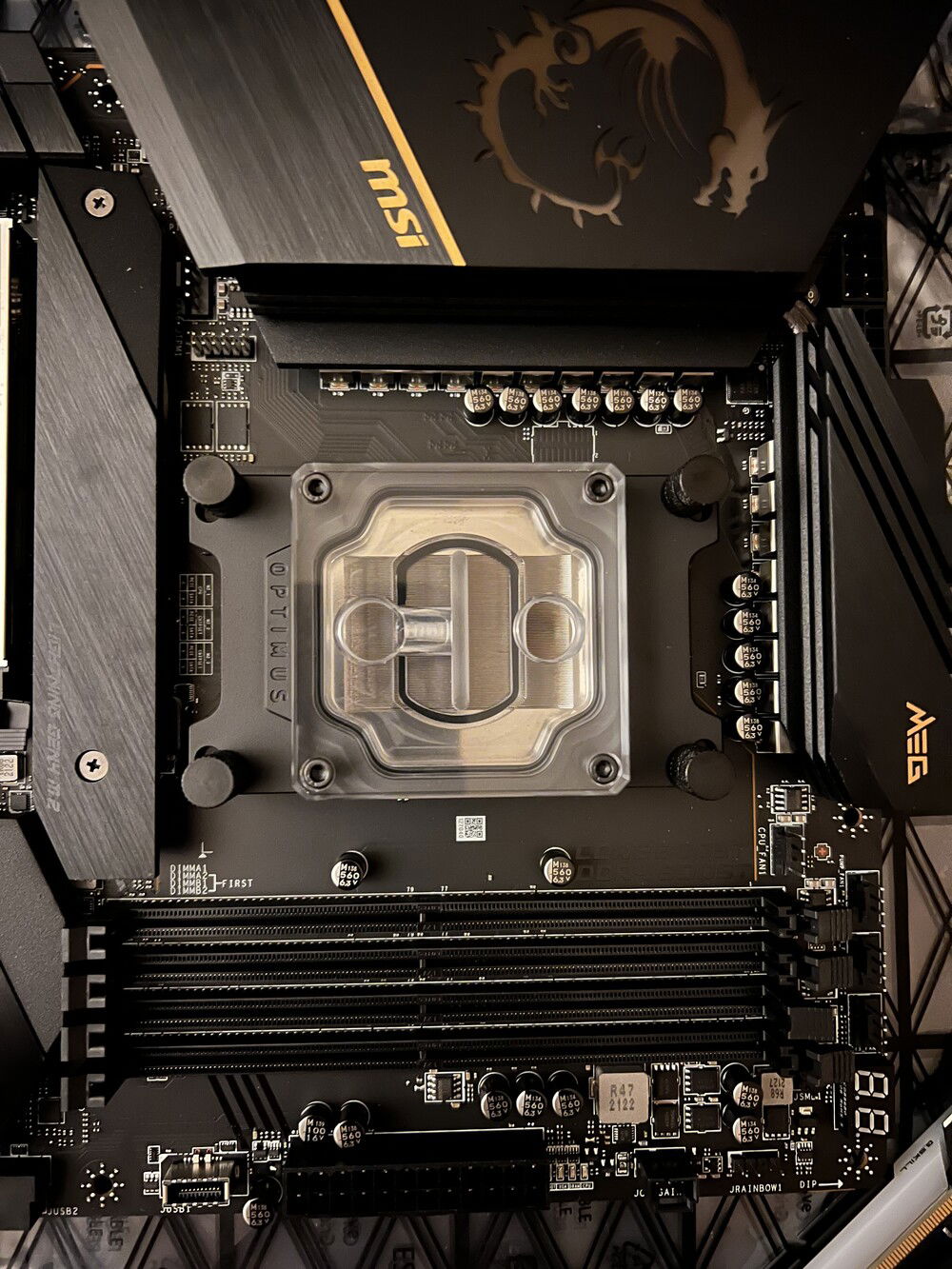

Optimus PC CPU waterblock installed
Optimus PC CPU waterblock installed

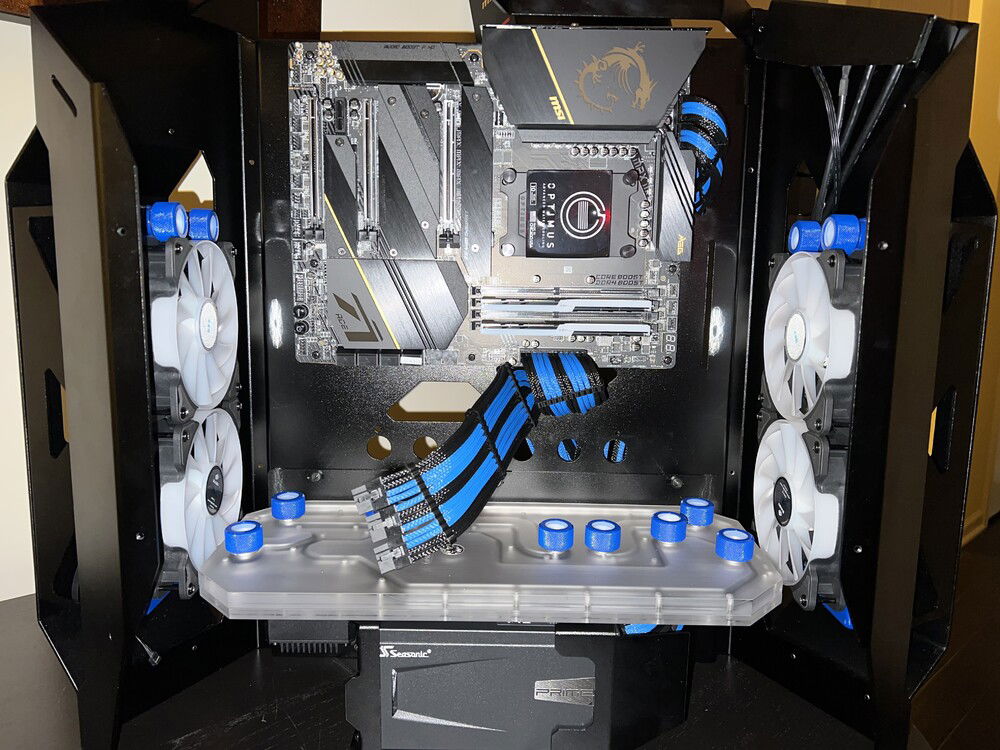

Motherboard mounted and custom cables from Titan Rig (Mod-One) installed. Good match to the fittings!
Motherboard mounted and custom cables from Titan Rig (Mod-One) installed. Good match to the fittings!

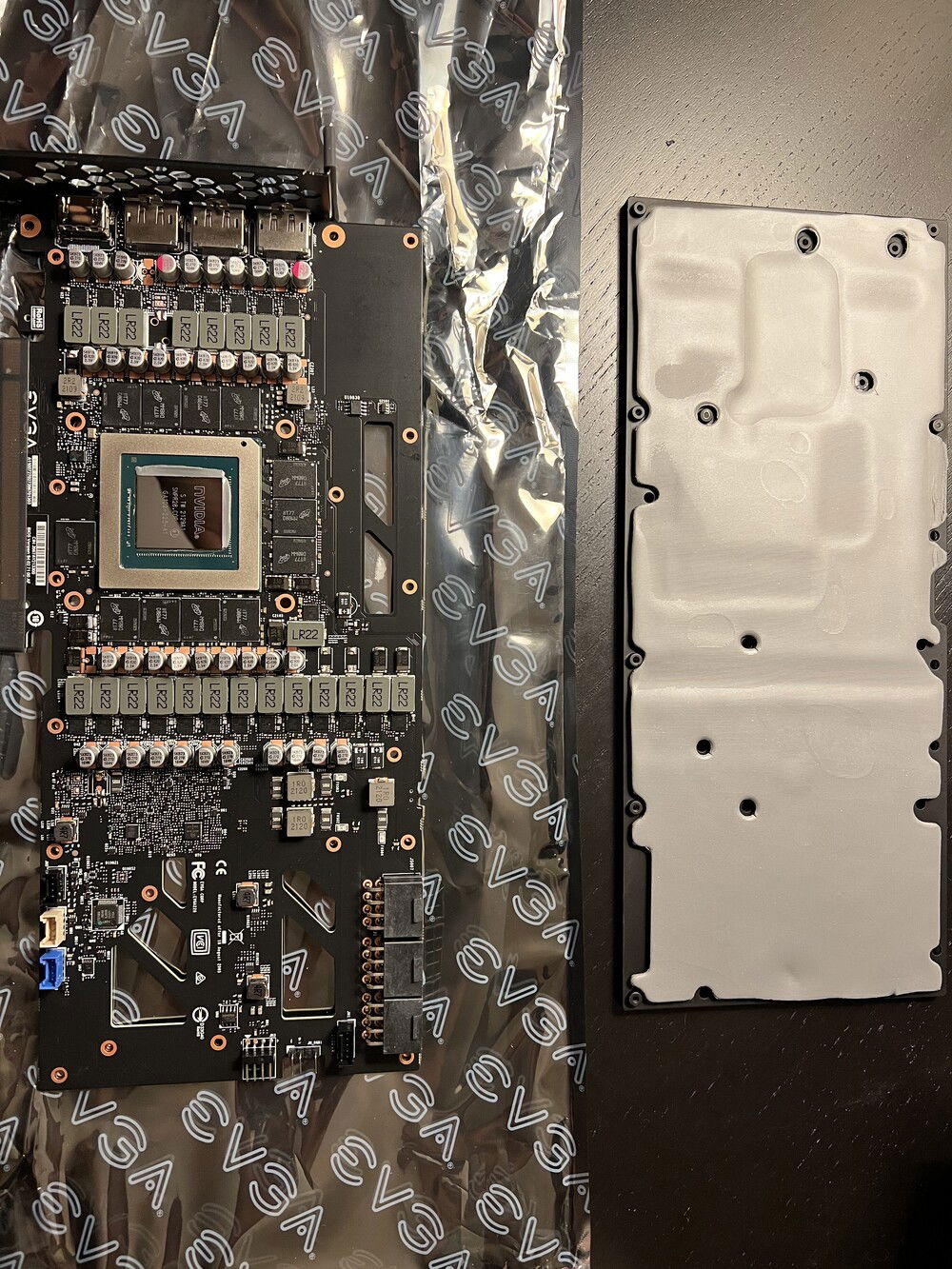

Video card torn down with Optimus backplate ready for install
Video card torn down with Optimus backplate ready for install

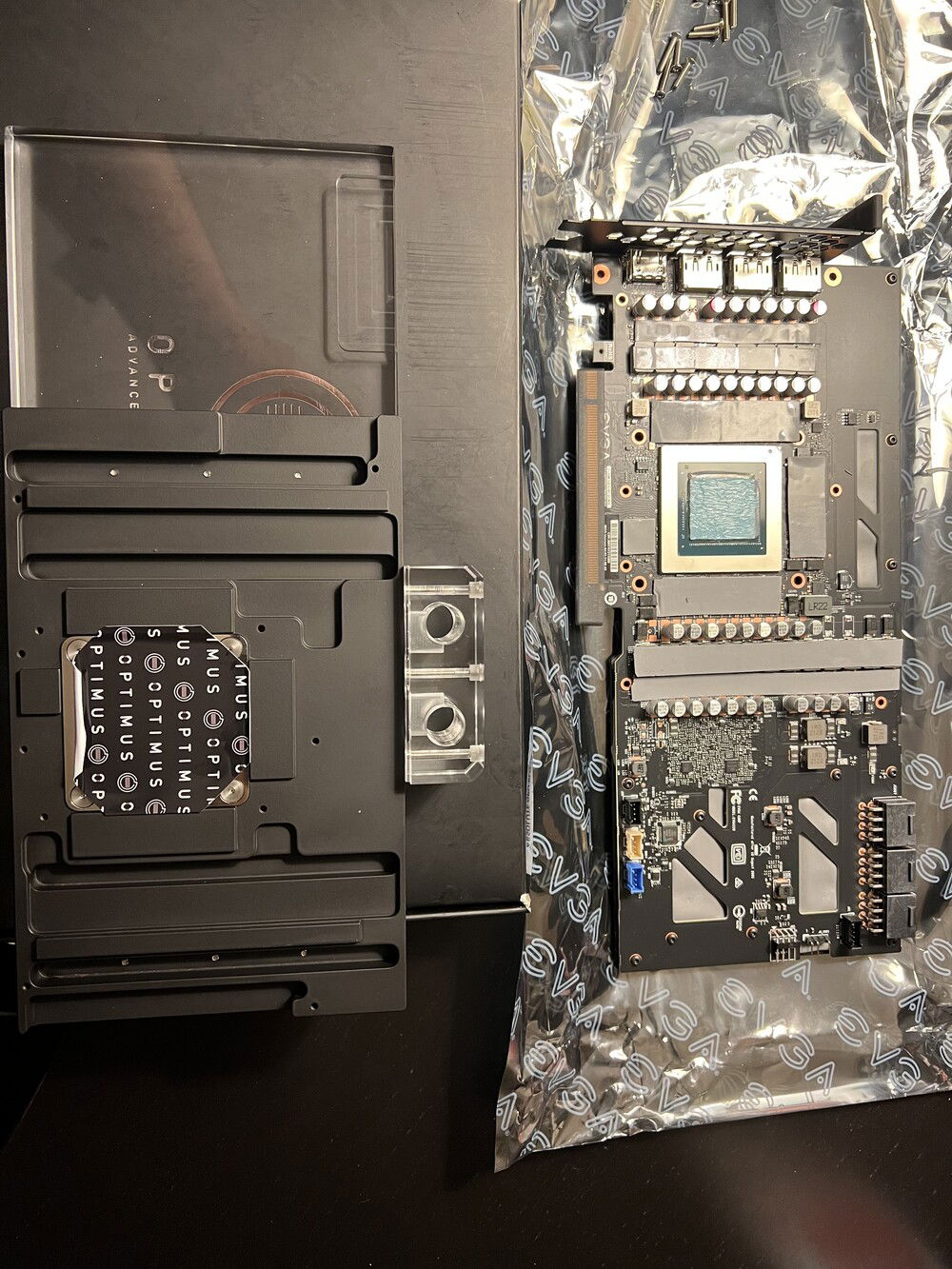

Optimus backplate installed and new thermal pads installed prior to water-block attachment
Optimus backplate installed and new thermal pads installed prior to water-block attachment

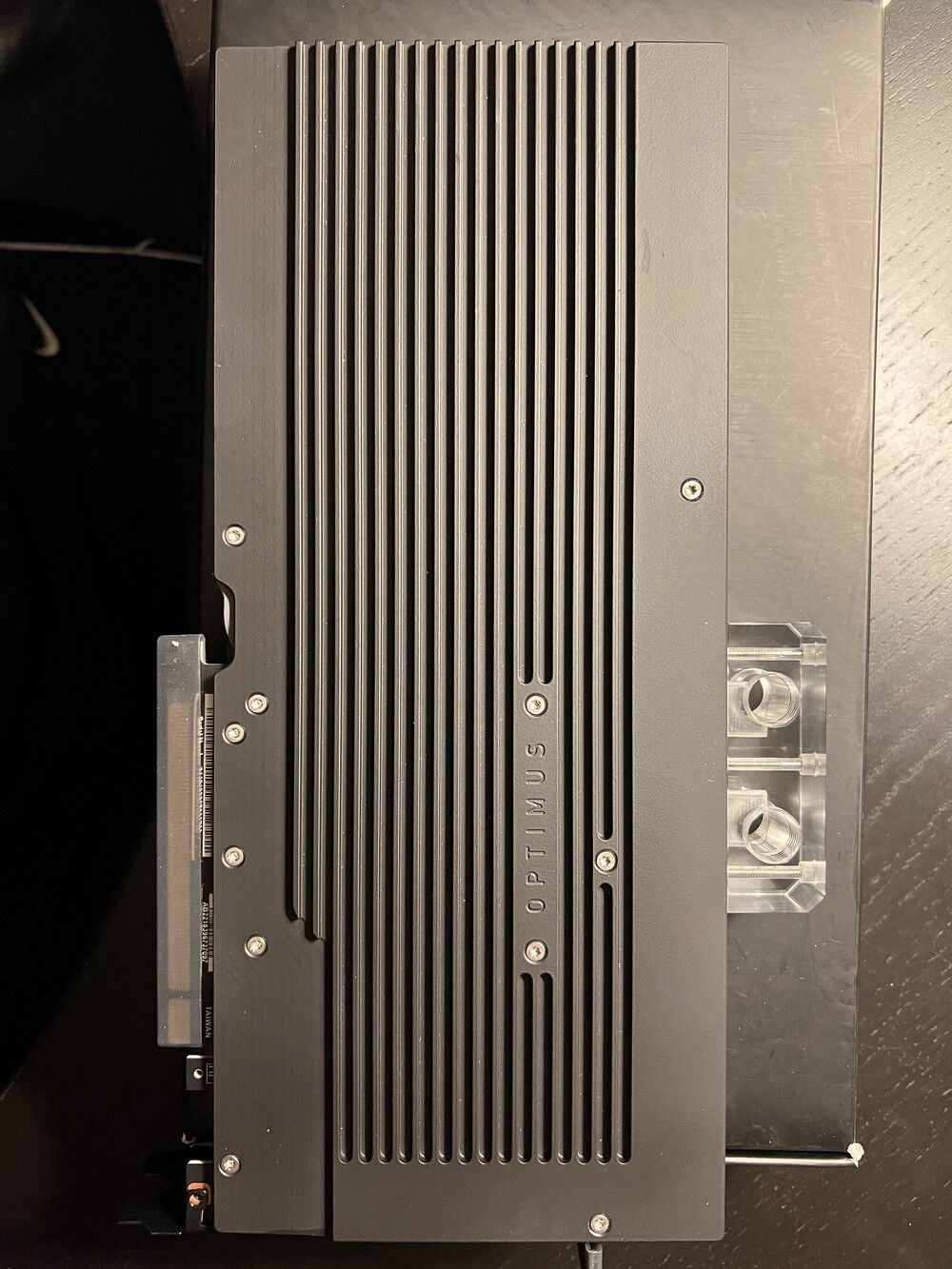

Back shot of video card after water-block install is complete
Back shot of video card after water-block install is complete

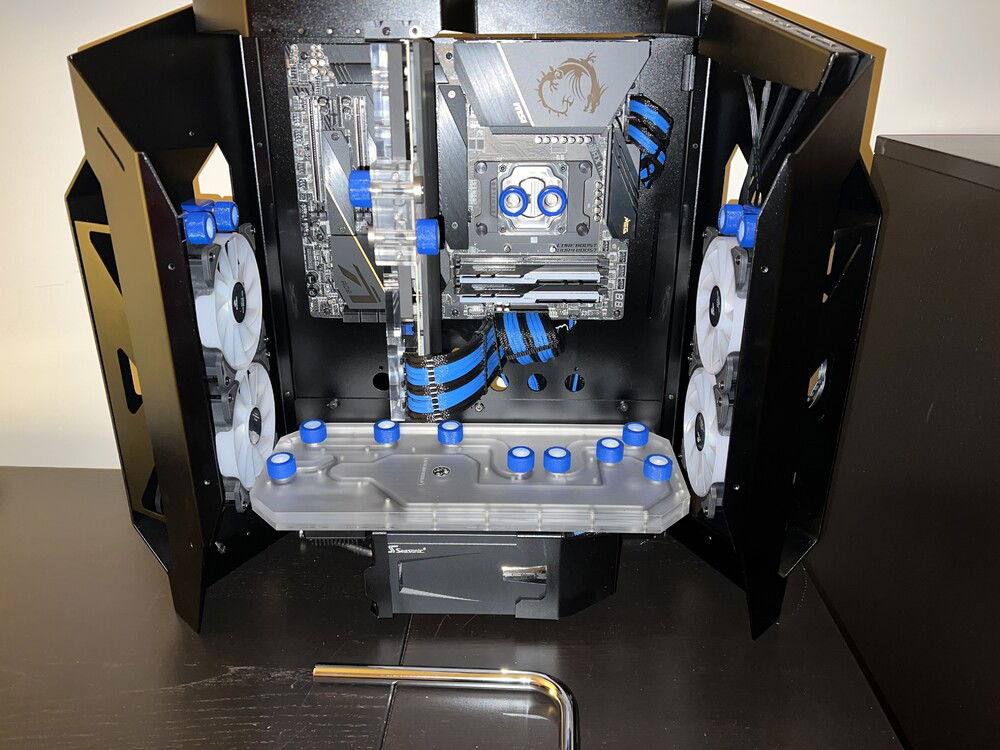

Video card installed in motherboard
Video card installed in motherboard

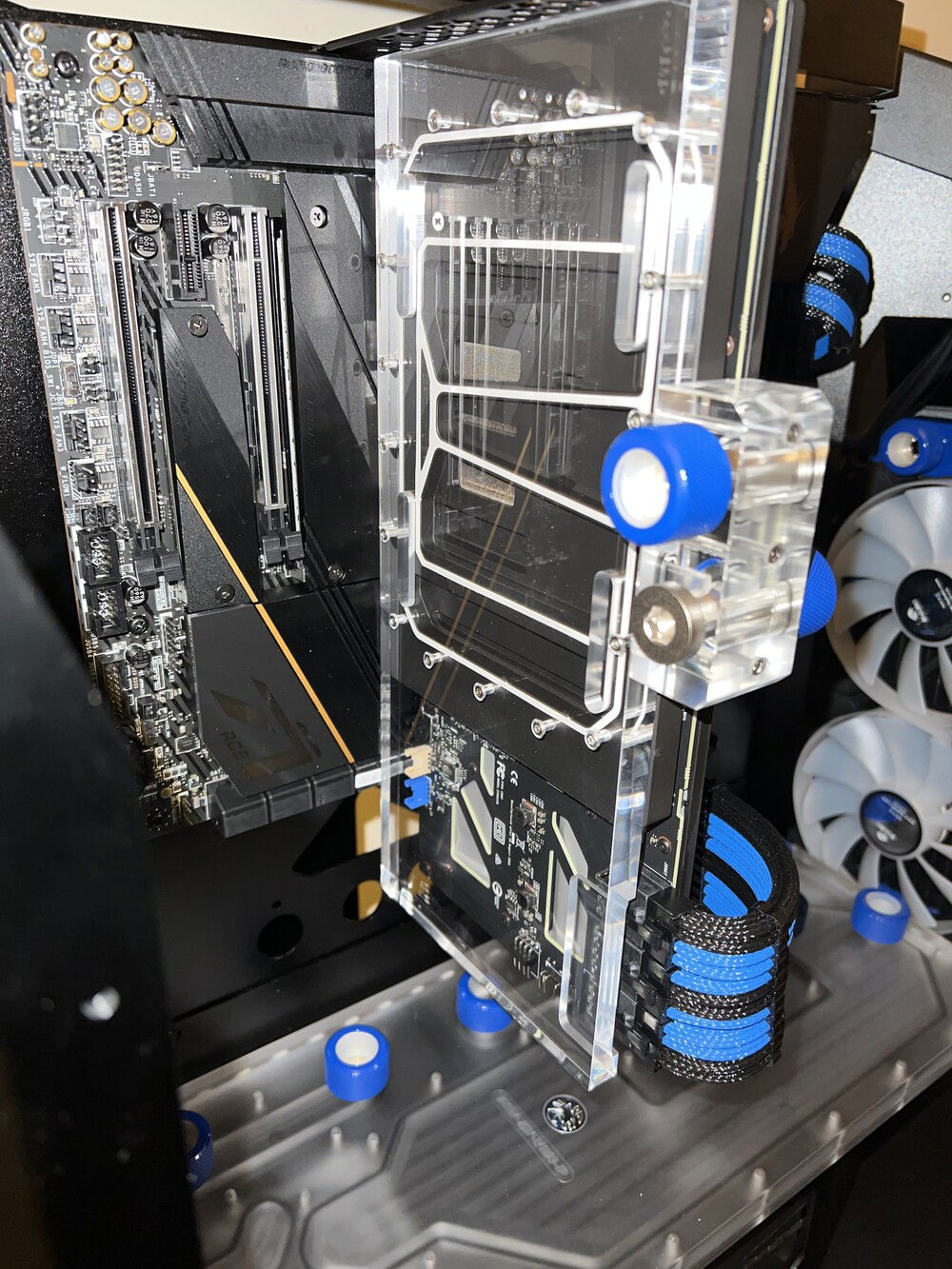

Front shot of video card after being installed on motherboard
Front shot of video card after being installed on motherboard

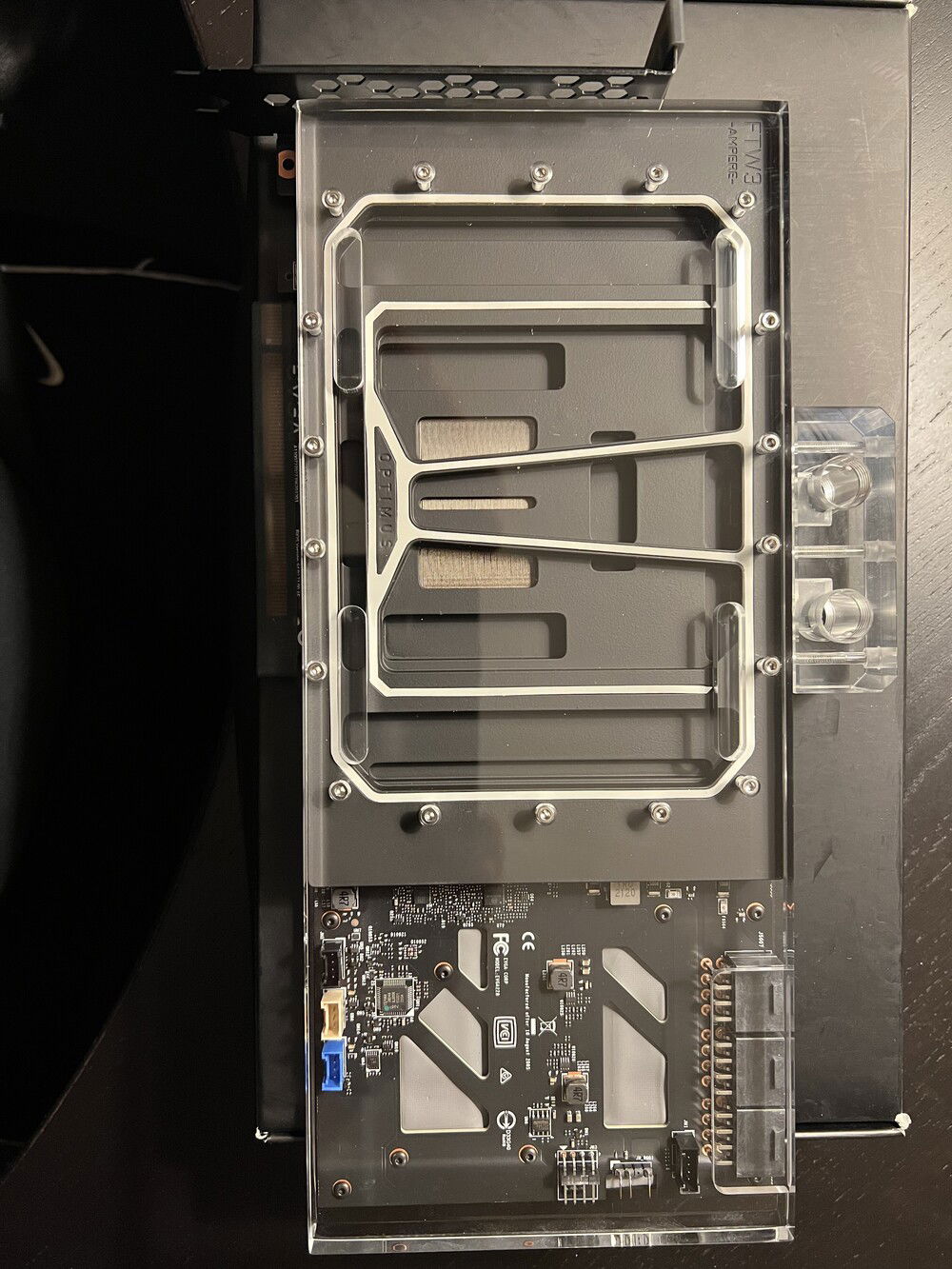

Front shot of video card after water-block install is complete
Front shot of video card after water-block install is complete

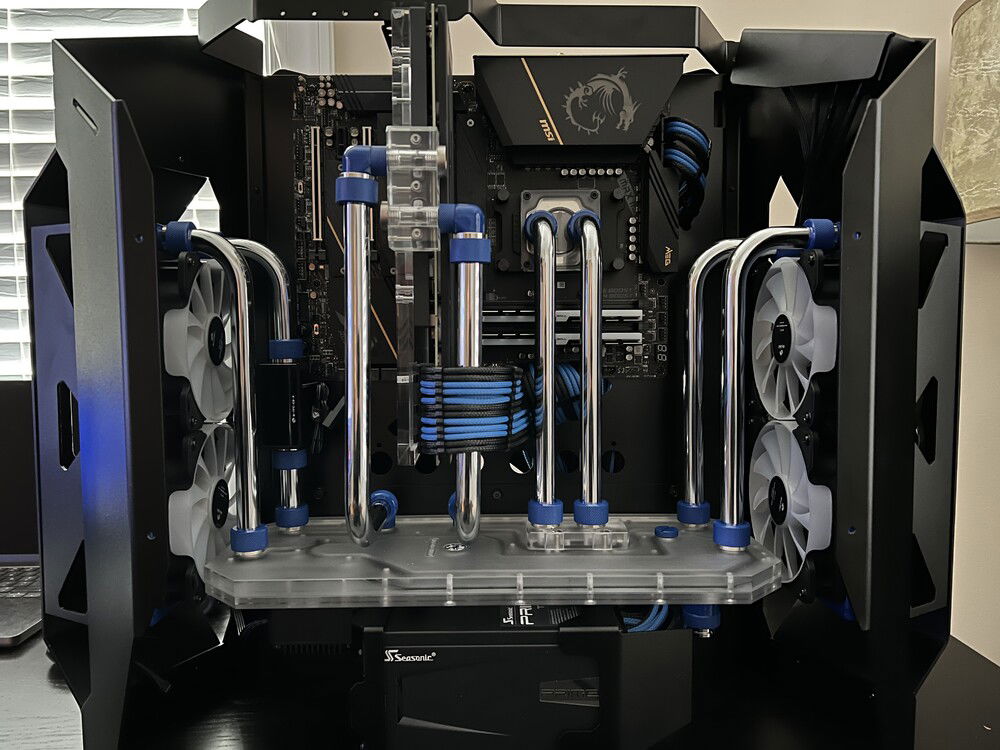

Rigid metal piping installed. Learning how to use the pipe cutter with precision took some practice. Had to order extra piping after I botched several pieces. I used pre-bent piping to avoid that mess.
Rigid metal piping installed. Learning how to use the pipe cutter with precision took some practice. Had to order extra piping after I botched several pieces. I used pre-bent piping to avoid that mess.

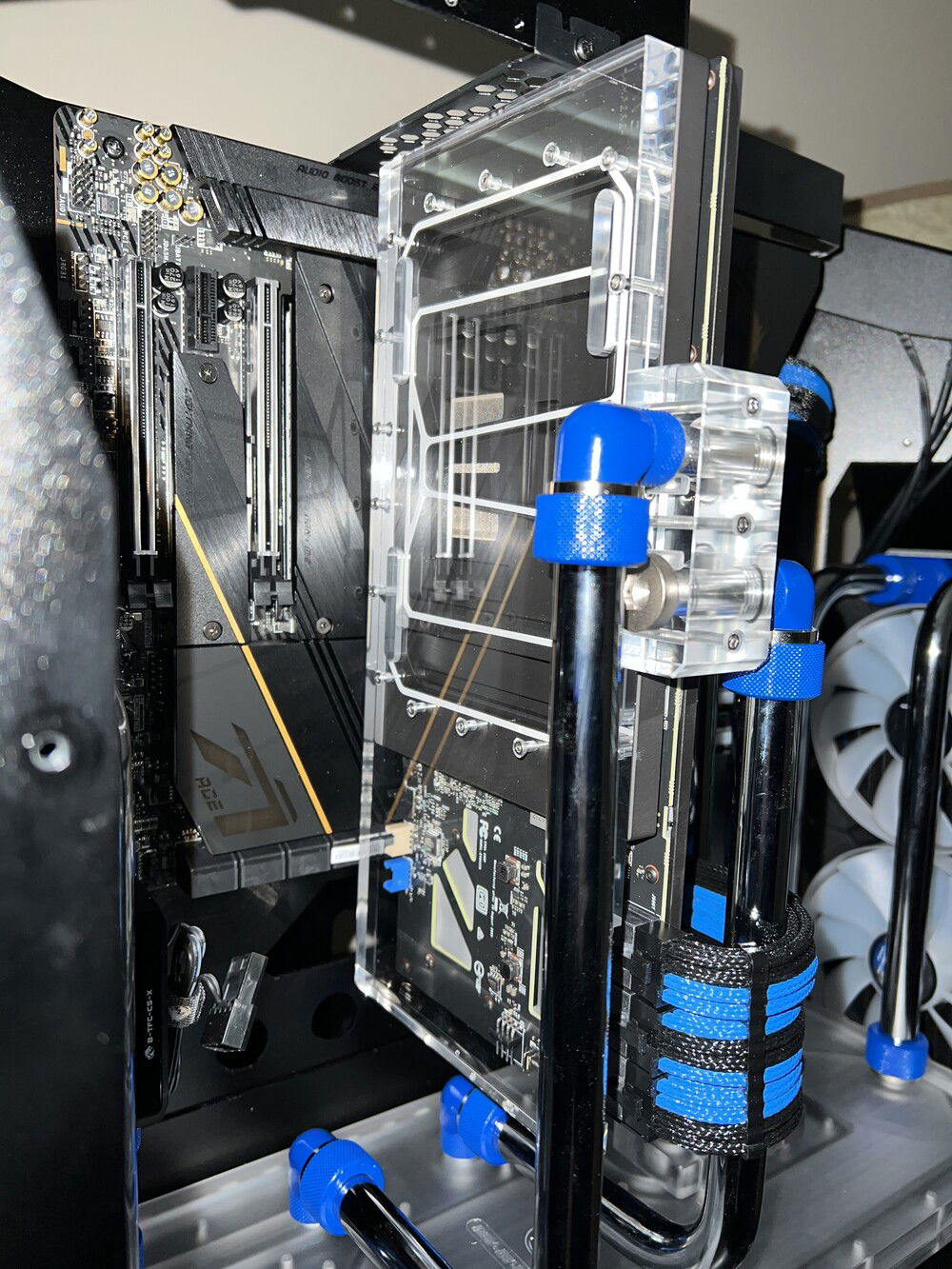

Front shot of video card after piping completed
Front shot of video card after piping completed

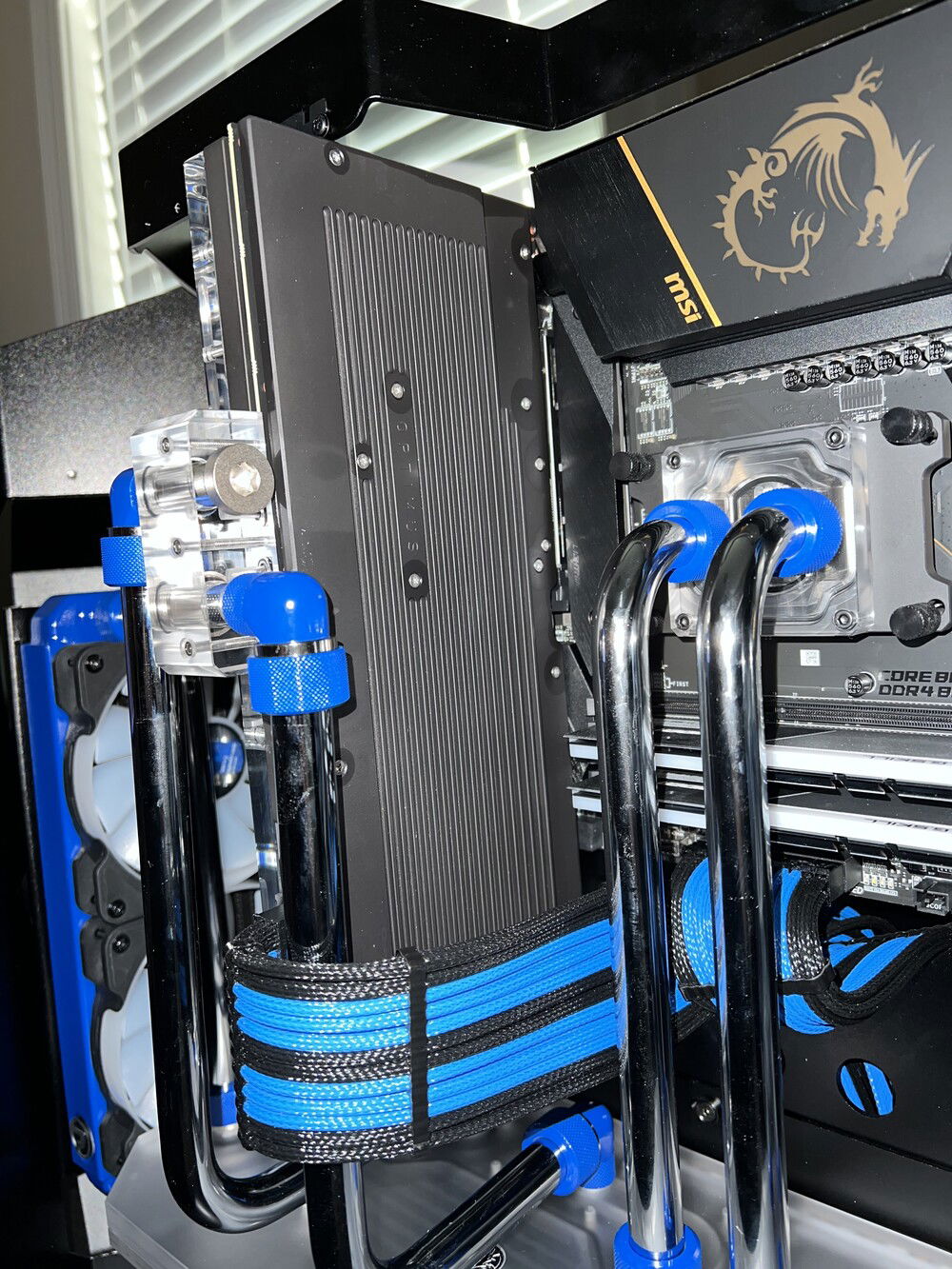

Back shot of video card after piping completed
Back shot of video card after piping completed

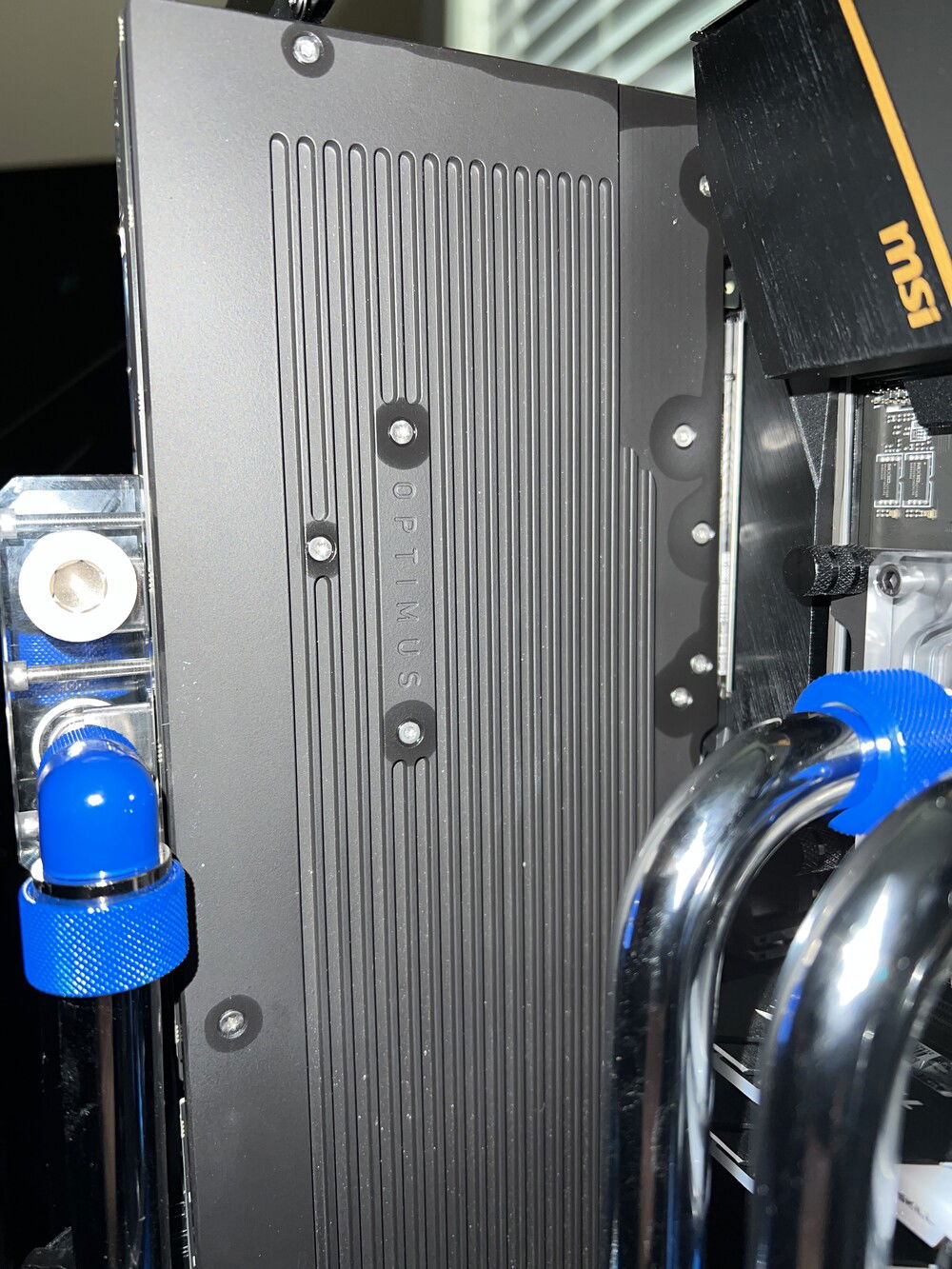

Closeup of backplate
Closeup of backplate

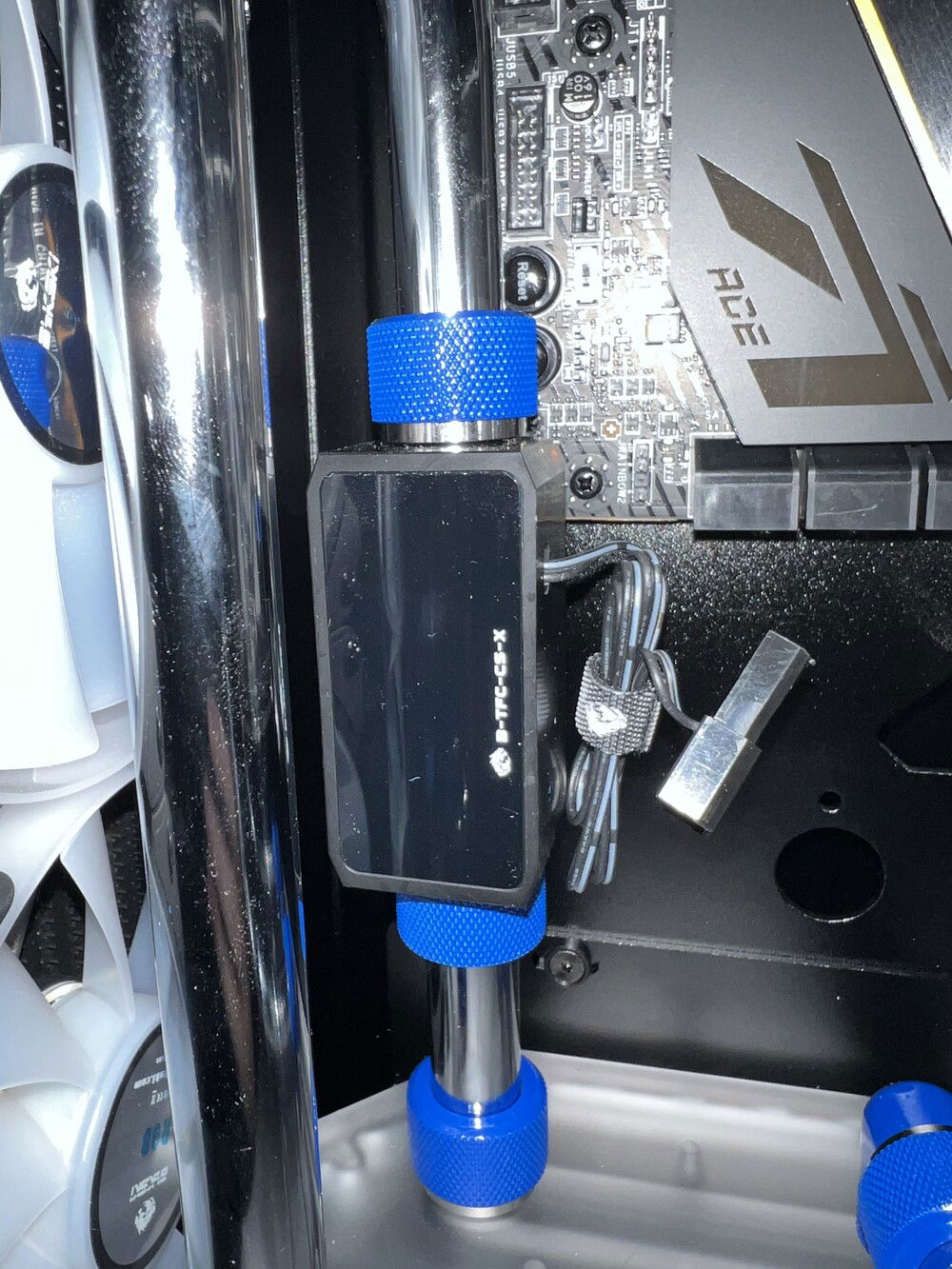

Bykski flow meter closeup
Bykski flow meter closeup

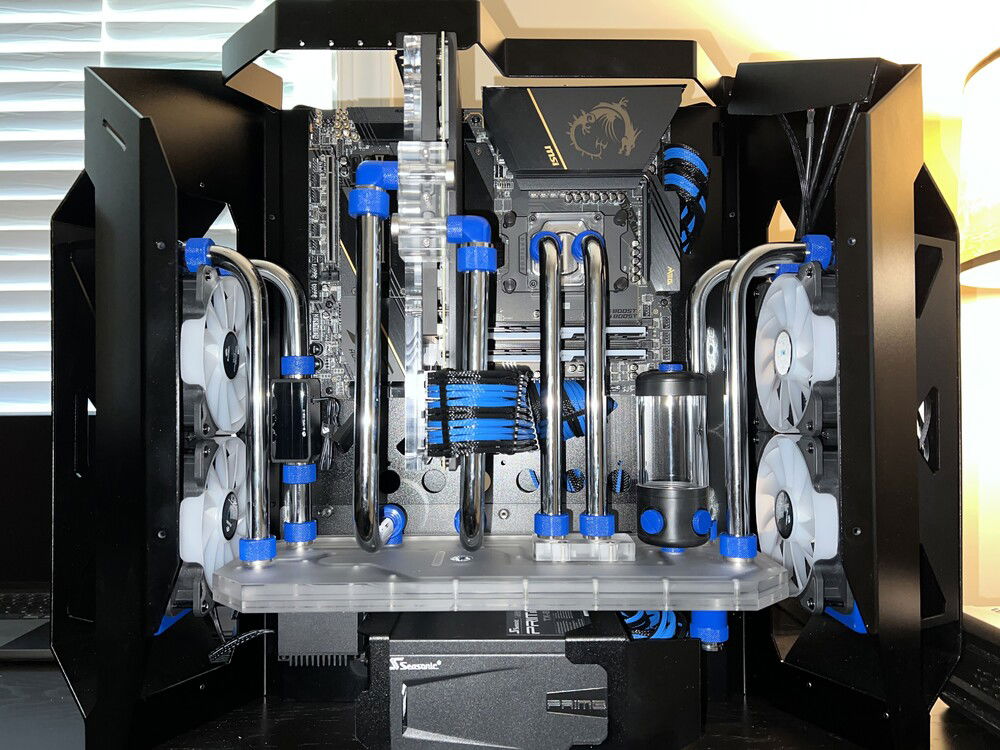

Reservoir installed to make it easier to fill and top off loop. Distro plates aren't very easy to fill by themselves and this should help with pressure fluctuations if I put a relief valve on top of the reservoir.
Reservoir installed to make it easier to fill and top off loop. Distro plates aren't very easy to fill by themselves and this should help with pressure fluctuations if I put a relief valve on top of the reservoir.

Black and True Blue Bykski Venemo

Color(s): Black Blue
RGB Lighting? Yes
Theme: Color
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Build Updates

Unboxing & Initial Assembly

Video Card Water block install and piping

Hardware

CPU
$ 749.00
AMD - Ryzen 9 (5950X)
Socket: AM4
Cores: 16
Motherboard
$ 449.99
MSI - Ace Max (x570S)
Chipset: X570
CPU Socket: AM4
Size: ATX
Memory
$ 489.99
G.Skill - Trident Z Neo (4000MHz) (White/Black/RGB)
Type: DDR4
Capacity: 64 GB
Graphics
$ 999.95
EVGA - GeForce FTW3 Ultra Gaming
Chip Manufacturer: NVIDIA
Chip: RTX 3080 Ti
Interface: PCIe x16
Storage
$ 179.99
Samsung - 980 Pro
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 245.60
Seasonic - Prime Ultra
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Titanium
Case
$ 439.99
Bykski - CE-Veneno-MX
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 78.36
Bykski - RBW Fan (6x)
Size: 120 mm
Cooling
$ 100.00
Bitspower - Tubing (2x)
Type: Custom Loop
Cooling
$ 57.98
Bykski - Digital Display Flow Meter (B-TFC-CS-X)
Type: Temperature Sensor
Size (WxHxD): 100 mm
Cooling
$ 174.92
Bykski - Distro Plate
Type: Waterblock
Cooling
$ 378.00
Optimus - Absolute FTW3 3080/3090
Type: GPU Block
Cooling
$ 134.00
Optimus - Foundation Ryzen
Type: CPU Block
Cooling
$ 145.44
Primochill - Fittings (18x)
Type: Custom Loop
Cooling
$ 113.52
Primochill - Radiators (2x)
Type: Custom Loop
Estimated total value of this build:
$ 4,736.73
