PIP BOY 2000 N-Z



Hello everyone,

Cooperation project with Nvidia Taiwan

Fallout76 game theme.

I am honored to have been invited to participate in the Nvidia Geforce Taiwan TGS event for a modding project. For this project, I wanted to try a different style than usual and took the theme of Fallout 76 as the starting point.

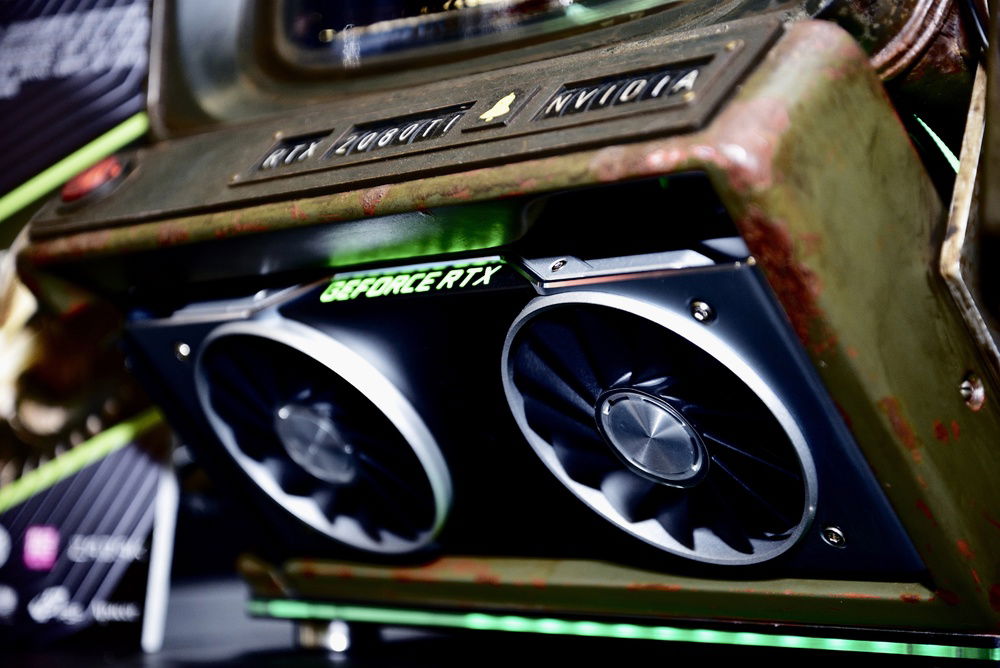

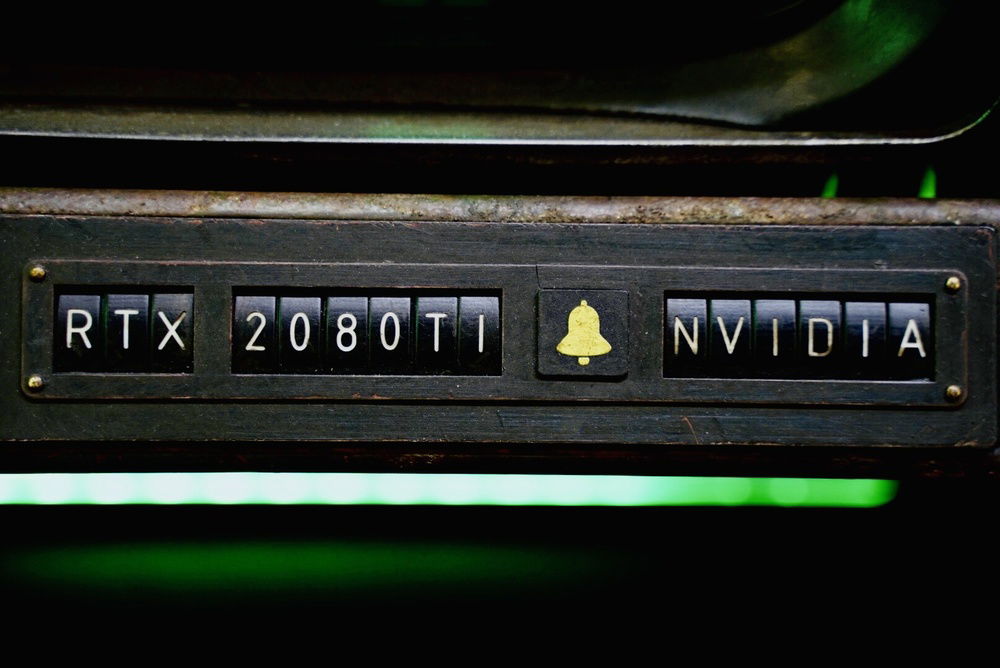

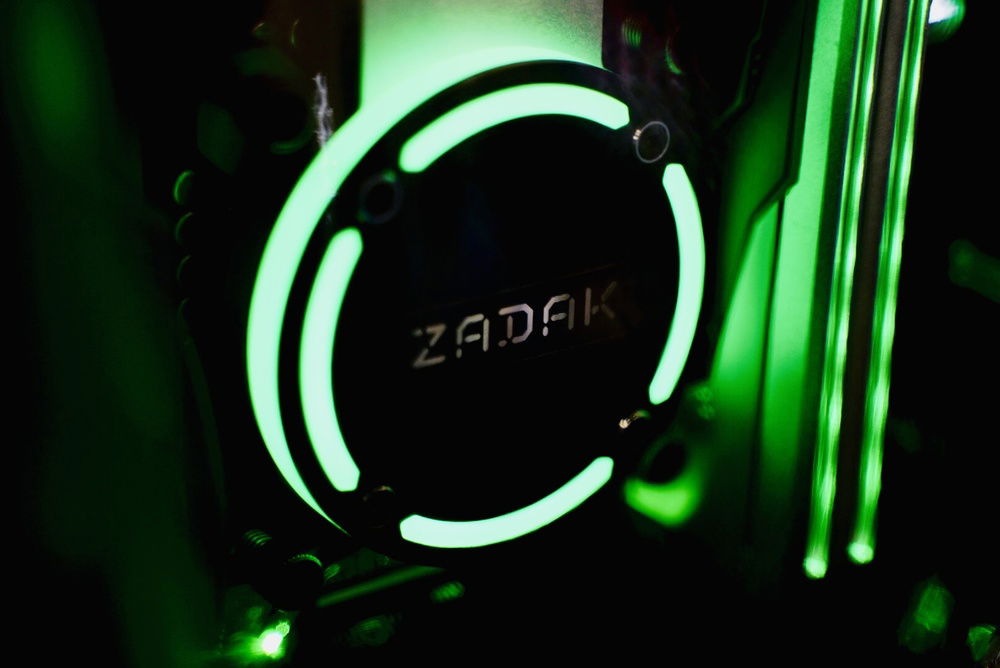

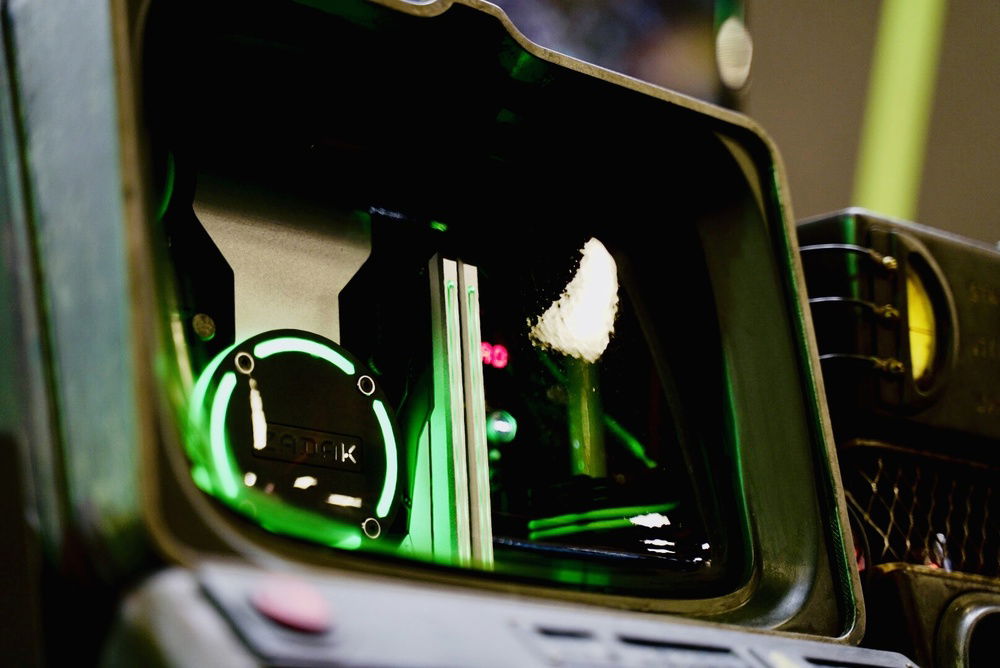

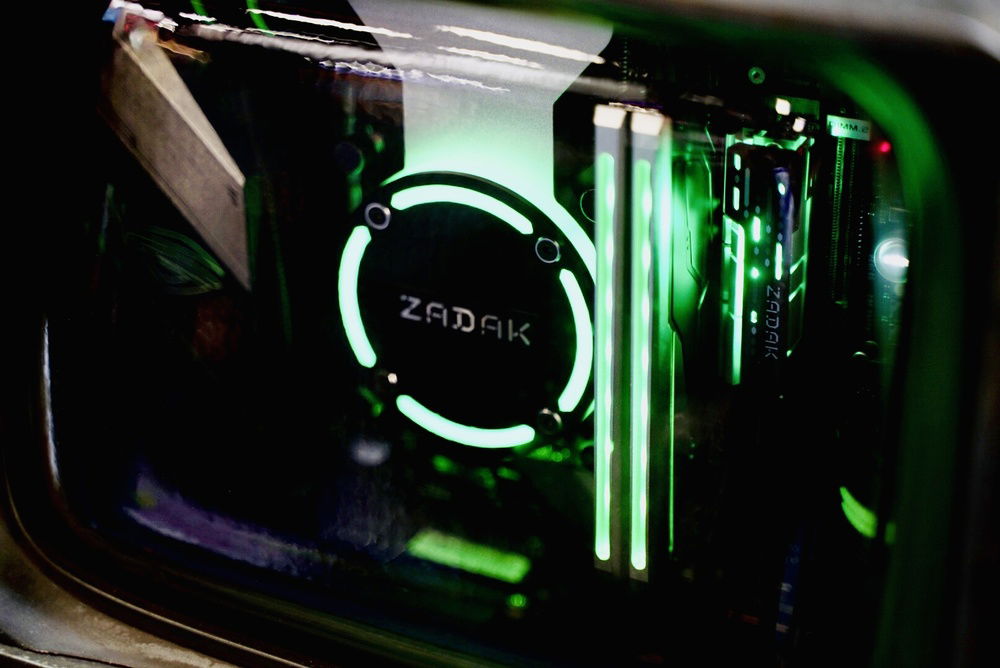

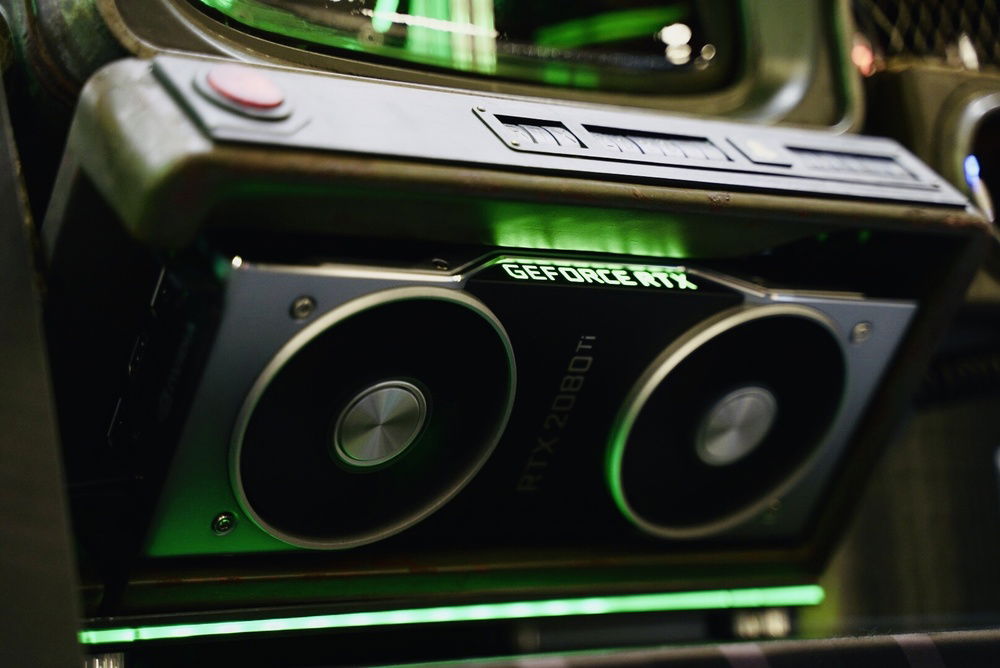

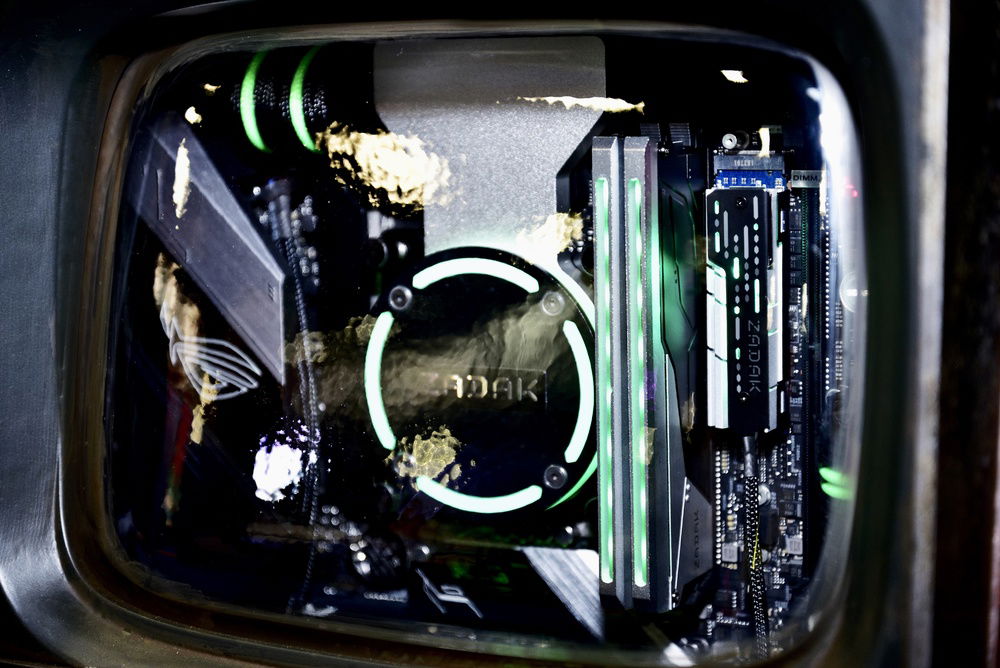

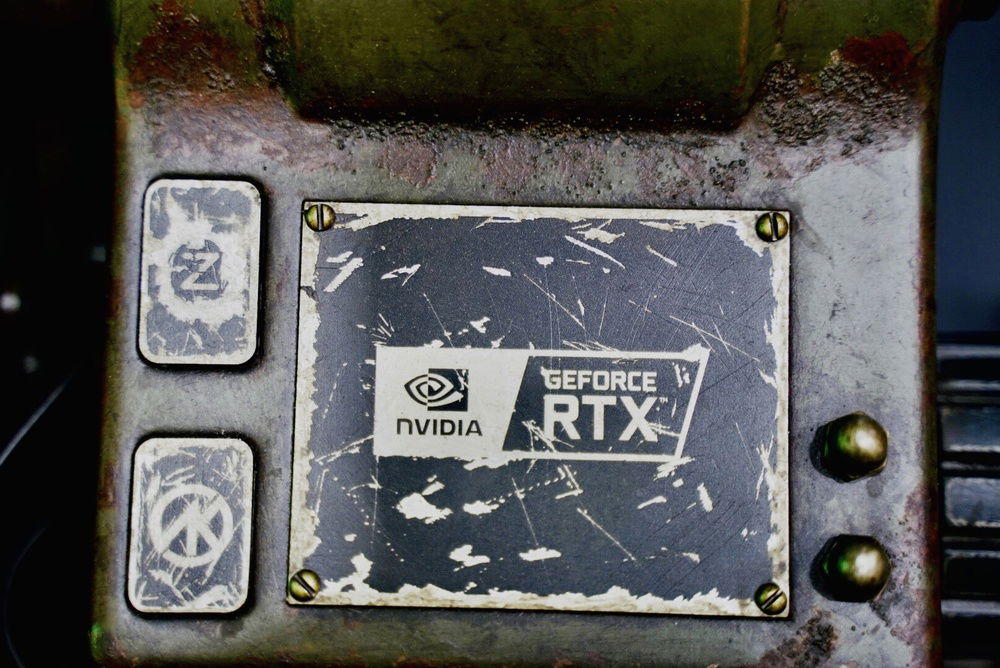

To showcase the Geforce RTX 2080Ti and the ZADAK MOAB II WATER-COOLED PC, I thought of the classic in-game item PIP BOY 2000 as a fitting concept for the mod. I decided to focus on this concept to complete the mod's highlight. The PIP BOY 2000's screen was perfect for showcasing the internal hardware of the MOAB II WATER-COOLED PC case's front, and the lower part of the tape storage was designed to integrate the Geforce RTX 2080Ti, which also highlighted the graphics card's features.

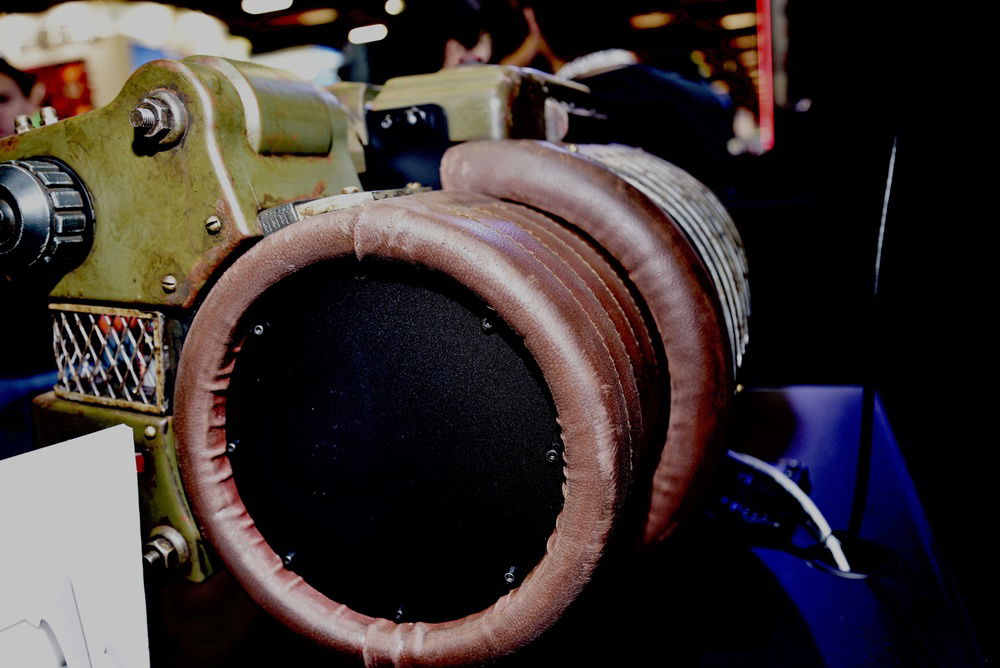

For this mod, I wanted to try an aging style that I had not done before, which was challenging to implement. I used a lot of 3D printing to showcase all the assembled components at the bottom, with each component taking approximately 15-23 hours, and a total of about 20 small and large parts.

From 3D printing, filling, sanding, and painting, the painting process alone took ten layers, which was very time-consuming. I also had to handle rust and aging effects, and the filling process required waiting for 6-8 hours for complete hardening before sanding. Each component took about two weeks to complete.

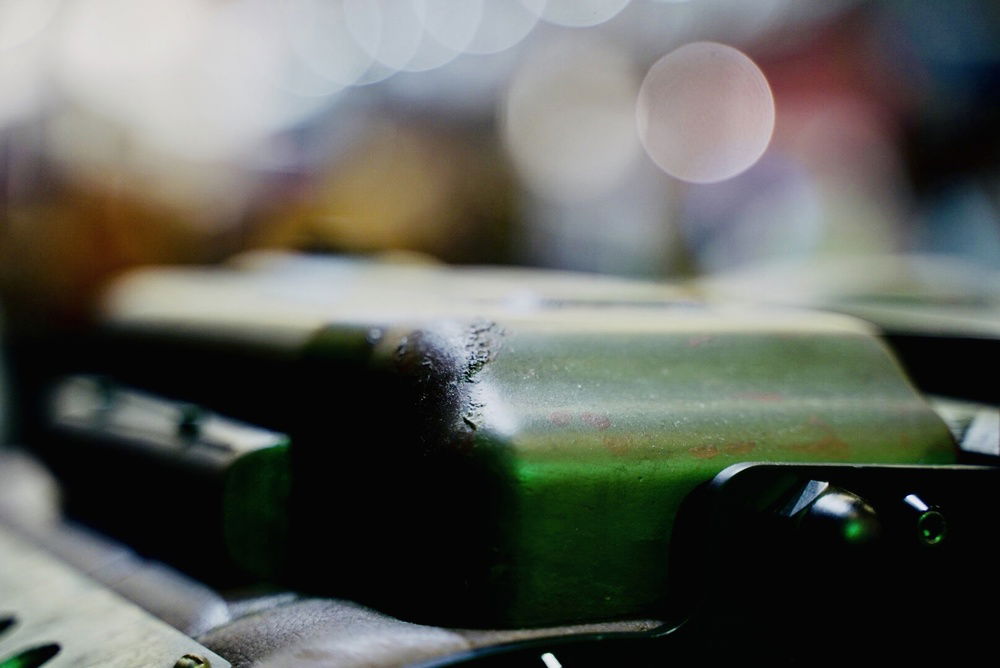

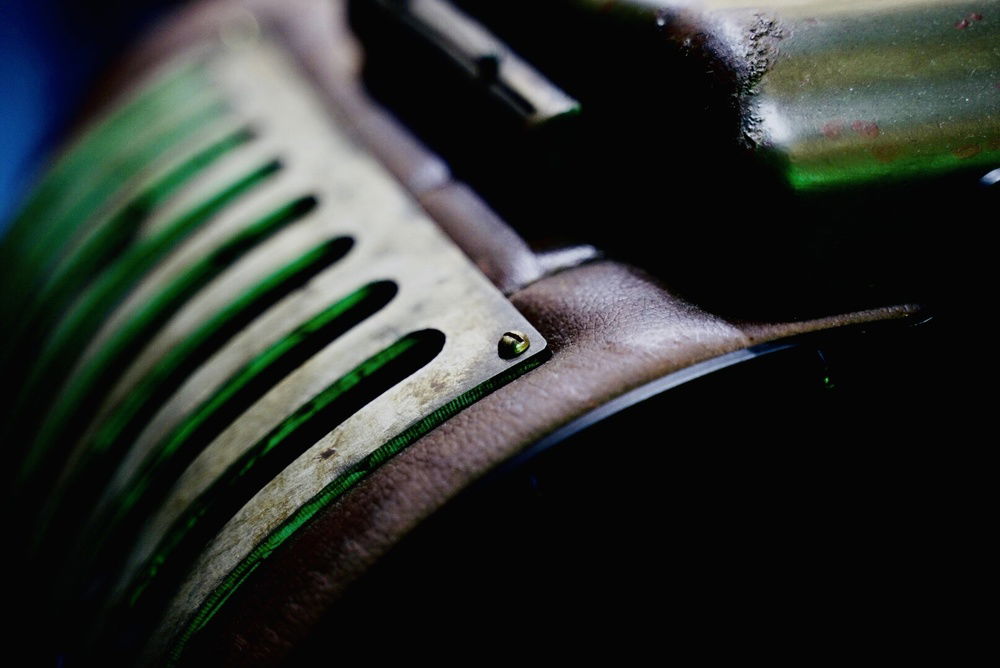

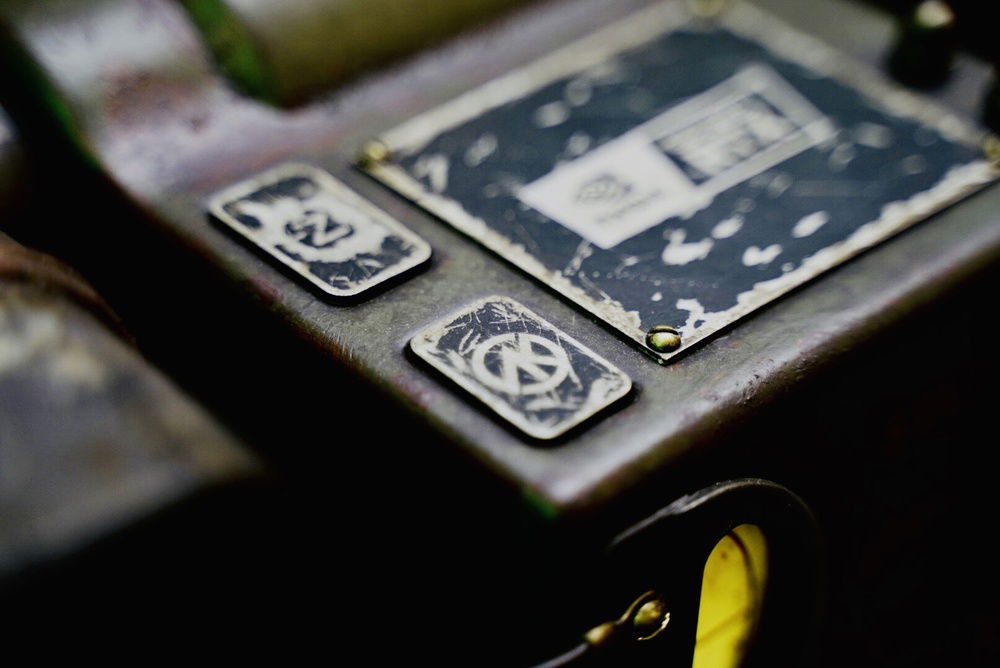

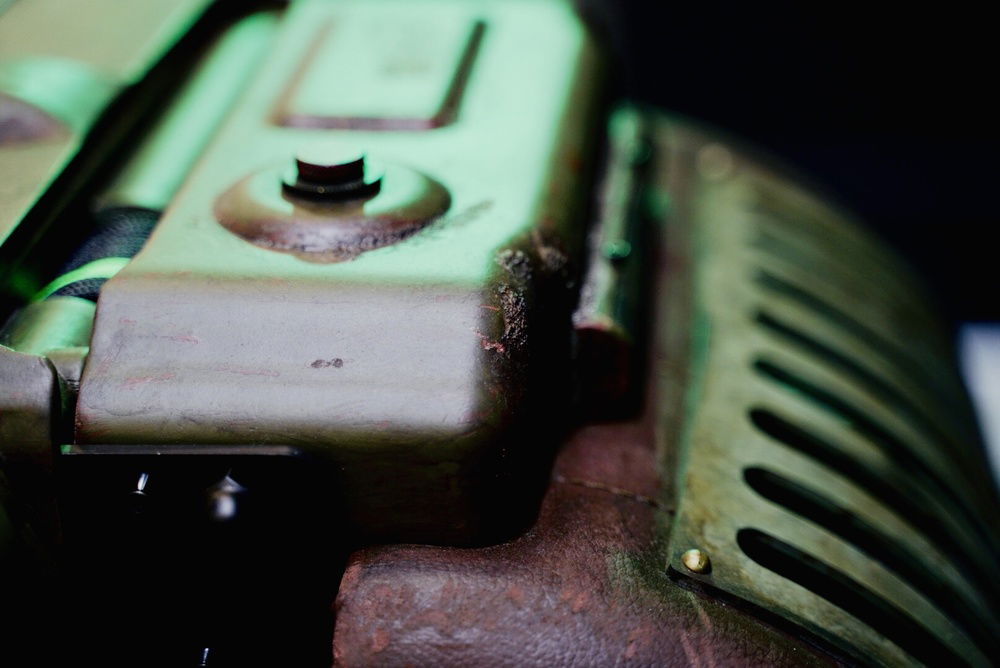

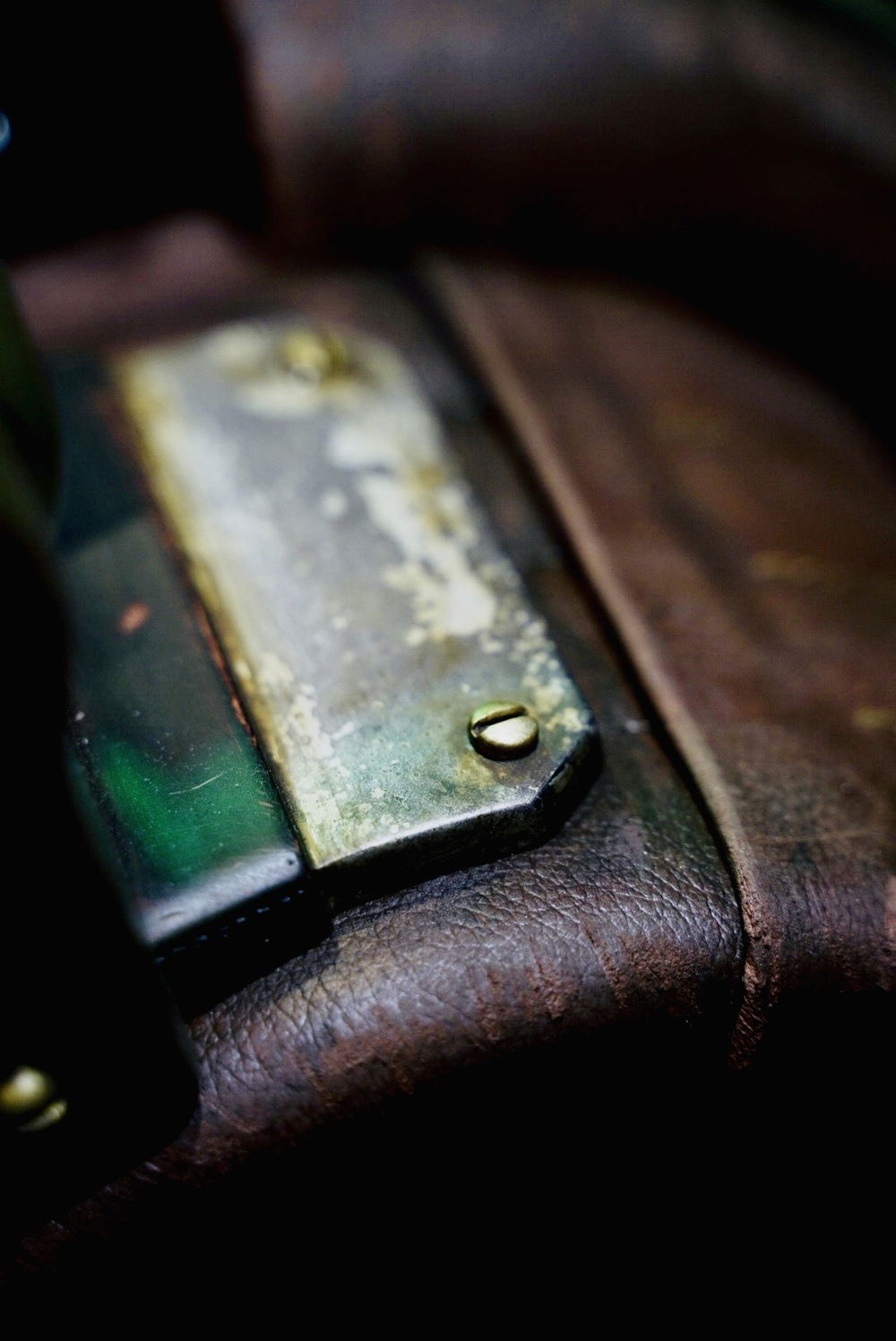

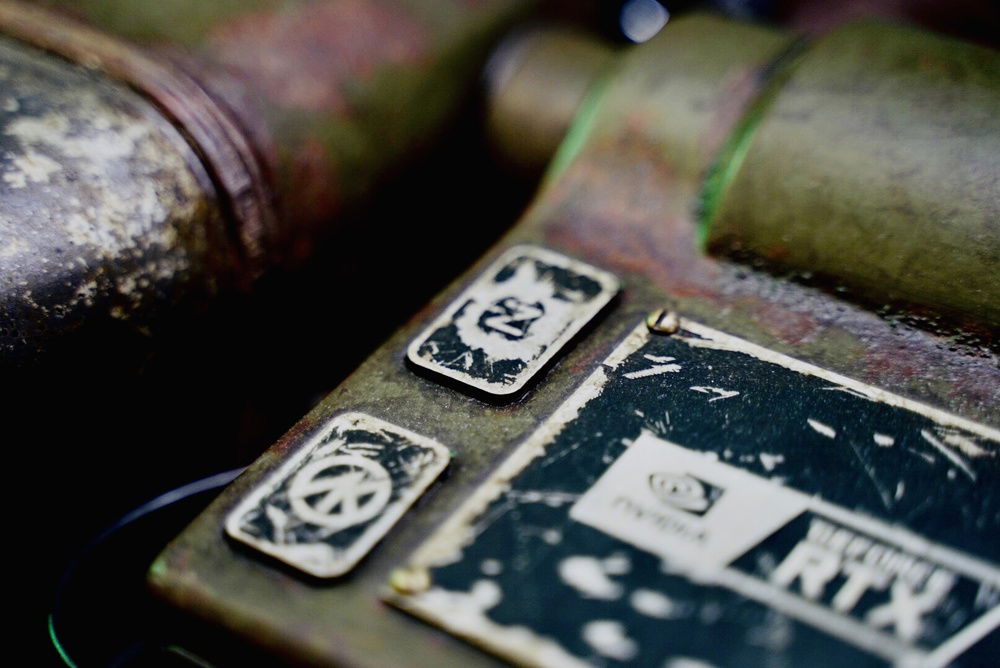

For coloring, I also added a rust effect, which took approximately two weeks to complete. I started with epoxy primer, followed by topcoat primer, rust effect paint surface treatment, metal rust paint, effect paint, topcoat, damaged paint scraping, aging effect treatment, and finally, a layer of transparent paint.

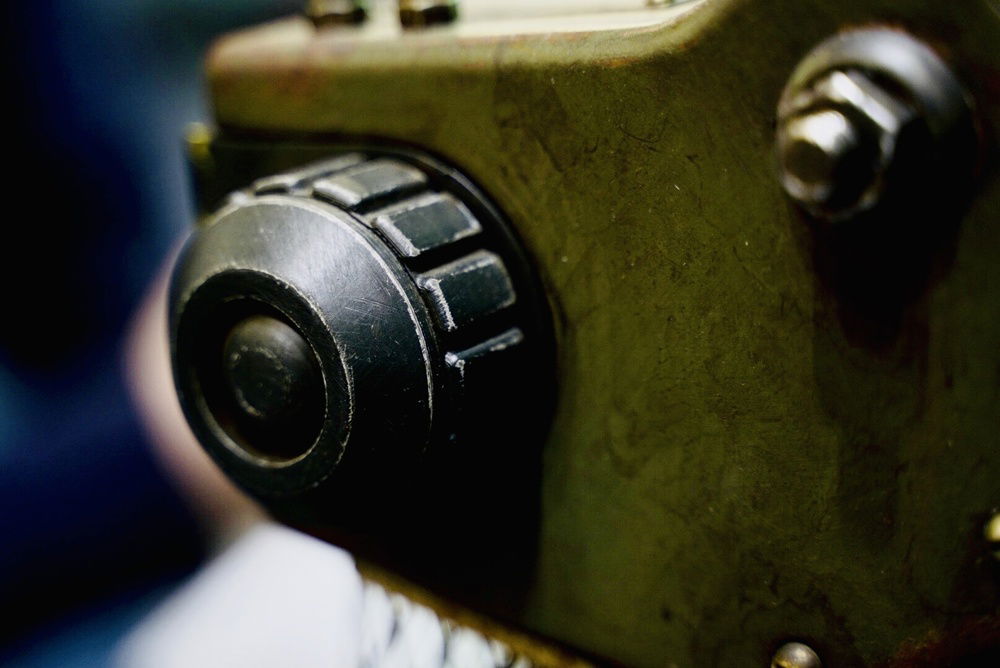

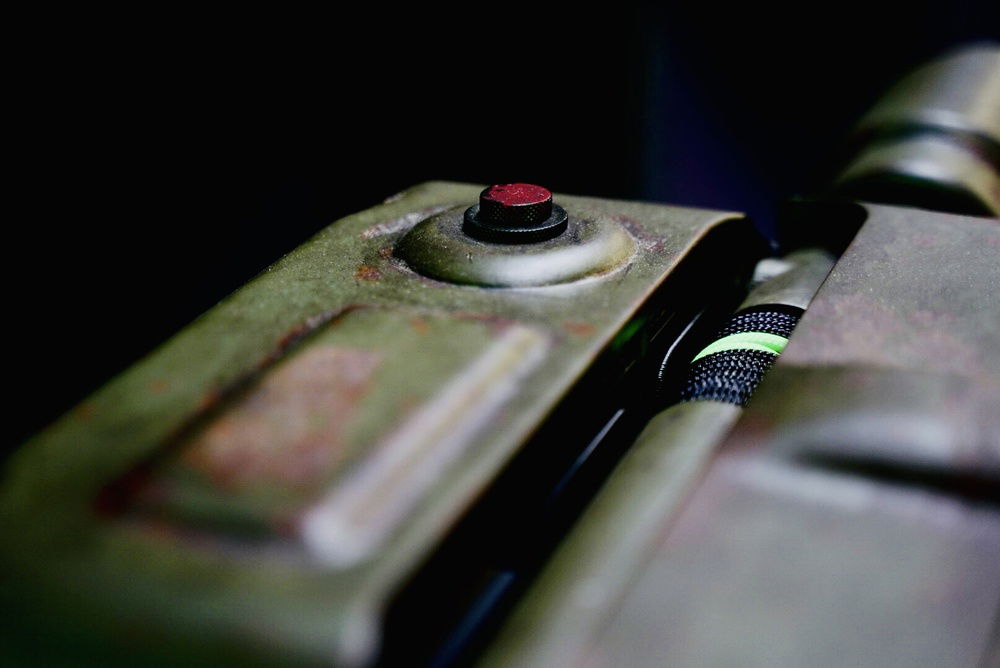

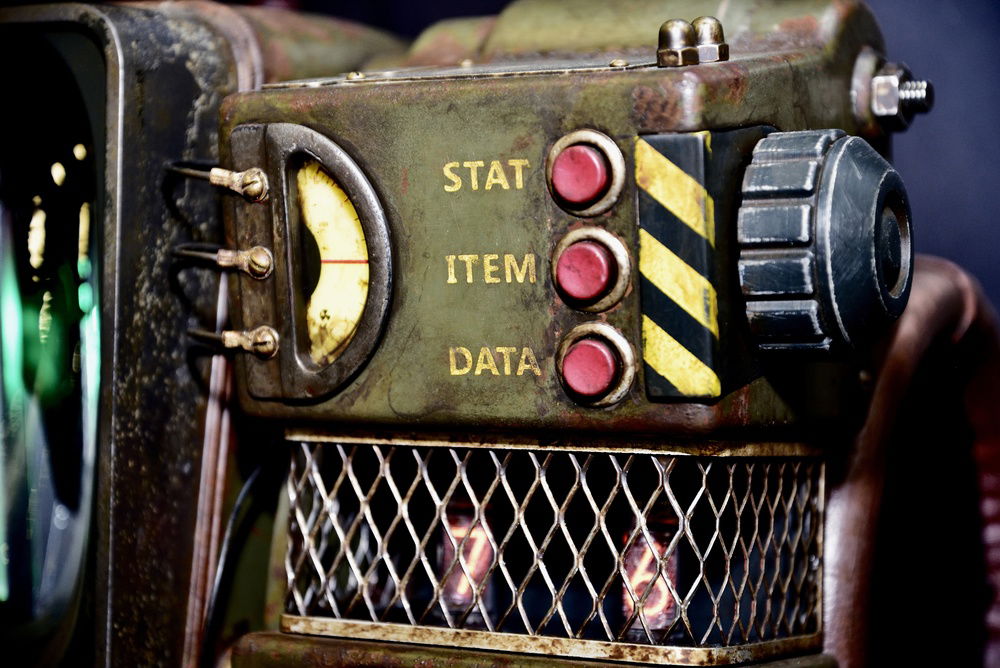

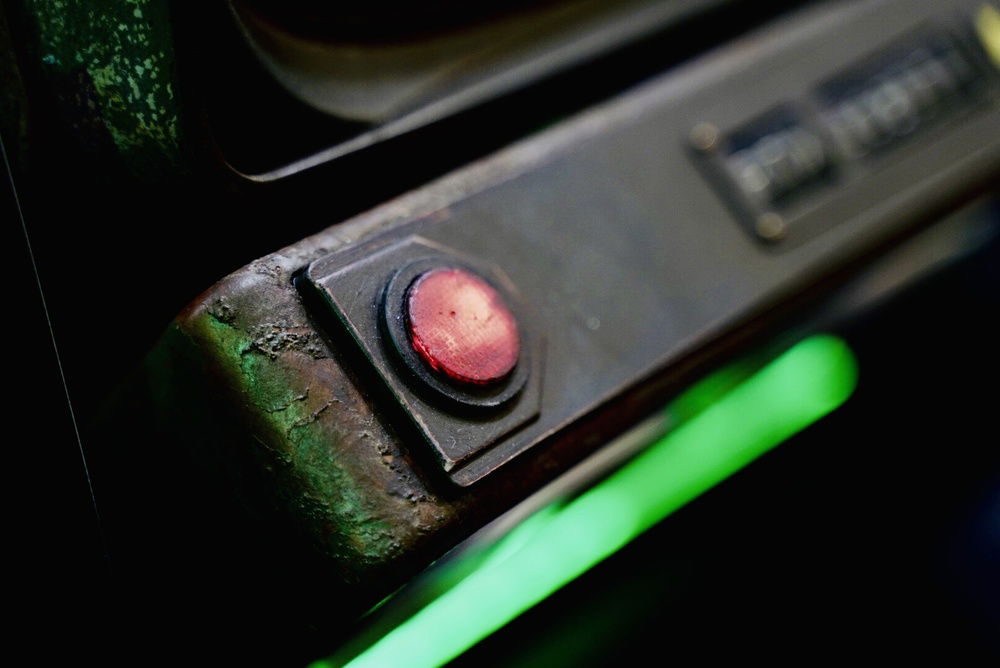

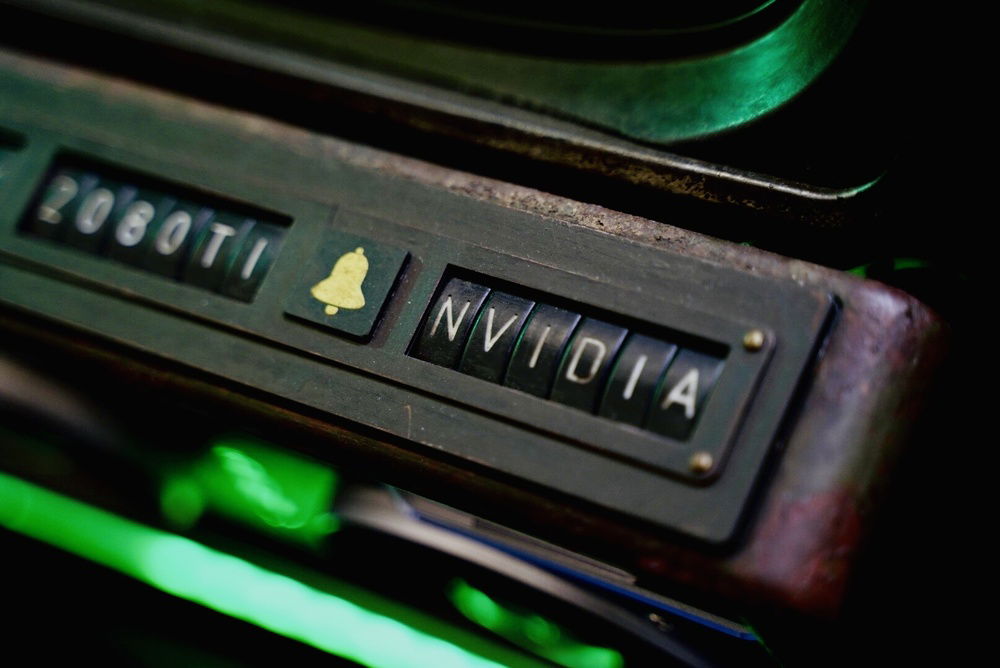

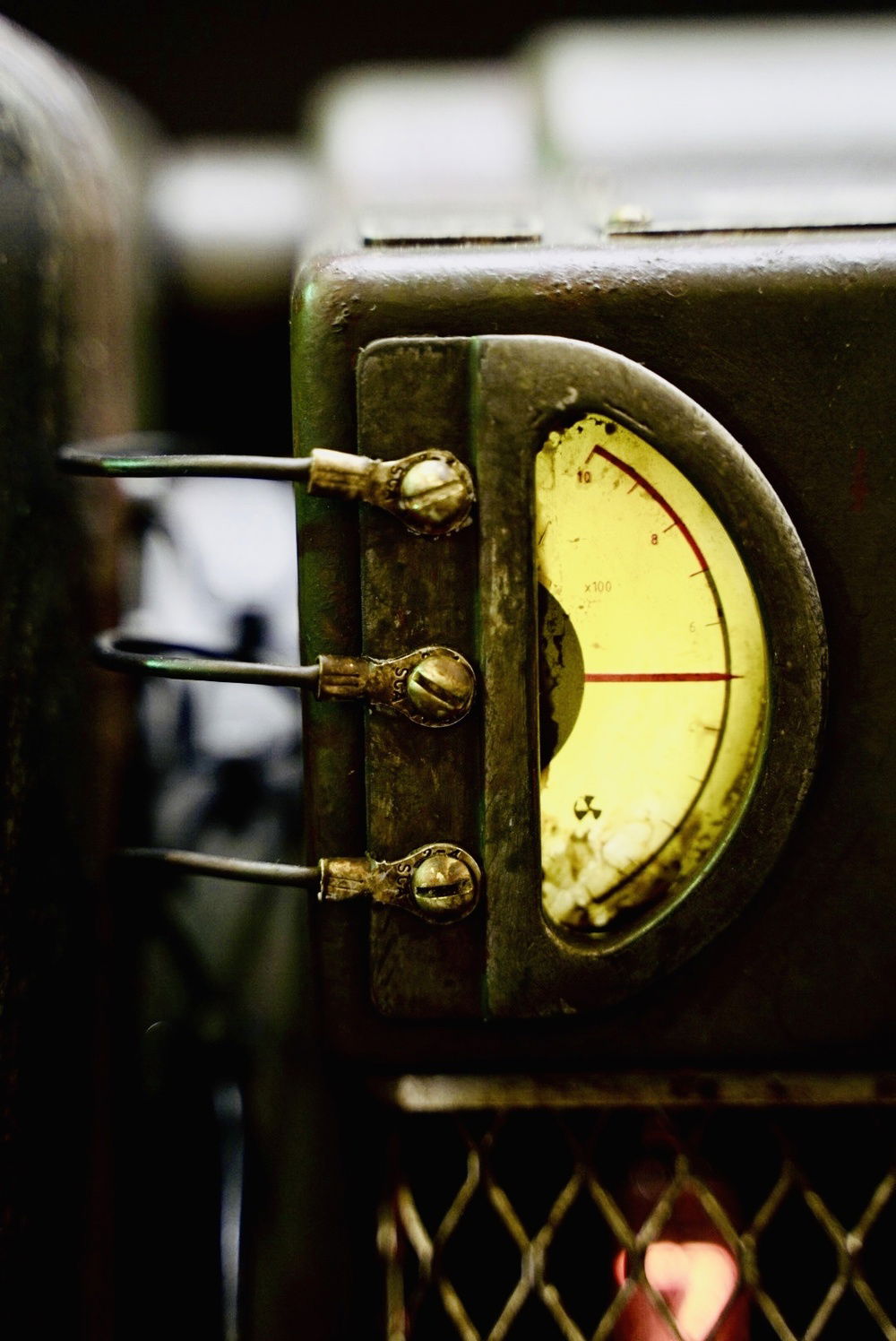

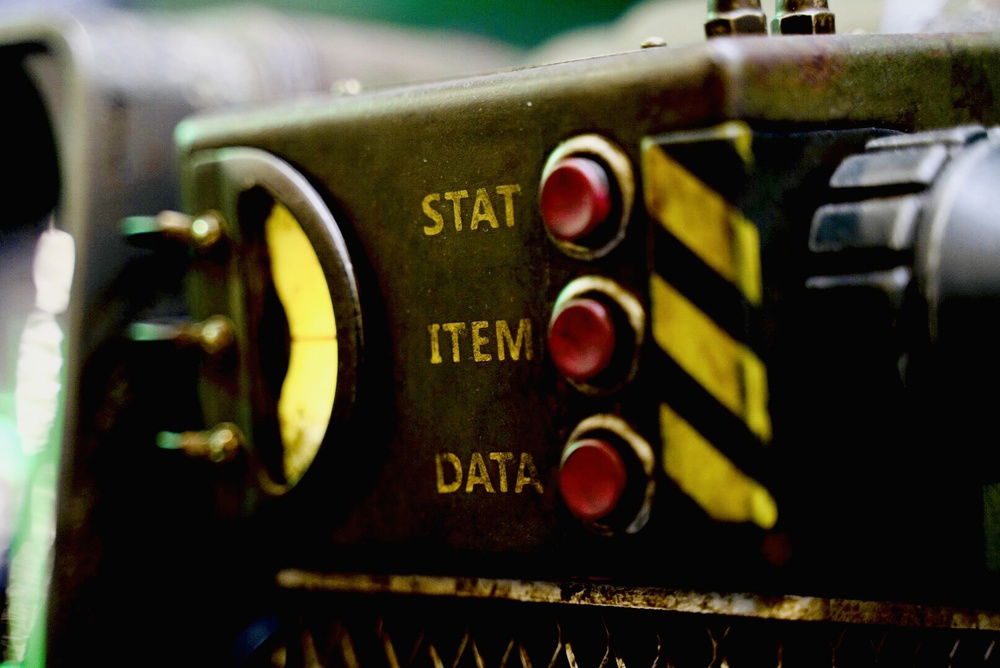

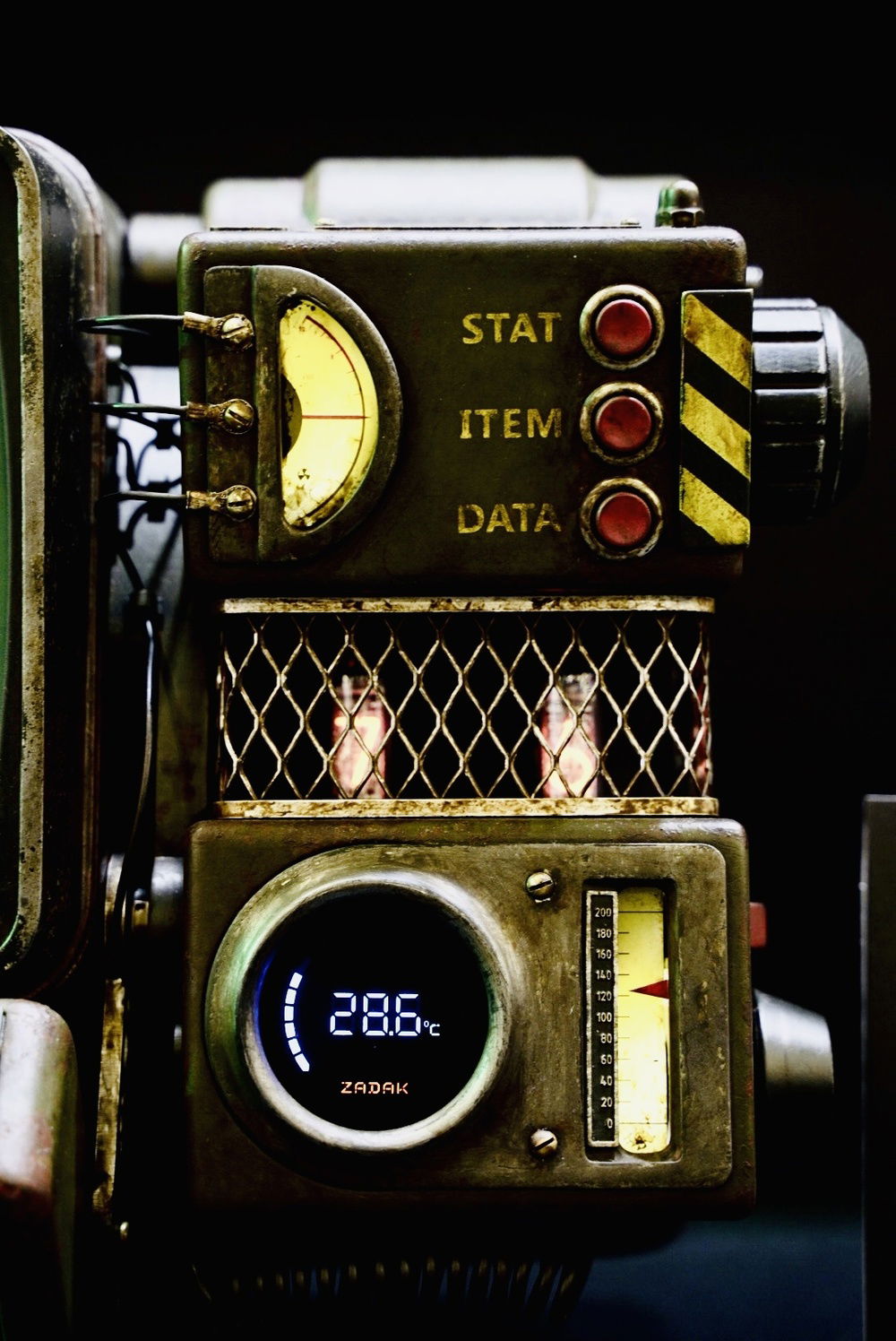

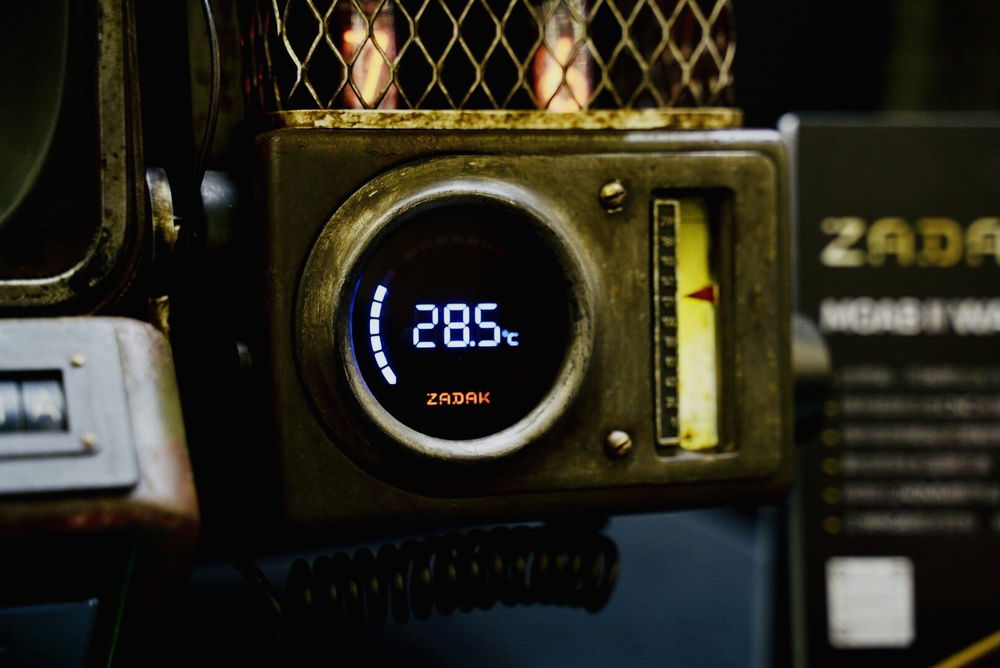

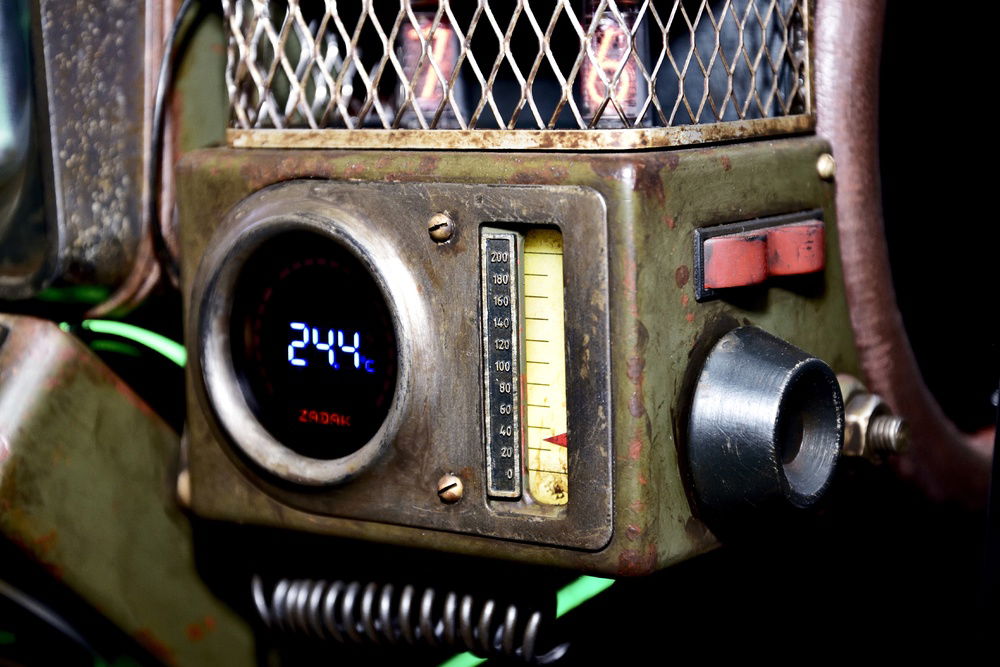

I used CNC, laser cutting, iron, and aluminum components to create the metal parts of the prop, and I wanted to showcase every detail, including the rotating pointer. I also retained the original features of the case, such as the temperature display, which was integrated into the position where the original speaker was located. I also made some changes to the position of the touch-sensitive switch, and the water inlet was pulled out and combined with the modified component to make it more realistic.


Project Logs : Link Text
Color(s): Carbon
RGB Lighting? No
Theme: Video Game
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build

Contests

This build participated in 2 contests.

Hardware

CPU
$ 427.00
Intel - Core i9-9900K
Socket: LGA 1151
Cores: 8
Integrated Graphics: Yes
Motherboard
$ 786.84
ASUS - ROG MAXIMUS XI GENE
Chipset: Z390
CPU Socket: LGA 1151
Size: Micro-ATX

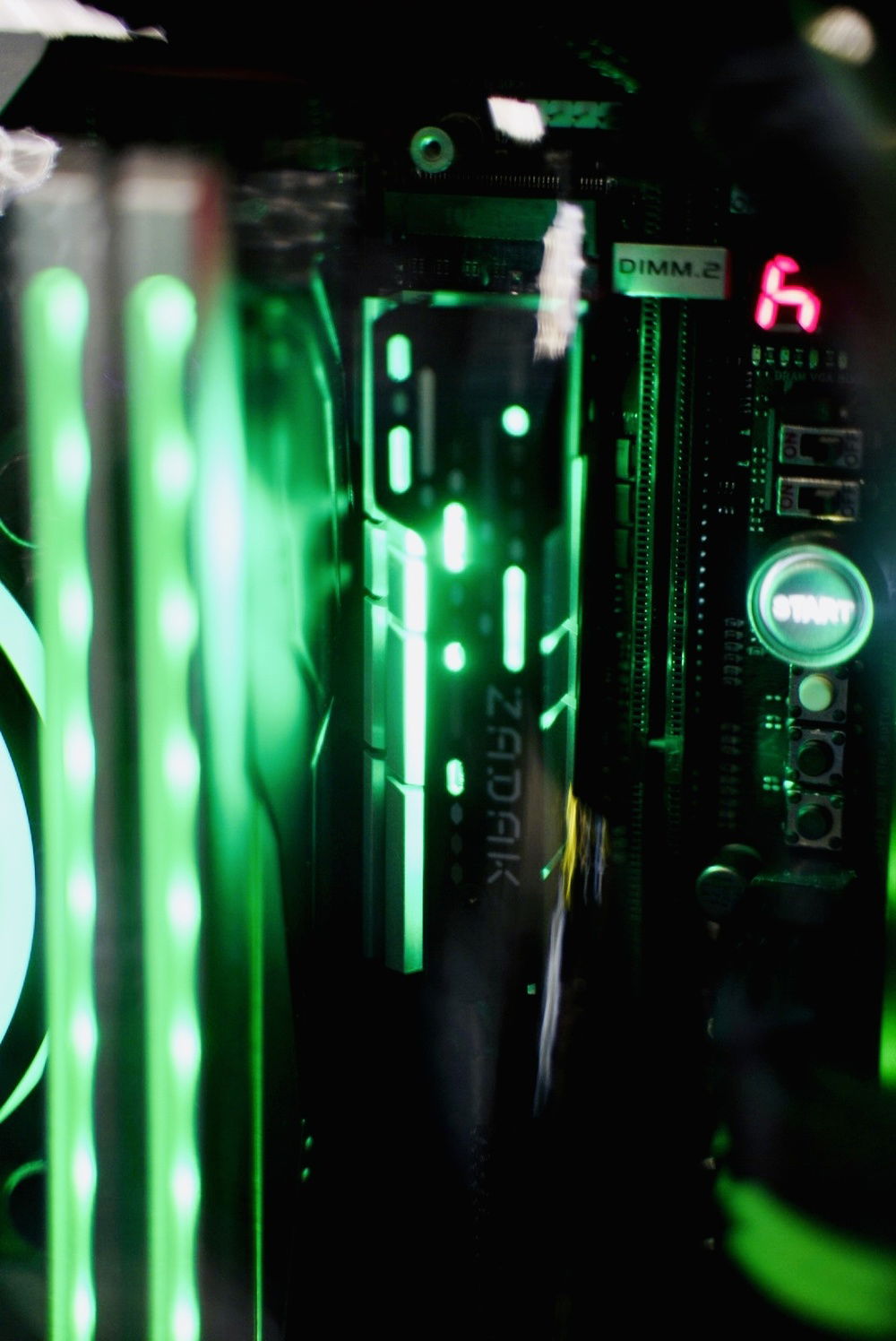

Memory
Zadak - Shield RGB
Type: DDR4
Capacity: 32 GB
Graphics
$ 979.00
NVIDIA - Founders Edition
Chip Manufacturer: NVIDIA
Chip: RTX 2080 Ti
Storage
Apacer - Armor SSD
Form Factor: 2.5 Inch
Interface: SATA 3 Gb/s
Capacity: 6 GB
PSU
$ 109.99
FSP - Dagger
Wattage: 600
Form Factor: SFX
Efficiency: 80+ Gold
Case
Custom - Custom (custom)
Case
Zadak - ZADAK MOAB II WATER-COOLED PC
Type: Mid-Tower
Side Panel: Open
Case Fan
$ 29.99
