Zen Clarity +



This is a re-re-build of my Zen Clarity rig. It started with Wanting a Vega 64, then wanting Vengeance RGB Pro RAM, then using a 2700X I bought a while ago and never installed since I hate taking the glass panels off. Then I wanted to see the benefits of X470. I also hated the C6H and its seemingly unfixable cold boot bug. I wanted to move away from something that needed a beta BIOS monthly to be functionally normal. Could just be that I had a bad one, but that's all over with now. Going with the H150i was an aesthetic decision. I'm sure there's not a huge gap between the H100i V2 and the H150i Pro in terms of keeping Ryzen cool. A 360 rad just looks much better inside the case.

Things I loved about the build:

Not having to tooooootally start from scratch. Routing all the fans and RGB cables was a pain in the butt the first time.
The finished aesthetic. I keep the build red, white, or red & white. Not really into unicorn vomit for anything other than photos.
The lack of dust from the 570X. The previous build was going 24/7 for 9 months (max RPMs on fans since it was inaudible where it was). There wasn't much dust inside the case. The filters had the thinnest layer of dust I've ever seen.

Challenges:

Building backwards. I didn't intend to do a new build, I just kept wanting to replace things since the case was finally open. Fast-forward to now and it's mostly new parts. Done so very out of order since the mobo was the LAST thing.
I didn't read the manual this time around since building with the C6H wasn't all that different. Doing so meant I used the new fan extension header for the Commander Pro. Now I should have known this from the Zenith Extreme, but that header cannot address more than 1 USB device, so I could not get it to read my H150i Pro and I thought the cable was defective. It took too long for me to realize that I should use the other port.
The 570X's USB 3.0 header cable. It's ridiculously thick and difficult to cable manage. Luckily the board is black (unlike the gray of the C6H) so it does not stand out as much.
GPU sag. Even with all the methods employed by various YouTubers, this beefy card still sags a bit.

I might do the Cablemod vertical GPU adapter whenever they get the issue worked out with it and it goes back in stock. Not 100% sure though.

Update 12/2/2018 - The GPU is now vertical using the CableMod vertical mount kit. As for temps, they are within a couple of degrees of the normal mount. There are many misconceptions about having the GPU vertical. It's not the act of making it vertical that creates terrible temps, it's airflow (of lack thereof). There's several inches between the glass and the card with the Cablemod mount.

Replaced CX650M w/ my spare RM1000i so that I could use the cables. Extension would not have fit in the case. I did this for looks only. The CX650M was perfectly fine, though some would have you believe it should have exploded, lol.
Color(s): Black Red
RGB Lighting? Yes
Cooling: AIO Cooling
Theme: Brand
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Build Updates

Now with a PowerColor 5700 XT!

Hardware

CPU

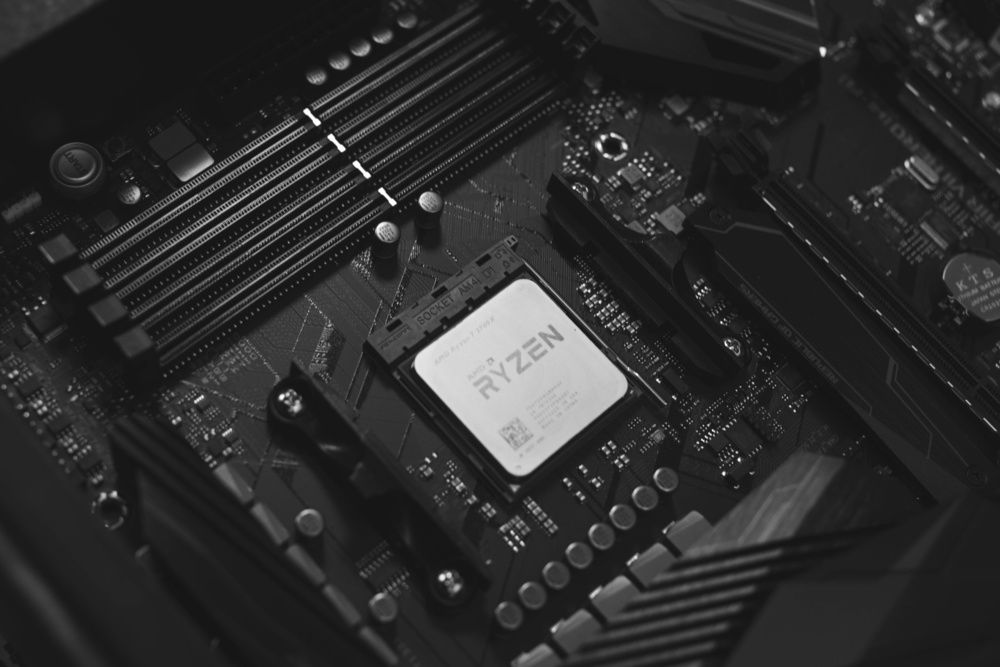

AMD - Ryzen 7 (2700X)
Cores: 8
Socket: AM4
Motherboard
ASUS - ROG Crosshair VII Hero (Wi-Fi)
Chipset: X470
CPU Socket: AM4
Memory Support: DDR4
Memory
Corsair - Vengeance Pro (RGB)
Capacity: 32 GB
Type: DDR4
Storage
Samsung - 960 PRO
Capacity: 512 GB
Form Factor: M.2
Type: SSD
Storage
SanDisk - Ultra II
Capacity: 960 GB
Form Factor: 2.5 Inch
Type: SSD
Storage
SanDisk - Ultra II
Capacity: 480 GB
Form Factor: 2.5 Inch
Type: SSD
Graphics
ASUS - ROG Strix
Chip: Vega 64
Chip Manufacturer: AMD
PSU
Corsair - RM1000i
Efficiency: 80+ Gold
Form Factor: ATX
Modularity: Fully-Modular
Case
Corsair - Crystal 570X
Motherboard Support: ATX
Side Panel: Tempered Glass
Type: Mid-Tower
Case Fans
Corsair - SP120 RGB LED
Size: 120 mm
CableMod
CableMod
CableMod

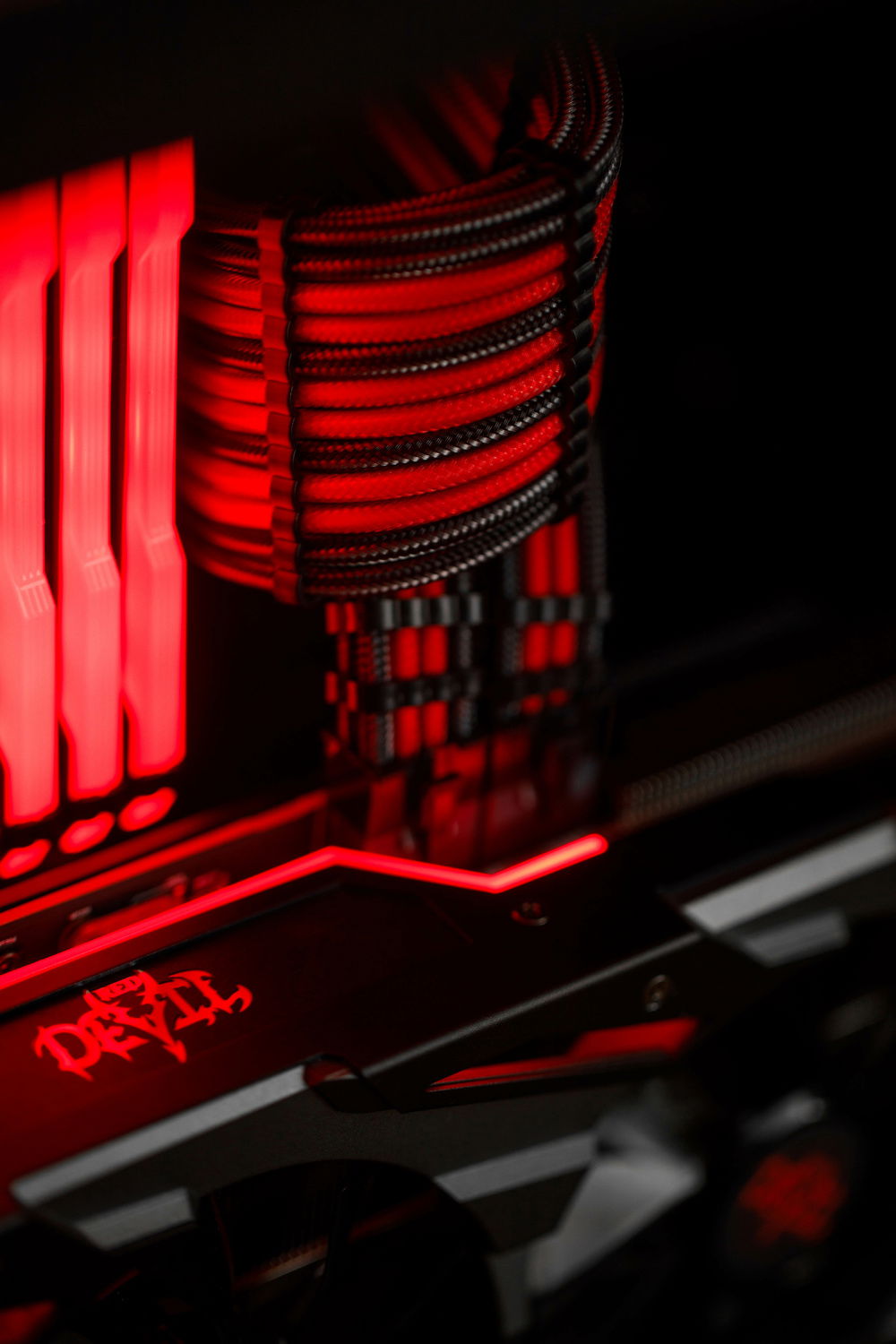

CableMod - Sleeved Cables
Color: Blood Red
Mode: Stock
Sleeve: PRO ModMesh
CableMod
Accessories
Monitor
LG - 38WK95C-W
Native Resolution: 3840 x 1600
Panel: IPS
Refresh Rate: 75 Hz
