[update] How the rig looks currently. Rerouting the loop to CPU only was super easy, the PCIe power cable routing is a bit eh but it works, and I can fix that once I get a new GPU with the 8 pin(s) in the right spot instead of the middle of the card.
[update] How the rig looks currently. Rerouting the loop to CPU only was super easy, the PCIe power cable routing is a bit eh but it works, and I can fix that once I get a new GPU with the 8 pin(s) in the right spot instead of the middle of the card.
[old] Front View, tried to route the EK-ZMT tubing as cleanly as possible.
[old] Front View, tried to route the EK-ZMT tubing as cleanly as possible.

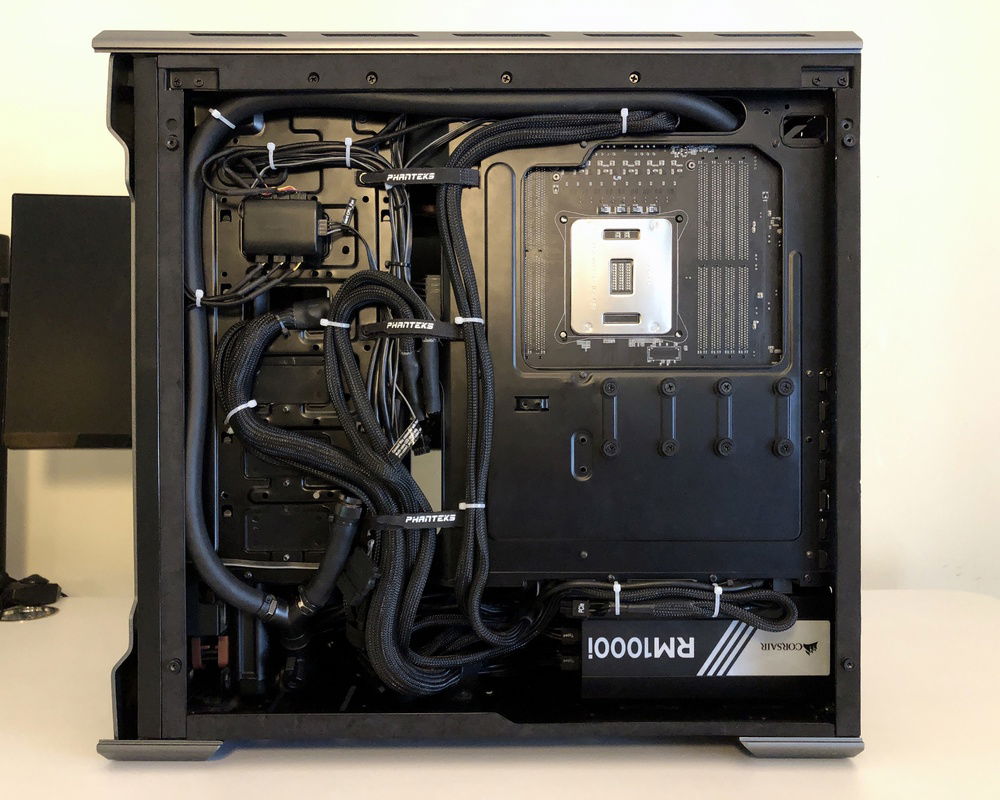

[old] Rear View, actually took the time to get all the cables out of the way of the rear panel (that I still haven't installed because I lost track of a few of the thumb screws lol).
[old] Rear View, actually took the time to get all the cables out of the way of the rear panel (that I still haven't installed because I lost track of a few of the thumb screws lol).

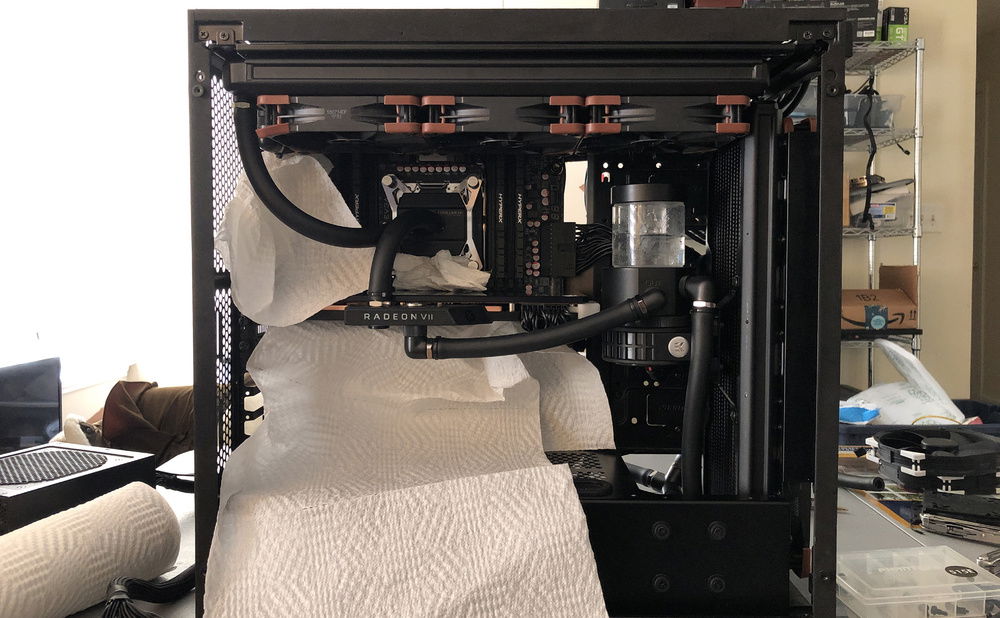

[old] During leak testing! Always nerve-wracking, not due to any doubts with ZMT, but I tend to get distracted easily and forget things :o
[old] During leak testing! Always nerve-wracking, not due to any doubts with ZMT, but I tend to get distracted easily and forget things :o

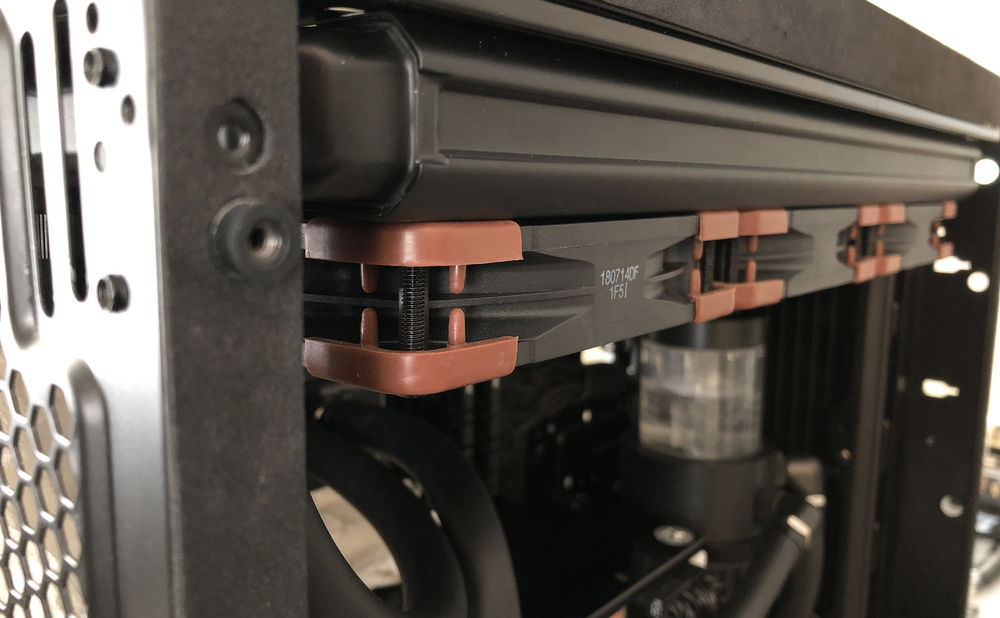

[old] Random shot because I was messing around.
[old] Random shot because I was messing around.

X99 Main Rig - Now Dissassembled

Refresh of my main X99 rig. Not much has changed, other than yeeting the Radeon VII I had due to constant driver issues. Loop has moved to CPU only, 1660 Ti is subbed in for now, until I have the budget for a better GPU. Also currently in the process of getting a 6950X, because a friend has one for a good price, and it's the best OCable chip on this platform. - 6950X obtained, see update Emoji
Color(s): Black Gray Silver
RGB Lighting? No
Theme: none
Cooling: Custom Liquid Cooling
Size: E-ATX
Type: General Build

Build Updates

6950X

Hardware

CPU
$ 235.05
Intel - Core i7 5960X
Socket: LGA 2011-3
Cores: 8
Motherboard
EVGA - x99 Classified
Chipset: X99
CPU Socket: LGA 2066
Size: E-ATX
Memory
$ 492.08
Kingston - HyperX Predator (3200MHz) (Black) (4x)
Type: DDR4
Capacity: 8 GB
Graphics
EVGA - GeForce XC Ultra
Chip Manufacturer: NVIDIA
Chip: GTX 1660 Ti
Interface: PCIe x16
Storage
$ 128.47
Samsung - 970 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 185.00
Corsair - RM1000i
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 259.63
Phanteks - Enthoo Evolv X (Gray)
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 167.46
Noctua - NF-F12 industrialPPC-2000 (6x)
Size: 120 mm
Cooling
EKWB - EK-Vector Radeon VII RGB - Nickel
Type: Waterblock
Cooling
$ 226.21
EKWB - EK-XRES 100 Revo D5 PWM (incl. pump)
Type: Pump/Reservoir Combo
Cooling
Hardware Labs - Black Ice GTS (2x)
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 86.29
Watercool - Heatkiller IV Pro Acetal Clean
Type: CPU Waterblock
