Wooden Desktop PC - Danish Design meets PC Master Race

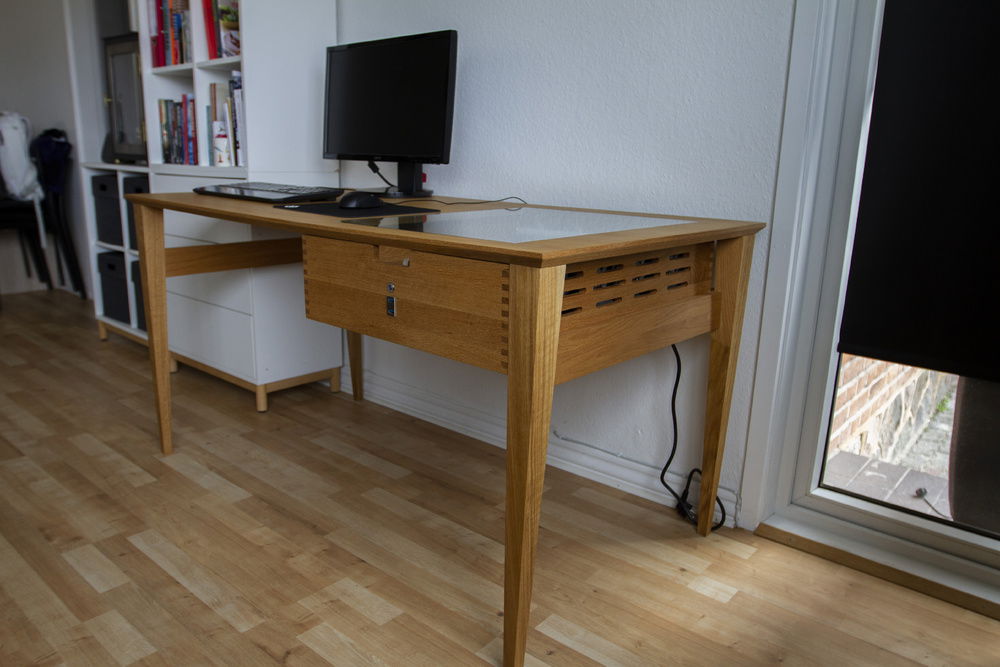

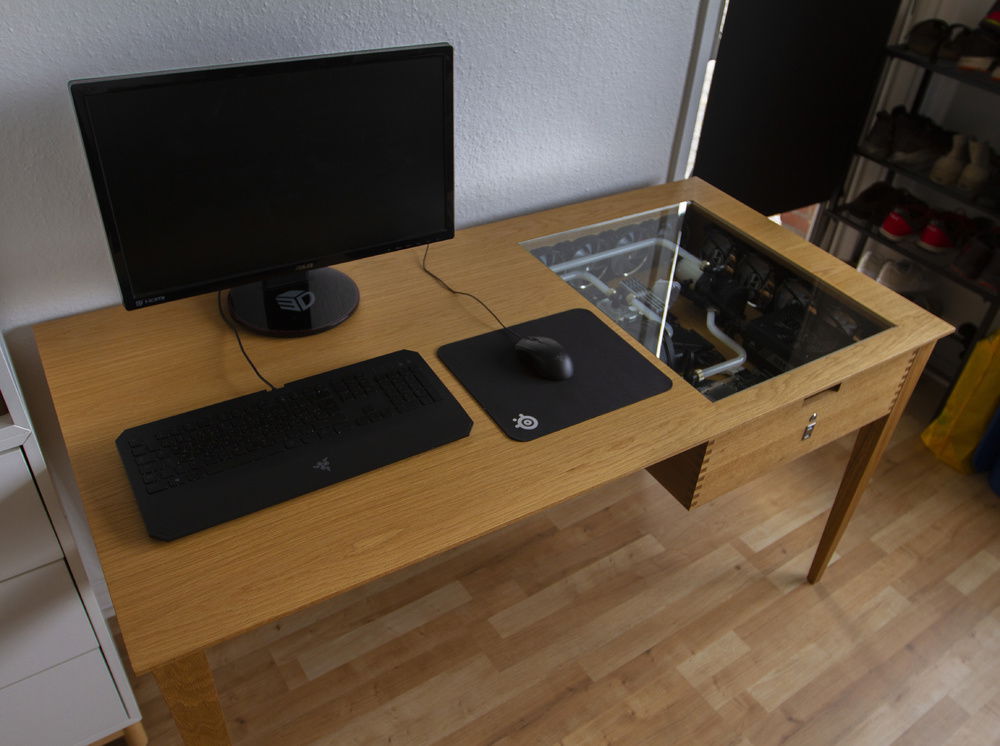

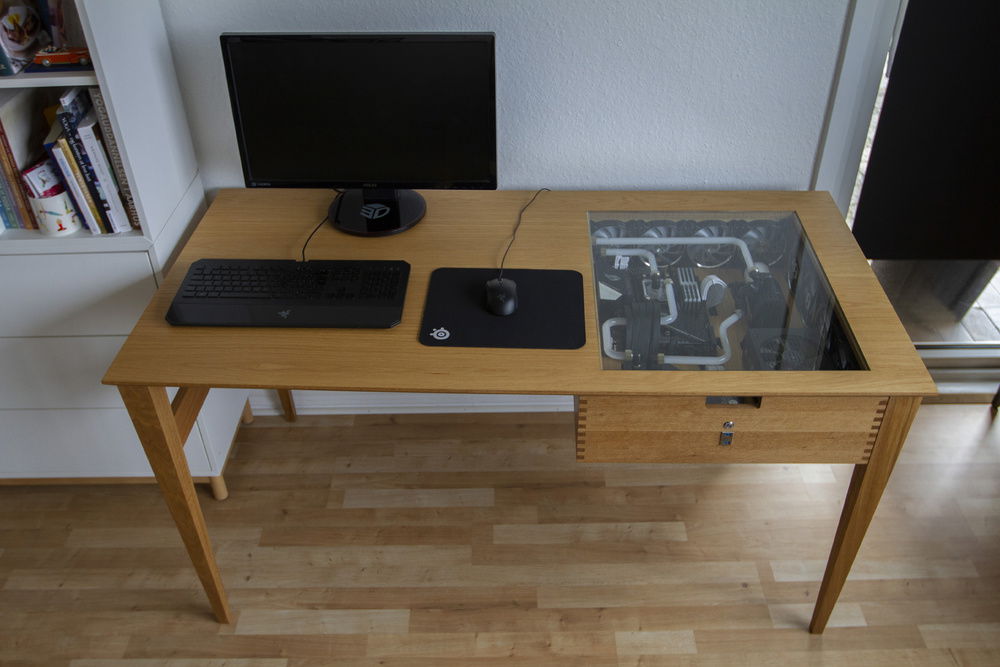

This was my exam project for basic carpentry i Denmark. A lot of hard work and painstaking details went into this build to make it all workout. Everything you see is hand made ( no CNC used) , and all designed by myself. Wood type is Oak.

The idea was to combine Classic Danish Design with the world of PC Master Race.

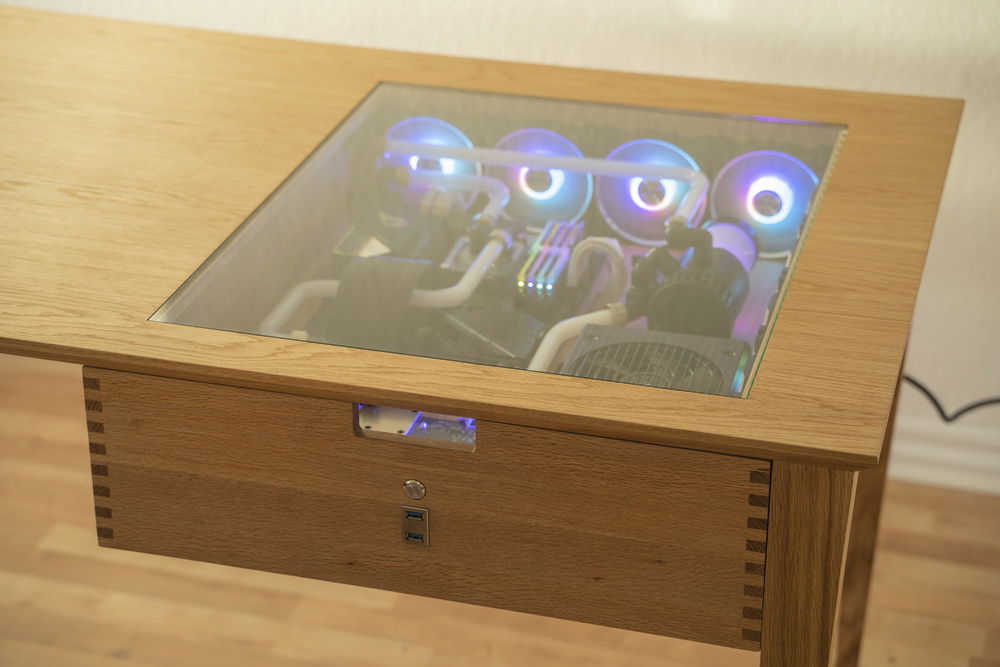

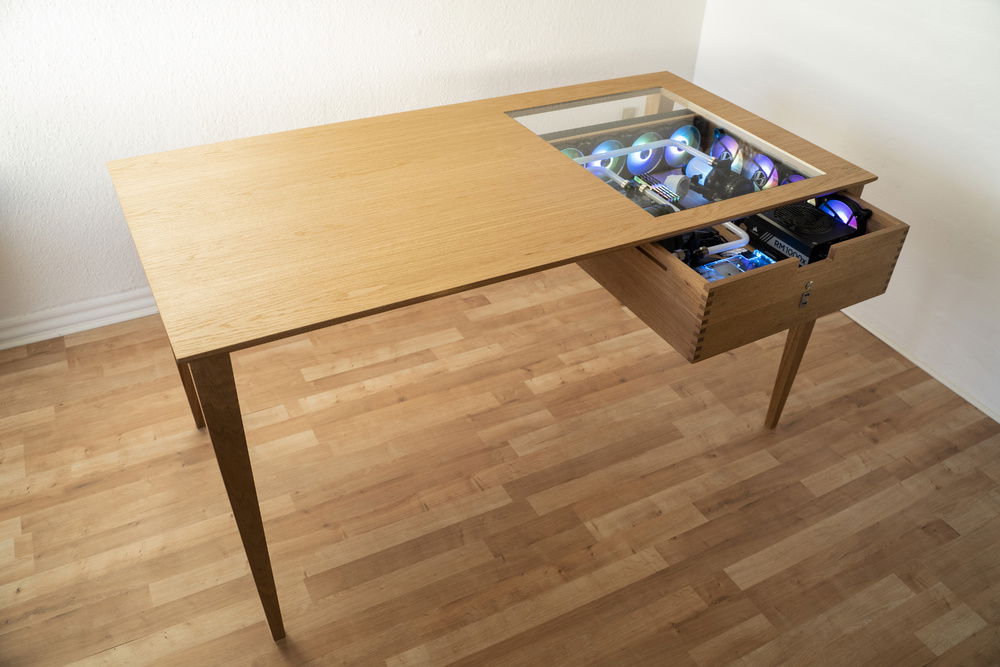

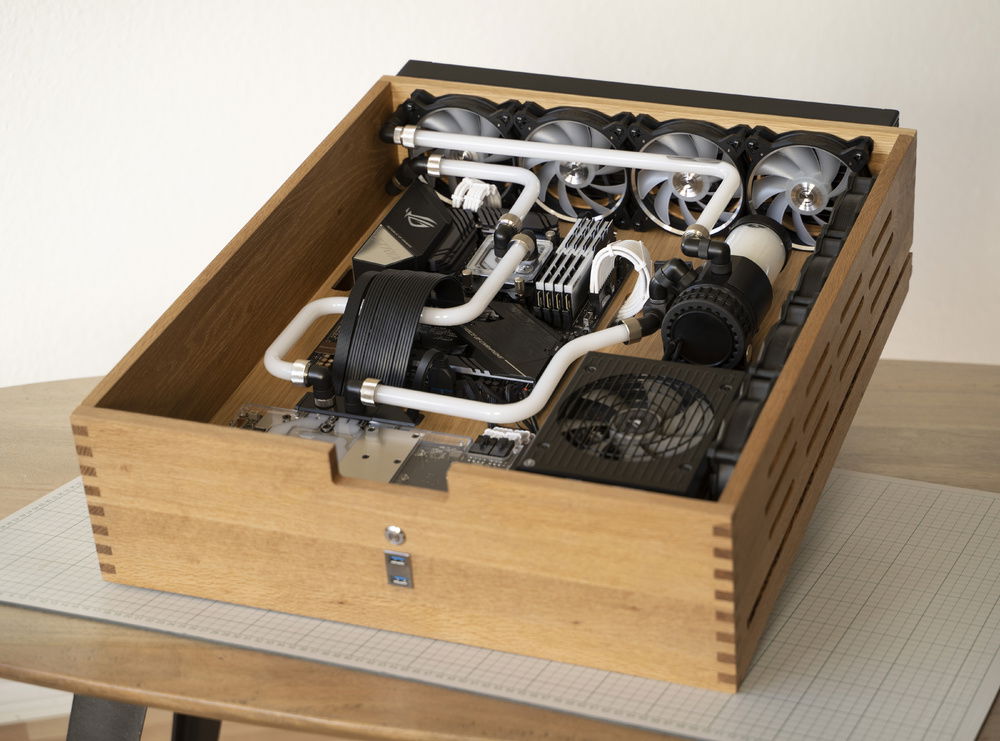

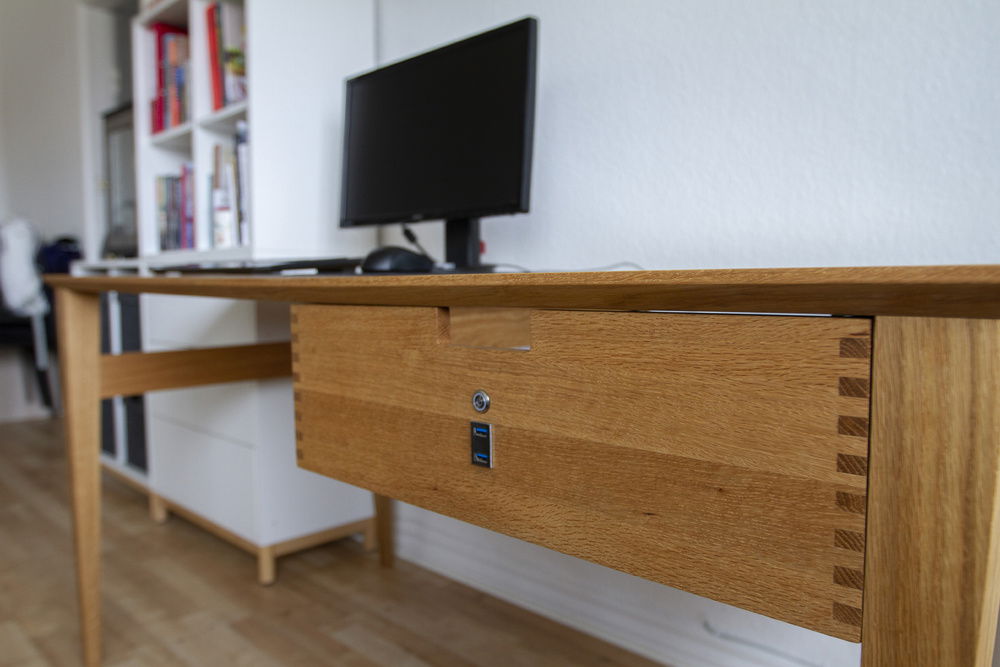

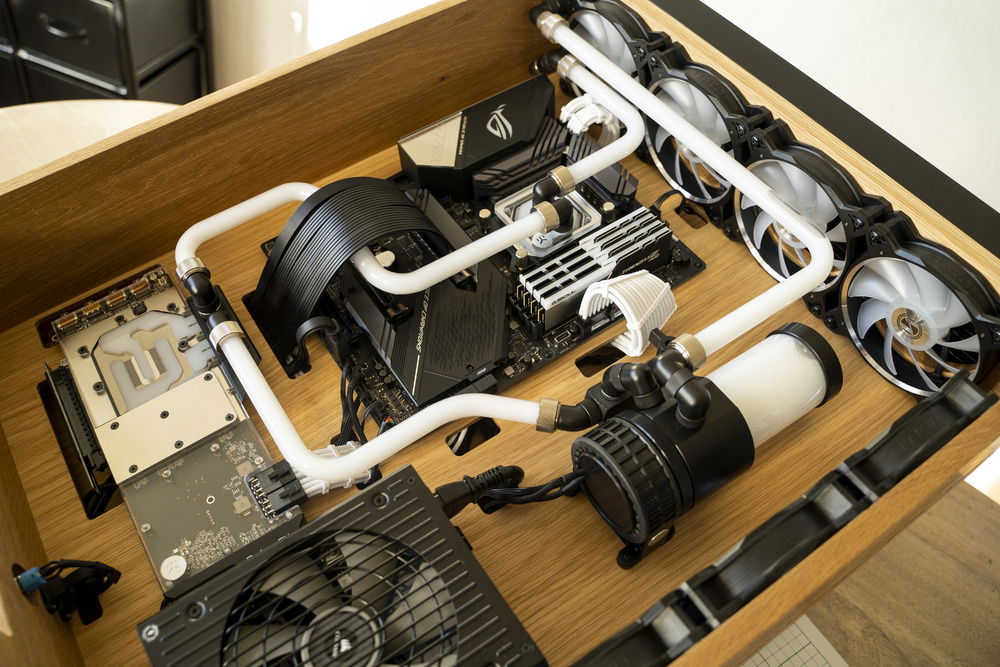

The hole drawer can slide out while the pc is running, and it has two bottoms so you can hide the cables in between.
Intake fans, PSU and GPU is mounted with magnets.
It's an EKWB 120mm quad radiator in 38mm thickness in the back. ;)

Installation video: https://www.youtube.com/watch?v=x0I1xNbkbCk

SPECS:
- Asus ROG strix x570-f
- AMD ryzen 7 3800x
- Asus radeon rx 5700 xt

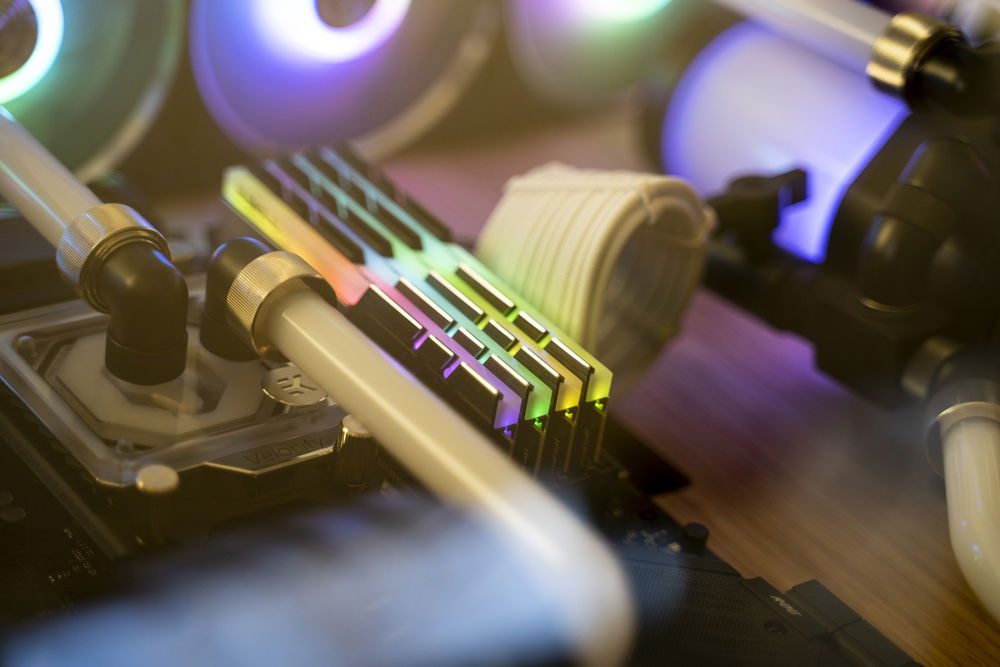

- G.skill tridentz neo 32 gb 3600
- 1 TB Corsair nvme ssd 4 Gen.
- Corsair 1000w gold
- 8 lian li bora digital
- EK WB Water Cooling
- White Sleeved PRO Cables from CableMod
- LINKUP {40 cm} PCIE extension 4.0

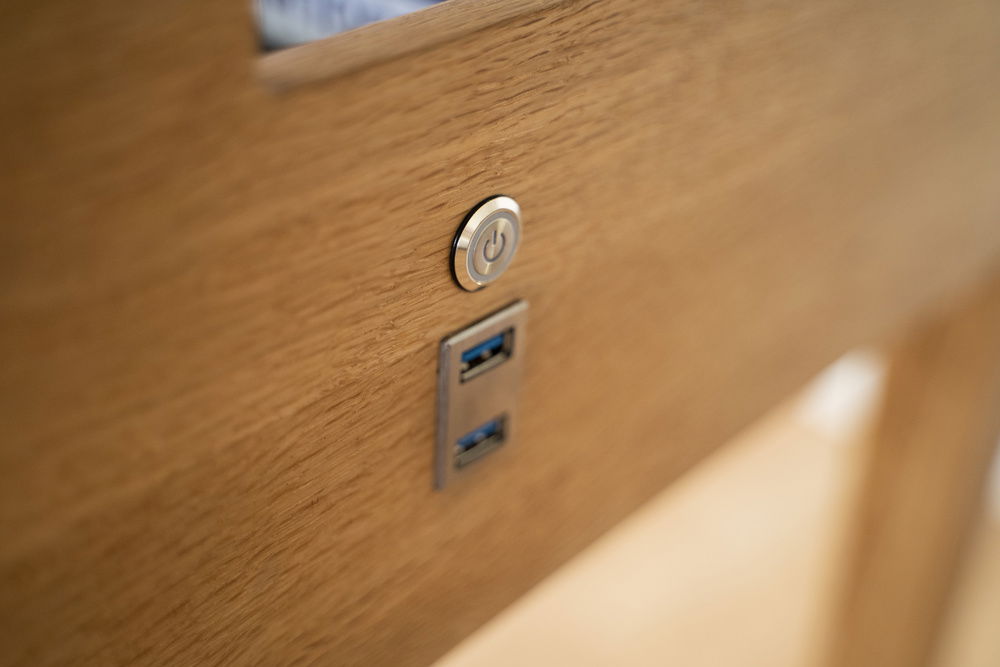

- KNACRO 16mm Chassis Switch
- Toptekits 2 Port USB 3.0 til front IO

SIZE of desk: 150 x 75 x 75 cm
SIZE of drawer: 55,8 x 65 x 17 cm

Follow me on Facebook here: https://www.facebook.com/MA-Modified-100375011493434/?modal=admin_todo_tour
Color(s): Aluminum Black White
RGB Lighting? Yes
Cooling: Custom Liquid Cooling
Theme: Desk / Table
Size: ATX
Type: General Build

Hardware

CPU
$ 339.98
AMD - Ryzen 7 (3800X)
Socket: AM4
Cores: 8
Motherboard
$ 212.24
ASUS - ROG Strix Gaming (X570-F)
Chipset: X570
CPU Socket: AM4
Size: ATX
Memory
$ 310.00
Graphics
$ 500.00
AMD - Radeon RX 50th Anniversary Edition
Chip Manufacturer: AMD
Chip: 5700 XT
Storage
$ 189.99
Corsair - Force MP600
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 130.00
Corsair - RM1000 (discontinued)
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 69.00
DIYPC - Zondda-B
Type: Mid-Tower
Side Panel: Acrylic
Case Fan
$ 878.40
Lian Li - Bora Digital (Black/RGB) (8x)
Size: 120 mm
Cooling
$ 139.99
EKWB - CoolStream PE
Type: Custom Loop
Size (WxHxD): 480 mm (4 x 120 mm)
Cooling
$ 100.00
EKWB - CPU Blocks (discontinued)
Type: Custom Loop
Cooling
$ 200.00
EKWB - EK-Quantum Kinetic FLT 240 D5 PWM D-RGB - Plexi
Type: Pump/Reservoir Combo
Size (WxHxD): 240 mm
Cooling
$ 118.60
Cooling
$ 160.00
EKWB - Fittings (16x)
Type: Custom Loop
CableMod
$ 1.00
CableMod - C-Series RMi & RMx Cable Kit
Mode: Stock
Sleeve: PRO ModMesh
Estimated total value of this build:
$ 3,329.53
