Project Eternity

This took ten months of collecting parts and planning (including fully modelling it in SketchUp to check clearances), then a week to build. For months the system was stripped down to the bare necessities to keep the previous loop running while I prepared the final pieces. The old silver top Dominators are hard to find nowadays, but I always knew they were exactly what I needed. In the future I'm considering changing out the acrylic window for a tempered glass one, to fit inside the existing side panel.

I build custom PCs for a living, and have done thousands by this point. As a result of getting to play around with just about every component on the market and being surrounded by them every day, the novelty of having the best parts just doesn't appeal to me anymore. I took my time designing what I consider the "perfect" PC that doesn't need to change. Any time I upgrade a part, I try my best to retain the aesthetic. This is where the name "Project Eternity" originates from. Both because it took an eternity to get done, and now that it's finished I'd like it to stay looking like this forever. It's not the fastest or the flashiest - heck, the case is 8 years old at this point - but it's my labour of love and symbolises what I consider most important in a computer.

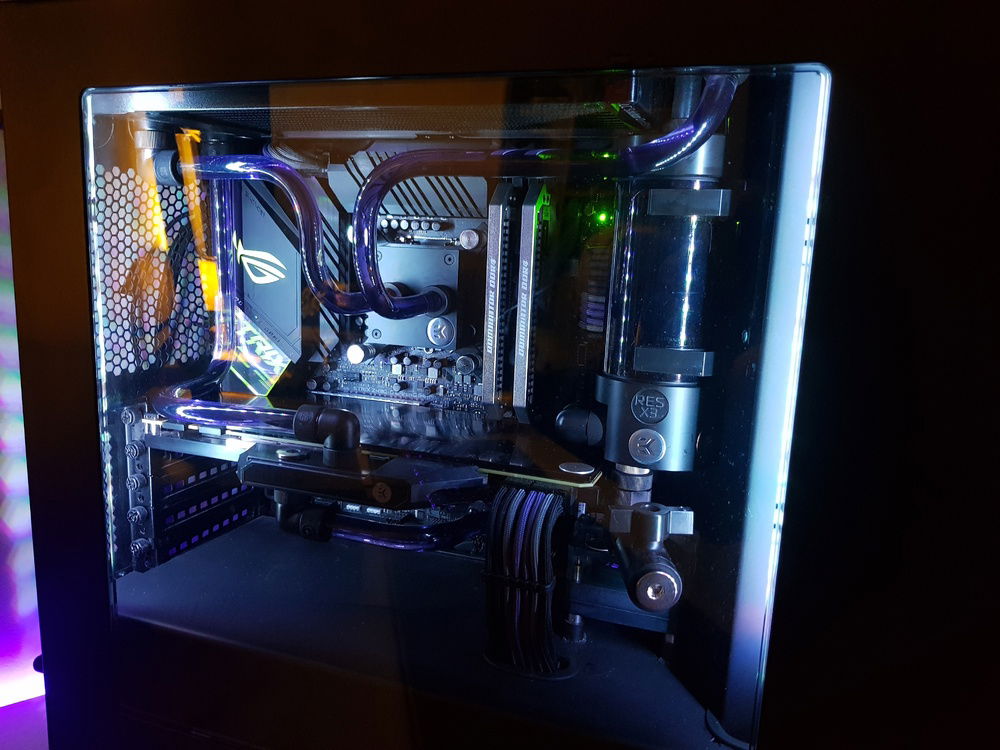

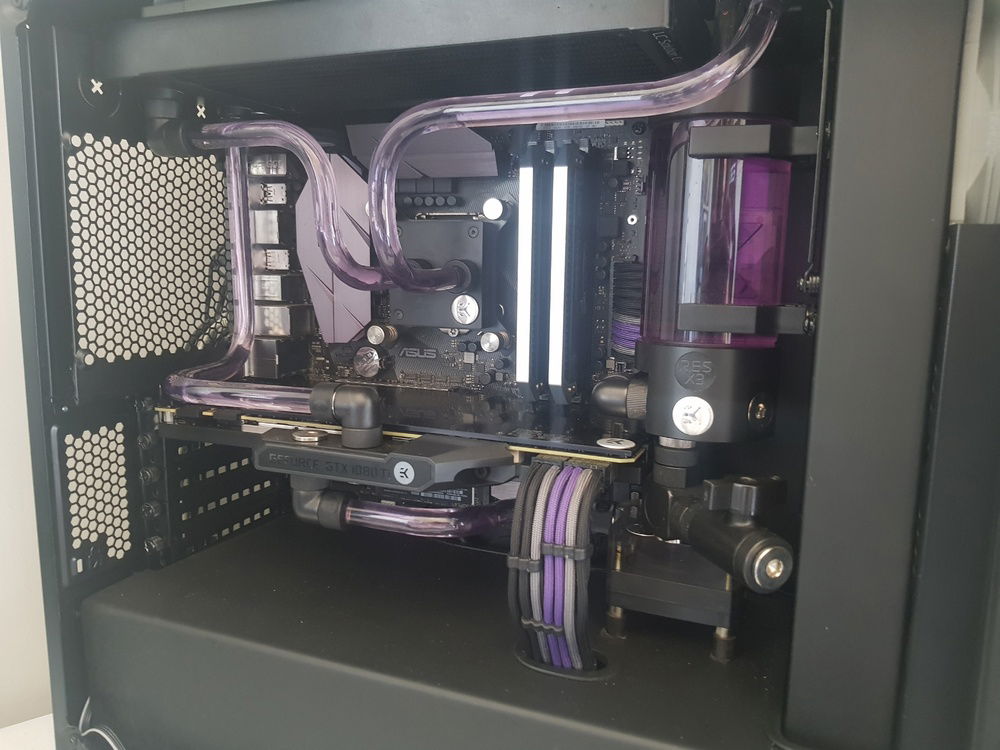

These pictures were taken when I was running a delidded 7700K @ 5GHz and an Asus Strix Z270G. About a year after this the motherboard died, so I upgraded to an i7 10700K and Asus Z490G Wifi motherboard. The system still looks essentially the same, the CPU and motherboard are just different now.

There's quite a bit of custom work:
  • Handmade sleeved cable extensions
  • Stainless steel PSU shroud w/ mount and weather stripping

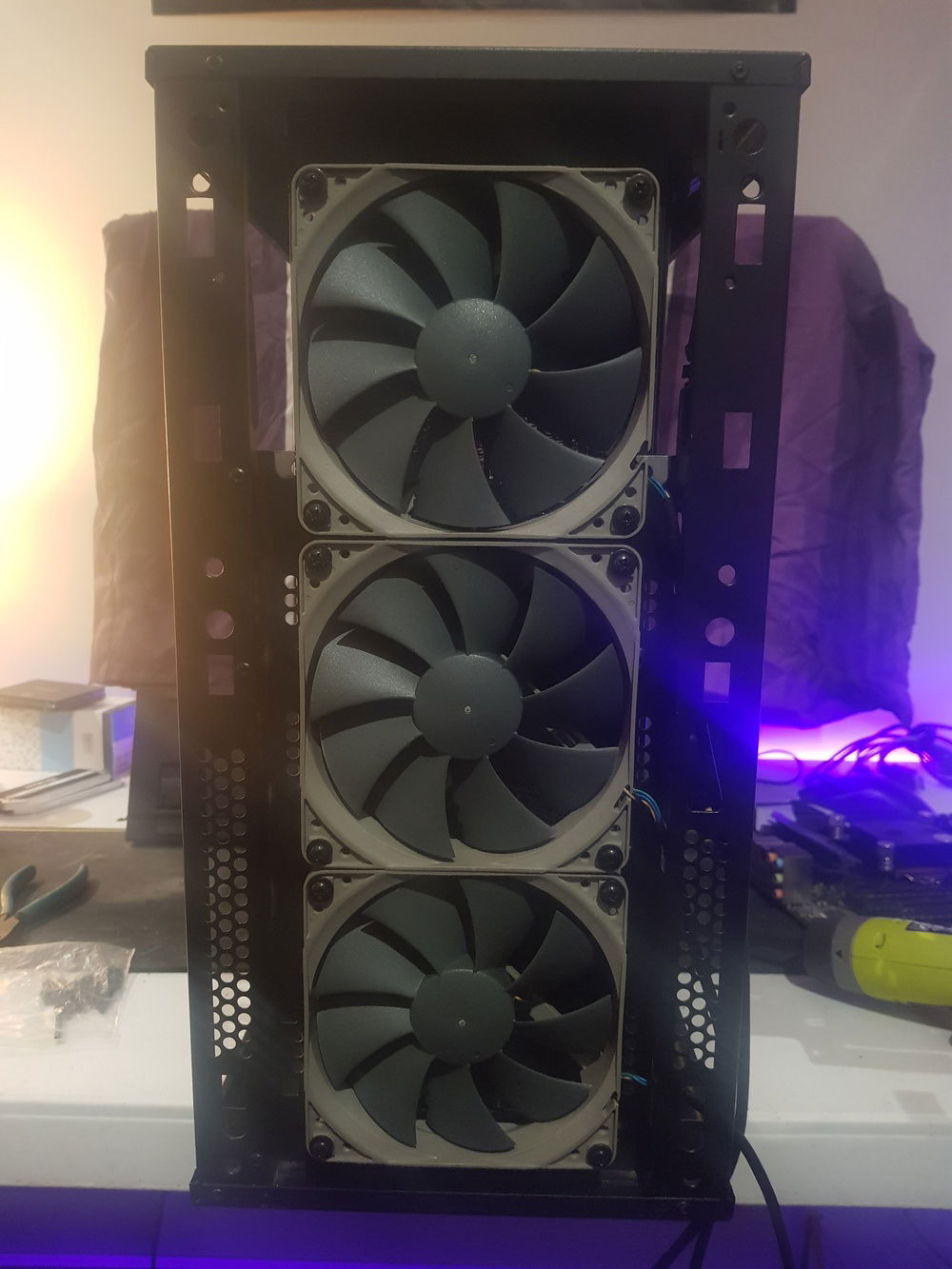

  • DVD drive bay dremelled out to fit 360 rad (case does not support it natively, it's a tight fit)
  • Moved mounting position for 240 rad

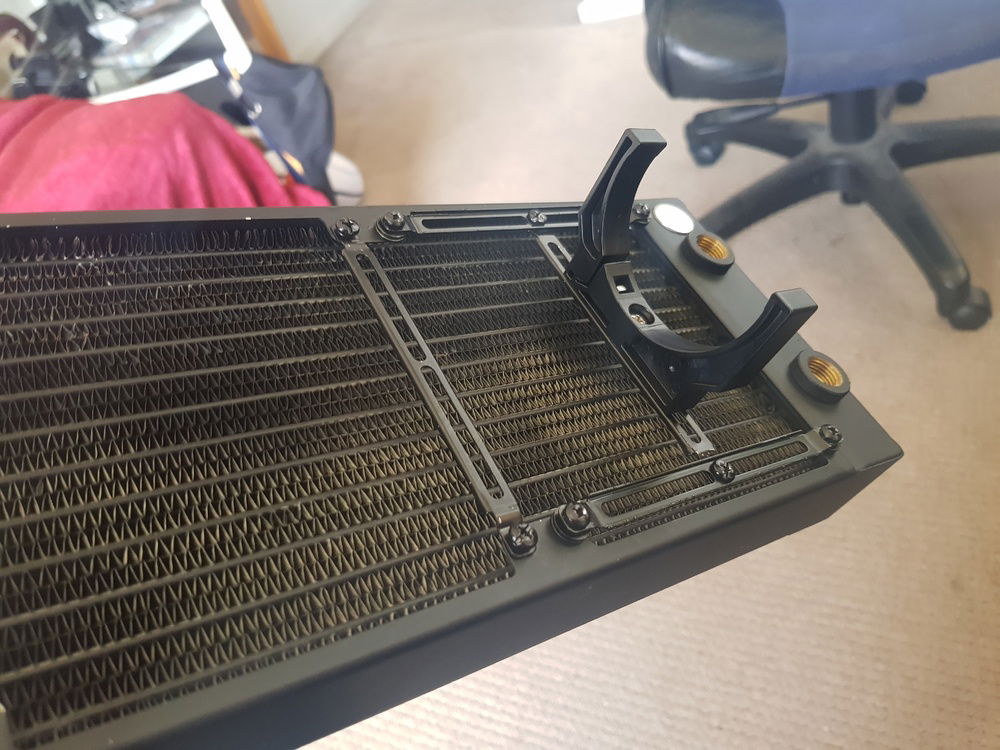

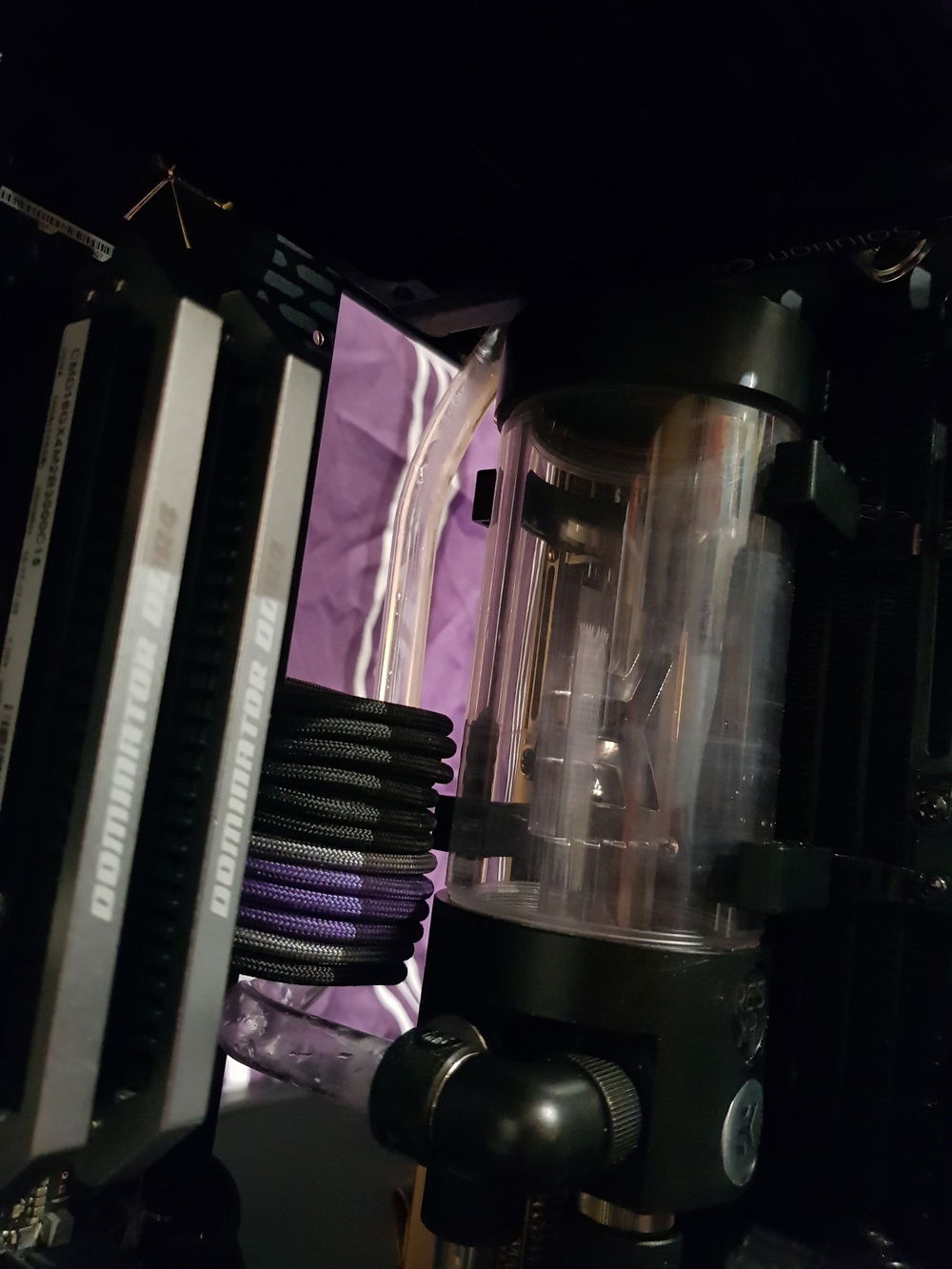

  • Reservoir mount
  • Fill port on top of case
  • Frankensteined RGB LED strip controller for case lighting
  • Passthrough hole for HD Audio connector

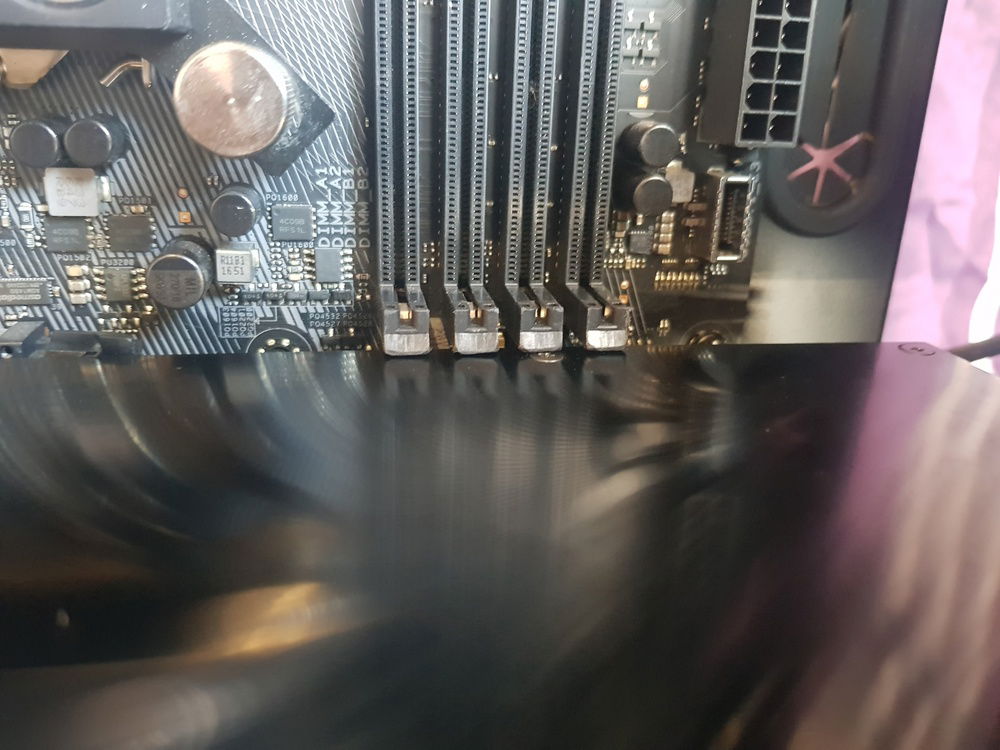

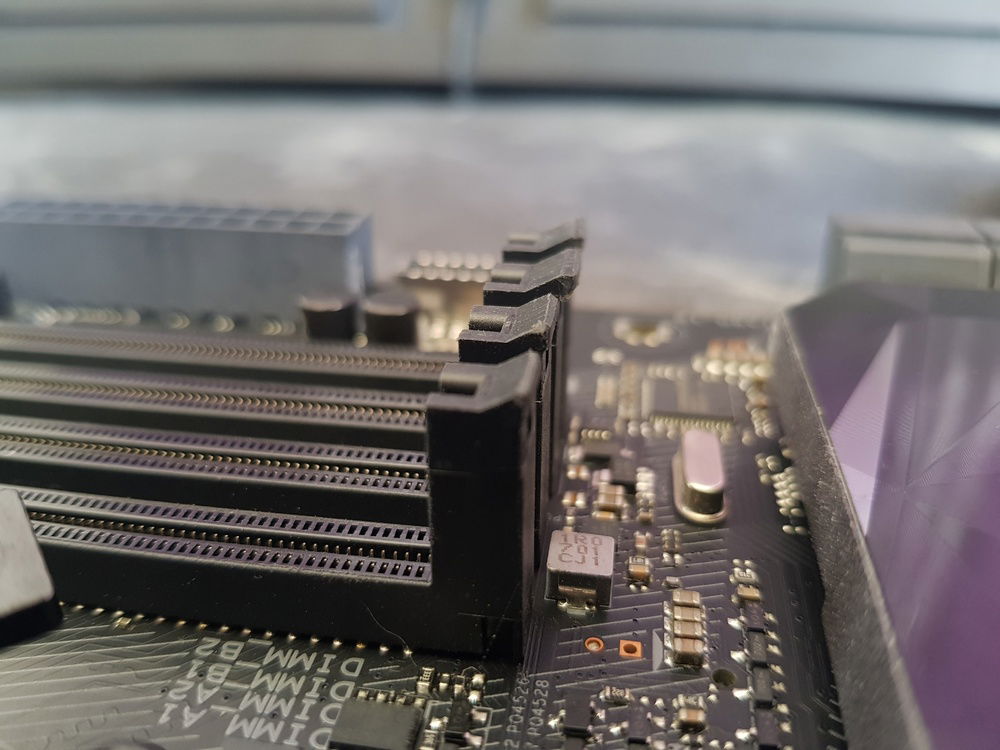

  • Bottom RAM slot clips filed down for GPU backplate clearance

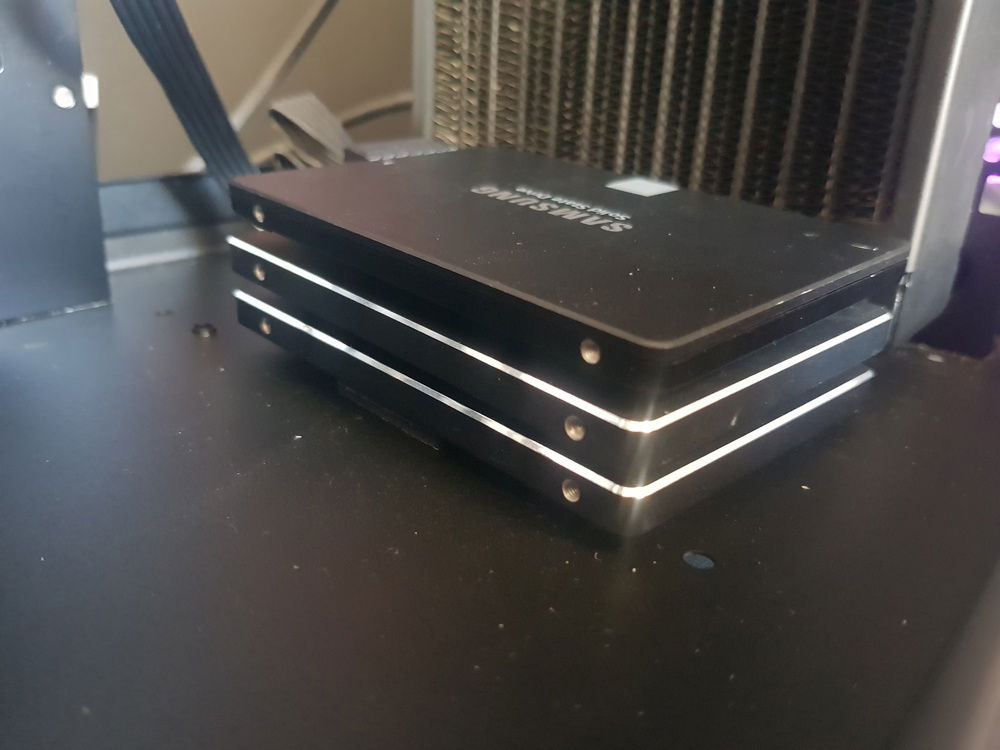

  • 2.5" SSD mounts
  • Converted front USB 3.0 to USB 2.0 for a more stealth look

Will I ever change the case? Maybe, but the 350D is a case from the era I first got into computers that the 4000D and others got so close to bringing back, but all fell just short in my opinion. It will take a lot to make me change.
Color(s): Black Purple Silver
RGB Lighting? No
Theme: none
Cooling: Custom Liquid Cooling
Size: Micro-ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 245.00
Intel - Core i7-10700K
Socket: LGA 1200
Cores: 8
Integrated Graphics: Yes
Motherboard
$ 219.99
ASUS - ROG Strix Gaming (Z490-G) (WiFi 6)
Chipset: Z490
CPU Socket: LGA 1200
Size: Micro-ATX
Memory
$ 200.00
Corsair - Dominator Platinum (3000MHz) (Black)
Type: DDR4
Capacity: 16 GB
Graphics
$ 1,446.00
NVIDIA - Founders Edition
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Storage
$ 80.00
Samsung - 840 EVO (2x)
Form Factor: 2.5 Inch
Capacity: 120 GB
Storage
$ 109.00
Samsung - 860 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 500 GB
Storage
$ 89.99
Samsung - 970 EVO 500 GB M.2 NVMe SSD
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
$ 123.00
Corsair - RM750x (discontinued)
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 130.64
Corsair - Obsidian 350D
Type: Mid-Tower
Side Panel: Acrylic
Case Fan
$ 79.75
Noctua - NF-P12 redux-1700 (5x)
Size: 120 mm
Cooling
$ 209.06
EKWB - CoolStream PE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 114.00
EKWB - CoolStream SE
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Cooling
$ 199.74
EKWB - EK-AF Angled 90° G1/4 Black (6x)
Type: Fittings
Cooling
$ 29.95
Cooling
$ 19.28
Cooling
$ 99.00
Cooling
$ 30.00
Cooling
$ 84.00
EKWB - EK-HDC Fitting Black 12mm (14x)
Type: Custom Loop
Cooling
$ 6.00
Cooling
$ 60.00
EKWB - EK-RES X3 150
Type: Reservoir
Cooling
$ 89.95
EKWB - EK-XTOP SPC-60
Type: Pump
Cooling
$ 99.99
EKWB - Supremacy MX - Intel
Type: Custom Loop
Monitor
$ 344.49
Acer - Nitro (XV272U)
Size: 27 Inch
Panel: IPS
Refresh Rate: 144 Hz
Keyboard
$ 190.00
Varmilo - Miya Pro Moonlight
Interface: Wired
Key Switch Type: Cherry MX Red
Type: Compact
Mouse
$ 44.99
Logitech - G502 Hero
Interface: Wired
