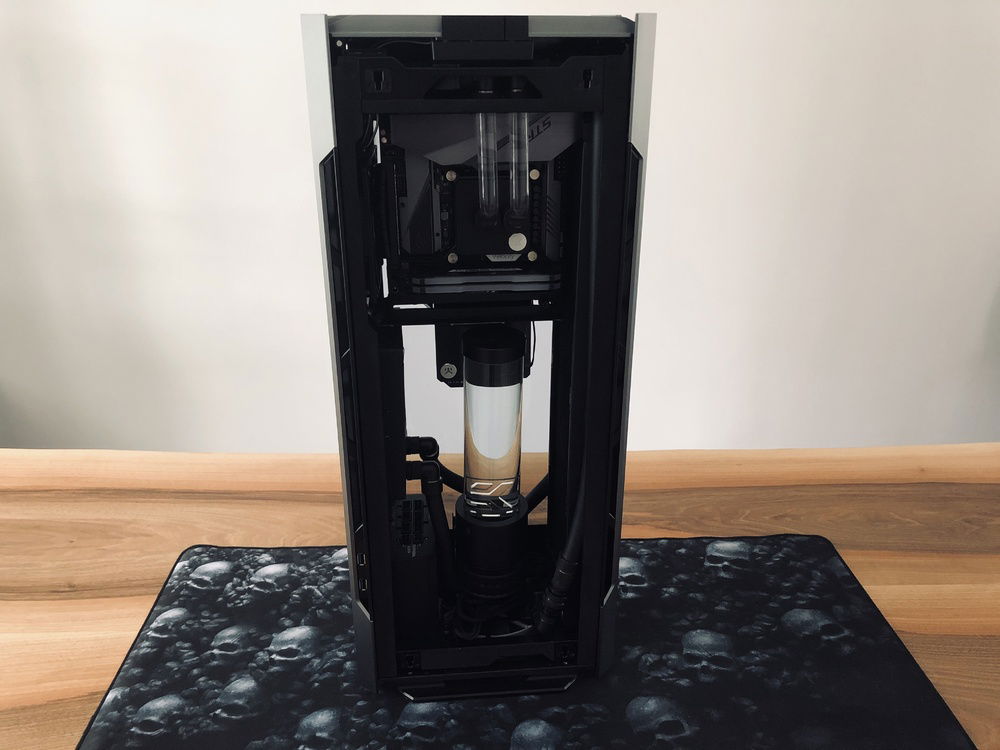

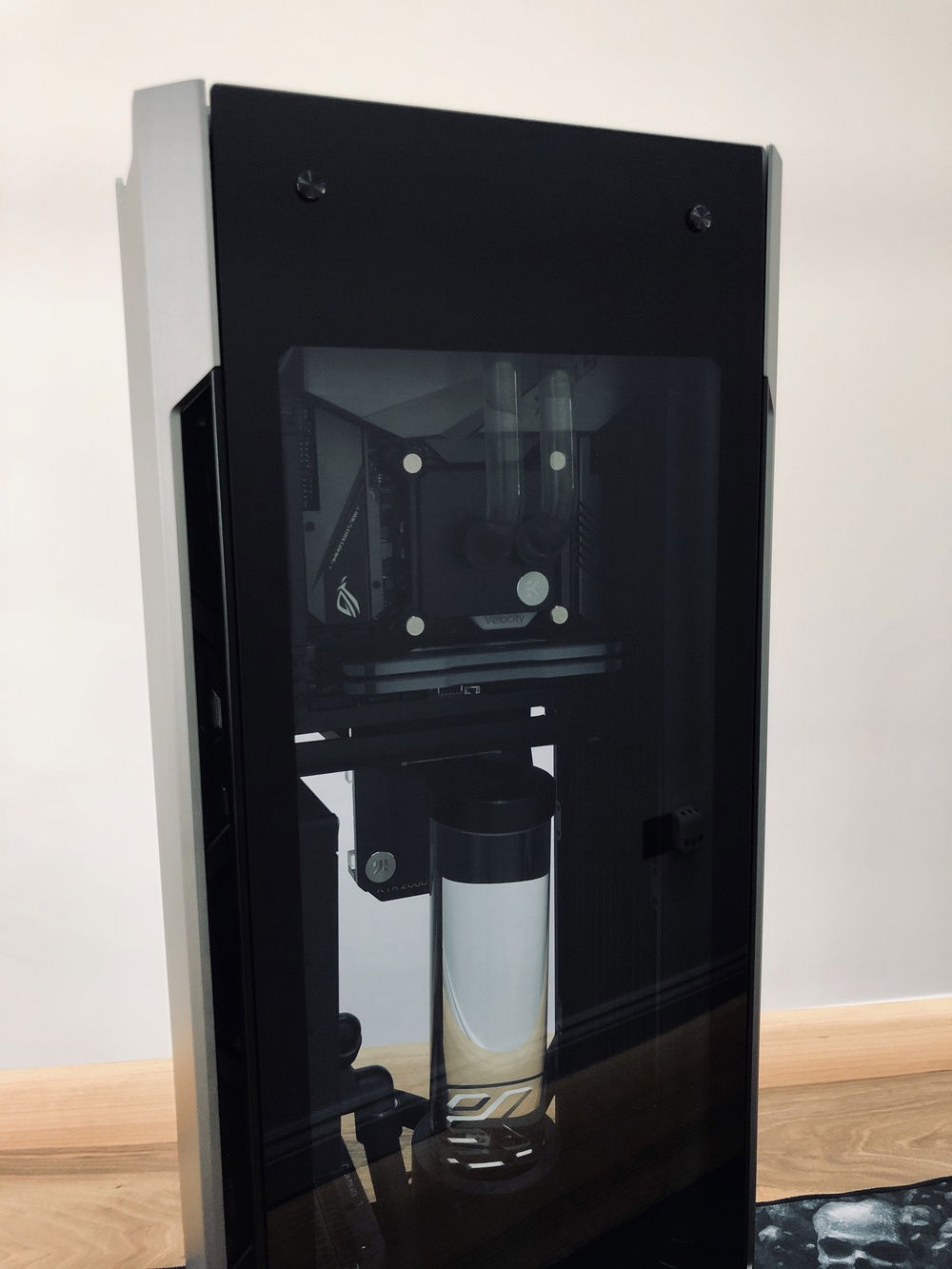

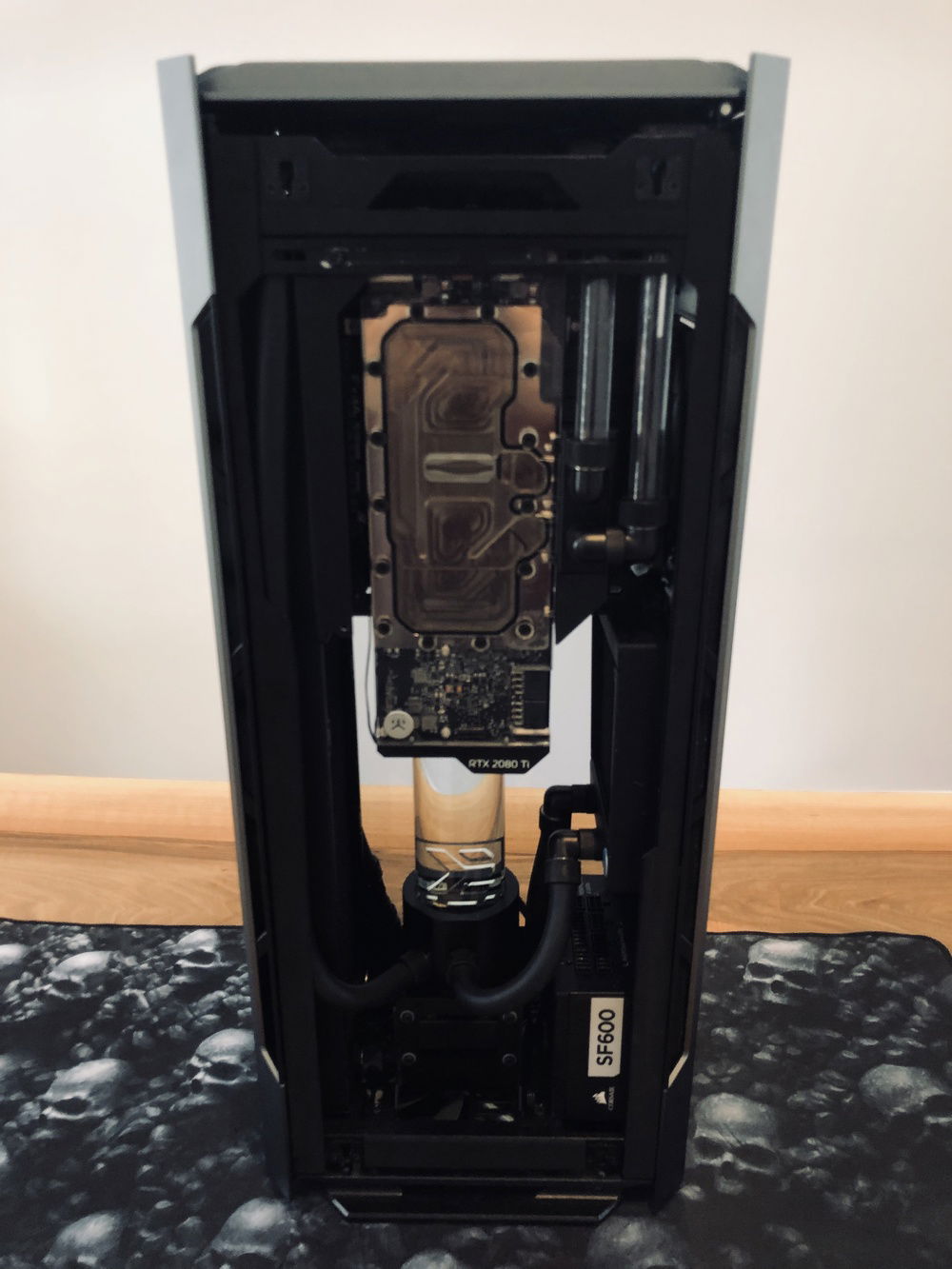

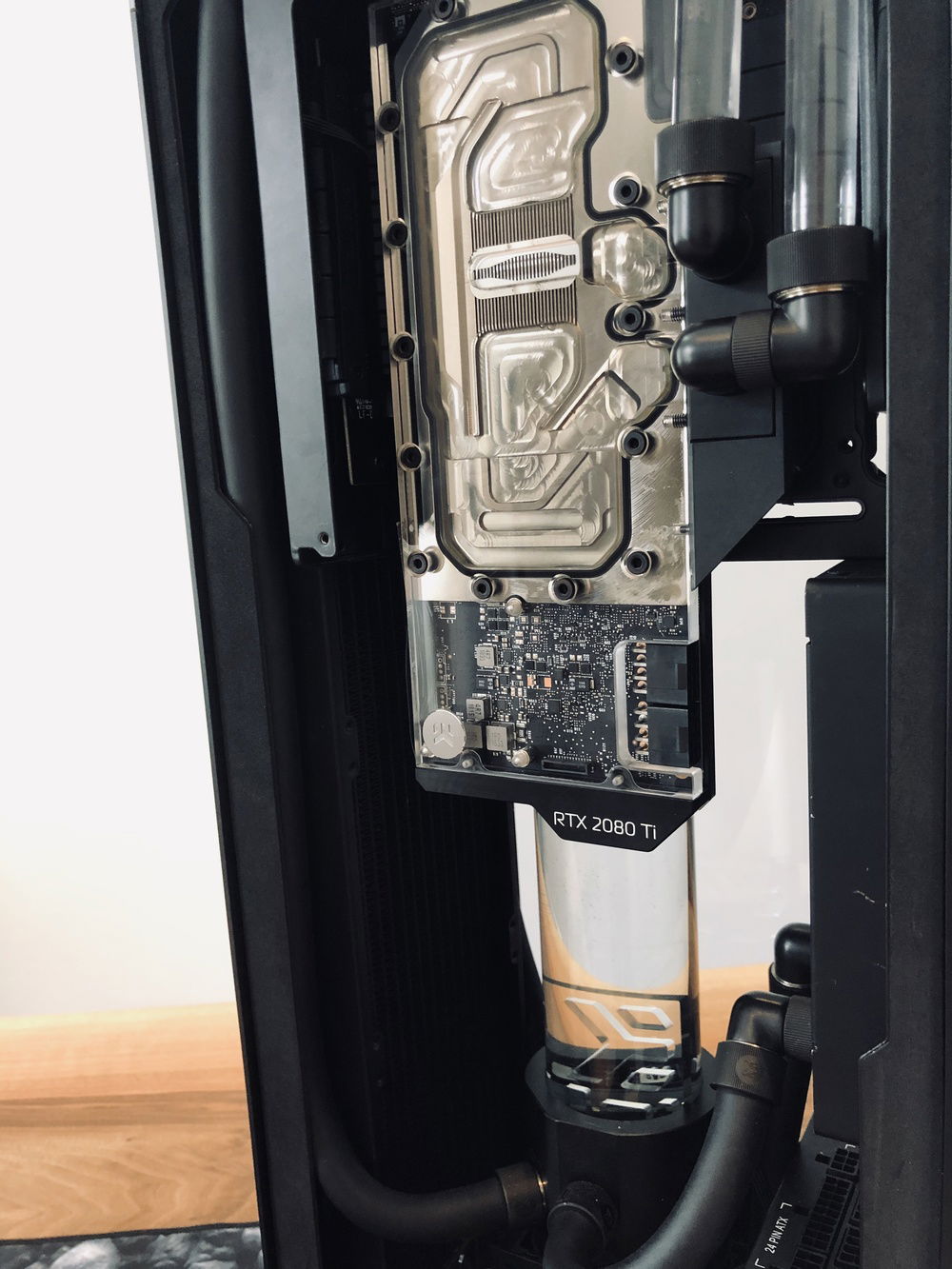

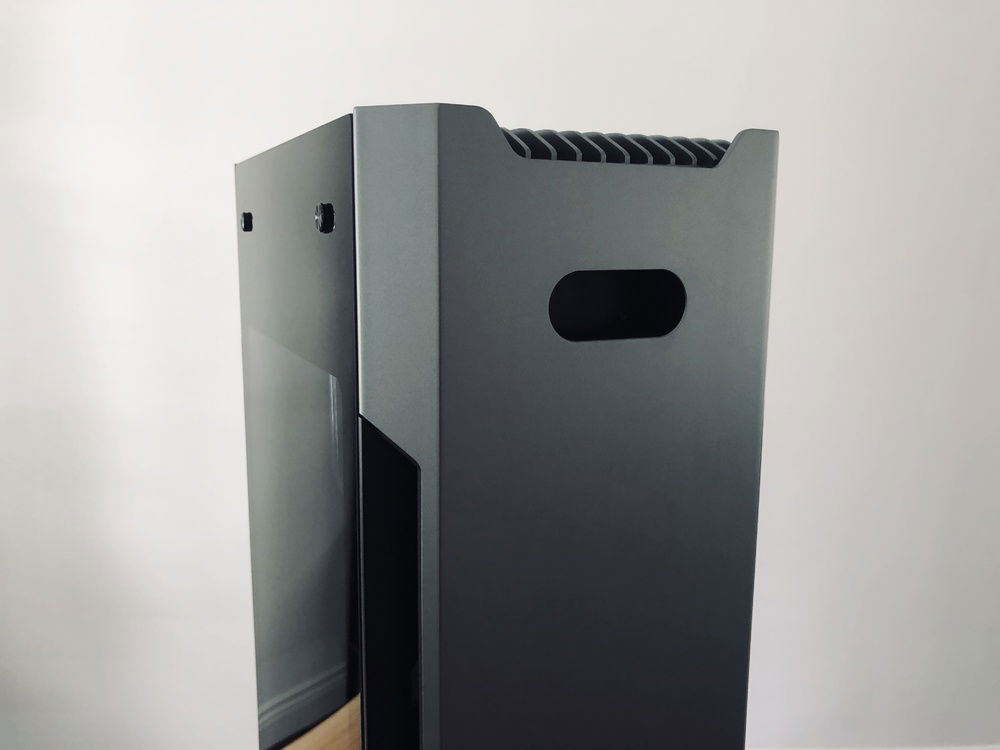

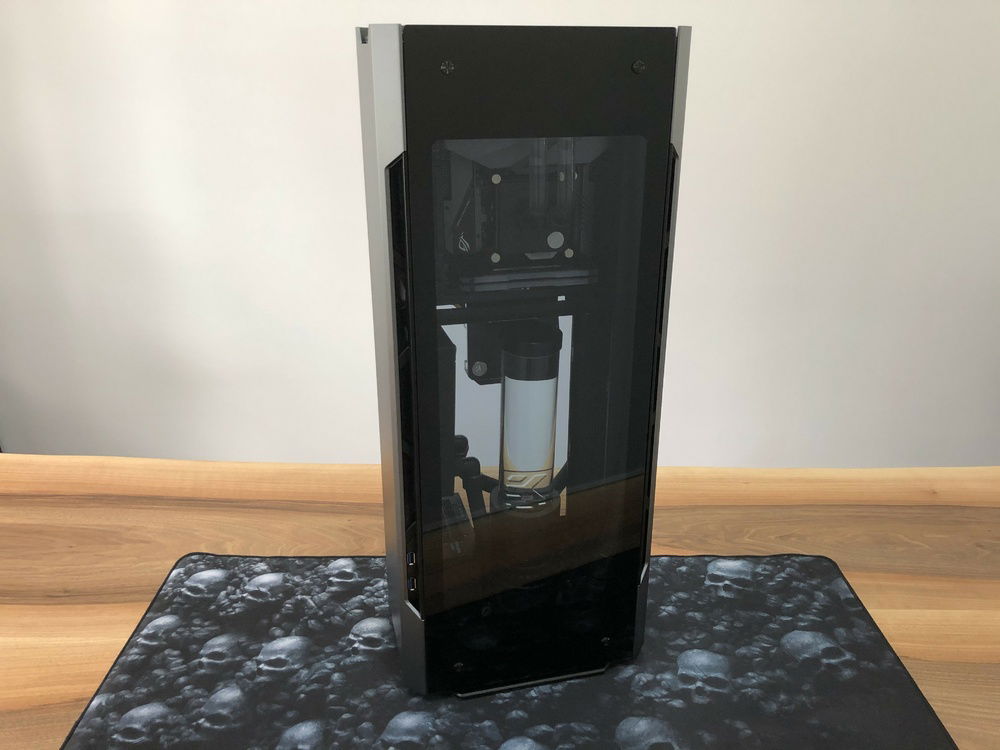

I had to carve open my Evolv Shift X to harvest some of its organs parts to transplant into Shadow Wraith and realised that I hadn't actually taken any pictures of it previously. So here are a few before I drained it down and hacked it open.
The eagle-eyed among you will notice that there are no cables. No, I haven't invented wireless power cables , unfortunately my cables had already been removed for their connectors before I decided to take some shots.
This was my first truly custom water build. By custom I mean I took an angle grinder and dremel to this on many an occasion in order to do the following mods:
Make a 480(!) EK SE Coolstream radiator fit
Make fan/radiator cutouts for 6 120mm fans
Modify motherboard support tray
Reverse panels orientation (front panel on rear, rear panel on back)

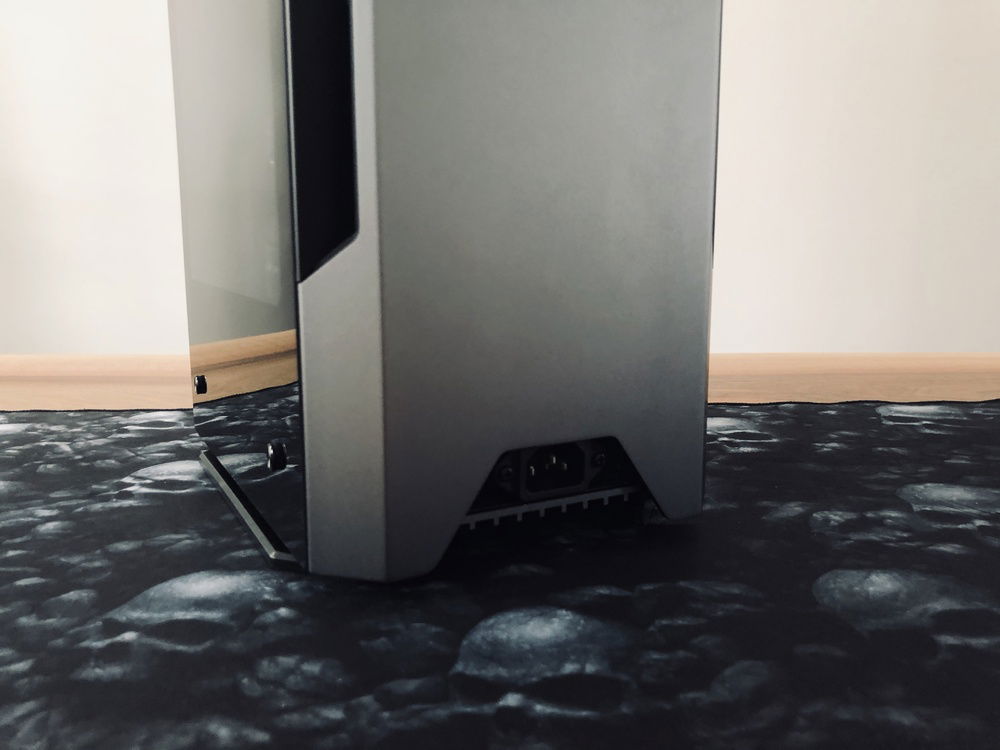

Reverse power outlet orientation (rear to the front - which is now the new rear)

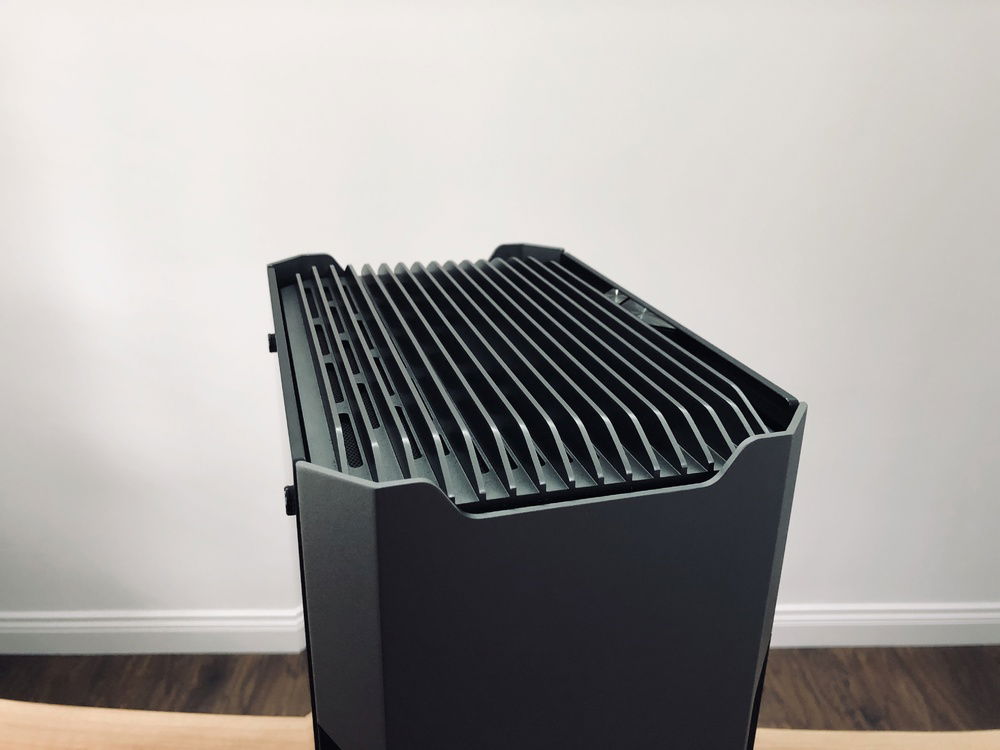

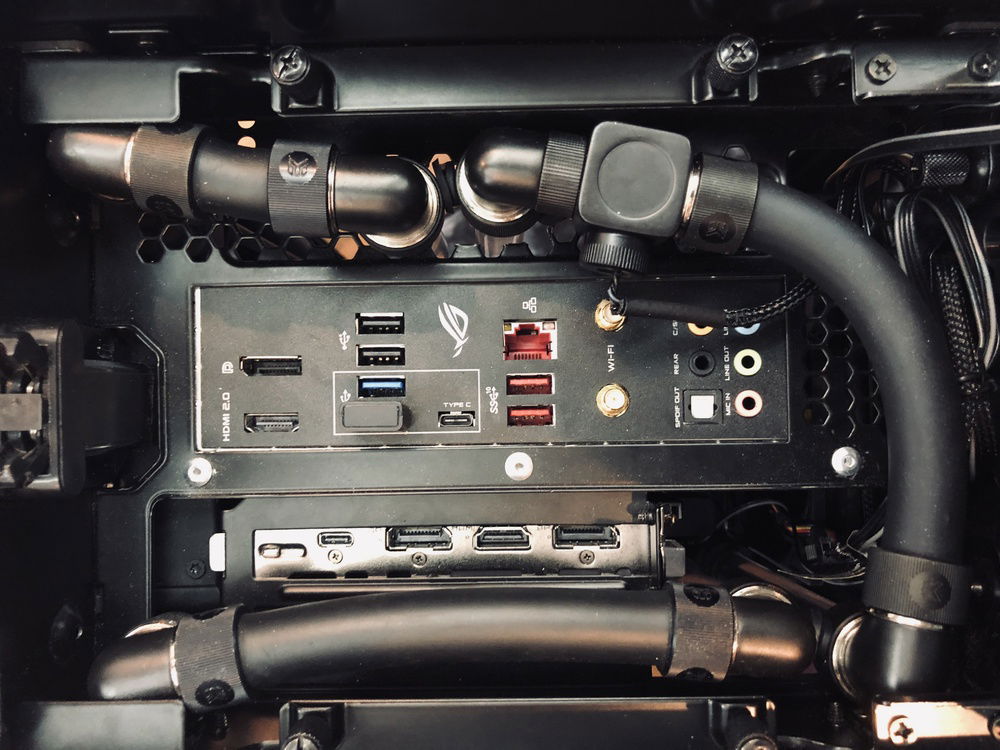

Modify top IO panel to convert vents into pass throughs to hide water tubing
Modify base panel to allow cable routing into base
Probably some more that i've forgotten
As far as I am aware (and I did a lot of research at the time!) this is the only Evolv Shift running a 480 rad, which took a ton of work and tinkering to make fit. I decided to move my build to a Singularity Wraith before I had the chance to CNC the rear panel fan cutouts and ran it without the rear panel for most of it's (short) life, so I never got around to giving it my signature shadow black wrap.
