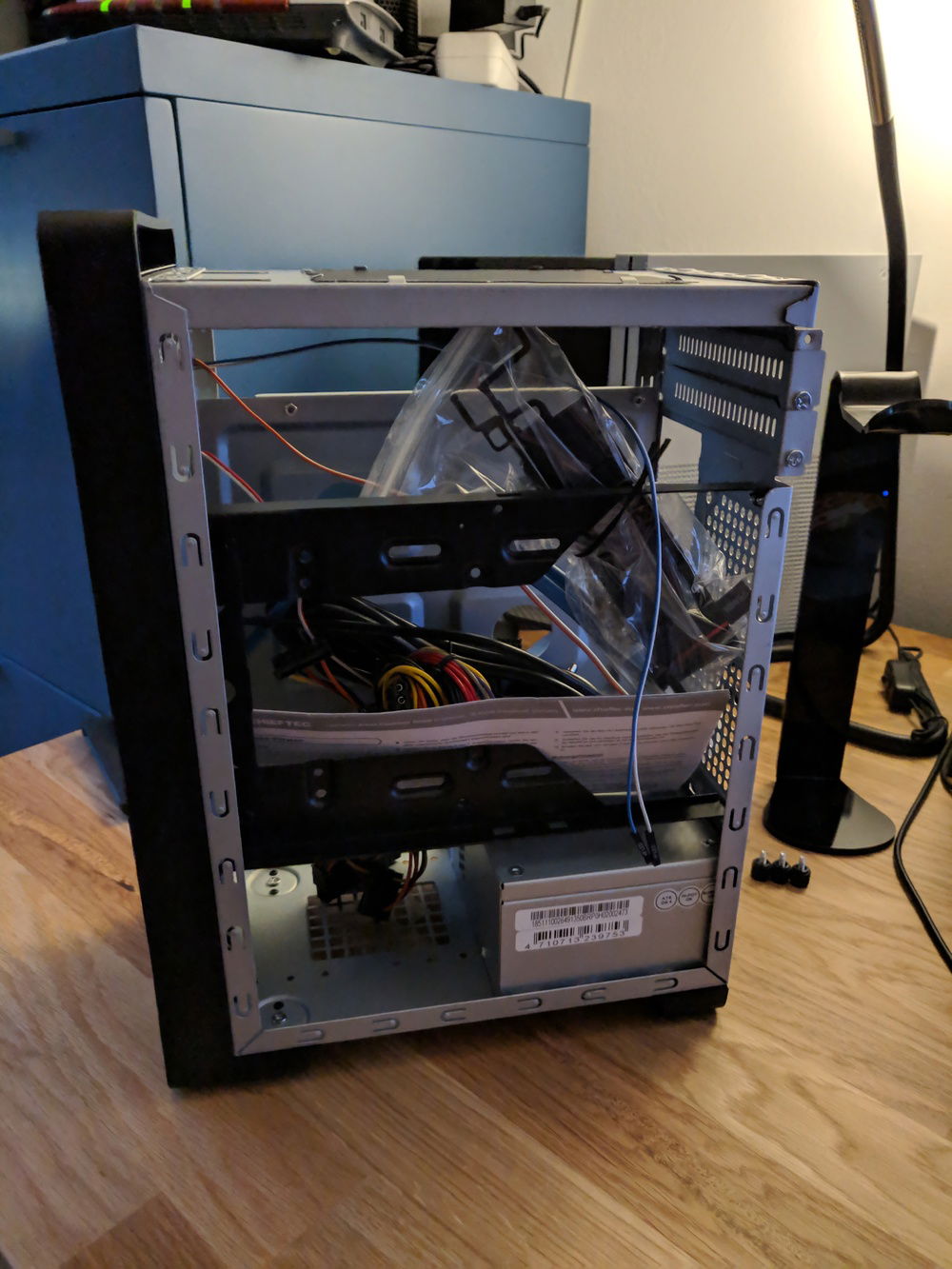

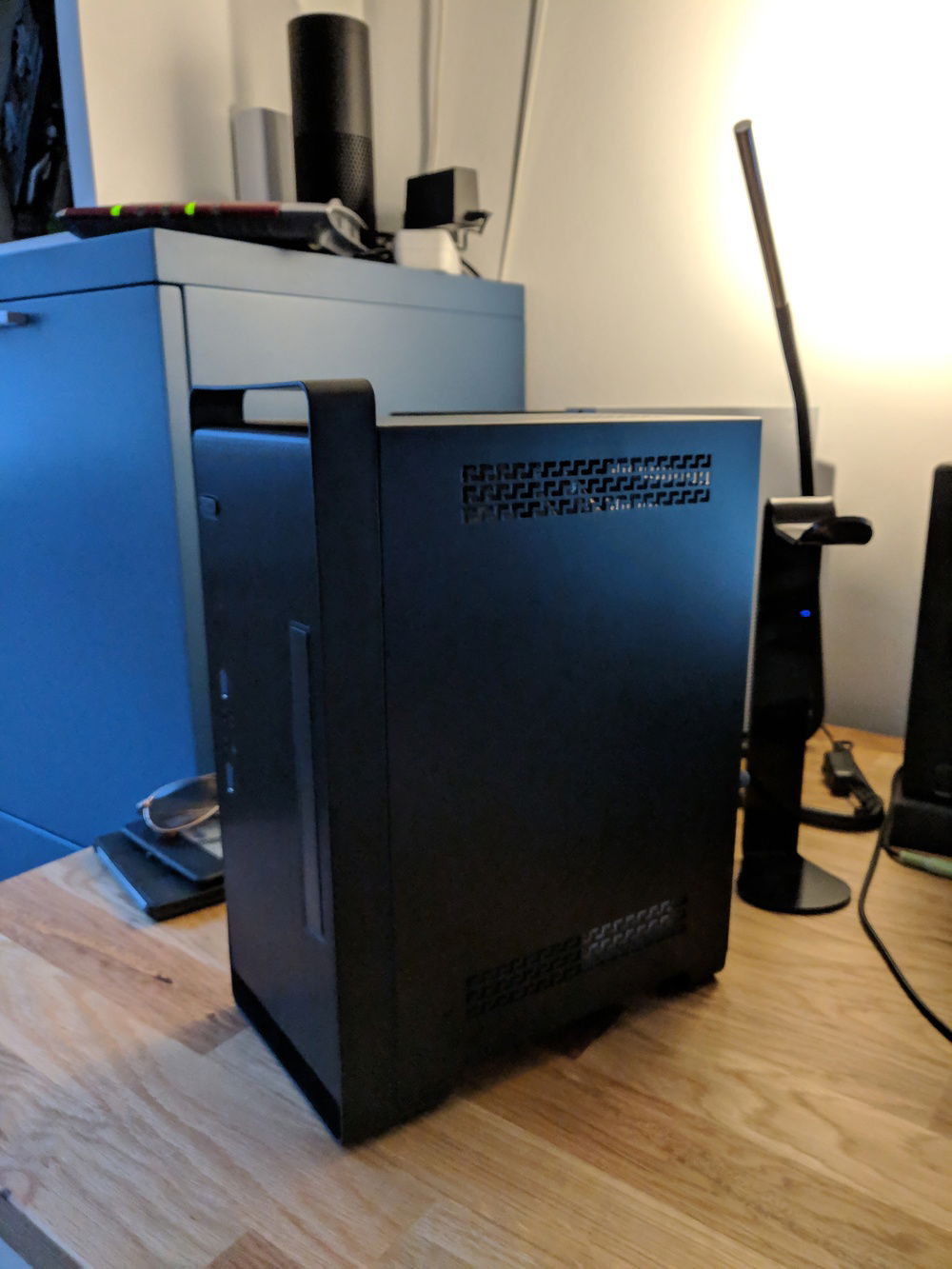

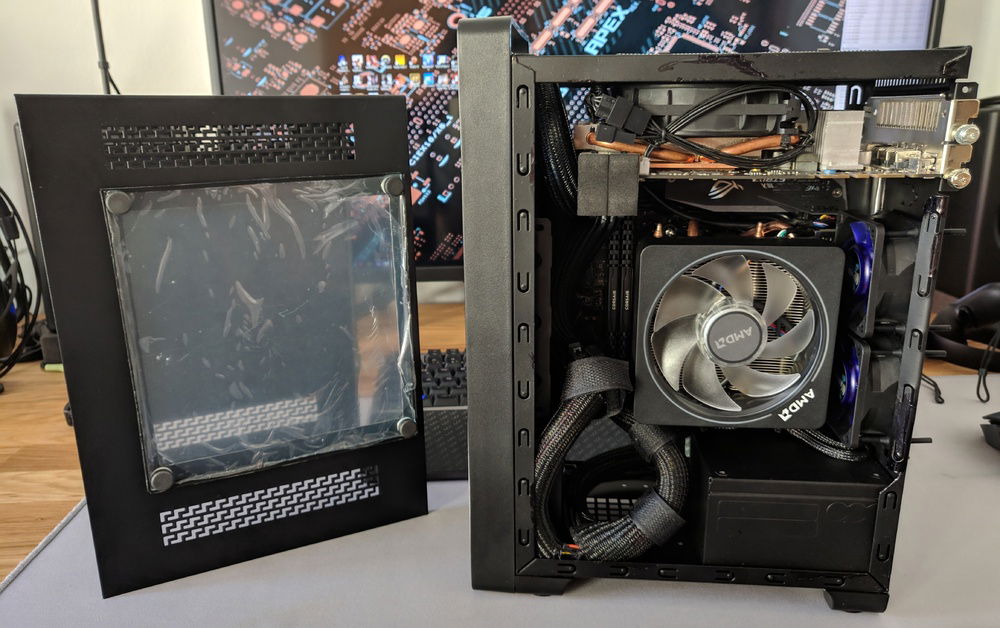

Saw the Chieftec BT-04B case, liked the general size and shape, but didn't like the finish and sidepanel. So I cut out a window on the side and spraypainted the inner frame. Also dremeled away the 2.5" drive rails and spray painted the included PSU. Now this cheapo office case was all matte black and nicer on the eye :P

After usually building larger ATX and µATX builds, I wanted to get back down to ITX size again and see how much I could cram into a tiny case. Well, not as tiny as some of the premium SFF options anyway.

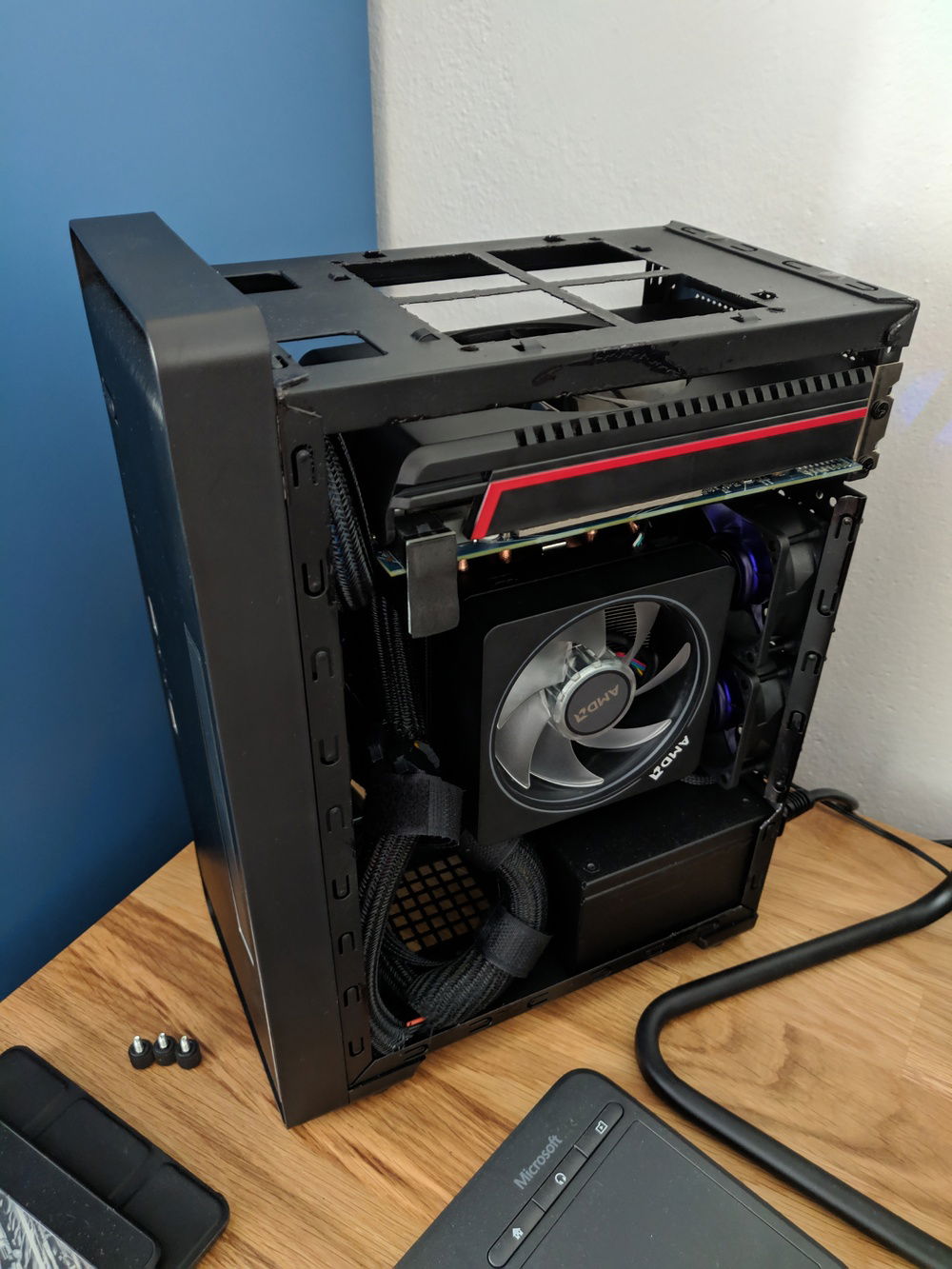

B450 ITX board leaves upgrade options for higher core count CPU later on (Ryzen 3000 should free up the 1700 currently running in my main rig). GPU is the toughest to get right here. The dimensions are tightly constrained, length cannot exceed 200mm, height cannot exceed 115mm. Even worse, if the PCIE power plug(s) point towards the side panel, height cannot exceed 113mm AND even then you still can't fit the power plugs directly, but will need to use very low profile adapters. I found some U-turn 6pin adapters on moddiy.com that served the purpose as they only add 7mm towards the sidepanel, which technically is still about 2-3mm too much, but since their outer face is foam, there's a little wiggle room. Even then though, the whole motherboard+tray are flexing a tad when the sidepanel is fully on.
Color(s): Black
RGB Lighting? Yes
Cooling: Air Cooling
Theme: none
Size: Mini-ITX
Type: General Build

Hardware

CPU
$ 255.66
AMD - Ryzen 3 (2200G)
Socket: AM4
Cores: 4
Integrated Graphics: Yes
Motherboard
$ 298.86

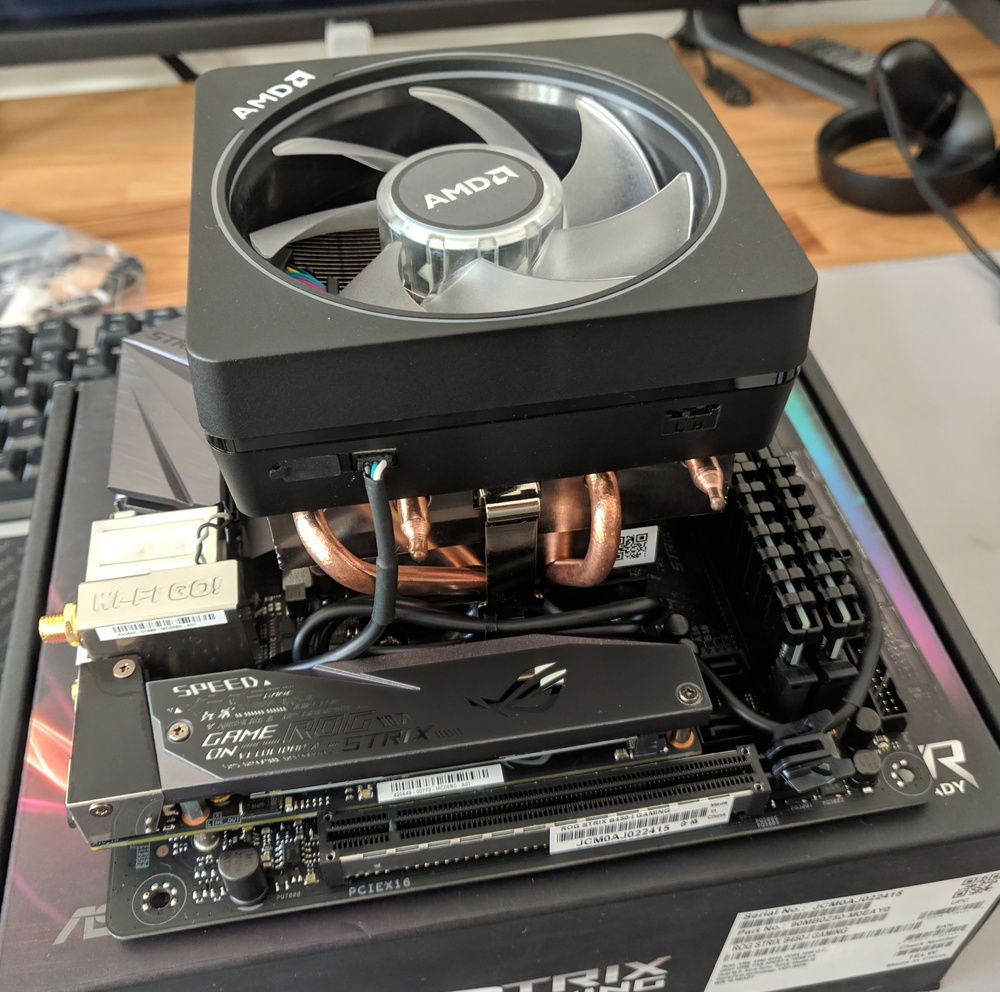

ASUS - ROG Strix Gaming (B450-I)
Chipset: B450
CPU Socket: AM4
Size: Mini-ITX
Memory
$ 44.99
Corsair - Vengeance LPX (3000MHz) (Black)
Type: DDR4
Capacity: 8 GB
Graphics
$ 299.99
HP - Omen RX 580 4GB
Chip Manufacturer: AMD
Chip: RX 580
Interface: PCIe x16
Storage
$ 52.99
ADATA - XPG SX6000pro
Form Factor: M.2
Interface: M.2 (M)
Capacity: 512 GB
PSU
$ 138.98
Case
$ 313.00
Chieftec - Elox BT-04B-U3
Type: Mini-ITX
Side Panel: Solid
Case Fan
$ 10.95
Case Fan
$ 9.99
Cooling
$ 39.99
AMD - Wraith Prism
Type: Air Cooler
Estimated total value of this build:
$ 1,299.91
