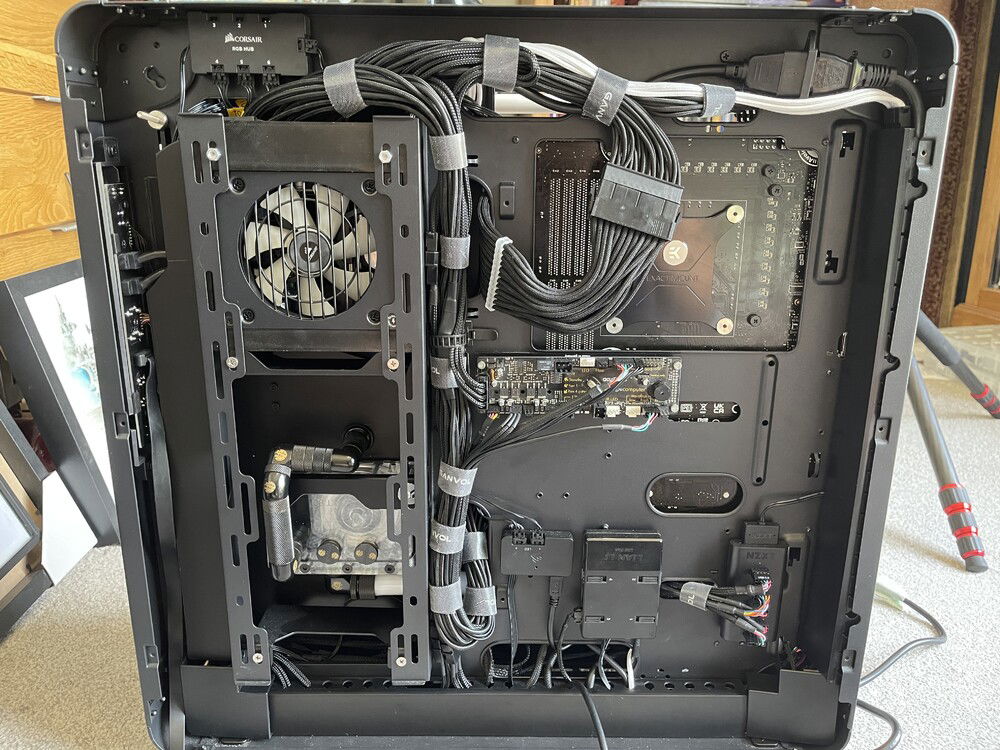

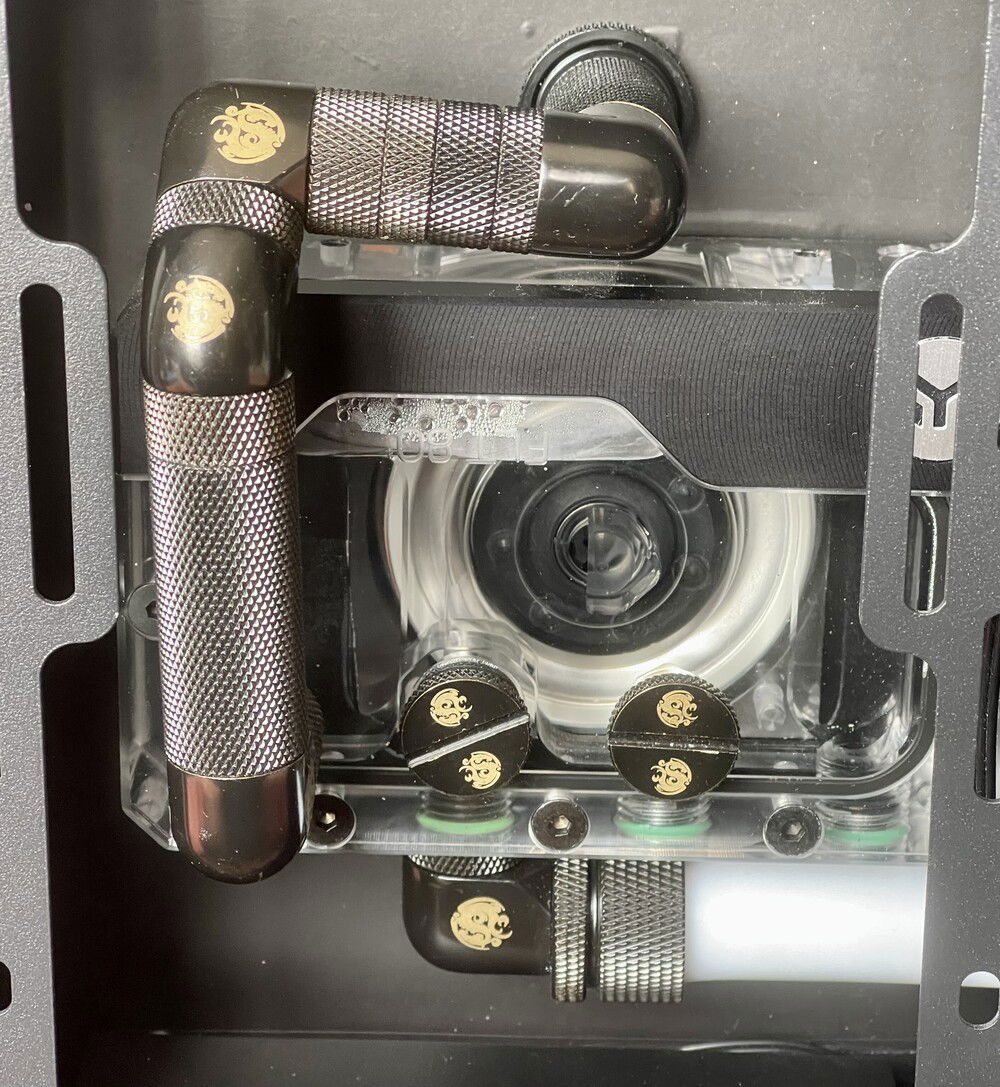

Case rear, custom shroud, EK FLT reservoir and pump combo.
Case rear, custom shroud, EK FLT reservoir and pump combo.

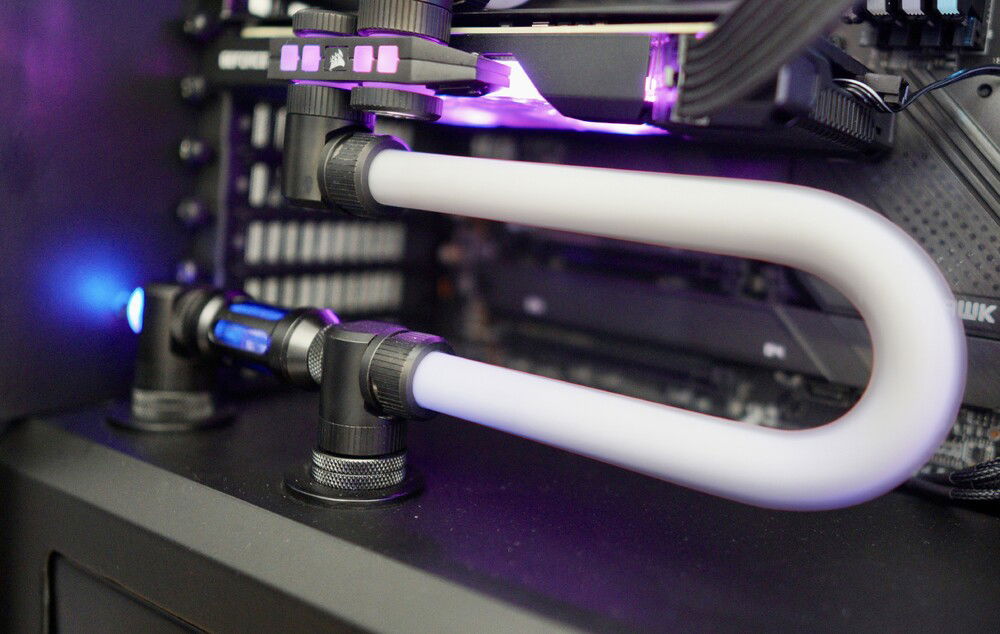

EK block and satin white PMMA tubing.
EK block and satin white PMMA tubing.
With PSU mounting removed and SFX PSU moved to mid case the 420mm dual rad fit nice 👍🏼
With PSU mounting removed and SFX PSU moved to mid case the 420mm dual rad fit nice 👍🏼

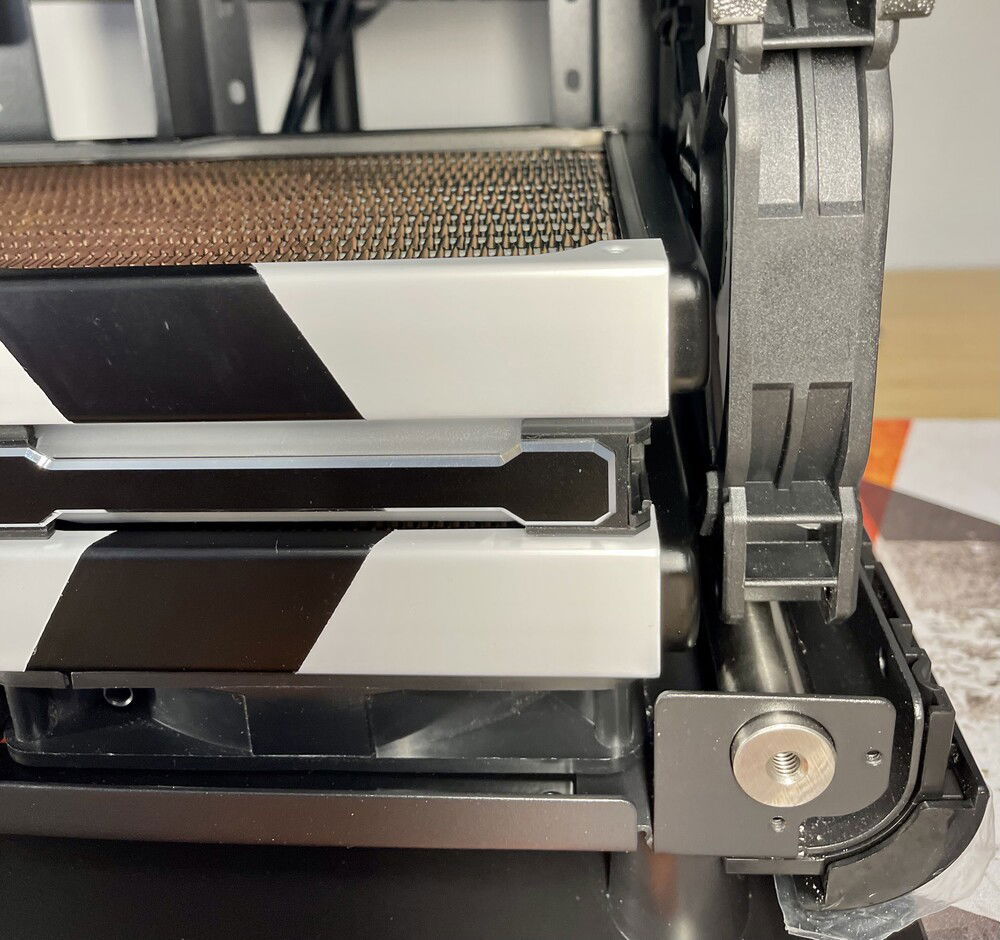

Tight!
Tight!
Custom 3D printed 140mm triple fan mount and SFX PSU 120mm mount.
Custom 3D printed 140mm triple fan mount and SFX PSU 120mm mount.
3D printed fan and SFX mounts, sprayed 420mm dual rads in place.
3D printed fan and SFX mounts, sprayed 420mm dual rads in place.

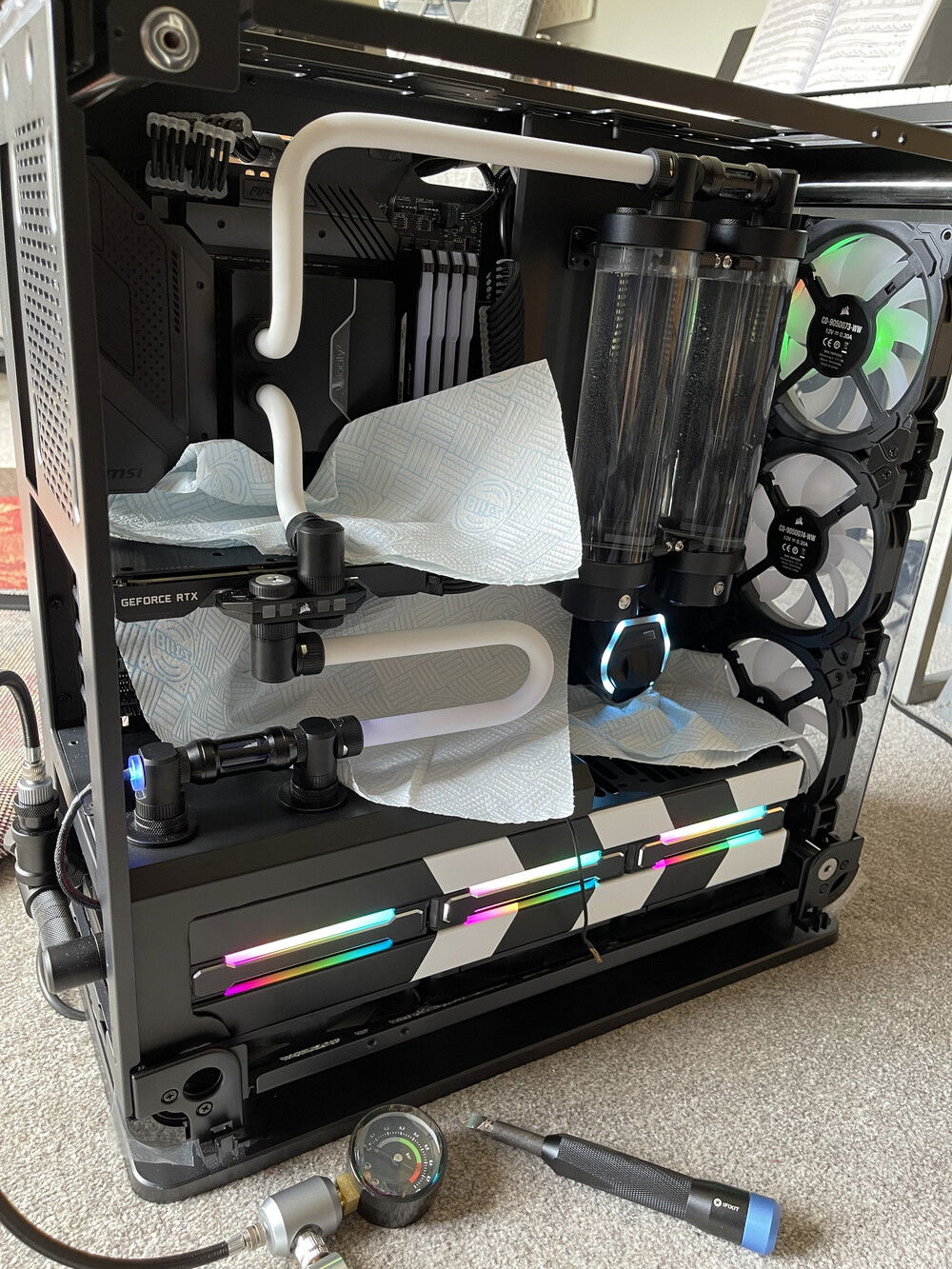

First time working with hardline tube!
First time working with hardline tube!
🤞🏼
🤞🏼

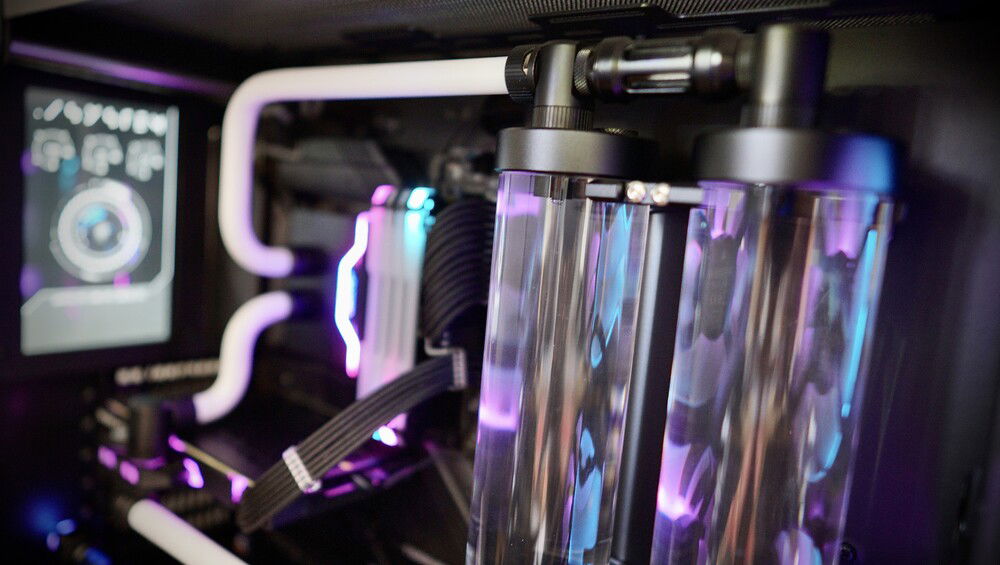

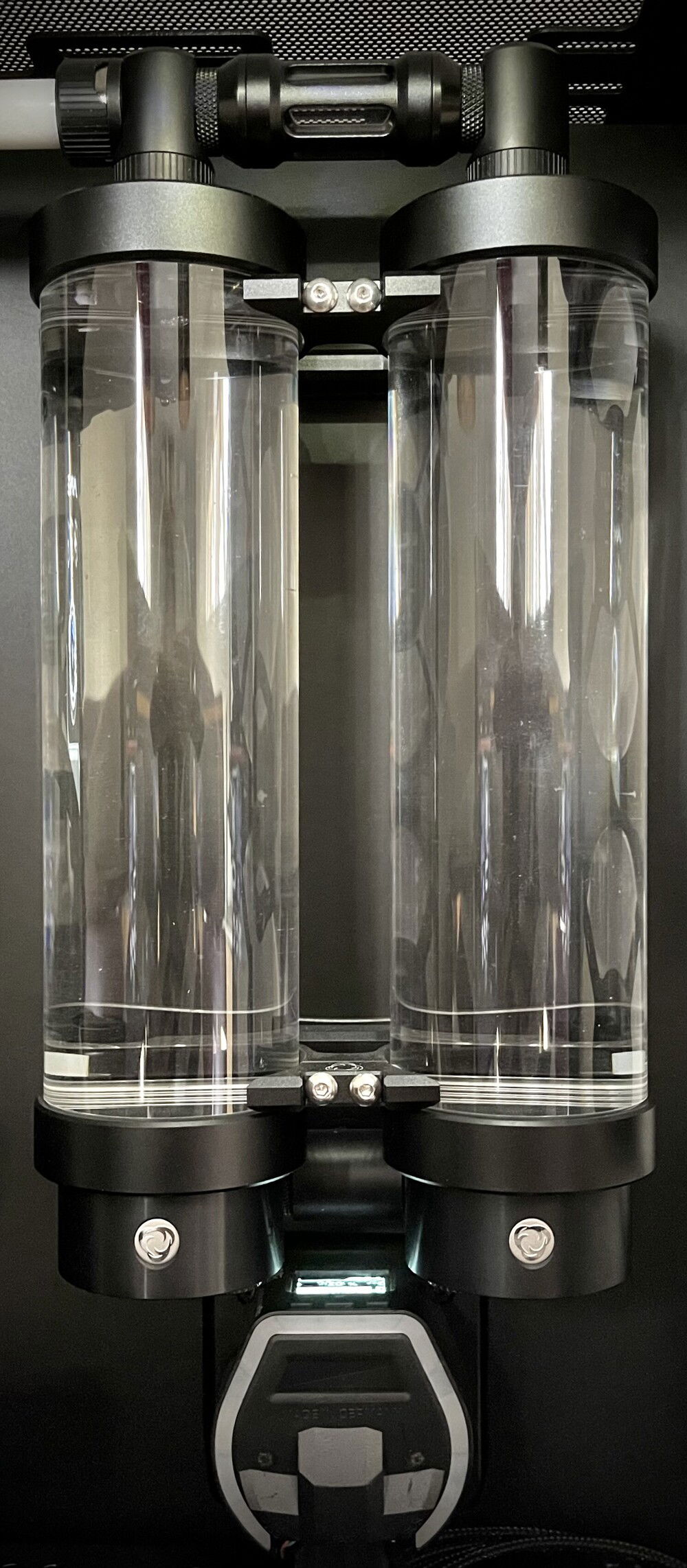

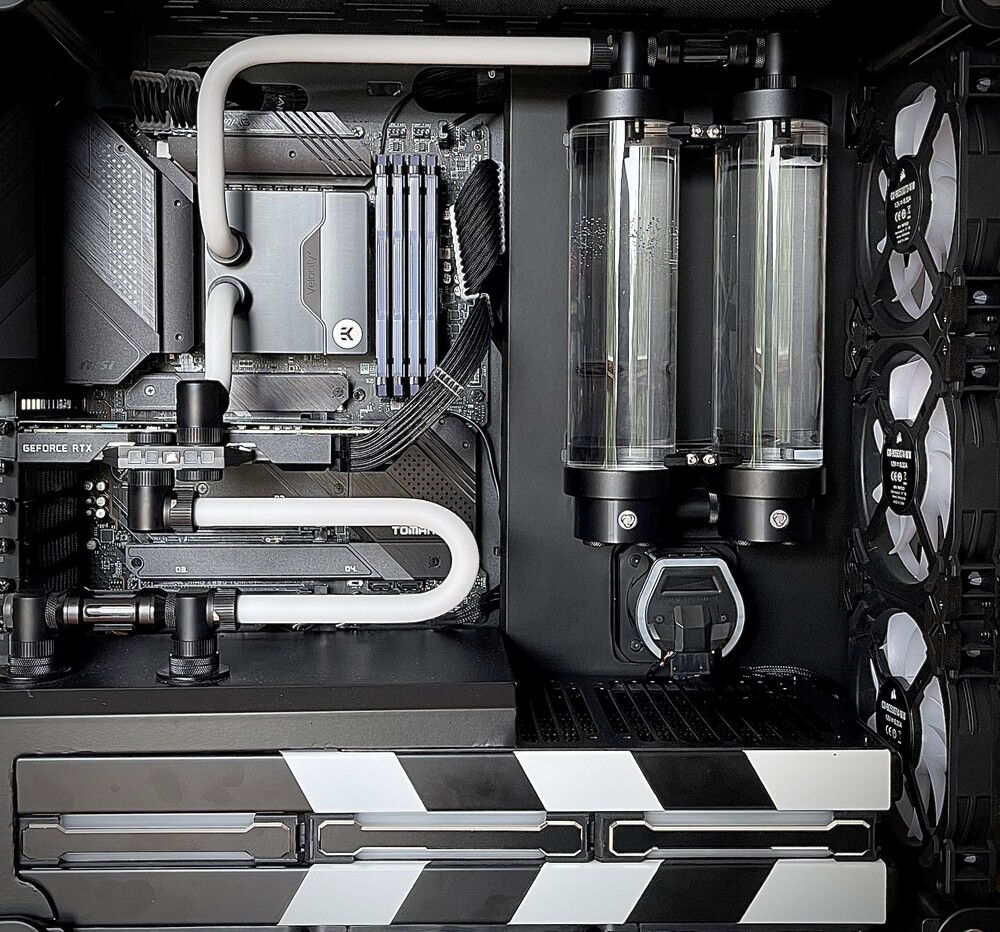

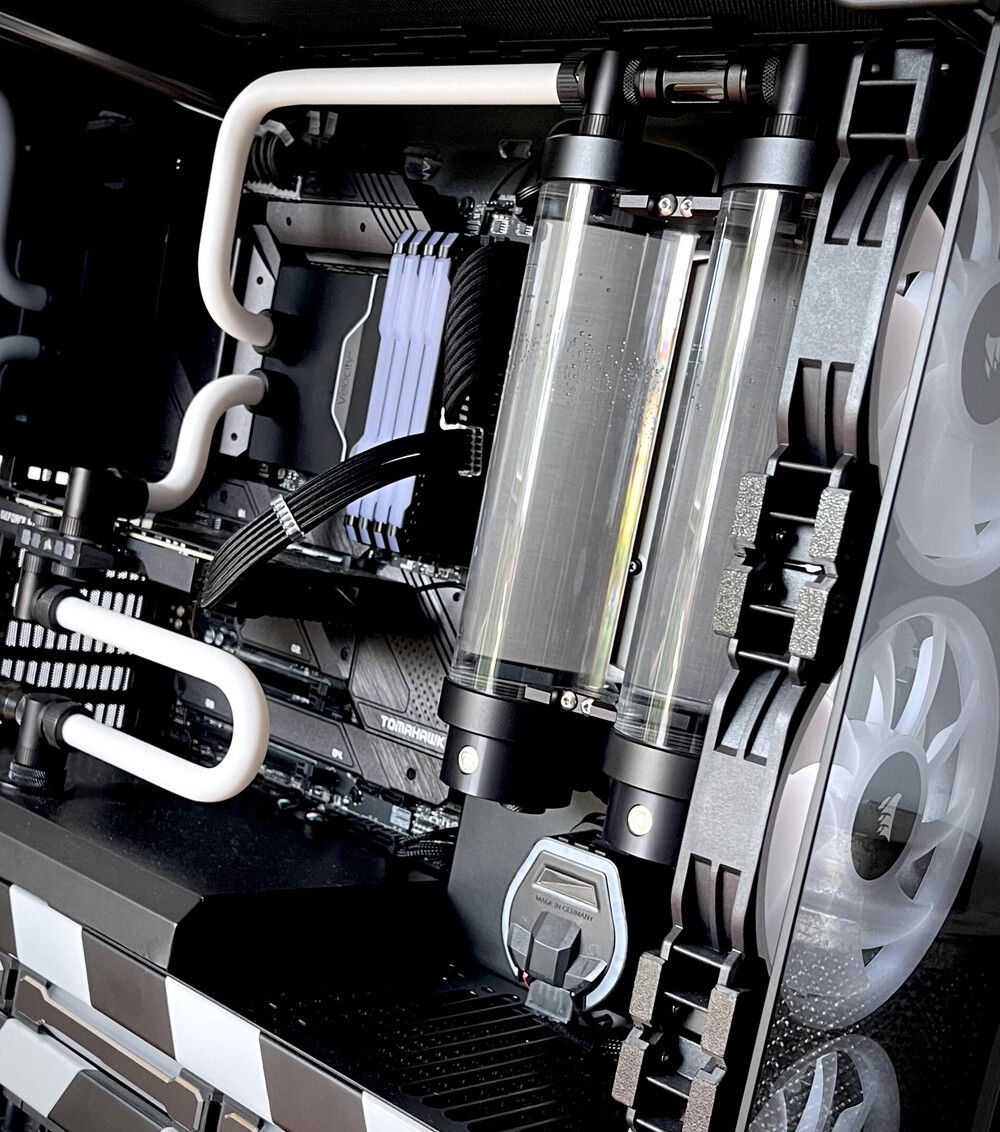

Protium 200mm reservoirs and Ethereal Dual mounts.
Protium 200mm reservoirs and Ethereal Dual mounts.

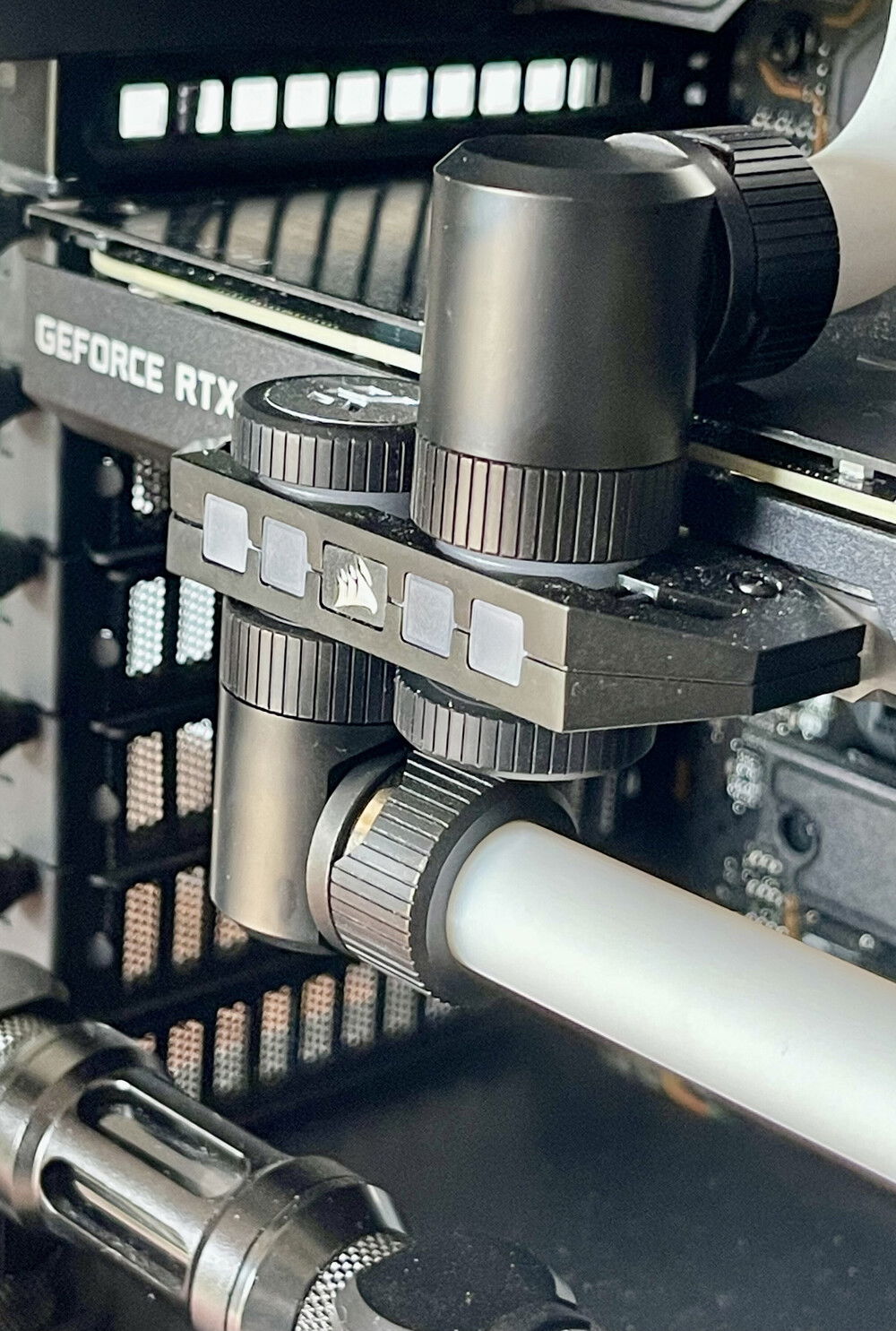

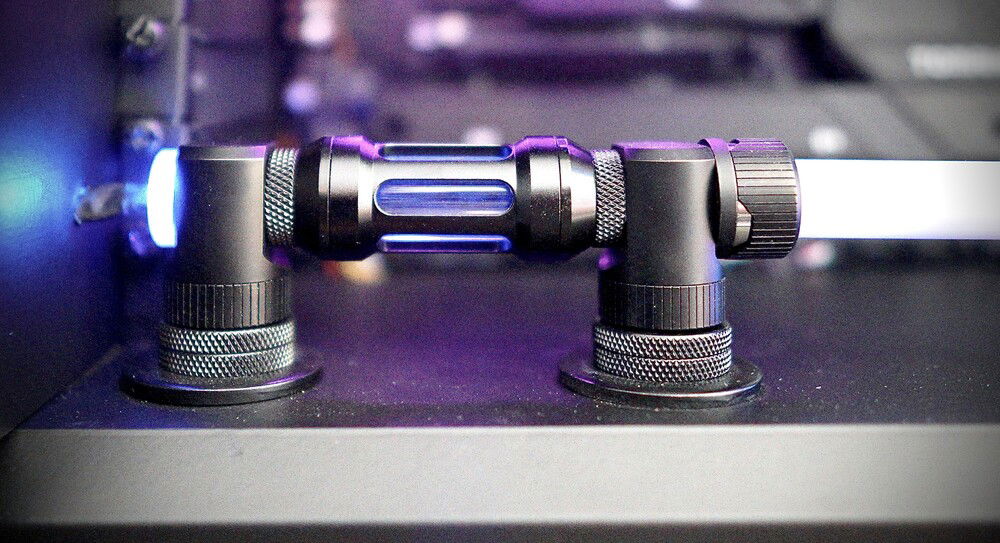

EK torque fittings.
EK torque fittings.

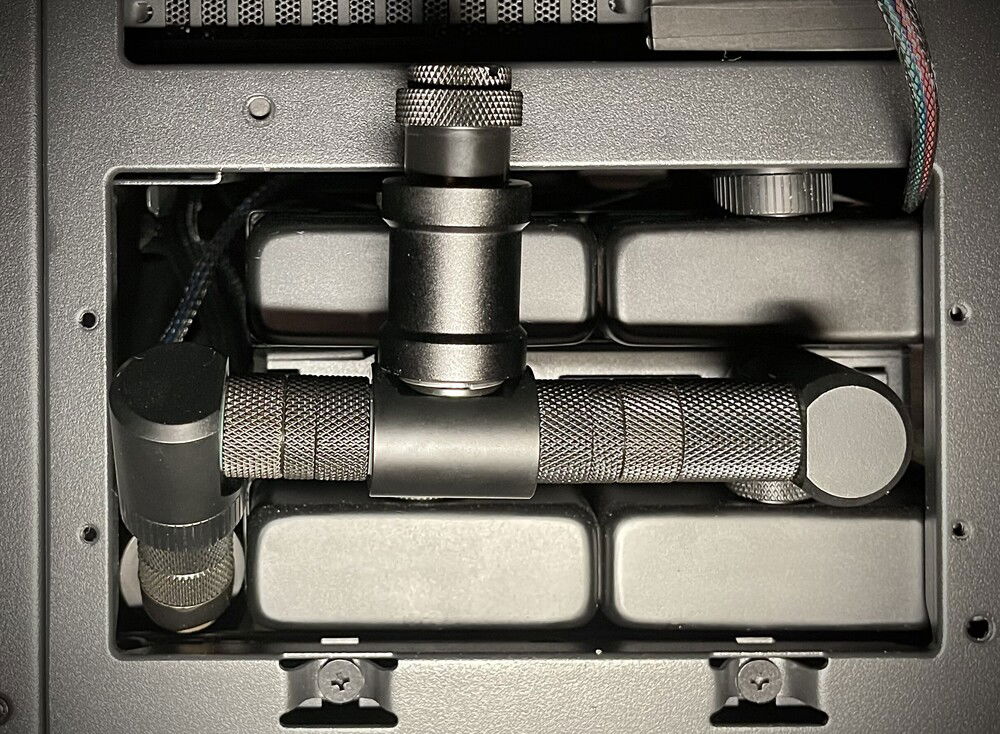

Drain port.
Drain port.

Zevatron

With two little devils 😈 this build took 8 months 😑

SciFi theme based on quantum acceleration with retro wave lighting.

A few notable changes to the standard P6 Core case:
  • The PSU shroud has been cut and vinyl wrapped with 3M matt black this has made space to support a dual 420mm push/pull radiator setup


  • A 750w SFX PSU has been mounted in the centre case using a custom printed mount.

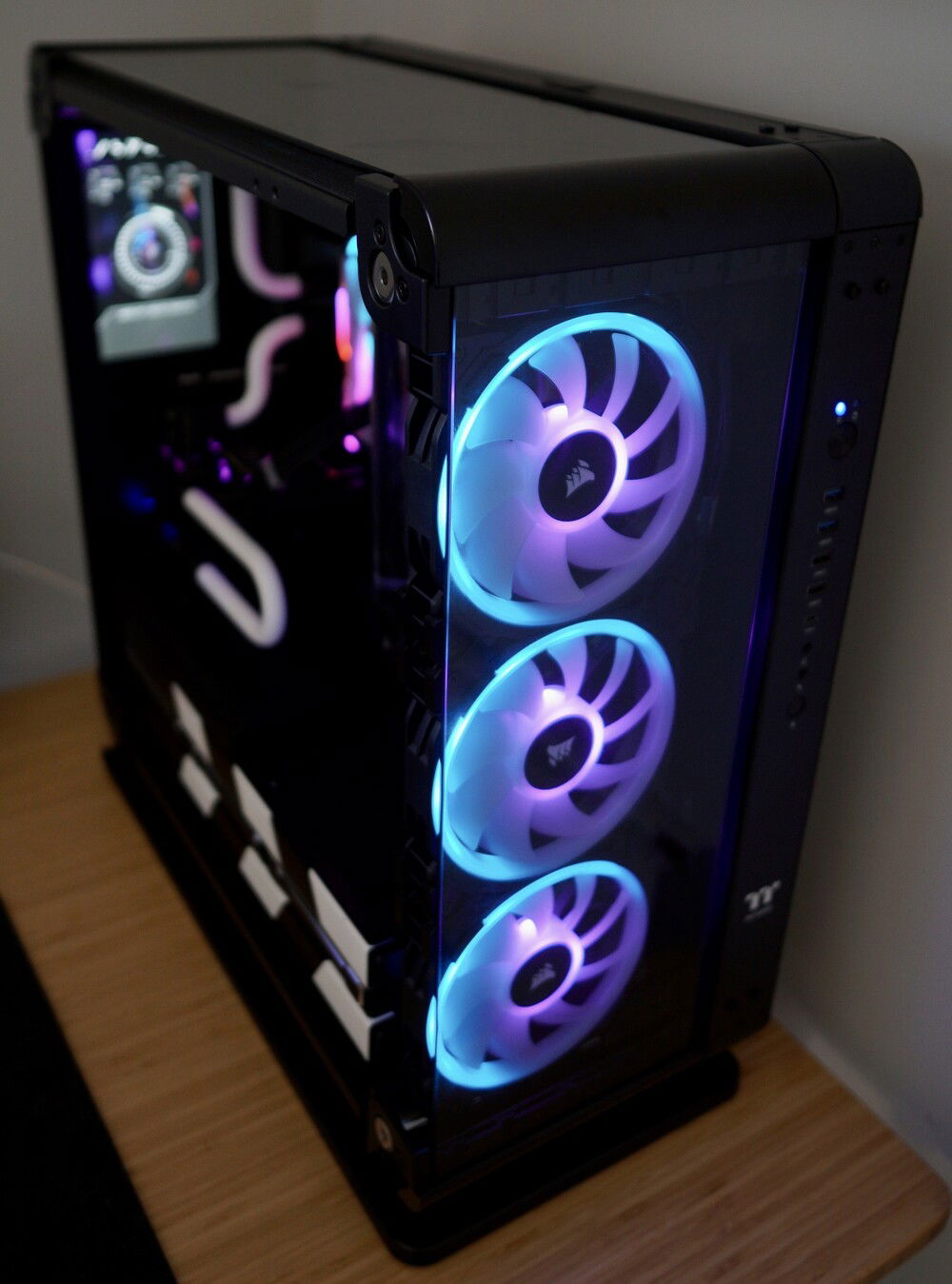

  • The front fan frame has been removed and a custom printed mount allows for 3x140mm fans.


  • Custom vinyl wrapped plexi in the centre case mounts the dual reservoirs and has a cutout for the EK FLT pump/res combo.


  • Custom plexi cover in the rear case abstracts the cable management and fan/light control.


Thanks for viewing 👍🏼
Color(s): Black White
RGB Lighting? Yes
Theme: Sci-Fi
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 165.00
Intel - Core i5-12600KF
Socket: LGA 1700
Cores: 10
Motherboard
$ 577.84
MSI - Mag Tomahawk (WiFi)
Chipset: Z690
CPU Socket: LGA 1700
Size: ATX
Memory
$ 353.96
Corsair - Vengeance Pro (3600MHz) (Black/RGB) (2x)
Type: DDR4
Capacity: 16 GB
Graphics
$ 770.00
NVIDIA - GeForce (Founders)
Chip Manufacturer: NVIDIA
Chip: RTX 3080
Interface: PCIe x16
Storage
$ 179.00
Samsung - 980
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 179.99
Samsung - 980 Pro
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 285.00
Corsair - SF750
Wattage: 750
Form Factor: SFX
Efficiency: 80+ Platinum
Case
$ 194.85
Thermaltake - Core P6 TG (Black)
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 79.98
Corsair - LL140 (RGB)
Size: 140 mm
Case Fan
$ 53.97
Fractal Design - Silent Series R2 140mm (3x)
Size: 140 mm
Case Fan
$ 99.00
Lian Li - Uni Fan SL140 (3x)
Size: 140 mm
Cooling
$ 229.98
Alphacool - NexXxoS ST30 Full Copper (2x)
Type: Custom Loop
Size (WxHxD): 420 mm (3 x 140 mm)
Cooling
$ 199.99
Aquacomputer - D5 NEXT
Type: Pump
Cooling
$ 225.00
Barrow - Fittings
Type: Custom Loop
Cooling
$ 80.00
Bitspower - Fittings
Type: Custom Loop
Cooling
$ 158.10
Corsair - Hydro X XG7 (RGB)
Type: GPU Waterblock
Cooling
$ 24.99
Corsair - Hydro X XT 3x 1m 14mm Satin Hardline
Type: Tubing
Cooling
$ 228.09
EKWB - EK-Quantum Kinetic FLT 80
Type: Pump/Reservoir Combo
Cooling
$ 15.00
EKWB - EK-Quantum Torque Color Ring HDC 14 - Nickel
Type: Fittings
Cooling
$ 20.00
EKWB - EK-Quantum Torque Extender Rotary MF 14 (Black)
Type: Fittings
Cooling
$ 95.94
EKWB - EK-Quantum Torque HDC 14 - Black (6x)
Type: Fittings
Cooling
$ 20.76
EKWB - EK-Quantum Torque Plug w/Badge - Black (2x)
Type: Fittings
Cooling
$ 84.00
EKWB - EK-Quantum Torque Rotary 90° (Black) (7x)
Type: Fittings
Cooling
$ 16.99
EKWB - EK-Quantum Torque Splitter 3F T - Black
Type: Fittings
Cooling
$ 197.99
EKWB - EK-Quantum Velocity D-RGB - 1700 Nickel + Acetal
Type: Block
Size (WxHxD): 100 mm
Cooling
$ 48.18
EKWB - EK-Torque Angled T (Black) (3x)
Type: Fittings
Cooling
$ 40.00
Mayhems - Fluid (2x)
Type: Custom Loop
Cooling
$ 120.00
Singularity Computers - Protium (2x)
Type: Reservoir
Size (WxHxD): 60 mm
Accessories
$ 120.00
Aquacomputer - Aquaero 5 XT
Accessories
$ 64.99
Corsair - Lighting Node Pro
Accessories
$ 59.90
Corsair - Vengeance Pro Light Enhancement Kit (Black/RGB)
Accessories
$ 24.99
NZXT - Internal USB Hub 3
Accessories
$ 130.00
Singularity Computers - Ethereal Dual 2.0 Black (2x)
Monitor
$ 727.98
Alienware - AW3418DW
Size: 34 Inch
Panel: IPS
Refresh Rate: 120 Hz
Estimated total value of this build:
$ 4,743.60
