Semi finished build with the holding GTX1650 whilst waiting for the RX6800
Semi finished build with the holding GTX1650 whilst waiting for the RX6800

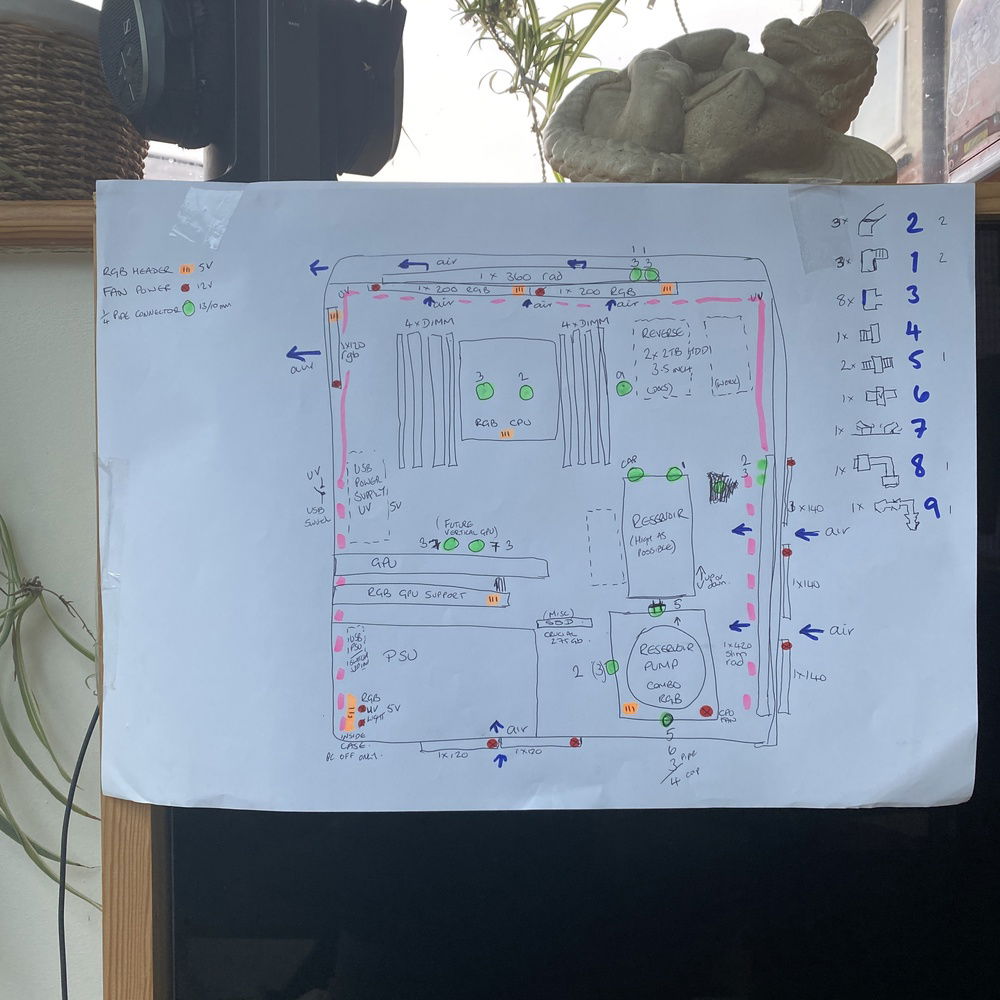

As this was my first water cooled build, I did a plan to make sure I had enough connectors!
As this was my first water cooled build, I did a plan to make sure I had enough connectors!

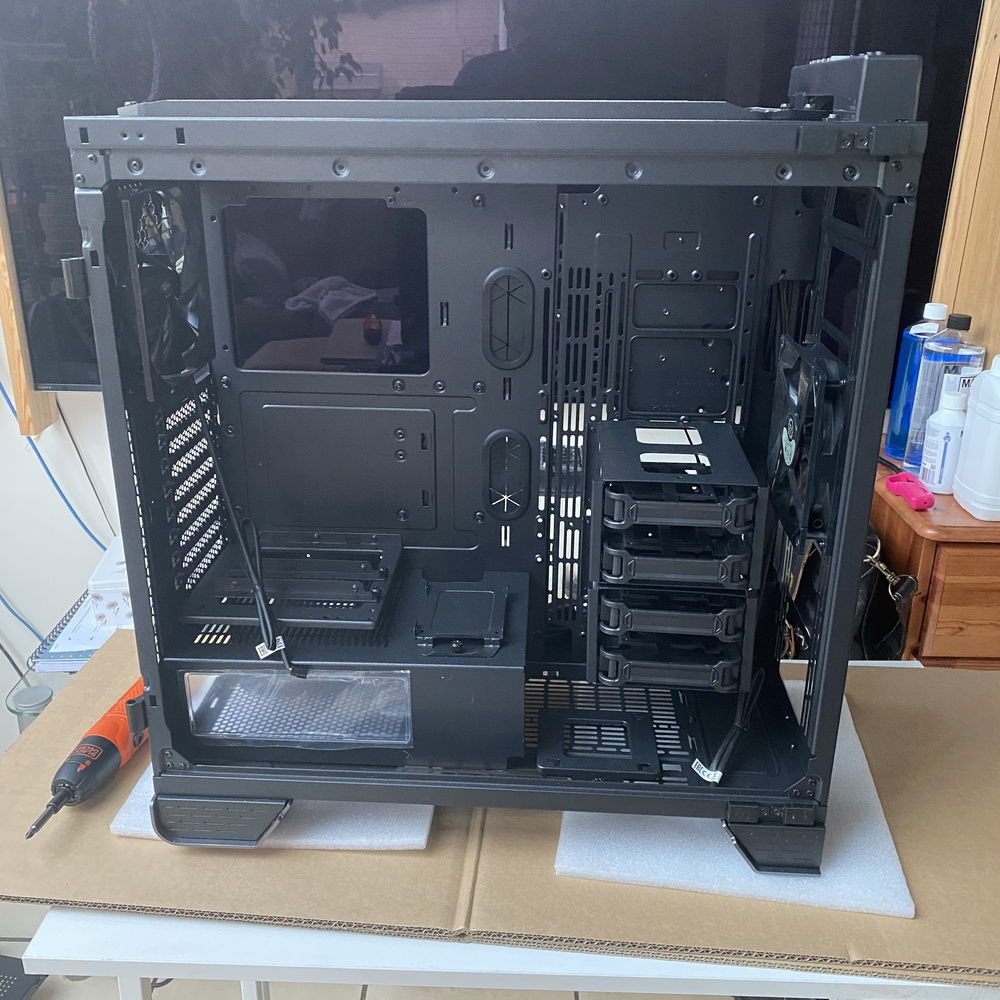

The bare A700 case which is a beast!
The bare A700 case which is a beast!

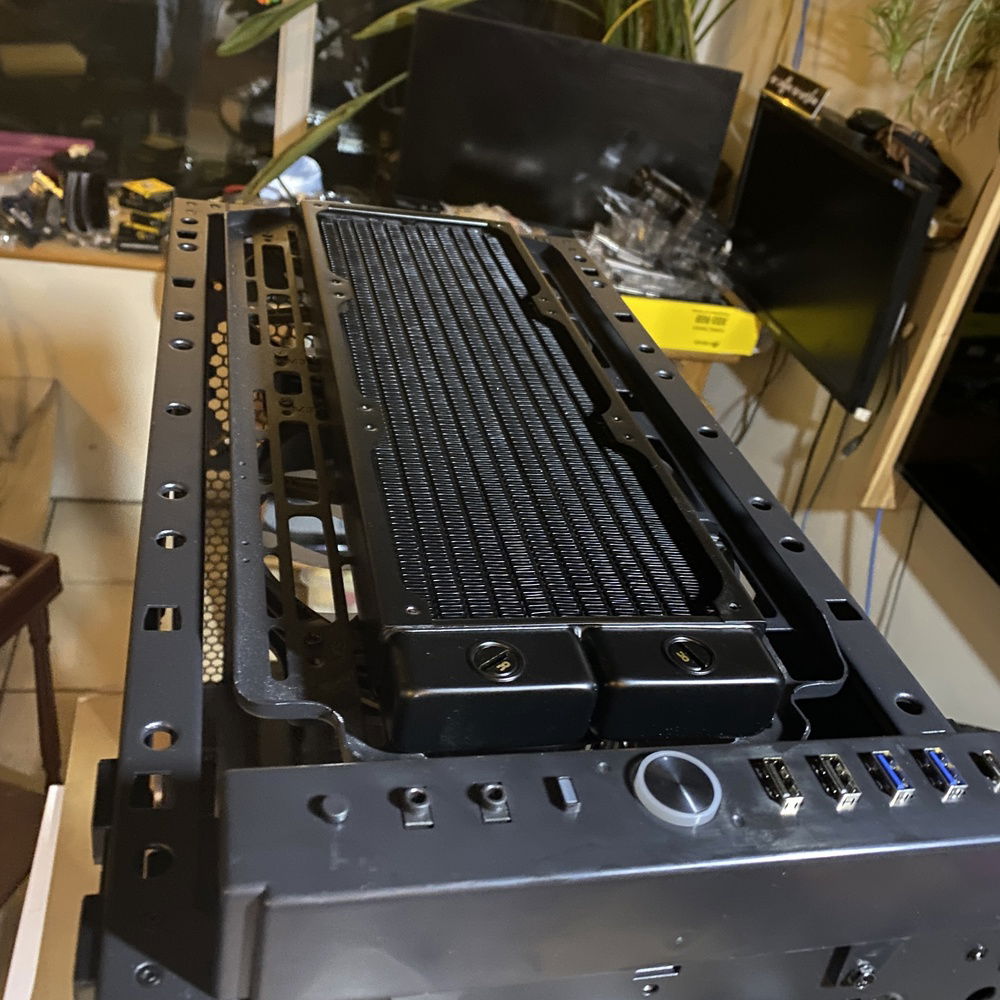

Top 360 radiator served by the two 200mm fans
Top 360 radiator served by the two 200mm fans

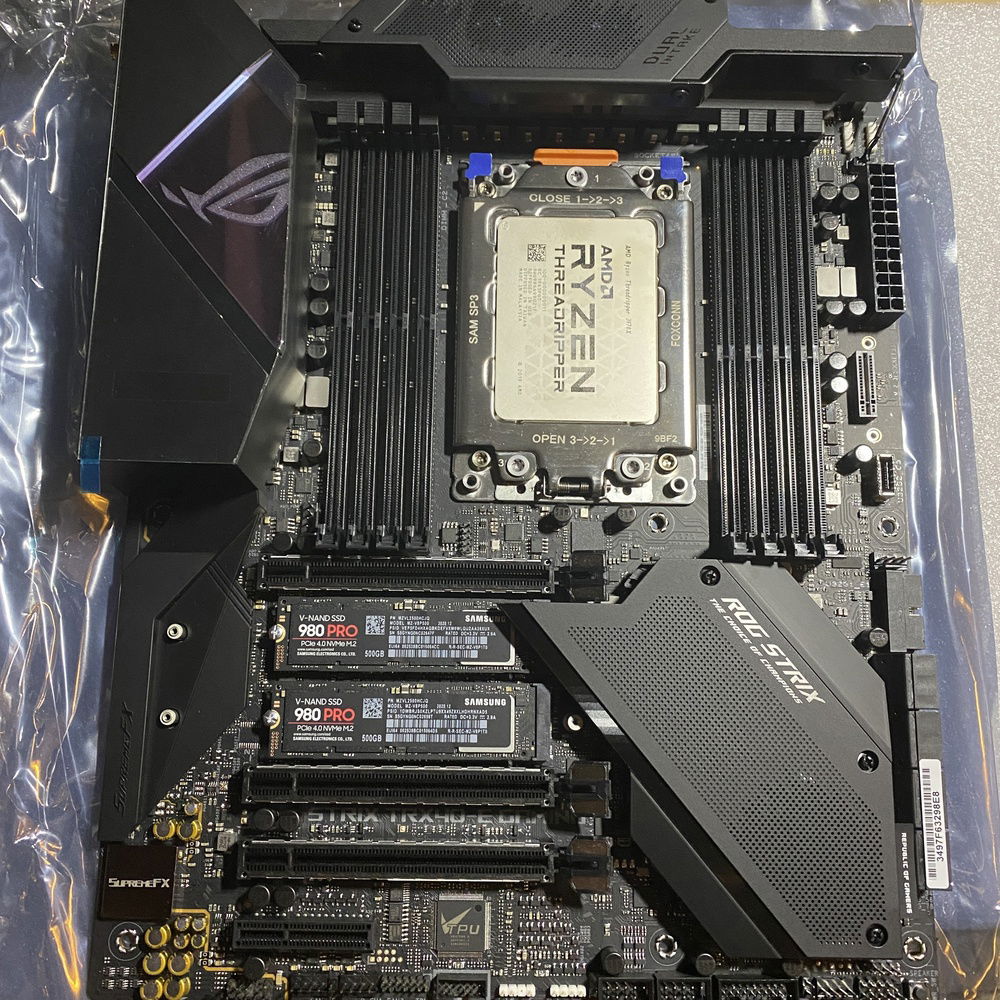

The XTR40-E before going in to place. The 2 x 500gb NVMe are striped for speed.
The XTR40-E before going in to place. The 2 x 500gb NVMe are striped for speed.

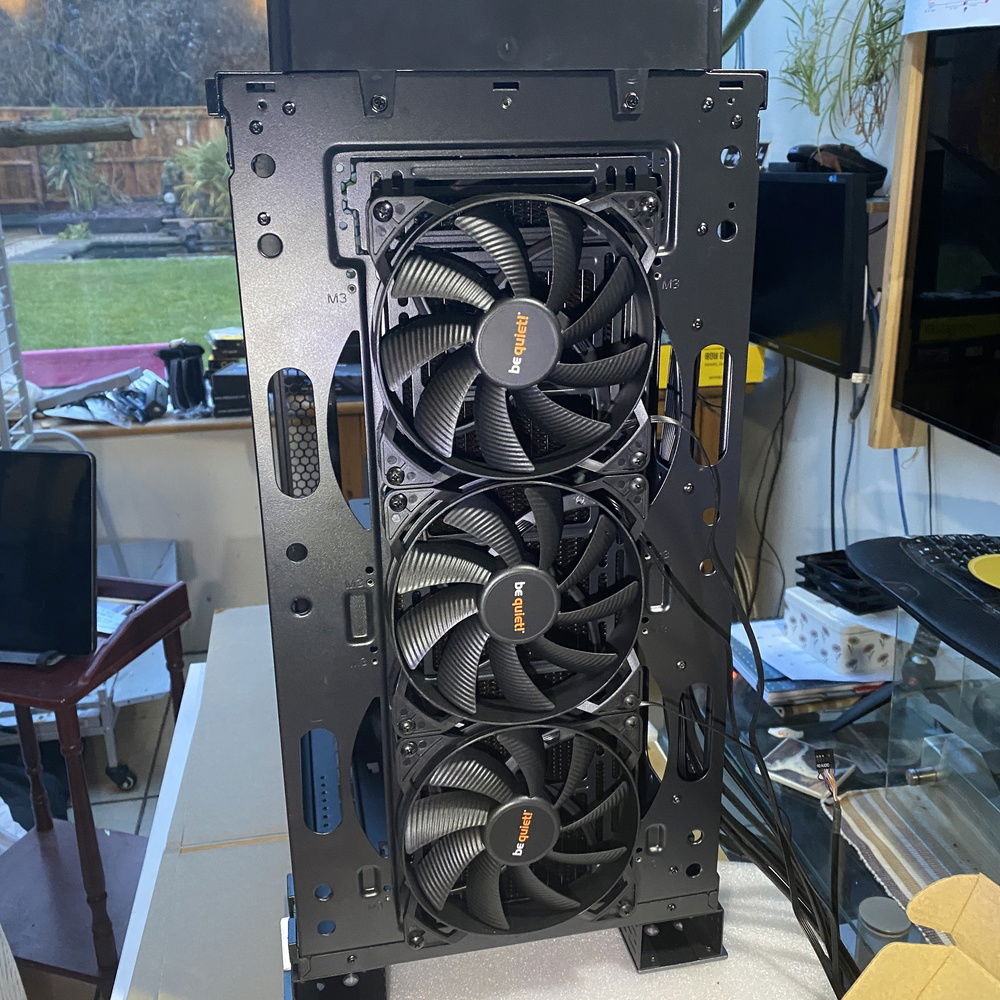

3 x 140 fans in front of the 420 slim radiator at the front
3 x 140 fans in front of the 420 slim radiator at the front

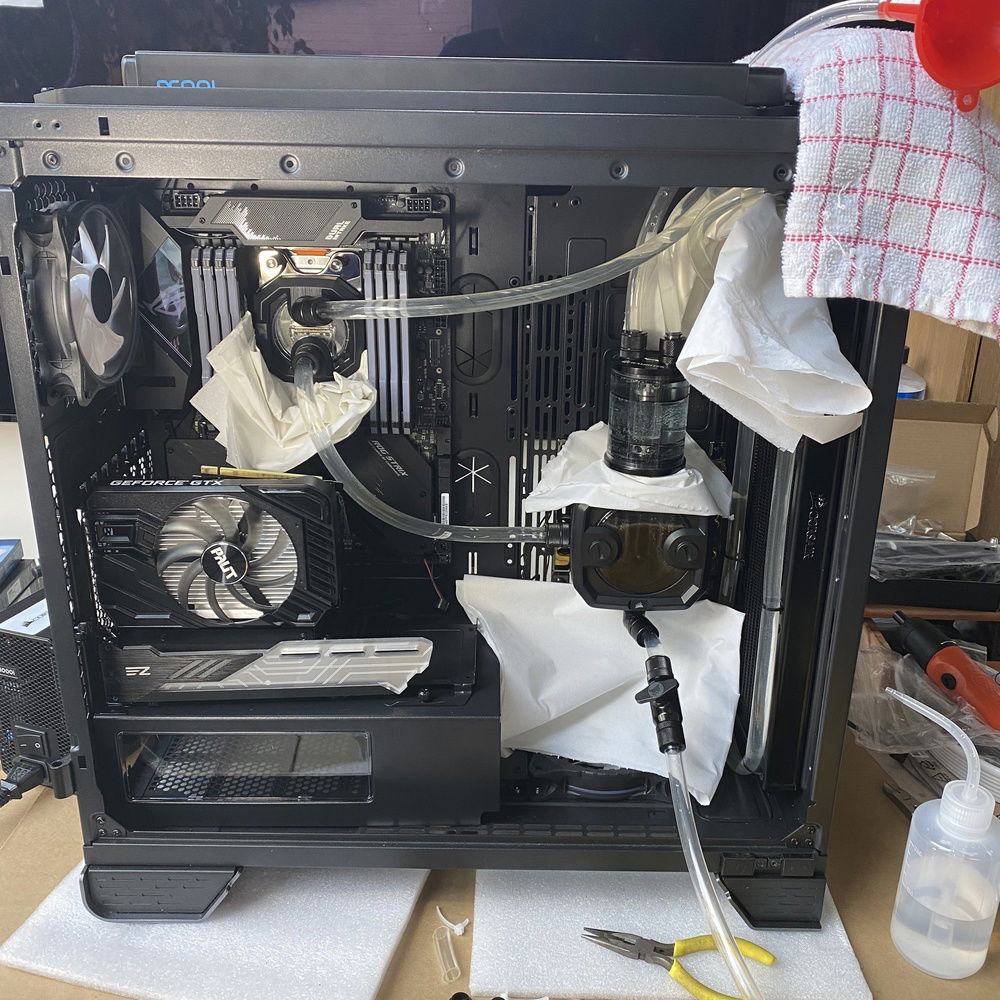

Leak proofing!
Leak proofing!

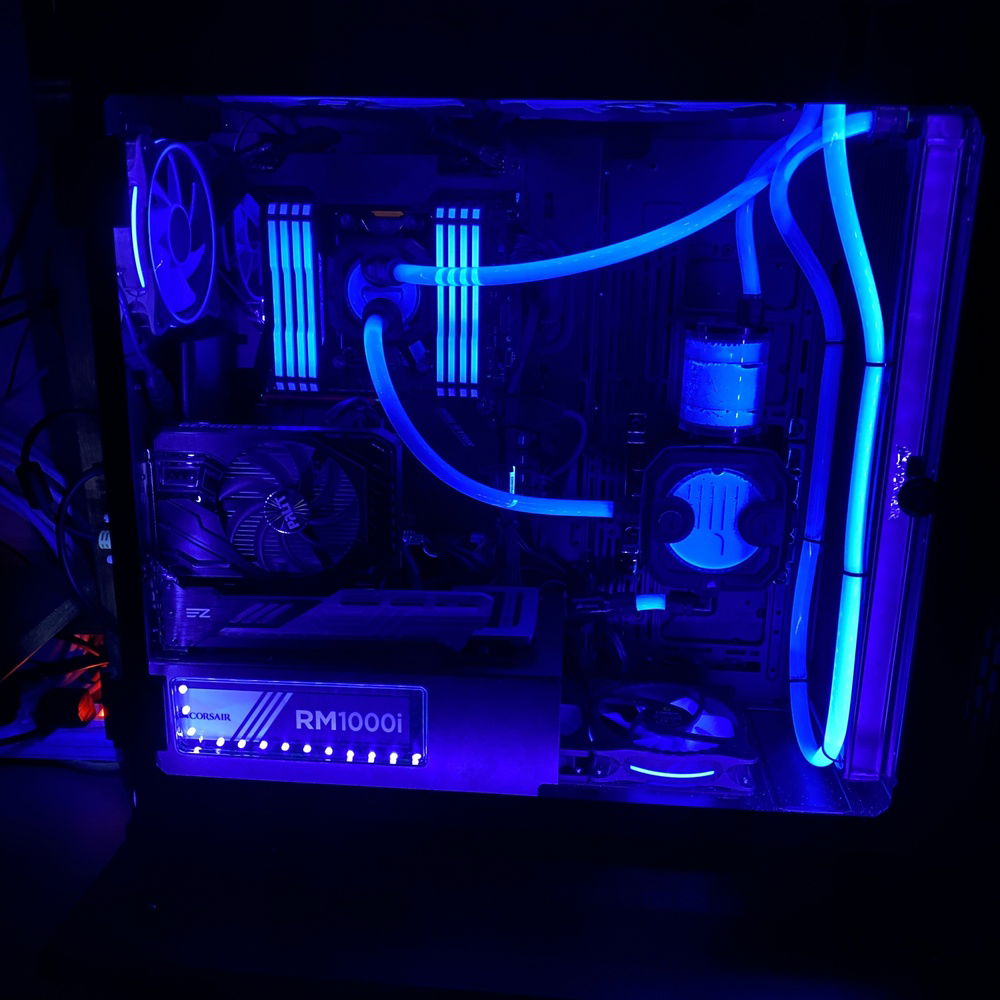

It has Mayhems X nuke blue uv in so there is a rim of led up lighting on the inside edge of the case.
It has Mayhems X nuke blue uv in so there is a rim of led up lighting on the inside edge of the case.

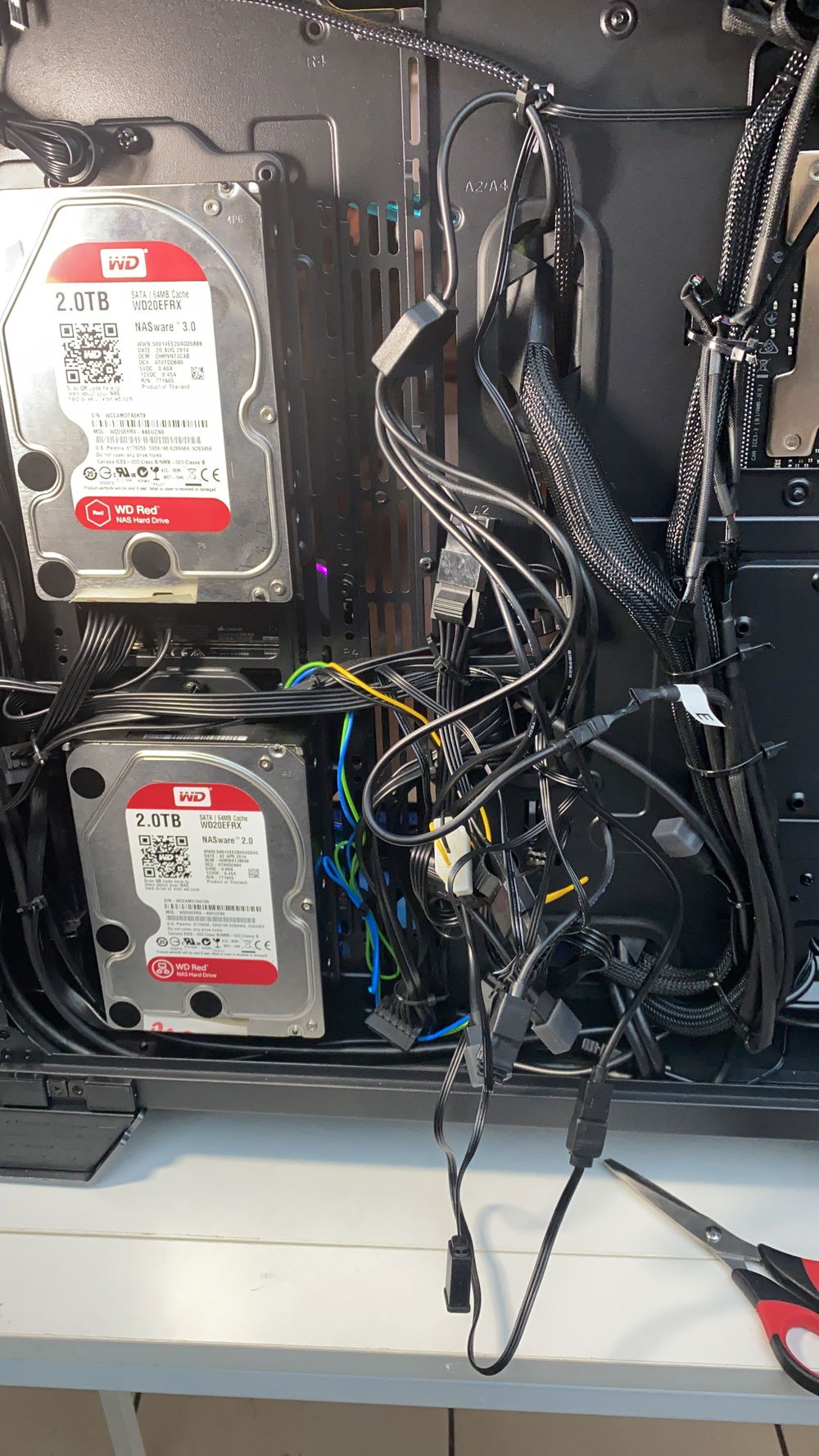

The spaghetti at the back of the build
The spaghetti at the back of the build

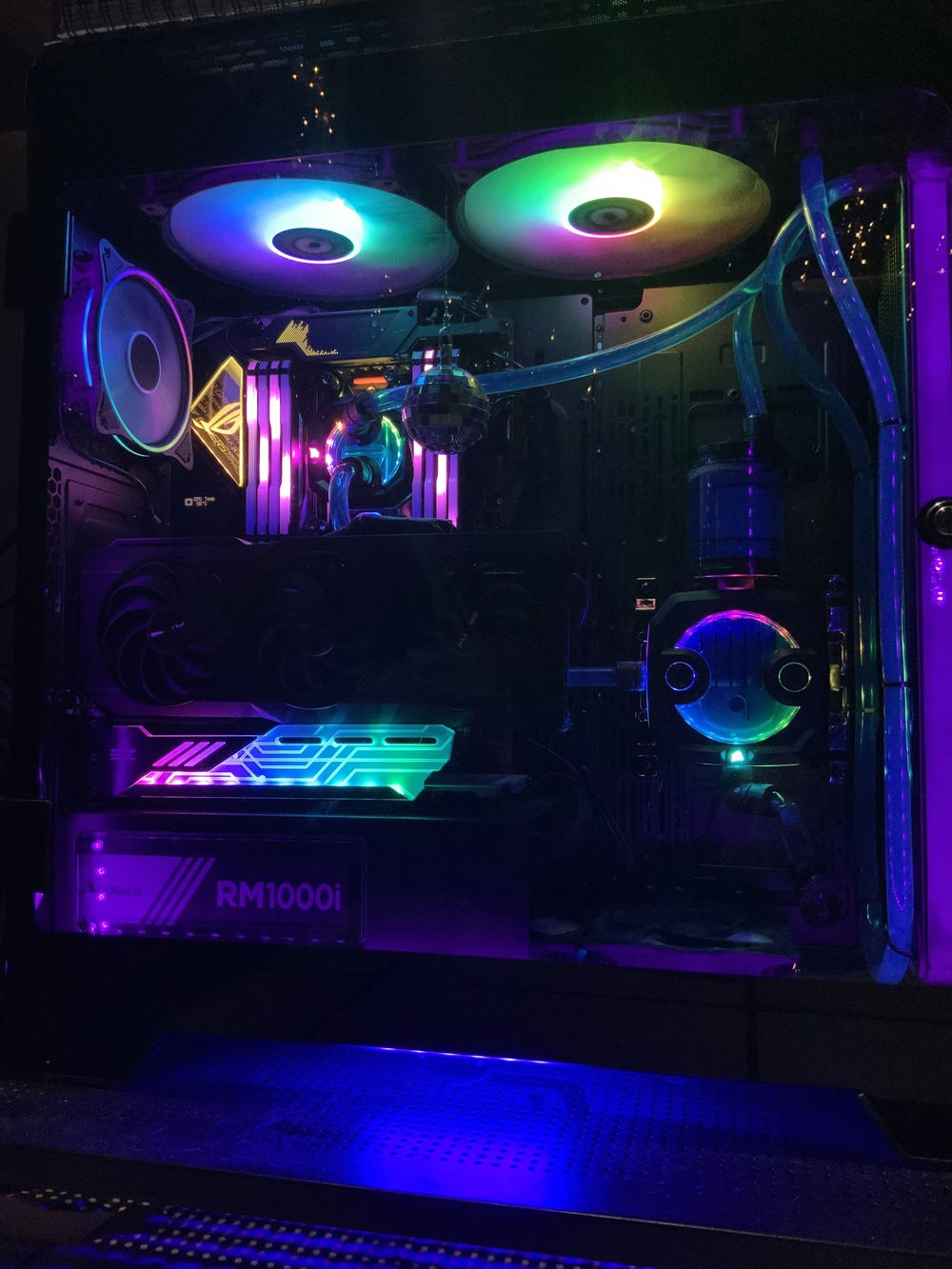

Updated to include the Sapphire Radeon Pulse RX6800 and the disco ball!
Updated to include the Sapphire Radeon Pulse RX6800 and the disco ball!
Updated with another radiator, the watercool Heatkiller reservoir and a fan and rgb controller
Updated with another radiator, the watercool Heatkiller reservoir and a fan and rgb controller

Thermaltake Threadripper

This is my first custom loop cooling system. It has been built to future proof a bit hence the cost and over egging the specs. It’s mainly used for media creating and casual gaming (RPG) but am aiming at at least 8 years life of it! The case could have been 2/3rds the size in hindsight, but it’s a solid case with plenty of room to swing a disco ball in!

*The GPU riser is a Link Up PCIe 4.0 version. Took a bit of working out to get the motherboard to work with it but we are on PCIe 4.0 under the Radeon software.
Color(s): Blue
RGB Lighting? No
Theme: Industrial
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 2 contests.

Build Updates

Updated some bits

Hardware

CPU
$ 1,599.99
AMD - Ryzen Threadripper (3970X)
Socket: TRX4
Cores: 32
Motherboard
$ 896.00
ASUS - ROG Strix Gaming (TRX40-E)
Chipset: TRX40
CPU Socket: TRX40
Size: ATX
Memory
$ 411.92
Corsair - Vengeance Pro (4000MHz) (Black/RGB) (4x)
Type: DDR4
Capacity: 16 GB
Graphics
$ 850.00
Sapphire - Radeon Pulse
Chip Manufacturer: AMD
Chip: RX 6800
Interface: PCIe x16
Storage
$ 248.50
Samsung - 980 Pro (2x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
Storage
$ 238.00
Western Digital - WD Red NAS (2x)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 2 TB
PSU
$ 185.00
Corsair - RM1000i
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 250.00
Thermaltake - A700 Aluminum
Type: Full-Tower
Side Panel: Tempered Glass
Case Fan
Thermaltake - Pure 14 (Black) (3x)
Size: 140 mm
Case Fan
$ 30.94
Thermaltake - Pure 20 (2x)
Size: 200 mm
Cooling
$ 171.96
Alphacool - Eiszapfen 13/10mm Compression Fitting G1/4 (4x)
Type: Fittings
Cooling
$ 79.99
Alphacool - NexXxoS ST30 Full Copper
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 25.00
Alphacool - NexXxoS XT45 Full Copper
Type: Custom Loop
Size (WxHxD): 120 mm
Cooling
$ 70.37
Corsair - Hydro X XC9 (RGB)
Type: CPU Waterblock
Cooling
$ 148.57
Corsair - Hydro X XD3 (RGB)
Type: Pump/Reservoir Combo
Cooling
$ 99.99
Corsair - Hydro X XR5 (Slim)
Type: Radiator
Size (WxHxD): 420 mm (3 x 140 mm)
Cooling
$ 100.00
Watercool - HeatKiller Tube 150
Type: Pump
Accessories
$ 19.99
EZDIY-FAB - GPU Holder (RGB)
Accessories
$ 15.00
Mayhems - Ultra Clear Tubing (3/8 - 5/8) 10/16mm Tubing
Accessories
$ 20.99
XSPC - RGB Splliter Hub
Monitor
$ 296.69
Iiyama - ProLite (E2783QSU-B1)
Size: 27 Inch
Panel: LED
Refresh Rate: 60 Hz
Keyboard
$ 269.00
Logitech - K750
Interface: Wireless
Type: Full Size
Mouse
$ 44.99
Logitech - Anywhere Mouse MX
Interface: Wireless
