Prototype No. 2

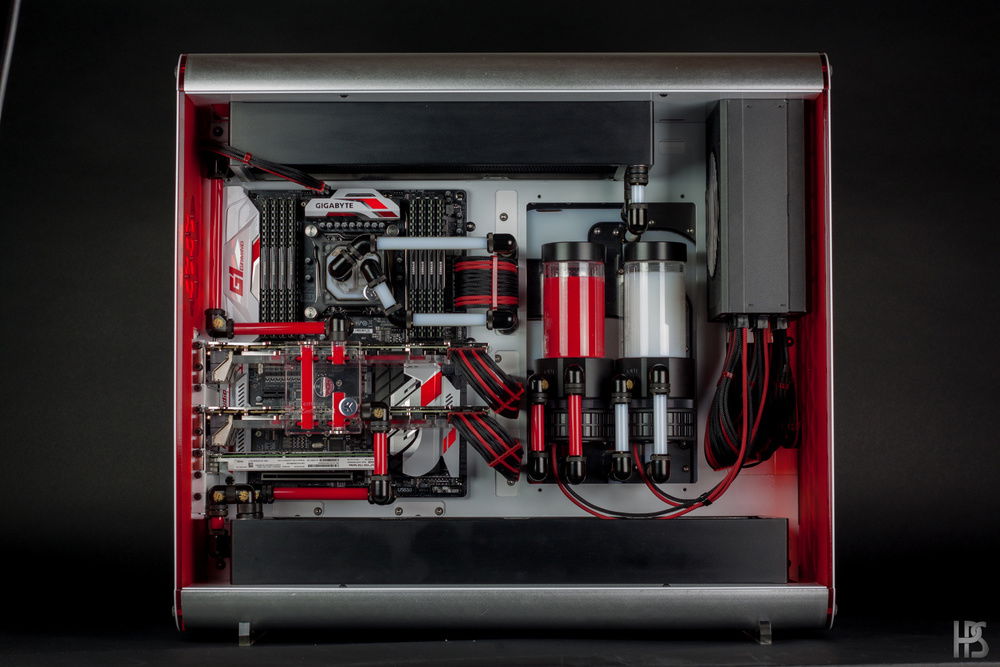

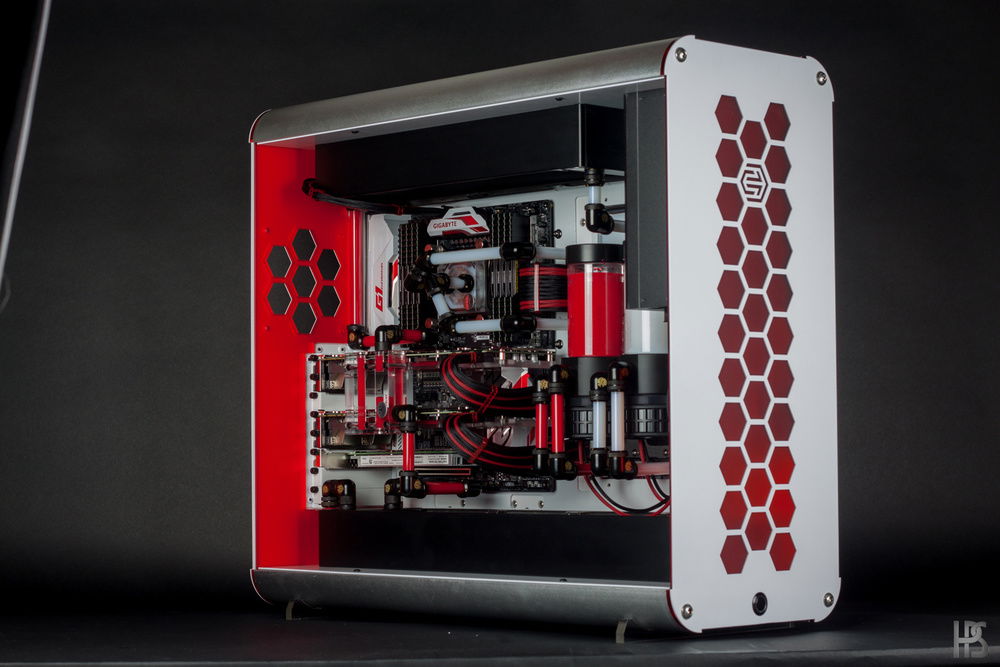

Final pictures of the build that was shown at the Gigabyte Suite at computex a few years back. This build was done in the white prototype of the R80, hence the name "Prototype No. 2"

A video of me filling the loop can be found here: https://www.youtube.com/watch?v=KrsfkTXDpis&

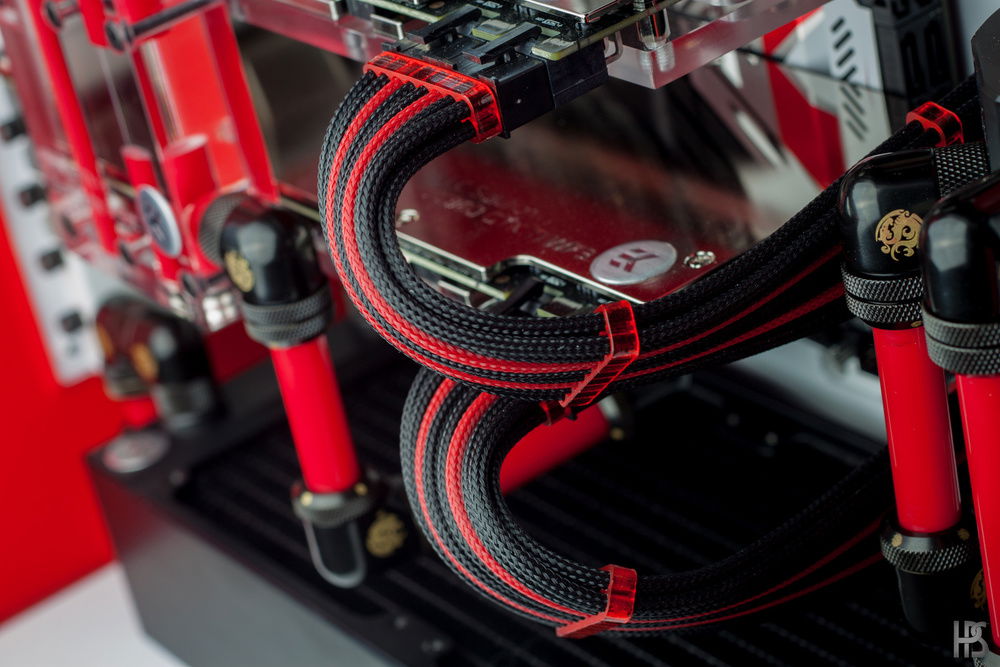

The build, much like the previous one I uploaded has zero lighting, RGB or otherwise and just rely's on the natural colors of the cables and coolant to show it off.

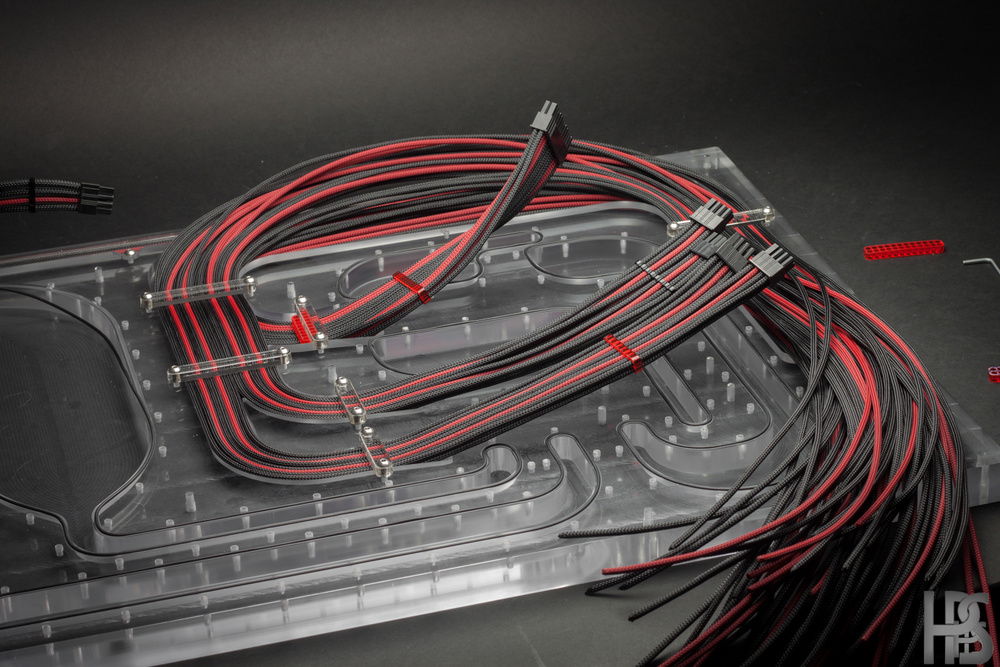

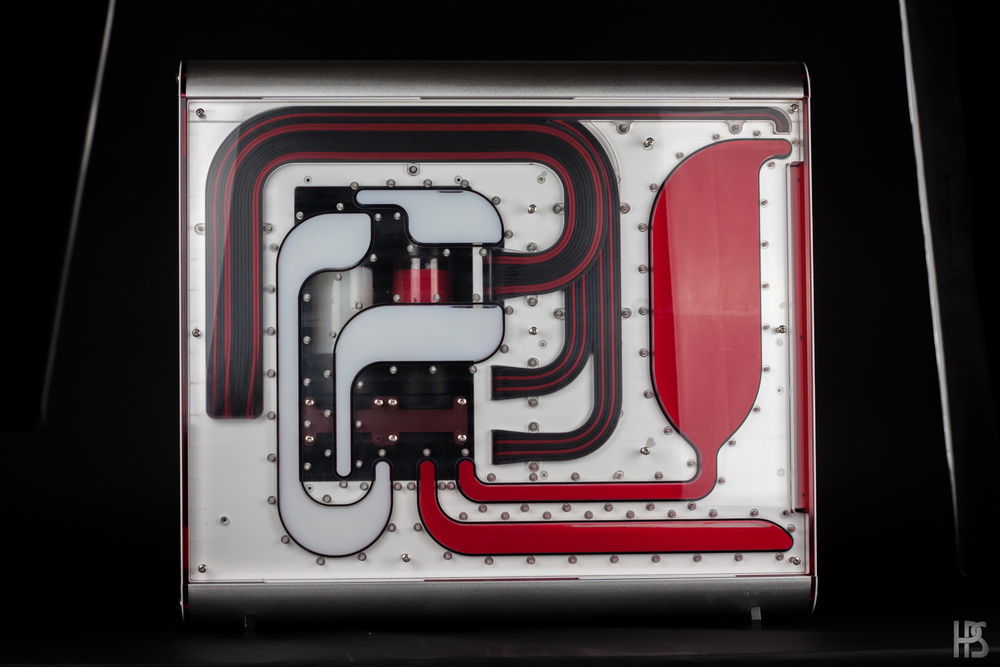

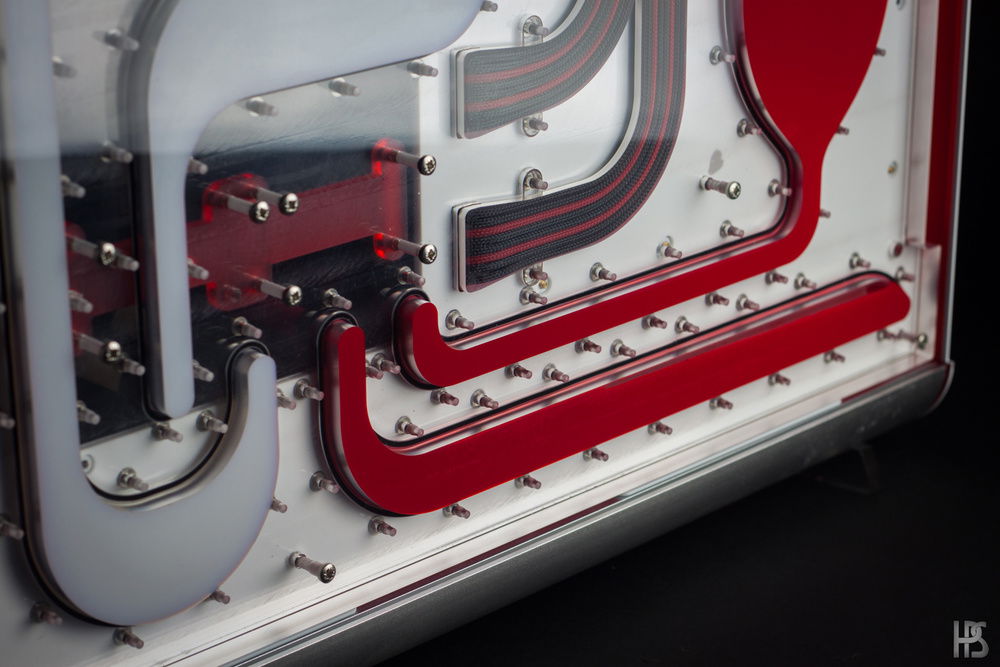

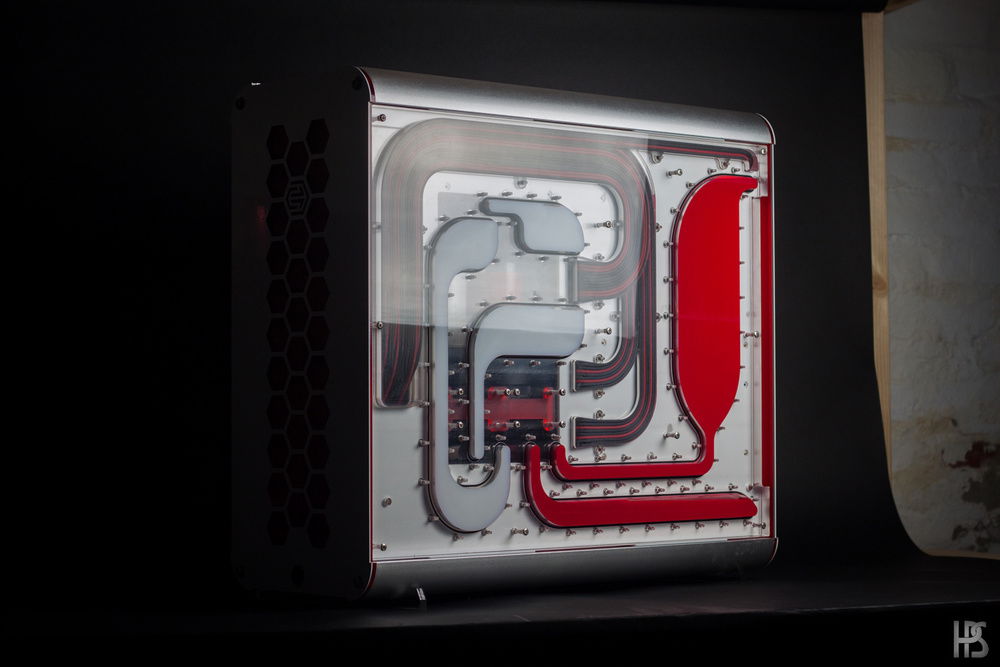

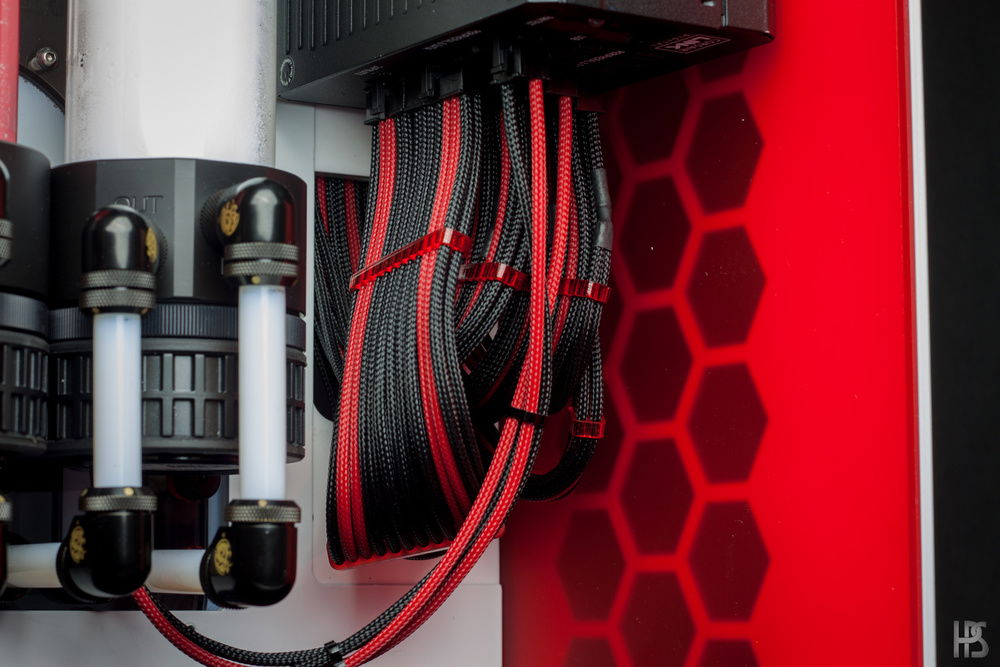

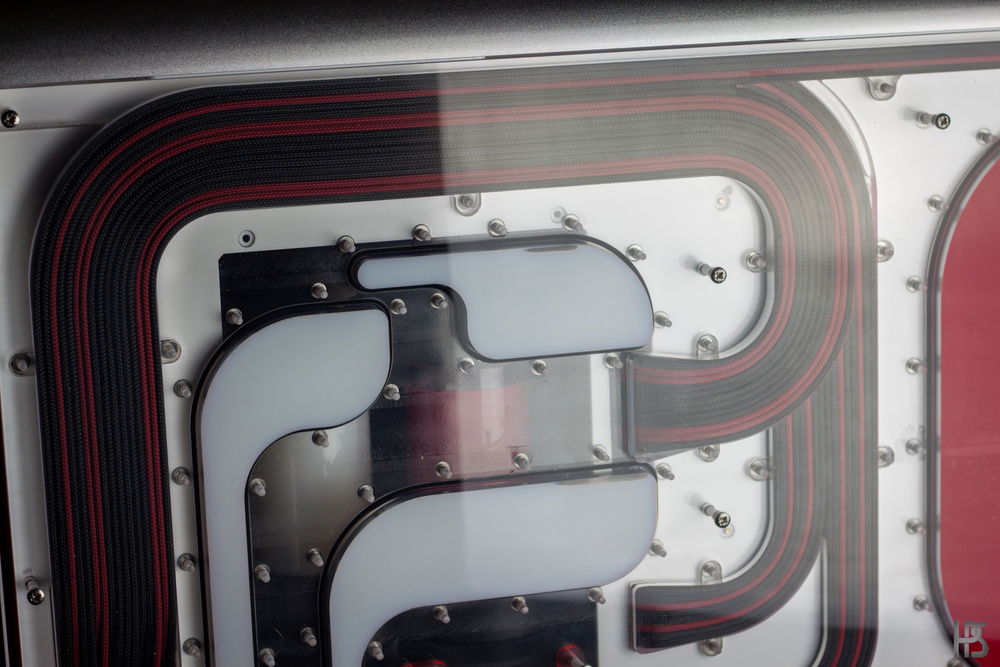

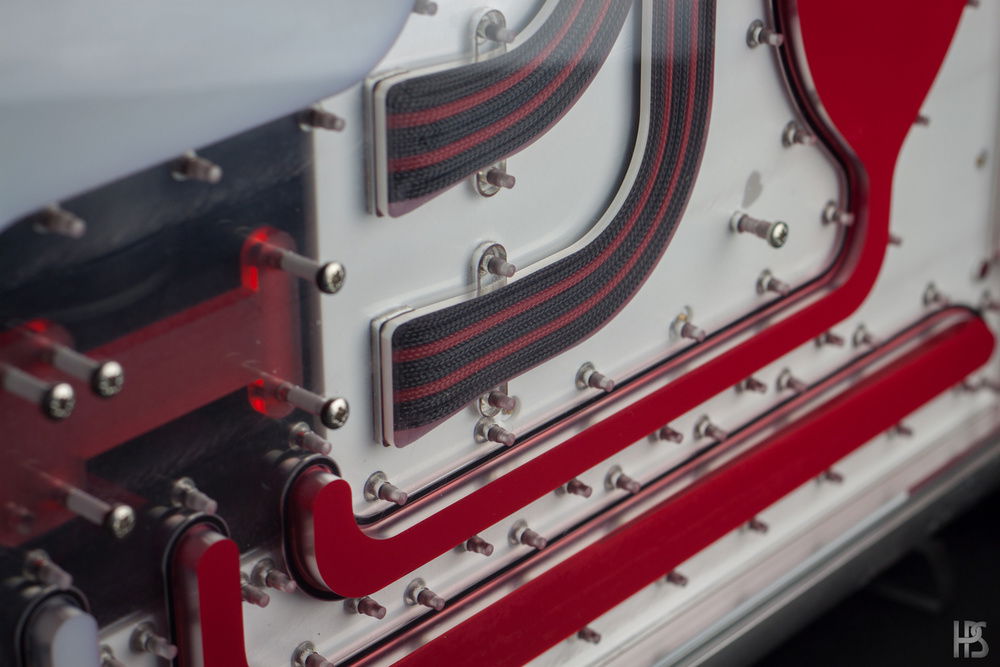

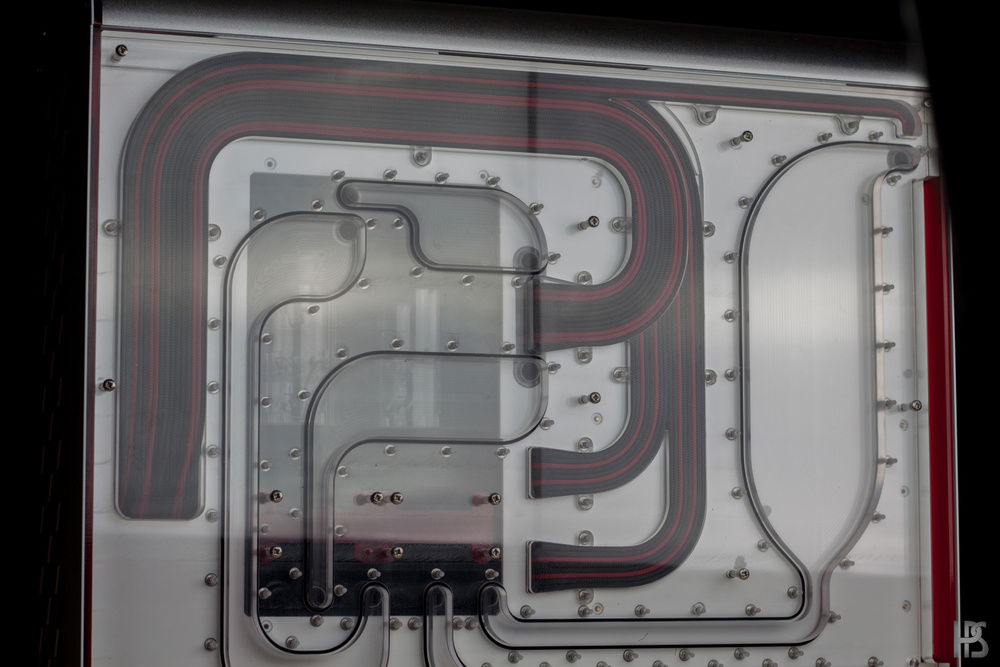

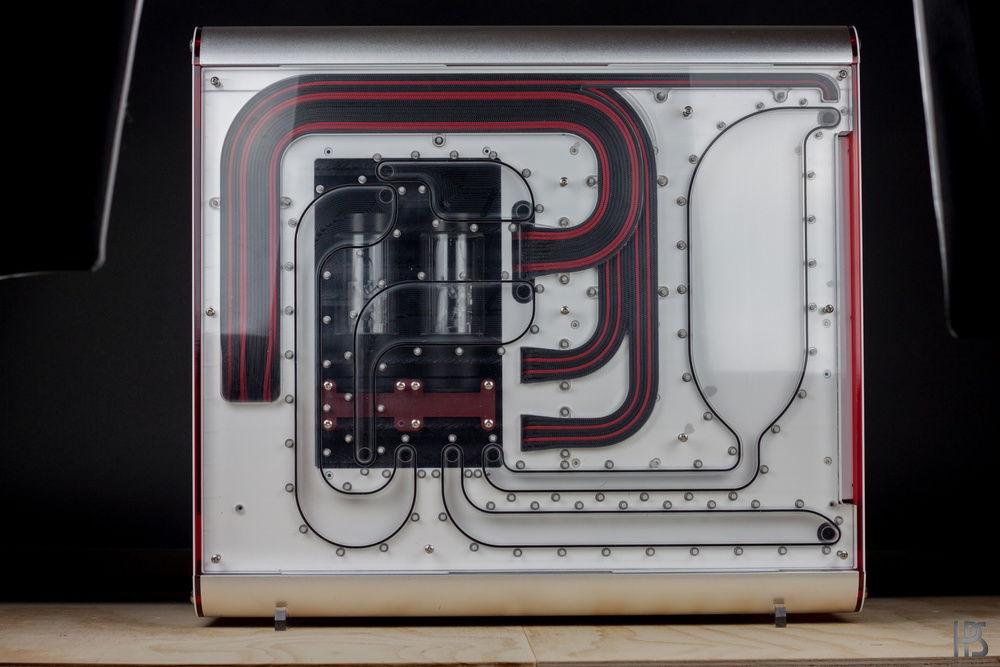

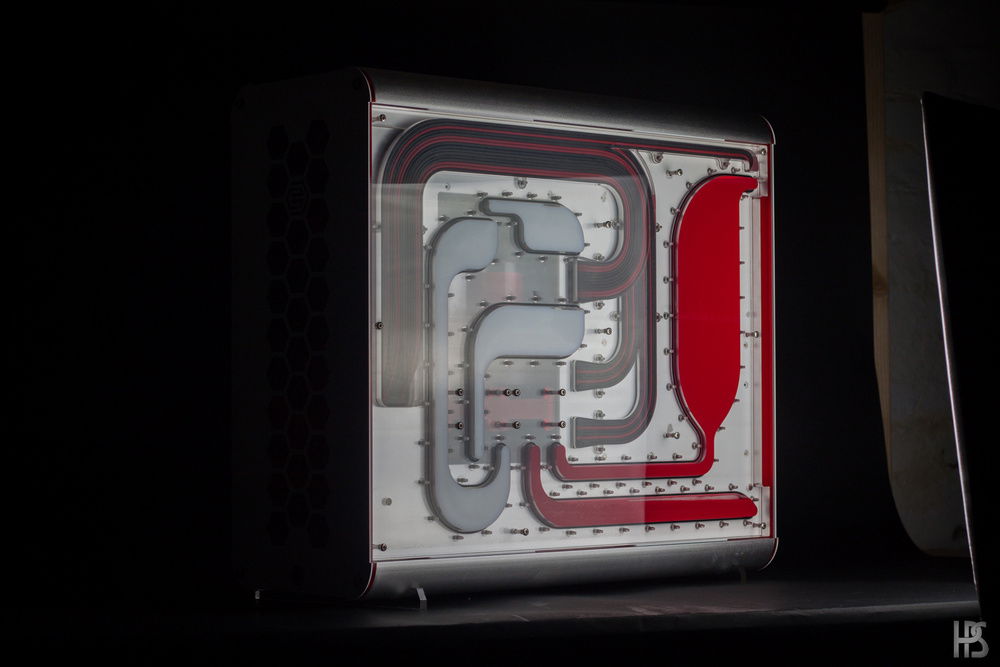

For this build I made a complete sidepanel with integrated cable routing and water routing channels. All cables beside the pump cables runs into this plate, and is neatly routed to the PSU.

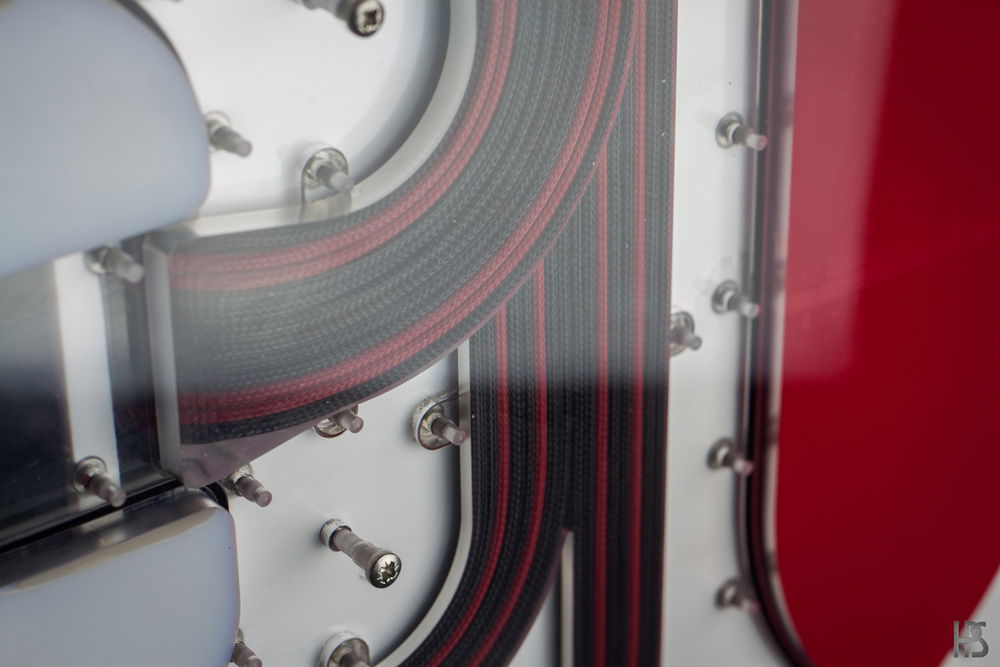

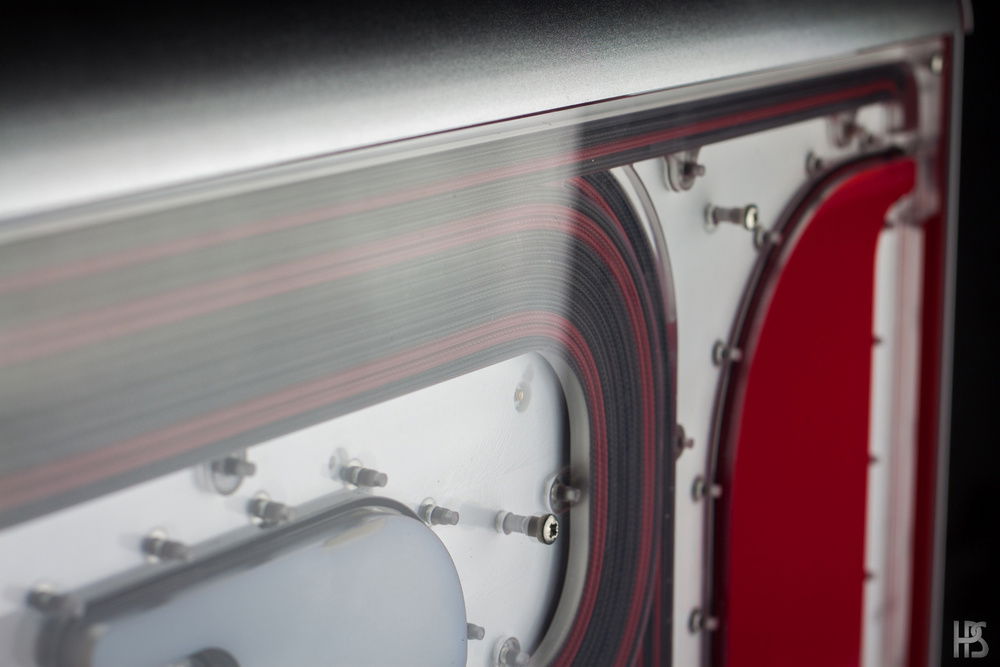

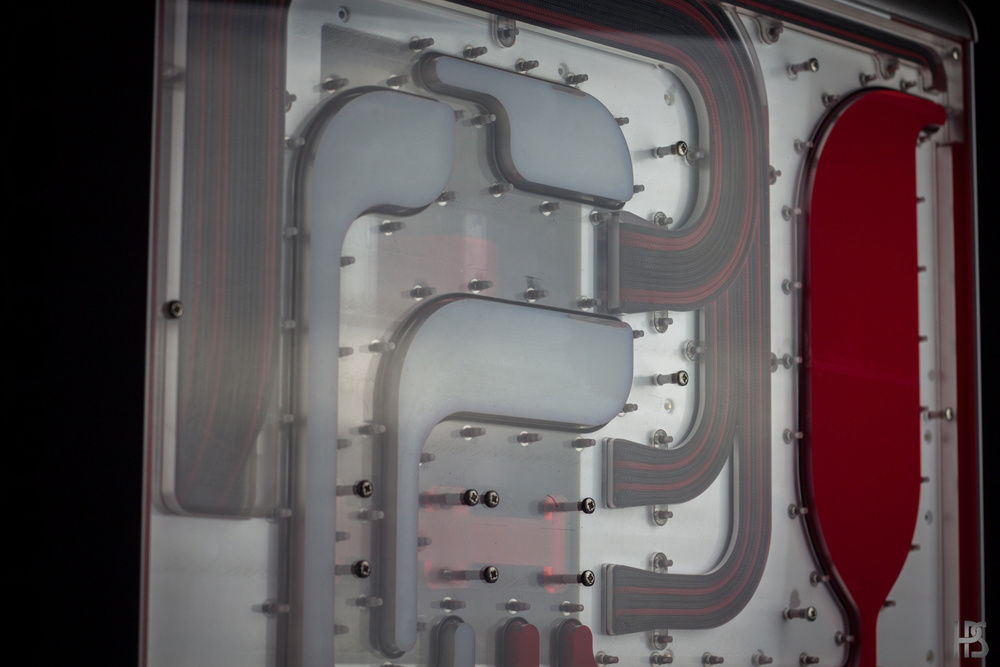

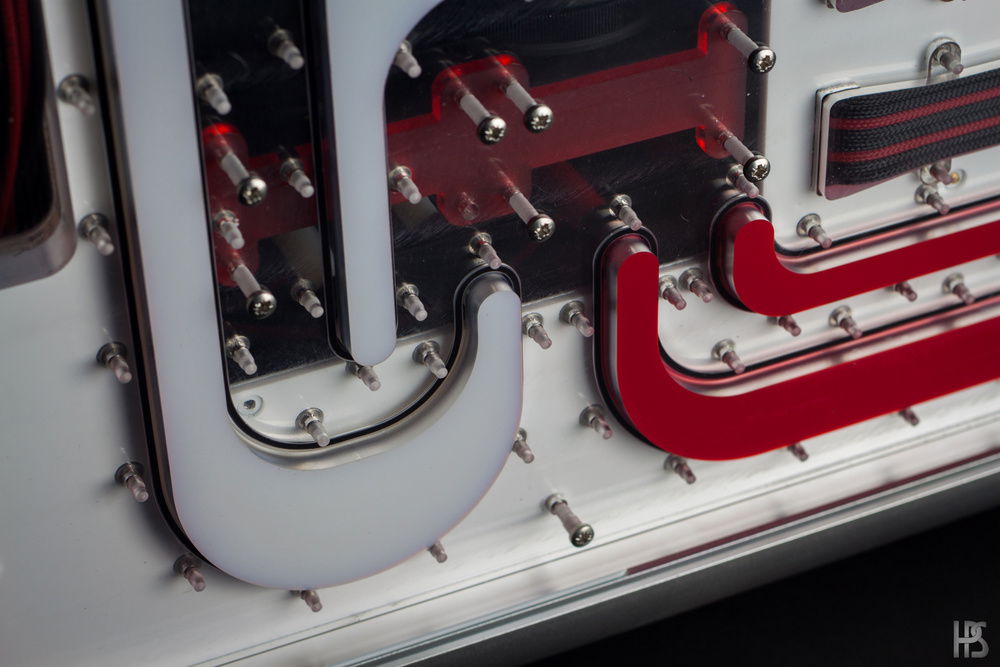

The side panel is made from a 25 mm thick acrylic plate that has been CNC machined to make room for the watercooilng and cables.

I hope you enjoy it!
(Also, check out my website & instagram )
Color(s): Black Red White
RGB Lighting? No
Theme: Case Mod

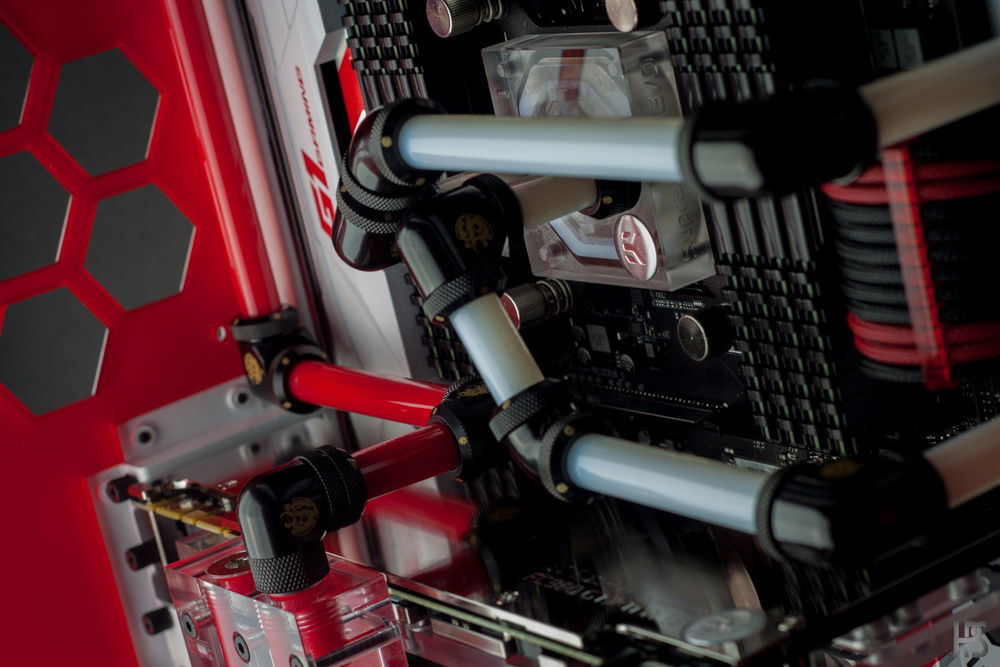

Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 120.00
Intel - Core i7 6900K
Socket: LGA 2011
Cores: 8
Motherboard
$ 279.00
Gigabyte - X99 Gaming Ultra (rev 1.0)
Chipset: X99
CPU Socket: LGA 2011-3
Size: ATX
Memory
$ 159.88
Corsair - Vengeance LPX (3000MHz)
Type: DDR4
Capacity: 16 GB
Graphics
$ 306.00
Gigabyte - GTX 980 Ti 6GB G1 GAMING OC EDITION (2x)
Chip Manufacturer: NVIDIA
Chip: GTX 980 Ti
Storage
$ 265.00
Intel - 750 Series
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 400 GB
PSU
$ 449.00
Corsair - HX1200i
Wattage: 1200
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 400.00
Hex Gear - R80 (discontinued)
Type: Mid-Tower
Side Panel: Acrylic
Case Fan
$ 349.93
EKWB - EK-Vardar F3-120 (1850rpm) (7x)
Size: 120 mm
Cooling
$ 118.95
EKWB - CoolStream XE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 143.95
EKWB - CoolStream XE
Type: Custom Loop
Size (WxHxD): 480 mm (4 x 120 mm)
Cooling
$ 258.00
EKWB - EK-FC980 GTX Ti XG - Nickel (2x)
Type: GPU Waterblock
Cooling
$ 78.00
EKWB - EK-FC980 GTX Ti XG Backplate - Black (2x)
Type: GPU Backplate
Cooling
$ 99.99
EKWB - EK-Supremacy EVO
Type: CPU Waterblock
Cooling
$ 338.00

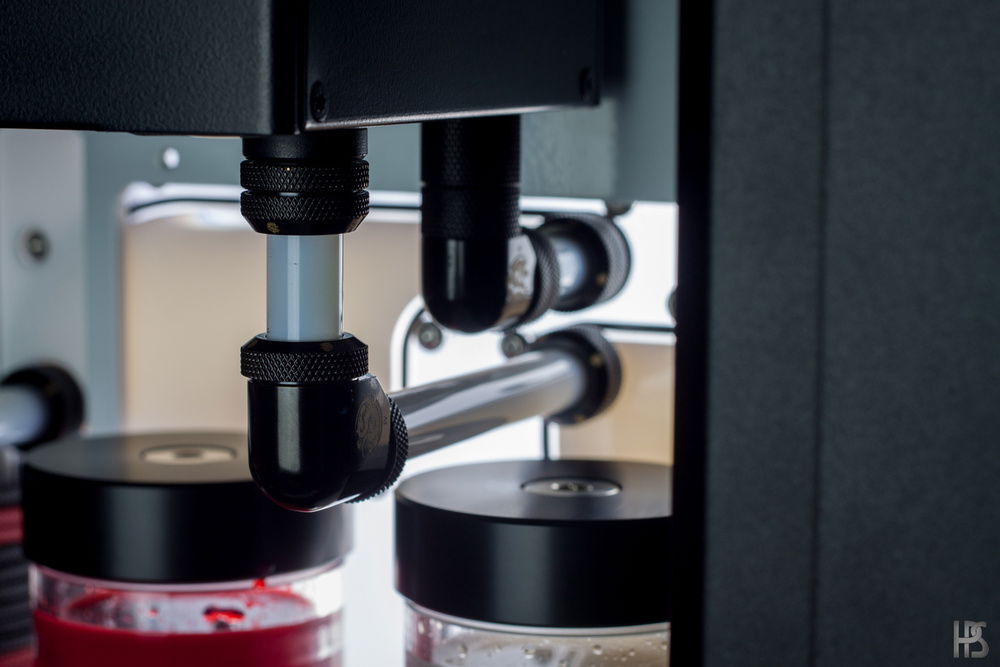

EKWB - EK-XRES 140 Revo D5 PWM (2x)
Type: Pump/Reservoir Combo
Estimated total value of this build:
$ 3,381.70
