Project AORUS

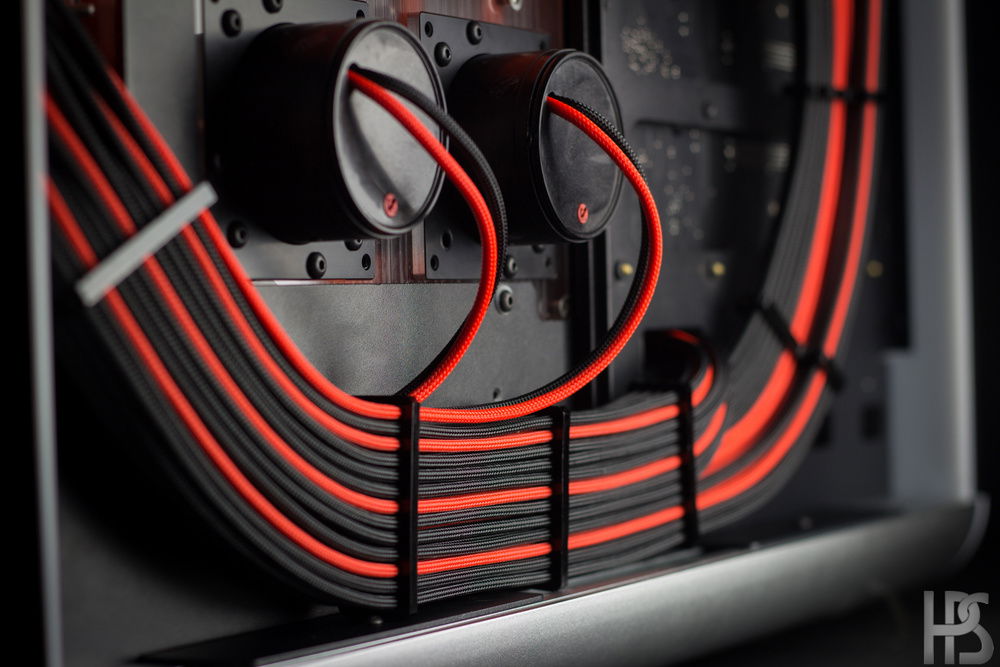

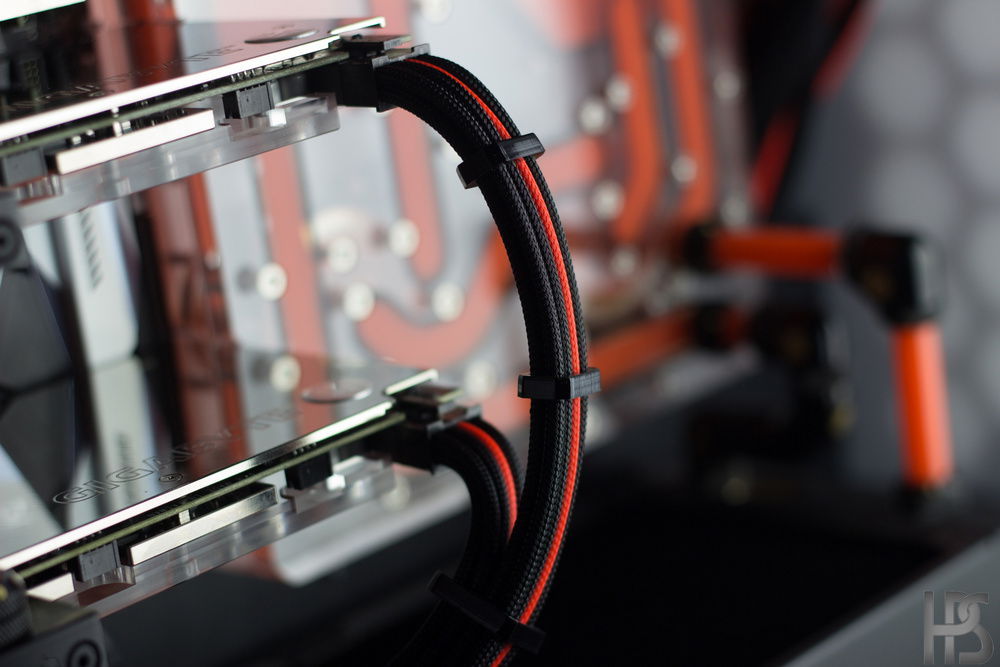

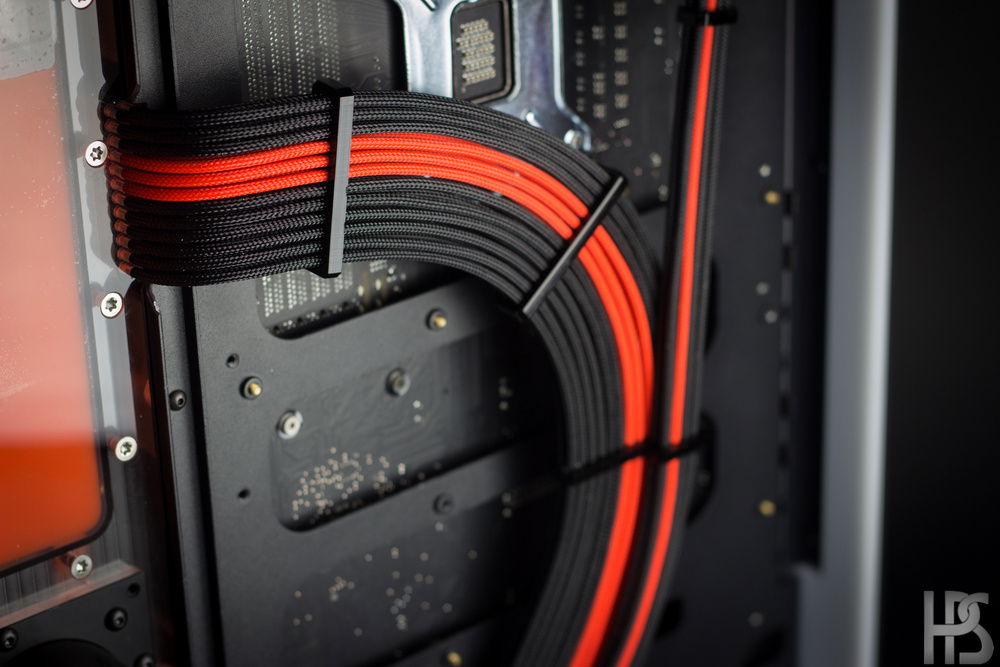

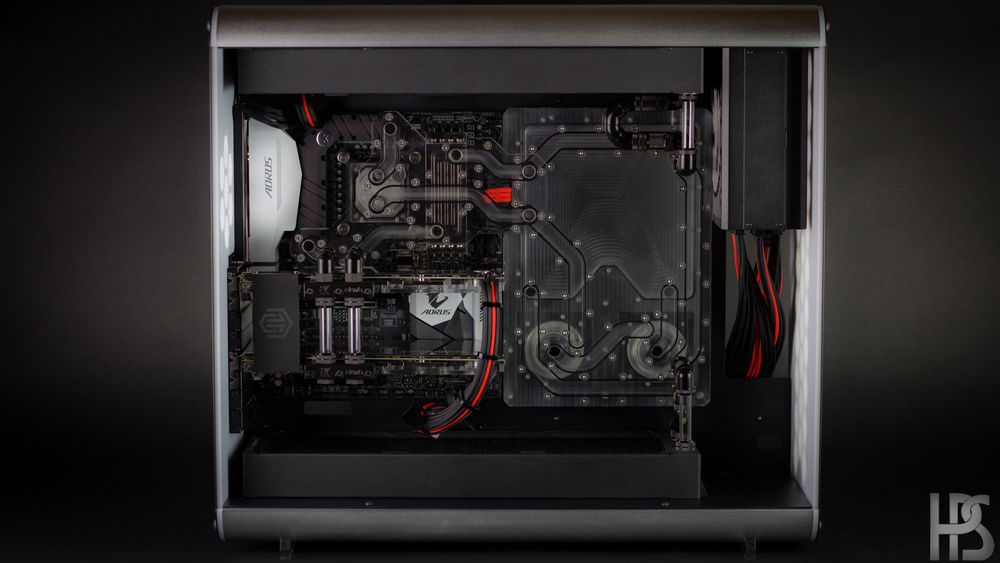

Project AORUS was initially thought as a simple show build with some watercooling and custom cables, but as it so often happens I got carried away and decided to custom make my own watercooling parts for the build.

You can find a video of me filling the system with coolant here: https://www.youtube.com/watch?v=ozOm9NuSEQ0

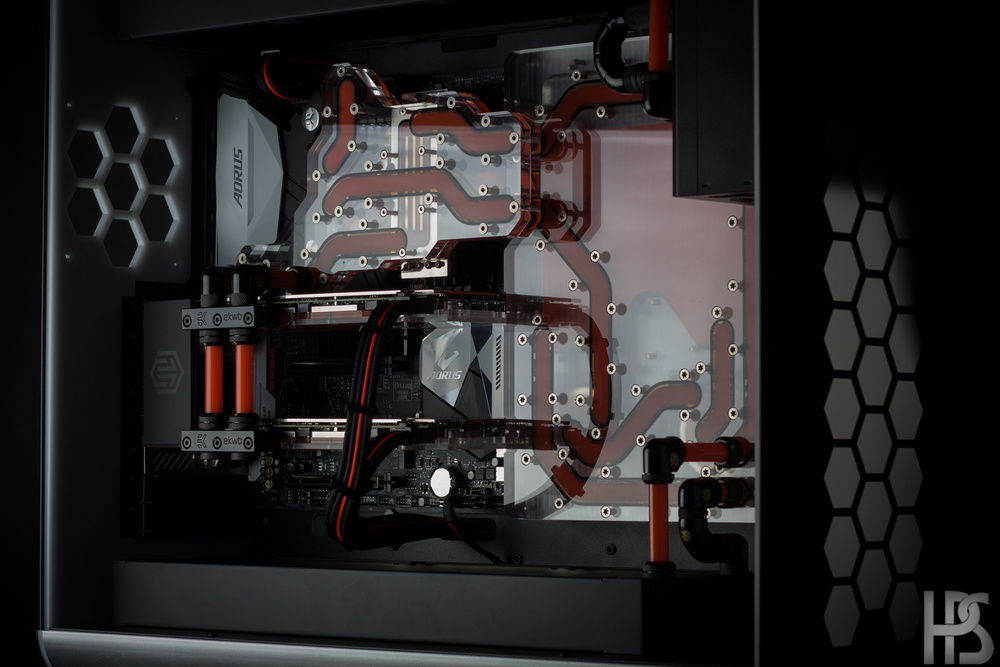

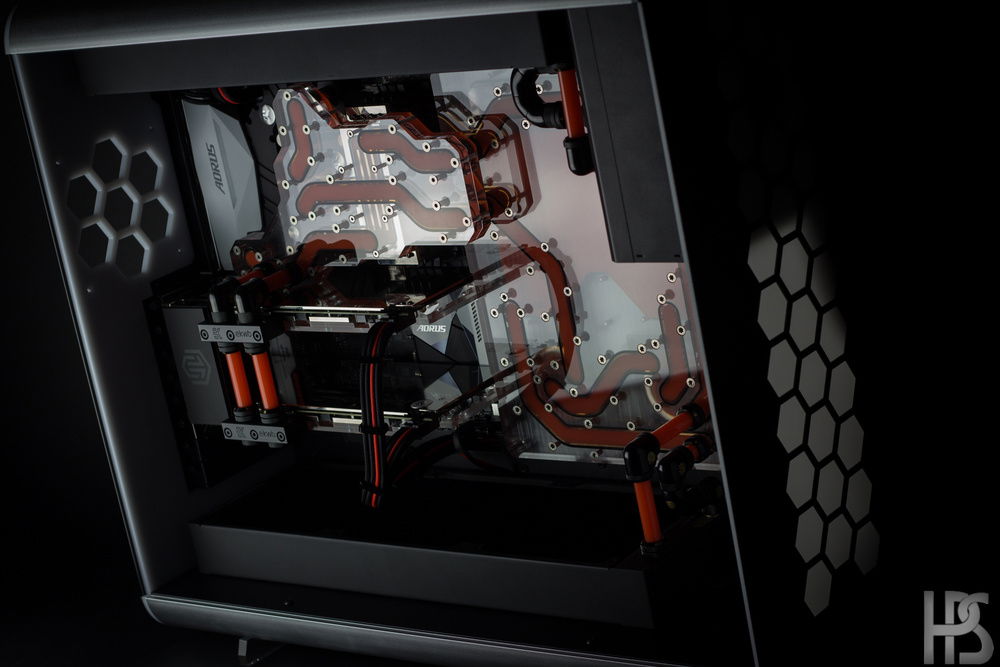

The build consists of two custom designed manifold plates that are drawn in Solidworks, and then milled from cast acrylic on a CNC machine.

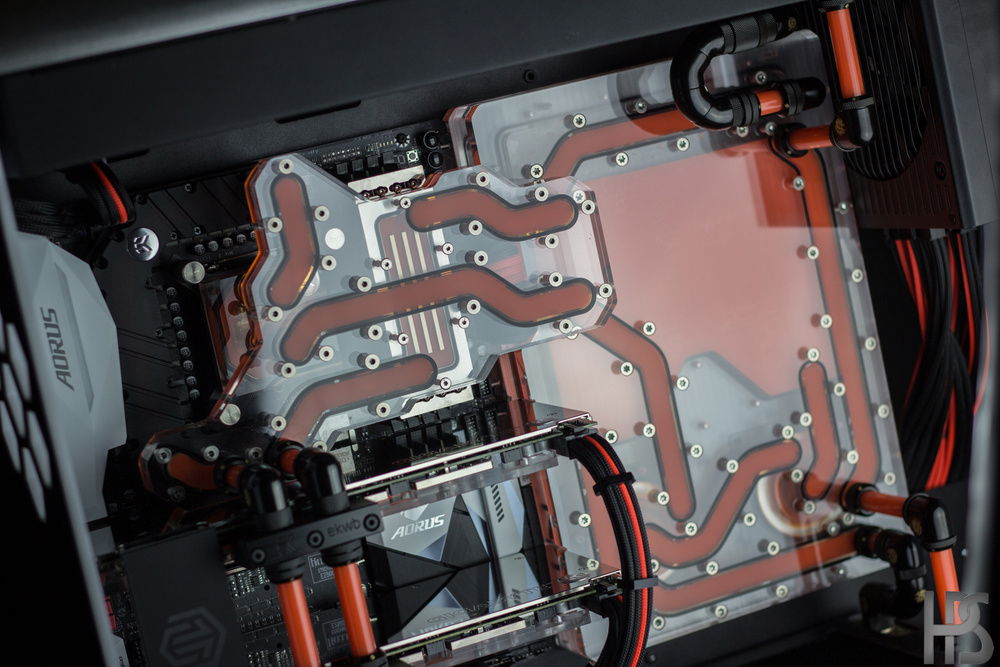

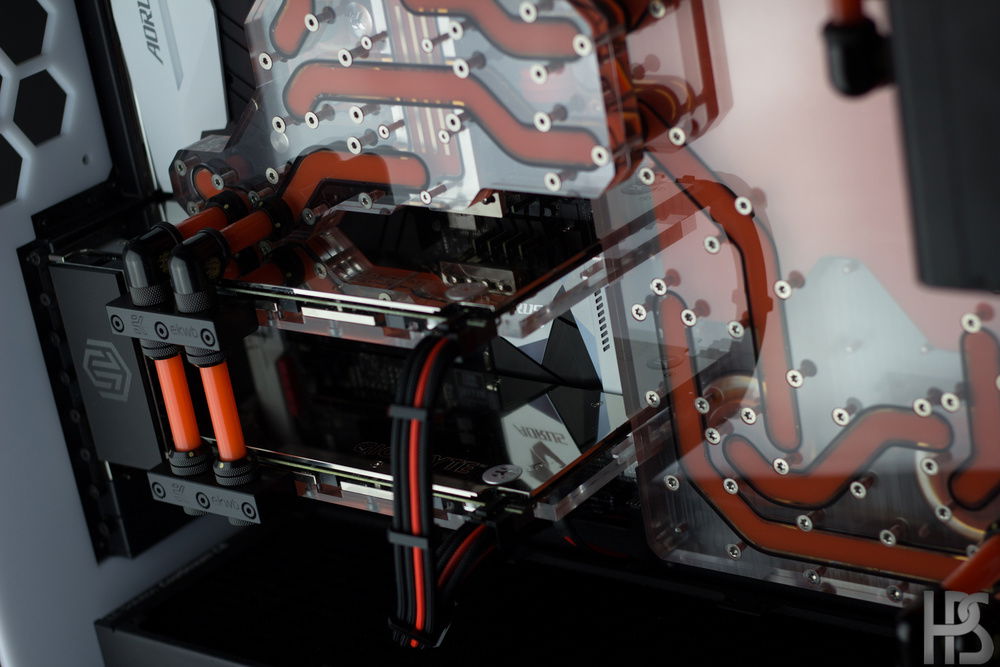

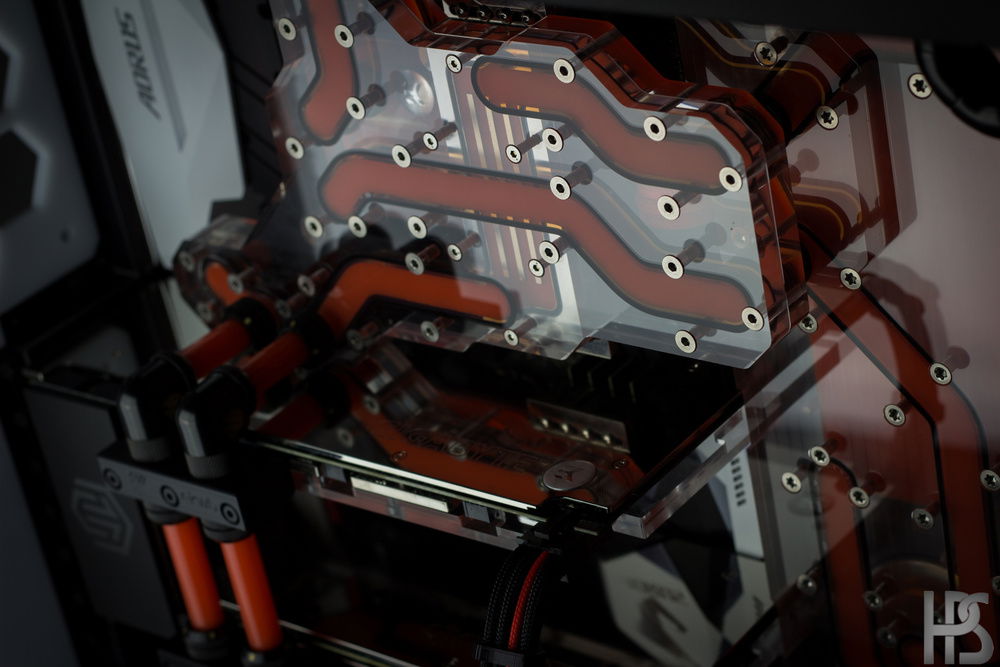

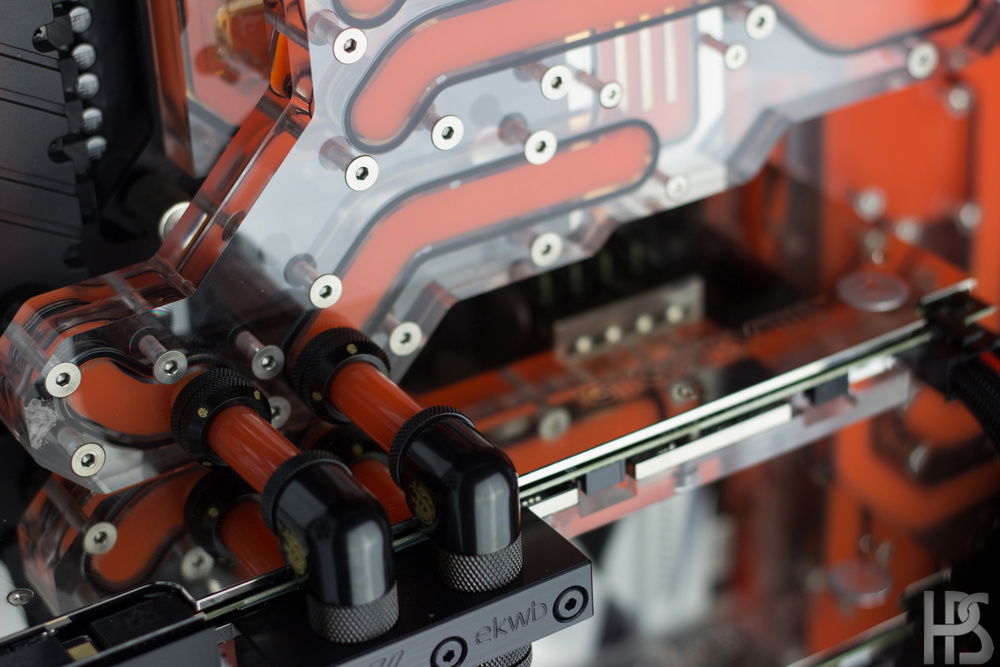

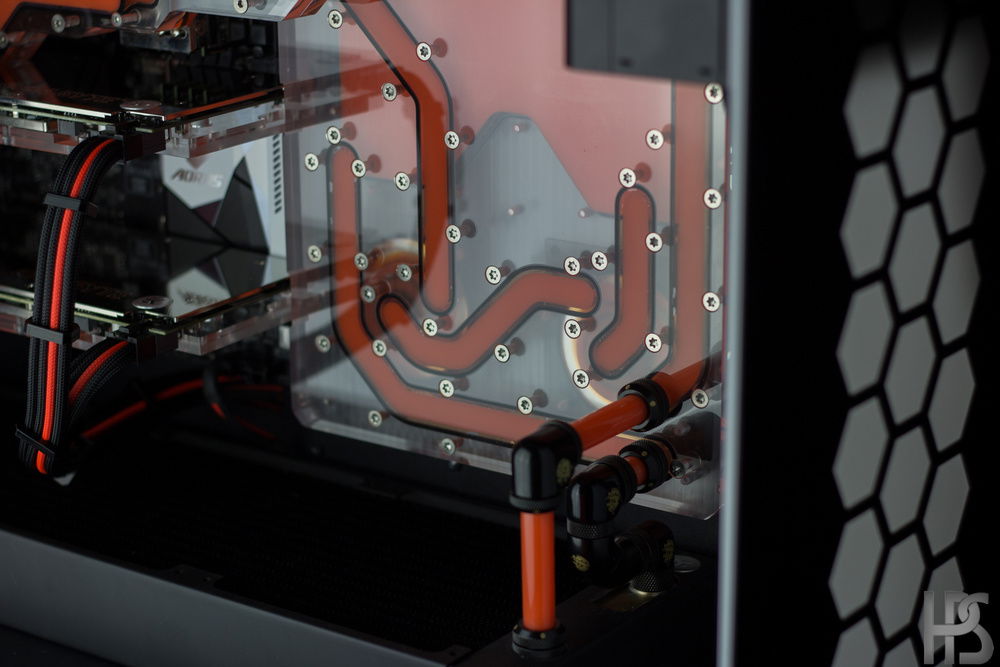

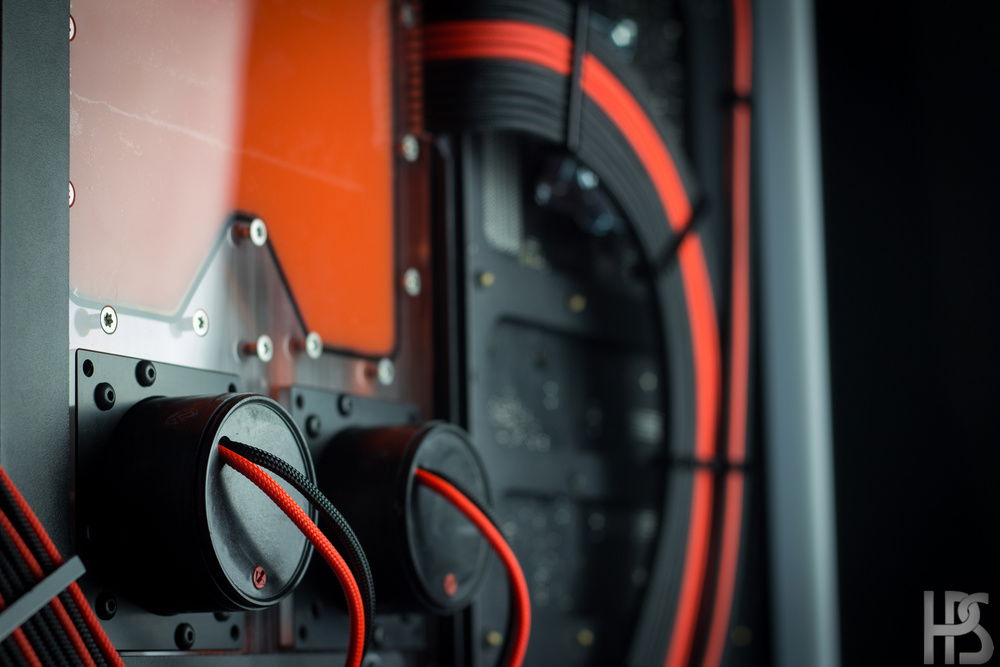

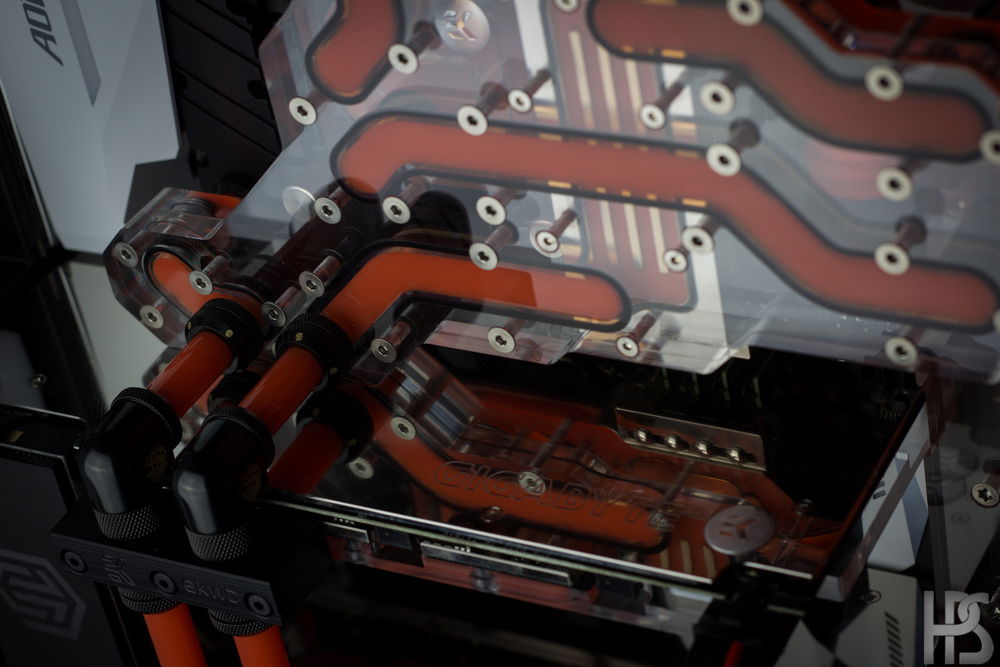

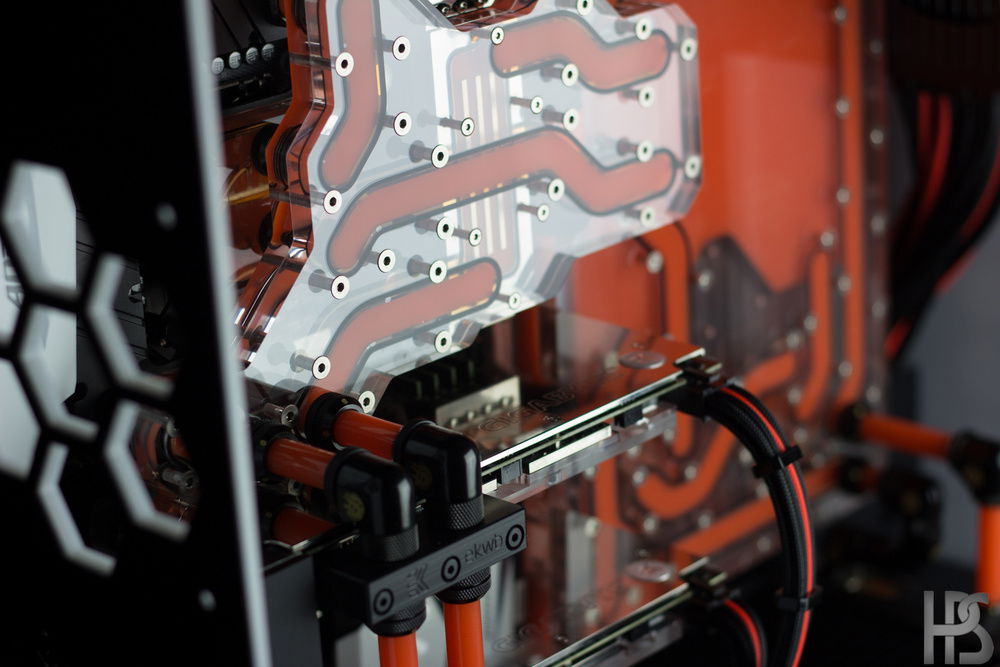

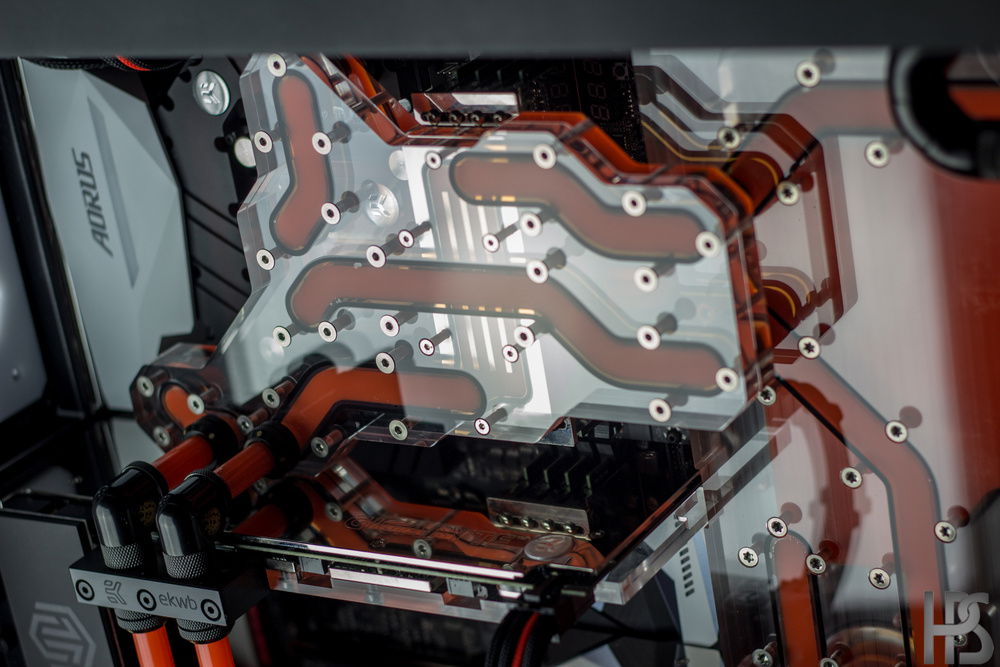

Plate one that sits on the motherboard connects all the major components such as GPU, CPU, motherboard and RAM into one big distributing plate. The second plate houses the reservoir as well as two D5 pumps and routes the fluid into the radiators in top and bottom as well.

The only lighting in this build is the LED's on the motherboard, but those have been turned off as I wanted the colors of the cables and the water cooling system to be the highlights.

I hope you enjoy it!
(Also, check out my website & instagram )
Color(s): Black Orange
RGB Lighting? No
Cooling: Custom Liquid Cooling
Theme: Case Mod
Size: E-ATX
Type: General Build

Hardware

CPU
$ 378.16
Intel - Core i7-7700K
Socket: LGA 1151
Cores: 4
Integrated Graphics: Yes
Motherboard
$ 499.99
Gigabyte - AORUS Gaming 9 (GA-Z270X)
Chipset: Z270
CPU Socket: LGA 1151
Size: ATX
Memory
$ 138.99
Corsair - Vengeance LPX (3000MHz)
Type: DDR4
Capacity: 16 GB
Graphics
$ 1,036.44
Gigabyte - G1 Gaming (2x)
Chip Manufacturer: NVIDIA
Chip: GTX 1080
Storage
$ 151.48
Corsair - Force MP500
Form Factor: M.2
Interface: M.2 (M)
Capacity: 480 GB
PSU
$ 373.12
Corsair - HX850i
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 400.00
Hex Gear - R80 (discontinued)
Type: Mid-Tower
Side Panel: Acrylic
Case Fans
$ 359.94
Cooling
$ 59.99
EKWB - EK-Supremacy EVO
Type: CPU Waterblock
Cooling
$ 78.99
EKWB - RAM Monarch
Type: Custom Loop
Cooling
$ 140.00
Cooling
$ 240.00
EKWB - EK-FC1080 GTX G1 - Nickel (2x)
Type: GPU Waterblock
Cooling
$ 239.78
EKWB - CoolStream CE (2x)
Type: Custom Loop
Size (WxHxD): 420 mm (3 x 140 mm)
Estimated total value of this build:
$ 4,963.70
