Project TT AIO

It is the third time of me messing around with my TT core P5 case now as I just got my hands on a 3950X. Although my last build featured a display behind the distro plate, a large proportion of the display was blocked which limited usability. This time, I'm putting a full size 1080p 19inch display behind the distro plate so it can function fully as an independent screen, hence given the name of AIO (all in one computer, but a PC containing a screen rather than a screen containing a PC). It can potentially function as a home theater/showcase PC as it doesn't require an additional display to run it.

An issue I had with my last build is that the entire system is cooled by an external radiator setup, which not only limits the PC's mobility, but also meaning that there are no fans in the case at all, resulting in poor VRM and ram cooling. With the new design, I've added a 120mm and a 200mm radiator so that the PC can be cooled independently.

Some interesting facts:
1. I've decided to add 3 tiny 30mm fans to actively cool the vrm and memory.
2. Designed and made an m.2 water block as they do run hot under sustained load.
3. Chipset fans do run loud, chucked a water block on there too.

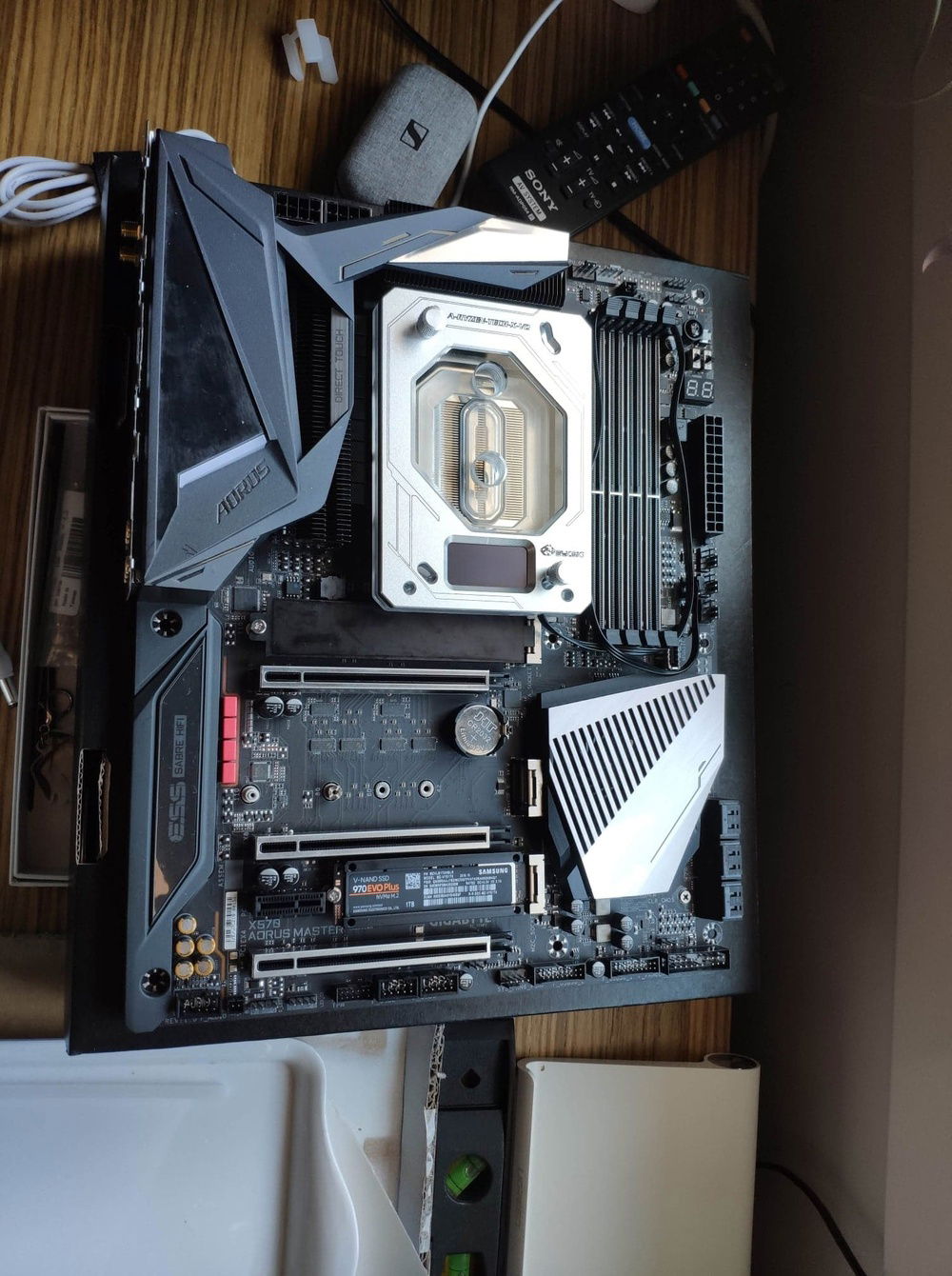

4. Mobo is heavily modded including an acrylic mobo cover, painted VRM cover and water blocks everywhere...

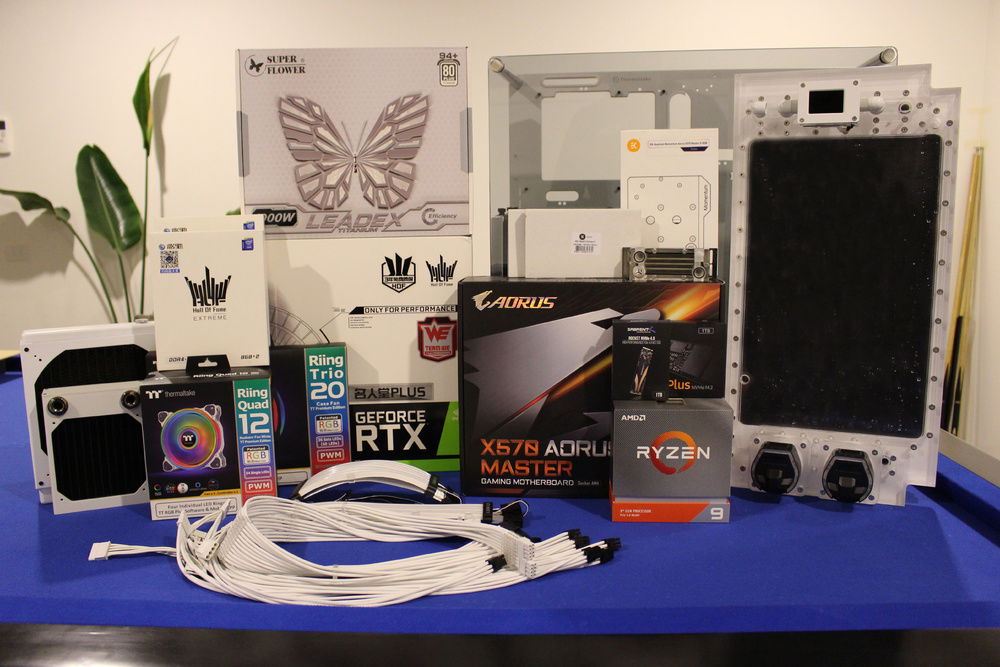

Specs:
CPU: AMD R9 3950x (OC to 4.4ghz all cores @ 1.43V, OC to 4.7ghz all cores @1.5V temp is too high to be stable but does pass cpuz test).
GPU: Galax HOF plus 2080ti (OC to 2130mhz/8300mhz)
RAM: Galax HOF Extreme 4000c19 8g*4 (OC to 3800cl16 @1.5V, OC to 3800cl12 @1.8V unstable but does pass Aida mem tests)
Mobo: Gigabyte X570 Aorus Master
PSU: Super Flower Leadex 1000W titanium
Case: TT Core P5 TG White

The build is still in progress..... feel free to leave suggestions
Color(s): White
RGB Lighting? Yes
Cooling: Custom Liquid Cooling
Theme: Sci-Fi
Size: ATX
Type: General Build

Build Updates

Awaiting new waterblocks

Hardware

CPU
AMD - Ryzen 9 (3950X)
Socket: AM4
Cores: 16
Motherboard
$ 329.99
Gigabyte - Aorus Master
Chipset: X570
CPU Socket: AM4
Size: ATX
Memory
Galax - Galax HOF Extreme 4000Mhz
Type: DDR4
Capacity: 16 GB
Graphics
Galax - GeForce Hall Of Fame
Chip Manufacturer: NVIDIA
Chip: RTX 2080 Ti
Storage
$ 199.98
Sabrent - Rocket (PCIe 4.0)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
Super Flower - Leadex
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Titanium
Case
Thermaltake - Core P5 (White)
Type: Mid-Tower
Side Panel: Tempered Glass
Unable to dertermine total build value (missing part value)
