NerDPorN ROG (Phanteks Evolv X)

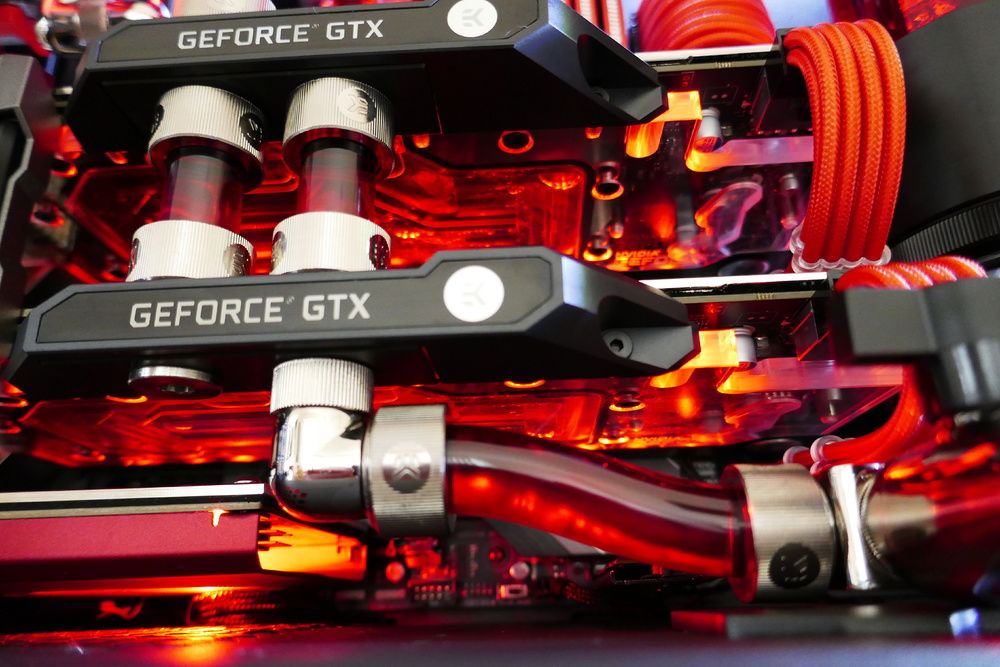

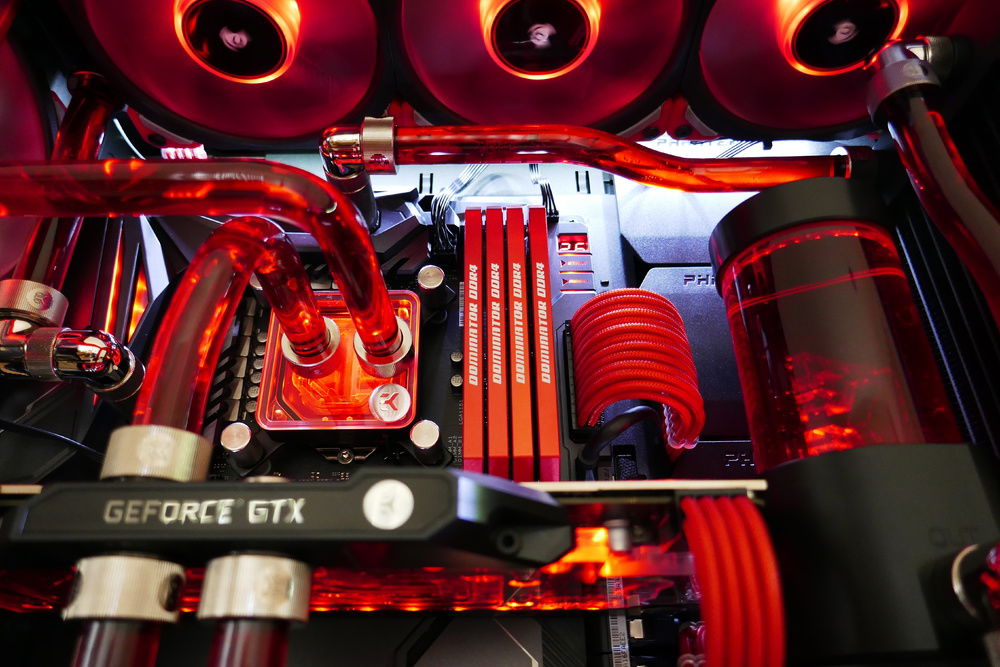

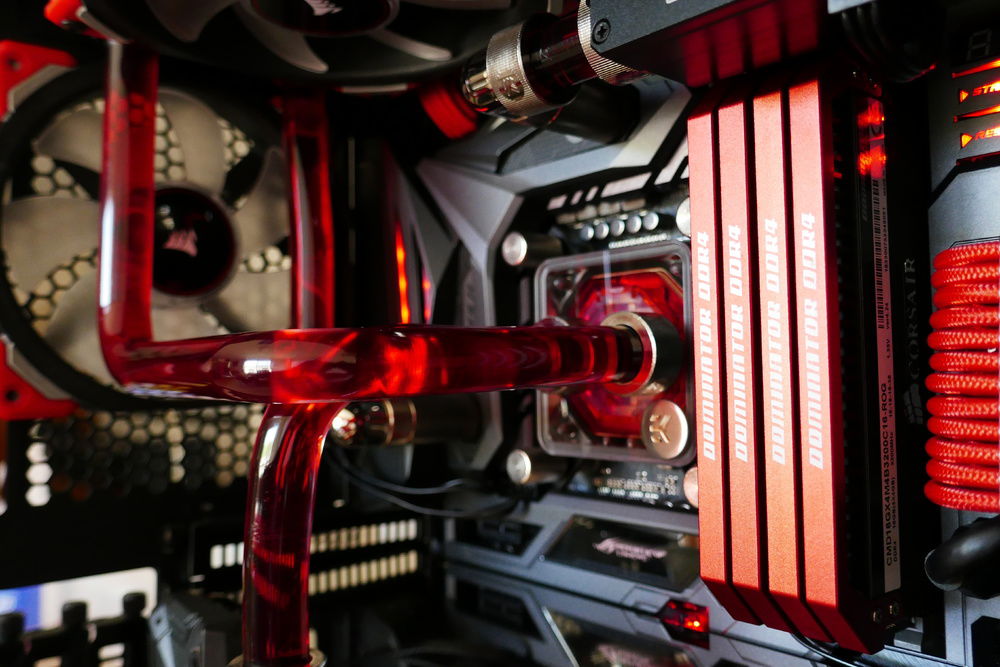

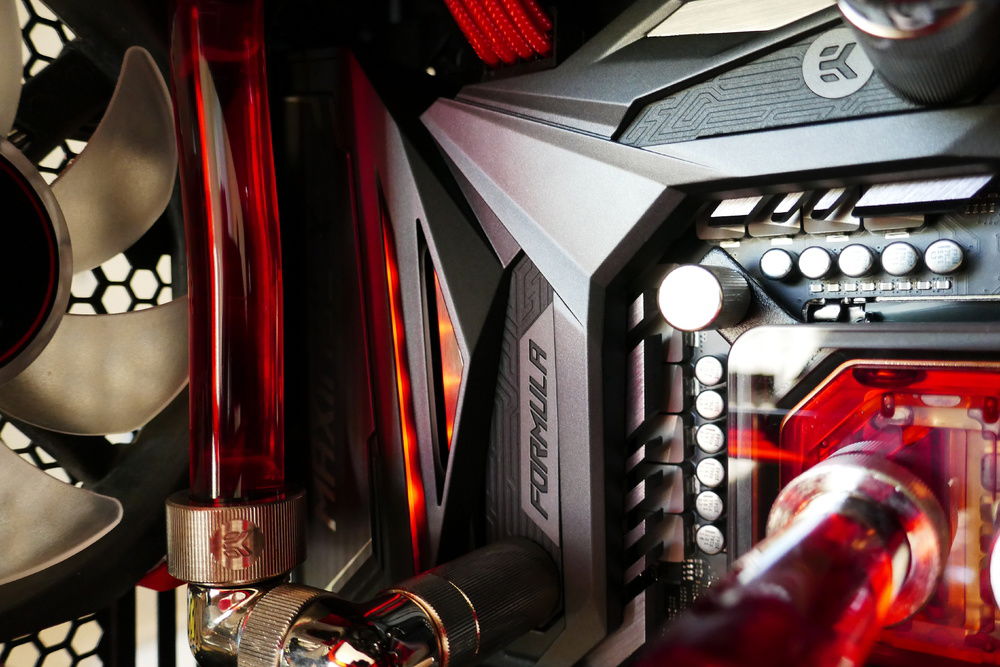

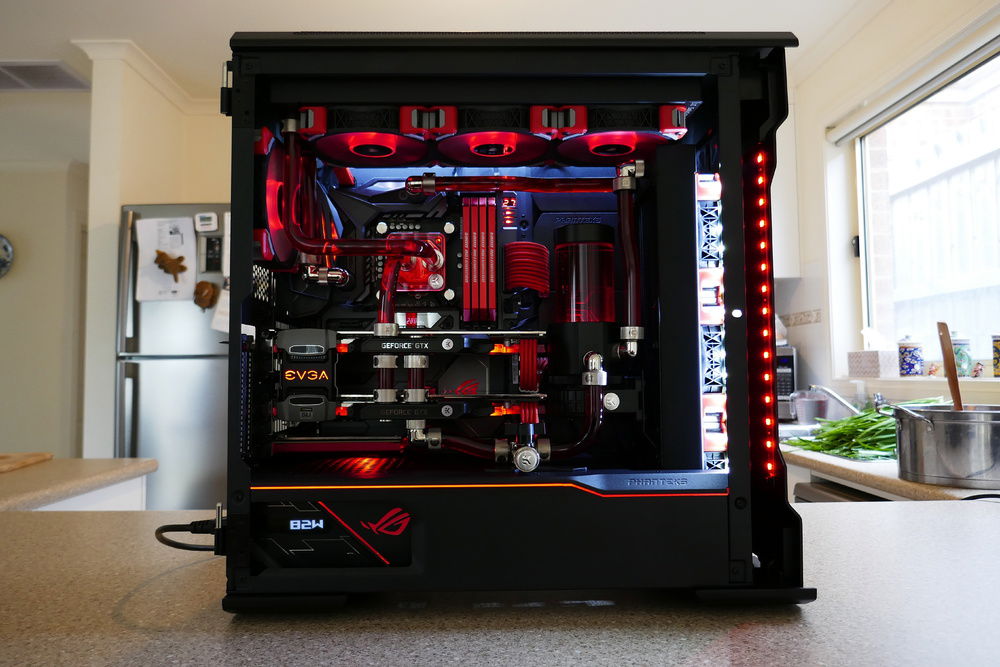

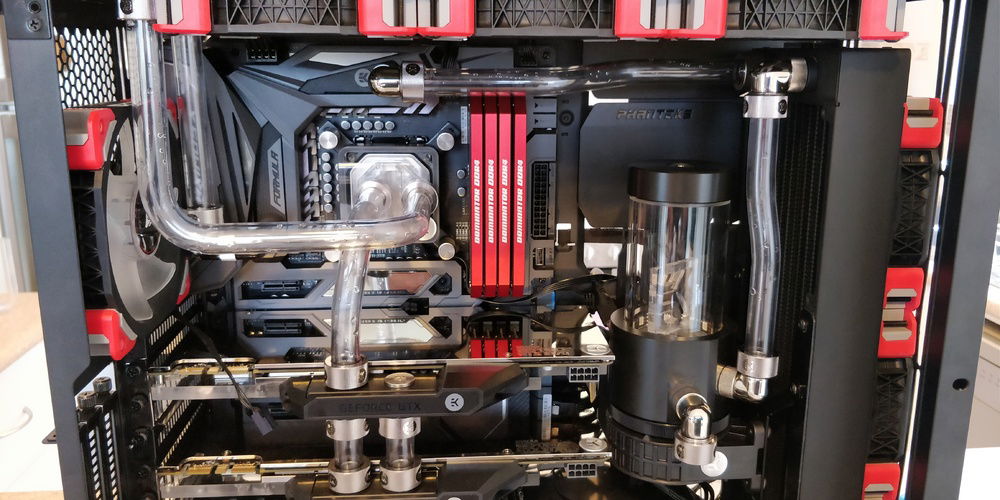

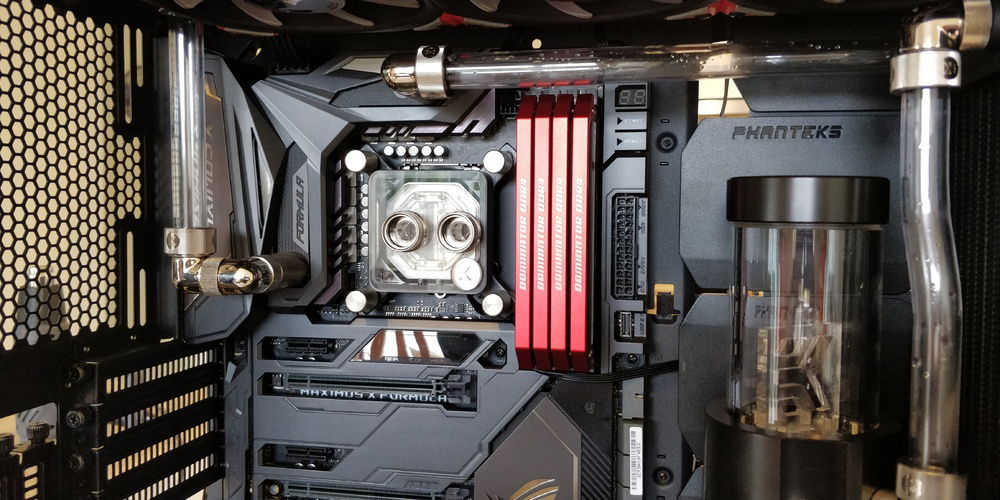

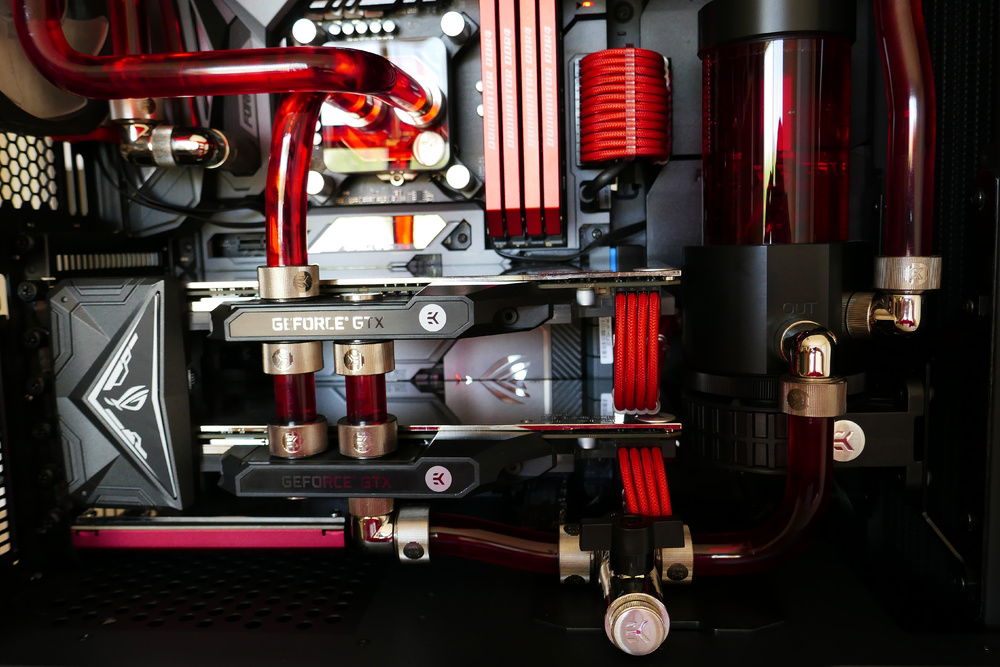

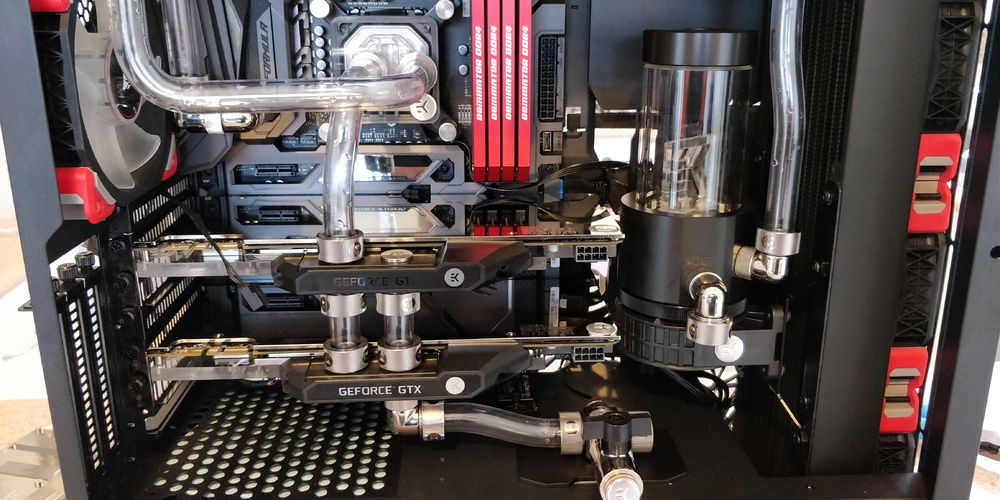

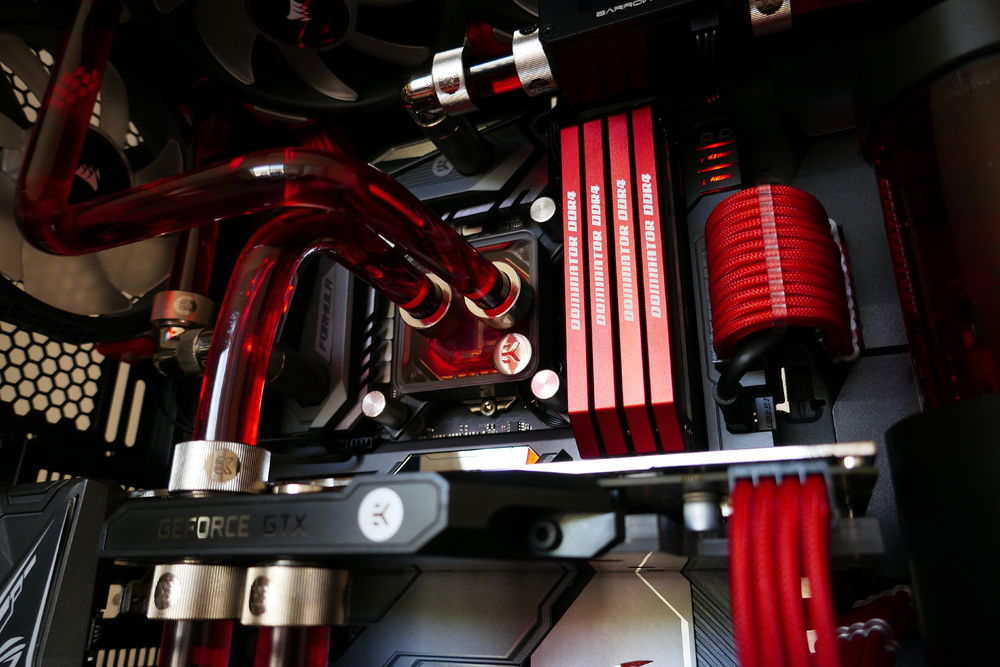

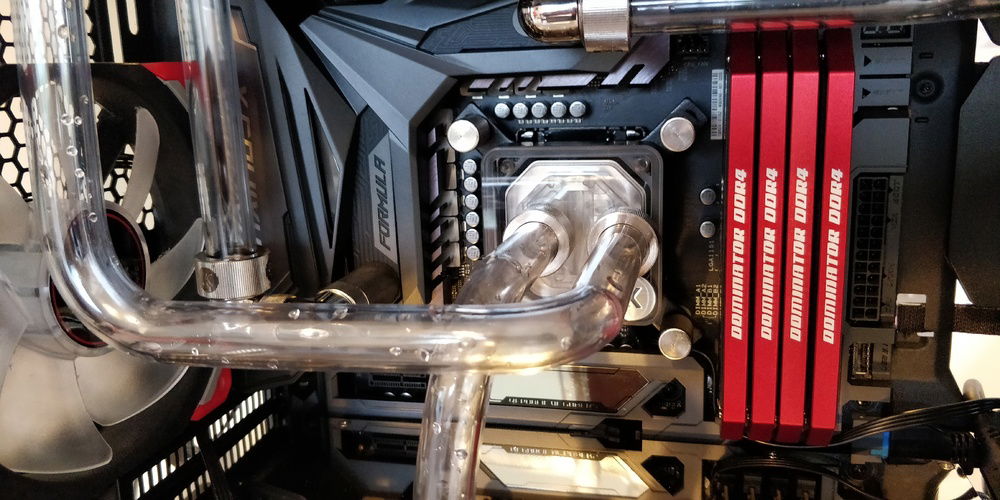

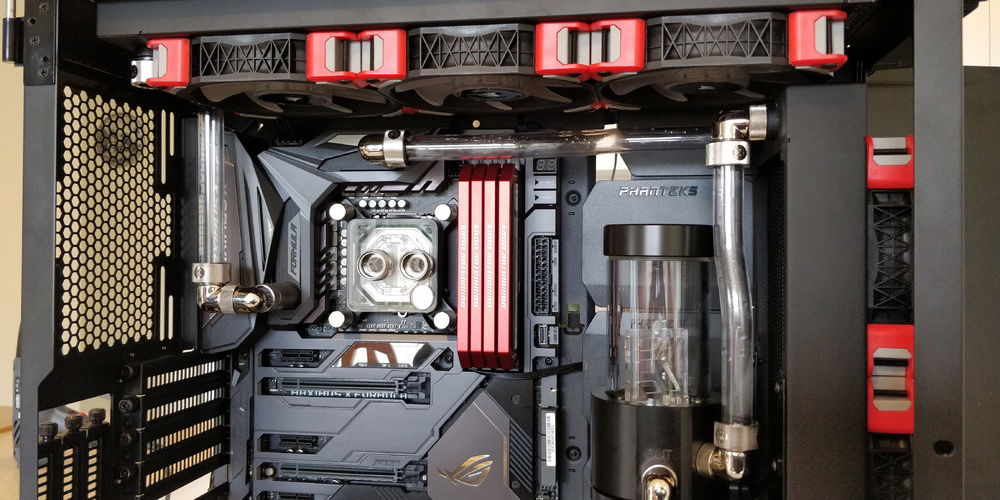

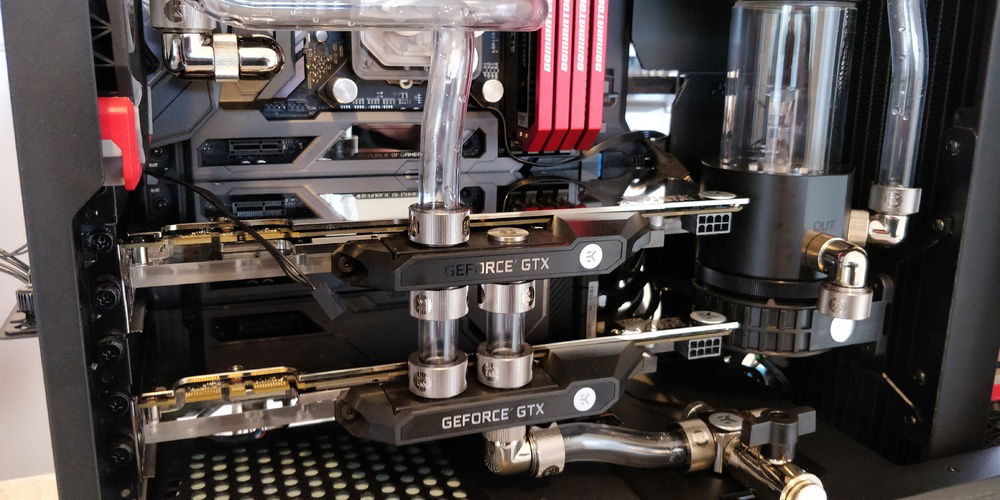

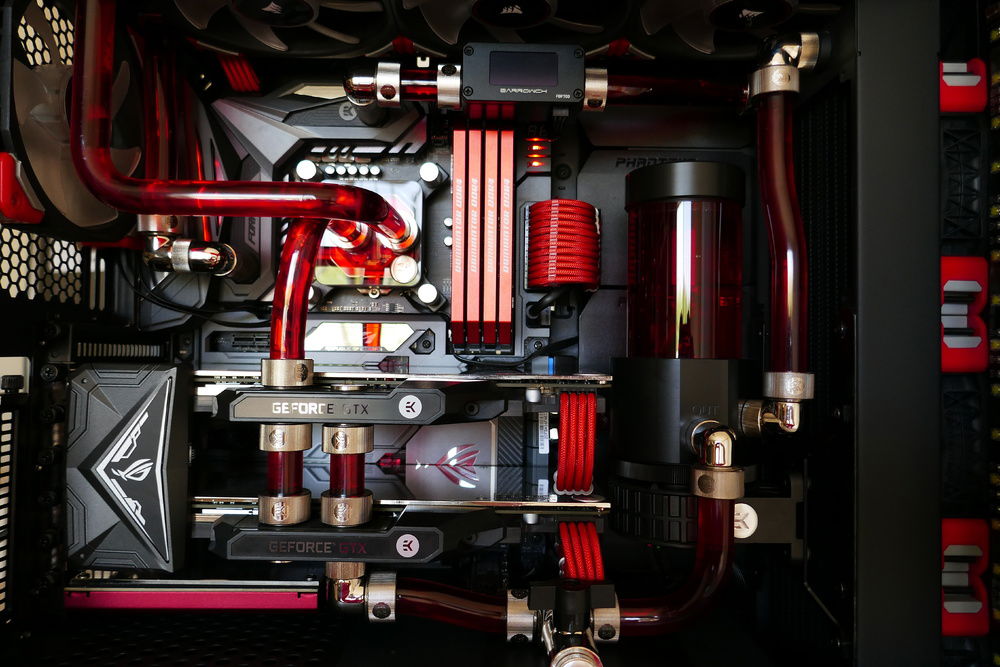

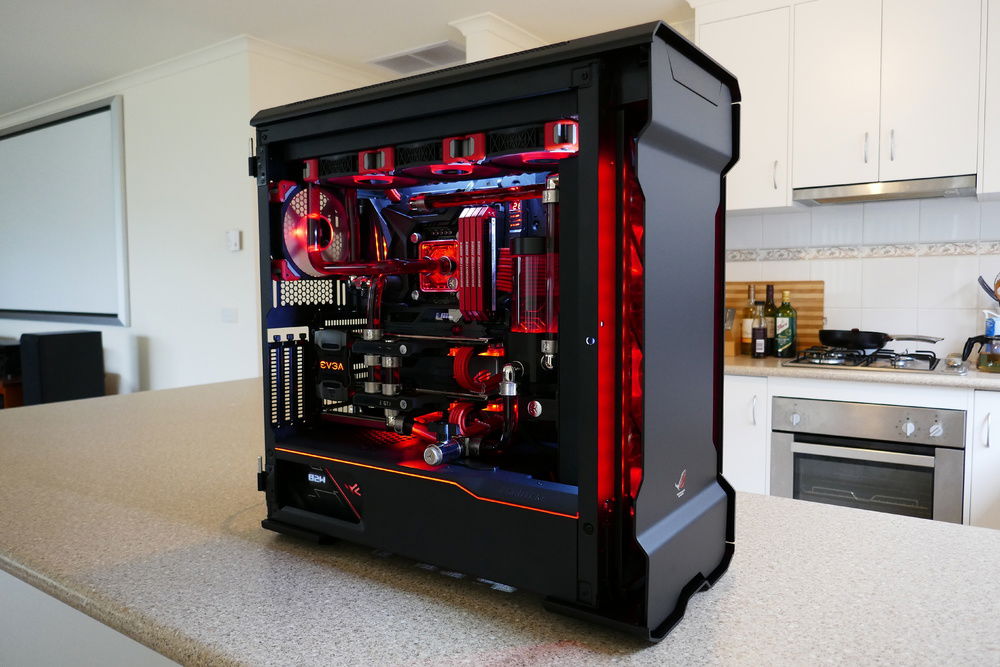

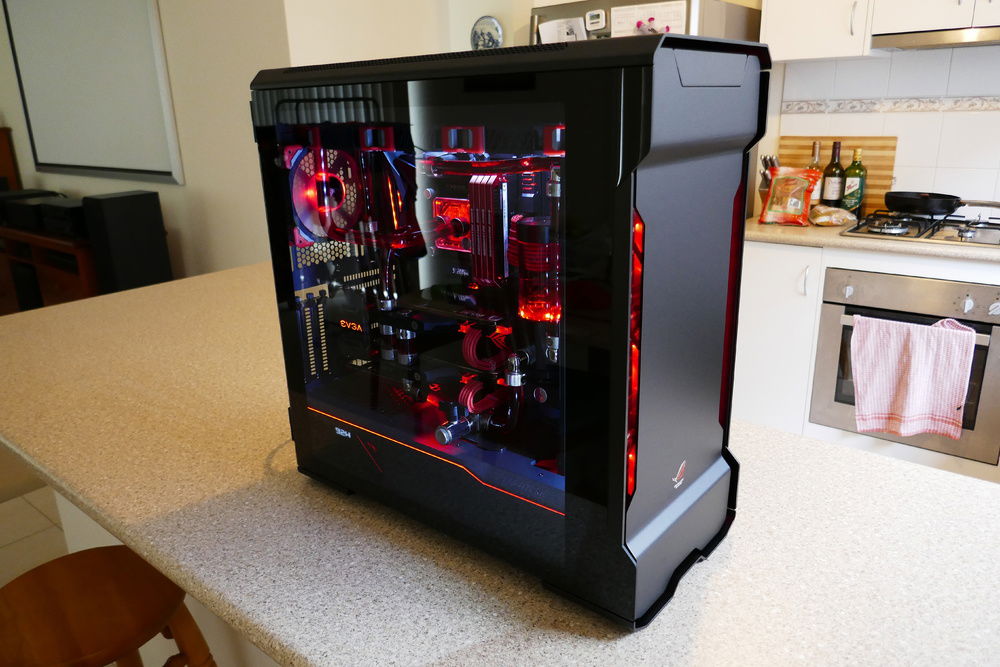

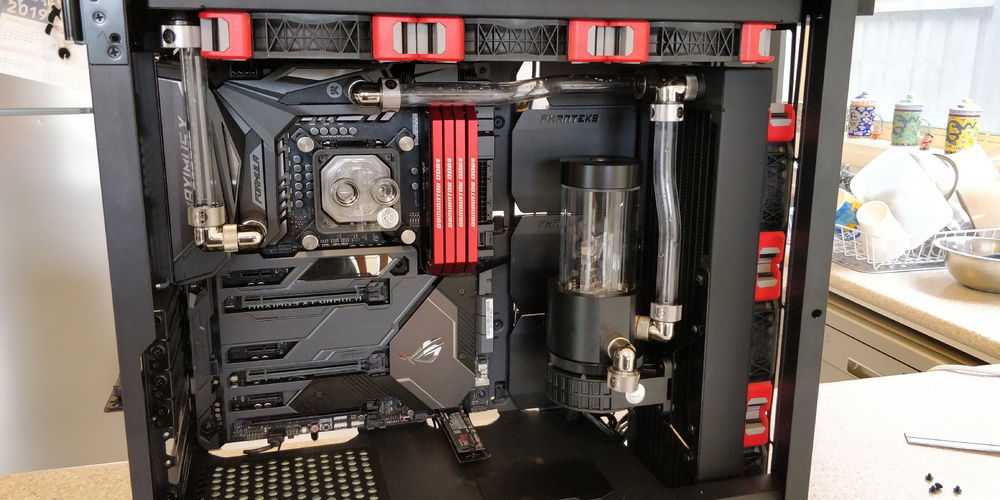

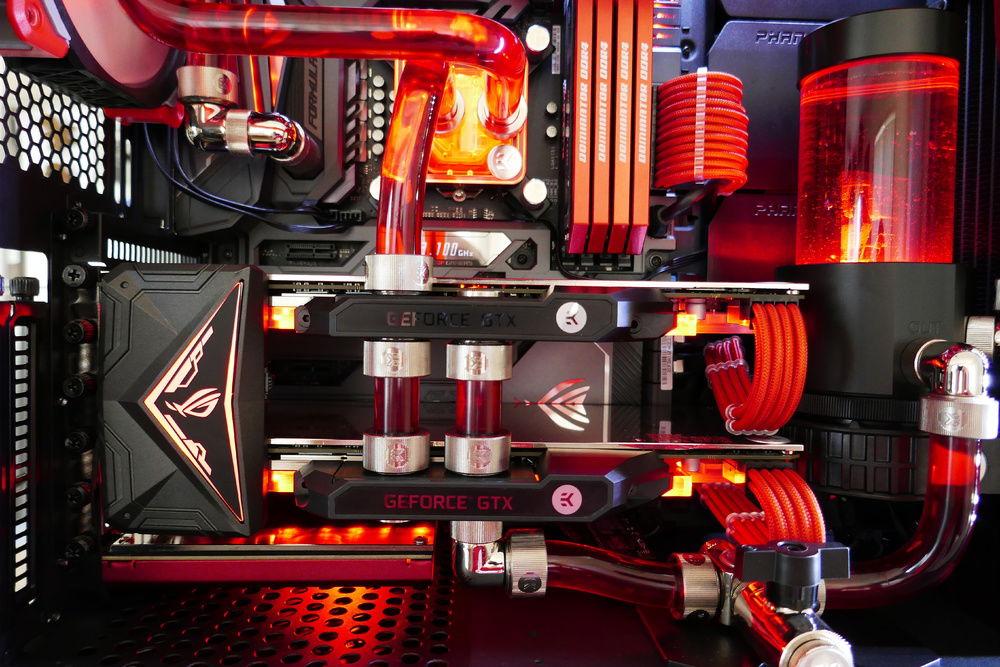

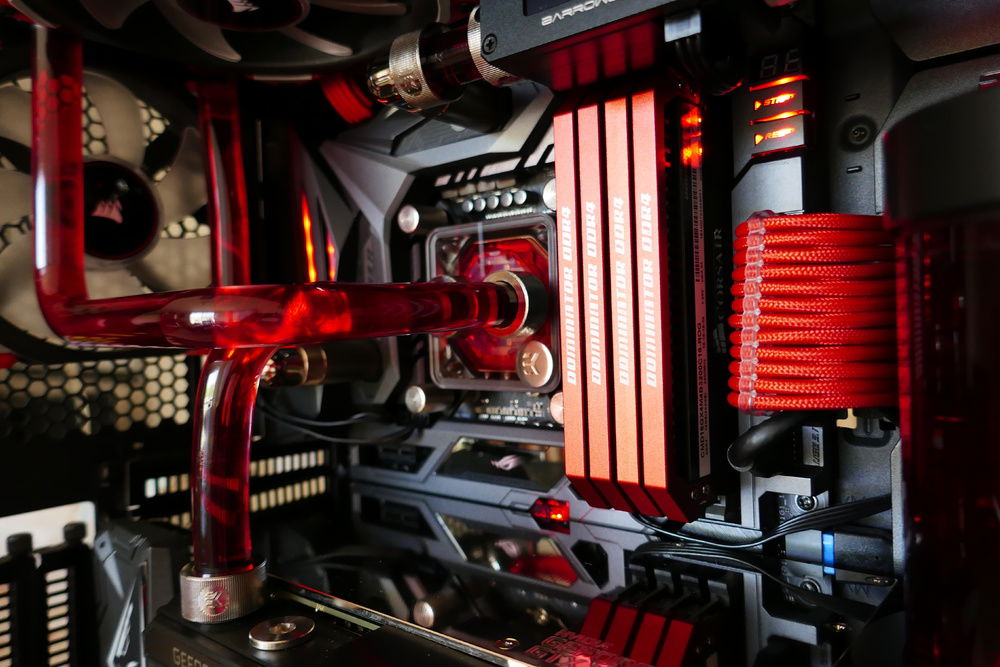

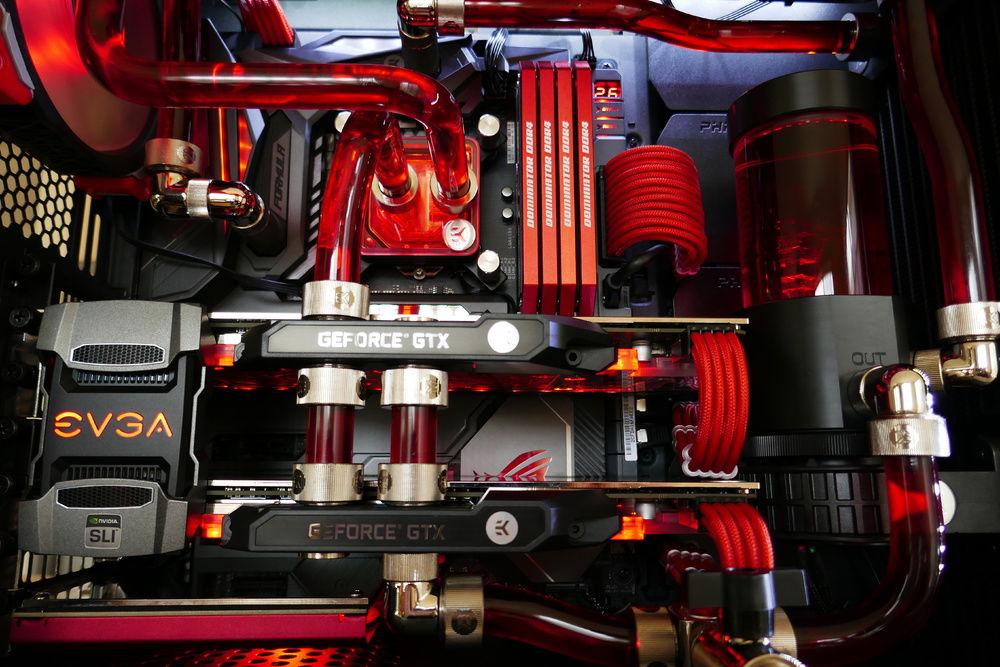

The name "NerDPorN" was inspired by a comment Tiny Tom Logan from OC3D once made, seemed fitting. My rig features an overclocked 9900K to 5.2Ghz@1.328V (OCCT Load) it's my second attempt at a hardline water cooled build, upgraded from V4 all the water blocks to the RGB versions as well as the pump/res combo, changed the case to an Evolv X to accommodate 2x 360mm EK-PE360 radiators and allow for better airflow, upgraded the motherboard to Maximus X Formula initially with an 8700K at 5.3Ghz 1.42V (OCCT Load) I decided to build this version based more on an ROG theme so changed PSU to THOR 850W with red cablemod cables, all PETG tubing is now 16mm mainly for looks more than anything else. The hardest tube to bend was the one from the pump outlet since it is very short but the ends still need to be straight to avoid leaks. I drilled a lot of holes in the PSU shroud above the power supply effectively perforating it so that I could mount the THOR power supply the right way up to allow air flow. Thanks for looking and hope you all like it.

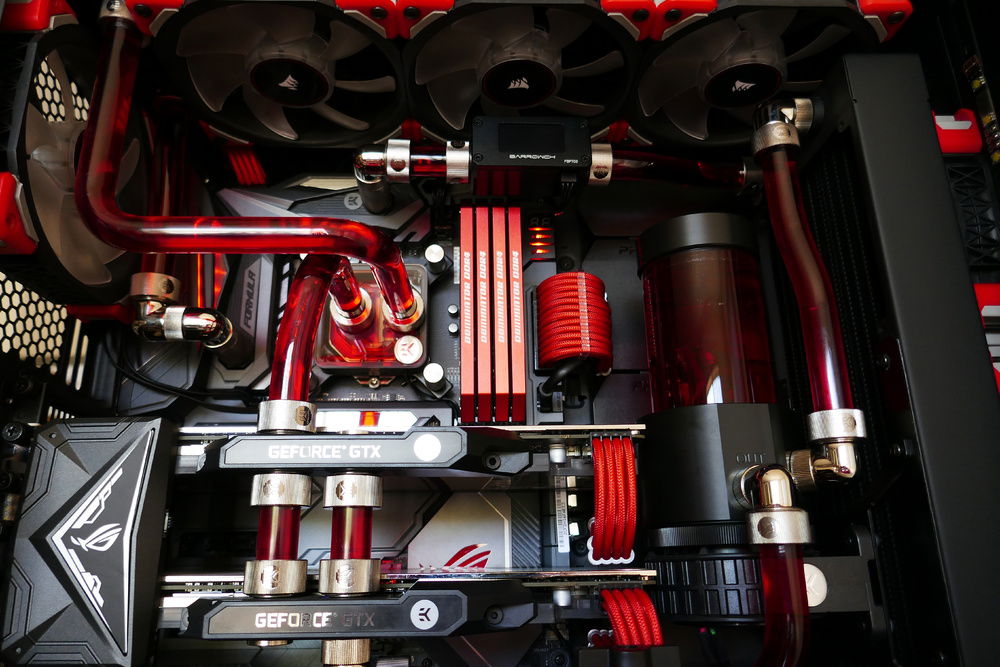

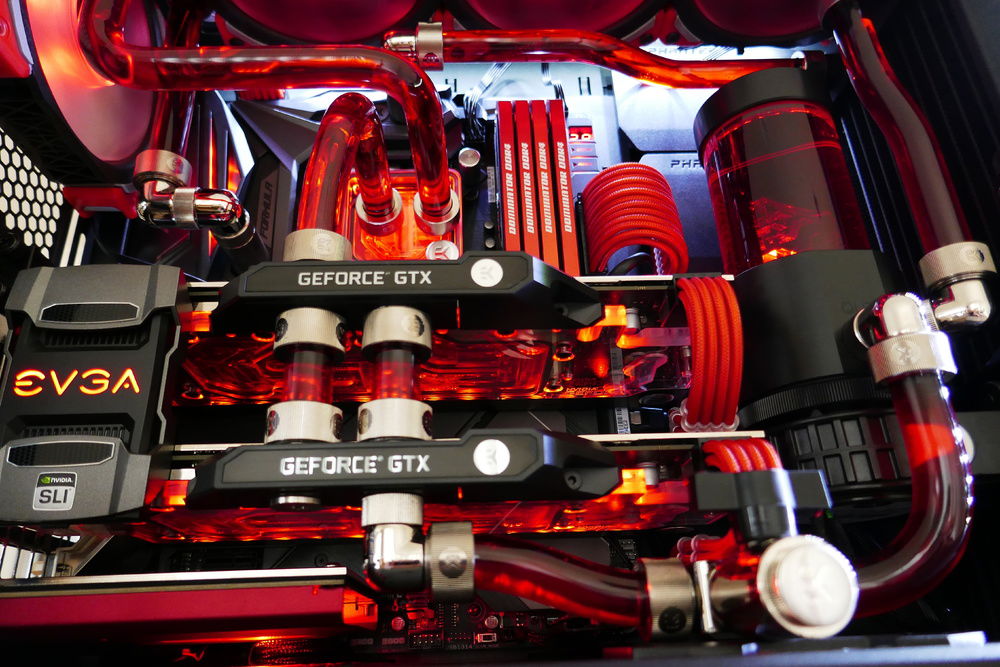

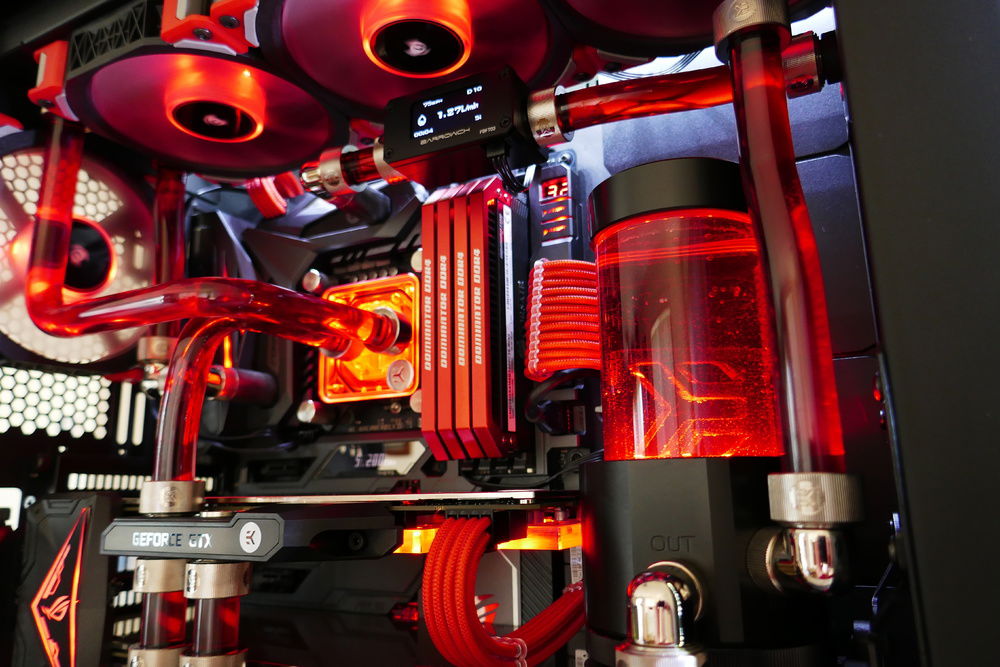

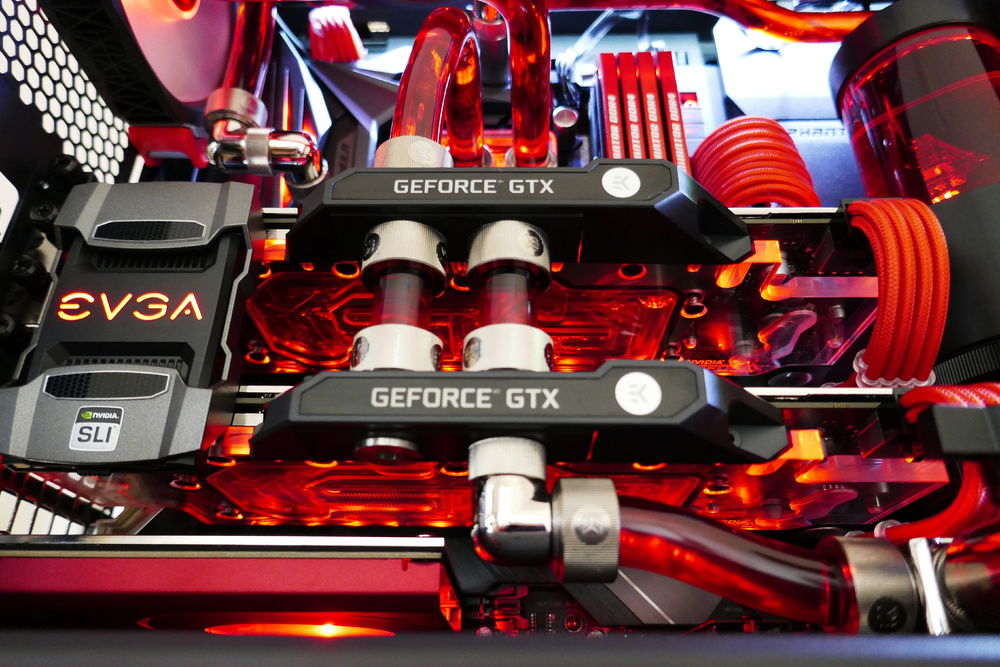

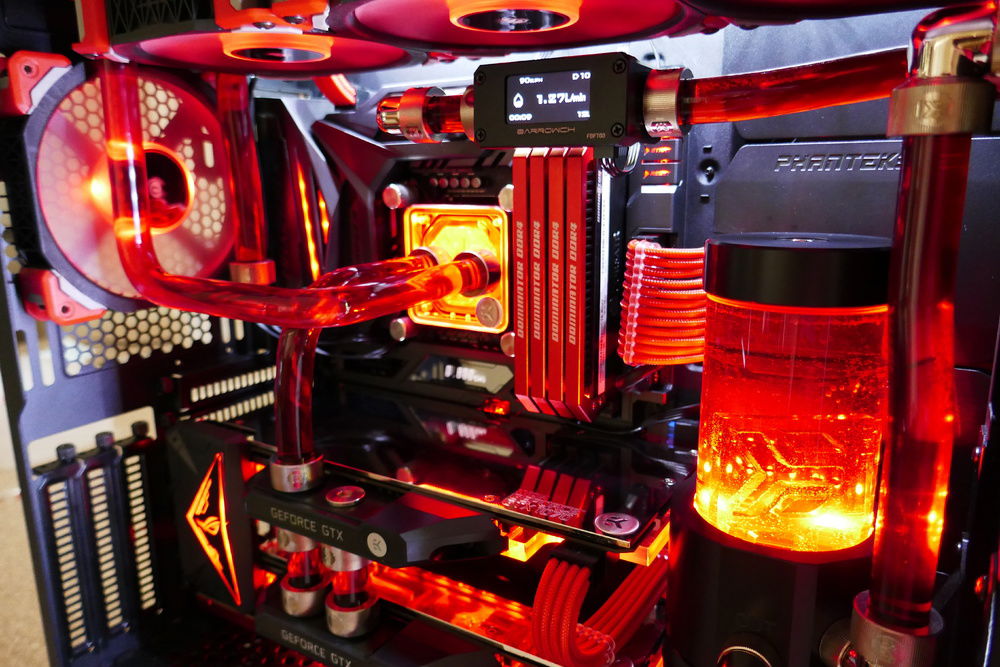

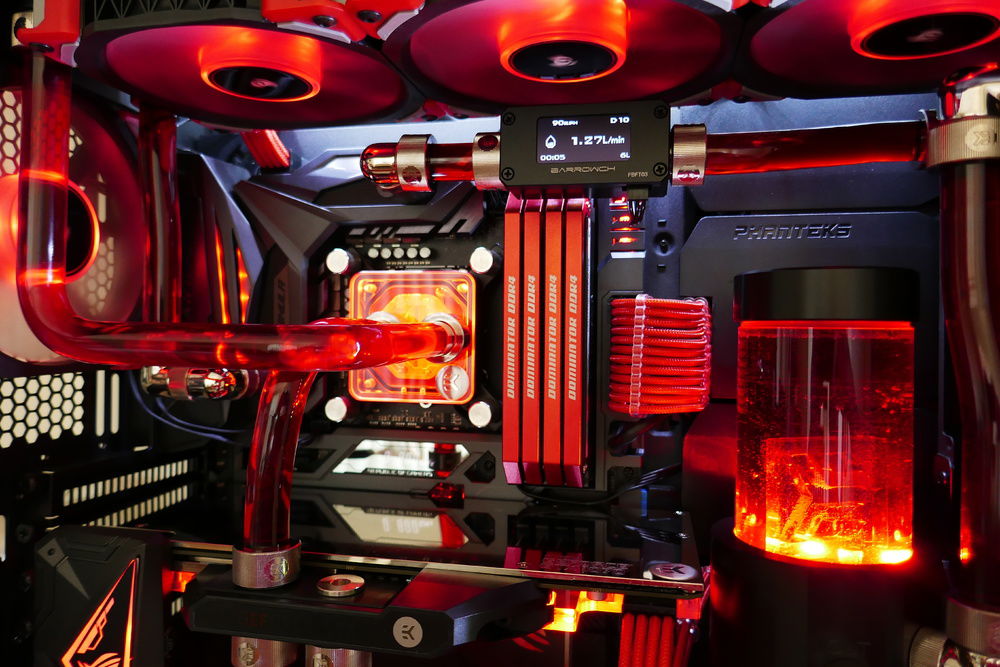

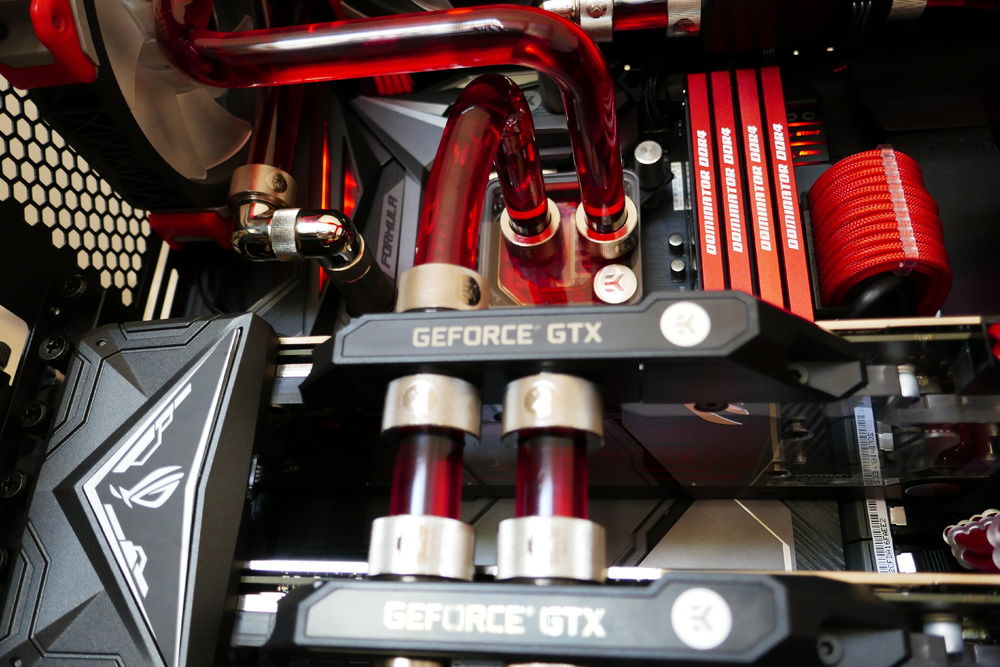

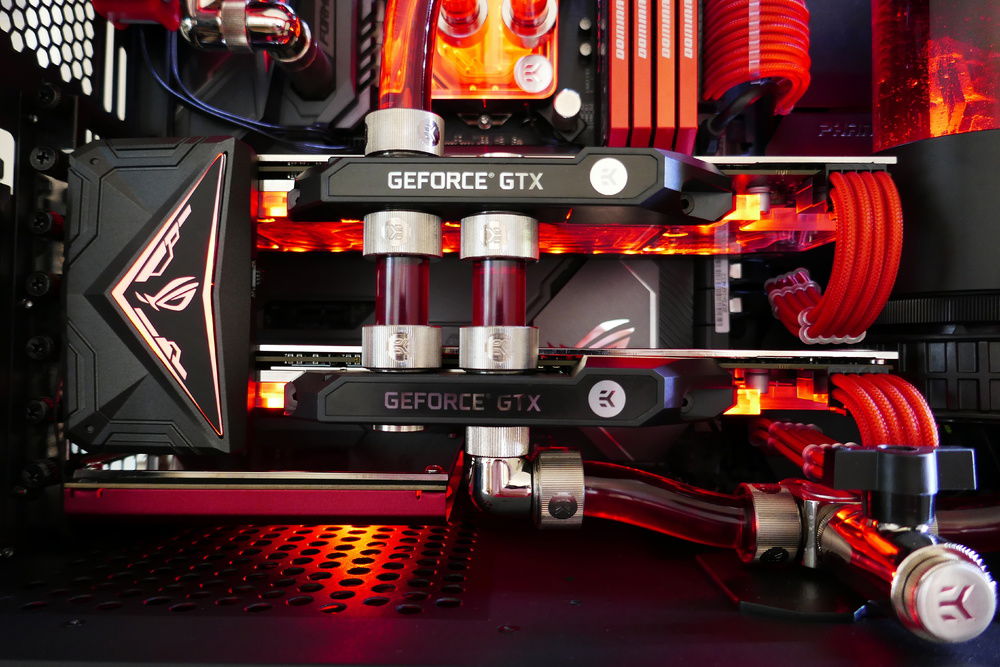

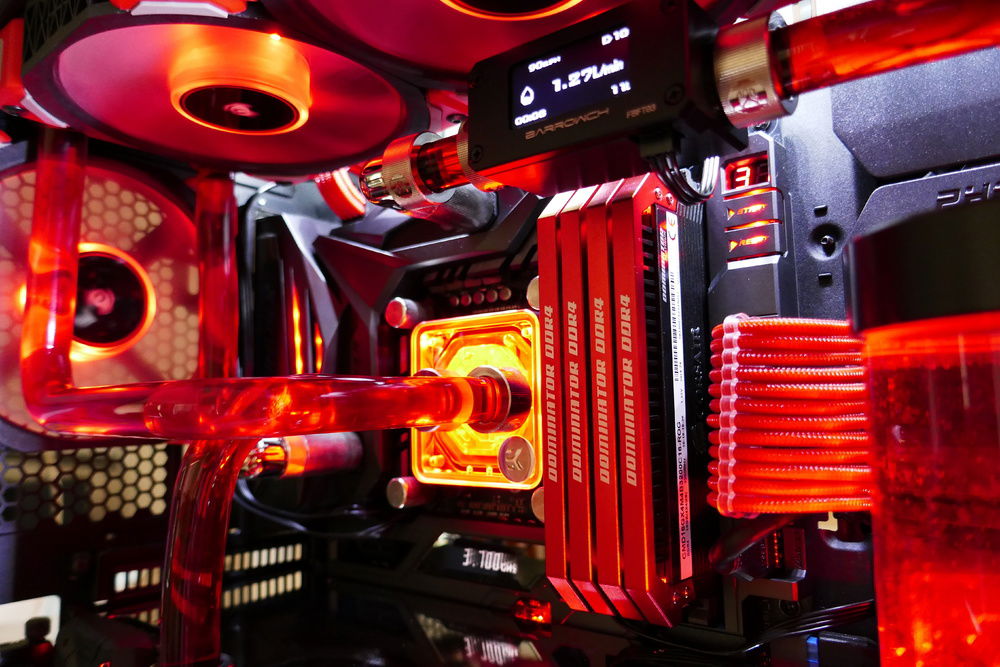

Update: I have added a water flow meter and changed the SLI bridge to suit build theme better.
Color(s): Red
RGB Lighting? Yes
Theme: Brand
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 399.00
Intel - Core i9-9900K
Socket: LGA 1151
Cores: 8
Integrated Graphics: Yes
Motherboard
$ 349.99
ASUS - ROG Maximus X Formula
Chipset: Z370
CPU Socket: LGA 1151
Size: ATX
Memory
$ 189.99
Corsair - Dominator Platinum (3200MHz) (Grey)
Type: DDR4
Capacity: 8 GB
Graphics
$ 379.98
EVGA - GTX 1070 Founders Edition (2x)
Chip Manufacturer: NVIDIA
Chip: GTX 1070
Storage
$ 873.00
Samsung - 860 PRO (3x)
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 335.38
Samsung - 960 PRO (2x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 512 GB
PSU
$ 152.07
ASUS - ROG Thor
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 179.99
Phanteks - Enthoo Evolv X (Black)
Type: Mid-Tower
Side Panel: Tempered Glass
Cooling
$ 418.12
EKWB - CoolStream PE (2x)
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
CableMod
CableMod - Sleeved Cables
Mode: Custom
Sleeve: PRO ModFlex
Color: Red
Monitor
$ 1,249.99
ASUS - PG279Q
Size: 27 Inch
Panel: IPS
Refresh Rate: 165 Hz
Keyboard
$ 219.99
Corsair - K70 LUX RGB
Interface: Wired
Key Switch Type: Cherry MX Red
Type: Full Size
Mouse
$ 64.99
Corsair - M65 Pro RGB FPS
Interface: Wired
