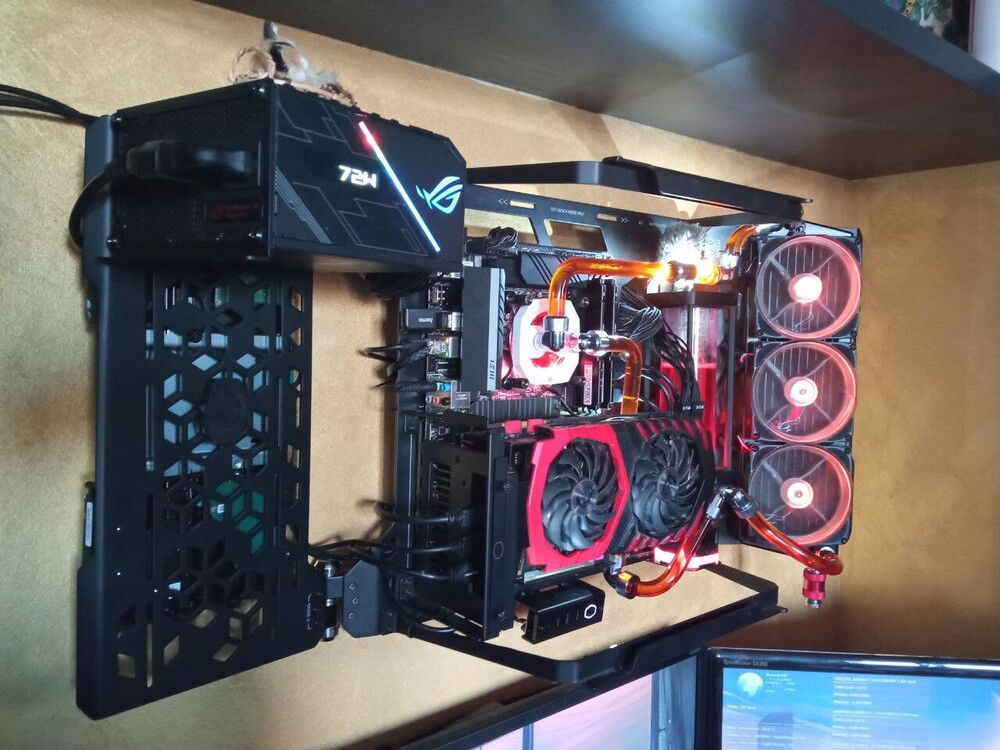

MasterFrame 700 on a wall

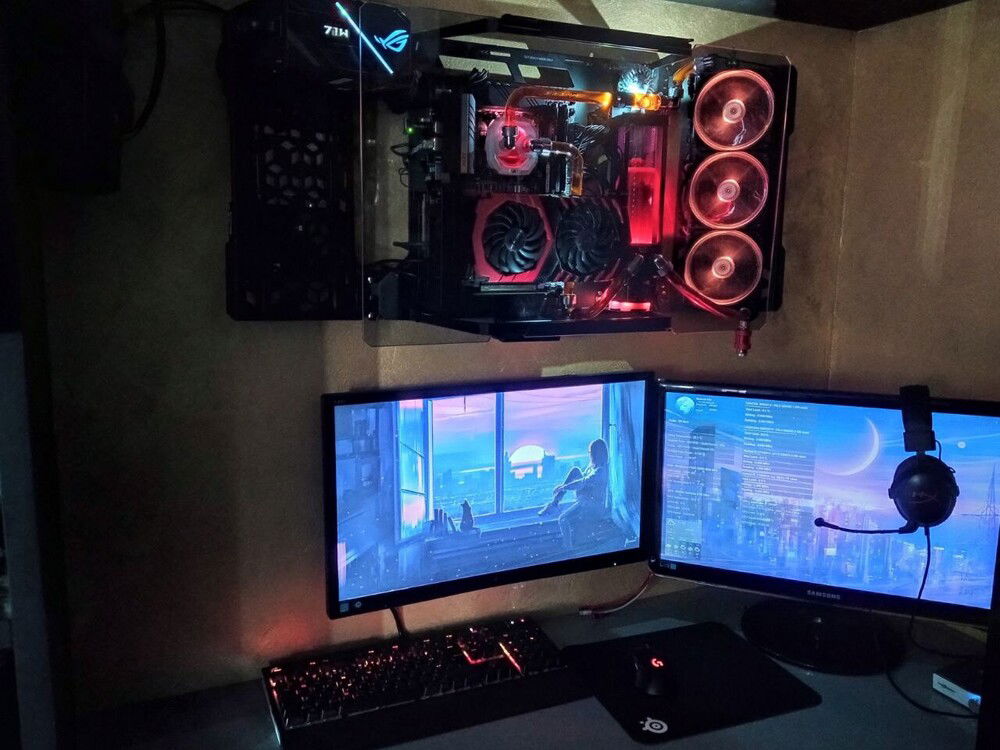

Open air, wall mounted build featuring the Cooler Master MasterFrame 700.
Im very satisfied with this personal build, but there's always room for improvement.

Preparation work:

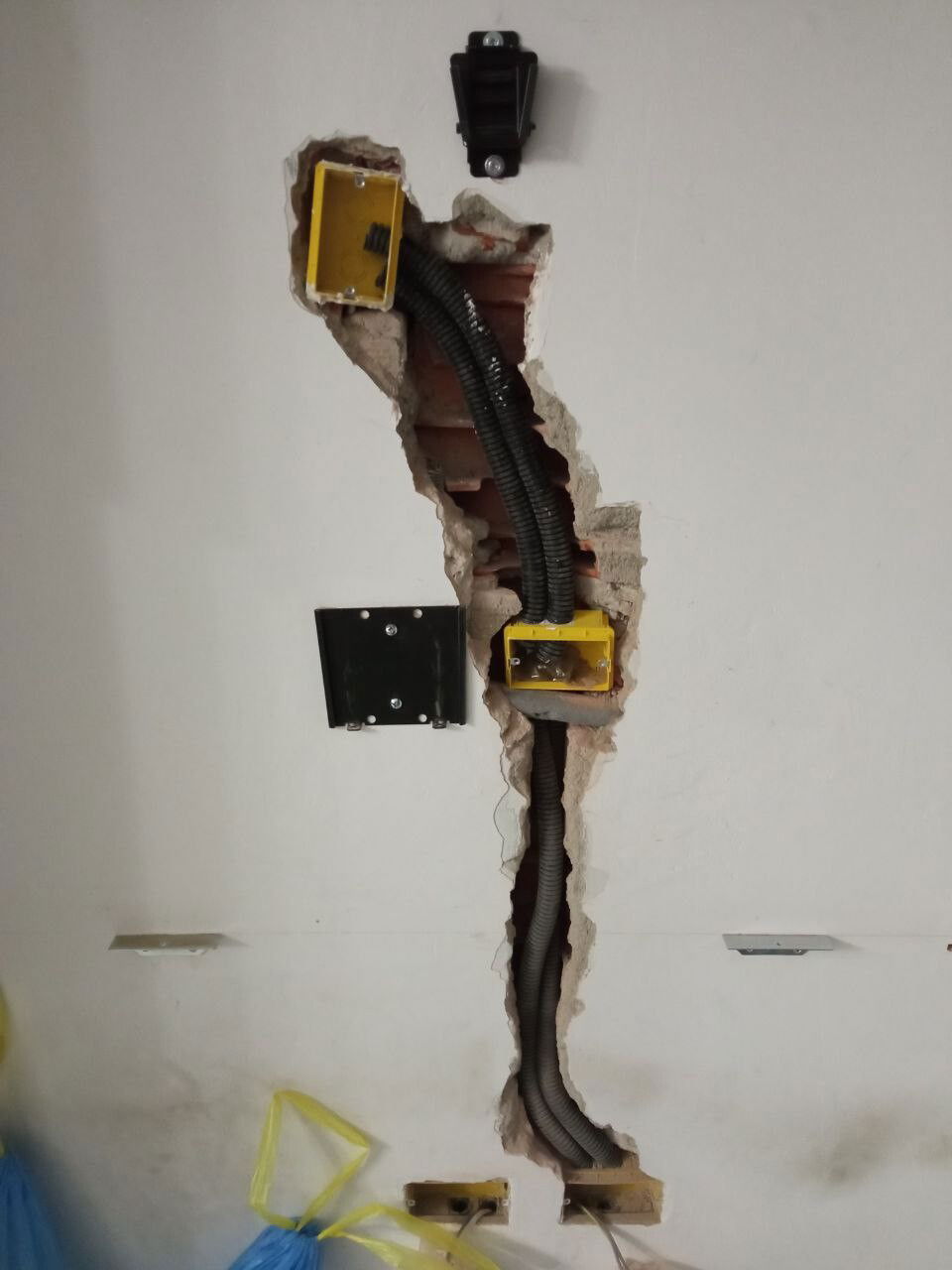

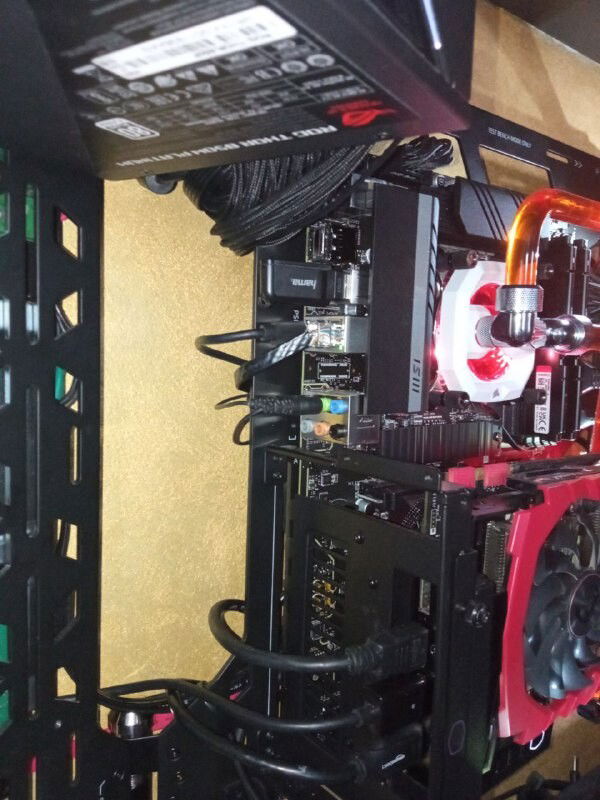

All cables between the pc and the rest go through electrical boxes hidden behind the case and the main monitor in order to get the cleanest look possible.
I personally did all the wall breaking (brick wall) and refilling, electrical wiring, then repainted with a special sand effect gold paint
Initially i used the vesa mount behind the case to hang the pc, but then switched for more safety to 2 threaded rods (originally meant for wall hung toilets) inserted into chemical wall plugs (rated for 80 kg minimum).

The pc:

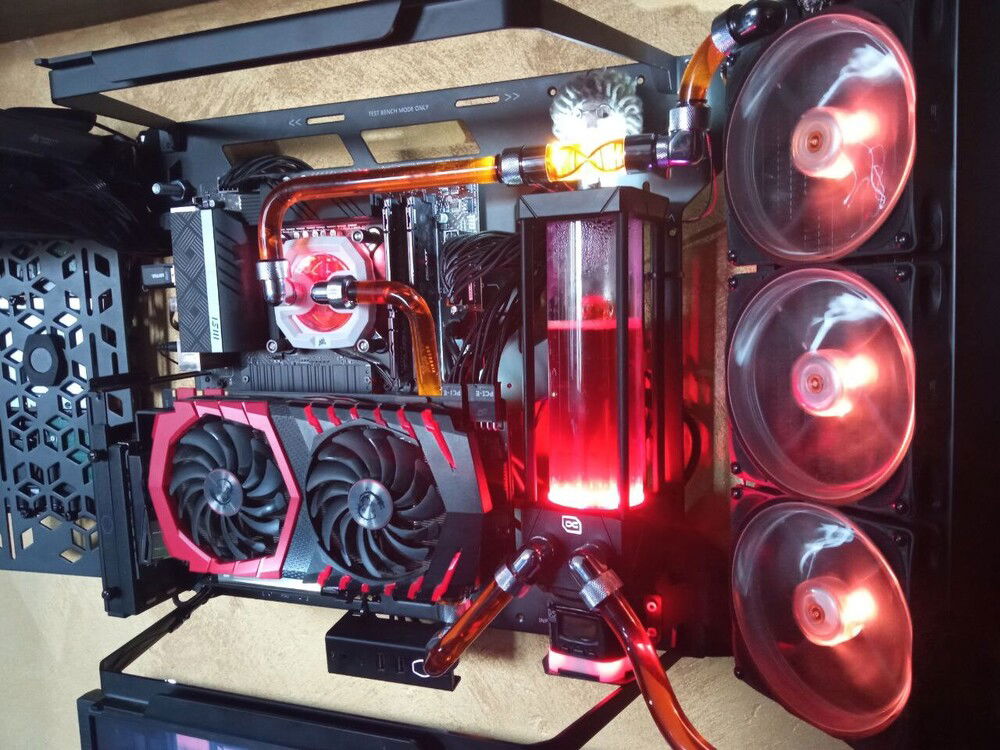

The new i7-12700 is cooled through a custom loop, the liquid is mayhems x1 orange (premixed) a little less then 1 liter.
I'm using the gtx 1080 from my previous build until it's worth (personally) to upgrade, probably next gen, the plan is to put a second 240mm radiator below the psu on the left and expand the cooling loop. Did not want to invest in a waterblock for the 1080 for this (hopefully short) time.

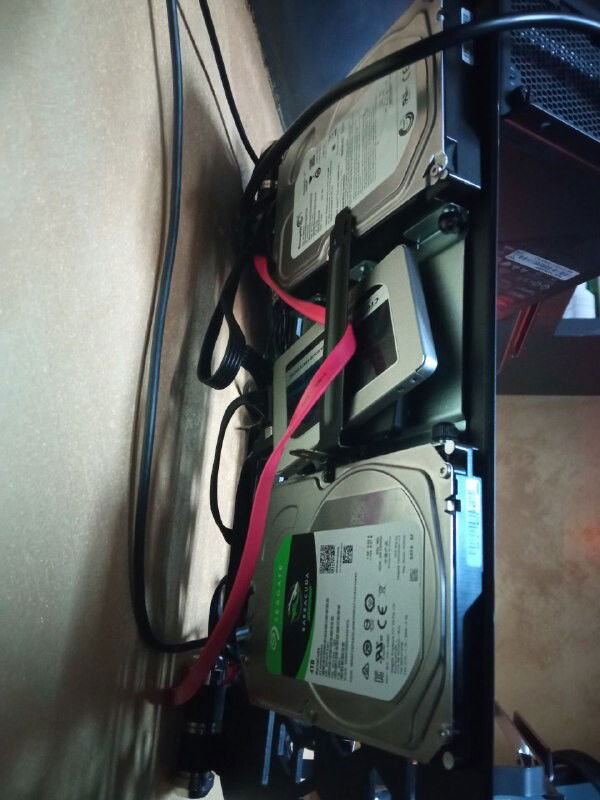

All the storage is from my previous pc and is mounted behind the left wing.

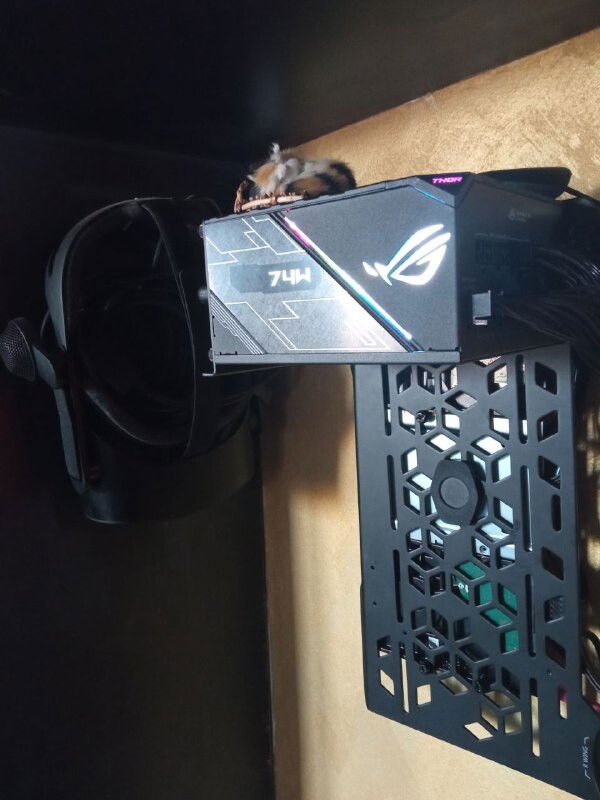

I had to drill the upper part of the left wing to put the psu in that position.

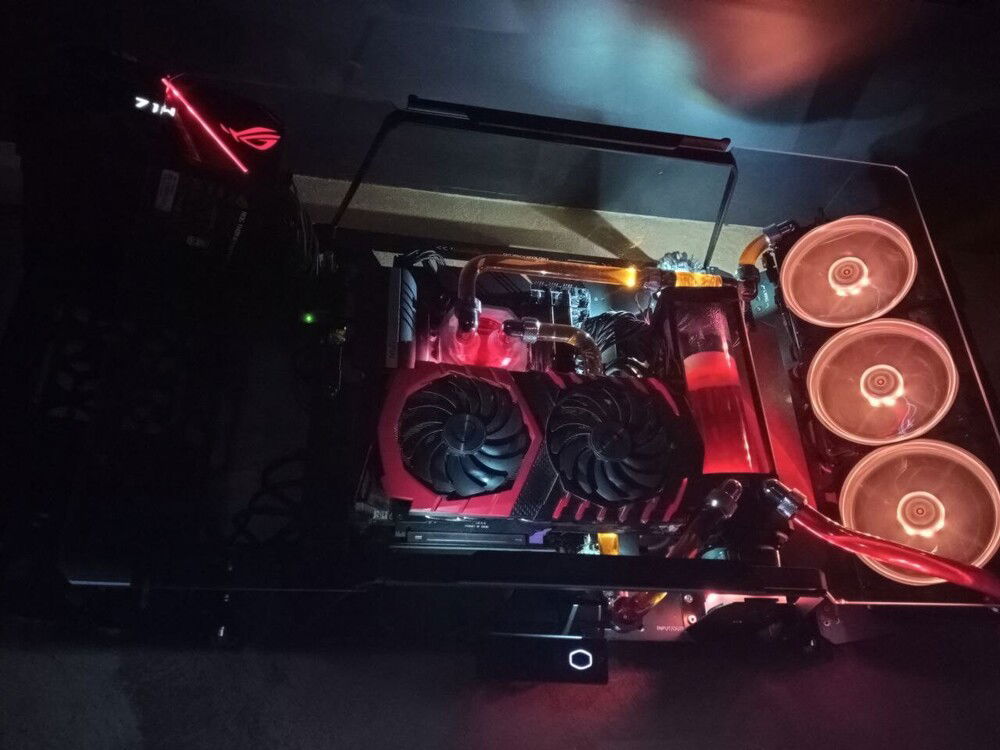

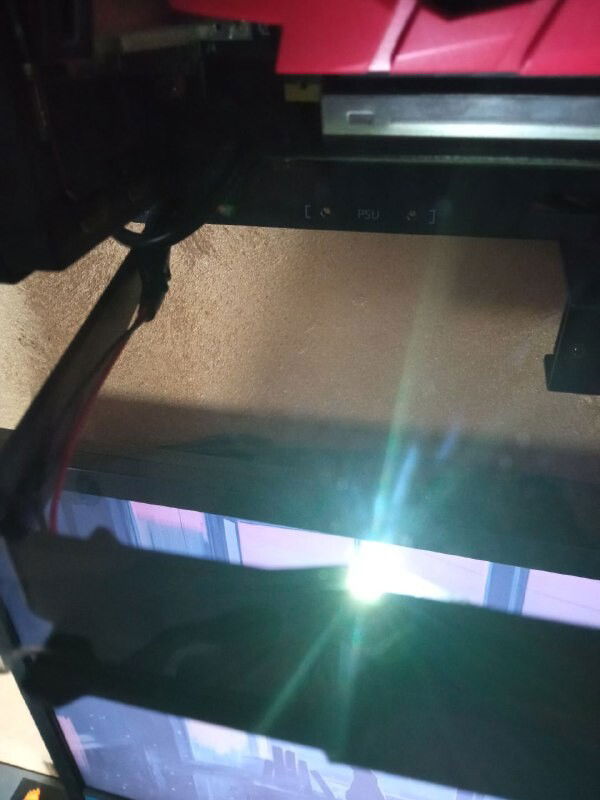

I noticed that the pc looked too dark at night, but instead of led strips i went with small single white led lighting (0.5 watt each) directly soldered into a molex cable, there are 7 currently strategically positioned around.
Still unsure on what to put on the left wing for the time being

Future:
-currently looking around for something to put on the left wing
-wall mounting second monitor, custom made mount necessary since does not have vesa supports
-hide mounting screws although they are not very visible already
-M2 ssd would be nice but not really necessary
-4000 series gpu? and second part of liquid loop
-who knows what the future might bring
Color(s): Gold Orange Red
RGB Lighting? Yes
Theme: Technology
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 249.99
Intel - Core i7-12700K
Socket: LGA 1700
Cores: 12
Integrated Graphics: Yes
Motherboard
$ 215.00
MSI - Pro Z690-A
Chipset: Z690
CPU Socket: LGA 1700
Size: ATX
Memory
$ 89.70
Kingston - Fury Beast (32000Mhz) (Black) (2x)
Type: DDR4
Capacity: 16 GB
Graphics
$ 598.00
MSI - GeForce Gaming X+
Chip Manufacturer: NVIDIA
Chip: GTX 1080
Interface: PCIe x16
Storage
$ 54.99
Crucial - MX500
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 500 GB
Storage
$ 100.00
Samsung - 850 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 250 GB
Storage
$ 28.00
Seagate - Barracuda (ST1000DM003)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 89.00
Seagate - Barracuda (ST4000DM004)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 4 TB
PSU
$ 323.54
ASUS - ROG Thor
Wattage: 1200
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 254.58
Cooler Master - MasterFrame 700
Type: Open Air
Side Panel: Open
Case Fan
$ 80.85
Noiseblocker - NB-eLoop X (3x)
Size: 120 mm
Cooling
$ 98.00
Cooling
$ 100.00
Alphacool - Fittings
Type: Custom Loop
Cooling
$ 93.25
Alphacool - NexXxoS XT45 Full Copper X-Flow
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 40.00
Alphacool - Tubing
Type: Custom Loop
Cooling
$ 205.20
Aquacomputer - D5 NEXT
Type: Pump
Cooling
$ 89.99
Corsair - Hydro XC7 (White/RGB)
Type: CPU Waterblock
Cooling
$ 25.00
Mayhems - Fluid
Type: Custom Loop
Accessories
$ 40.00
Accessories
$ 119.00
Accessories
$ 14.99
Monitor
$ 388.88
AOC - G2460PQU
Size: 24 Inch
Panel: TN
Refresh Rate: 144 Hz
Monitor
$ 139.00
Samsung - S24A350H
Size: 24 Inch
Panel: LED
Refresh Rate: 60 Hz
Keyboard
$ 249.99
Corsair - Strafe
Interface: Wired
Key Switch Type: Cherry MX Red
Type: Full Size
Mouse
$ 67.50
Logitech - G703
Interface: Wireless
Estimated total value of this build:
$ 2,948.54
