Jefferson

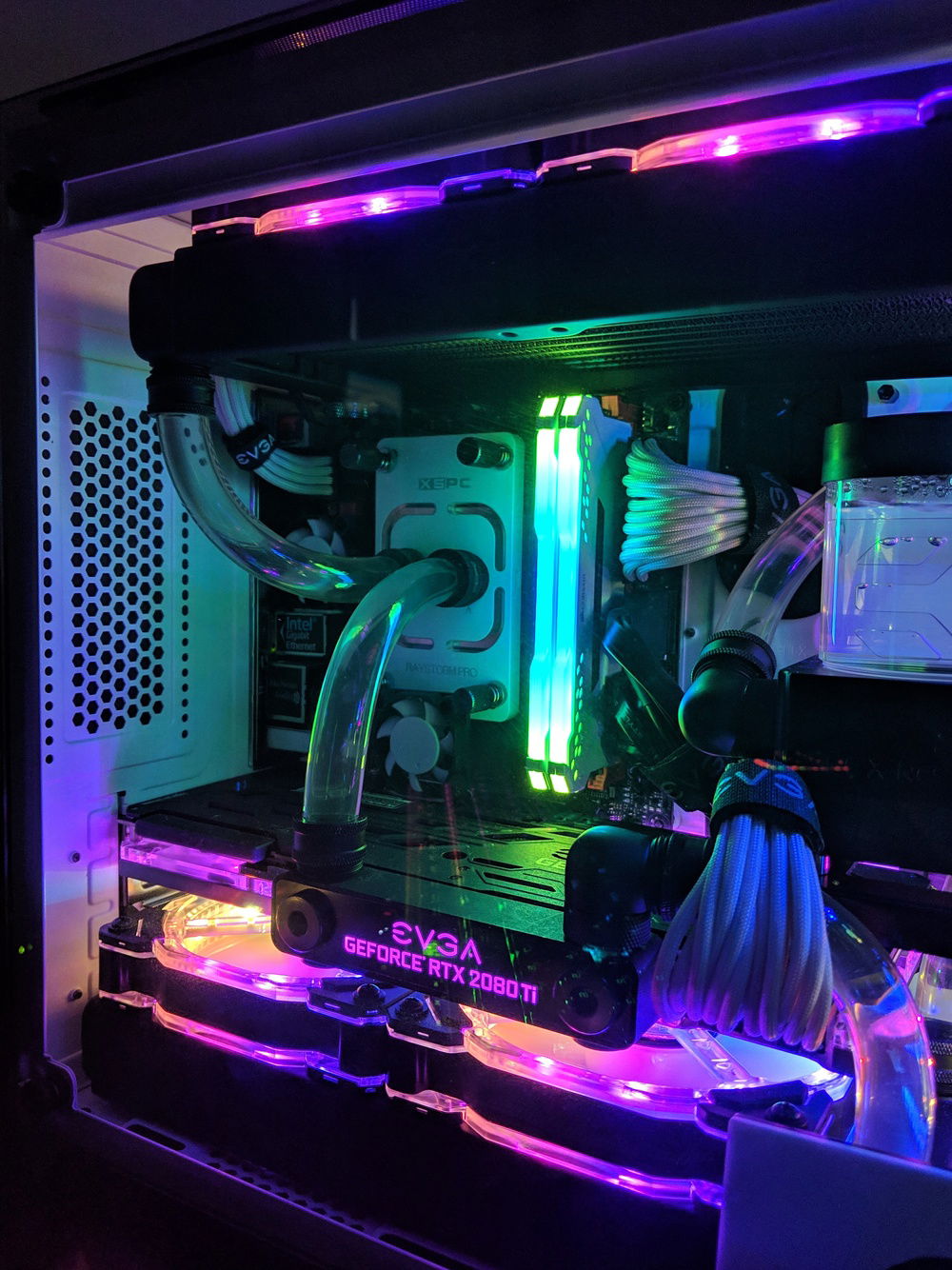

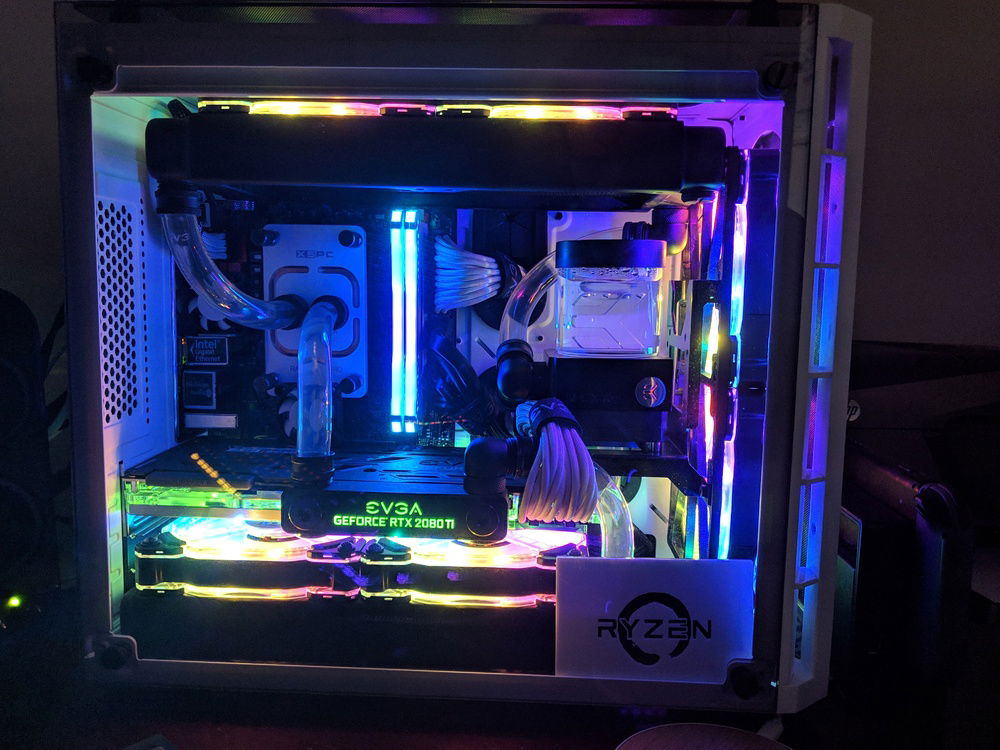

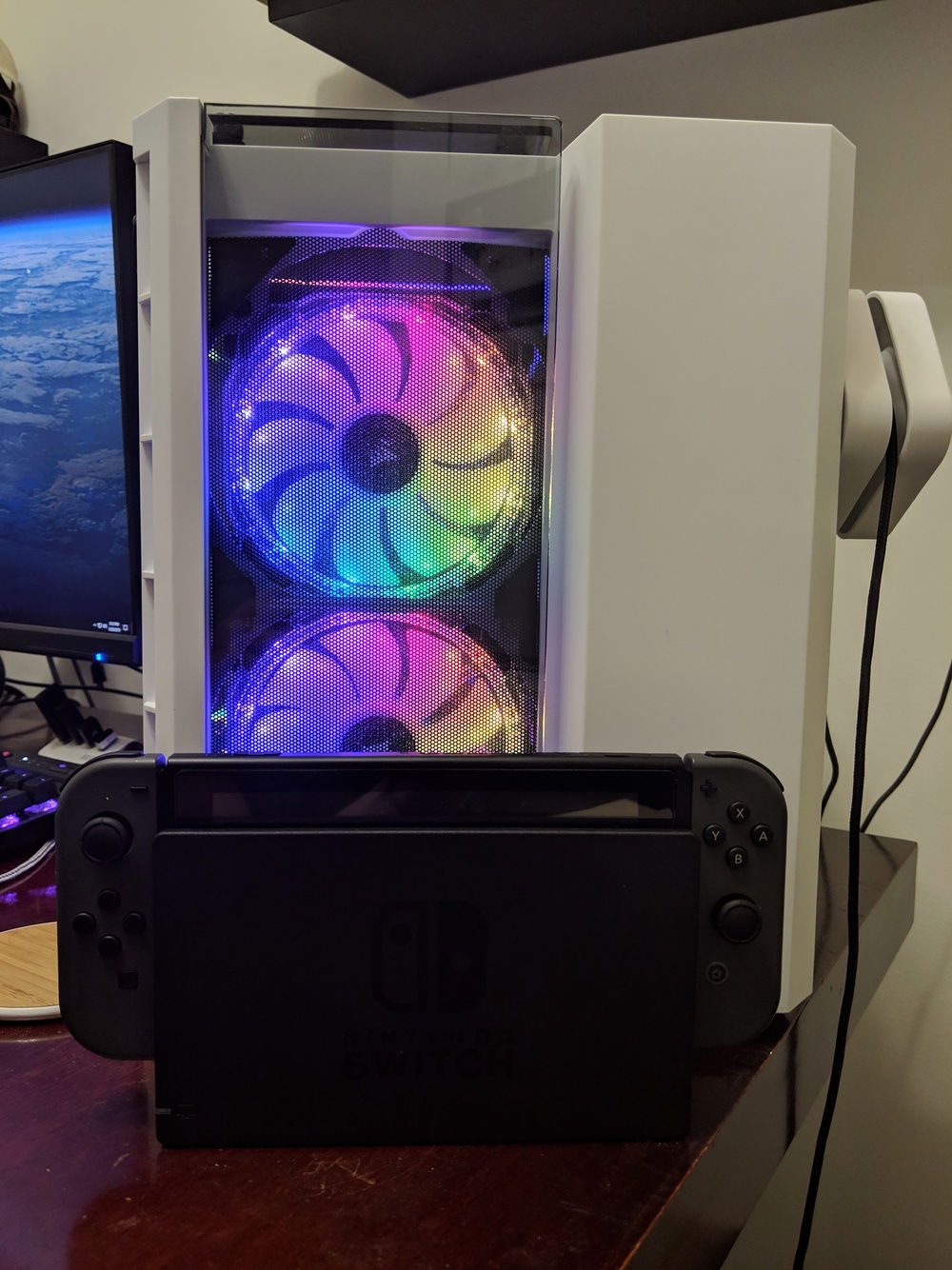

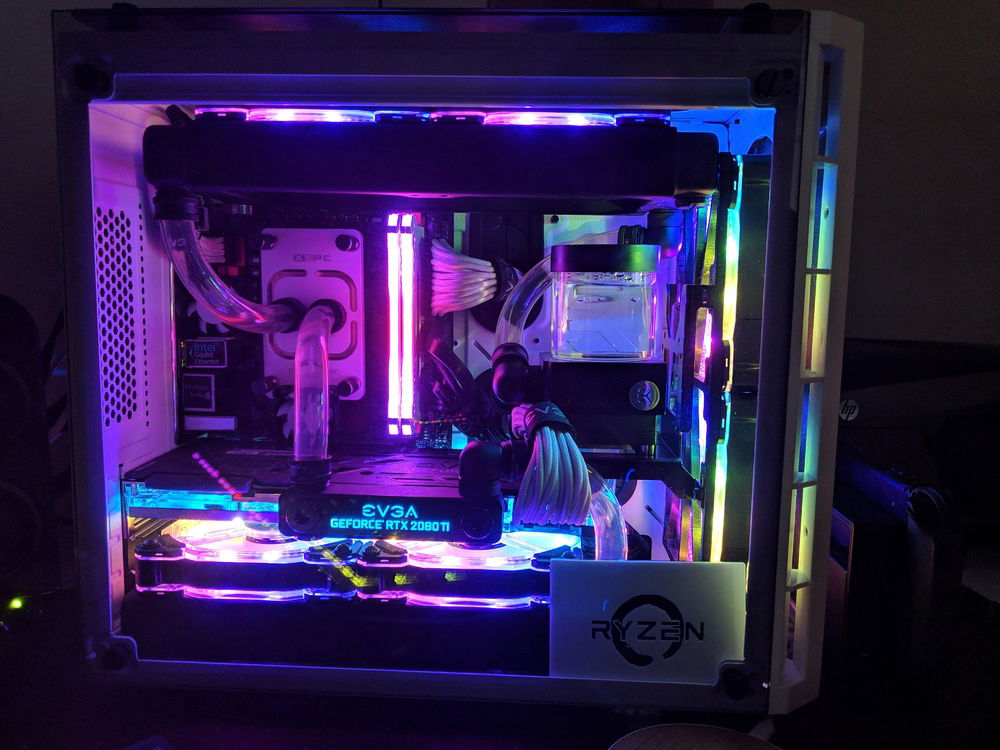

This was my first custom cooling loop and It was a lot of fun and a bit of challenge to put together. Most of the cooling parts are from XSPC with an SPC pump from EK and the GPU block from EVGA. I had an SSD plate from V1 Tech lying around so I thought it would look good in the corner of the case hiding my drain port. The pump/res is mounted using a bracket I custom designed and 3D printed so that I could mount anything with a 120 mm form factor to the middle of the two front fans with a little bit of play. The custom cables were made by me for a previous build using parts from Ensourced and ModMyMod. I would highly recommend using the shorty cable for the motherboard 24-pin from Ensourced if you want to try custom cables for yourself!
Color(s): White
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build

Hardware

CPU
$ 195.00
AMD - Ryzen 7 (1700)
Socket: AM4
Cores: 8
Motherboard
$ 189.00
ASRock - Fatal1ty Gaming-ITX/AC (AB350)
Chipset: B350
CPU Socket: AM4
Size: Mini-ITX
Memory
$ 59.99
Corsair - Vengeance Pro (3200MHz) (Black/RGB)
Type: DDR4
Capacity: 8 GB
Graphics
$ 1,499.99
EVGA - Black Edition
Chip Manufacturer: NVIDIA
Chip: RTX 2080 Ti
Storage
$ 75.45
ADATA - SU800
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 256 GB
Storage
$ 164.01
Crucial - MX200
Form Factor: M.2
Interface: M.2 (M)
Capacity: 250 GB
Storage
Plextor - M9Pe(Y)
Form Factor: M.2
Capacity: 1 TB
Storage
$ 99.00
Western Digital - WD Blue
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
Storage
$ 103.92
Western Digital - WD Blue
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 500 GB
Storage
$ 36.88
Western Digital - WD Blue Desktop (WD10EZEX)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
PSU
$ 145.06
EVGA - SuperNOVA 650 G3
Wattage: 650
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 142.79
Corsair - Crystal 280X
Type: Mini-Tower
Side Panel: Tempered Glass
Case Fan
$ 78.00
Case Fan
$ 78.00
Case Fan
$ 78.00
Case Fan
$ 78.00
Case Fan
$ 78.00
Case Fan
$ 78.00
Case Fan
Fractal Design - Silent Series R3 40mm (discontinued)
Size: 40 mm
Case Fan
Fractal Design - Silent Series R3 40mm (discontinued)
Size: 40 mm
Case Fan
$ 27.91
Cooling
EKWB - EK-XRES 100 SPC-60 MX PWM
Type: Custom Loop
Cooling
Cooling
$ 72.93
XSPC - EX Crossflow V2
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Cooling
$ 76.95
XSPC - EX Multiport
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Cooling
XSPC - Fittings
Type: Custom Loop
Cooling
XSPC - Raystorm Pro RGB
Type: Waterblock
Accessories
$ 74.29
Accessories
$ 199.97
Monitor
Acer - XF270HUA
Size: 27 Inch
Panel: IPS
Refresh Rate: 144 Hz
Monitor
$ 399.99
LG - 24MC57HQ-P
Size: 24 Inch
Panel: IPS
Refresh Rate: 75 Hz
Keyboard
$ 149.99
Corsair - K70 Mechanical
Interface: Wired
Key Switch Type: Cherry MX Brown
Type: Full Size
Keyboard
$ 159.99
Razer - Orbweaver Chroma
Interface: Wired
Key Switch Type: Razer Green
Type: Compact
Mouse
$ 98.48
Corsair - Dark Core SE (RGB)
Interface: Wired/Wireless
