Golden Dragon

Hi to all!
I am a Water Cooling Enthusiast who constantly improves his imagination and skills. I've been building water cooling computer for years. But, i haven't been actively participating with any organisations. You may count me as a new participant into this competitive area(shark sea) :).

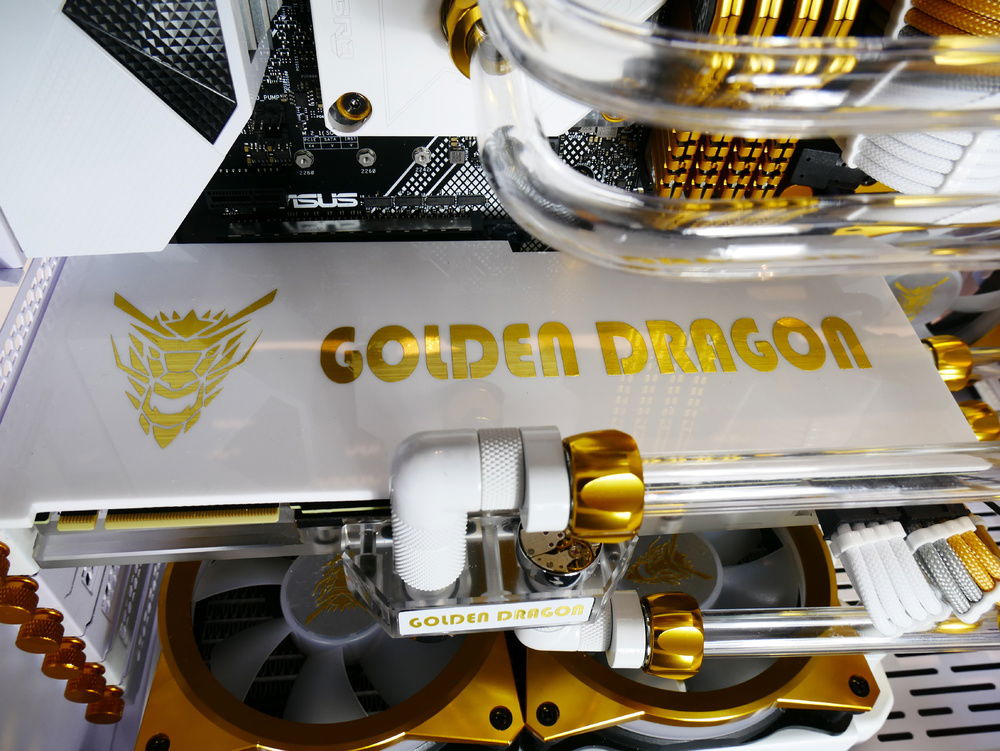

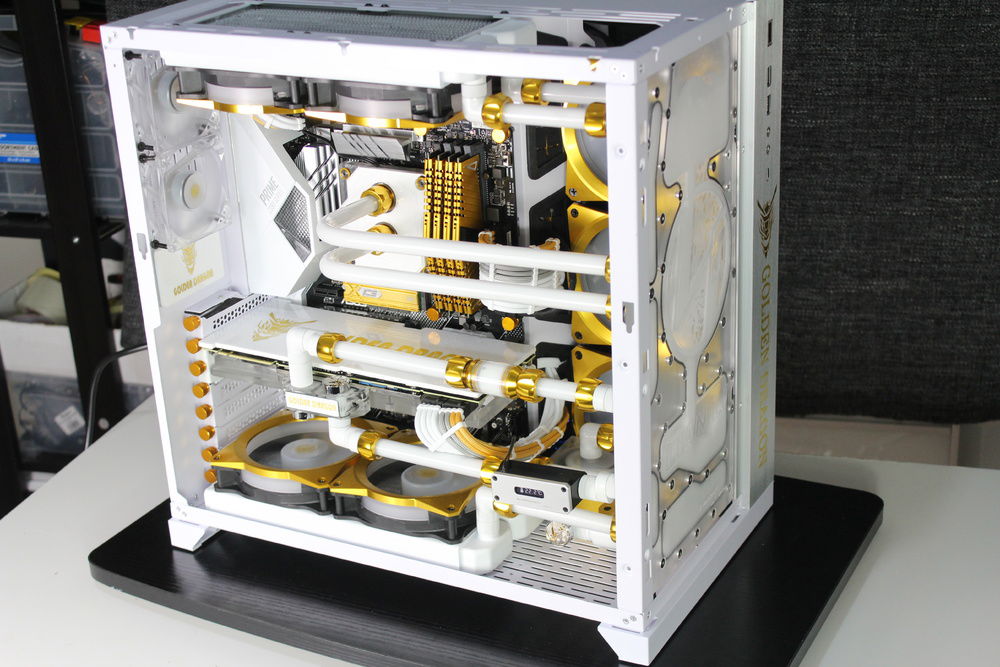

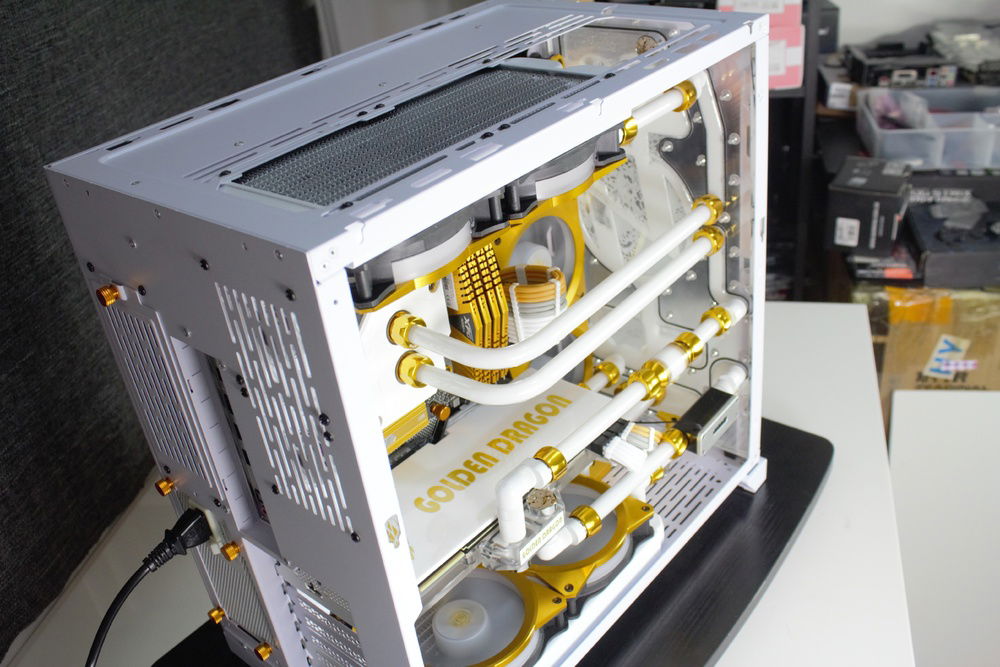

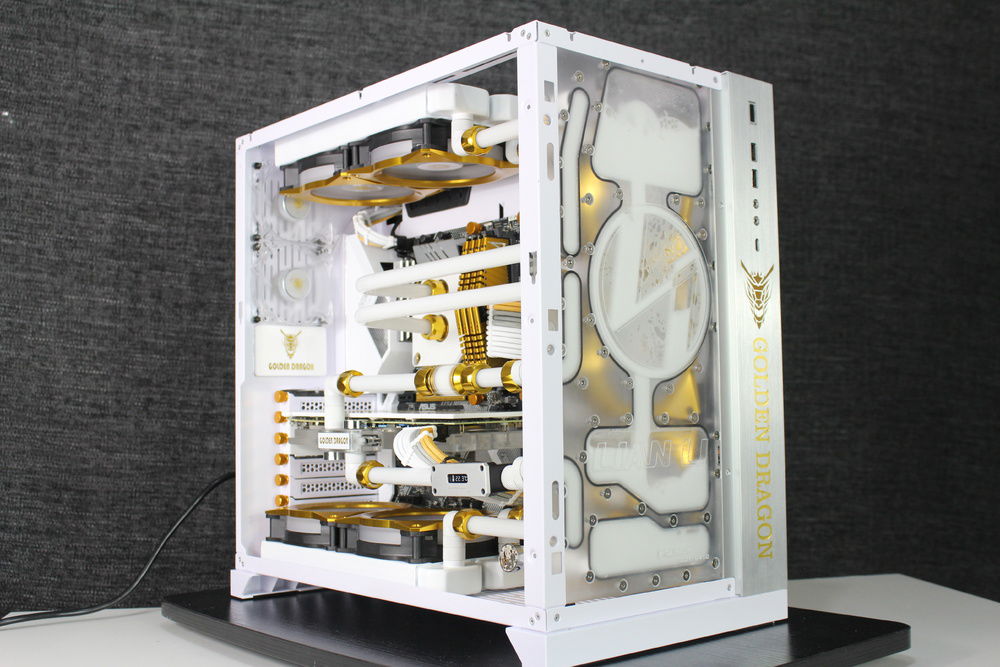

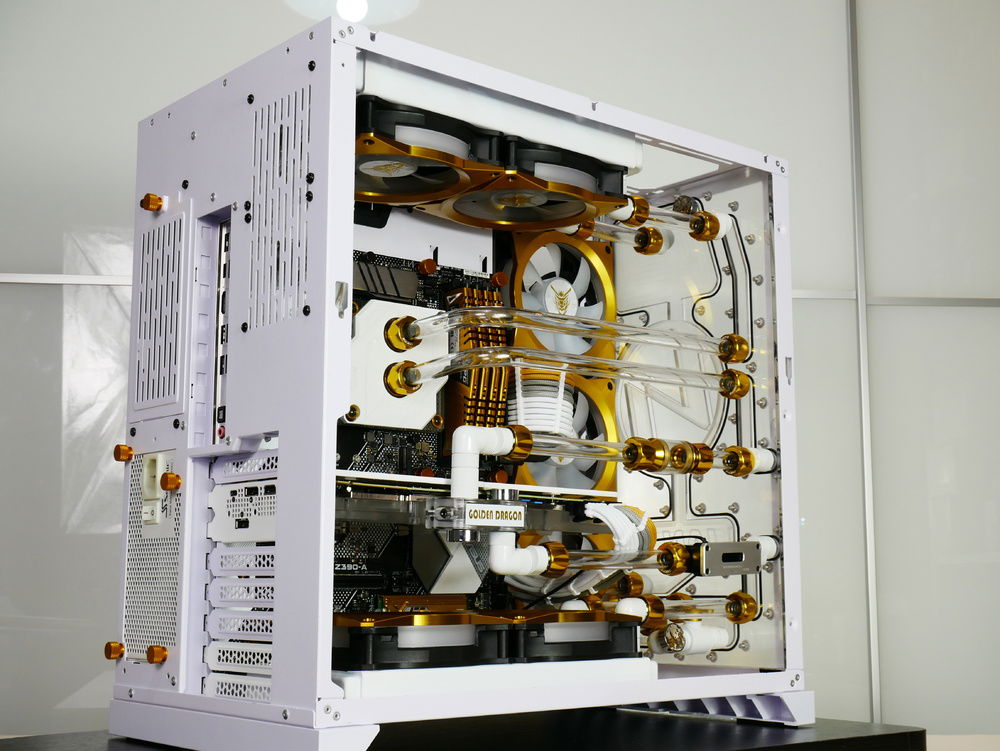

Anyways, let me introduce you the "Golden Dragon".
This build took me approximately 2 months until i eventually completed it. Haven't done any major moddings on the case itself. Just integrate some little changings. Golden Dragon was a long time in project until it came out to life. Some very well known youtubers have been showing up their "non rgb " builds. I wasn't actually ment to compete with them. I was doubting to share this build in here after i saw dozens of highly skilled modders with their best guns out there. lol.
Notice: This build is not sponsored by Lian Li:).
Hit me a vote if you agree this can even get top 10-20? Could you surprise me? Thank you from now and appreciated.

Youtube Time-lapse video is ready and freshly uploaded. Enjoy it.
https://www.youtube.com/watch?v=77N2ZyvktqQ

COMPONENTS:
Processor: Intel i9 9900K (tray) (Delidded and used OC-Frame). Not overclocked yet. Very fresh build.
Motherboard: Asus PRIME Z390-A
Graphics card: Nvidia RTX 2080 TI FE
Ram: ADATA XPG DDR4 4X4 (16gb) 3000Mhz
PSU:Seasonic Snow Silent 750w Platinum (White)

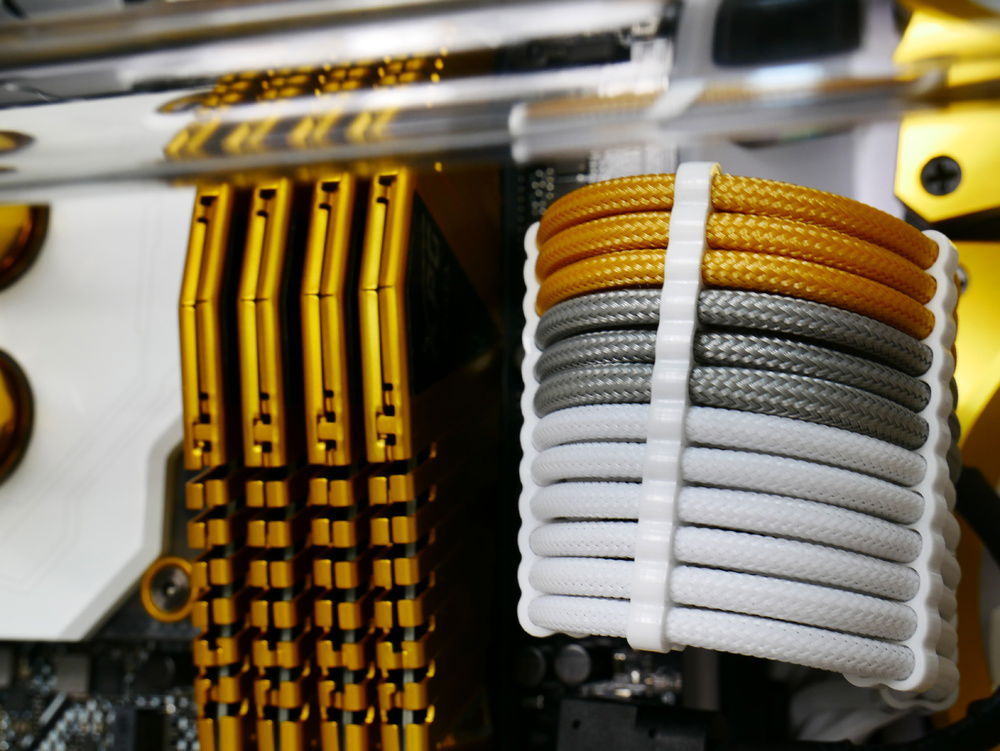

Sleeved PSU Cables: Shakmods Premium sleeved cables.
SSD: Intel 520 series 240+480gb 2,5” ssd’s. Additionally Samsung 950 evo 256gb m.2
Fans: Aigo c5 120mm rgb fans
Chassis: Lian Li PC-O11 Dynamic (White)

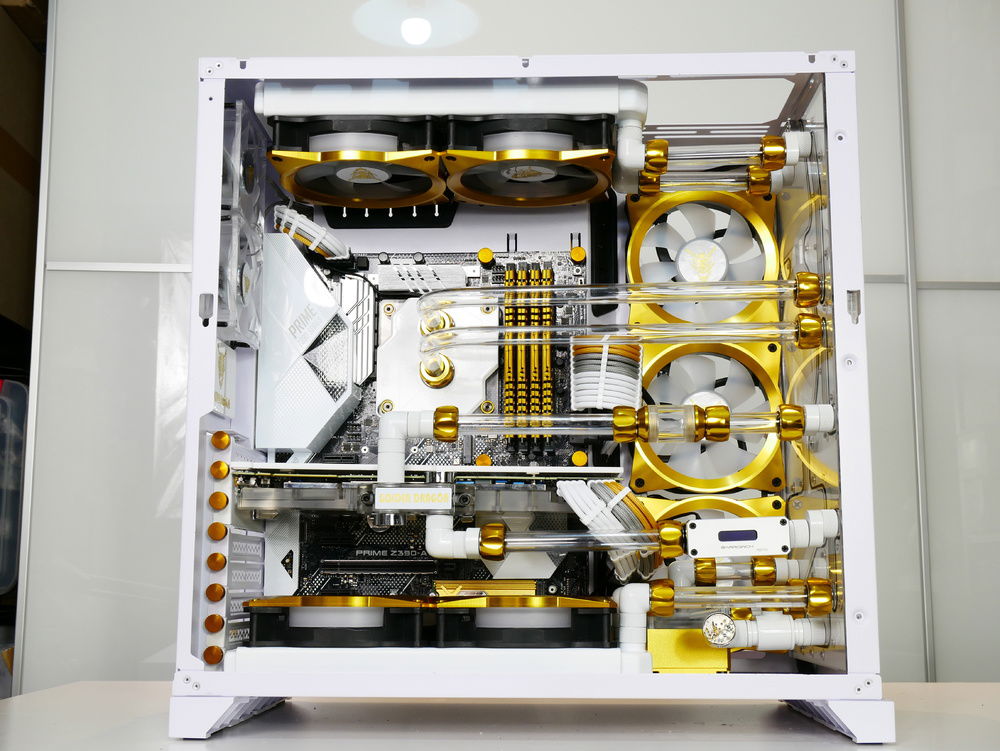

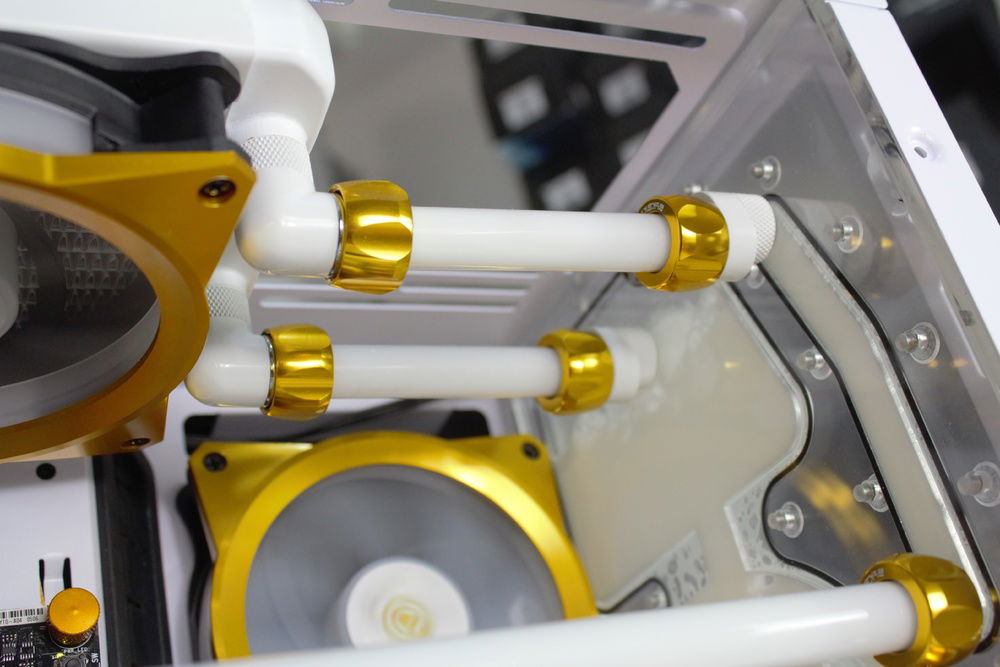

WATER COOLING PARTS
Pump: Barrow DDC pump&top, bykski DDC pump cover.

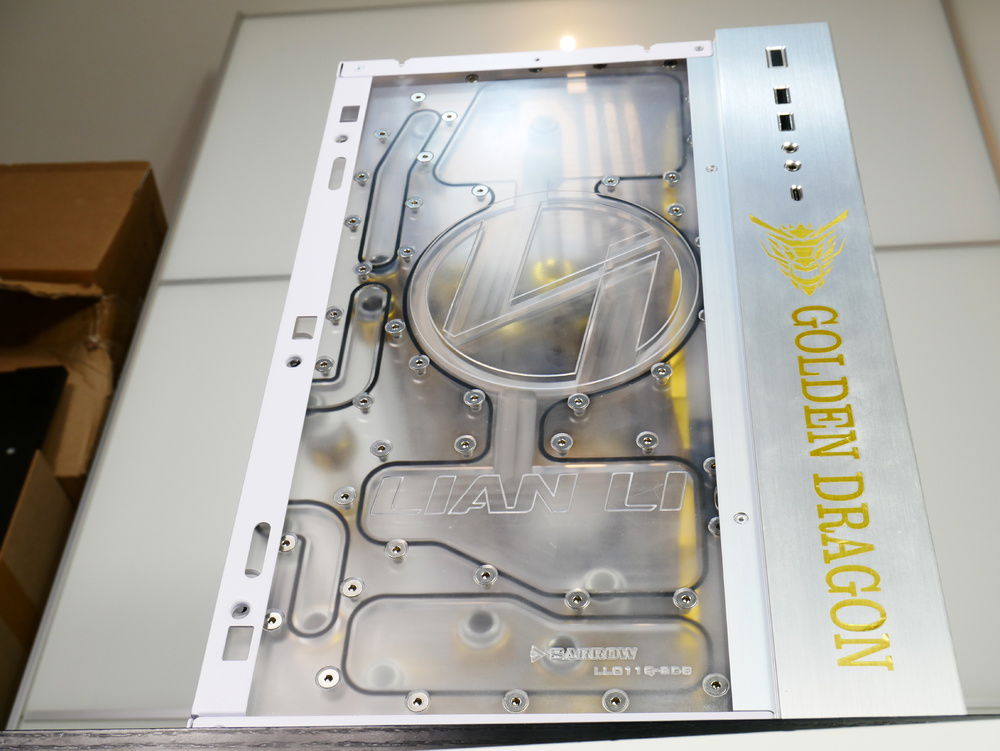

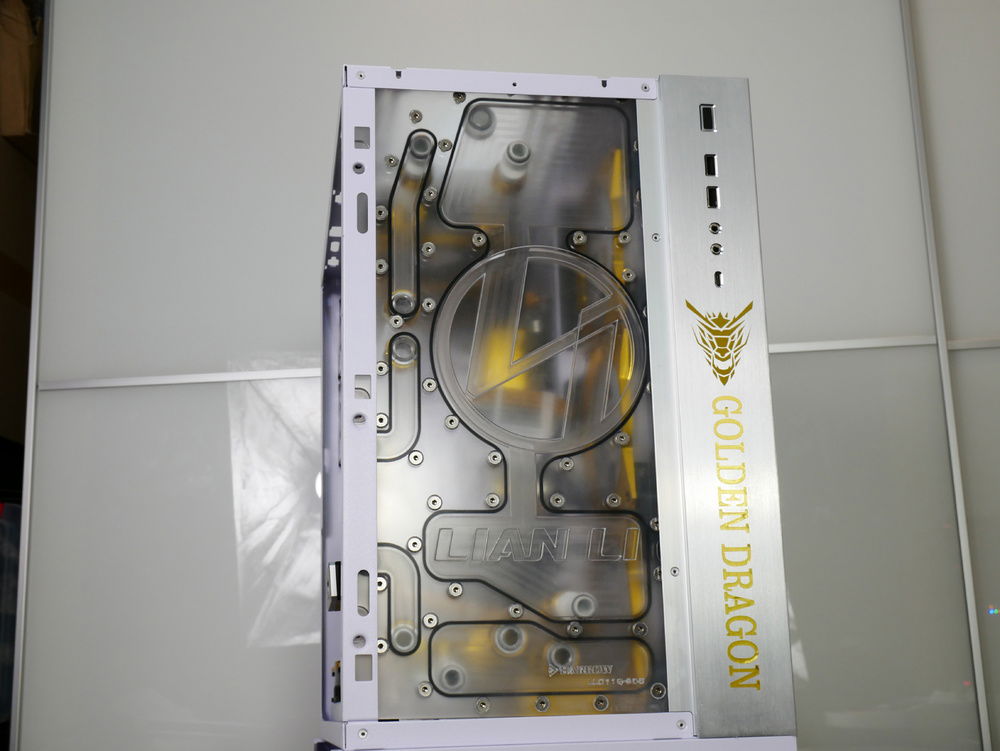

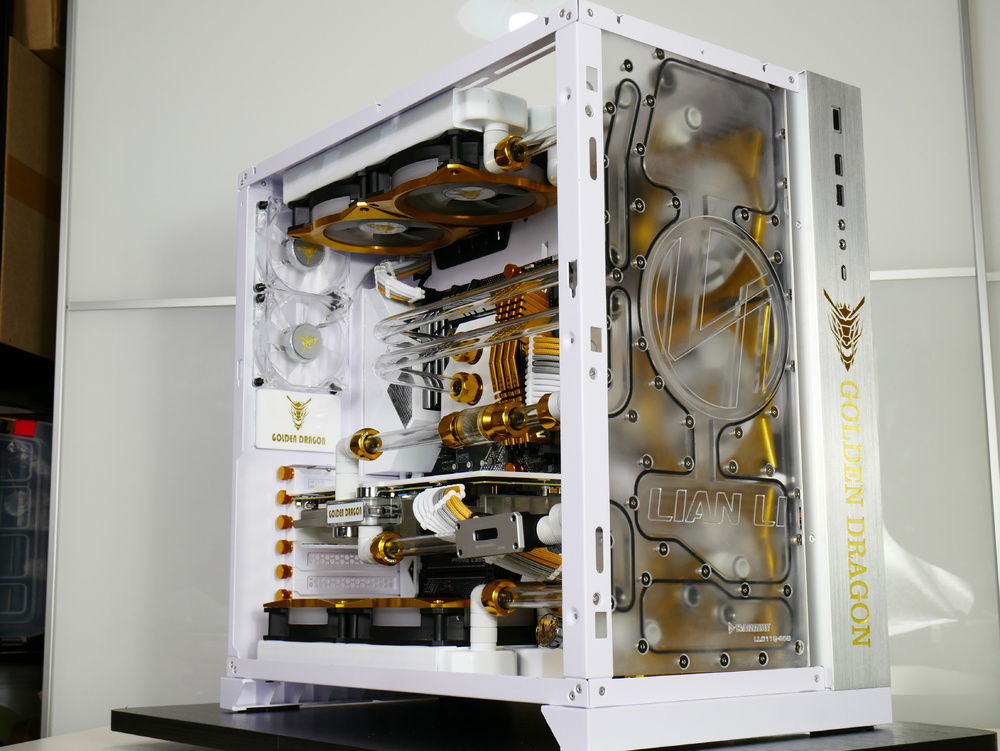

Reservoir/Distro: Barrow LL11 Q-SDB waterway channel

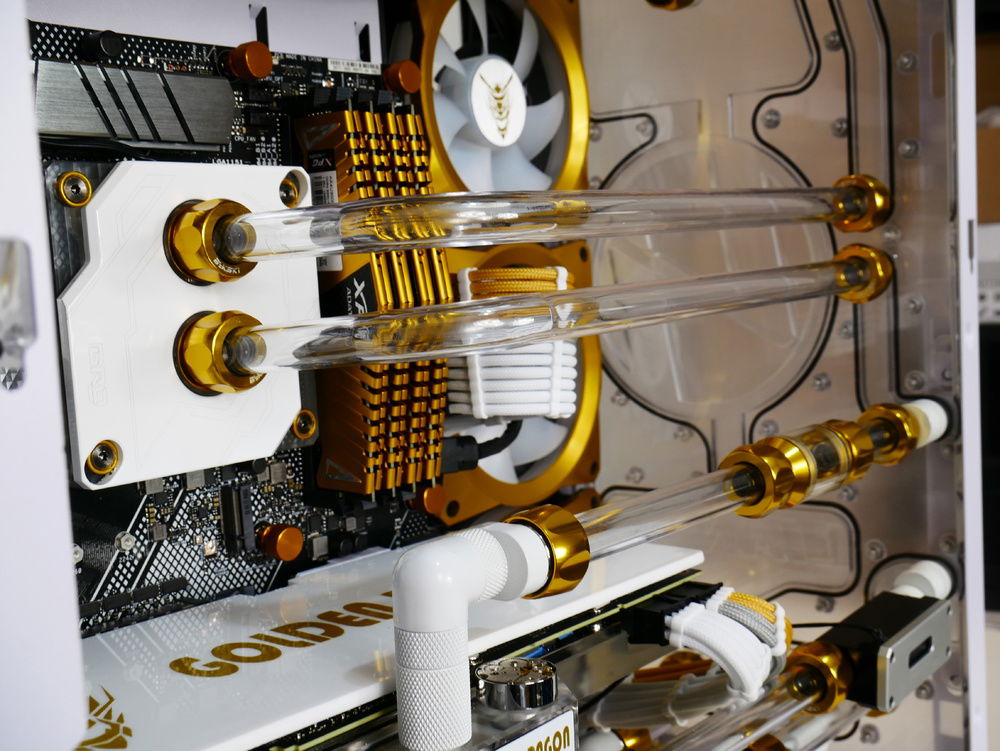

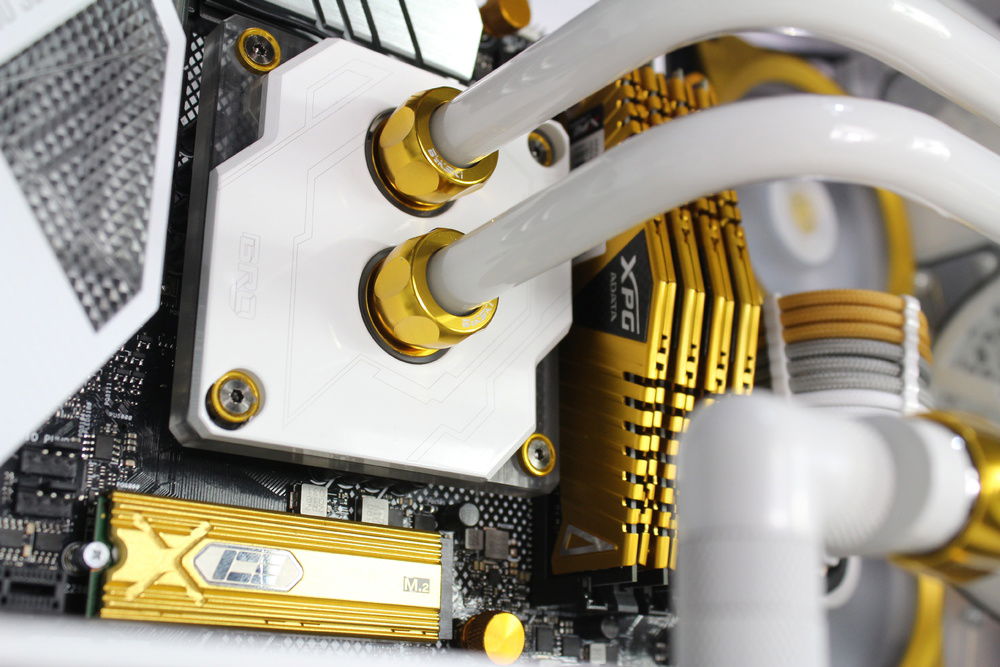

Cpu Block: Bykski LGA 115x cpublock (white).

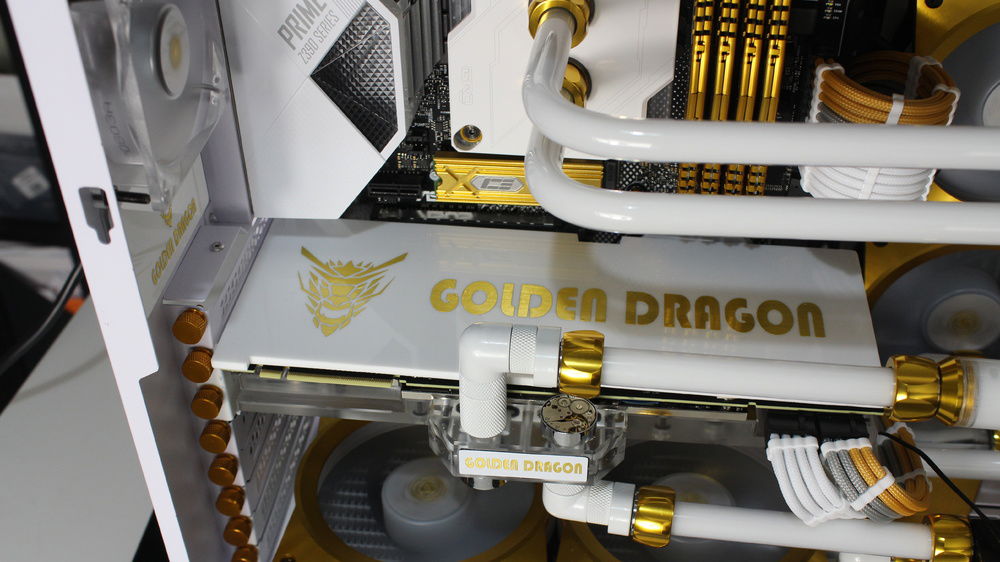

Gpu Block: Barrow RTX 2080 Ti Gpu block

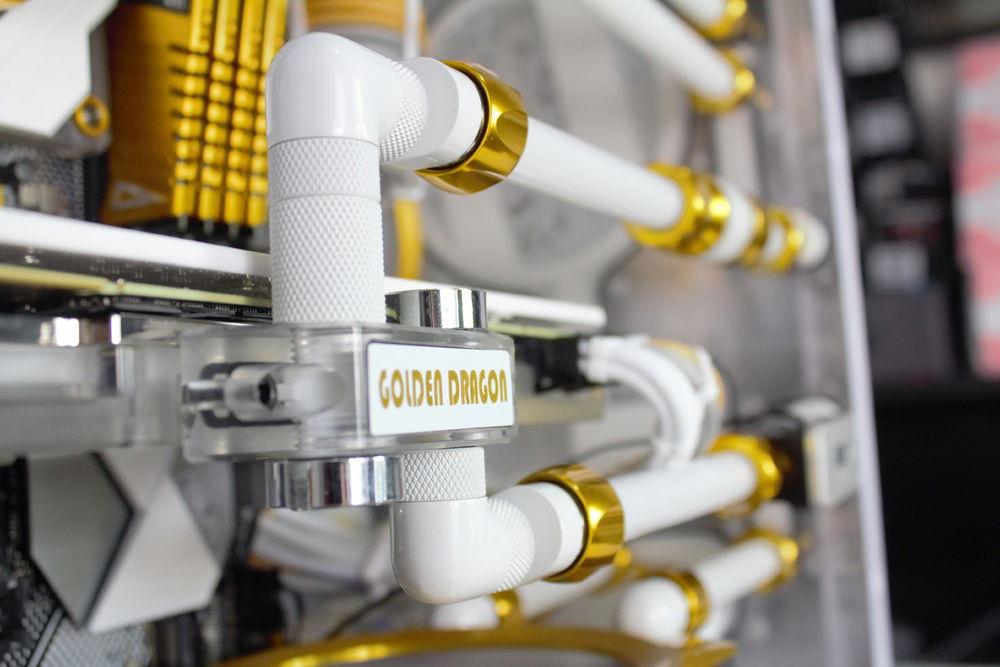

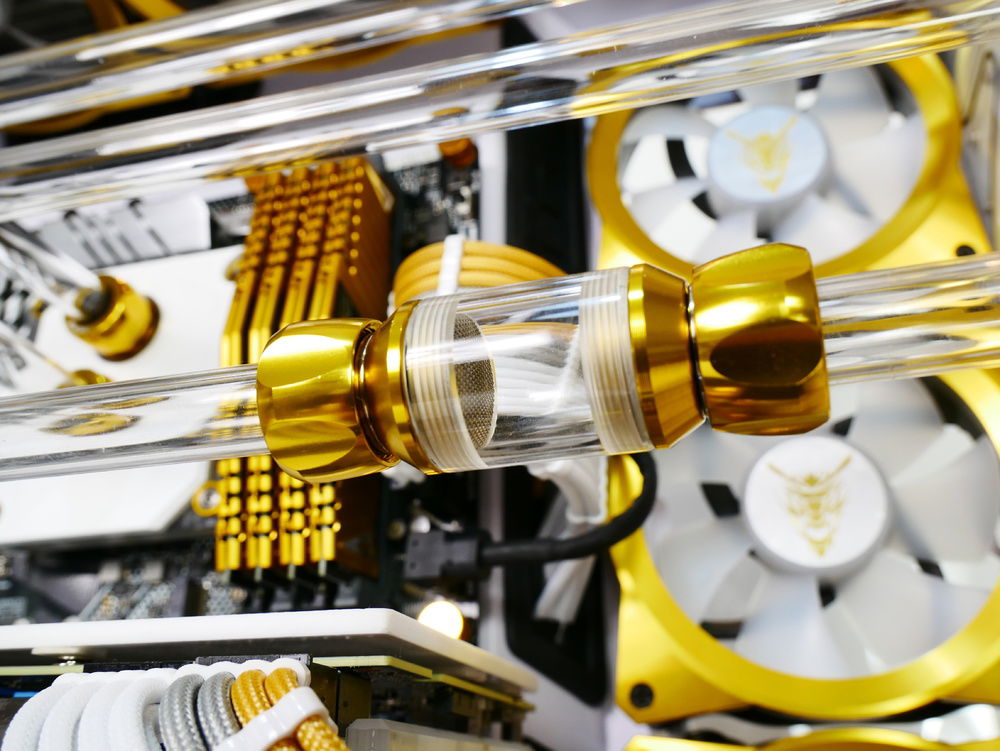

Rigid fittings: Barrow 10x14mm rigid compression fittings

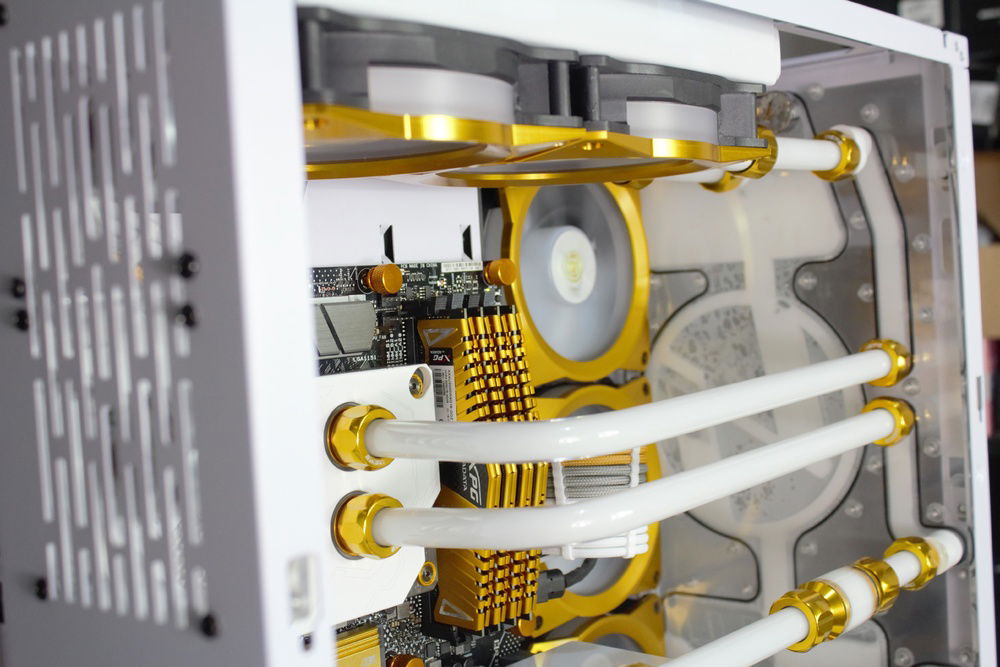

Hard tubes: Barrow 10x14mm PETG 500mm rigid tubes
Radiators: 2x 240mm x 27,5mm fullcopper radiators








Color(s): Gold Silver White
RGB Lighting? No
Cooling: Custom Liquid Cooling
Theme: Color
Size: ATX

Contests

This build participated in 1 contest.

Hardware

CPU
Intel - Core i9-9900K
Cores: 8
Socket: LGA 1151
Motherboard
ASUS - Prime (Z390-A)
Chipset: Z390
CPU Socket: LGA 1151
Memory Support: DDR4
Memory
ADATA - XPG Z1
Capacity: 16 GB
Type: DDR4
Storage
Intel - 520 series
Capacity: 480 GB
Form Factor: 2.5 Inch
Type: SSD
Storage
Intel - 520 Series
Capacity: 240 GB
Form Factor: 2.5 Inch
Type: SSD
Graphics
NVIDIA - RTX 2080 Ti Founders Edition
Chip: RTX 2080 Ti
Chip Manufacturer: NVIDIA
PSU
Seasonic - Prime Snow Silent
Efficiency: 80+ Titanium
Form Factor: ATX
Modularity: Fully-Modular
Case
Lian Li - PC-O11 Dynamic
Motherboard Support: ATX
Side Panel: Tempered Glass
Type: Mid-Tower
Case Fans
AIGO - Aurora RGB LED
Size: 120 mm
Cooling
Barrow - 2080 Ti GPU Waterblock
Type: GPU Waterblock
Cooling
Barrow - Tubing
Type: Custom Loop
Cooling
Bykski - CPU Blocks
Type: Custom Loop
Cooling
Bykski - Fittings
Type: Fittings
