Event HoRyzen Mini-ITX

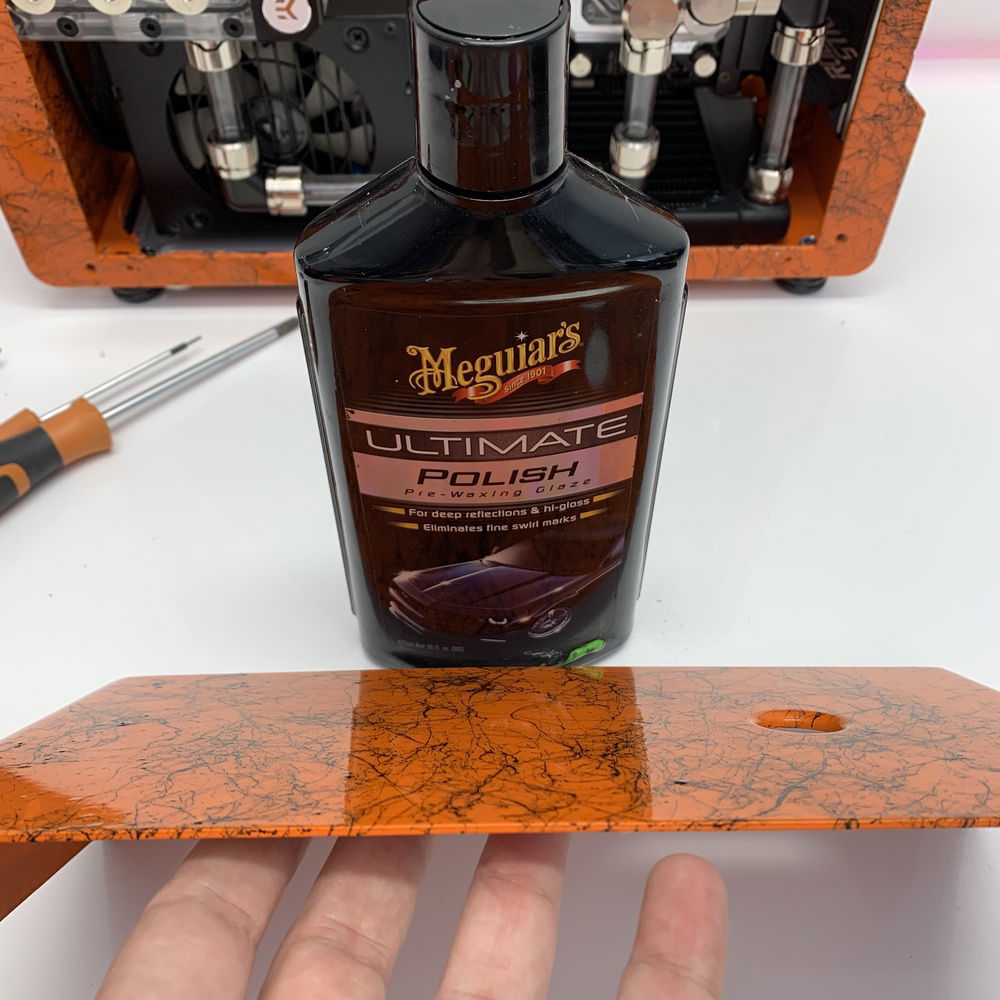

It's been a while since I had any AMD hardware in my main rig and decided to go all-out with both Ryzen 9 3950X and RX 5700 XT. The case is the Raijintek Ophion Evo mini-ITX with custom marble effect paint job and modified interior to house 1 x 120mm rad and 1 x 240mm rad.

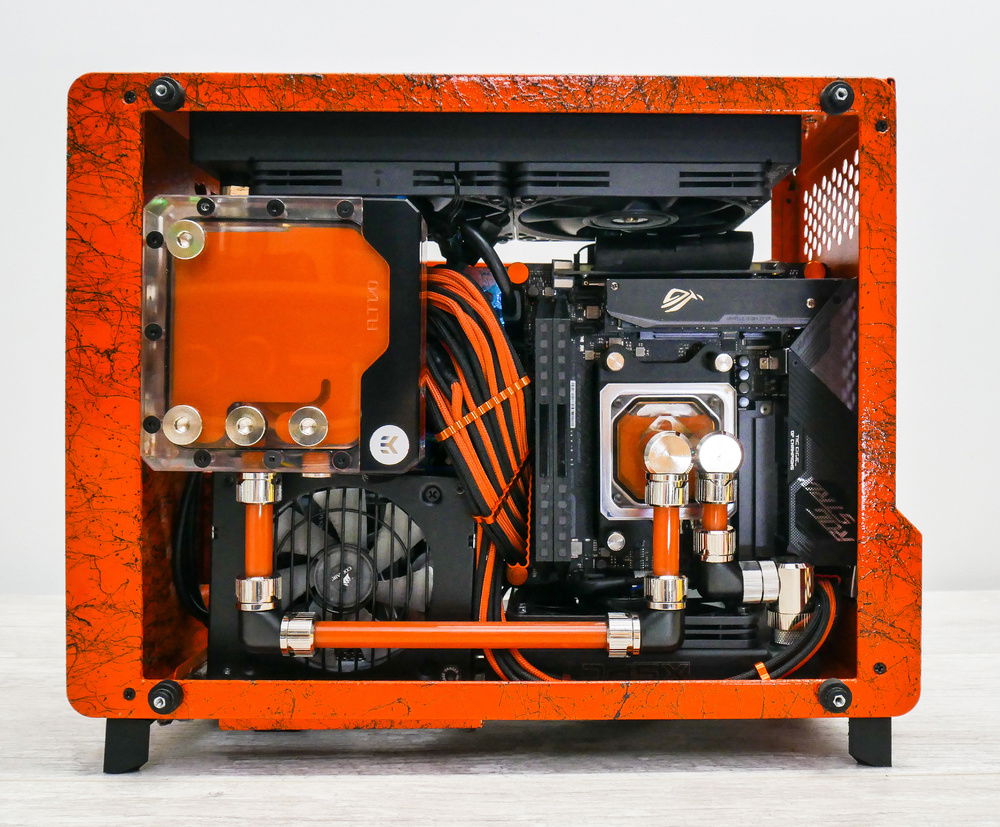

Converted ATX PSU mount to SFX and raised the PSU using standoffs. As space is tight I opted for an EKWB FLT120 DDC combo and used EKWB Torque fittings and Vector RGB Special Edition RX 5700 XT block along and CPU waterblock. Roof radiator is EKWB Coolstream 240 and 120mm rad in the base is XSPC TX120, all using Noctua 120mm NF-A12x15 fans.



Short cable set from CableMod for the Corsair SF750 SFX PSU and the pump and fans are coolant controlled. Also 3D-printed case feet to raise the case slightly to allow for the PSU sitting slightly lower to make way for the pump. I also drilled and tapped a new port for the reservoir that makes a direct connection with the top rad for a cleaner arrangement.
Color(s): Orange
RGB Lighting? Yes
Theme: Color
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build

Contests

This build participated in 2 contests.

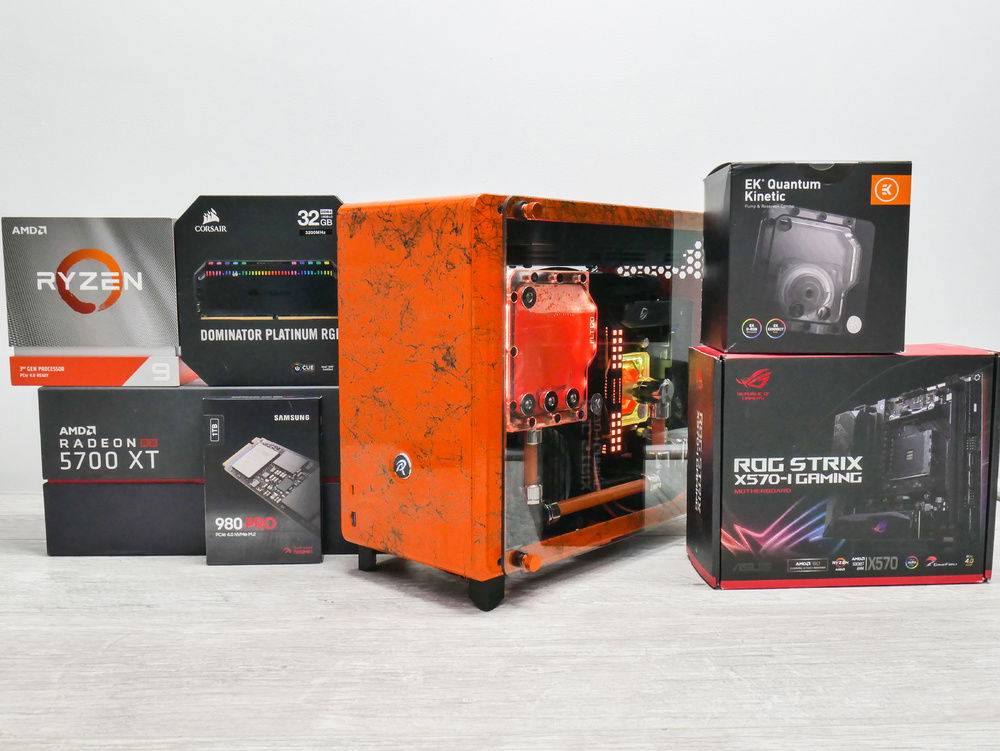

Hardware

CPU
$ 750.00
AMD - Ryzen 9 (3950X)
Socket: AM4
Cores: 16
Motherboard
$ 419.00
ASUS - ROG Strix Gaming (X570-I)
Chipset: X570
CPU Socket: AM4
Size: Mini-ITX
Memory
$ 179.99
Graphics
$ 420.00
AMD - Radeon RX 50th Anniversary Edition
Chip Manufacturer: AMD
Chip: 5700 XT
Storage
$ 152.77
Gigabyte - NVMe Gen4
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
PSU
$ 285.00
Corsair - SF750
Wattage: 750
Form Factor: SFX
Efficiency: 80+ Platinum
Case
$ 120.00
Raijintek - Ophion Evo
Type: Mini-Tower
Side Panel: Tempered Glass
Case Fan
$ 26.95
Cooling
$ 114.00
EKWB - CoolStream SE
Type: Custom Loop
Size (WxHxD): 240 mm (2 x 120 mm)
Cooling
$ 220.45
Cooling
$ 80.00
EKWB - EK-Supremacy EVO - Nickel
Type: CPU Waterblock
Cooling
$ 150.00
Cooling
$ 62.92
XSPC - TX Ultrathin
Type: Custom Loop
Size (WxHxD): 120 mm
CableMod
$ 150.00
Estimated total value of this build:
$ 3,133.67
