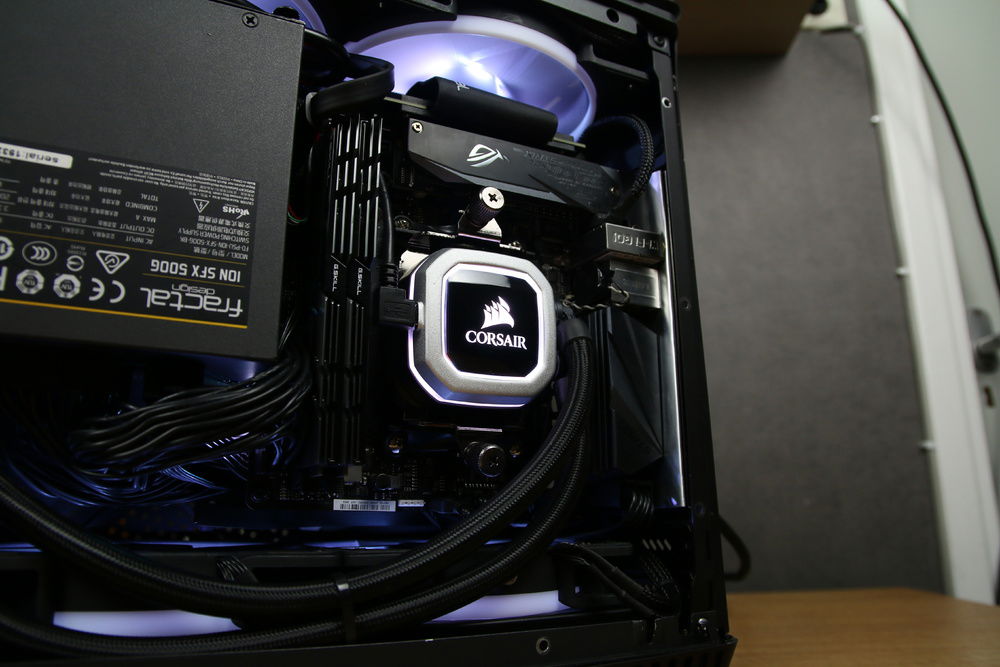

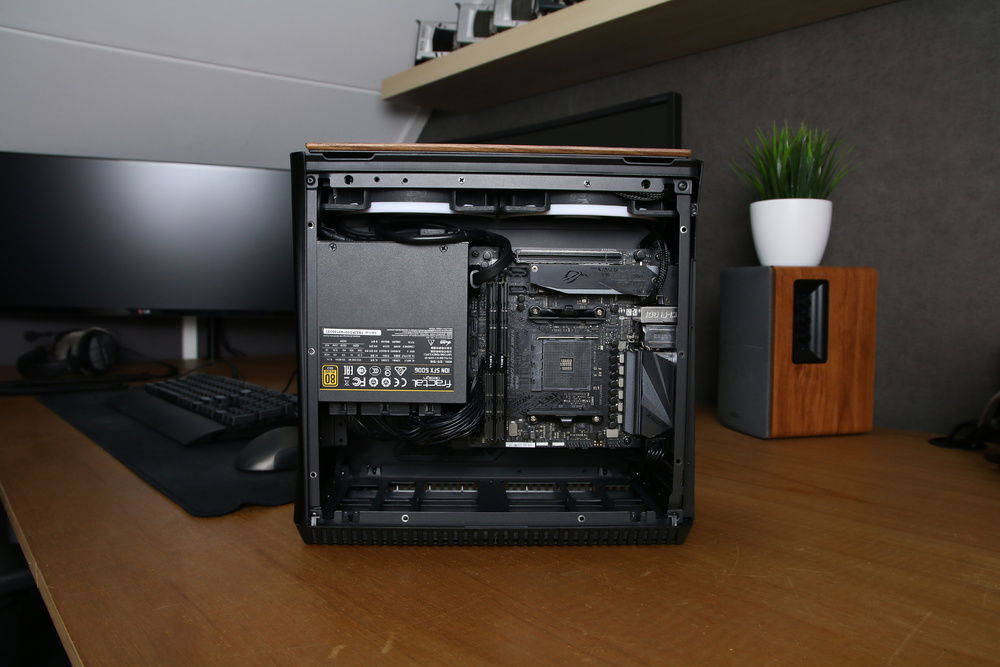

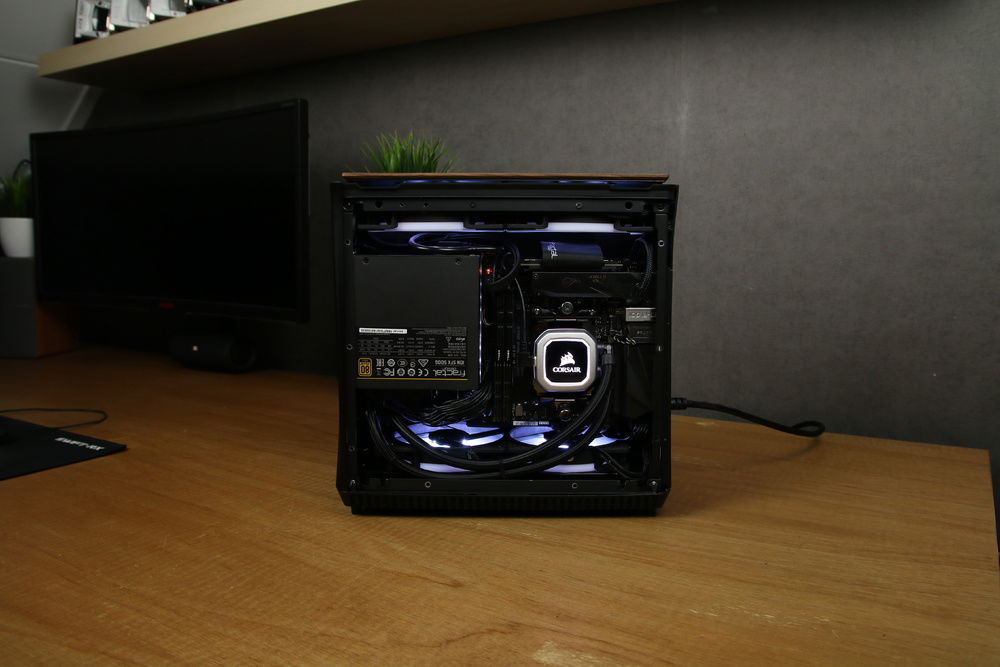

Inverted motherboard + PSU

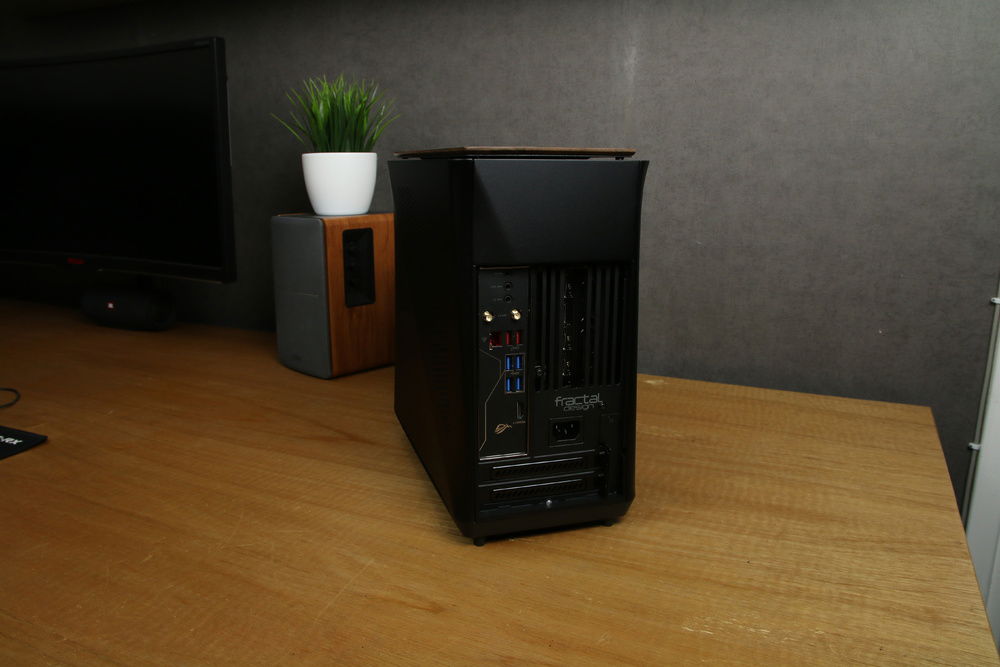

Rear IO with inverted motherboard and vertical GPU

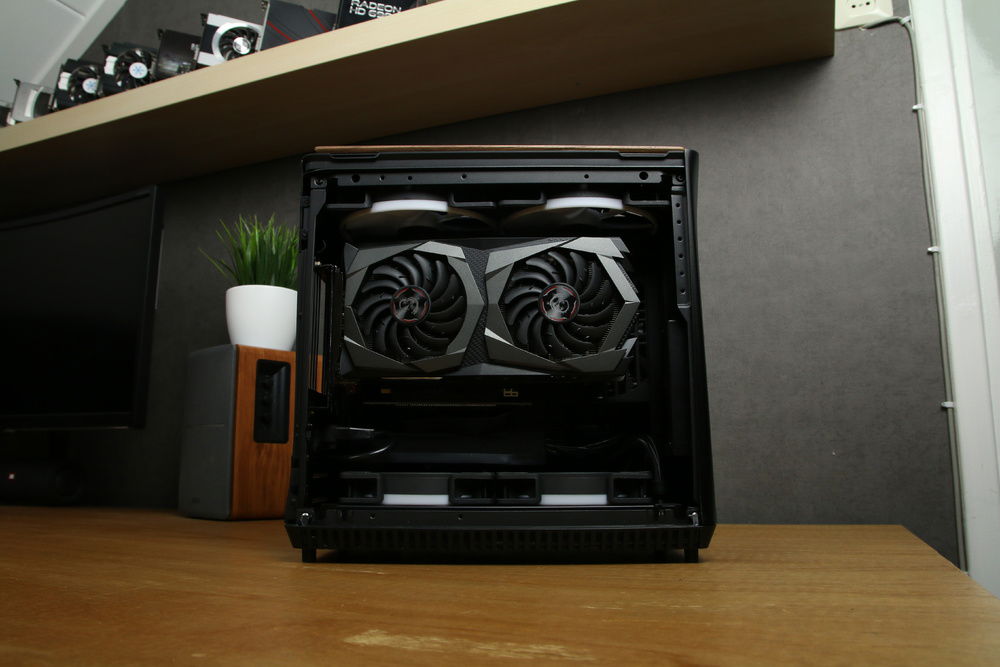

Vertical GPU
Topview of the rearranged internal lay out

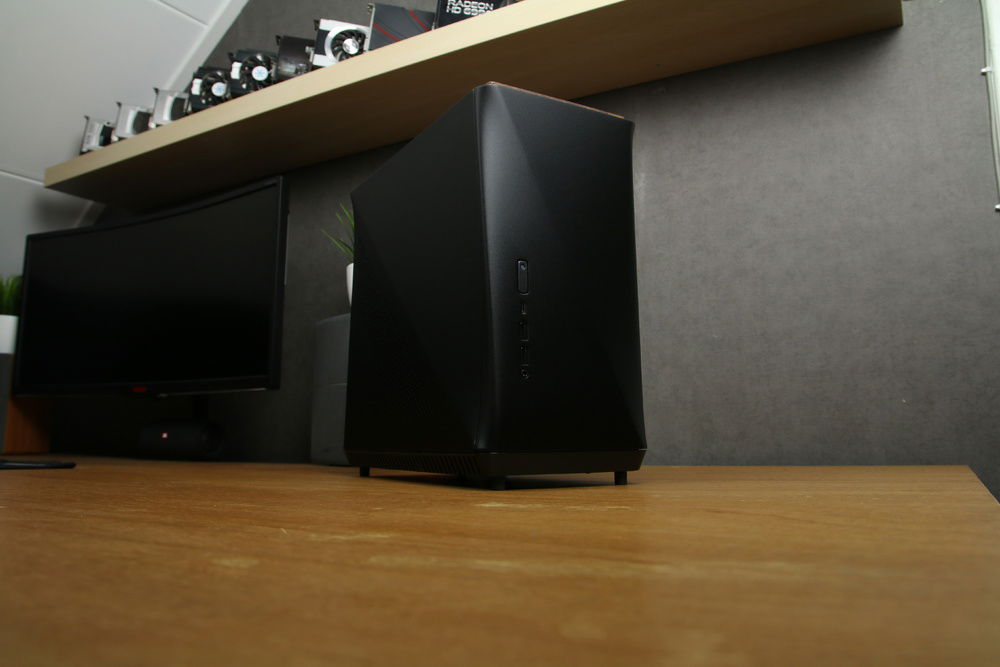

Era ITX
AD:
Unfortunately the Tweaked Meshify S2 build is on a slowdown due to what is going on atm. But I still wanted to have something to do, let try Mini-ITX :)
This build is based around a Fractal Design Era ITX and the goal is to improve the airflow a little over the stock configuration.
I trying to achieve this by doing the following things:
- Inverted motherboard + Rotated PSU
- Vertical GPU
- Adding 140mm to the top of the case
- Making the entire bottom mesh + adding higher casefeet
This build is based around a Fractal Design Era ITX and the goal is to improve the airflow a little over the stock configuration.
I trying to achieve this by doing the following things:
- Inverted motherboard + Rotated PSU
- Vertical GPU
- Adding 140mm to the top of the case
- Making the entire bottom mesh + adding higher casefeet
Color(s): Black
RGB Lighting? Yes
Theme: Case Mod
Cooling: AIO Cooling
Size: Mini-ITX
Type: General Build
Contests
This build participated in 1 contest.
| Rank | Contest | Date |
|---|---|---|
| #101 | SFFPC meets builds.gg Contest | ended |
Build Updates
Finished build
Cable management update
Hardware
CPU
$ 79.99
Motherboard
$ 325.86
Memory
Storage
$ 148.99
PSU
$ 109.47
Case
$ 229.99
Case Fan
$ 53.76
Case Fan
$ 150.56
