Worklog :

https://www.youtube.com/watch?v=rZ26vqUhmmg&t=6s

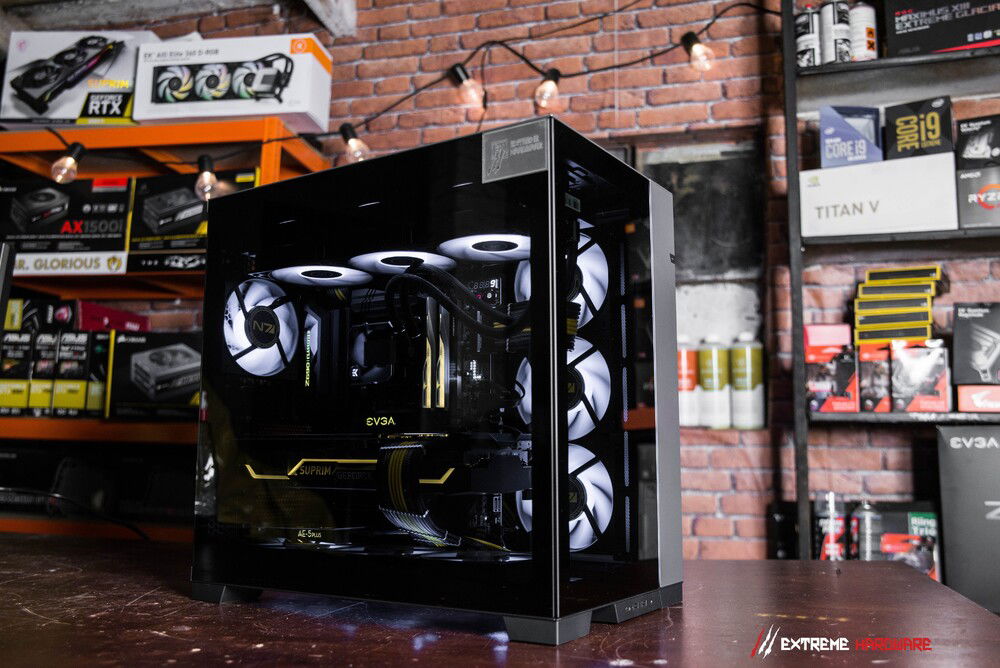

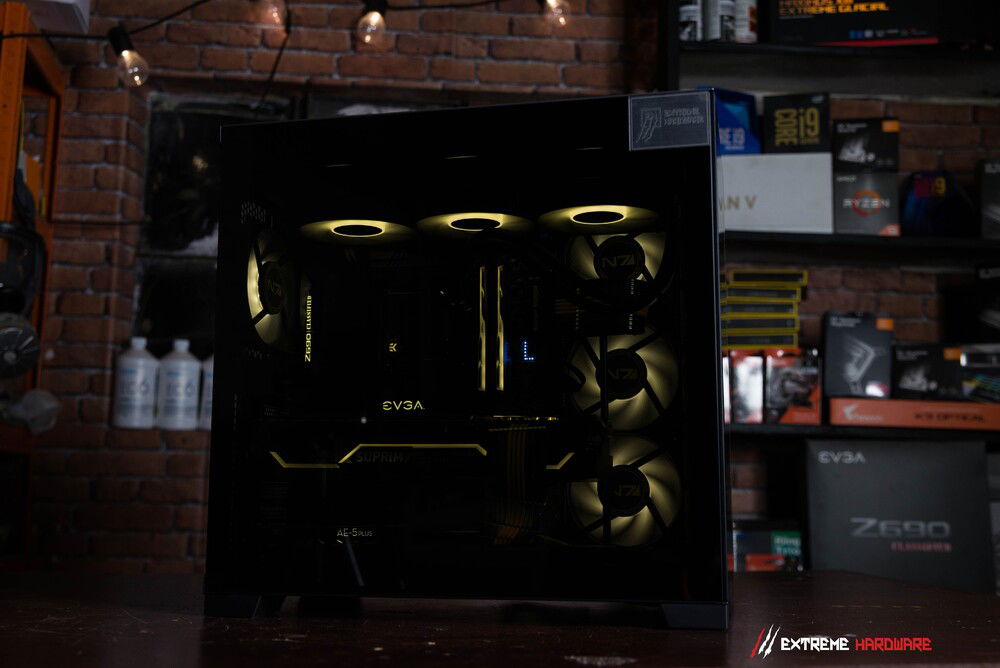

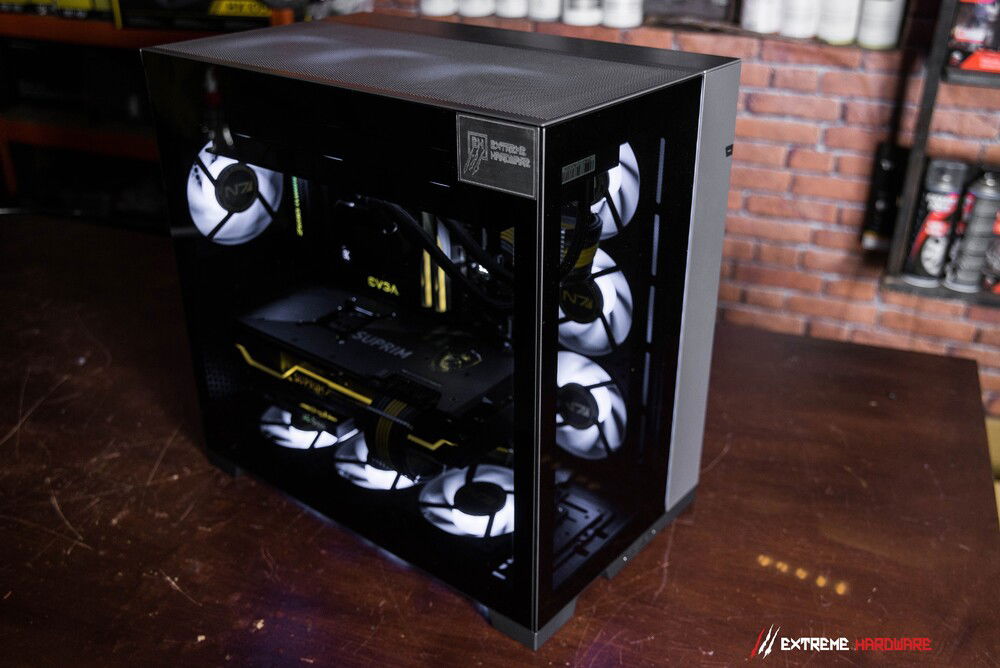

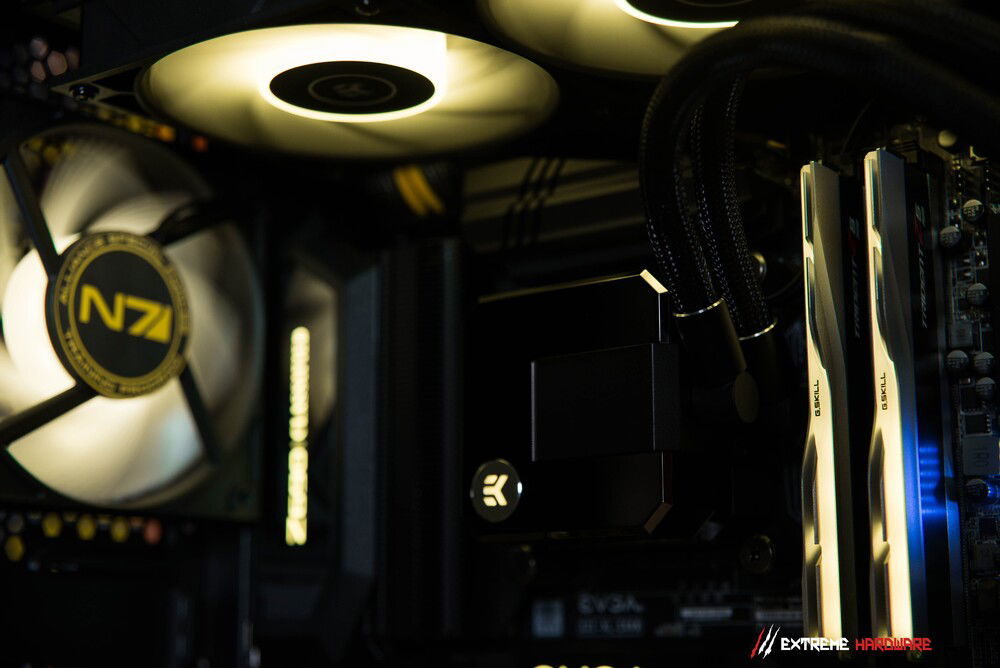

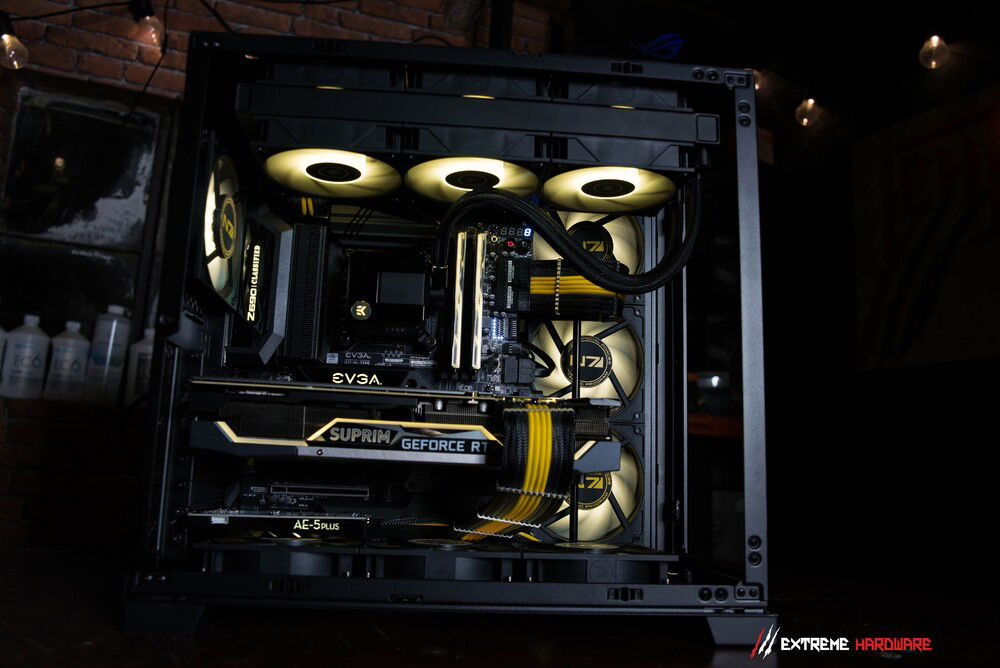

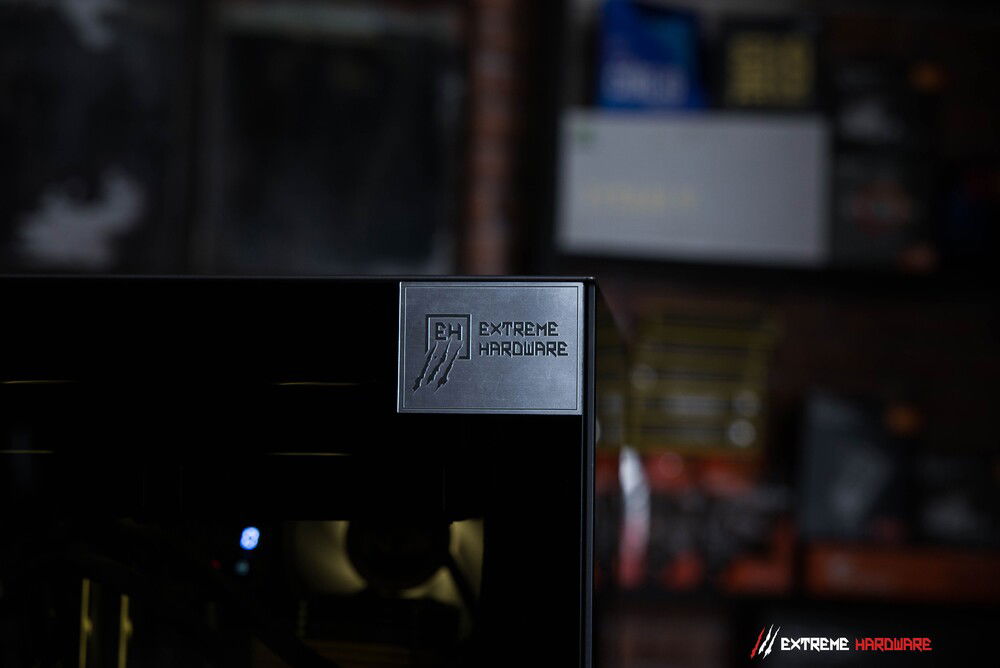

EH "NORMANDY SR2" was created for games with a resolution o2560x1440p 165 Hz at the entrance as an addition to the work culture without the use of an additional LC system. Therefore, we focused on a very successful AIO from the EK stable, the 360 ​​ELITE model.

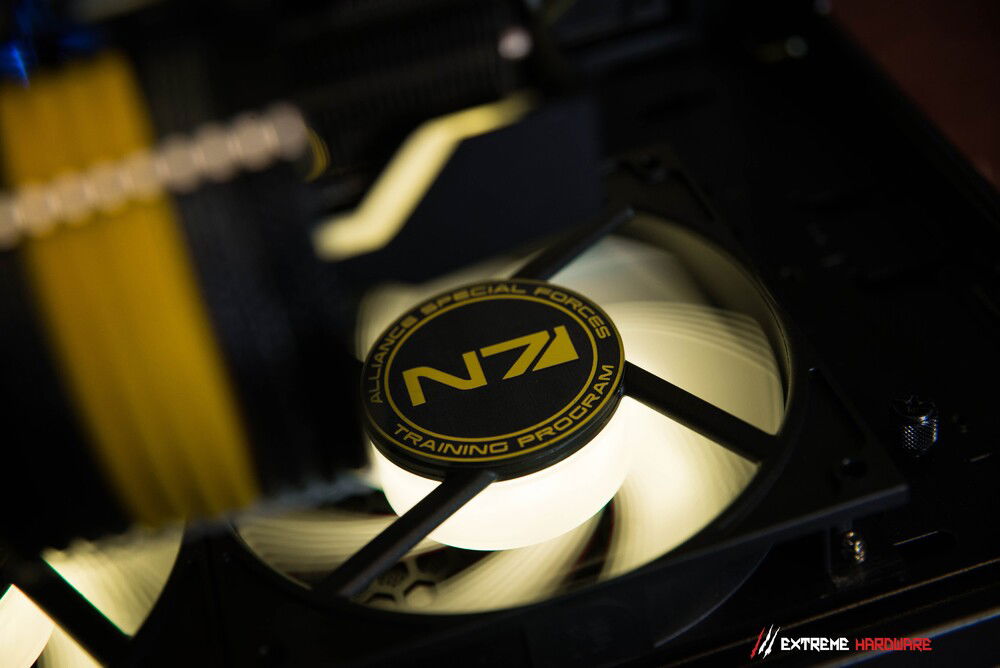

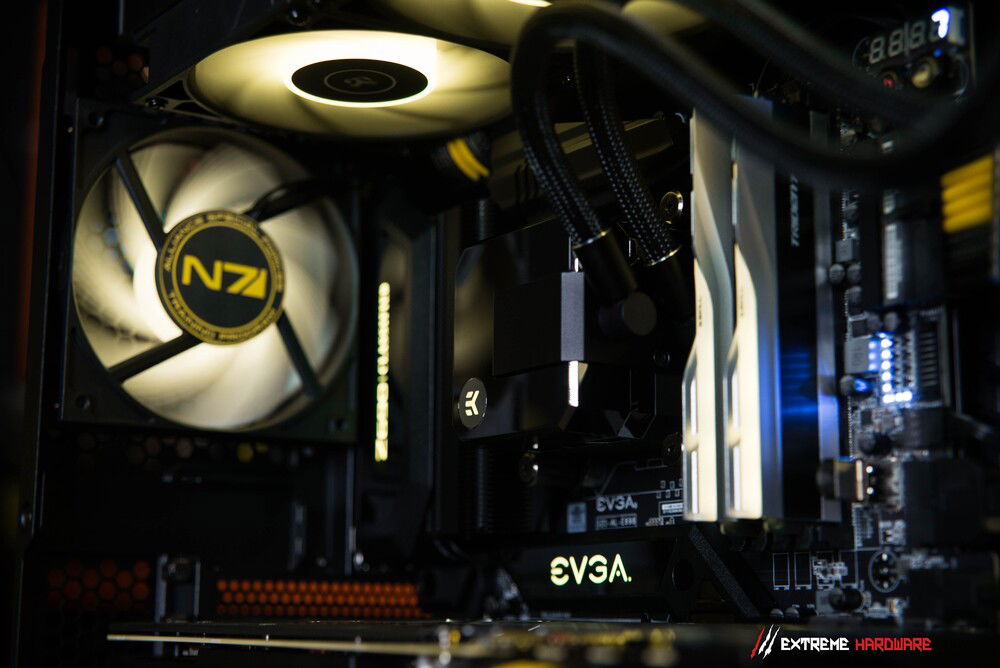

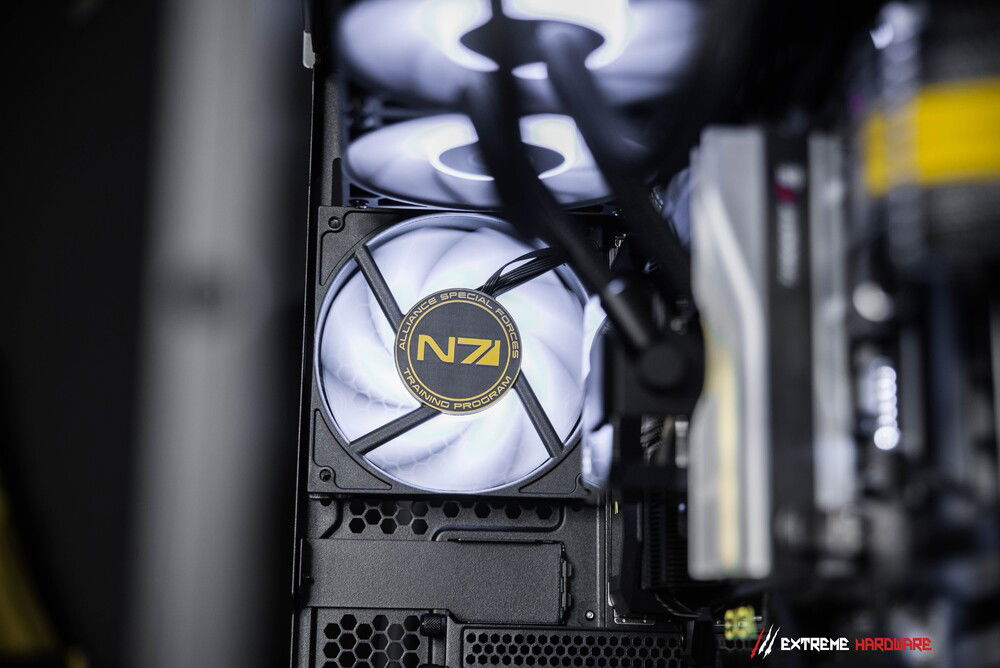

The fans in the P&configuration represent a job using All In One taming the overclocked i9-12900K even in real time, many hours (10h+) 100% operation with AVX at a continuous consumption around 266W. It translates into the preservation of high work culture and CPU temperature not exceeding 90C on the hottest core, on average around 83C. For the reason that the project was created for games that are performed in a simple way with a sudden 55C processor and 120W consumption for the main OC profile.

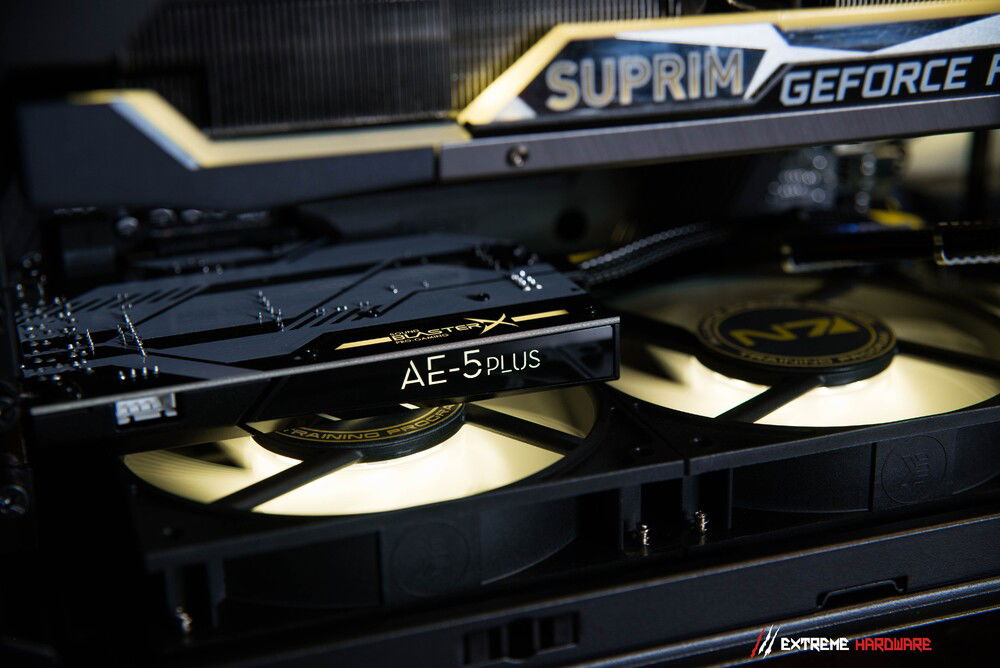

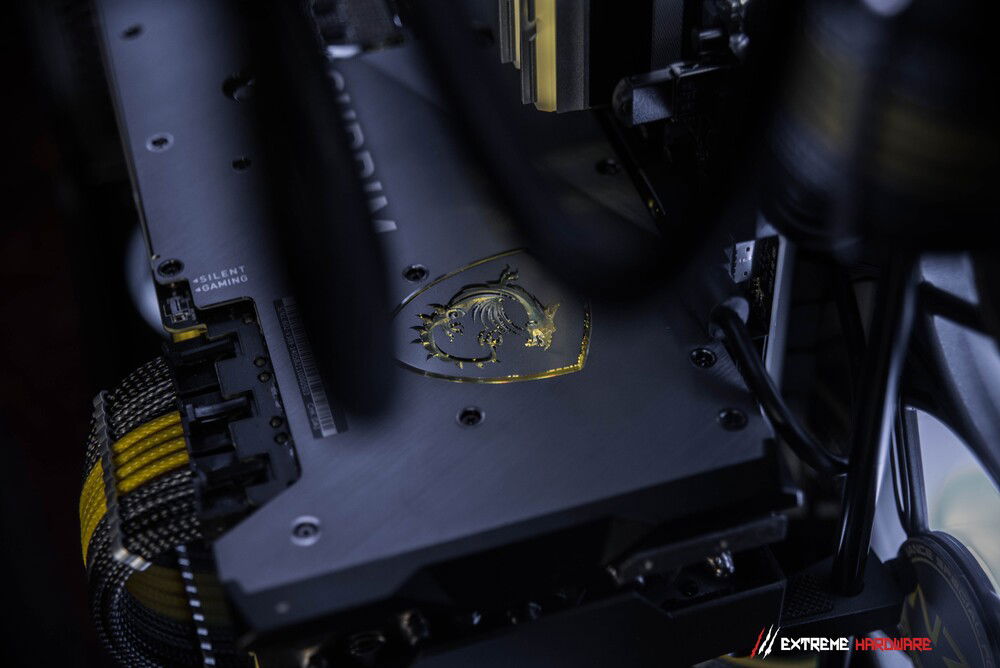

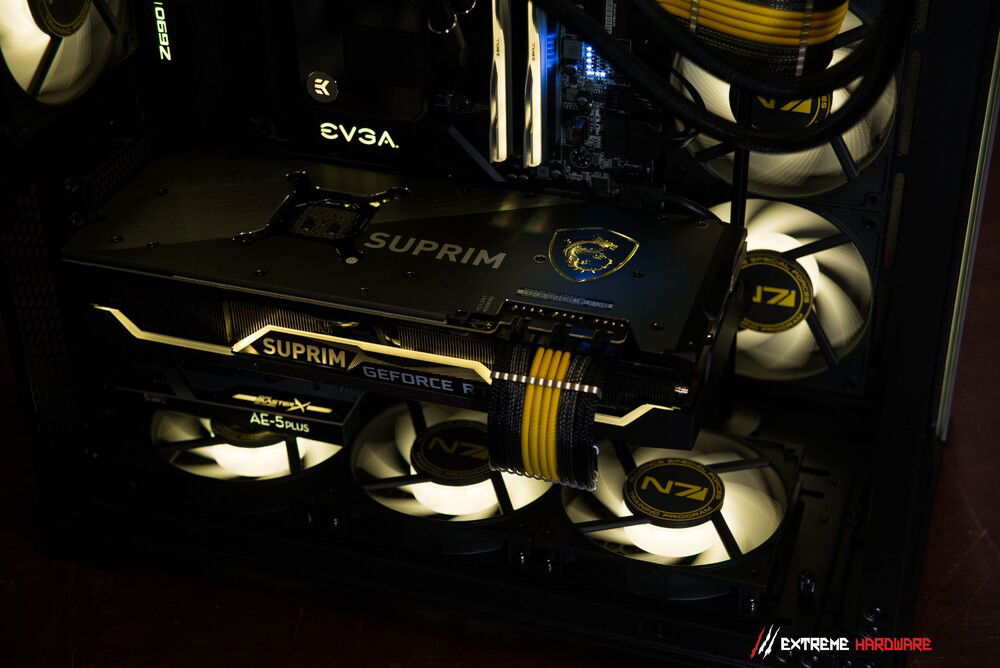

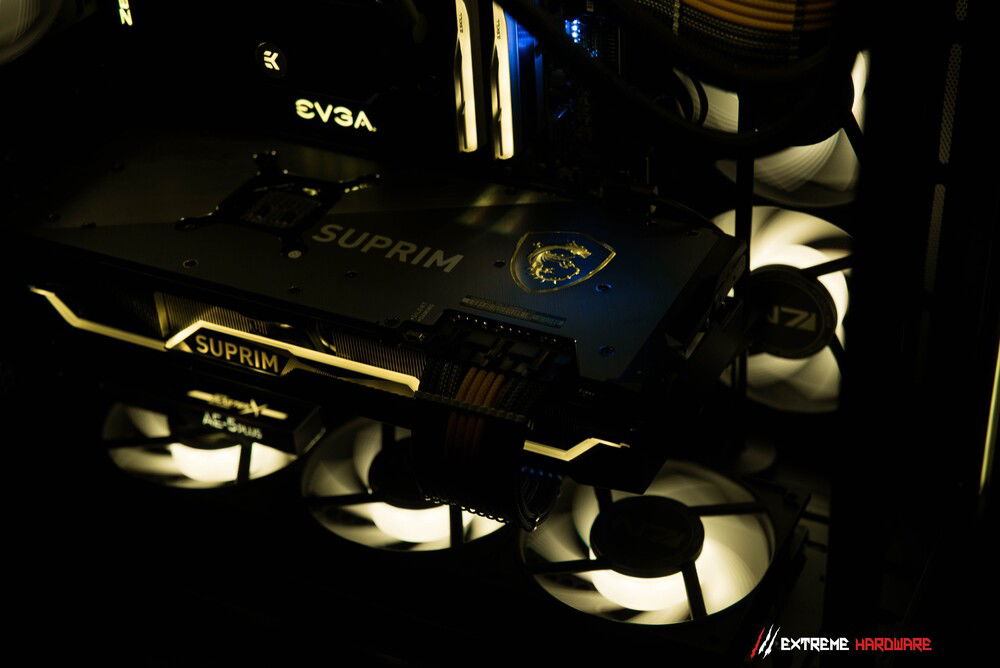

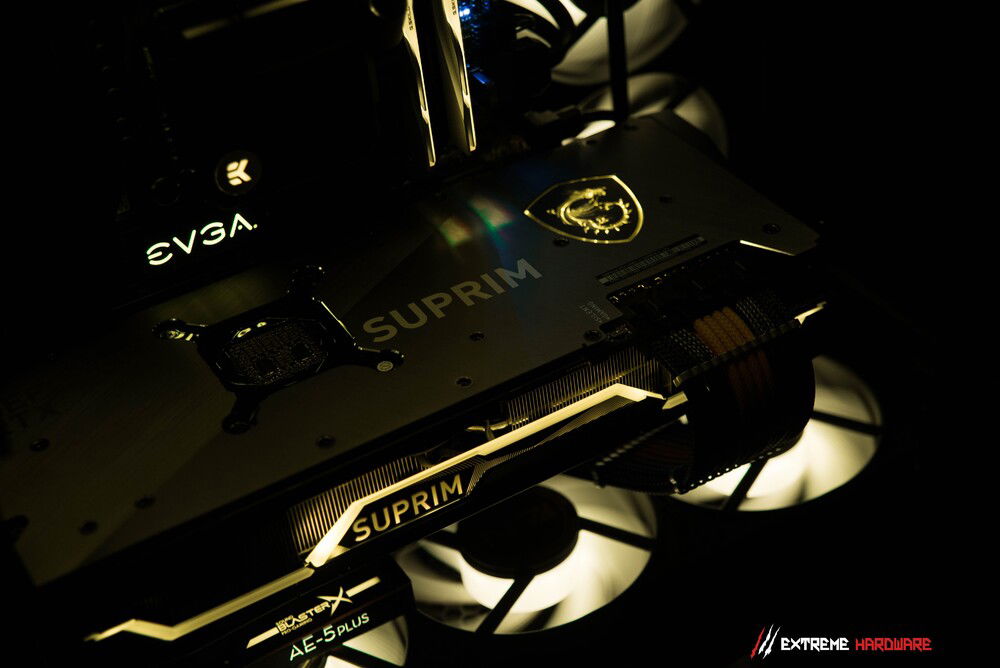

The RTX 3080 Ti SUPRIM X from the MSI stable ensures a high frame rate in each production, and it must be confirmed that the factory cooling does a phenomenal job. The card, even with the OC PT 430W profile and + 80 core / + 800 GDDR6X high work culture (manually set fan speed curve) suddenly exceeding 65C on the GPU. Of course, it is also ensuring the supply of adequate air, so that the components were bathed in the flow of the breeze drawn outside the housing. As befits a spaceship from the Mass Effect universe inspired by the climate of a super-quiet frigate for special tasks, as well as the Commander Shepard operations center, it could not be otherwise :)

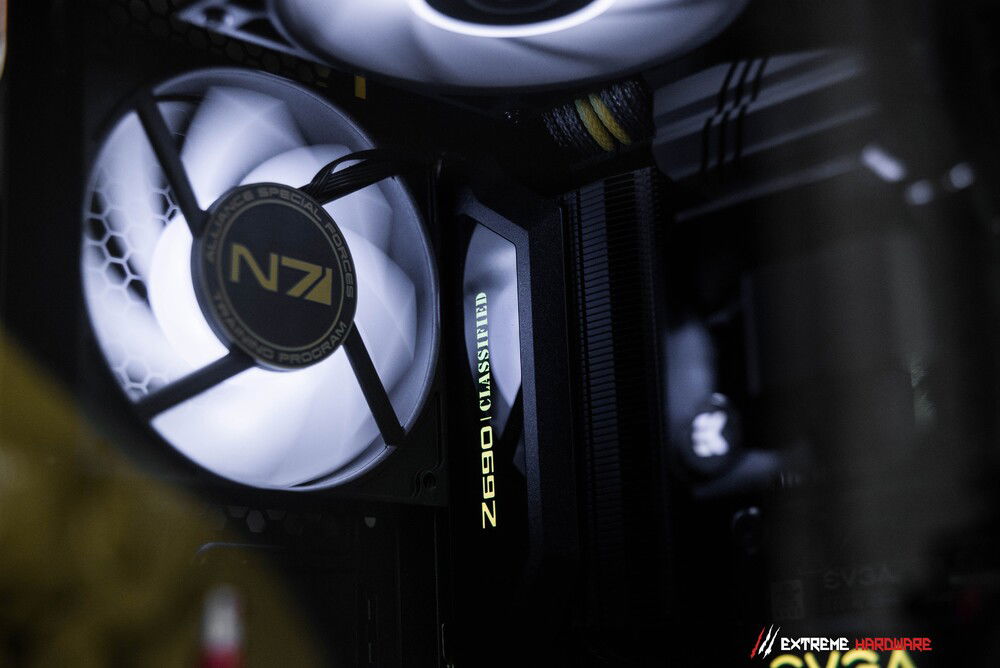

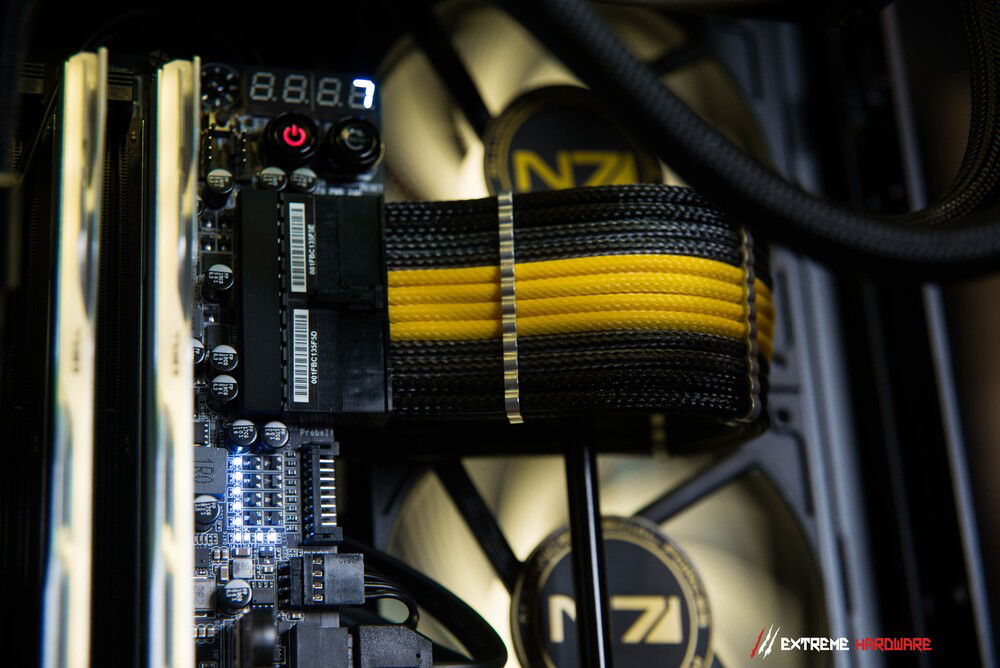

The foundation of the platform is a sensational motherboard from the EVGA stable, the Z690 CLASSIFIED model, which perfectly supports the memory and allows you to adjust any voltage regulation as well as the regulation of the processor, memory subsystem, and also allows you to keep the memory. Very high quality, refined bios, VRM 19x90A, interesting proprietary EVGA solutions that drew attention to several main advantages of this design.

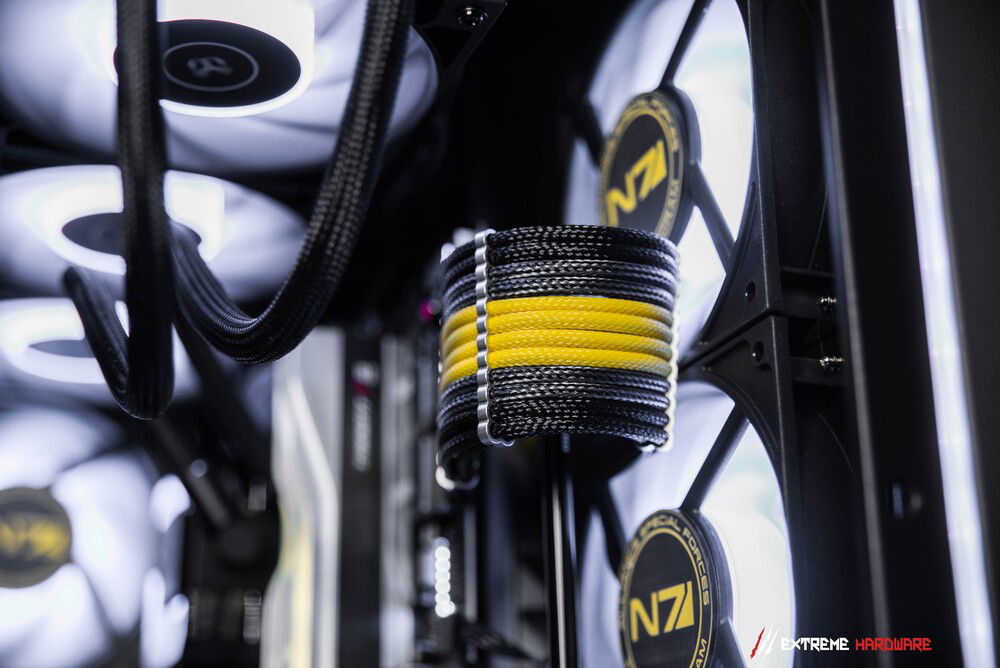

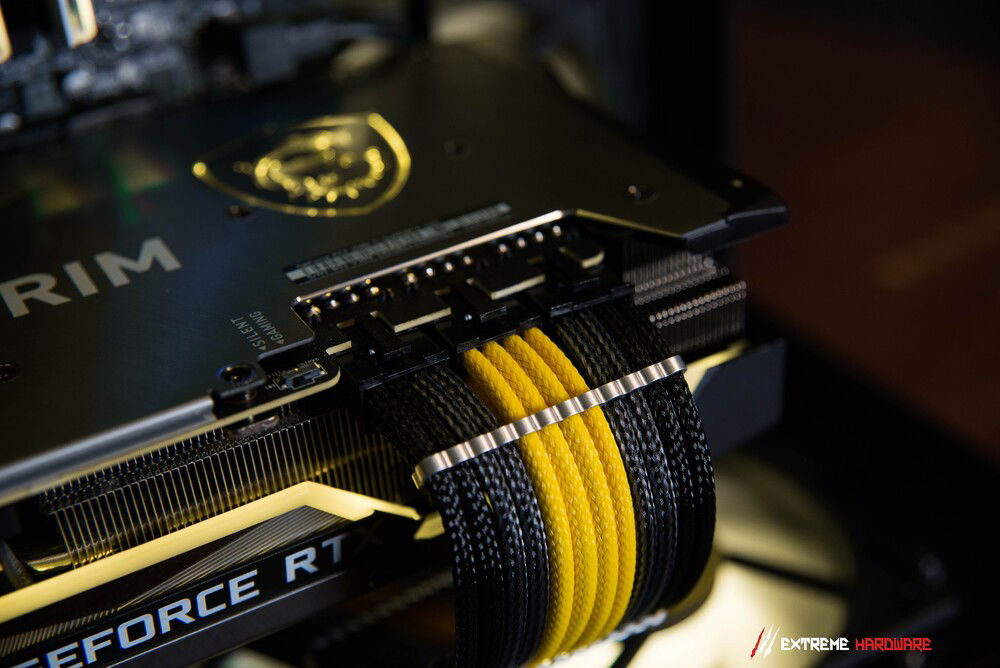

The changes are ensured by a verified and often chosen by us power supply from the Corsair stable, model HX1200. The graphics card is naturally connected with a special separate PCI-E connection from the GPU to the PSU, but it is worth bearing in mind that Corsair uses PCI-E slots for every 300W connection in the HX series. Therefore, the separation of the wires in such a way allows you to reduce the temperature inside the "NORMANDY SR2" for the increased thermal value achieved on the cables.
