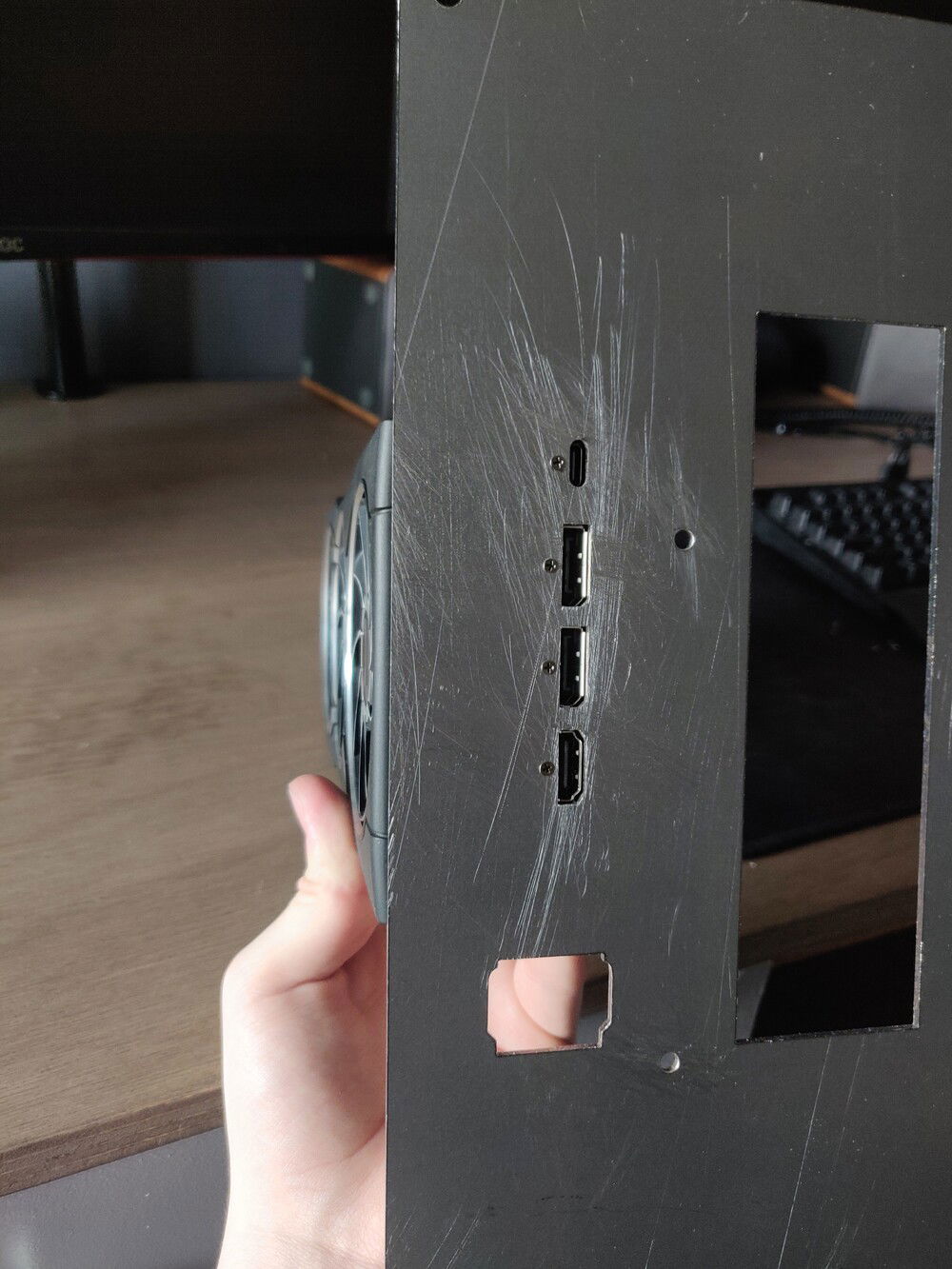

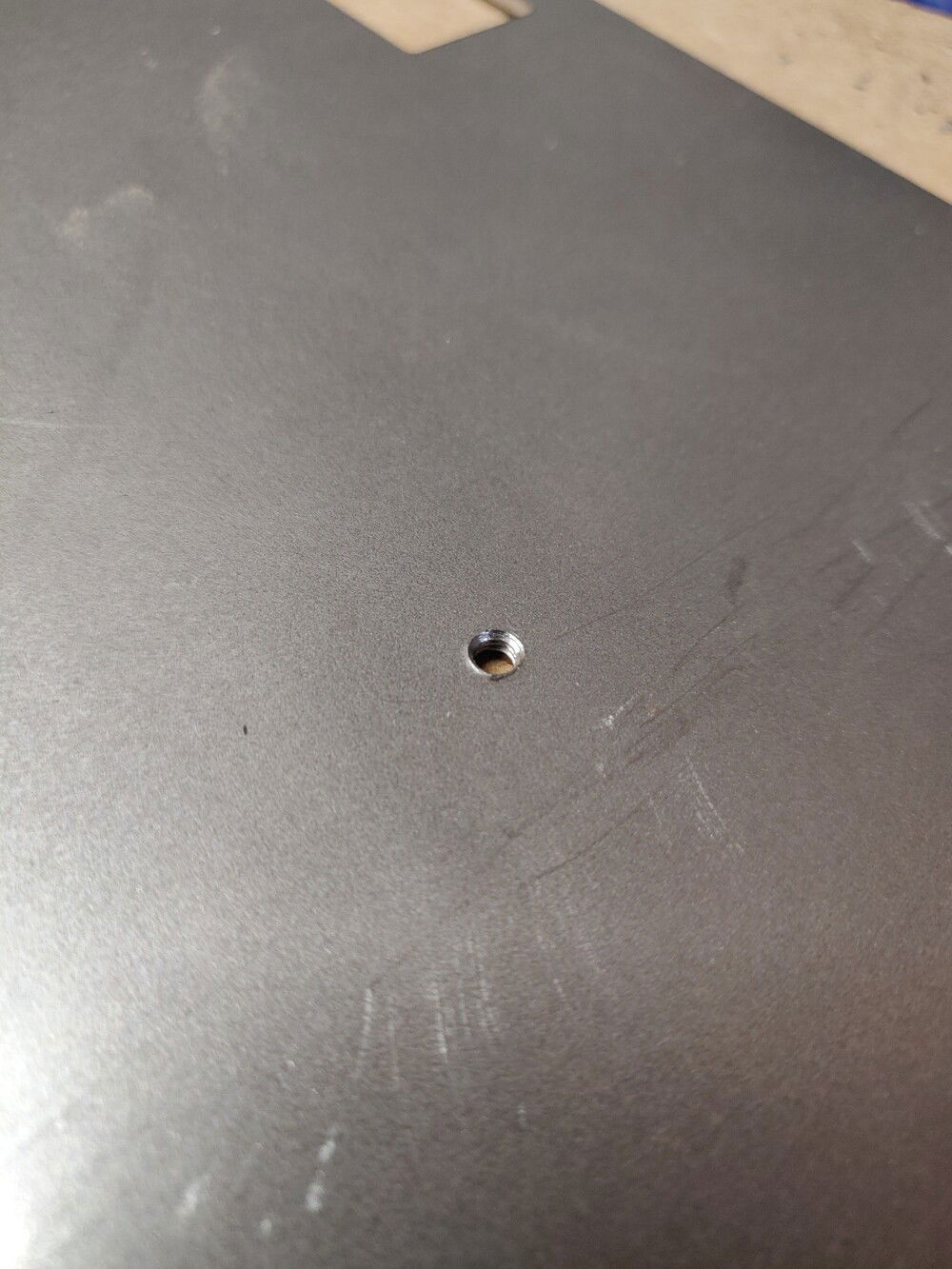

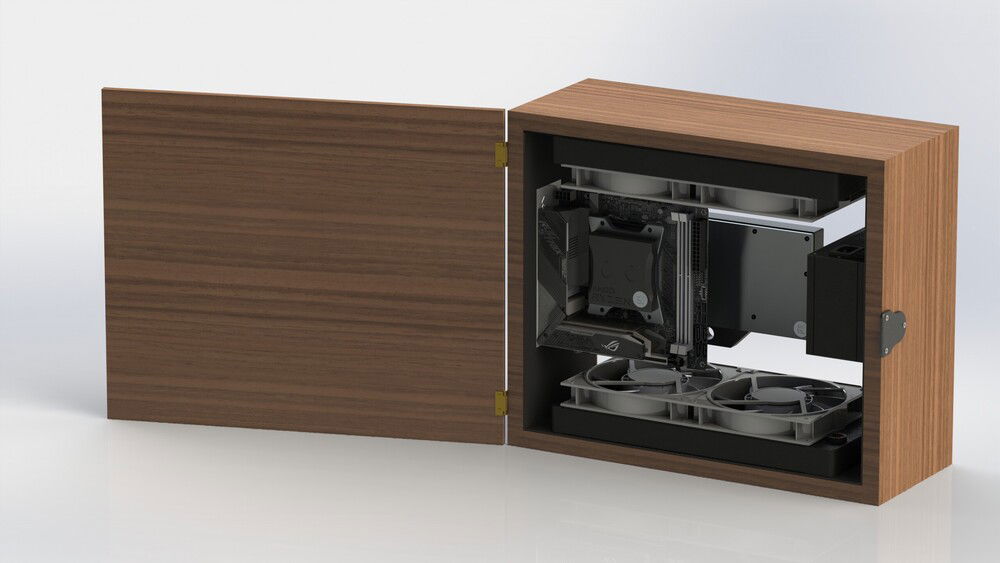

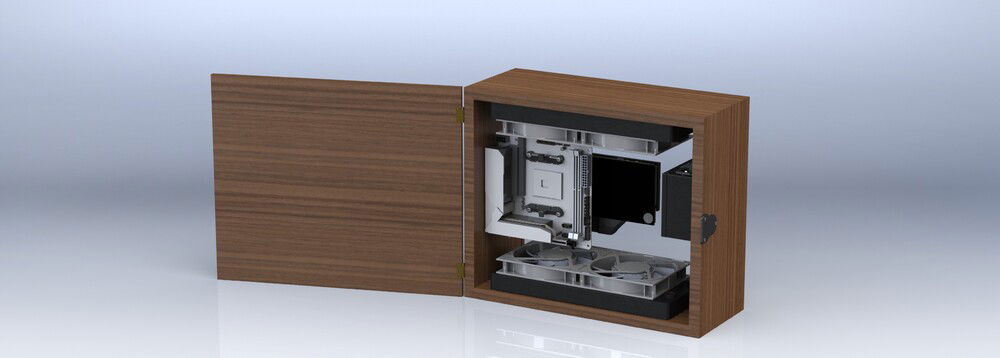

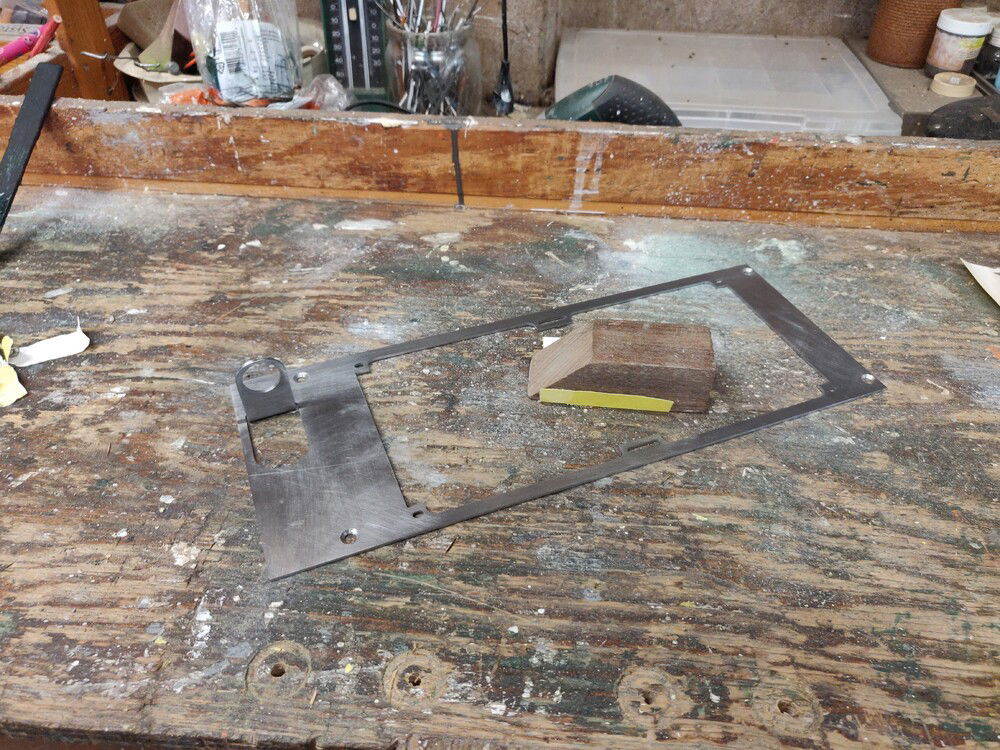

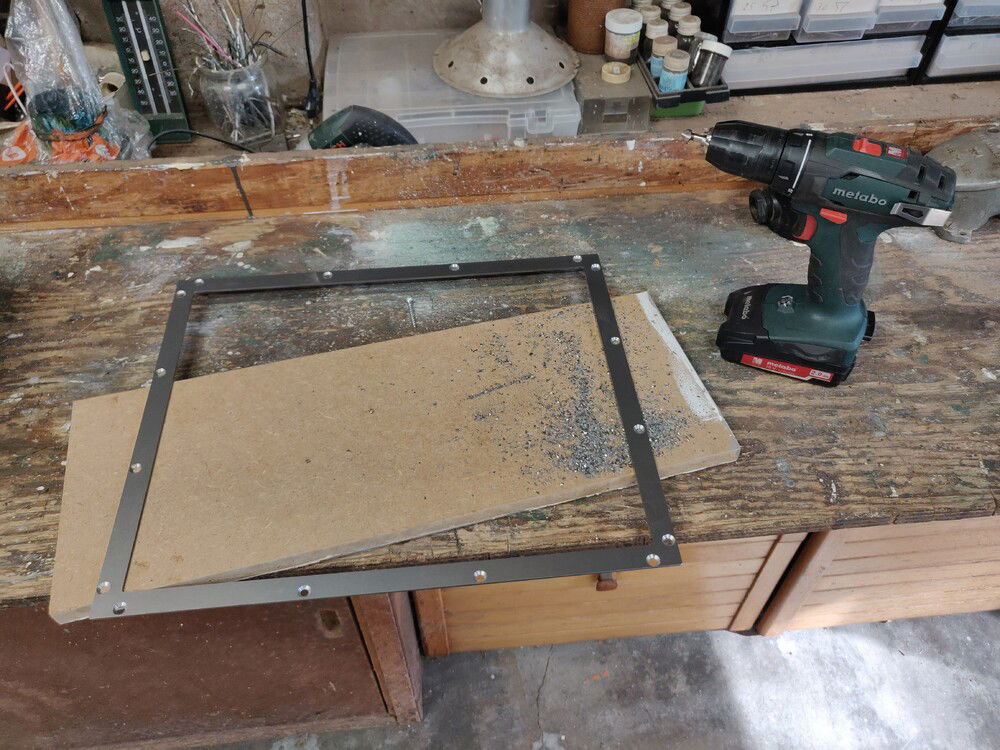

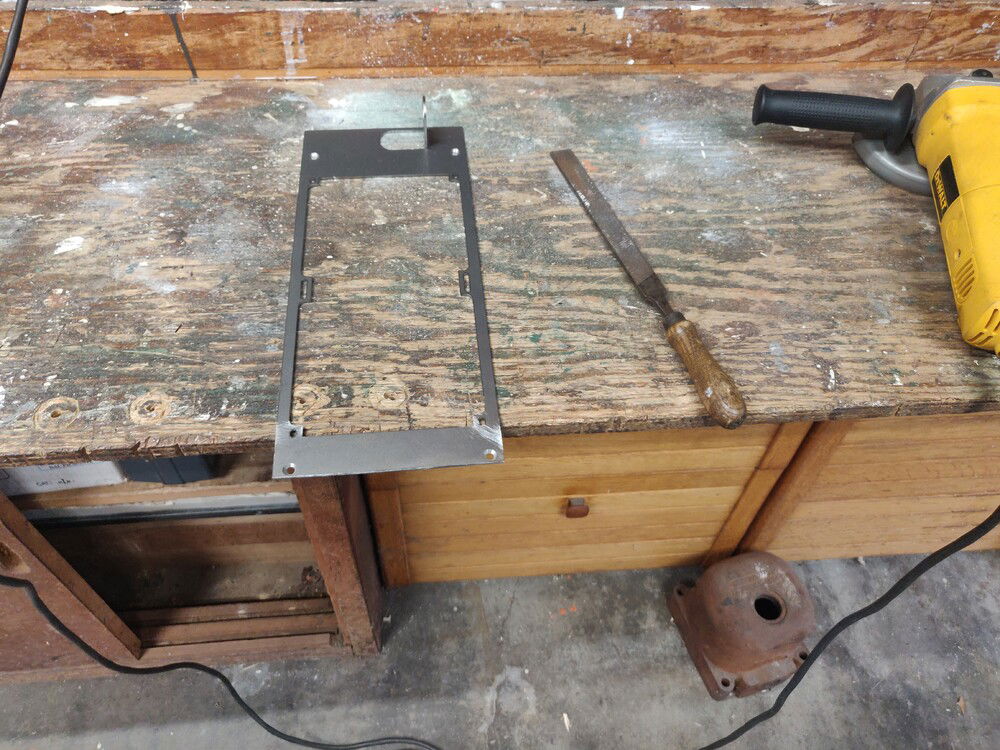

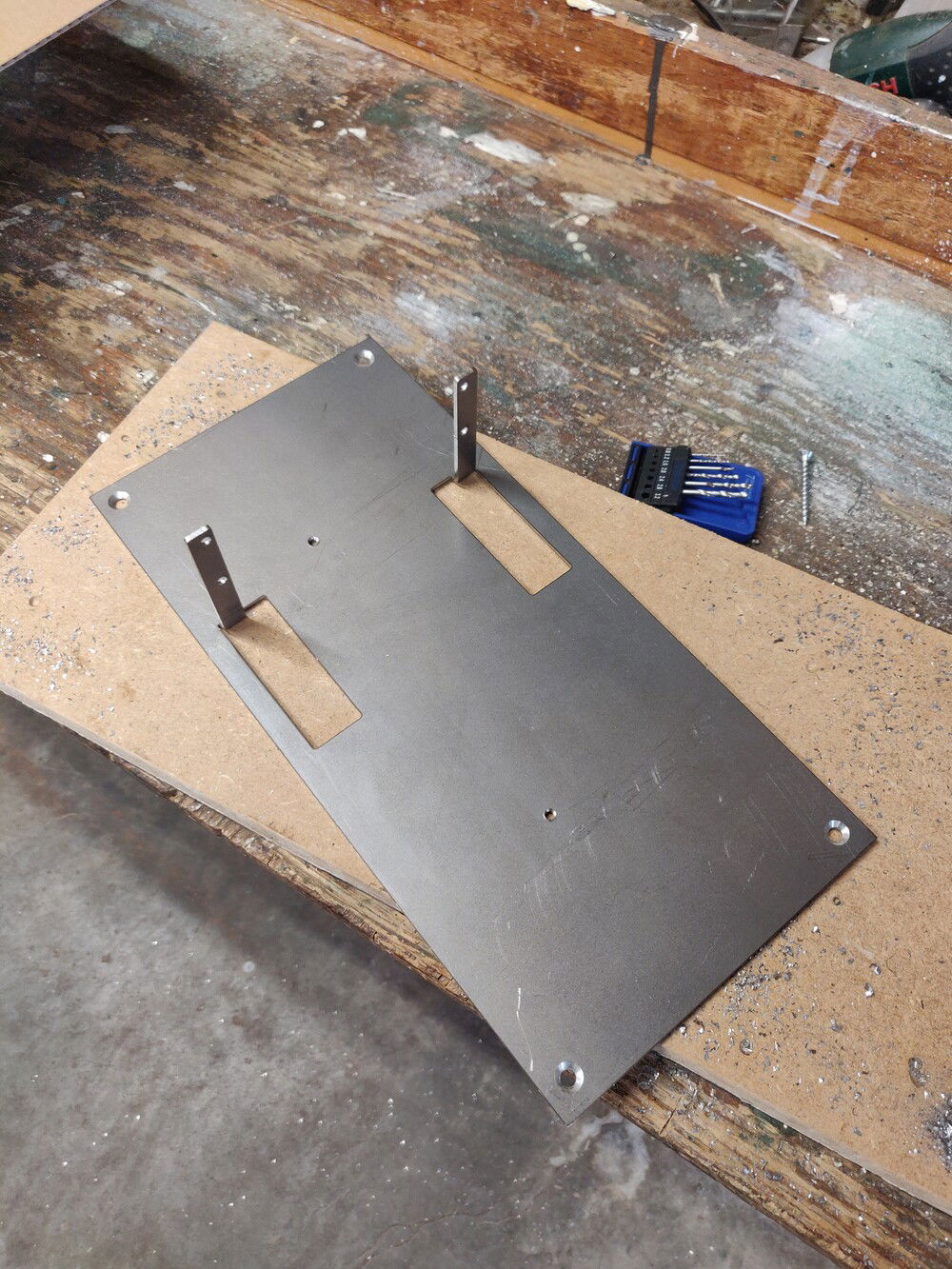

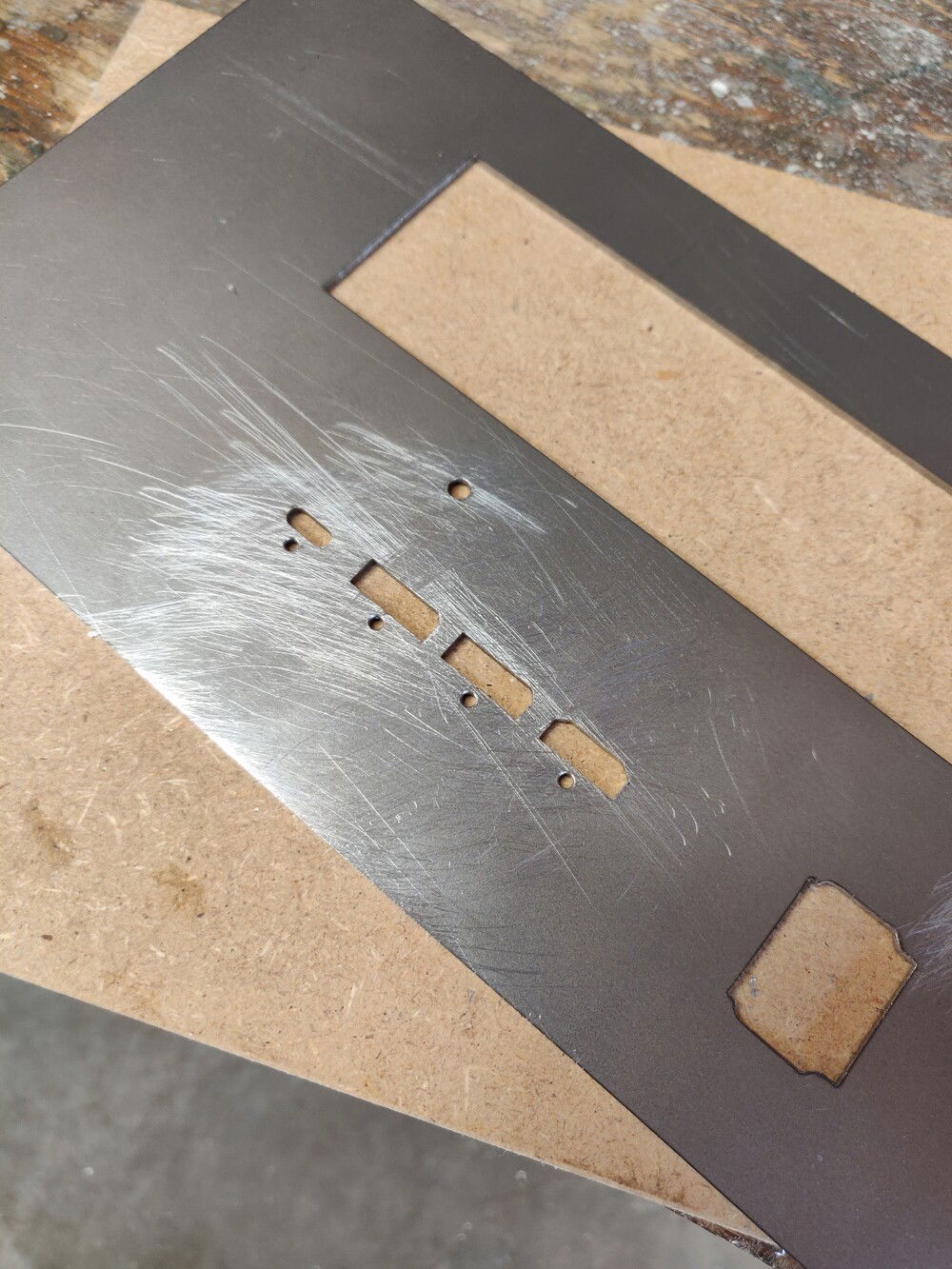

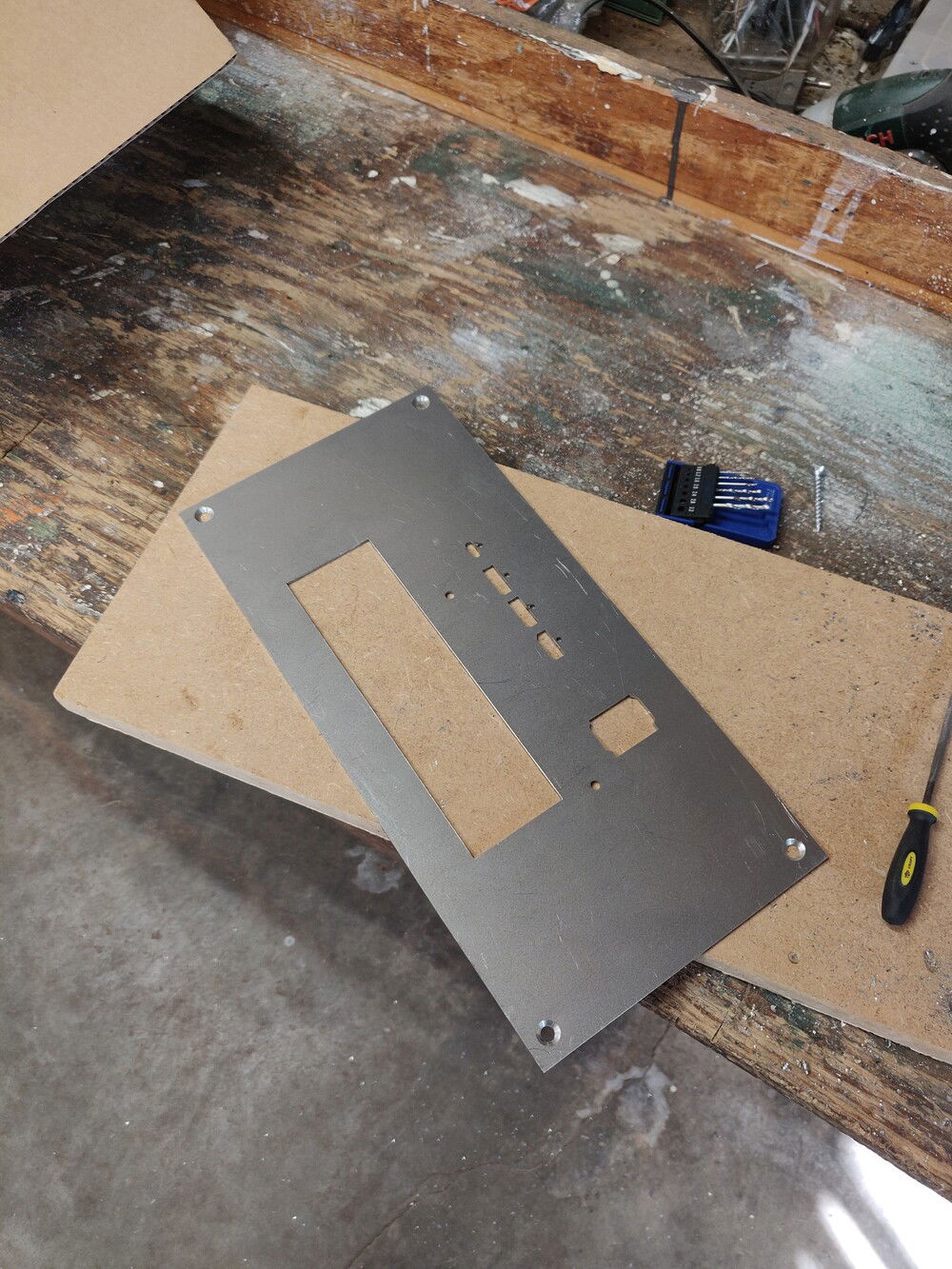

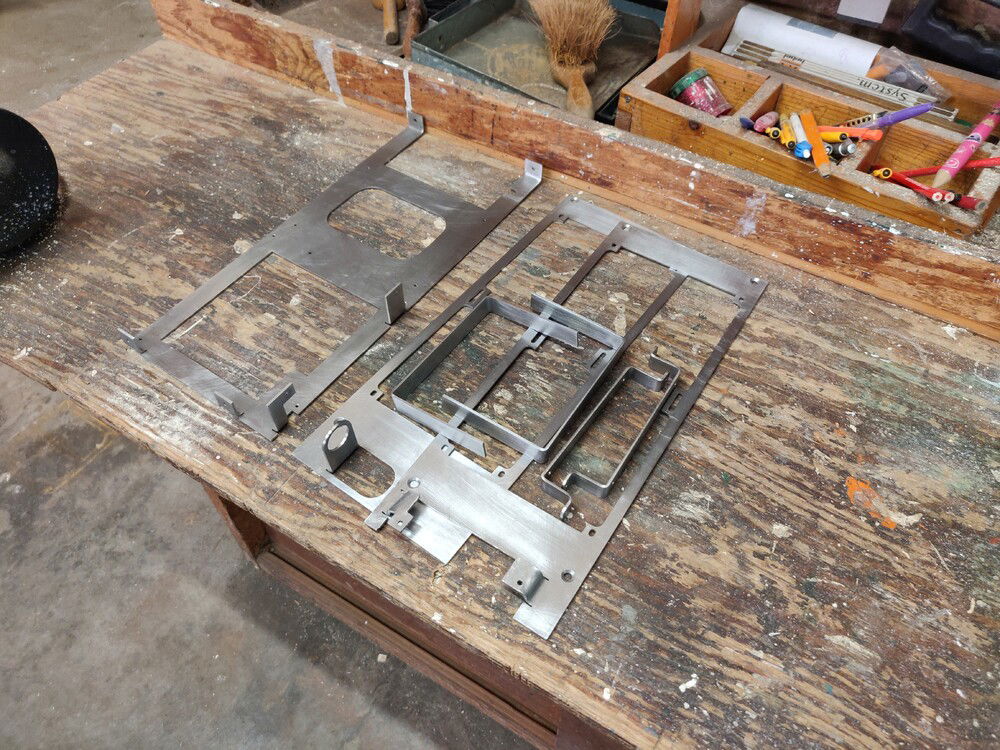

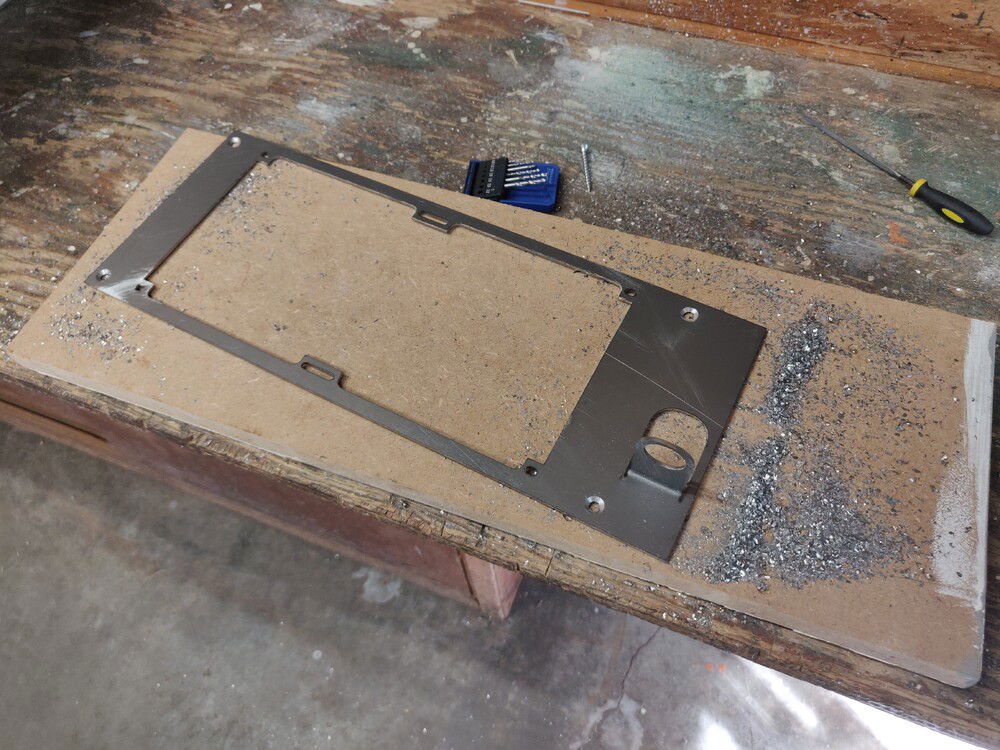

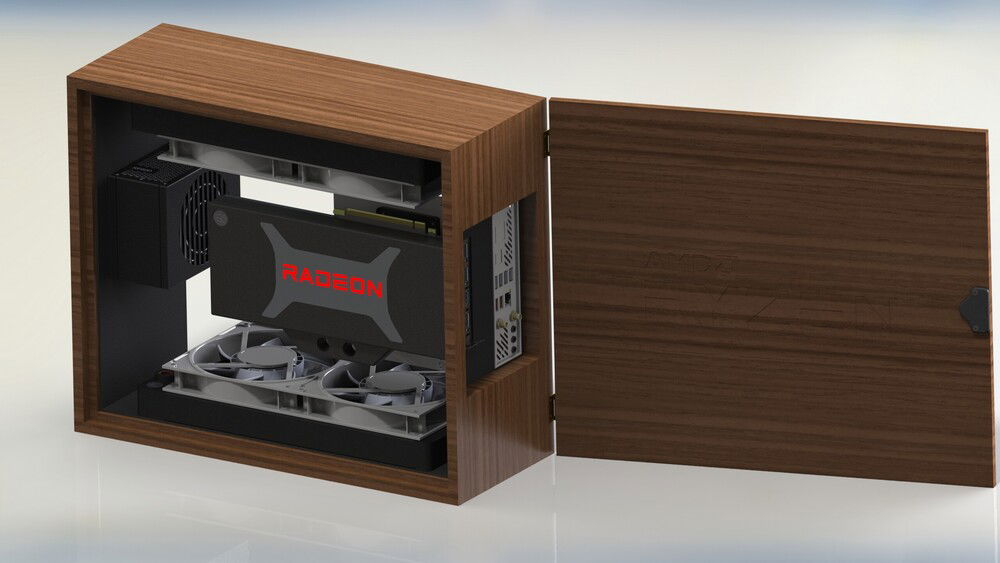

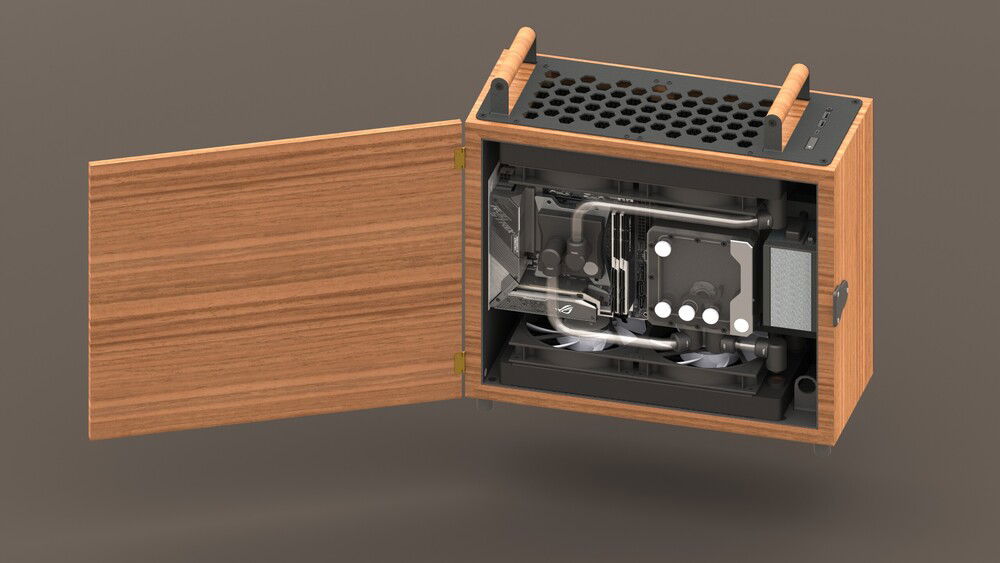

After the design it was time to get the sheet metal frame made. This was done out of 2mm steel to give it strenght and being able to tap threads. Once it arrived it needed some small clean up and counter sinking for all the mounting holes.

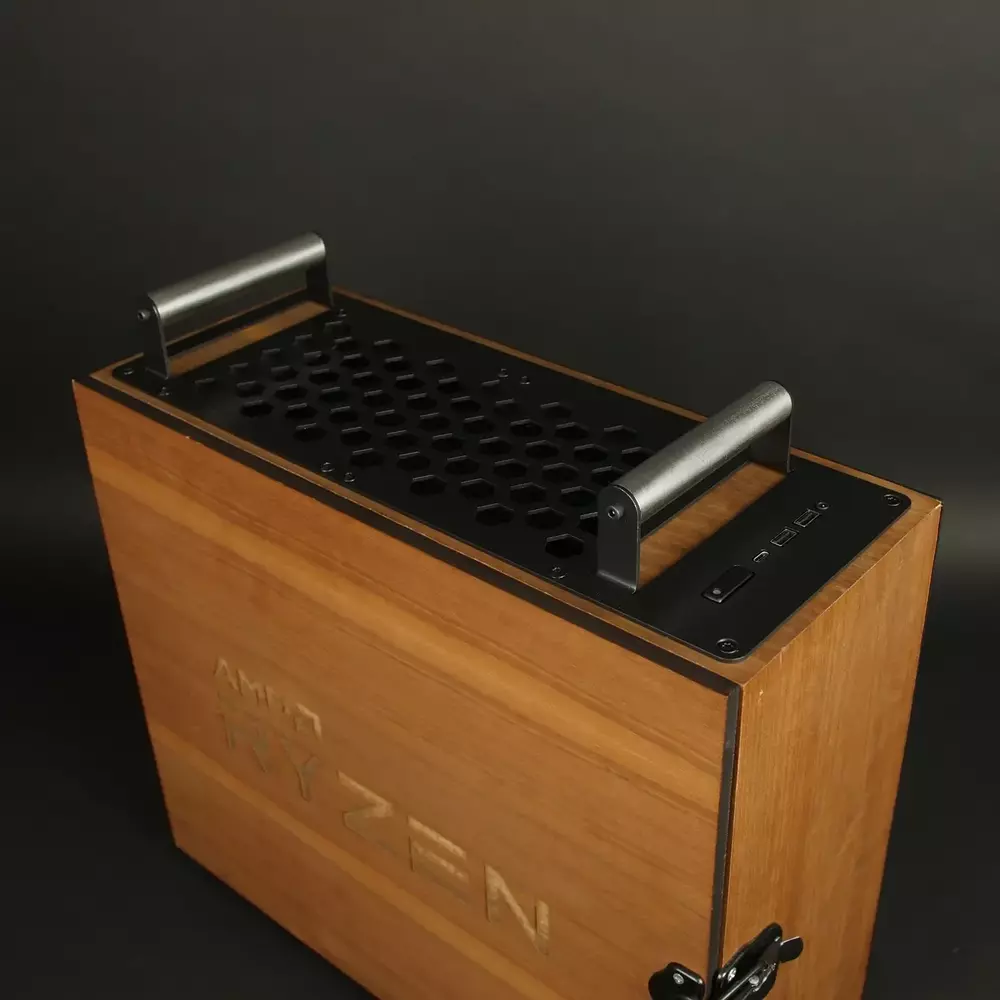

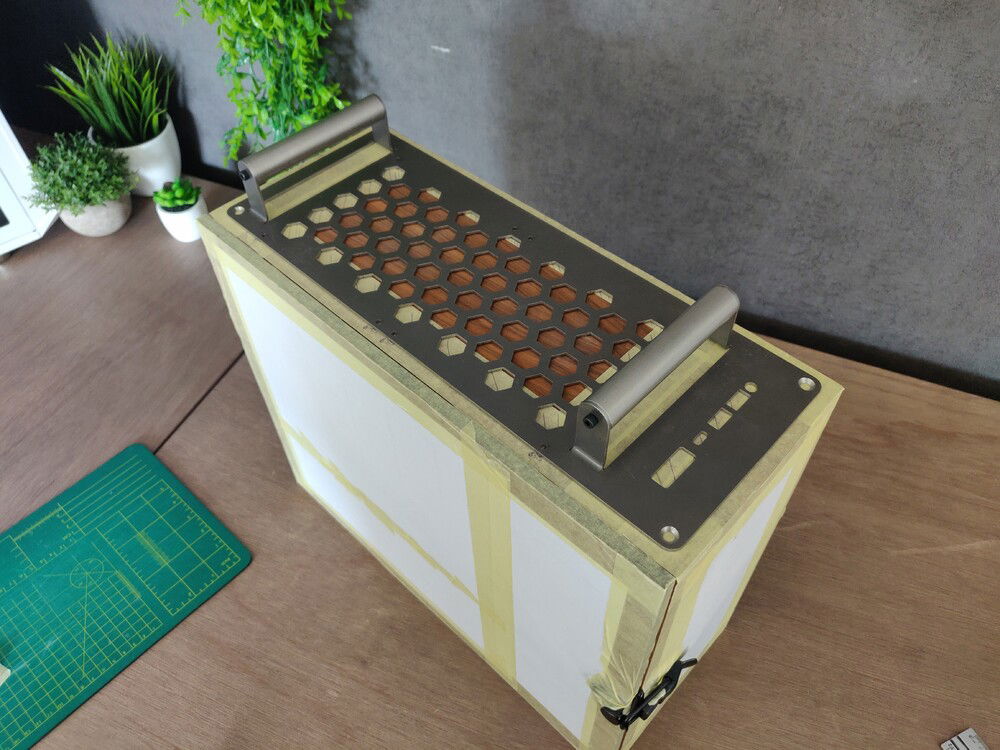

Handles, spacers and casefeet.

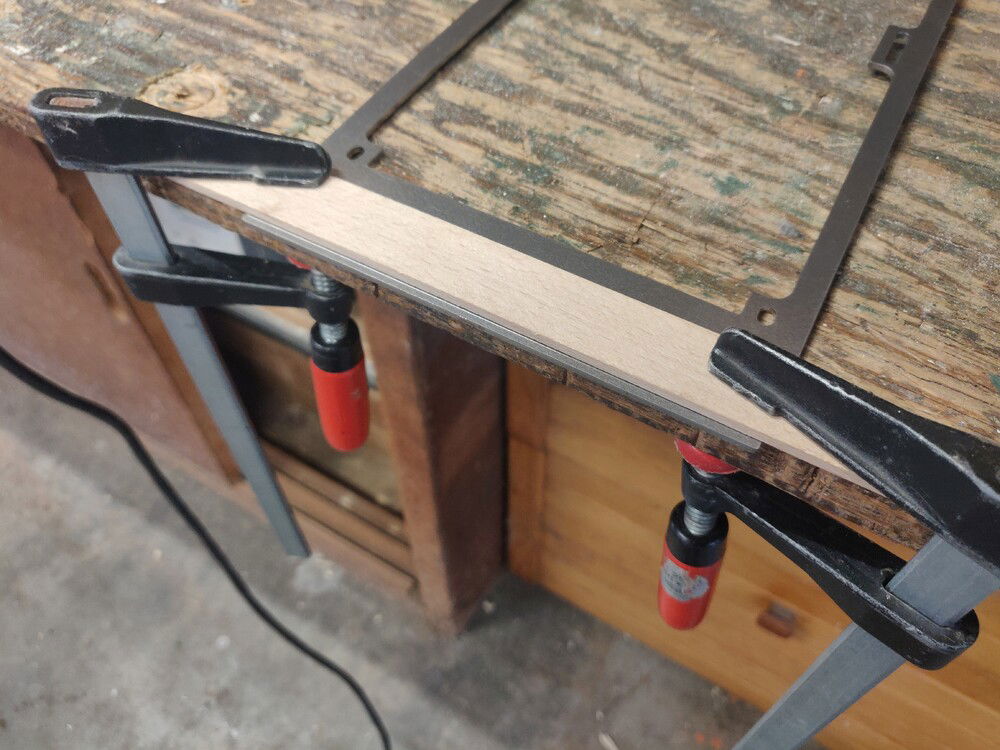

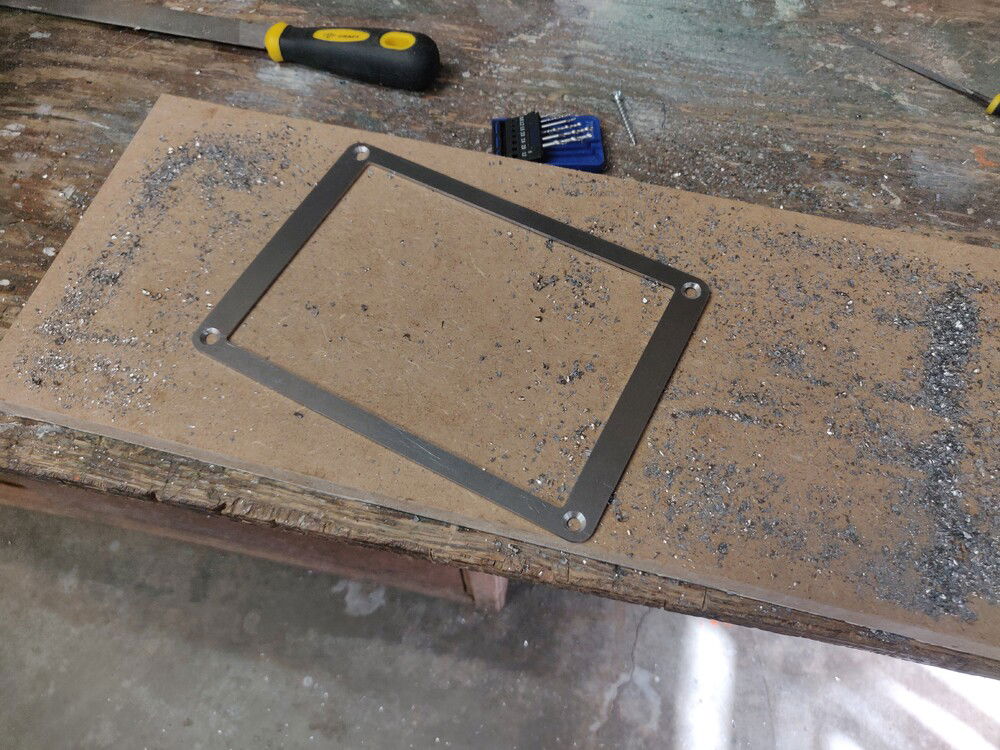

Small handmade parts to work together with the sheet metal parts,

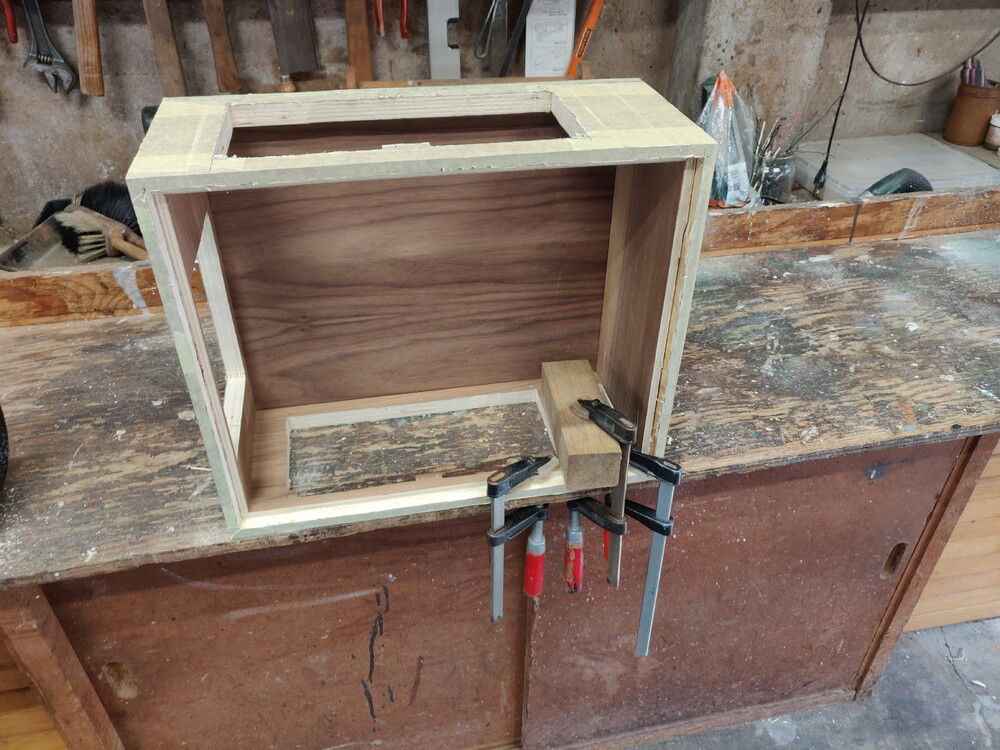

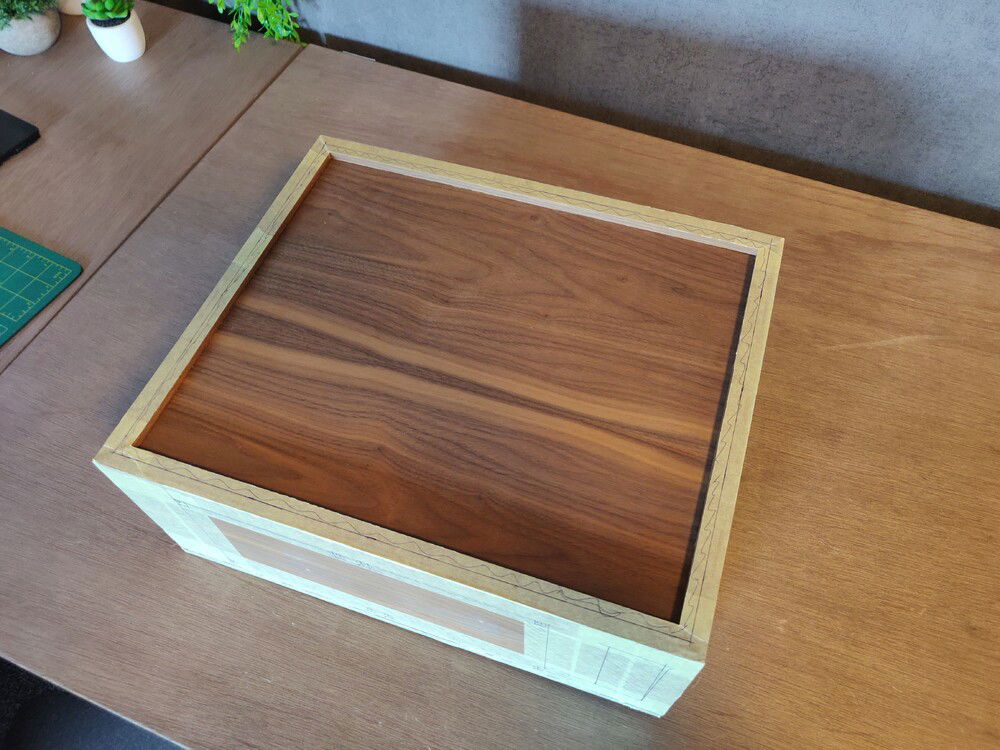

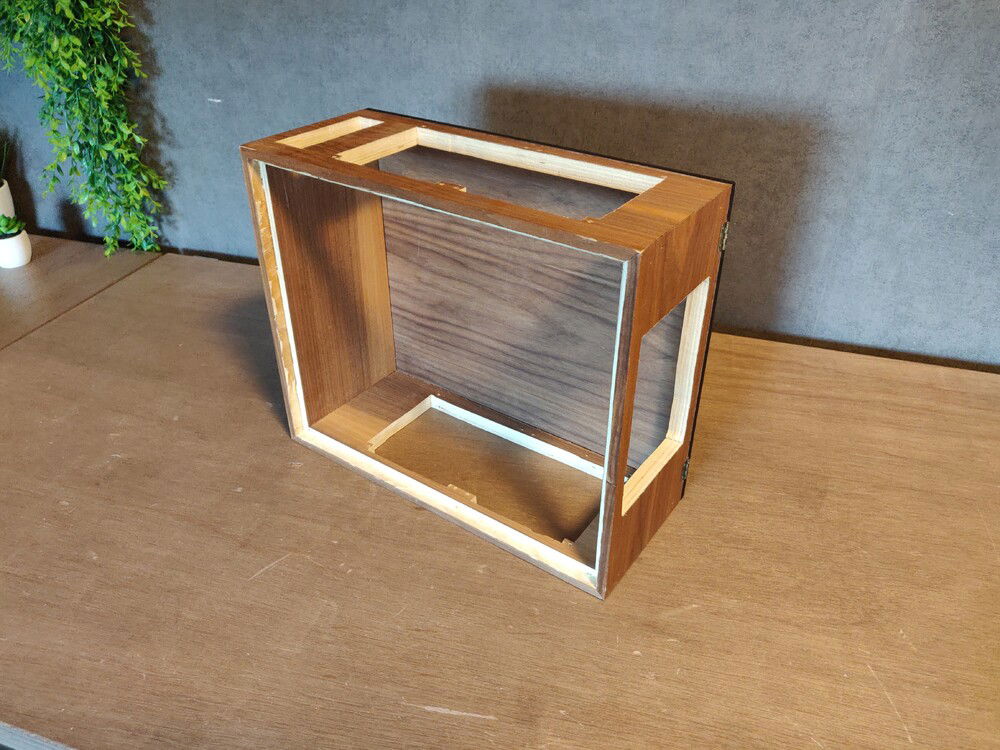

Wooden box modifications.

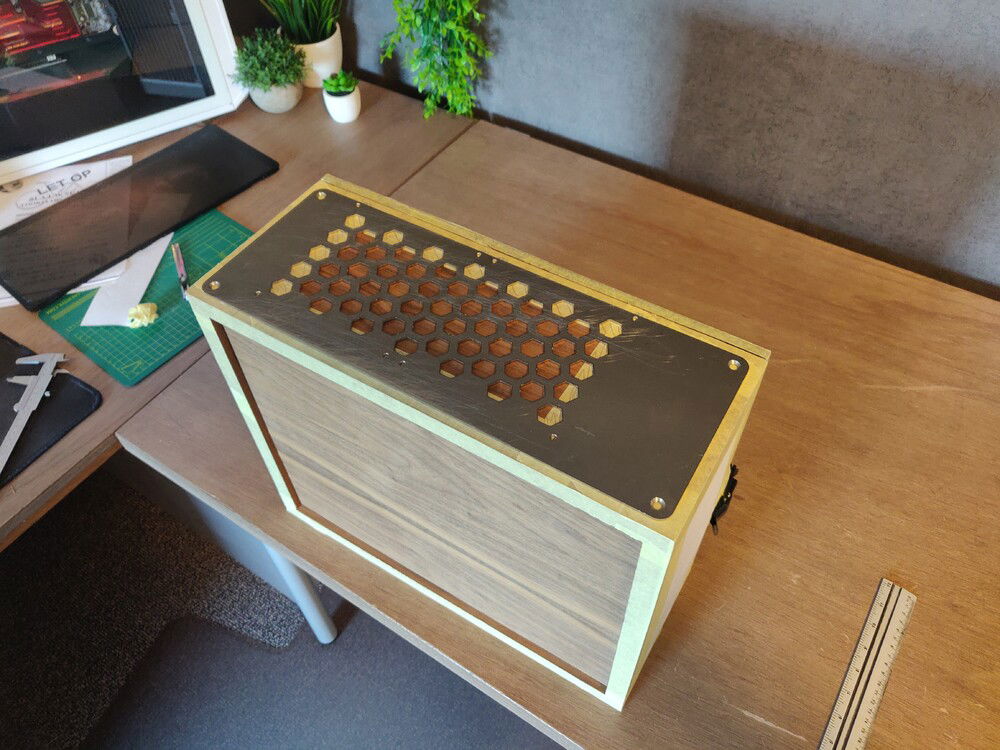

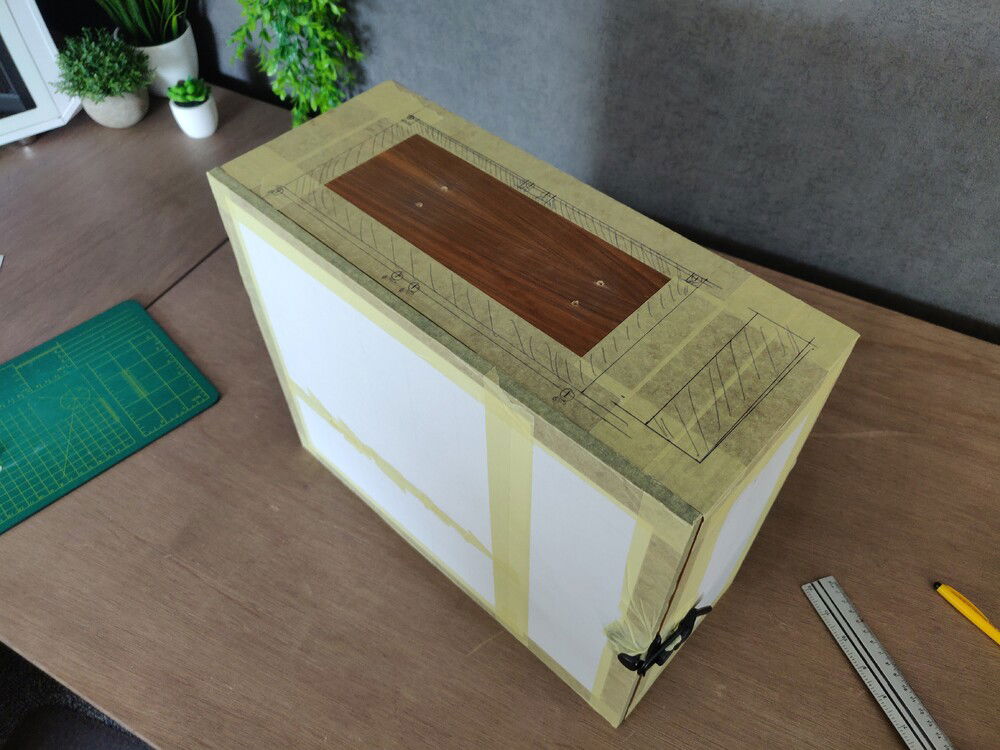

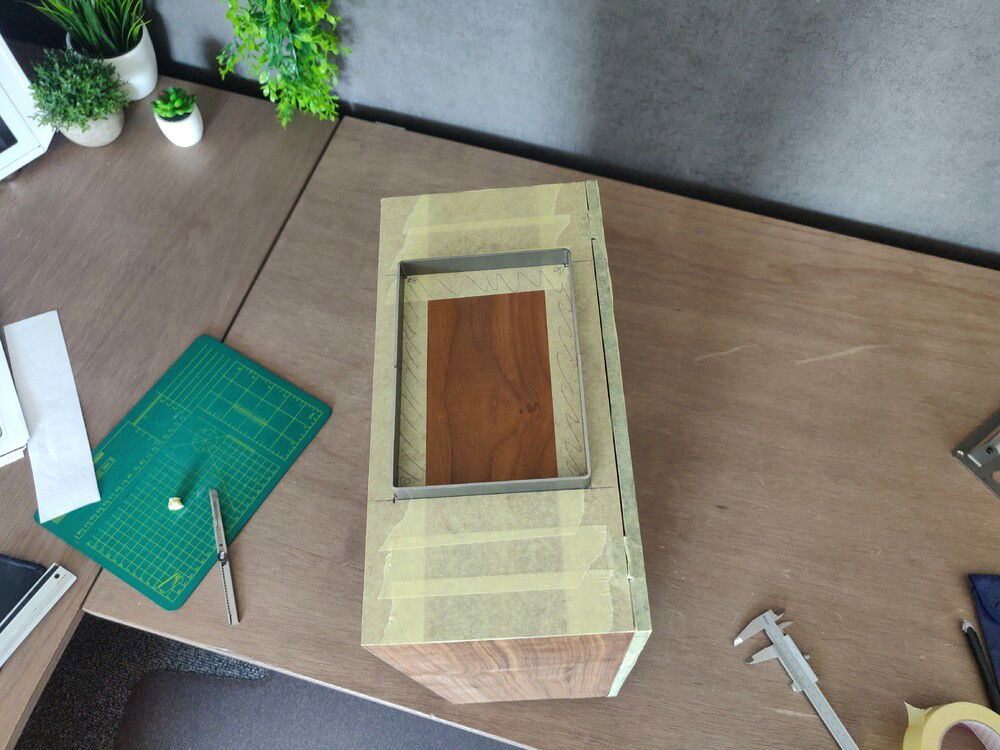

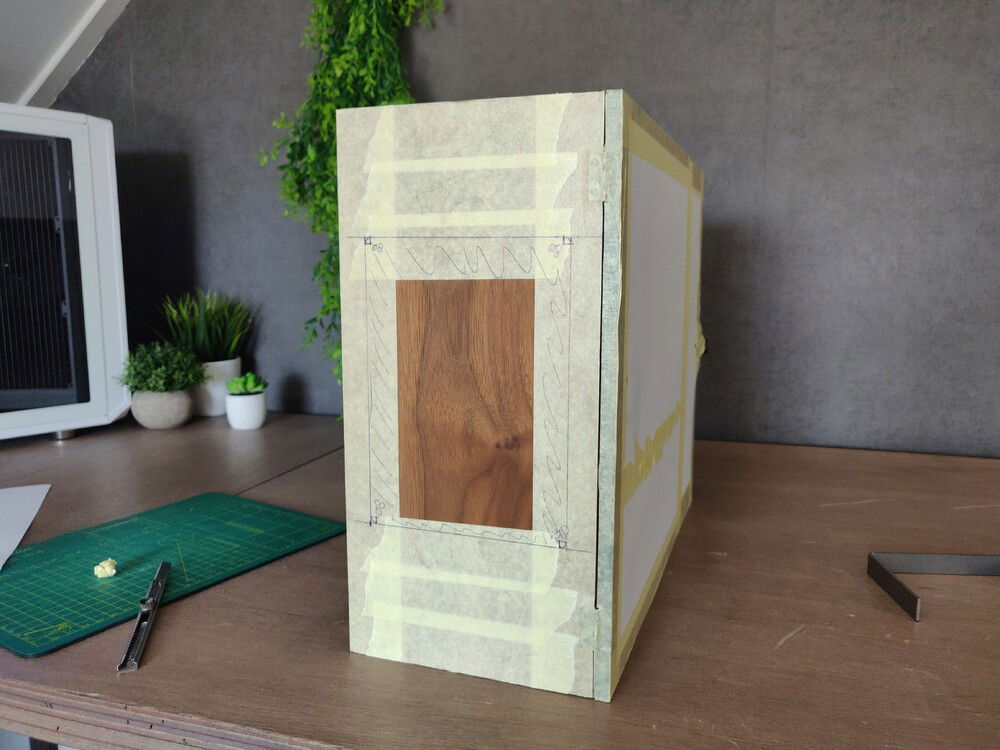

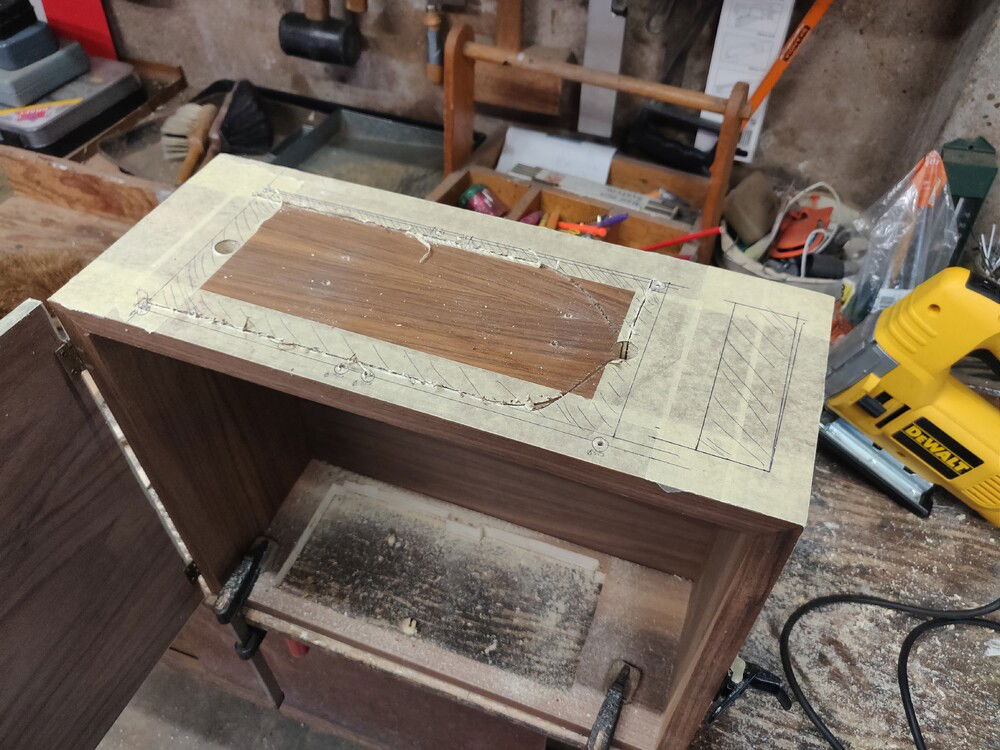

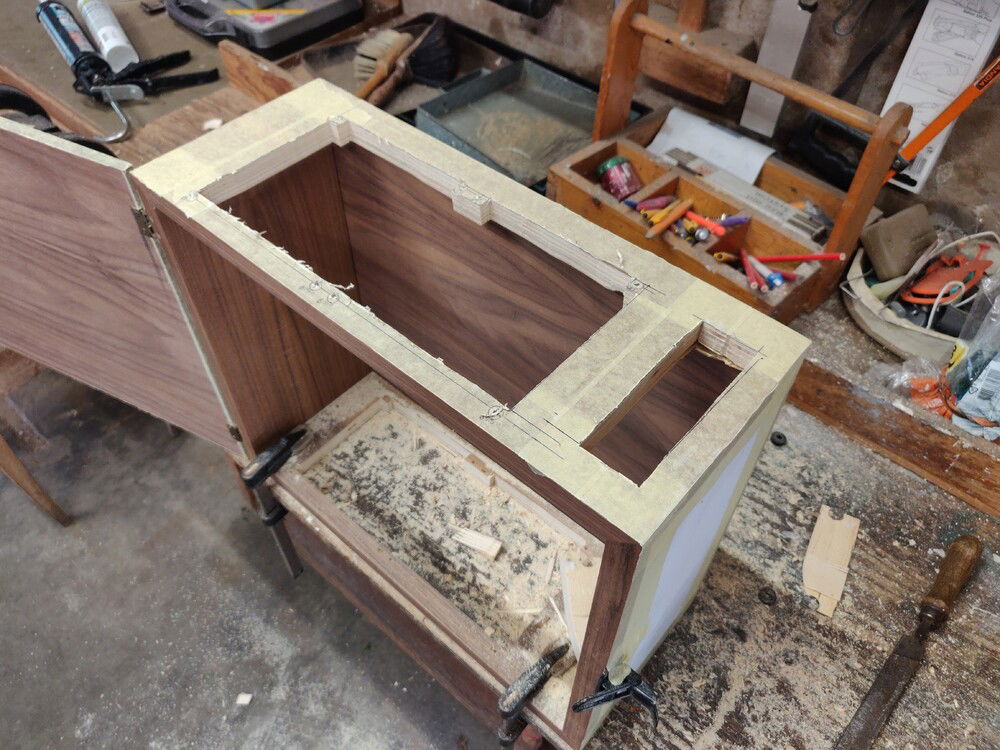

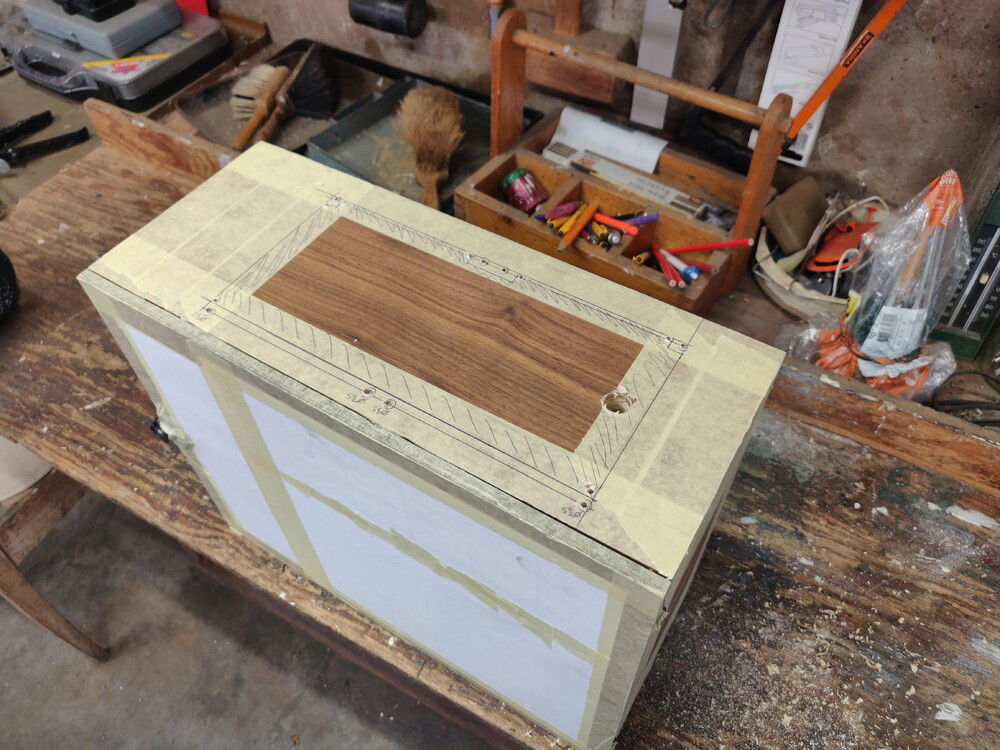

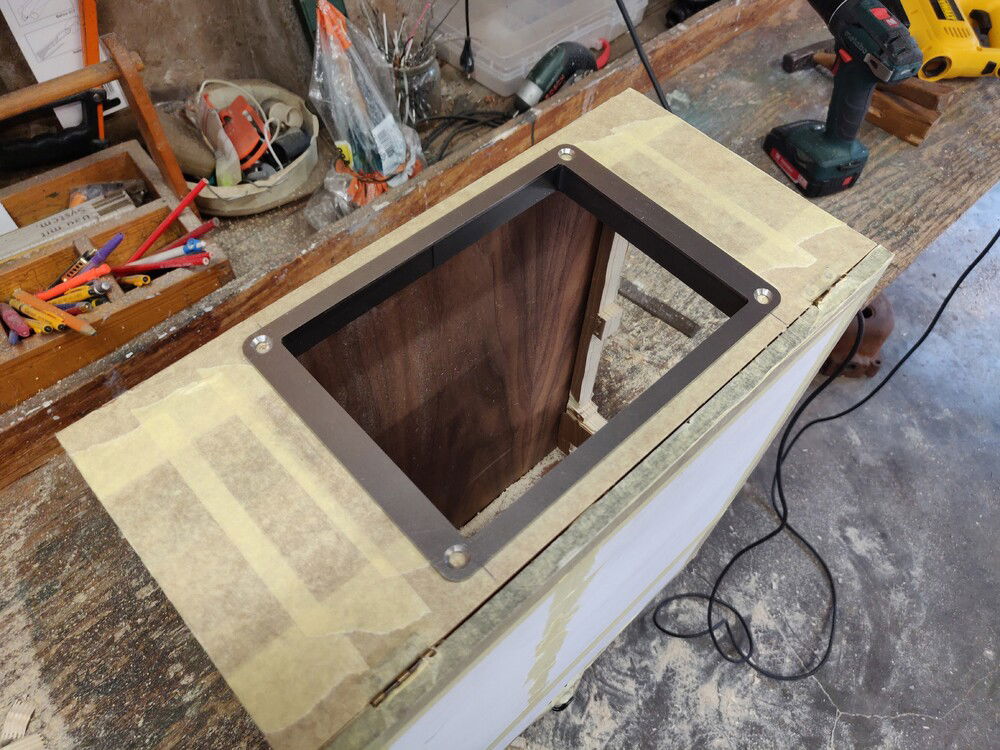

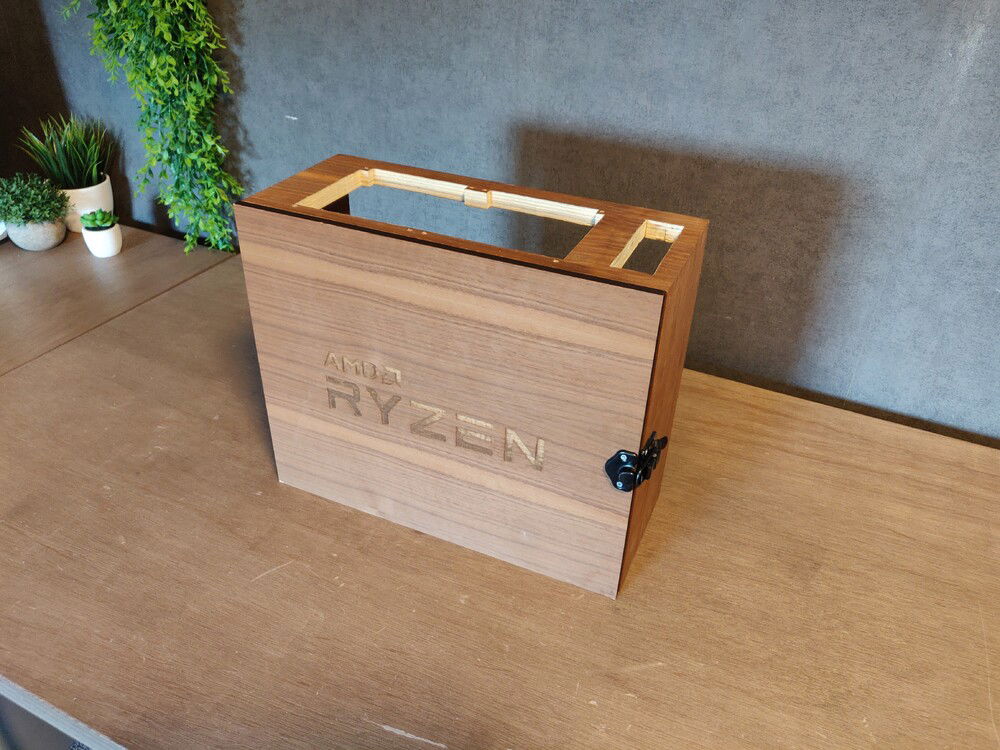

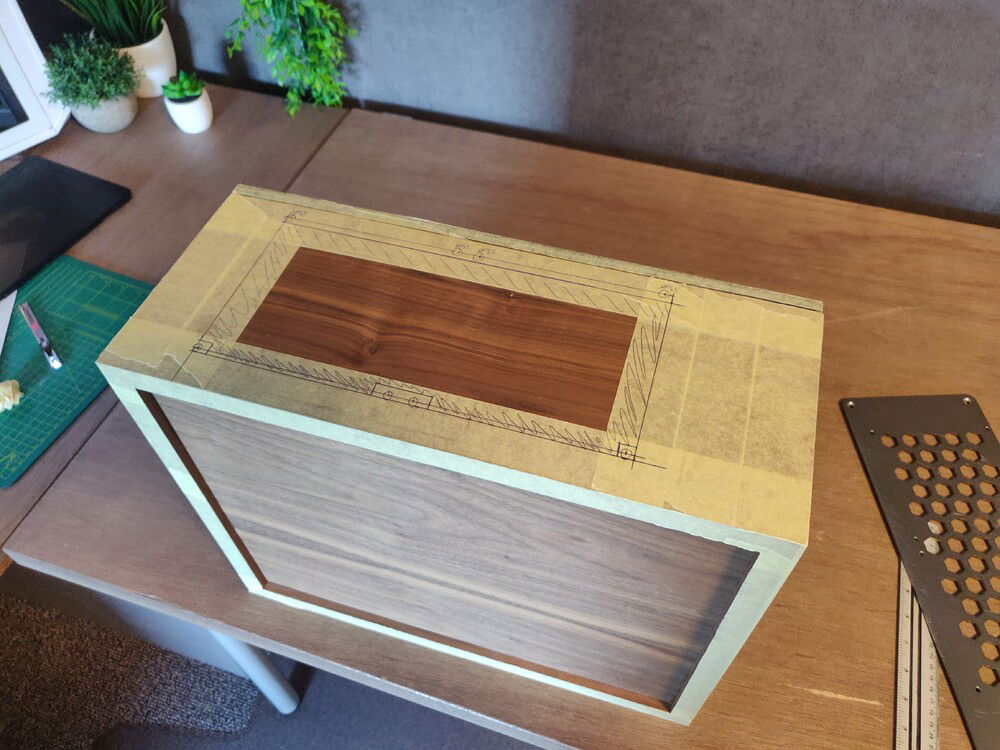

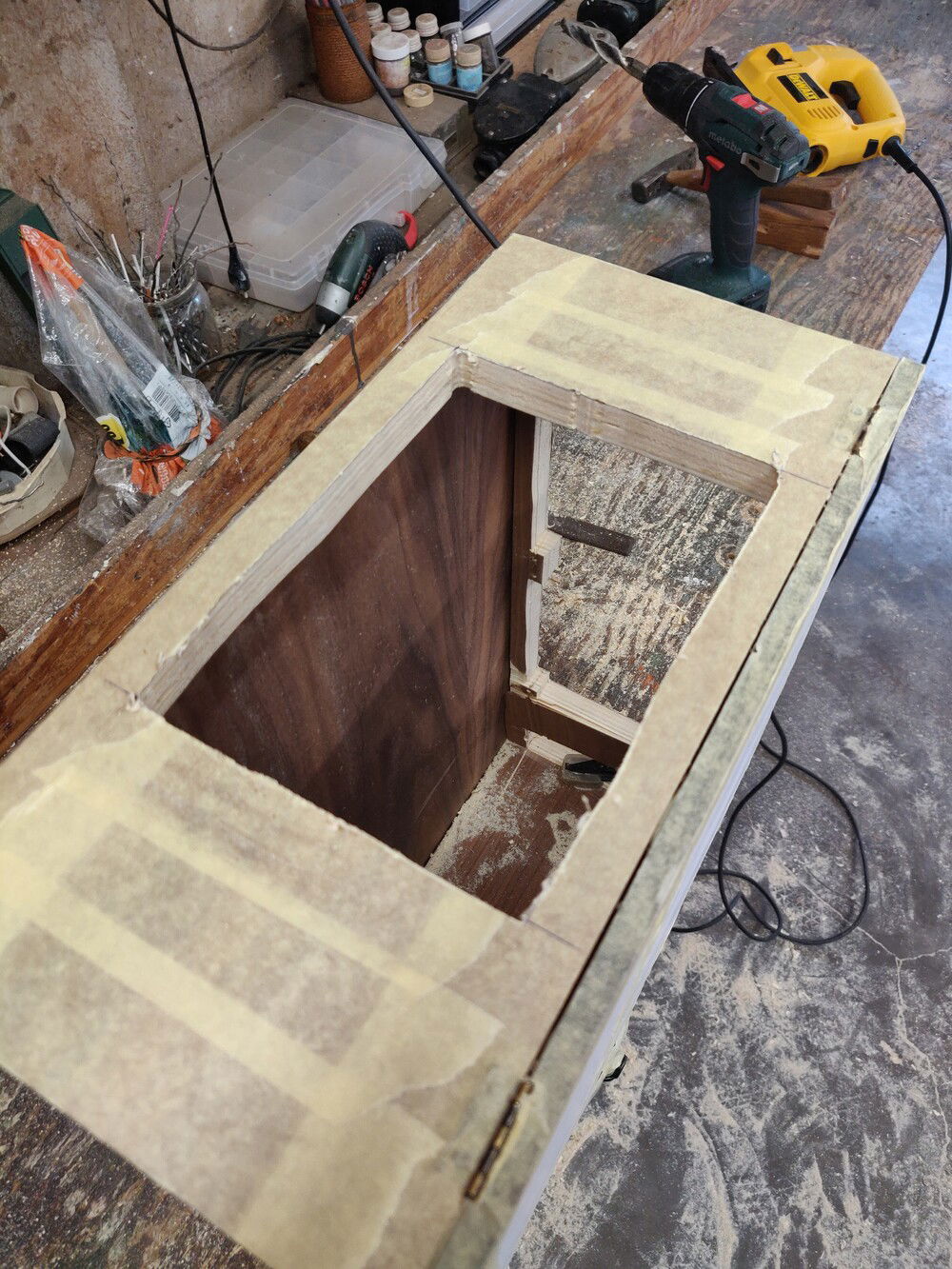

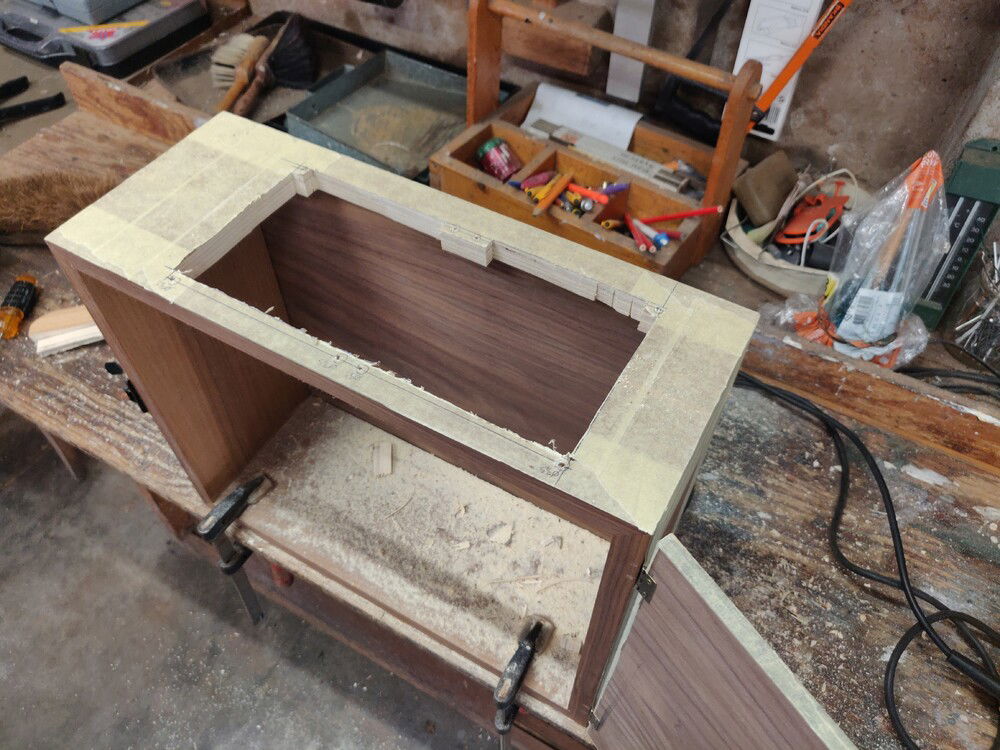

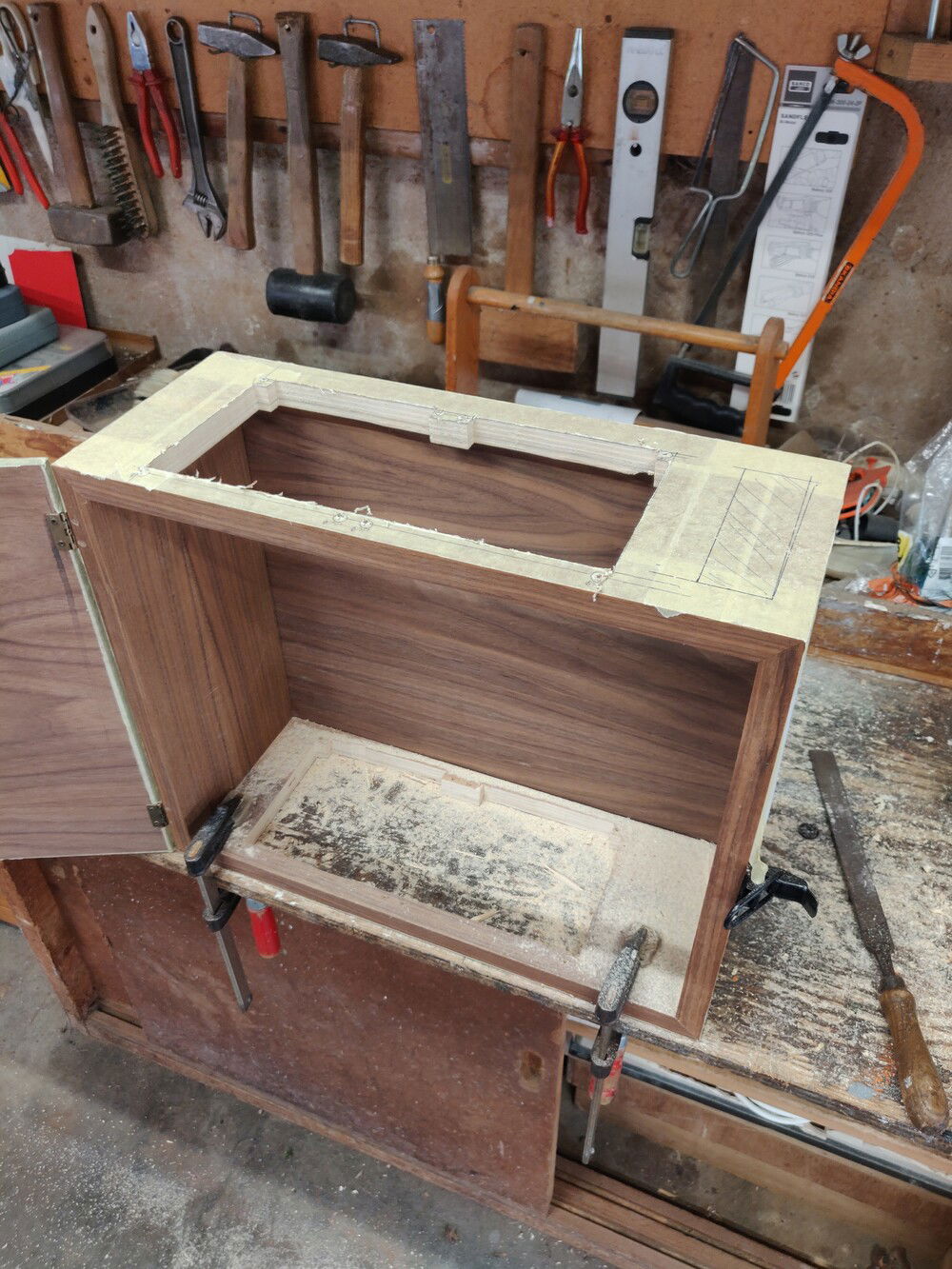

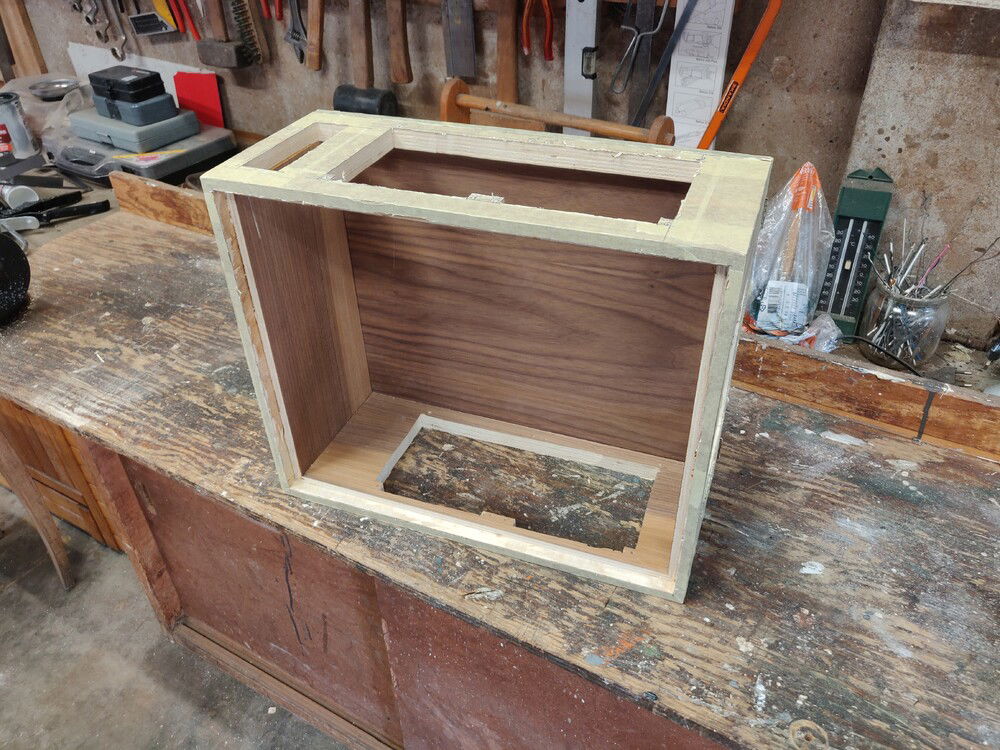

Time for the scarry bit, marking the box, do double check with the sheetmetal and cutting.
Distro and EKWB goodies

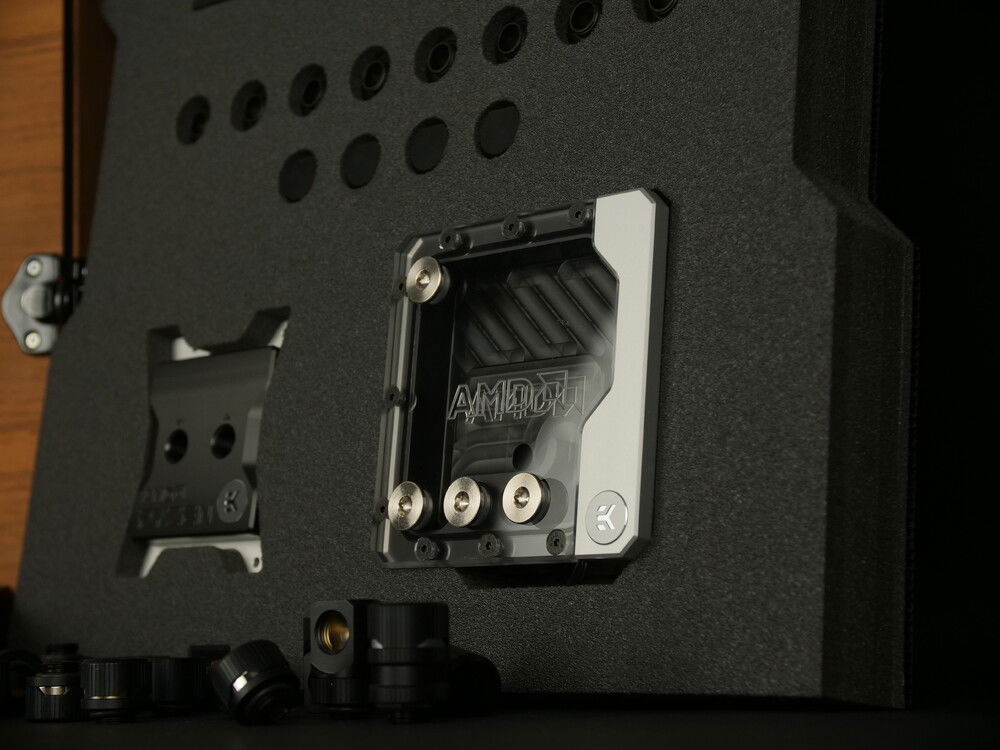

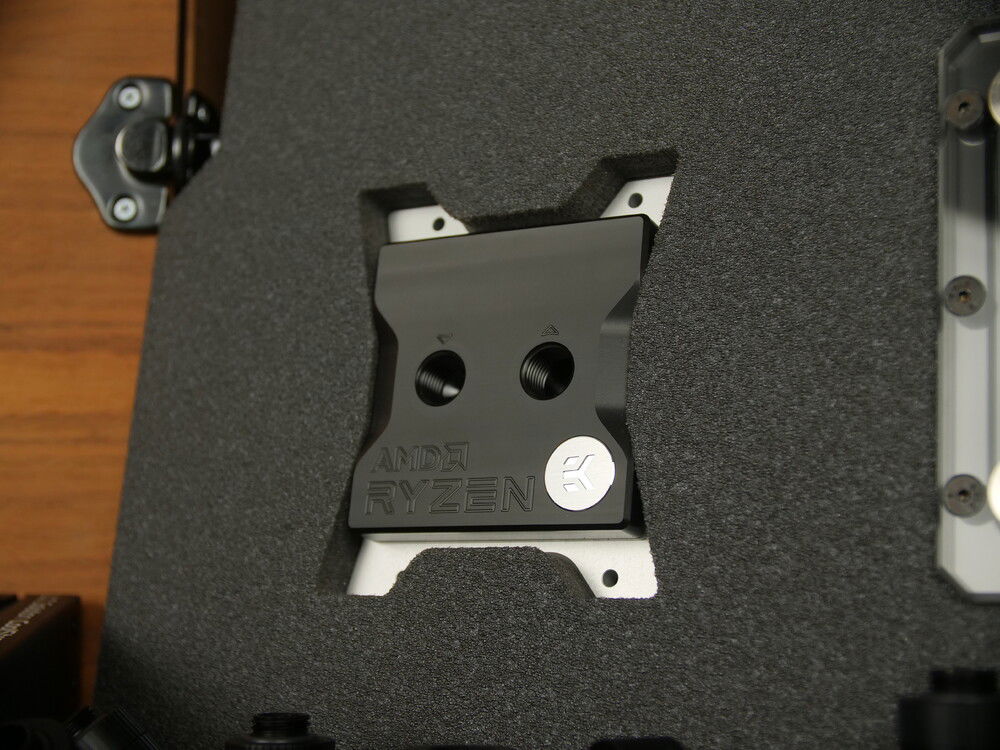

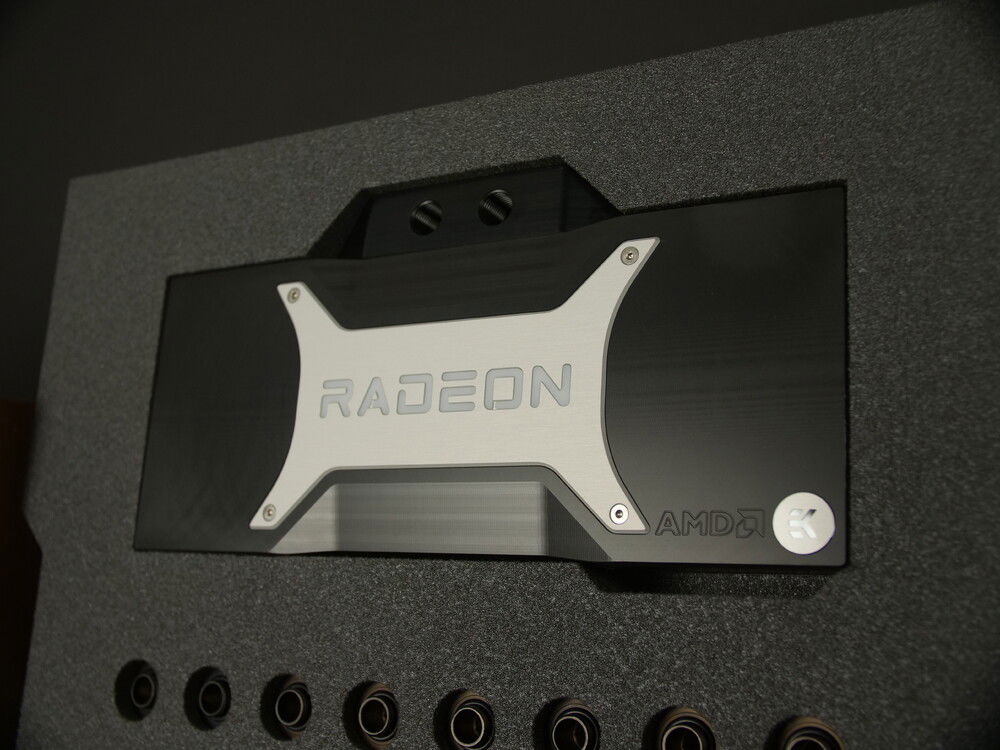

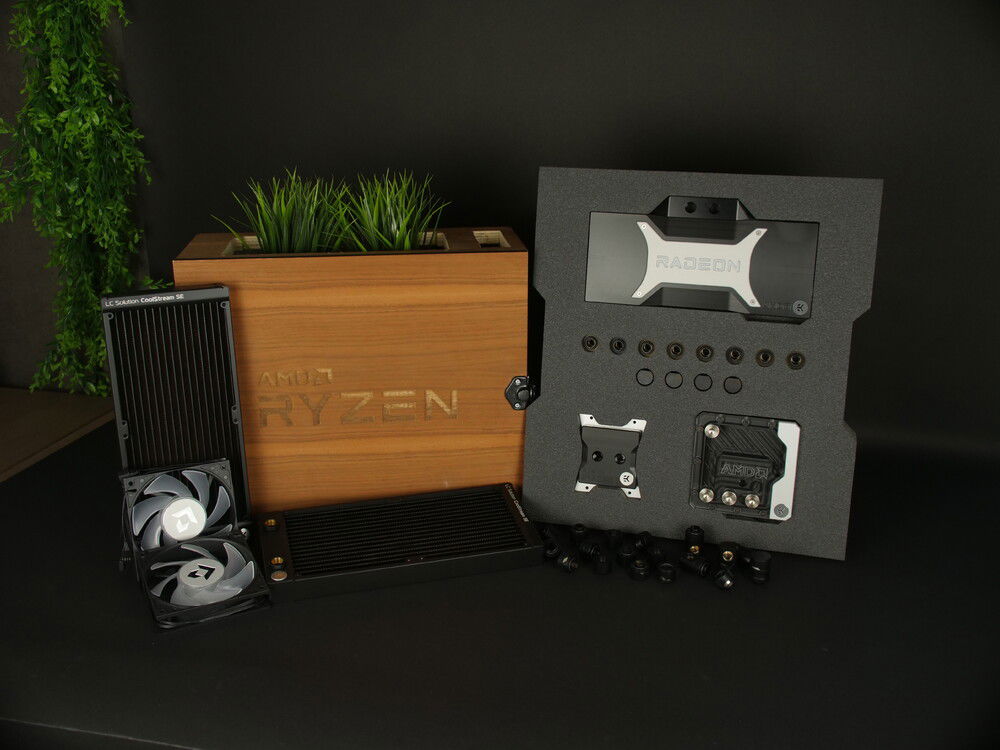

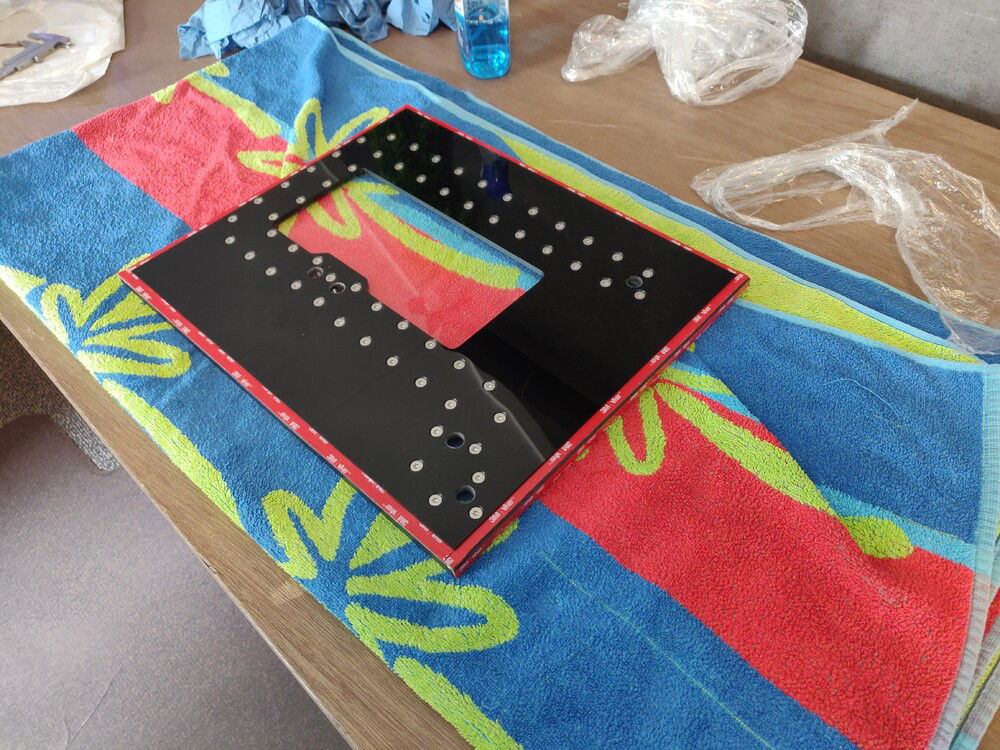

Good start of the vacation when the custom distro arrived. Big thanks goes out to TheDutchManModifies for helping out getting it made. A week later these goodies from EKWB showed up

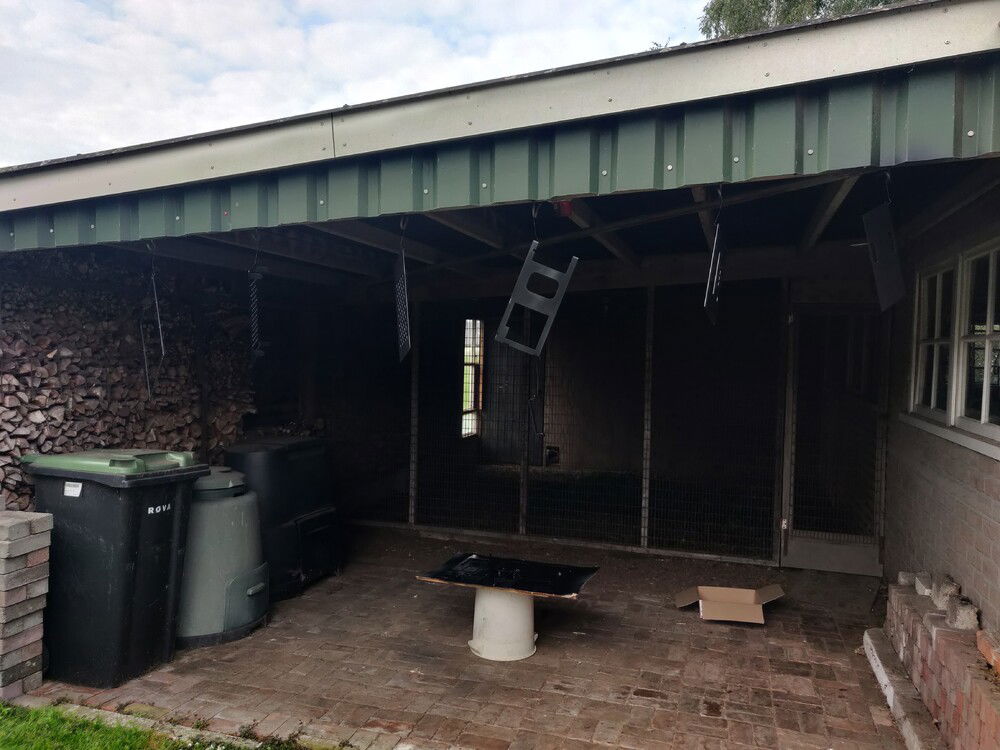

Paint prep and painting

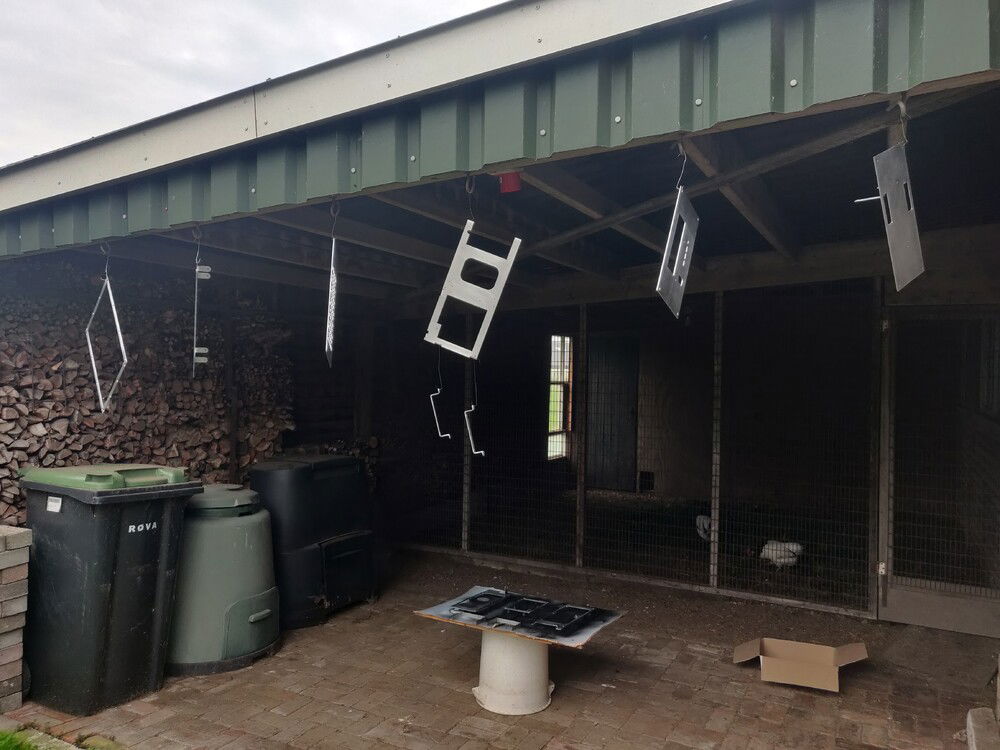

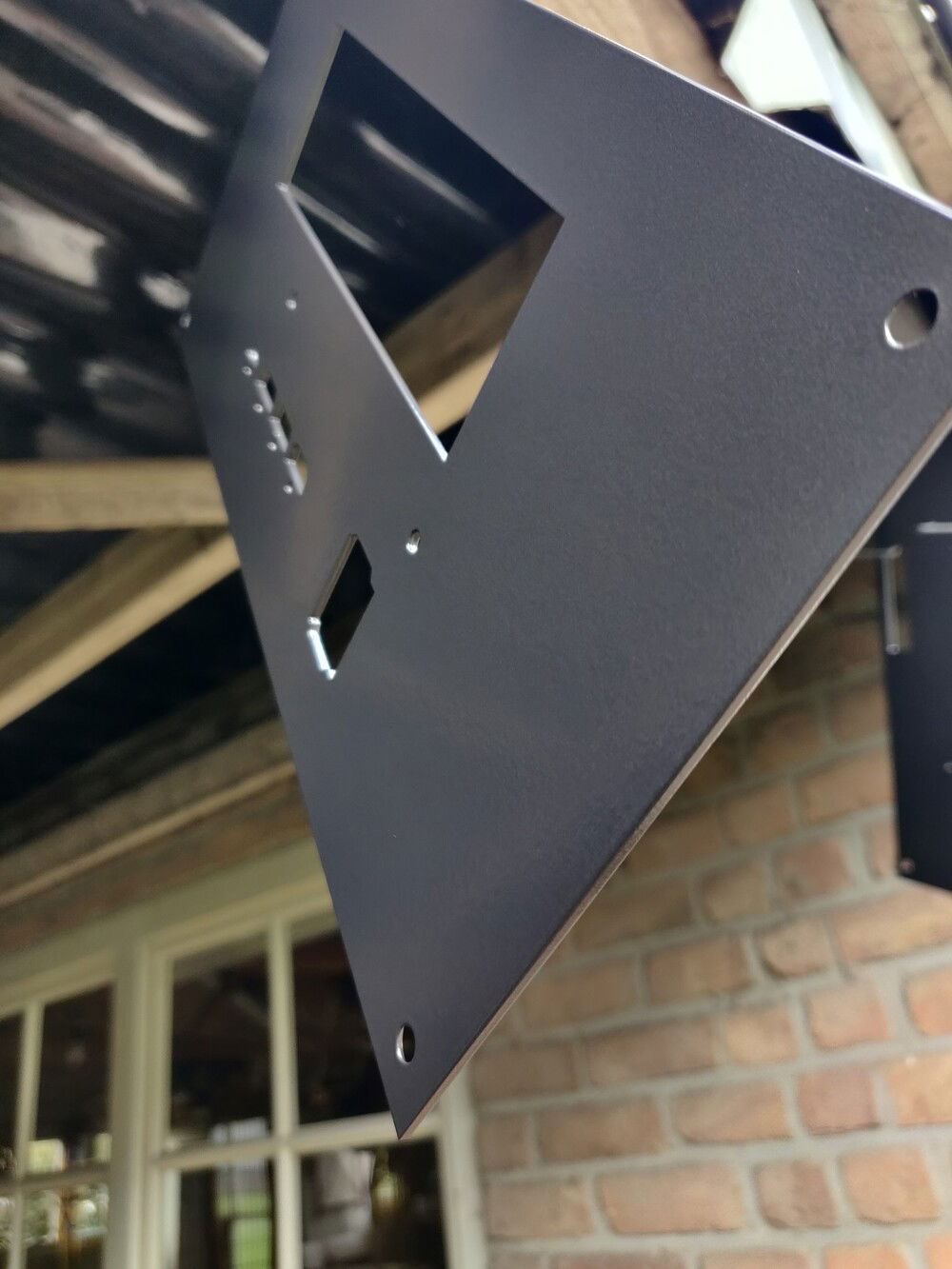

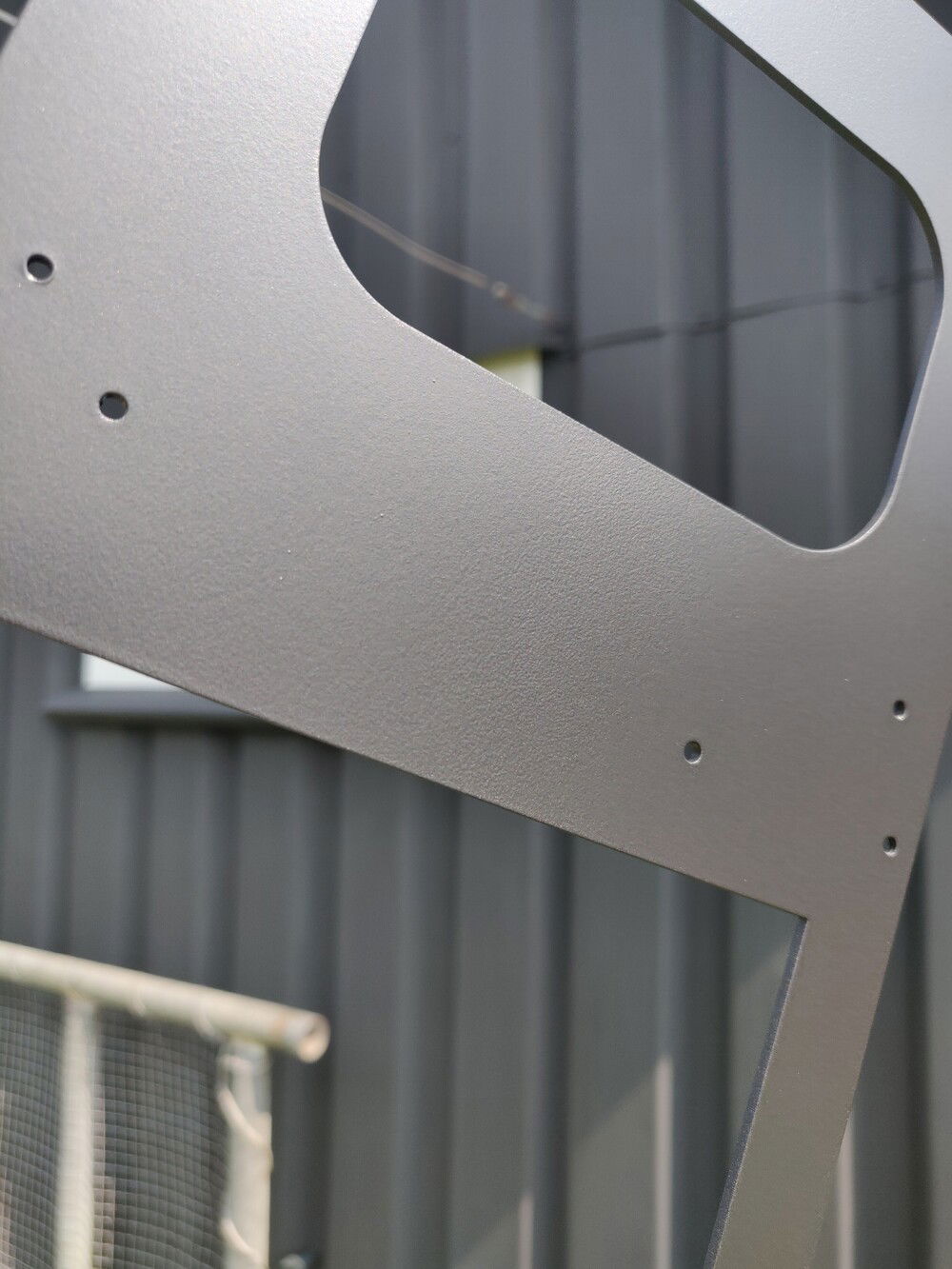

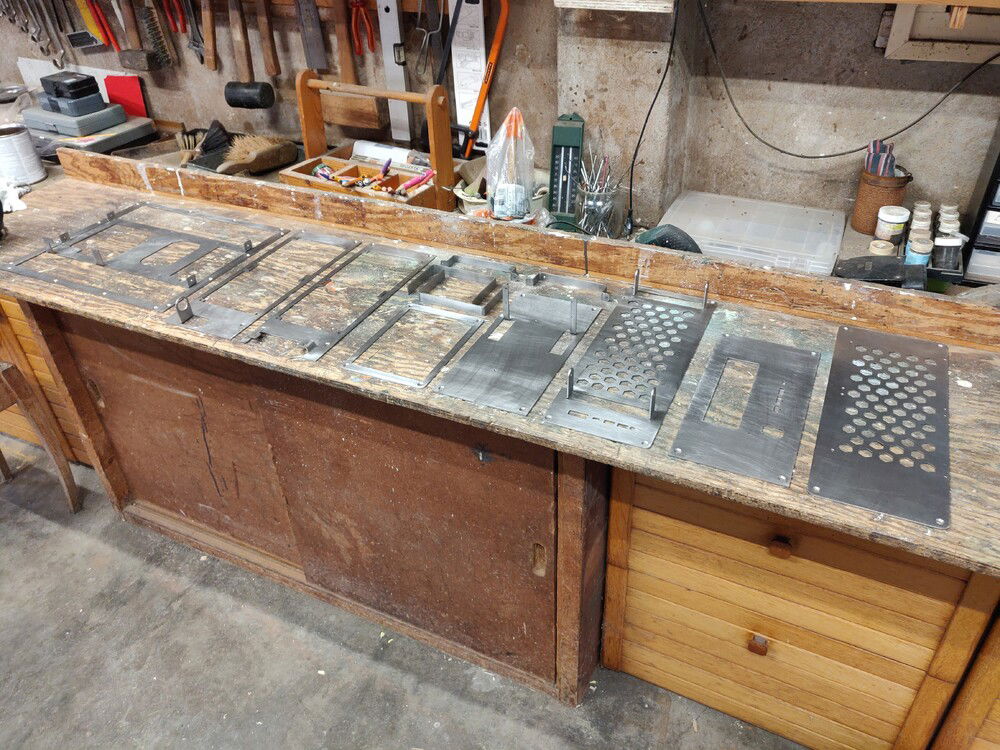

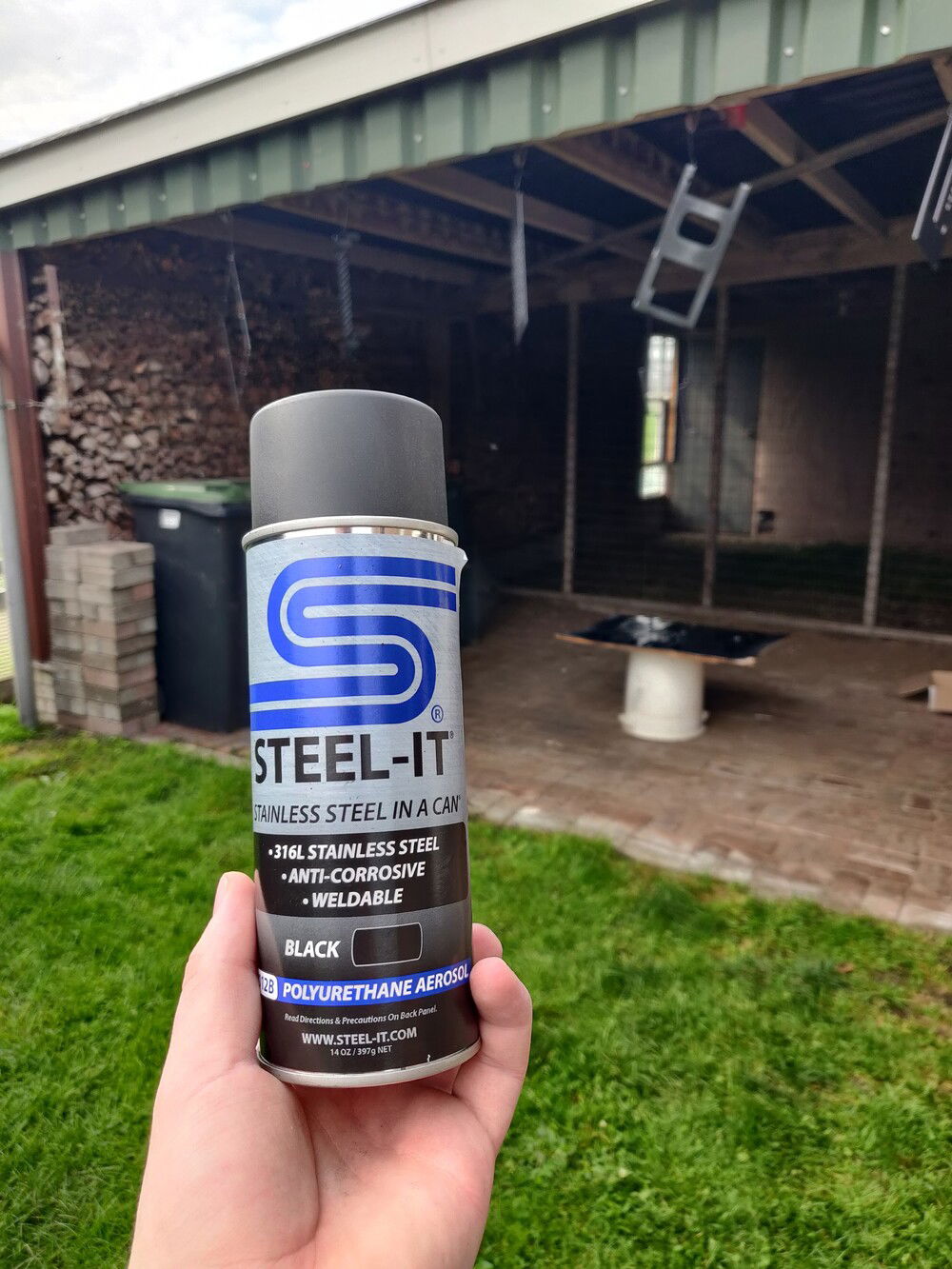

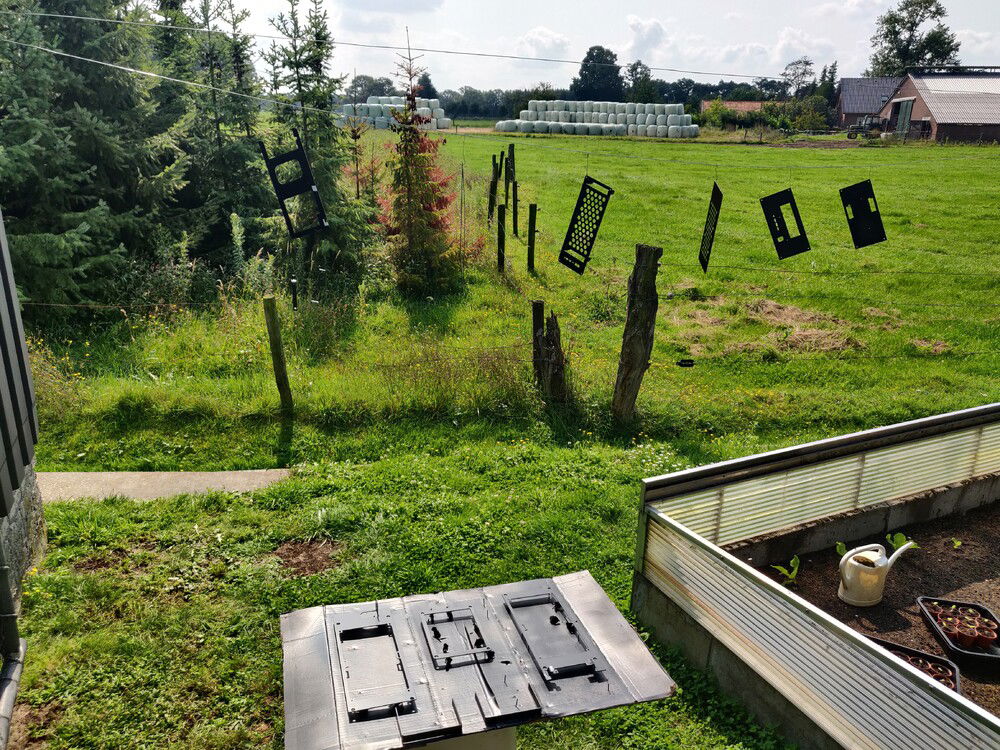

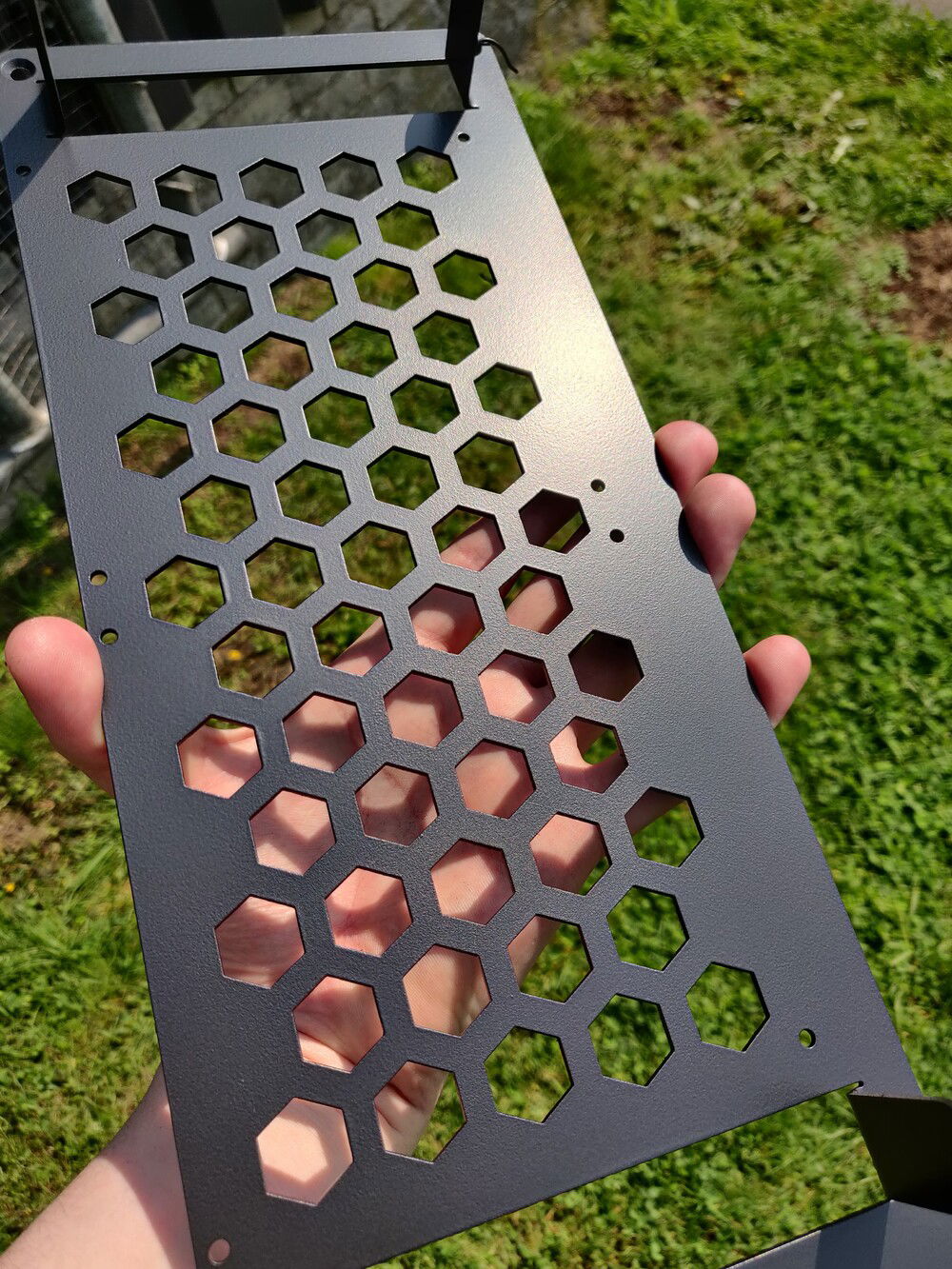

One small tweak needed to sheetmetal for a perfect fit in the box. Sanding all parts to prep them for paint. After cleaning them painting with SteelIt and let them dry in the sun. Look at this finish :o

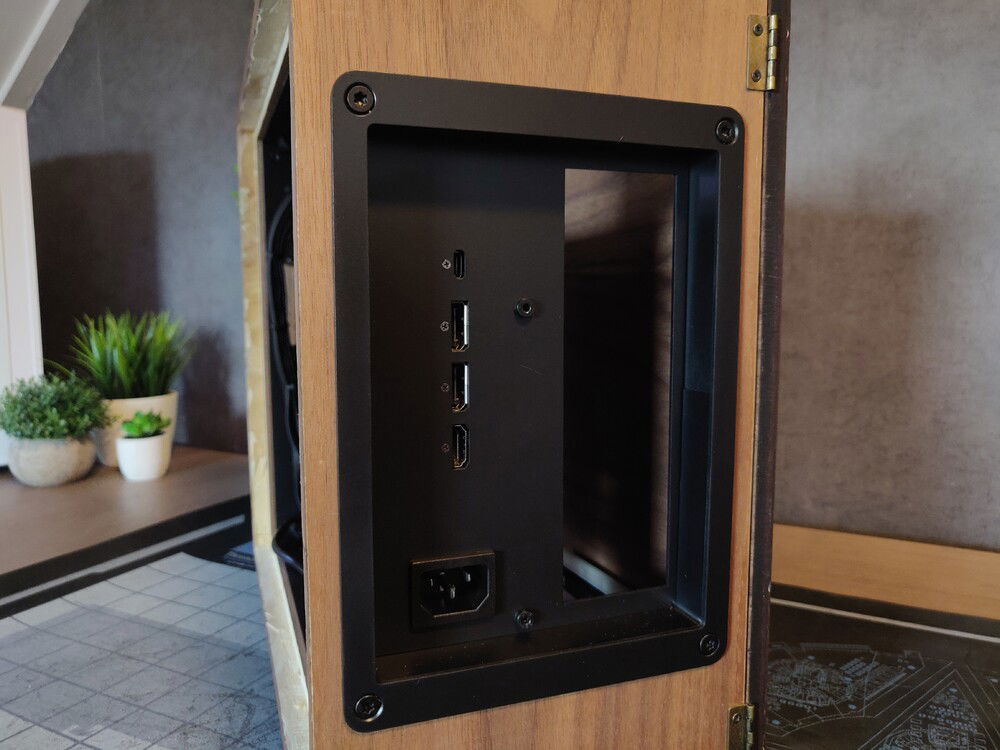

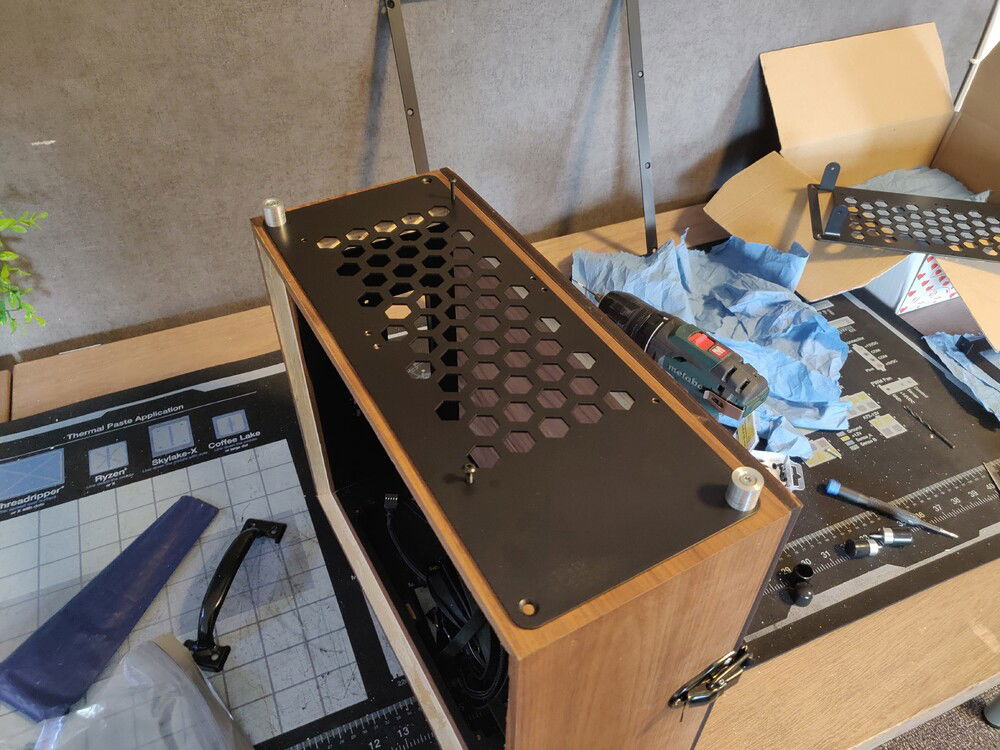

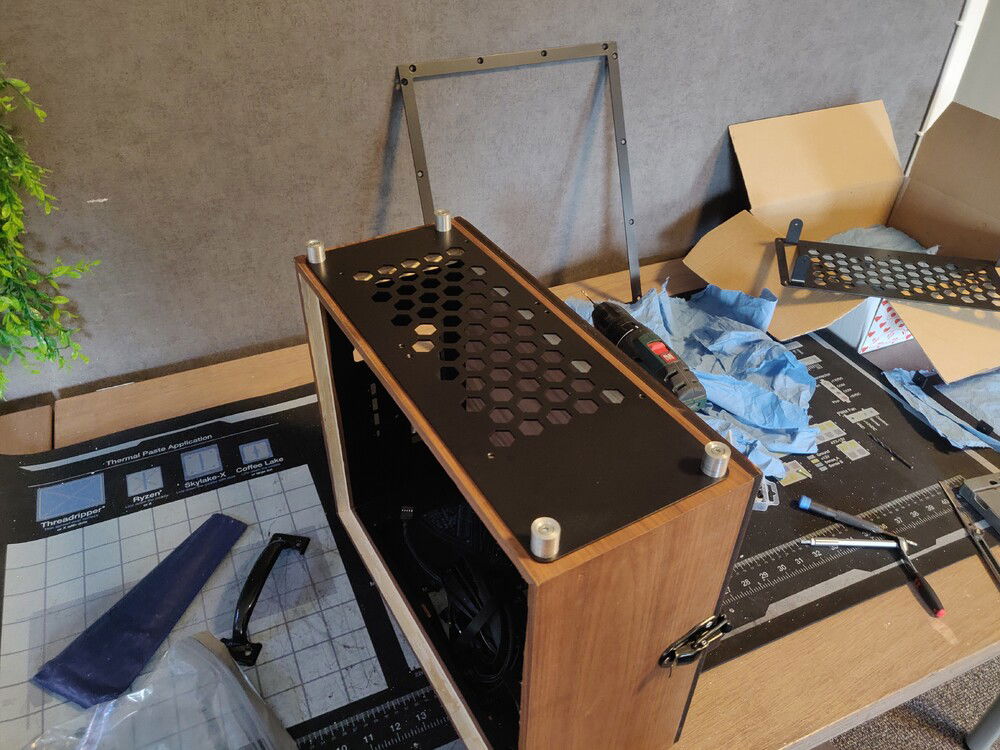

Sheet metal frame assembly

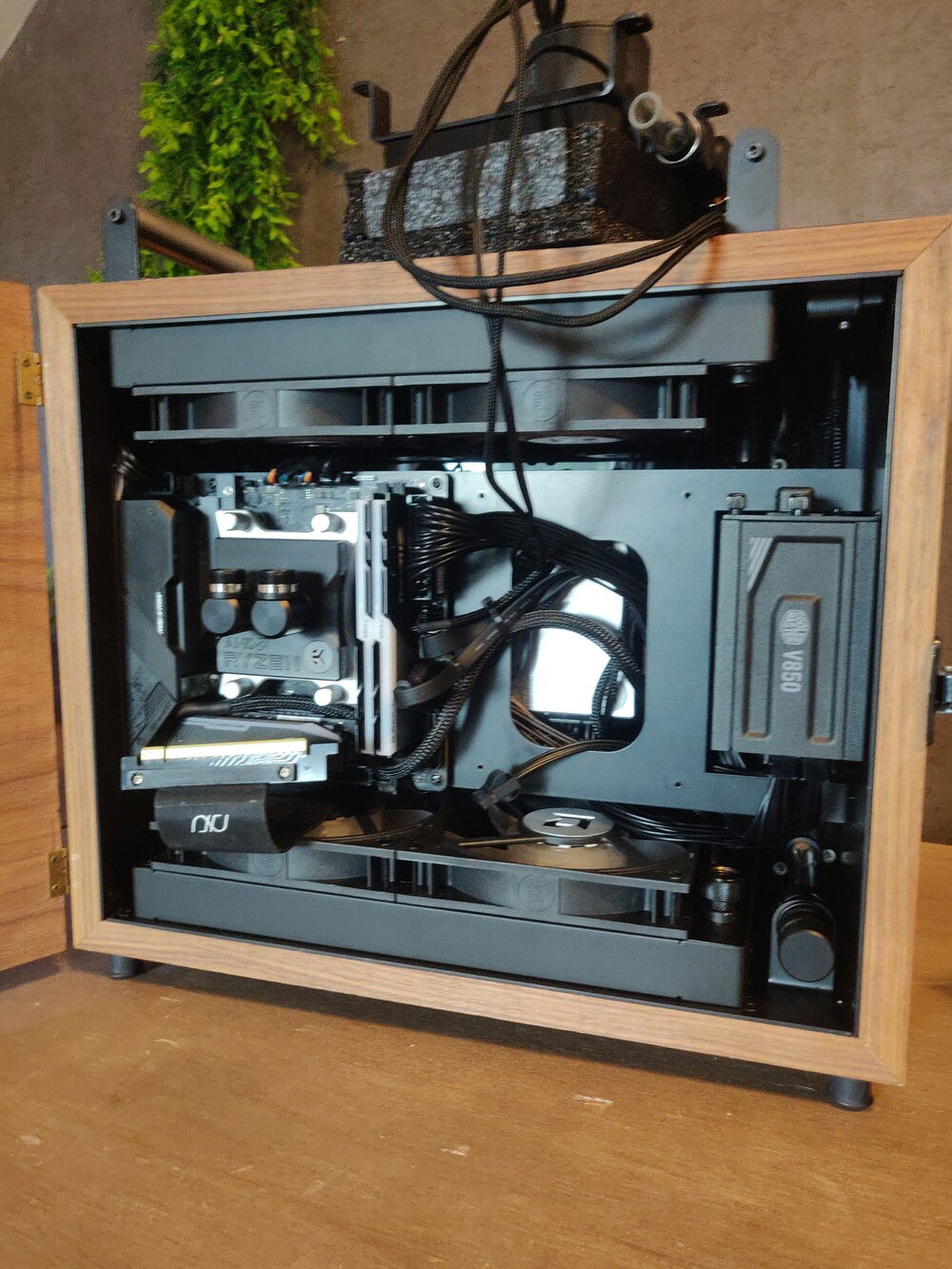

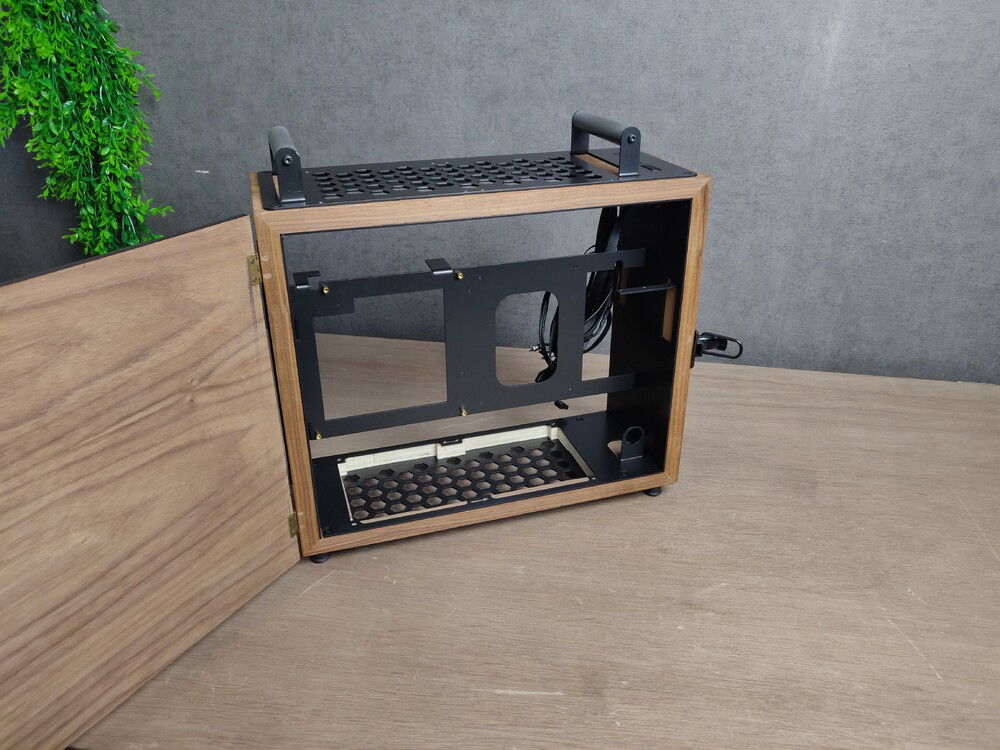

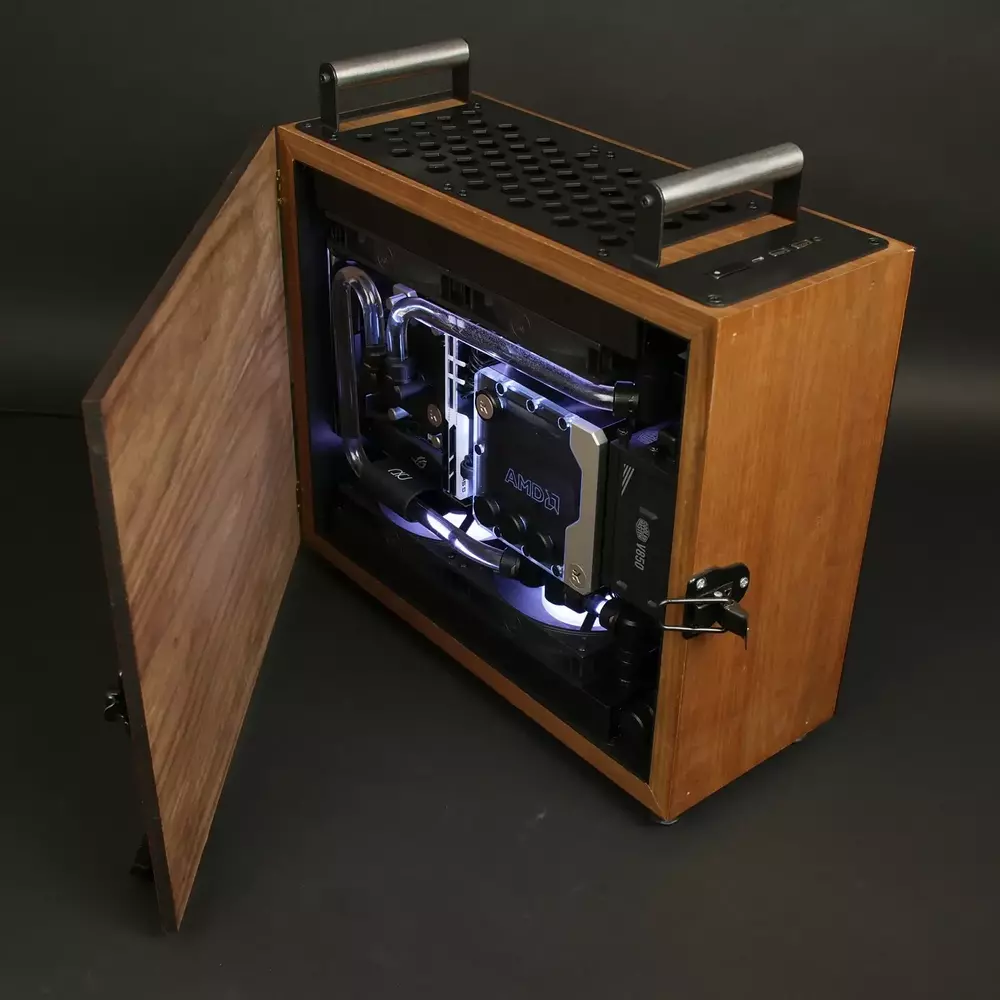

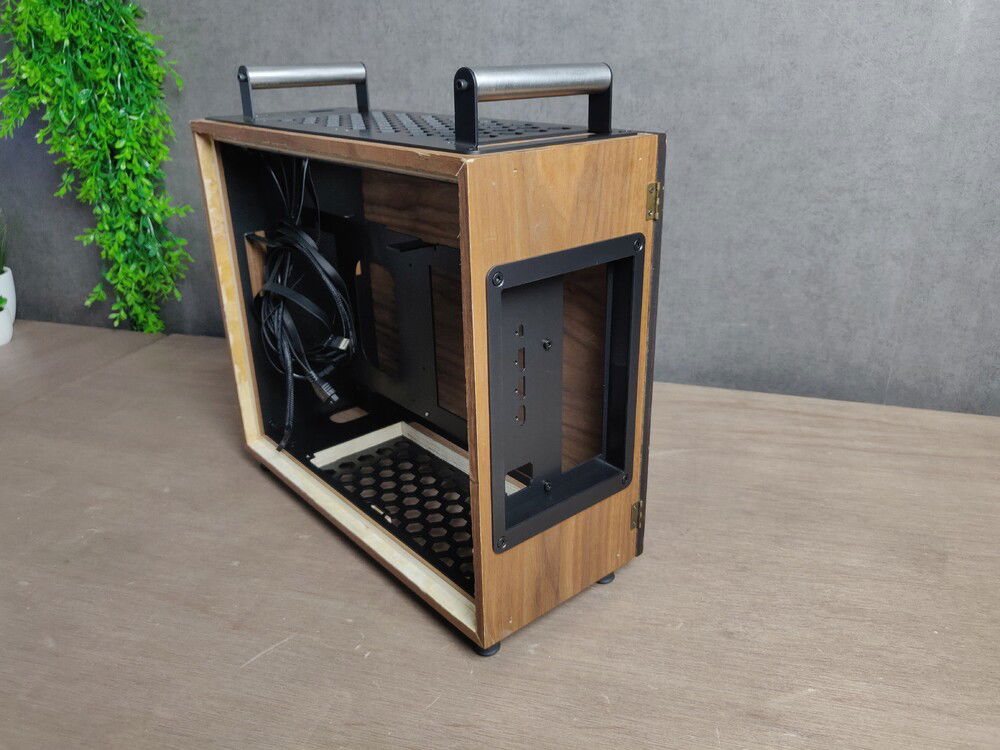

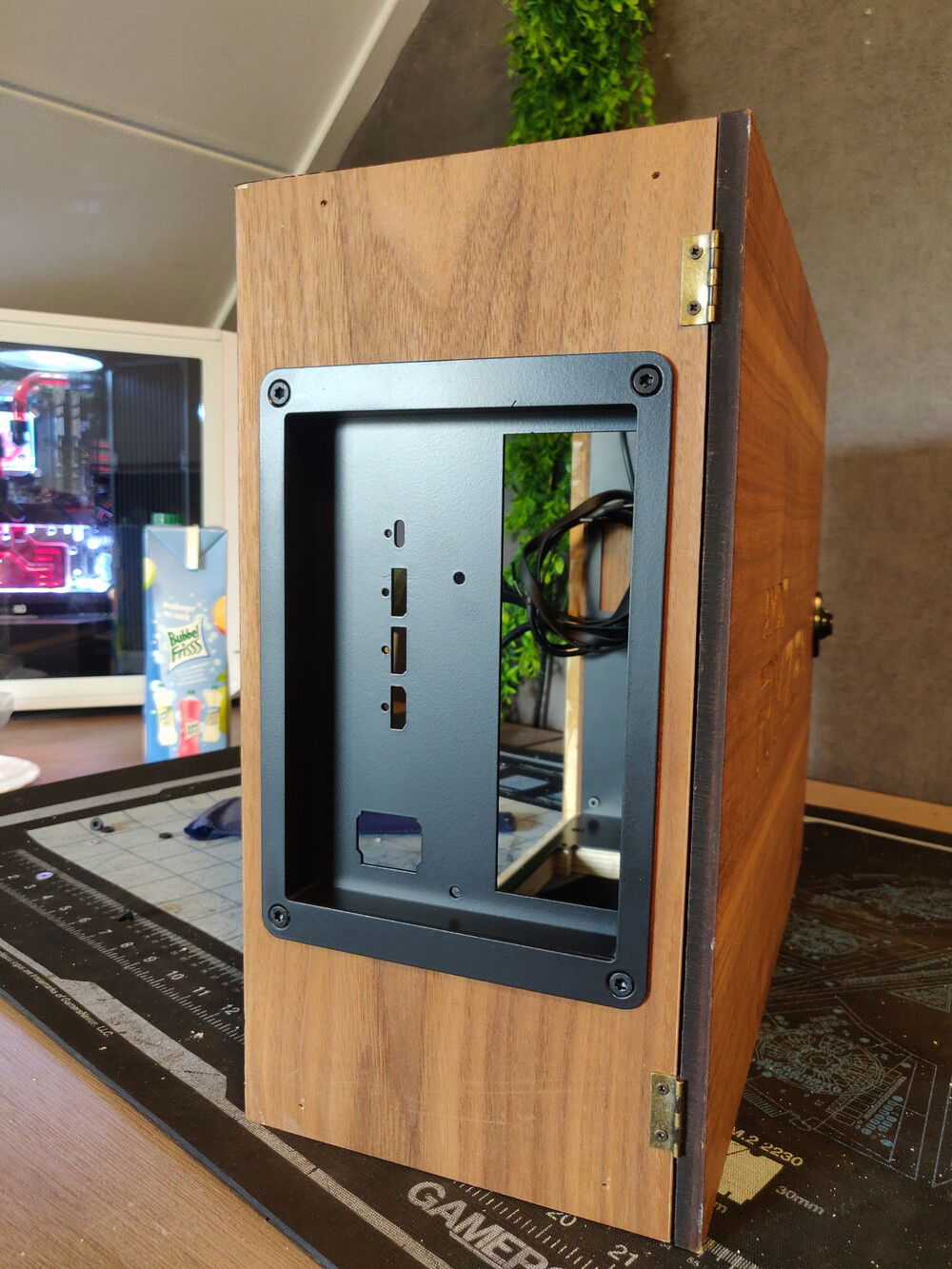

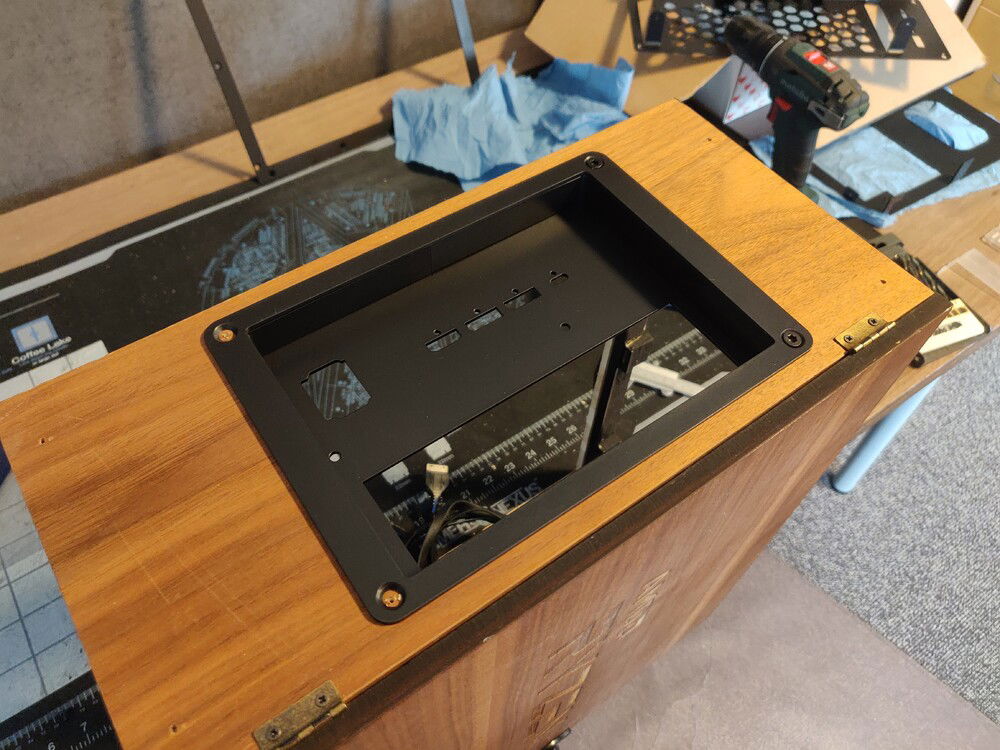

After painting it was time to assemble the sheet metal frame in the box.

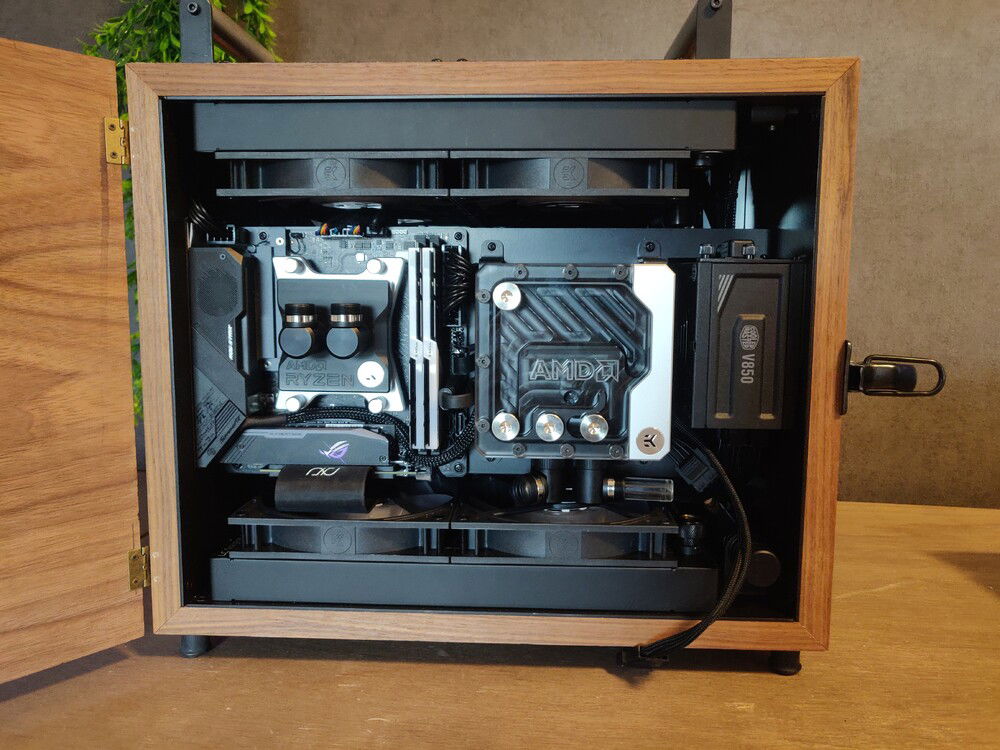

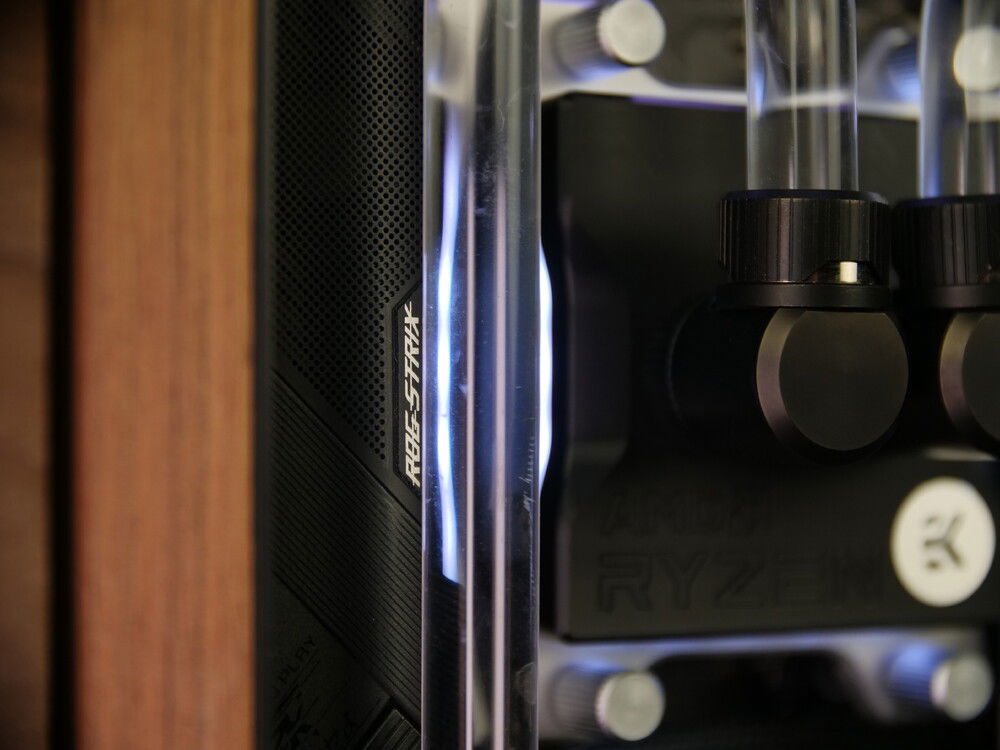

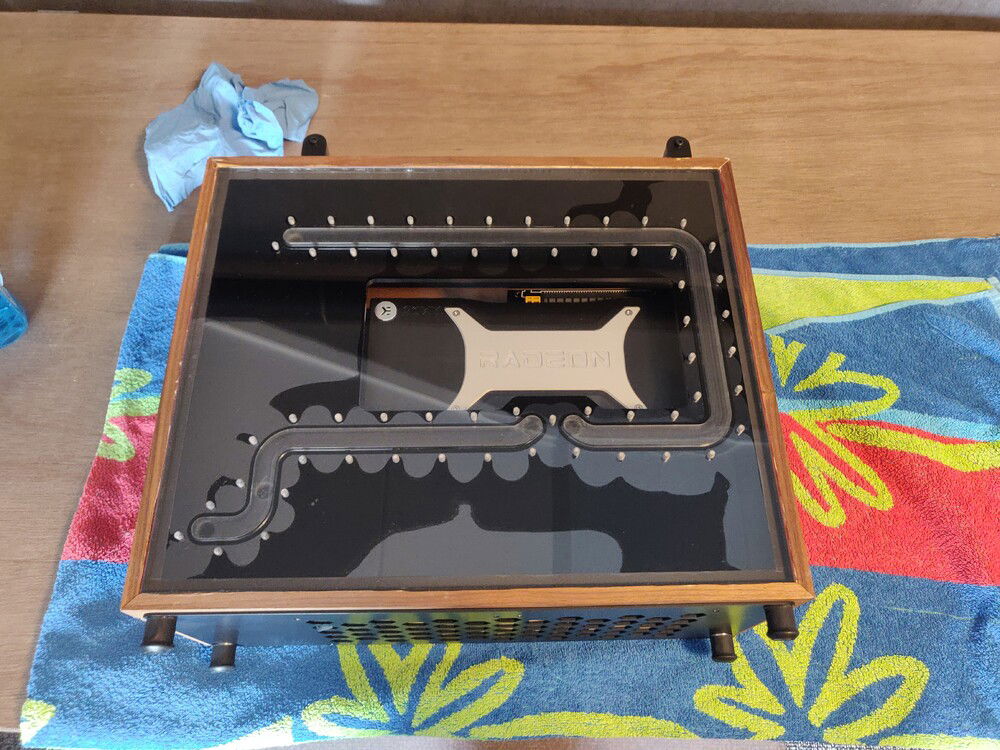

GPU block and distro installation

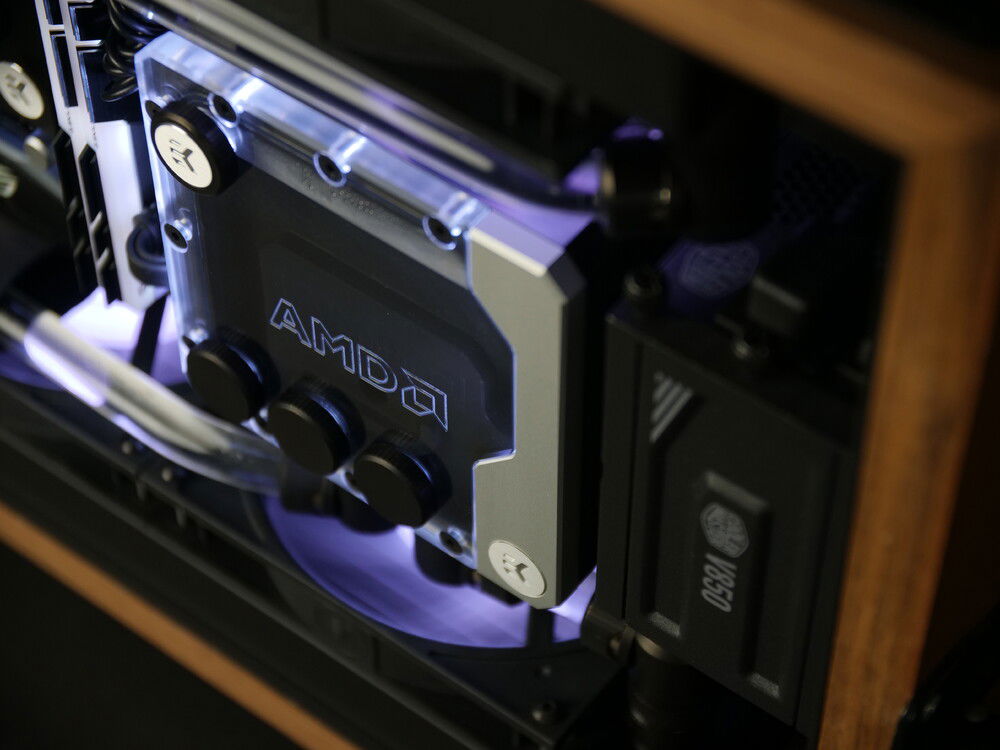

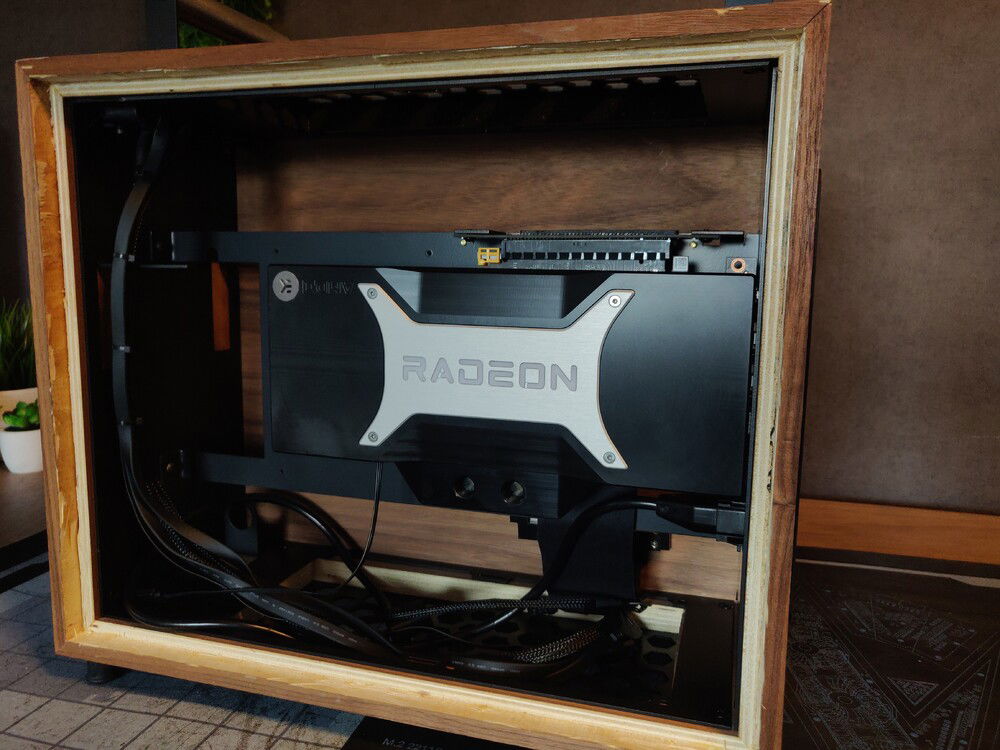

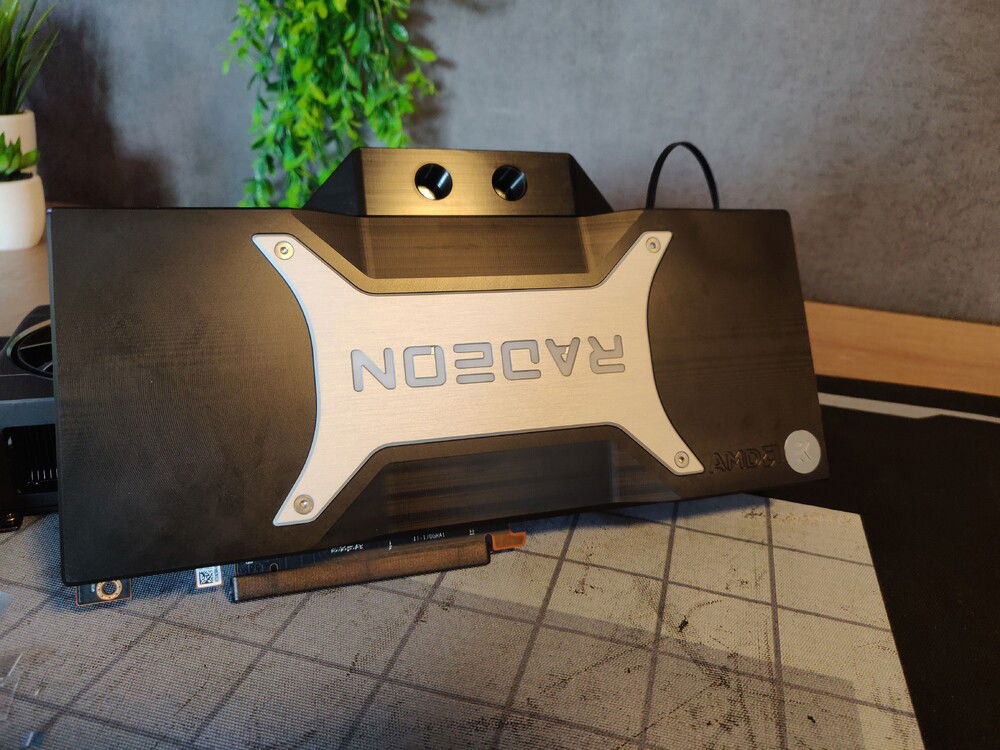

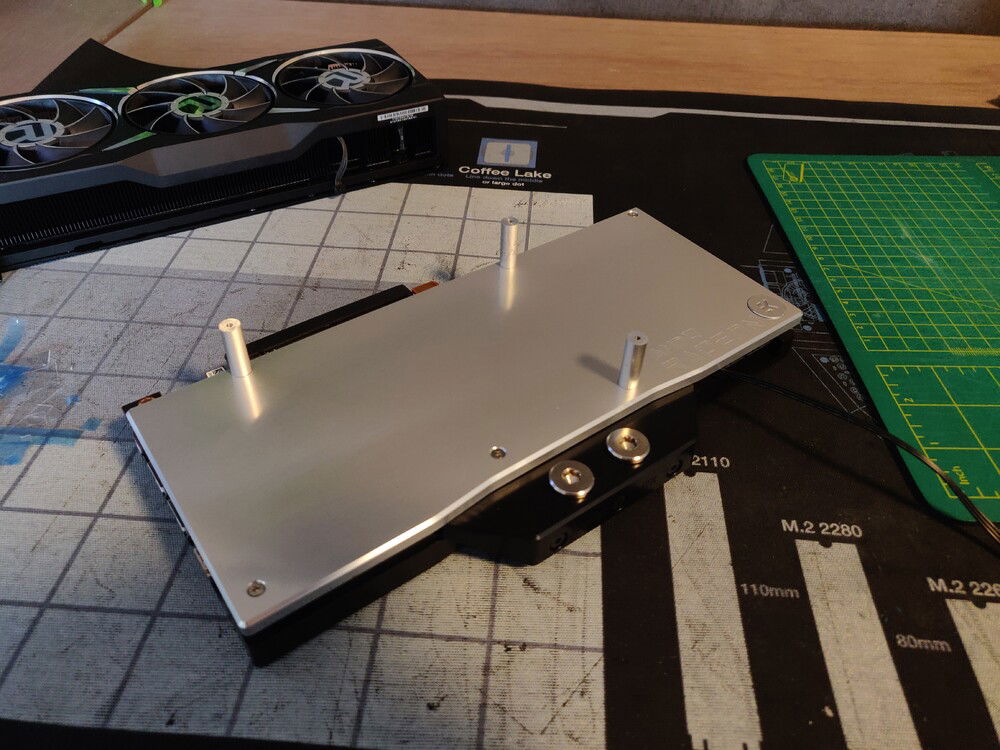

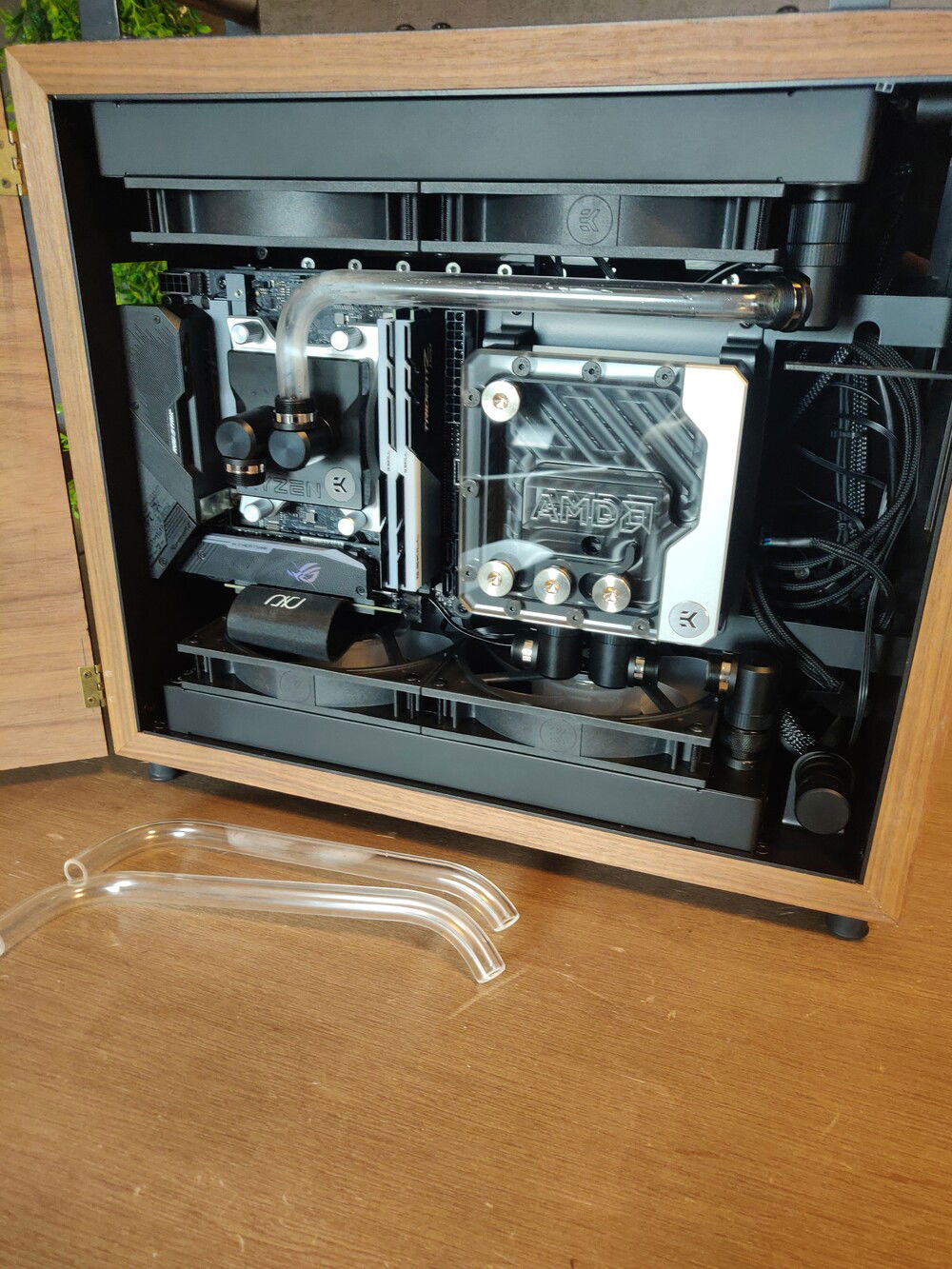

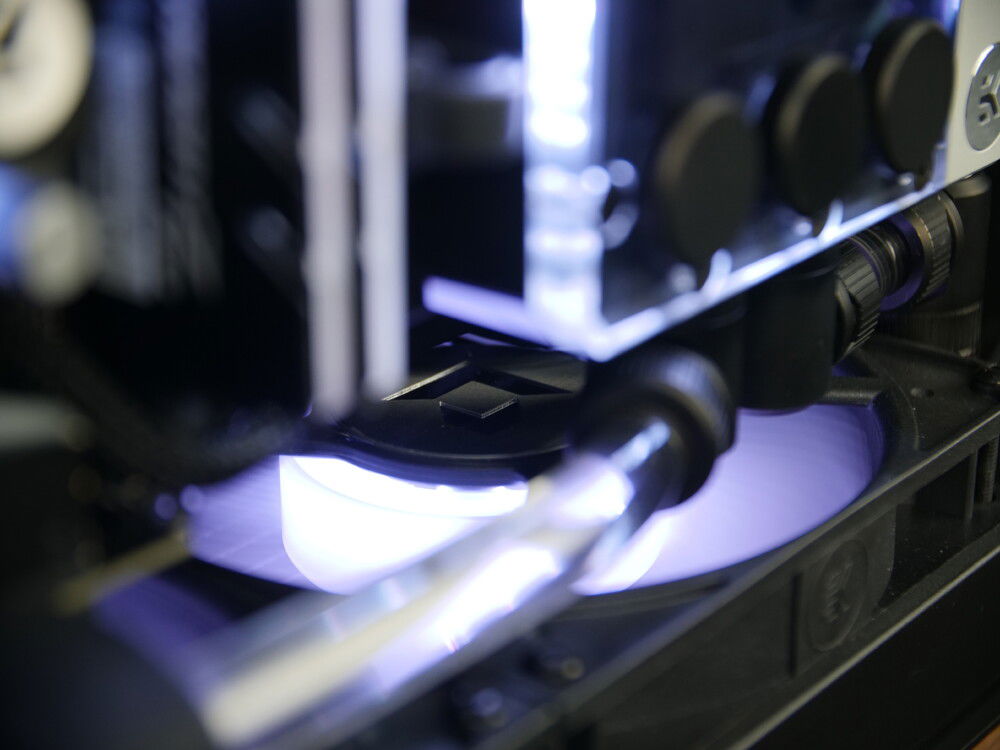

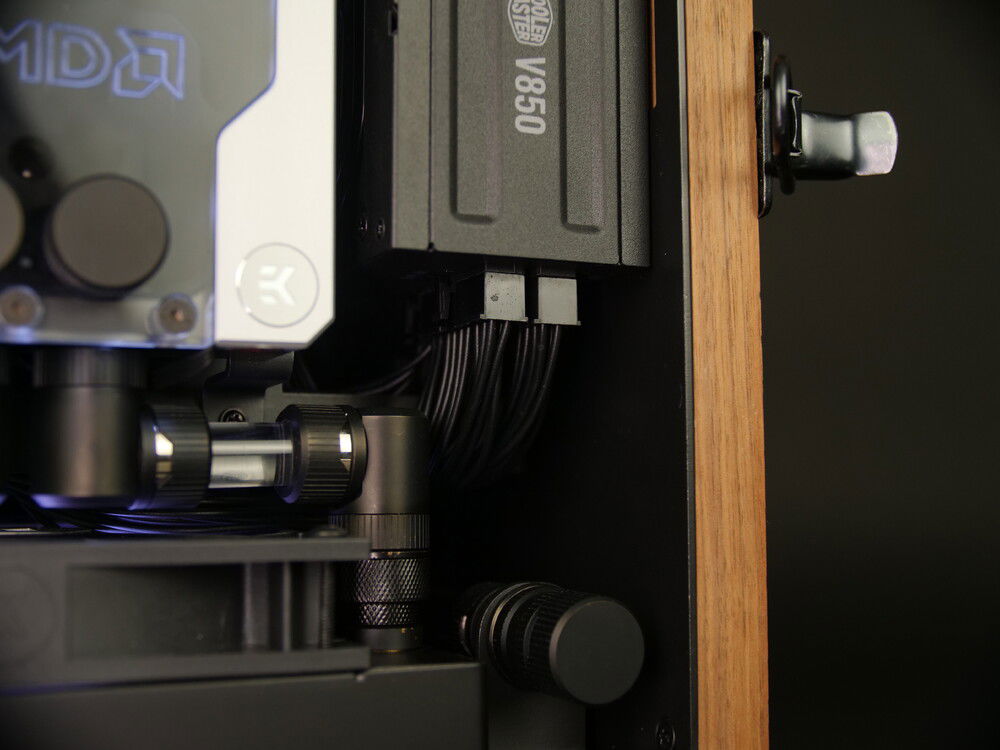

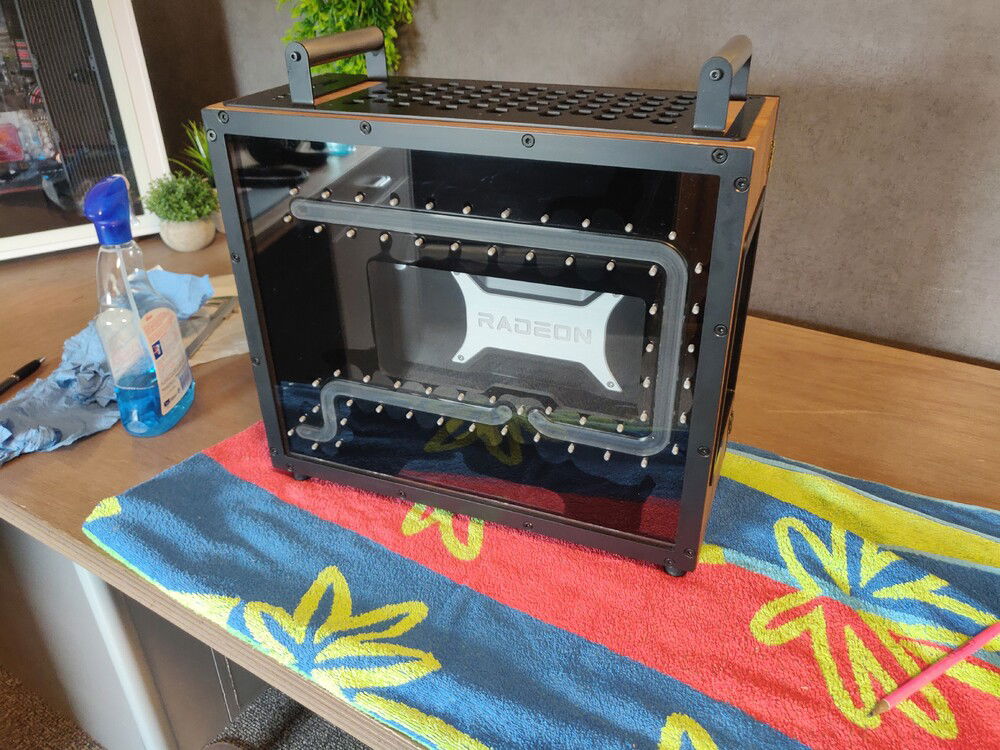

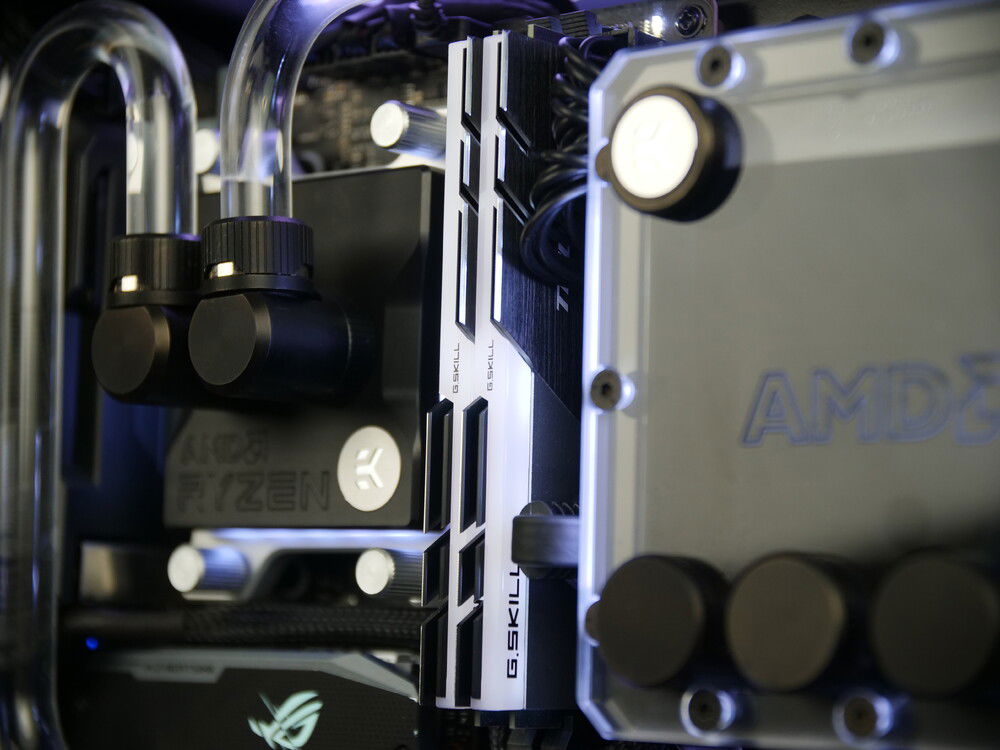

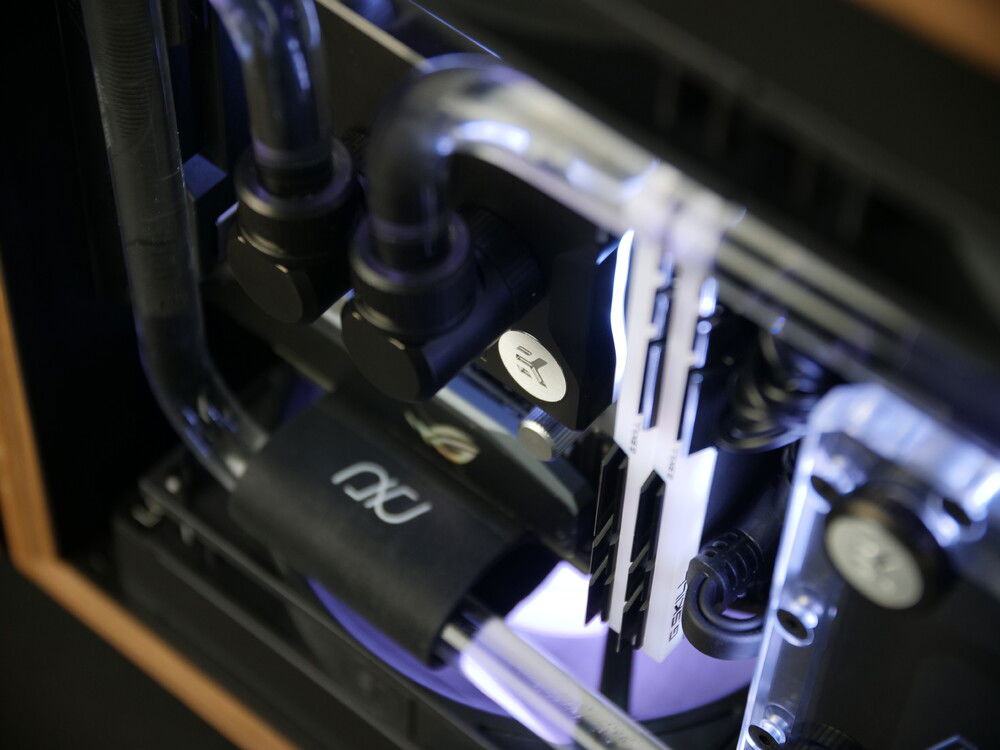

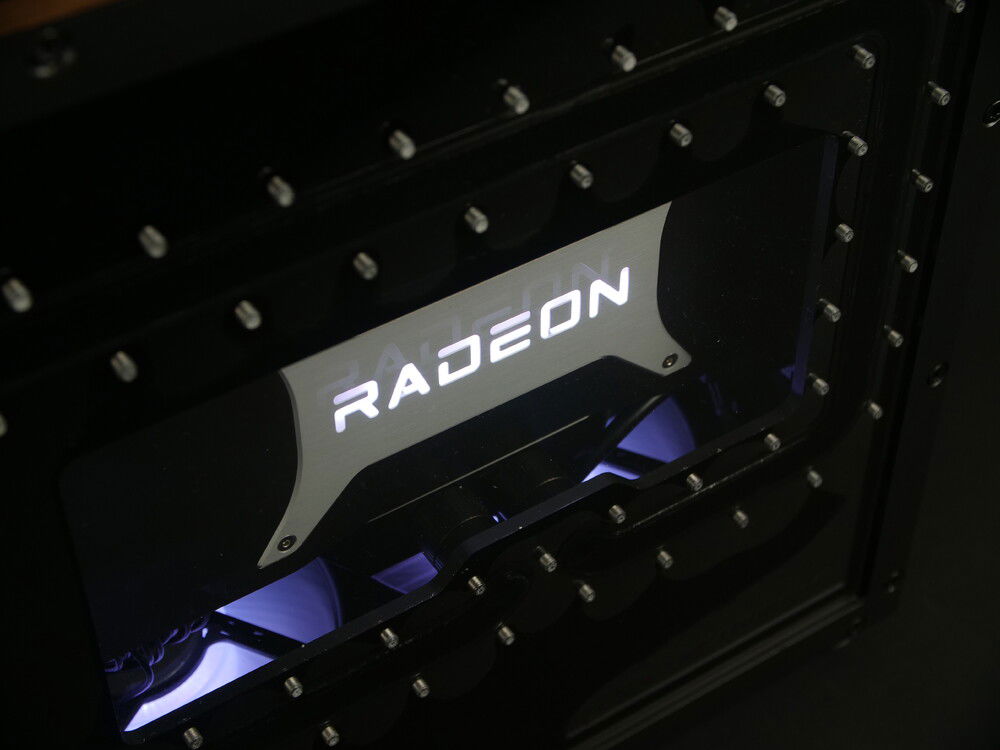

GPU waterblock installation with custom spacers + distro installation in wooden box.
