Endgame

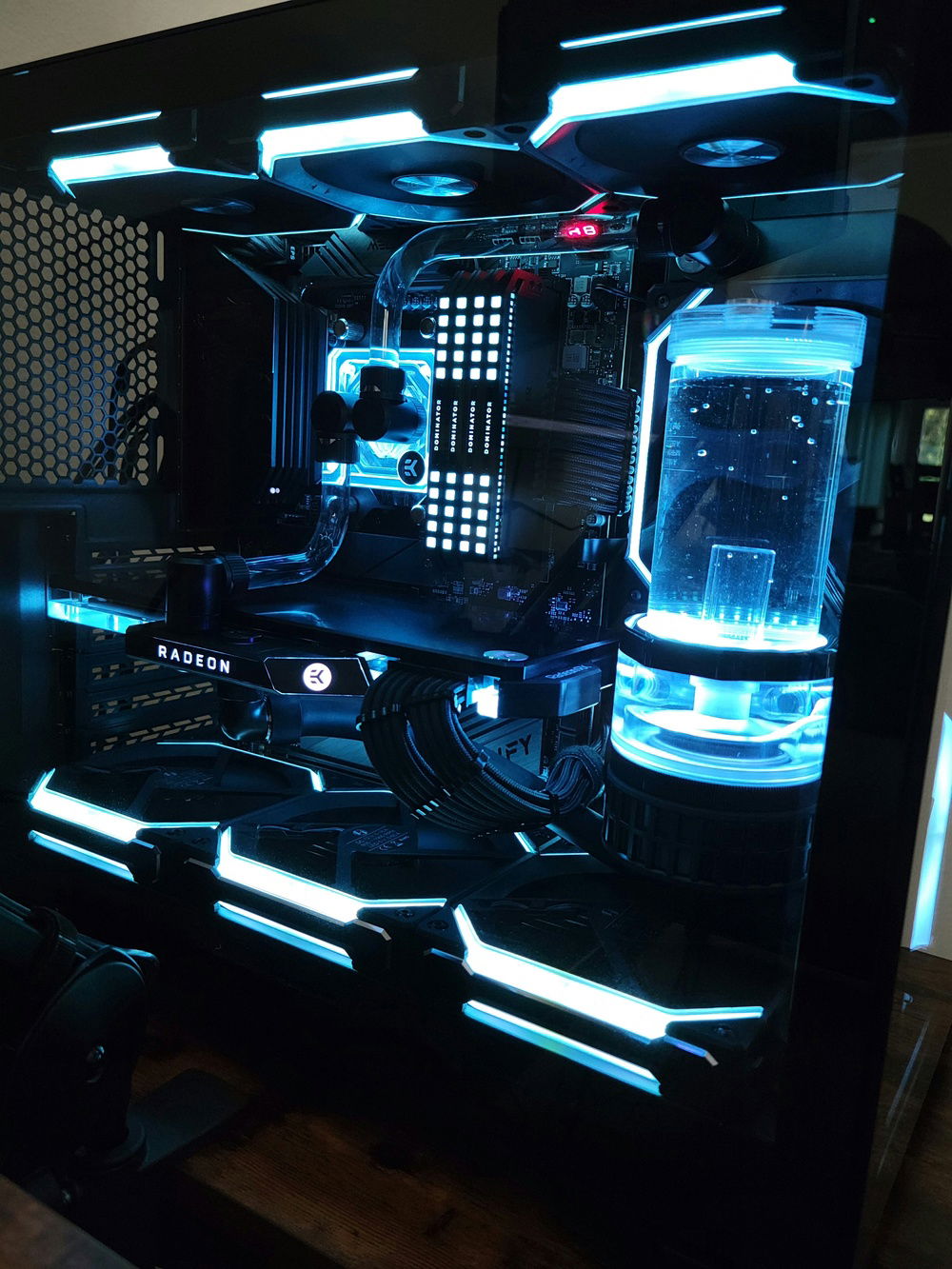

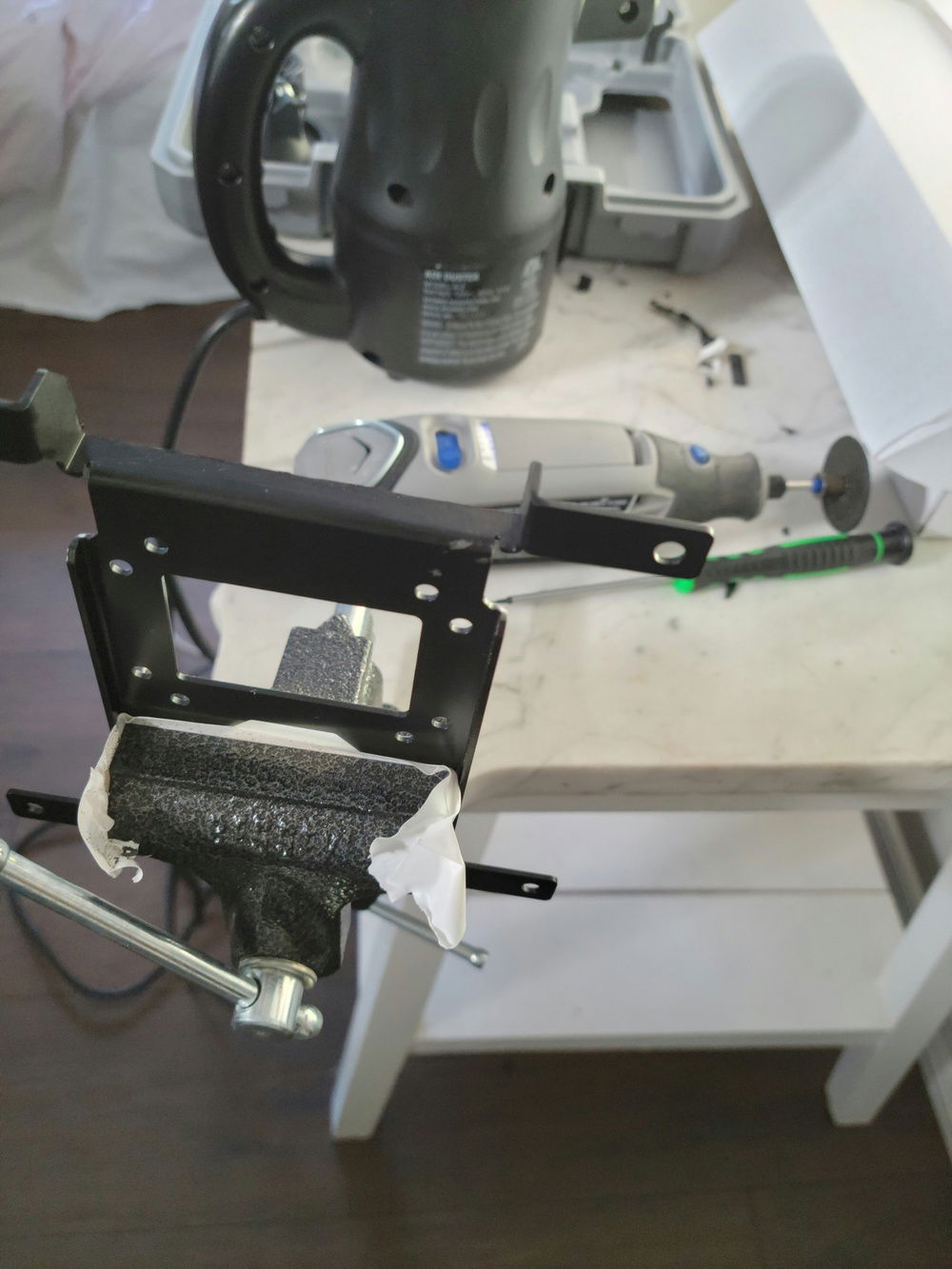

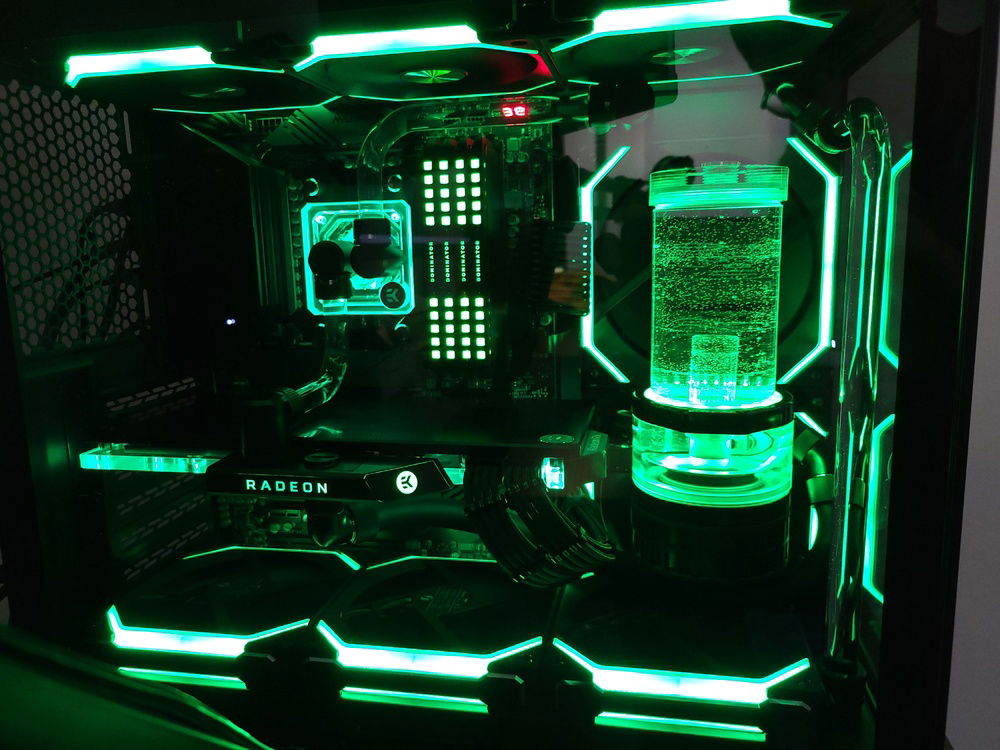

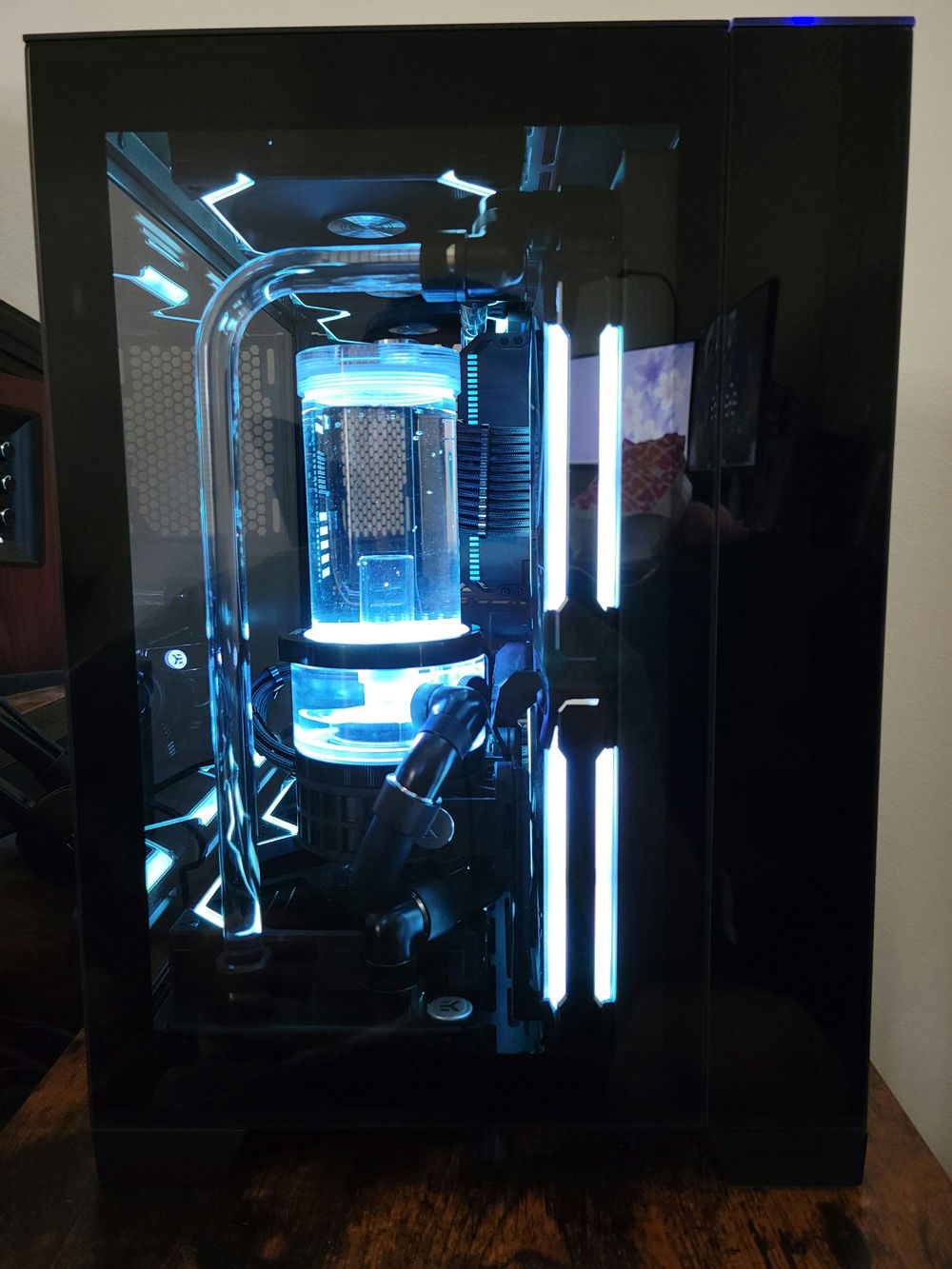

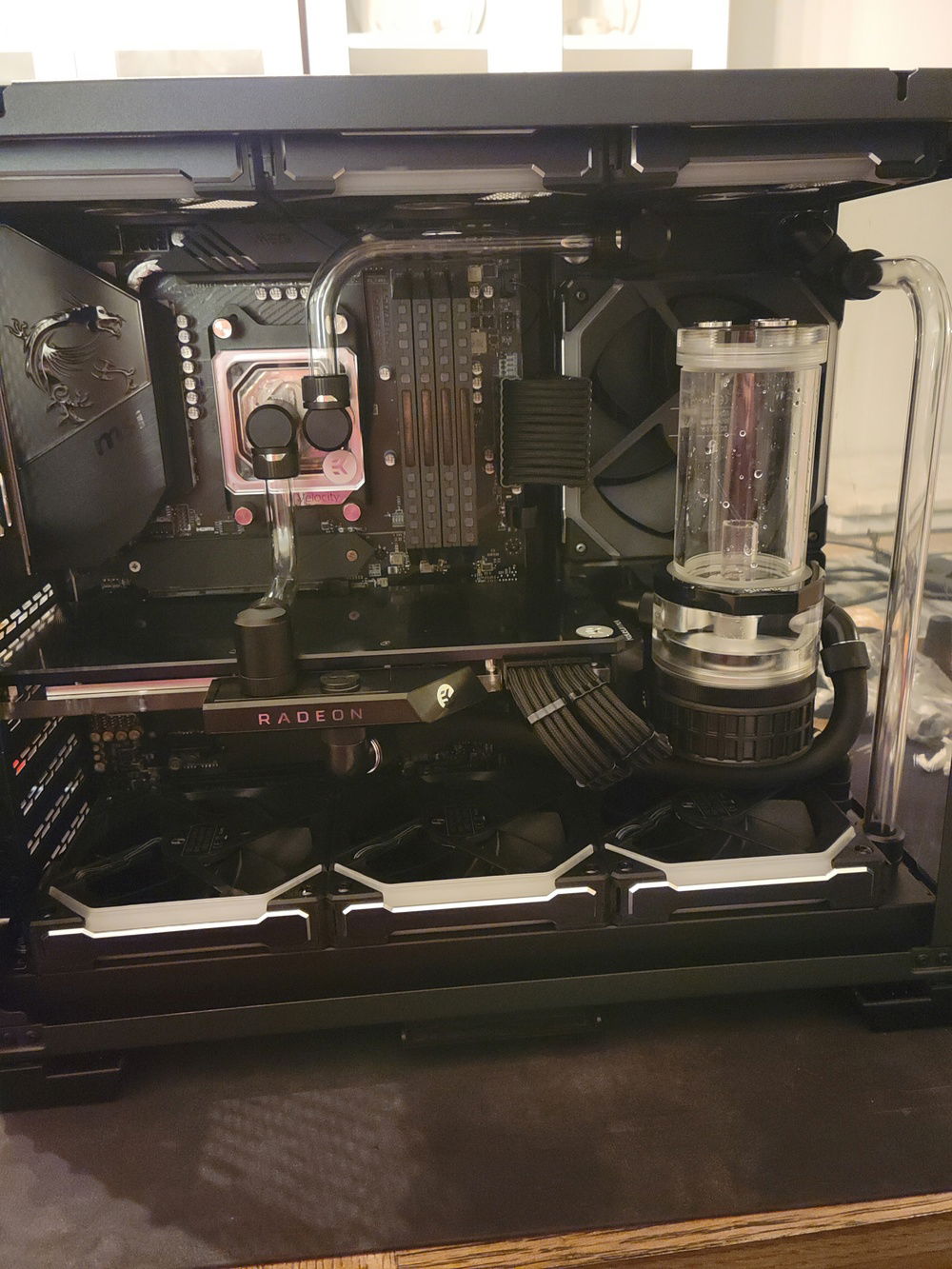

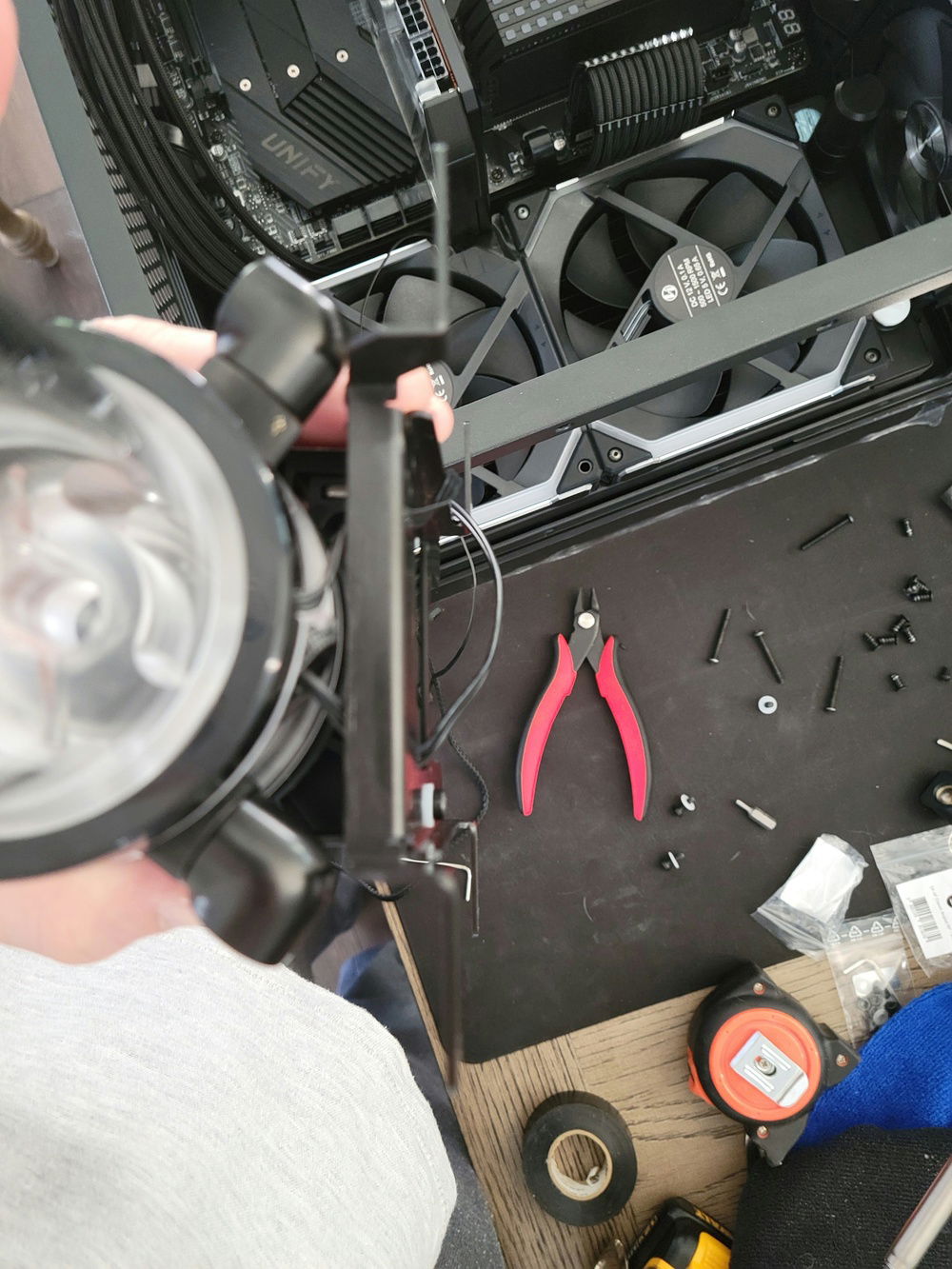

Wanted to game in 4k at a decent frame rate so I decided to Build a liquid cooled pc around the 6900xt. I wanted a clean look with just 90 degree bends so I got some extenders and was able to even the height difference with radiator and cpu block. I also wanted to take advantage of the 280mm radiator side mount so I needed to do some modifications. I preferred the gpu kept horizonal and to achieve that with a 280mm rad and 140mm fans I just took off what I needed from bracket and fan corner with Dremel. I painted over cuts with black paint so it wouldn't show so easily. Really love how this system turned out. Definitely will be using the new EK fittings and keeping more simple bends in future. I should add I needed to use some classic fittings as the new ones didn't fit between the bracket and pump unit. I like the acrylic over petg now for tubing, seems a bit more clear but could be because I went with just clear solution. Thanks for checking it out, happy building.
Color(s): Black
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Build Updates

Dremel ftw.

Hardware

CPU
$ 445.00
AMD - Ryzen 7 (5800X)
Socket: AM4
Cores: 8
Motherboard
$ 269.99
MSI - Meg Unify
Chipset: B550
CPU Socket: AM4
Size: ATX
Memory
$ 229.99
Graphics
$ 1,100.00
AMD - Radeon
Chip Manufacturer: AMD
Chip: RX 6900 XT
Interface: PCIe x16
Storage
$ 129.99
Samsung - 980 Pro
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 236.85
SilverStone Technology - SX800-LTI
Wattage: 800
Form Factor: SFX
Efficiency: 80+ Titanium
Case
$ 100.00
Lian Li - O11 Dynamic Mini (Black)
Type: Mini-ITX
Side Panel: Tempered Glass
Case Fan
$ 163.90
Lian Li - Uni Fan SL120 (2x)
Size: 120 mm
Case Fan
$ 80.00
Lian Li - Uni Fan SL140
Size: 140 mm
Cooling
$ 119.35
EKWB - CoolStream CE
Type: Custom Loop
Size (WxHxD): 280 mm (2 x 140 mm)
Cooling
$ 86.13
EKWB - CoolStream SE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 24.23
Cooling
$ 32.45
EKWB - EK-AF Classic Angled 90° (Black) (5x)
Type: Fittings
Cooling
$ 41.99
EKWB - EK-CryoFuel (Clear)
Type: Coolant
Cooling
$ 10.99
Cooling
$ 194.74
Cooling
$ 25.98
Cooling
$ 29.98
Cooling
$ 80.94
EKWB - EK-Quantum Torque HDC 14 - Black (6x)
Type: Fittings
Cooling
$ 59.94
Cooling
$ 47.99
Cooling
$ 164.71
Cooling
$ 100.00
Cooling
$ 25.99
EKWB - EK-Tube ZMT
Type: Tubing
Cooling
$ 37.99
CableMod
$ 100.00
CableMod - Sleeved Cables
Mode: Stock
Sleeve: PRO ModMesh
Color: Black
Estimated total value of this build:
$ 3,918.18
