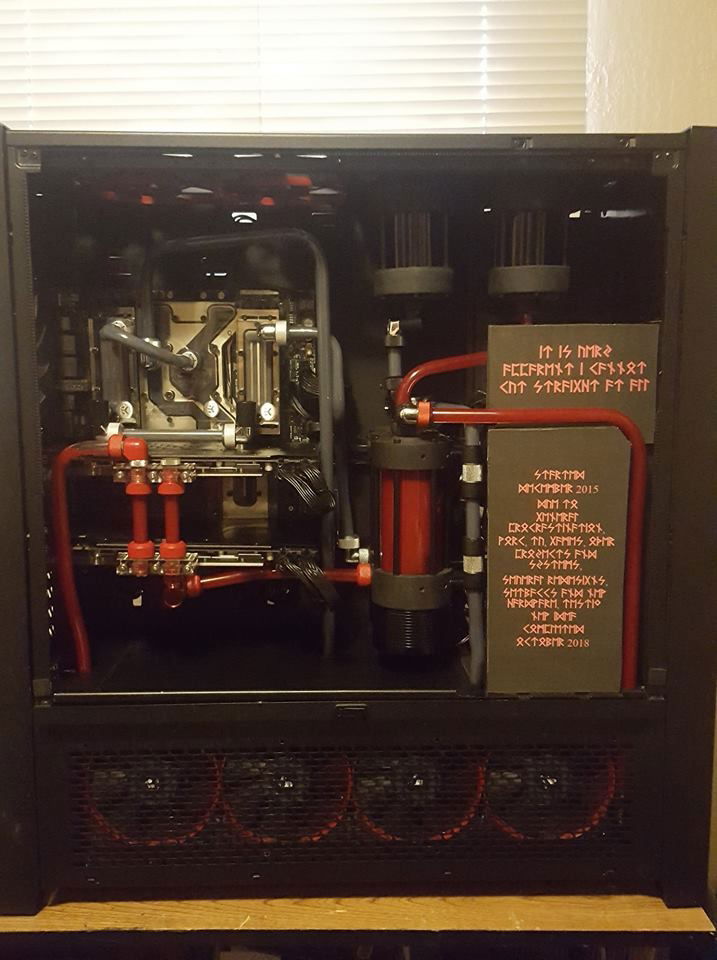

This is the finished build with the EK-FB Asus R5-E10 Monoblock.
Many tubes sacrificed here.

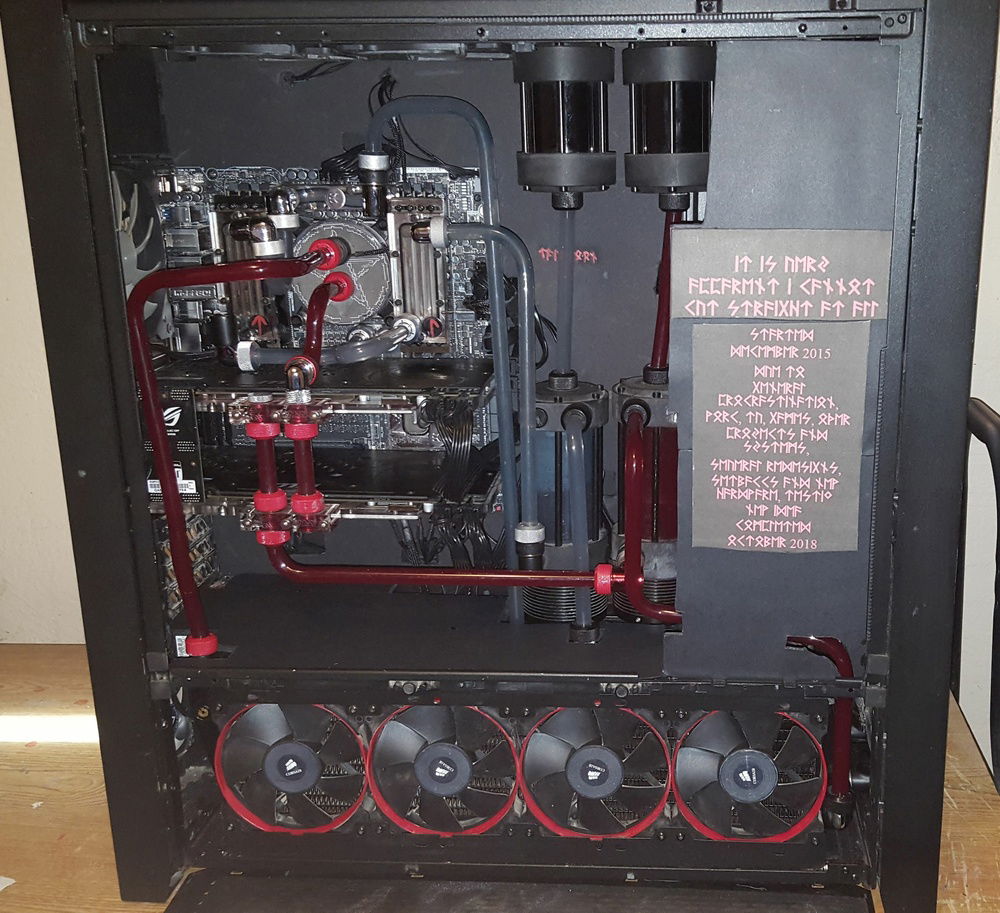

The current incarnation.
Even more, tubes sacrificed here.
The back side. The only change made on this side was the HDD was mounted below the SSD and some general rewiring.

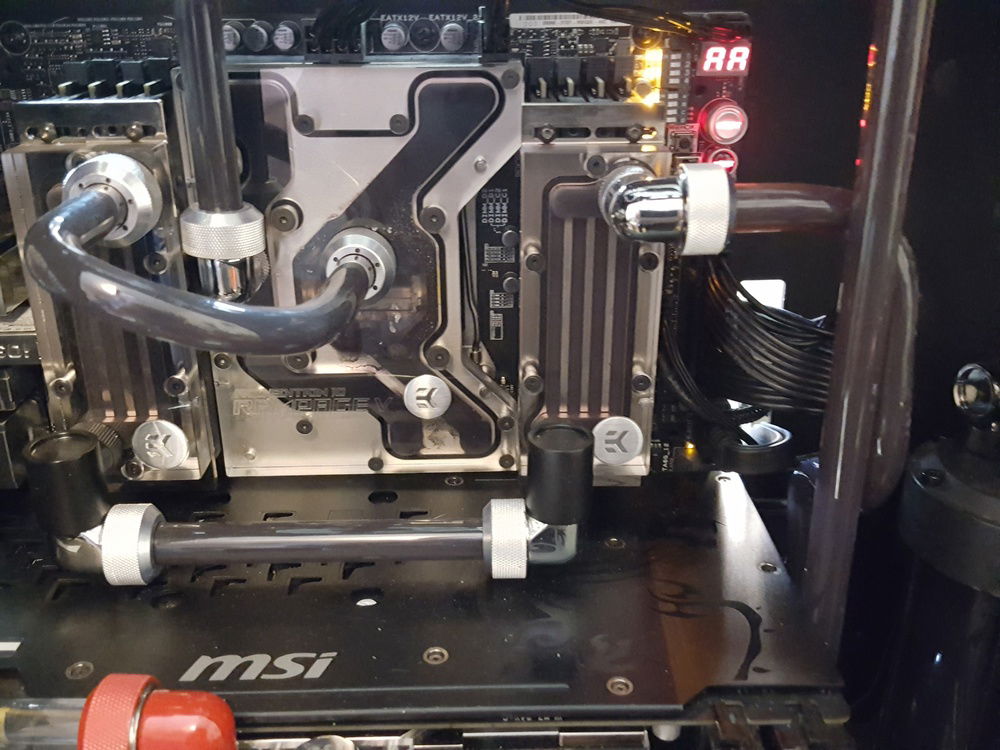

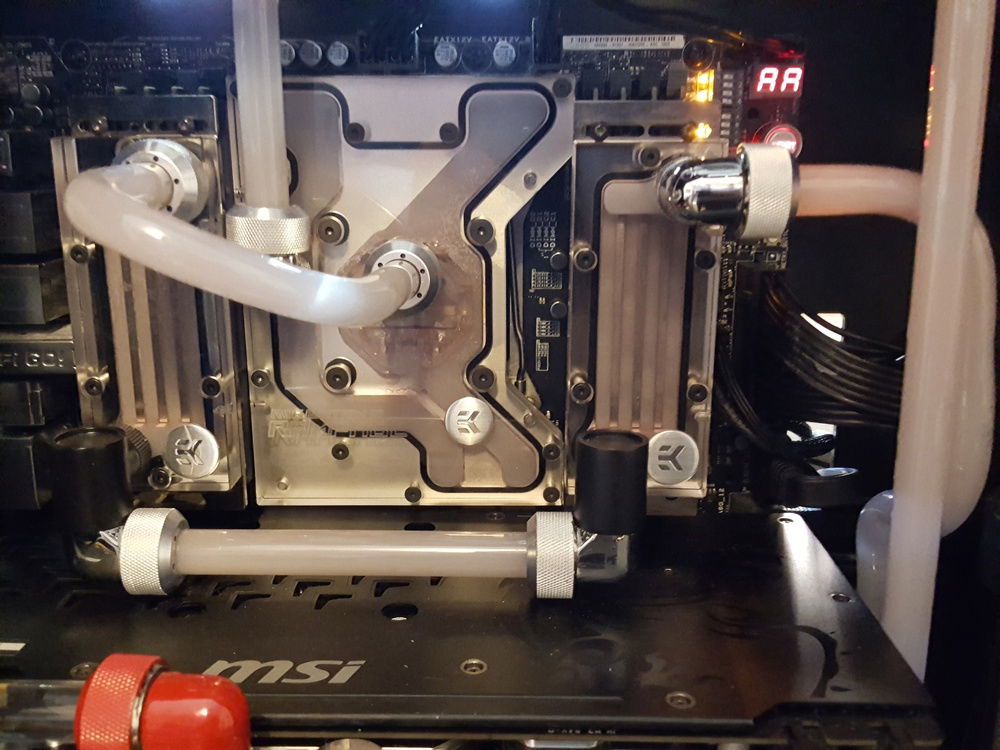

An experiment using thermochromic pigment in distilled water.
The starting of the stress test.
Edward Da Great III a.k.a. Valfadhir
Originally began on or around late November 2015. Due to general procrastination, work, tv, games, other projects/systems, several revisions, research, setbacks, new hardware, it was finished in October 2018, I did do a redesign in December 2018, changed out the EK-FB Asus R5-E10 Monoblock for individual blocks because I was not sure it was seated well on the board. The reservoir placement was redone, so both of them could be seen.
