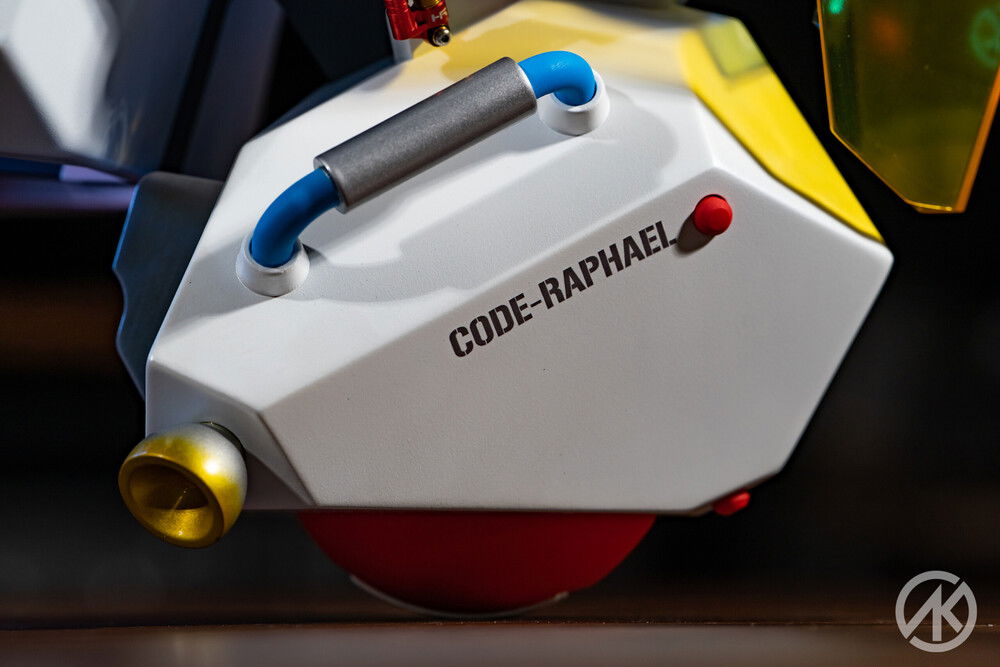

CODE-RAPHAEL

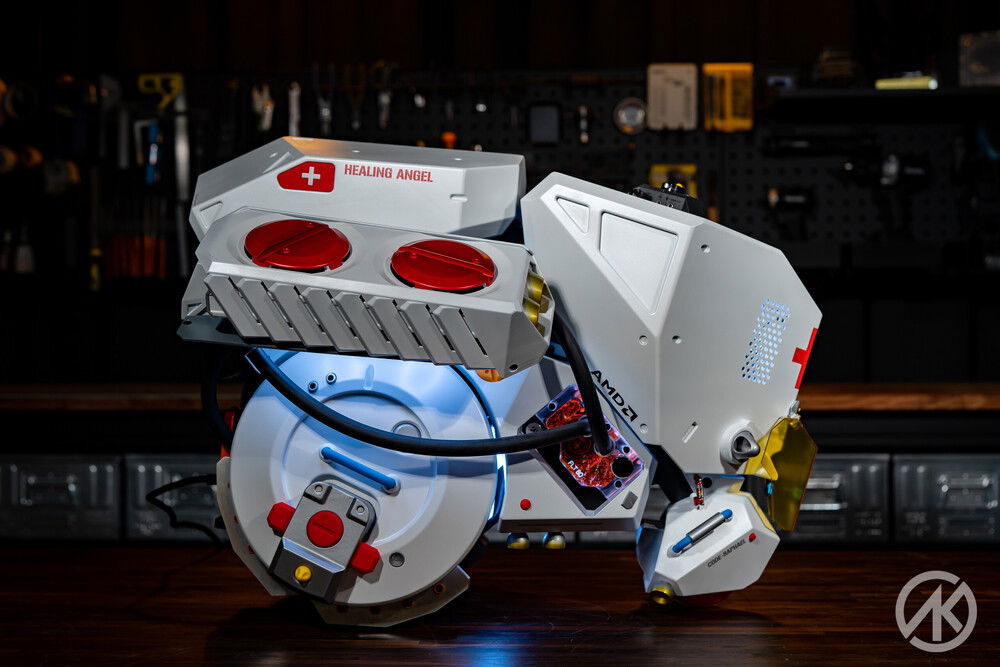

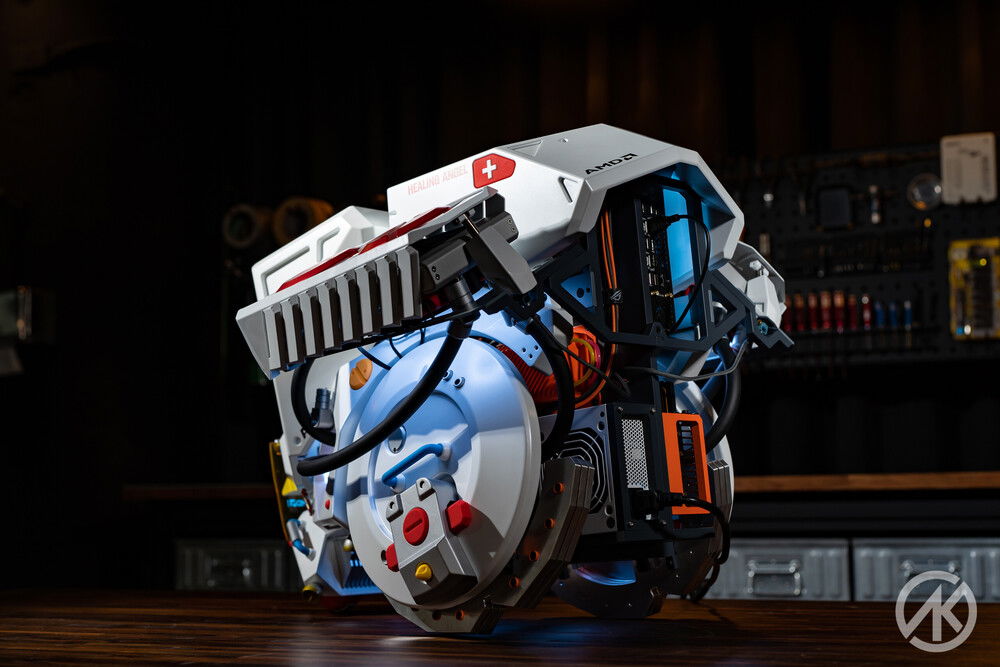

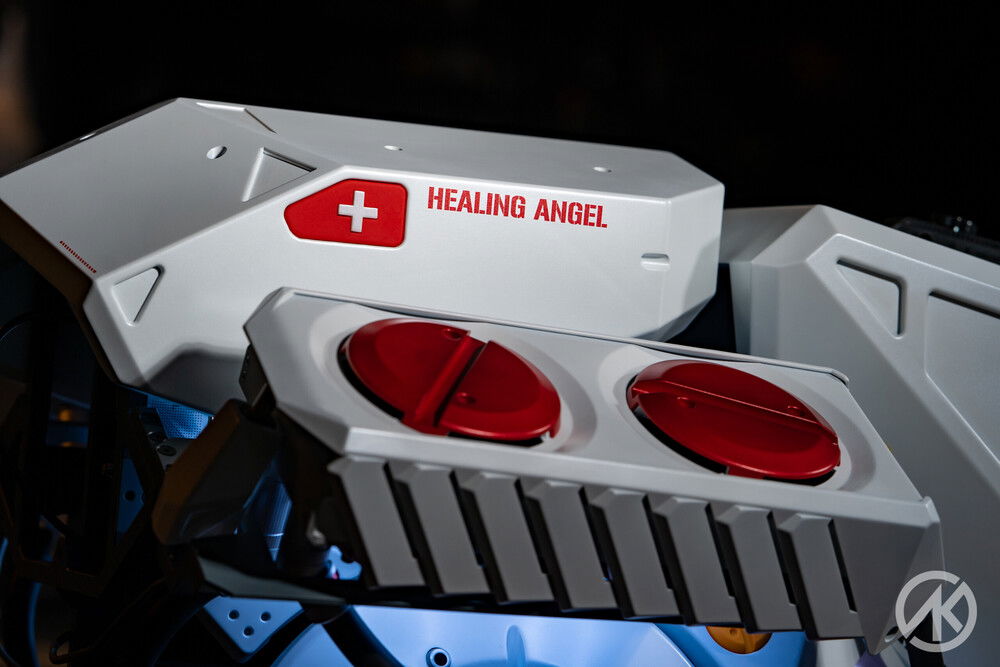

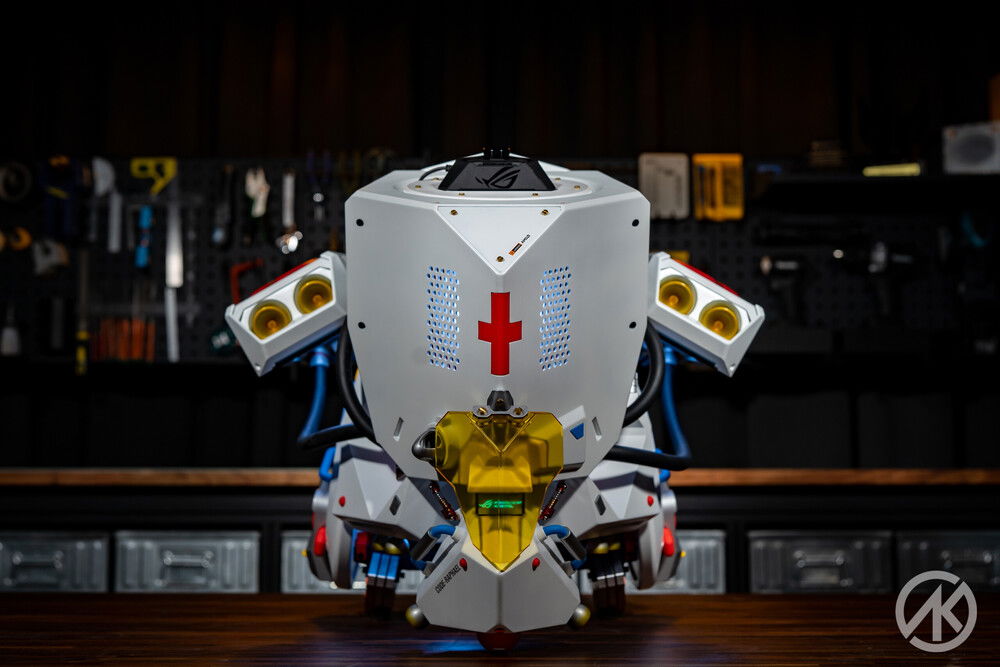

AMD's latest collaboration project is centered around the CPU code-named Raphael. Raphael represents the healing angel, and this futuristic medical device was created with this inspiration.

The entire project took approximately 90 days, including the initial design planning, 3D printing, and metal CNC processing. Surface treatment is required after 3D printing, including polishing, filling, and painting, to achieve high precision. The internal structure is made of aluminum CNC machining because the hardware configuration is very compact, requiring multiple adjustments to perfectly integrate with external components.

Specs :
CPU - AMD Ryzen9 7900X
Motherboard - ROG STRIX X670E-I GAMING WIFI
GPU - ASUS TUF RX6800XT O16G GAMING
RAM - OCPC Gaming PISTA DDR5 5600 32GB BLACK LABEL
SSD - OCPC Gaming HIGH PERFORMANCE M.2 SSD

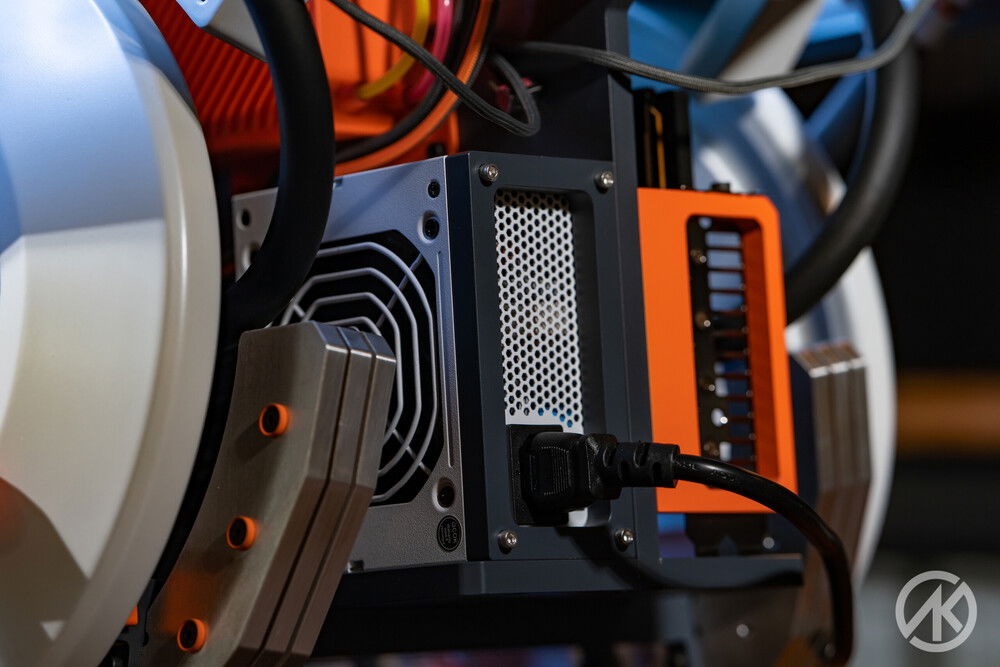

PSU - COOLER MASTER V850 SFX GOLD

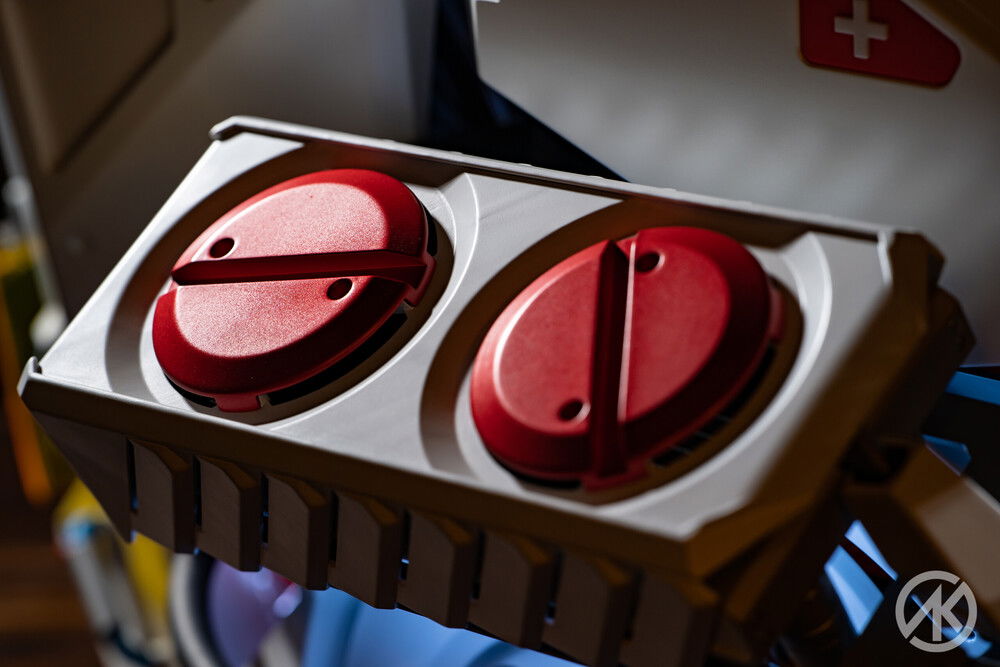

FAN - EK-Vardar X3M 120ER D-RGB (500-2200rpm) - White

Water Cooler :
EK-Quantum Velocity² D-RGB - AM5 Nickel + Aceta
EK-Quantum Vector TUF RX 6800/6900 D-RGB - Nickel + Acetal

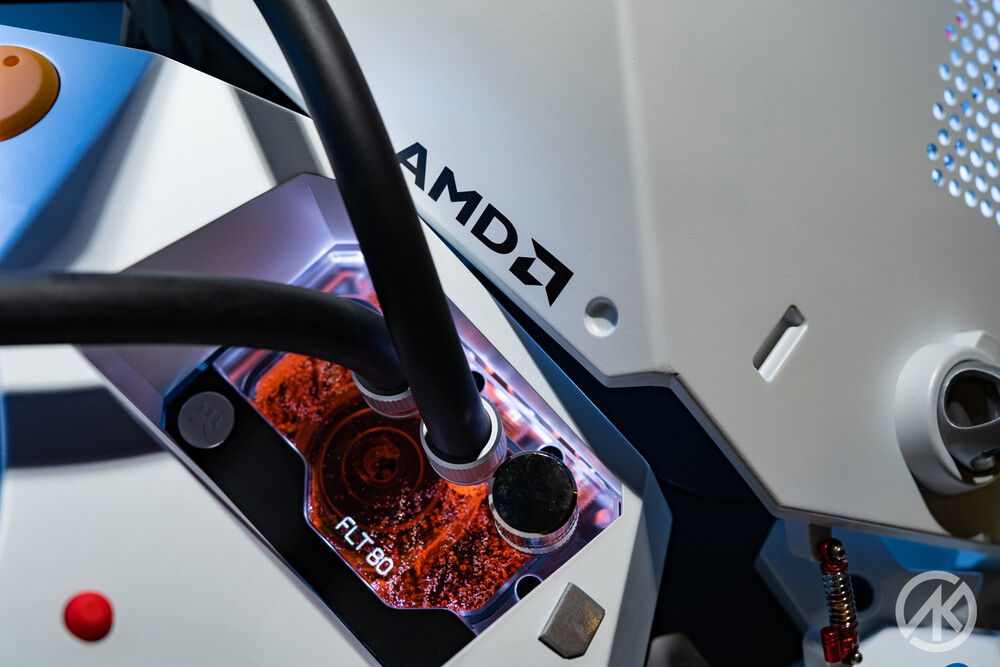

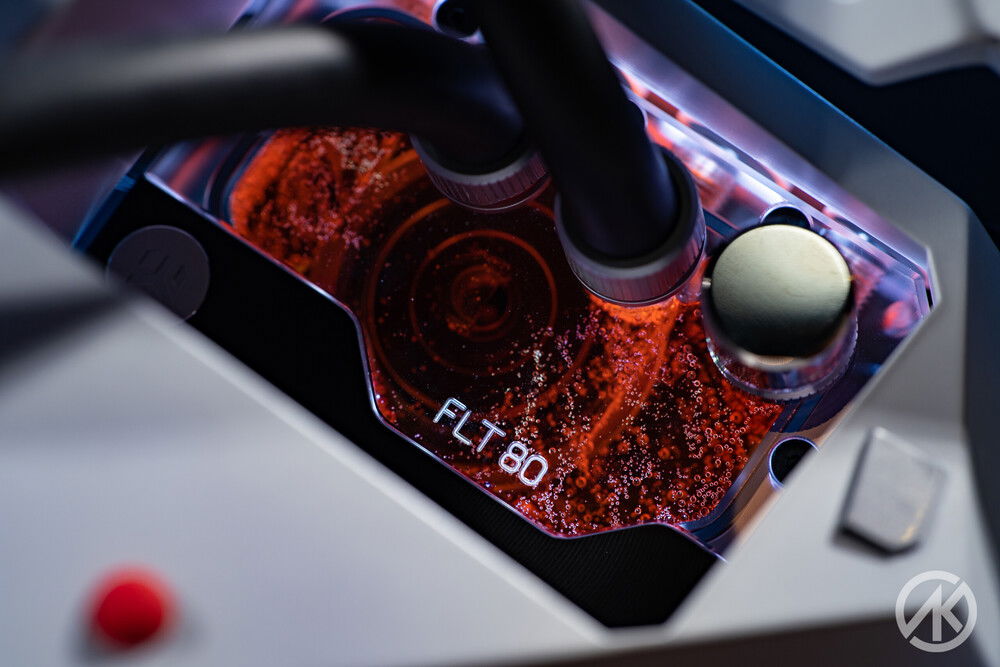

EK-Quantum Kinetic FLT 80 DDC PWM D-RGB - Plex

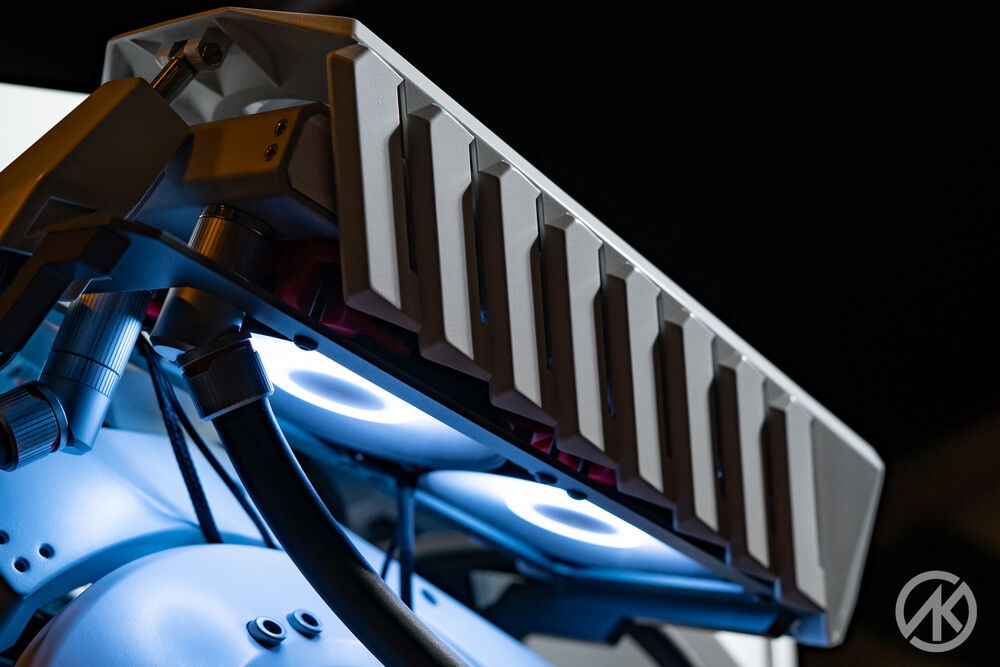

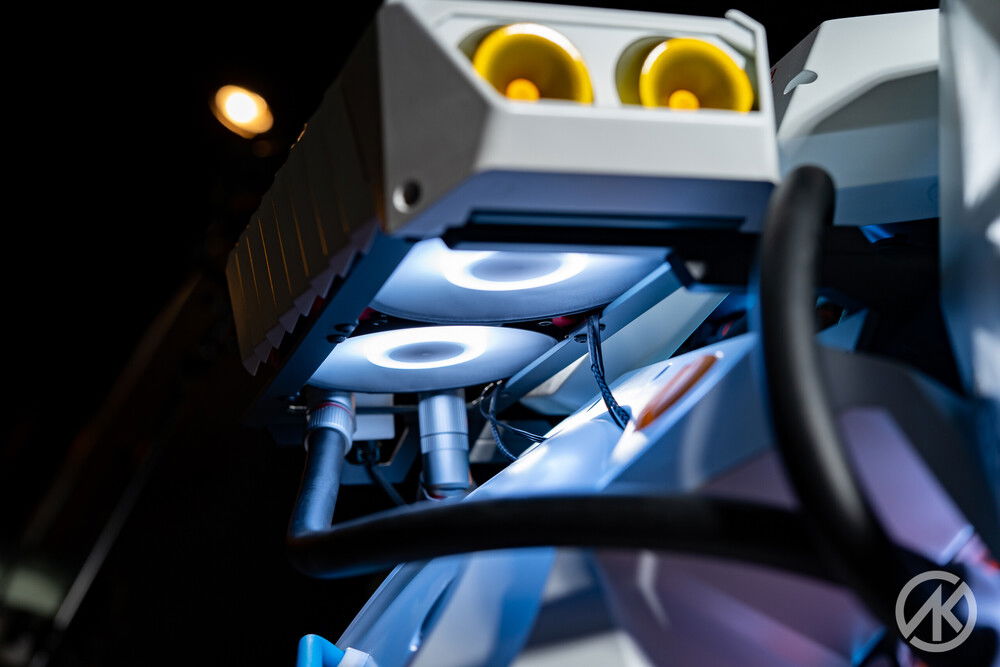

EK-Quantum Surface S240 - White
EK-Loop PCI-E 4.0 Riser Cable - 200mm
EK-CryoFuel Amber Orange (Concentrate 100mL)

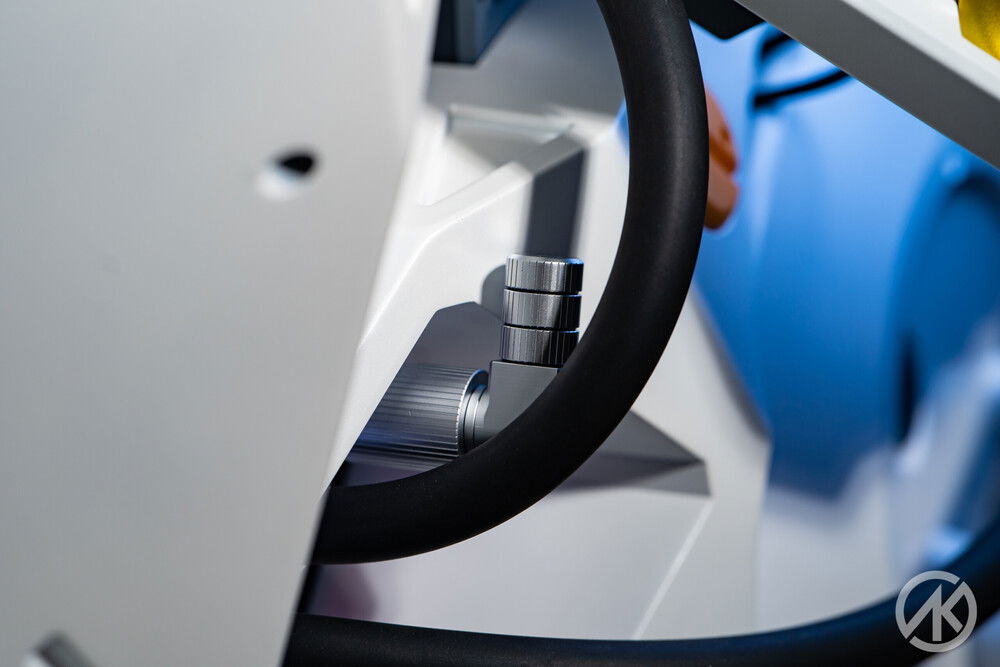

EK-Quantum Torque Fittings

Thanks AMD , ASUS Republic of Gamers , OCPC Gaming USA , Cooler Master , EK Water Blocks support.
Color(s): White
RGB Lighting? Yes
Theme: Sci-Fi
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build

Hardware

CPU
$ 389.99
AMD - Ryzen 9 7900X
Socket: AM5
Cores: 12
Integrated Graphics: Yes
Motherboard
$ 439.99
ASUS - ROG Strix Gaming (X670E-I) (WiFi 6E)
Chipset: X670
CPU Socket: AM5
Size: Mini-ITX
Memory
OCPC - Pista Black Label (5600MHz)
Type: DDR5
Capacity: 32 GB
Graphics
ASUS - Radeon TUF Gaming
Chip Manufacturer: AMD
Chip: RX 6800 XT
Interface: PCIe x16
Storage
OCPC - High Performance
Form Factor: M.2
Interface: PCIe x4
Capacity: 1 TB
PSU
$ 89.99
Cooler Master - V850 (v2)
Wattage: 850
Form Factor: SFX
Efficiency: 80+ Gold
Case
Custom - Custom (custom)
Case Fan
$ 62.99
Cooling
EKWB - CPU Blocks (discontinued)
Type: Custom Loop
Cooling
$ 228.09
EKWB - EK-Quantum Kinetic FLT 80
Type: Pump/Reservoir Combo
Cooling
$ 95.01
EKWB - EK-Quantum Surface S240 - Black
Type: Radiator
Size (WxHxD): 120 mm
Cooling
Cooling
EKWB - Fittings
Type: Custom Loop
