EK Evo acetal CPU blocks lit by CableMod 60 cm blue magnetic strips. 64 Gb (8x8) Corsair Dominator DDR3 1866.
EK Evo acetal CPU blocks lit by CableMod 60 cm blue magnetic strips. 64 Gb (8x8) Corsair Dominator DDR3 1866.

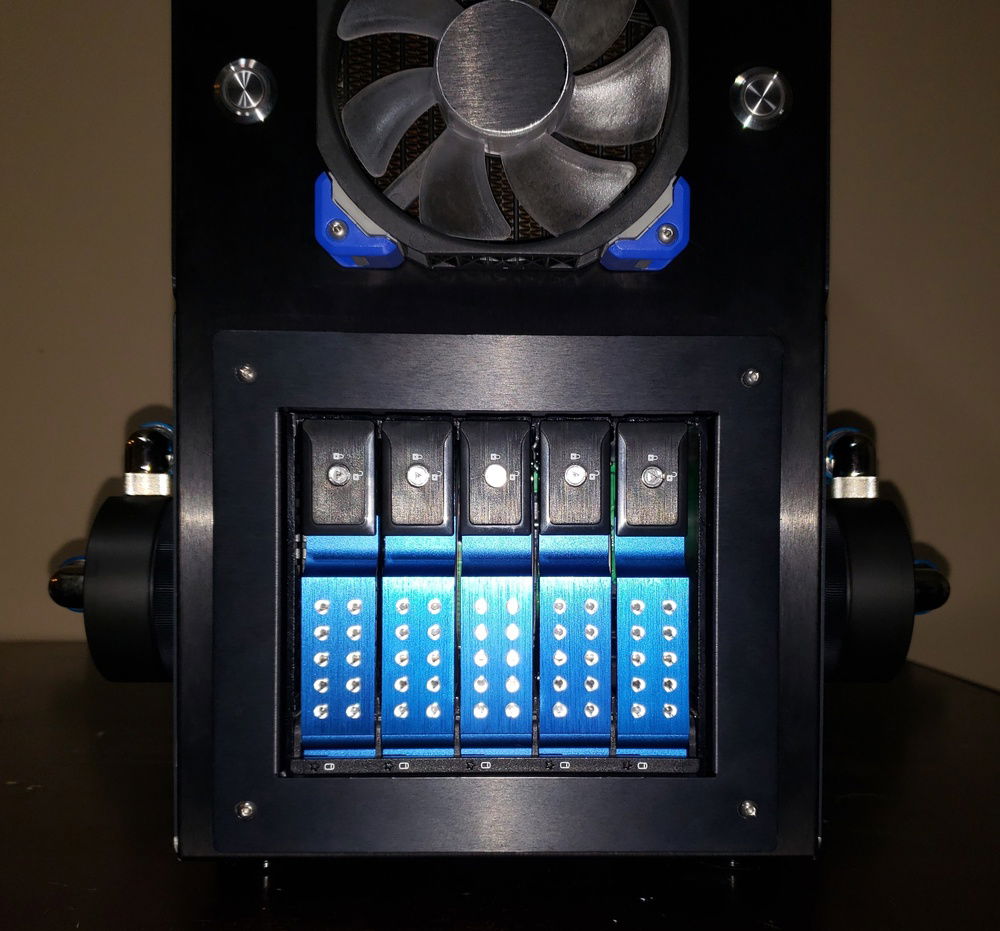

Dual EK D5's on custom panel mounts. ISTARUSA 5 drive hotswap bay.
Dual EK D5's on custom panel mounts. ISTARUSA 5 drive hotswap bay.

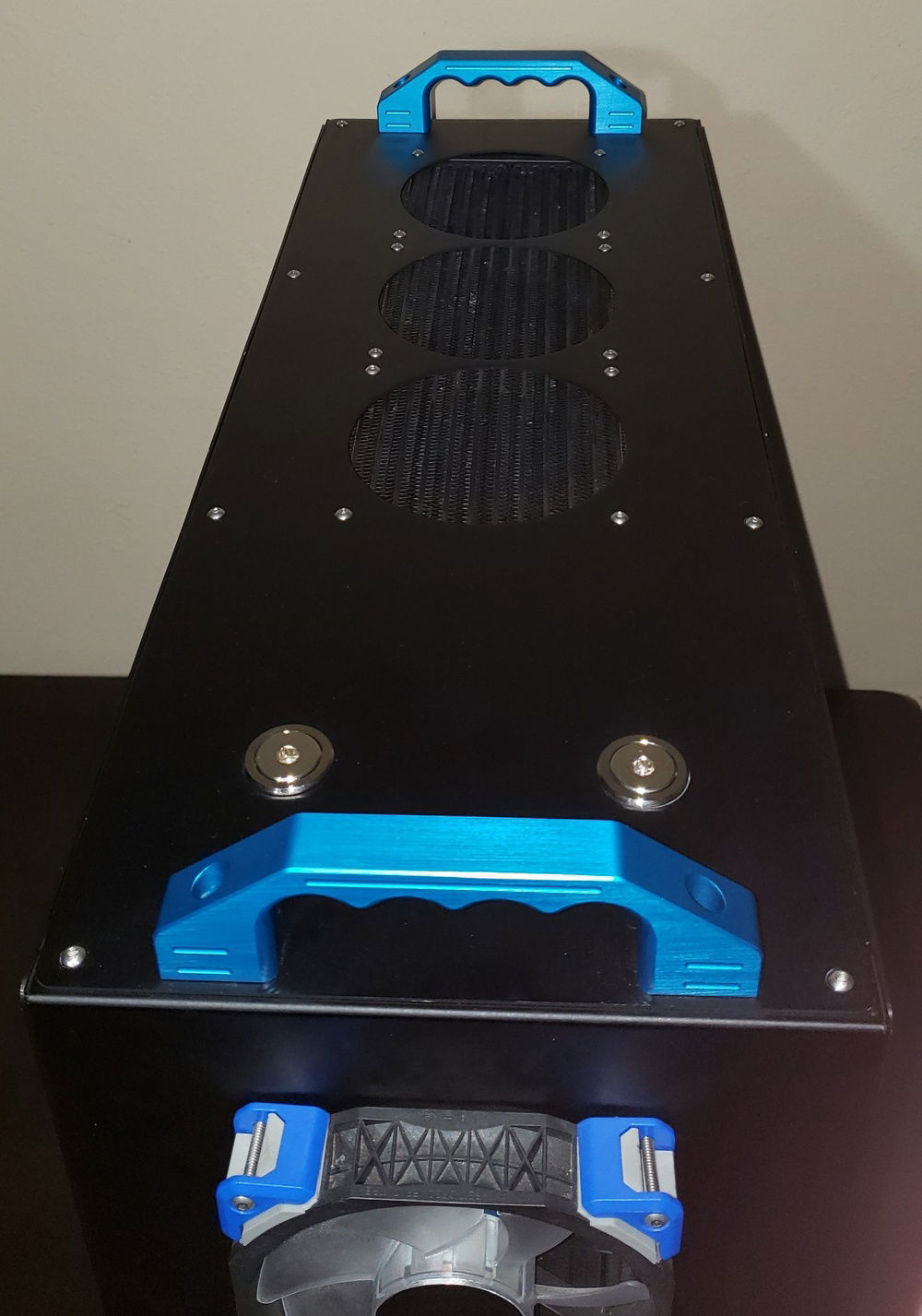

EK fillports and PE 360 Radiator. MNPCtech handles blue anodized locally.
EK fillports and PE 360 Radiator. MNPCtech handles blue anodized locally.

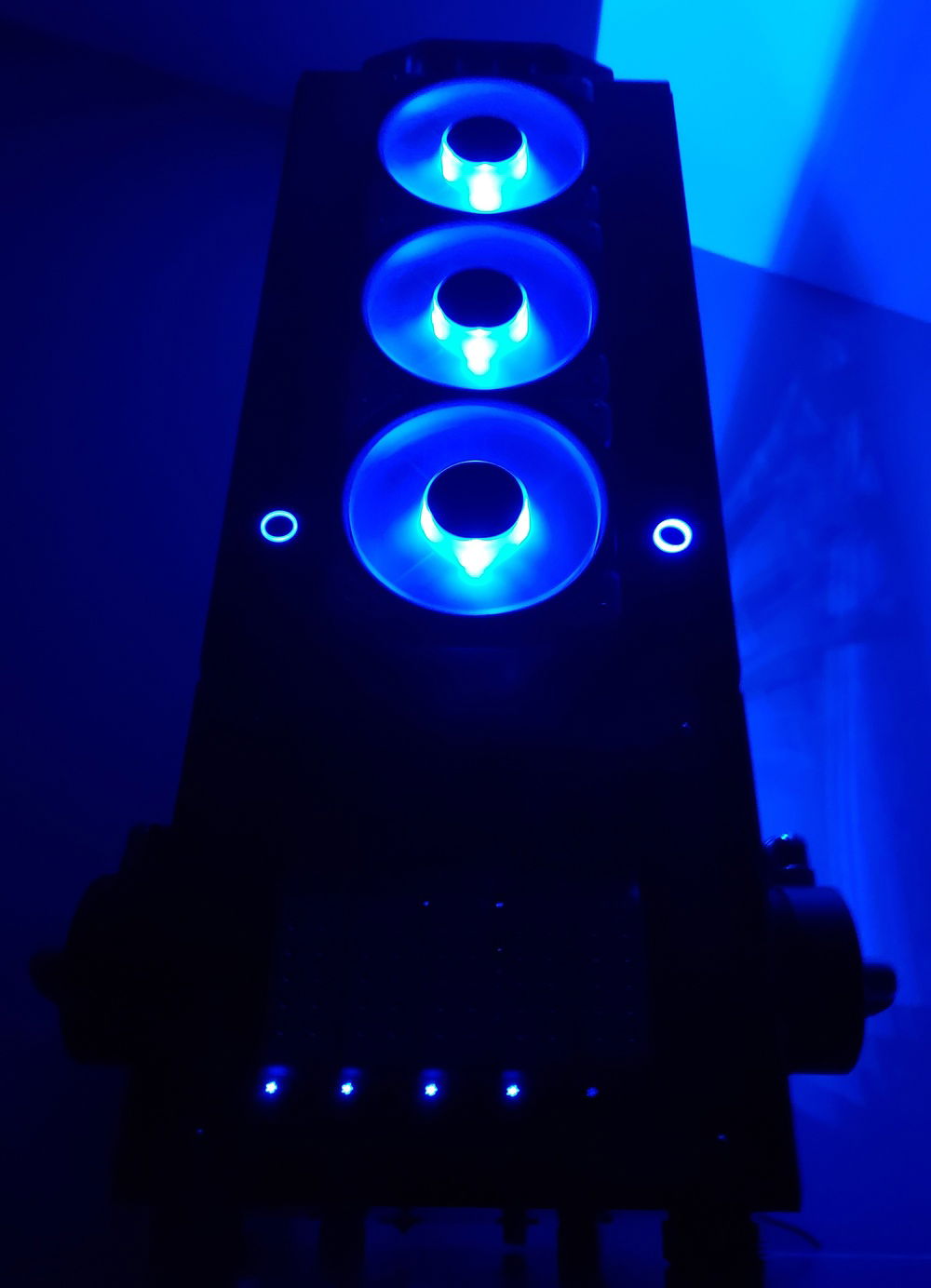

Corsair ML120 Pro Blue 360 intake.
Corsair ML120 Pro Blue 360 intake.
3/4 front
3/4 front

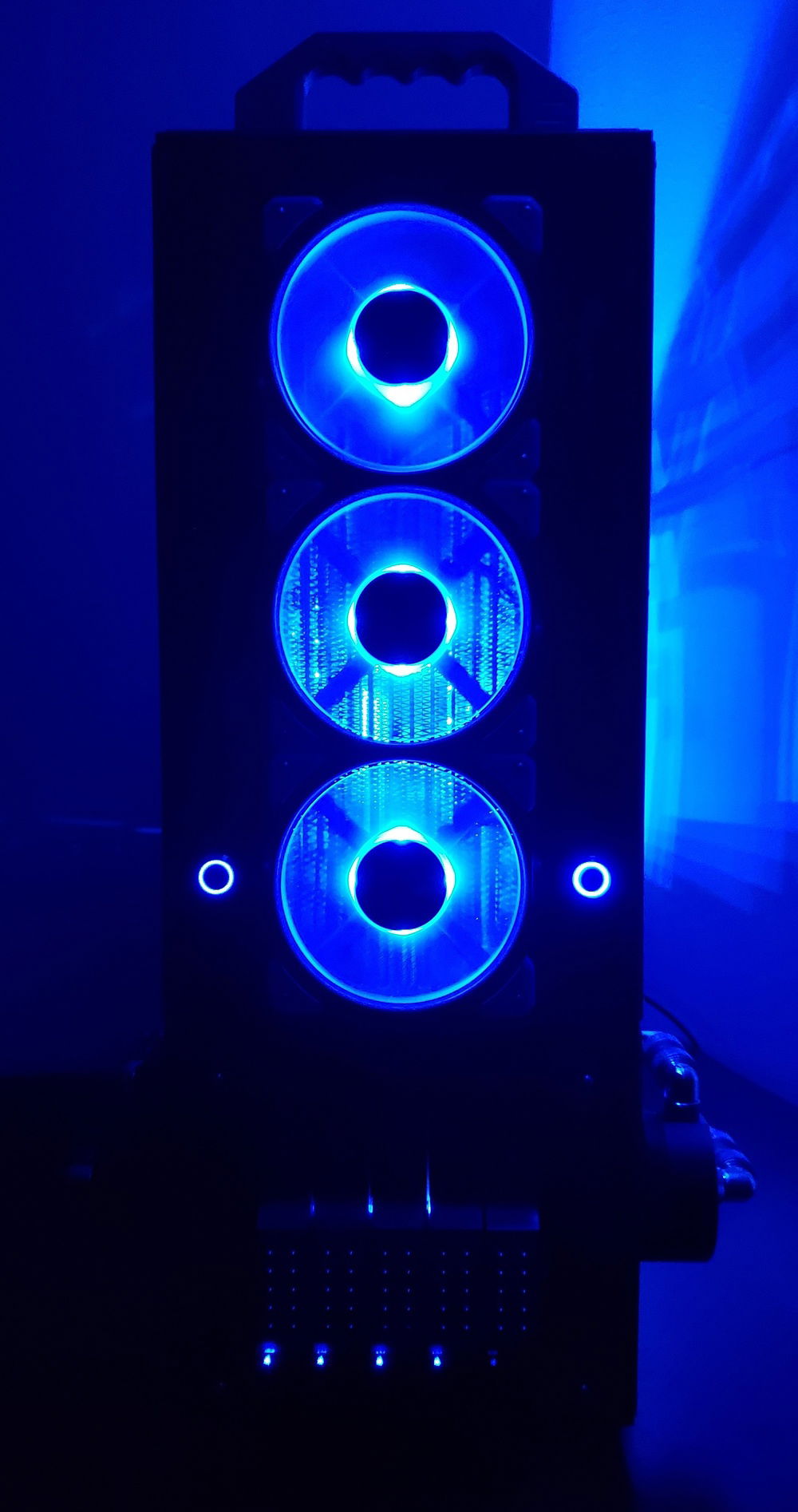

Full front
Full front

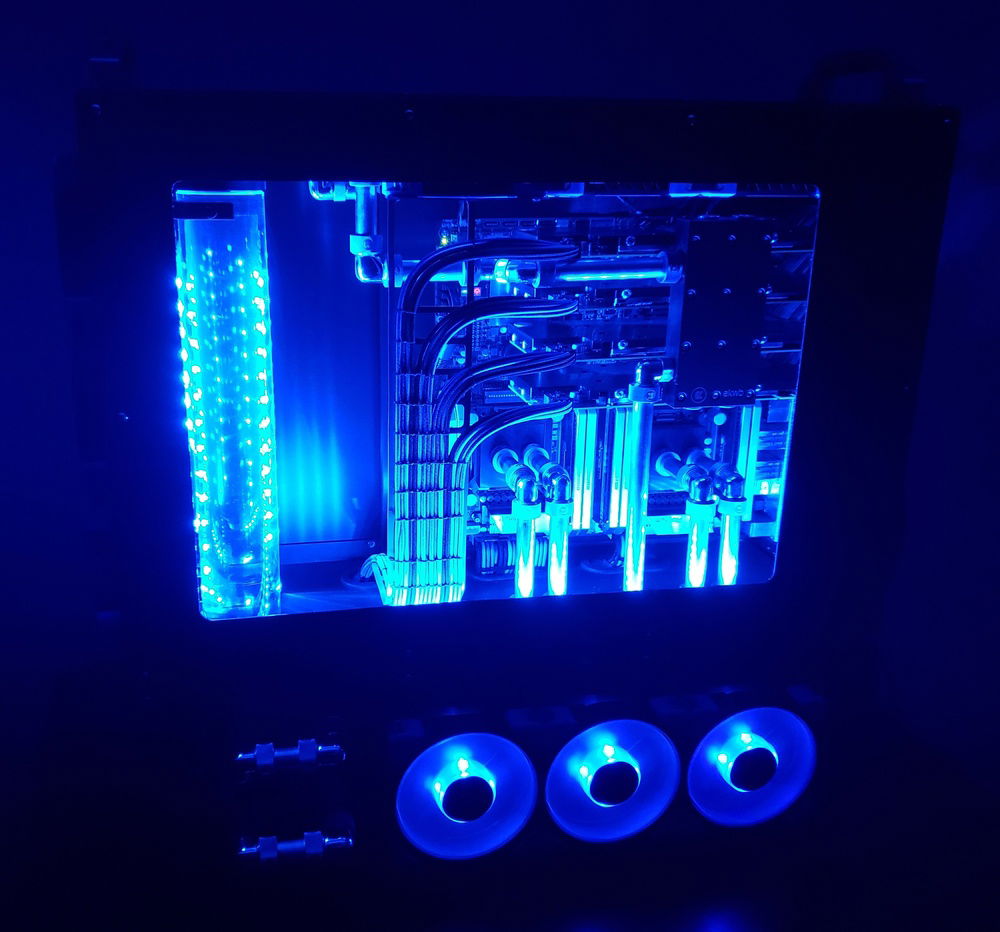

Inverted mobo
Inverted mobo

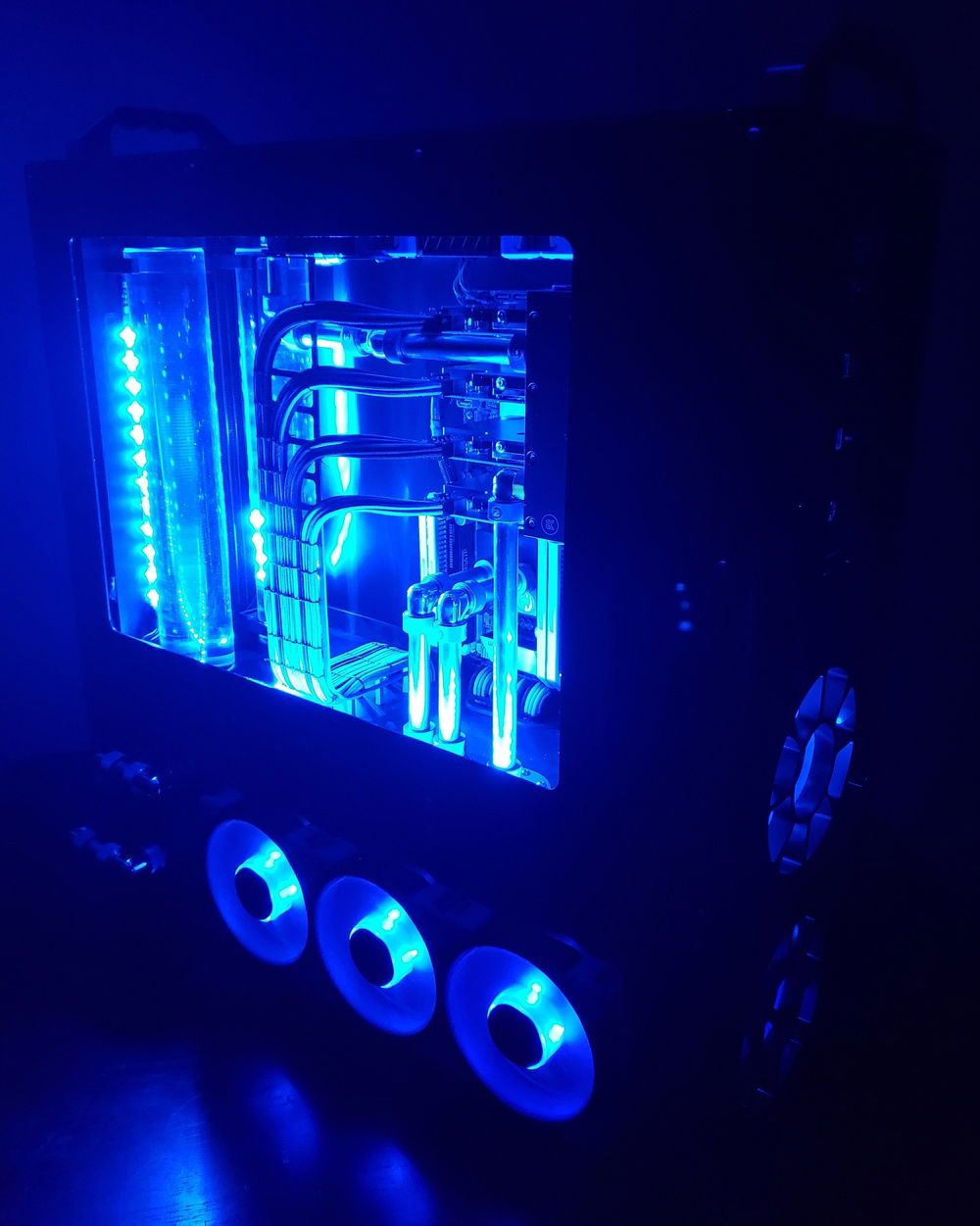

3/4 rear
3/4 rear

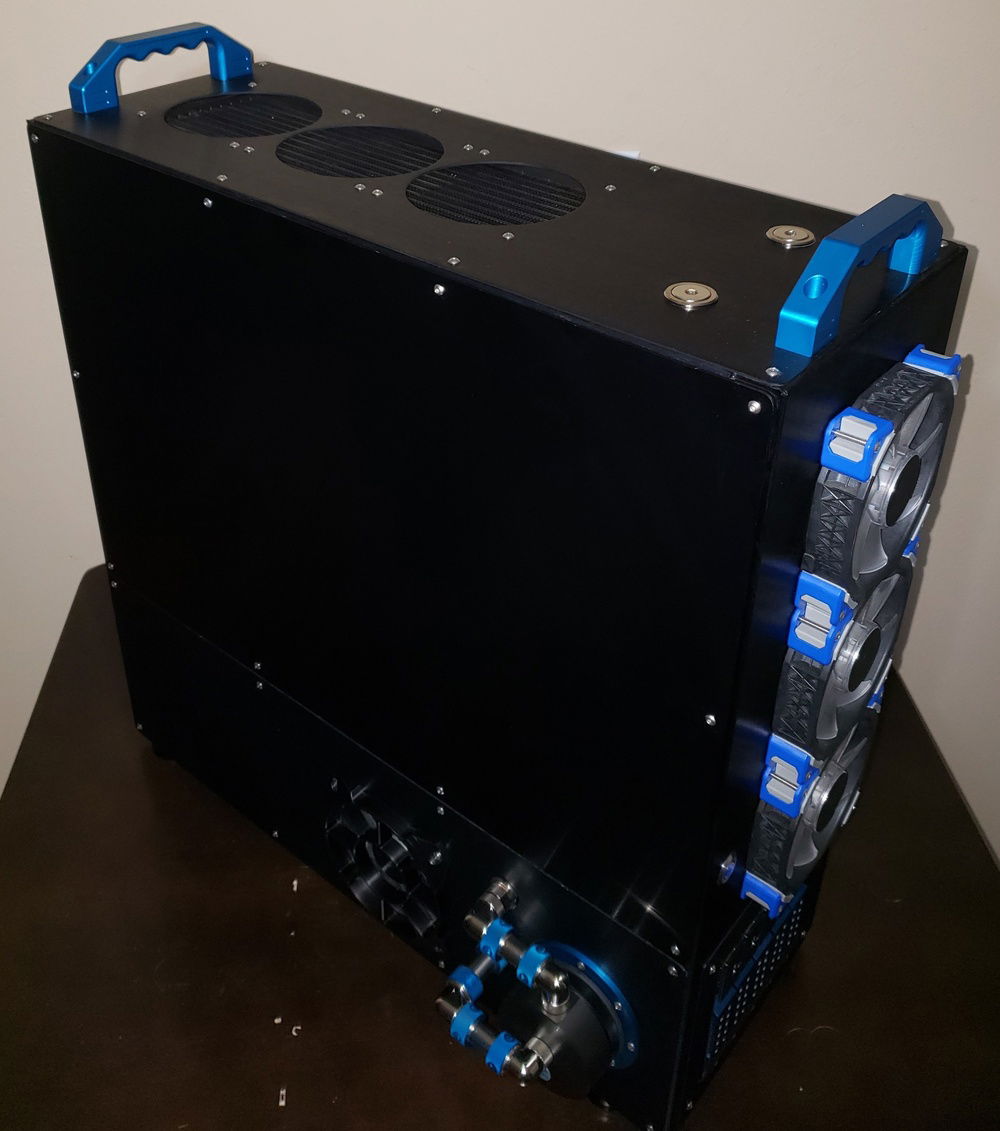

Back of case
Back of case

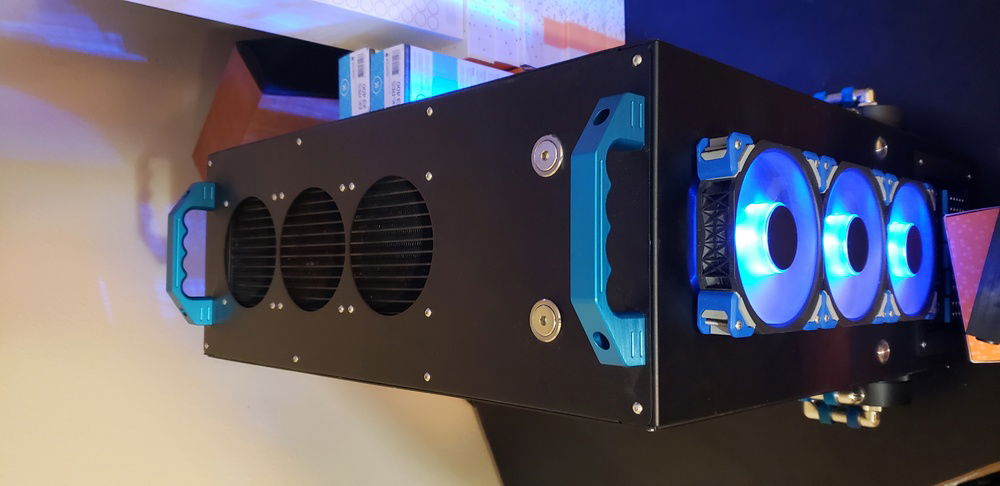

Top/front
Top/front

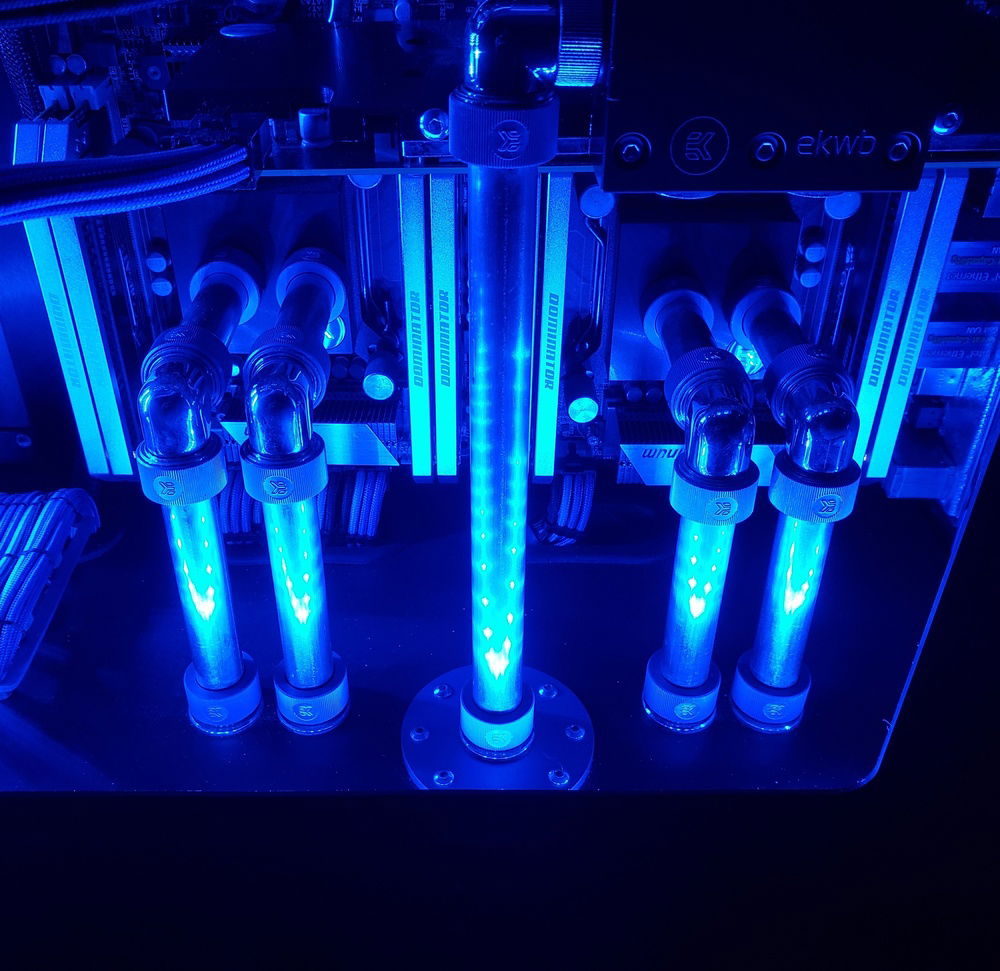

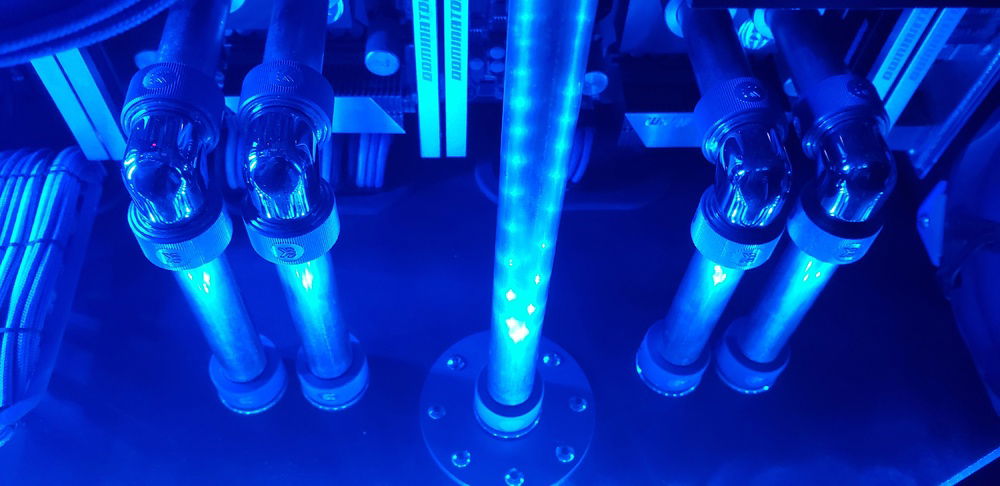

CPU's and GPU midplate passthrough.
CPU's and GPU midplate passthrough.

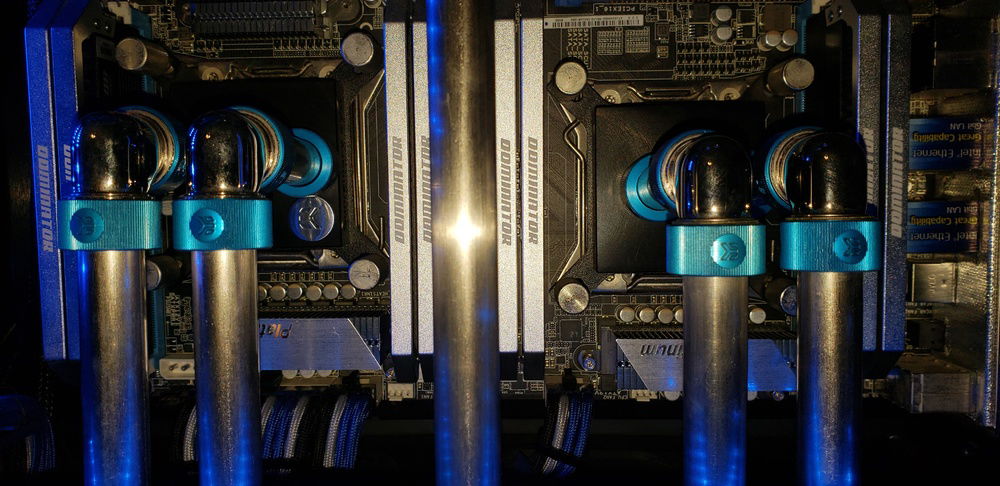

CPU's again, flash on
CPU's again, flash on

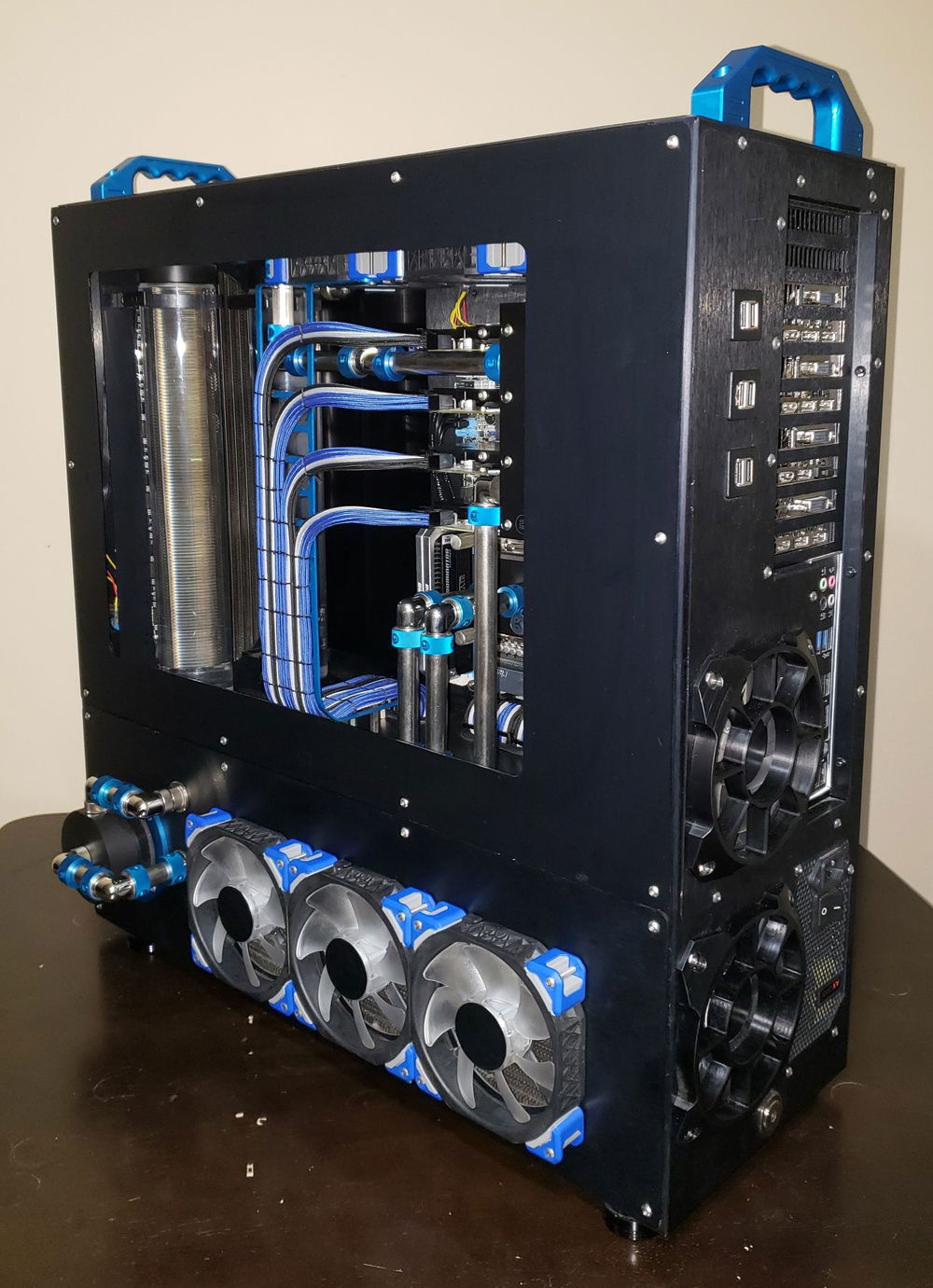

Lit 3/4 rear
Lit 3/4 rear

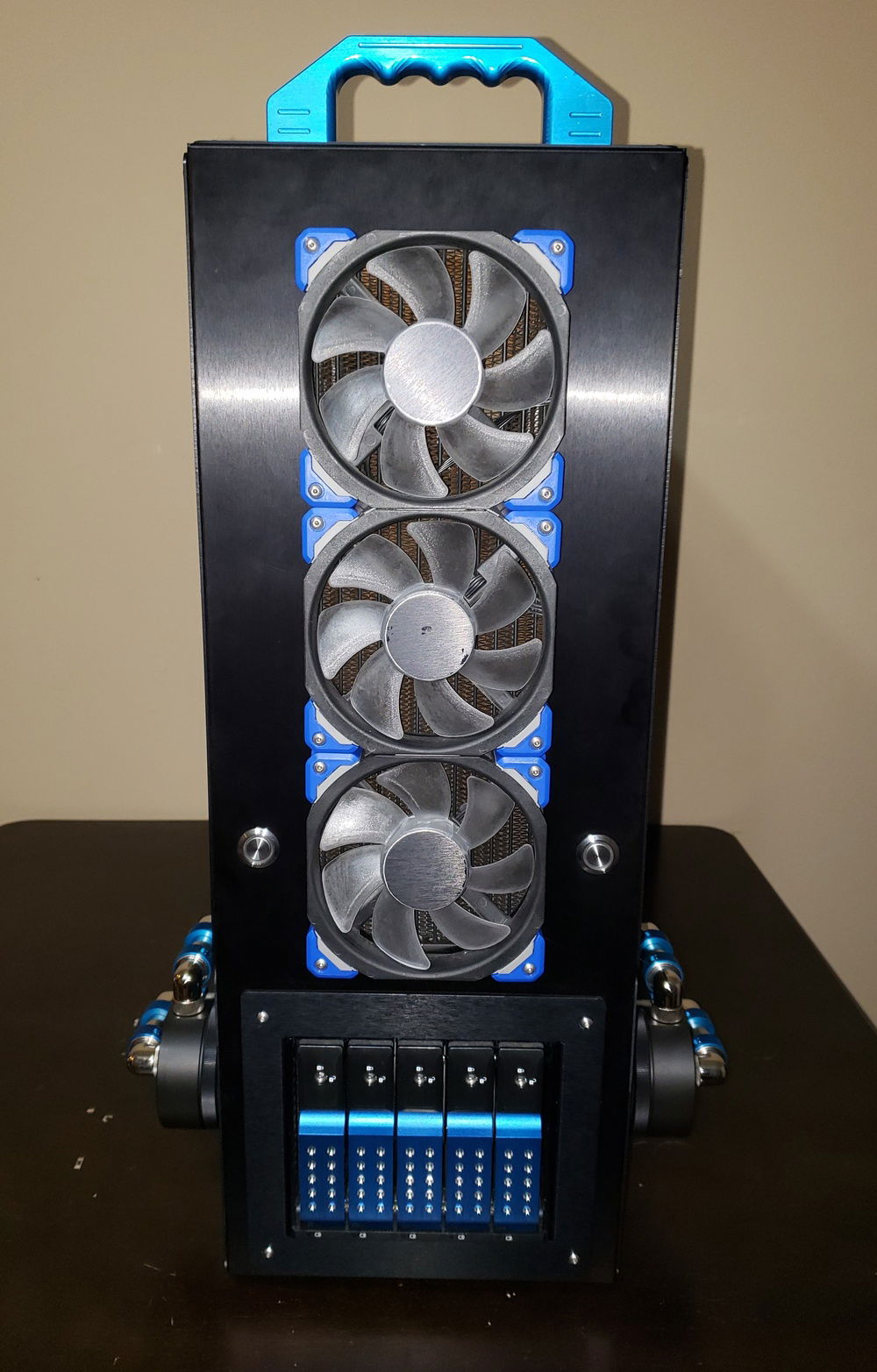

Lit front
Lit front

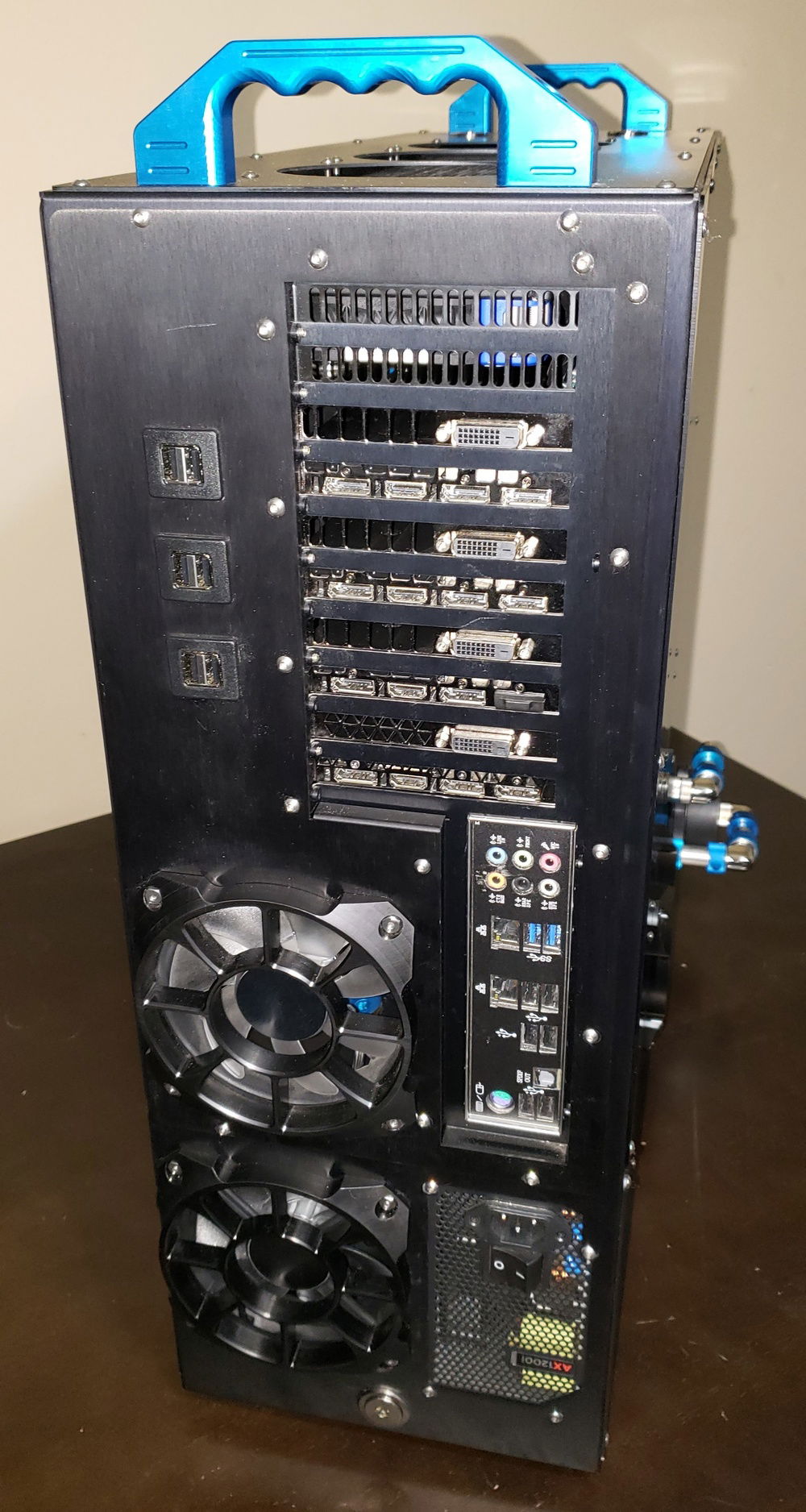

Lit rear
Lit rear

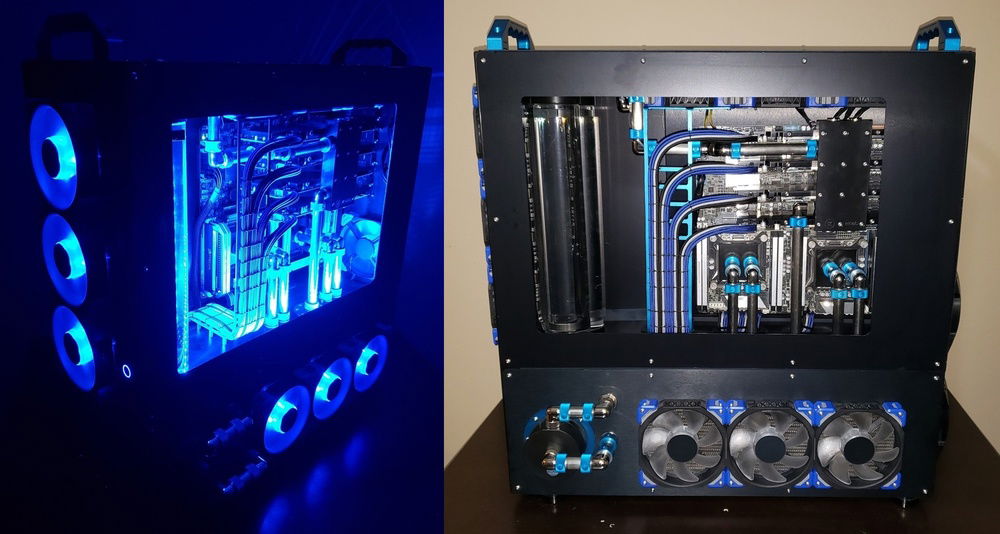

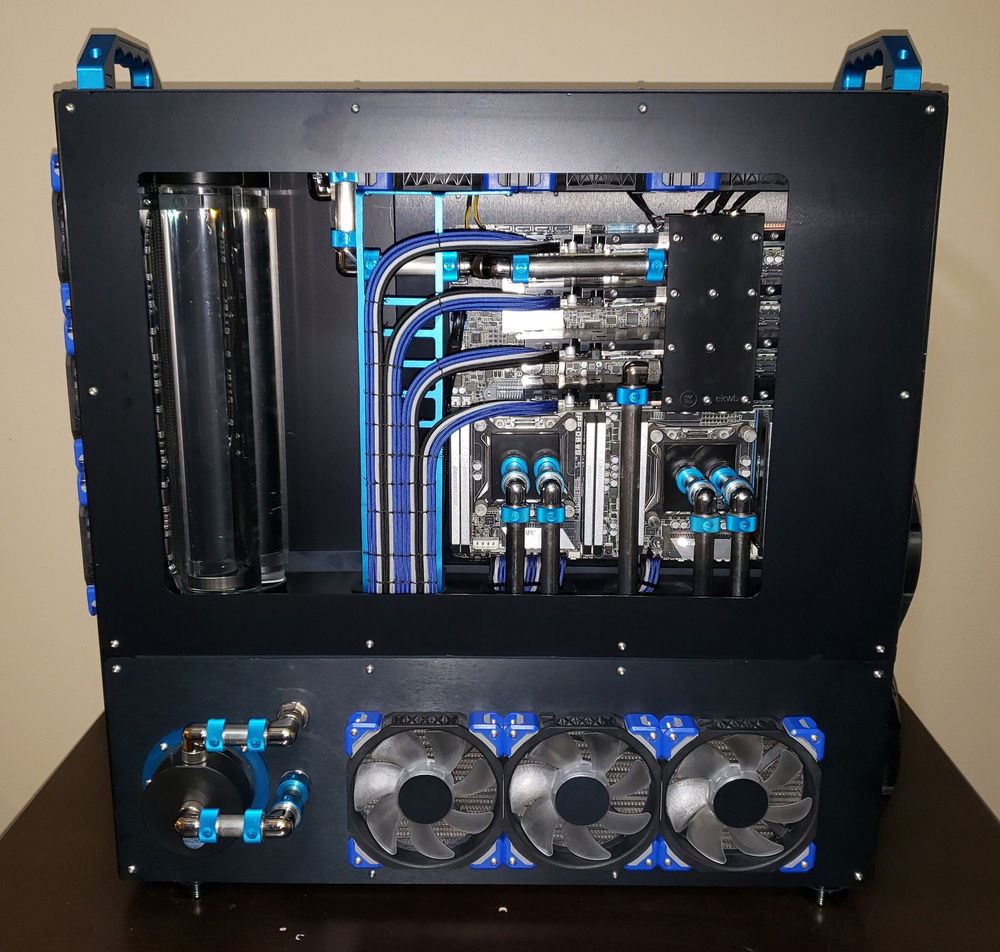

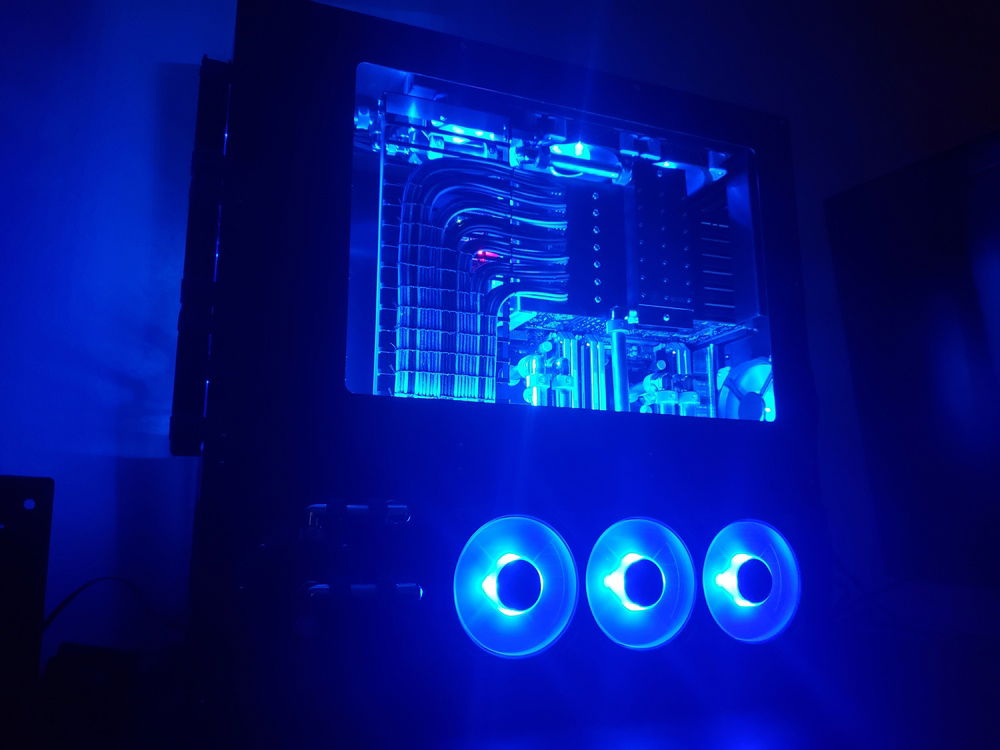

Lit windowed side
Lit windowed side

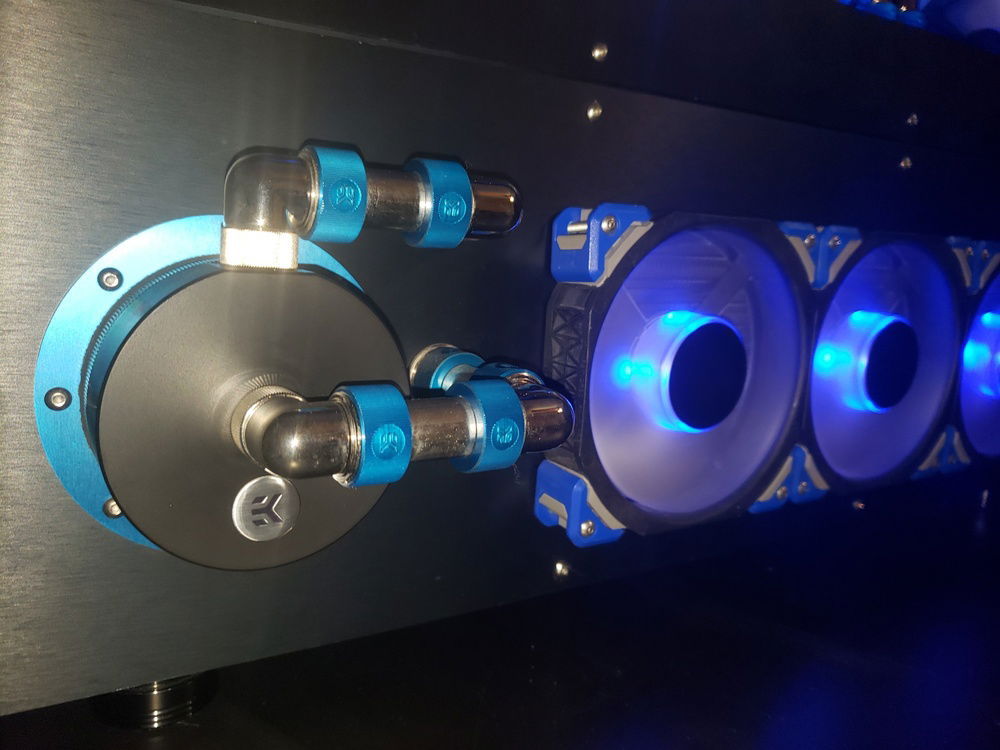

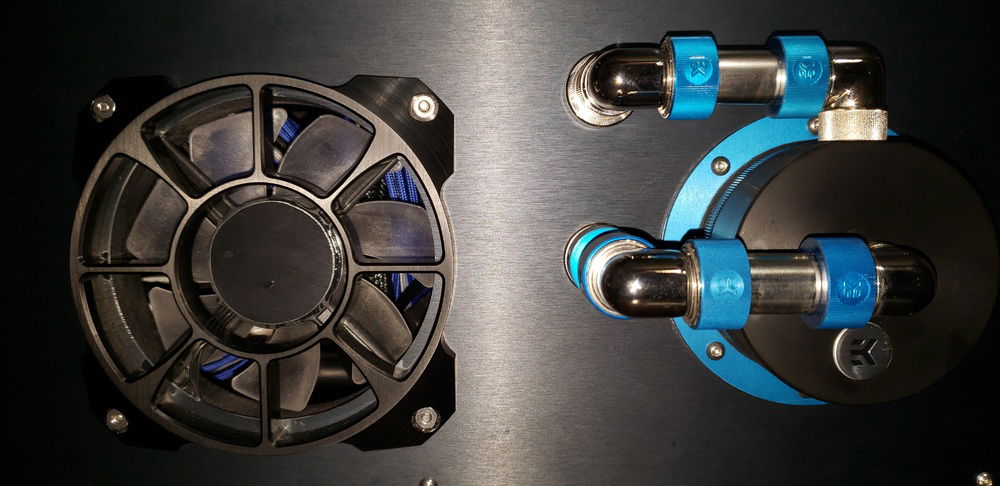

Lit rear pump and exhaust
Lit rear pump and exhaust

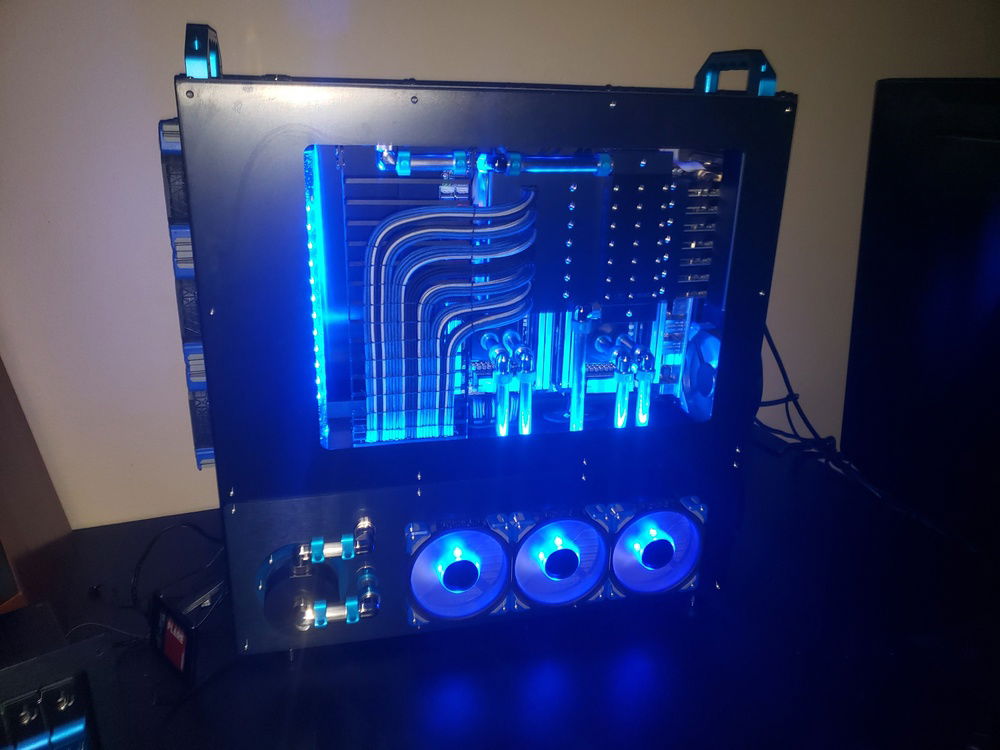

Lit 3/4 front
Lit 3/4 front

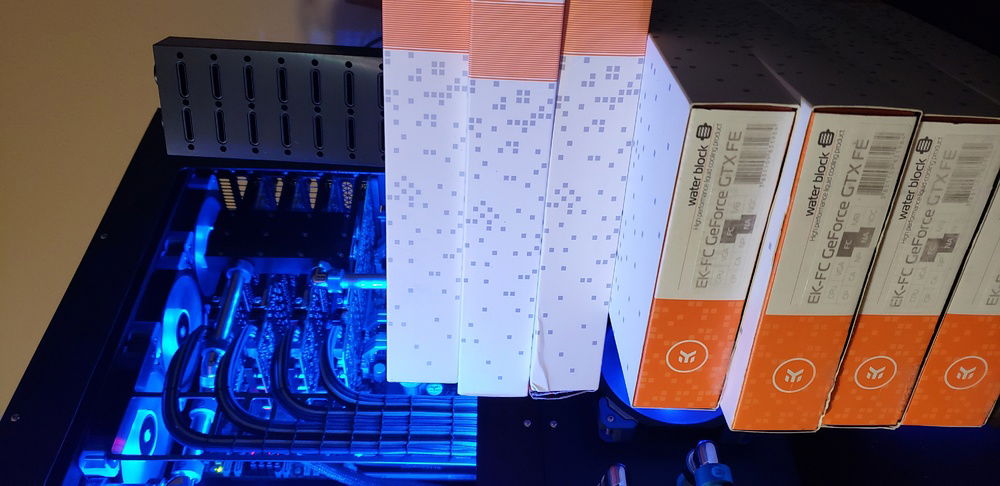

Blocks are in!
Blocks are in!

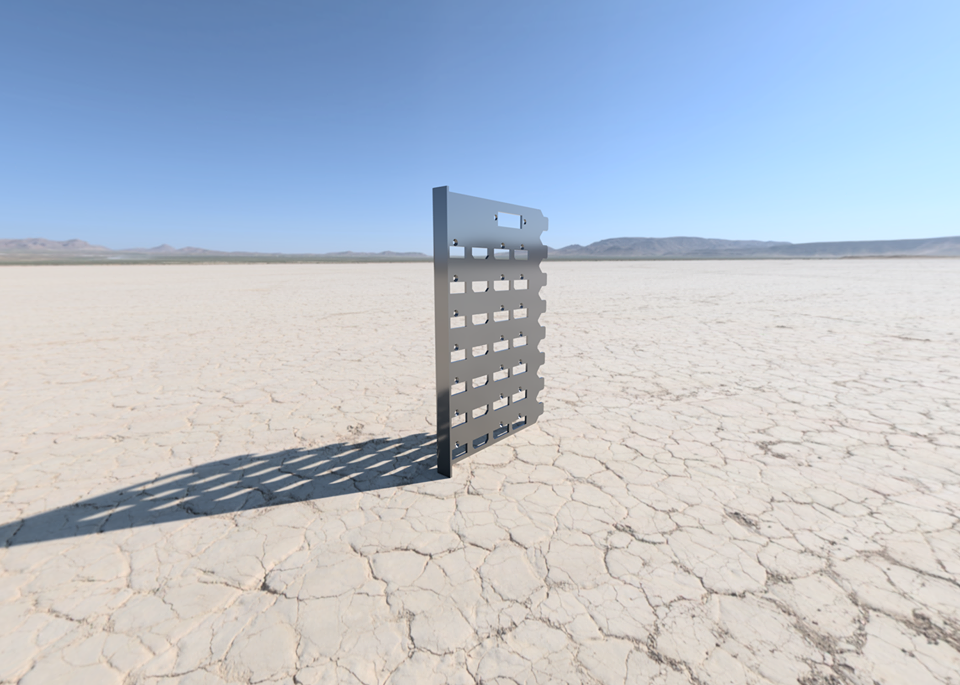

One piece I/O bracket rendered, ready to cut
One piece I/O bracket rendered, ready to cut

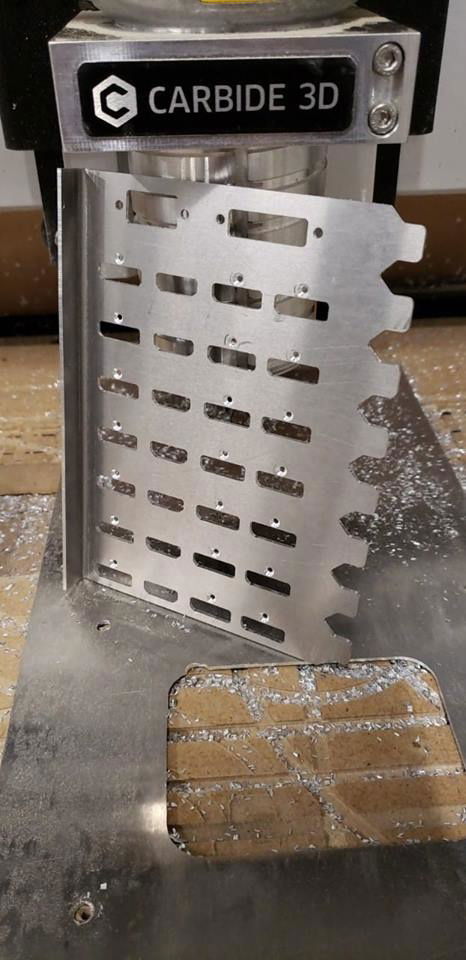

8 slot GPU io bracket, because gravity.
8 slot GPU io bracket, because gravity.

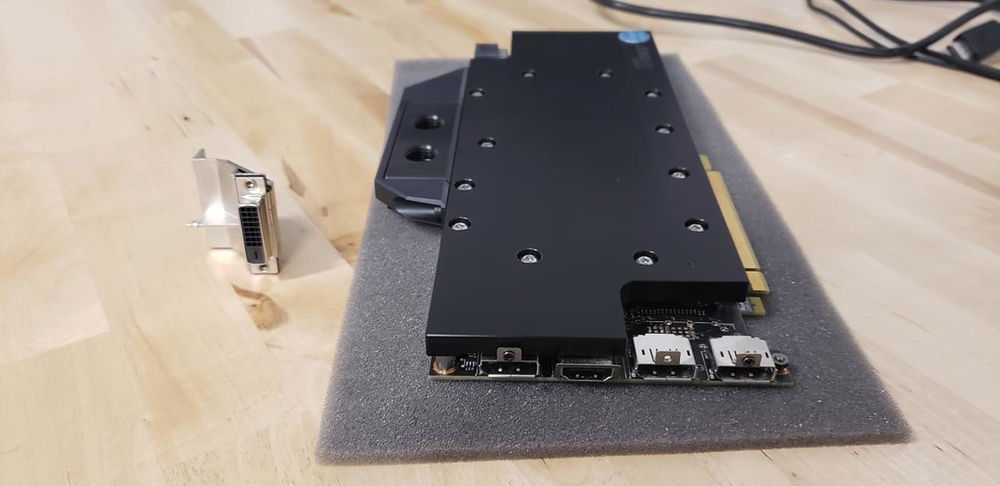

I/O view
I/O view

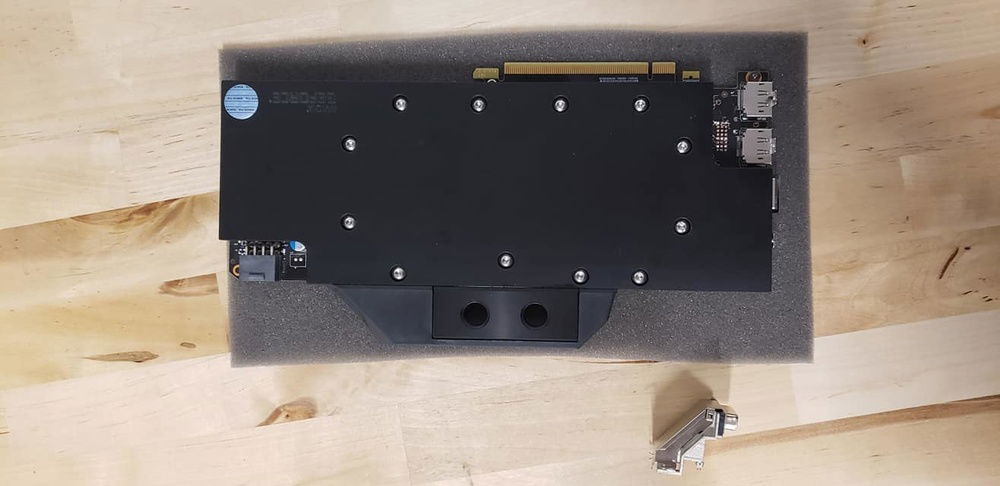

First card DVI port removed, block installed, and screws replaced with SS button cap.
First card DVI port removed, block installed, and screws replaced with SS button cap.

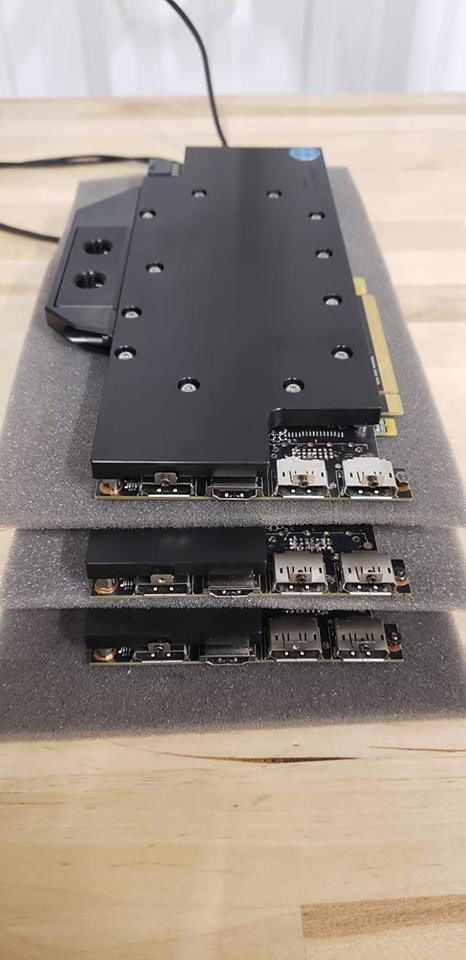

Three down, 3 to go!
Three down, 3 to go!

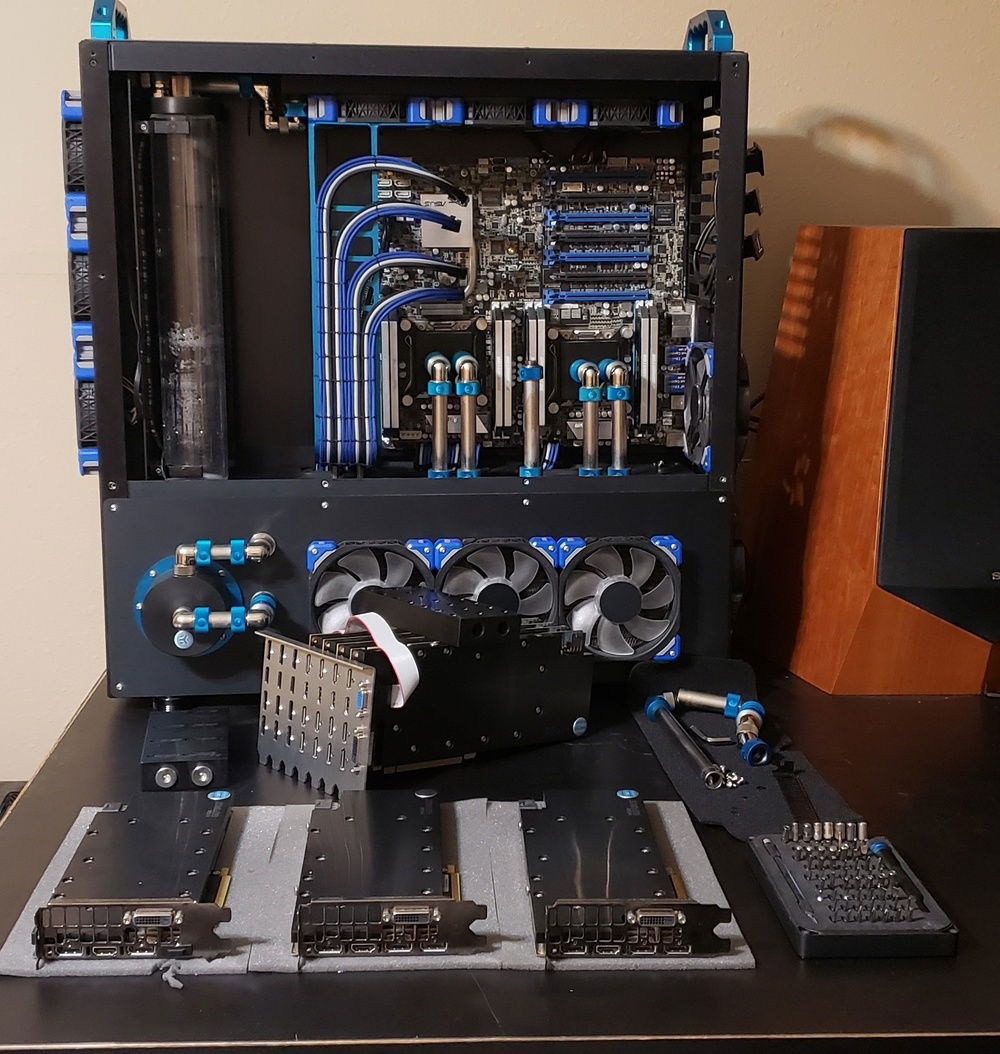

Half way there
Half way there

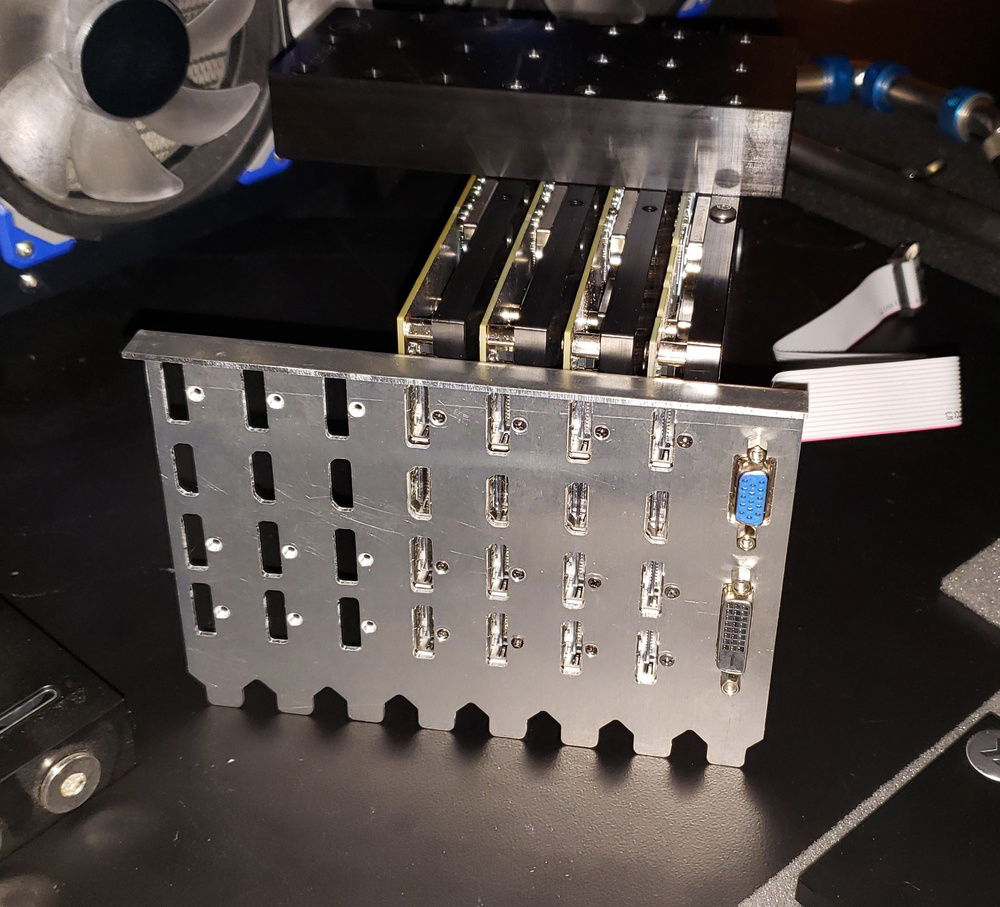

Single slotting and block installation fun!
Single slotting and block installation fun!

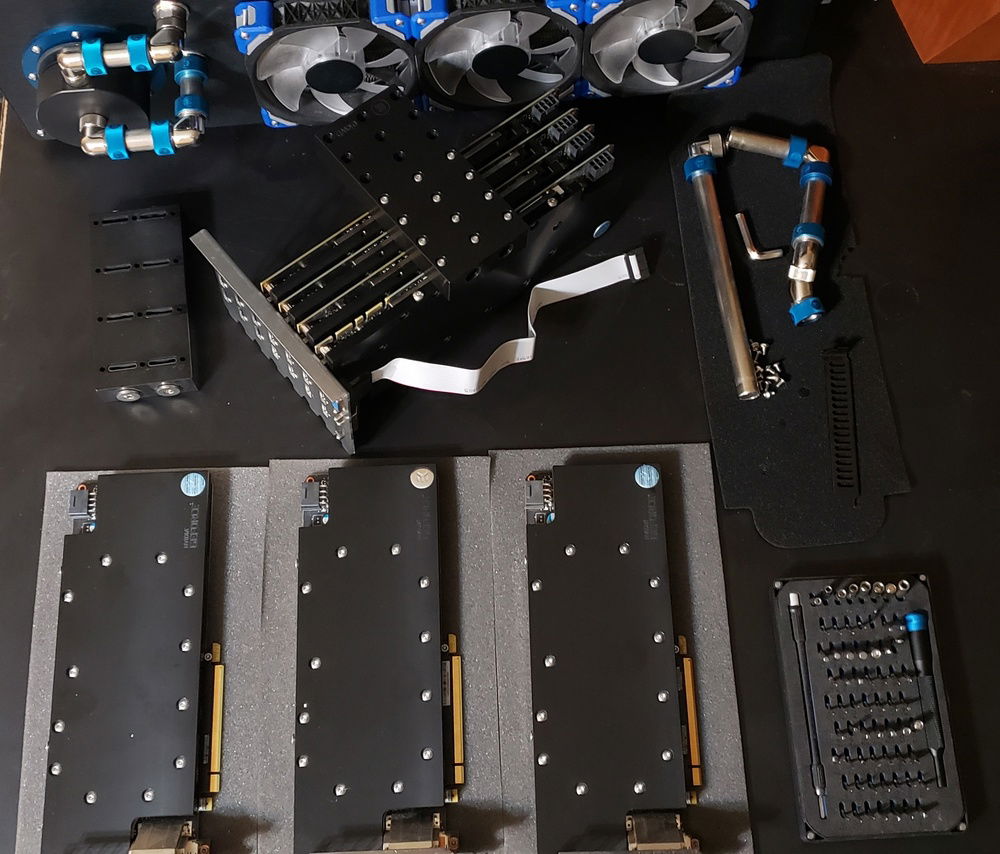

Watercooling is never tedious ;)
Watercooling is never tedious ;)

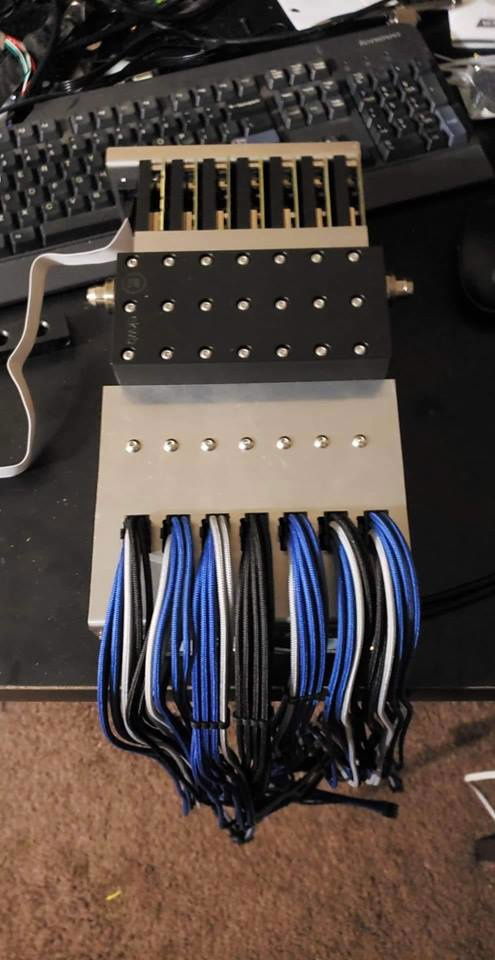

Adding three more PCIe cables
Adding three more PCIe cables

7 Player VM Gaming Monster

Originally built as a four player box, work is nearing completion to squeeze 7 total gaming VMs into a 24" x 24" x 10" chassis. The base case is a Mountain Mods Pinnacle 24 with new custom cut 1/3-2/3 split side panels and internal midplate. She's cooled by an EK dual loop with three 360's and over 120 fittings. Updates are still coming, so stay tuned Emoji
Color(s): Black Blue Silver
RGB Lighting? No
Theme: Industrial
Cooling: Custom Liquid Cooling
Size: E-ATX
Type: General Build

Contests

This build participated in 1 contest.

Build Updates

CPUs and GPUs upgrade

Upgrade Phase 1

New CPUs and...

Finally Done!

Hardware

CPU
$ 298.95
Intel - Xeon E5 2697 v2
Socket: LGA 2011
Cores: 12
Motherboard
ASUS - Z9PE-D8 WS
Chipset: C602
CPU Socket: LGA 2011
Size: EEB
Graphics
$ 299.99
EVGA - 1060 6gb SSC
Chip Manufacturer: NVIDIA
Chip: GTX 1060
Graphics
$ 299.00
NVIDIA - Founders Edition
Chip Manufacturer: NVIDIA
Chip: GTX 1080
Storage
$ 109.00
Samsung - 860 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 500 GB
Storage
Western Digital - WD Red NAS
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 4 TB
PSU
$ 649.00
Corsair - AX1600i
Wattage: 1600
Form Factor: ATX
Efficiency: 80+ Titanium
Case
Custom - Custom (custom)
Case Fan
$ 26.29
Corsair - ML120 PRO LED Blue 120mm PWM Premium Magnetic Levitation
Size: 120 mm
Cooling
$ 209.06
EKWB - CoolStream PE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
EKWB - CPU Blocks (discontinued)
Type: Custom Loop
Cooling
$ 124.99
EKWB - EK-XTOP Revo D5 RGB PWM Acetal
Type: Custom Loop
Cooling
EKWB - Fittings
Type: Custom Loop
Cooling
EKWB - GPU Blocks (discontinued)
Type: Custom Loop
Cooling
EKWB - Radiators (discontinued)
Type: Custom Loop
Monitor
$ 1,199.75
LG - 43UD79-B
Size: 43 Inch
Panel: IPS
Refresh Rate: 85 Hz
Keyboard
$ 112.00
Ducky - One Double Shot
Interface: Wired
Key Switch Type: Cherry MX Blue
Type: Full Size
Mouse
$ 59.99
Corsair - Scimitar Pro RGB
Interface: Wired
