UNIMATRIX ZER0

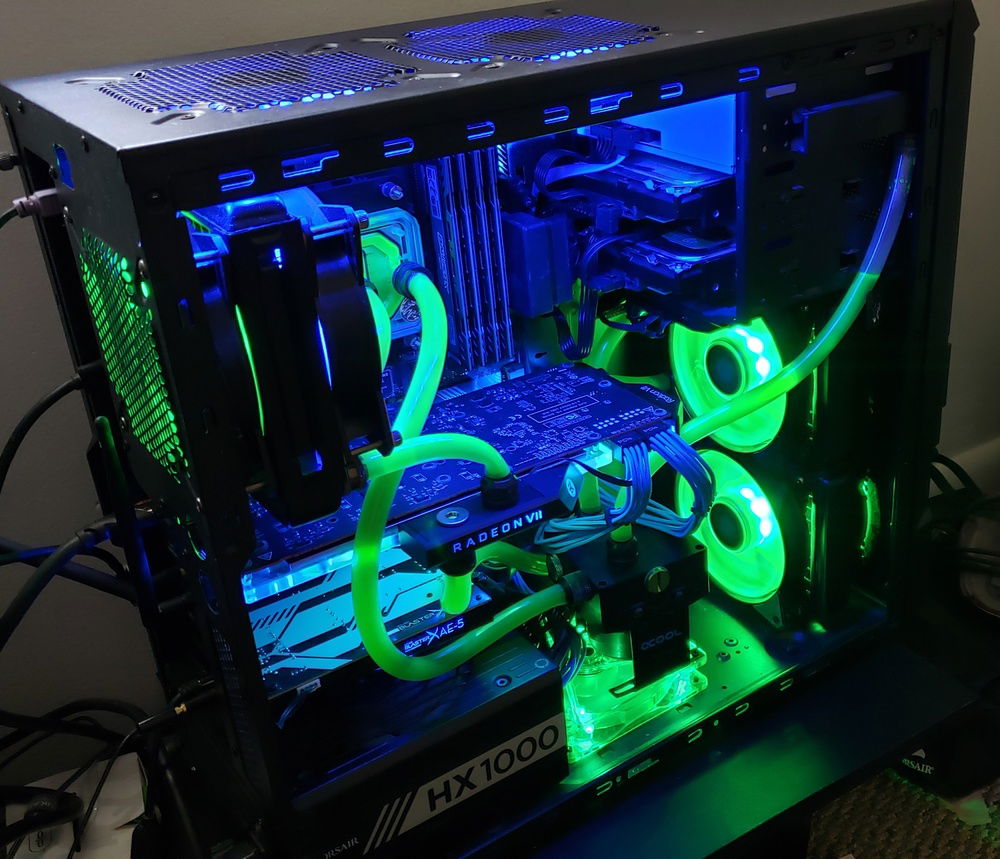

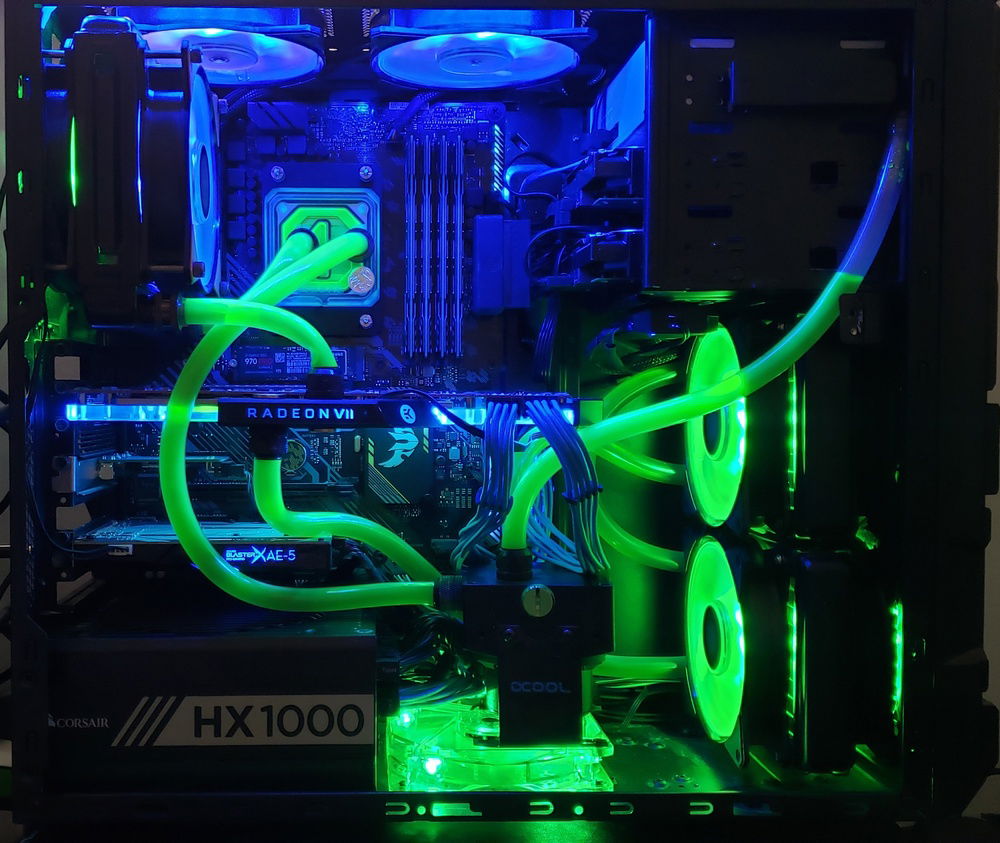

I removed the hard drive trays by drilling out the rivets in order to make room for cooling. The 3.5" drives have been relocated to the 5" bay using adapter brackets and are running in a RAID 0/ Striped configuration. I used 2 120 rads in the front because I tried a 240, but it wouldn't fit without further modification to the case. All radiators have 2 fans in a push/ pull configuration as one fan on each wasn't cool enough. The front intake fans are connected to a SATA powered fan hub which is controlled by the PWM on the GPU. The other fans are controlled by CPU temperature. Also I installed the fan that came with the case underneath the coolant pump. There is no reservoir. I filled the loop with EK Cryofuel premix and left a fluid level indicator tube attached to the pump which runs everything in series. The Acid Green fluid and side panel, accompanied by the RGB lighting accentuate the futuristic theme I was going for.
Color(s): Black Blue Green
RGB Lighting? Yes
Theme: Futuristic
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 150.00
AMD - Ryzen 5 (2600X)
Socket: AM4
Cores: 6
Motherboard
$ 187.80
ASUS - TUF Plus (B450-Plus)
Chipset: B450
CPU Socket: AM4
Size: ATX
Memory
Crucial - Ballistix Sport LT (2400MHz) (Red)
Type: DDR4
Capacity: 64 GB
Graphics
AMD - Radeon VII
Chip Manufacturer: AMD
Chip: R7
Storage
$ 284.05
Samsung - 970 PRO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 189.98
Seagate - Barracuda (ST2000DM006) (2x)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 2 TB
PSU
$ 395.00
Corsair - HX1000 Platinum
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 61.99
Apevia - X-Sniper 2, Green
Type: Mid-Tower
Side Panel: Window
Case Fan
$ 149.95
Case Fan
$ 74.97
Cooling
$ 184.89
Alphacool - Eisdecke D5
Type: Pump
Cooling
$ 99.99
Bykski - CPU-XPR-AM
Type: Custom Loop
Cooling
Cooling
Cooling
EKWB - Tubing
Type: Custom Loop
Cooling
XSPC - Fittings
Type: Custom Loop
Accessories
$ 40.99
Accessories
$ 21.99
Accessories
$ 179.99
Accessories
$ 17.59
