WINBOT - ASUS ROG Z690 Launch Build

A dream of mine has come true! I have received a Sponsorship from ASUS Republic of Gamers! They pulled me in to help build a machine to promote their Z690 motherboards! They generously provided me their new Maximus Z690 Formula in white, along with CPU, RAM, PSU, and even an ROG Strix 3080! Not only would this build be used in their promotional material, it was also exhibited at Intel's "Intel Creator Challenge Finale: PC Modding Competition".

About the Build:

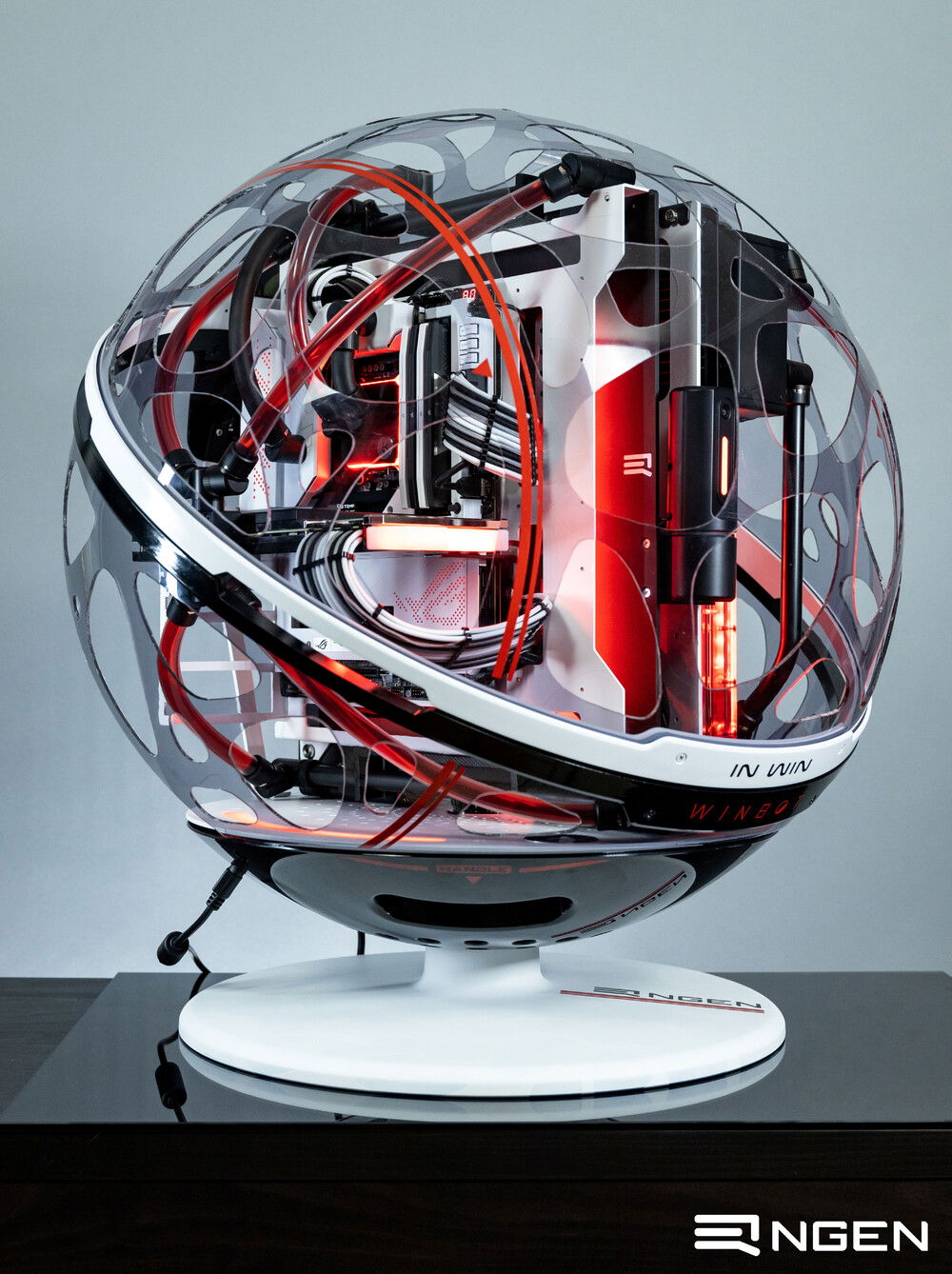

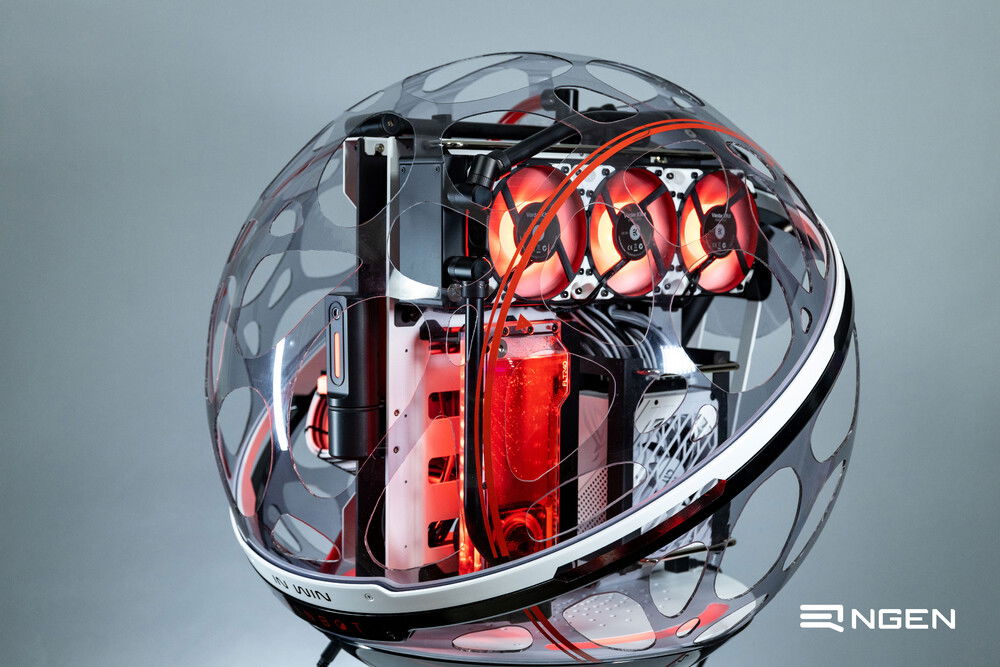

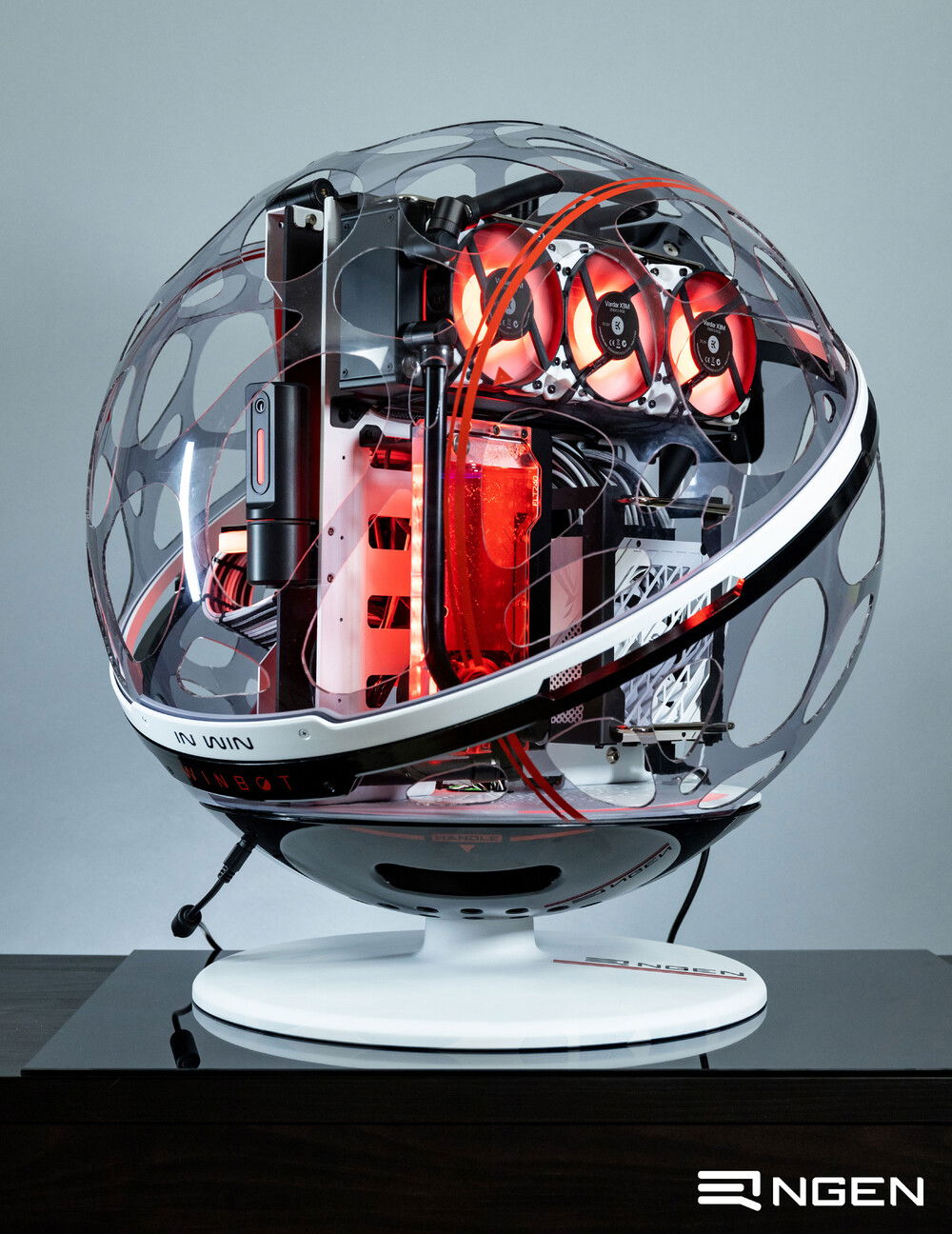

This InWin WINBOT was severely damaged during shipping to a customer and was returned back to InWin. InWin then sent me this case to bring it back to life. Since the damaged section could not be repaired, I had to cut out and remove it. Once making the cut symmetrical, I had lost almost the entire back half of the sphere. I then had to create custom brackets to support the hinge mechanism so the case could open and close again without collapsing in on itself. Once functional again, I needed a build.

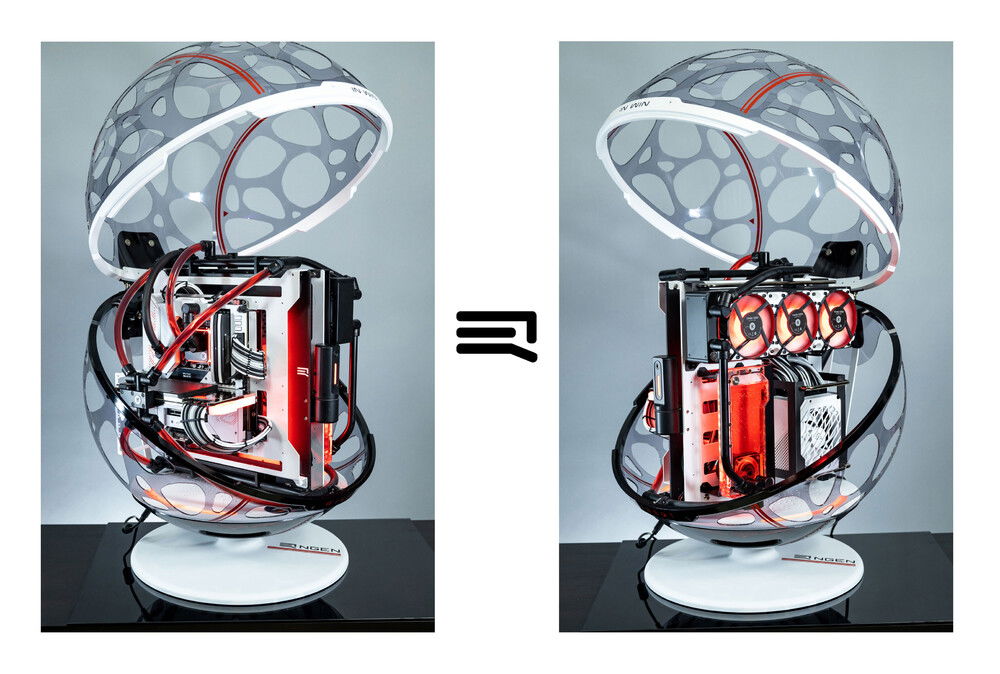

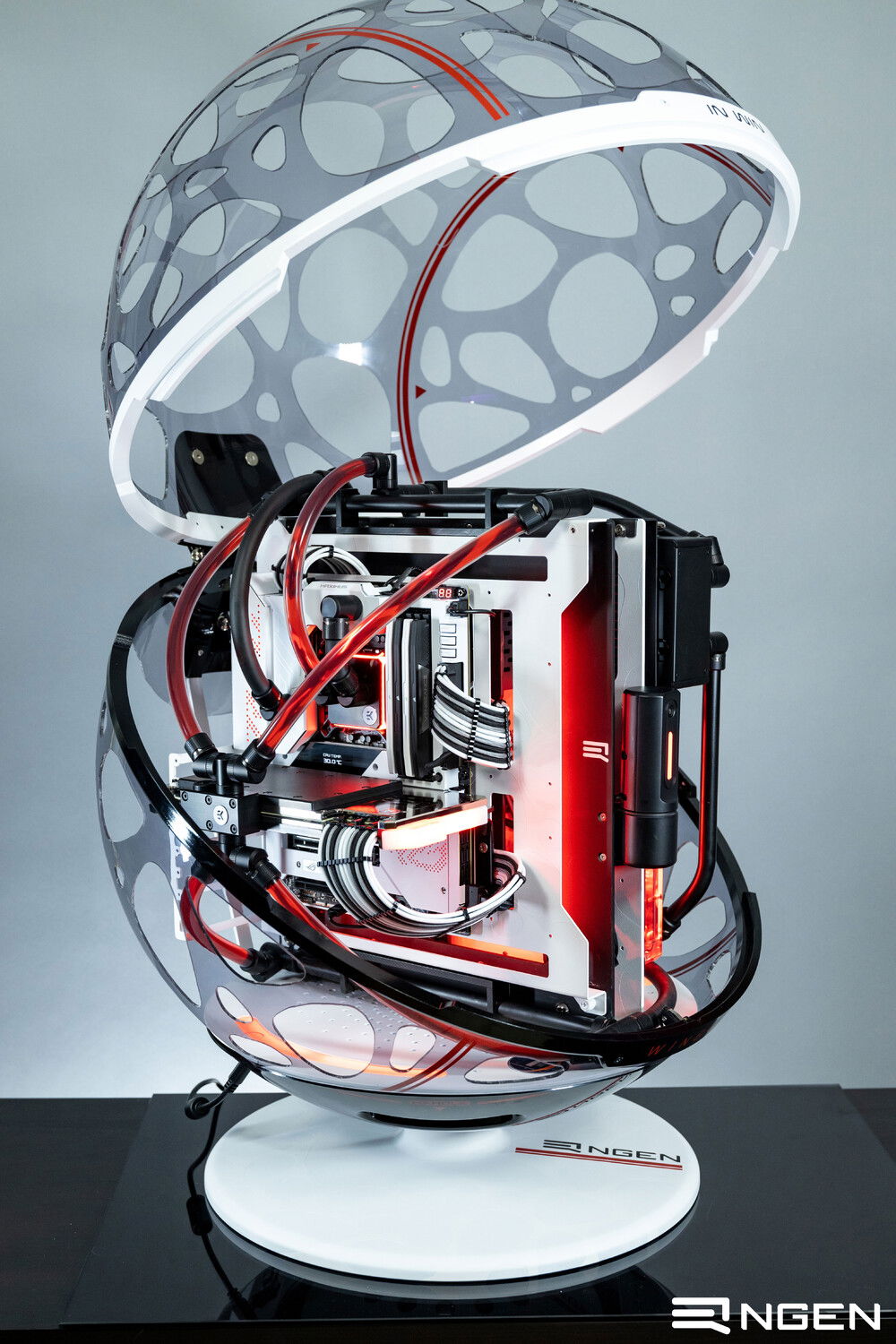

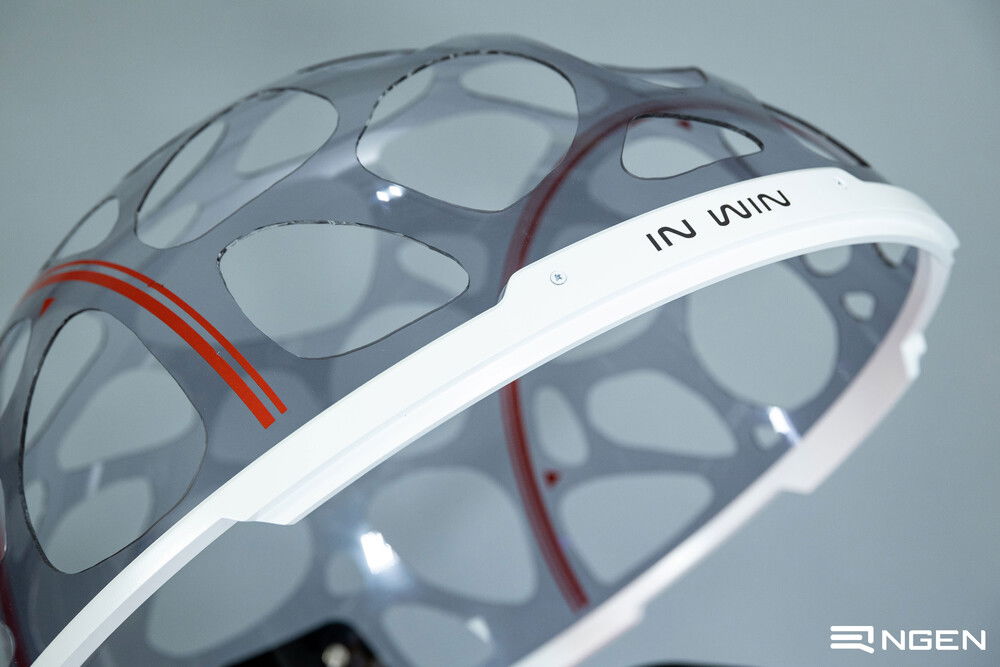

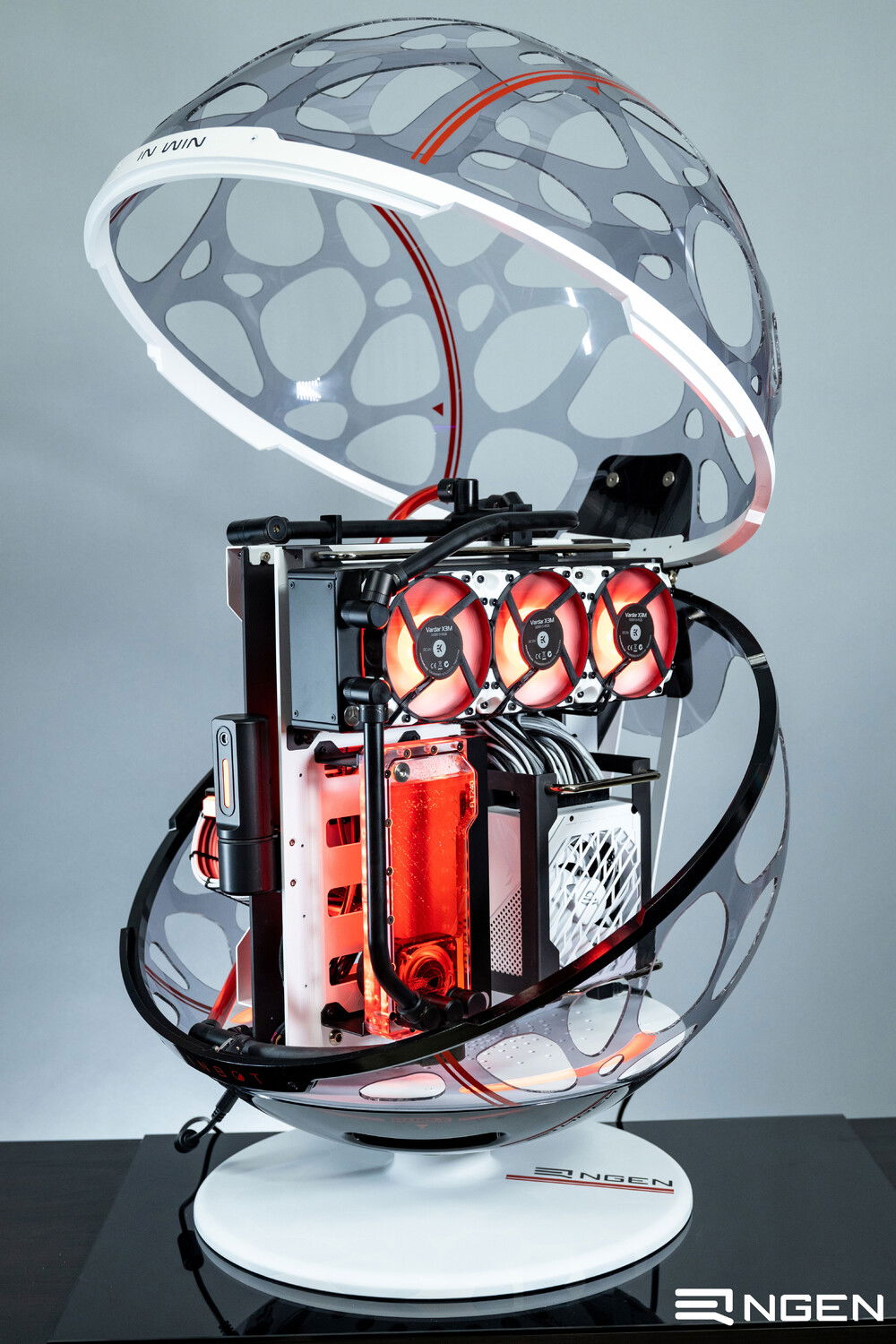

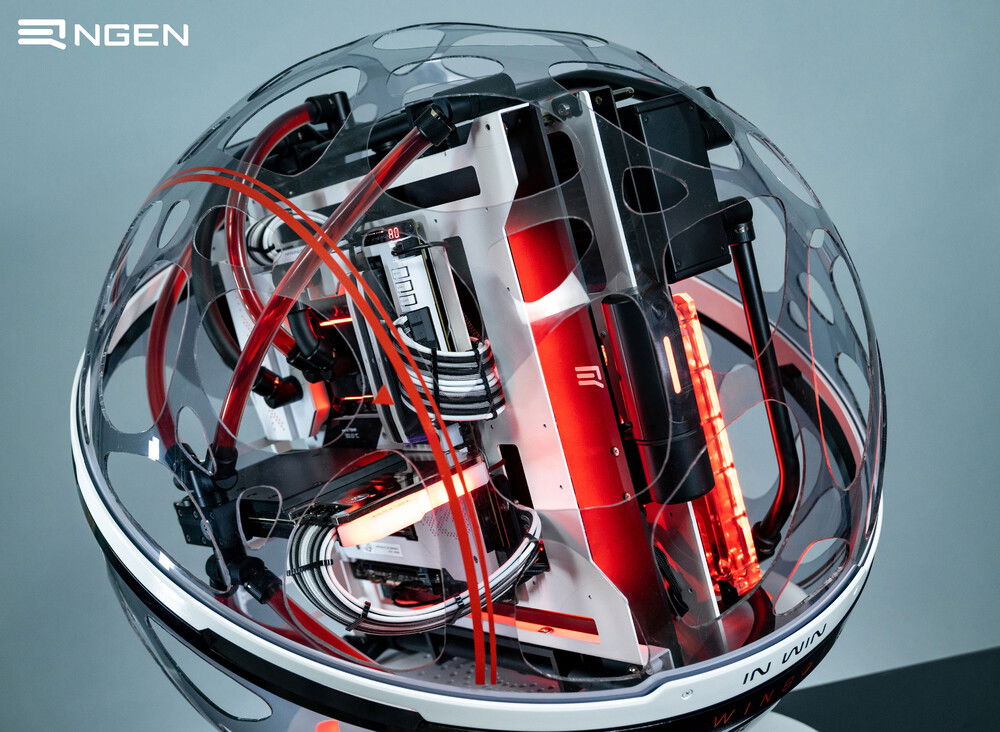

When ASUS approached me to build a machine for the launch of their Z690 motherboards, I knew this was my chance to use the WINBOT. ASUS provided me with their first-ever white Formula motherboard, so the white and black color scheme became my go-to. The WINBOT has a Sci-Fi like appearance, so I wanted to enhance it by cutting out circles in the sphere to create a webbed look. This gives it a more alien, organic appearance (and has the bonus effect of removing some badly scuffed areas). I could not easily remove the red pin-striping, so I incorporated the design and made red my tertiary color.

This is my first project with ASUS and couldn’t be possible without other contributing companies such as Intel, EKWB, Corsair, InWin, and CableMod. I sincerely thank you all for the opportunity. It has been an honor. I hope my take on the InWin WINBOT leaves a lasting impression
Color(s): Black Red White
RGB Lighting? No

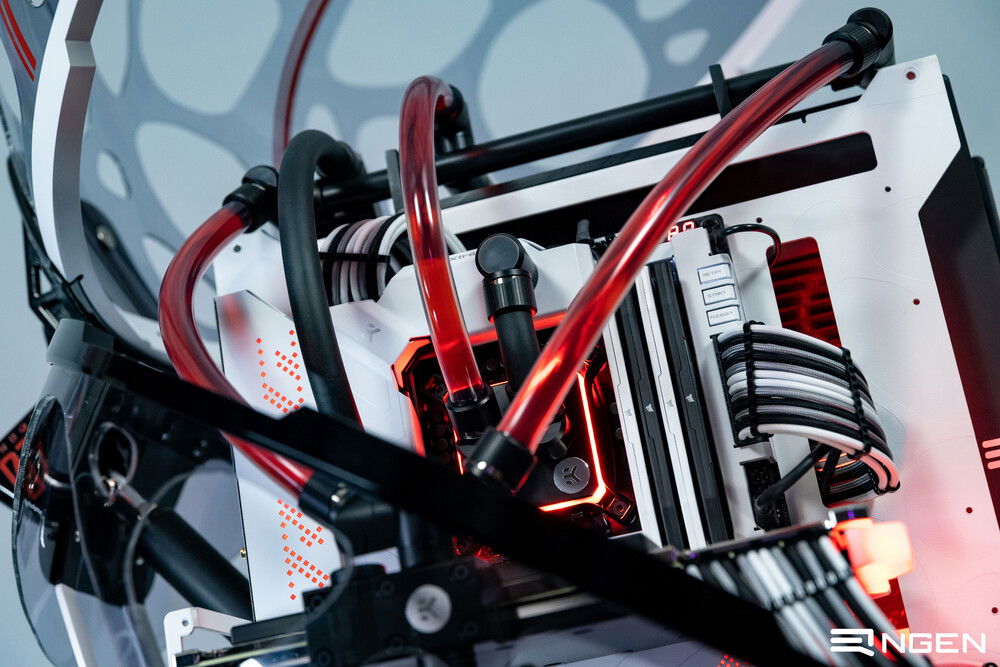

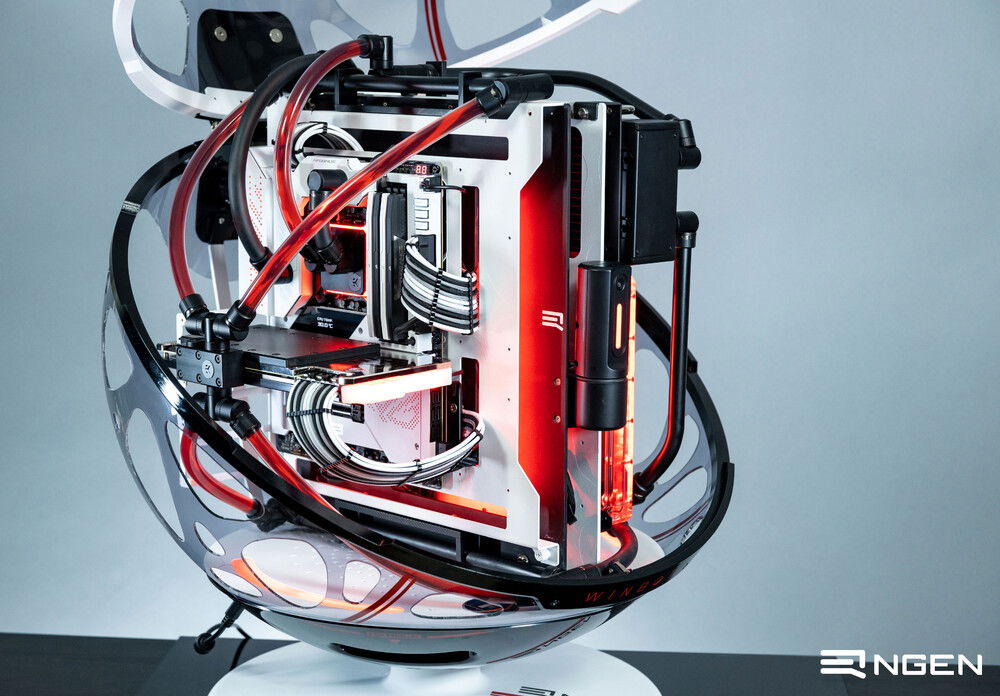

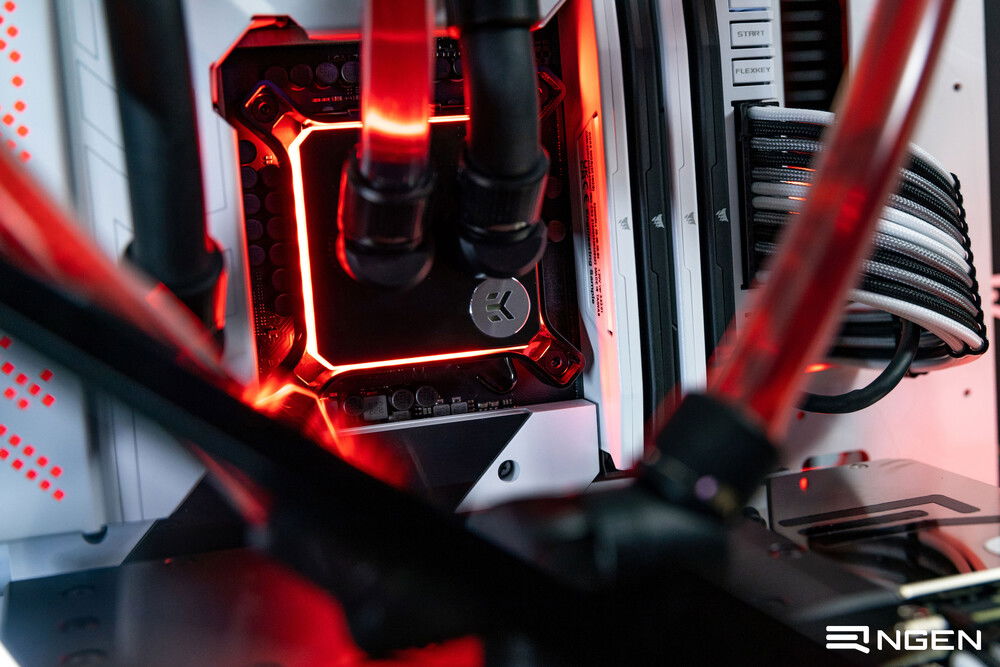

Cooling: Custom Liquid Cooling
Theme: Sci-Fi
Size: ATX
Type: General Build

Hardware

CPU
TBD/To Be Determined - TBD/To Be Determined (custom)
Motherboard

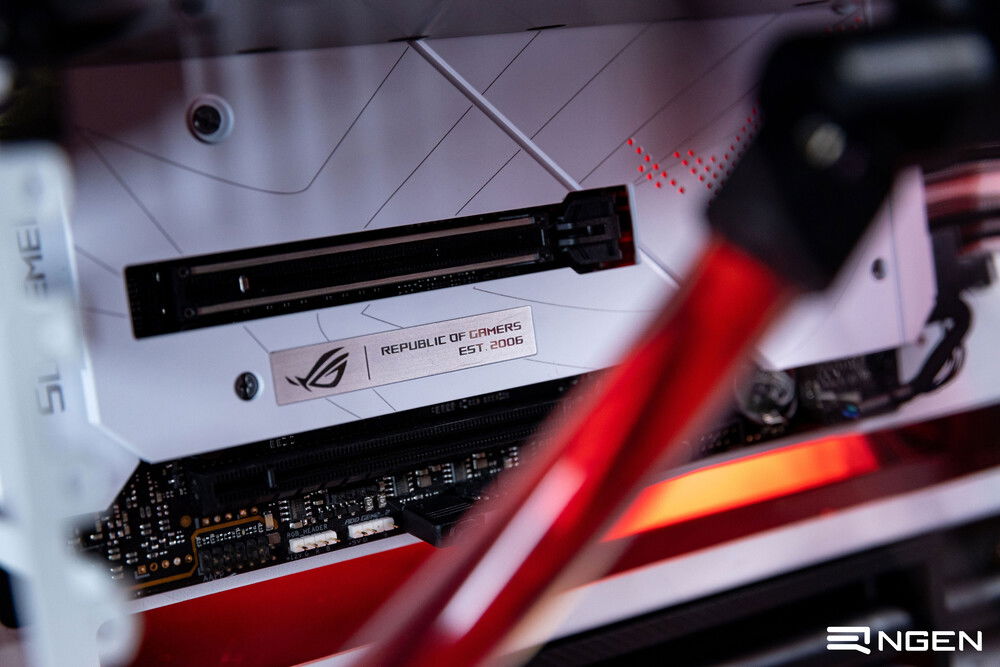

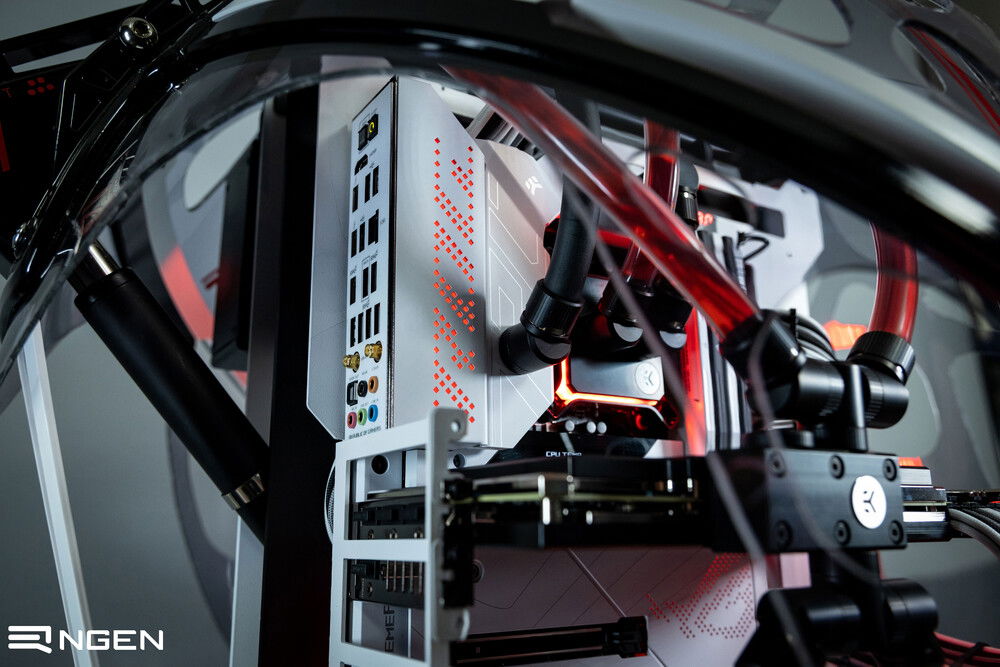

ASUS - ROG Maximus Formula
Chipset: Z690
CPU Socket: LGA 1170
Size: E-ATX

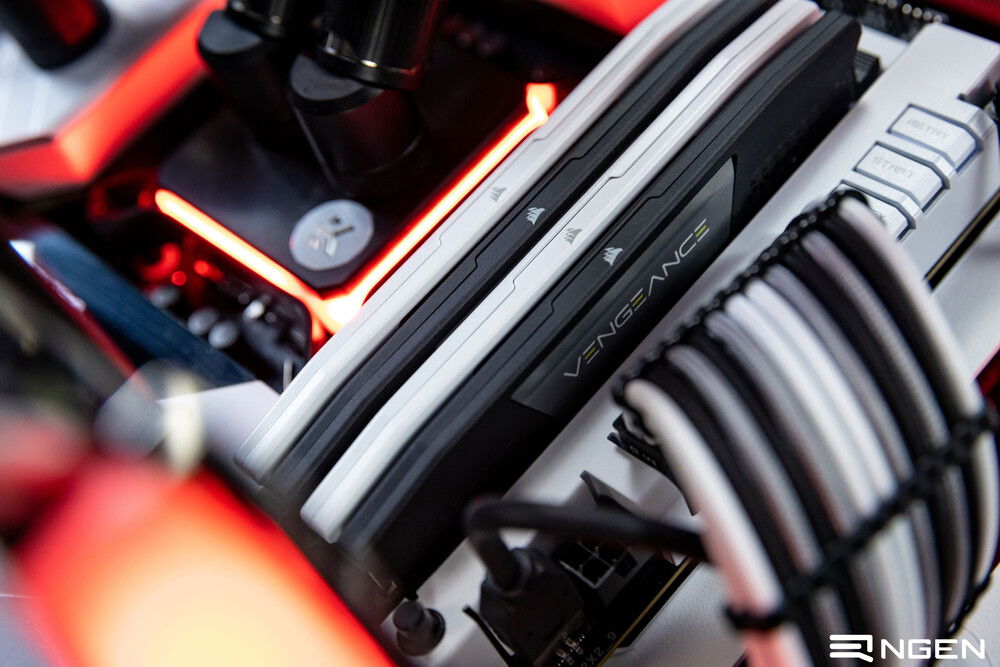

Memory
TBD/To Be Determined - TBD/To Be Determined (custom)
Graphics

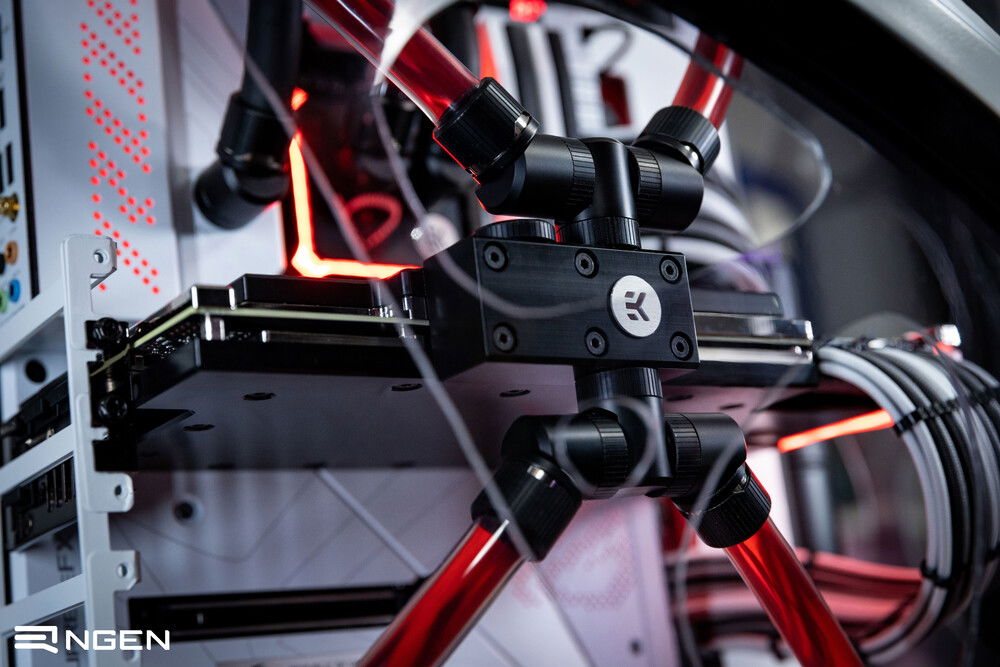

ASUS - GeForce ROG Strix Gaming
Chip Manufacturer: NVIDIA
Chip: RTX 3080
Interface: PCIe x16
Storage
$ 164.99
Western Digital - WD Black SN850
Form Factor: M.2
Interface: PCIe x4
Capacity: 1 TB
PSU

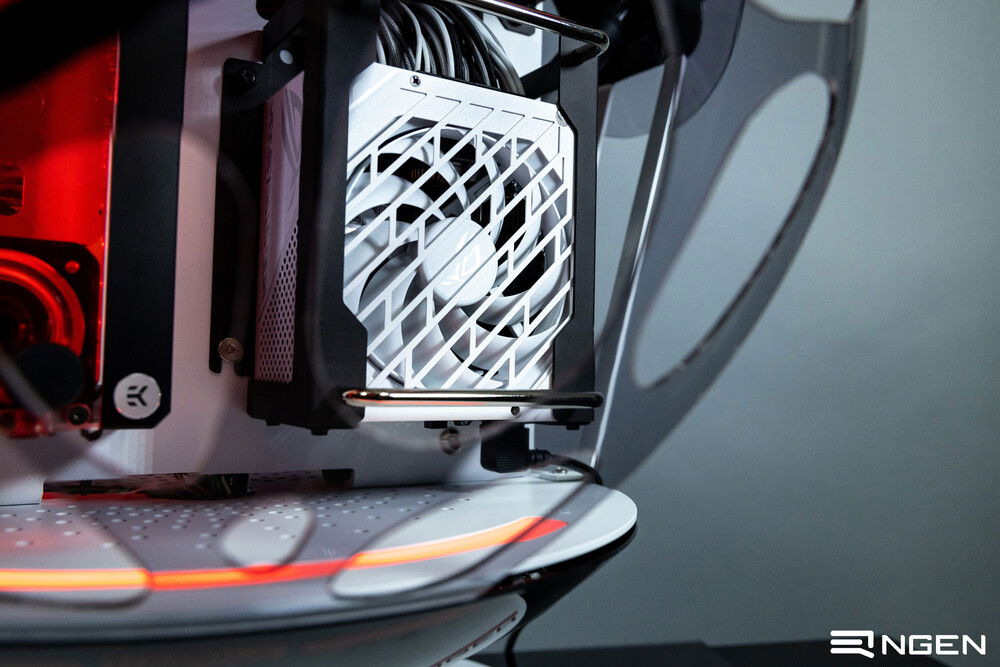

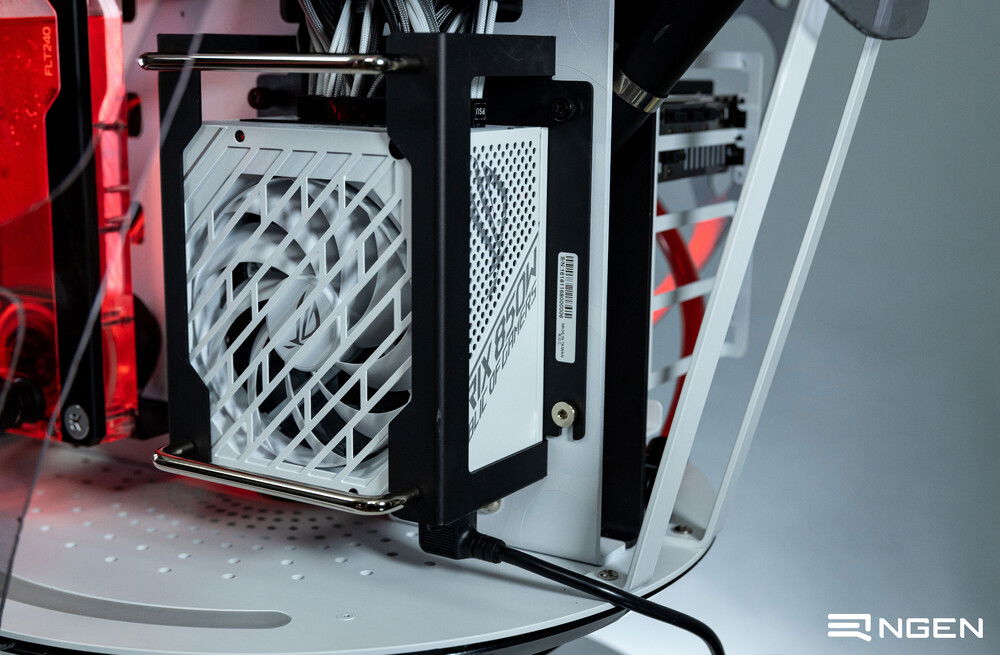

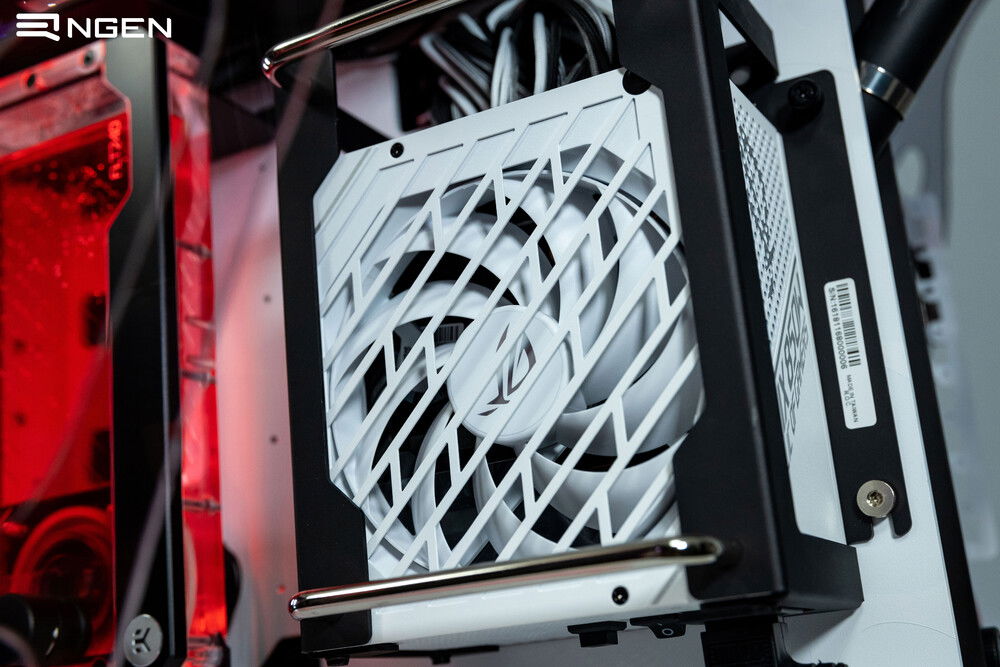

ASUS - ROG Strix 850G (White)
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Gold
Case
IN-WIN - Winbot
Type: Full-Tower
Side Panel: Window
Case Fan
$ 188.97
Cooling
$ 118.95

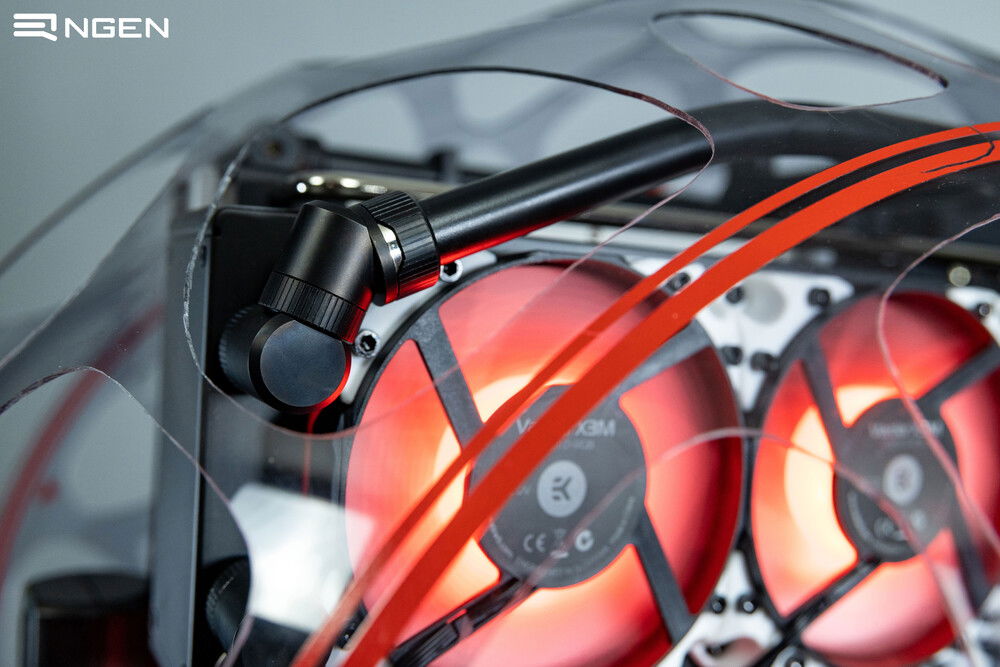

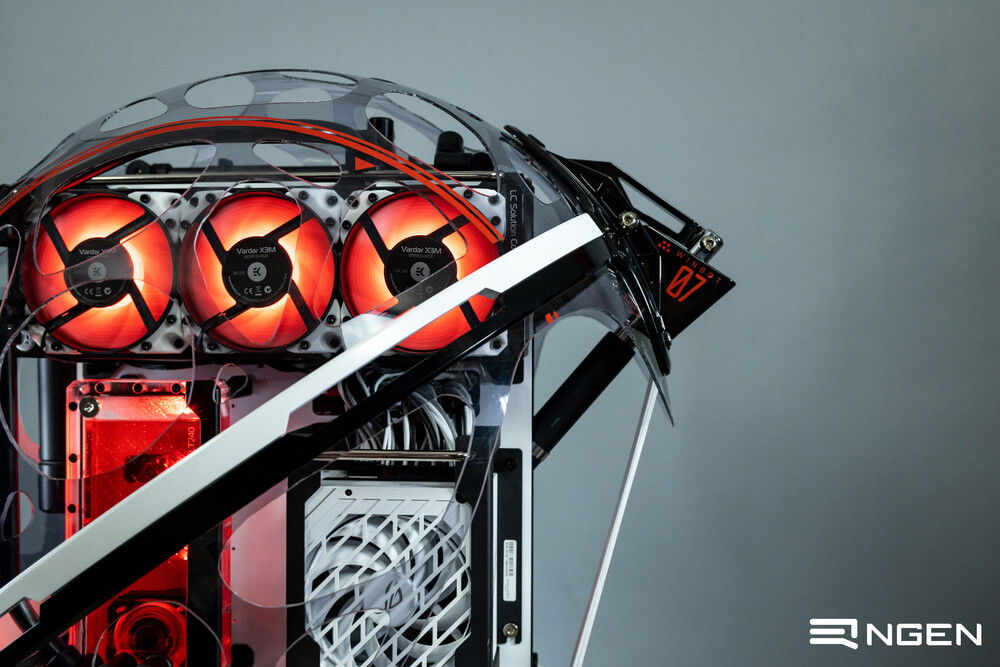

EKWB - CoolStream XE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling

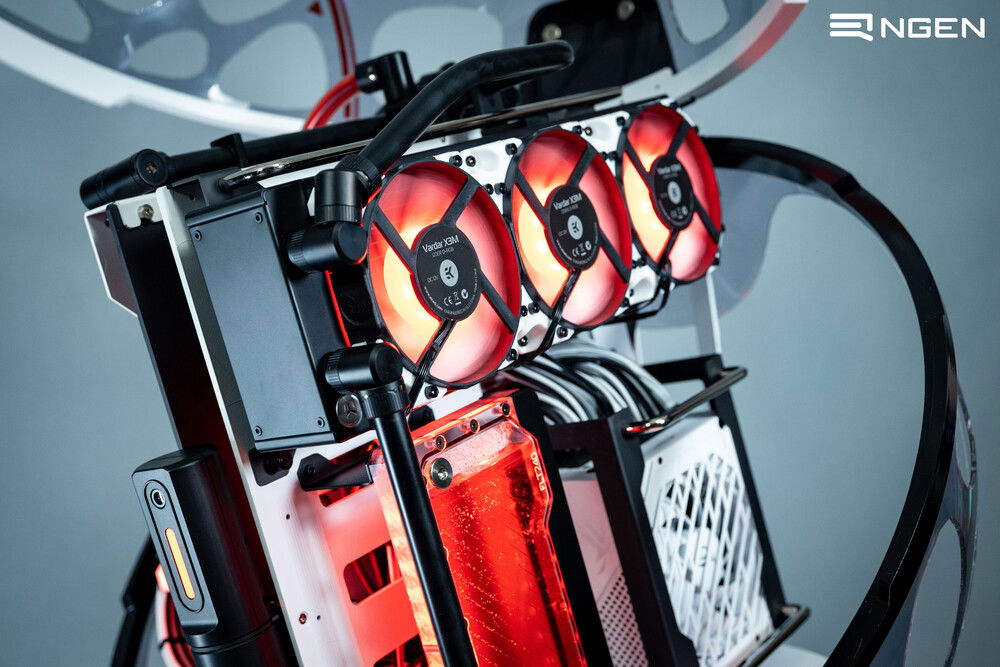

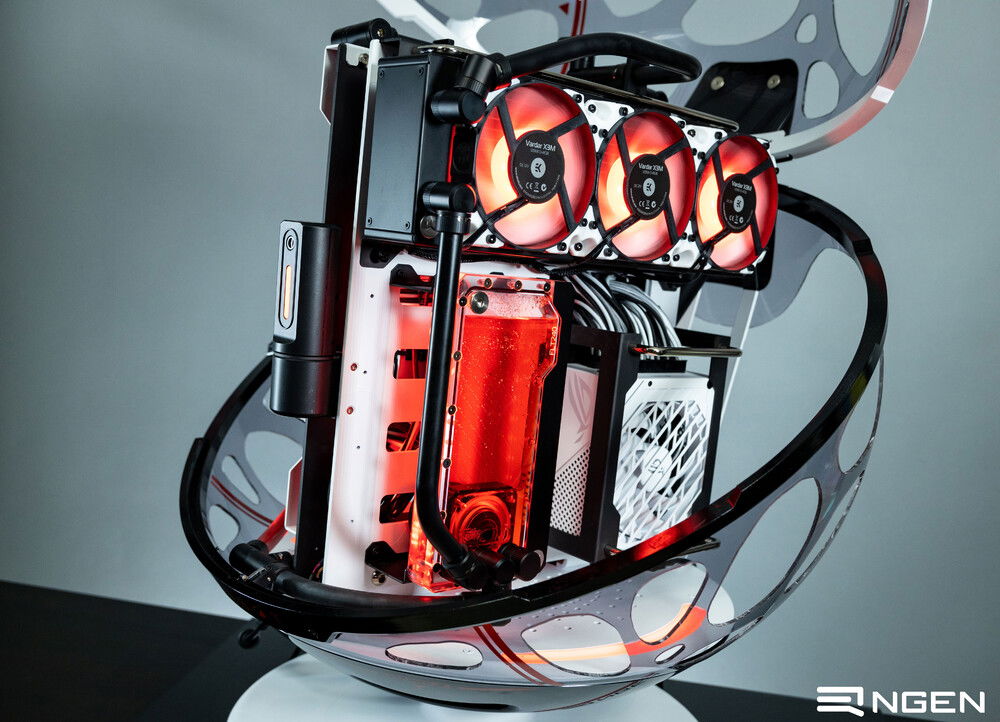

EKWB - EK-Quantum Kinetic FLT 240 D5 PWM D-RGB - Plexi
Type: Pump/Reservoir Combo
Size (WxHxD): 240 mm
Cooling
$ 269.99
Unable to dertermine total build value (missing part value)
