WATERCOOLED LIAN LI – March 2018

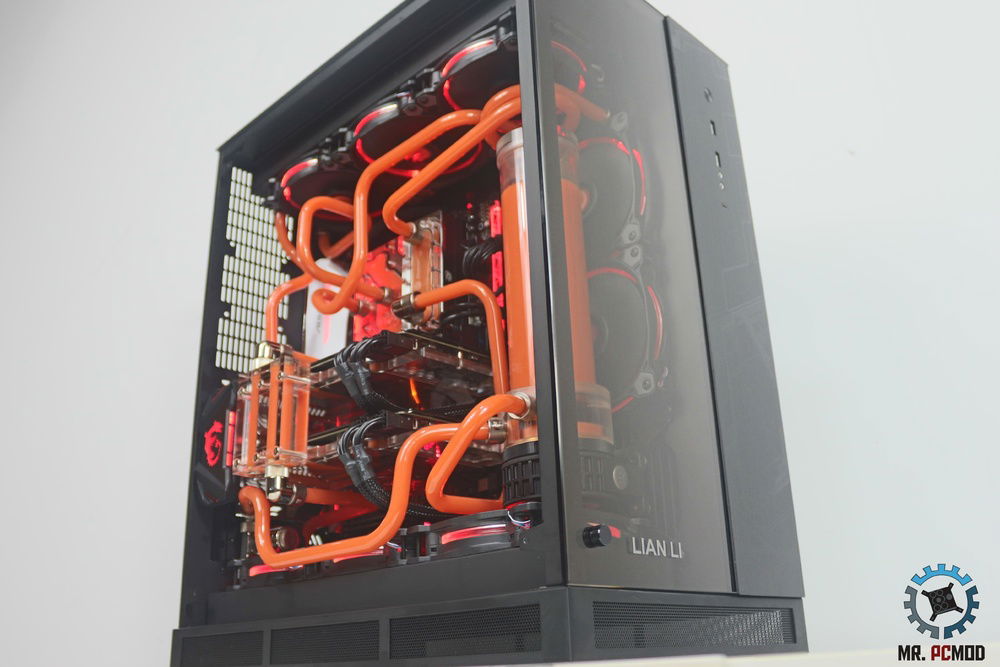

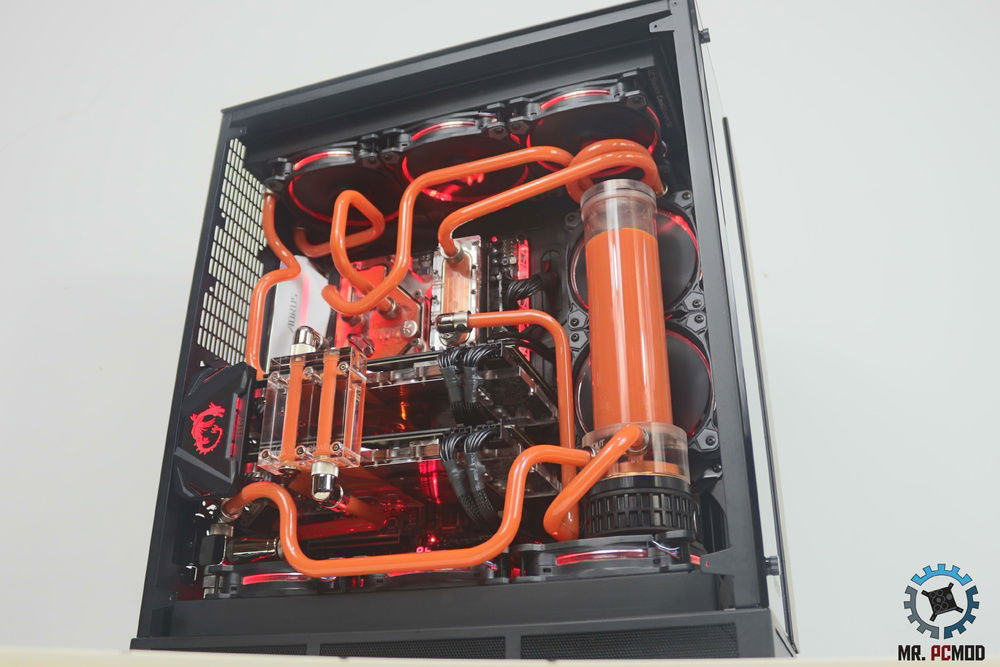

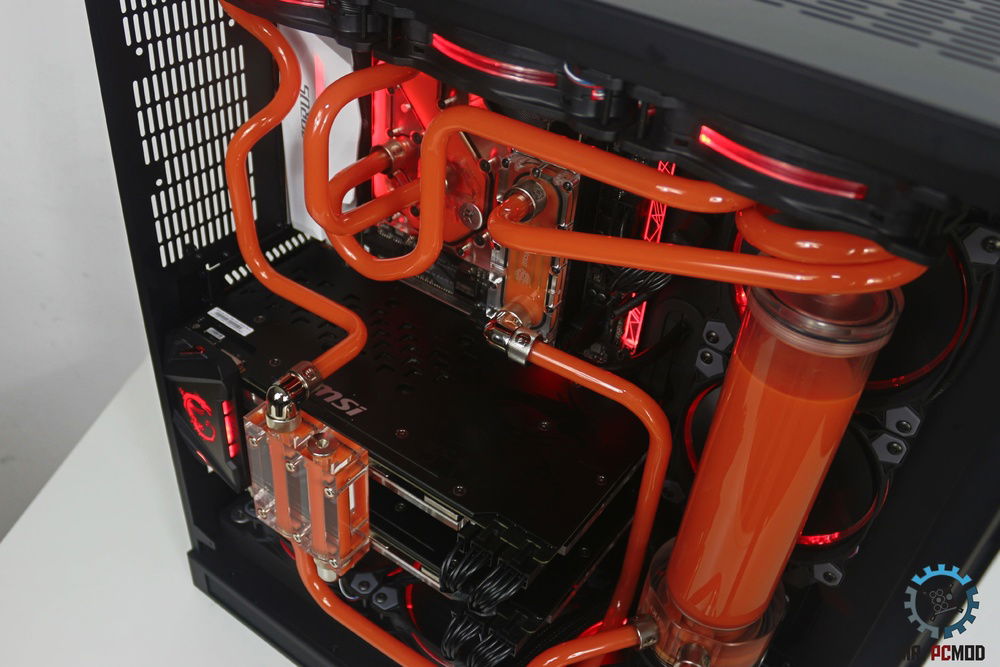

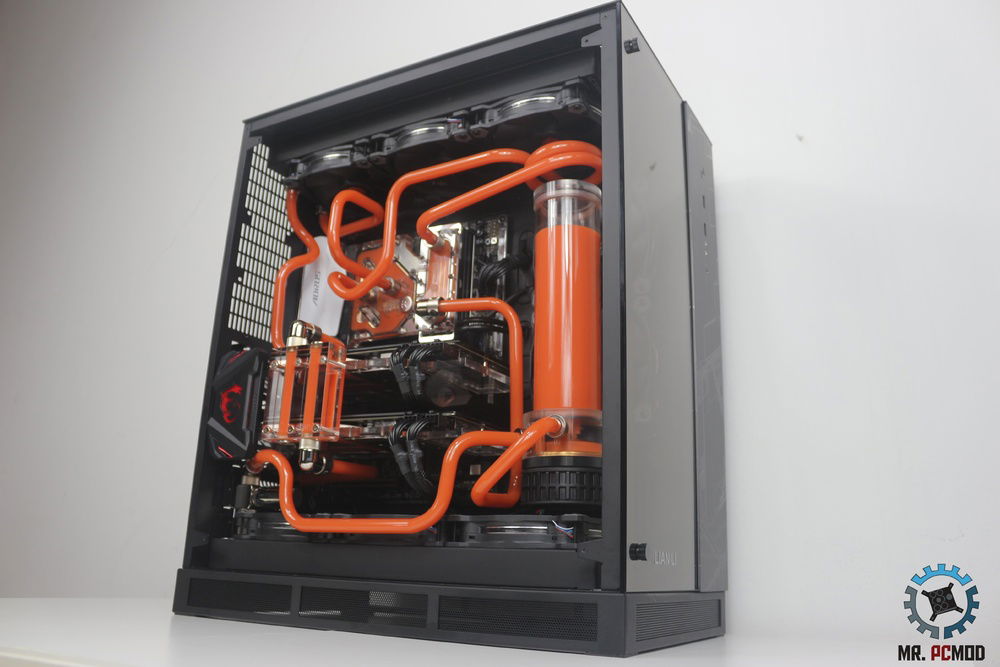

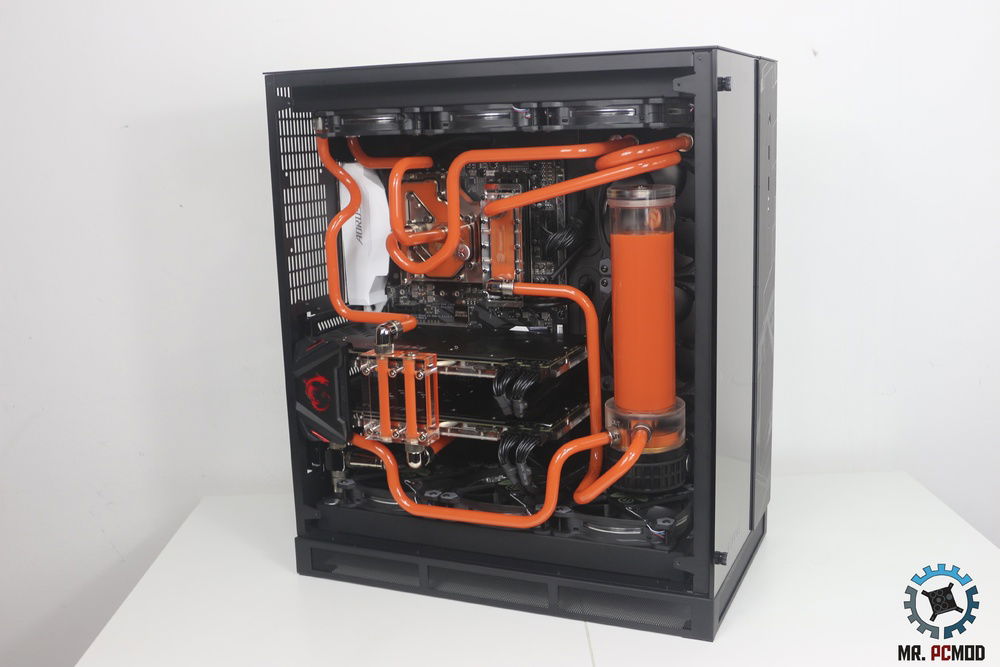

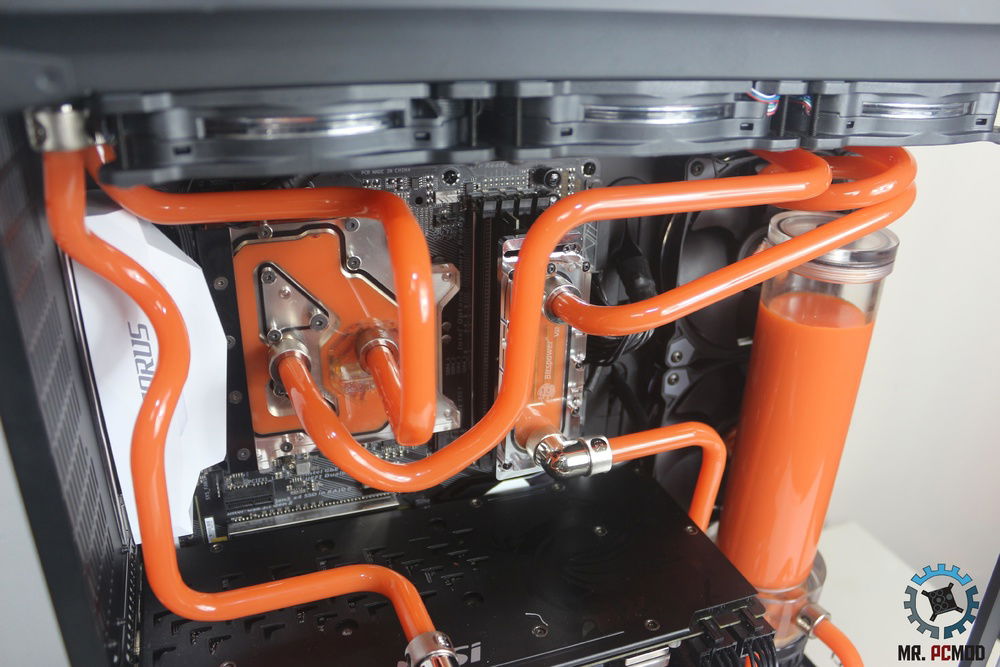

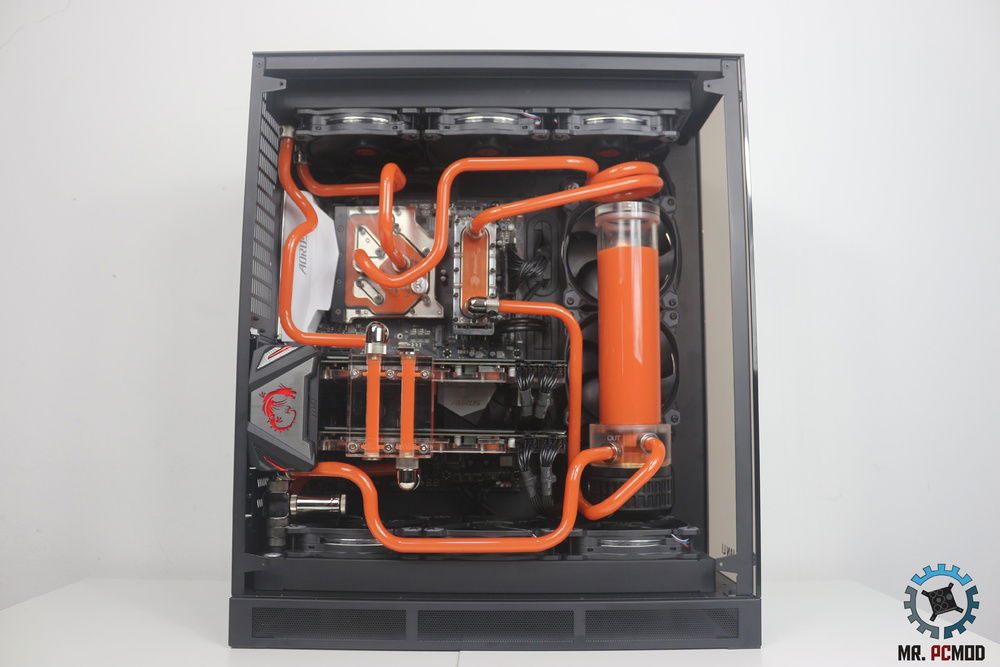

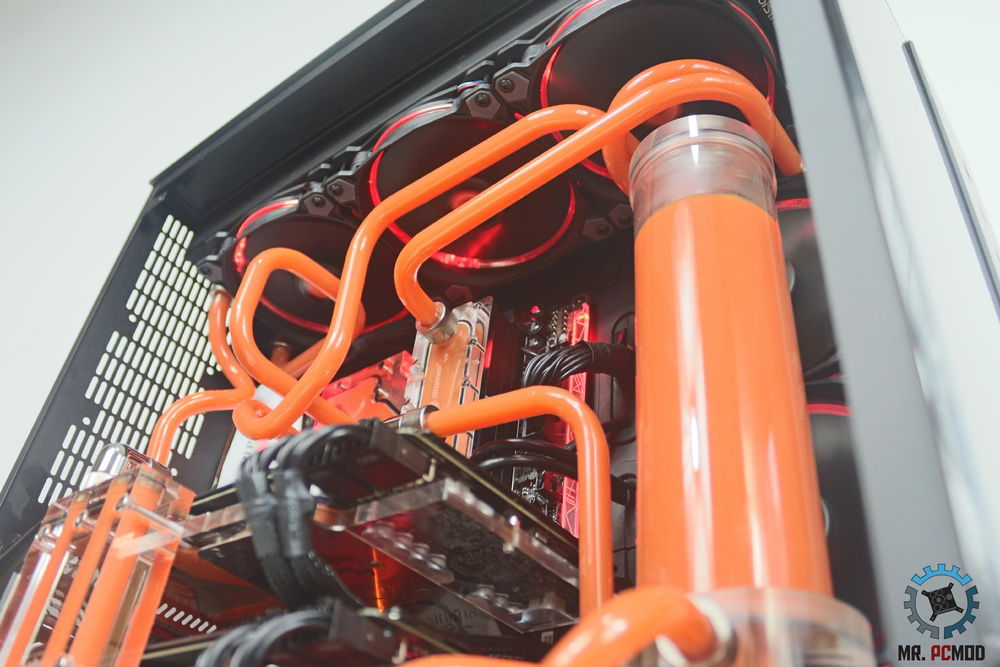

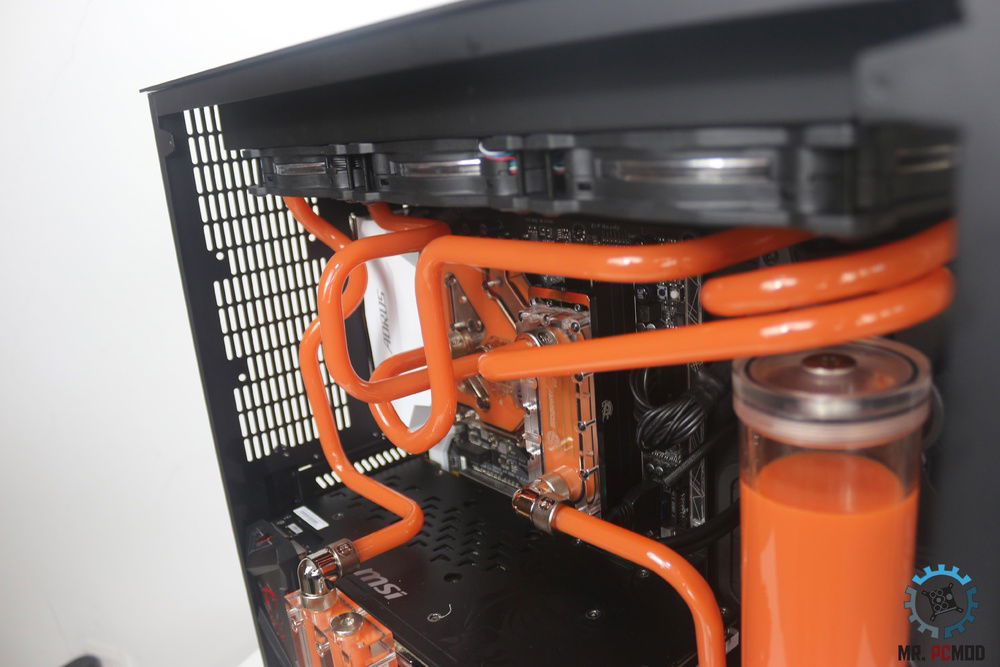

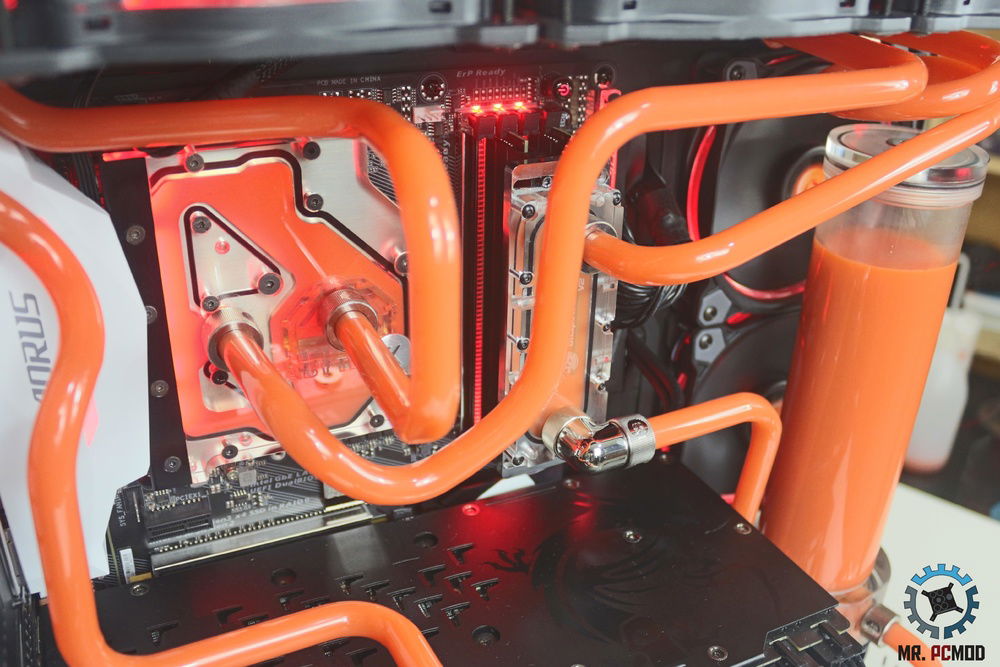

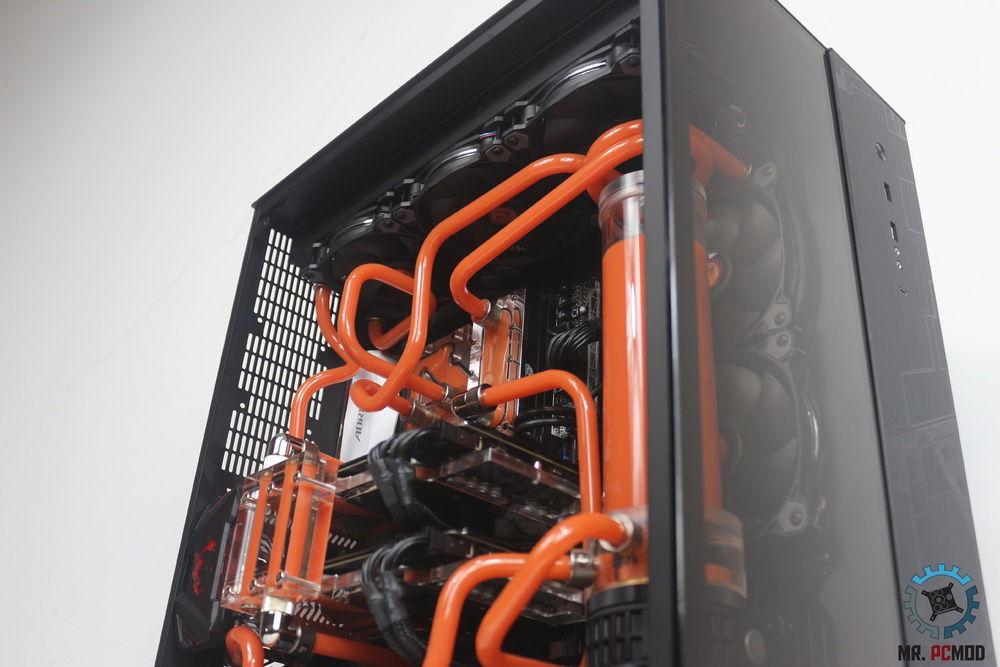

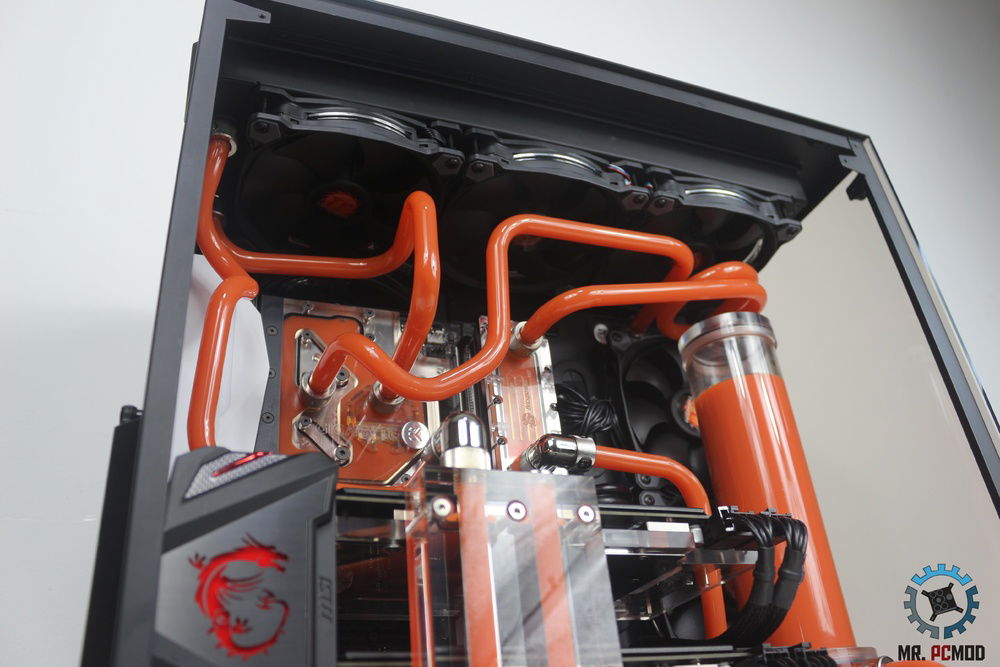

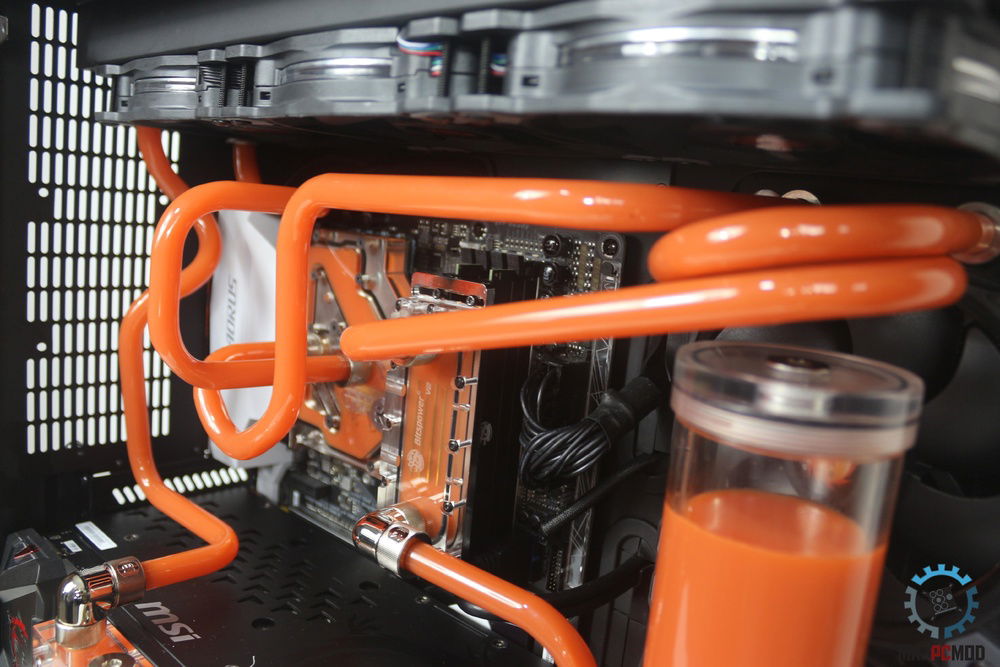

This is a water cooling build on behalf of PC-CY Hardware. Featuring SLI configuration, water-cooled rams and CPU being cooled by a monoblock. The components were chosen by PC-CY including the liquid coolant color. In addition, i took care of the water cooling parts and the whole assembly process Specification List follows.

PC Components:
Intel® Core™ i7-7700K Processor (8M Cache, up to 4.50 GHz)
GA-Z270X-Gaming 7 (rev. 1.0)
Vengeance® LPX 32GB (2x16GB) DDR4 DRAM 3200MHz
2x MSI GeForce GTX 1080 SEA HAWK
Be Quiet! DARK POWER PRO 11 | 1000W
MSI 2WAY SLI HB BRIDGE M
Storage will be added by PC-CY Hardware
3x Thermaltake Riing 12 LED RGB 256 Colors (3 fan pack)
PC – O11 WGX (ROG Edition) – LIAN LI

Watercooling main parts:
EK-FB GA Z270/Z370 GAMING RGB Monoblock – Nickel

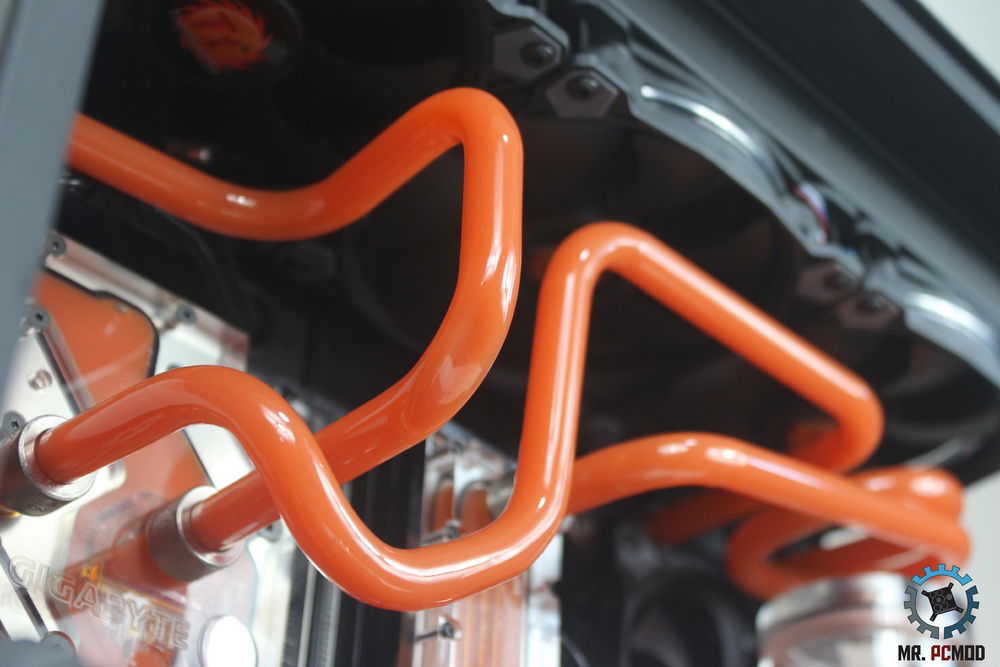

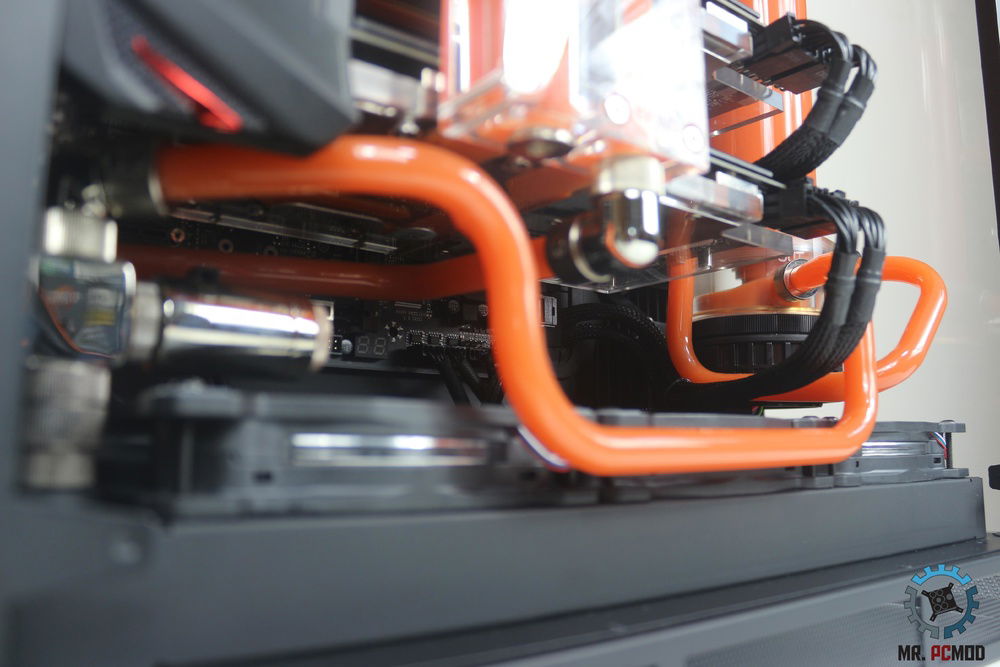

EK-HD PETG Tube 10/12mm 500mm
3x EK-CoolStream SE 360 (Slim Triple)
EK-AF Ball Valve (10mm) G1/4 – Nickel

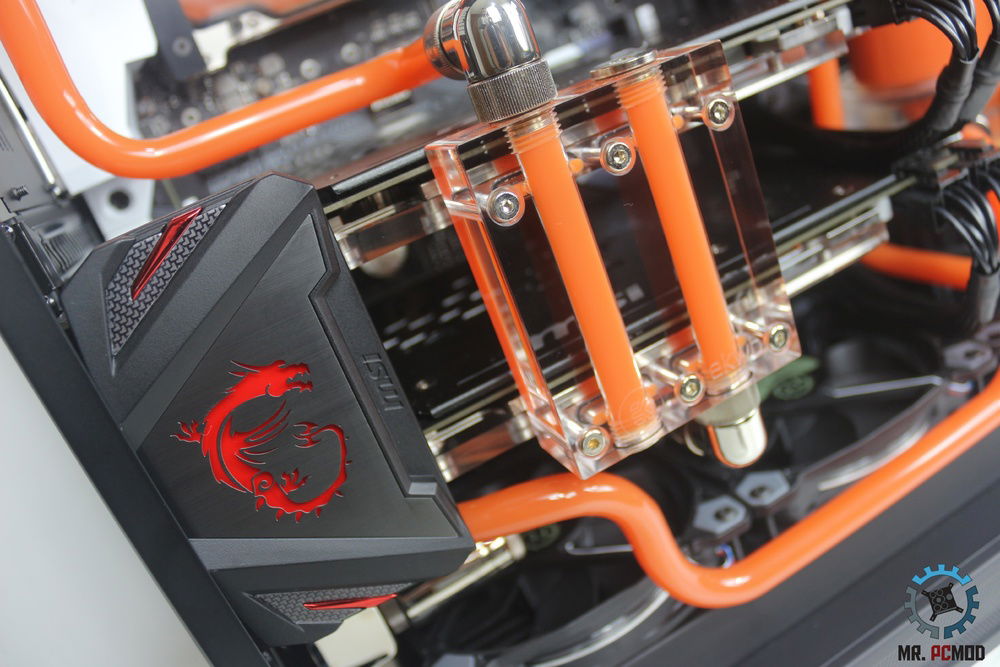

EK-FC Terminal X2 3-slot – Plexi

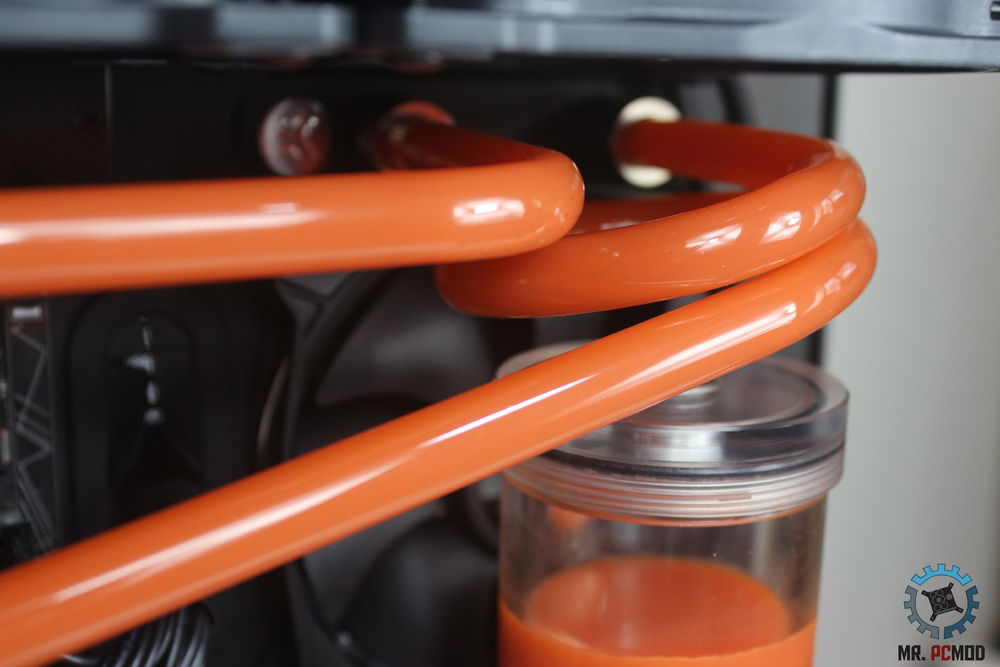

EK-RES X3 – TUBE 250 (204mm)
EK-XRES 140 Revo D5 PWM – Plexi (incl. sleeved pump)
EK-HDC Fitting 12mm – Nickel

This particular setup has been tested on several benchmarking and stressing software. The CPU temps with the turbo boost enabled were about 48c with spikes being on 54c maximum. The GPUs were hitting the 34c maximum.
Color(s): Black Orange
RGB Lighting? Yes
Cooling: Custom Liquid Cooling
Theme: none
Size: ATX
Type: General Build

Hardware

CPU
$ 386.30
Intel - Core i7-7700K
Socket: LGA 1151
Cores: 4
Integrated Graphics: Yes
Motherboard
Gigabyte - AORUS Gaming 7 (GA-Z270X)
Chipset: Z270
CPU Socket: LGA 1151
Size: ATX
Memory
$ 117.99
Corsair - Vengeance LPX (2666Mhz)
Type: DDR4
Capacity: 16 GB
Graphics
$ 709.99
MSI - Sea Hawk EK X
Chip Manufacturer: NVIDIA
Chip: GTX 1080
Graphics
$ 709.99
MSI - Sea Hawk EK X
Chip Manufacturer: NVIDIA
Chip: GTX 1080
Storage
$ 180.00
Samsung - 960 PRO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 512 GB
PSU
be quiet! - Dark Power Pro 10
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 329.99
Lian Li - PC-O11WGX
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 28.99
Cooling
$ 74.89
EKWB - CoolStream SE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 41.99
EKWB - EK-HD Tube 10/12mm
Type: Custom Loop
Cooling
$ 65.99
EKWB - EK-RES X3 250
Type: Reservoir
Cooling
$ 209.99
Cooling
EKWB - Fittings
Type: Custom Loop
Cooling
Mayhems - Fluid
Type: Custom Loop
Unable to dertermine total build value (missing part value)
