Front side of the Case Fan PC. In case you're cocking your head while looking at it, none of the fans, except the 9 base fans are at right angles to each other.
Up and running
200mm fan on the front side.
The other 200mm fan with lights on
Button installed in a PCIe slot so you're can turn off the crickets on steroids sounding motor that spins the hood ornament
Blue LED fans are cheap in bulk
Tangle of cabling from the PS side of the case.
Big cable sleeves for the major arteries of the fan cables
Hood ornament with the top red rotating fan angled, silver motor shaft cover, and triangular 60mm Lexan fan supports supporting each other around it
Horrible Cooler Master cooler. Hey, it looks really cool
9 fan base held together by white zip ties and bolted to the rotating base
Motherboard/PC base attached to the fan base
Motherboard mounted on the Lexan motherboard tray, which is supported over the fan base by the long gold standoffs
Cable routing during assembly
Silver cable sleeves hid the fan cables in plain site
Yes, there is a PC in there
Two sides not yet attached during assembly
Installing the Front I/O
Cutting the Lexan for the motherboard tray
Rough cut of the motherboard tray
I woudn't call this case builder friendly, but you do what you have to to get the nut on the bracket screw. Here super glued to a glove finger
Rotating hood ornament fan assembly, with motor, slip ring, and shaft cover. Here being painted silver.
Cut tabs for the apex of the roof to avoid installing metal hardware hinges
When you can use a hole saw bit, use a hole saw bit

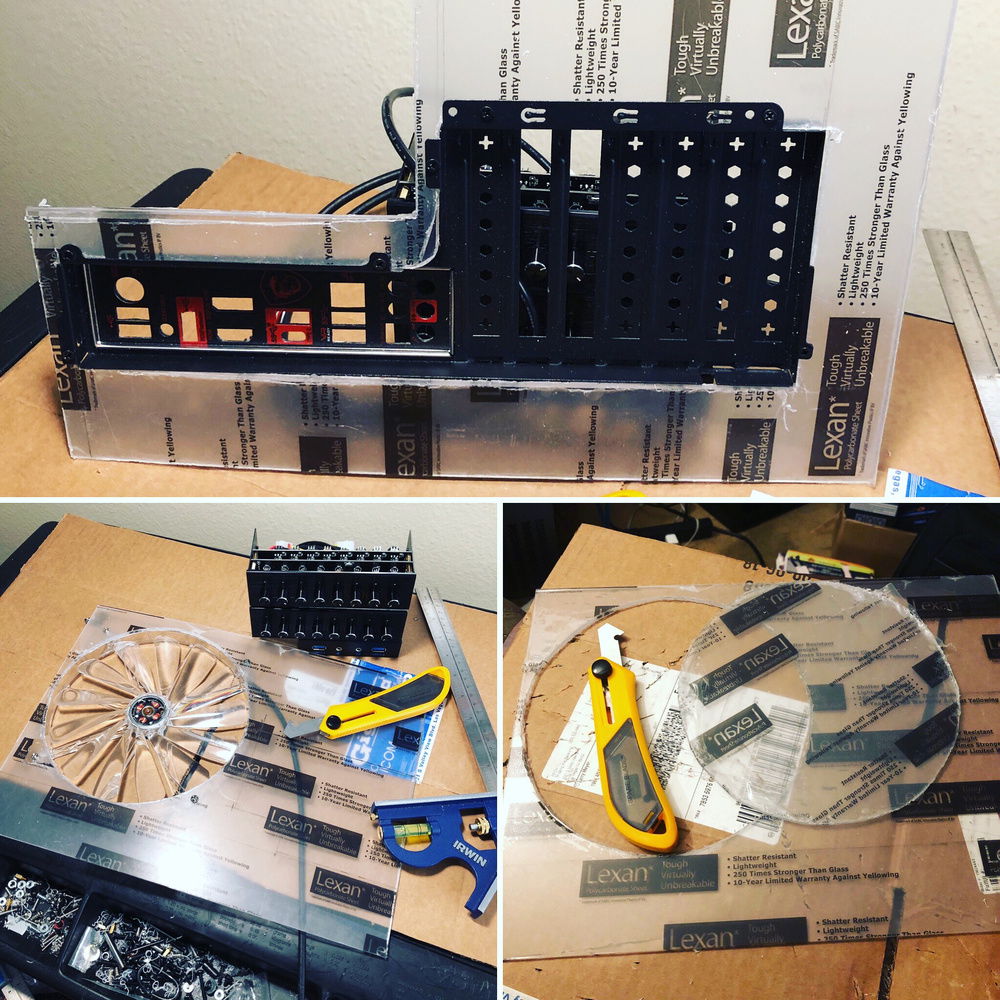

With some practice you can cut curves with plastics knife. Learn to use a jig saw instead would be my advice
Cutting the front panel Lexan. Lexan, or polycarbonate sheet, is far easier to work with than regular plexiglass
Assembling the hood ornament
Motor, slip ring, shaft and fan
Hardware mount to center of tabbed roof
Part of the rotating base after painting
The sun rises on a decent paint job.
Pieces of old VESA mount used to make X support for fan base
Case Fan PC
The Case Fan PC is built in a case made of 55 case fans and hand cut Lexan polycarbonate. It is an i7-8700k / RX5700XT gaming horse, and it has a rotating stand made of an industrial bearing, part of an old VESA mount, and some cast iron plumbing fixtures. The top red fan is rotated using a DC motor through a hollow bore slip ring. I had to add an on/off switch to the rear I/O though, because the little motor gears sound like a cricket on steroids when its running, I would have mixed up the LED colors more, but only blue LED fans are cheap and available in bulk.
It can be loud as a vacuum cleaner or inaudible thanks to the the two 8 channel Lamptron fan controllers, with 2-5 fans per channel. The airflow is bottom/front to top/back by intake and exhaust fan orientation. The temps on the motherboard are awesome, since it has the bottom intake fans constantly blowing air on its backside and all the airflow up top. The CPU and GPU are far more dependent on their own cooling systems, so there isn't a huge advantage for them. You can definitely dial it in for a quiet, best possible solution, though.
I hand cut the Lexan with plexiglass cutting knife, drilled countless hole, reworked more than I could count. Cable management was a bear, with about a hundred of them coming from every direction in a clear case. I did the best I could with the silver cable sleeving.
I didn't do this to create a great cooling environment, however. I started it because it was ridiculous and funny to me, and then I started getting into the fan arrangements and cutting the lexan frame pieces. The fans are 40, 60, 80, 92, 120, 140, 180, and 200 mm. There is a pattern on the sides going from small to large, starting on the right side and ending with the 200mm fans on the front where the controller buttons are. Within the pattern, no fan is at 90 degrees with any of its adjacent fans (as close to 14 degrees as possible), creating a tumbling squares pattern as you rotate it on its stand.
If you want to see a build log of sorts, it's on Instagram at #casefanpc
It can be loud as a vacuum cleaner or inaudible thanks to the the two 8 channel Lamptron fan controllers, with 2-5 fans per channel. The airflow is bottom/front to top/back by intake and exhaust fan orientation. The temps on the motherboard are awesome, since it has the bottom intake fans constantly blowing air on its backside and all the airflow up top. The CPU and GPU are far more dependent on their own cooling systems, so there isn't a huge advantage for them. You can definitely dial it in for a quiet, best possible solution, though.
I hand cut the Lexan with plexiglass cutting knife, drilled countless hole, reworked more than I could count. Cable management was a bear, with about a hundred of them coming from every direction in a clear case. I did the best I could with the silver cable sleeving.
I didn't do this to create a great cooling environment, however. I started it because it was ridiculous and funny to me, and then I started getting into the fan arrangements and cutting the lexan frame pieces. The fans are 40, 60, 80, 92, 120, 140, 180, and 200 mm. There is a pattern on the sides going from small to large, starting on the right side and ending with the 200mm fans on the front where the controller buttons are. Within the pattern, no fan is at 90 degrees with any of its adjacent fans (as close to 14 degrees as possible), creating a tumbling squares pattern as you rotate it on its stand.
If you want to see a build log of sorts, it's on Instagram at #casefanpc
