Alyx

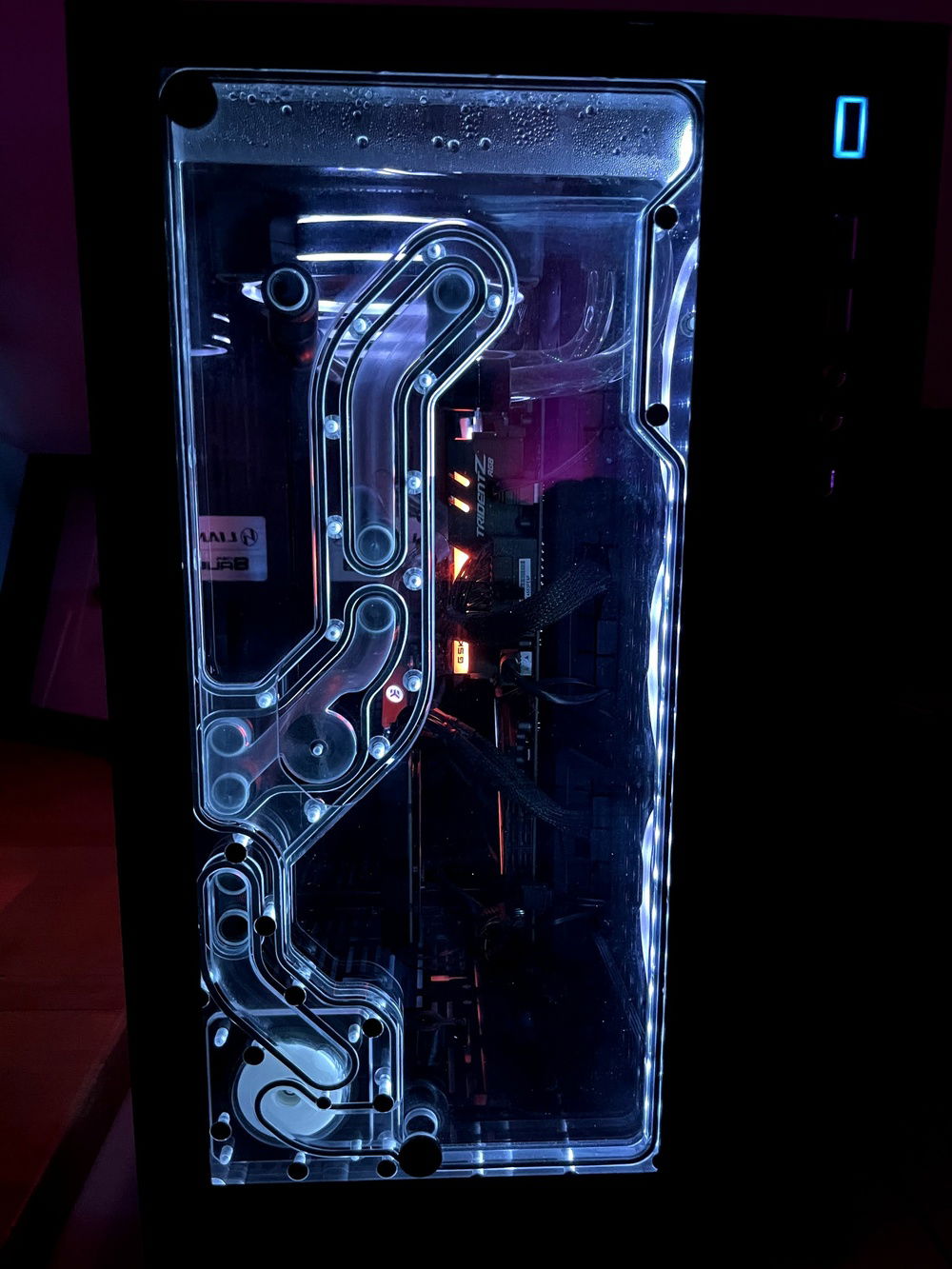

This is my latest build after retiring my old build which was 12 years old and the Lian Li V1000 case. I chose Lian Li again for the case. For the pump water reservoir tank combination I chose the EKWB Front PC-O11D D-RGB + SPC PWM.

In addition, I wanted to install two radiators. On the case lid I installed the EKWB Coolstream PE 360 and to the right of the front replacement tank I looked for a very narrow radiator due to the very limited space and found one with the XSPC TX360 Ultra Thin Copper Triple Radiator.

User Image


As fans, I have installed six Alpenföhn 120 mm Wing Boost 3 and control them like old RGB elements via the ASUS Strix X570-E gaming motherboard.

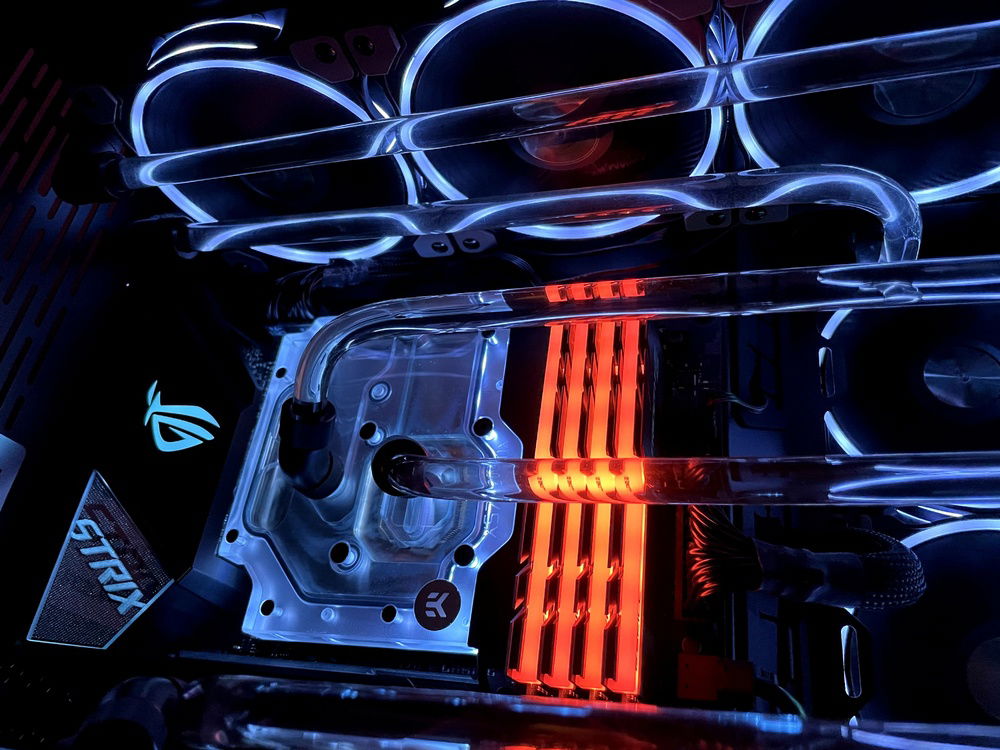

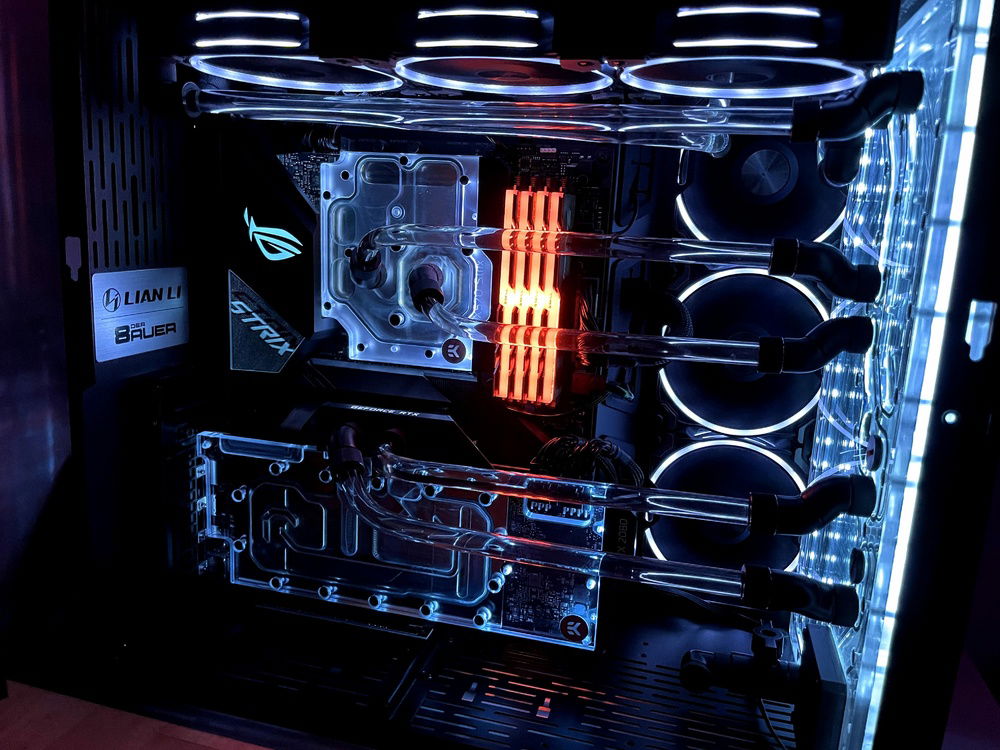

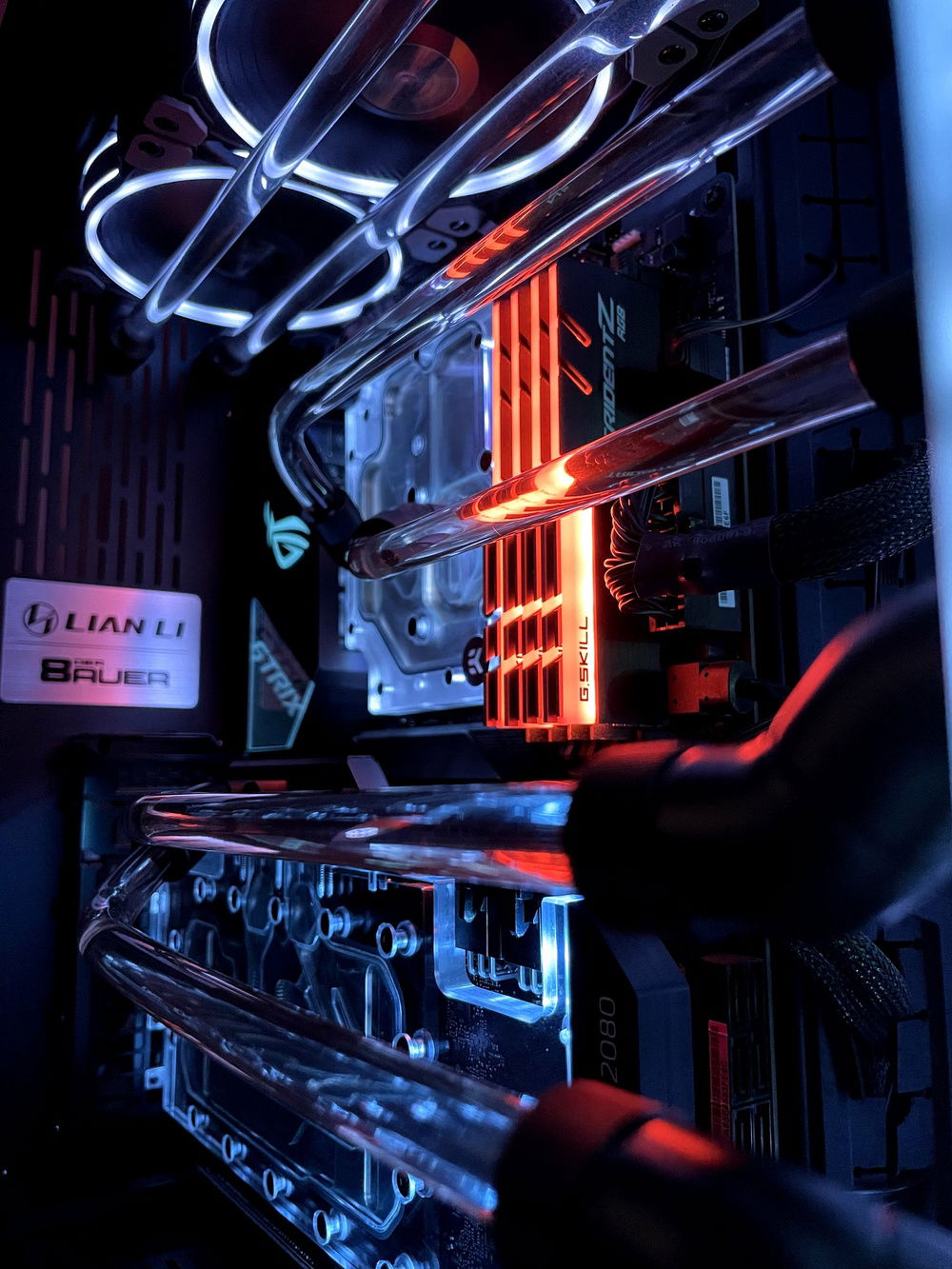

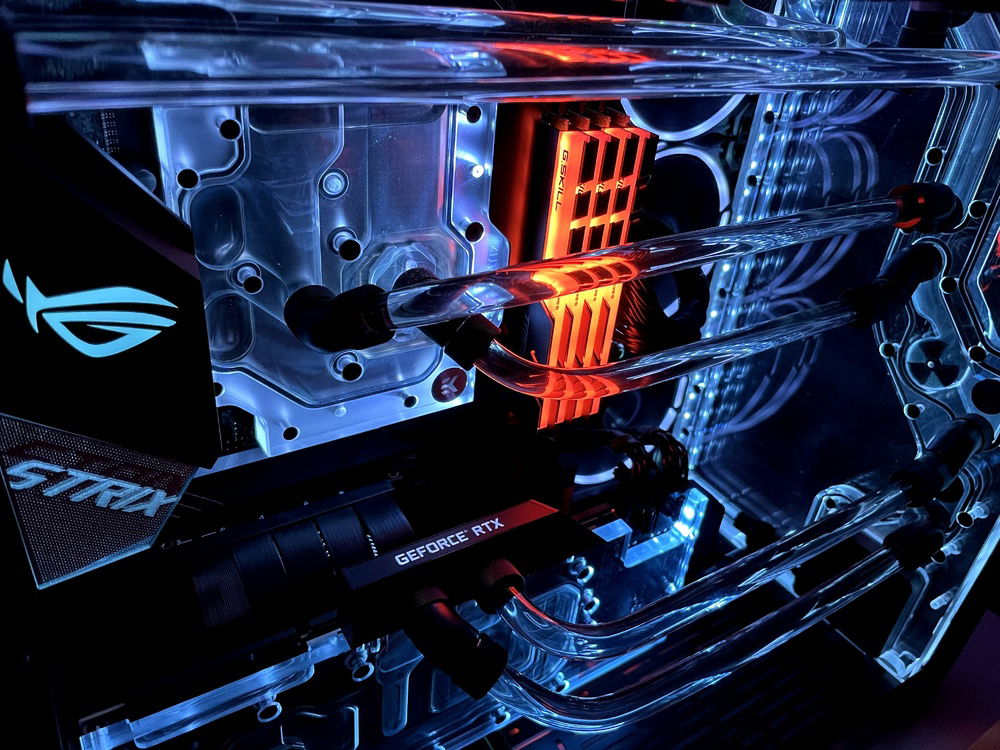

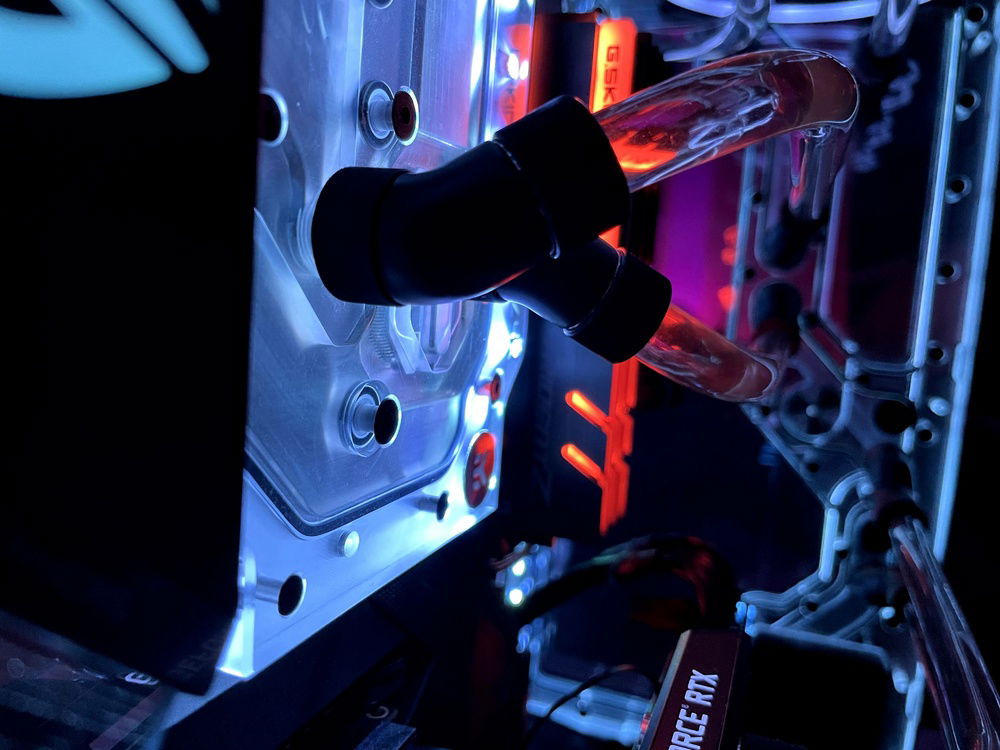

To match the motherboard and CPU, I installed the EKWB EK-Quantum Momentum ROG Strix X570-E D-RGB cooler, which cools the Mosfets as well as the CPU. The graphics card ASUS GeForce RTX 2080 SUPER I have the matching EK-Quantum Vector RTX RE D-RGB installed and angled to it.

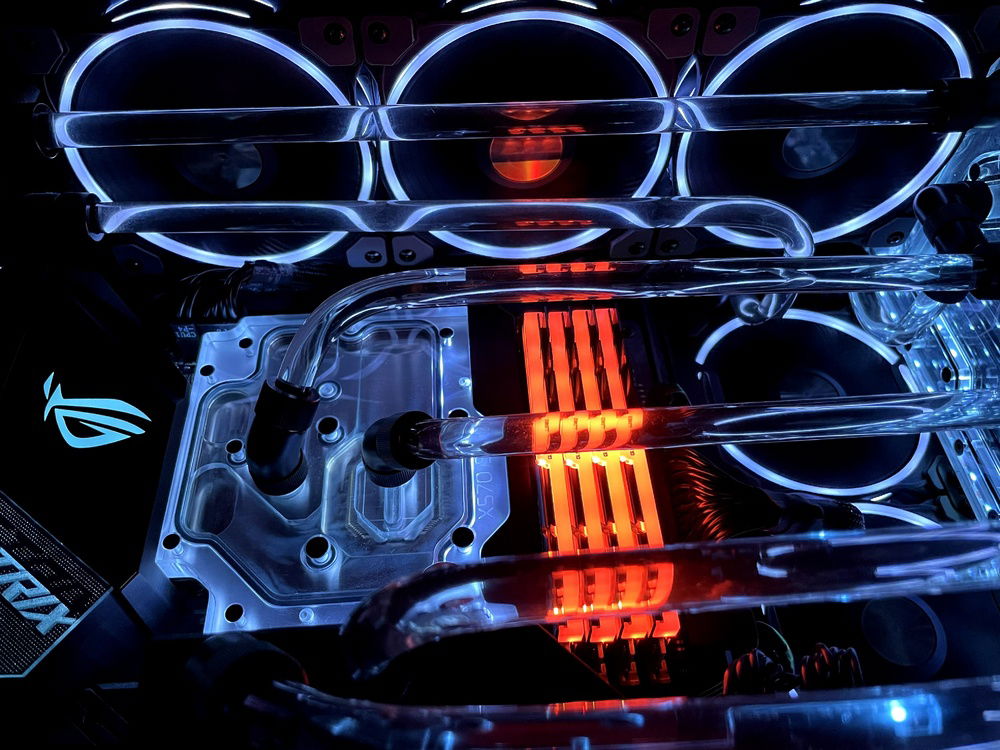

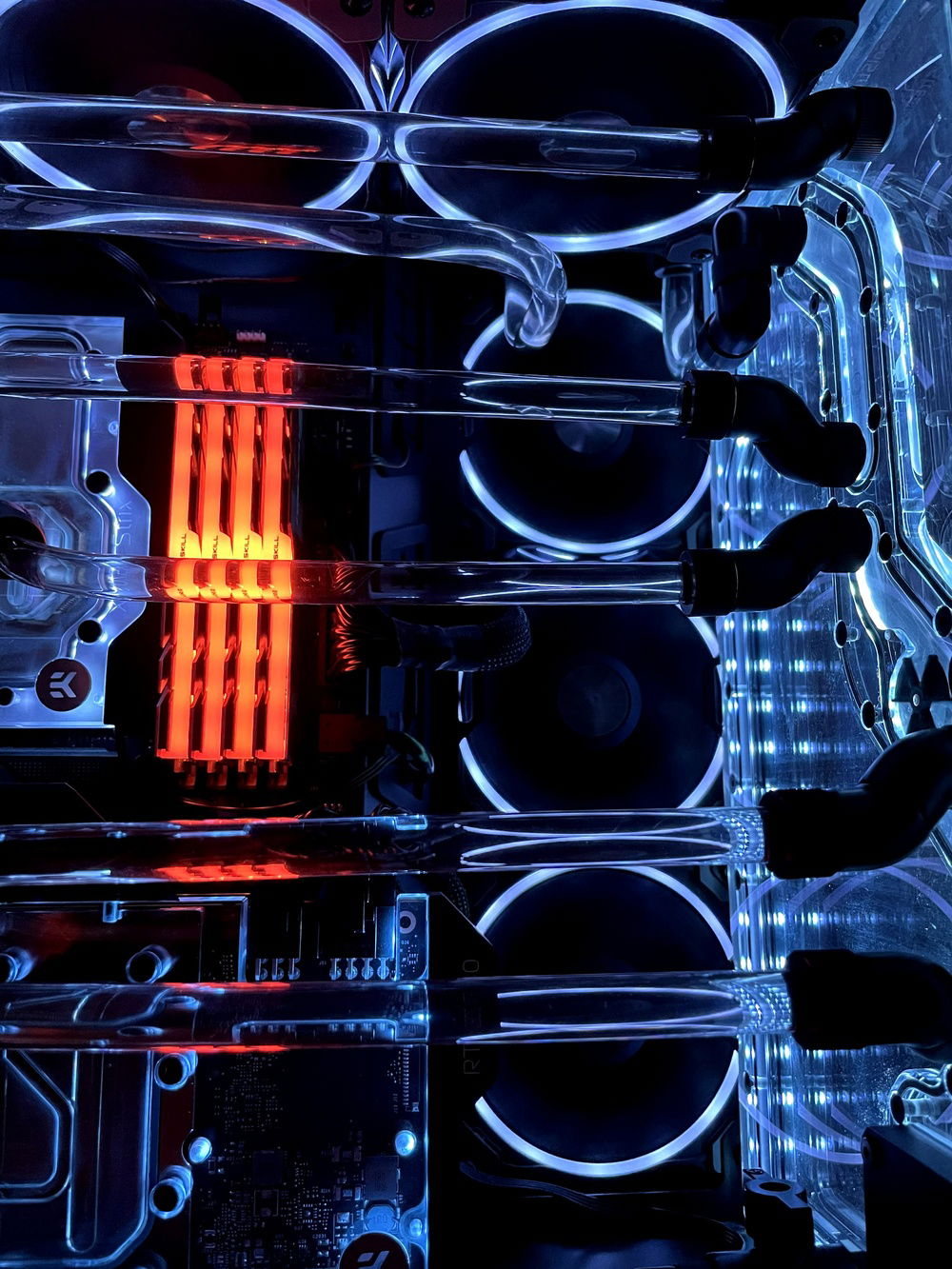

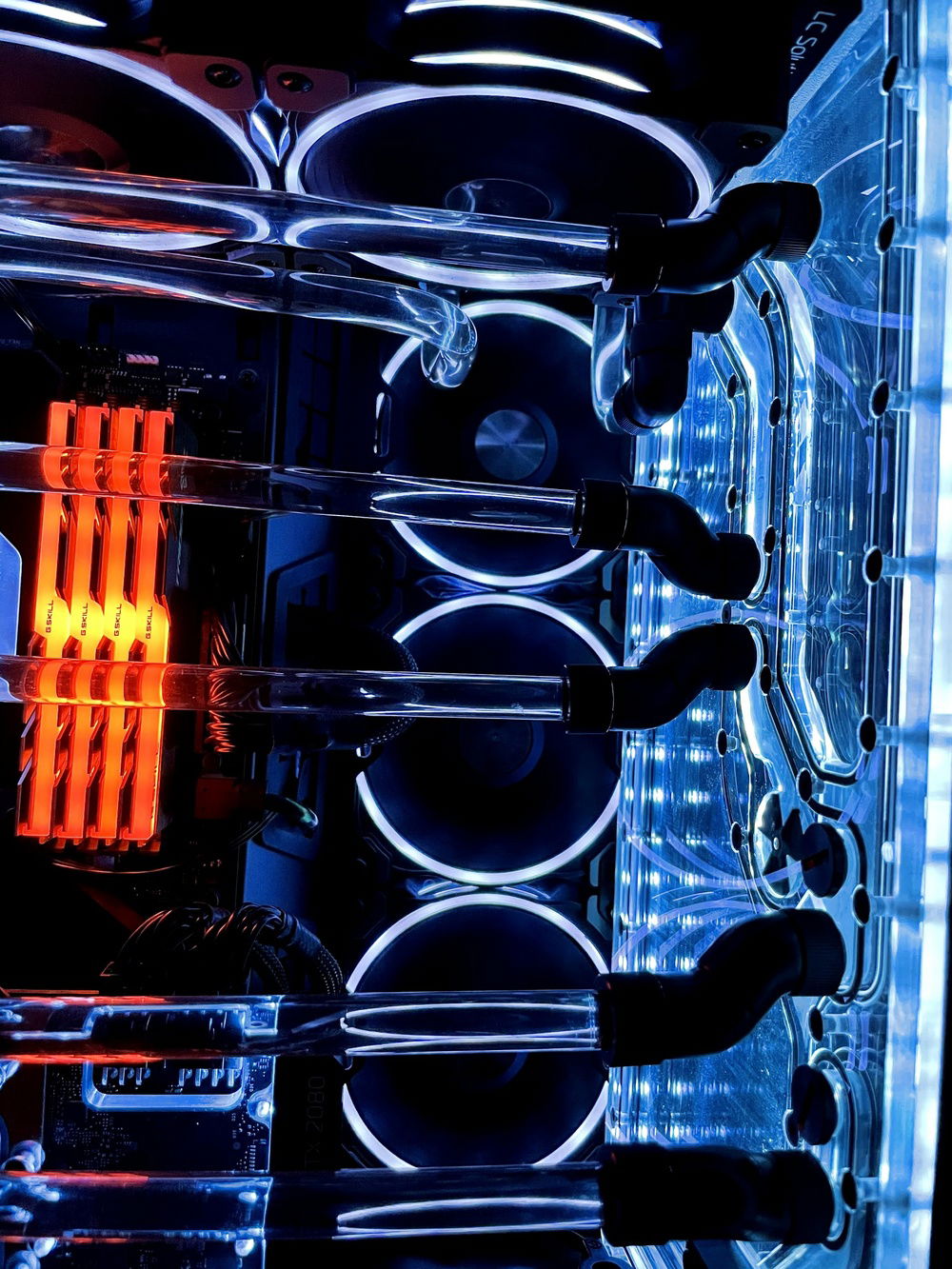

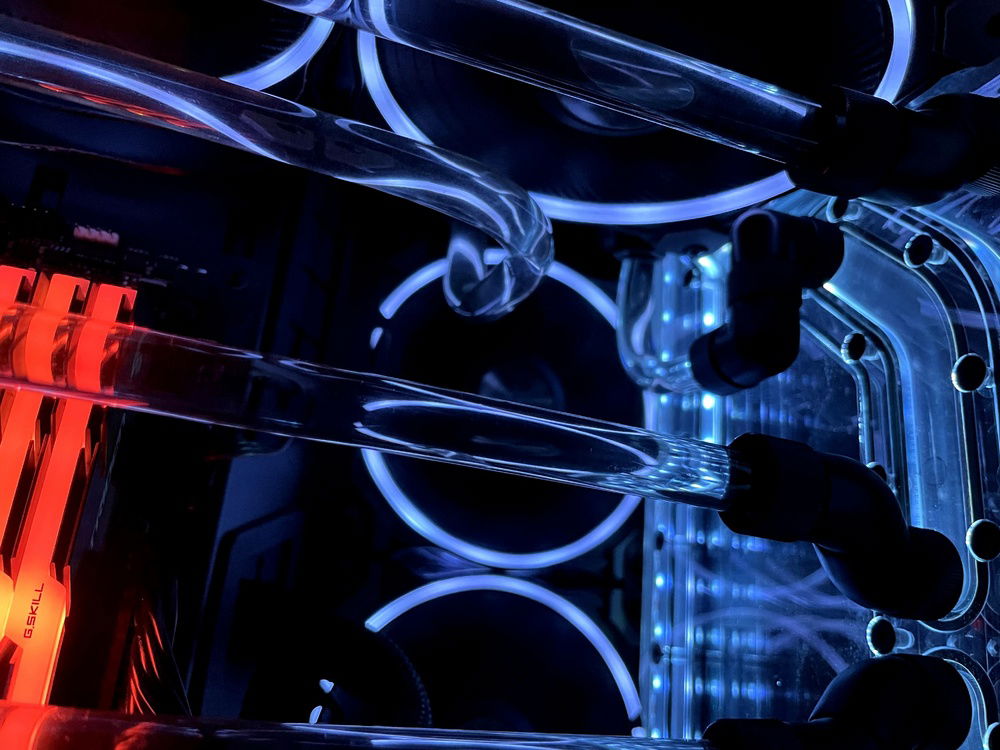

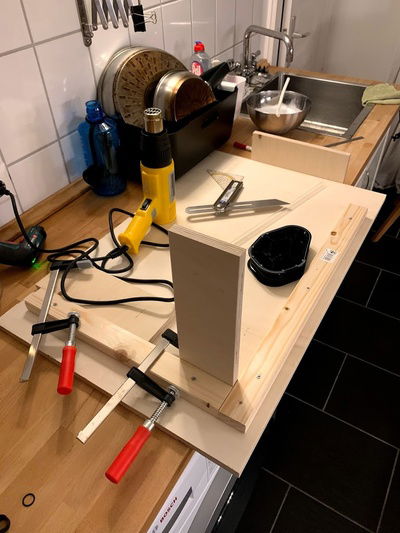

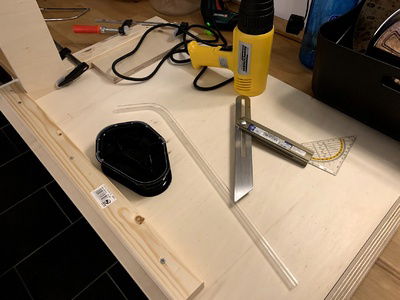

Everything I have connected with EKWB acrylic tubes and bent myself. For this, I built myself a wooden frame to bend the tubes in three directions.

User Image


User Image

More info on how I built the water cooling will come soon.
Color(s): Black
RGB Lighting? Yes
Theme: Technology
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 199.02
AMD - Ryzen 7 (3700X)
Socket: AM4
Cores: 8
Motherboard
$ 335.80
ASUS - ROG Strix Gaming (X570-E)
Chipset: X570
CPU Socket: AM4
Size: ATX
Memory
$ 839.80
G.Skill - Trident Z (3600MHz) (Black/Silver) (4x)
Type: DDR4
Capacity: 8 GB
Graphics
$ 1,665.00
ASUS - GeForce ROG Strix (Black)
Chip Manufacturer: NVIDIA
Chip: RTX 2080 SUPER
Interface: PCIe x8
Storage
$ 349.71
Samsung - 860 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
Storage
$ 65.99
Samsung - 970 EVO Plus
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
be quiet! - Straight Power 11 (discontinued)
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Gold
Case
Lian Li - 011 Dynamic
Type: Mid-Tower
Side Panel: Tempered Glass
Cooling
Cooling
$ 44.99
EKWB - EK-HD Tube 10/12mm
Type: Custom Loop
Cooling
Cooling
$ 101.99
XSPC - TX Ultrathin
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
