Scene 1
Scene 1
Scene 2
Scene 2
Scene 3
Scene 3
Scene 4
Scene 4
New tubing and cable sleeves
New tubing and cable sleeves
Wiring reworked, shortend overlength and direct wiring to PSU
Wiring reworked, shortend overlength and direct wiring to PSU
Setup finished
Setup finished

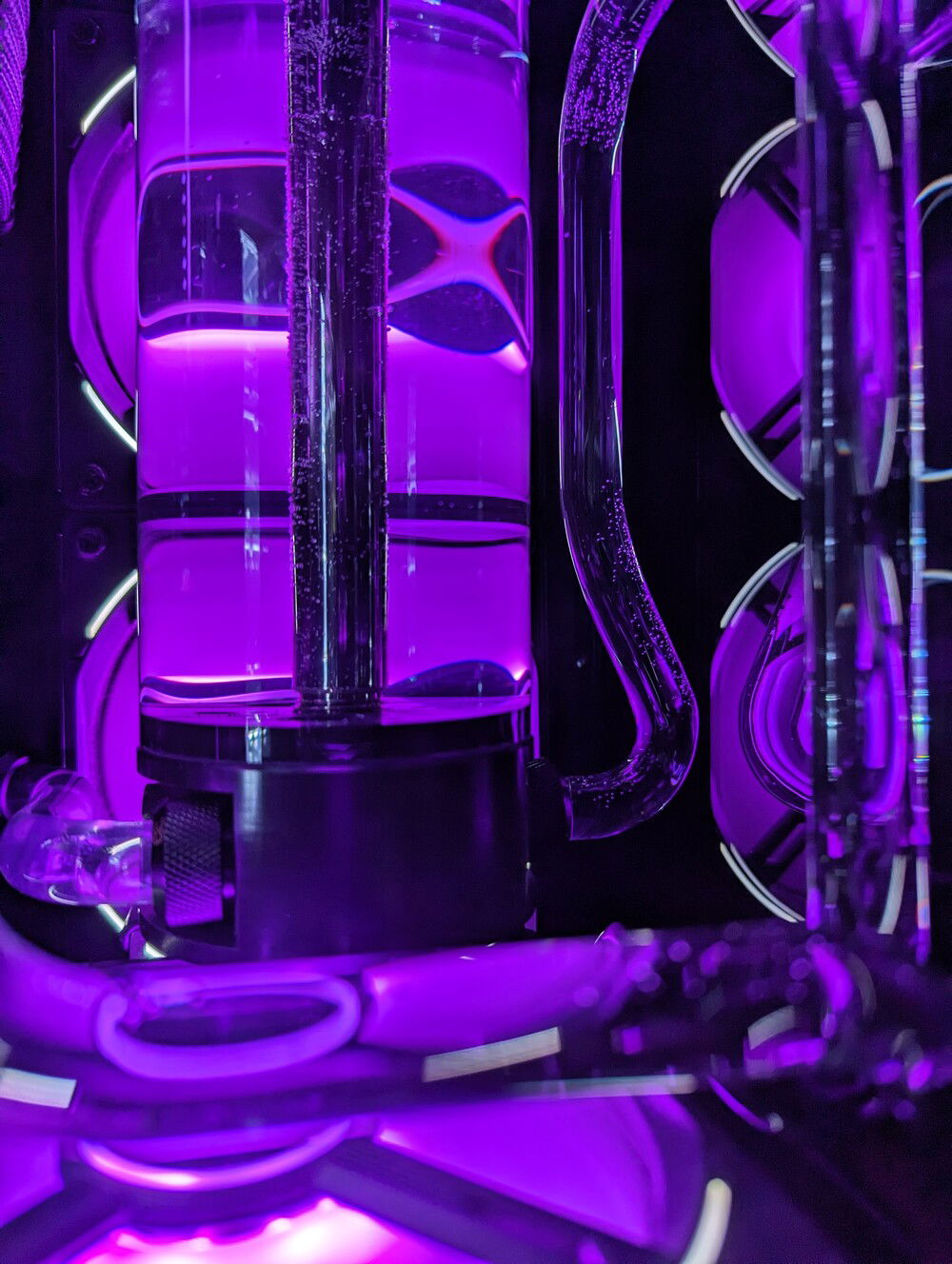

Custom bracket for Aqualis reservoir
Custom bracket for Aqualis reservoir
Few bends done with best Chiquita measurement tools.
Few bends done with best Chiquita measurement tools.
First test before building tubes for RAM cooler ⛲
First test before building tubes for RAM cooler ⛲
Going forward, connecting RAM cooler and VGA with hardtubes
Going forward, connecting RAM cooler and VGA with hardtubes
Checking parallisem of hardtubes
Checking parallisem of hardtubes

WaterWall

Challange was to fit 3 x 360 radiators into a Lian Li O11D.
I want it as clean as possible, so the pump is installed at the bottom, behind the motherboard.
All visible connections are made of hardtubes PMMA 13/10, the hided ones are made of soft tubes 13/10 to keep the possibility for easy maintenance on the system. Therefore quick couplings are installed at the pump in and outlet.
System is filled with destilled water.
Color(s): Black
RGB Lighting? Yes
Theme: Case Mod
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Build Updates

Rebuild with Ryzen 5900X & Wiring cleaned up

Hardware

CPU
$ 325.73
AMD - Ryzen 9 (5900x)
Socket: AM4
Cores: 12
Motherboard
$ 349.99
Gigabyte - Aorus Master
Chipset: B550
CPU Socket: AM4
Size: ATX
Memory
$ 89.98
Patriot - Viper Steel (3733MHz) (2x)
Type: DDR4
Capacity: 16 GB
Graphics
$ 598.68
SAPPHIRE - Radeon Rx
Chip Manufacturer: AMD
Chip: 5700 XT
Storage
$ 115.97
Crucial - P1
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
Seasonic - Prime Fanless TX
Wattage: 700
Form Factor: ATX
Efficiency: 80+ Titanium
Case
$ 139.99
Lian Li - O11 Dynamic
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 572.85
Lian Li - Uni AL120 (9x)
Size: 120 mm
Cooling
Aquacomputer - Aqualis ECO
Type: Reservoir
Cooling
$ 175.00
Aquacomputer - D5 NEXT
Type: Pump
Cooling
EKWB - EK-Quantum Velocity D-RGB - AMD Nickel + Plexi
Type: CPU Waterblock
Cooling
EKWB - EK-Vector RX 5700 Special Edition
Type: Waterblock
Cooling
$ 77.85
EKWB - RAM Monarch
Type: Custom Loop
Cooling
$ 273.57
XSPC - TX Ultrathin (3x)
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Accessories
$ 115.49
Aquacomputer - Flow Sensor High Flow Next, G1/4
Keyboard
$ 84.99
Roccat - Vulcan TKL
Interface: Wired
Type: Tenkeyless
Plate Material: Aluminum
Mouse
$ 49.99
Roccat - Kone Pro Air
Interface: Wireless
