Washington

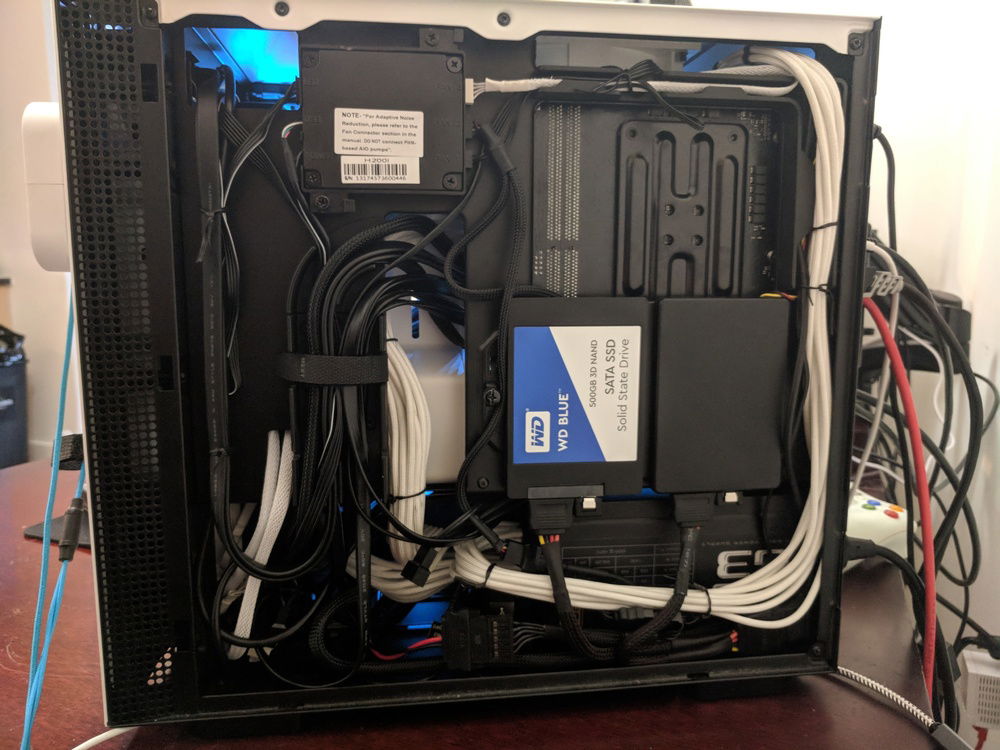

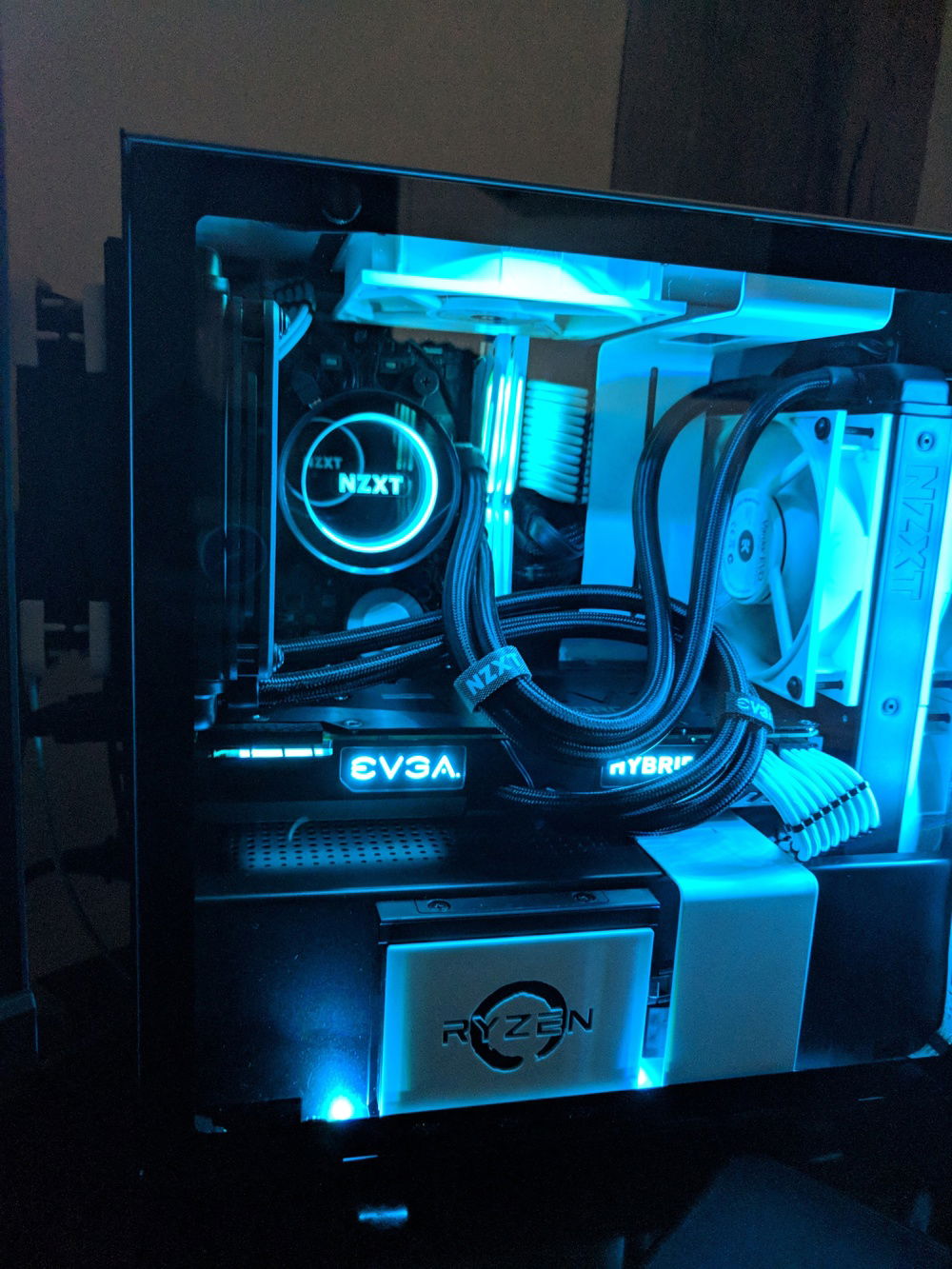

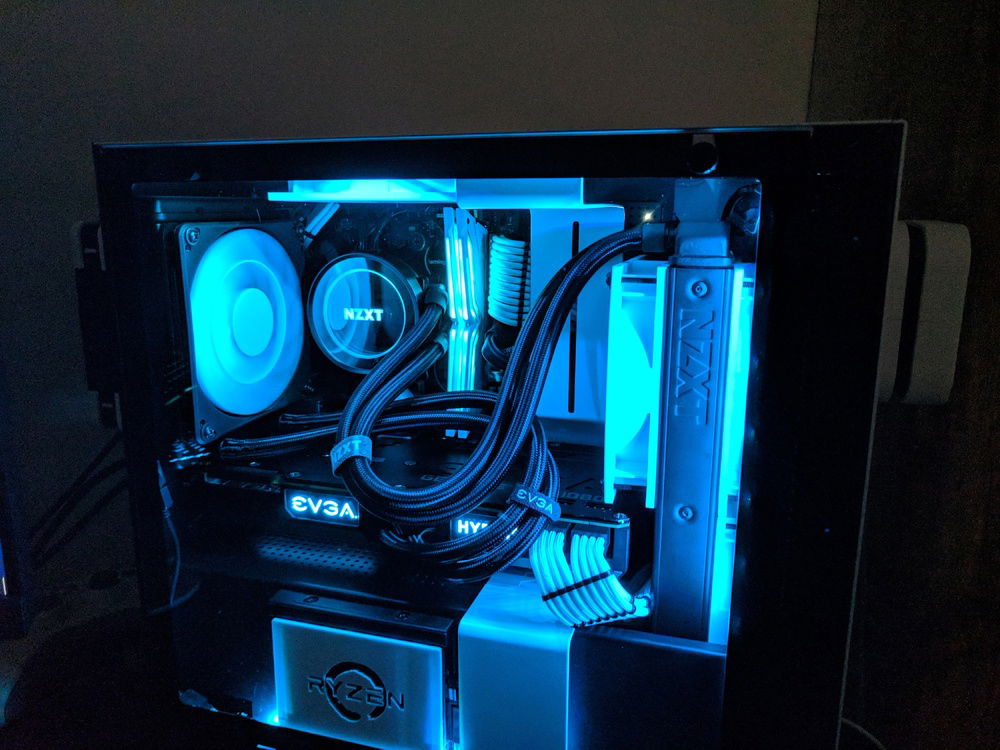

Was a lot of work to cram all this hardware in such a small case! I wanted push-pull on both radiators so I designed and 3D printed a custom bracket for the rear fan mount that allows me to add the Noctua fan on the exterior of the case. I also had to use a slim Silverstone fan to fit one inside with the aio pump/block so close. The SSD plate is from V1 tech, I'll also note that I asked them to make the logo about half the size as they normally would because I thought it looked better. I also custom made the PSU cables myself using parts from Ensourced and ModMyMod. I would highly recommend using the shorty cable for the motherboard 24-pin from Ensourced if you want to try custom cables for yourself!
Color(s): White
RGB Lighting? No
Theme: none
Cooling: AIO Cooling
Size: Mini-ITX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 195.00
AMD - Ryzen 7 (1700)
Socket: AM4
Cores: 8
Motherboard
$ 210.00
ASRock - Fatal1ty Gaming-ITX/AC (AB350)
Chipset: B350
CPU Socket: AM4
Size: Mini-ITX
Memory
TeamGroup - Nighthawk RGB
Type: DDR4
Capacity: 16 GB
Graphics
$ 178.47
EVGA - FTW Hybrid Gaming
Chip Manufacturer: NVIDIA
Chip: GTX 1080
Storage
$ 60.13
ADATA - SU800
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 256 GB
Storage
$ 164.01
Crucial - MX200
Form Factor: M.2
Interface: M.2 (M)
Capacity: 250 GB
Storage
$ 141.48
Western Digital - WD Blue
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 500 GB
Storage
$ 39.99
Western Digital - WD Blue Desktop (WD10EZEX)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
PSU
$ 69.35
Corsair - CX550M
Wattage: 550
Form Factor: ATX
Efficiency: 80+ Bronze
Case
$ 113.78
NZXT - H200i, White
Type: Mini-Tower
Side Panel: Tempered Glass
Case Fan
$ 51.25
Case Fan
$ 51.25
Case Fan
$ 51.25
Case Fan
$ 51.25
Case Fan
Fractal Design - Silent Series R3 40mm (discontinued)
Size: 40 mm
Case Fan
$ 27.91
Case Fan
$ 14.53
Cooling
$ 69.99
NZXT - Kraken X52
Type: AIO
Accessories
$ 199.97
Monitor
$ 310.13
Acer - XF270HU
Size: 27 Inch
Panel: TN
Refresh Rate: 144 Hz
Monitor
$ 399.75
LG - 24MC57HQ-P
Size: 24 Inch
Panel: IPS
Refresh Rate: 75 Hz
Keyboard
$ 136.86
Corsair - K70 LUX RGB
Interface: Wired
Key Switch Type: Cherry MX Brown
Type: Tenkeyless
Keyboard
$ 199.99
Razer - Orbweaver Chroma
Interface: Wired
Key Switch Type: Razer Green
Type: Compact
Mouse
$ 98.68
Corsair - Dark Core SE (RGB)
Interface: Wired/Wireless
