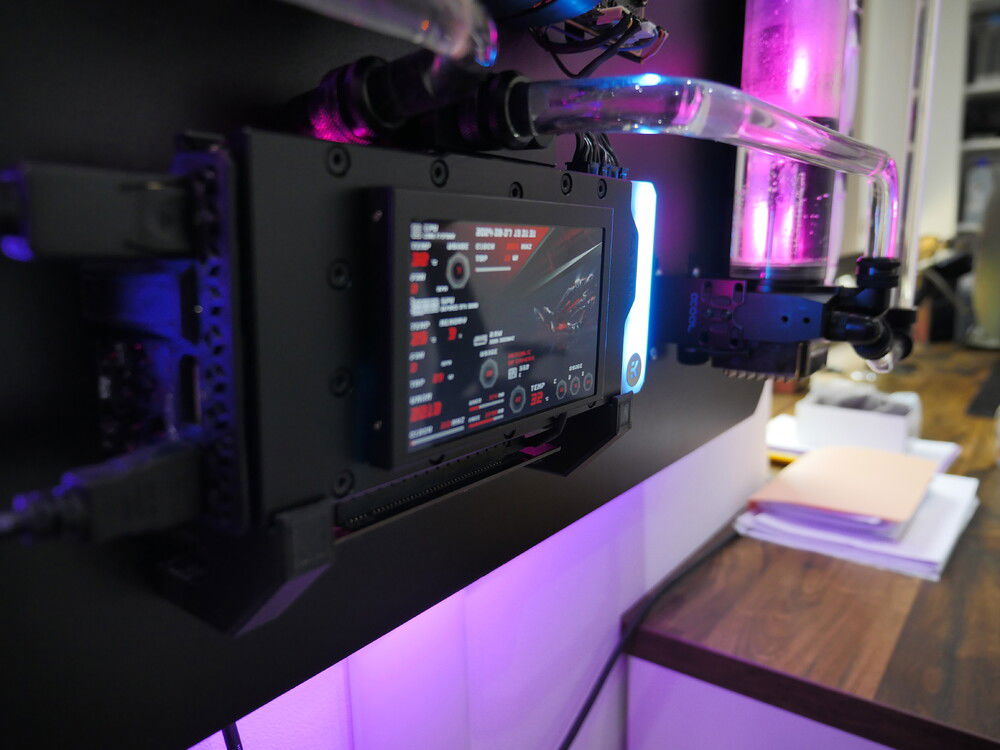

TURZX usb-c stats LCD
TURZX usb-c stats LCD

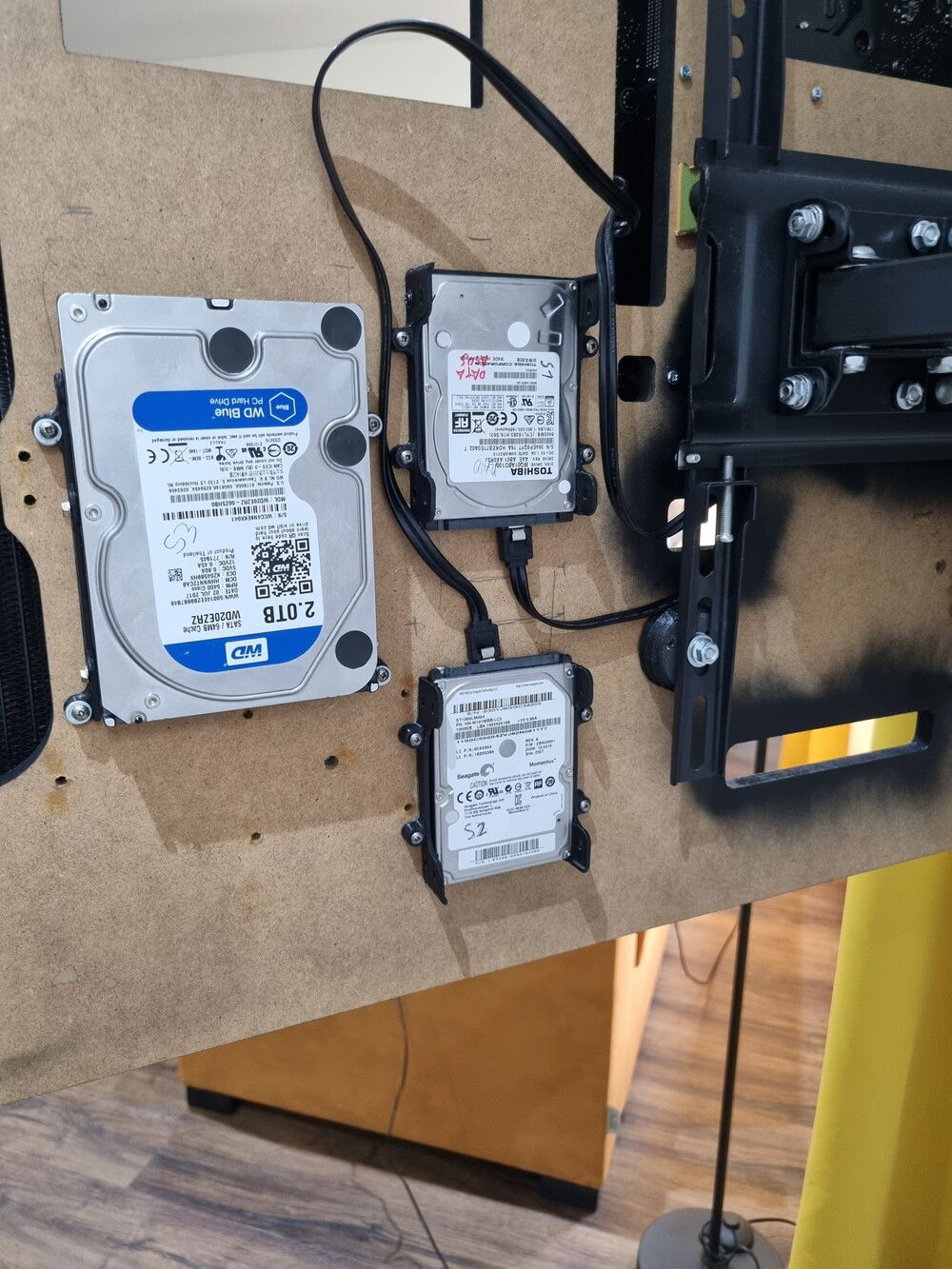

3D printed custom HDD mounts
3D printed custom HDD mounts

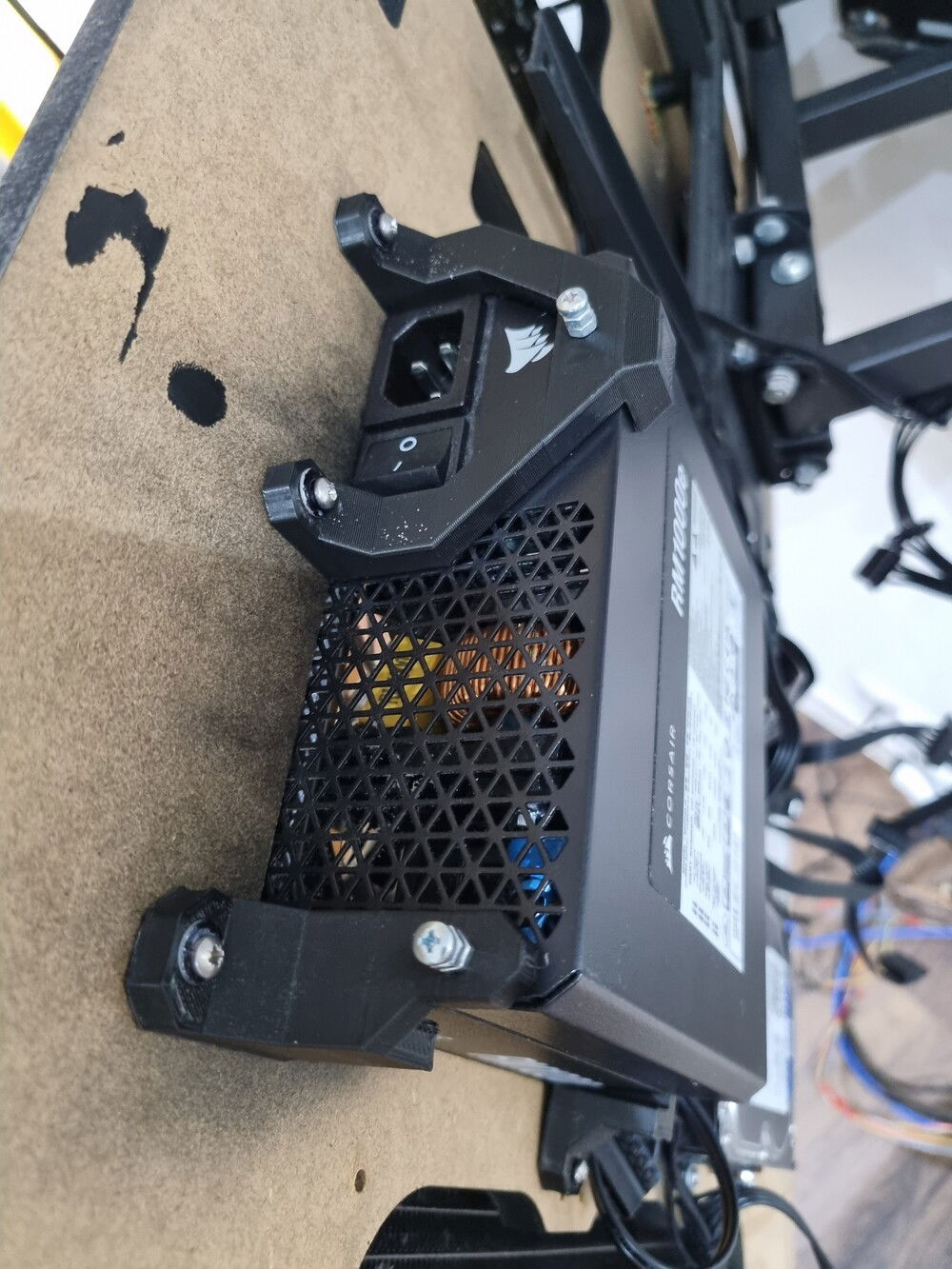

3D printed custom PSU mount
3D printed custom PSU mount

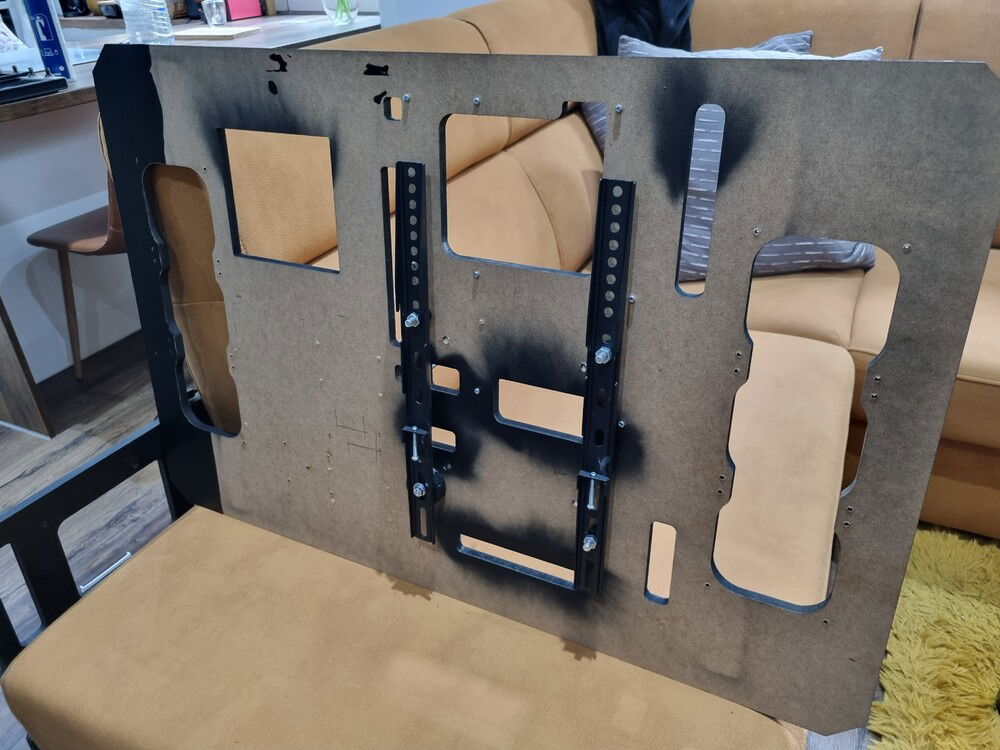

TV VESA adaptor to hold it on wall with arms to be able to reach in the back
TV VESA adaptor to hold it on wall with arms to be able to reach in the back

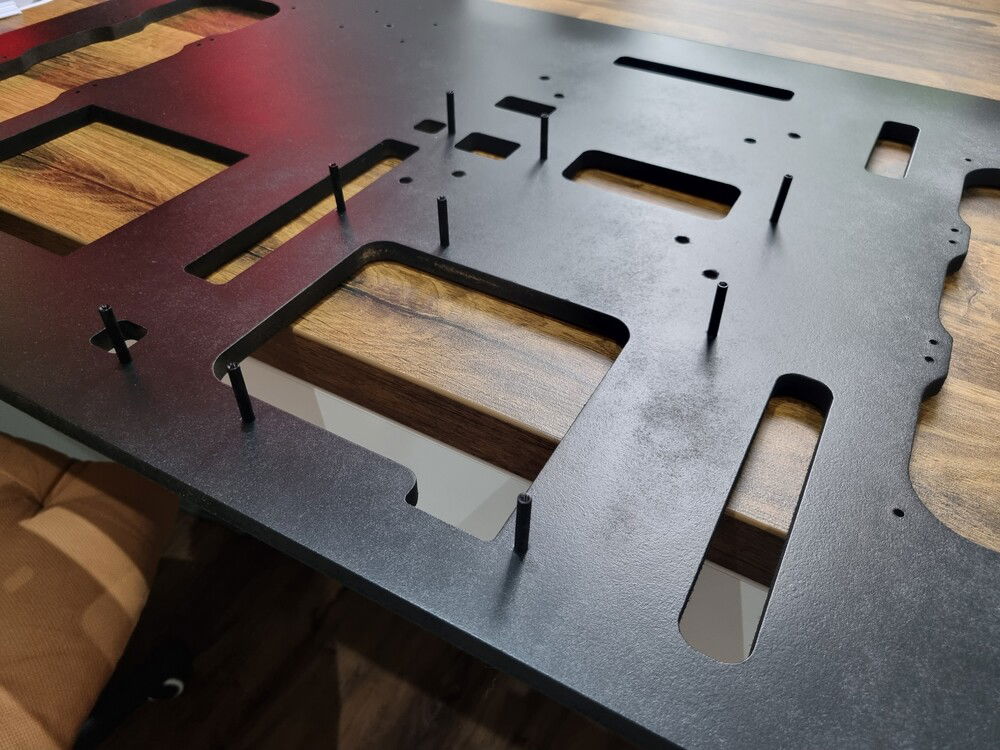

Aluminium standoffs from Aliexpress
Aluminium standoffs from Aliexpress

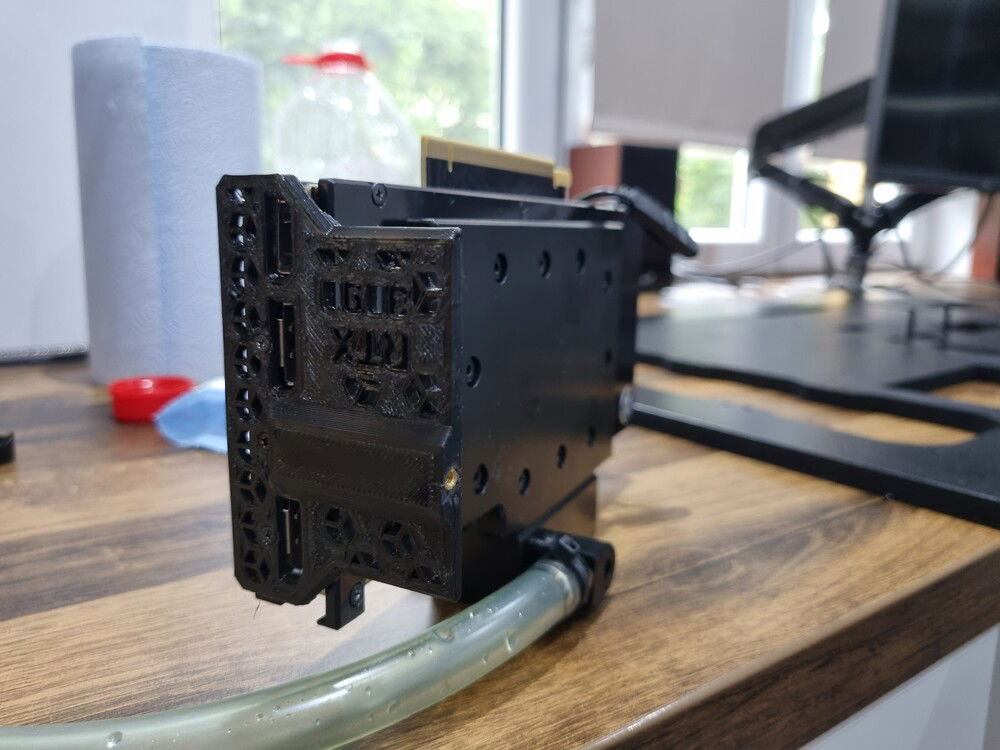

3D printed custom I/O shiled for 3090 with integrated screwhole to help hold it vertical
3D printed custom I/O shiled for 3090 with integrated screwhole to help hold it vertical

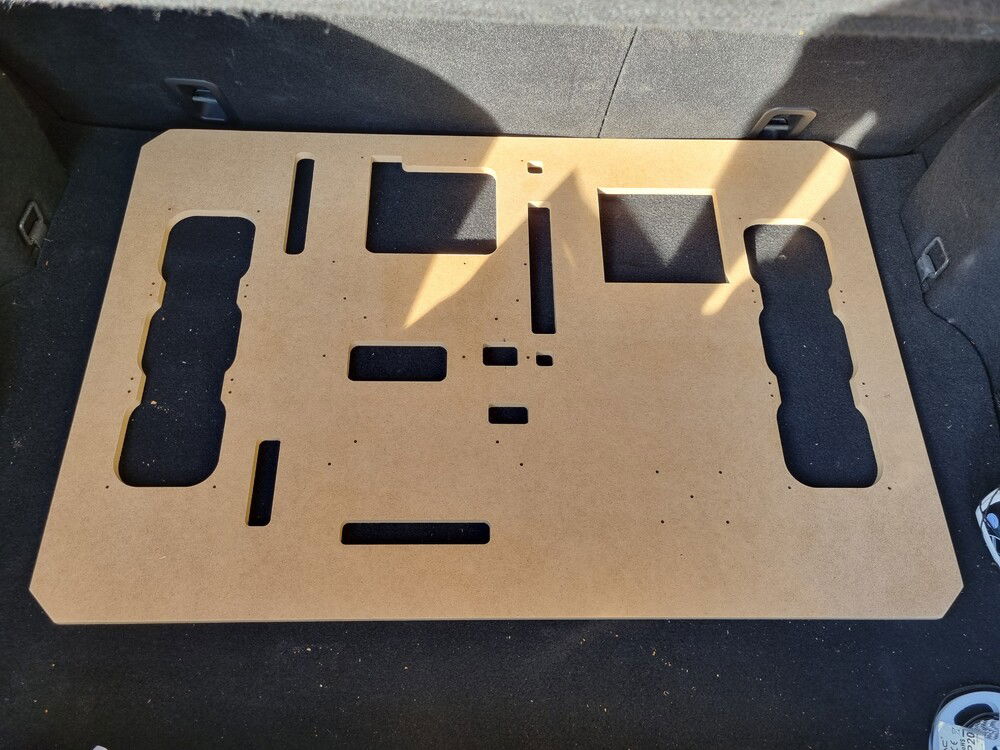

MDF board cut on CNC
MDF board cut on CNC

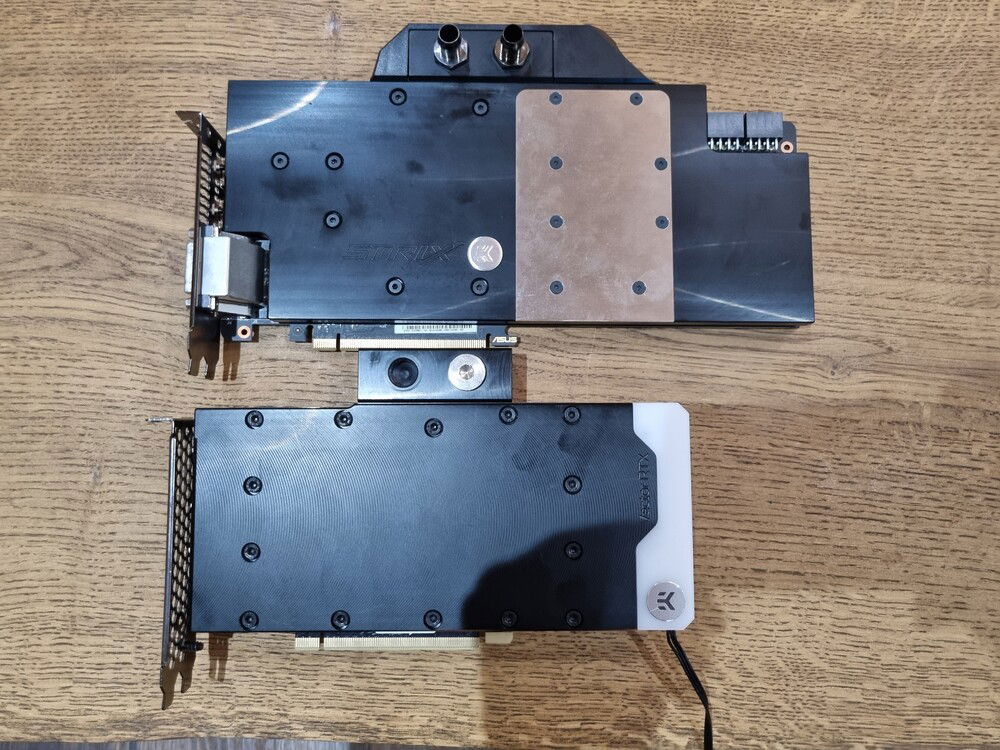

Old Strix 1080 TI vs PNY 3090
Old Strix 1080 TI vs PNY 3090

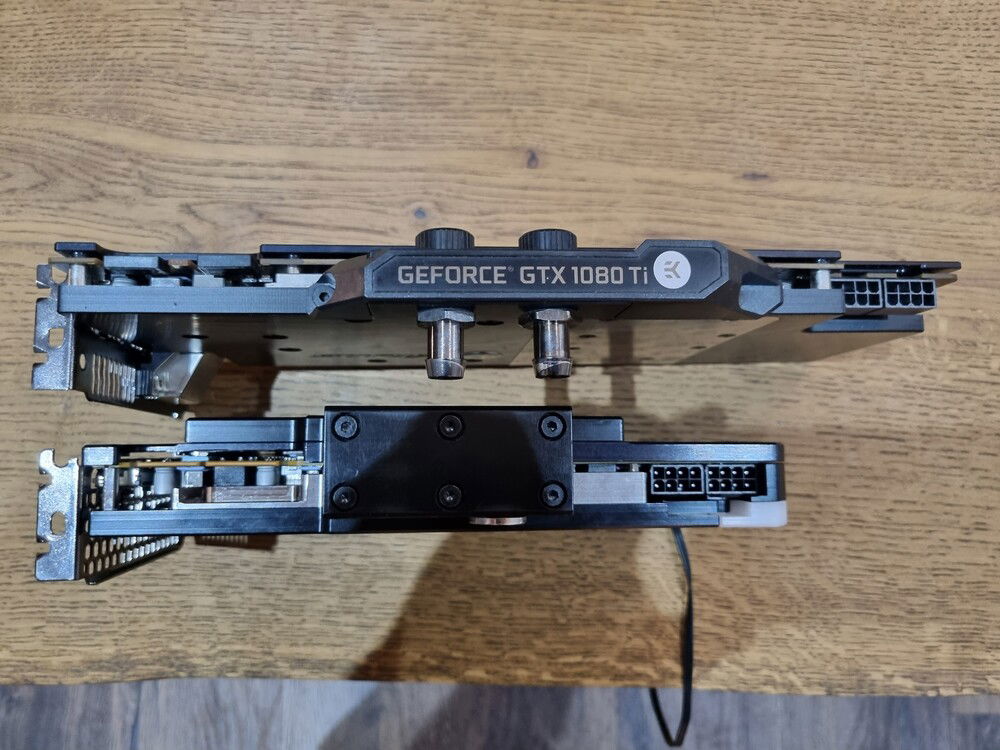

3090 with dual side cooler is thiccc and heavy, like really heavy
3090 with dual side cooler is thiccc and heavy, like really heavy

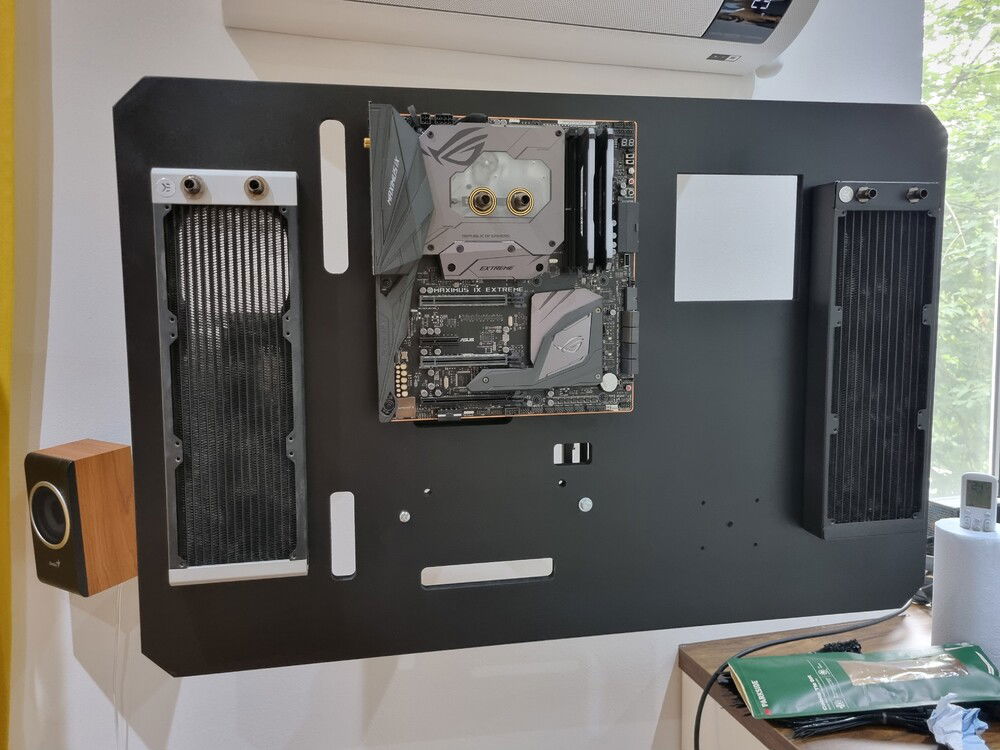

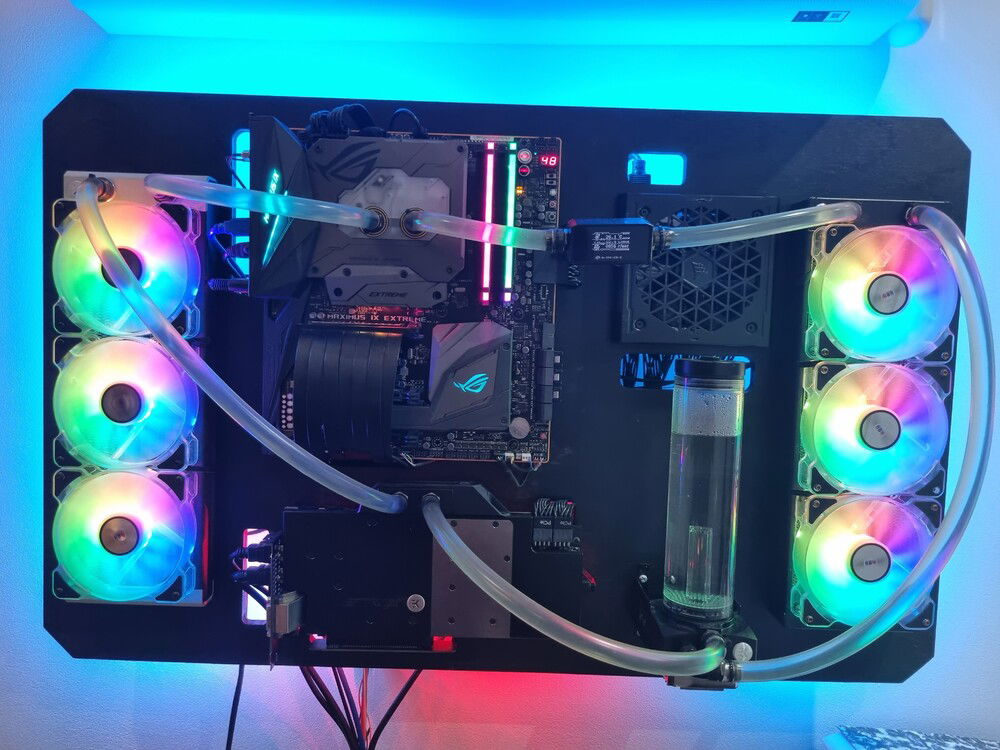

Old version of build with many wrong holes and components position
Old version of build with many wrong holes and components position

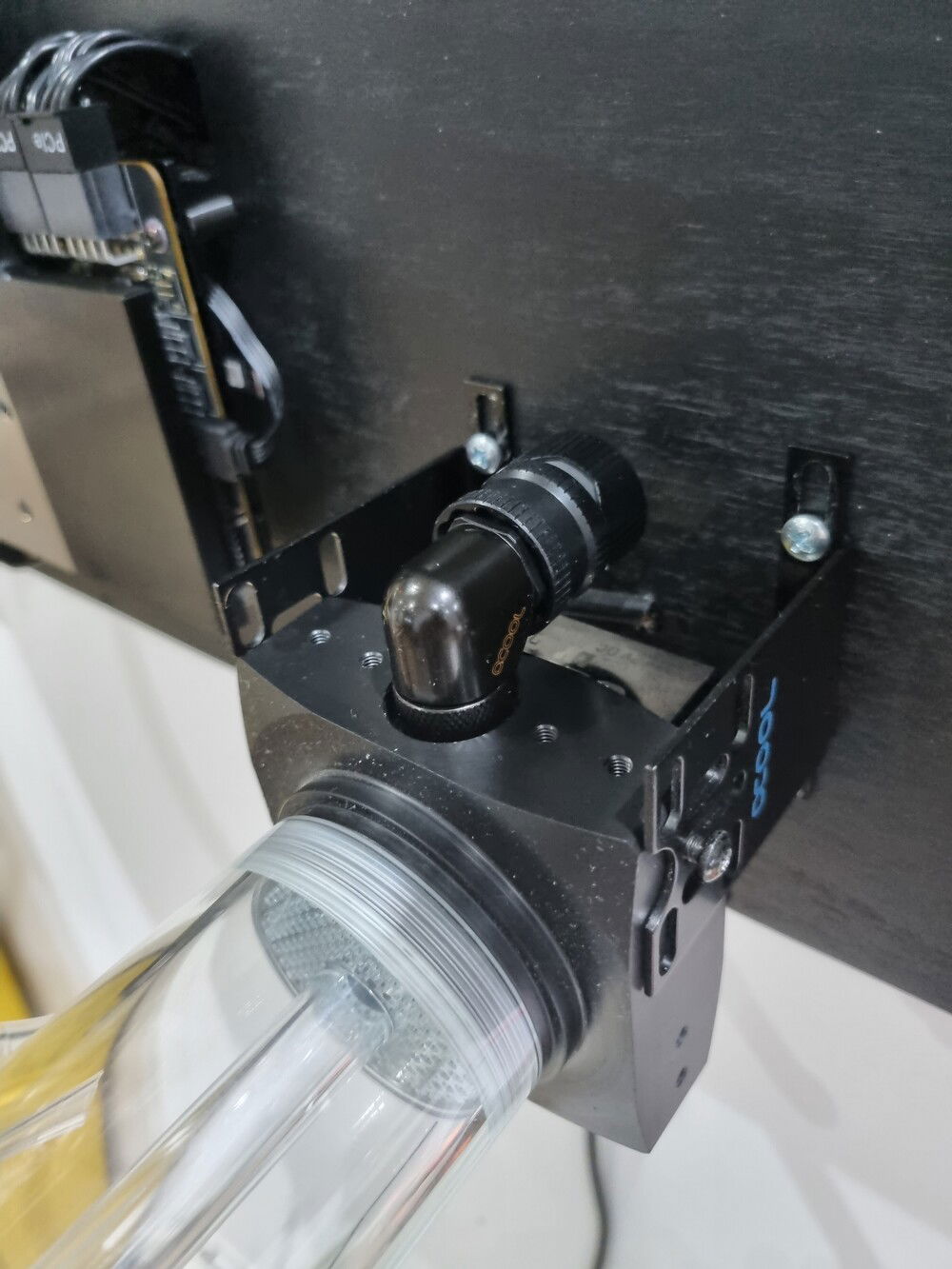

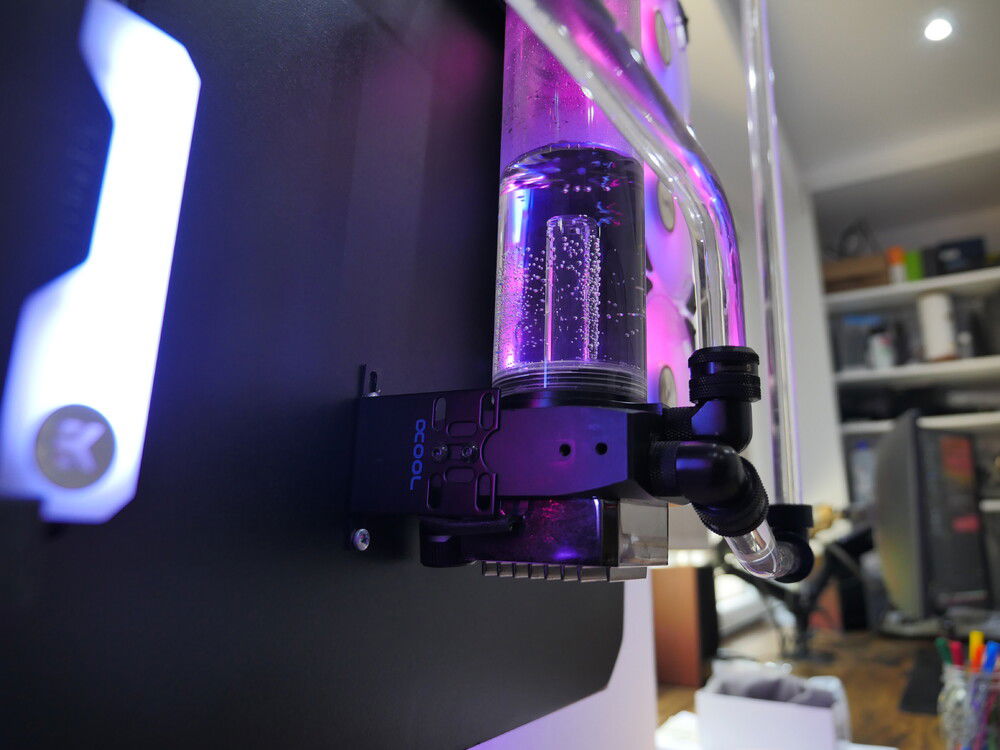

hidden drain plug in back of the pump/res combo
hidden drain plug in back of the pump/res combo

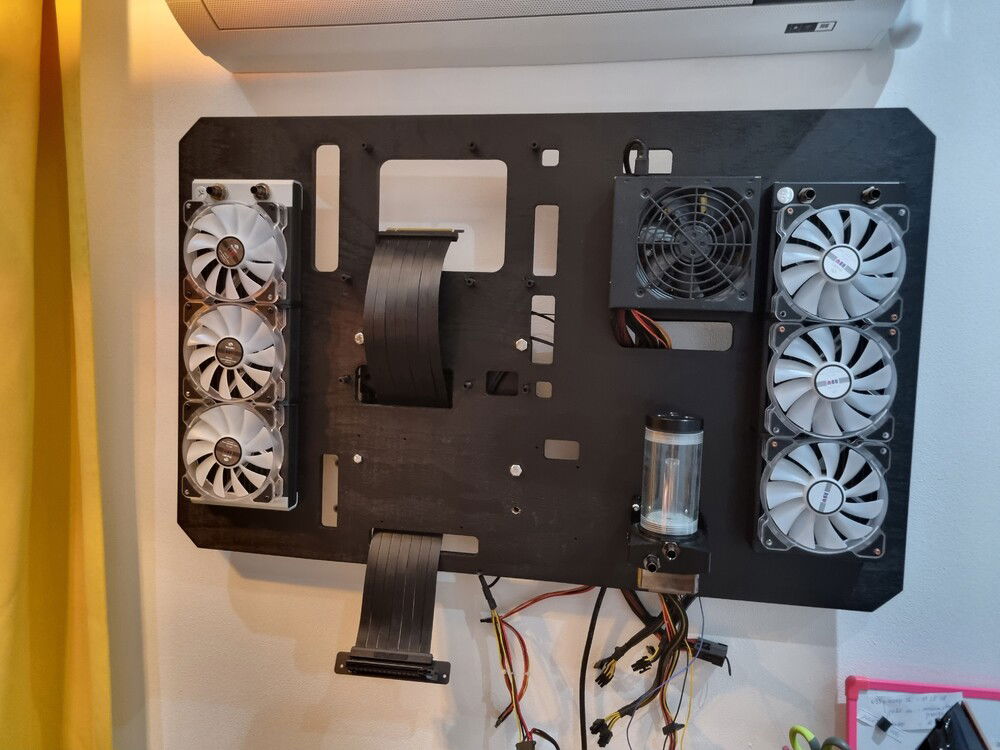

Phanteks 700mm riser, working good just but only if connected to second PCIe slot on mobo, dont know why, but it works
Phanteks 700mm riser, working good just but only if connected to second PCIe slot on mobo, dont know why, but it works

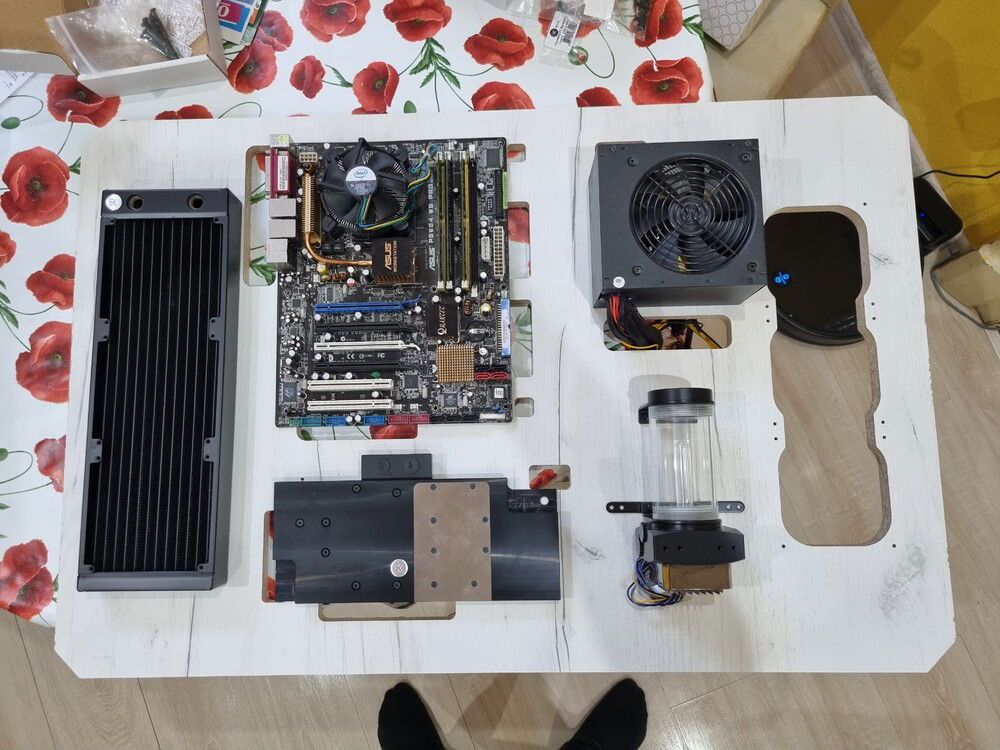

Demo particle board and demo components
Demo particle board and demo components

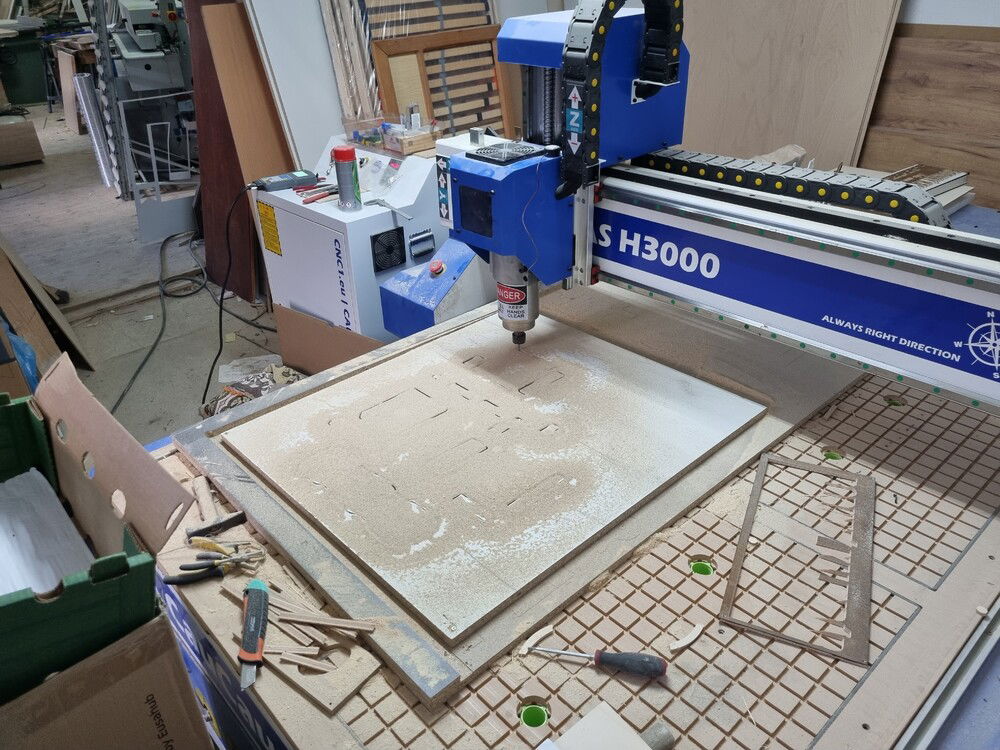

CNC milling the board
CNC milling the board

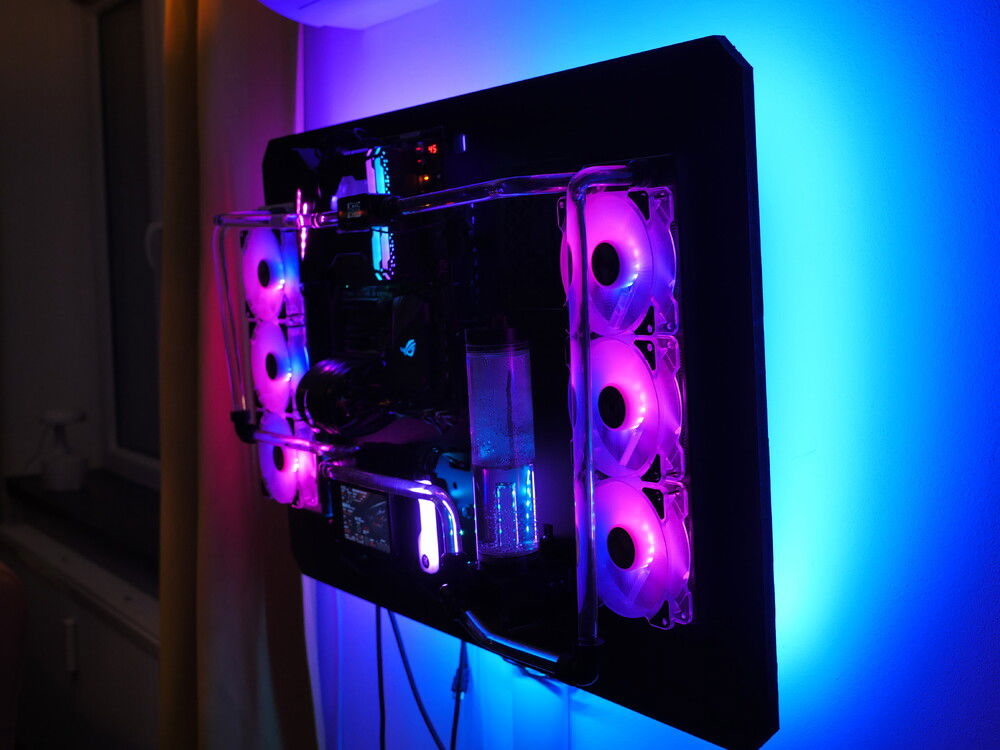

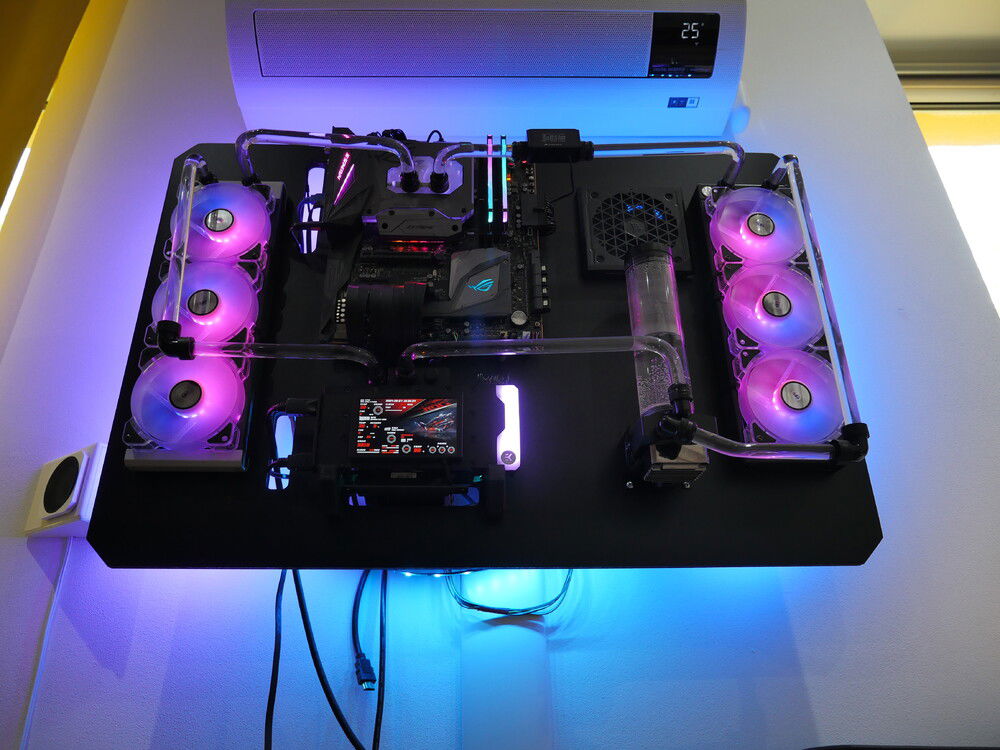

Wallmount Ebay/Aliexpress special

My Ebay/Aliexpress special, none of the parts were bought new, mobo is old but I rock 9700k thanks to Coffee lake BIOS mod, 3090 with broken aircooler bought from mining rig, mostly aliexpress fitting and tubing, and I must they the are great, much better then some Alphacool stuff. LCD with pc stats slapped on GPU just because I can, also from Aliexpress for 30€, works perfectly well. Still very much WIP, I need to redo ugly tubes for watercooling, this was my first attempt at hard tubing

My real cost of this build:
CPU I already had, around 130€
Mobo with CPU block - 80€
Unpacked PSU - 100€
3090 with broken cooler - 450€
Second hand RAM - 60€
Pump/res Combo second hand - 40€ + 15€ for bigger reservoir tube
Aliexpress RGB fans 6 pack - 55€
Second hand EK GPU cooler - 130€
Phanteks 700mm PCIe riser - 20€
Hard tubing stuff (tubing, fittings, elbows, etc - 90€

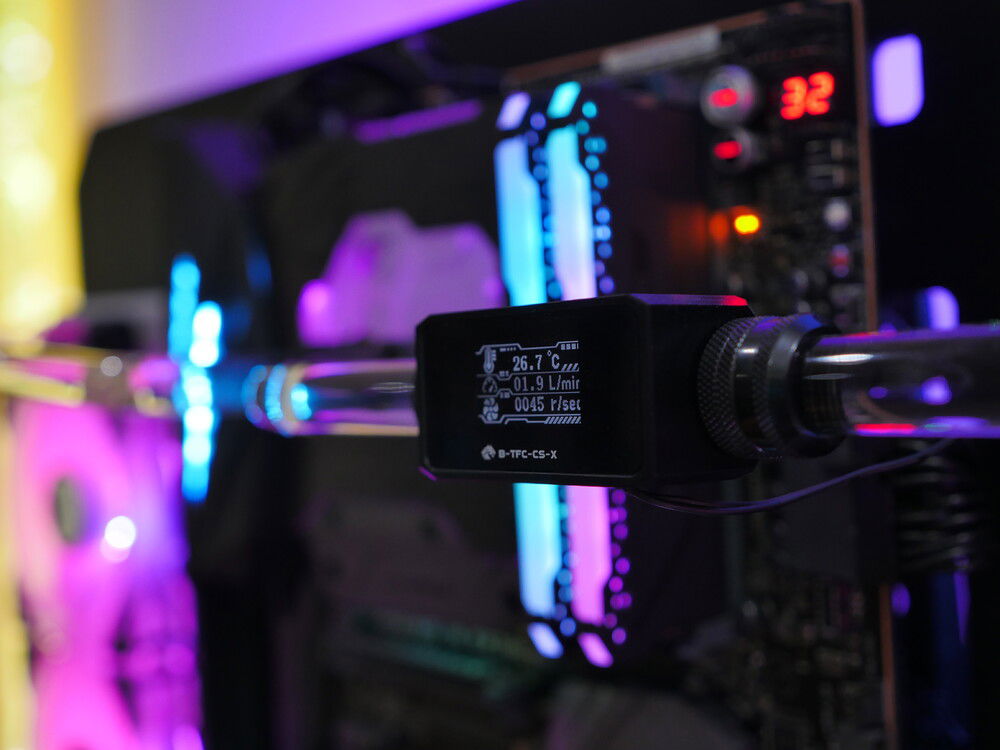

Water cooling Bykski OLED monitor - 30€
TURZX USB stats screen on gpu - 35€

Around 1500€ in total over 1 and a half year of building this thing.
Color(s): Black
RGB Lighting? Yes
Theme: Wall
Cooling: Custom Liquid Cooling
Size: E-ATX
Type: General Build

Hardware

CPU
$ 243.30
Intel - Core i7 9700K
Socket: LGA 1151
Cores: 8
Integrated Graphics: Yes
Motherboard
$ 449.00
ASUS - ROG Maximus IX Extreme
Chipset: Z270
CPU Socket: LGA 1151
Size: E-ATX
Memory
$ 150.59
Corsair - Vengeance Pro (3600MHz) (Black/RGB)
Type: DDR4
Capacity: 32 GB
Memory
$ 97.99
Kingston - Fury Beast (36000Mhz) (Black/RGB)
Type: DDR4
Capacity: 16 GB
Graphics
$ 1,649.96
PNY - GeForce XLR8 Gaming Revel Epic-X (Triple Fan) (RGB)
Chip Manufacturer: NVIDIA
Chip: RTX 3090
Interface: PCIe x16
Storage
$ 41.00
HGST (Hitachi) - Travelstar (0J22413)
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 95.00
Samsung - 860 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 56.70
Western Digital - Caviar Green WD20EARS
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 2 TB
Storage
$ 49.00
XPG - S40G (RGB)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 512 GB
PSU
$ 429.99
Corsair - HX1000i
Wattage: 1000
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 20.00
Custom - Custom (custom)
Cooling
$ 50.00
Alphacool - Eisbecher D5 775 V.3 PUMP / RES. Combo
Type: Reservoir
Size (WxHxD): 250 mm
Cooling
$ 24.75
Alphacool - Eiszapfen Angled Adaptor 90° rotatable G1/4 Outer Thread to G1/4 Inner Thread
Type: Fittings
Cooling
$ 9.49
Barrow - 16/12mm PETG Rigid, Clear
Cooling
$ 50.00
EKWB - CoolStream SE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 124.99
EKWB - EK-Quantum Surface S360 - Black
Type: Radiator
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 24.99
EKWB - EK-Quantum Torque Micro Rotary 90° (Black)
Type: Fittings
Cooling
$ 423.20
EKWB - EK-Quantum Vector FE RTX 3090 D-RGB - Black
Type: Waterblock
Accessories
$ 96.43
Phanteks - Vertical GPU Mount
Monitor
$ 373.57
AOC - Curved Frameless (CU34G2X)
Size: 34 Inch
Panel: VA
Refresh Rate: 144 Hz
Monitor
$ 40.00
LG - 22MP67HQ-P
Size: 22 Inch
Panel: IPS
Refresh Rate: 60 Hz
Keyboard
$ 40.00
IBM - SK-8815
Interface: Wired
Key Switch Type: Membrane
Type: Full Size
Mouse
$ 83.47
Logitech - G102 LightSync
Interface: Wired
