TT P90 Orion

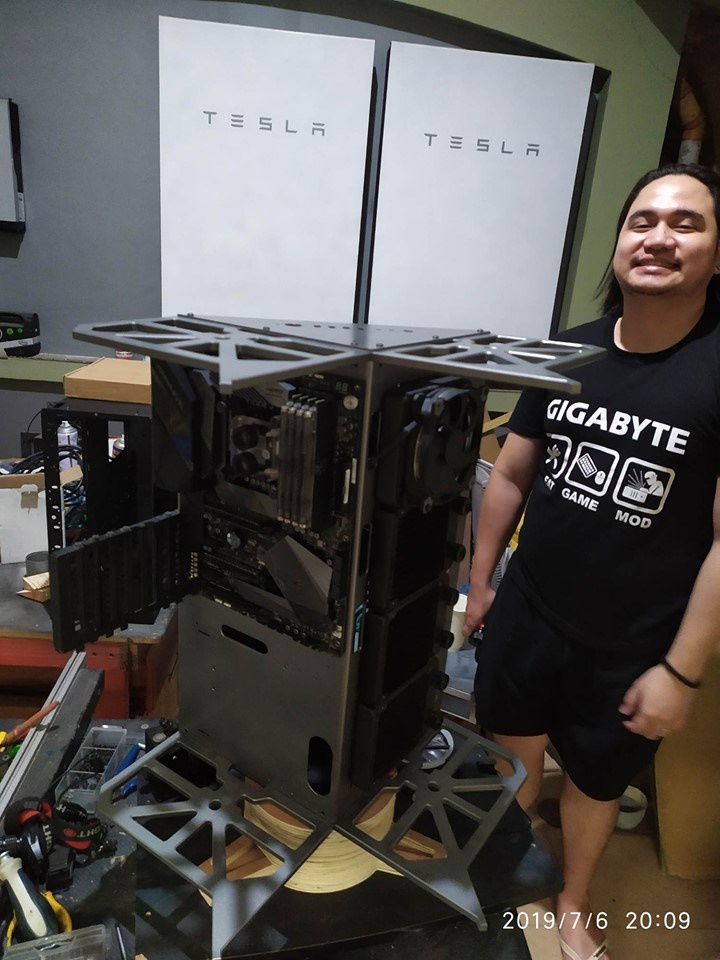

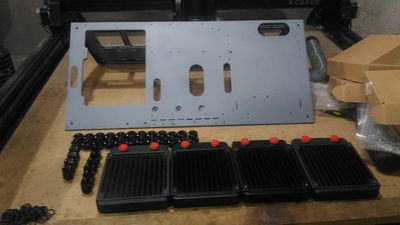

So a client came to me to rebuild literally a skeleton of a P90 case..
Build Image

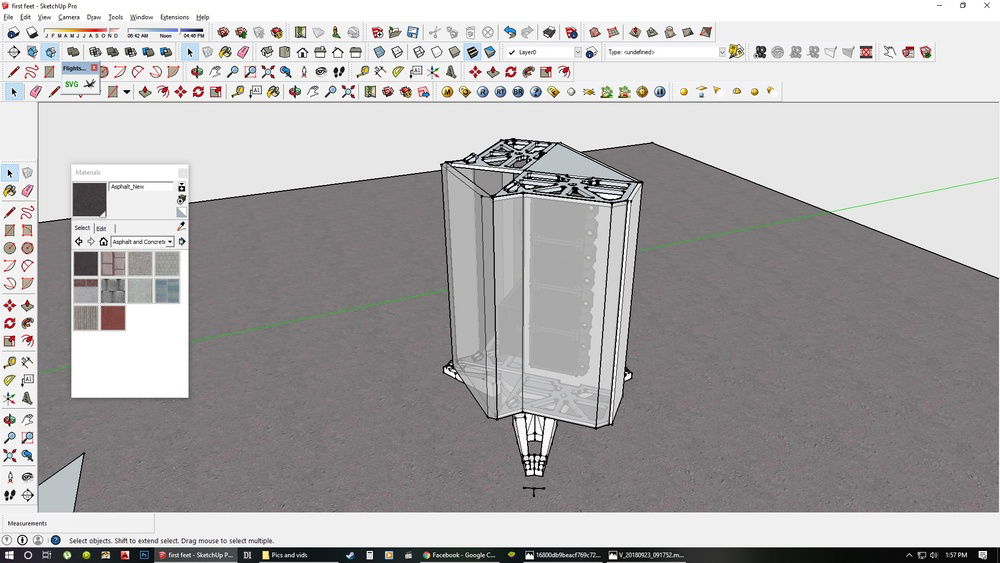

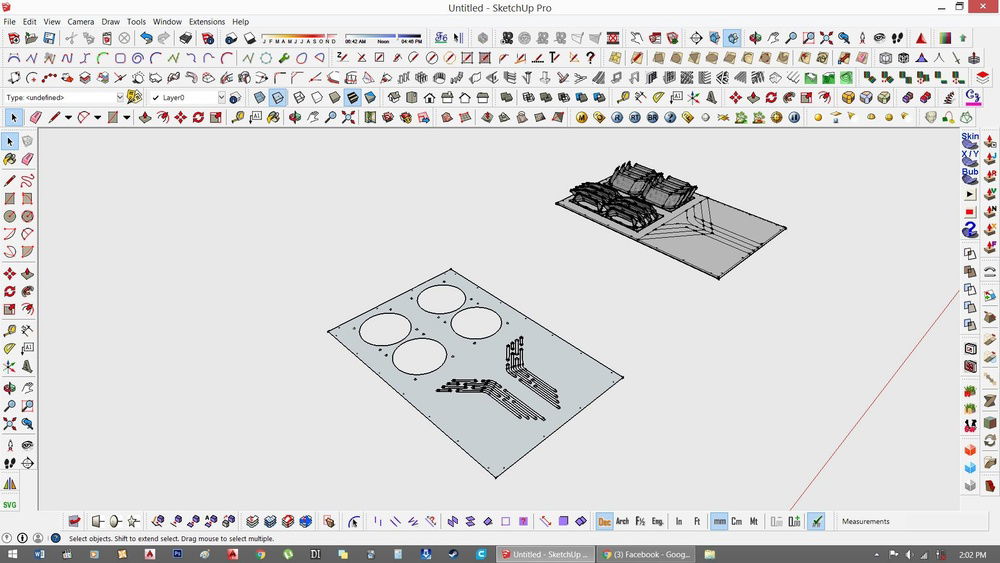

designing a model in cad.. just a guideline for the build.. nothing is final.. until its final.. ^_^
Build Image

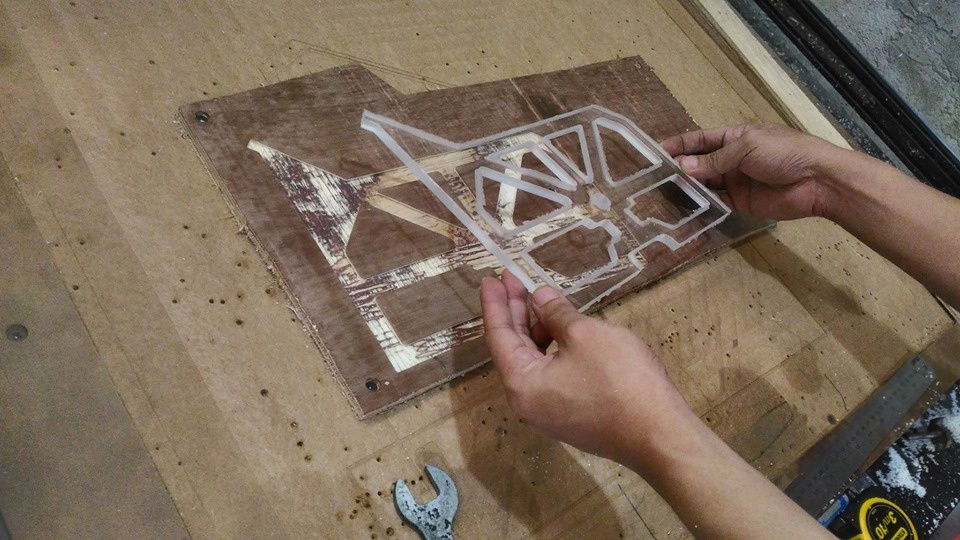

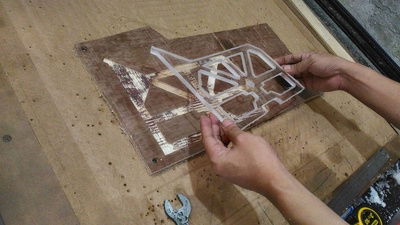

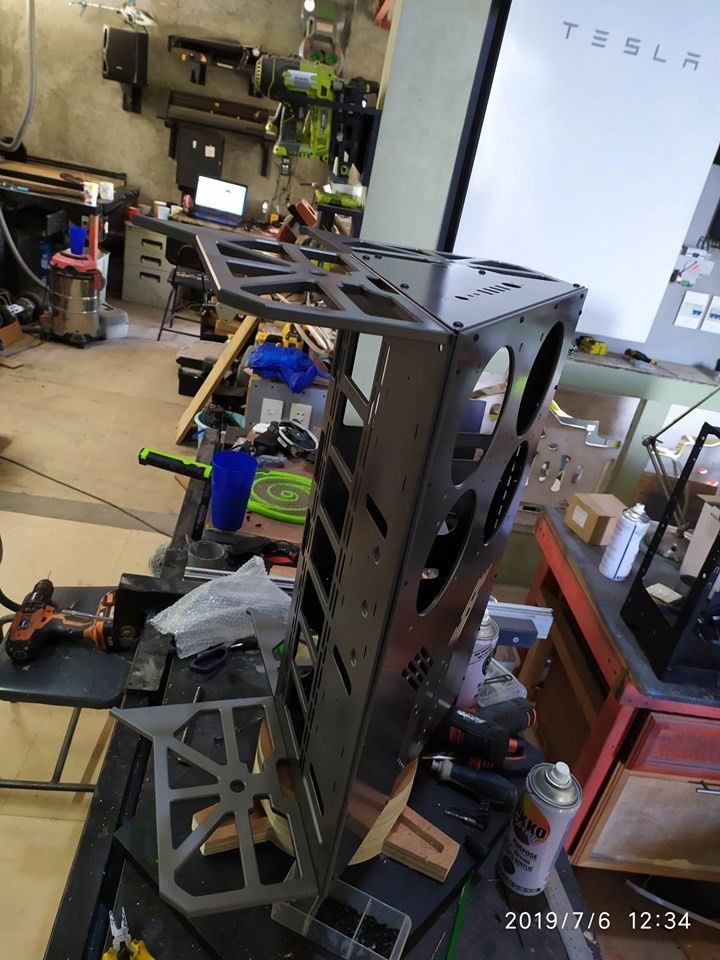

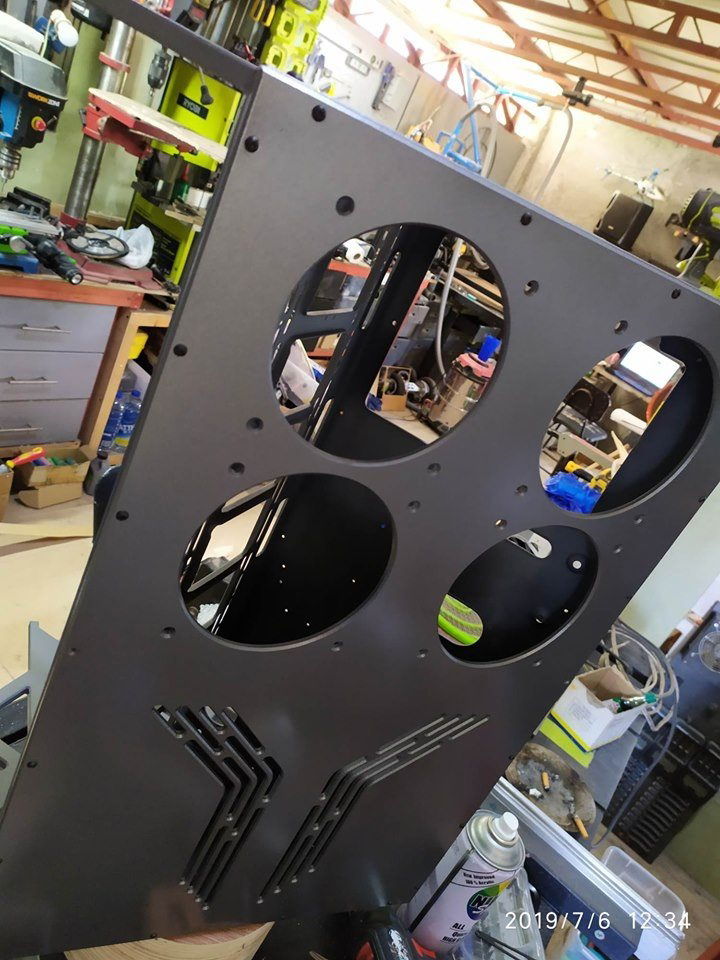

fabrication
Build Image

Build Image

Build Image

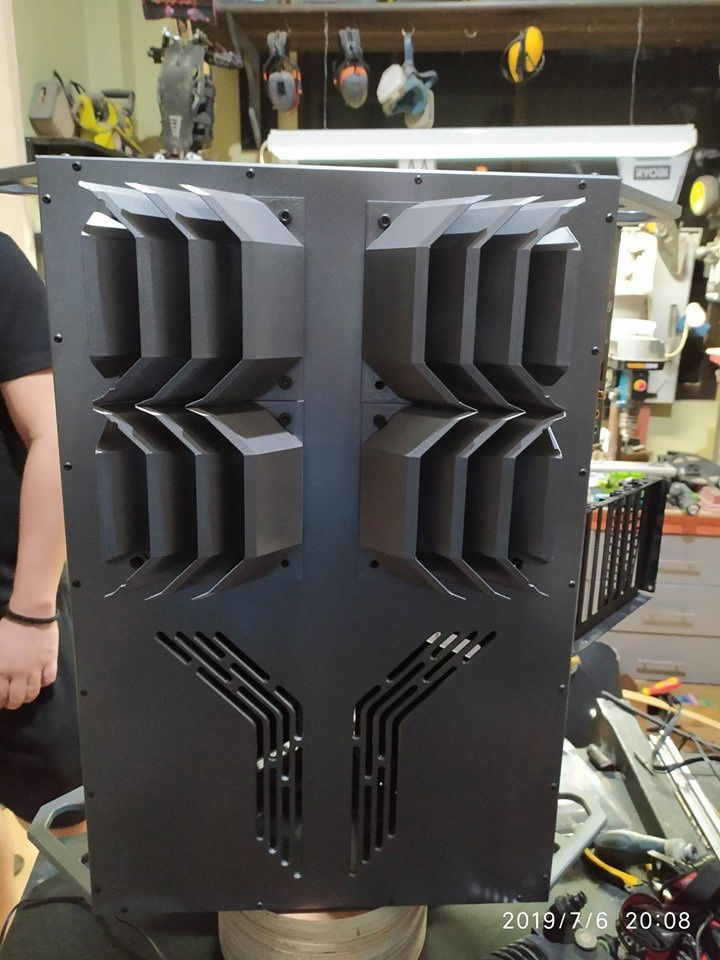

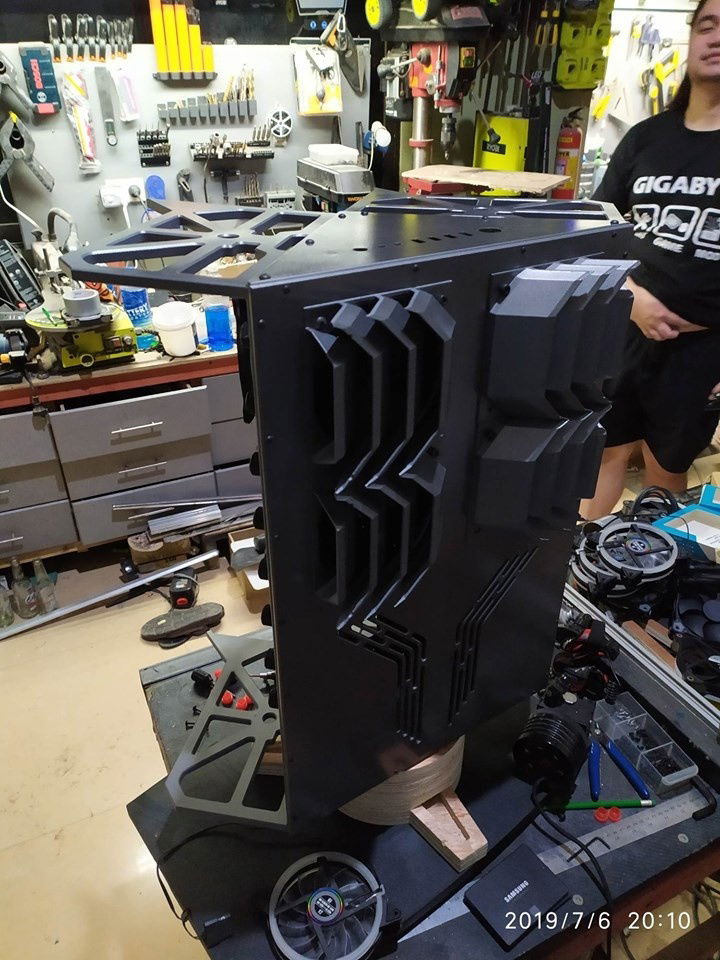

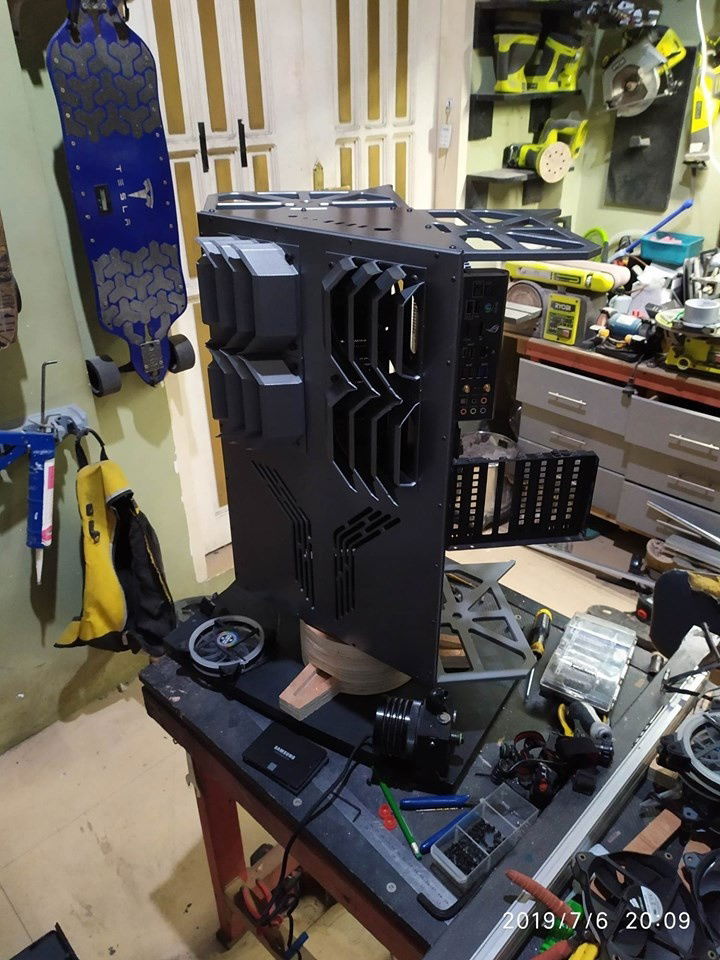

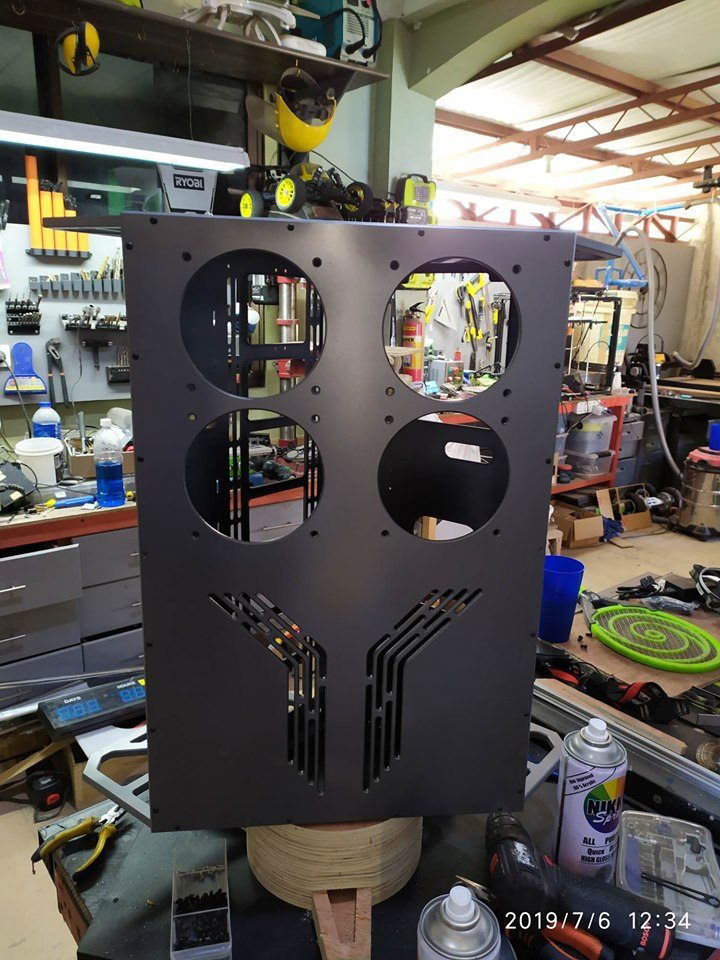

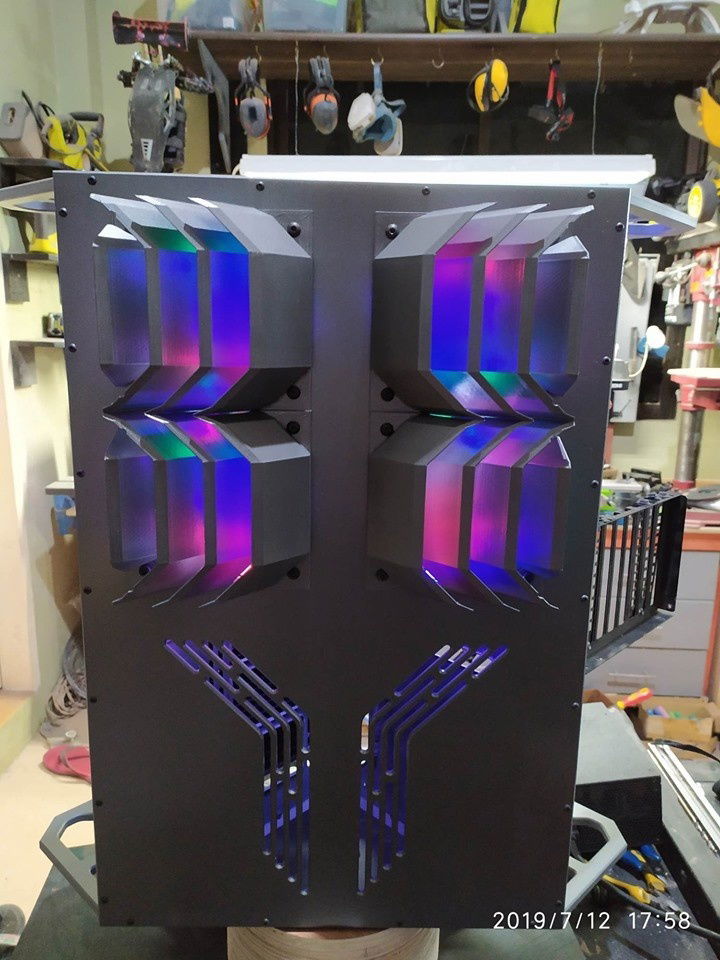

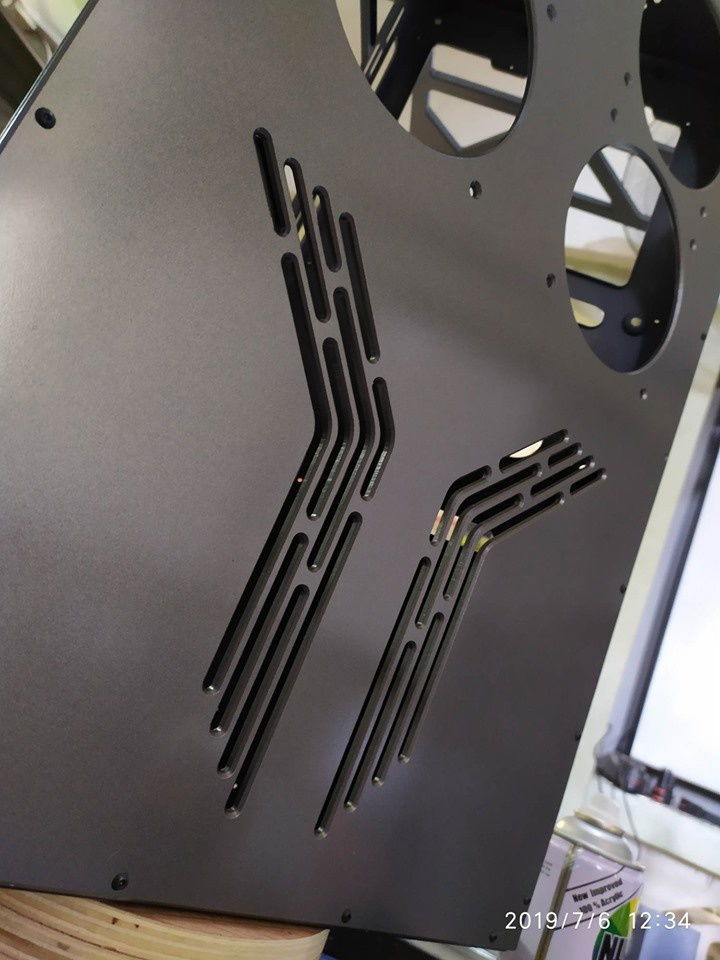

as this p90 case that we have doesnt even have a cover at the back.. so... lets make one..
Build Image

Build Image

Build Image

Build Image

Build Image

Build Image

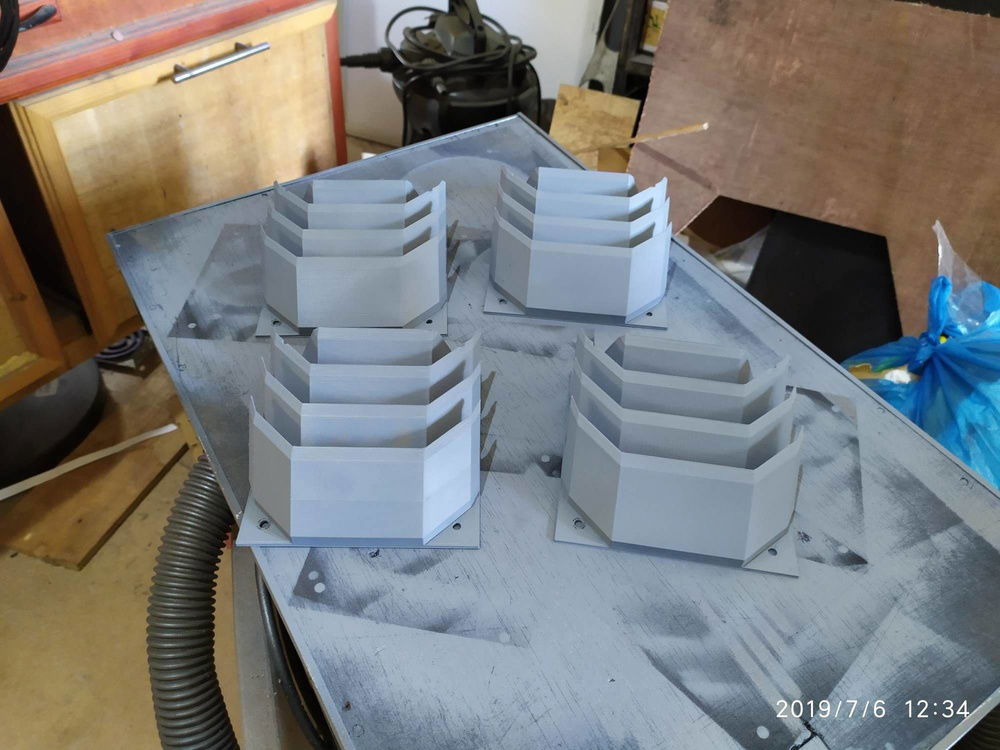

installing the 3d printed directional fan exhaust..
Build Image

Build Image

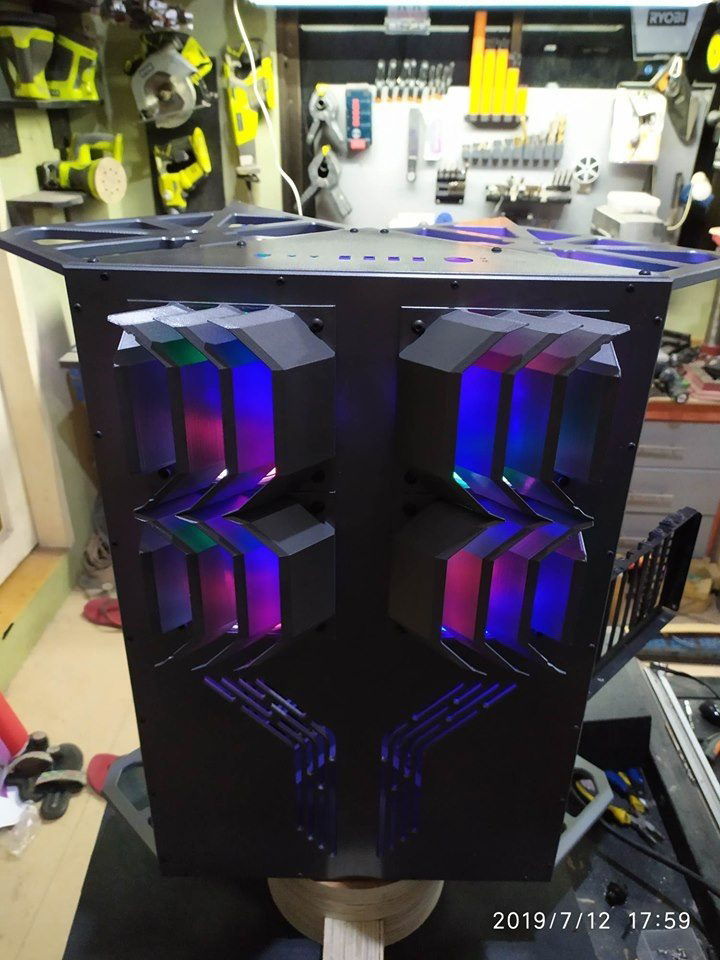

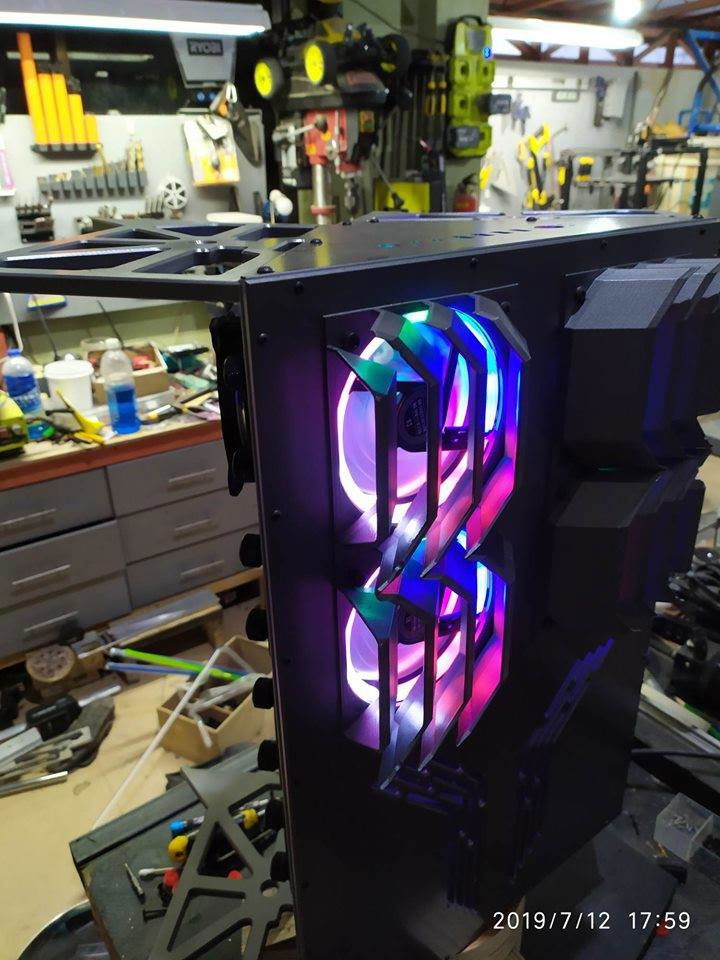

lights on.... sadly this part is on the back.. looks nice tho..
Build Image

Build Image

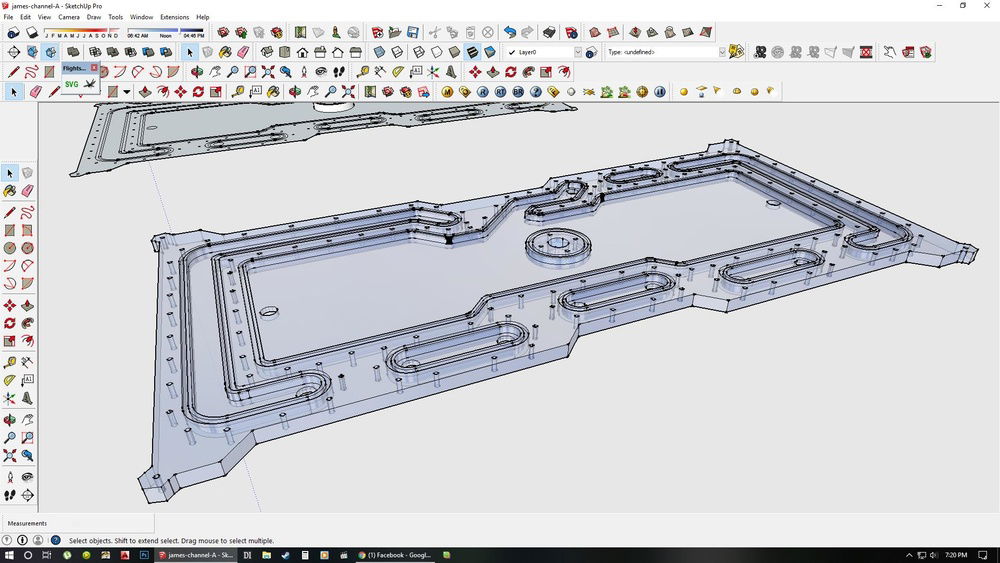

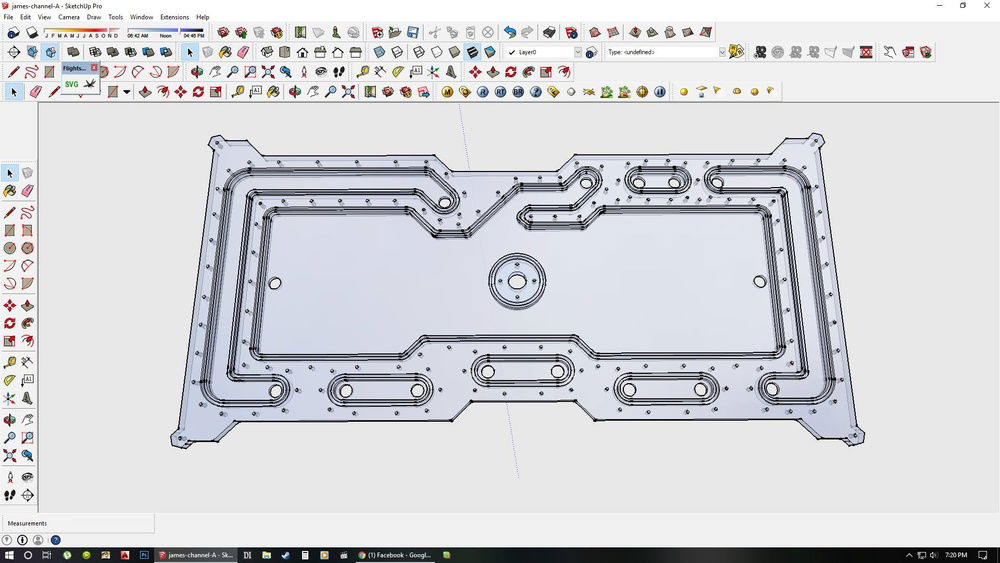

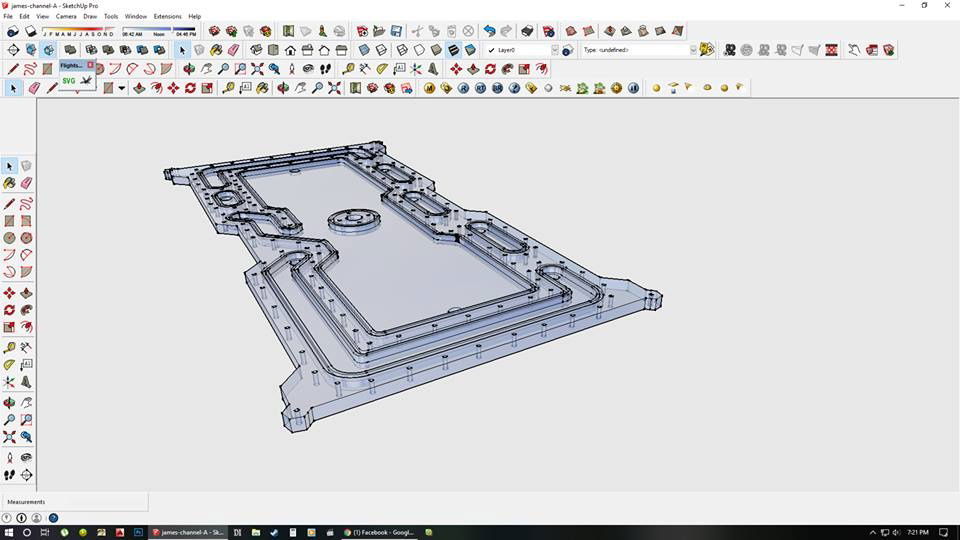

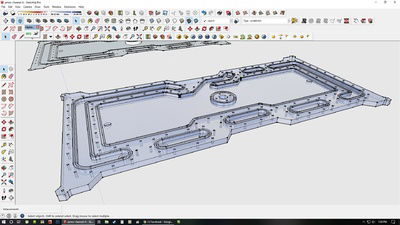

cad design of the reservoir/distro plate..
Build Image

Build Image

Build Image

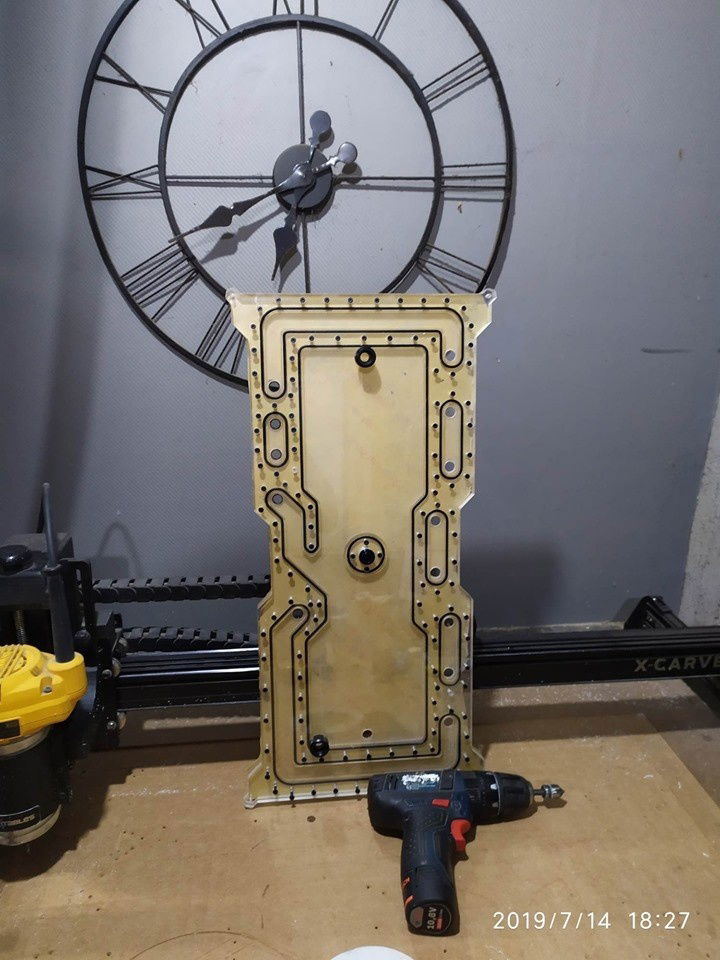

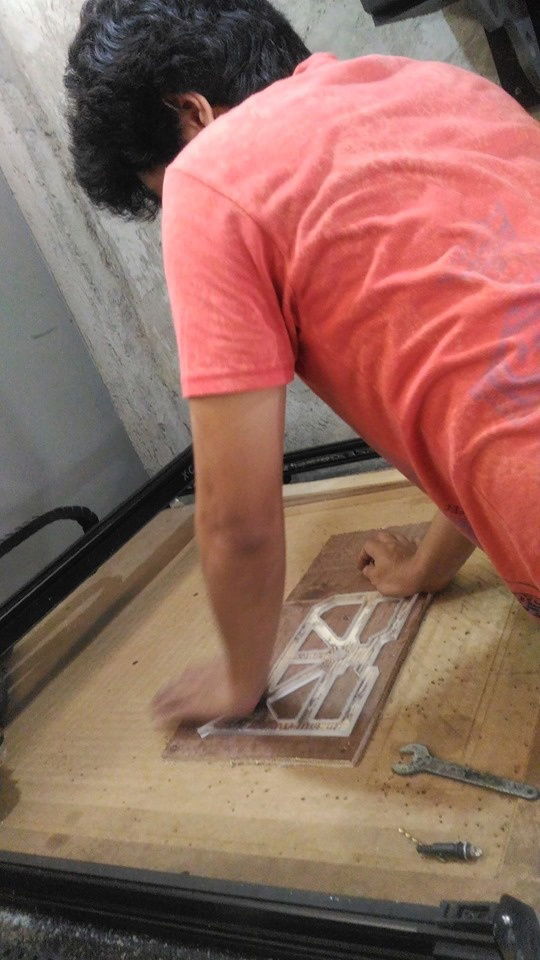

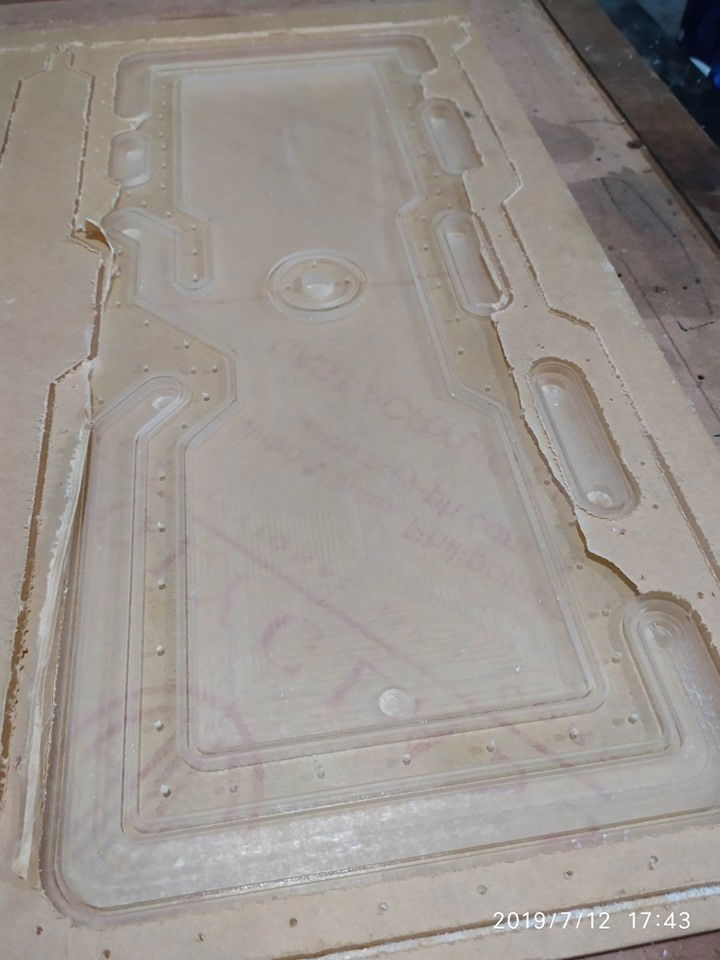

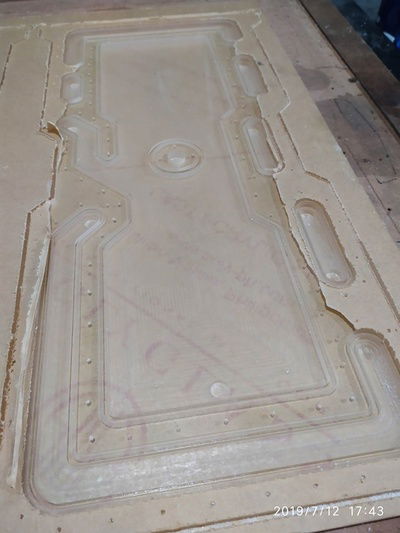

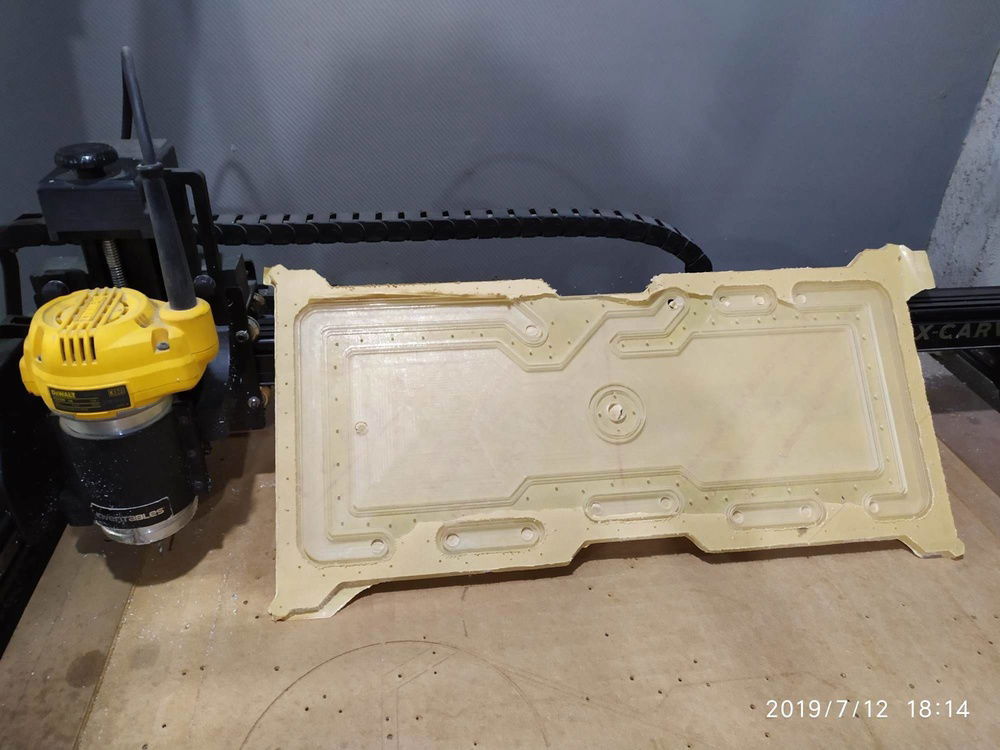

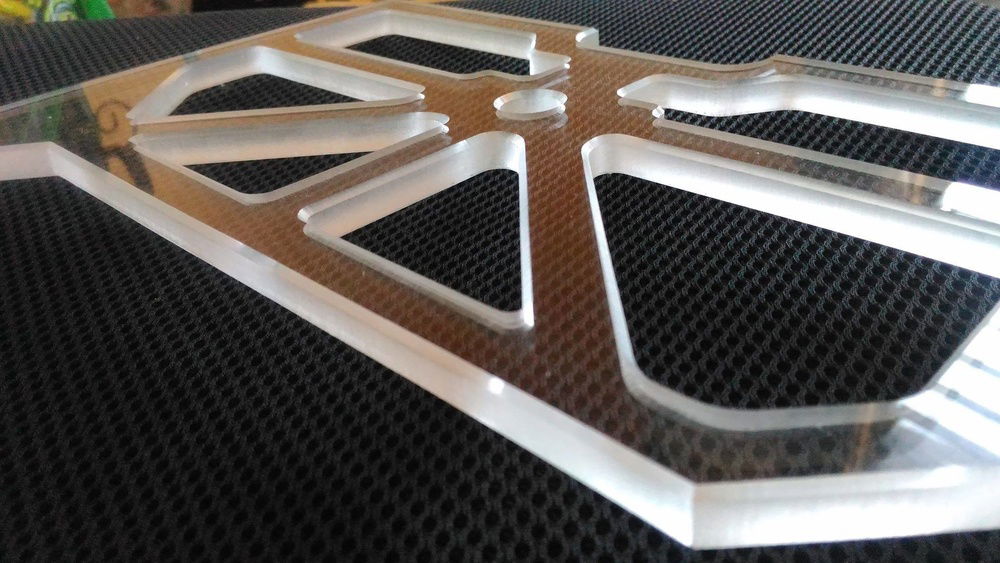

fabrication... using 10mm thick acrylic..
Build Image

Build Image

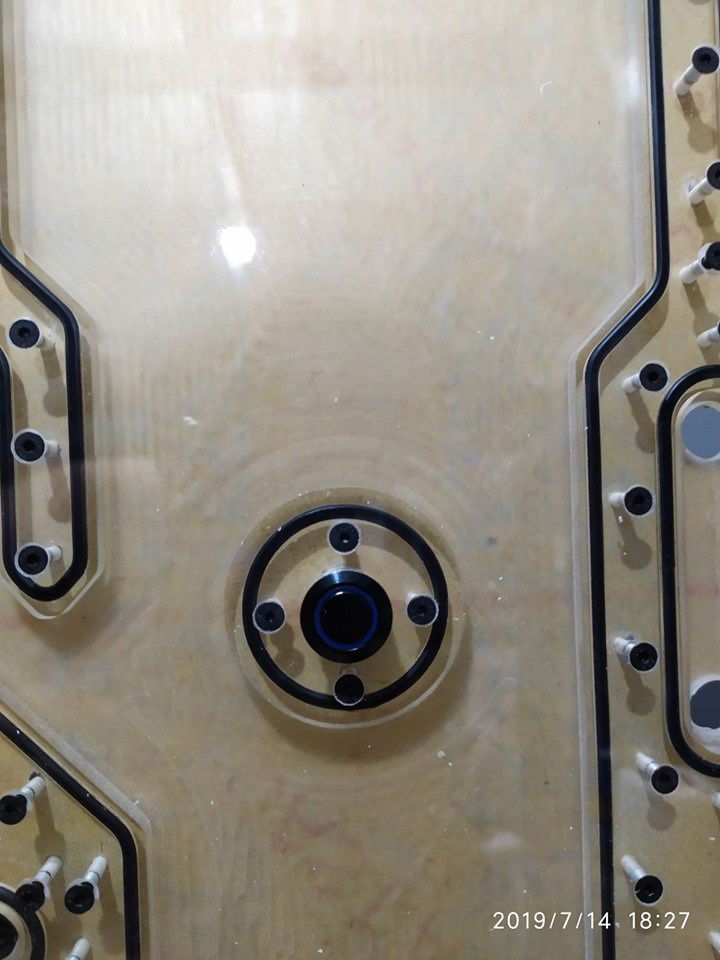

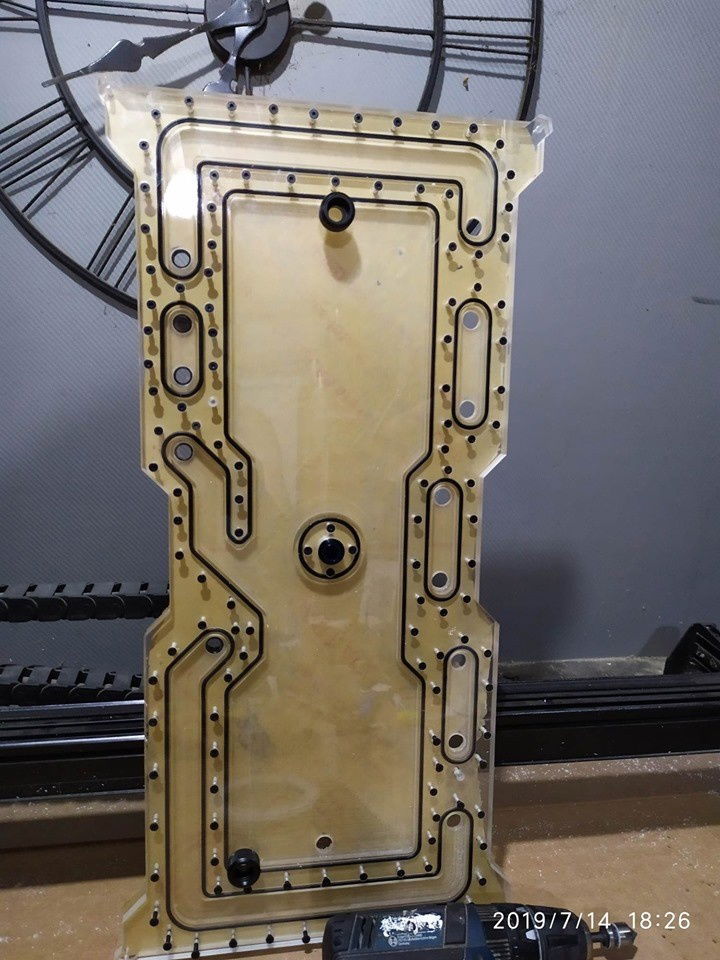

installing the orings...
Build Image

Build Image

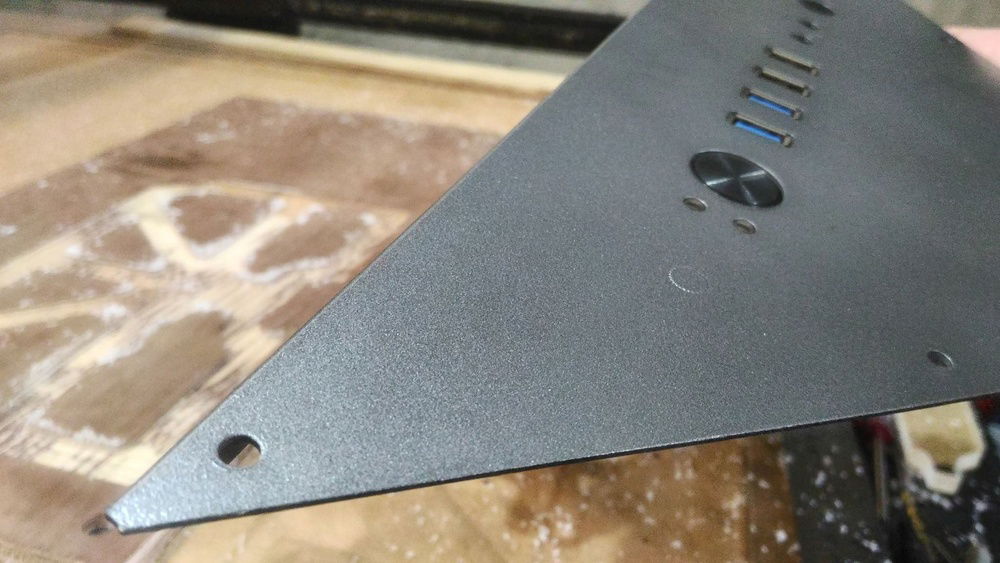

as ive noticed this case has the power button on top of it. and if you are sitting down while the case is on top of the case.. you have to stand up and press it...
so i ive installed a separate power button on the center of the reservoir... easy access of the power switch..
Build Image

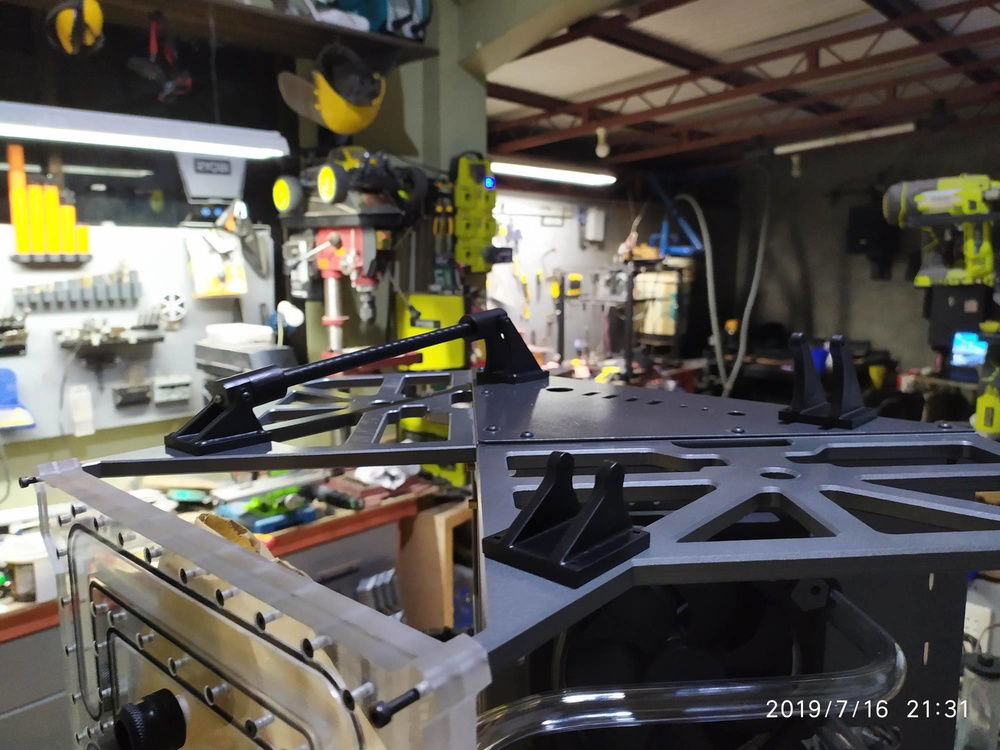

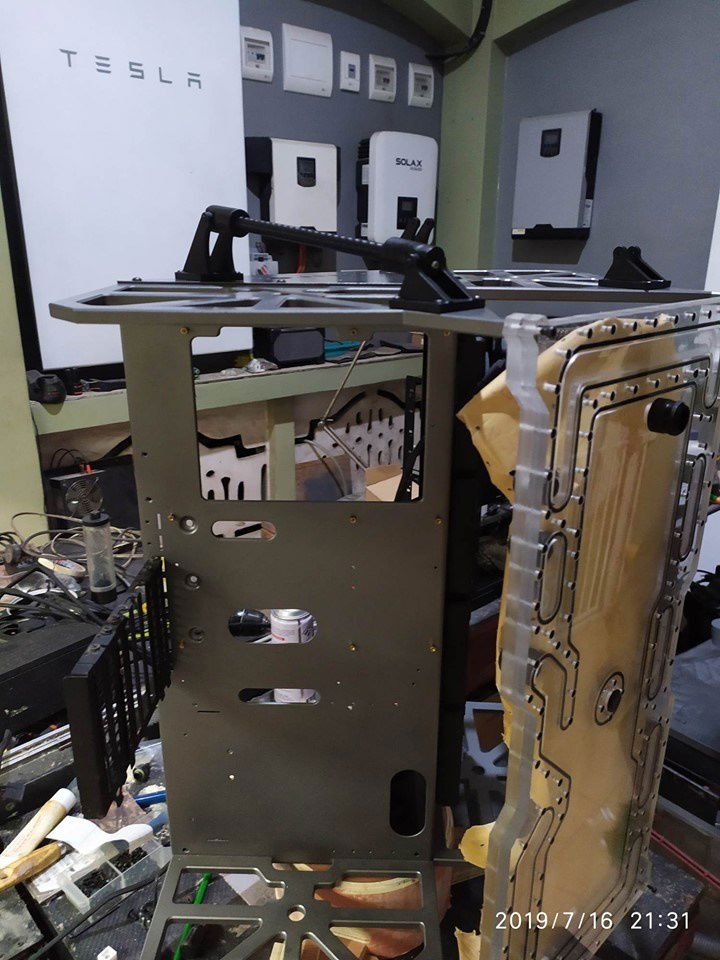

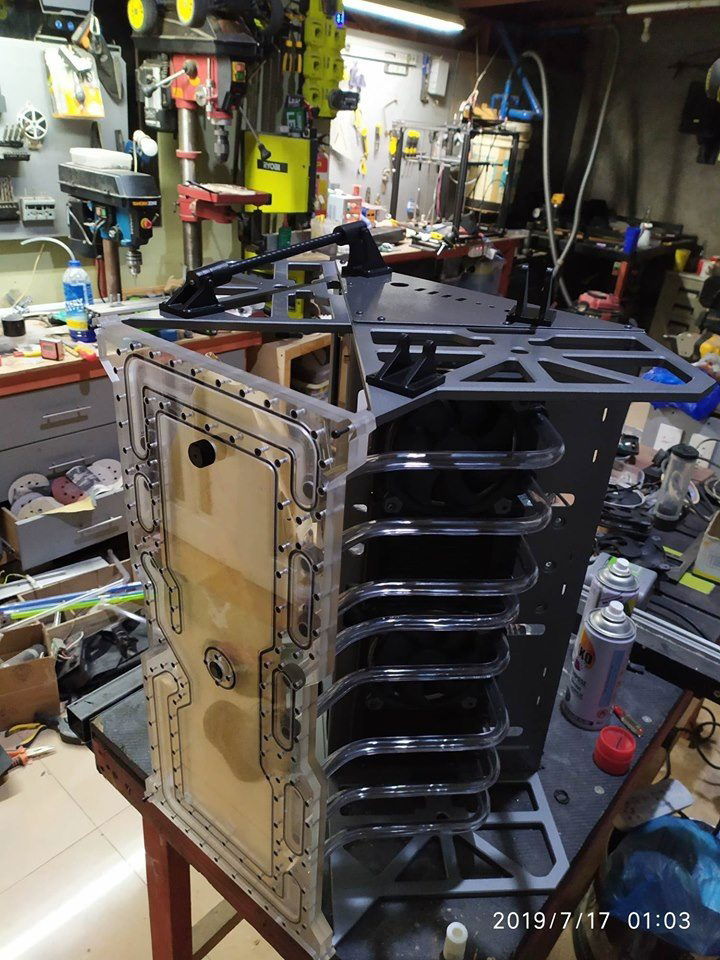

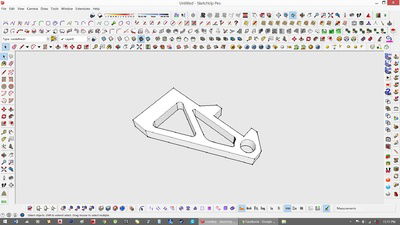

braces/ brackets installed to support the reservior/distro plate...
Build Image

Build Image

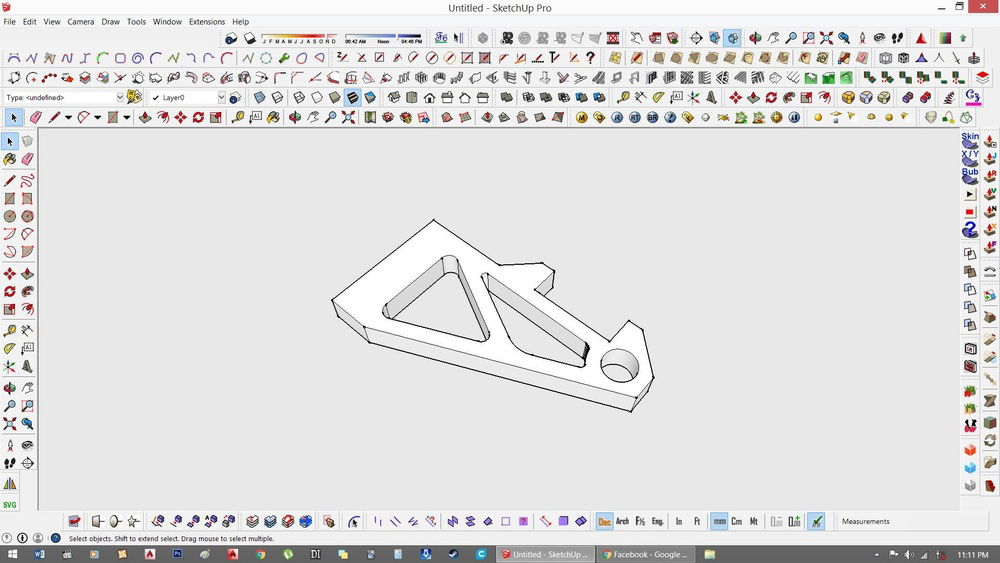

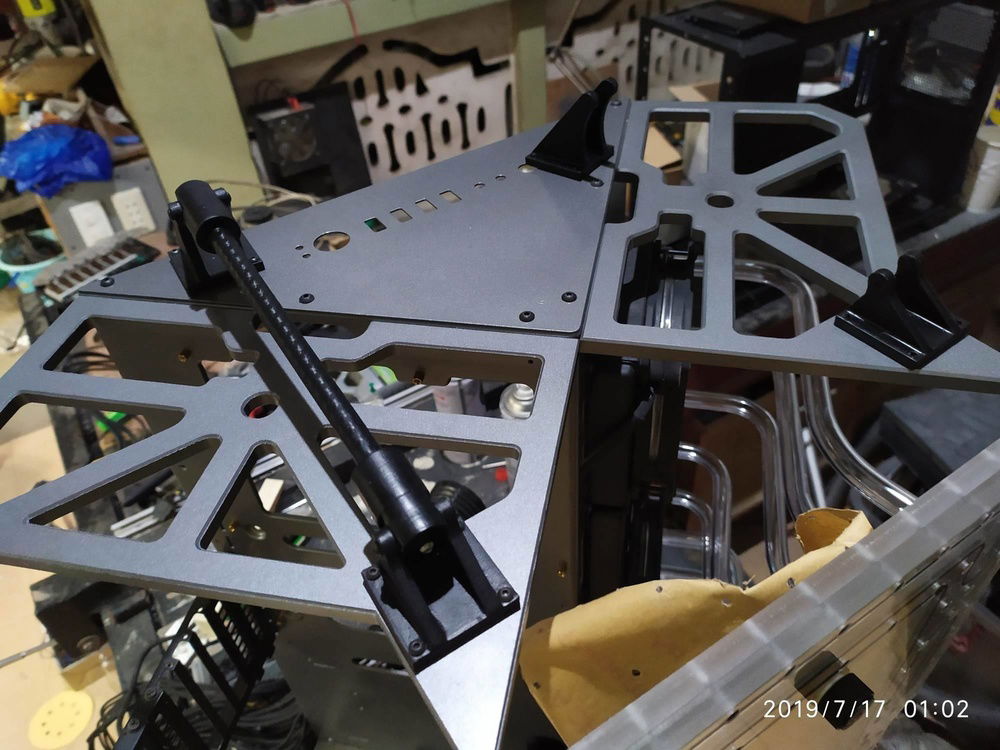

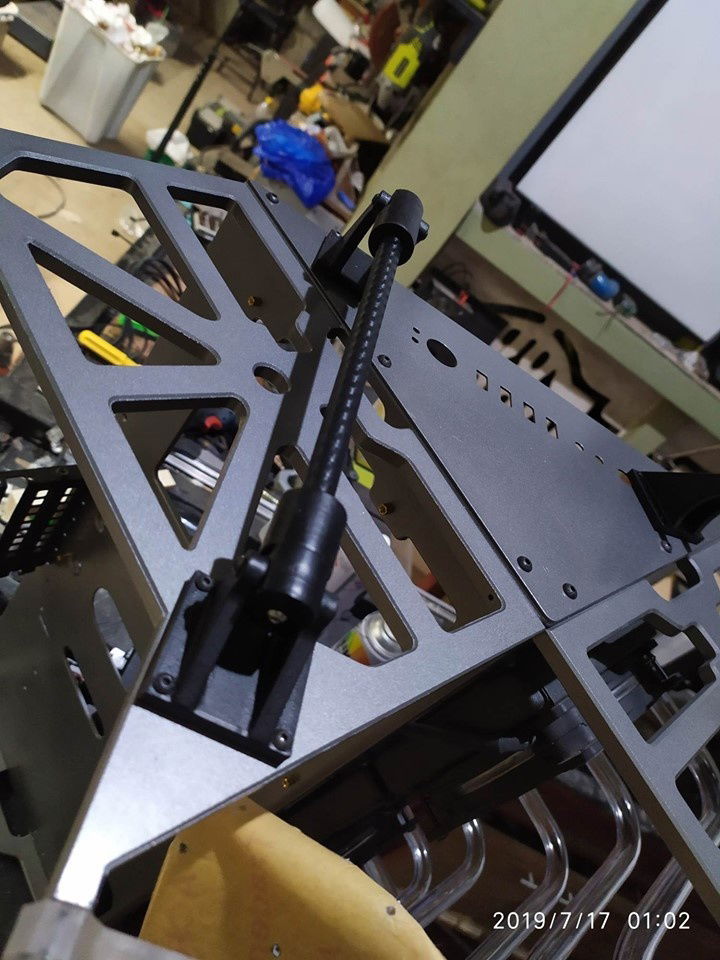

other additional parts.. gpu support...
Build Image

Build Image

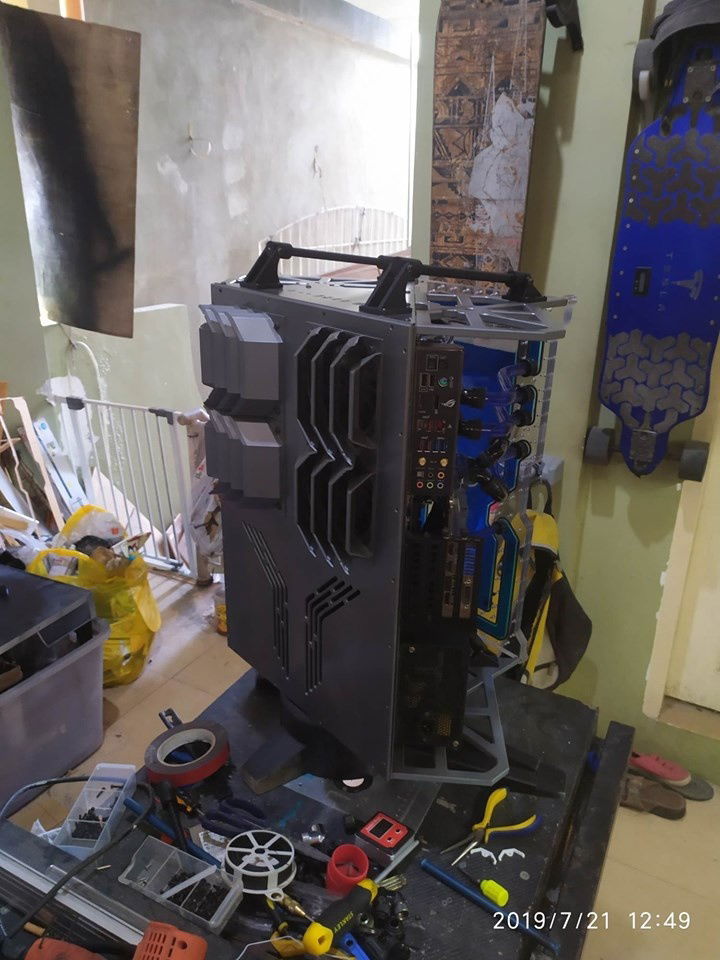

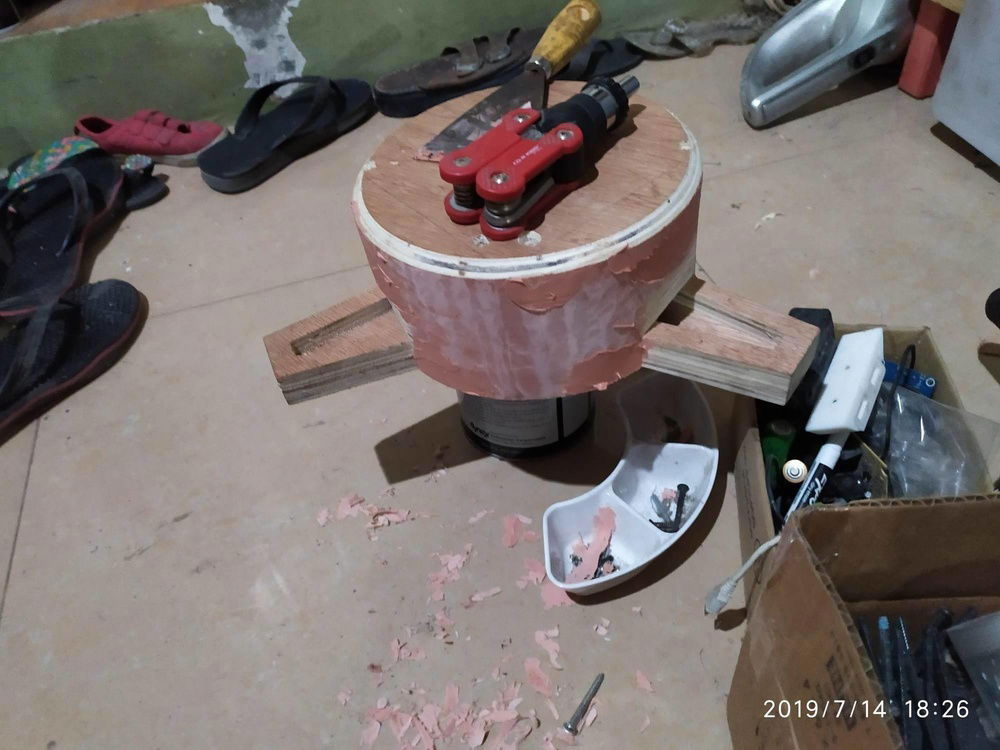

as for the feet of the case.. this looks pretty heavy but it isnt.. its hallow inside.. looks can be deceiving..
Build Image

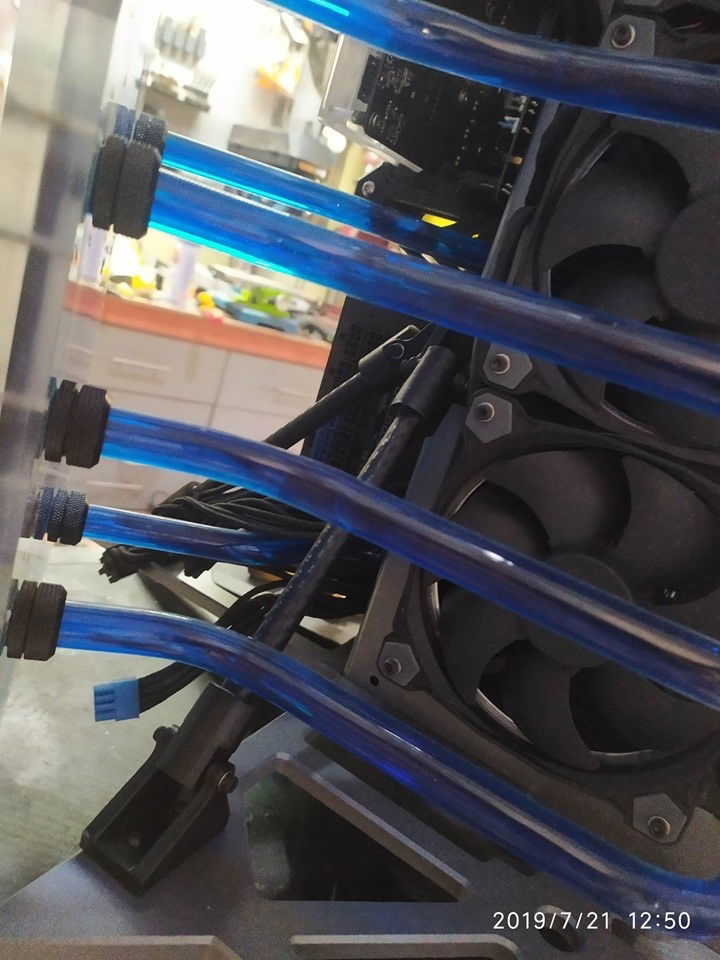

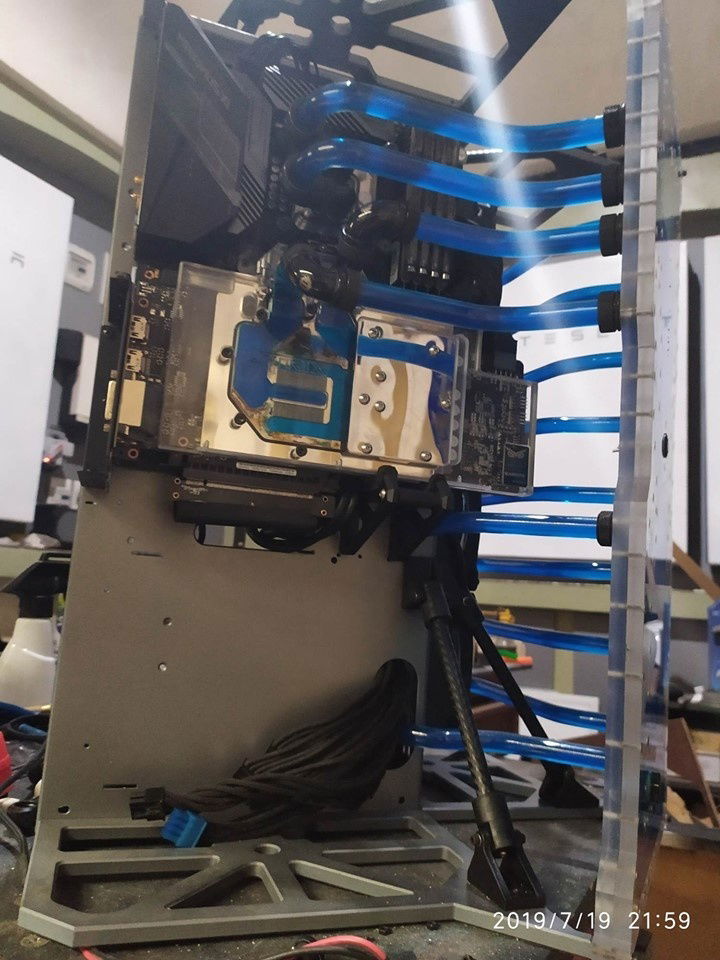

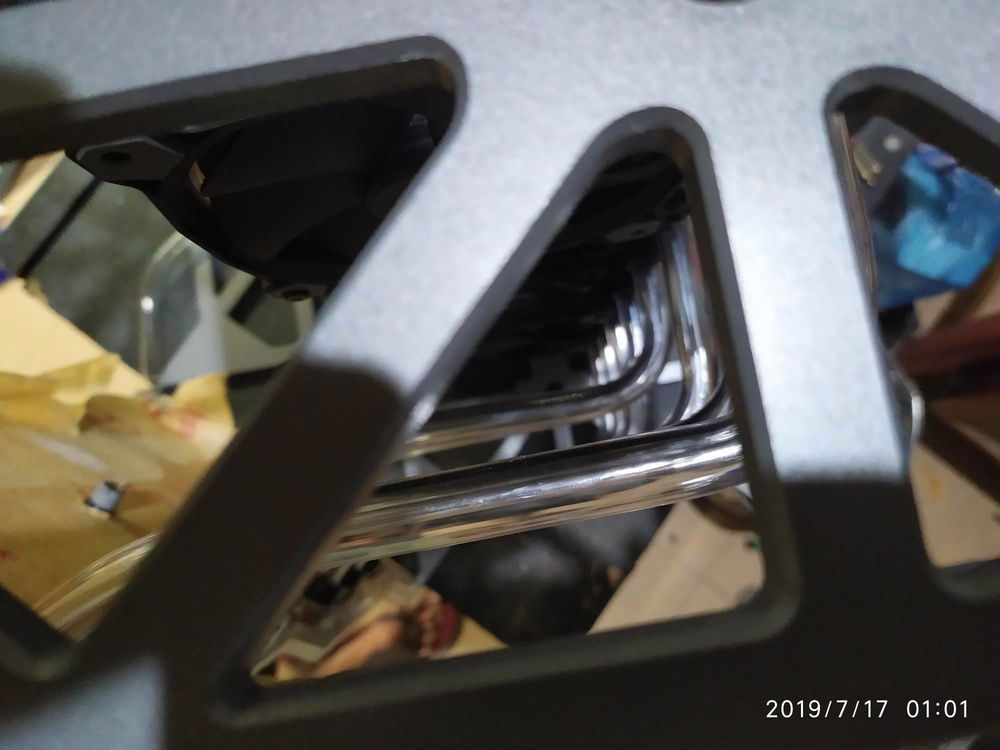

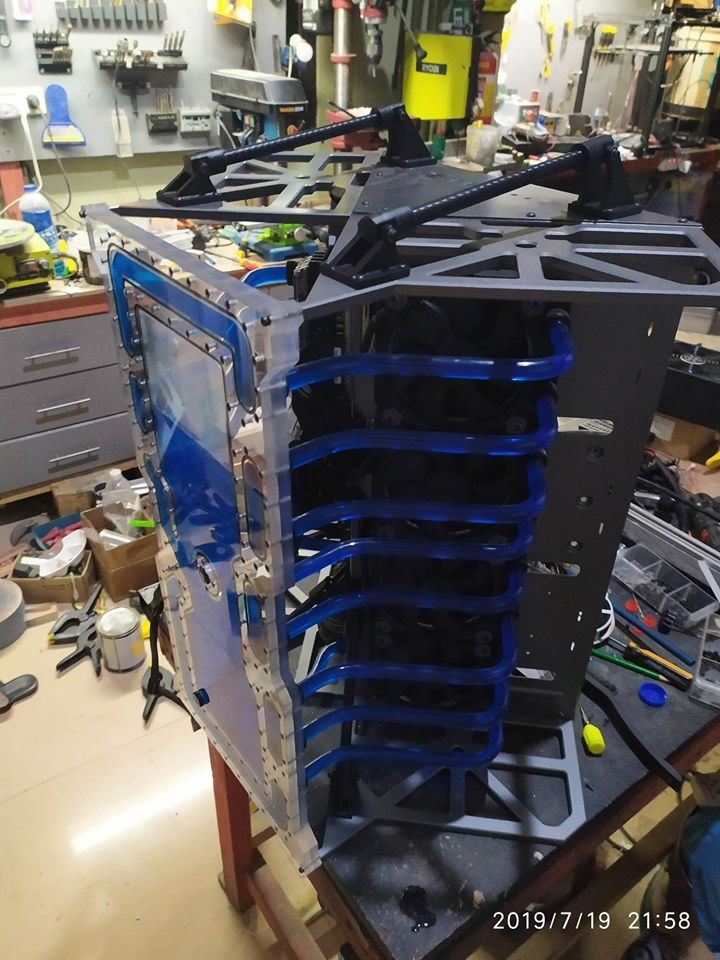

tubing ..
Build Image

Build Image

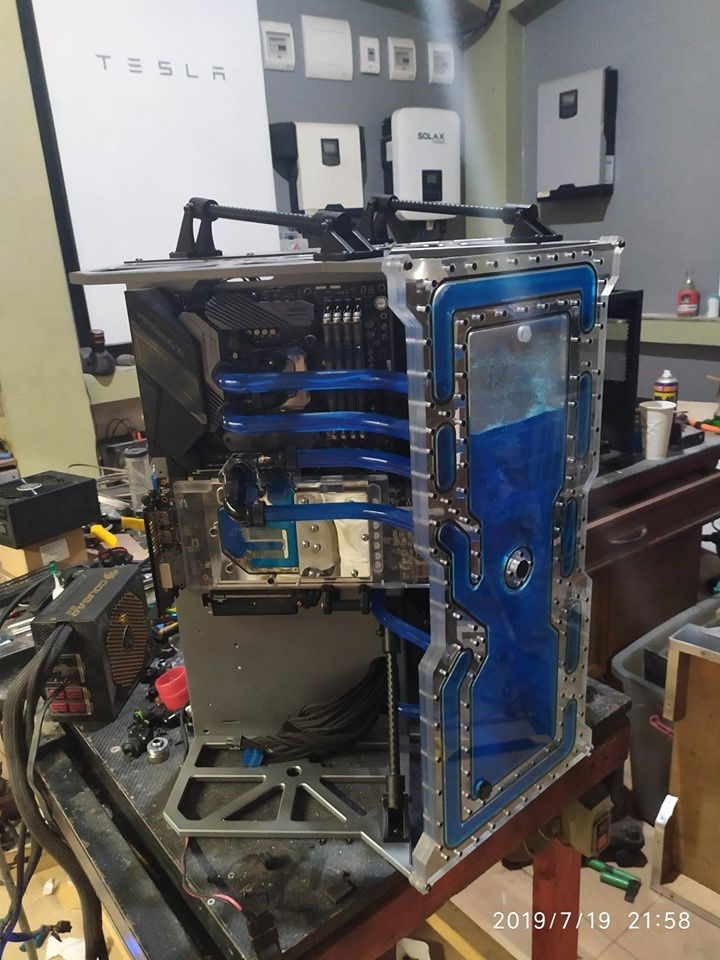

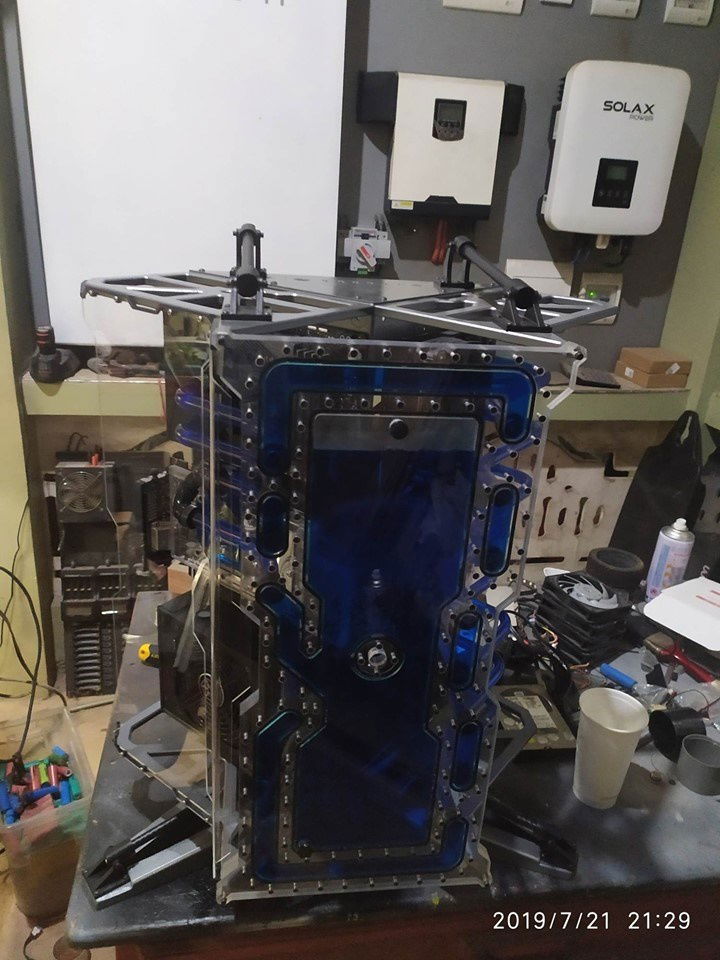

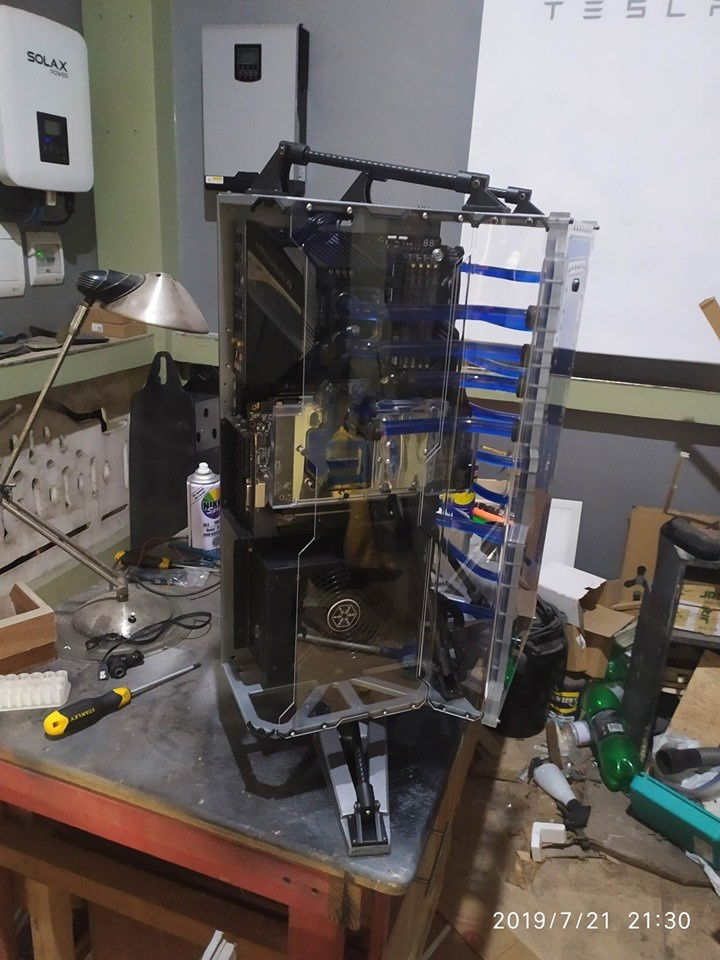

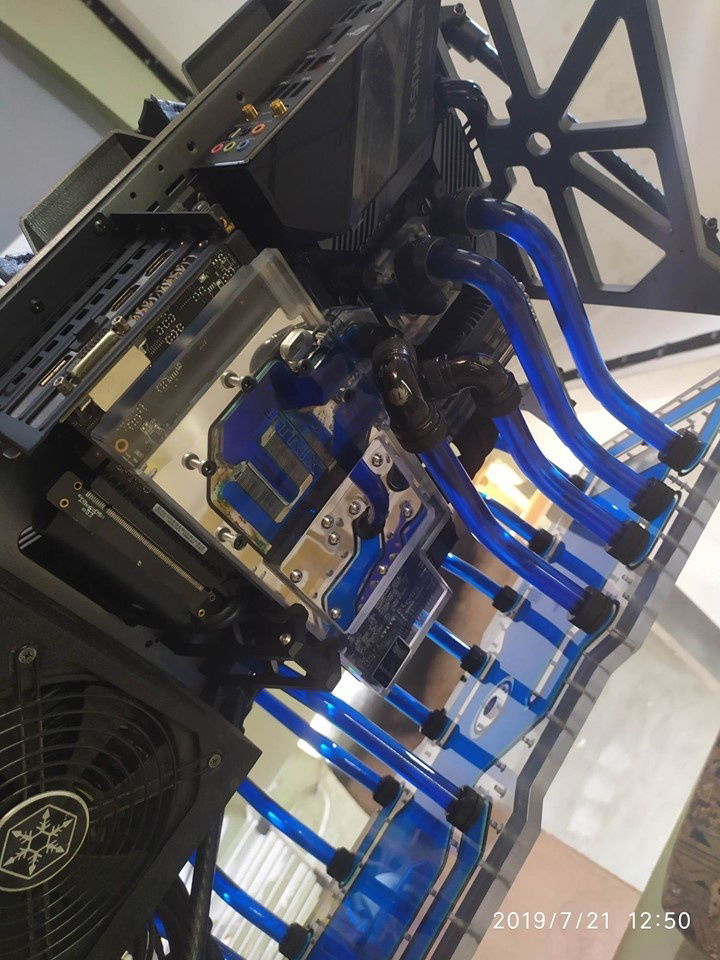

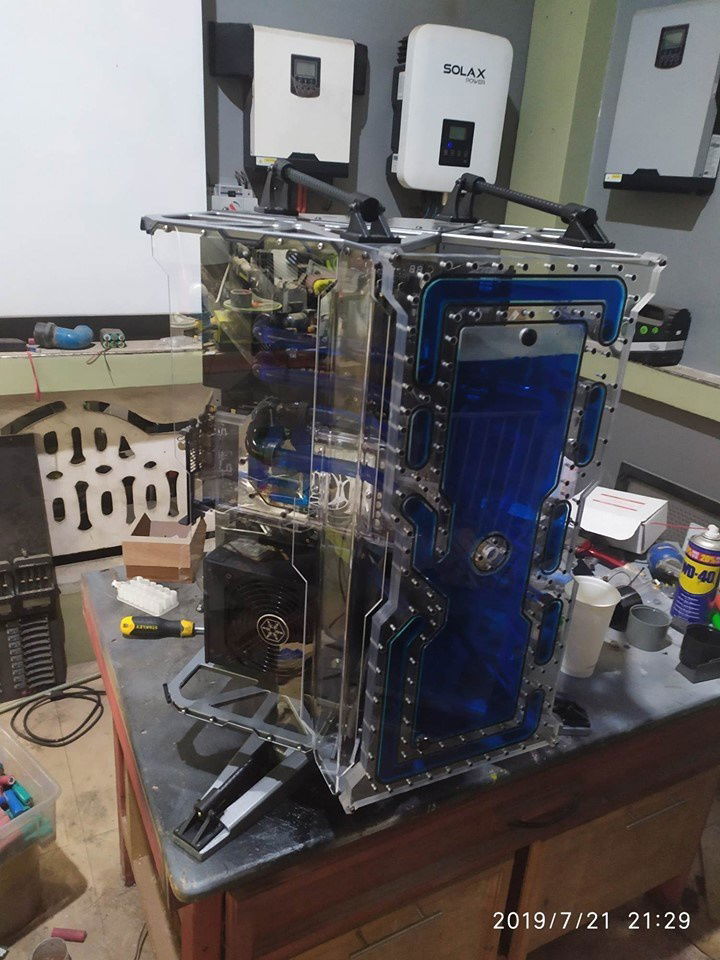

fill the coolant.. and installing some panels on the case..
Build Image

Build Image

Build Image

Build Image

Build Image

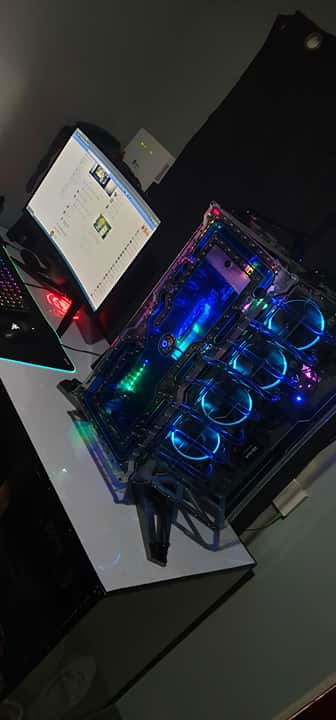

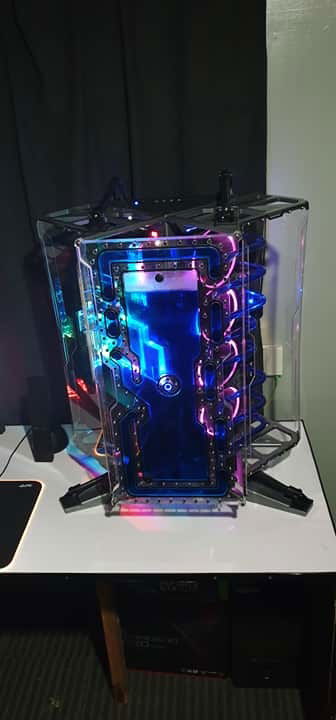

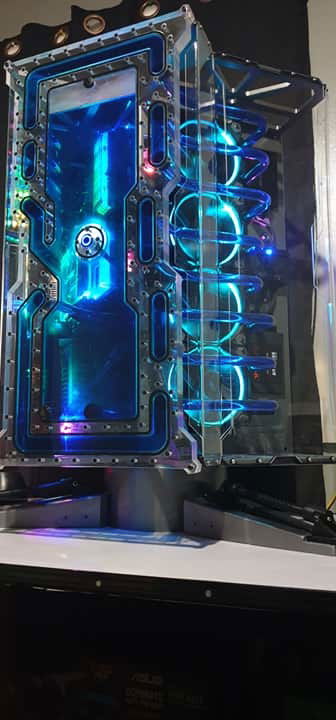

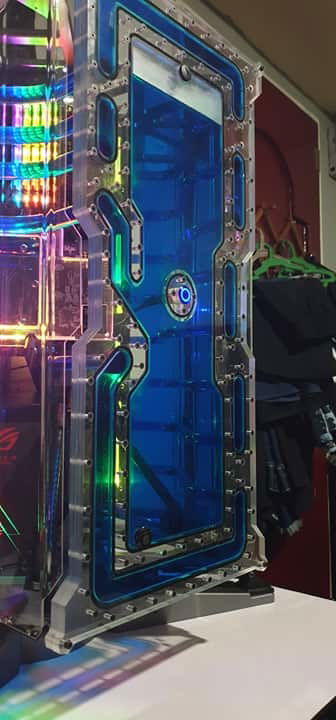

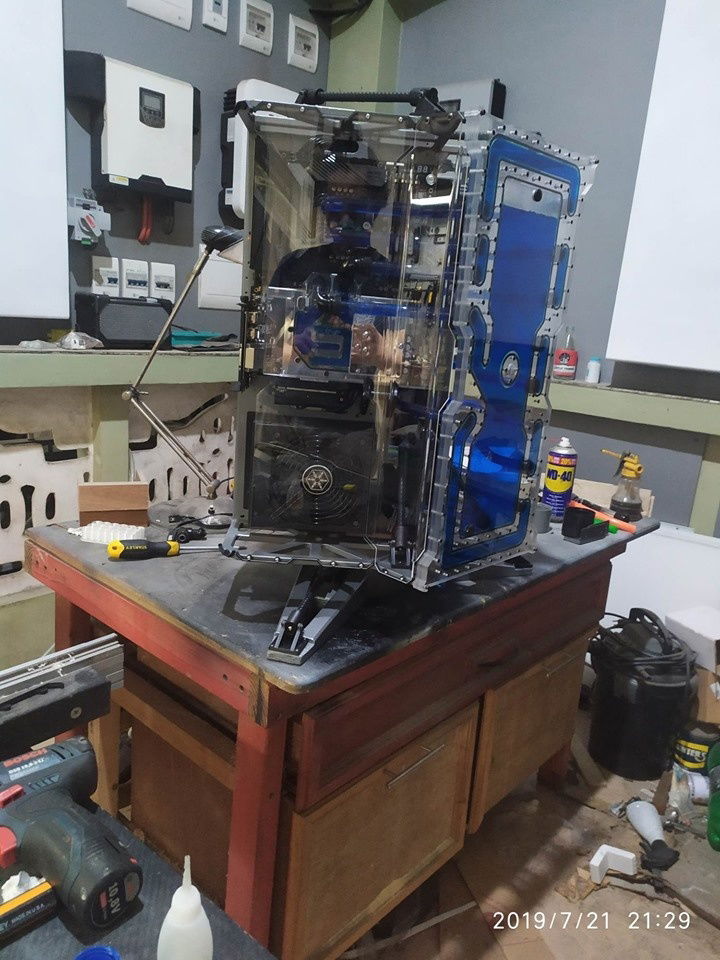

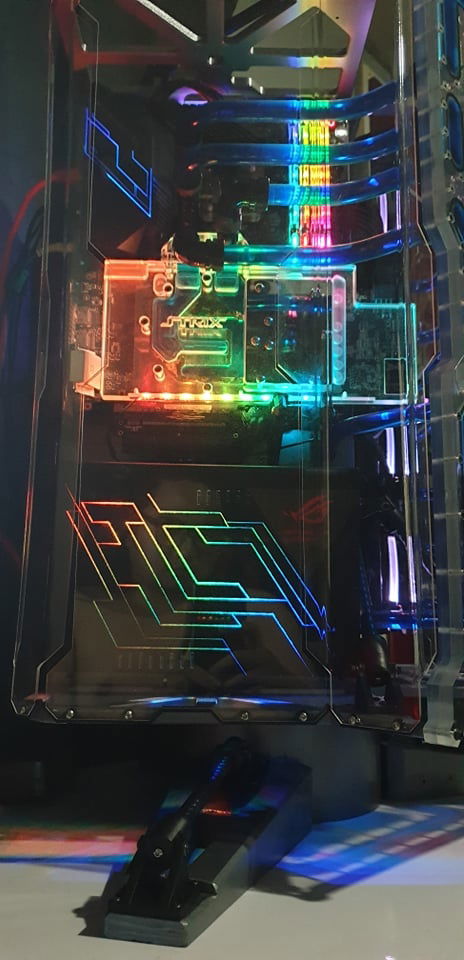

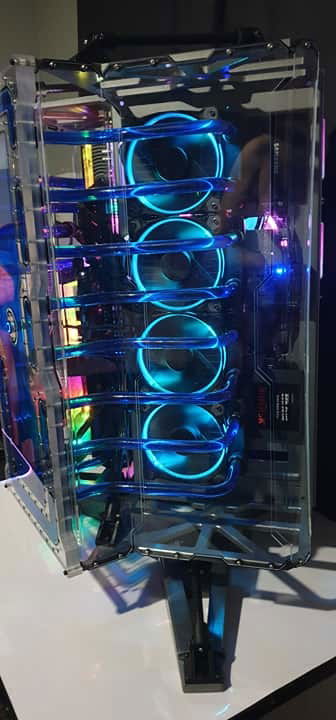

done..
Build Image

Build Image

Build Image

Build Image

Build Image

i had a fail panel that i had to put on it... i was eager to change it.. but the owner needs his PC for a job so.....
Build Image
Color(s): Blue Gray
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 458.68
Intel - Core i7-8700
Socket: LGA 1151
Cores: 6
Integrated Graphics: Yes
Motherboard
$ 249.99
ASUS - ROG Maximus XI Hero
Chipset: Z390
CPU Socket: LGA 1151
Size: ATX
Memory
ADATA - XPG Spectrix D40
Type: DDR4
Capacity: 16 GB
Graphics
ASUS - ROG Strix Gaming OC
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Storage
Samsung - 830 EVO
Form Factor: 2.5 Inch
Capacity: 256 GB
Storage
$ 78.95
SanDisk - Extreme Pro
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 240 GB
PSU
$ 159.99
SilverStone Technology - 850 watt Strider Platinum
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 199.99
Thermaltake - Core P90
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 45.23
Thermaltake - Riing 12 LED RGB
Size: 120 mm
