TT Core P1 Desktop

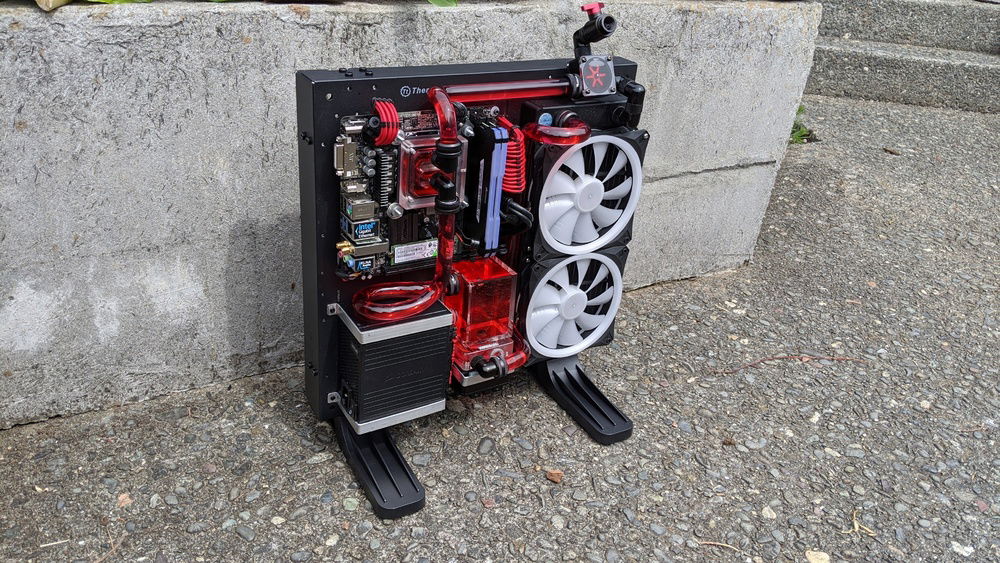

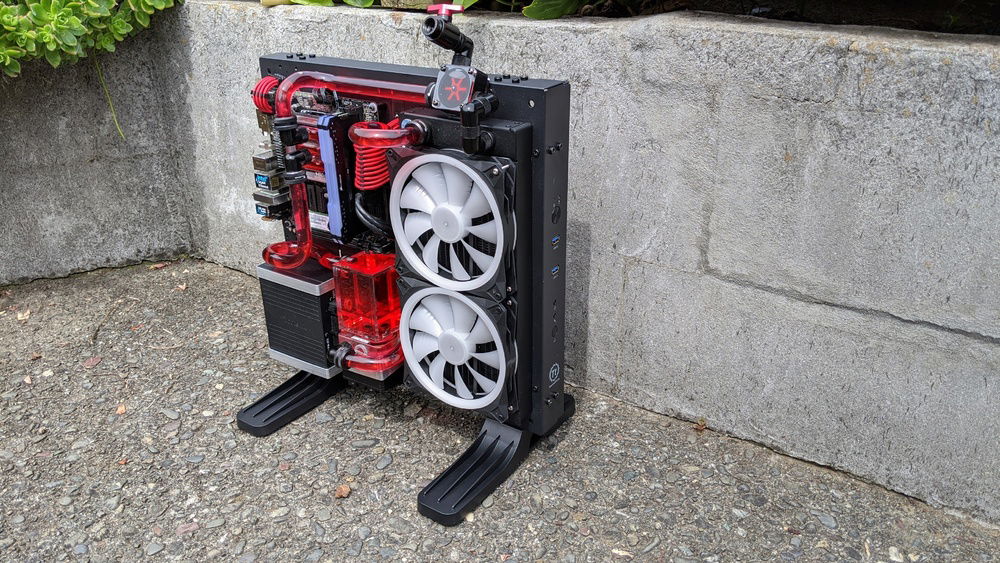

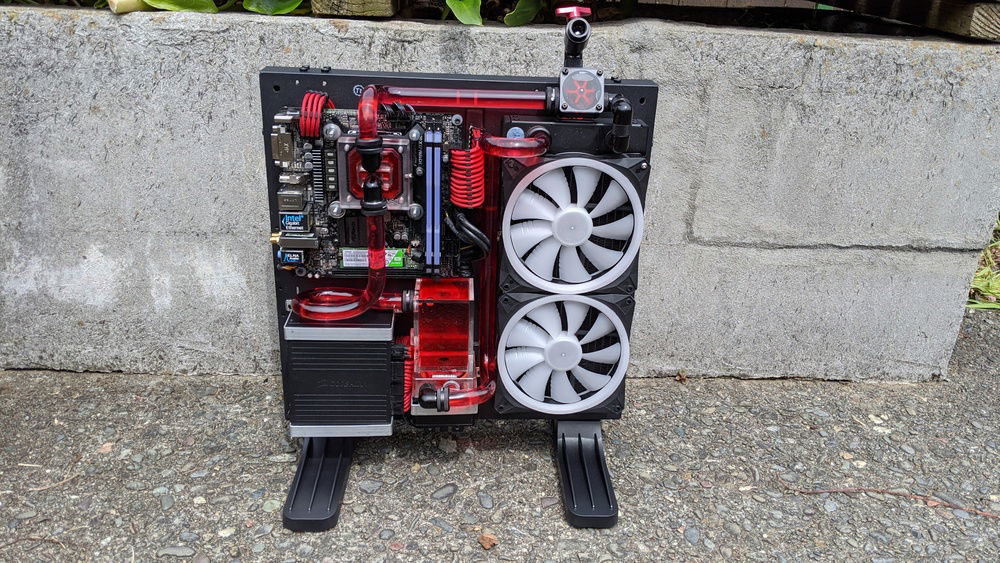

First attempt at custom cooling. Super happy with how it turned out.

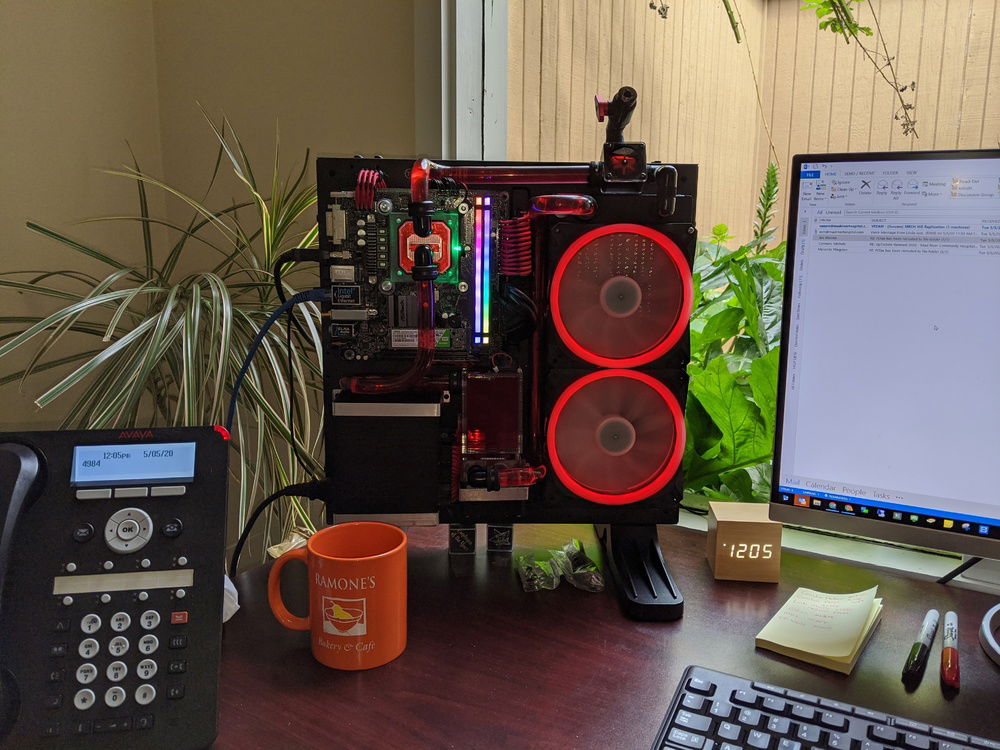

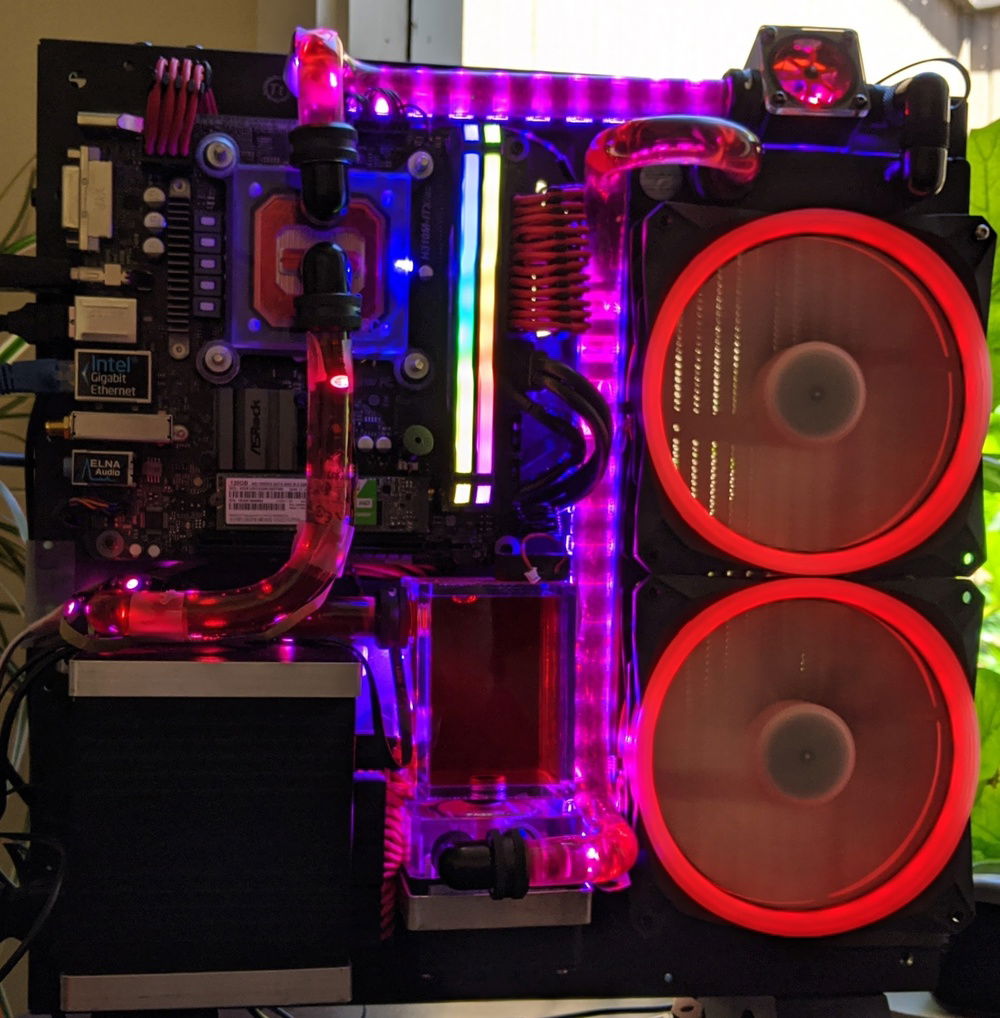

Please excuse the RGB - had to give it a try. While it's fun to play with, find that I prefer the cleaner look without lighting, as I suspect many do.

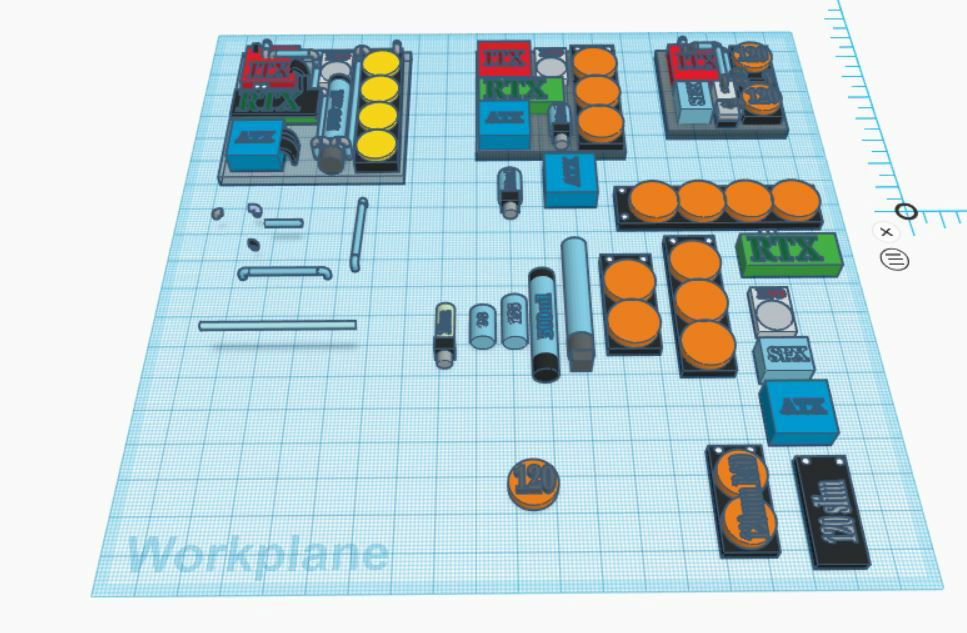

Took my time planning with both TinkerCAD and full-sized paper component mock-ups before I started purchasing components. Being able to see and tweak potential layouts ahead of time greatly helped achieve the end result I was looking for.

Custom brackets for PSU and pump. Nothing special there, but I hadn't worked with aluminum strips - took some doing with bends to get a fit I was happy with. Same with hardline tubing bends.

Generic waterblock, pump & acrylic res from Amazon - couldn't figure out how to add these components to build list. Same for accessories - generic eBay 16mm tube and fittings.

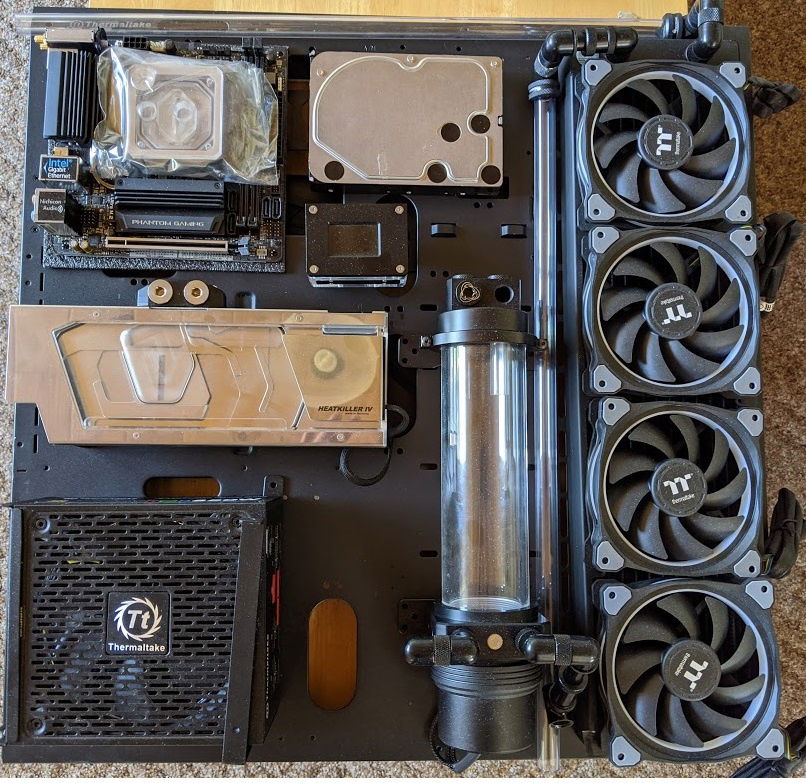

Moving on to a full sized P5 build next for my home gaming rig.
Color(s): Red
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: Mini-ITX
Type: General Build

Hardware

CPU
$ 201.99
Intel - Core i5-9600K Desktop Processor
Socket: LGA 1151
Cores: 6
Motherboard
$ 83.83
ASRock - H310M-ITX/ac
Chipset: H310
CPU Socket: LGA 1151
Size: Mini-ITX
Memory
$ 399.98
Crucial - Ballistix (3200MHz) (Black/RGB) (2x)
Type: DDR4
Capacity: 8 GB
Storage
$ 56.90
Western Digital - WD Green
Form Factor: M.2
Interface: M.2 (M)
Capacity: 120 GB
PSU
$ 124.99
Corsair - SF600
Wattage: 600
Form Factor: SFX
Efficiency: 80+ Gold
Case
$ 111.99
Thermaltake - Core P1
Type: Mini-Tower
Side Panel: Tempered Glass
Cooling
$ 86.20
EKWB - EK-CoolStream SE 280 (Slim Dual)
Type: Radiator
Size (WxHxD): 280 mm (2 x 140 mm)
Estimated total value of this build:
$ 950.50
