The ultimate external radiator project

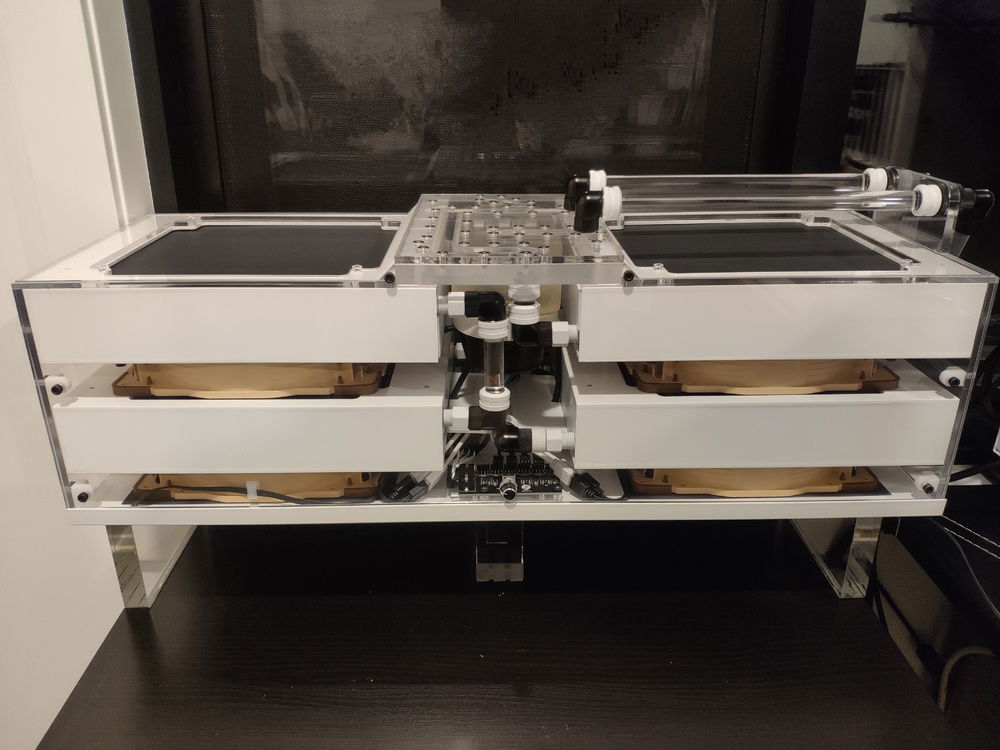

I have started watercool with external radiators for the extreme cooling capacity and low noise level.

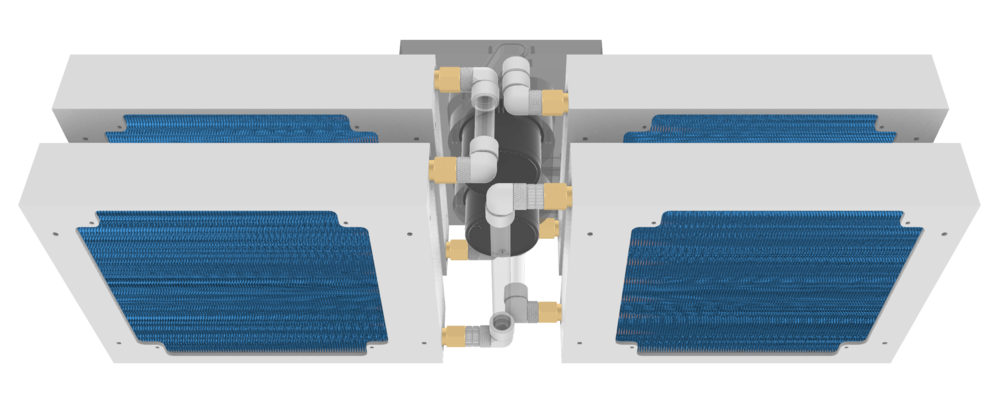

The designing of this radiator unit had begun many months ago, hundreds of hours have went into the design, scrapping many version till finally this one.
Spec:
4x 200*200mm copper high flow radiators
4x noctua nf a20 fans controller by dial style fan controller.

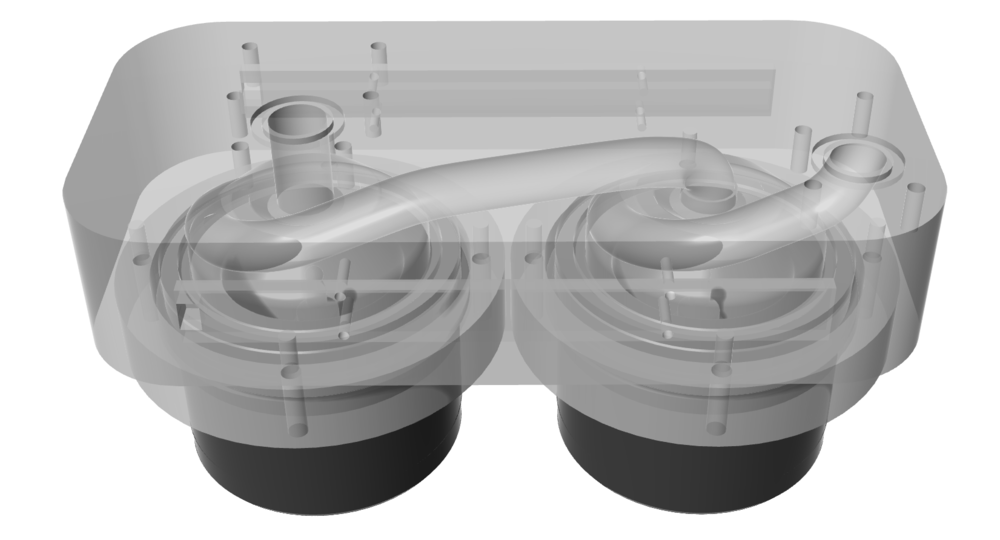

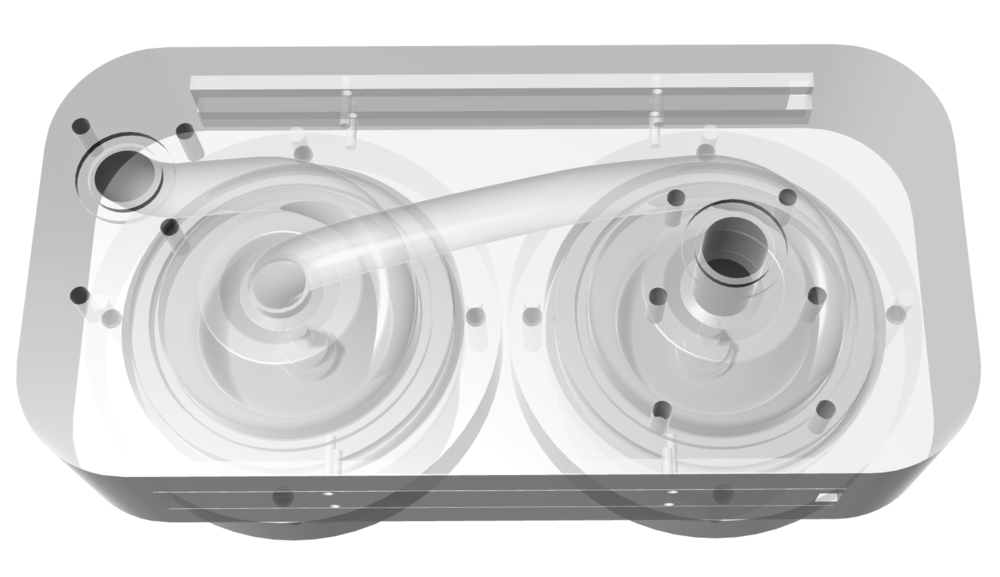

2x ek d5 pumps to move the amost 1L of fluid just in the radiators.
A distro plate CNC machined and polished.

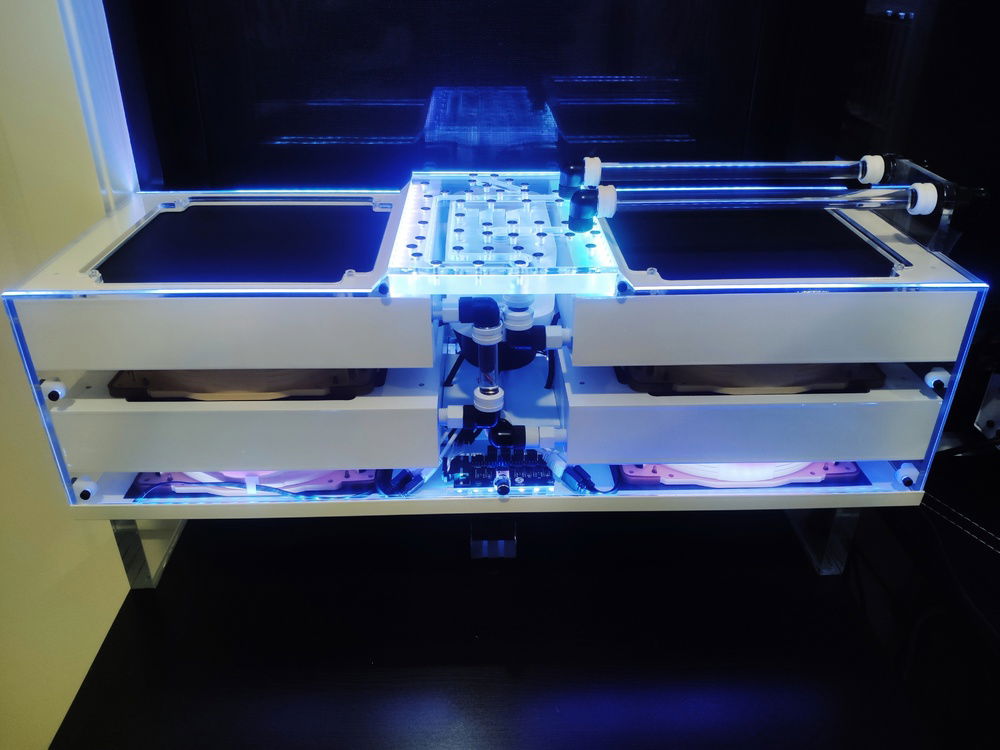

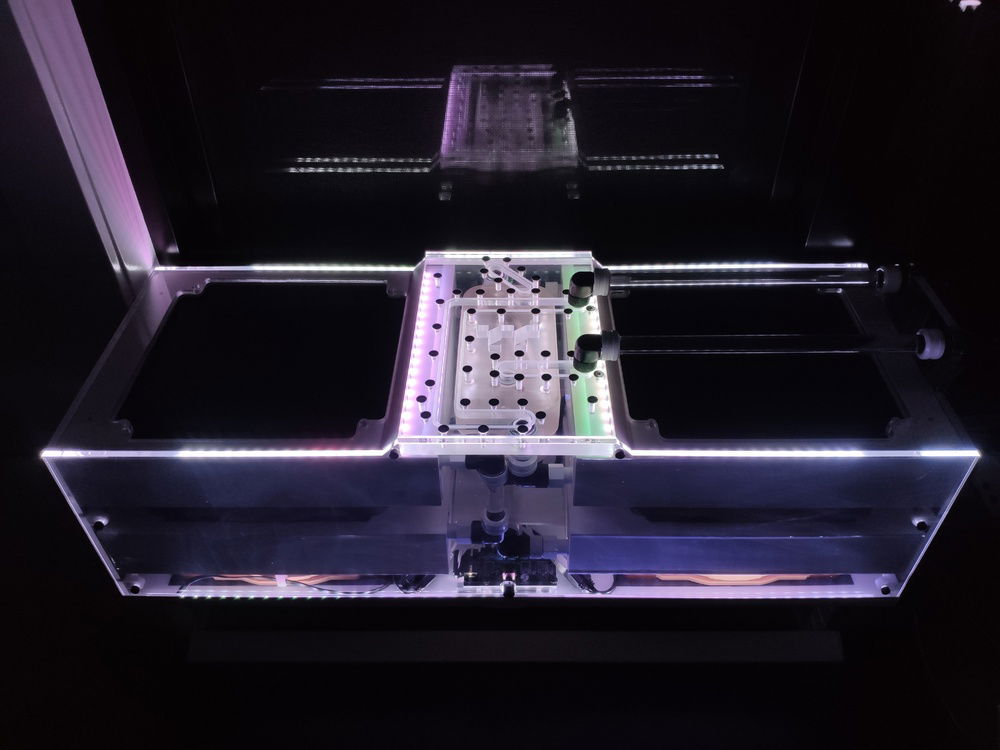

Tons of RGB~~
Color(s): White
RGB Lighting? Yes
Cooling: Custom Liquid Cooling
Theme: none
Size: ATX
Type: General Build

Hardware

CPU
Intel - Core i7-6700K
Cores: 4
Socket: LGA 1151
Motherboard
MSI - Gaming M7
Chipset: Z170
CPU Socket: LGA 1151
Memory Support: DDR4
Memory
Corsair - Vengeance (RGB)
Capacity: 32 GB
Type: DDR4
Storage
Samsung - 960 EVO
Capacity: 250 GB
Form Factor: M.2
Type: SSD
Graphics
INNO3D - GeForce Gaming OC (X3)
Chip: RTX 2080 Ti
Chip Manufacturer: NVIDIA
PSU
XFX - ProSeries P1-1000-BELX
Efficiency: 80+ Platinum
Form Factor: ATX
Modularity: Fully-Modular
Case
Thermaltake - Core P5, White (3 TG)
Motherboard Support: ATX
Side Panel: Tempered Glass
Type: Mid-Tower
Case Fans
Noctua - NF-A20 FLX
Size: 200 mm
