Susan 5.0

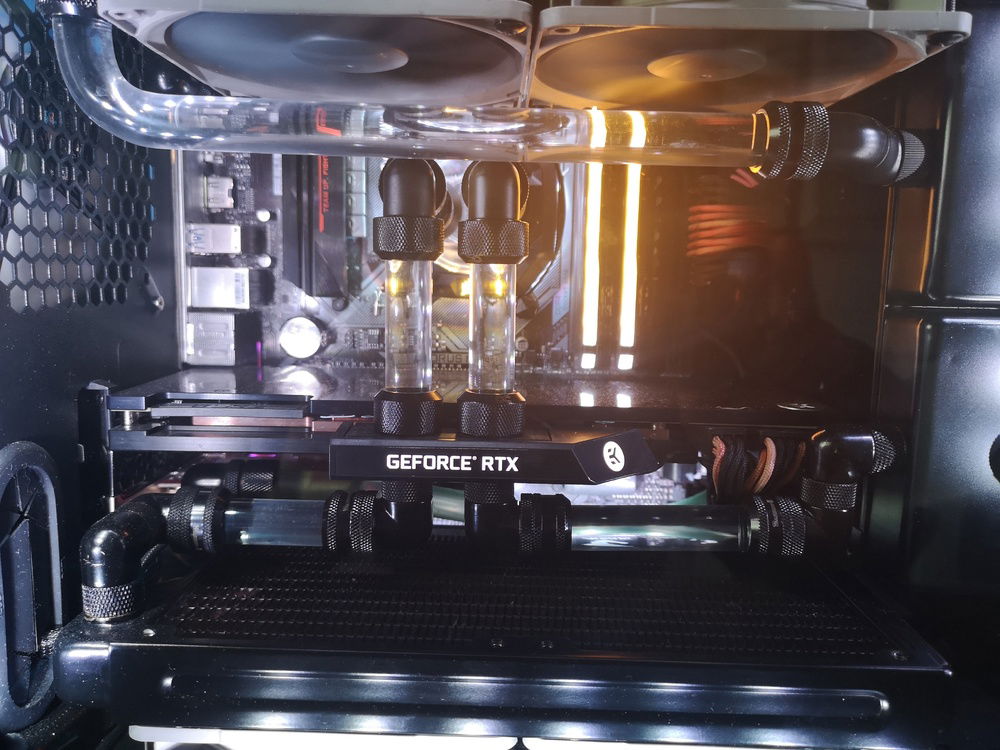

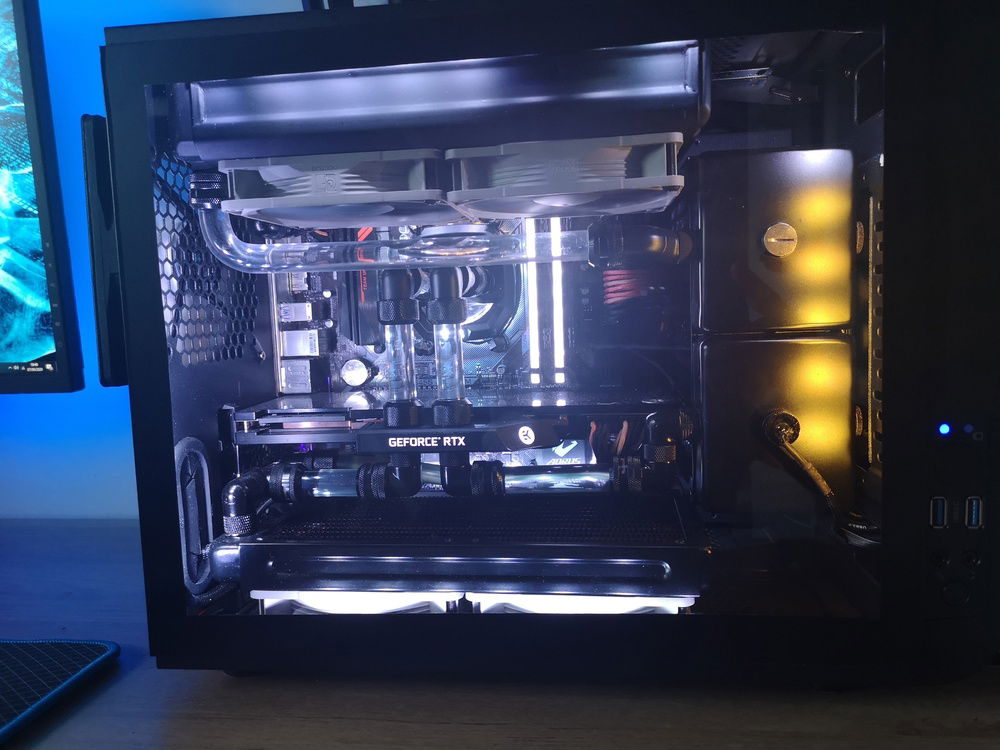

Built as tightly as I'm comfortable with (for now). Susan 5.0 is intended to be as quiet and as cool as possible. All fans speeds are based on the water temperature using the Corsair commander pro as the controller.

Custom addressable RGB strips are laid out throughout the machine, with soldiered propitiatory connection allowing them to integrate the with commander pro.

The RAM (G.SKILL F4-3200C14D-16GFX 16 GB) was brought intentionally to get the most out of the processor which is overclocked using the bios precision boost 2.0/XFR2 settings.

The GPU sits happily at +800MHz on the memory and at 2040 on the core for day to day use. I've seen a stable +1200 memory and 2145 on core when bench marking.

CPU and GPU get to a maximum temperature of 60c celcius

The case runs with positive pressure: 4x NF-P12 PWM 1300rpm Redux (pushing air through the rads) 1x 200mm TT 800rpm (exhaust)

Pump is the 18w DDC from Laing, using a Barrow metal casing and matching reservoir.
Color(s): Black Orange
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: Micro-ATX
Type: General Build

Hardware

CPU
$ 361.85
AMD - Ryzen 7 (2700X)
Socket: AM4
Cores: 8
Motherboard
$ 79.99
Gigabyte - AORUS M
Chipset: B450
CPU Socket: AM4
Size: Micro-ATX
Memory
$ 119.95
G.Skill - Flare X (3200MHz)
Type: DDR4
Capacity: 16 GB
Graphics
$ 1,589.00
ASUS - Turbo
Chip Manufacturer: NVIDIA
Chip: RTX 2080
Storage
$ 197.99
Crucial - MX500
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 2 TB
Storage
$ 89.99
Samsung - 970 EVO 500 GB M.2 NVMe SSD
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
$ 299.77
Corsair - RM850i
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Gold
Case
$ 79.99
Thermaltake - Core V21 Cube
Type: Mini-Tower
Side Panel: Window
Case Fan
$ 14.95
Noctua - NF-P12 redux-1300
Size: 120 mm
Accessories
$ 348.00
Monitor
$ 457.00
ASUS - MG279Q
Size: 27 Inch
Panel: IPS
Refresh Rate: 144 Hz
Keyboard
$ 200.00
Corsair - K65 LUX RGB
Interface: Wired
Key Switch Type: Cherry MX Red
Type: Tenkeyless
Mouse
$ 59.99
Corsair - Ironclaw, RGB
Interface: Wireless
Estimated total value of this build:
$ 2,011.62
