Ryzen's Reflection

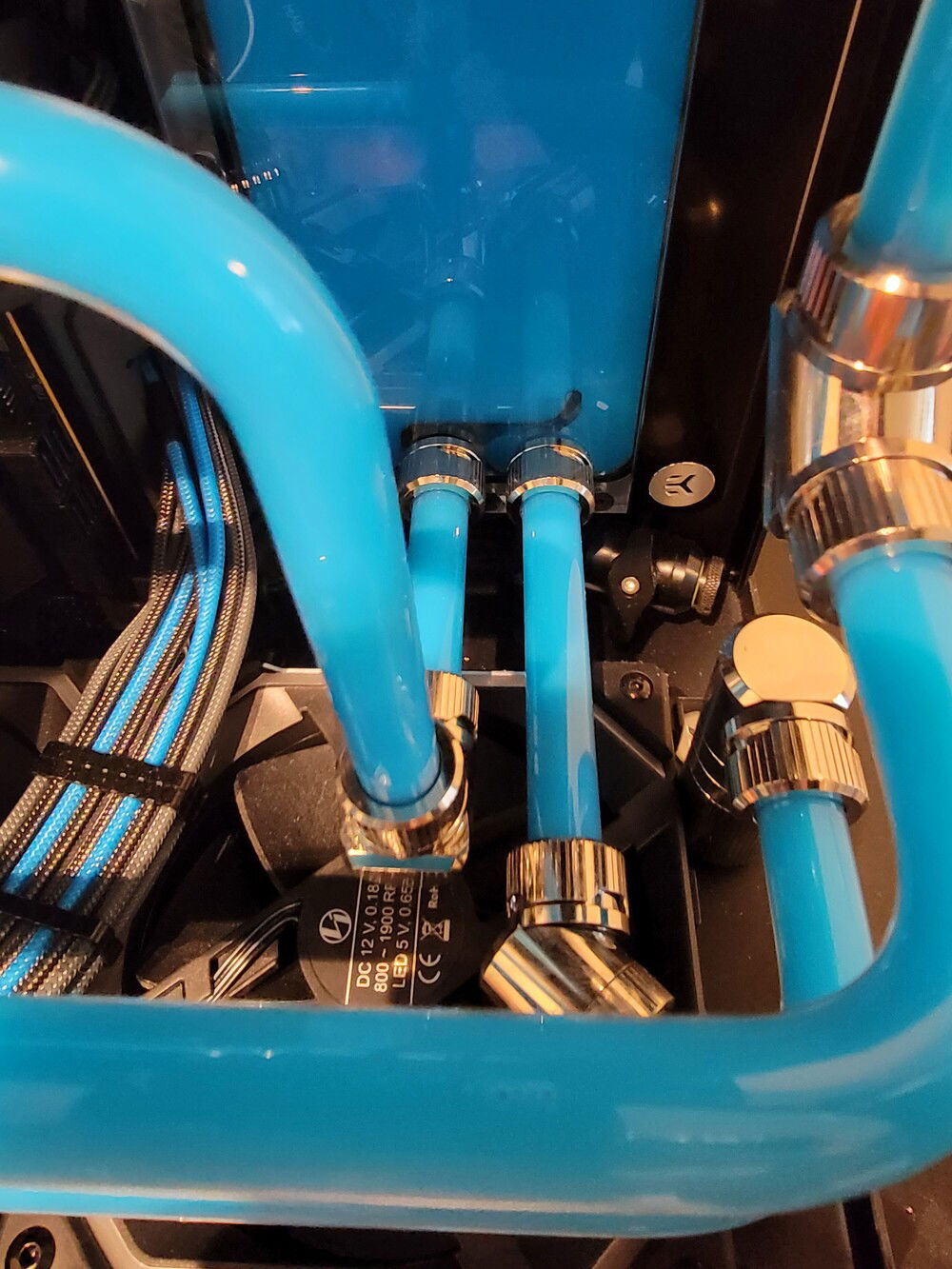

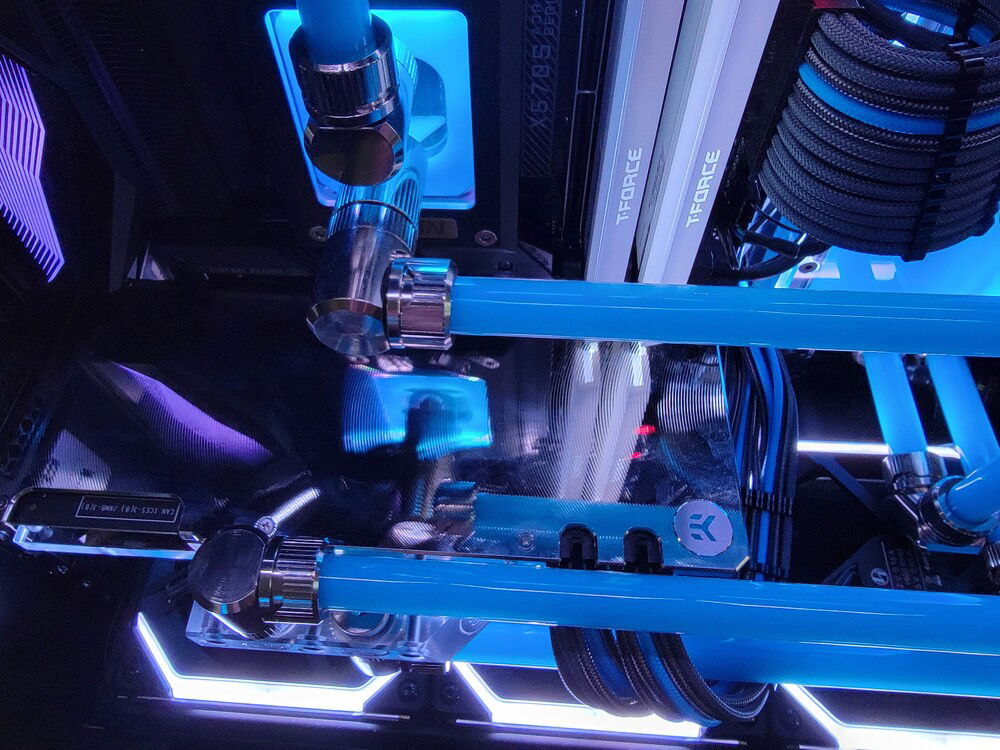

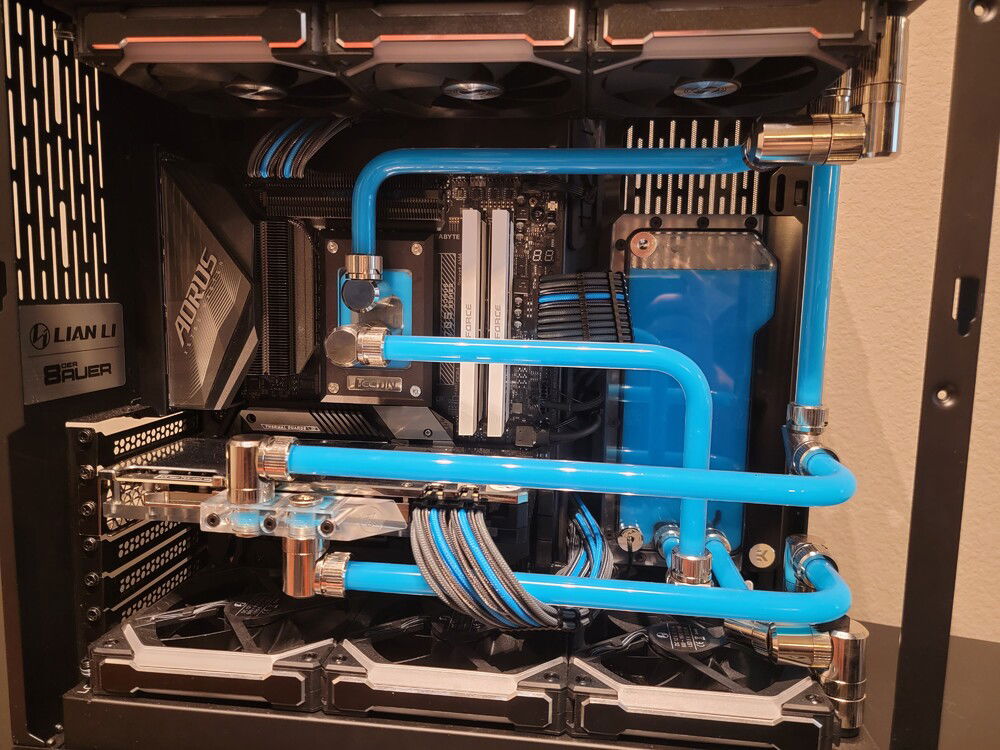

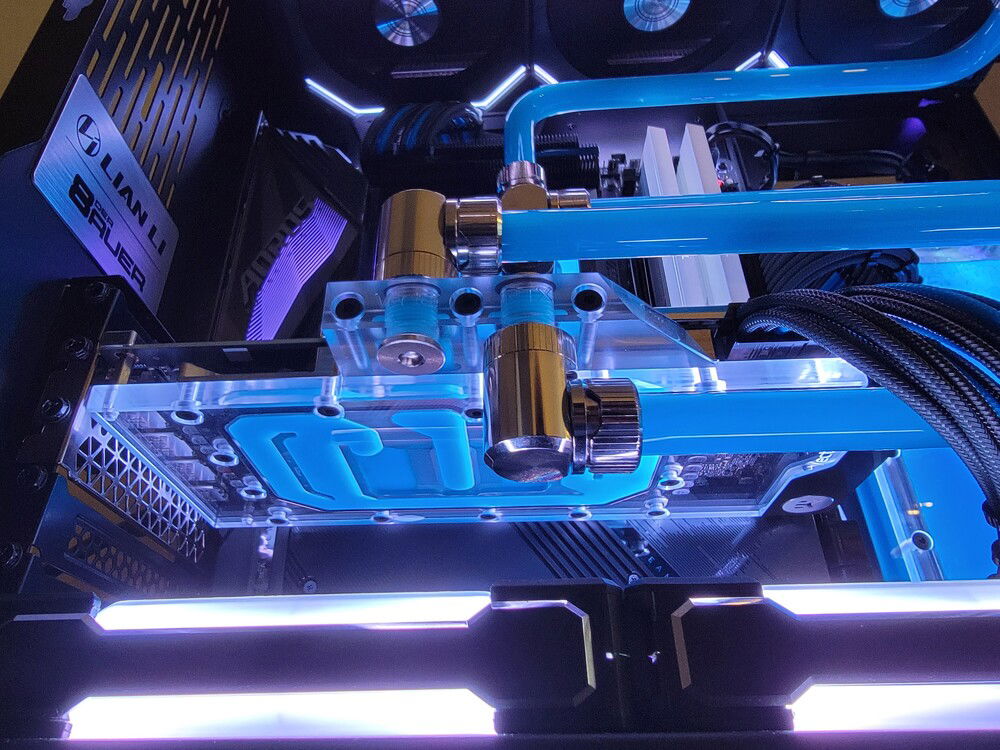

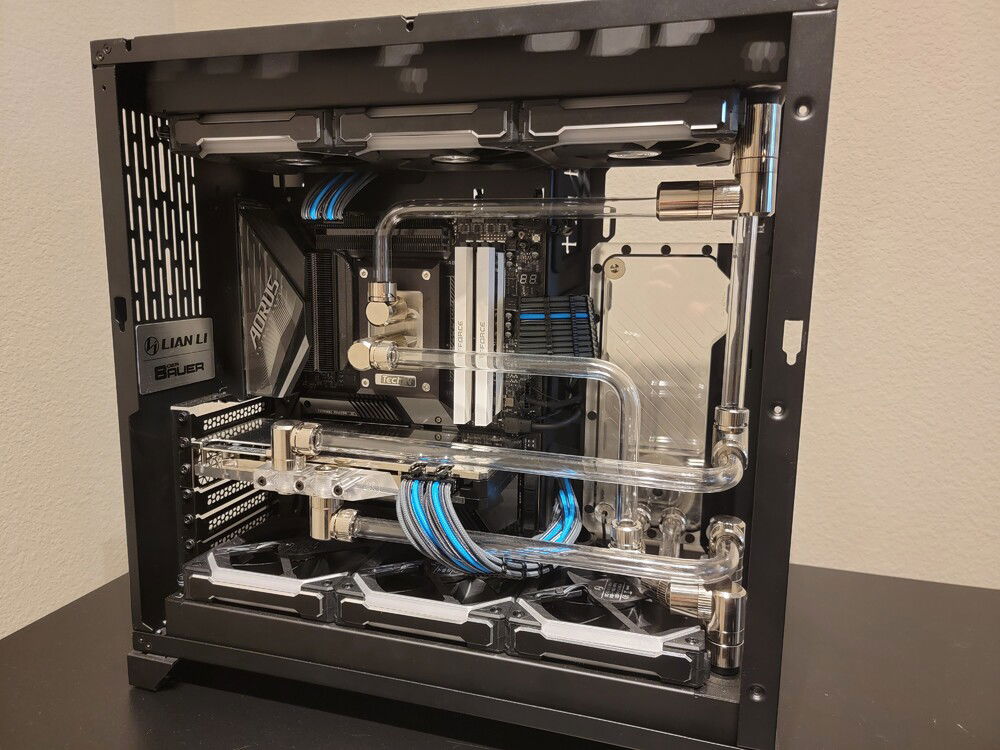

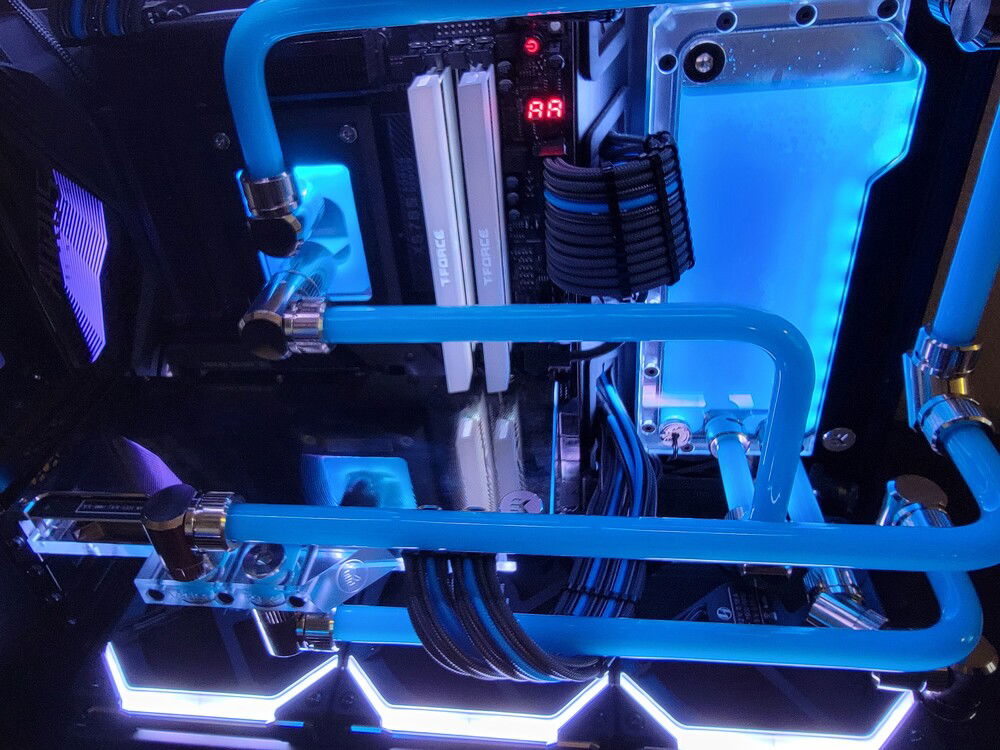

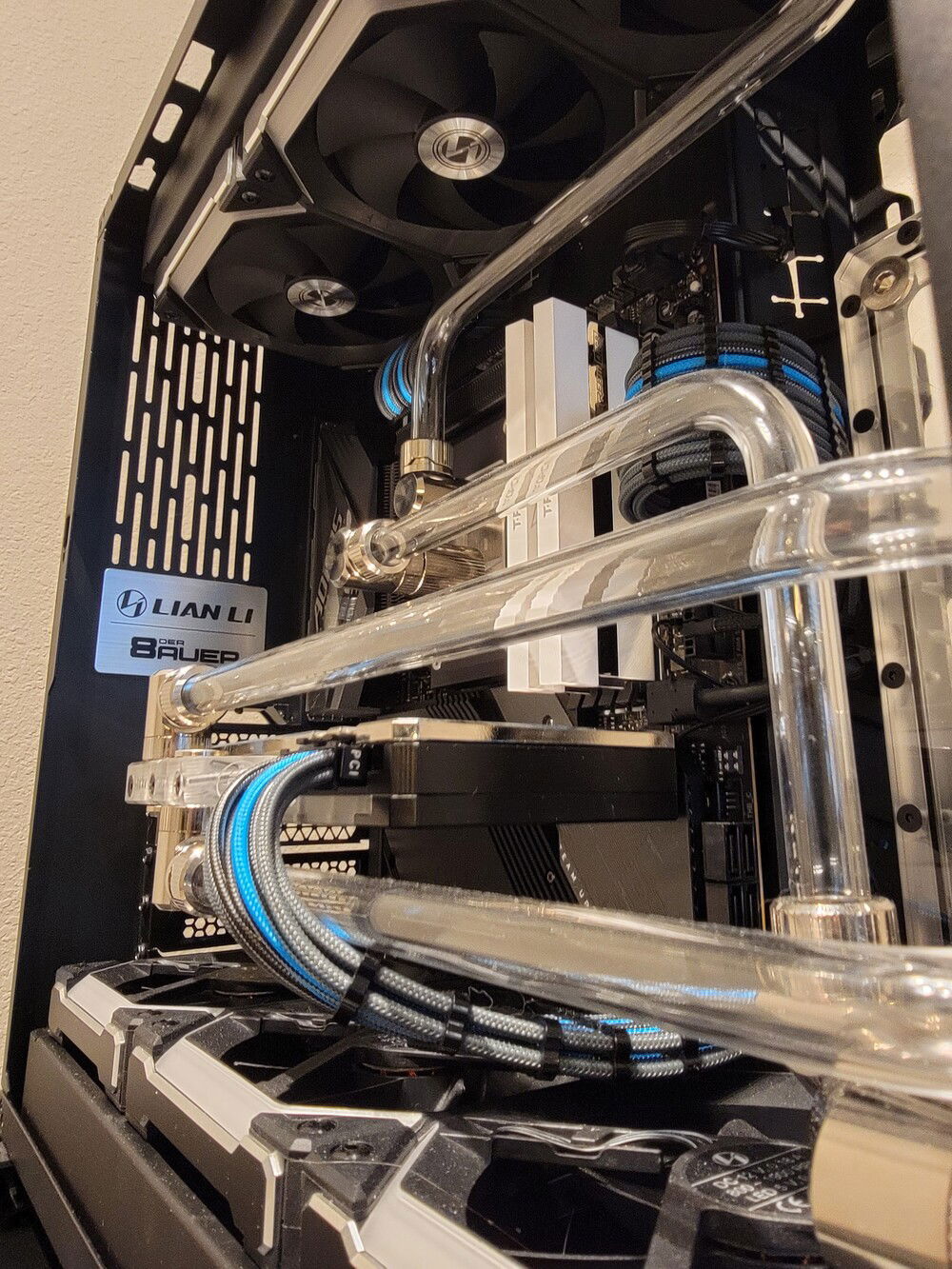

Ryzen's Reflection is my first personal AMD build. It is an upgrade from an 8700k and GTX1070 to a 5900x and 3080Ti. This is also my 2nd hard tubing build.

Naming is inspired by the overall theme of the build with all nickel fittings, nickel GPU backplate etc. Fluid is EK Solid Blue Azure

Temperature Data:
Before:
No data for CPU
GPU:
Memory - 85c
Hot spot - 85c
Die - 70c

After
CPU:
idle - 33c avg across cores
load - 60-65c avg across cores

GPU:
Memory - 55c
Hot spot - 55-60c
Die - 50c

Water Temps:
idle - 30c
load - 39-40c
Ambient - 22-25c

Problems with build: The PC-011D becomes a bit of a hot box after about an hour of gaming with no additional intake fans on the side when occupied with a rad and the top and bottom. Bottom intake top exhaust configuration. Liquid temps could be improved with better air situation inside.
Color(s): Black Blue Gray
RGB Lighting? No
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 279.00
AMD - Ryzen 9 (5900x)
Socket: AM4
Cores: 12
Motherboard
$ 389.00
Gigabyte - Aorus Master (X570S)
Chipset: X570
CPU Socket: AM4
Size: ATX
Memory
$ 309.00
TeamGroup - T-Force Xtreem (3600MHz) (White/ARGB)
Type: DDR4
Capacity: 32 GB
Graphics
$ 1,399.99
ZOTAC - GeForce Amp Holo
Chip Manufacturer: NVIDIA
Chip: RTX 3080 Ti
Interface: PCIe x16
Storage
$ 92.99
Samsung - 970 EVO Plus
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 105.95
Samsung - 980 Pro
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 160.00
Seasonic - SSR-850PD
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 150.00
Lian Li - 011 Dynamic
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 199.98
Lian Li - Uni Fan SL120 (2x)
Size: 120 mm
Cooling
$ 418.12
EKWB - CoolStream PE (2x)
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 209.00
EKWB - EK-Quantum Kinetic FLT 240 D5 PWM D-RGB - Plexi
Type: Pump/Reservoir Combo
Size (WxHxD): 240 mm
Cooling
$ 80.00
Techn - TN
Type: CPU Block
Estimated total value of this build:
$ 4,114.98
