ROG Optimus

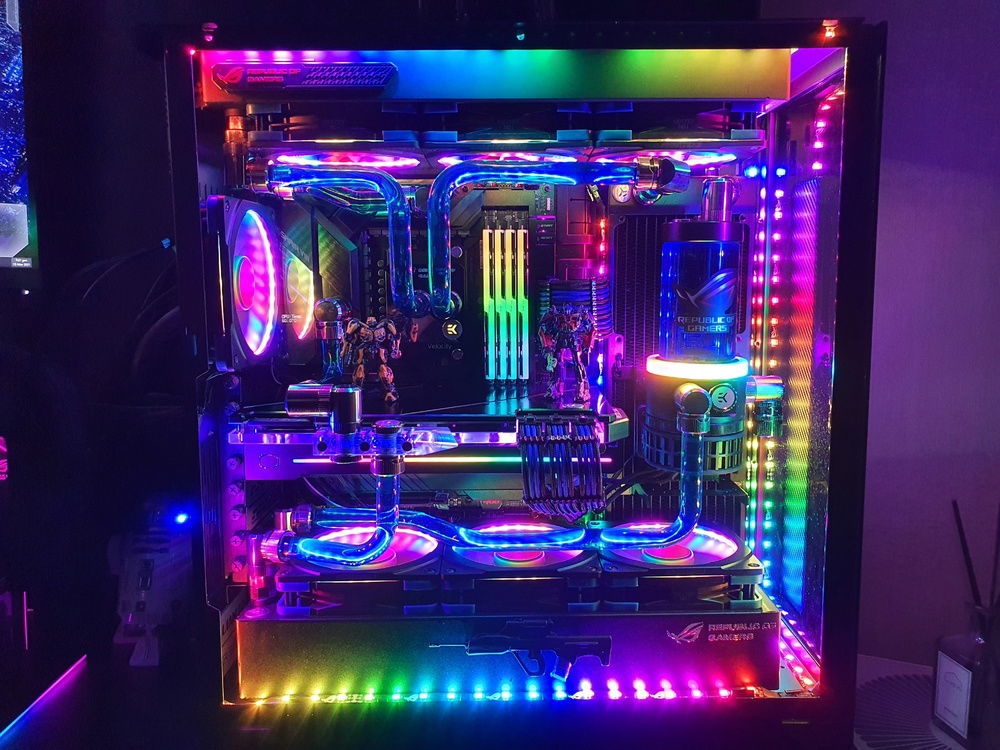

Hi everyone! Fellow PC Enthusiast from Singapore! Firstly, I love computers but not photography. Thus, the quality of the photos, so apologies in advance! This is my first custom loop build that took me almost 3 months to plan and build, especially with the stock situation now. I know the bends aren't perfect, but I'll be replacing the tubings once they arrive. Failed way too many times at getting the perfect bends and depleted my PETG tubings so yea. So a brief backstory for the inspiration behind this build. Basically, back in March 2020, wanted to run 2 RTX 2080TI in SLI, and realized that cooling would be an issue without a custom build. Hurts me to decide to forgo the sexy ROG Heatsink on the 2080TIs, but the end result is definitely satisfying. If you can't tell by now, I am a huge ROG fan, and went with them for almost the entire build, except peripherals cause, to be honest, there are better options out there. Sadly ASUS no longer makes the best performing Motherboards right now, but it sure looks damn good, and I can't picture having a random Gigabyte / MSI / Asrock motherboard in my build to go with the rest of the system. My OCD cannot take it. Fast forward to 2021, I finally got my ROG RTX 3090 Strix and 5950x in February, and I did a major revamp on the build itself. It's only major because it's a custom loop. Any change is a huge project so yea. I know I know, RGB is just for bragging rights, but damn it looks sick, and I started to find ways to best optimize them on my system. So just a few tips for you guys out there, ensure that your RGB accessories are compatible with the rest of the system before getting them! For example, I've gotten Corsair's DDR4 Dominators at first, but the RGB will randomly reset itself and there have been issues syncing it with ASUS Aura, so eventually sold them and got the G.Skill ones instead. And it runs seamlessly with AURA. Also, RGB fans usually mean that you will have to forgo some performance. For me, I originally went with non-RGB Noctua PWM 2000 fans because quite honestly, they are the best in class fans money can buy (Yea they do have a 3000RPM Version but a rep from Noctua recommended against it due to the extra voltage each fan header will need to run to support them). However, after using the system for a few months, I find myself always looking at others' build, and getting all jealous about their RGB fan, and my RGB just does not feel complete. Did some research and found out that Phanteks actually makes RGB Fan Frames, and I immediately went into action. So yea I am glad that I have "RGB Fans" that has the best performance out there. Really glad that ASUS finally did a huge update on AURA (Integrating it with Armoury Crate and having a performance mode), so there are no more crashes on the RGB and no more restarts required! It was really shitty software before this. Just a shame that my Creative Katana is unable to sync its RGB with Aura or Synapse. So if anyone knows of a way, hit me up! Huge fan of Transformers, thus the figures and the name of the build. Kinda glad that SLI is dead, because getting 2 x 3090s would be nearly impossible right now, and would burn a huge hole in my pocket. Youtube definitely helped a lot, and the bends from the GPU block are actually inspired (or copied) from Bitwit's build, so that's that. Feel free to ask me anything about my build!

Specifications
ROG Crosshair Formula VIII
AMD Ryzen 9 5950x
ASUS Strix RTX 3090

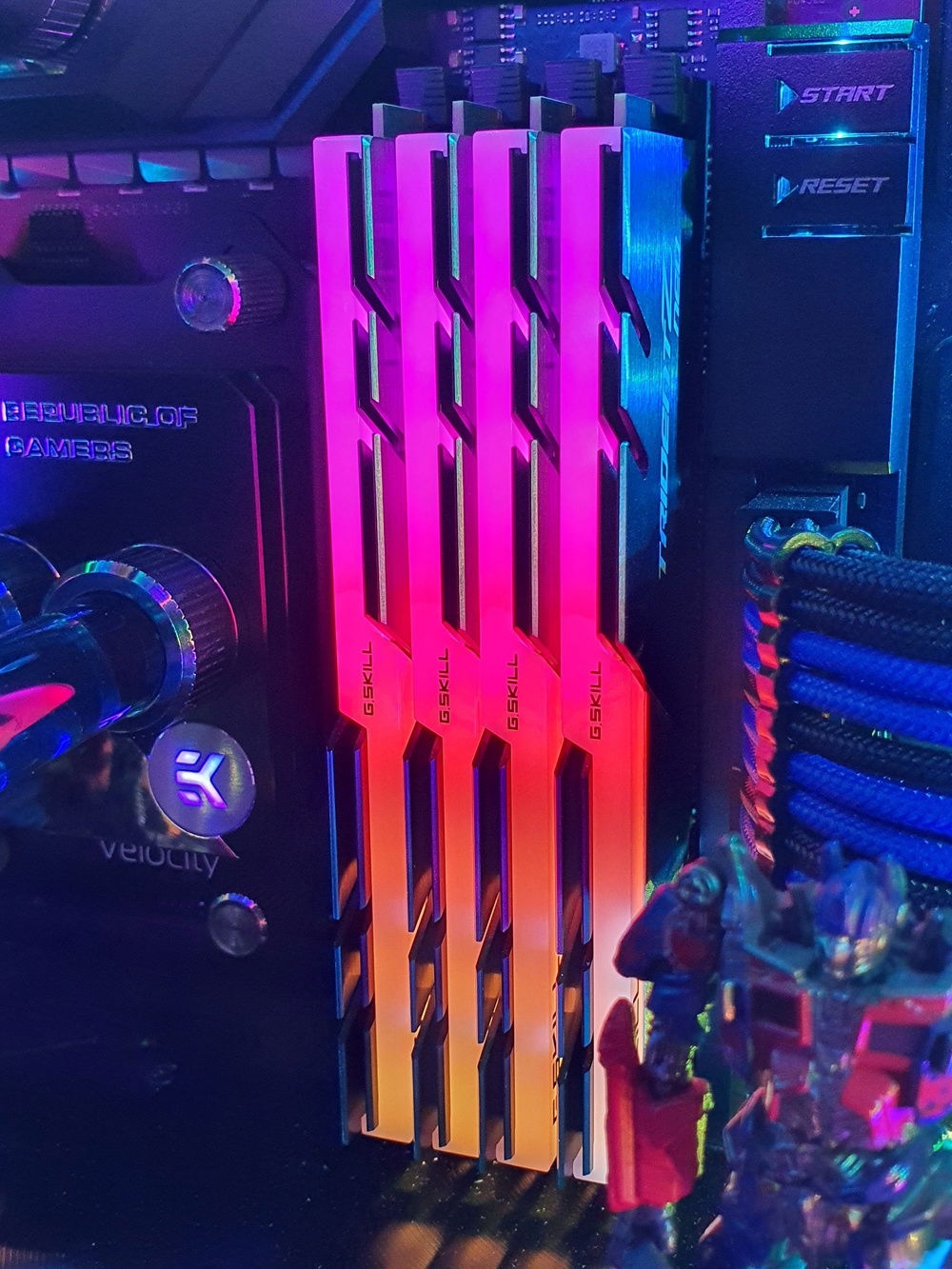

G.Skill TridentZ RGB DDR4 64GB CL16
2 x 1TB Samsung 970 Pro (Raid 0)
3 x 2TB Samsung Evo 860 (Raid 0)
2 x 4TB HGST HDD 7200RPM
2 x 14TB HGST HDD 7200RPM
Corsair HX1200 PSU
LianLi O11D XL

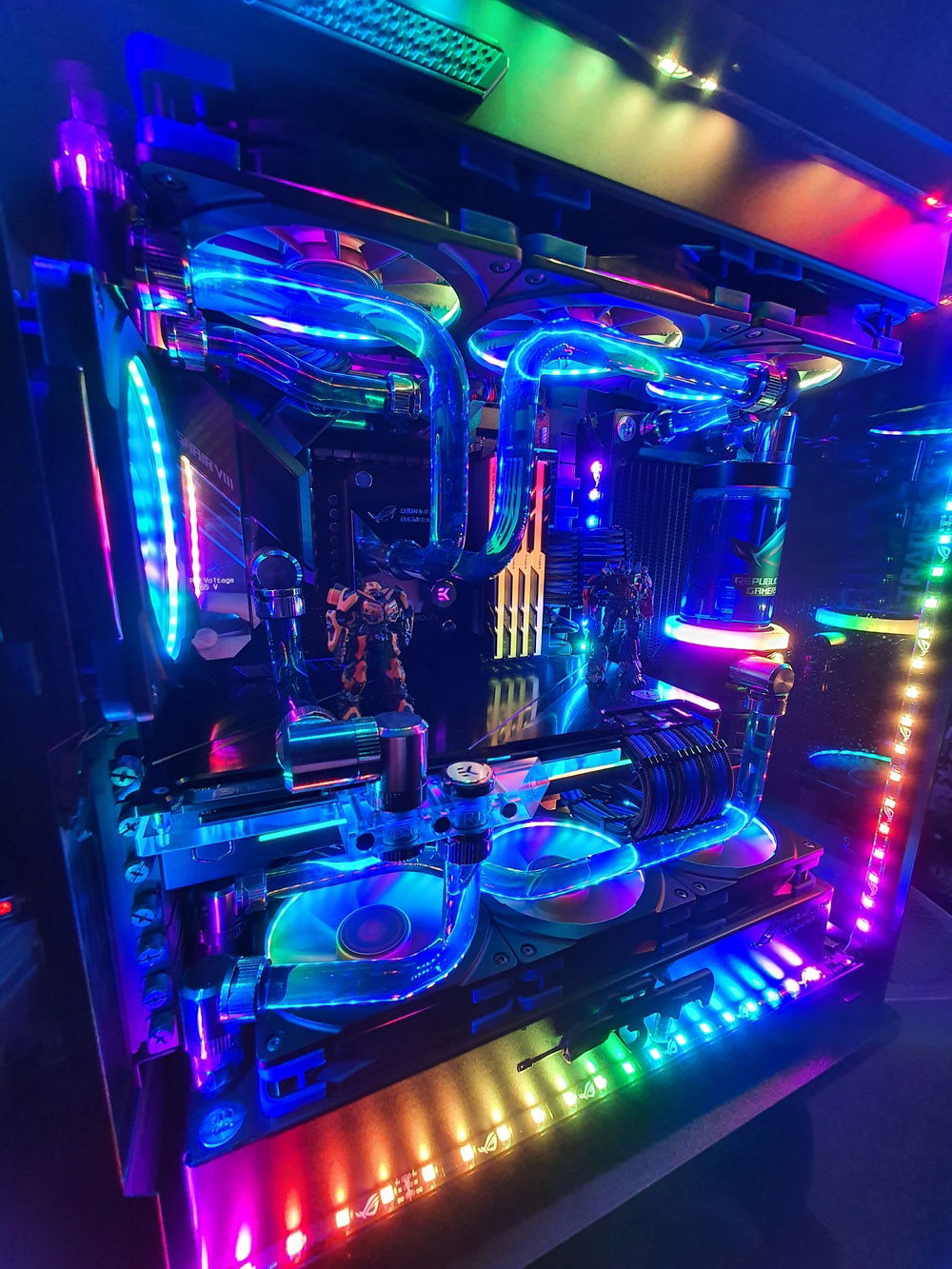

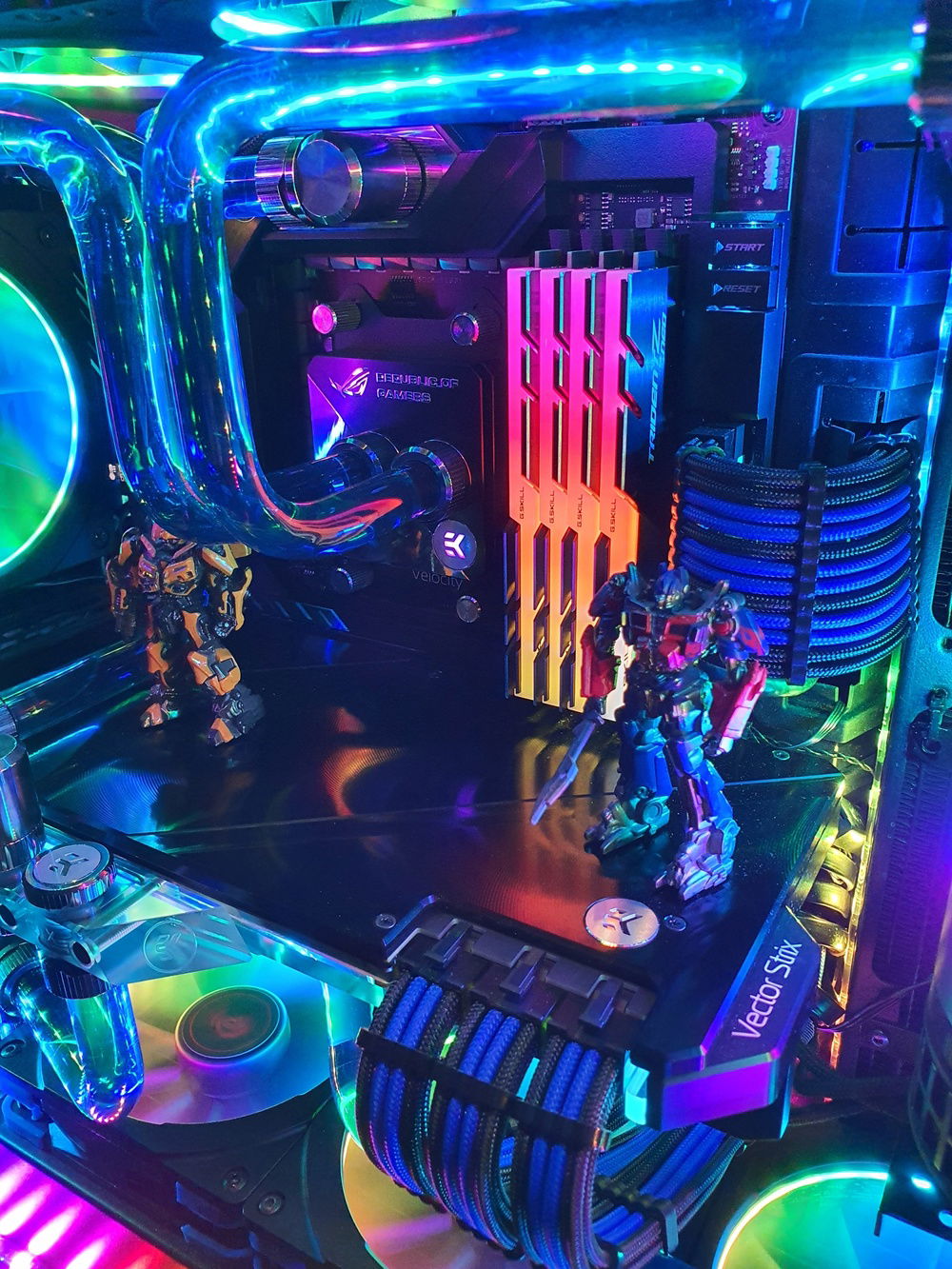

Cooling system
EKWB Velocity Strike RGB CPU Block
EKWB Quantum Vector Strix RTX 3090 GPU Block
EKWB Quantum Kinetic TBE 200 D5 PWM D-RGB Pump Res Combo
EKWB Torque Fittings
2 X EKWB Coolstream XE 360mm Radiator
1 X EKWB Coolstream PE 360mm Radiator
EKWB CryoFuel Navy Blue
10 x Noctua NF-F12 industrialPPC-2000 PWM
10 x Phanteks 120 ARGB Halo Fan Frame

Accessories
Keyboard - Razer Blackwidow Elite V2
Mouse - Logitech G502 Wireless with Logitech Powerplay Charging System
Speakers - Creative Katana 7.1 Soundbar with RGB
Headset - Steelseries Arctis 7
Headset Stand - ROG Throne Qi Gaming Headset Stand

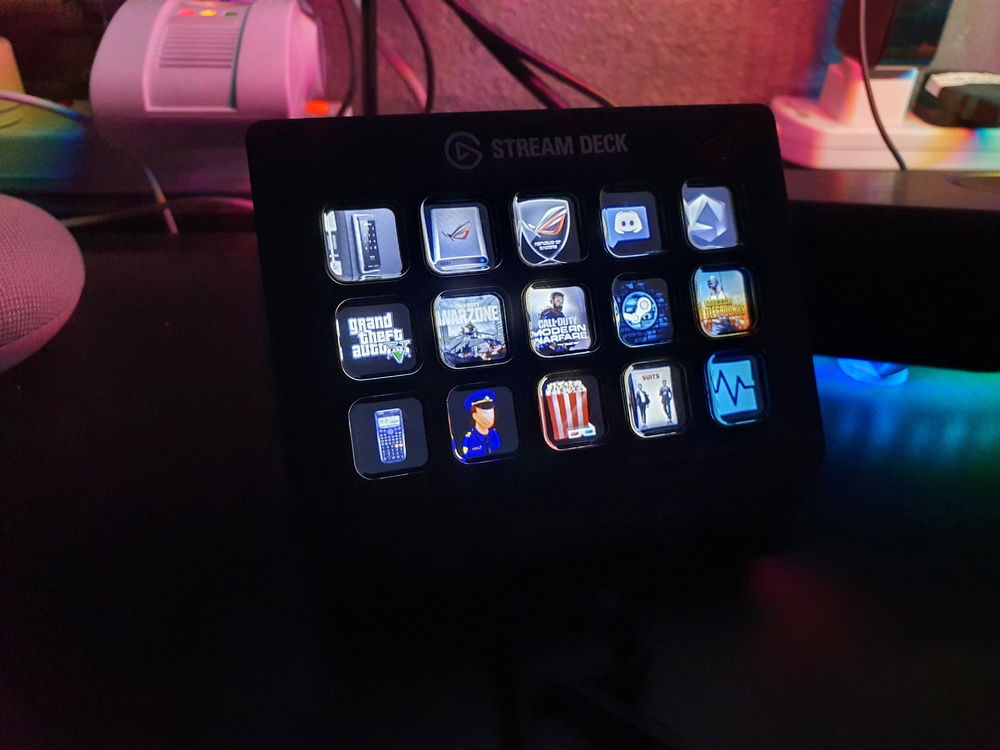

Elgato Stream Deck
ASUS ROG Aura Terminal
ASUS Blu-ray Drive (External)
8 x 14TB HGST HDD 7200RPM drives in an external Probox HDD Enclosure (For backups and media files, looking to migrating to NAS once I move)
All protected by a UPS system rated at 1600w
Color(s): Black Blue
RGB Lighting? Yes
Theme: Sci-Fi
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 2 contests.

Hardware

CPU
$ 800.00
AMD - Ryzen 9 (5950X)
Socket: AM4
Cores: 16
Motherboard
$ 300.00
ASUS - ROG Crosshair VIII Formula
Chipset: X570
CPU Socket: AM4
Size: ATX
Memory
$ 169.99
Graphics
$ 2,100.00
ASUS - GeForce ROG Strix Gaming (O24G)
Chip Manufacturer: NVIDIA
Chip: RTX 3090
Interface: PCIe x16
Storage
$ 138.00
HGST (Hitachi) - DeskStar NAS (2x)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 4 TB
Storage
$ 139.00
HGST (Hitachi) - Ultrastar He8 (2x)
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 8 TB
Storage
$ 1,170.00
Samsung - 860 PRO (3x)
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 2 TB
Storage
$ 568.10
Samsung - 970 PRO (2x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 405.00
Corsair - HX1200 Platinum
Wattage: 1200
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 250.00
Lian Li - 011D XL
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 279.50
Noctua - NF-F12 industrialPPC-2000 PWM (10x)
Size: 120 mm
Cooling
$ 209.06
EKWB - CoolStream PE
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 237.90
EKWB - CoolStream XE (2x)
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 150.00
EKWB - CPU Blocks (discontinued)
Type: Custom Loop
Cooling
$ 50.00
Cooling
$ 160.00
EKWB - EK-Quantum Vector FE RTX 3090 D-RGB
Type: GPU Waterblock
Cooling
$ 200.00
EKWB - Fittings
Type: Custom Loop
Cooling
$ 160.00
EKWB - Reservoir
Type: Custom Loop
CableMod
$ 150.00
Accessories
$ 139.60
Accessories
$ 20.50
Monitor
$ 4,676.10
ASUS - ROG Swift (PG27VQ)
Size: 27 Inch
Panel: TN
Refresh Rate: 144 Hz
Monitor
$ 800.00
MSI - Optix (MAG27CQR) (2x)
Size: 27 Inch
Panel: VA
Refresh Rate: 165 Hz
Monitor
$ 449.99
Samsung - Curved Gaming (UR590C)
Size: 32 Inch
Panel: VA
Refresh Rate: 60 Hz
Keyboard
$ 187.79

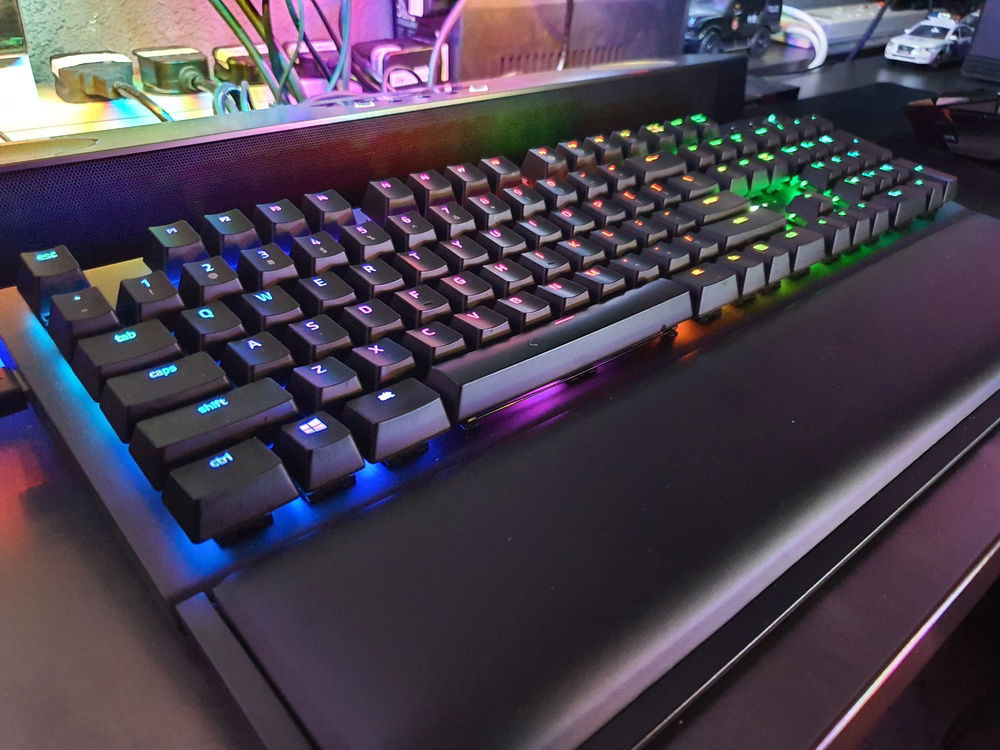

Razer - Blackwidow Chroma v2
Interface: Wired
Key Switch Type: Razer Green
Type: Full Size
Mouse
$ 89.99
Logitech - G502 Lightspeed Wireless
Interface: Wireless
Chair
$ 500.00
Secretlab - Omega
Material: PU Leather
Color: Black
Estimated total value of this build:
$ 7,921.55
