Red Blaze

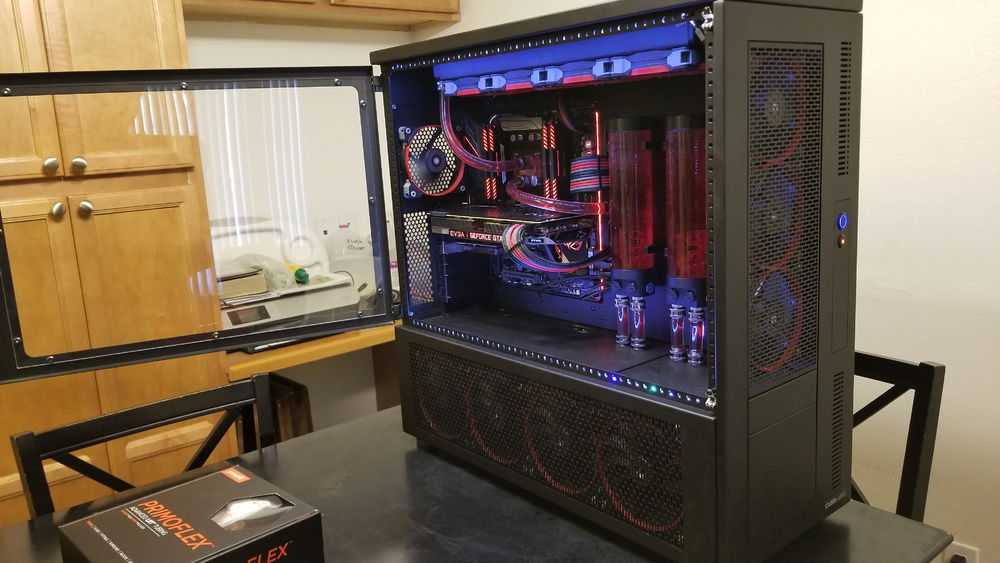

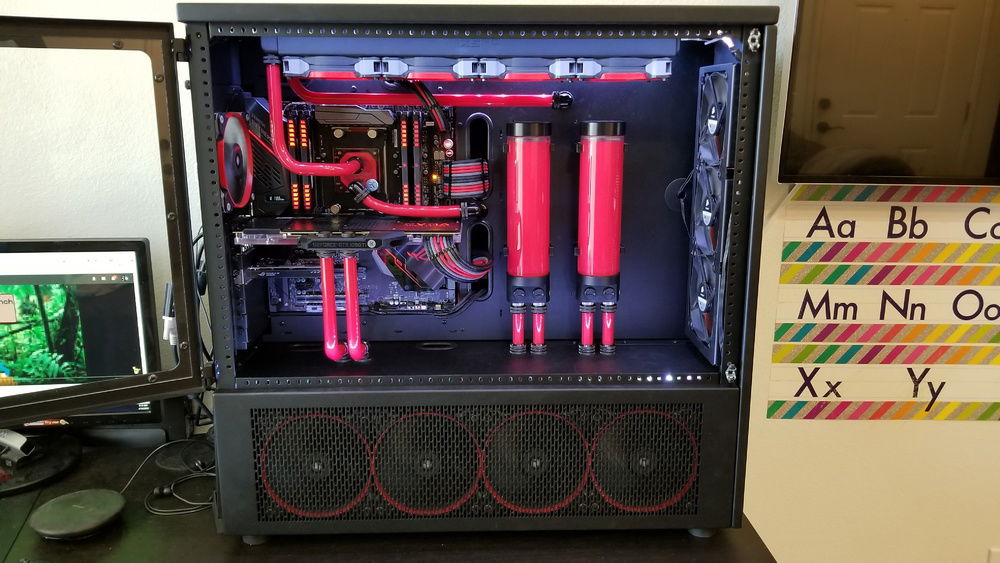

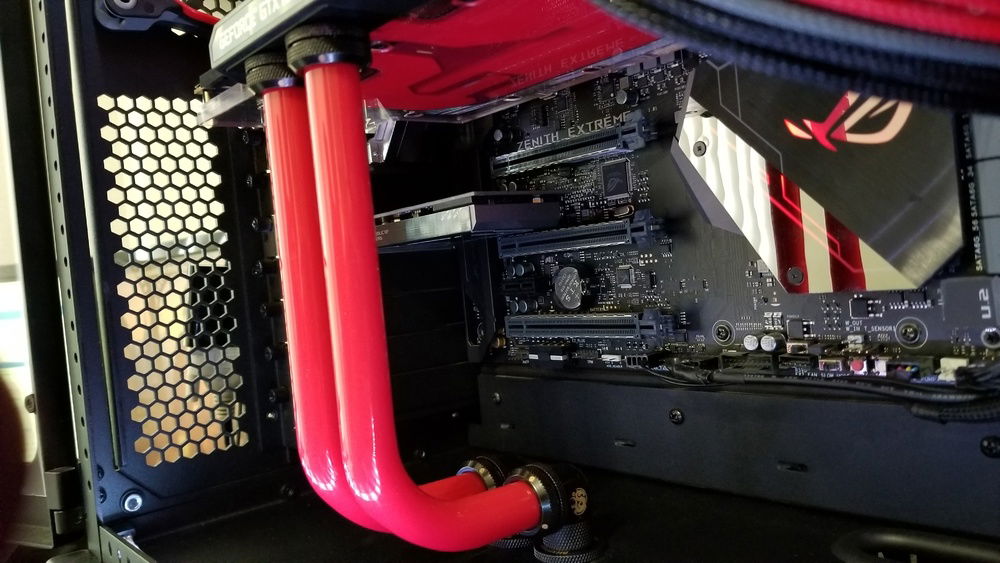

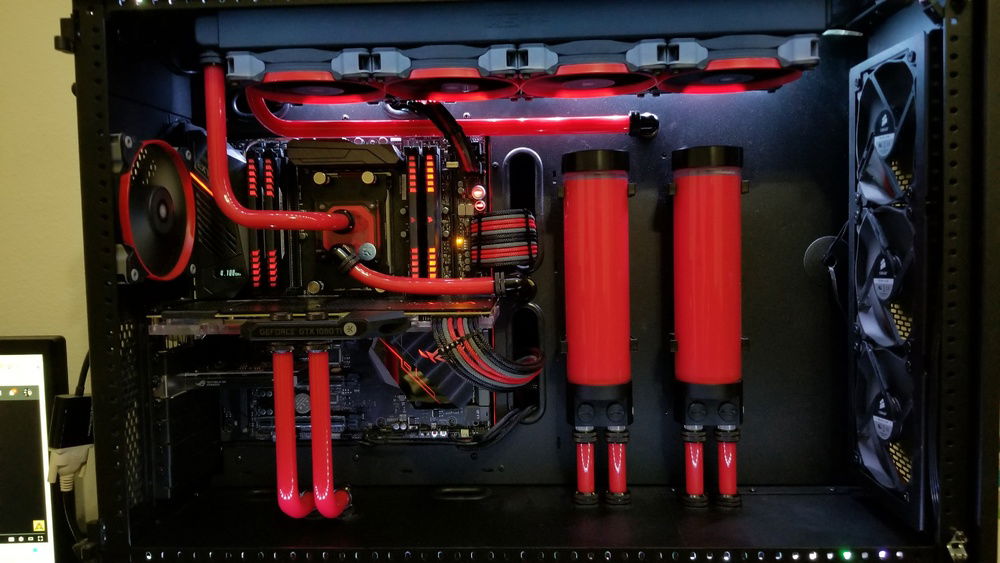

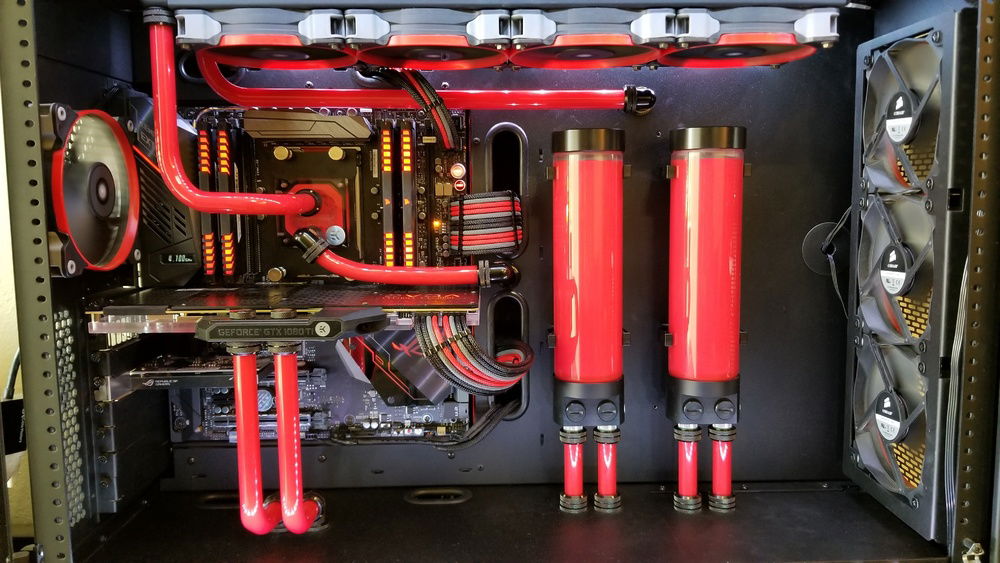

This is Red Blaze, my Threadripper 1950X system, obviously heavily influenced by JayzTwoCents' Skunkworks V2 build (without the SLI). The system is overclocked to 4.1GHz. I originally wanted 2 1080ti cards on SLI, but the budget just didn't allow it. I even have the extra set of sleeved cables already made for another card. I guess if I decide to put it in later I have them. Aside from that, I'm happy with the way it came out. This is my first ever rigid-tubing custom loop (dual). Drilling into this case (as expensive as it is) was nerve wrecking.

SPECS:
*CaseLabs Magnum SMA8 (non-revision)
*ASUS ROG Zenith Extreme
*AMD Ryzen Threadripper 1950X
*EVGA GTX 1080ti FTW3
*Corsair Vengeance RGB 32GB DDR4 3000
*Samsung 960 Pro 512GB
*WD Black 5TB
*Corsair AX1200i PSU
*Custom sleeved cable extensions from Mod-One
*Custom Dual Loop with Mayhem's Red Pastel fluid
Color(s): Black Gray Red
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: E-ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 379.00
AMD - Threadripper 1950X
Socket: TR4
Cores: 16
Motherboard
ASUS - ROG Zenith Extreme
Chipset: X399
CPU Socket: TR4
Size: E-ATX
Graphics
$ 433.00
EVGA - GeForce FTW3
Chip Manufacturer: NVIDIA
Chip: GTX 1080 Ti
Interface: PCIe x16
Storage
$ 219.99
Samsung - 960 PRO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 512 GB
Storage
$ 234.99
Western Digital - WD Black Desktop
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 6 TB
PSU
$ 479.81
Corsair - AX1200i
Wattage: 1200
Form Factor: ATX
Efficiency: 80+ Platinum
Case
CaseLabs - SMA8-A (discontinued)
Type: Full-Tower
Side Panel: Window
Case Fan
$ 19.95
Corsair - AF120 (Co-WW)
Size: 120 mm
Case Fan
$ 219.98
Case Fan
Cooling
Bitspower - Fittings
Type: Custom Loop
Cooling
$ 168.14
EKWB - EK FC1080Ti FTW3 Acetal+Nickel
Type: GPU Waterblock
Cooling
$ 101.25
EKWB - EK-RES X3 250
Type: Reservoir
Cooling
EKWB - Pump
Type: Custom Loop
Cooling
Monsoon - Tubing
Type: Custom Loop
