Raven_A

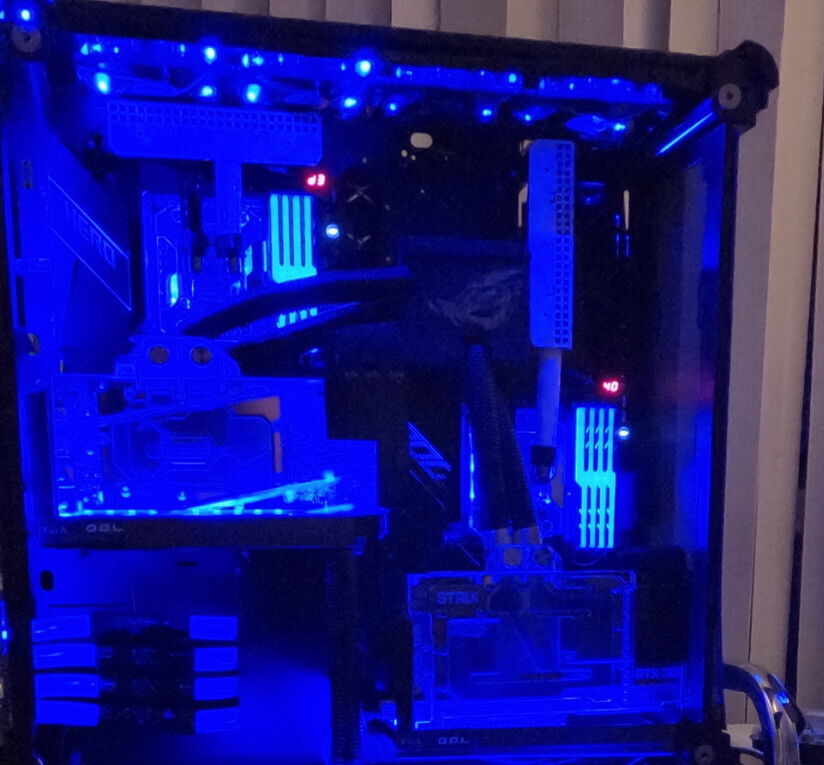

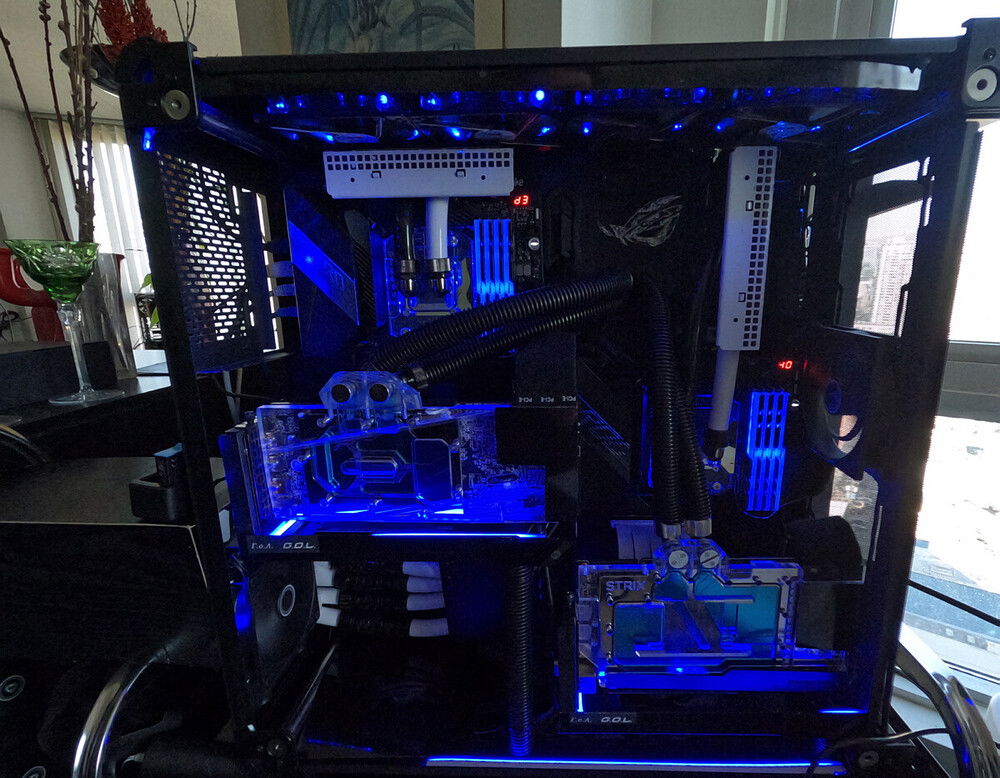

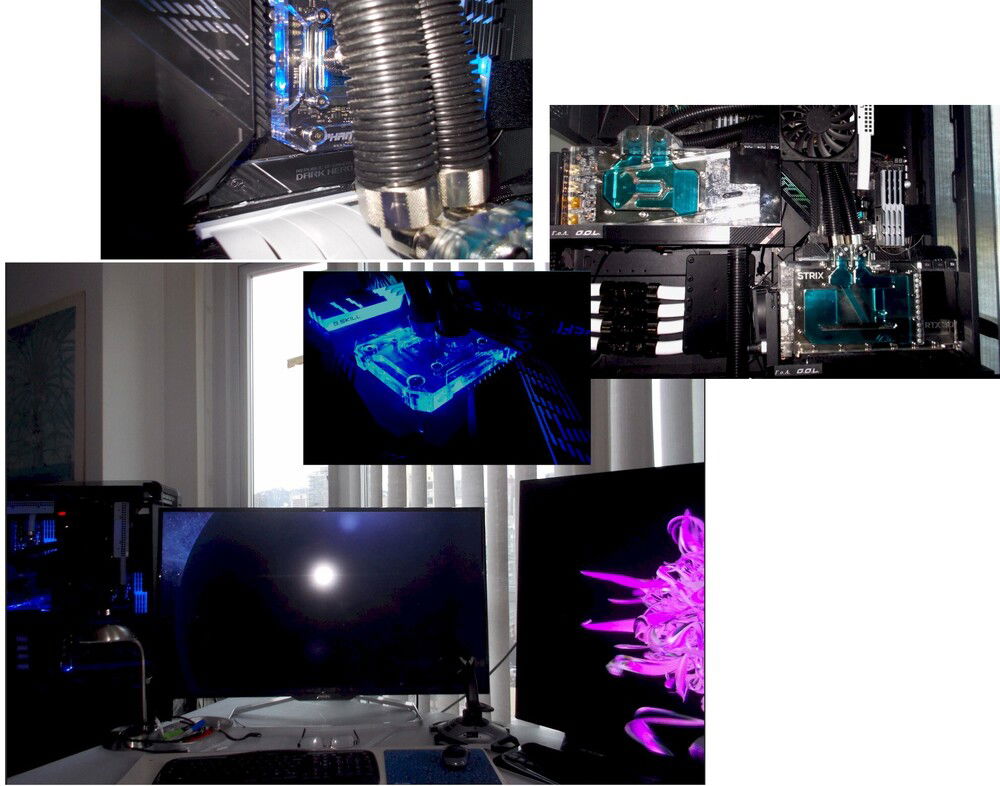

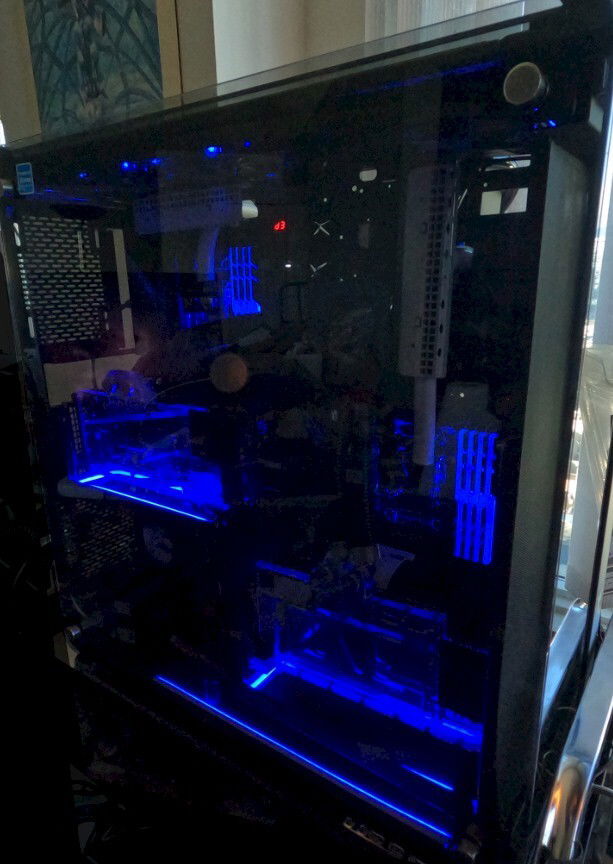

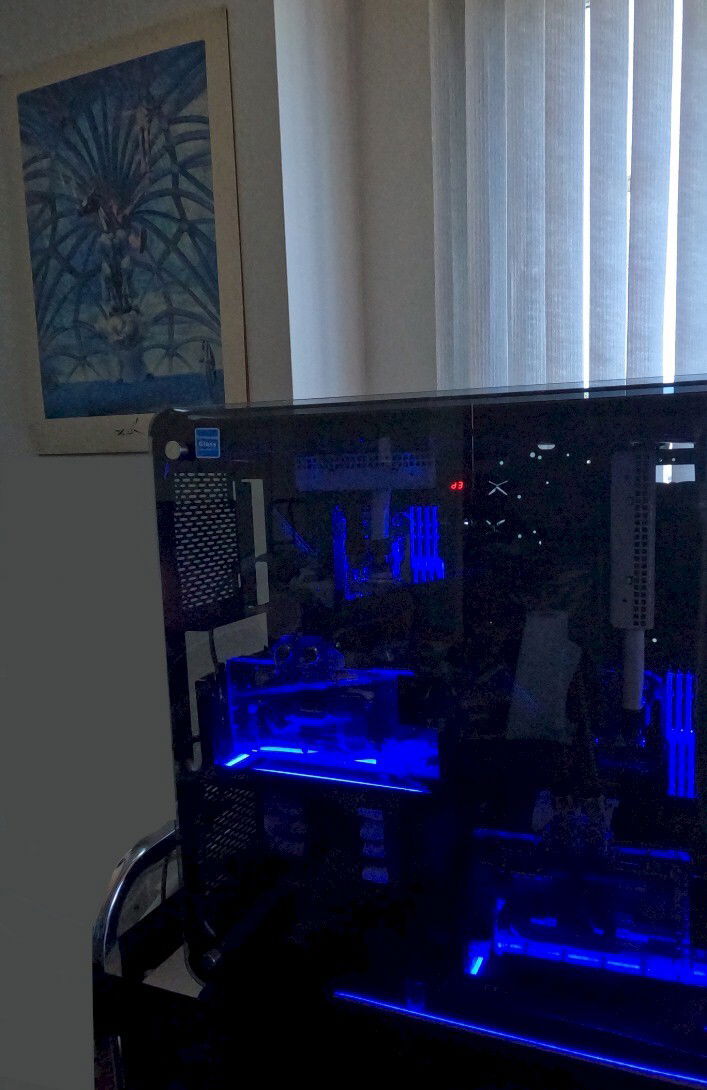

Raven_A is the first of two dual-motherboard projects for work-and-play. More detail on Raven_B, the second one in this series, soon. Raven_A took a long time to complete, not only because of availability of certain parts at MSRP, but also as it involved a lot of custom fabrication. Raven_A sits in a Thermaltake Core P8 case.

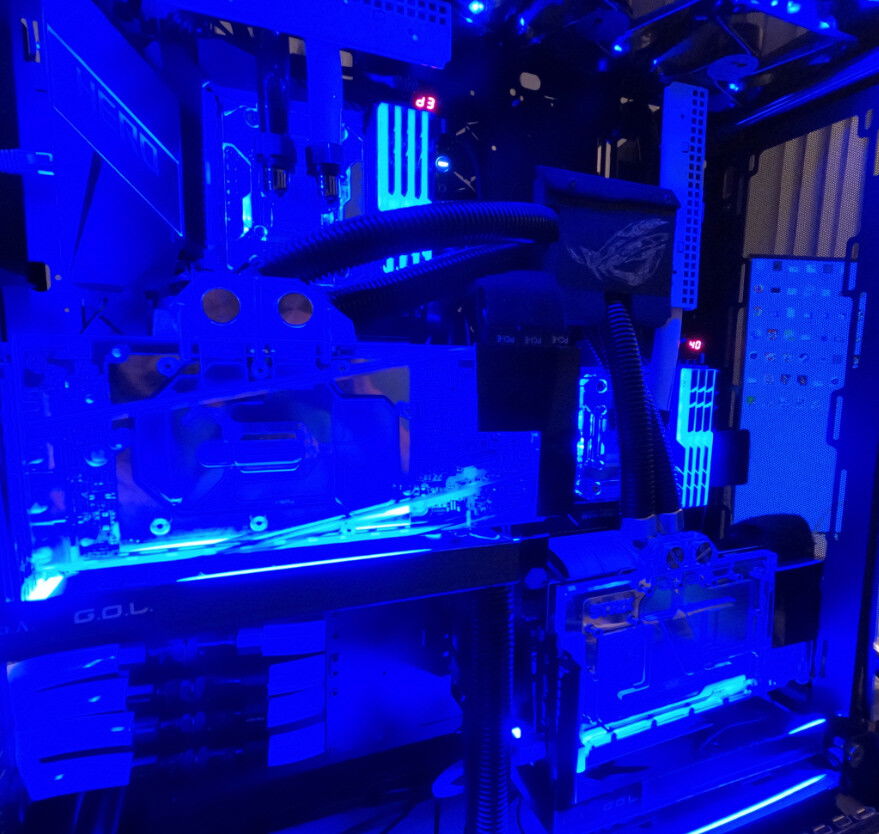

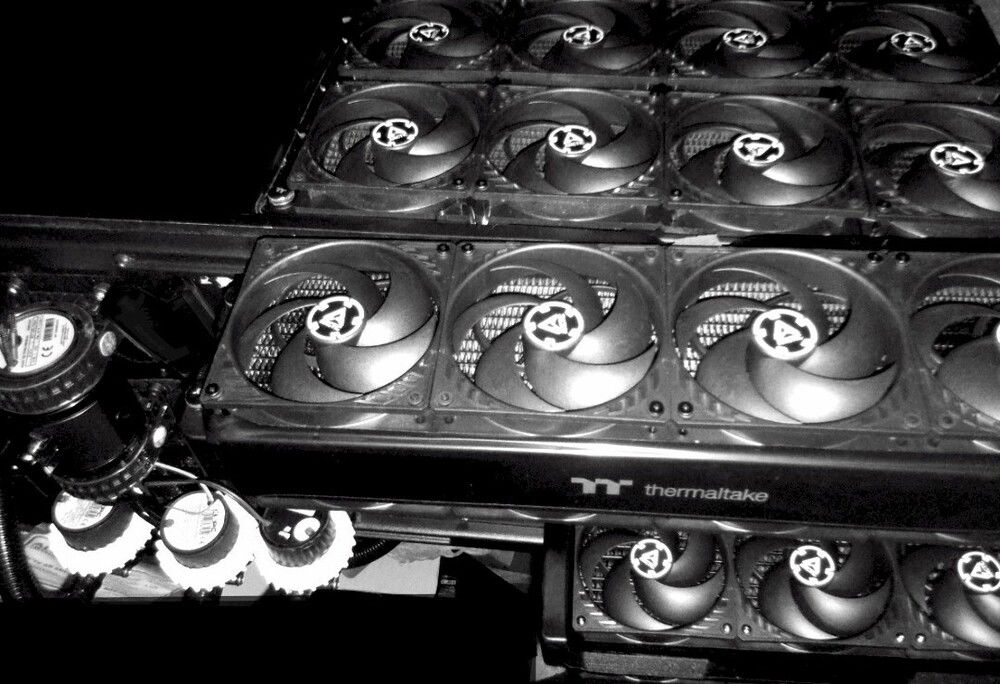

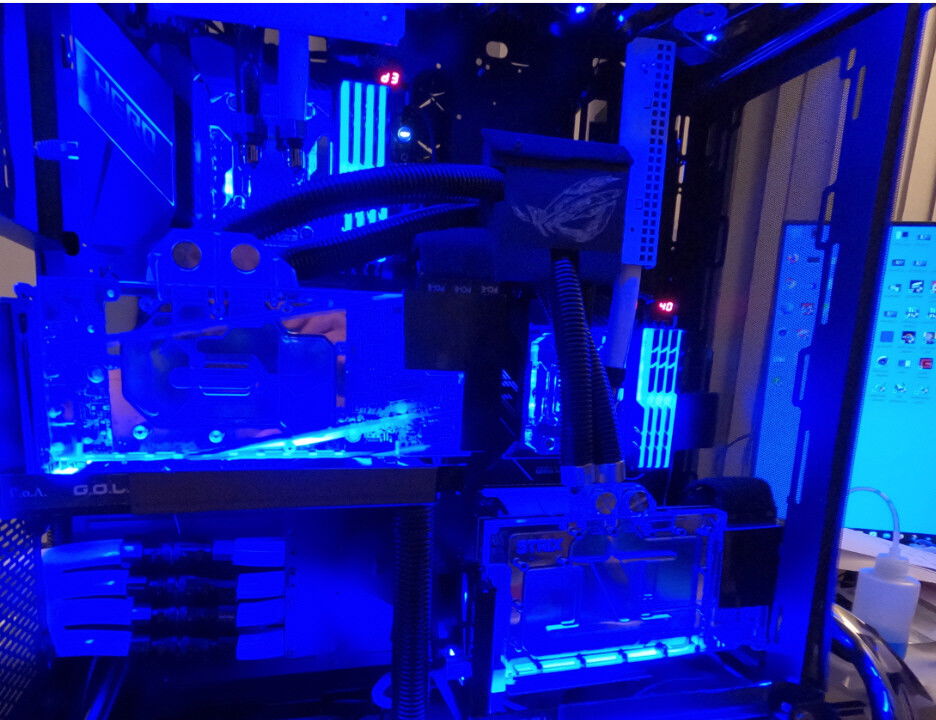

On the 'top left', it includes an Asus X570 Hero wifi board with an AMD 3950X, 32GB of DDR4 CL14 / 3800, a Gigabyte Gaming OC 6900XT with Bykski block, and various Western Digital NVME and SSDs. It is powered by a Seasonic Prime Platinum 1300W PSU. Other cooling is by a Phanteks CPU block, 2x D5 pumps and a total of 1200x63 rads.

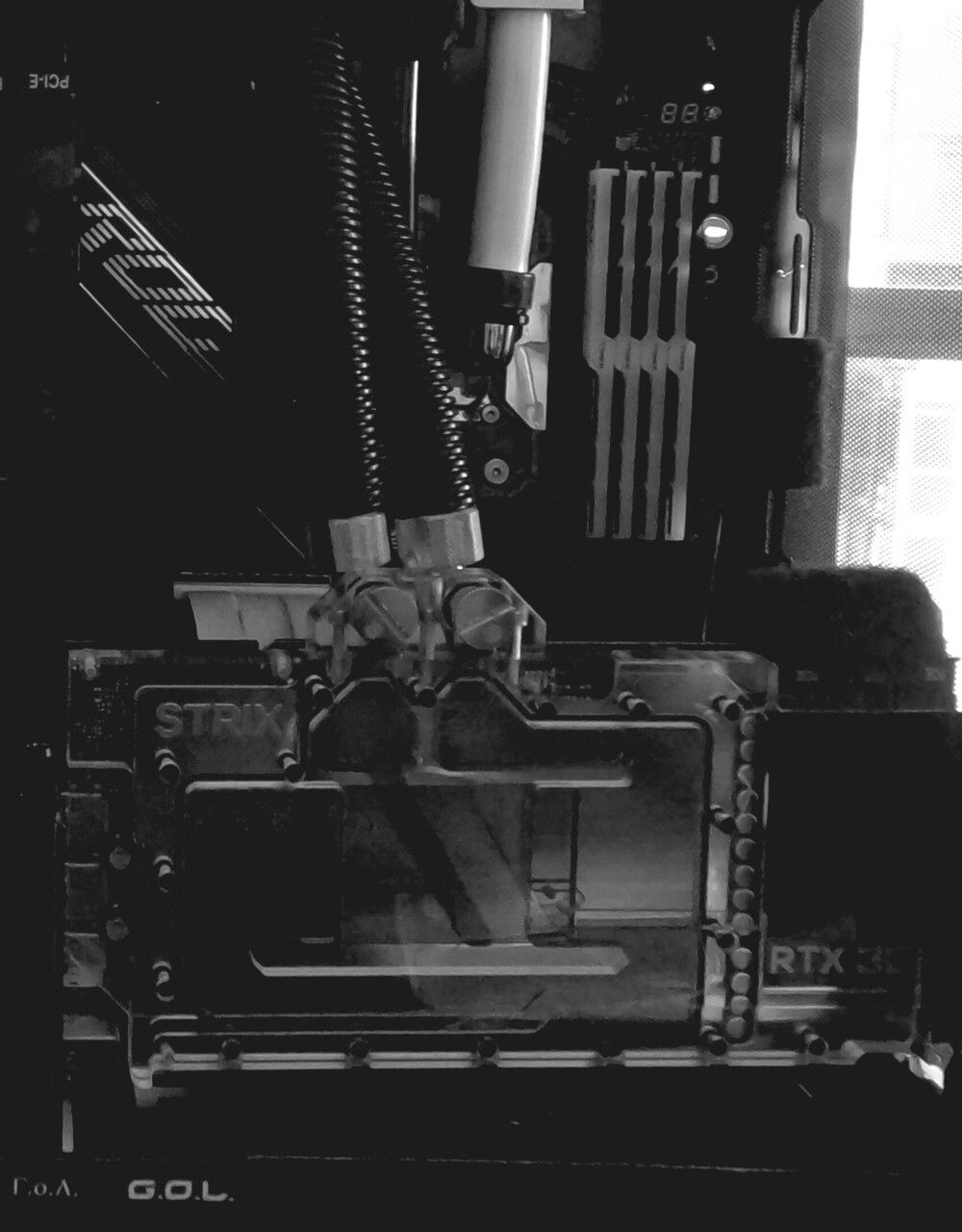

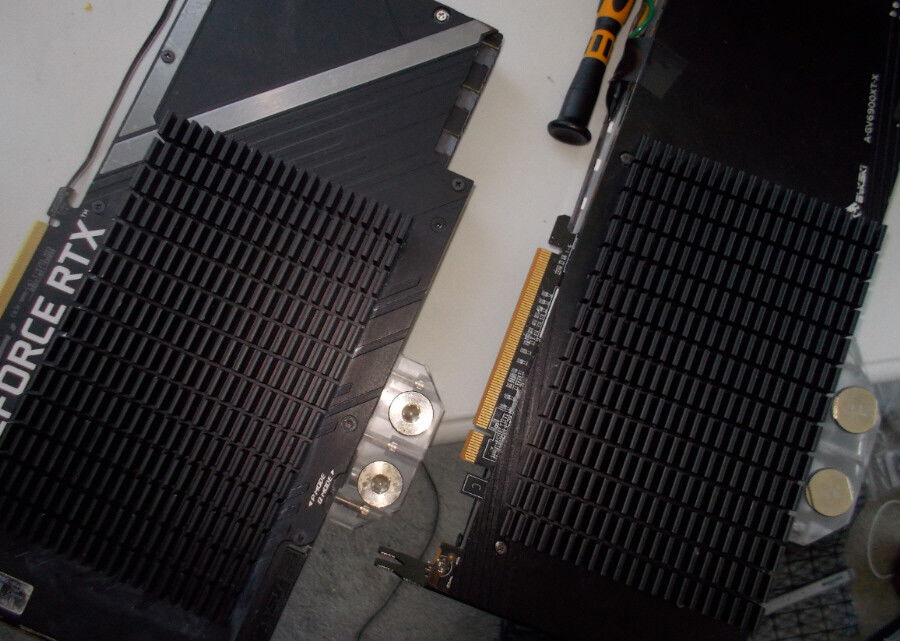

On the 'bottom right', there is an Asus X570 Dark Hero board with an AMD 5950X, 32 GB of DDR4 CL14 / 3800, an Asus Strix OC 3090 with a Phanteks block, and also various Western Digital NVME and SSDs. It is powered by an Antec HPC 1300 W Platinum PSU. Other cooling is by a Phanteks CPU block, 3x D5 pumps and a total of 1320x63 rads.

Color(s): Black
RGB Lighting? Yes
Theme: Technology
Cooling: Custom Liquid Cooling
Size: XL-ATX
Type: General Build

Hardware

CPU
$ 450.00
AMD - Ryzen 9 (3950X)
Socket: AM4
Cores: 16
CPU
$ 700.00
AMD - Ryzen 9 (5950X)
Socket: AM4
Cores: 16
Motherboard
$ 579.00
ASUS - ROG Crosshair VIII Dark Hero
Chipset: X570
CPU Socket: AM4
Size: ATX
Motherboard
$ 379.99
ASUS - ROG Crosshair VIII Hero (WiFi)
Chipset: X570
CPU Socket: AM4
Size: ATX
Memory
$ 400.00
G.Skill - Trident Z (3866MHz) (Black/RGB)
Type: DDR4
Capacity: 16 GB
Memory
$ 539.00
G.Skill - Trident Z (4133MHz) (Black)
Type: DDR4
Capacity: 32 GB
Graphics
$ 1,900.00
ASUS - ROG Strix OC
Chip Manufacturer: NVIDIA
Chip: RTX 3090
Interface: PCIe x16
Graphics
$ 1,700.00
Gigabyte - Radeon Gaming OC
Chip Manufacturer: AMD
Chip: RX 6900 XT
Interface: PCIe x16
Storage
$ 218.42
Samsung - 980 Pro (2x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 163.54
Western Digital - BLACK SN750 Internal Gaming (2x)
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 205.99
Western Digital - WD Black SN850
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
PSU
$ 158.88
Antec - HCP 1300w
Wattage: 1300
Form Factor: ATX
Efficiency: 80+ Platinum
PSU
$ 250.00
Seasonic - Prime
Wattage: 750
Form Factor: ATX
Efficiency: 80+ Platinum
Case
$ 397.99
Thermaltake - Core P8 (Black/RGB)
Type: Full-Tower
Side Panel: Tempered Glass
Cooling
$ 198.00
Phanteks - Glacier (C360A) (2x)
Type: CPU Block
Cooling
$ 511.26
Thermaltake - Pacific CL480 (3x)
Type: Radiator
Size (WxHxD): 480 mm (4 x 120 mm)
Cooling
$ 504.99
XSPC - RX Series V3 (3x)
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Monitor
$ 739.99
LG - Smart (48C1PUB)
Size: 48 Inch
Panel: OLED
Refresh Rate: 120 Hz
Monitor
$ 400.00
Philips - 4K Ultra (BDM4065UC)
Size: 40 Inch
Panel: VA
Refresh Rate: 60 Hz
Estimated total value of this build:
$ 8,965.09
