Radiator-Overkill-Enyo

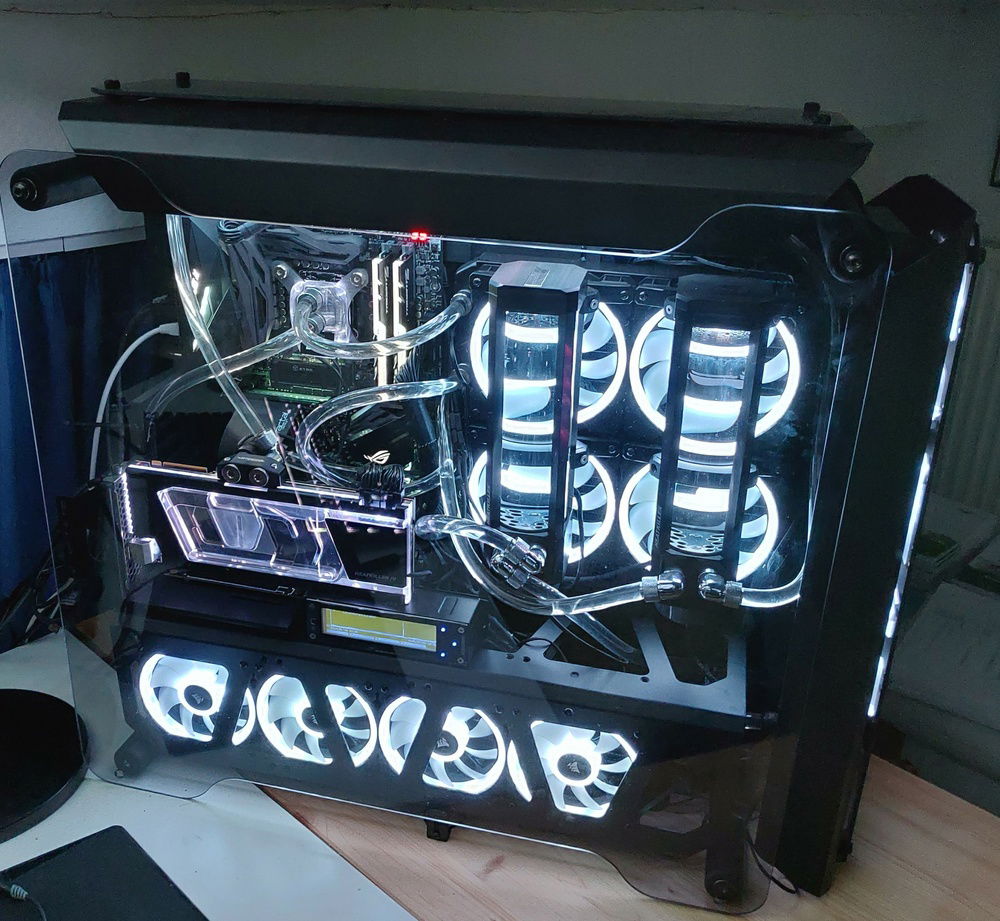

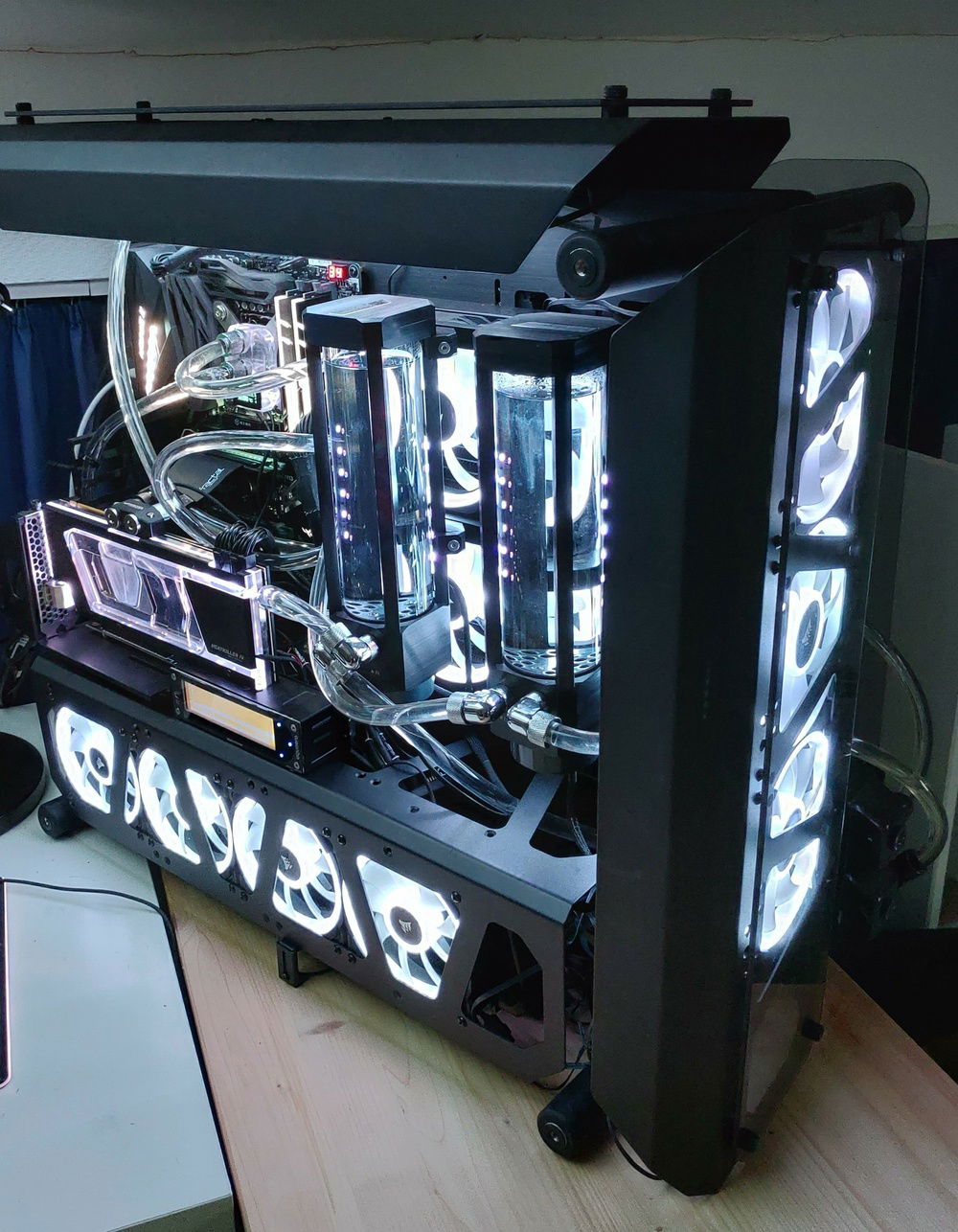

I basically just wanted the most radiator surface that I could get "into" one case, so that I would achieve the lowest water temp at lowest possible noise. The only alternative would have been to use external radiators.

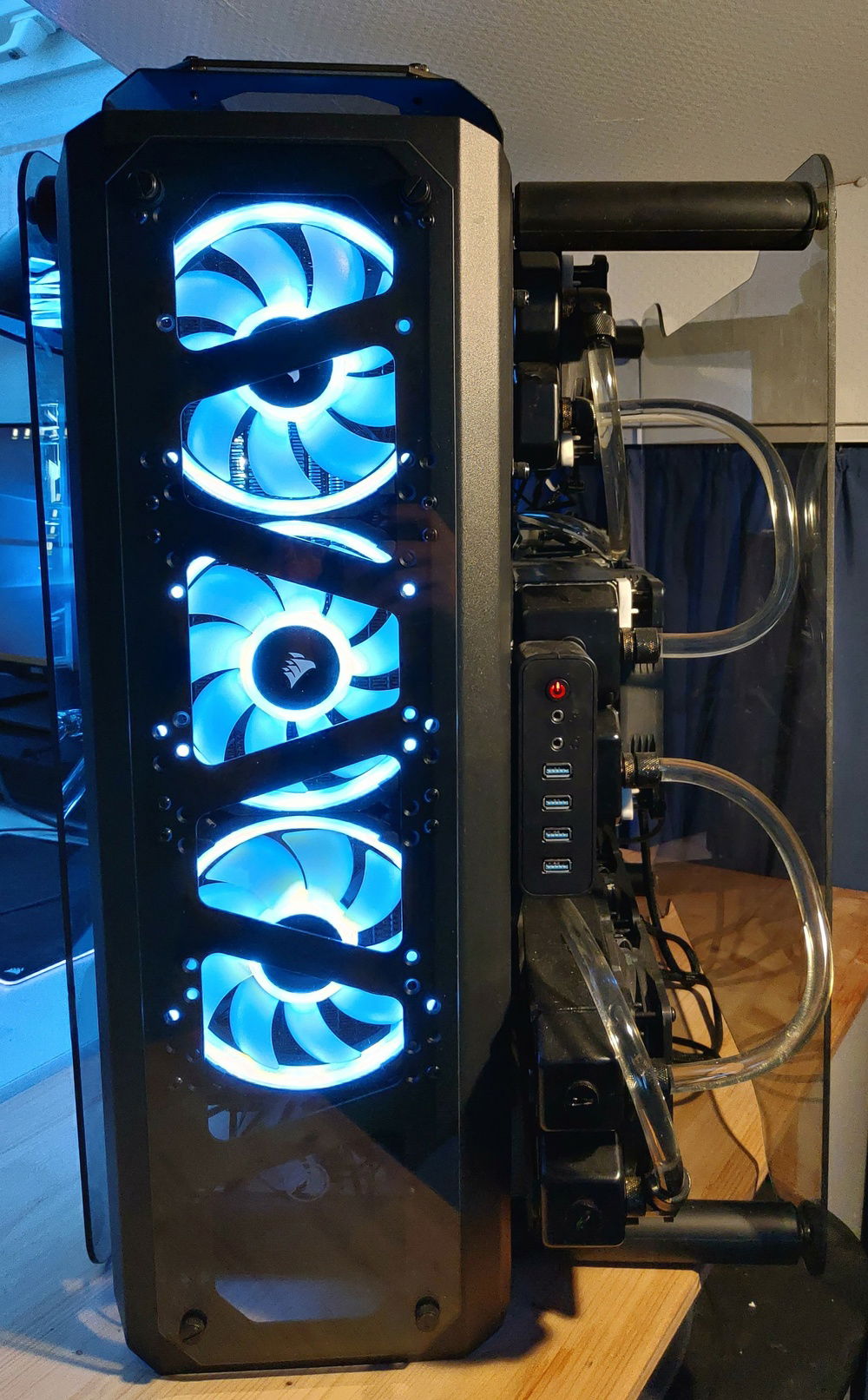

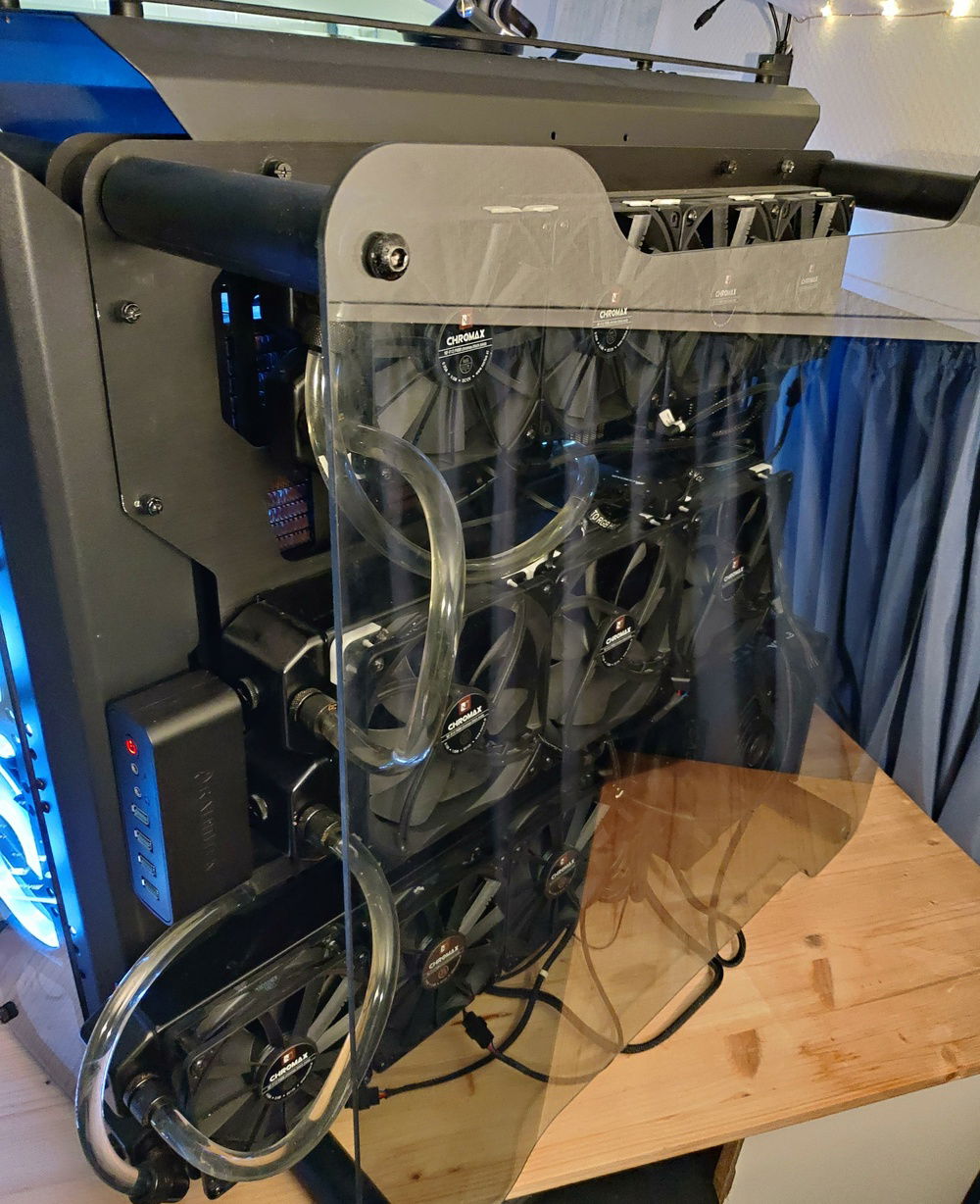

So I ended up with eight radiators and 24 fans: 2x480mm + 3x420mm + 1x360mm + 2x280mm.

This allows me to keep the water temps of both loops at a maximum of 30-32°C at an ambient temp of about 22°C with max fan speed of about 900 rpm controlled by the Aquaero 6.

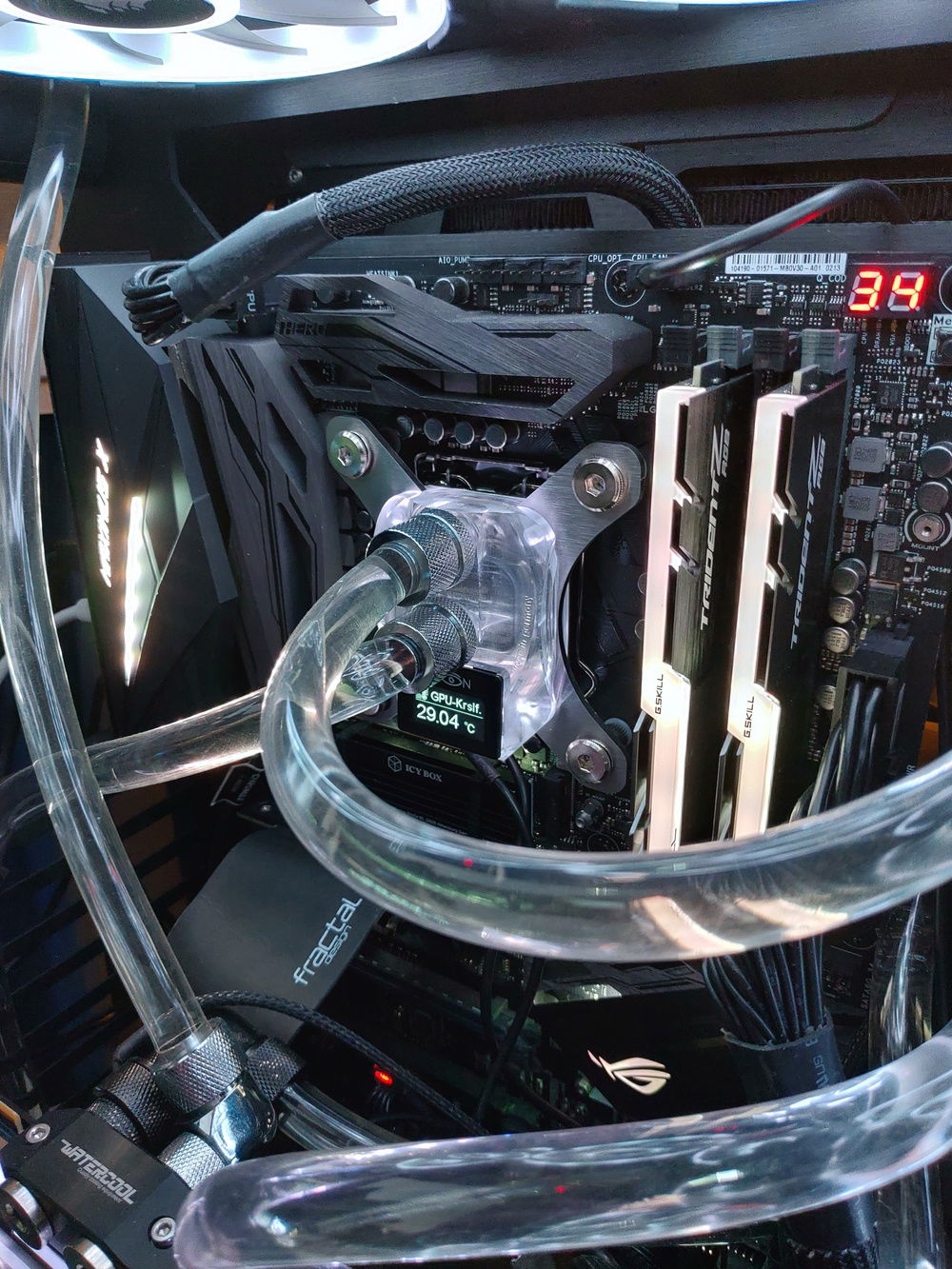

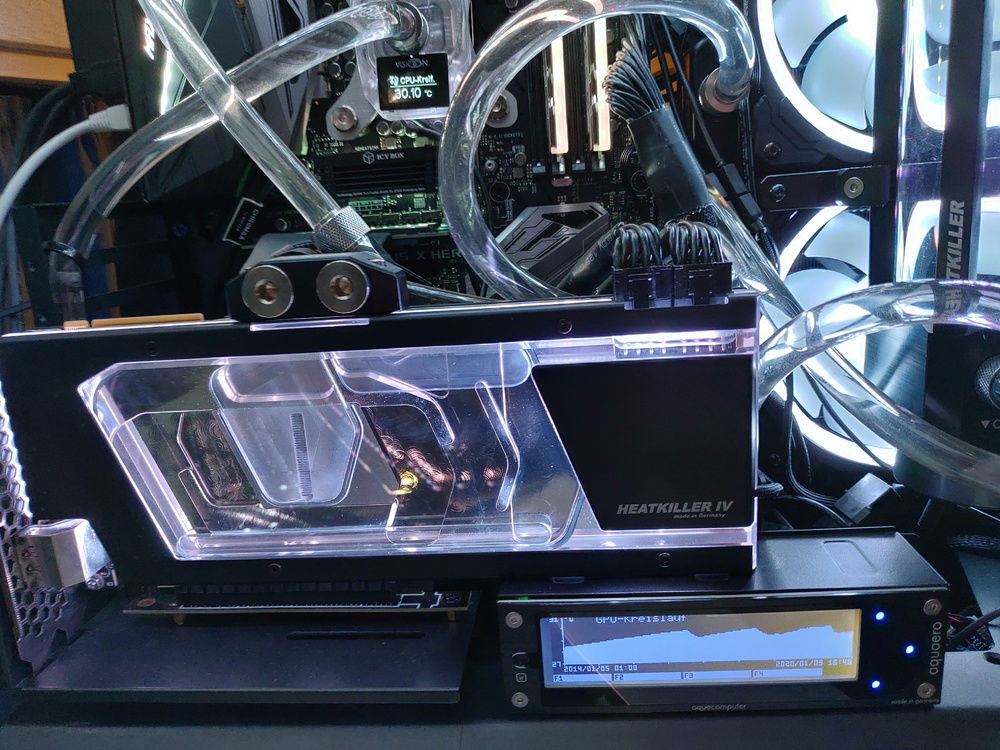

With CPU oc'ed to 5 GHZ allcore staying at 50-60°C while gaming and the 2080ti runs at 2,1GHZ at about 39-40°.

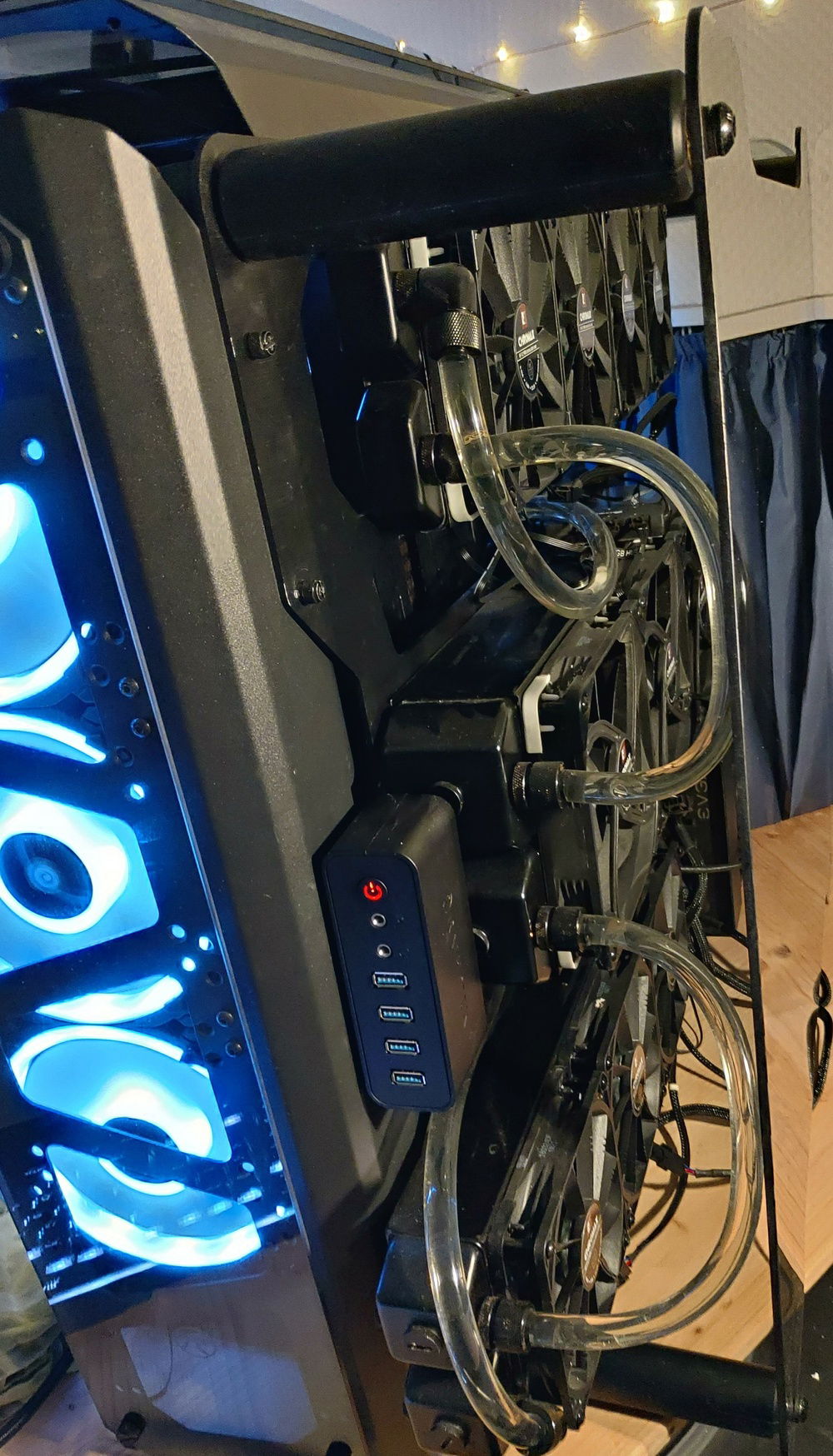

I could have gone with hard tubes, but for now I am happy with these almost glass like looking Masterkleer Tubes. As I am always keeping the water at low temps, I hope that this will avoid the softtubes from blurring too much. In case that I will change them, I will probably go for glass tubes.

I really love the case. The only thing that can be annoying is as it is open frame I can really hear the coil whine of my 2080 ti when not using headphones. But as I usually do, this is not a big issue for me.
temps but have a case that is easier to transport as this one just weighs so much that you basically need two people to lift it. Still it is aesthetically very pleasing.
Color(s): Black Silver White
RGB Lighting? Yes
Theme: none
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Hardware

CPU
$ 330.00
Intel - Core i7-8700K
Socket: LGA 1151
Cores: 6
Integrated Graphics: Yes
Motherboard
$ 398.86
ASUS - ROG Maximus X Hero
Chipset: Z370
CPU Socket: LGA 1151
Size: ATX
Memory
$ 209.99
G.Skill - Trident Z (3200MHz) (Black/RGB)
Type: DDR4
Capacity: 32 GB
Graphics
Gainward - Phoenix GS
Chip Manufacturer: NVIDIA
Chip: RTX 2080 Ti
Storage
$ 215.01
Samsung - 970 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 279.99
EVGA - SuperNOVA T2
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Titanium
Case
$ 350.77
Raijintek - Enyo Showcase
Type: Bench
Side Panel: Tempered Glass
Case Fan
$ 158.44
Corsair - LL120 (RGB) (Black) (4x)
Size: 120 mm
Case Fan
$ 859.90
Corsair - LL140 (RGB) (10x)
Size: 140 mm
Case Fan
$ 80.85
Case Fan
$ 170.03
Cooling
$ 159.98
Alphacool - Eispumpe VPP755 Single Edition V.3 (2x)
Type: Water Cooling
Size (WxHxD): 60 mm
Cooling
Aquacomputer - Cuplex Cryos
Type: CPU Waterblock
Cooling
$ 258.88

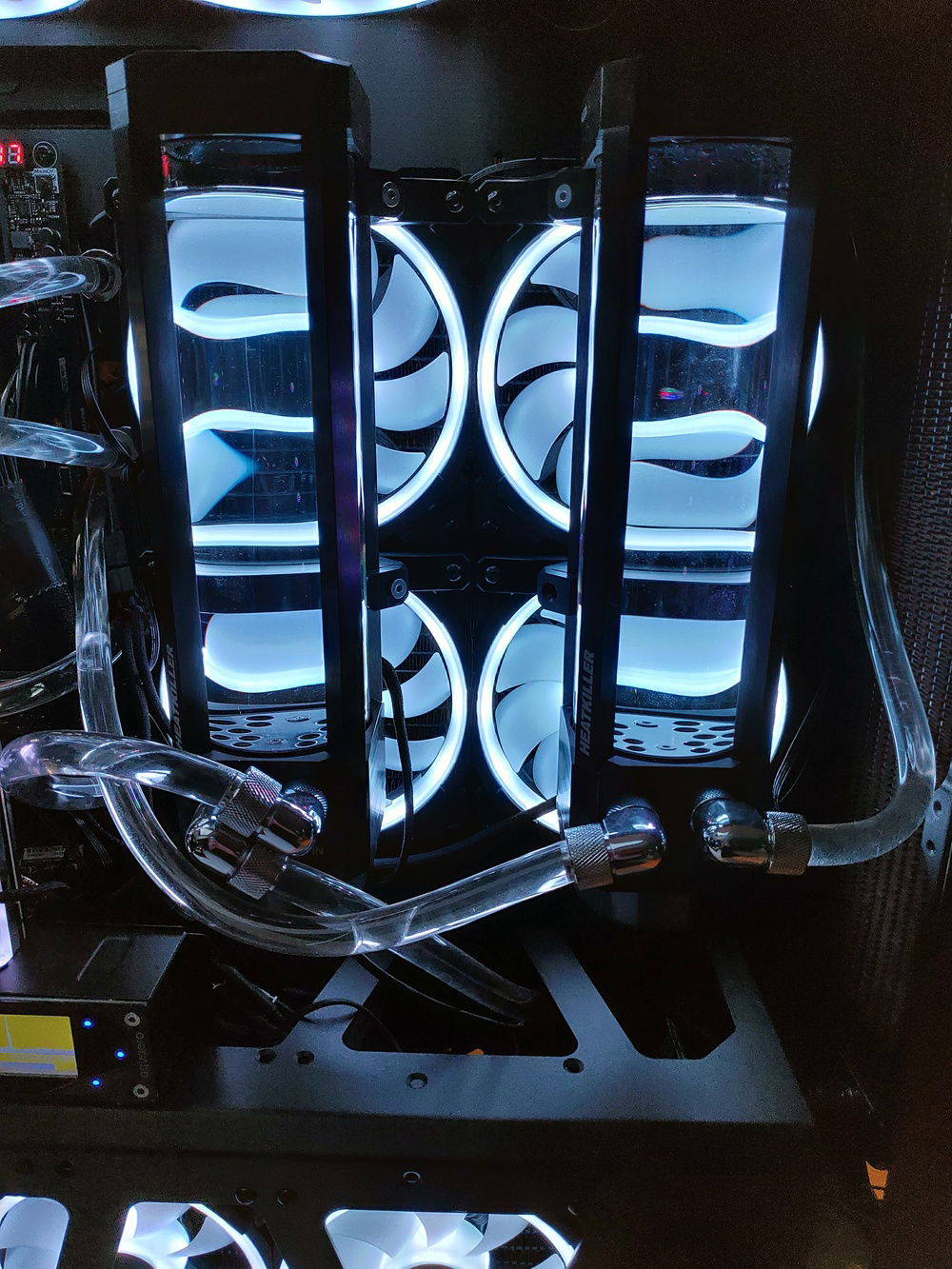

Watercool - HeatKiller Tube 200 D5 (2x)
Type: Reservoir
Accessories
$ 225.43
Monitor
$ 645.00
Alienware - Curved Gaming (AW3420DW)
Size: 34 Inch
Panel: IPS
Refresh Rate: 120 Hz
Monitor
$ 799.00
Dell - S2716DG
Size: 27 Inch
Panel: TN
Refresh Rate: 144 Hz
Keyboard
$ 199.99
Corsair - K95 Platinum (RGB)
Interface: Wired
Key Switch Type: Cherry MX Brown
Type: Full Size
Mouse
$ 39.00
Logitech - G502 Hero
Interface: Wired
