PSU-Puter

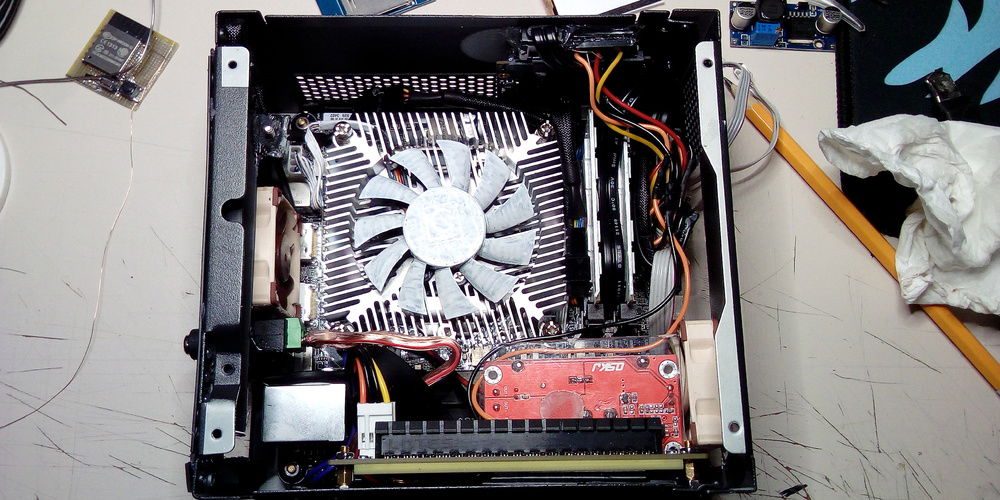

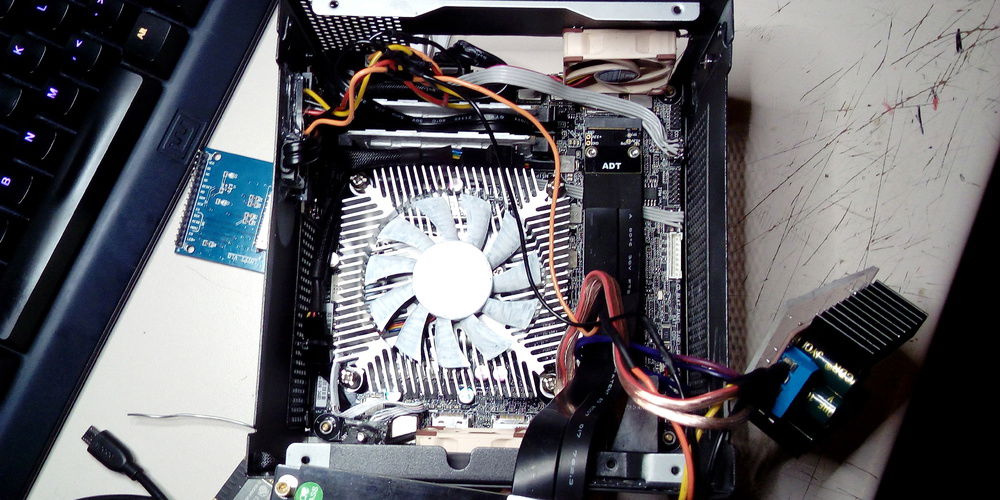

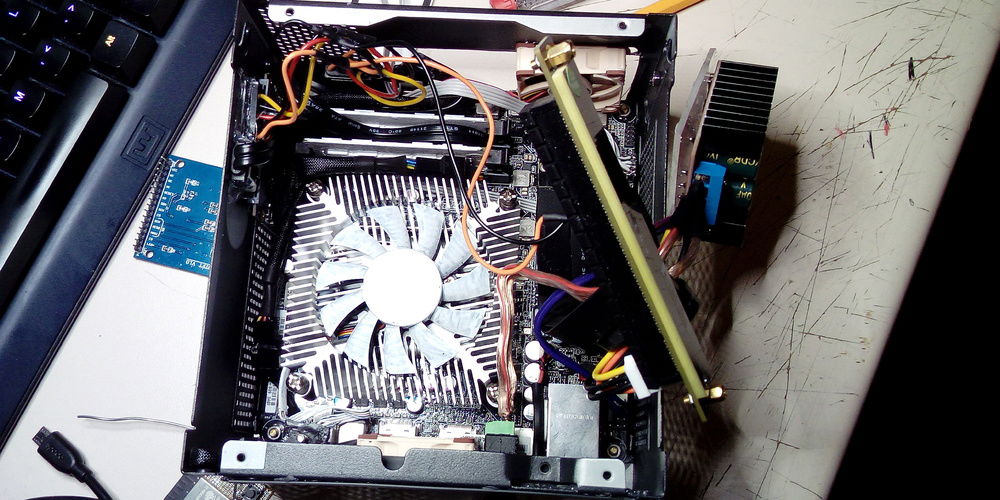

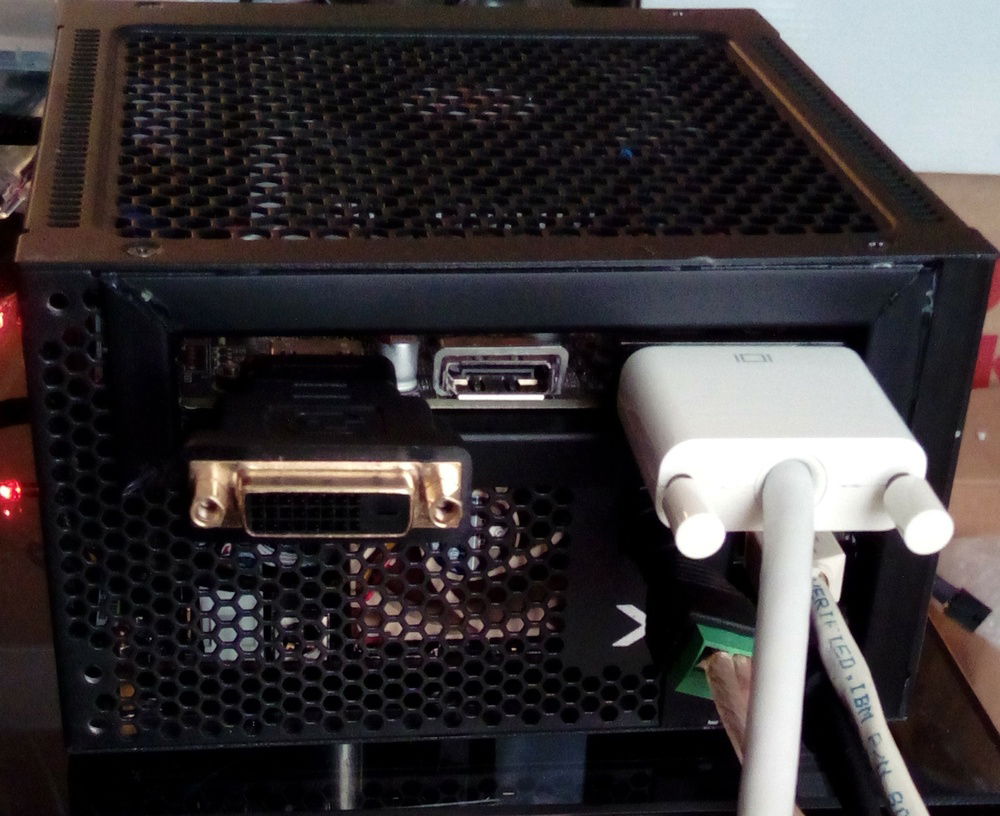

This is a gaming PC stuffed inside a standard ATX PSU case.
The mainboard accepts a notebook style 19V power supply, but the GPU needs 12V. So the power supply is a custom solution with an external 12V 350W PSU and an internal DC-DC step up converter to produce the 19V with up to 150W.

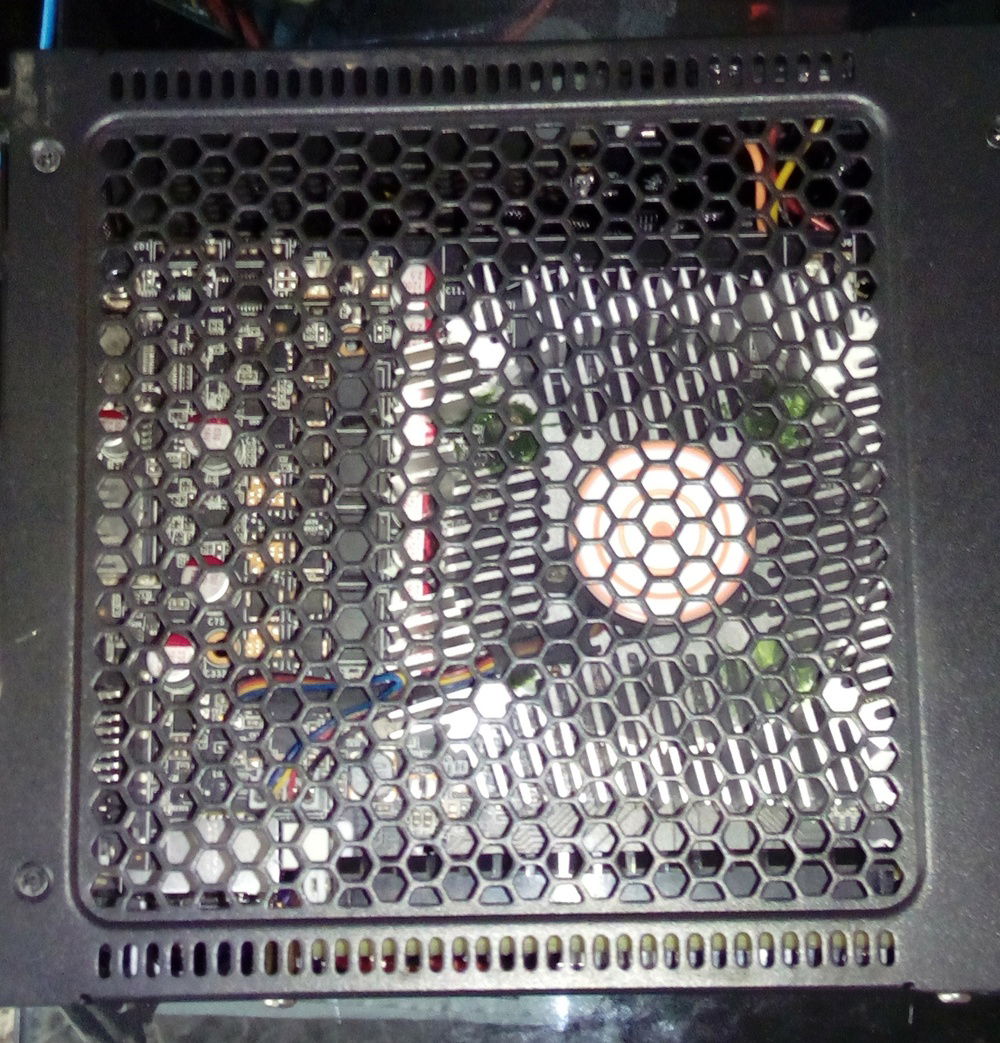

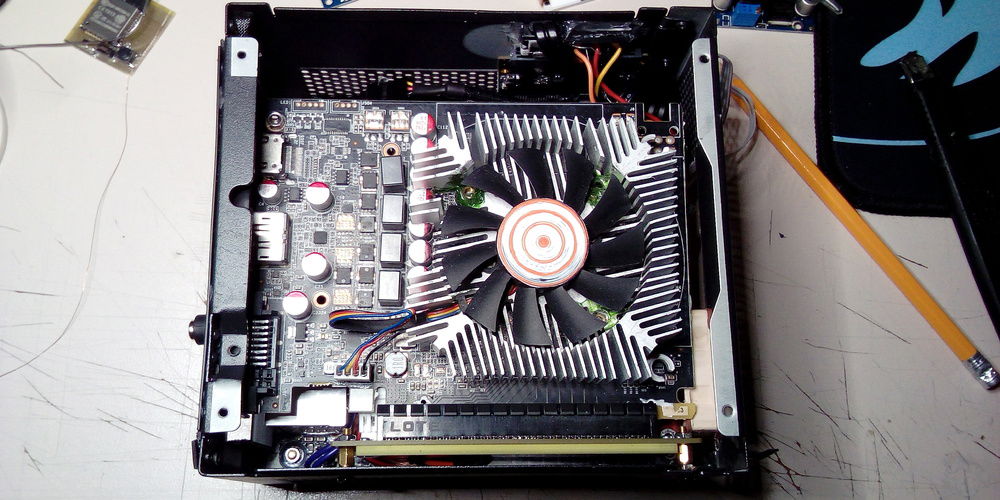

The GPU has excellent airflow, as it is basically installed open air; the CPU can breathe enough, so this little G4560 remains in the 60C range under load.
Two Noctua A4x10 fans help the airflow a bit, with the front fan mainly responsible for getting some airflow around the DC-DC converter.

The frontpanel is a placeholder faceplate, that'll be replaced once I get around to fixing my 3D printer.

There's no traditional power button; it has been replaced by the combination of a Screen and a touch sensitive fan grill. :)

Color(s): Black
RGB Lighting? No
Cooling: Air Cooling
Theme: none
Size: Mini-ITX
Type: General Build

Hardware

CPU
$ 198.86
Intel - Pentium G4560
Socket: LGA 1151
Cores: 2
Motherboard
ASUS - H110S1
Chipset: H110
CPU Socket: LGA 1151
Size: Mini-STX
Memory
$ 52.74
Crucial - Generic
Type: DDR4
Capacity: 8 GB
Graphics
$ 335.97
ZOTAC - Mini
Chip Manufacturer: NVIDIA
Chip: GTX 1050 Ti
Storage
$ 53.09
Transcend - TLC
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 240 GB
PSU
$ 20.58
Custom - Coolmax I500
Wattage: 500
Form Factor: ATX
Efficiency: none
Case
Custom - Custom (custom)
Case Fan
$ 27.90
Noctua - NF-A4x10 PWM (2x)
Size: 40 mm
Cooling
$ 22.53
LC-Power - LC-CC-65
Type: Air Cooler
Unable to dertermine total build value (missing part value)
