Project Xeta

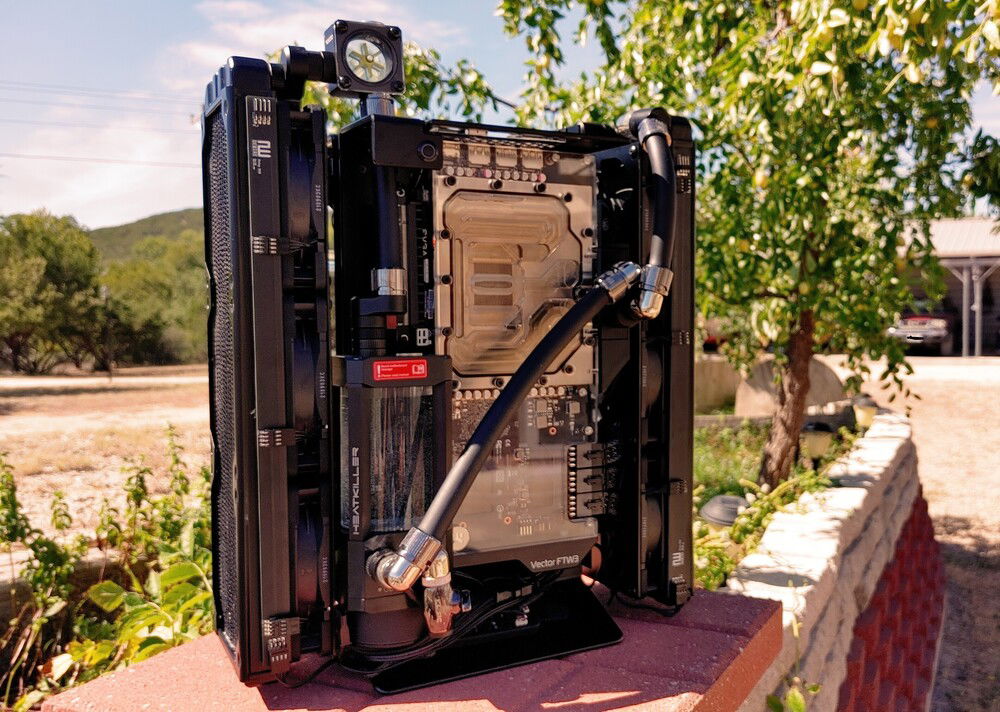

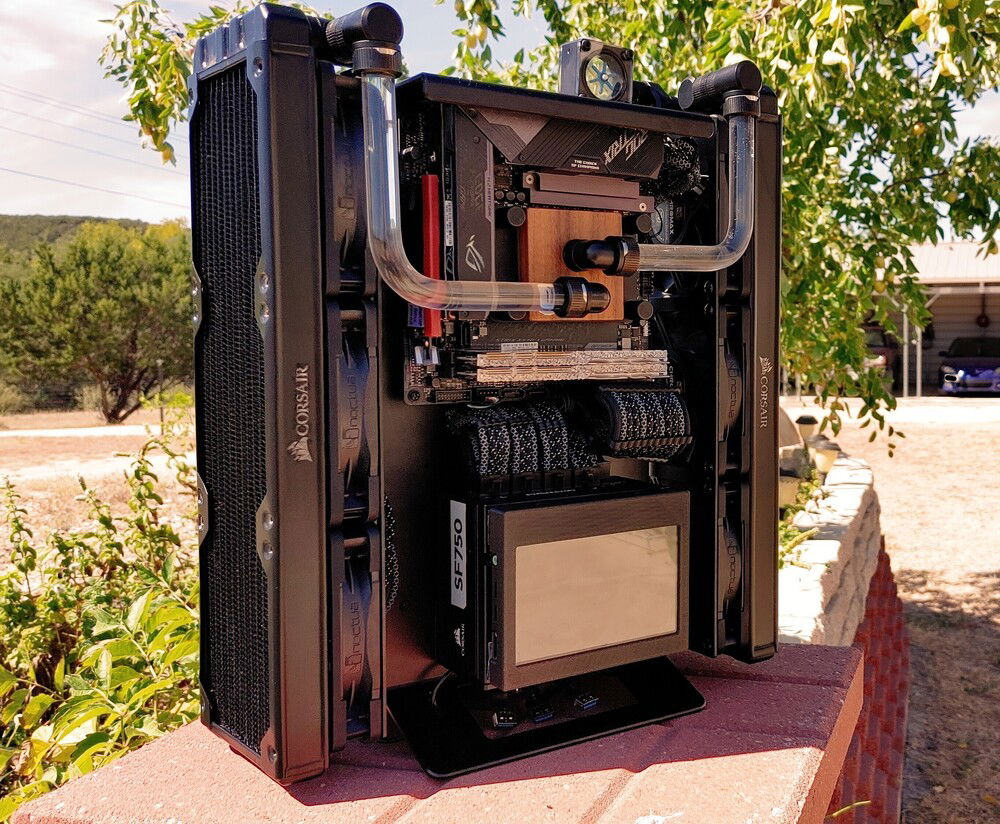

Introducing Project Xeta!

With the dog days of Summer, I could no longer suffer with an enclosed case heating everything up. This would make fans ramp up loudly and it drove me crazy as I previously had Corsair LL fans.. However, browsing around has landed me onto the Xproto-L which is an open air concept that has alot of modules in which allows me to reuse alot of parts I have on hand and swap the fans out with Noctua NF-A12 Chromaxes.

The Xproto-L is unique, and the build quality is magnificent. The screws did not strip, the paint did not scratch, and the panels do not bend much if not at all!
I will put all my trust in lifting this build above my head and not have it collapse is how magnificent the build quality is!
For the riser cable, a genuine Linkup PCIE Gen 4 cable is provided. The case has many modules as I am using dual 360 AIO rad mounts. I custom mounted the reservoir next to the GPU, using Dewire strips for fan cables, and aquacomputer OCTO for control.
Cables were made by Ensourced Cables check them out!

Idle Temperatures
Fans: 800 RPM
Ambient: 27.5C
Reservoir out: 31.8C
Gpu out: 33C
Ryzen 5900X: 45-50C
EVGA 3080: 31C
Delta T: 3-5C

Average Load Temperatures
Fans: 2000 RPM (100%)
Ambient: 30.4C
Reservoir out: 38-40C
Gpu out: 41C
Ryzen 5900X: 60-70C
EVGA 3080: 55C
Delta T: 8-10C
Color(s): Black
RGB Lighting? Yes
Theme: Industrial
Cooling: Custom Liquid Cooling
Size: SFF
Type: General Build

Hardware

CPU
$ 299.00
AMD - Ryzen 9 (5900x)
Socket: AM4
Cores: 12
Motherboard
$ 419.00
ASUS - ROG Strix Gaming (X570-I)
Chipset: X570
CPU Socket: AM4
Size: Mini-ITX
Memory
$ 205.98
G.Skill - Trident Z Royal (3200MHz) (Silver/RGB) (2x)
Type: DDR4
Capacity: 32 GB
Graphics
$ 1,000.00
EVGA - GeForce FTW3 Ultra Gaming
Chip Manufacturer: NVIDIA
Chip: RTX 3080
Interface: PCIe x16
Storage
$ 95.44
ADATA - XPG Gammix S70
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 109.00
Western Digital - BLACK SN750 Internal Gaming
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
PSU
$ 285.00
Corsair - SF750
Wattage: 750
Form Factor: SFX
Efficiency: 80+ Platinum
Case
$ 350.00
Xtia - Xproto-L
Type: Open Air
Side Panel: Open
Case Fan
$ 161.70
Cooling
$ 142.64
Corsair - Hydro X XR5 (Slim) (2x)
Type: Radiator
Size (WxHxD): 360 mm
Cooling
$ 80.00
EKWB - EK-CPU Lignum - Walnut
Type: CPU Waterblock
Cooling
$ 55.43
Cooling
$ 160.00
Cooling
$ 640.00
Cooling
$ 34.29
EKWB - EK-Tube ZMT
Type: Tubing
Cooling
$ 84.90
Watercool - Heatkiller Tube 100
Type: Pump/Reservoir Combo
Monitor
$ 58.99
Elecrow - Raspberry Pi
Size: 7 Inch
Panel: IPS
Refresh Rate: 60 Hz
Estimated total value of this build:
$ 4,160.42
