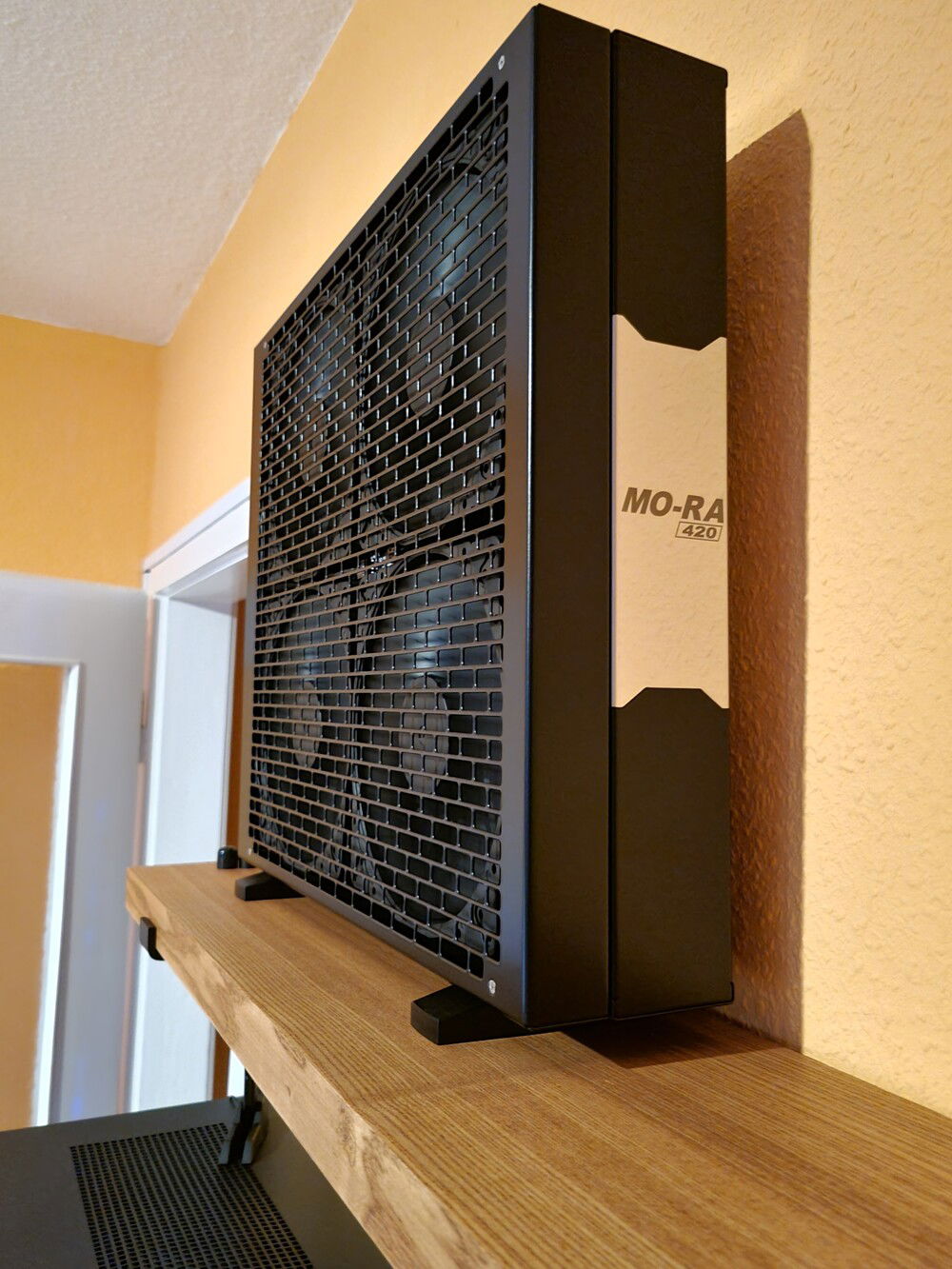

This is an upgrade from my previous build from 2020. I have updated the hardware, added a Watercool MO-RA3 420, and made some minor changes.

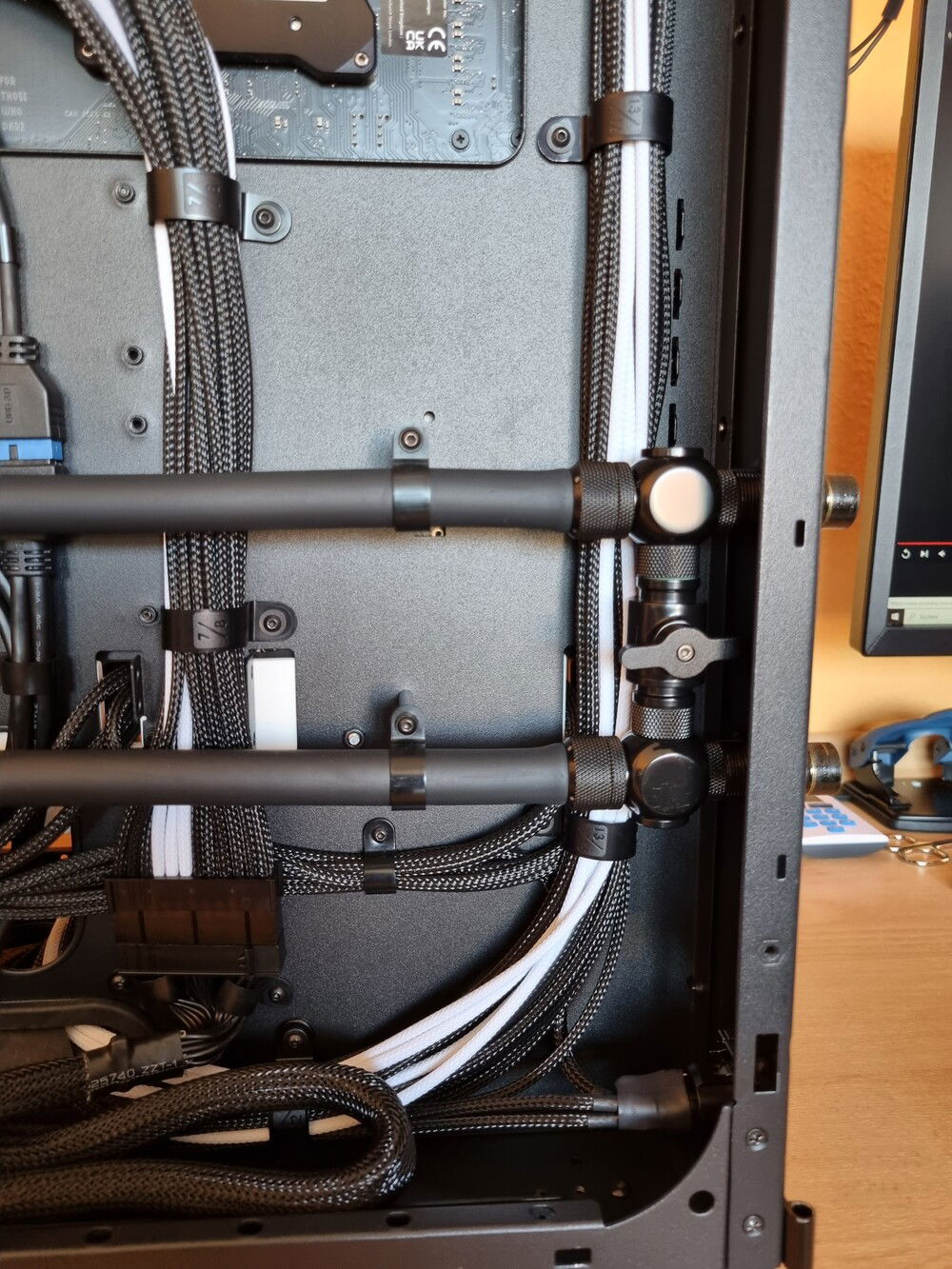

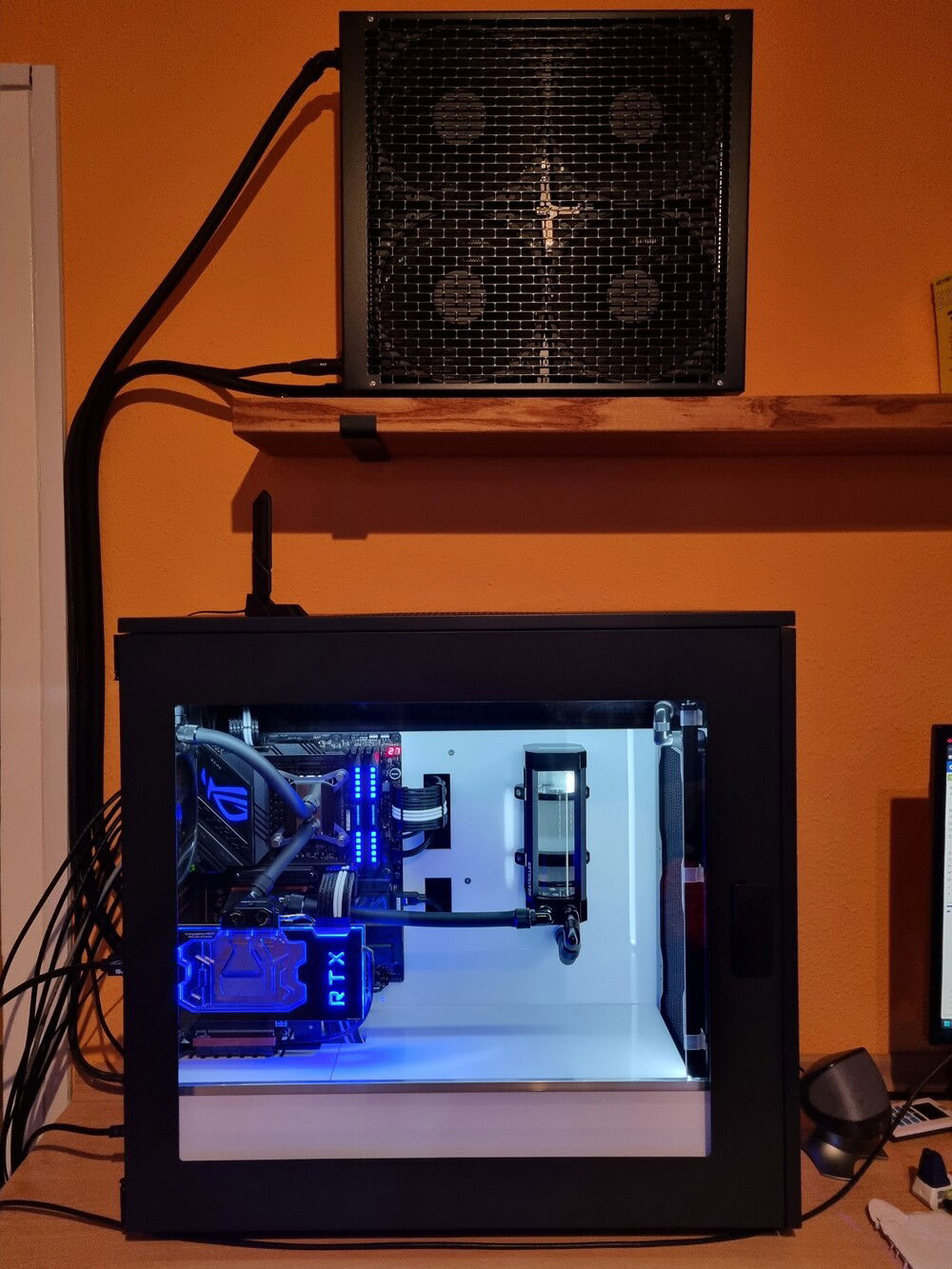

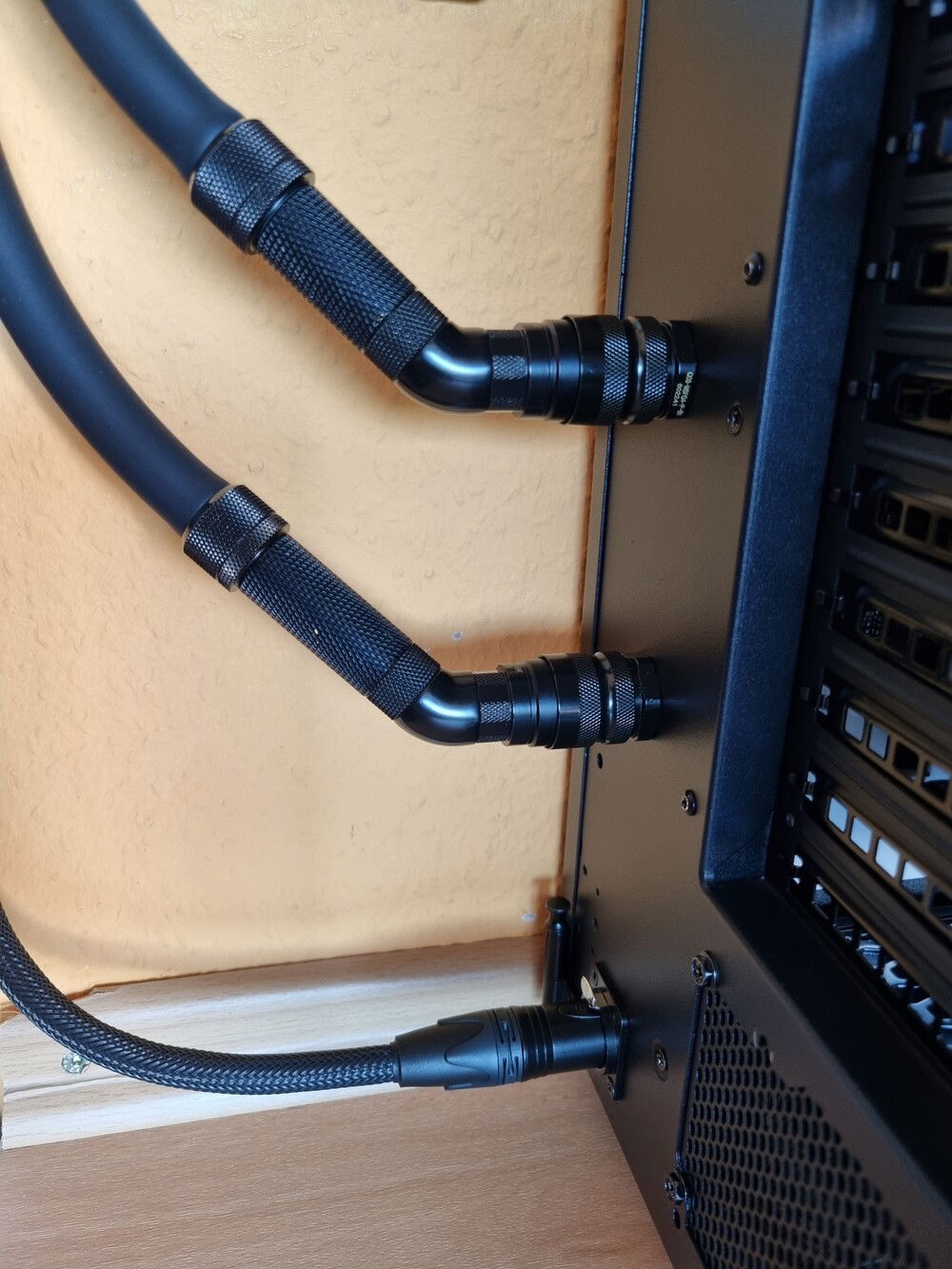

The Watercool MO-RA is connected to the internal Loop with Koolance QD3 Quick Disconnect. It is also possible to run the PC only with the internal Loop if the MO-RA3 is disconnected.

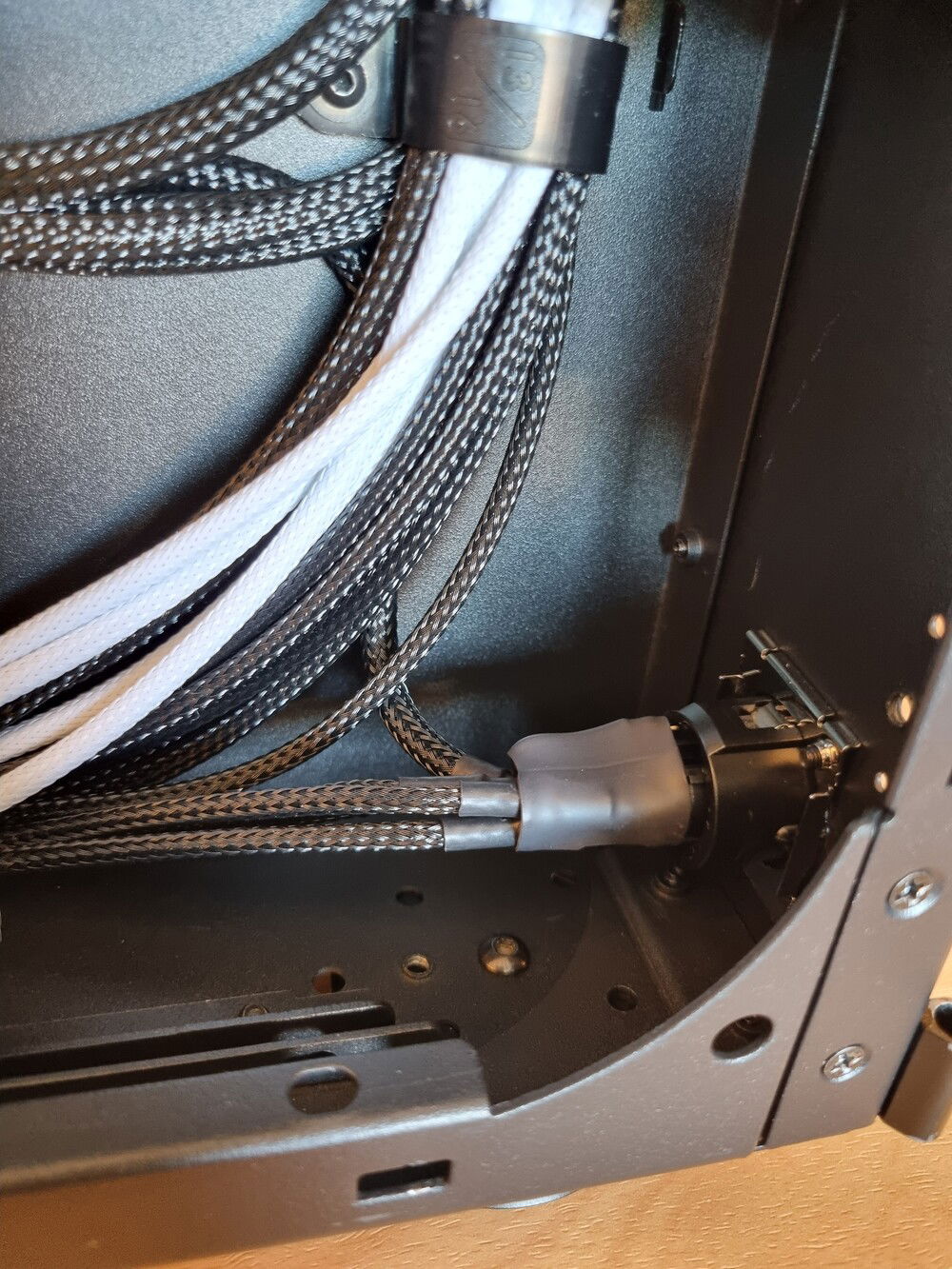

A Neutrik 5-Pin Cable was made for the power and USB supply of the MO-RA3 (Like this).

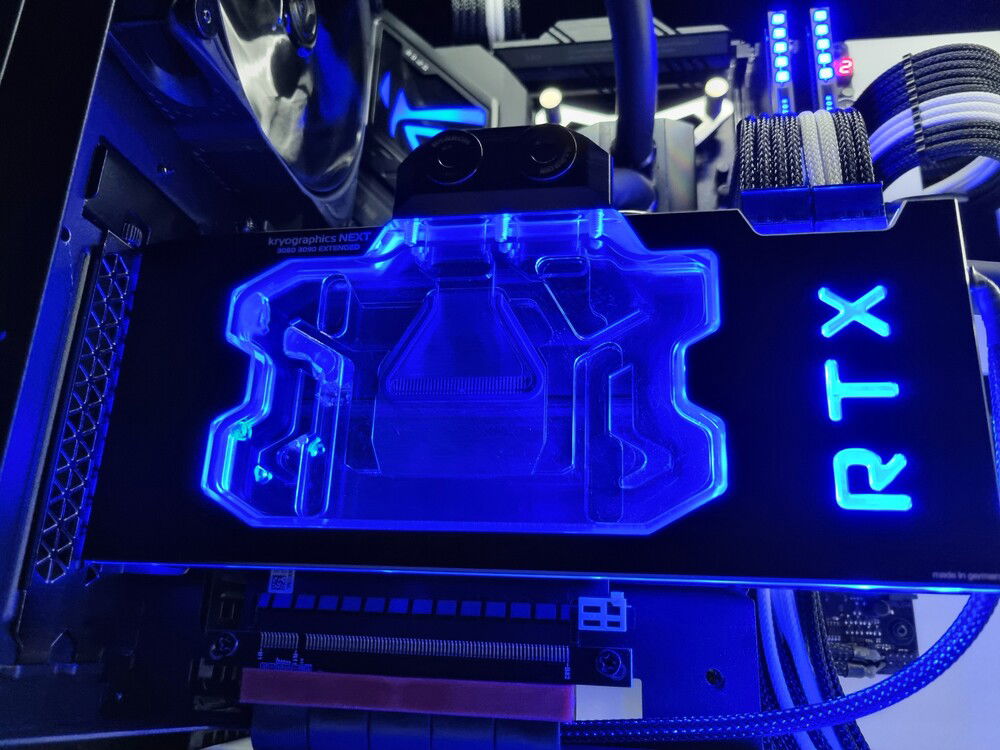

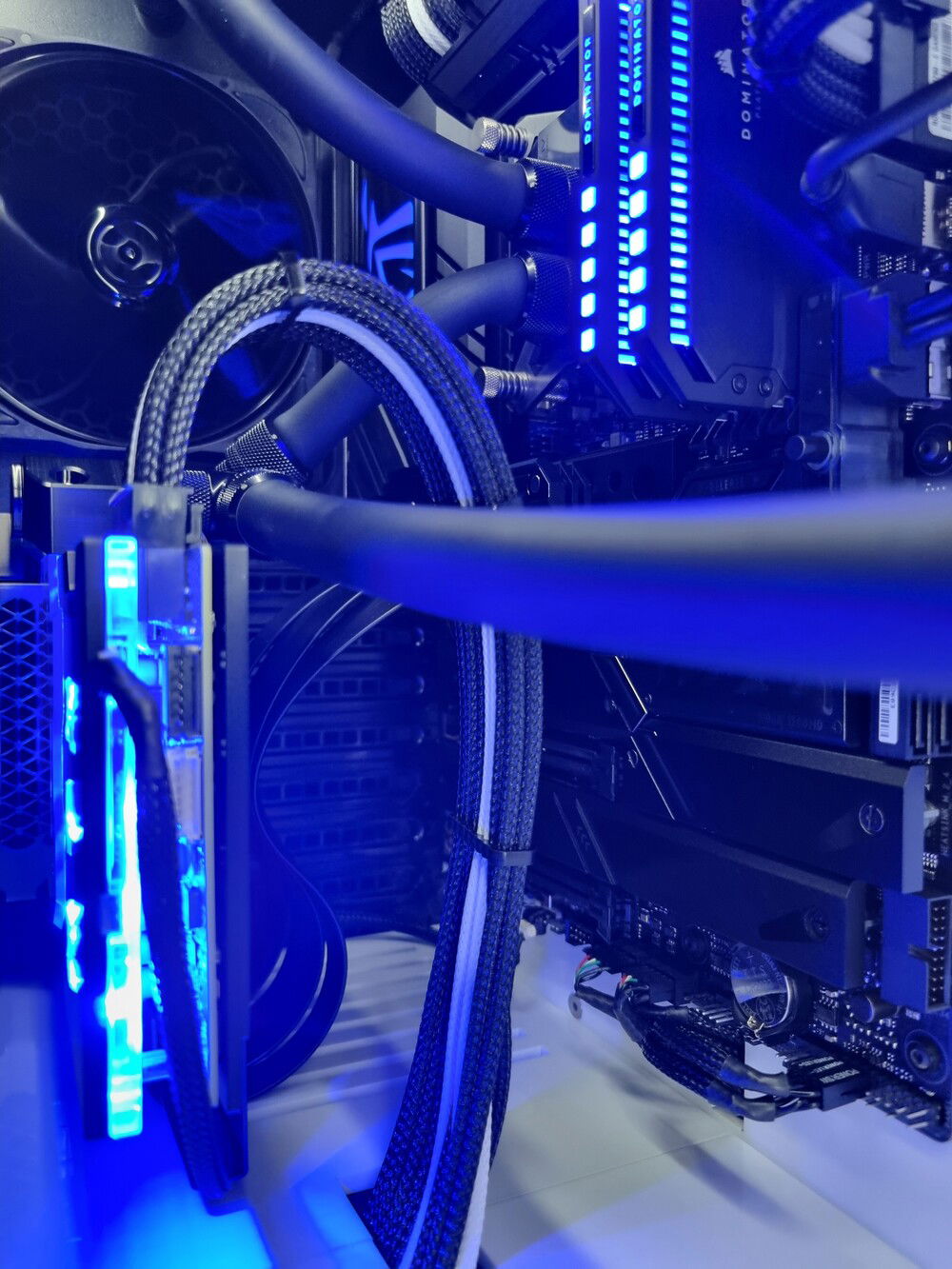

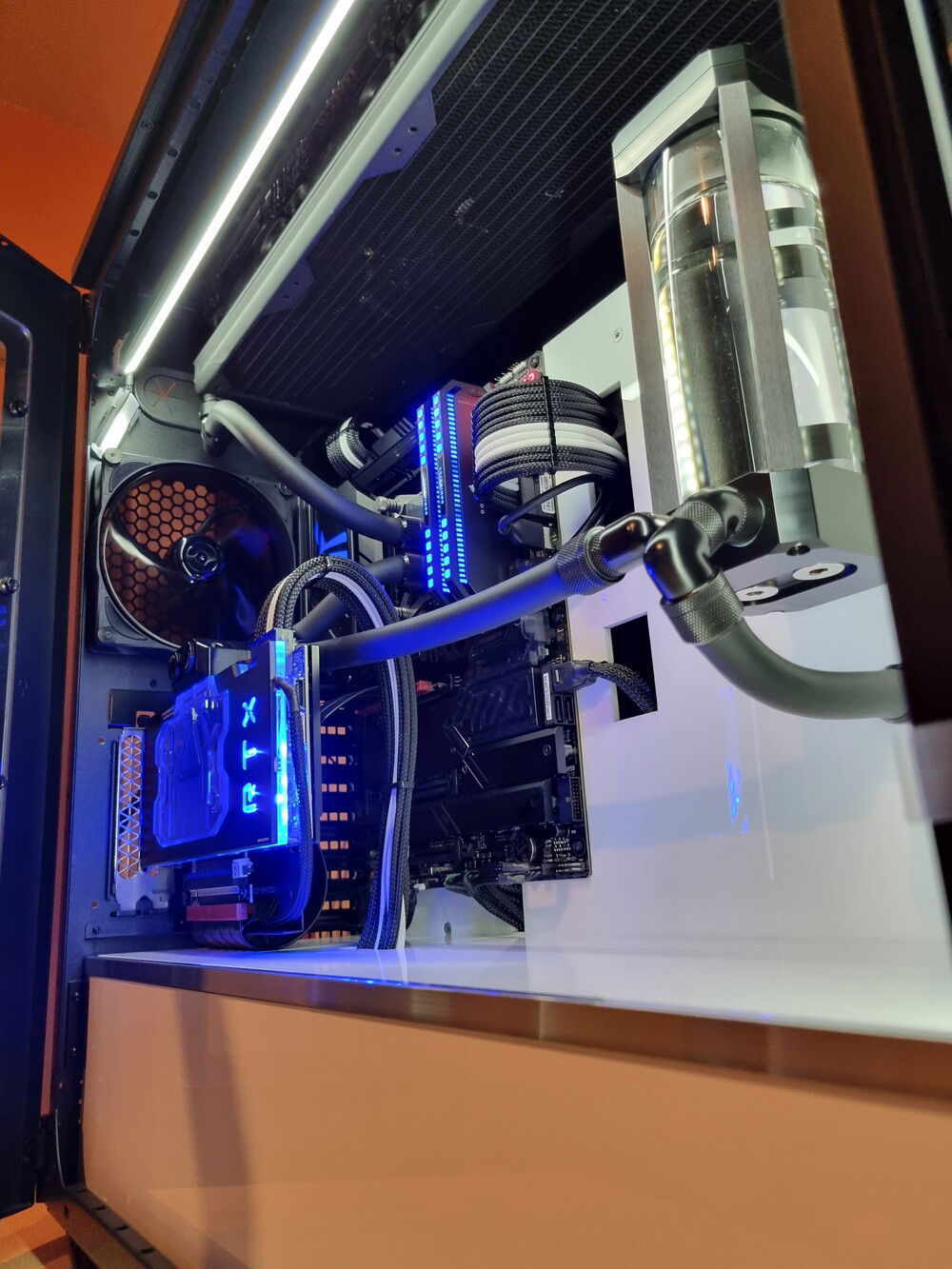

After six years, the GTX 1080 from my previous build was replaced with an RTX 3080. The RTX 3080 is mounted vertically and connected to the PCIE-Slot using a LINKUP Ultra PCIe 4.0 X16 Riser Cable. So far, it has worked without any problems.

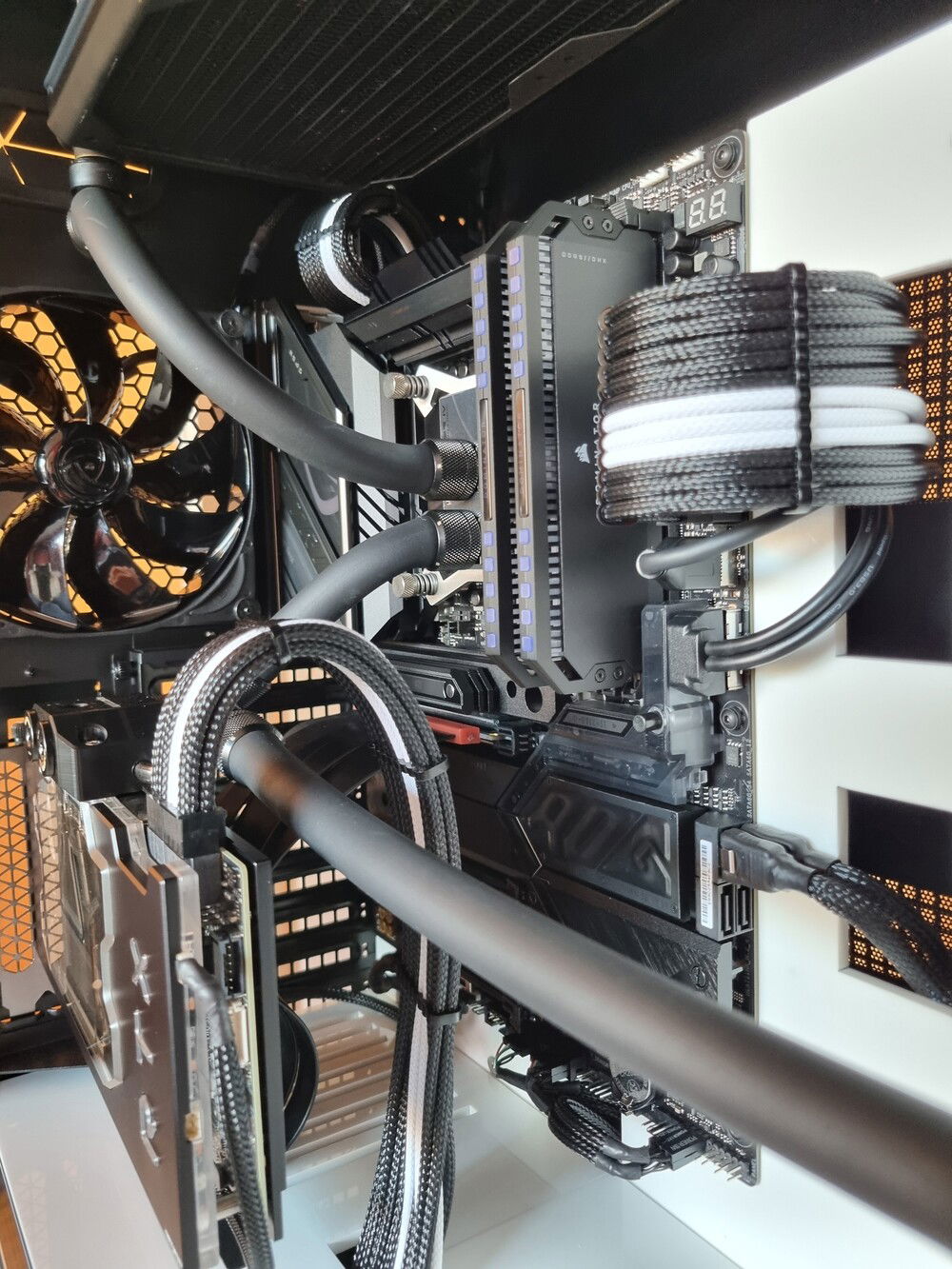

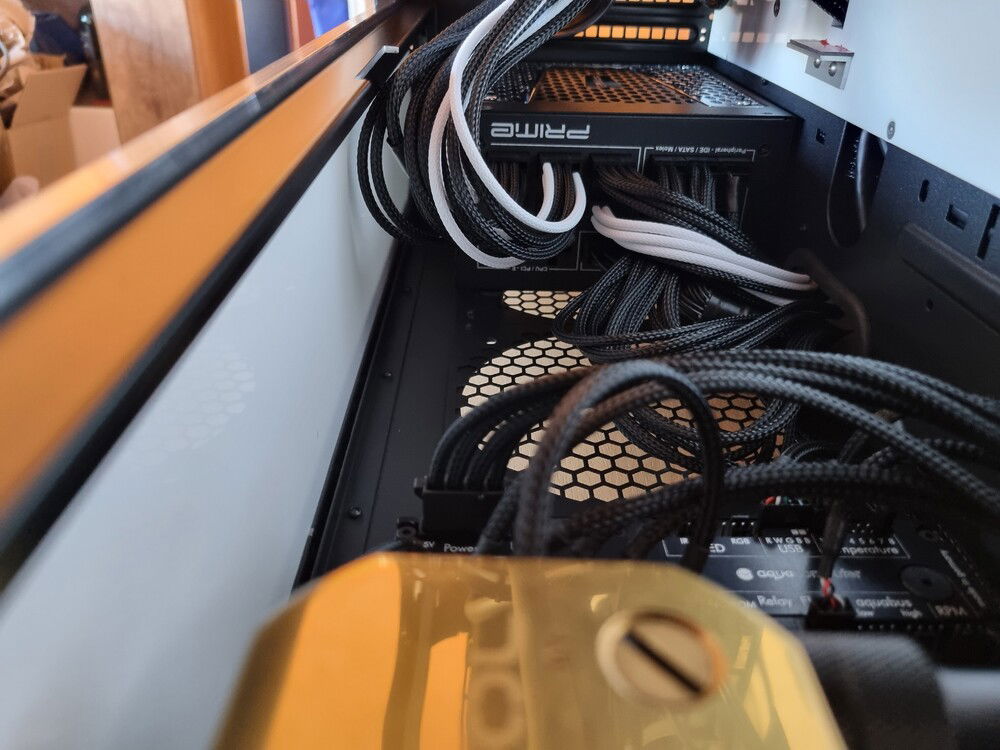

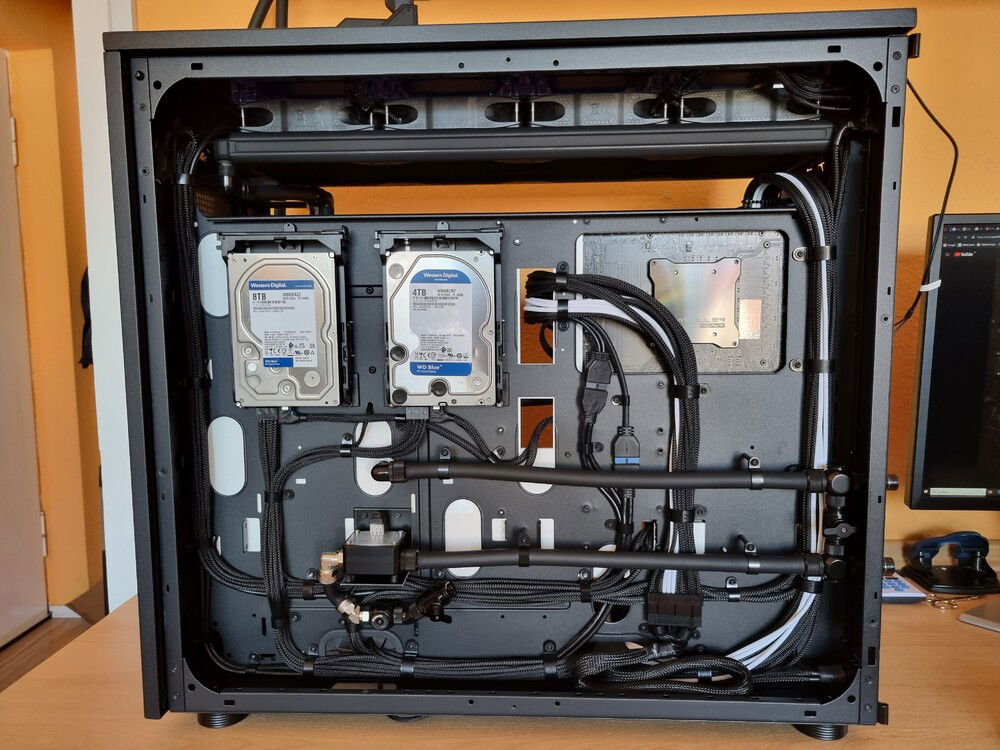

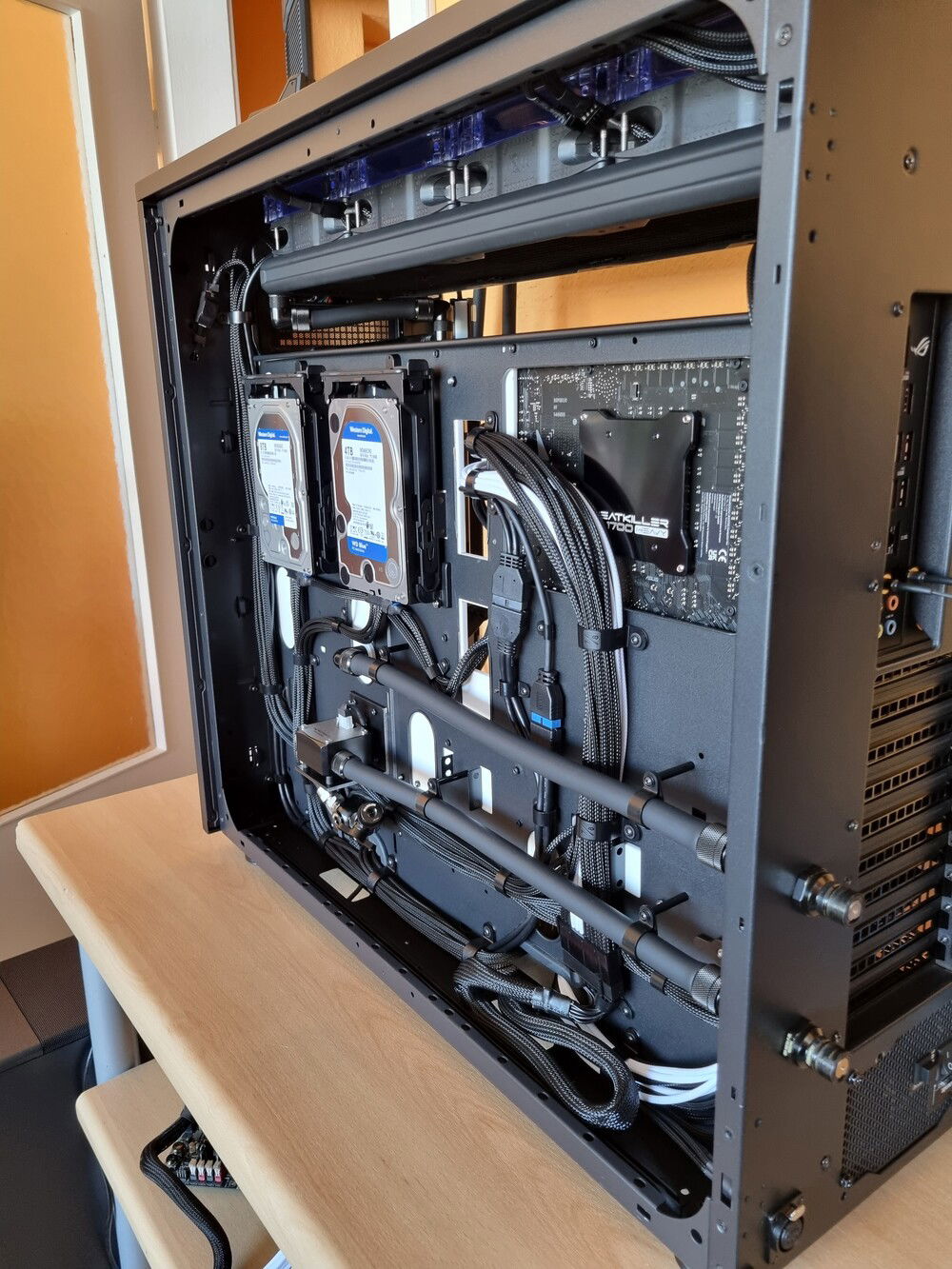

Almost all cables, such as the PSU, USB or FAN Cables, are made by hand by cutting them into the required length, crimping and afterwards sleeving them.


Specification List:

- Intel Core i7-14700K @ 5,6 GHz(P-Cores) & 4,3 GHz(E-Cores) by an -0.08 Voltage Offset
- ASUS ROG Strix Z790-E Gaming WIFI II
- Corsair Dominator Platinum RGB black 64GB, DDR5-6600, CL32-39-39-76 (2x32GB)
- Zotac Gaming GeForce RTX 3080 Trinity LHR 10GB @850mV at 1860 MHz
- LINKUP Ultra PCIe 4.0 X16 Riser Cable | Straight Socket - 25cm
- Samsung SSD 990 PRO 1TB
- WD_BLACK SN770 SSD 2TB
- WD Blue 4TB (WD40EZRZ)
- WD Blue 8TB (WD80EAZZ)
- Seasonic Prime TX-1000
- Thermaltake Core W100
- Core W100 Vertical GPU Mount

Custom Loop List:

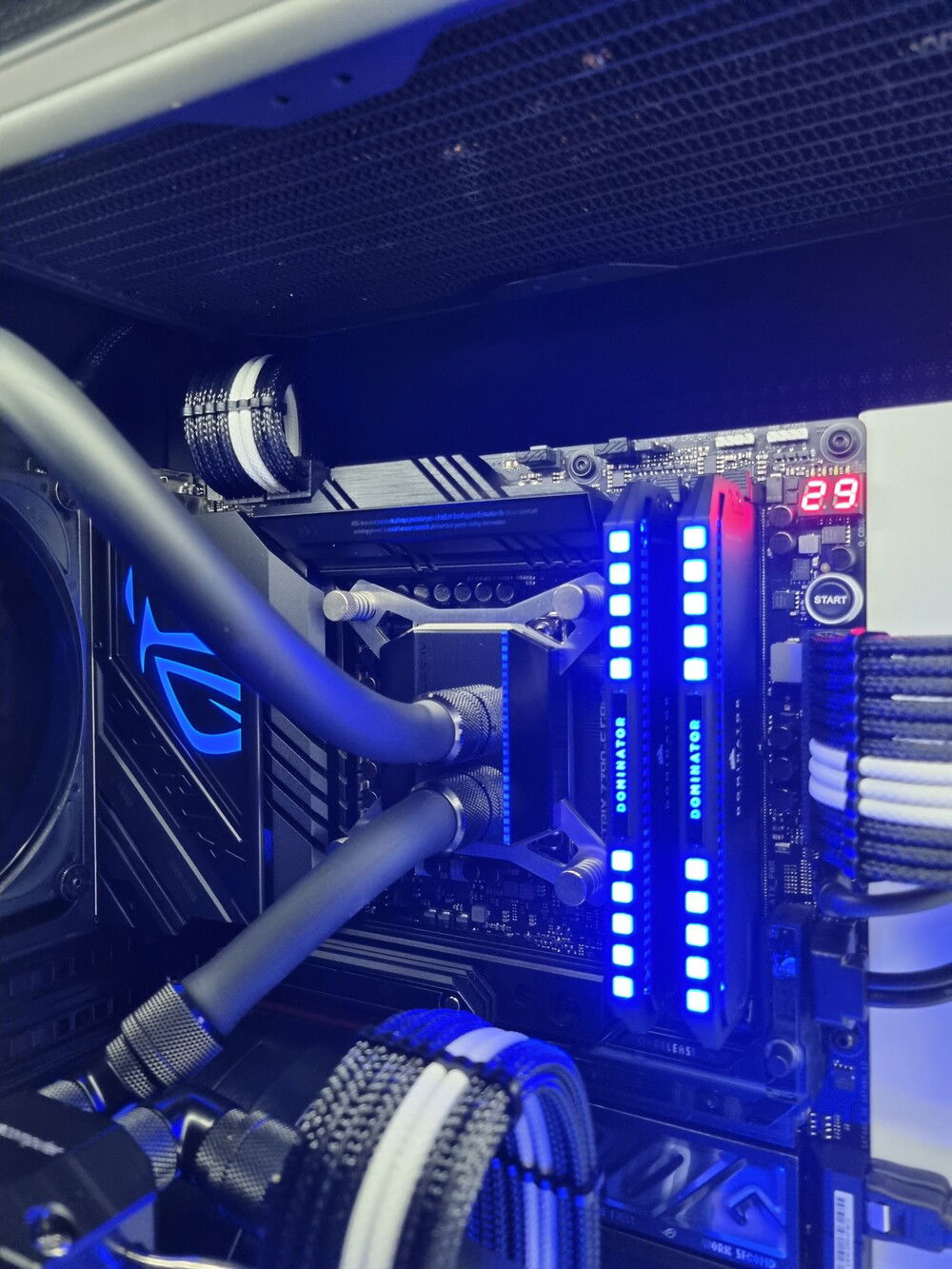

- Watercool Heatkiller IV Pro Black Copper Intel
- Watercool Heatkiller LGA 1700 Heavy Backplate
- ARCTIC MX-6
- Aquacomputer Kryographics NEXT RTX 3080 Extended nickel plated version
- Aquacomputer Kryographics NEXT RTX 3080 Backplate, active XCS
- Watercool Heatkiller Tube 150
- Aquacomputer Flow Sensor High Flow G1/4
- Aquacomputer Aquaero 6 LT USB Fan Controller
- Aquacomputer passive heat sink for aquaero 6, black
- Aquacomputer - Double Protect Ultra (Clear)
- Aquacomputer Shoggy Sandwich
- EK Water Blocks EK-Loop DDC 4.2 PWM
- Alphacool Eisdecke DDC brass top
- EK Water Blocks EK-DDC Heatsink Housing
- EK Water Blocks EK-Tube ZMT 16/10mm
- Hardware Labs Black ICE Nemesis GTS 560 XFlow
- Hardware Labs Black ICE Nemesis GTS 420 XFlow
- 8x Noiseblocker NB-eLoop B14-PS Black Edition, 140mm
- 2x Koolance - QD3 Female/Male (Quick Disconnect)
- 18x Barrow Compression Fitting (ID3/8-OD5/8) Soft Tubing
- 2x Barrow Compression Fitting (ID3/8-OD1/2) Soft Tubing
- 5x Barrow 45 Degree Rotary Adaptor (TWT45-B01)
- 5x Barrow 90 Degree Rotary Adaptor (TWT90-V2.5)
- 1x Barrow 45 Degree two Rotary Adaptor (TWT45S-V1)
- 3x Barrow 45 Degree two Rotary Adaptor (TWT90S-V2)
- 6x Barrow G1/4" Thin Stop Plug
- 2x Barrow G1/4" Mini Ball Valve black
- 3x Barrow G1/4" 4-Way Cube Rotary black
- 2x Barrow G1/4" Pass Through black/white
- FREEZEMOD copper female to female 30/40mm
- 4x Phobya Temperature sensor G1/4 - matte black

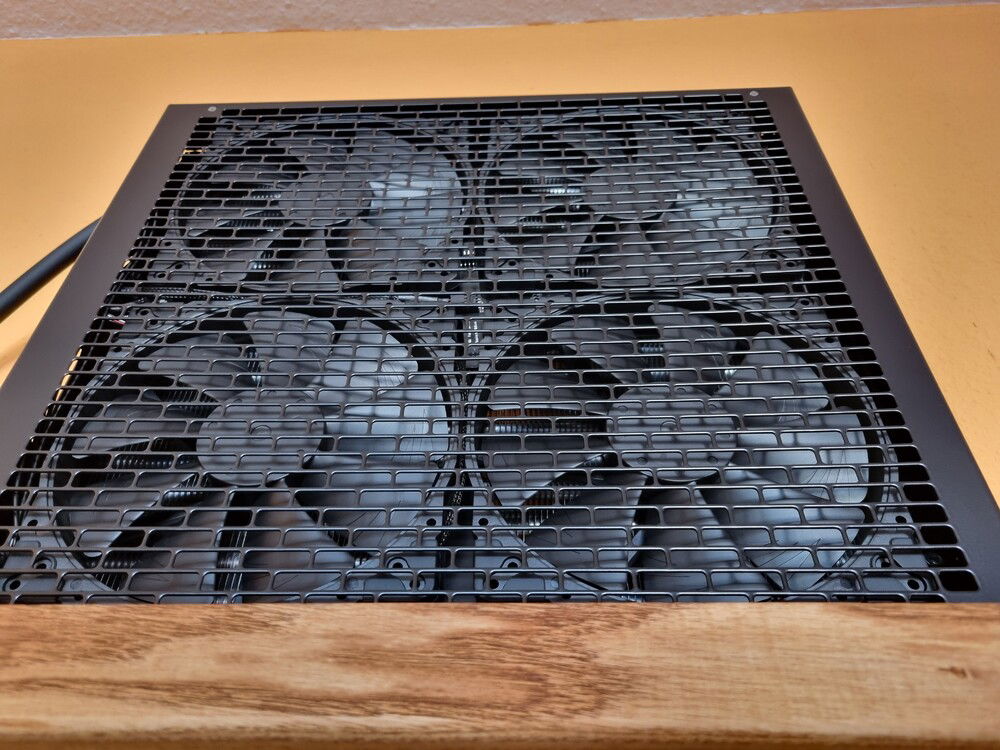

- Watercool MO-RA3 420 for Noctua NF-A20
- 4x Noctua NF-A20 PWM chromax.black.swap
- Aquacomputer - Quadro Fan Controller
- Watercool MO-RA X-Splitter for Noctua NF-A20

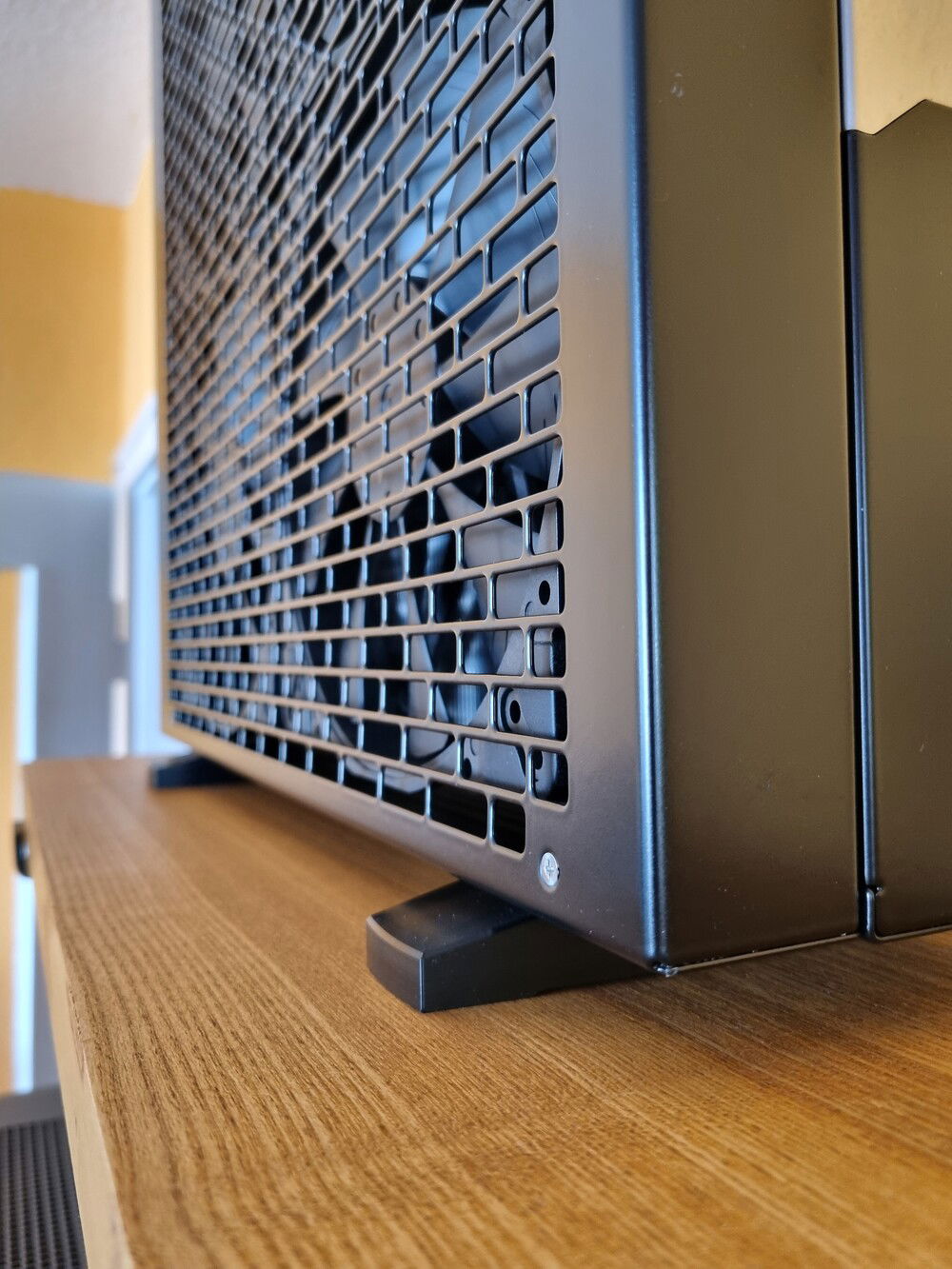

- Watercool MO-RA3 Feet
- Watercool MO-RA3 420 Fan Grill - Classic - black (high version)

Case & Others:

- Custom MB Tray Cover acrylic glass white 5mm

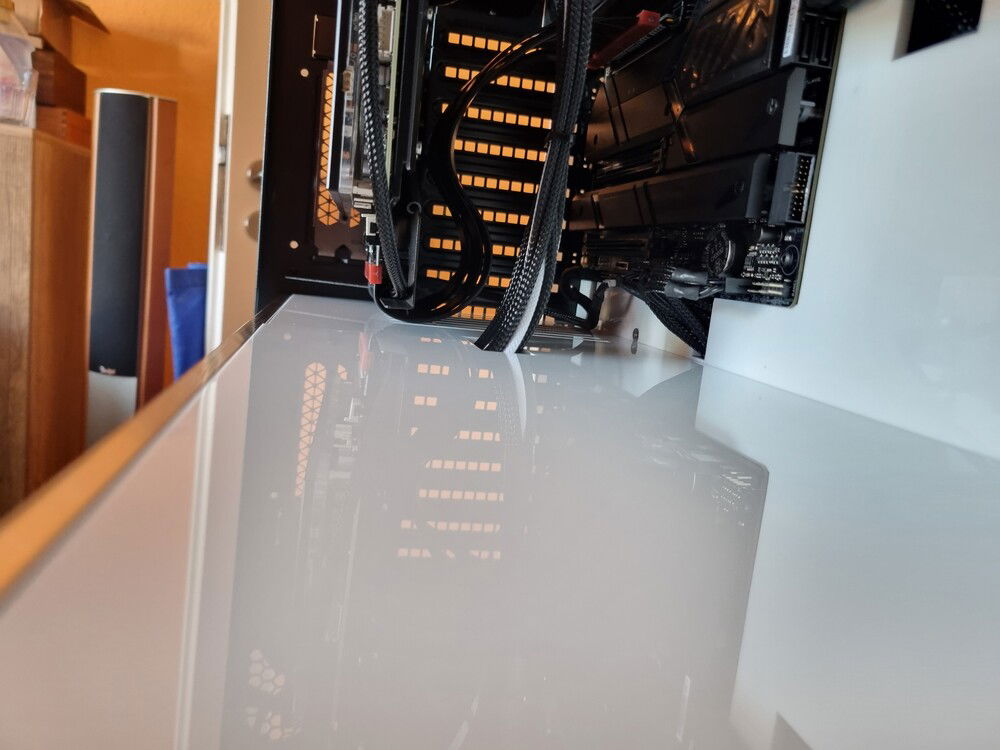

- Custom PSU Shroud acrylic glass white 5mm top & 3mm front
- 4x CLEAR Components Case feet black
- DIY PSU Cables by MDPC-X
- Blackest-Black/Natural-White Cable Sleeving SMALL
- 15/17/23-AWG hook-up wire
- Crimp Terminal ATX 15-16AWG/Crimp Terminal FAN/DUPONT
- Differemt MOLEX Connectors
- Cable-Comb BLACK
- DIY LED Lighting
- LED Strip 12V Cold White 6000K 120LED/m - Black Aluminium 45° Corner profile - Cover for LED profiles Opal
- Aquacomputer Farbwerk Nano
- lots of black screws, nuts and standoffs in different sizes
- HellermannTyton Cable Clip HxP in in different sizes
- DIY MO-RA3 Neutrik 5-Pin Cable for Power and USB Supply
