Project X / Evolv X watercooled

HI Guys,

this is my personal build as a Home Office / Gaming / Living Room PC.

As i focus heavily on quietness, and wanted to reuse my old watercooling parts i decided to sqish 2x 360 Rads (1 xFlow 360 on top and one regular 360 in the front), to have a better fit for the tubes i mounted the reservoir upfront on the radiator and preinstalled all the tubings for the in and outlet to the reservoir.

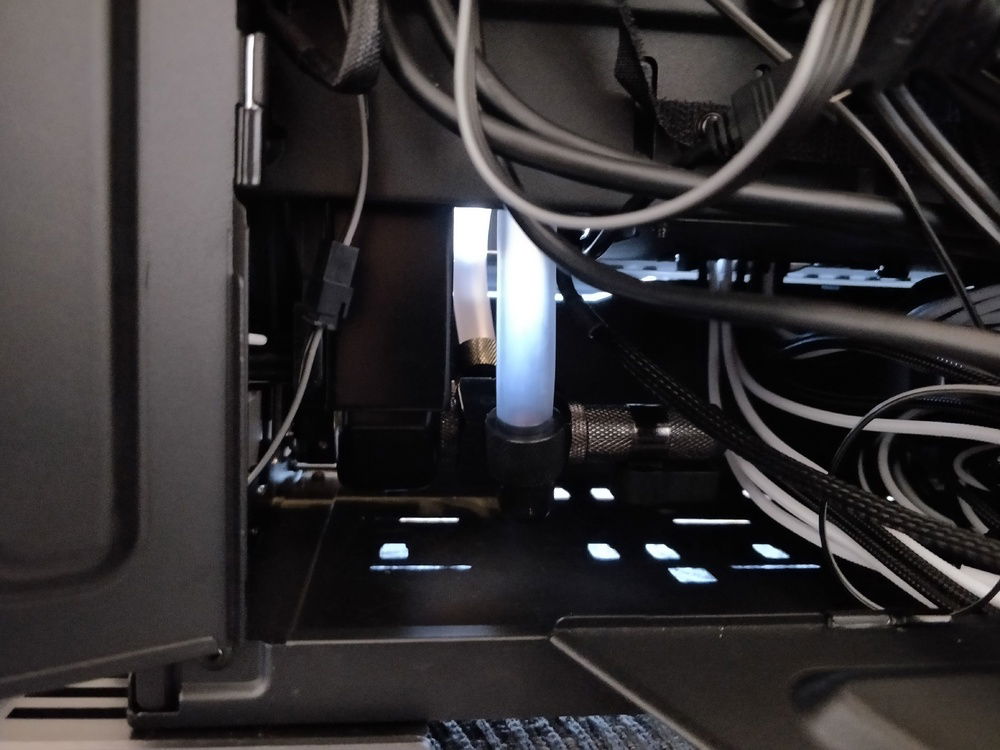

A little Challenge was the Drainport, but i will fix it as soon as i get my GPU Block Emoji

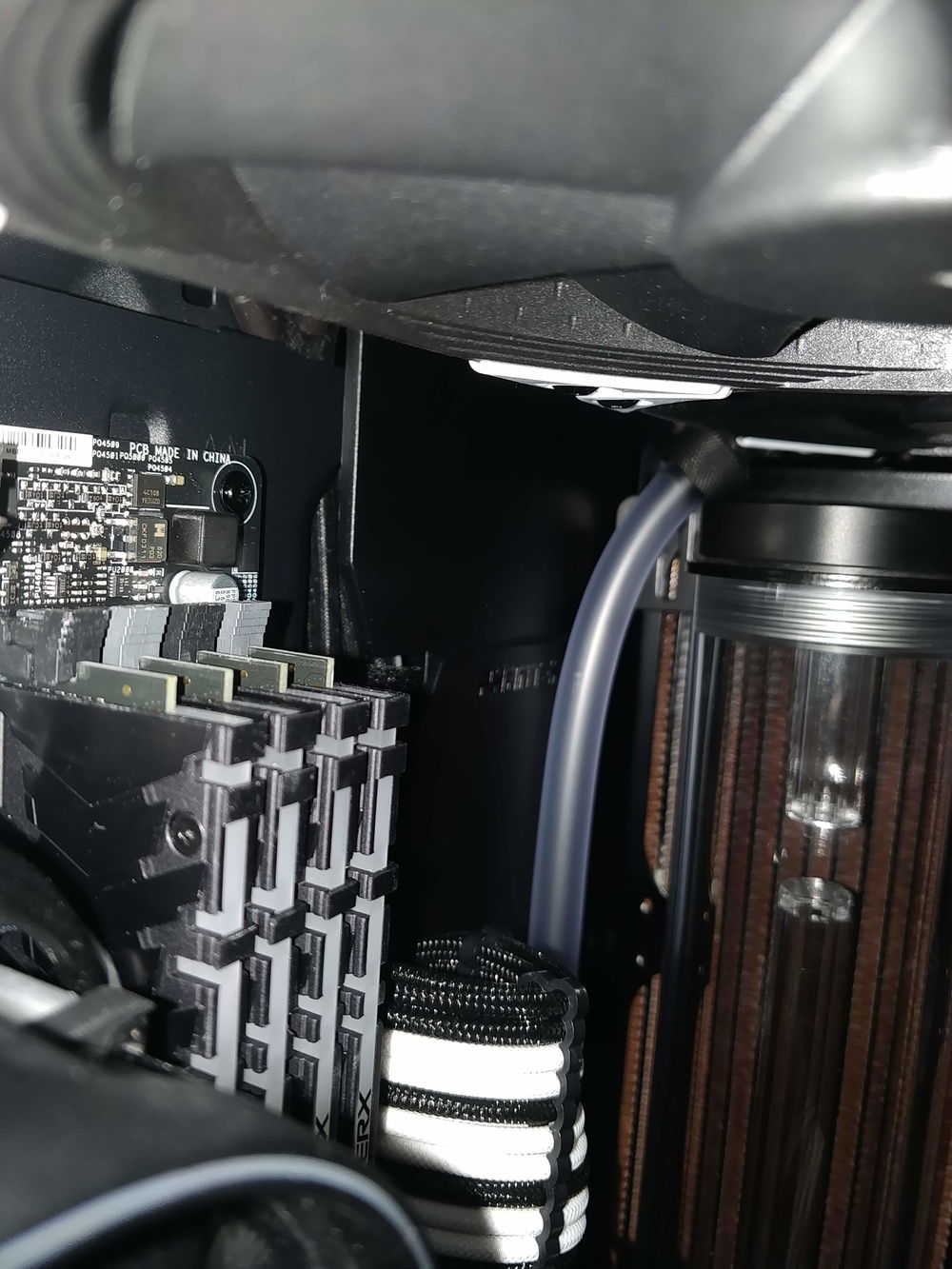

A little note aside, if you plan to mount a xFlow Radiator in the Evolv X i recommend that you use a 90° Adapter and a 45° Adapter in order to get the Tube straigt to the bottom Radiator, in order to have the inlet and the Drain Port at the lowest point of the Build.


NOTE: Build will be updated with Ryzen 3000 when released, also new MOBO then.
NOTE: If you decide to use an Crossflow Radiator on Top, i recommend to use an 120 Fan in the Back, otherwise you will have a hard time to squeeze the fitting in, i had to use a 25mm extenstion and then a 90° Adapter, i currently have a 140mm Fan in the Back, but even with the Adapters it's a very very tight fit and i had to apply a bit of pressure and the Fan barely fits in.
Color(s): Black Blue White
RGB Lighting? Yes
Theme: Color
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build

Contests

This build participated in 1 contest.

Hardware

CPU
$ 150.00
AMD - Ryzen 5 (2600)
Socket: AM4
Cores: 6
Motherboard
$ 153.00
ASUS - Prime (X470-Pro)
Chipset: X470
CPU Socket: AM4
Size: ATX
Memory
$ 244.05
Kingston - HyperX Predator (3600MHz) (Black)
Type: DDR4
Capacity: 32 GB
Graphics
$ 299.99
ASUS - GeForce ROG Gaming
Chip Manufacturer: NVIDIA
Chip: RTX 2070
Storage
$ 115.97
Crucial - P1
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 129.99
Samsung - 840 EVO
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 250 GB
Storage
$ 111.32
Samsung - 970 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 500 GB
PSU
$ 395.00
Seasonic - Prime
Wattage: 850
Form Factor: ATX
Efficiency: 80+ Titanium
Case
$ 179.99
Phanteks - Enthoo Evolv X (Black)
Type: Mid-Tower
Side Panel: Tempered Glass
Case Fan
$ 26.95
Case Fan
$ 24.75
Cooling
Alphacool - Eisbecher D5 775 V.3 PUMP / RES. Combo
Type: Reservoir
Size (WxHxD): 250 mm
Cooling
Alphacool - Fittings
Type: Custom Loop
Cooling
$ 62.25
Alphacool - NexXxoS ST30 Full Copper
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
$ 77.36
Alphacool - NexXxoS ST30 Full Copper X-Flow
Type: Custom Loop
Size (WxHxD): 360 mm (3 x 120 mm)
Cooling
Alphacool - Pump
Type: Custom Loop
Cooling
Alphacool - Reservoir
Type: Custom Loop
Cooling
Alphacool - Tubing
Type: Custom Loop
Cooling
EKWB - GPU Blocks (discontinued)
Type: Custom Loop
Cooling
$ 92.29
EKWB - Velocity Copper/Plexi AMD
Type: CPU Waterblock
CableMod
CableMod - Sleeved Cables
Mode: Stock
Sleeve: PRO ModMesh
Color: White
Accessories
$ 107.00
Accessories
$ 148.25
Accessories
$ 11.99
Accessories
$ 119.10
Monitor
$ 310.99
Acer - KG271
Size: 27 Inch
Panel: TN
Refresh Rate: 144 Hz
Keyboard
$ 178.00
Logitech - G910
Interface: Wired
Key Switch Type: Romer-G
Type: Full Size
Mouse
$ 92.11
Logitech - G900
Interface: Wired/Wireless
