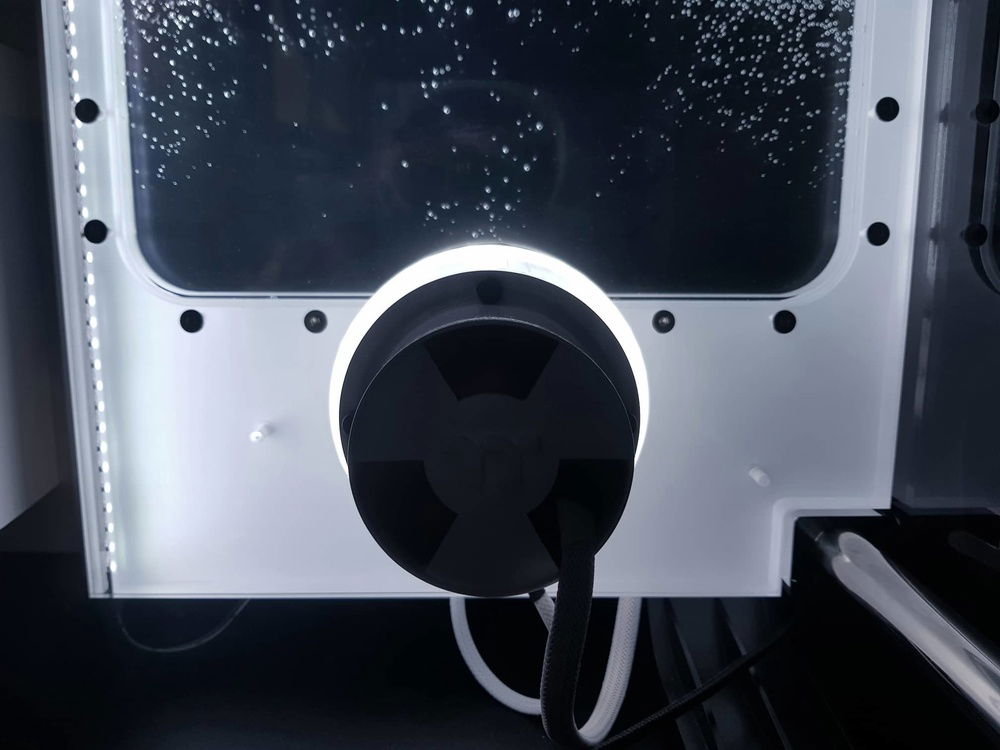

D5 pump

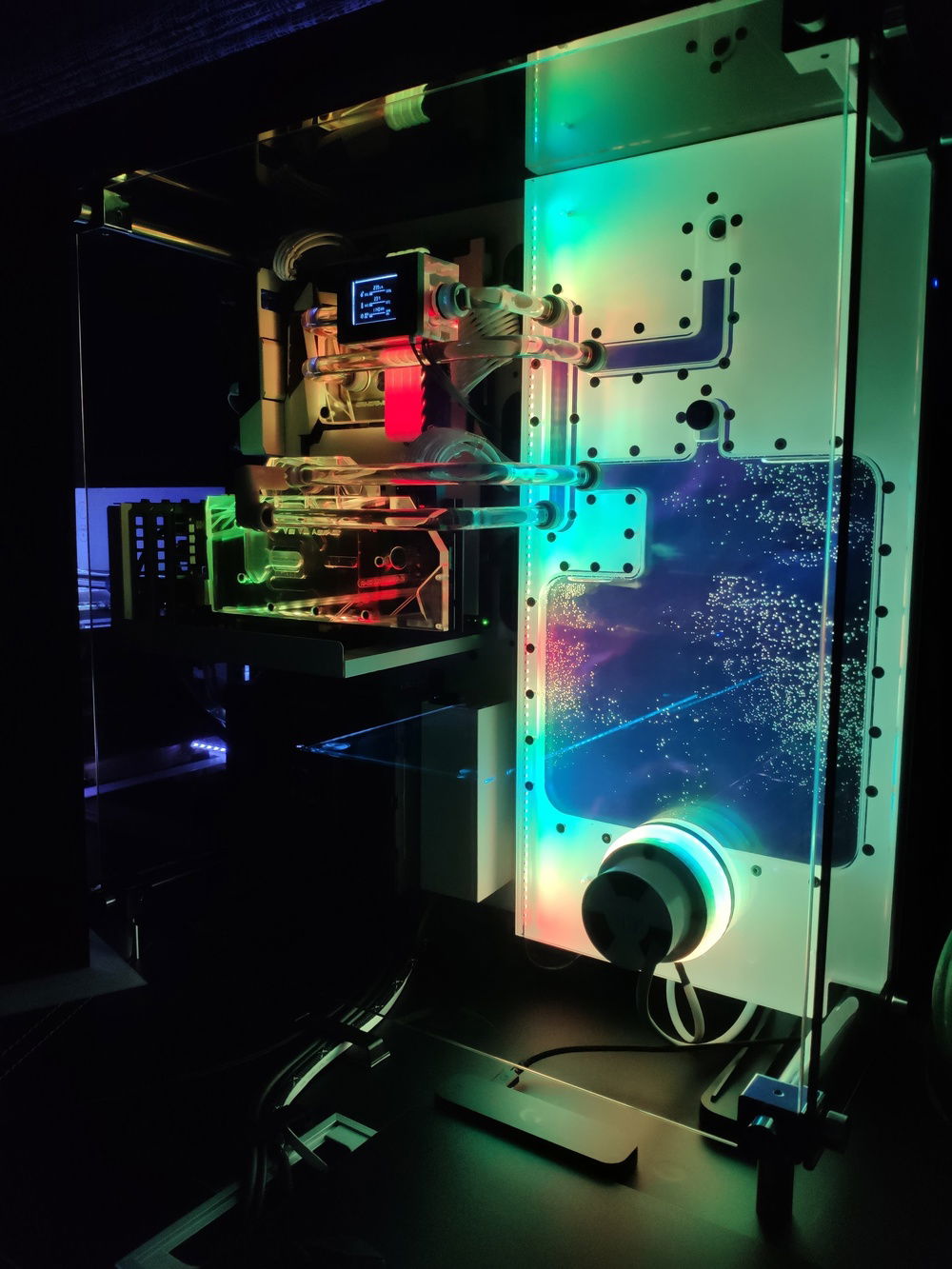

RGB~~

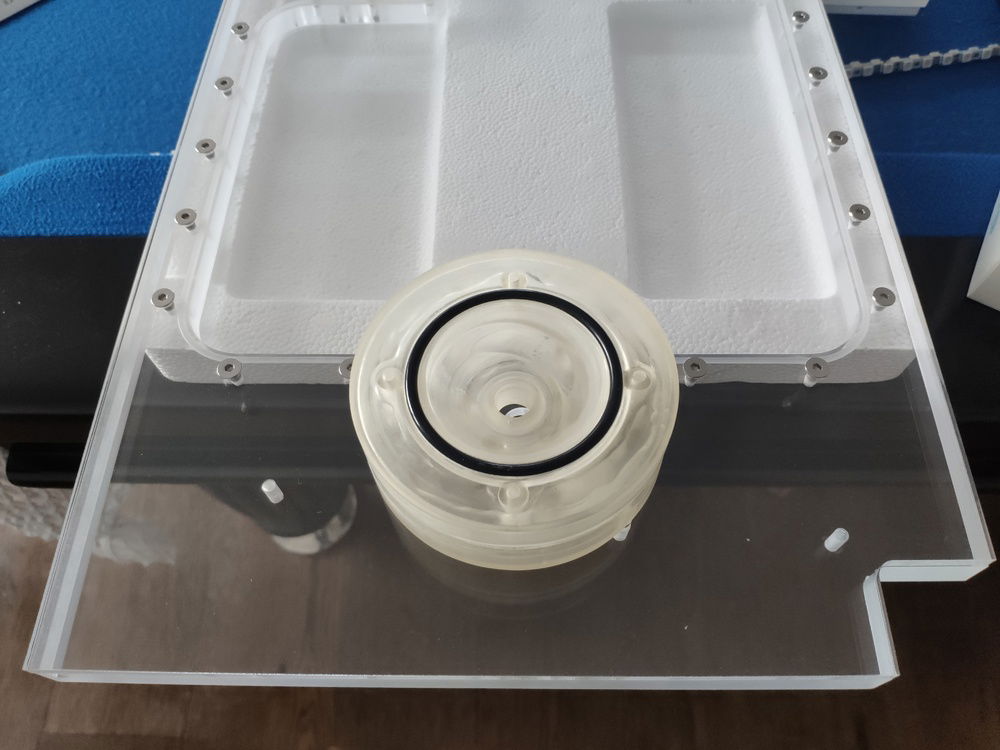

CNC machined distribution plate.

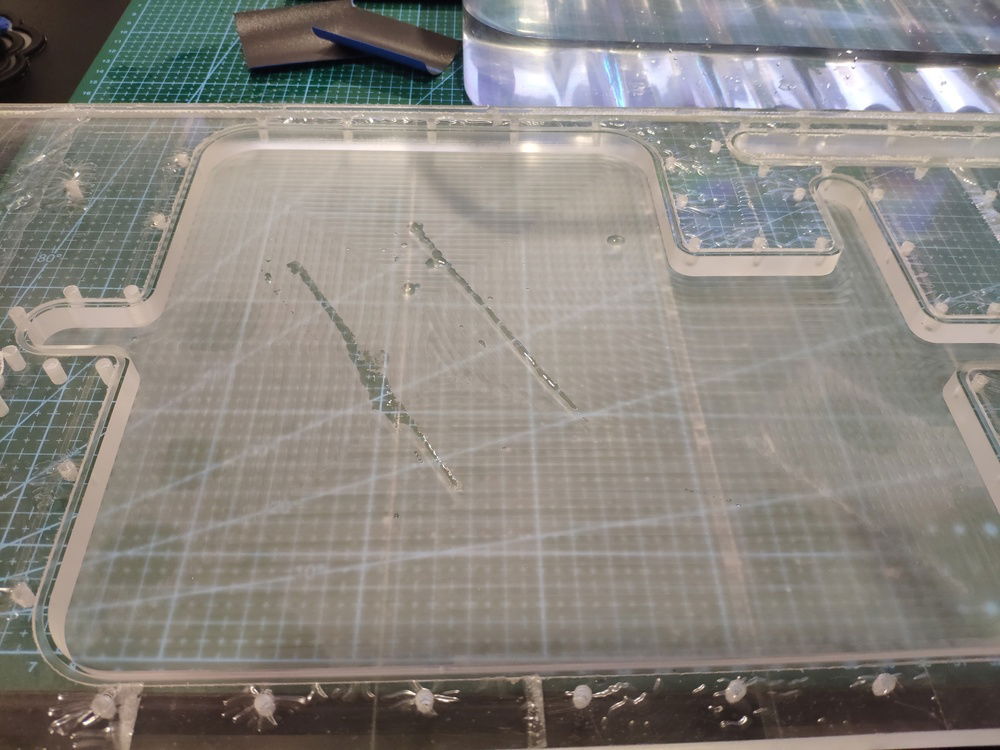

Machine marks are inevitable.
5hr+sanding and polishing
Backside painted to hide cable mess.

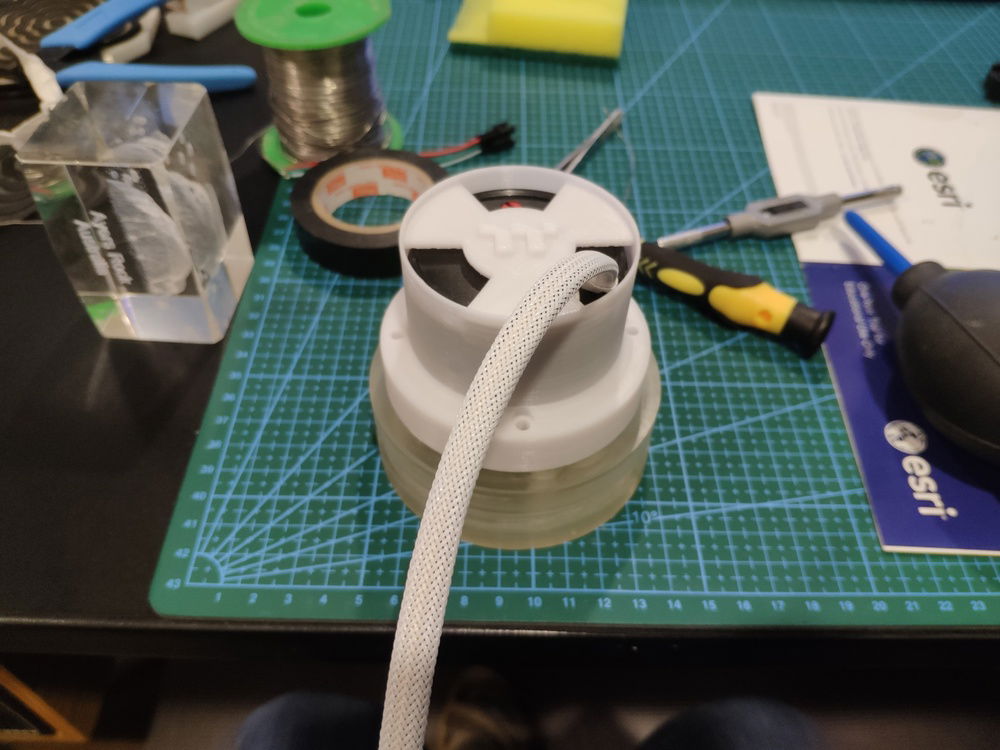

3D printed D5 pump mount, self-designed and printed using my trusty DLP 3D printer.
19ich eBay $15 screen works fine
Haven't decided on what to put on the screen behind disto plate, suggestions?

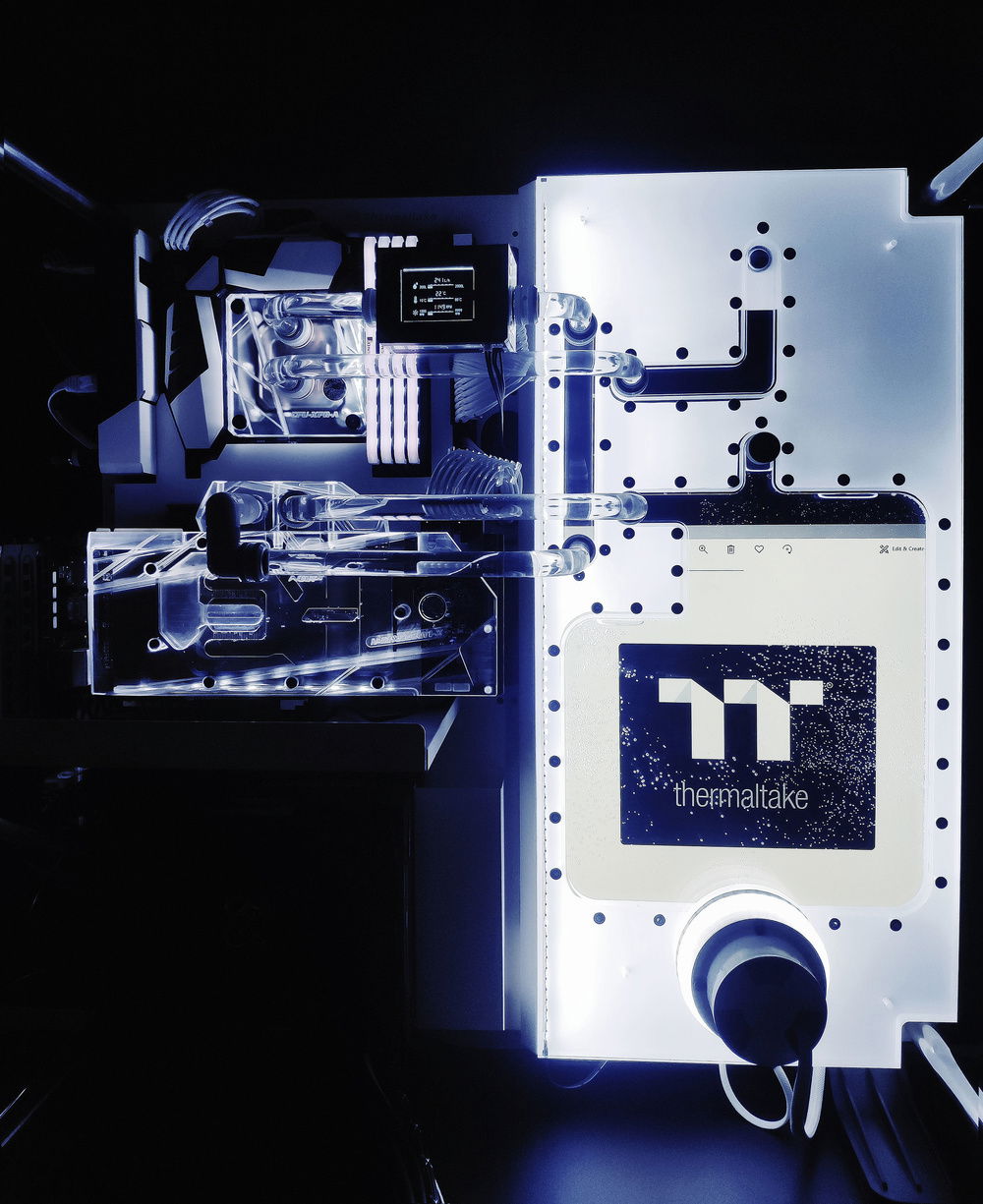

For all of those interested in how the display works, It is disassembled to minimize thickness, then the display panel is mounted to the distro plate, while the rest of the electronics goes in the case behind.
Project TT V2 feat. Display Distro Plate
AD:
The project never ends, more designing and fabricating is done since my last post, Project TT.
A new distribution block was planned to fix some hole location errors and changing to a screw based design instead of glue. A pump is also added to the block to improve flow and makes filling the loop a million times easier (I needed an external pump to fill the loop in my old design as there was no pump in the case).
A new distribution block was planned to fix some hole location errors and changing to a screw based design instead of glue. A pump is also added to the block to improve flow and makes filling the loop a million times easier (I needed an external pump to fill the loop in my old design as there was no pump in the case).
Color(s): White
RGB Lighting? Yes
Theme: Futuristic
Cooling: Custom Liquid Cooling
Size: ATX
Type: General Build
