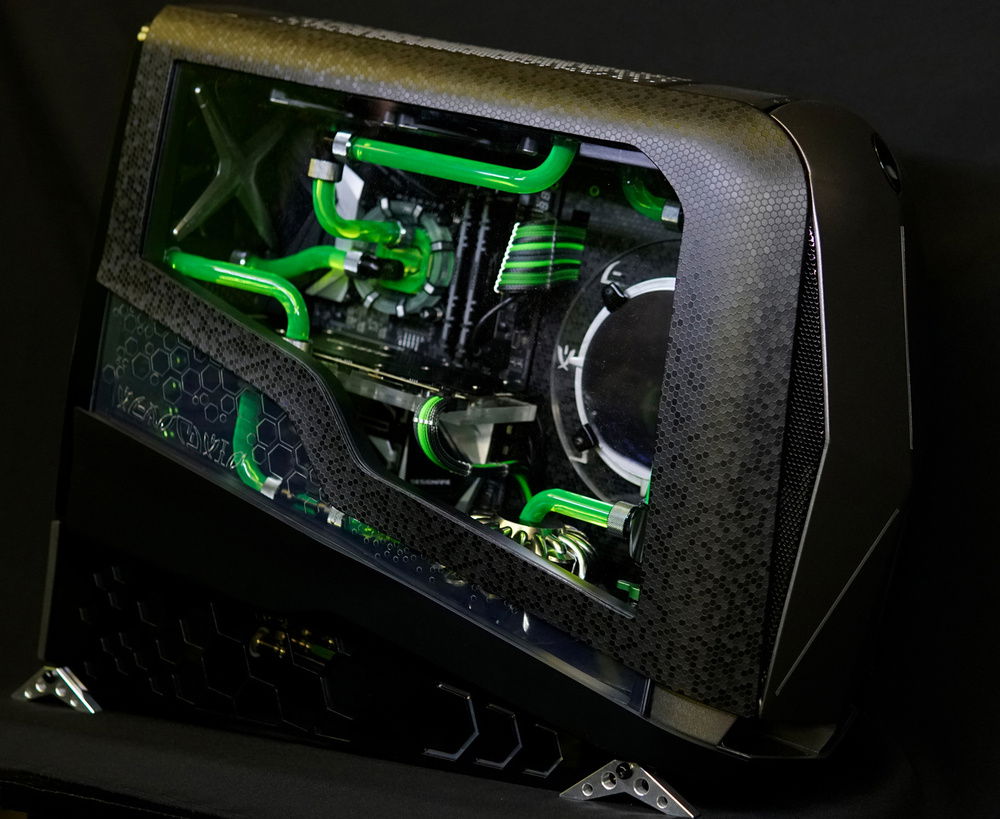

This mod is based on Alienware Aurora R4 case, which I personally love for its design, so i always wanted to make a mod on this case that give it the right visibility, but keeping the original shapes and styles. So i started my project in October 2019 and putting down my ideas to make it really special!
One of the main challenges was the full ATX conversion, because it only support mATX, so i adopted slanted design and installed the PSU on the bottom back.
For this project i used plexiglas and PVC forex, hand cutted and joined, to create full interior cover to hide all the case structure (rivets, screws, etc...) and all the cables in every point. Also in the exterior i used laser cutted plexiglas parts to create a new front face and a bottom cover for the PSU area.

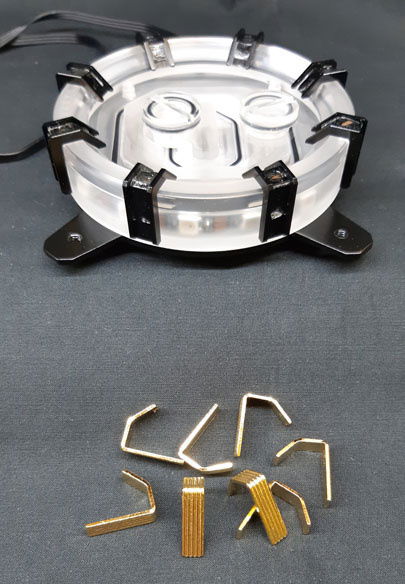

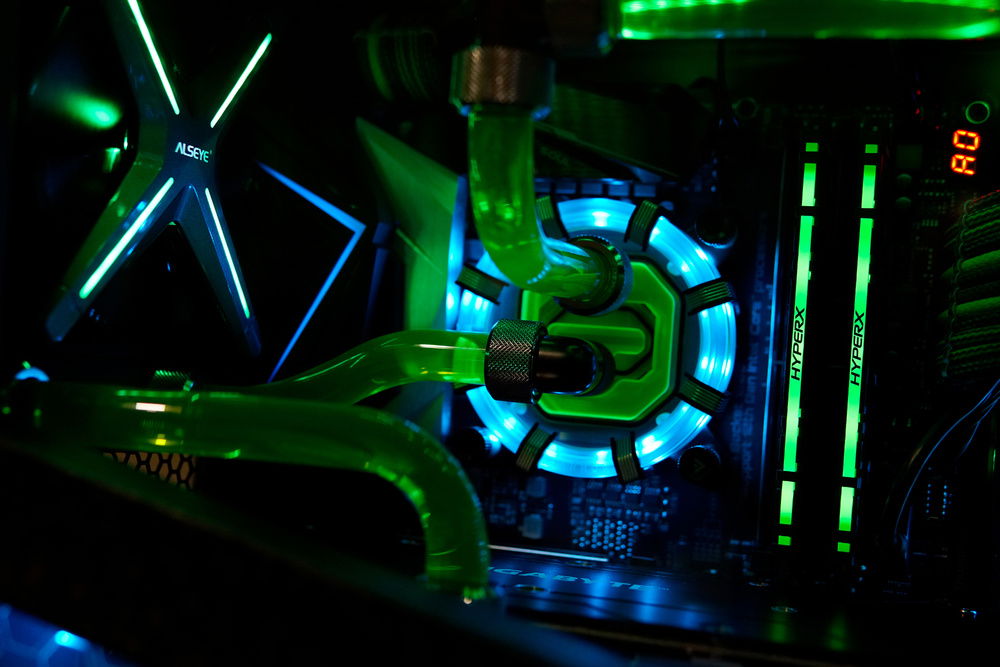

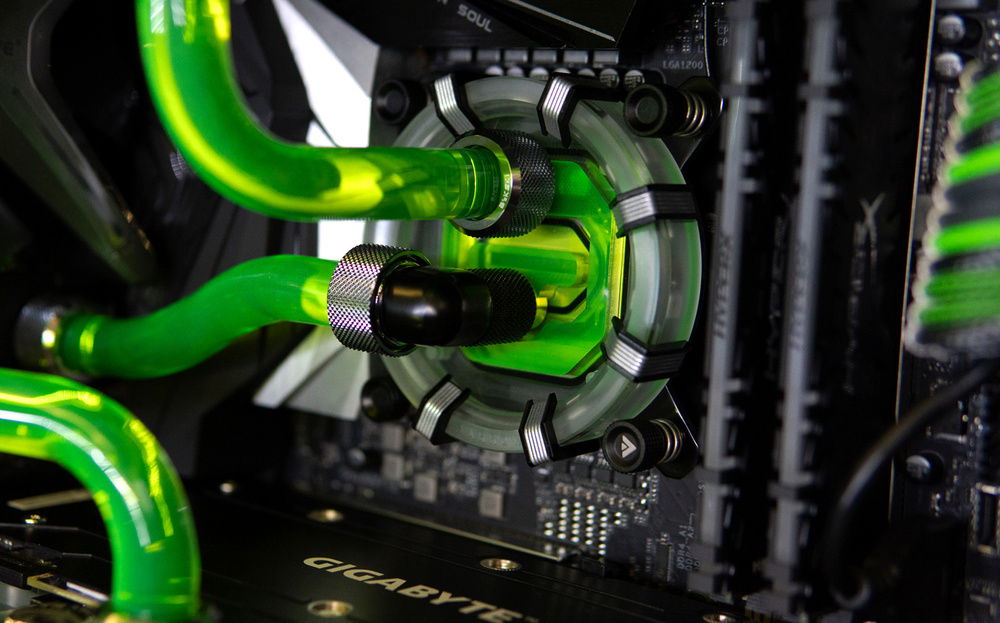

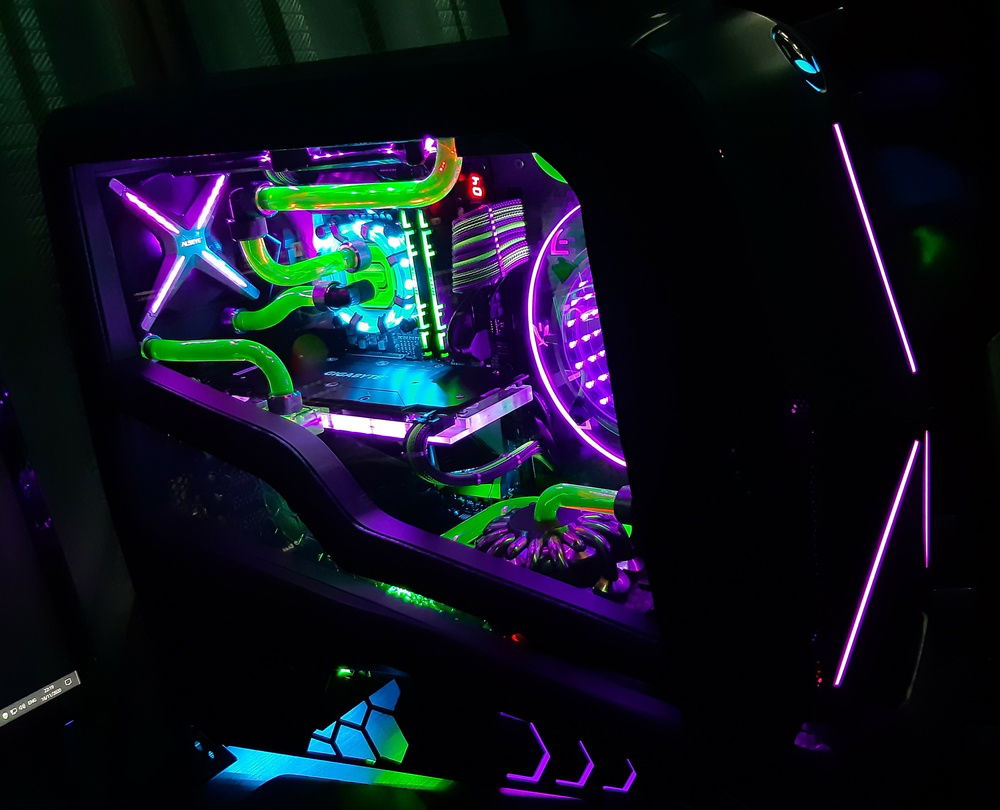

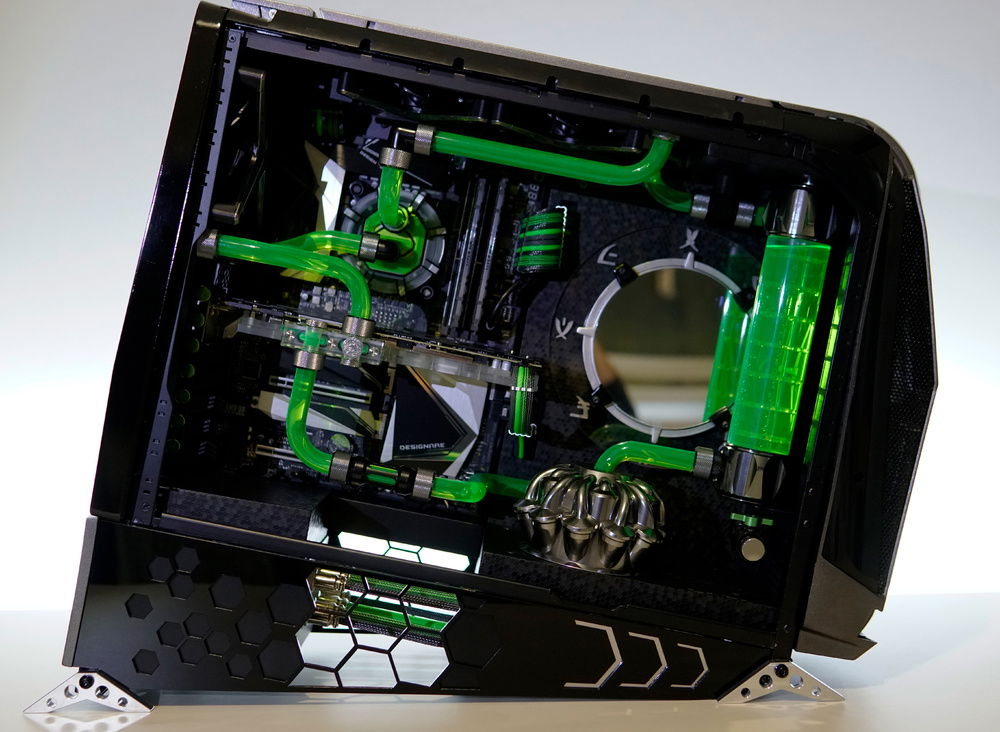

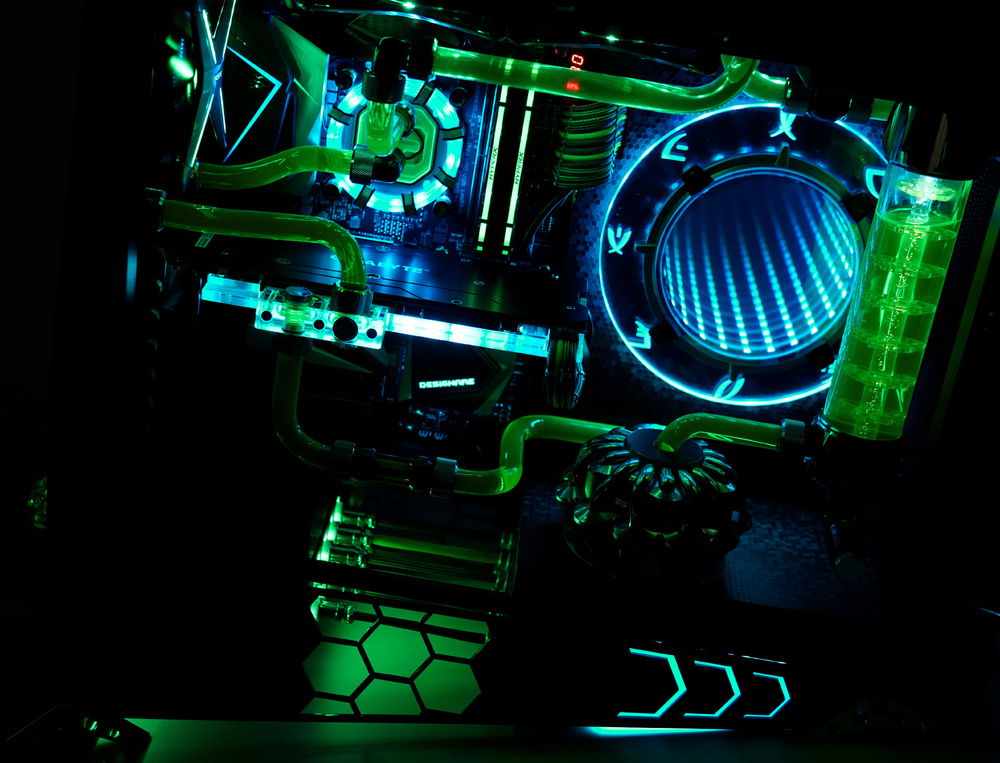

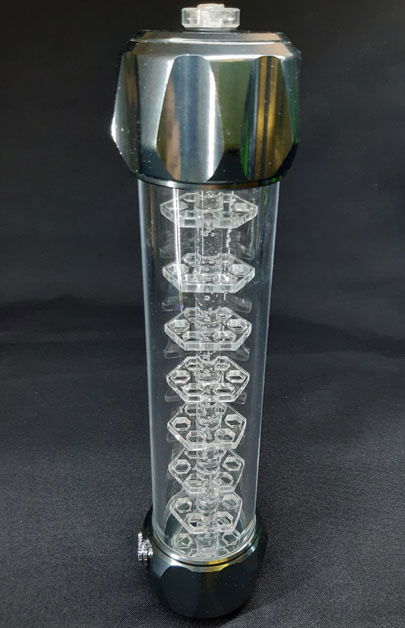

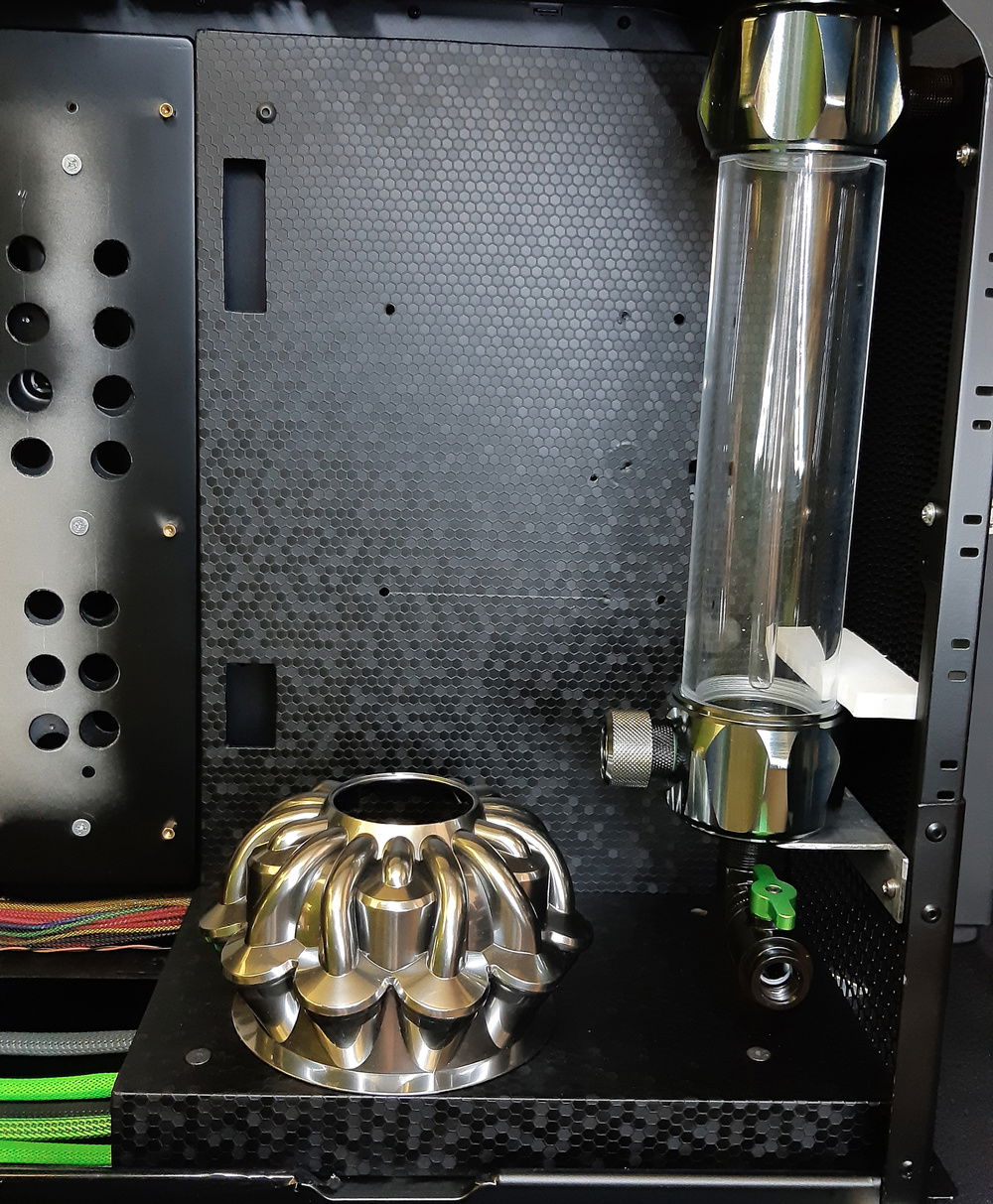

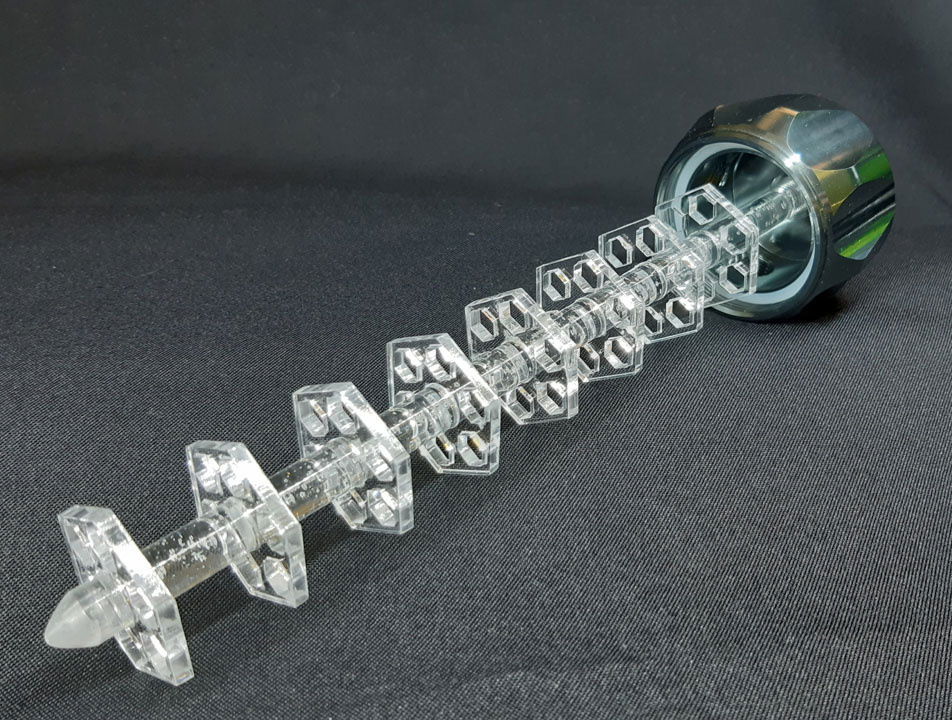

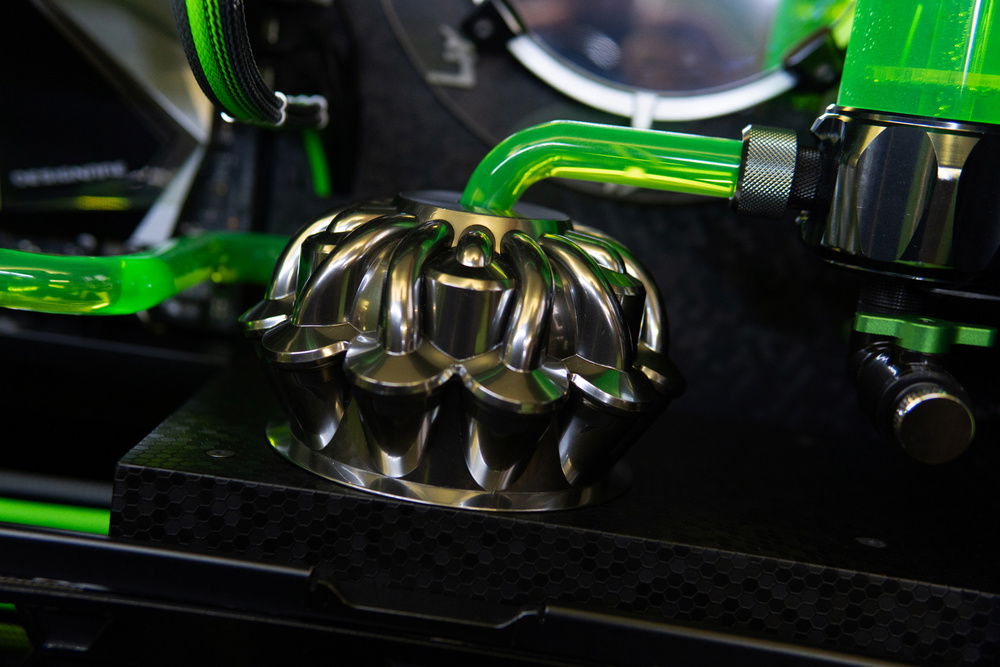

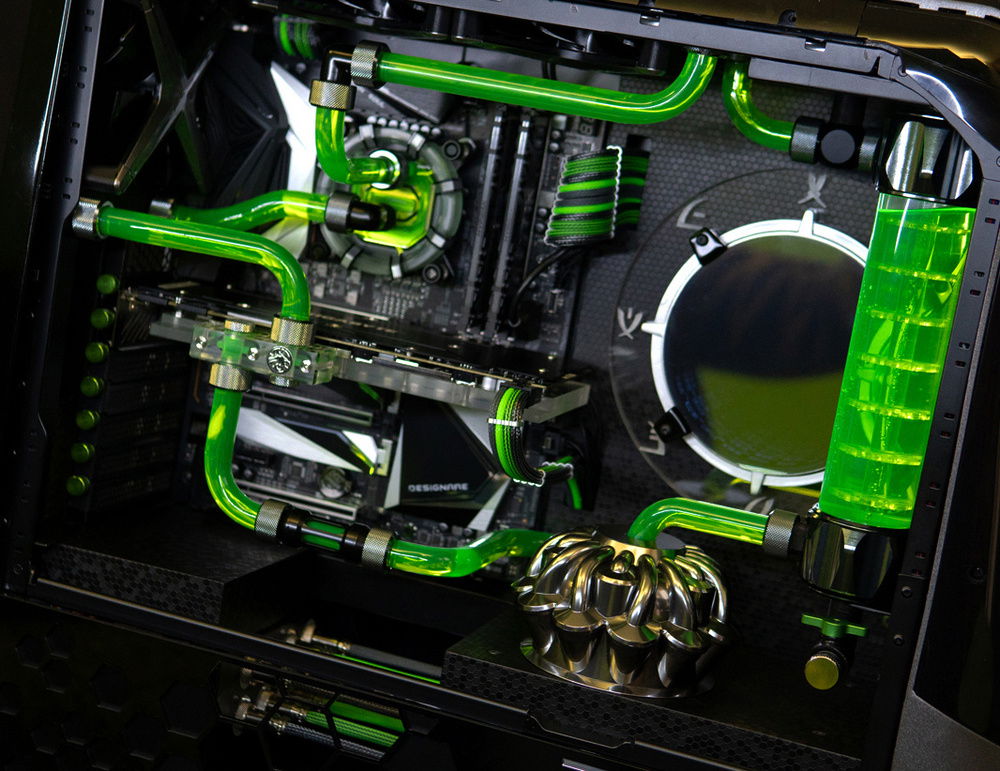

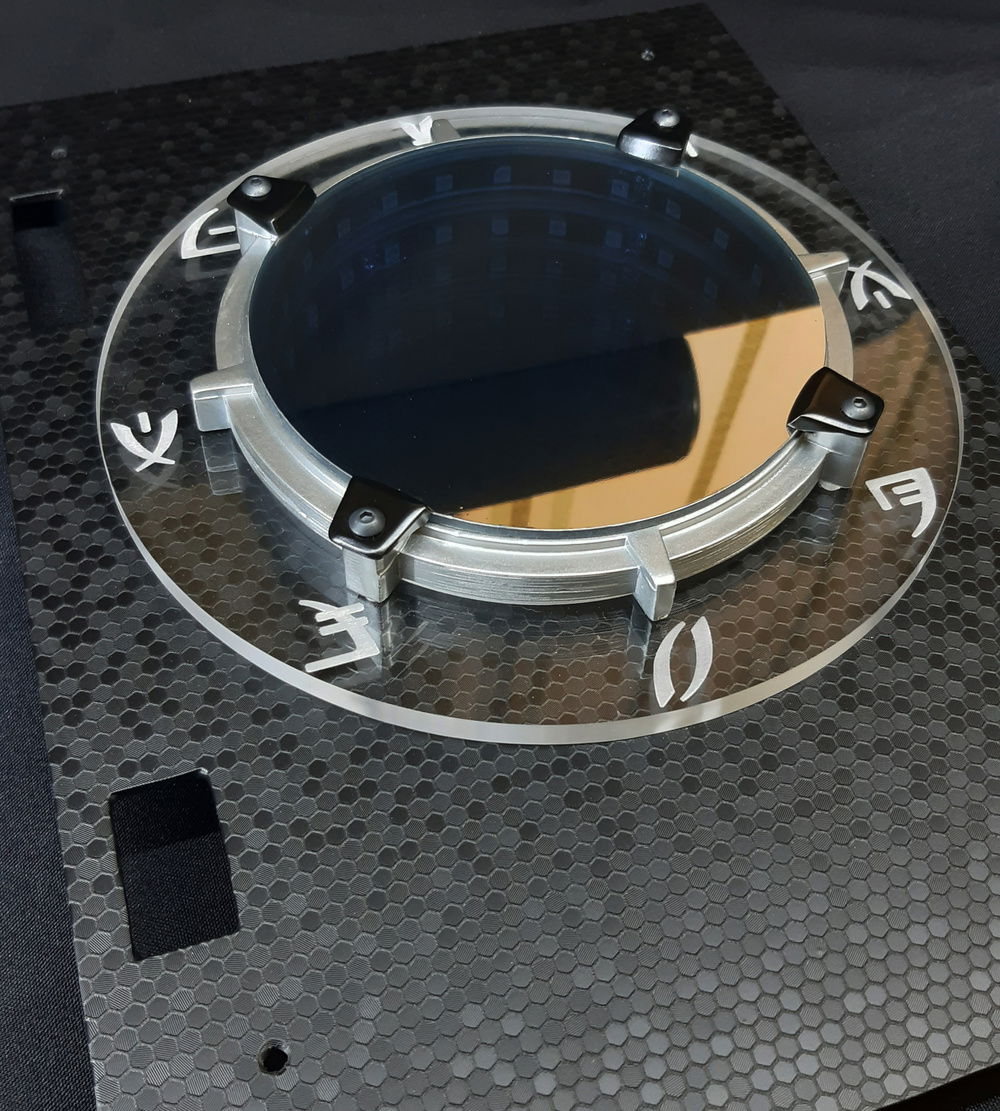

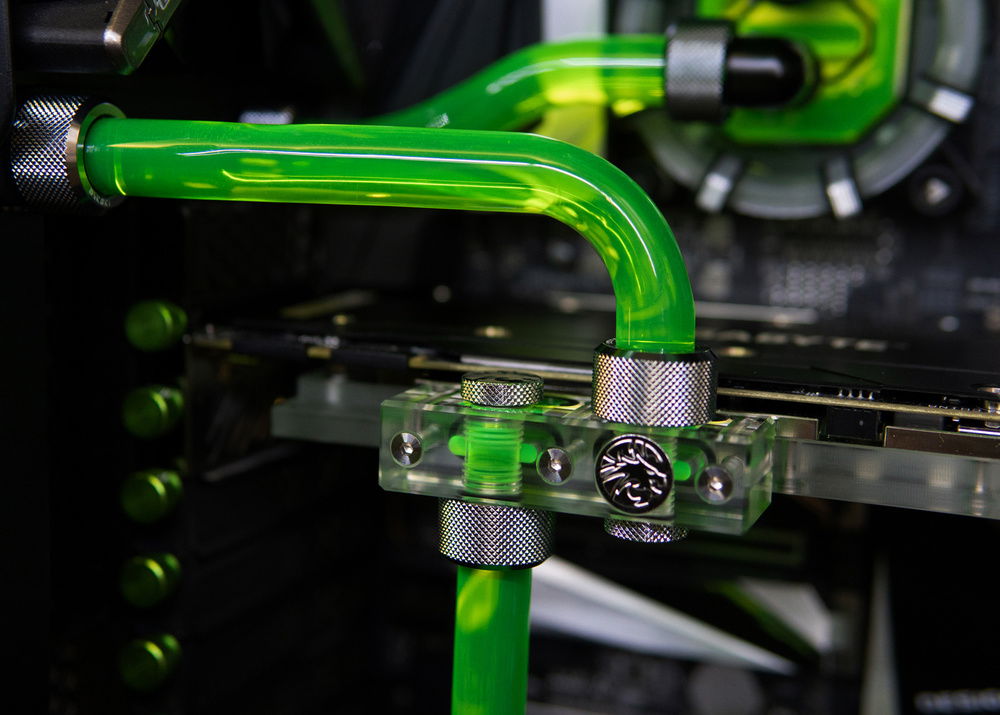

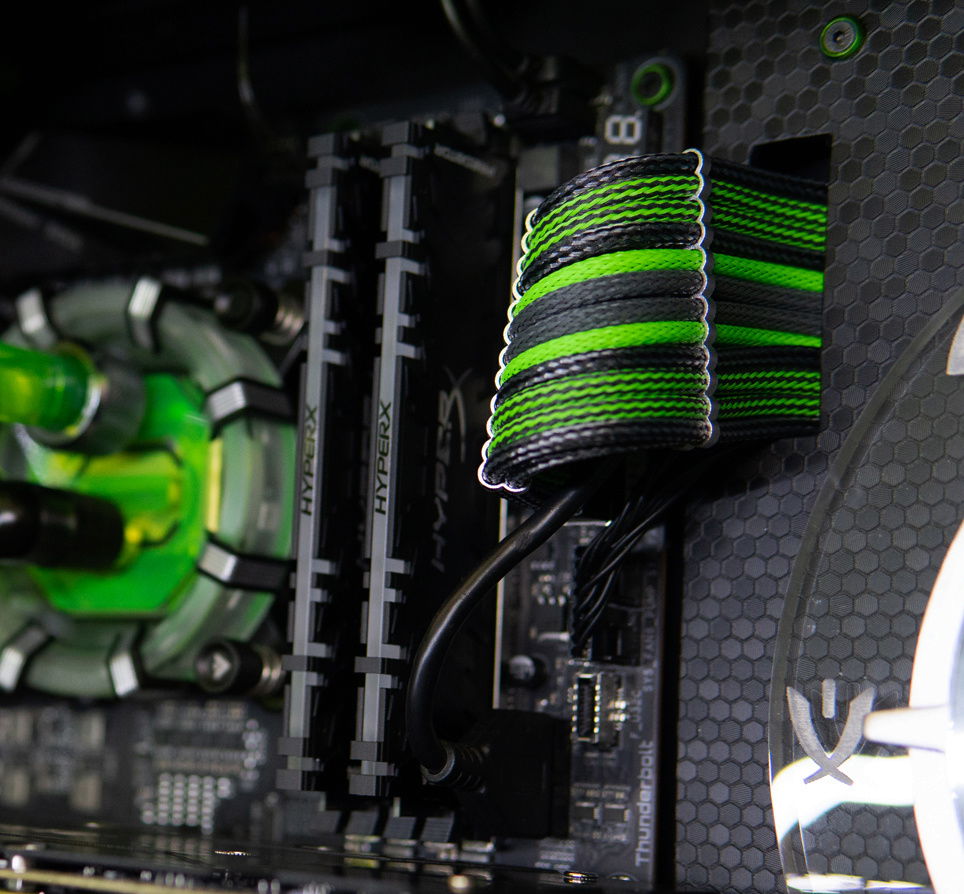

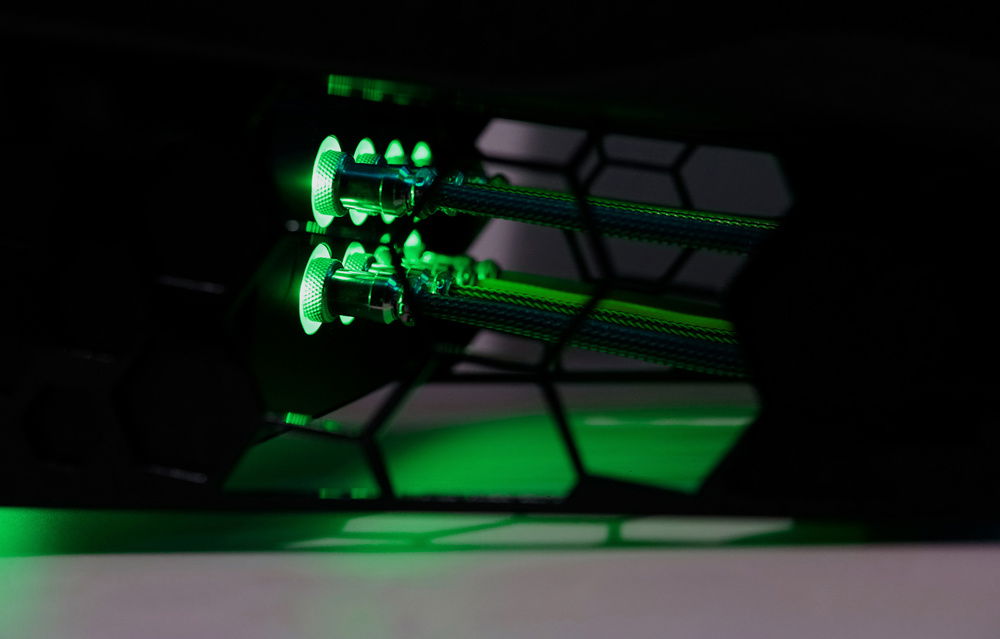

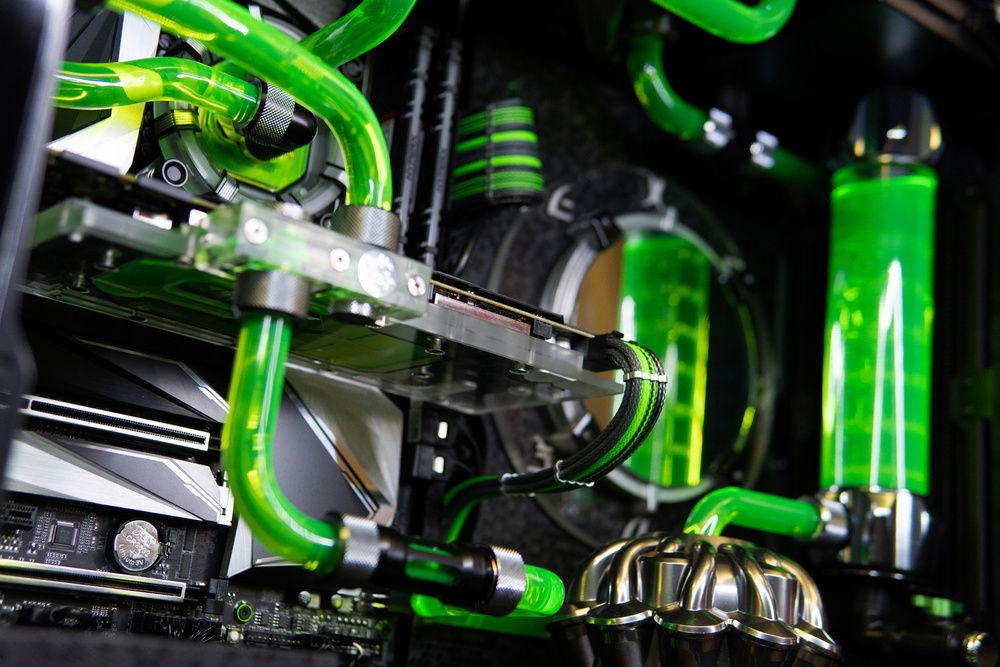

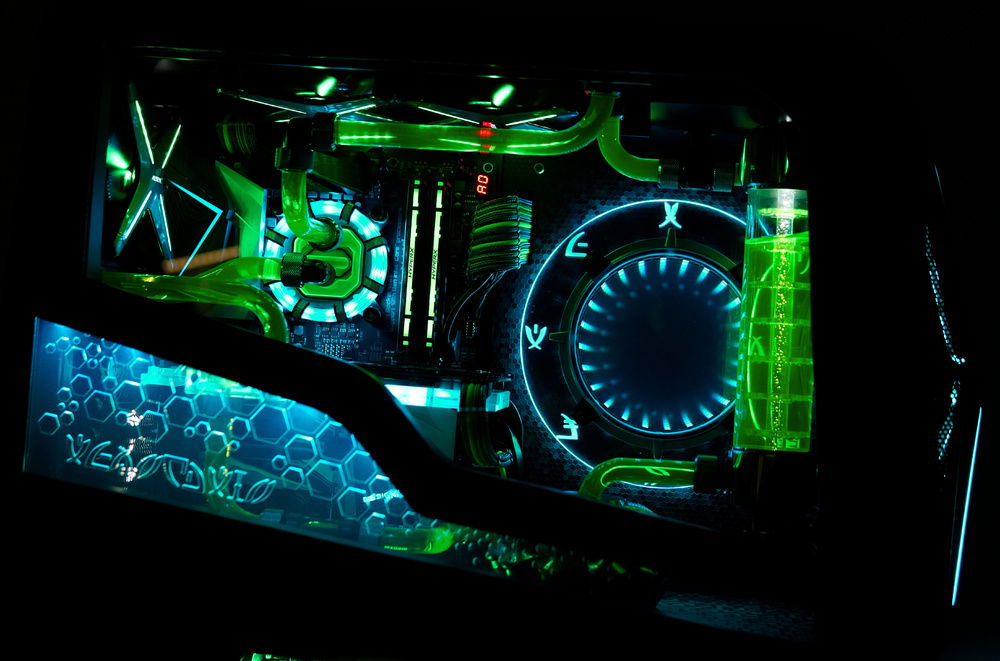

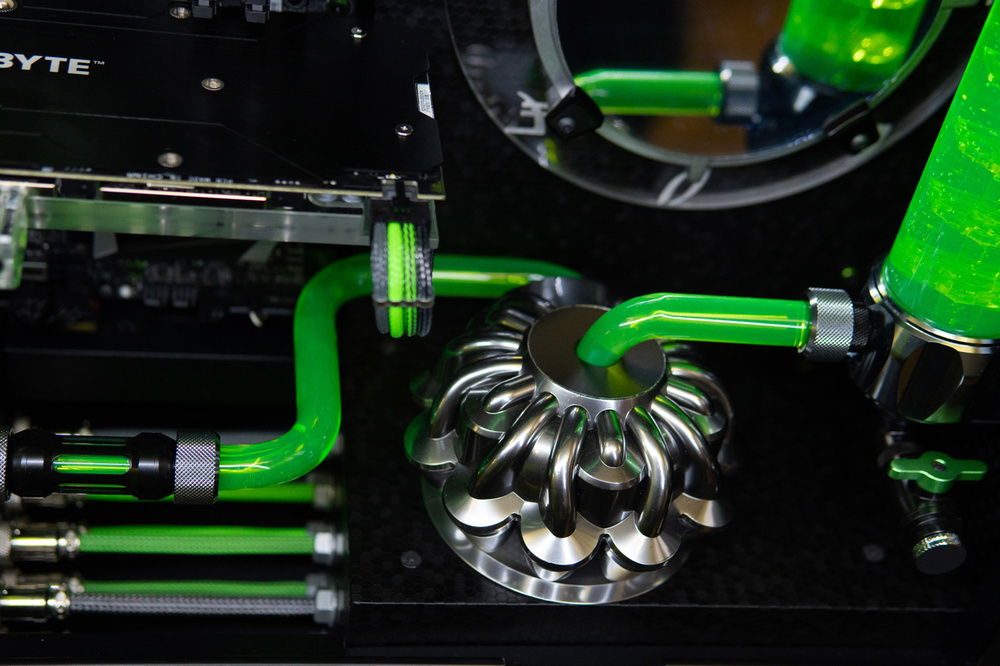

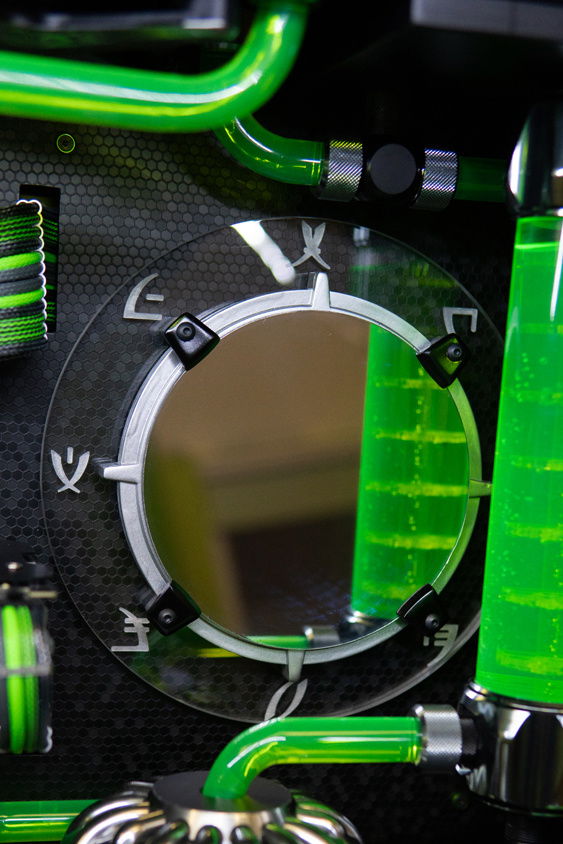

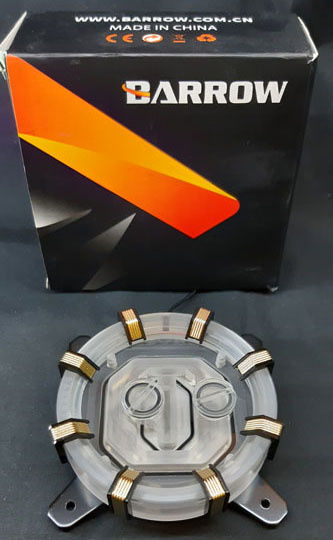

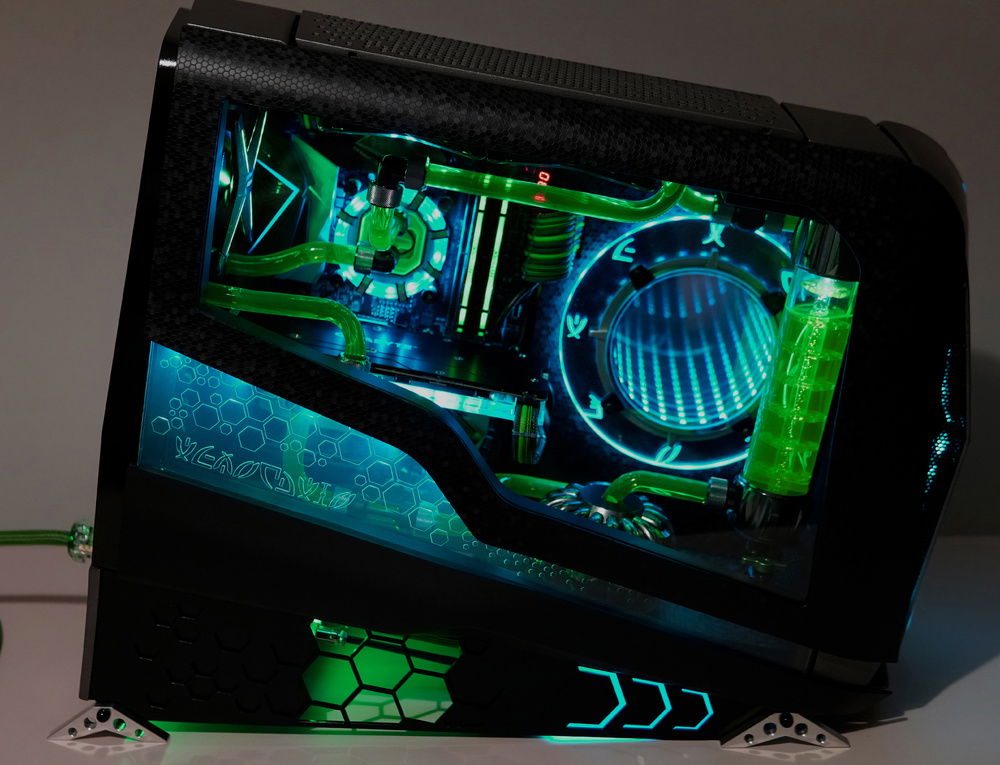

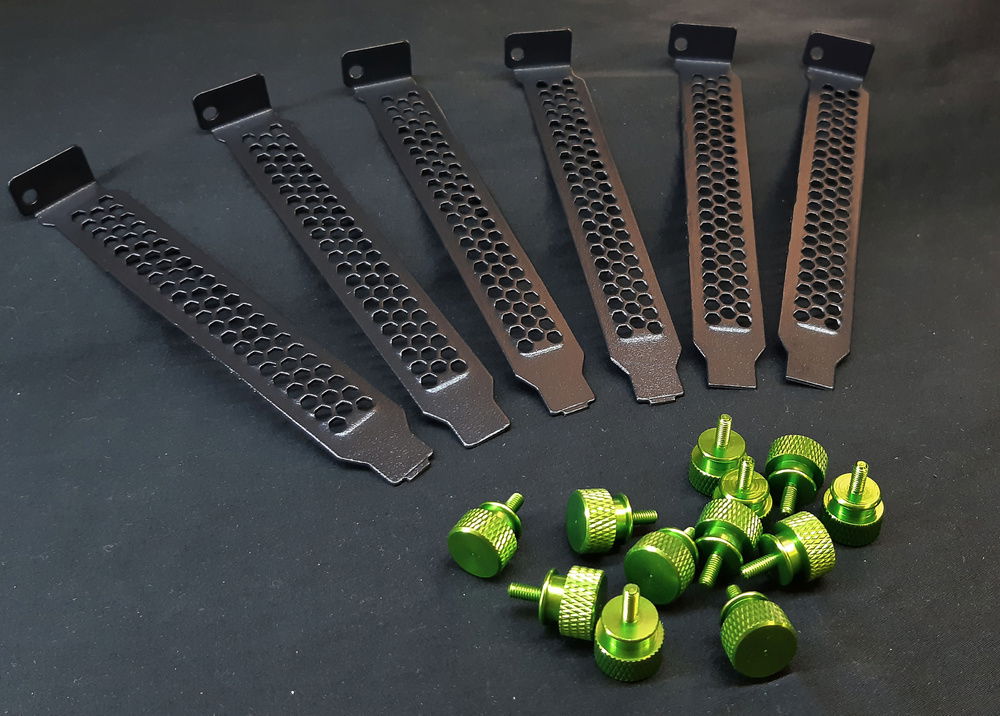

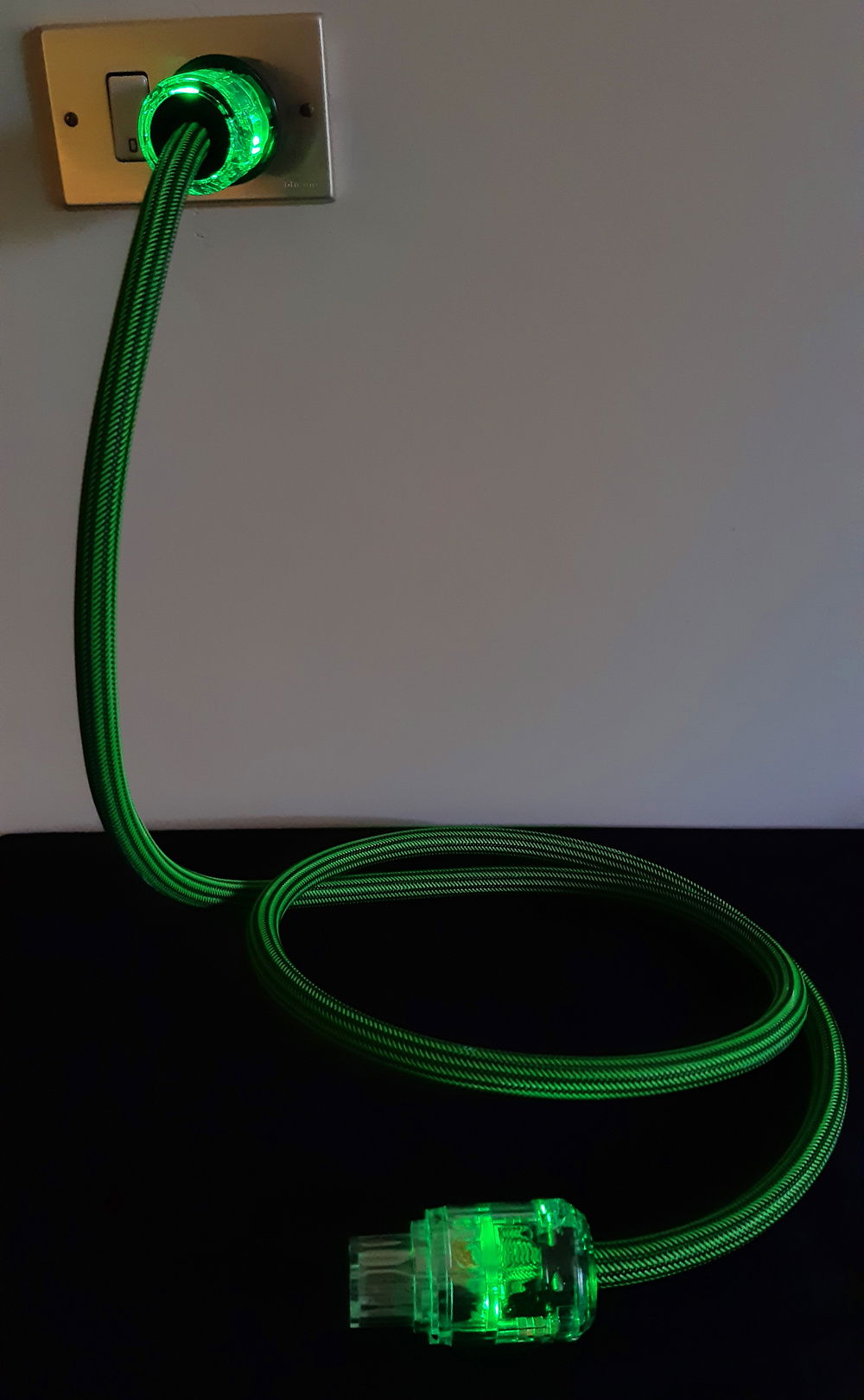

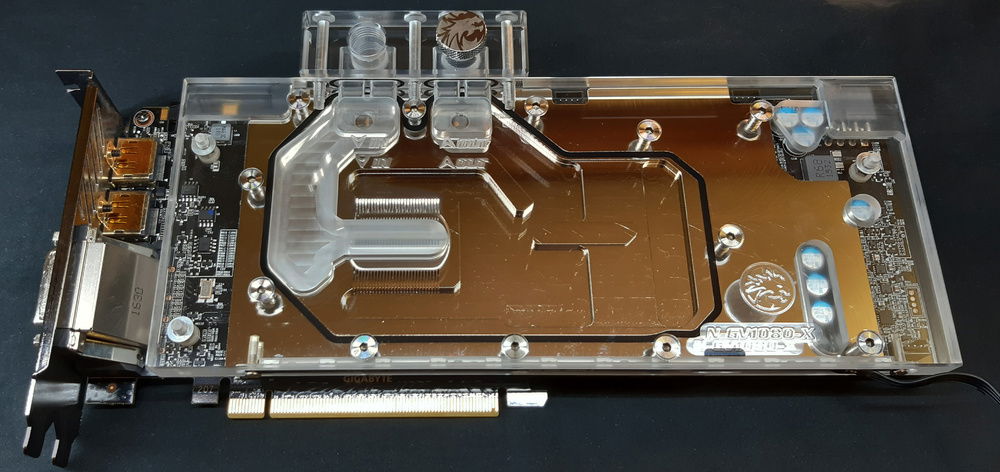

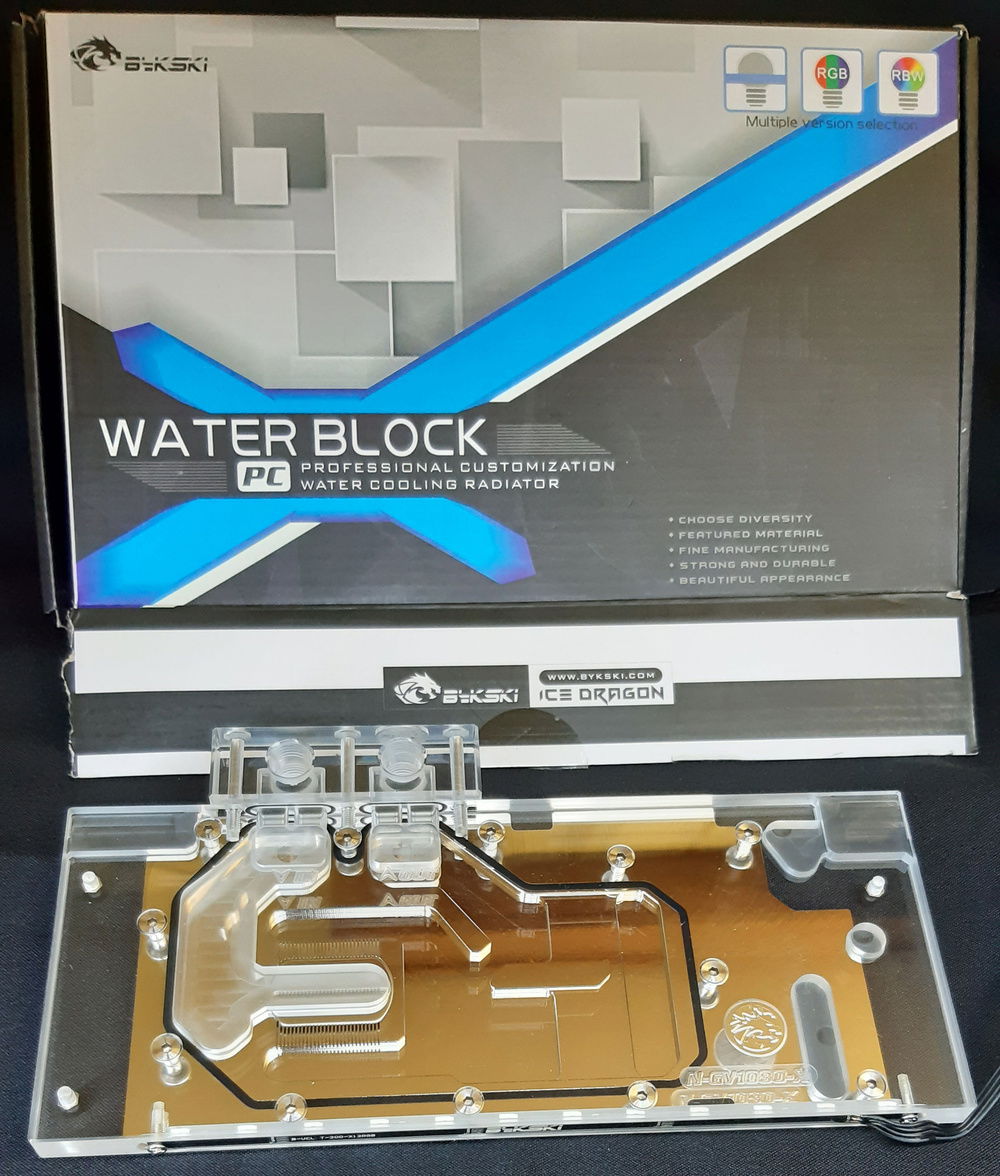

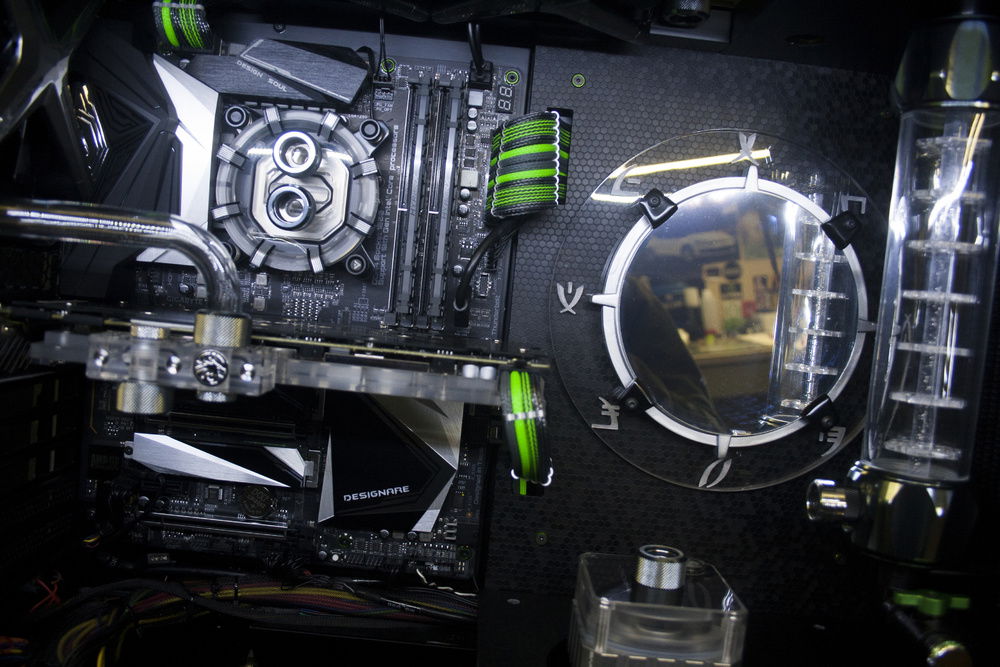

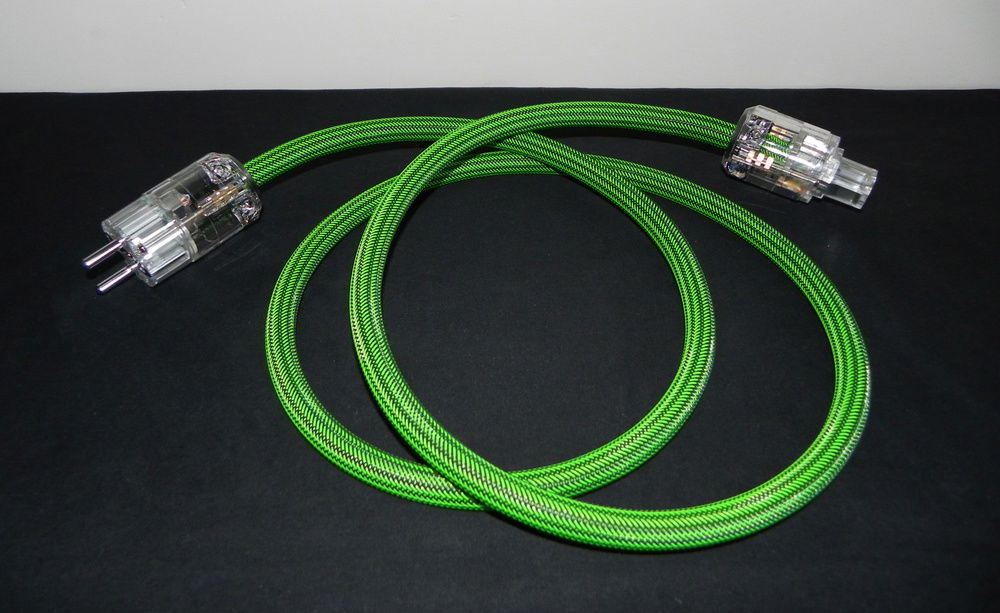

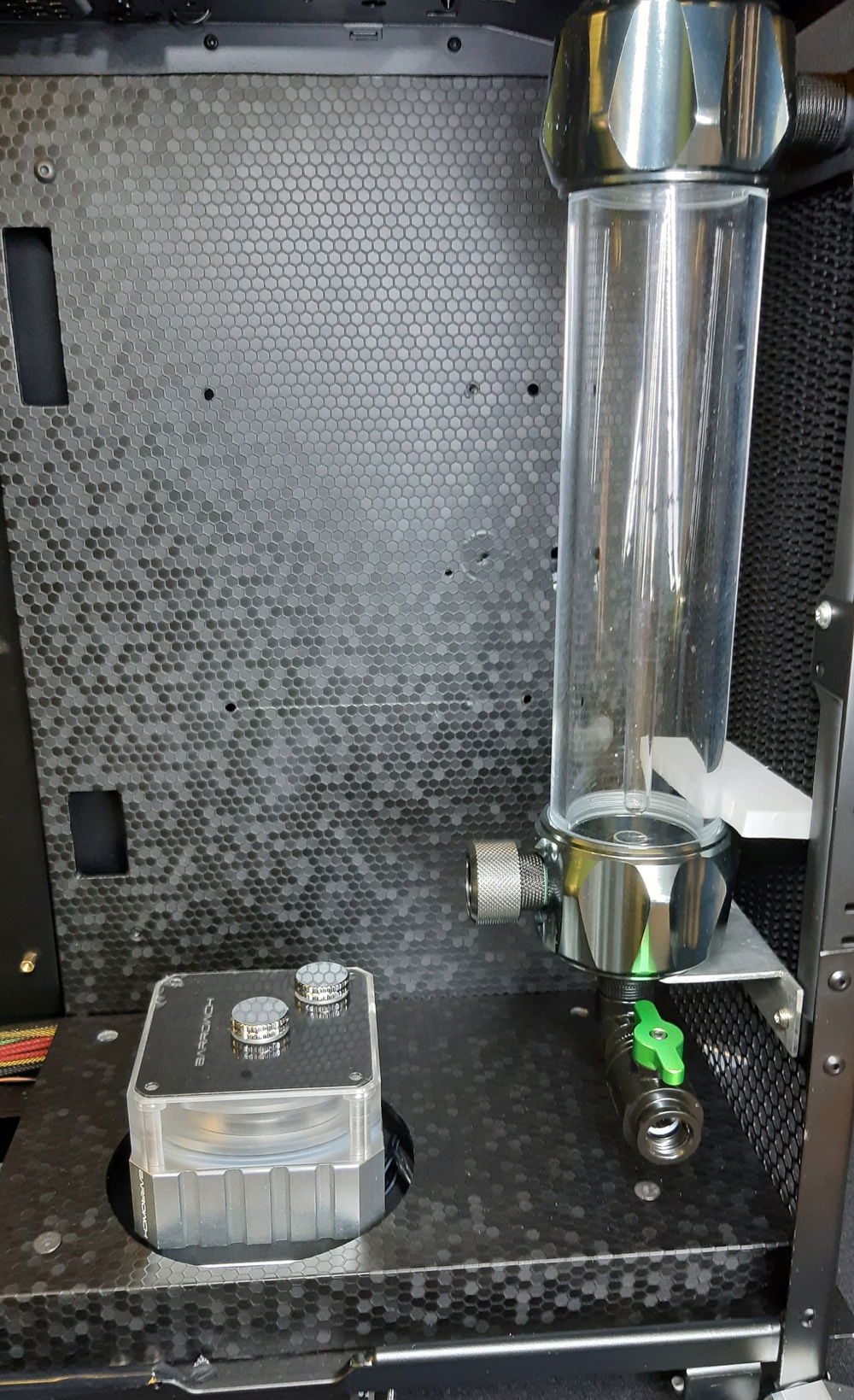

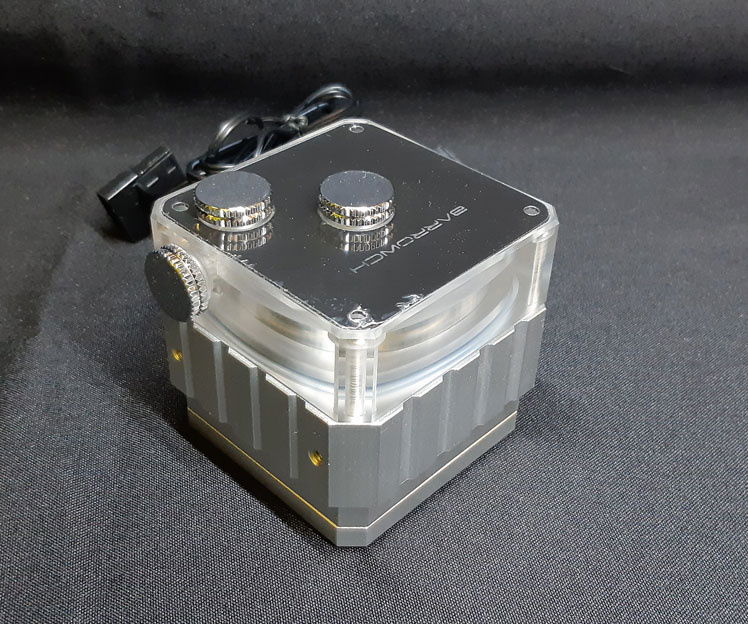

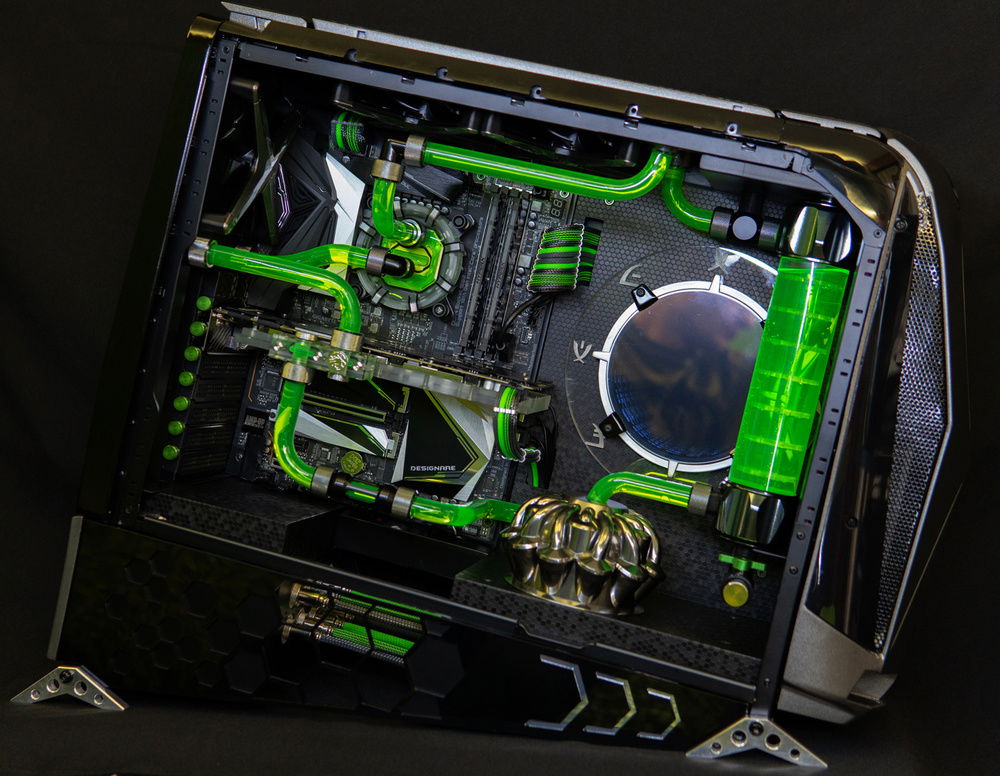

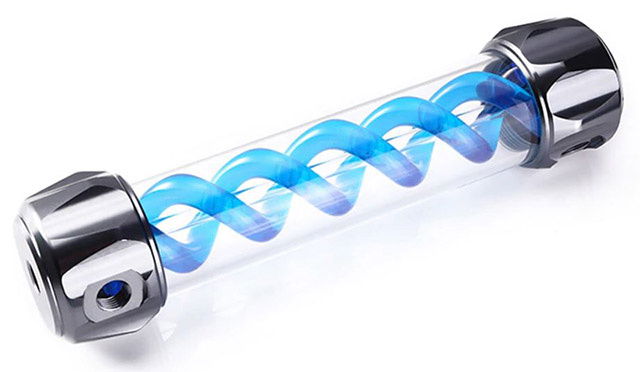

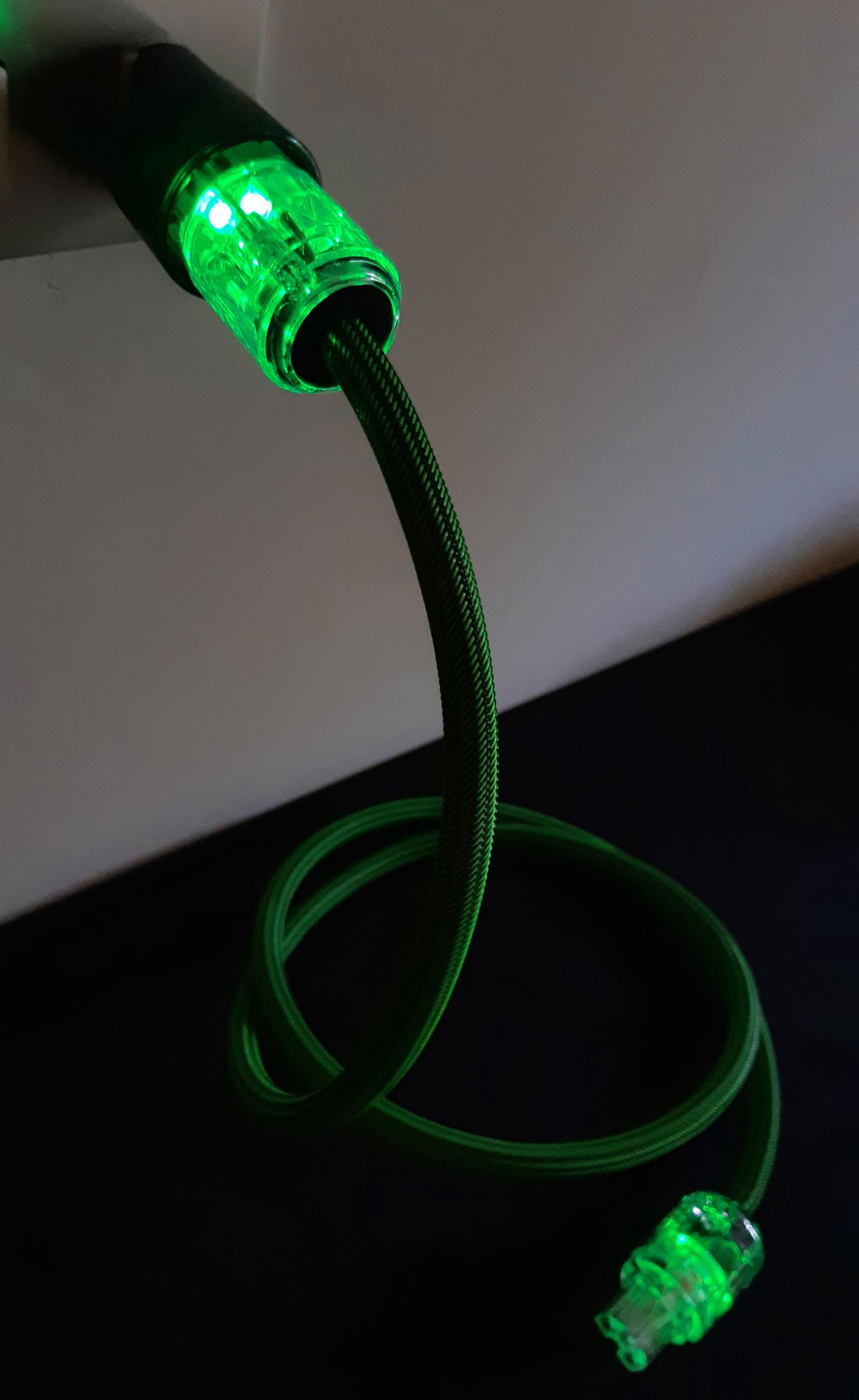

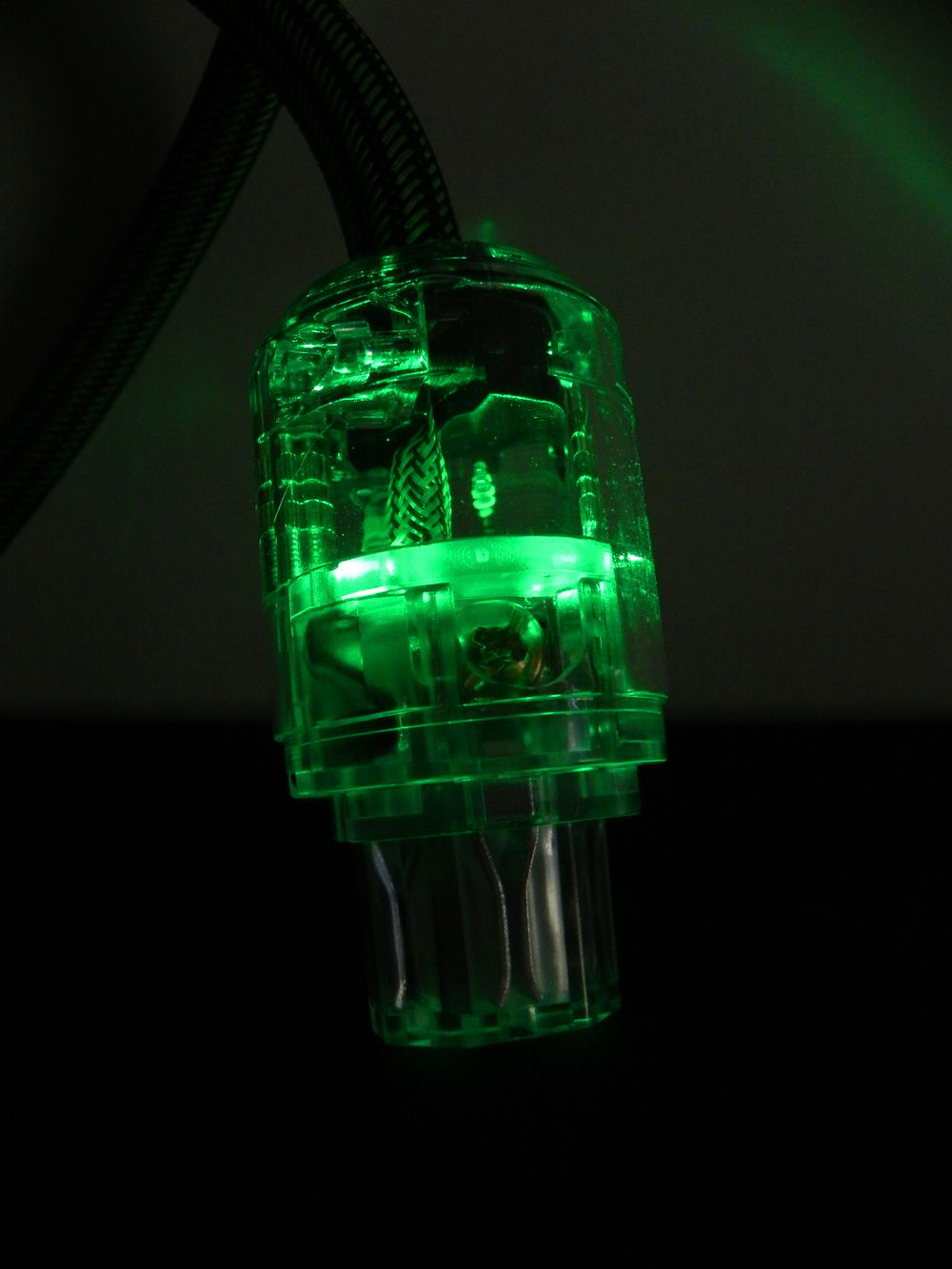

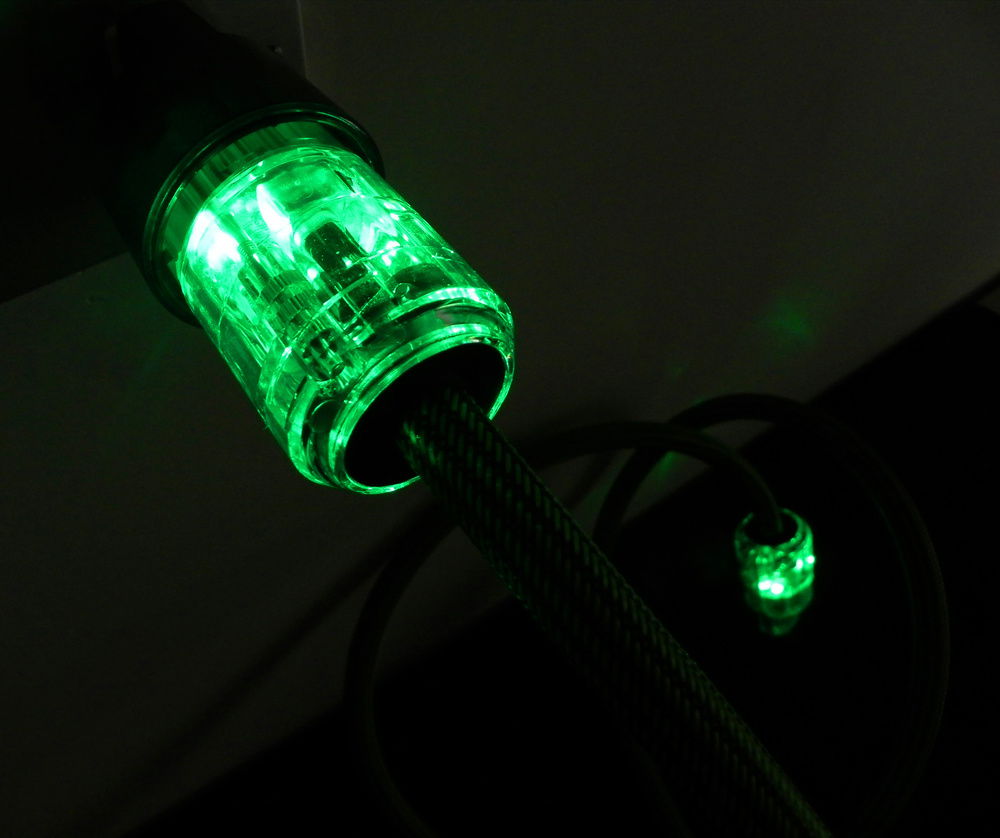

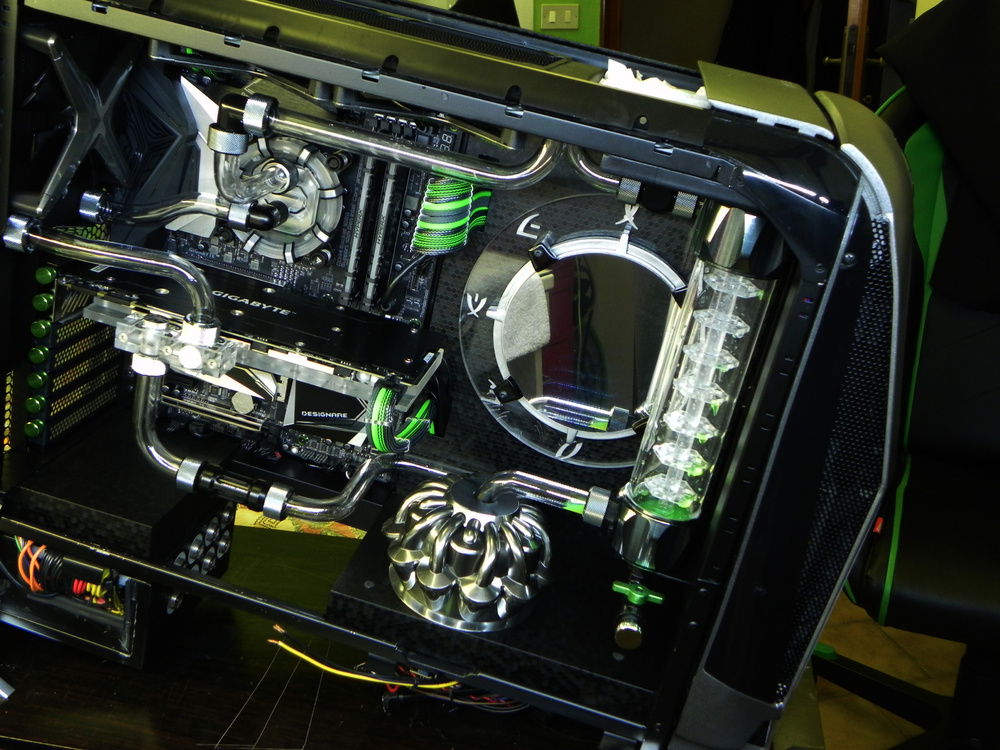

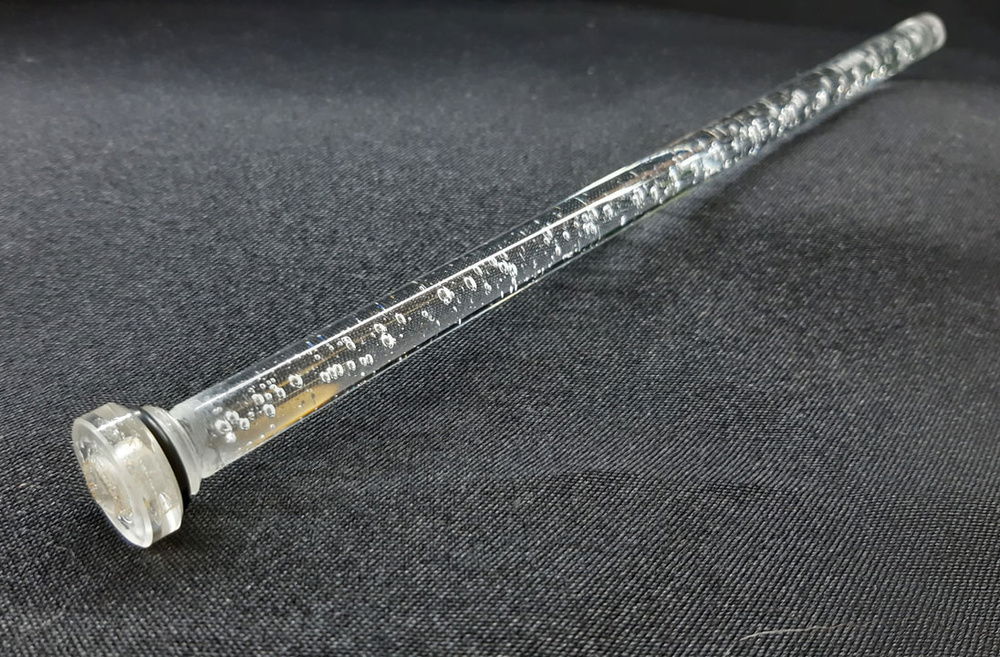

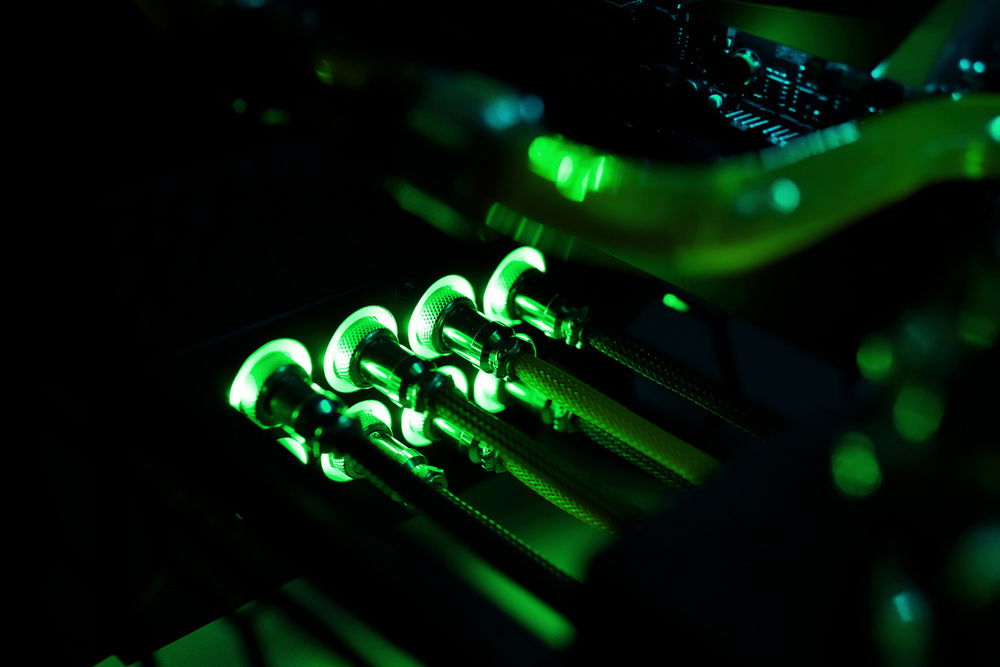

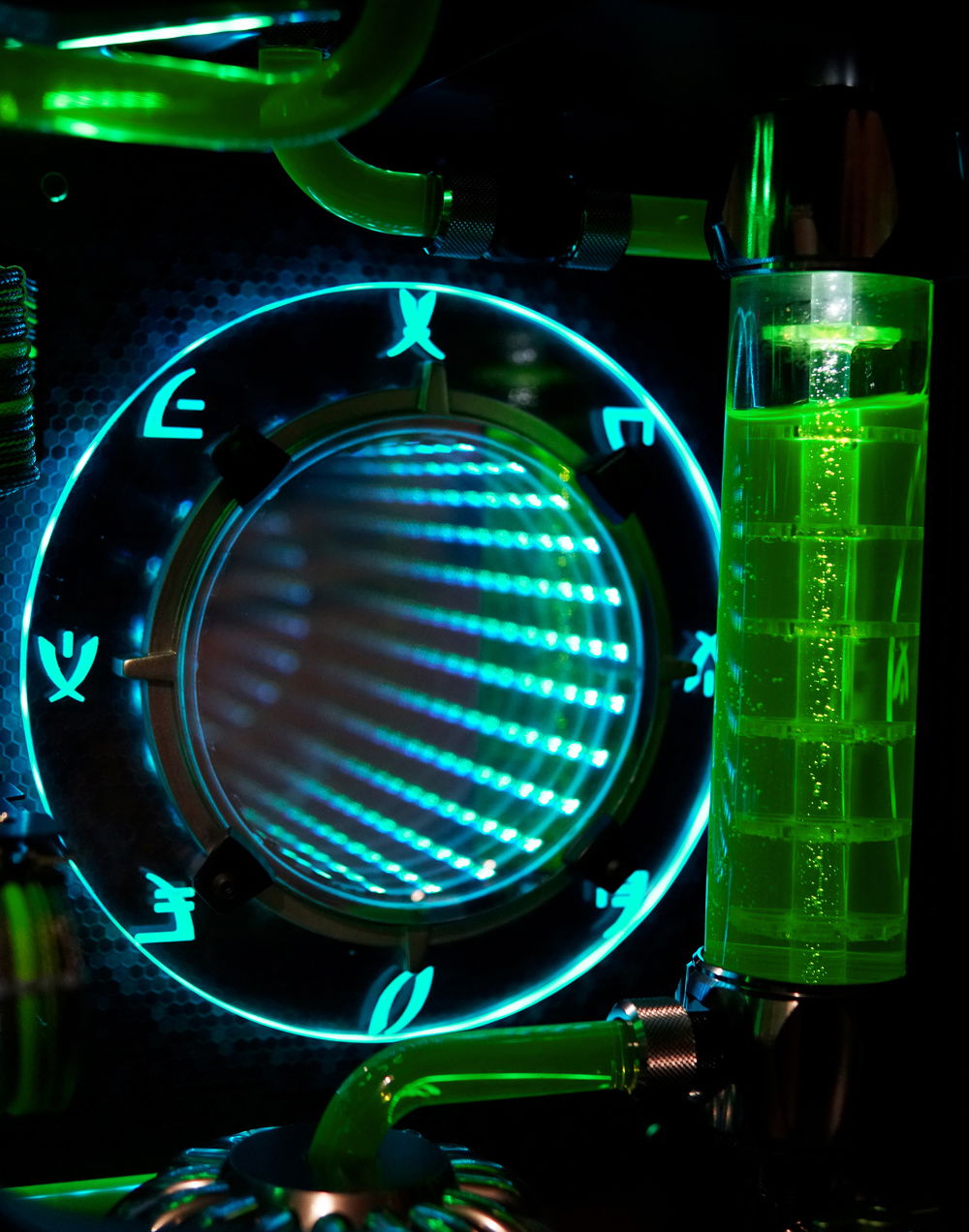

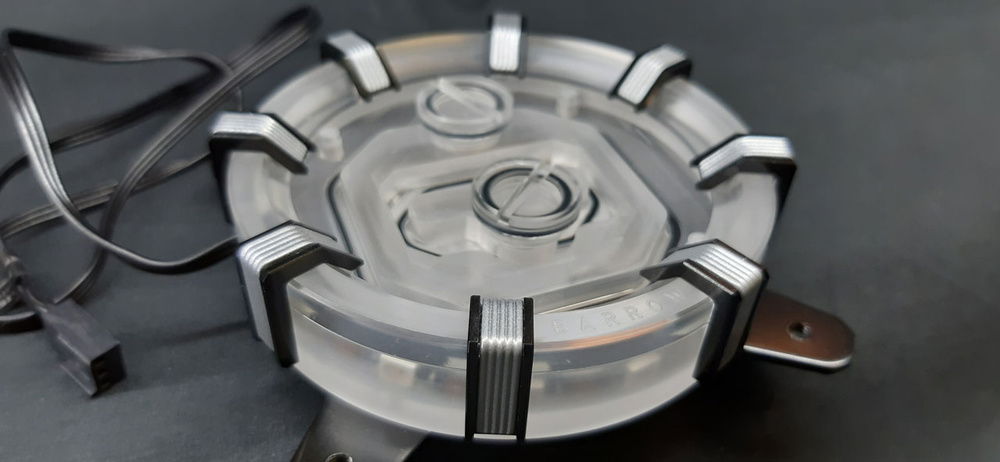

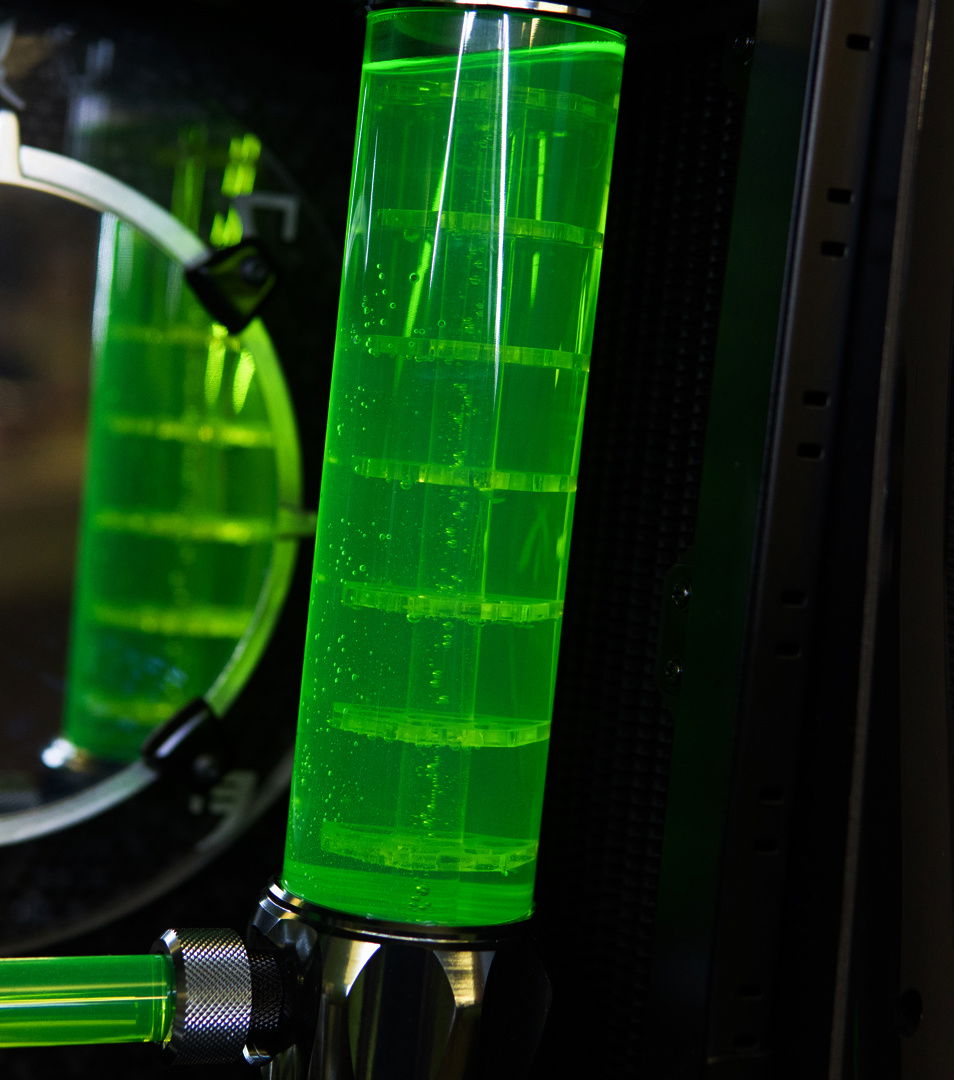

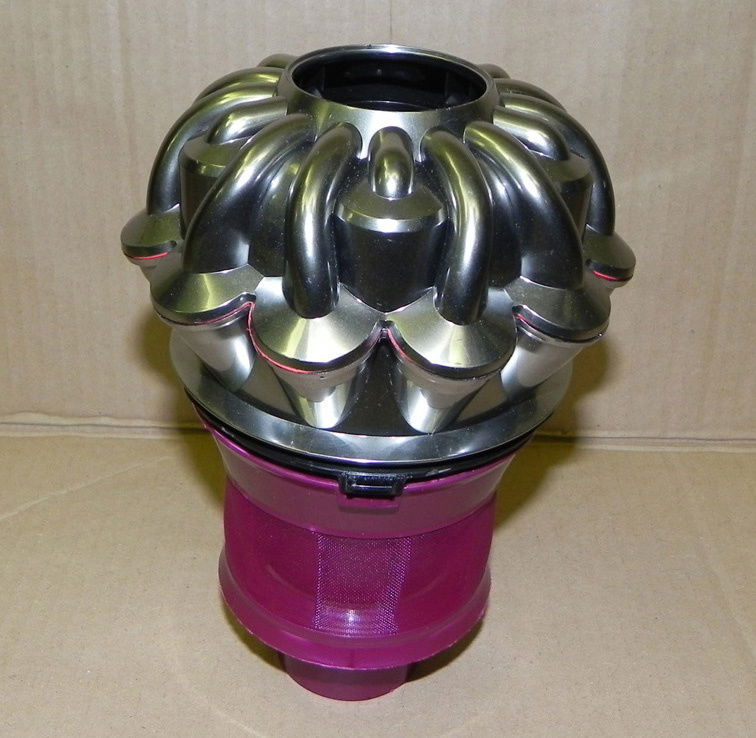

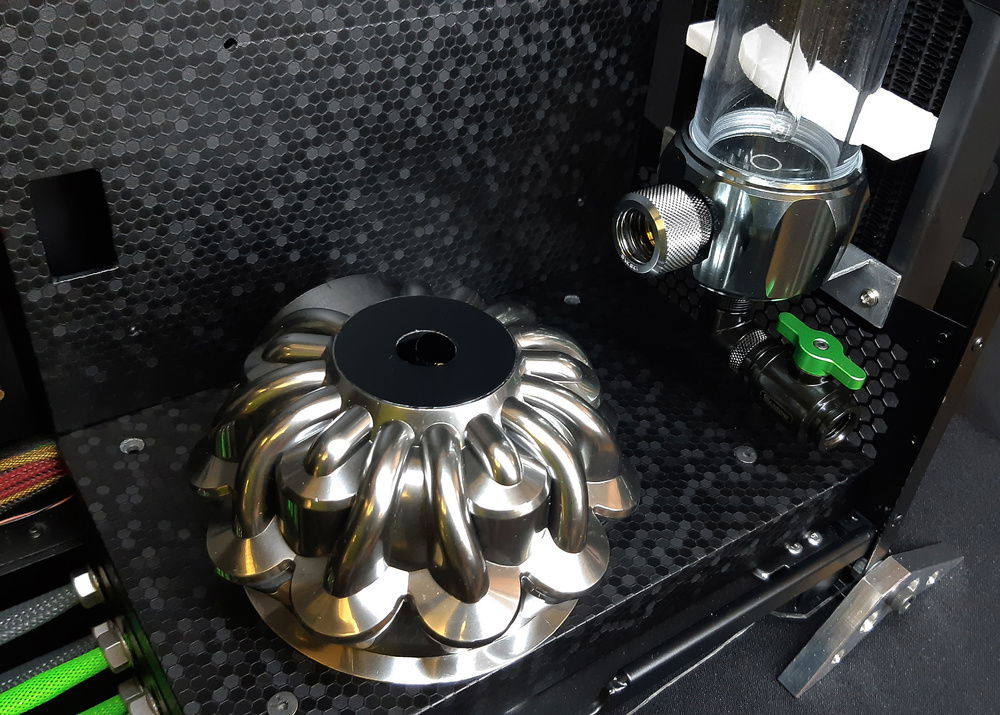

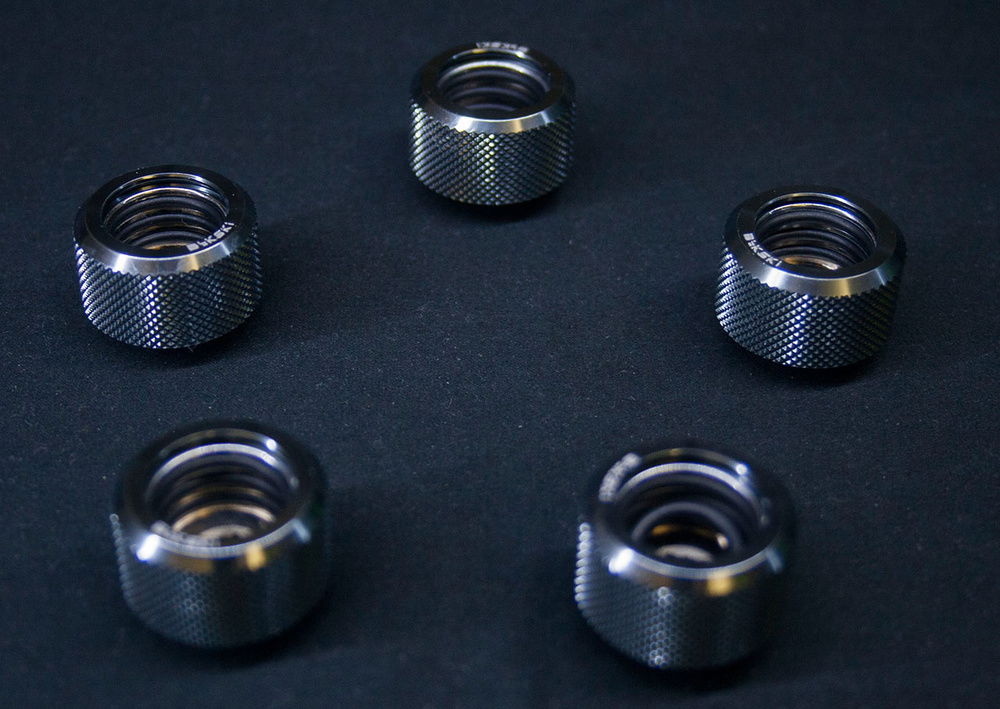

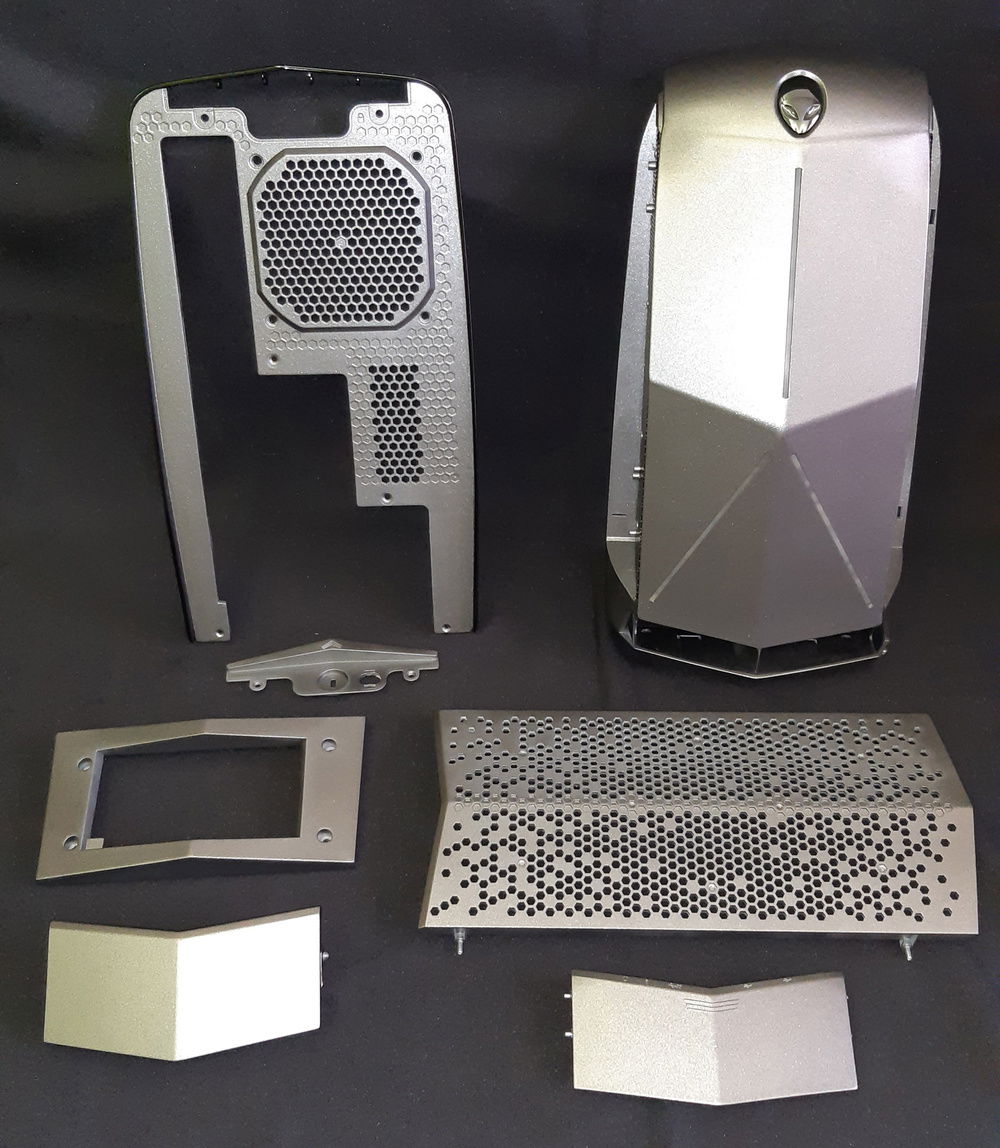

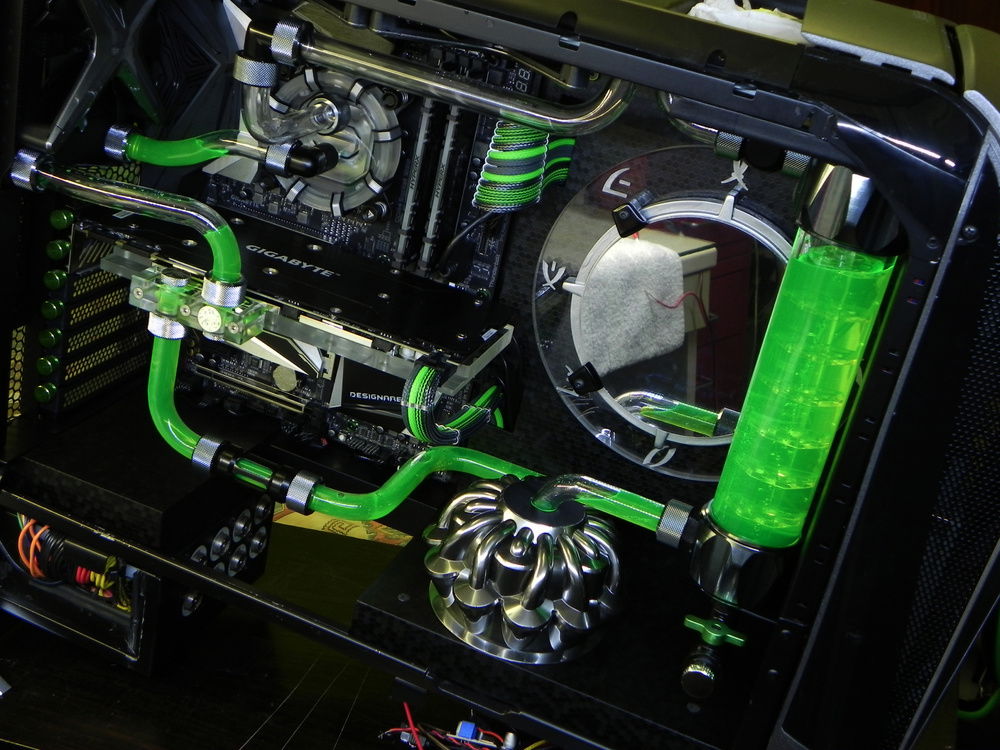

I really like recycling parts, so in this project i've used and old 220V engine frame to create an Alien portal with infinity mirror, and for the water pump i used and old Dyson vaccum engine part to create a cover for the pump. Other special parts are the PSU with aviator style connector with sleeved cables and the reservoir where i made some plexi parts to look like an "energy cell". The mod was completed in October 2020, so it took me a year of hard work!

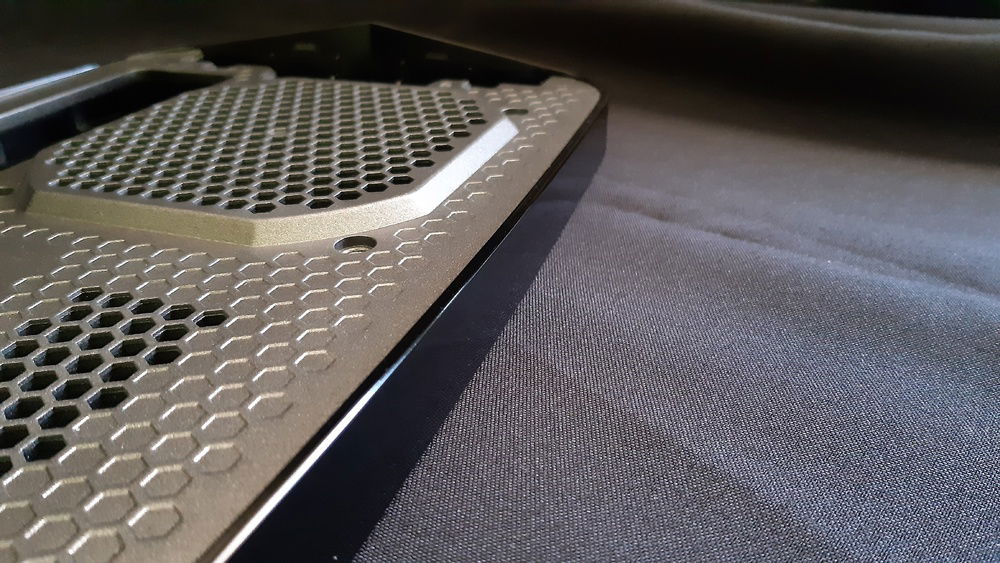

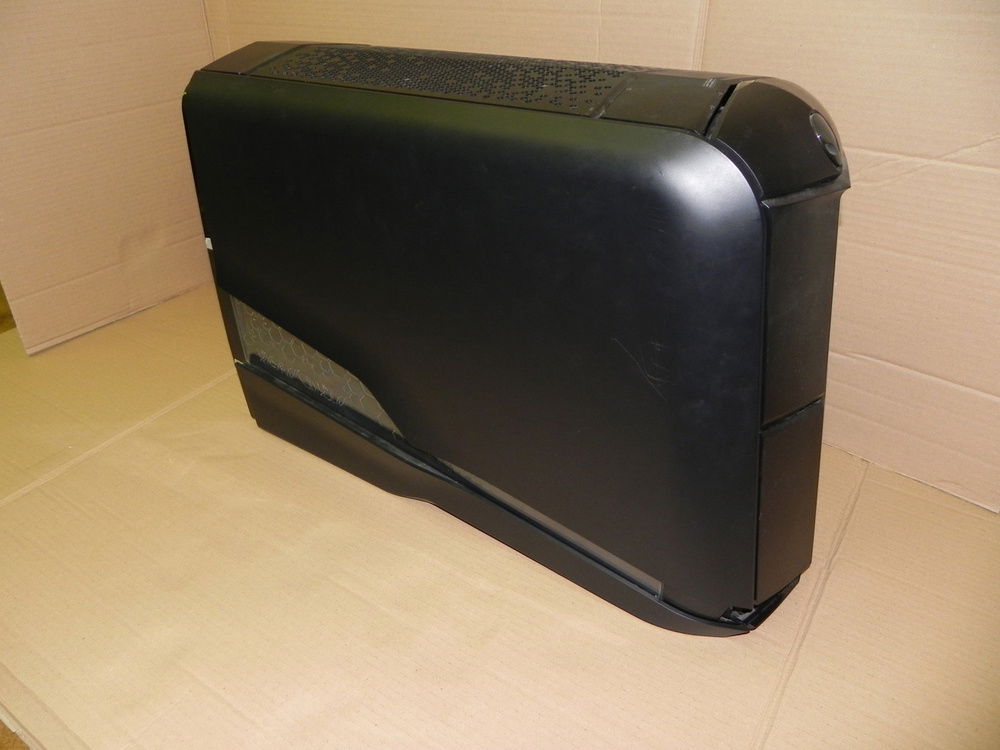

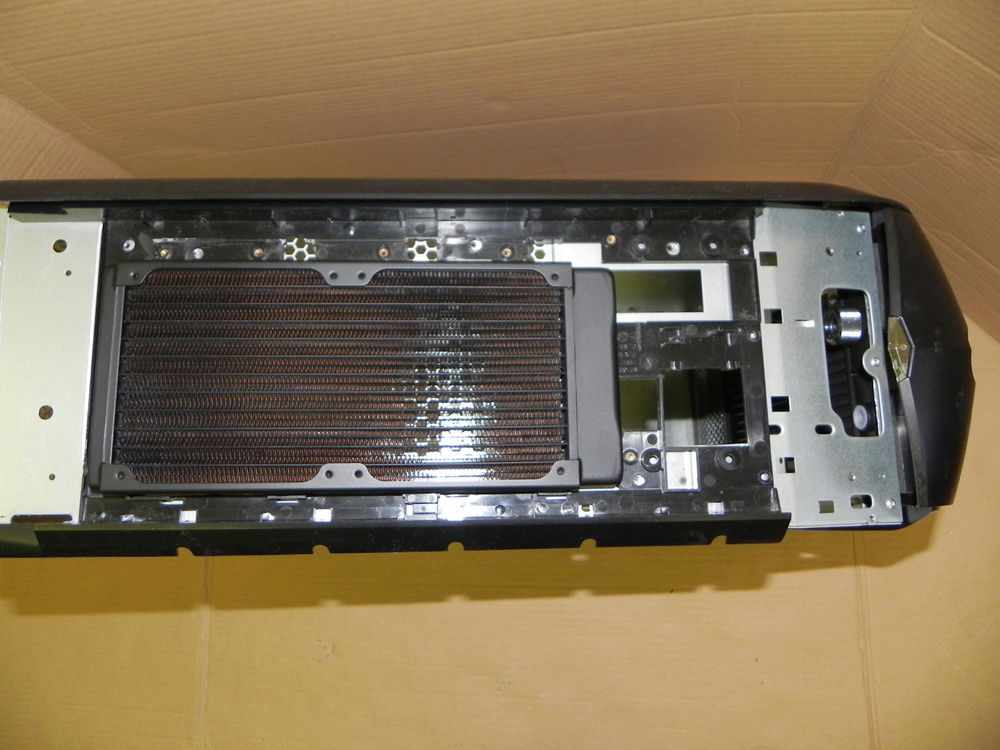

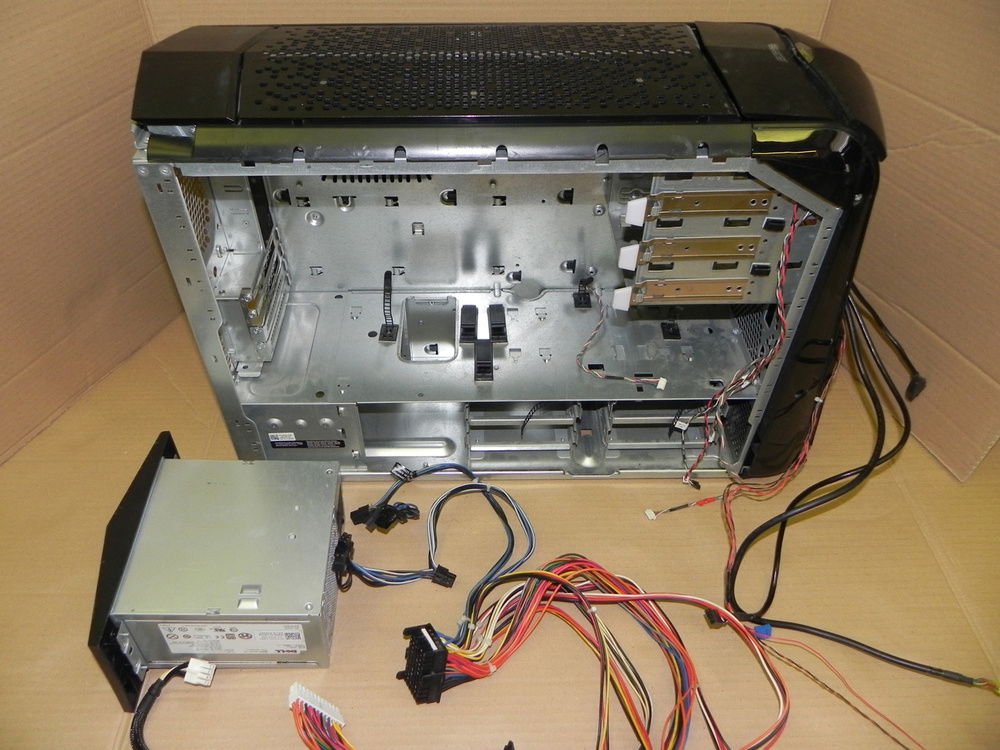

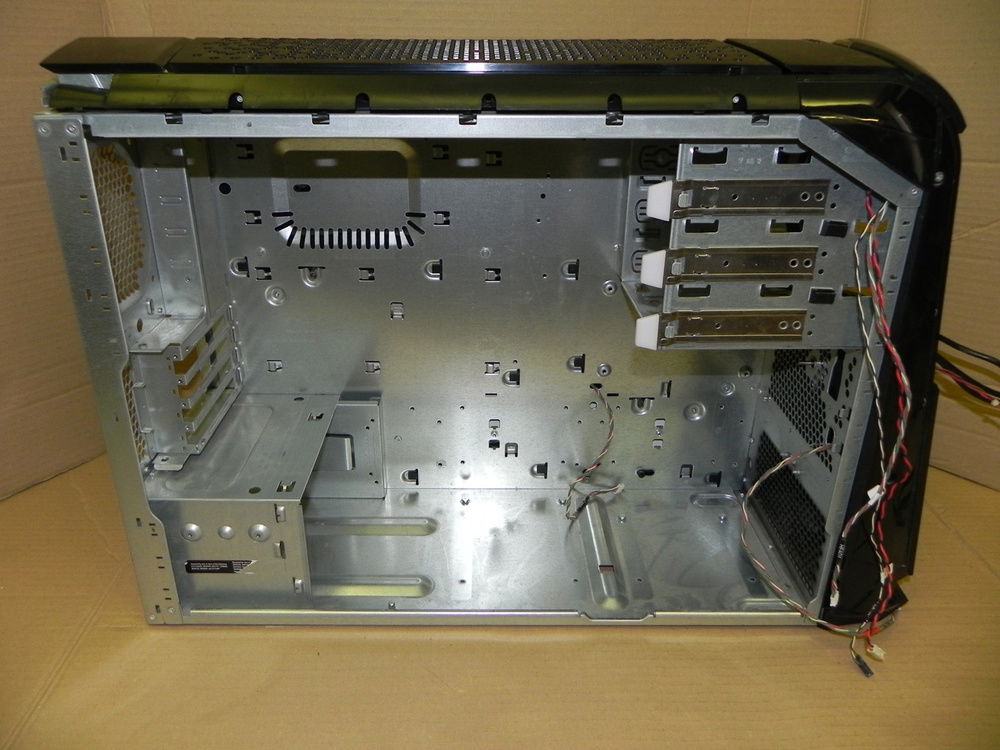

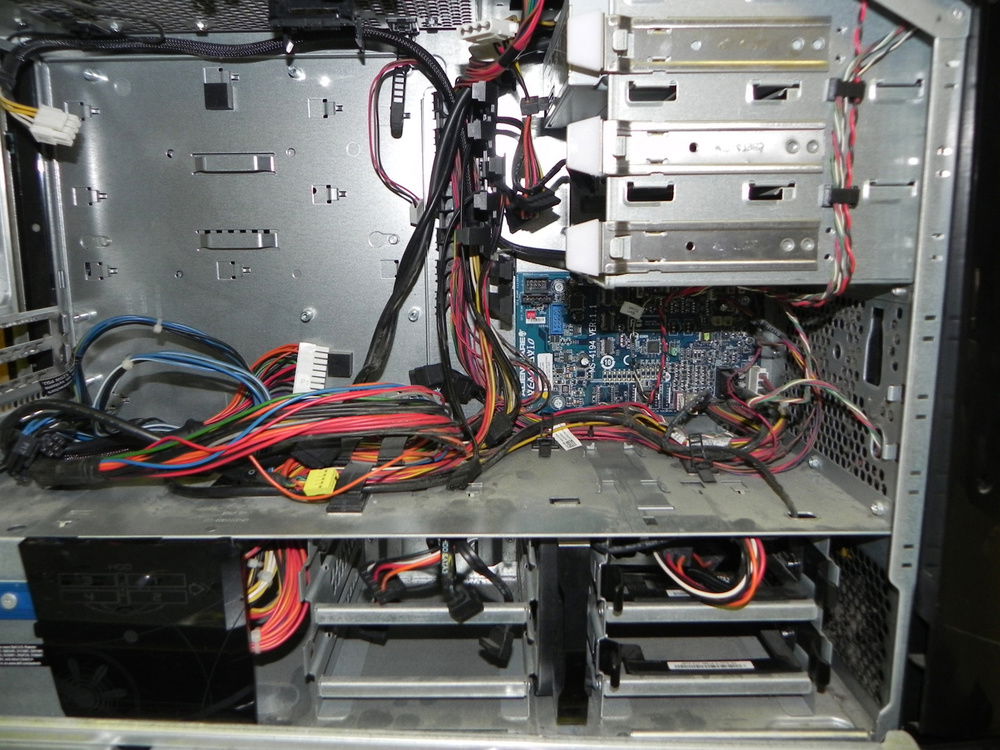

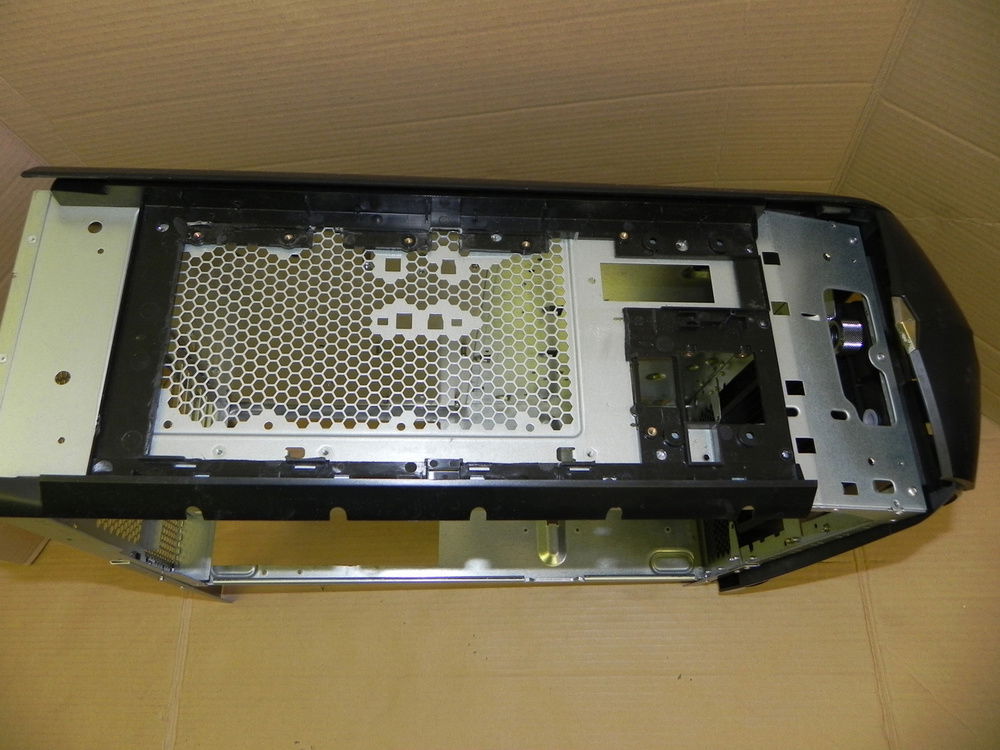

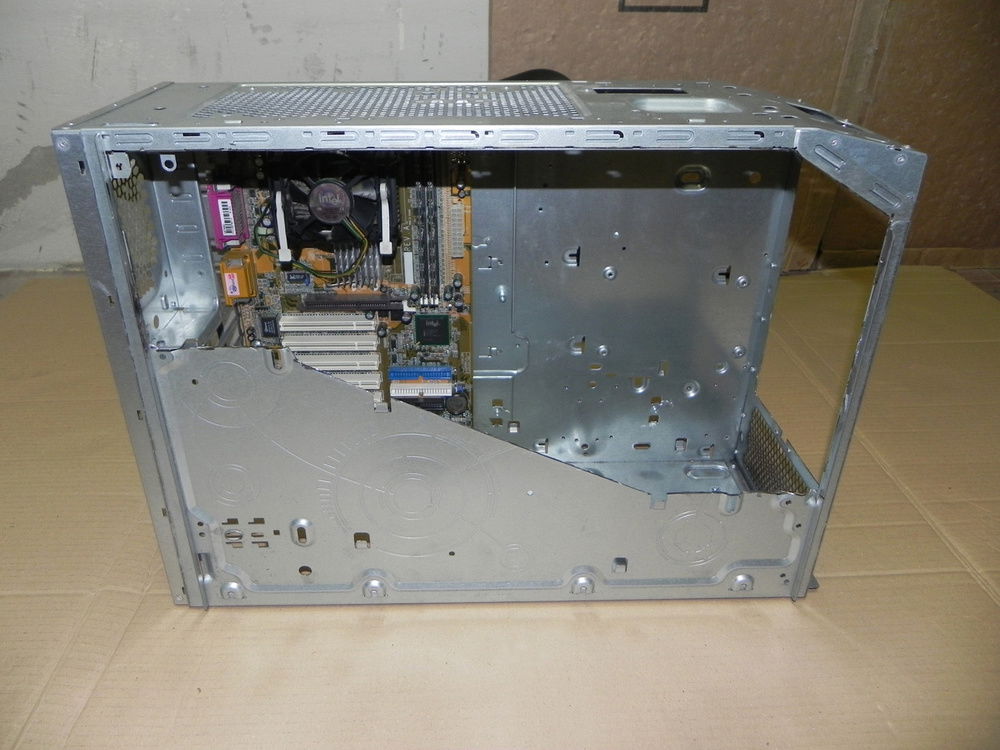

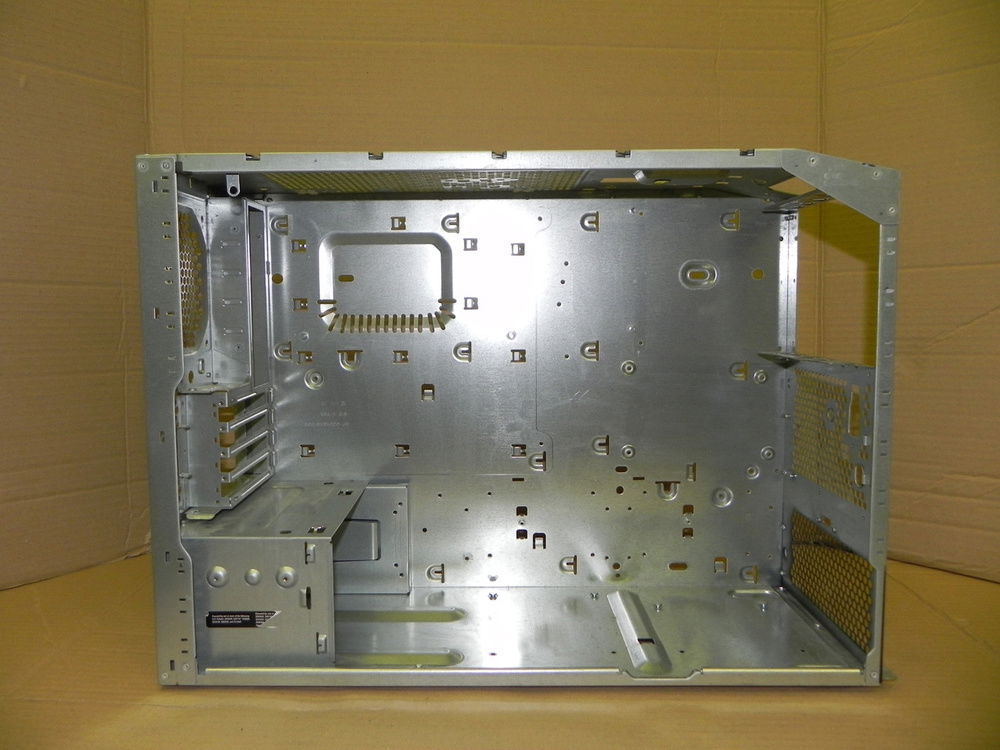

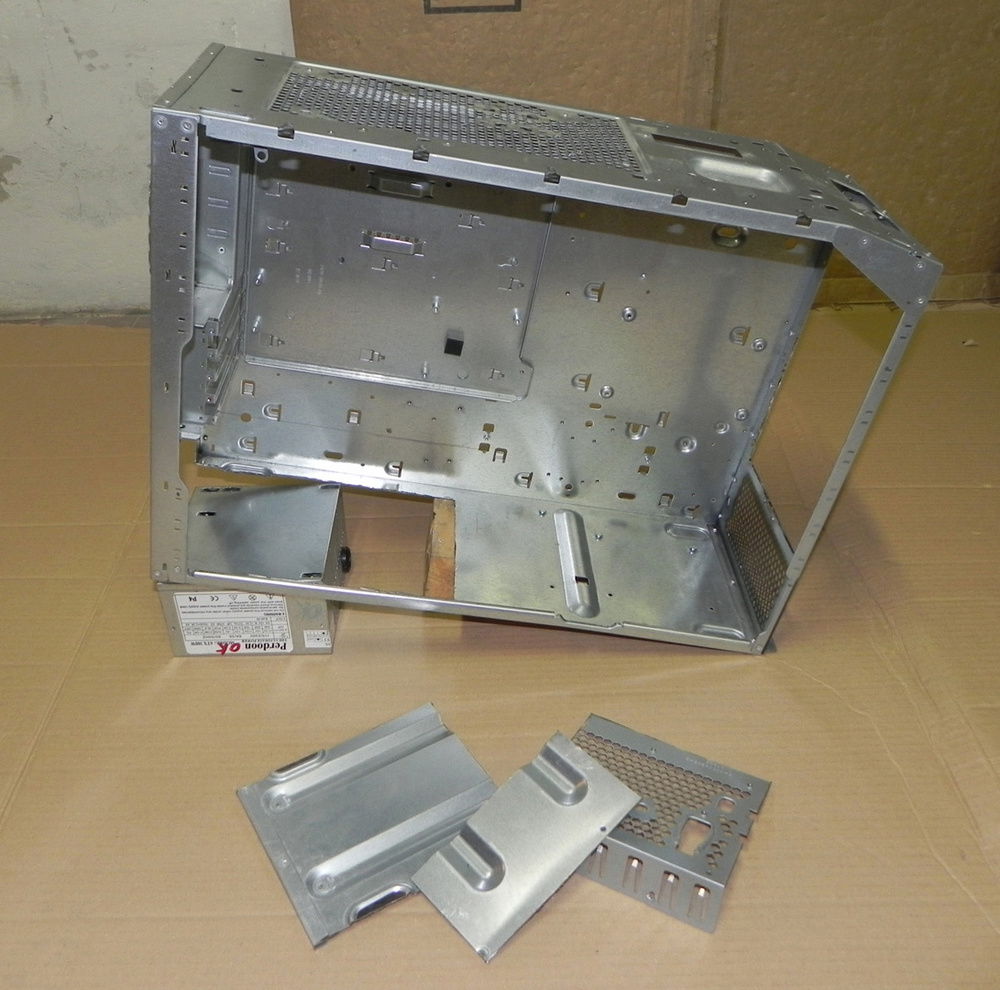

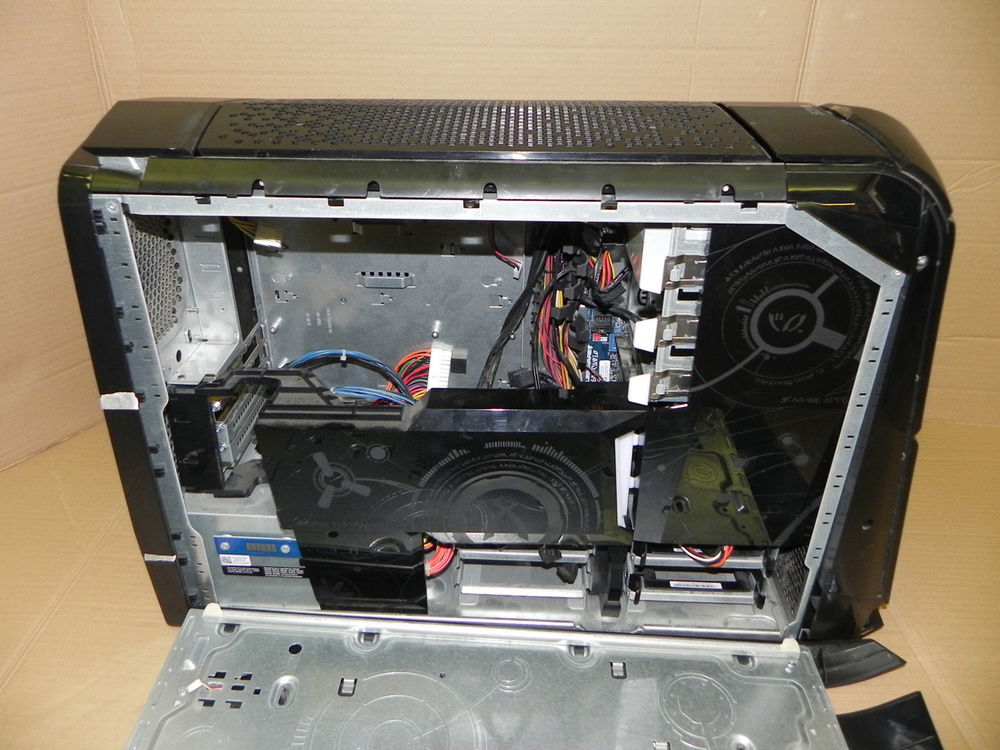

The start of my project, disassembled ALL the parts of the case!
PART 2 - ATX Conversion

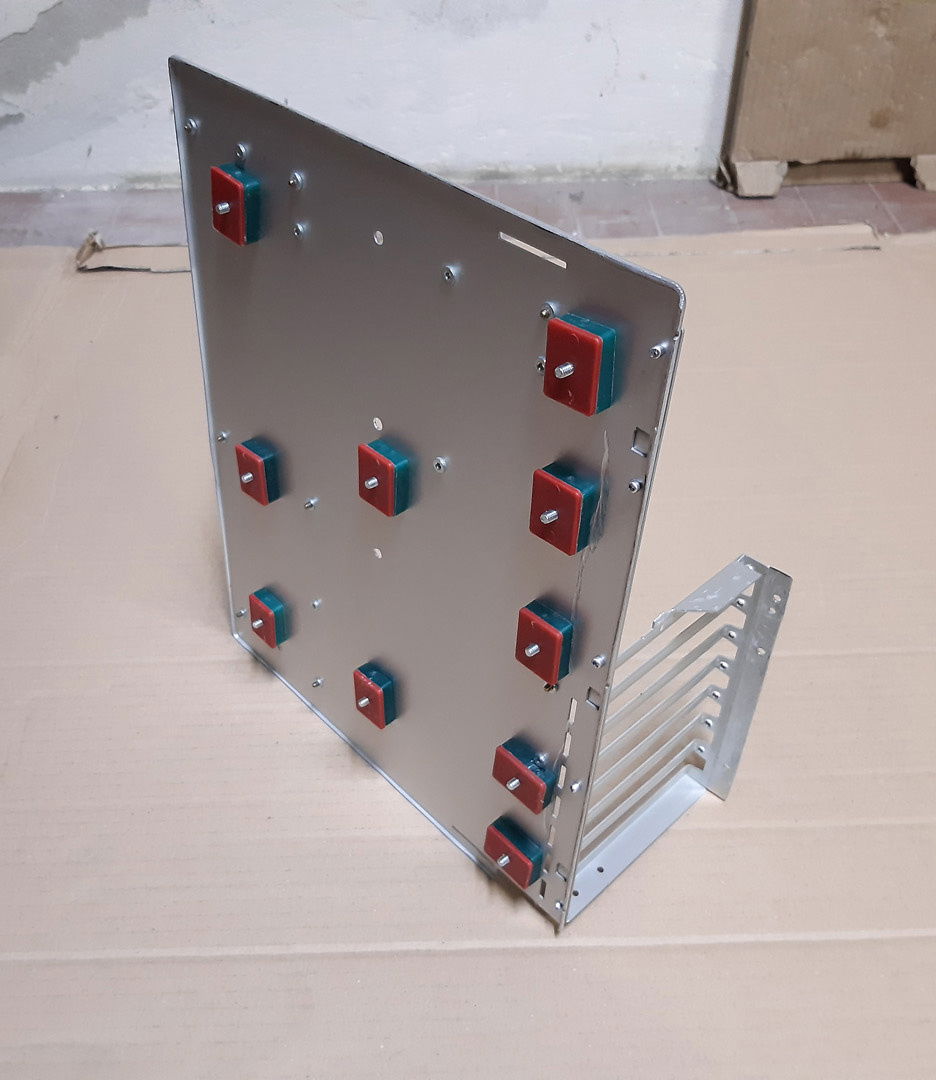

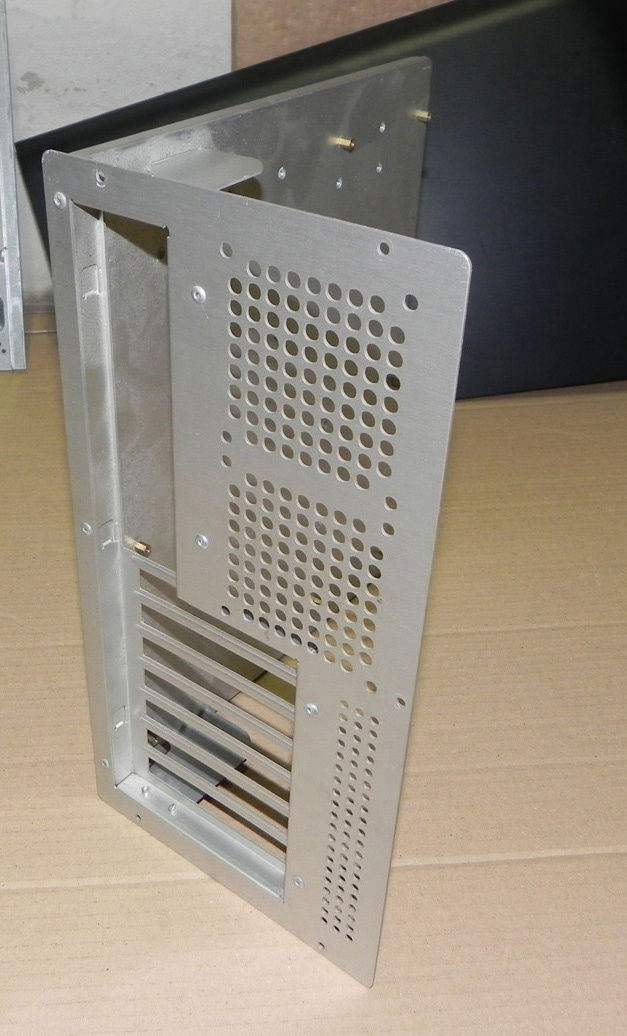

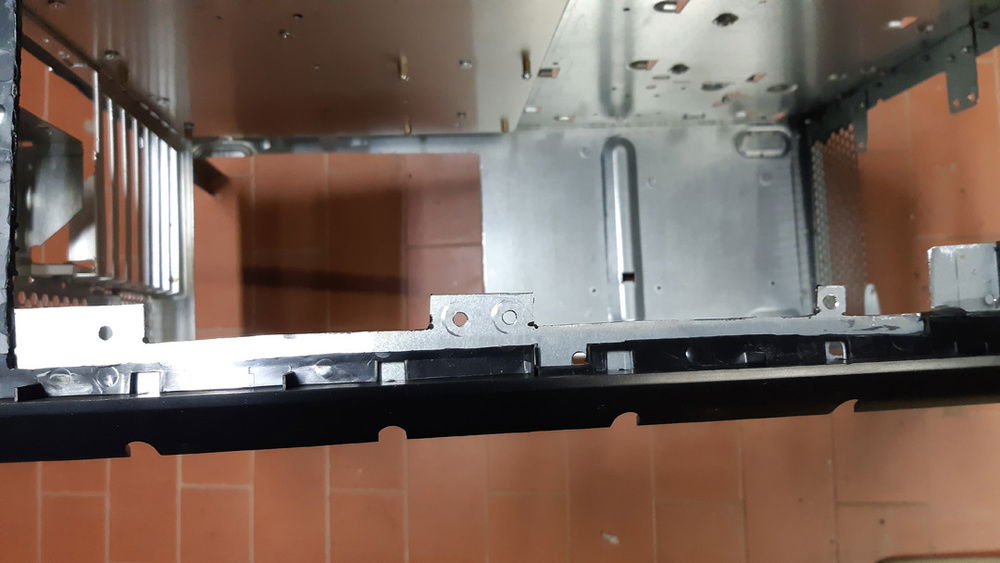

The process of ATX conversion. I've used an aluminium ATX plate and adapted to fit in the case.

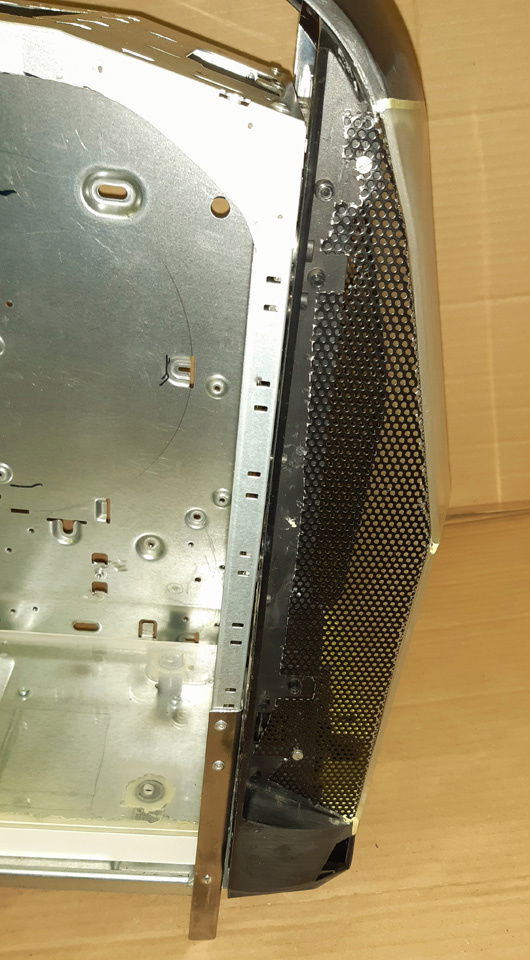

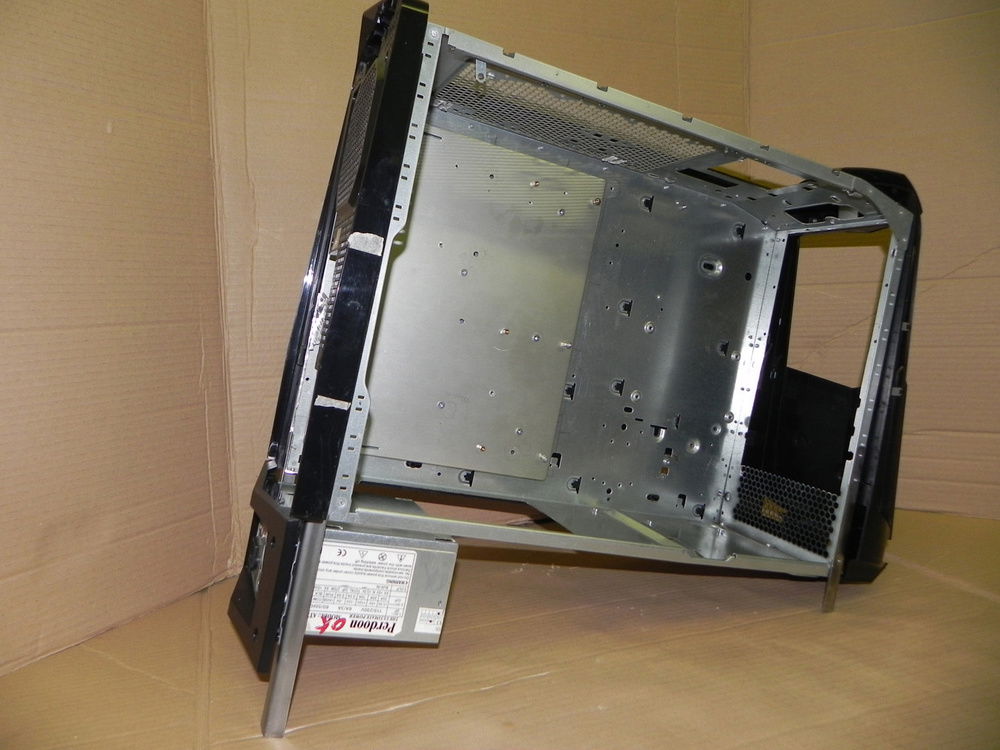

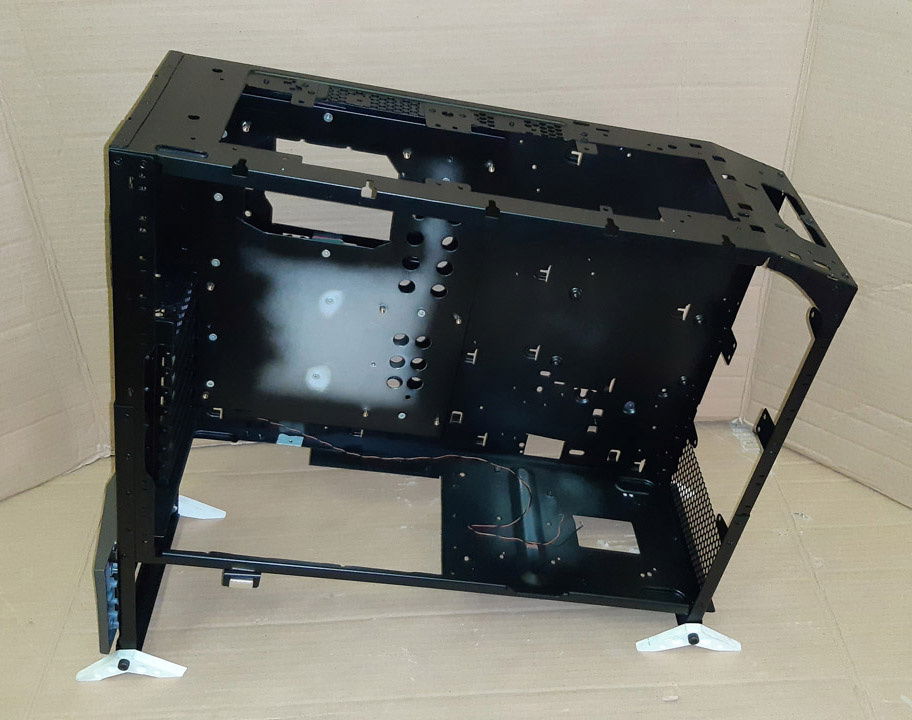

After, i've rised all the case with L shaped metal bars and give it a slanted look.

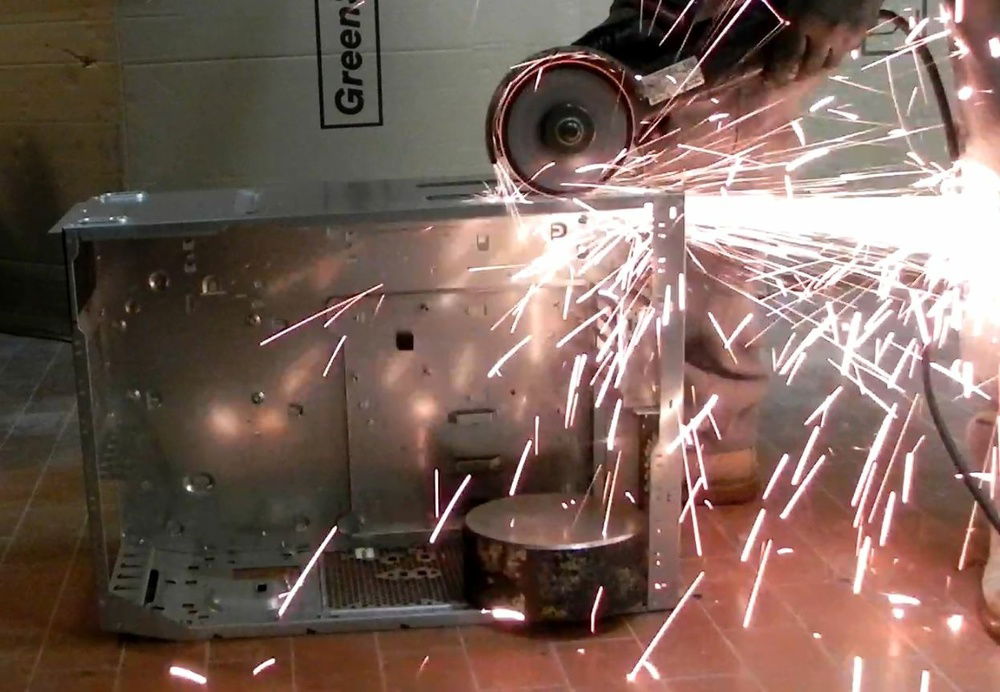

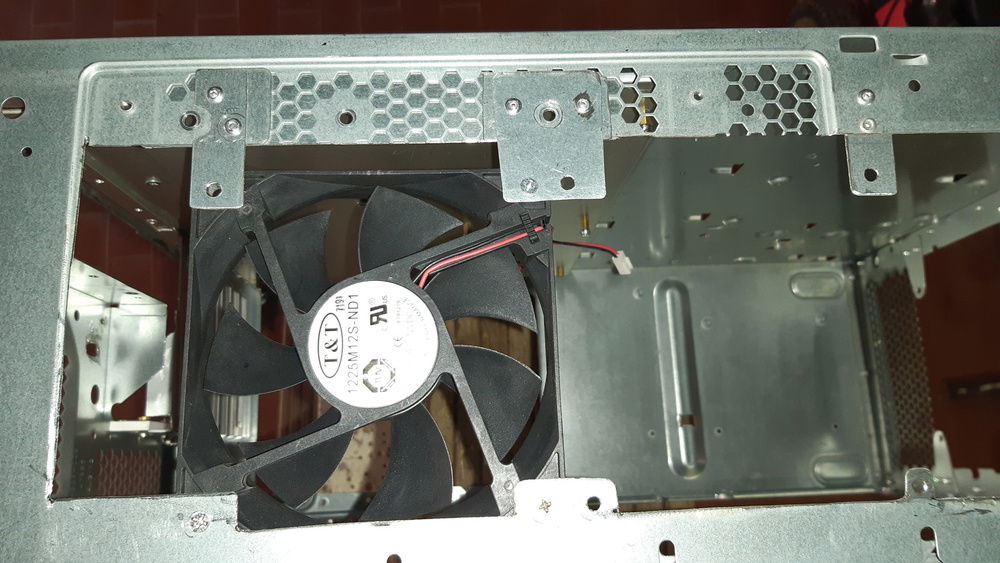

Cutting the hole for PSU zone

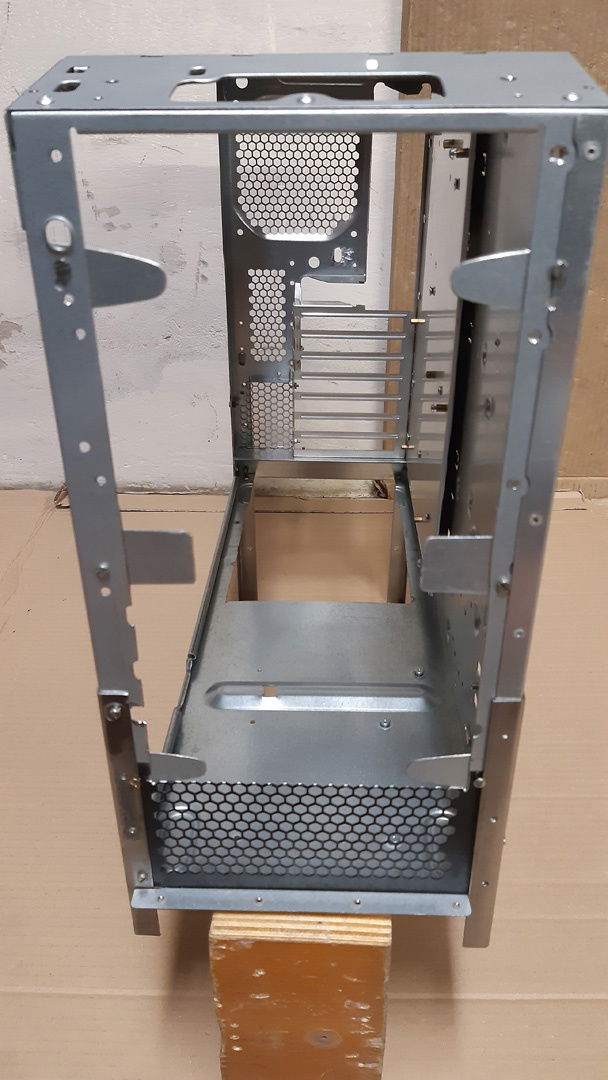

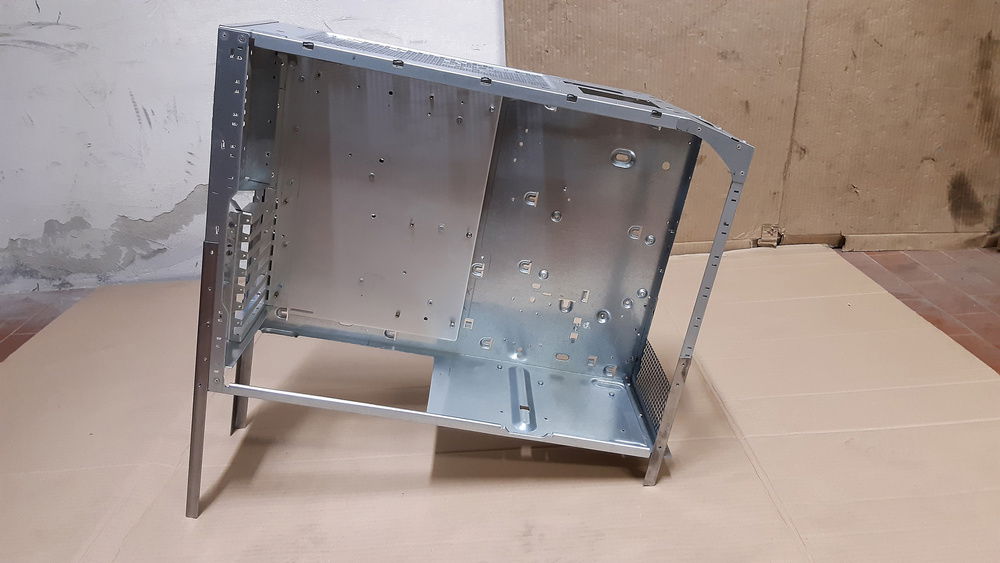

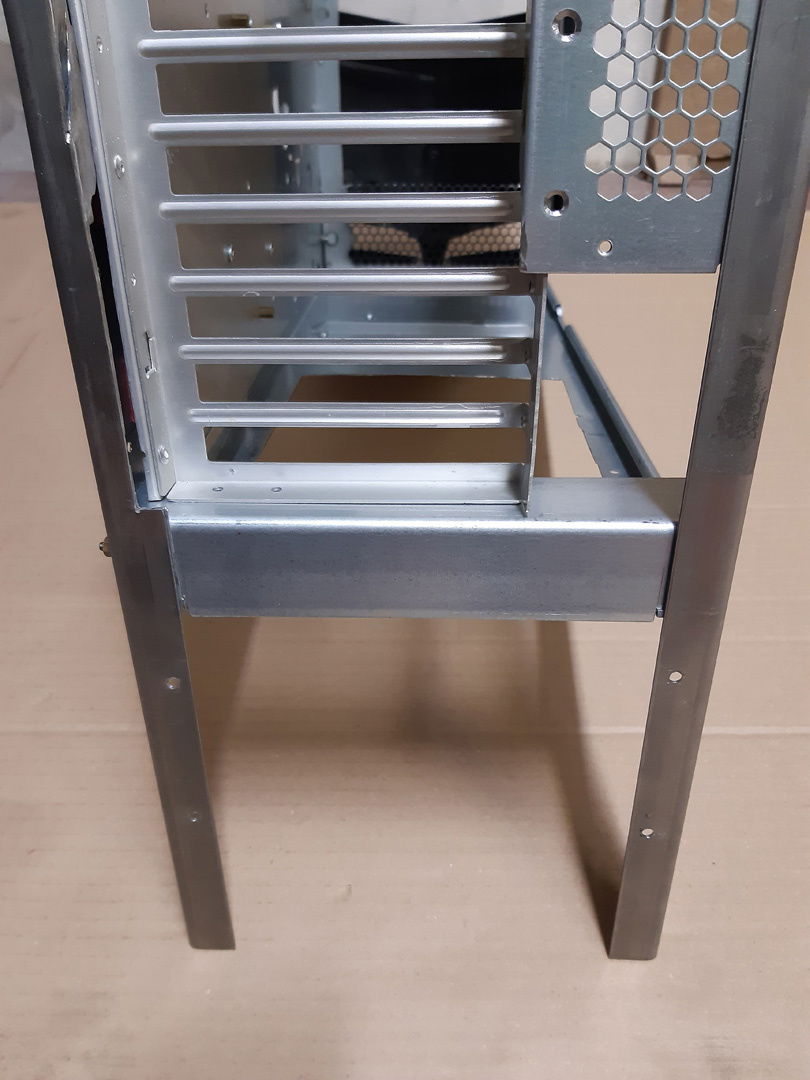

Rised all the case with L shaped metal bars

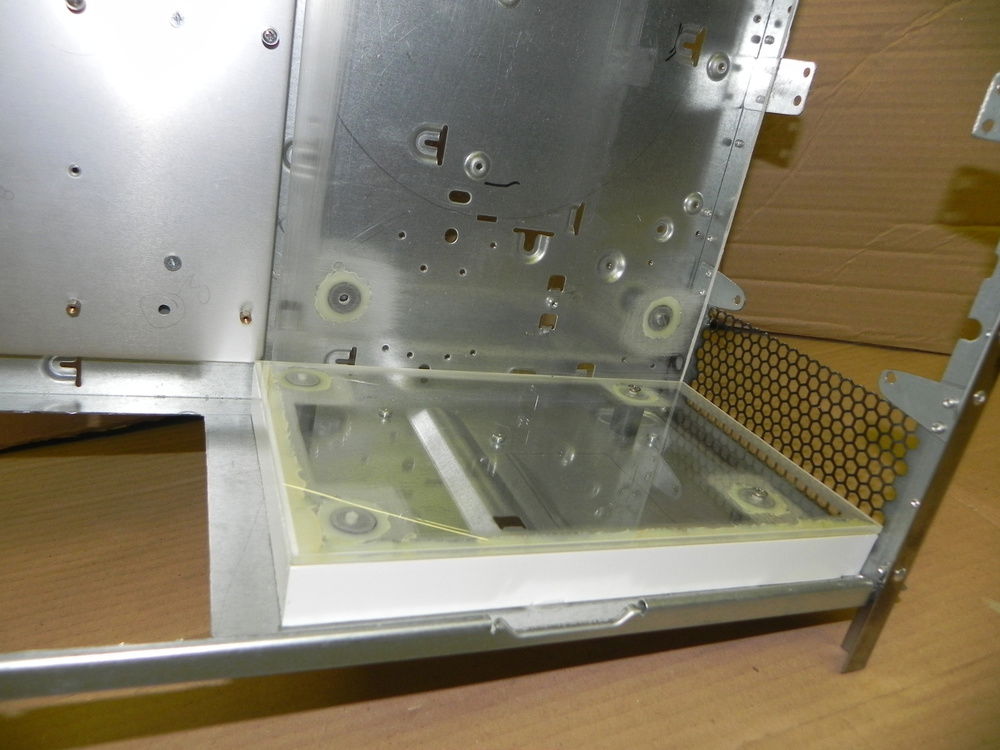

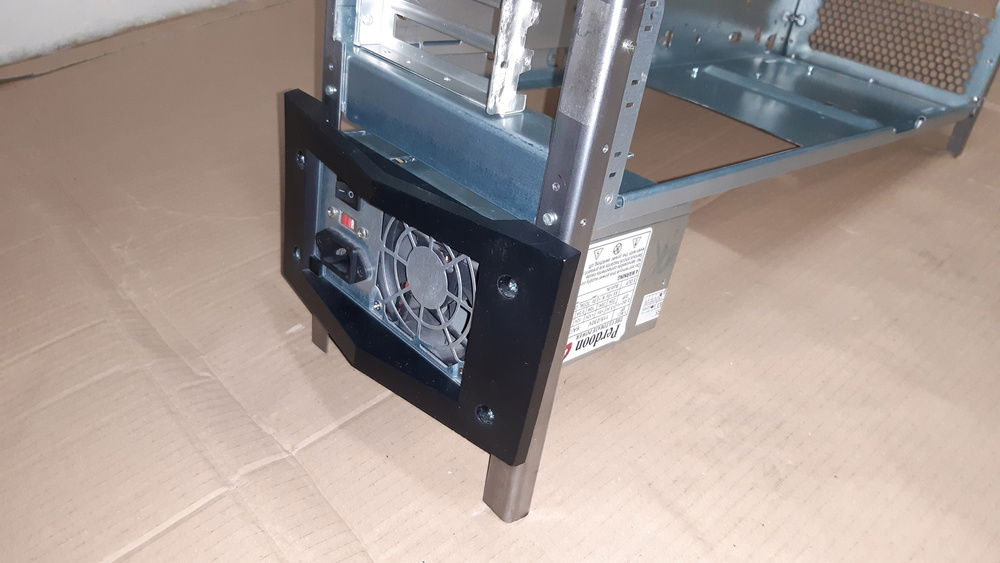

Testing PSU in position
PART 3 - Making radiator supports

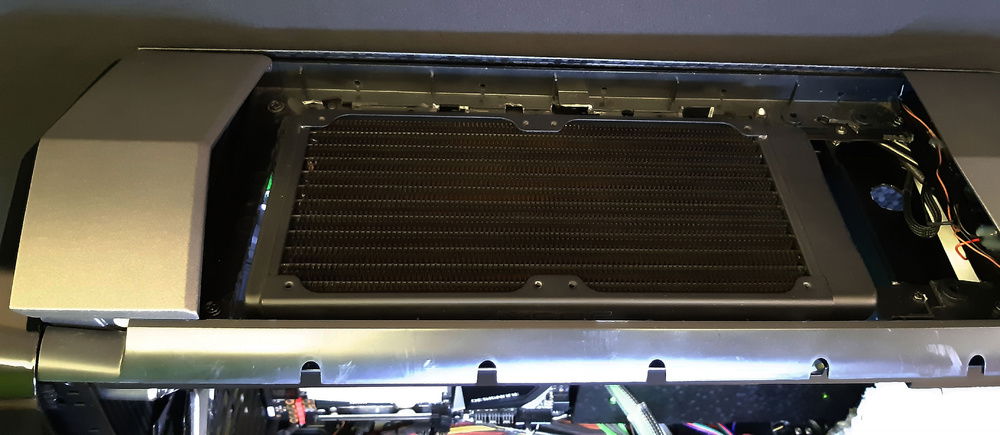

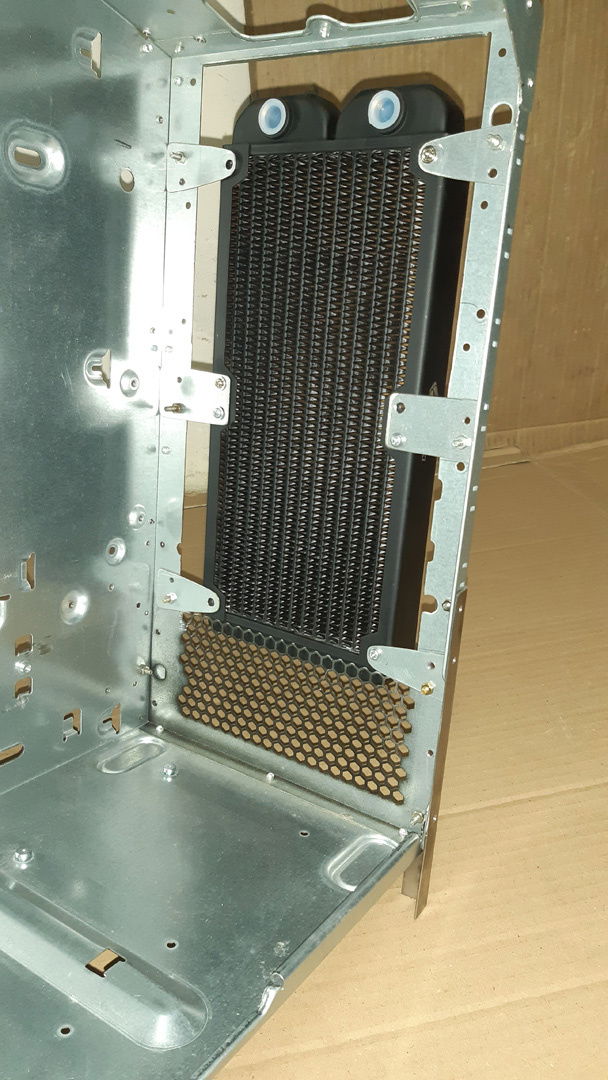

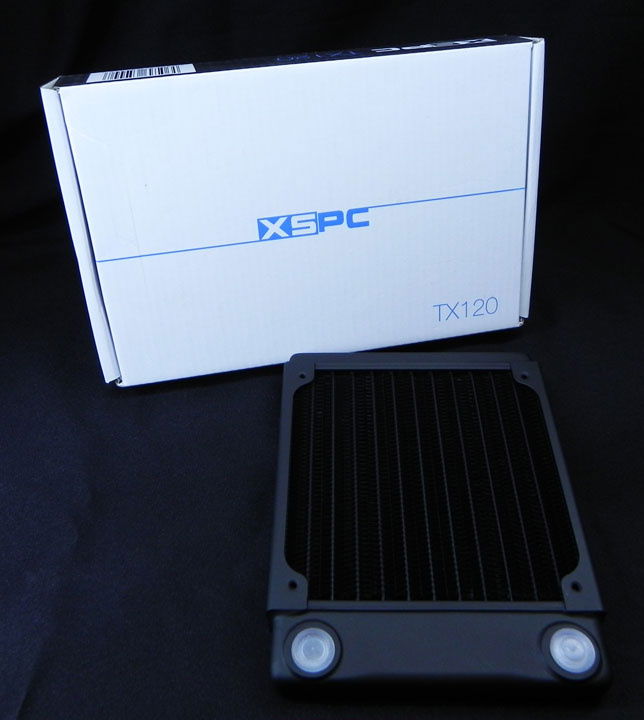

Making the supports for the two 240 mm radiators
PART 4 - Cutting side window
For this part, i choose to make the most difficult cut lines, that never ones have done before!
So i had to cut the original Plexiglas and also the LED bar, and install it in a new position.
Also the cutting shape was calculated accurately the keep the flow look of the side and have the maximum view of the inside.

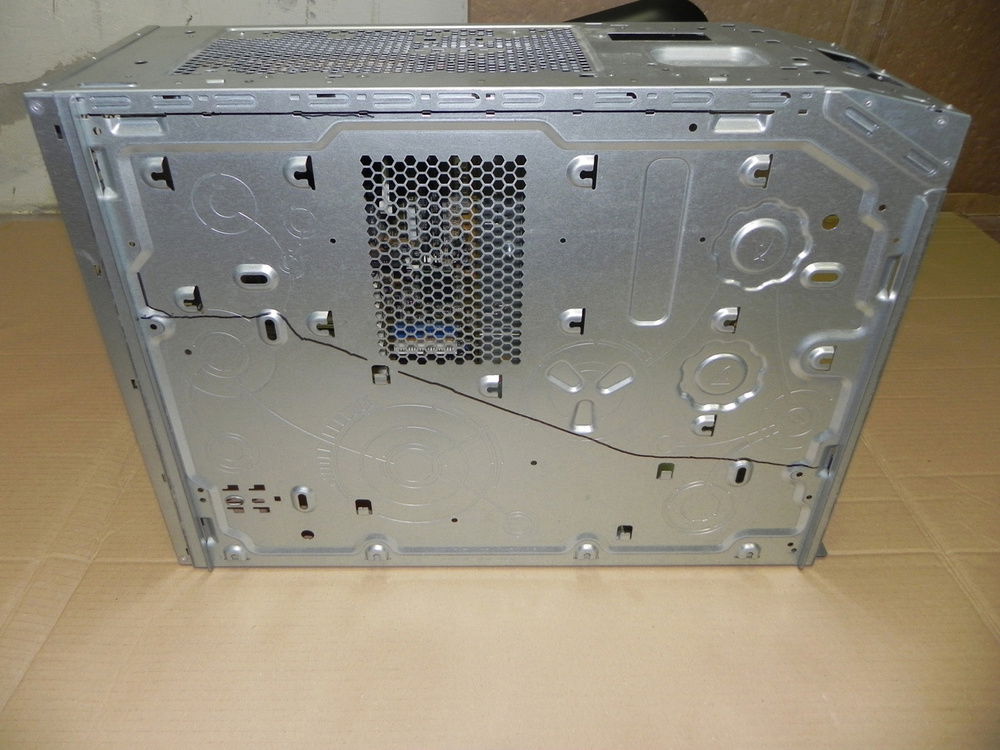

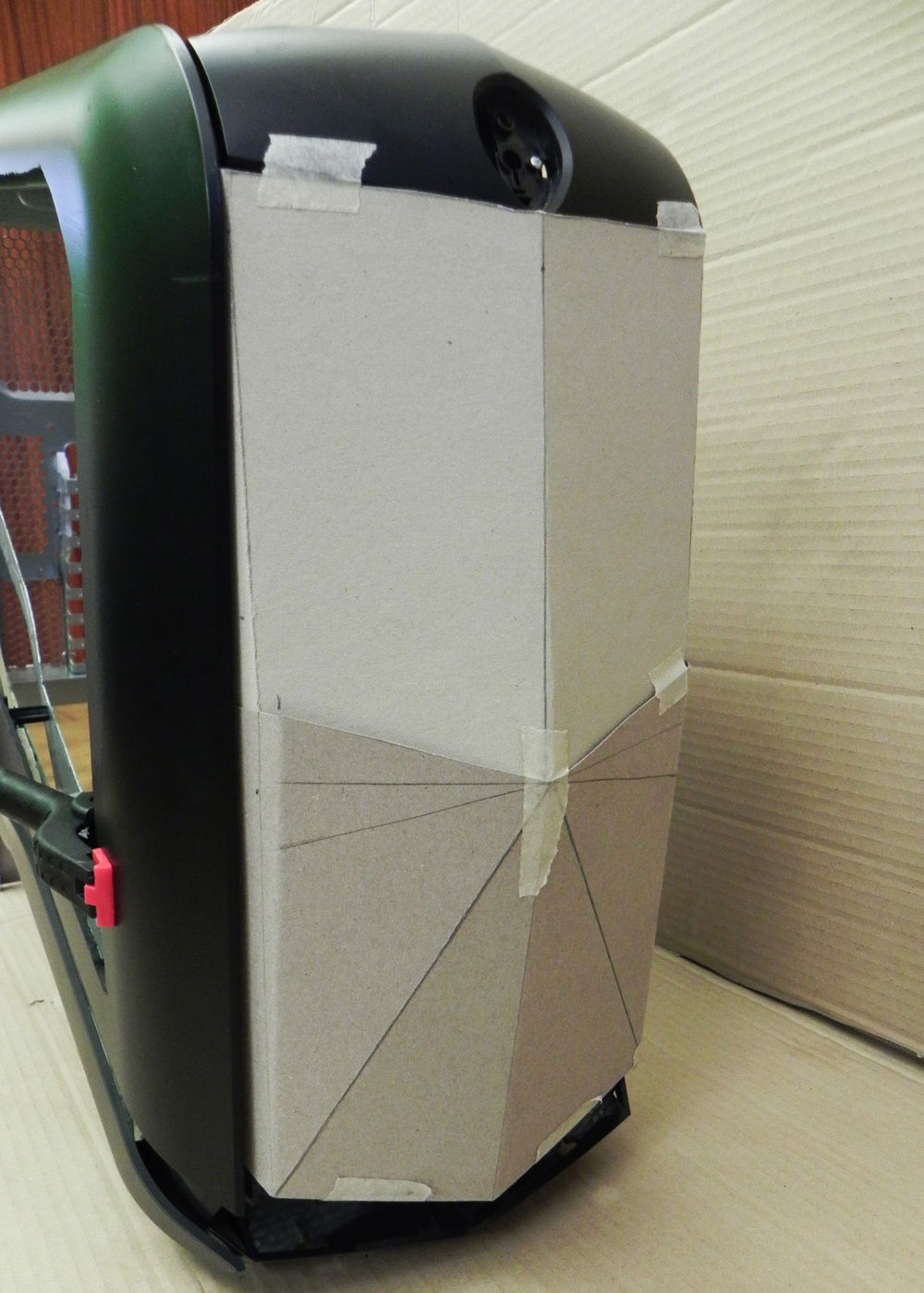

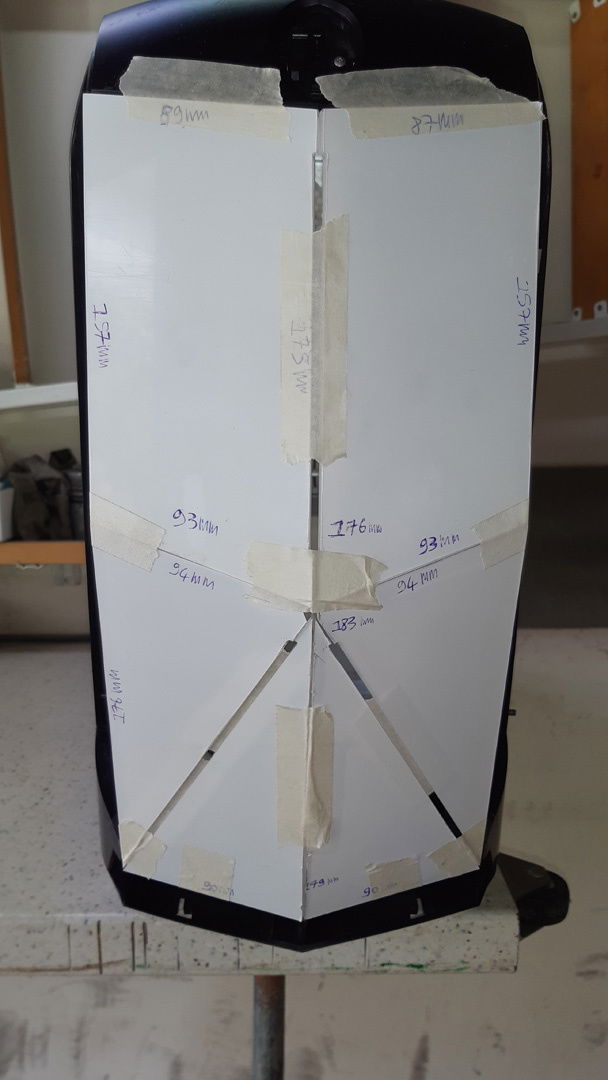

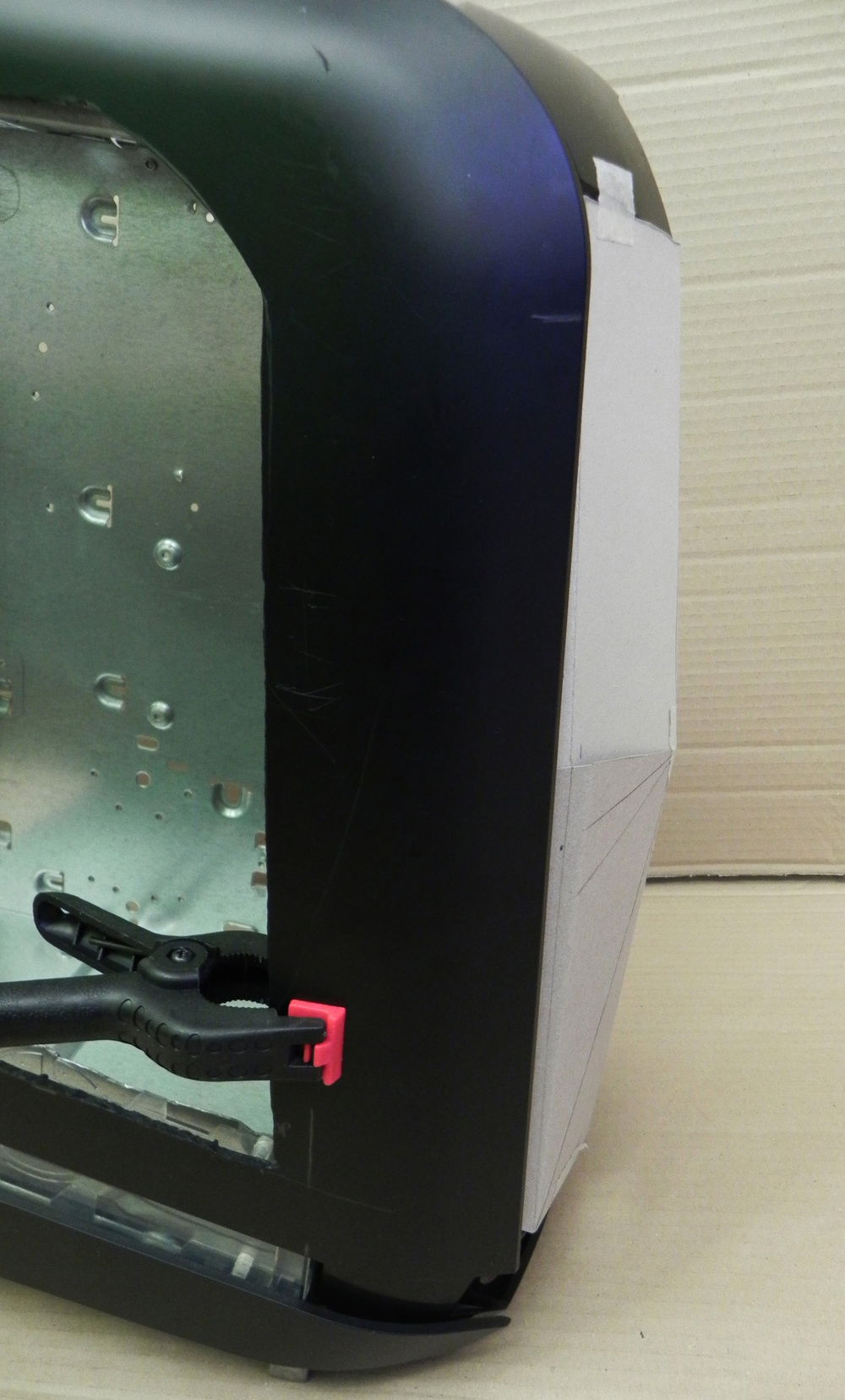

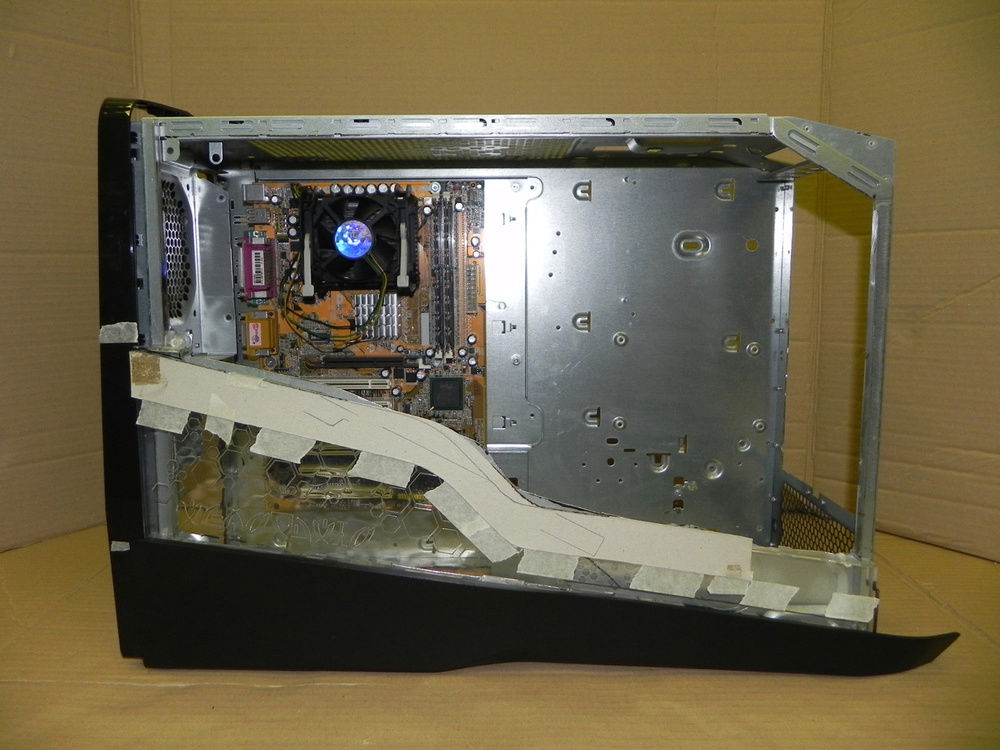

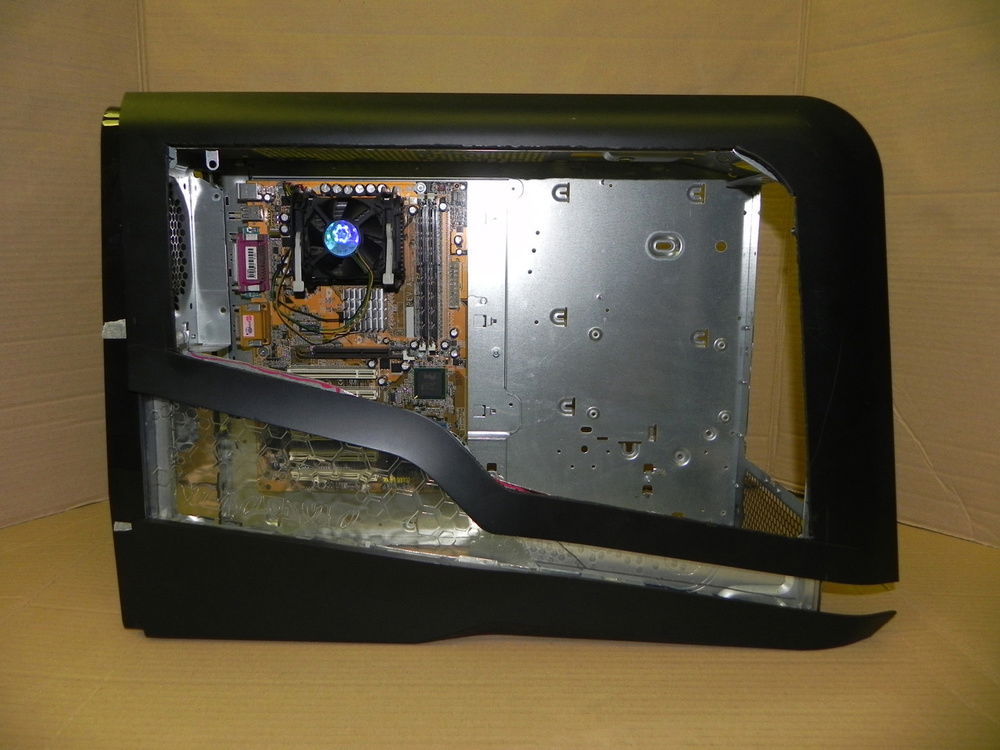

The shape with cardboard

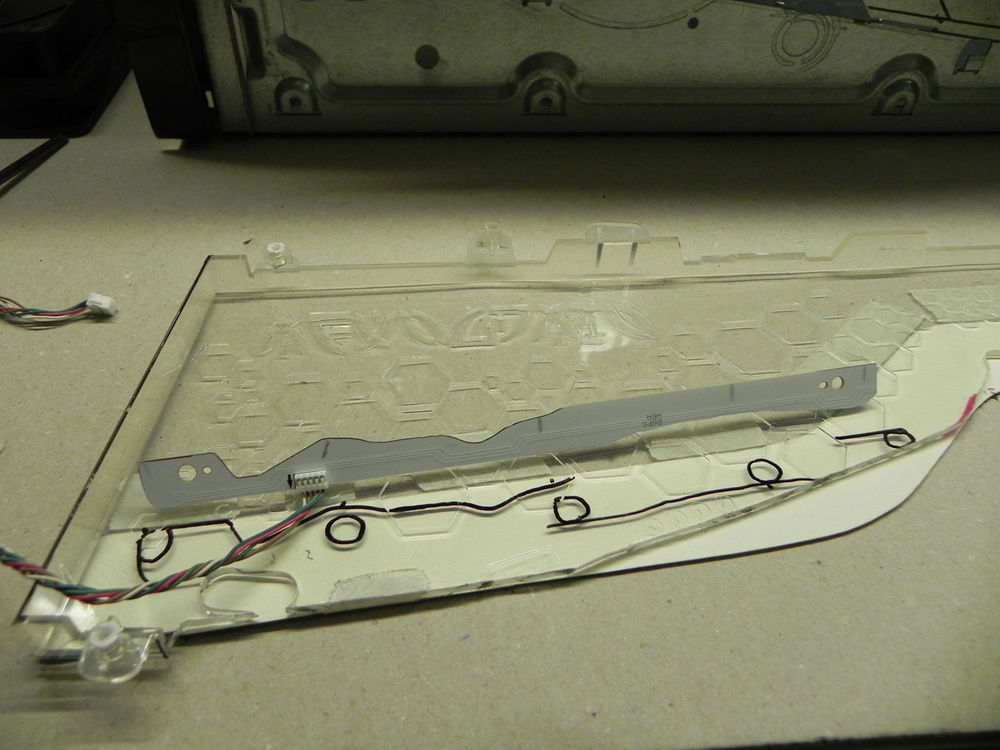

Cutting LED bar and plexiglass

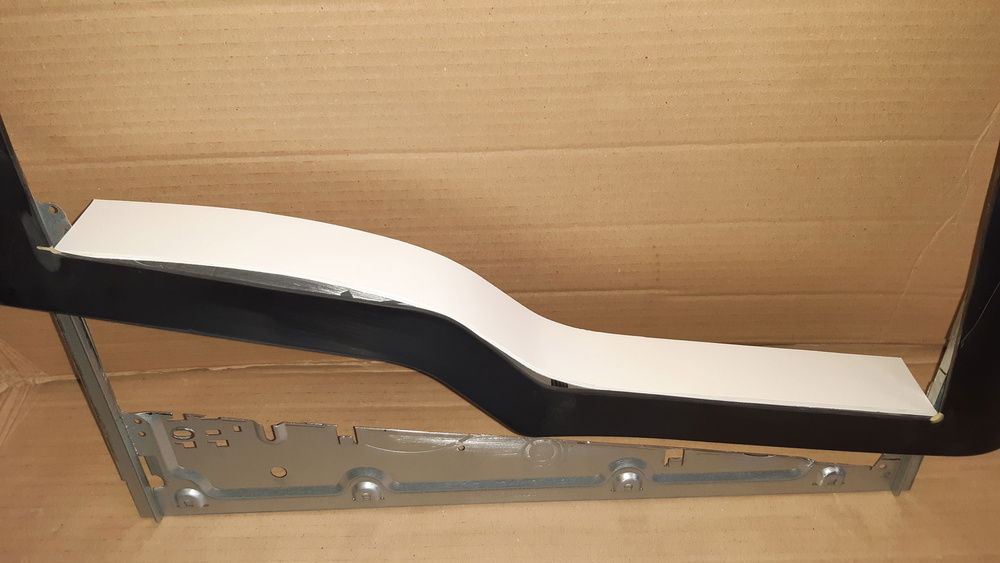

Making a cover

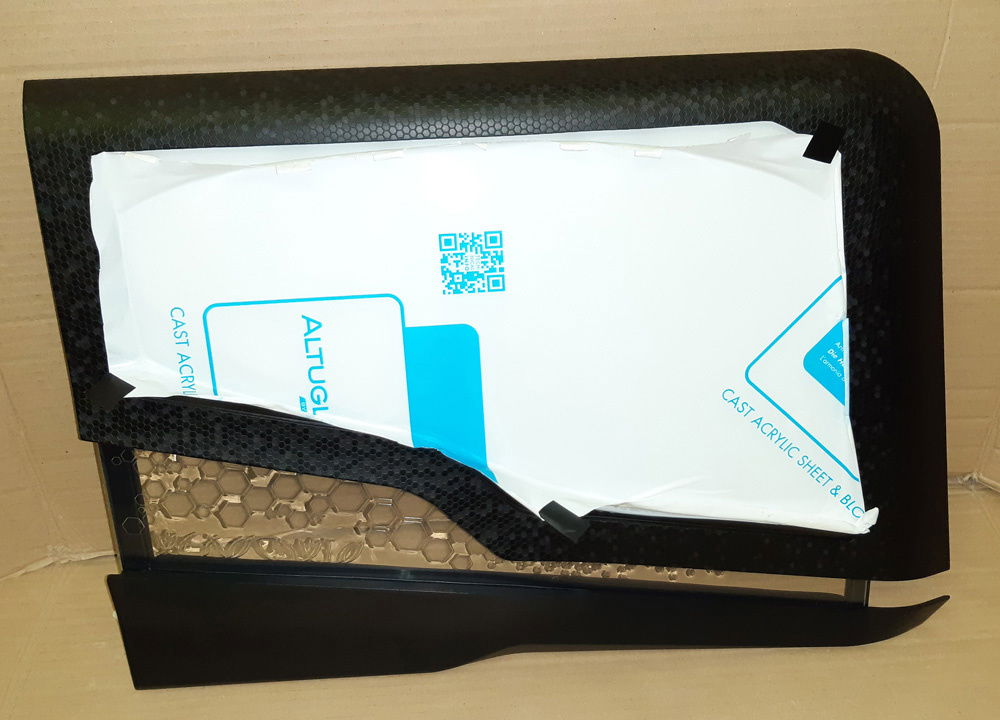

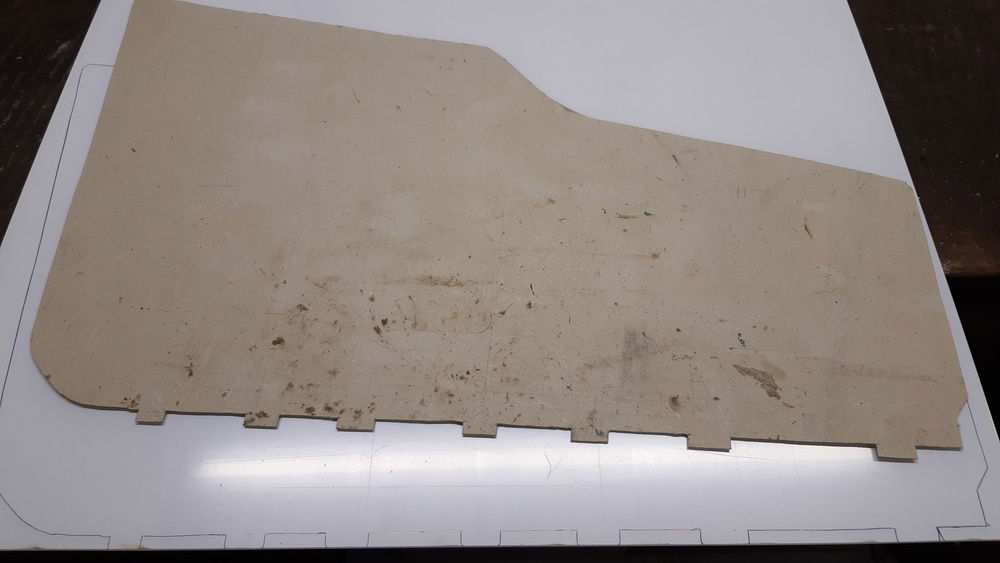

Making the window

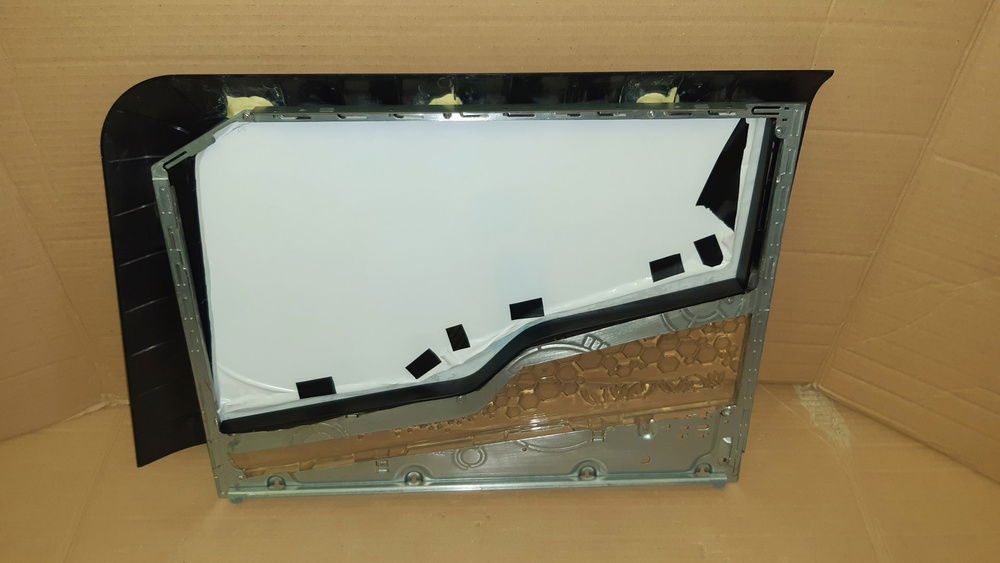

Window and cover installed
PART 5 - PSU restyling

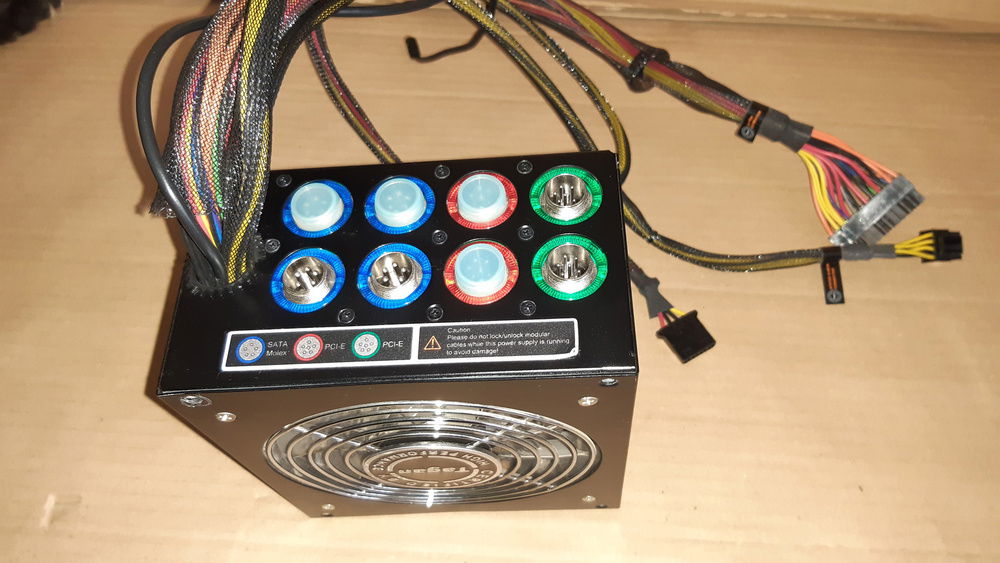

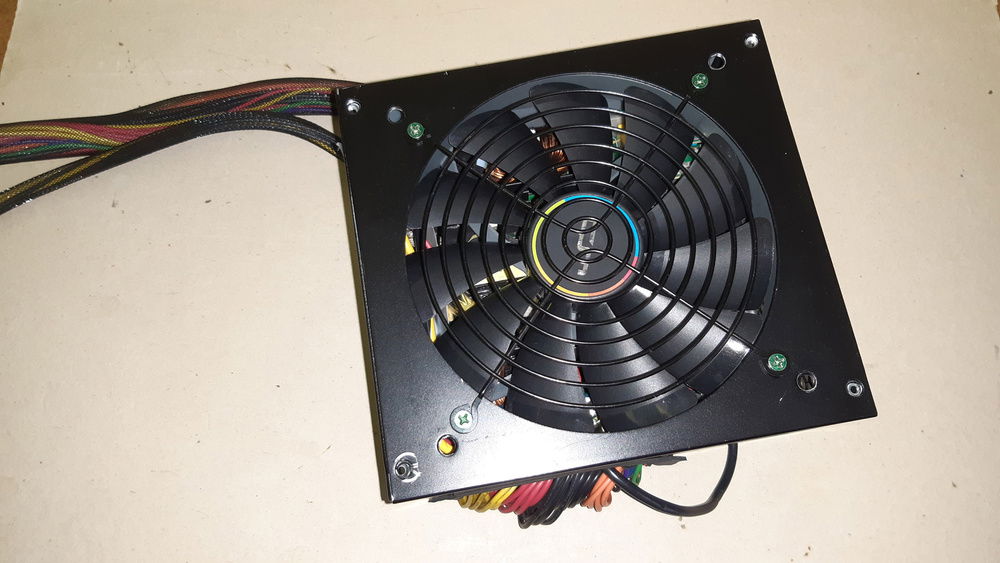

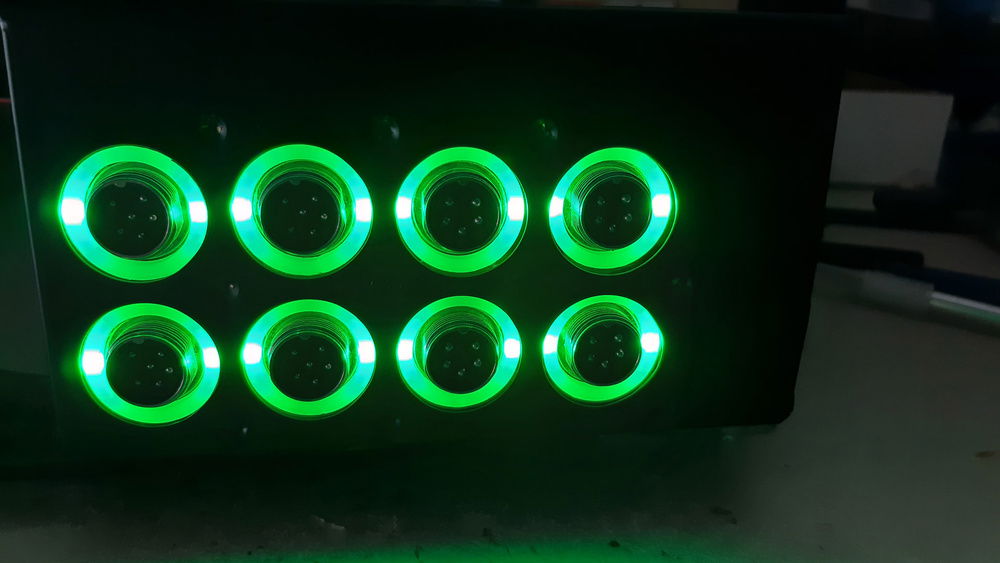

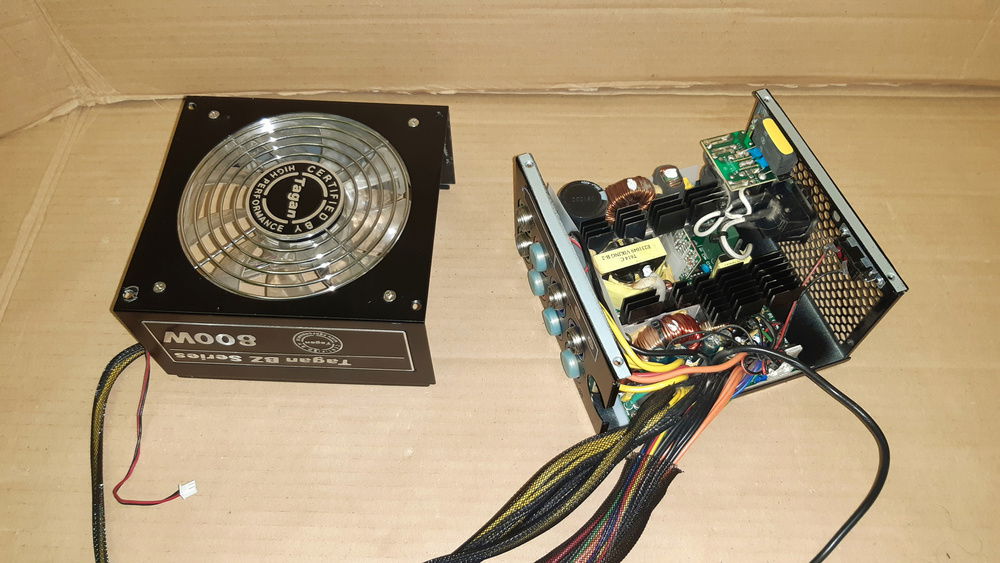

This part its about the modding of the PSU, i've maked new rings, changed the LEDs, cutted the side of the PSU case, and installed a new fan.

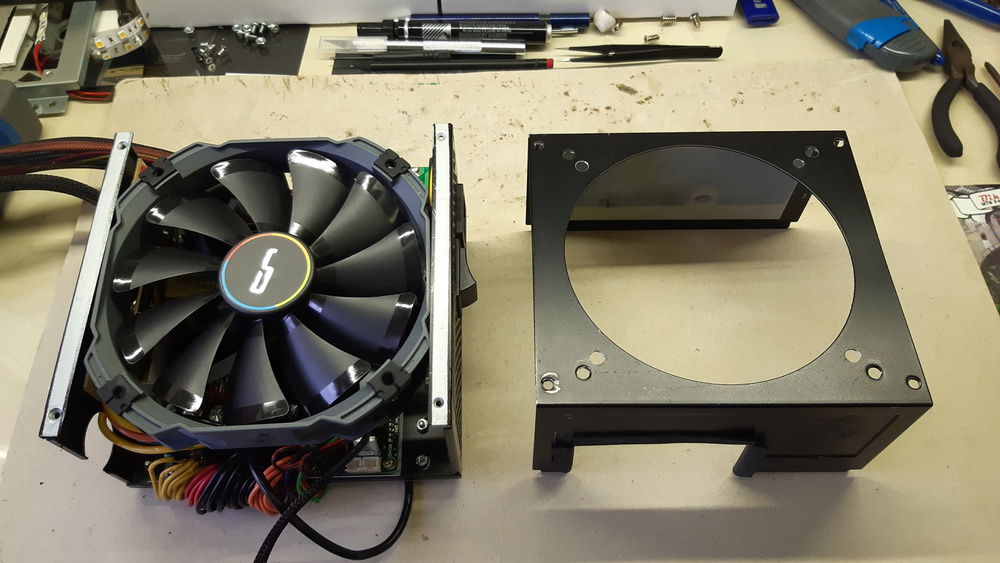

New Fan Cryorig 140 mm

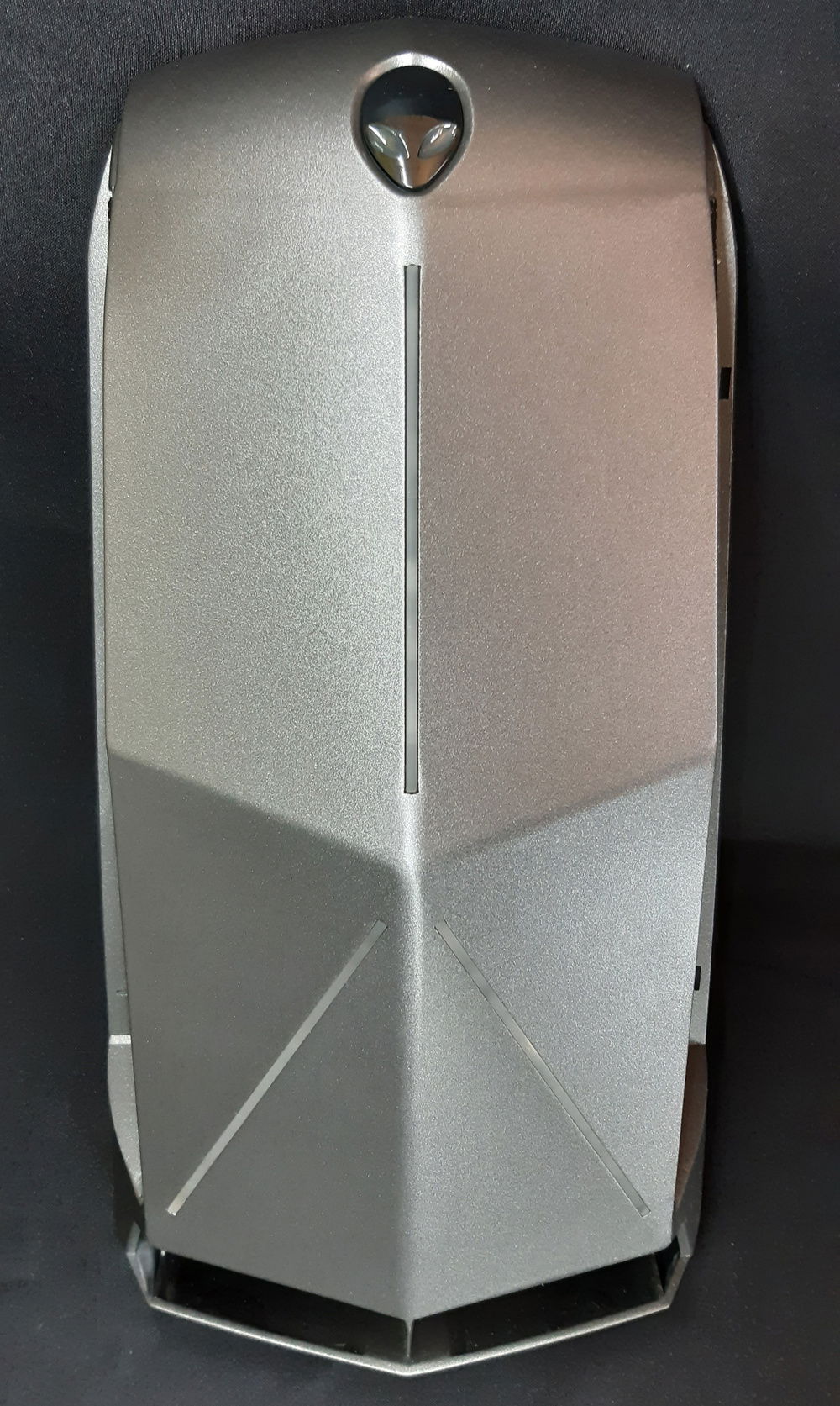

PART 6 - Making the new front face

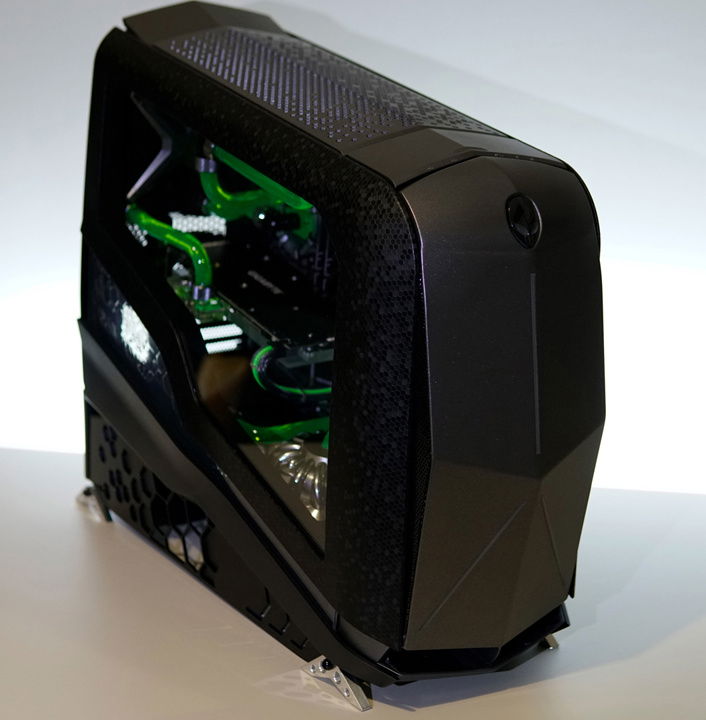

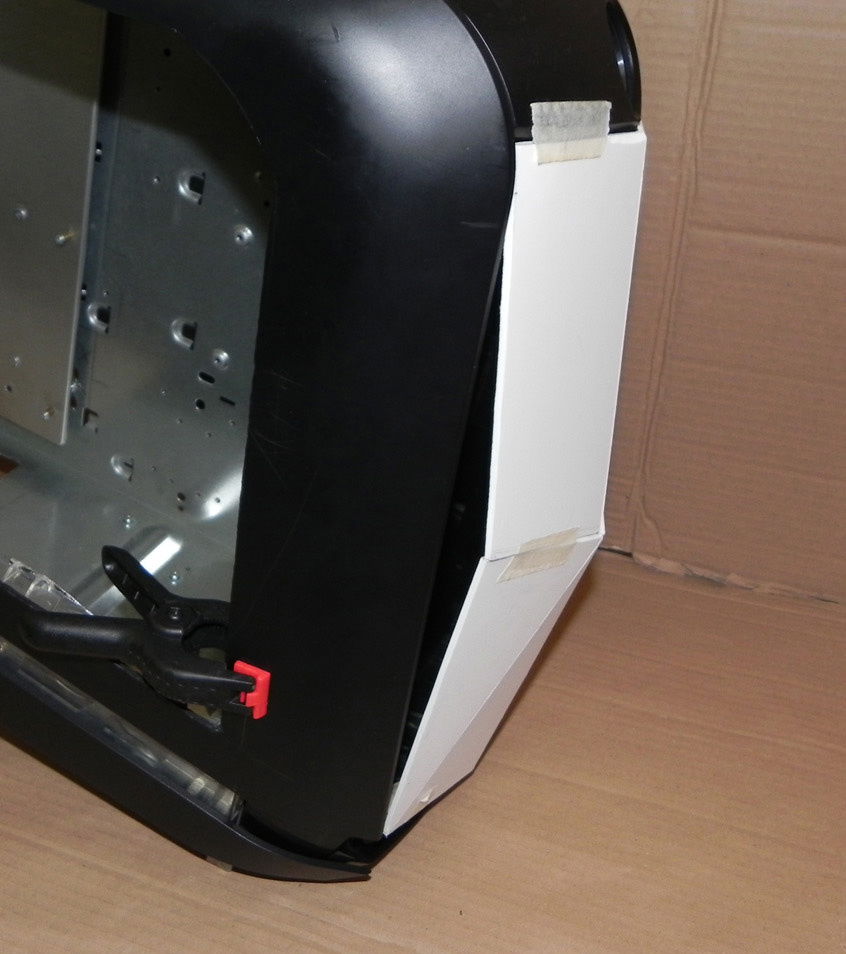

This was one of the main challenge, designing the new front and keeping the Alienware style!
I wanted to create a precise polygonal structure with more faces, it was really difficult, it take me a lot of time, but at the end the result was really satisfying!

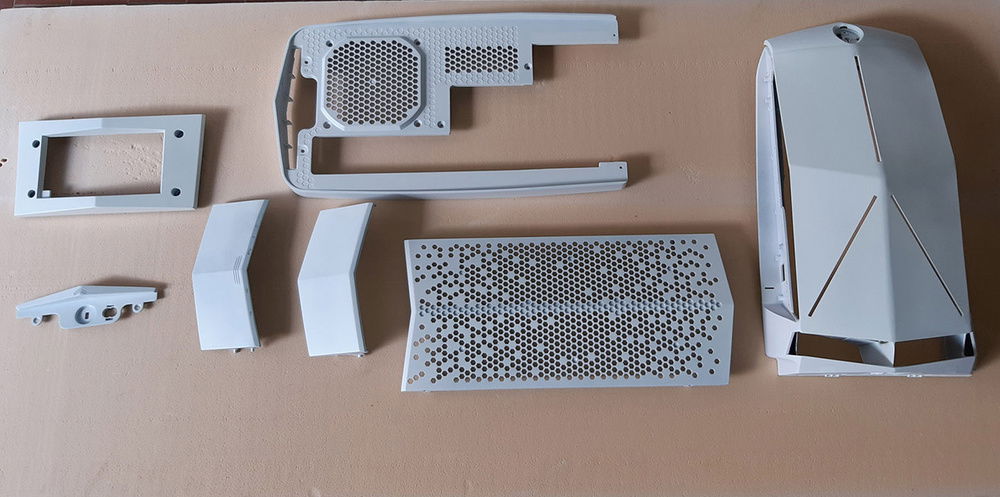

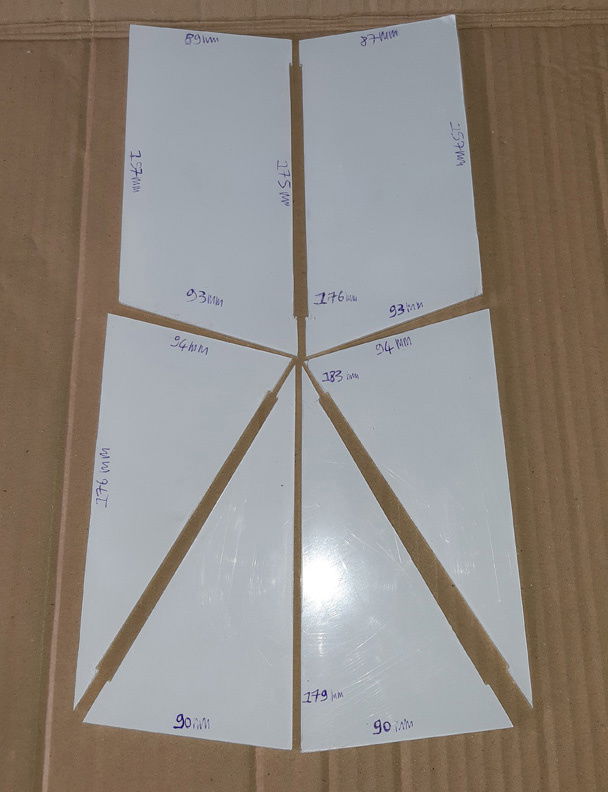

Final laser cutted plexiglas parts

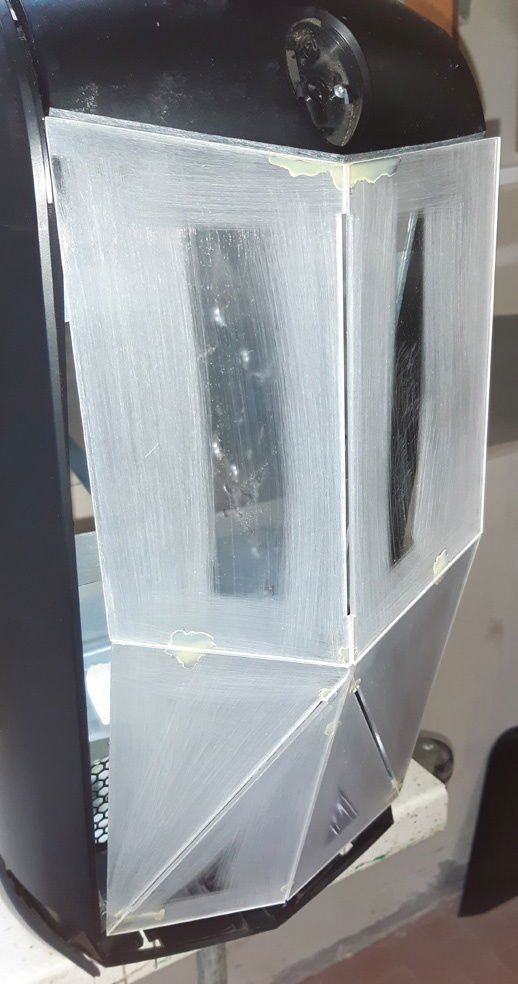

Pre-assembled the parts

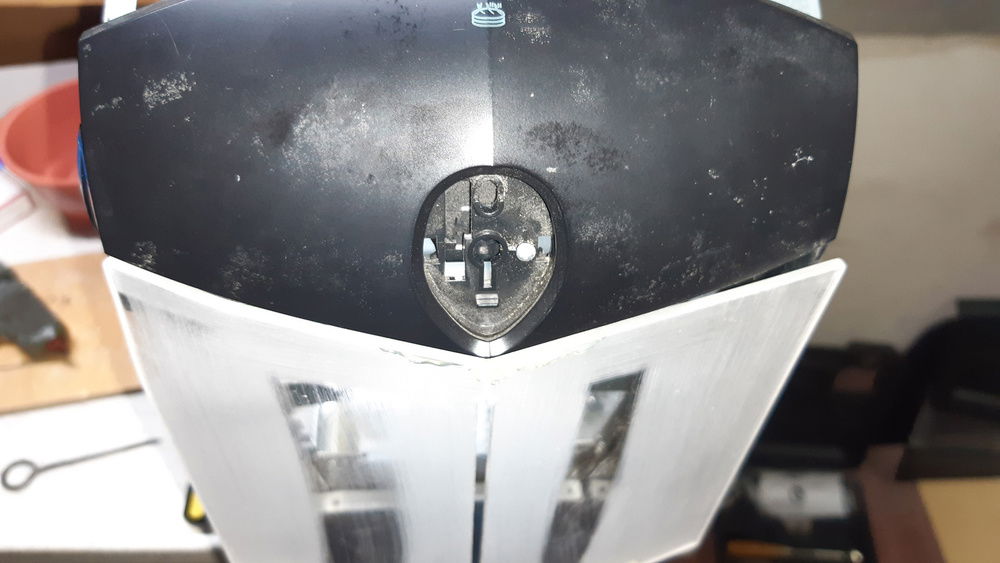

Bending the plexiglass

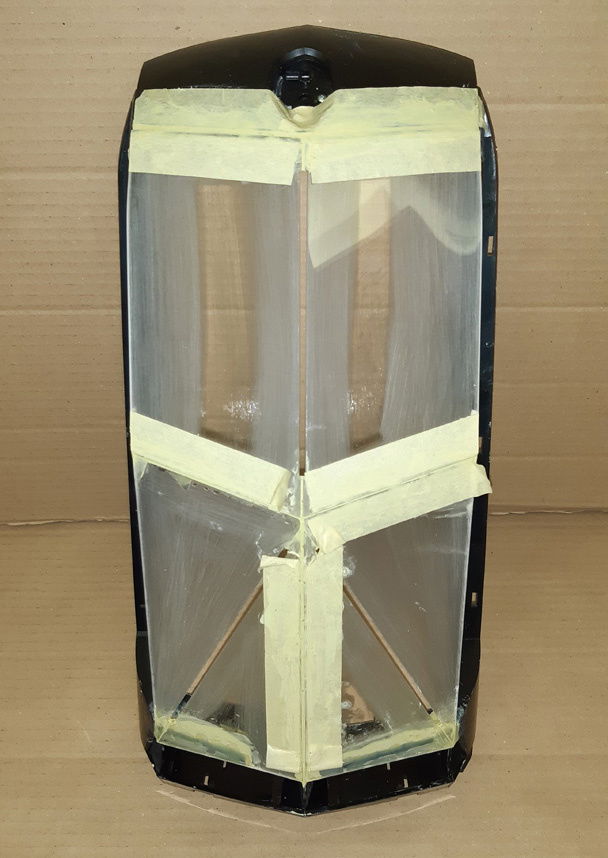

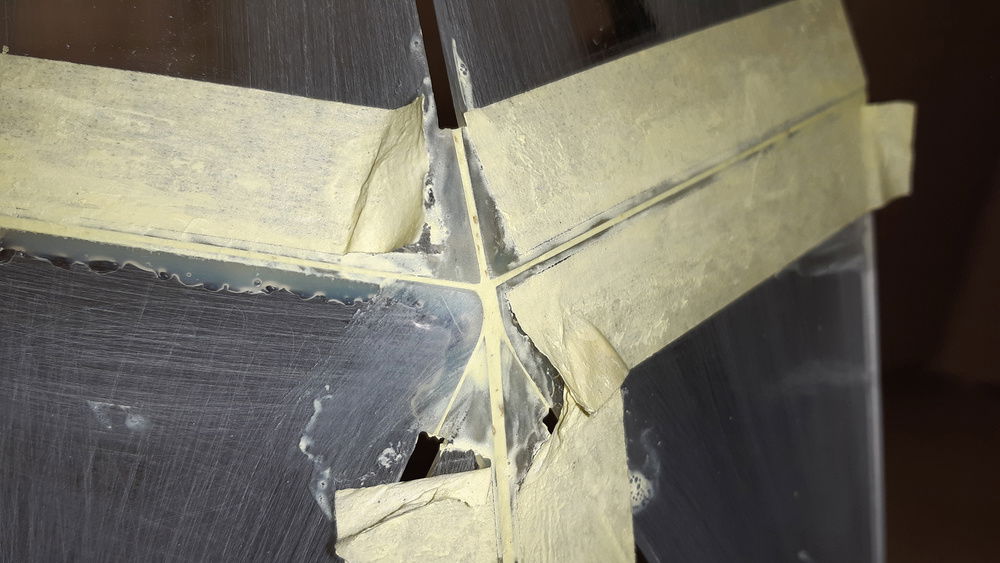

Filling holes with epoxy putty
Filling holes with epoxy putty

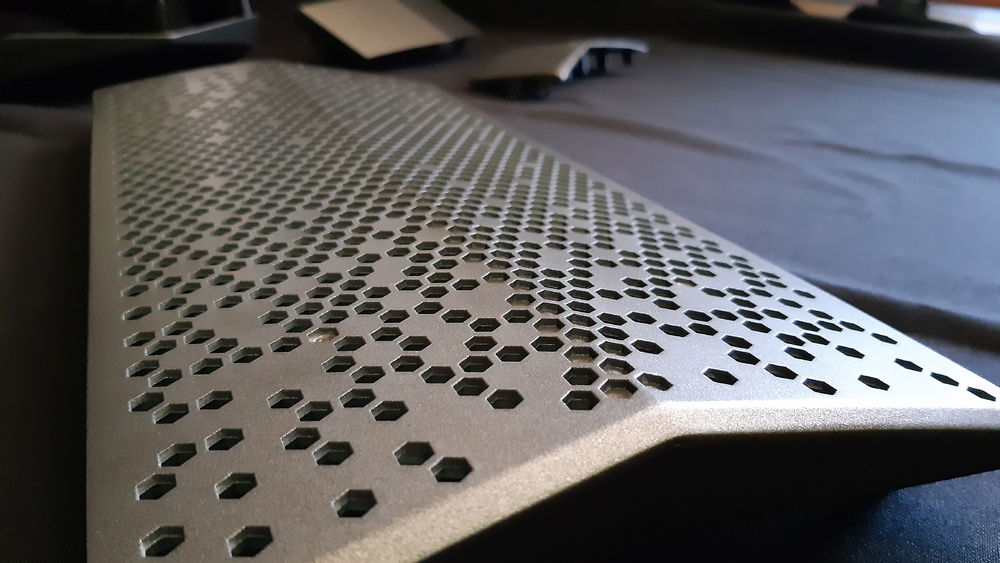

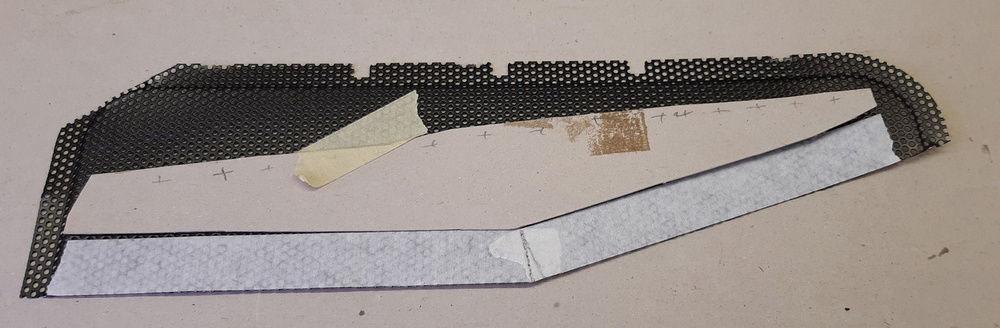

Making grill for cover the side

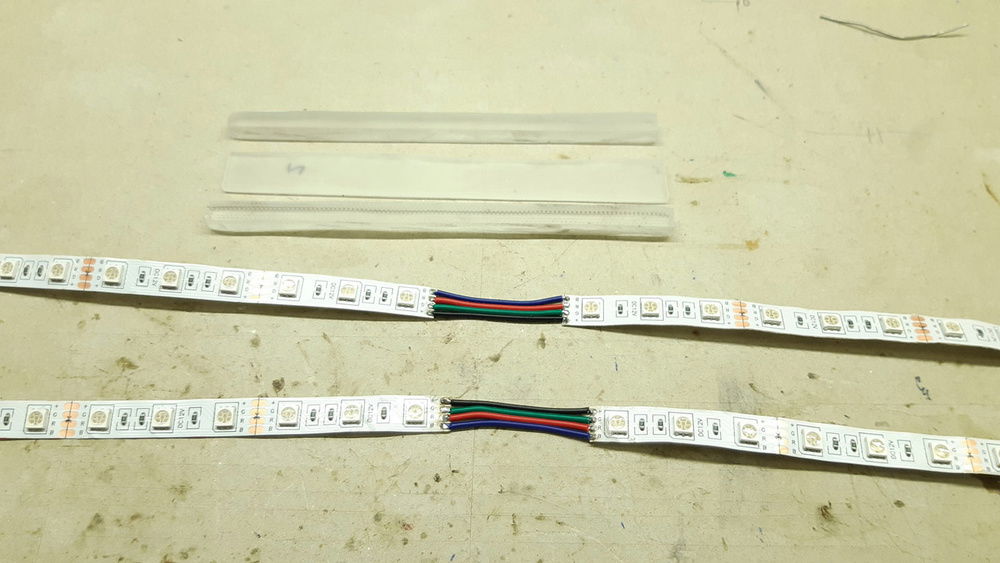

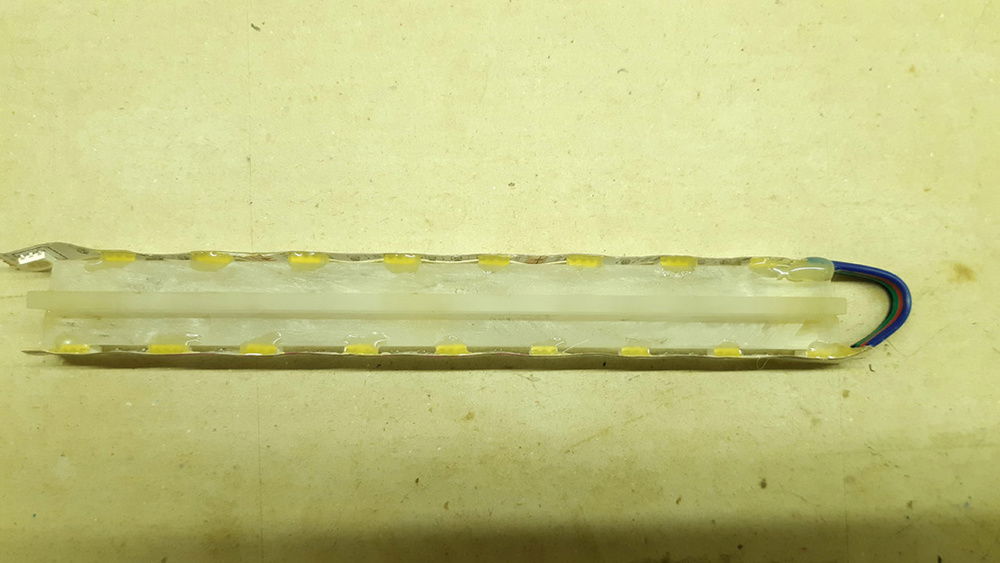

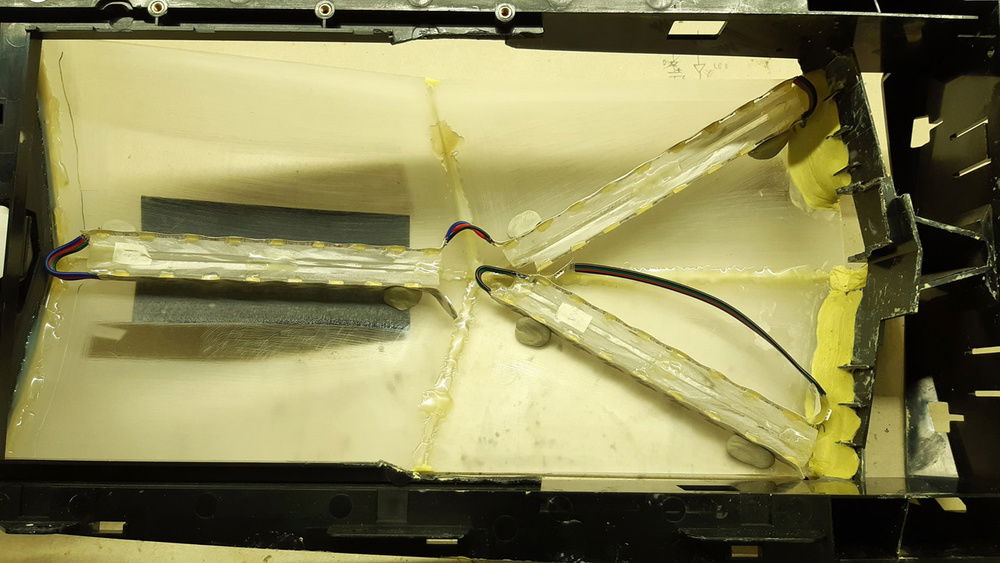

Preparing the LED strips

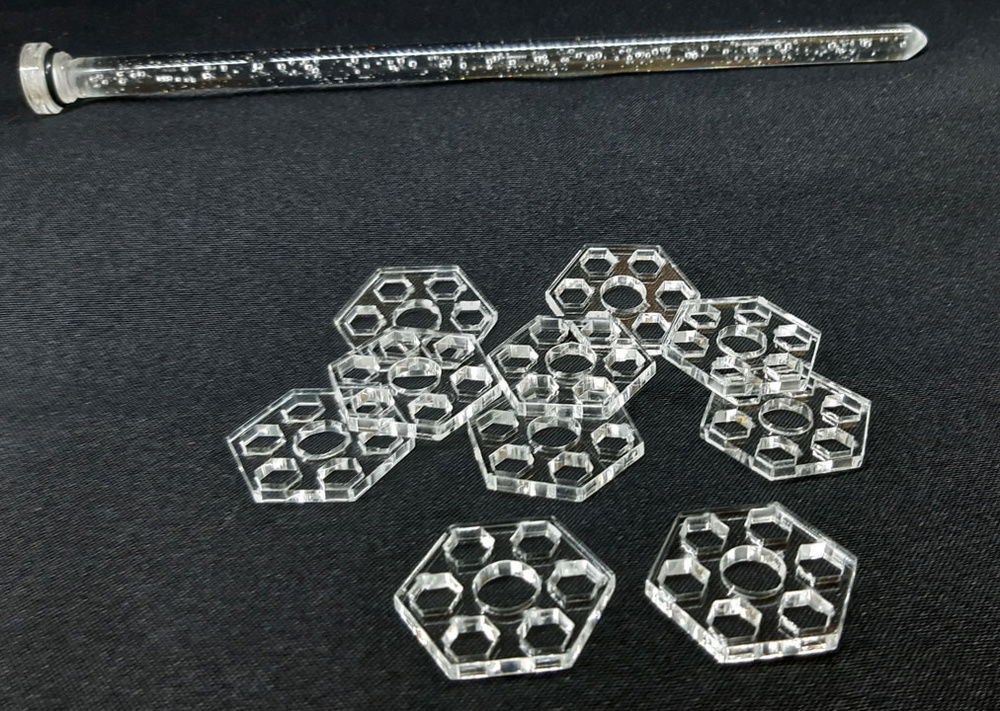

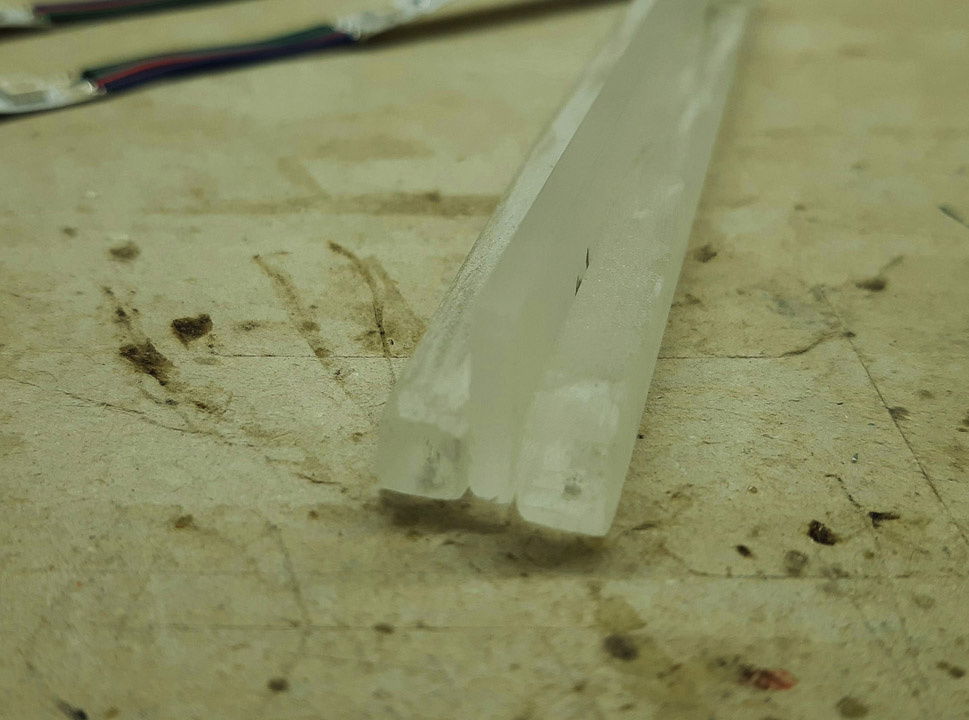

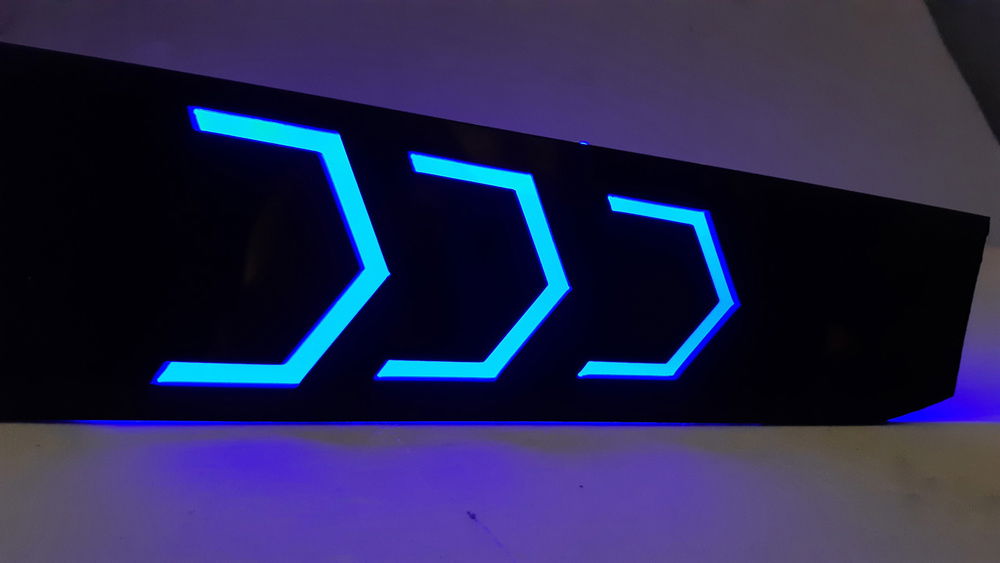

Light diffuser with plexiglas

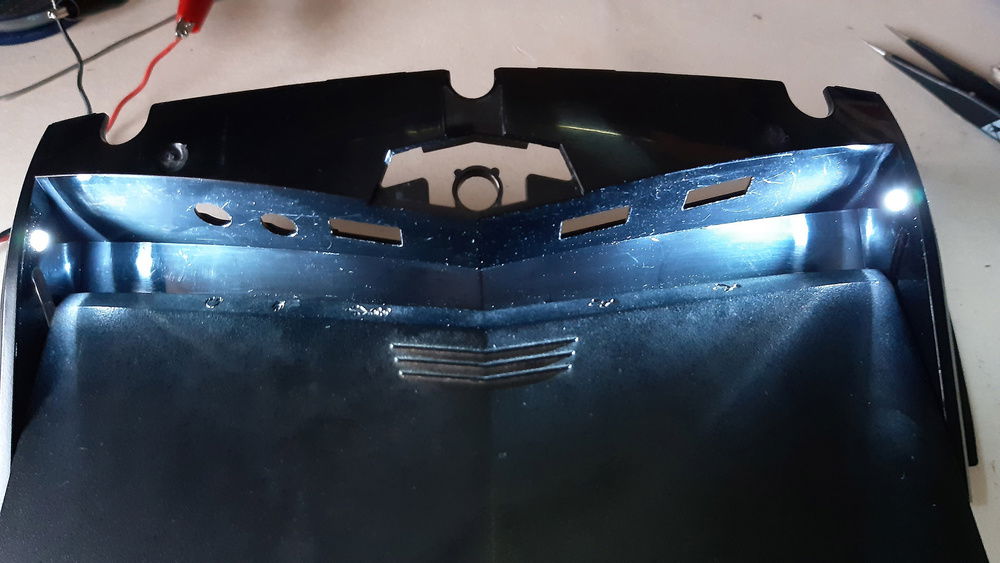

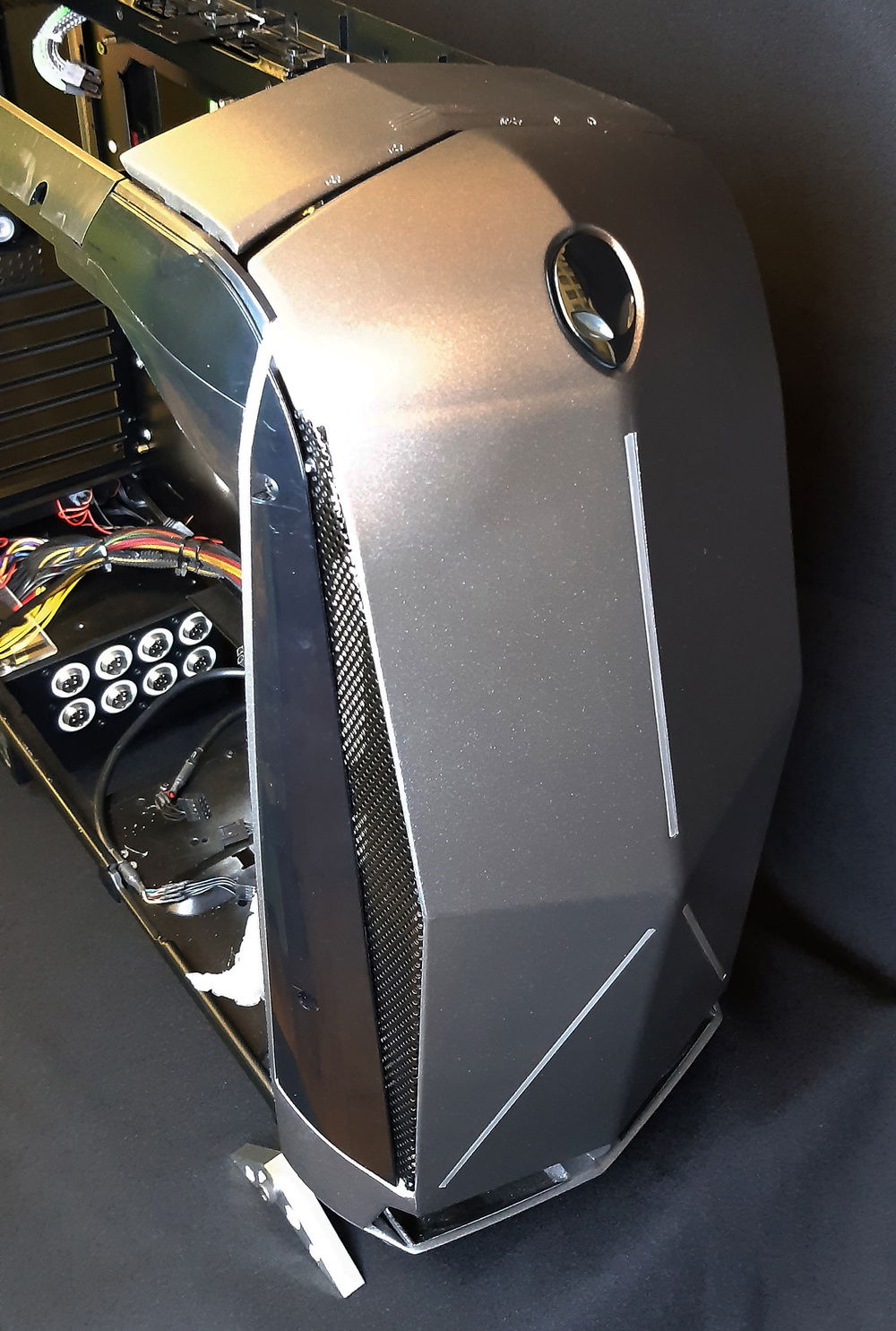

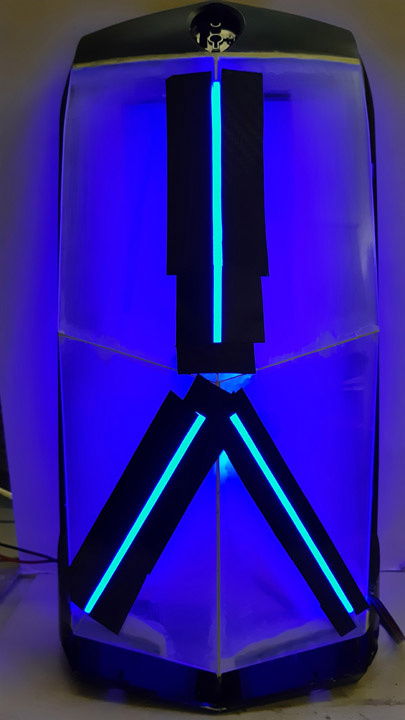

Testing the result
PART 7 - Interior covers
In this part i will show some picture of the making of various inside covers to hide ALL the cables, rivets, screws, etc

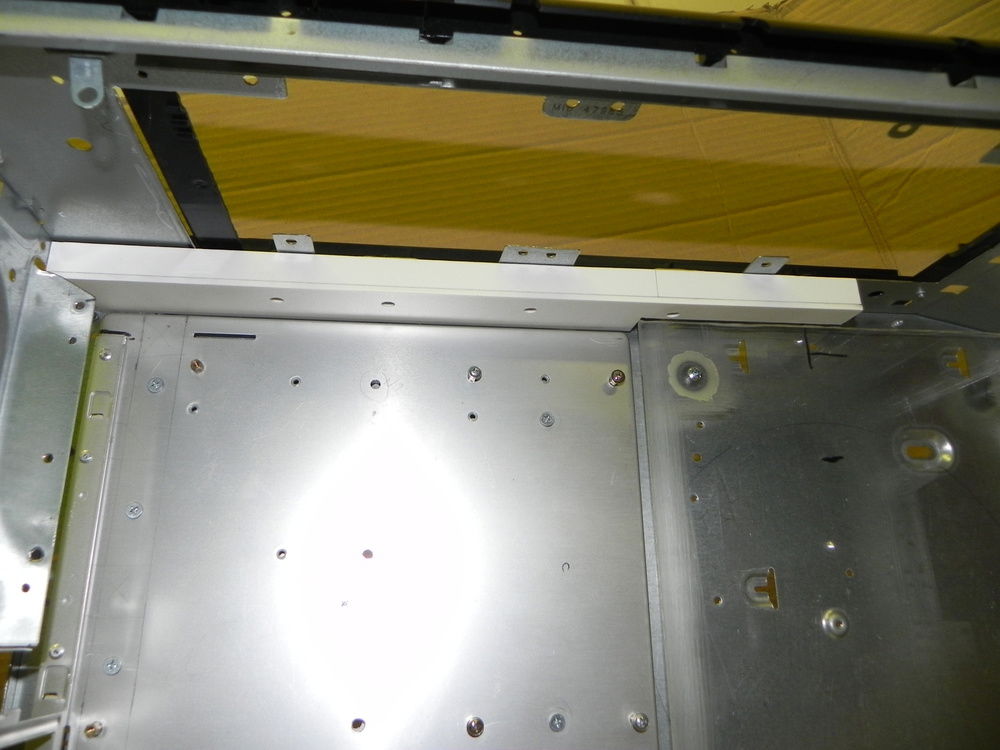

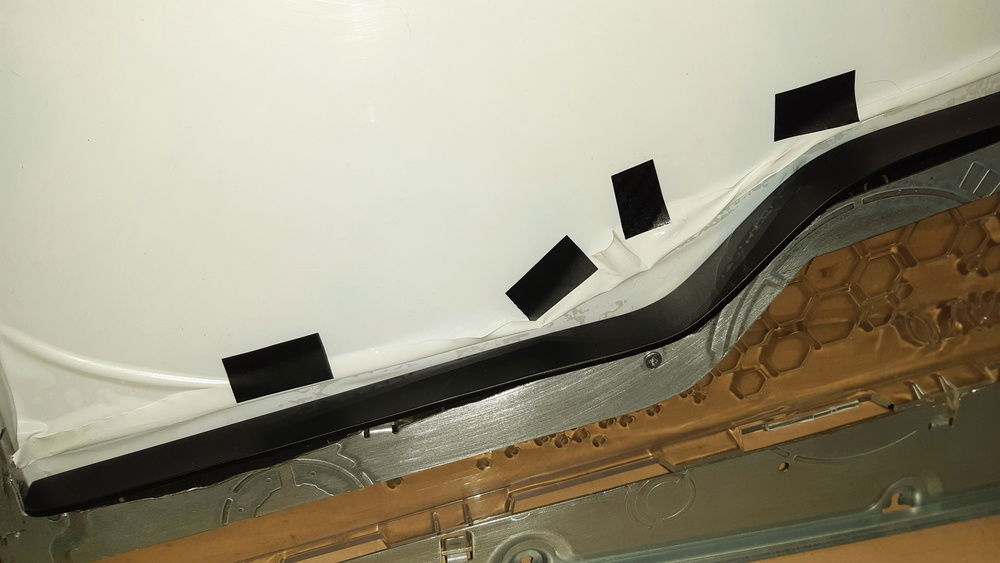

Bottom main cover

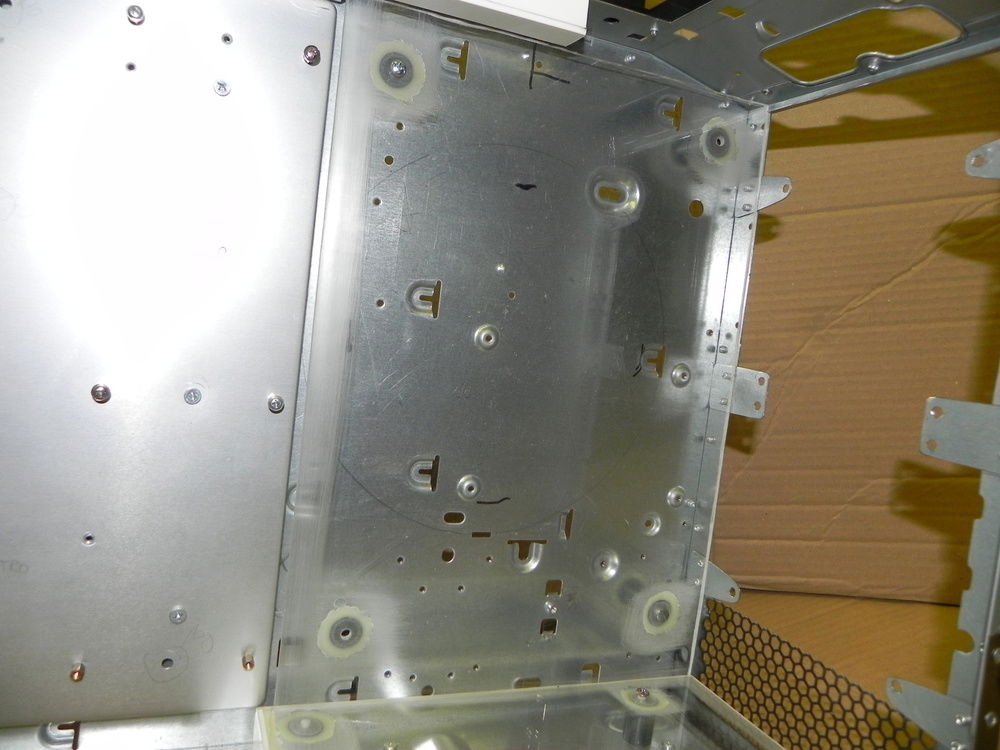

MB side cover

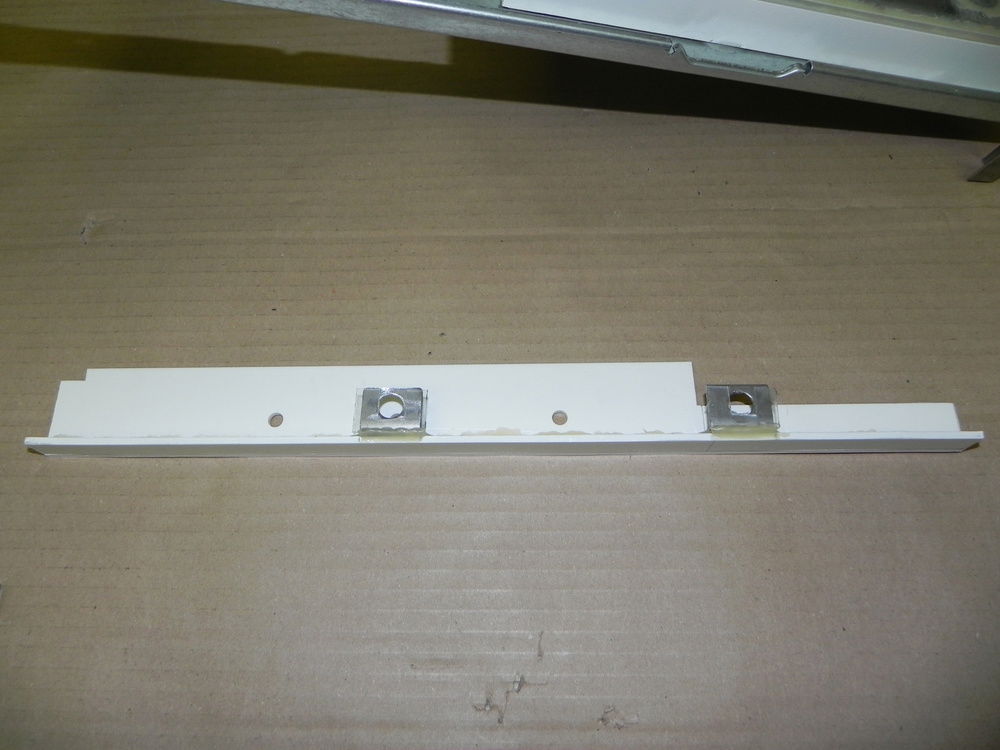

Top cover over MB, right side

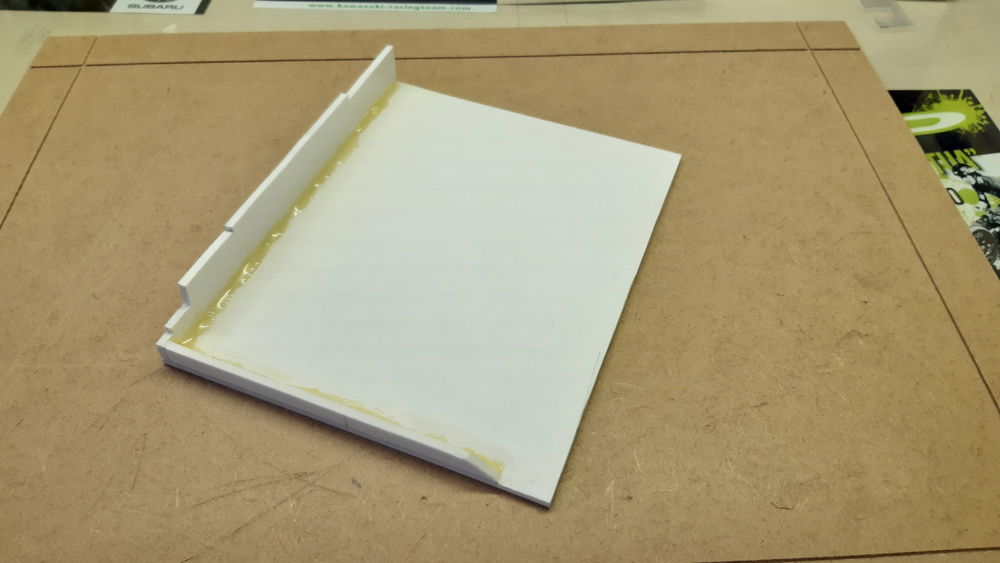

Top cover left side

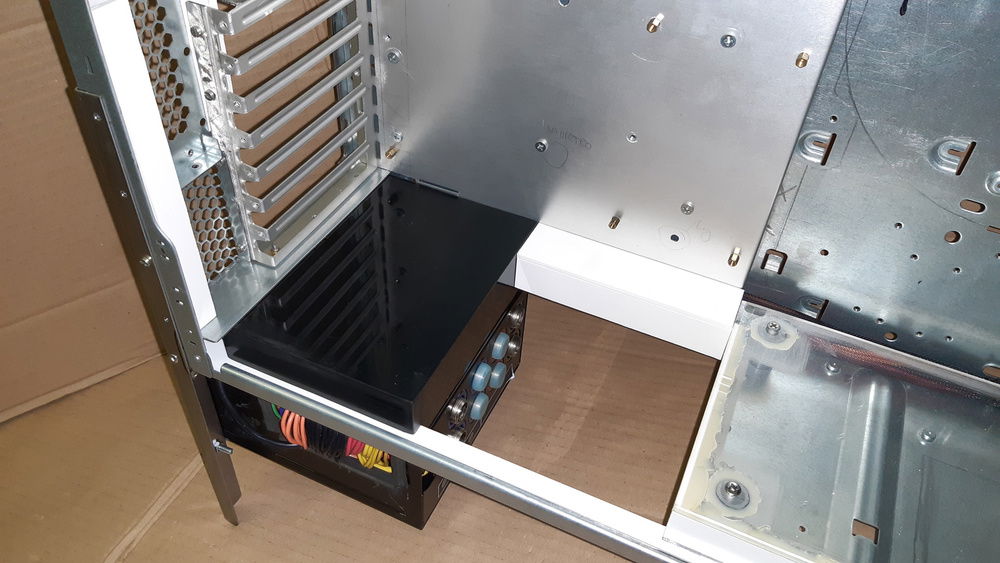

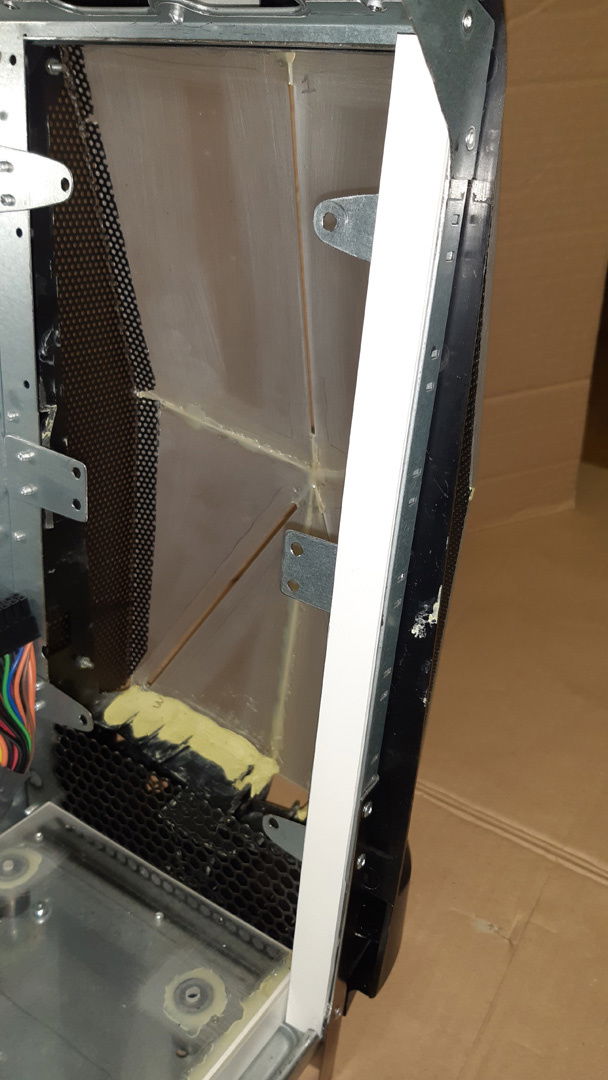

Cover for PSU and cables (all the white stuff)

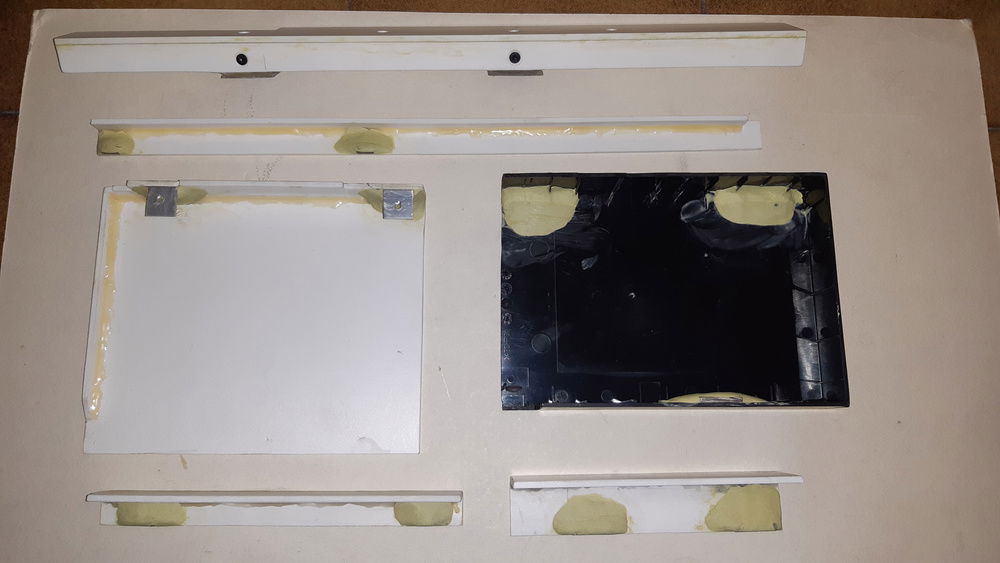

Cover are glued with putty and installed magnets

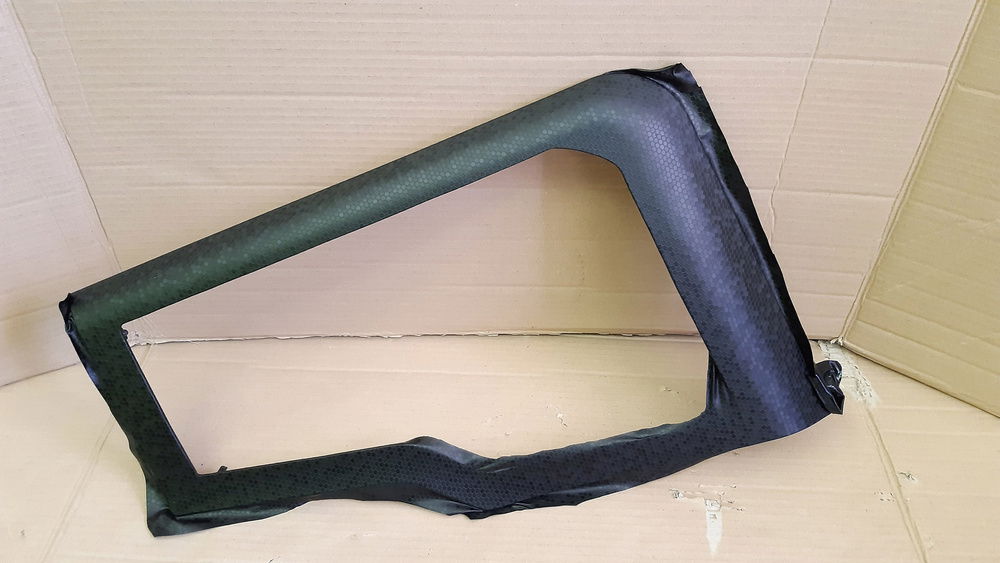

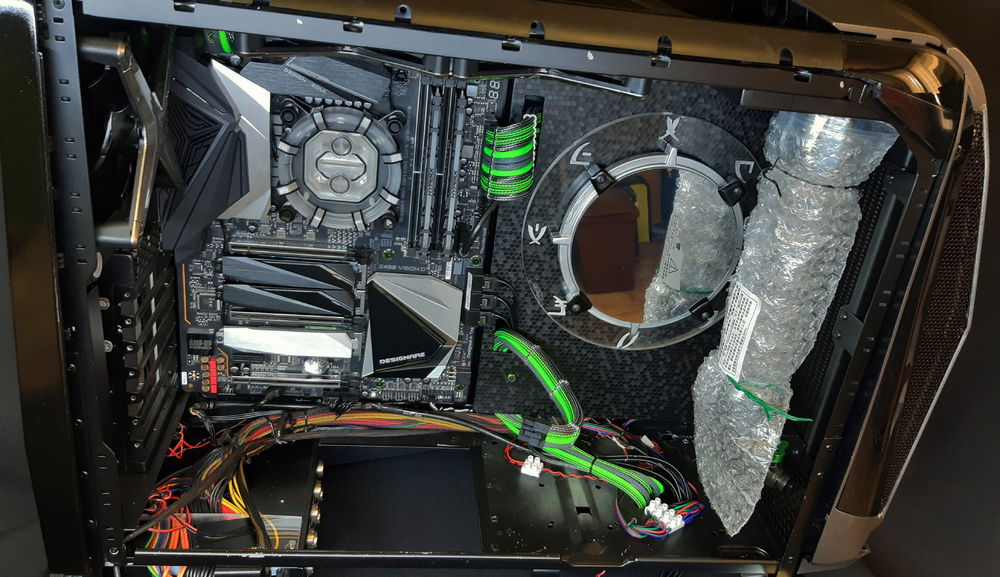

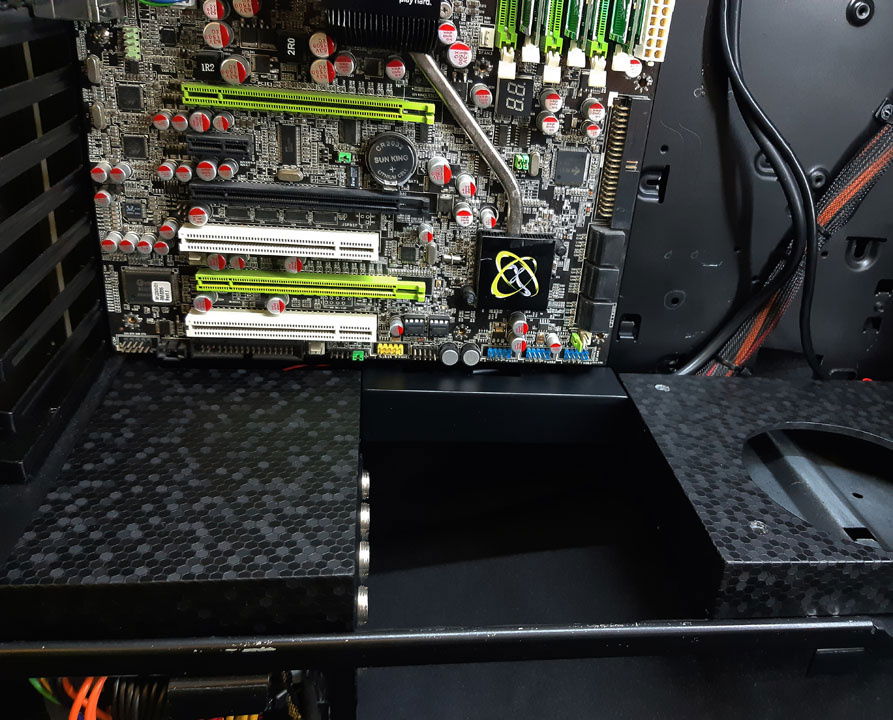

Preview of wrapped covers in position

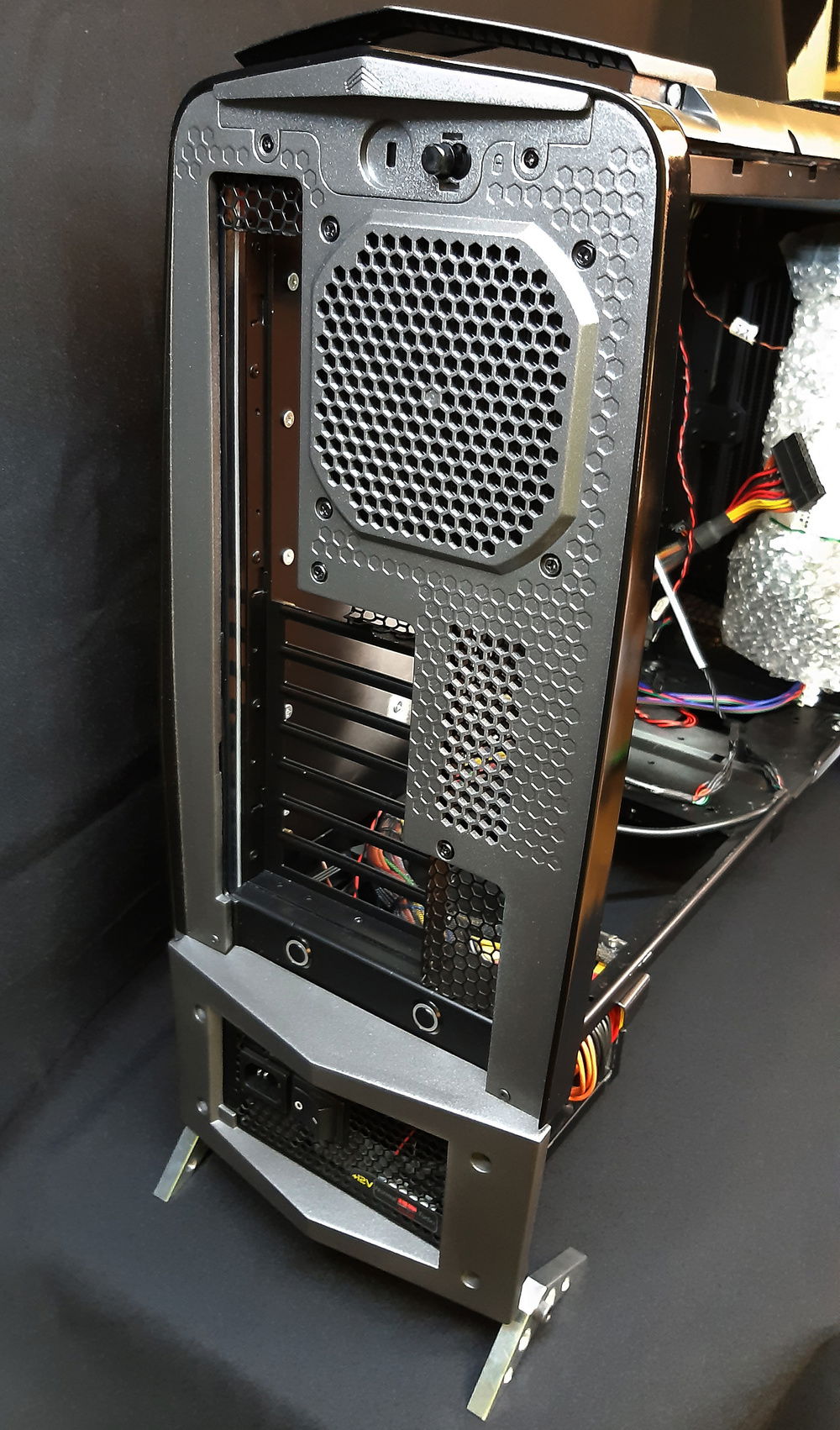

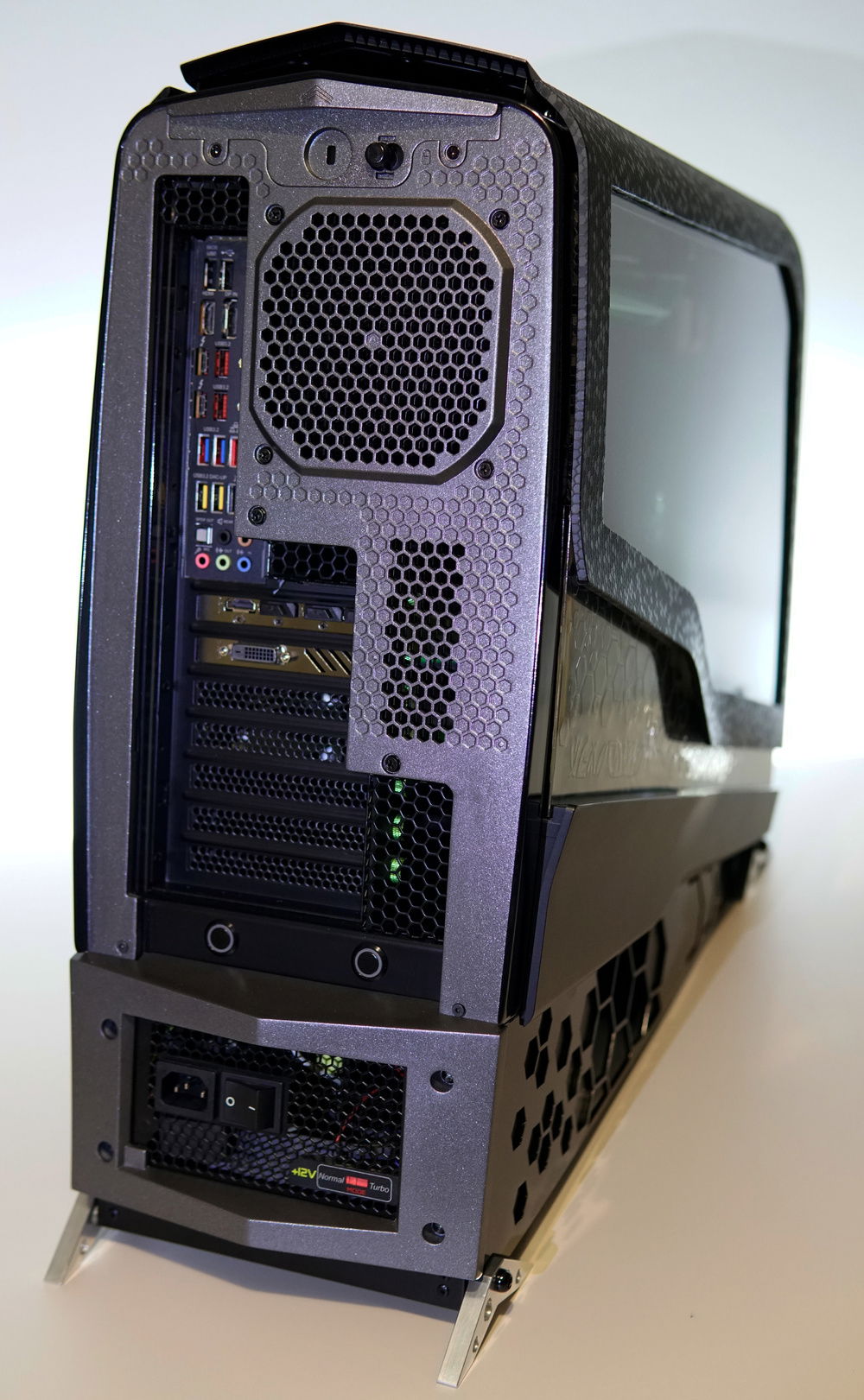

PART 8 - Rear side new shield

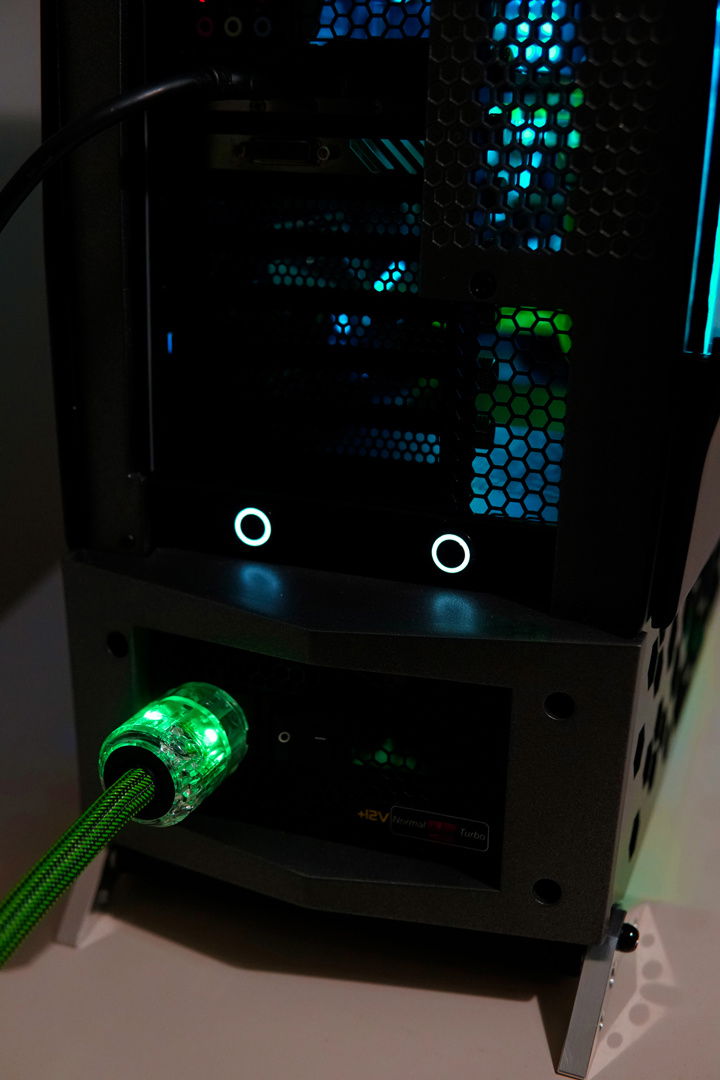

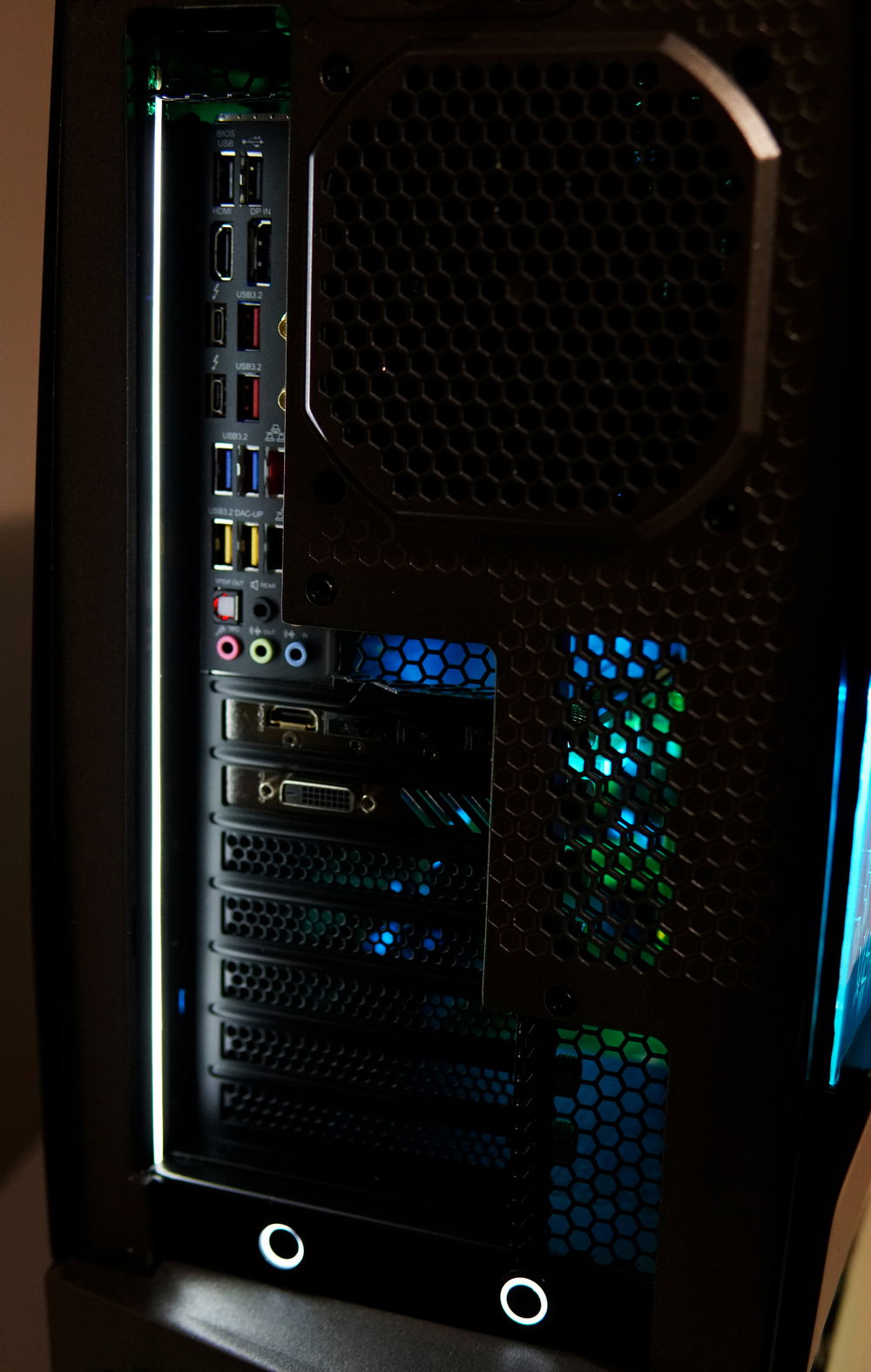

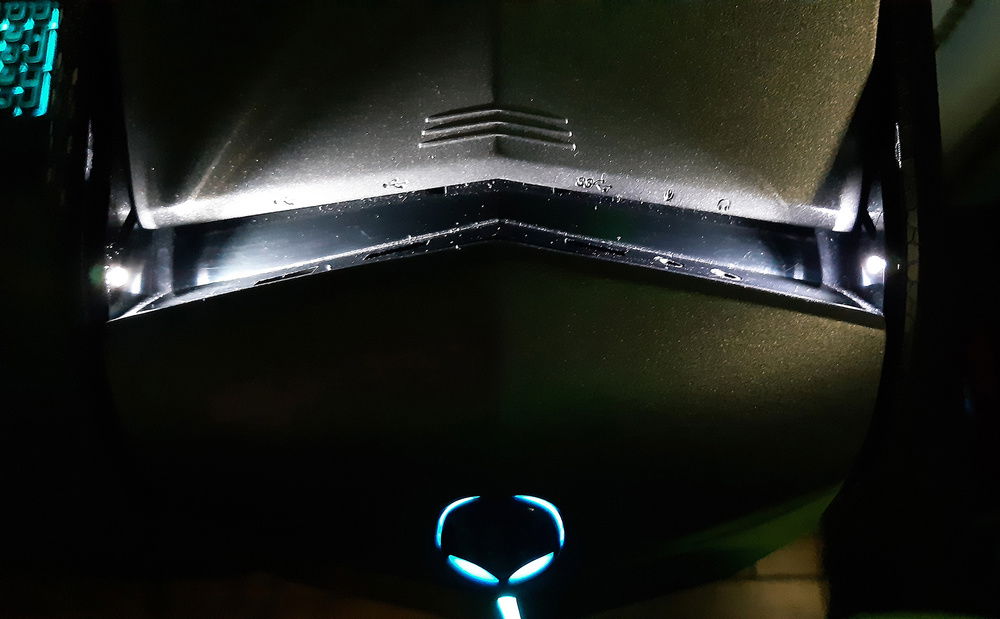

I need to modify all the back shield to adapt it for the new look. I've also added a white LED lightbar to illuminate all the I/O ports, and illuminated button to turn on the lightbar.

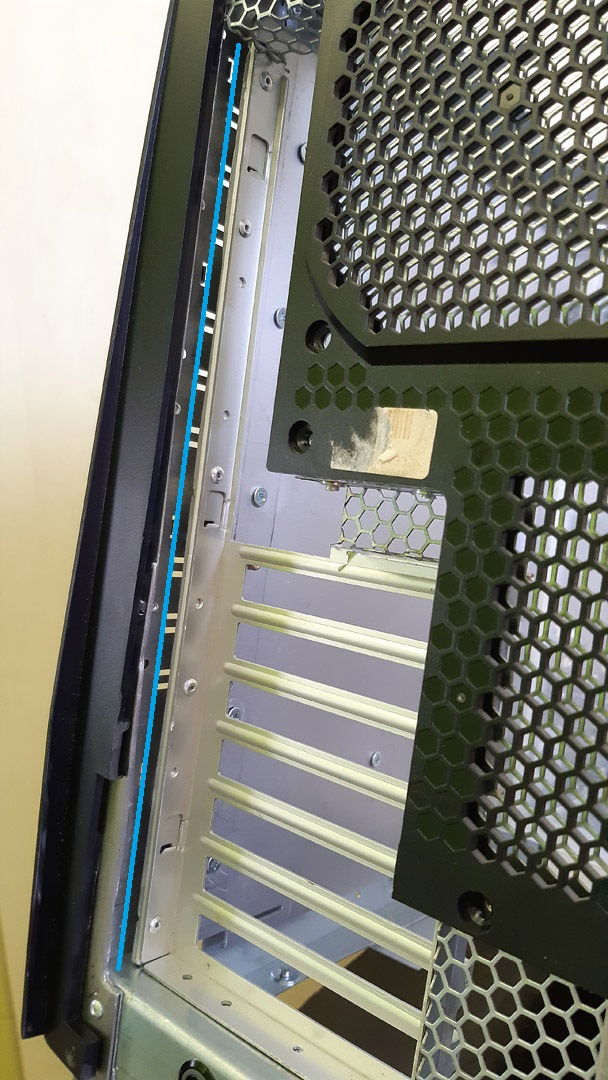

Lightbar will be palced in the blue line

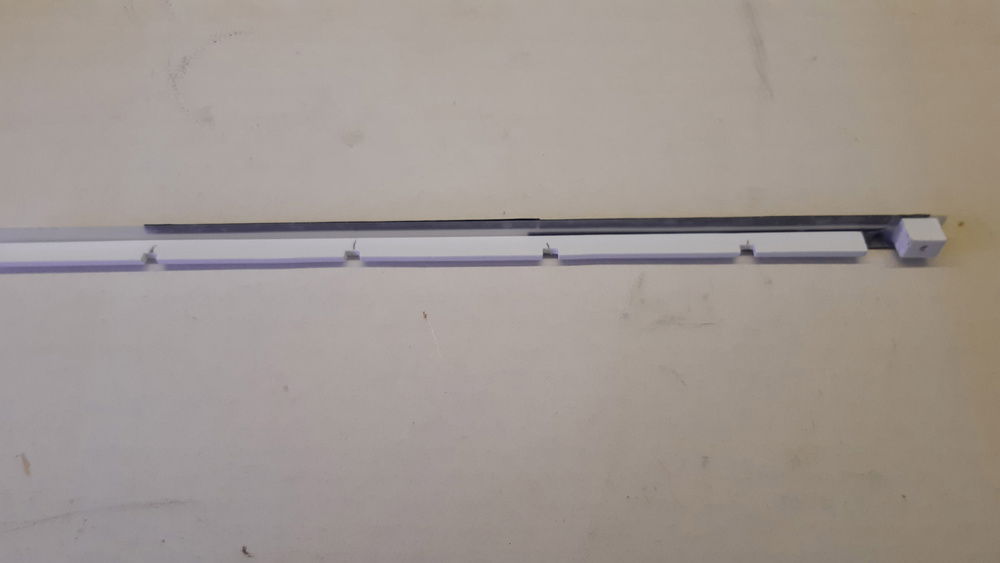

Lightbar light diffuser

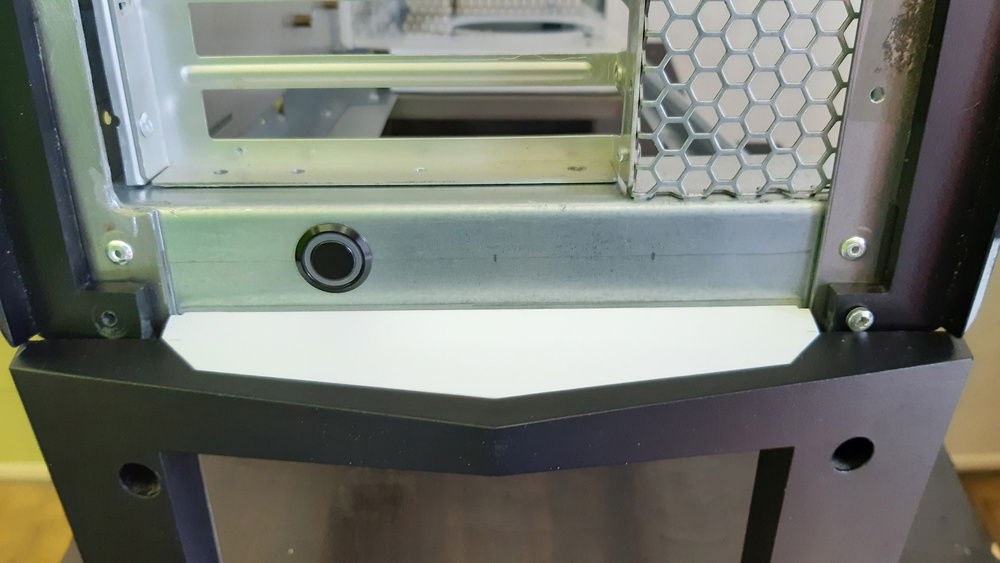

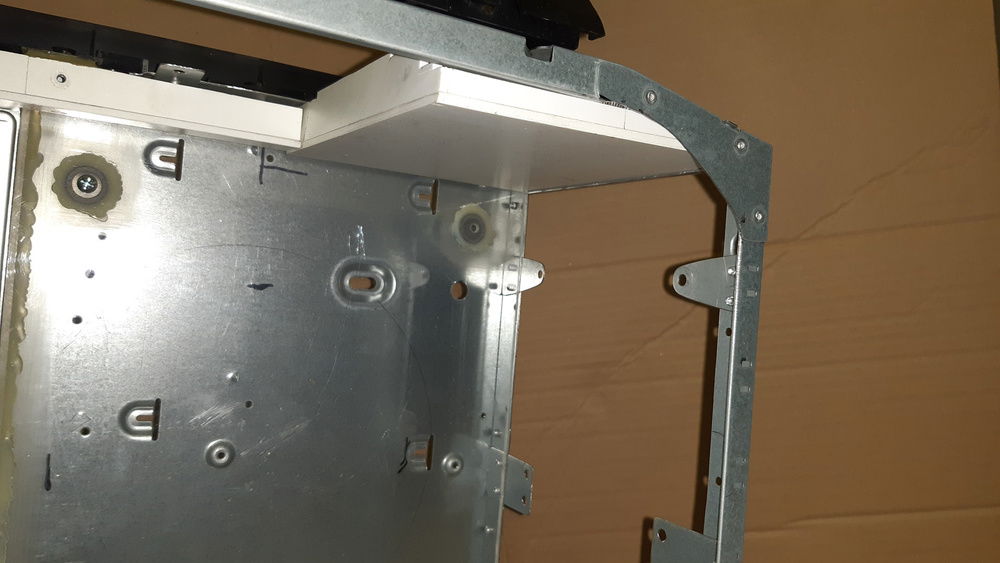

Making the cover for the PSU (in white)

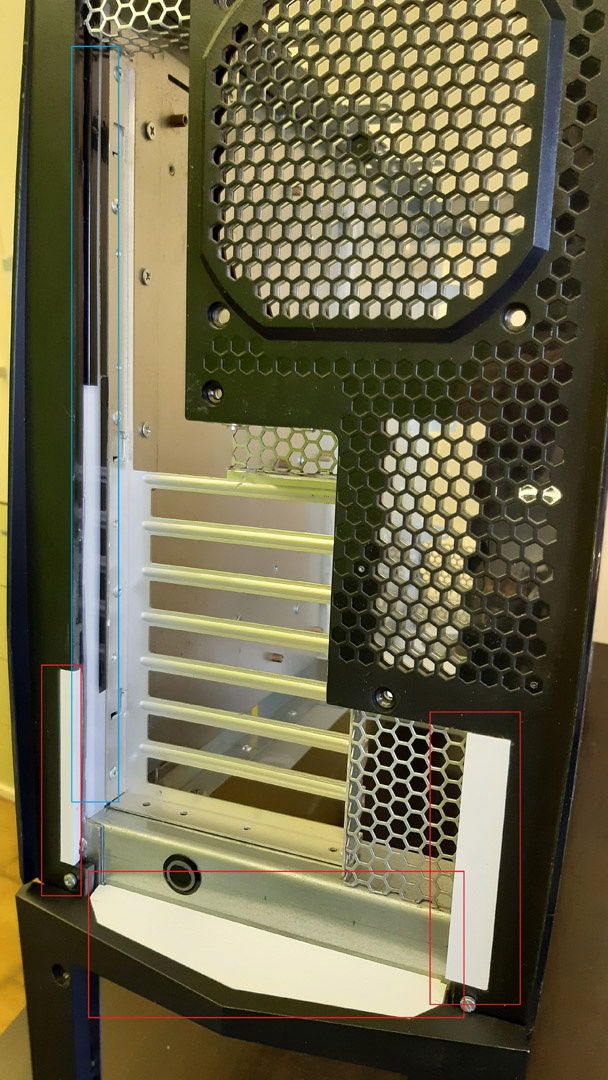

All the cover that need to be realized, they was fixed with epoxy putty

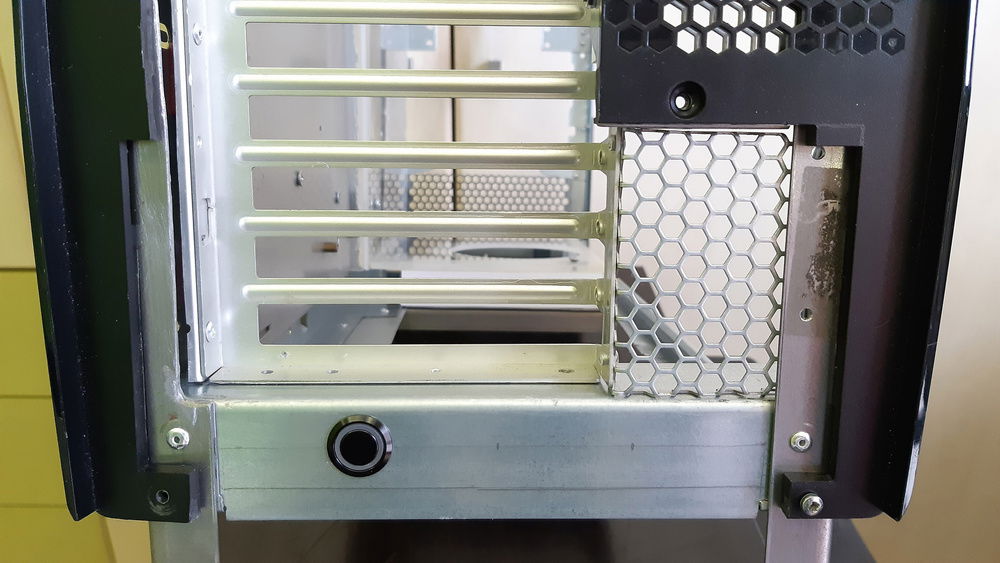

PART 9 - New power ON button

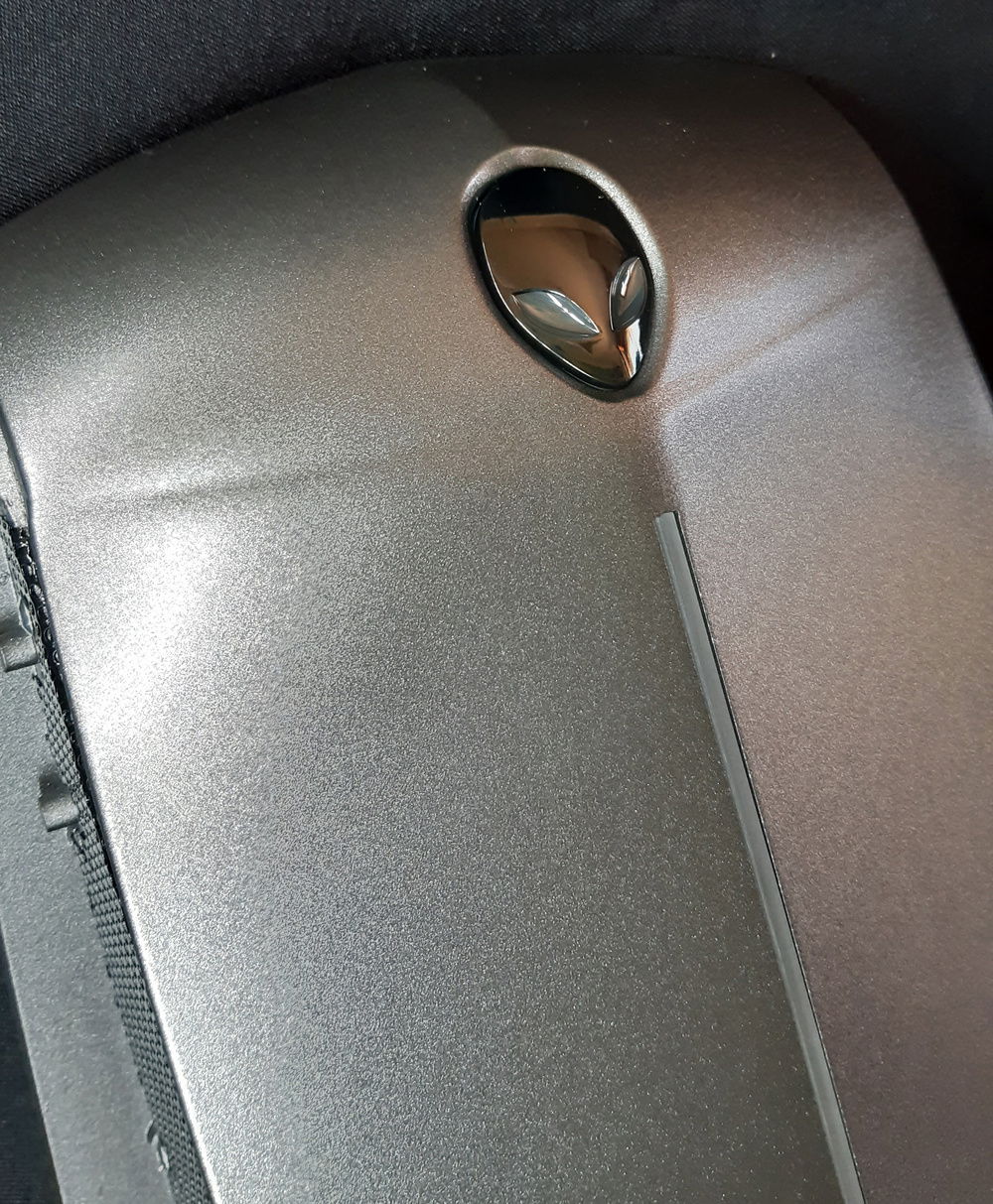

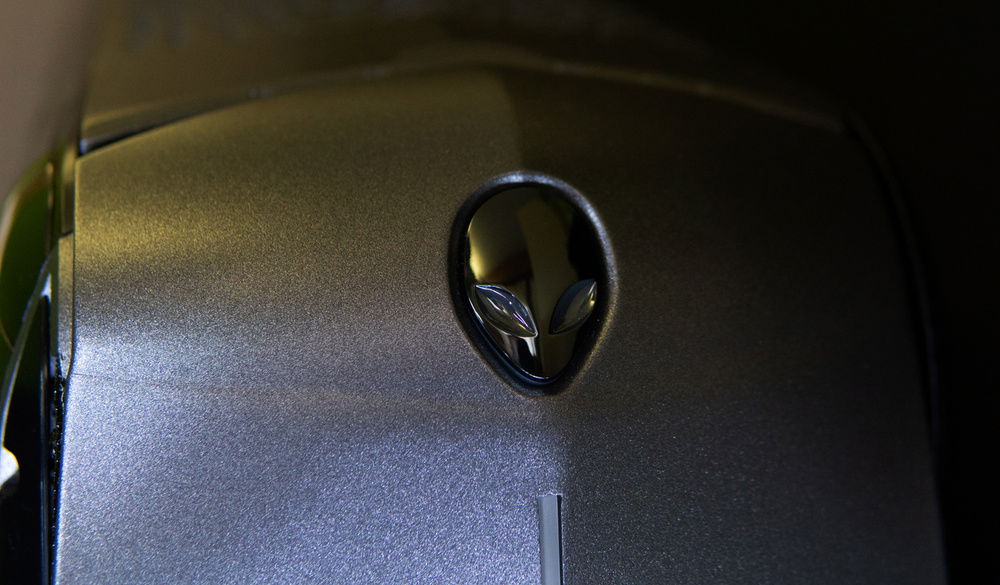

I always wanted to turn ON this case from the Alien head, so here we go! Converted the head in a switch! And also added automatic LED on the USB ports when i slide the cover.

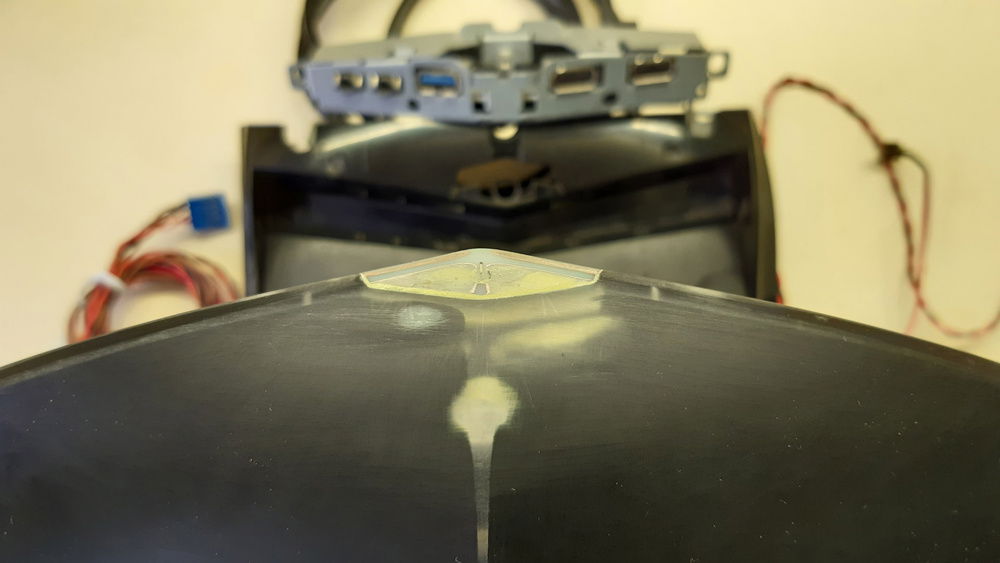

Old power ON button, filled with epoxy

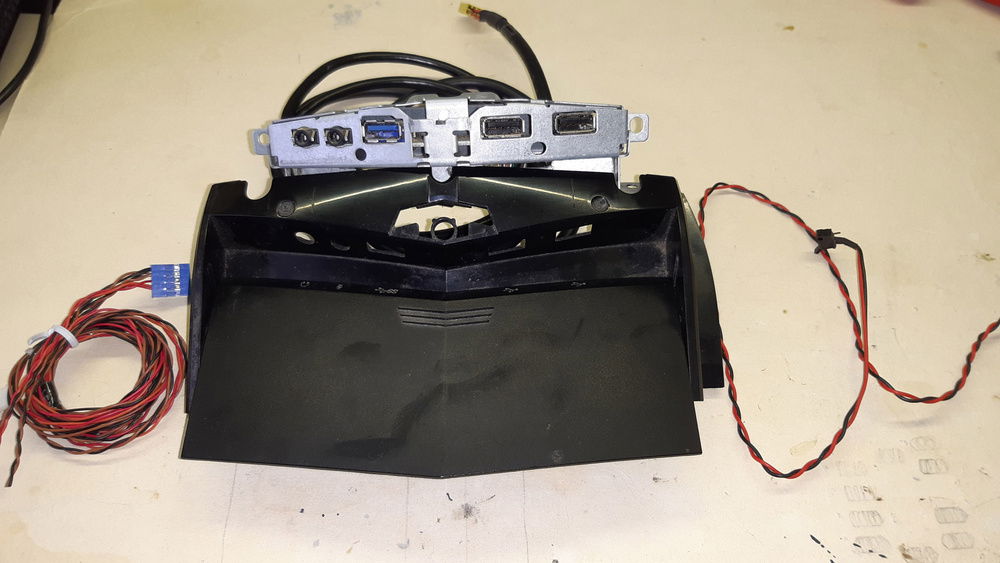

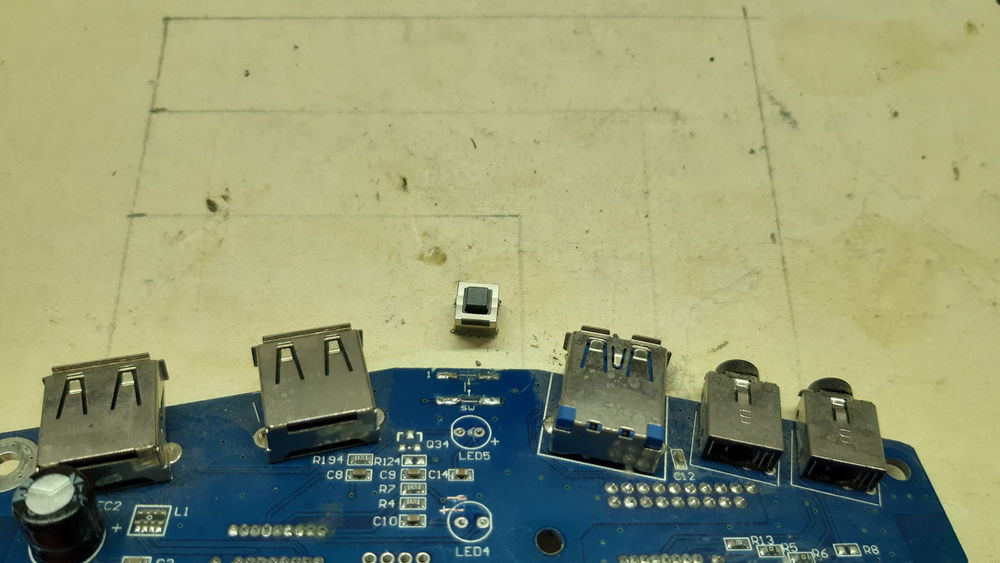

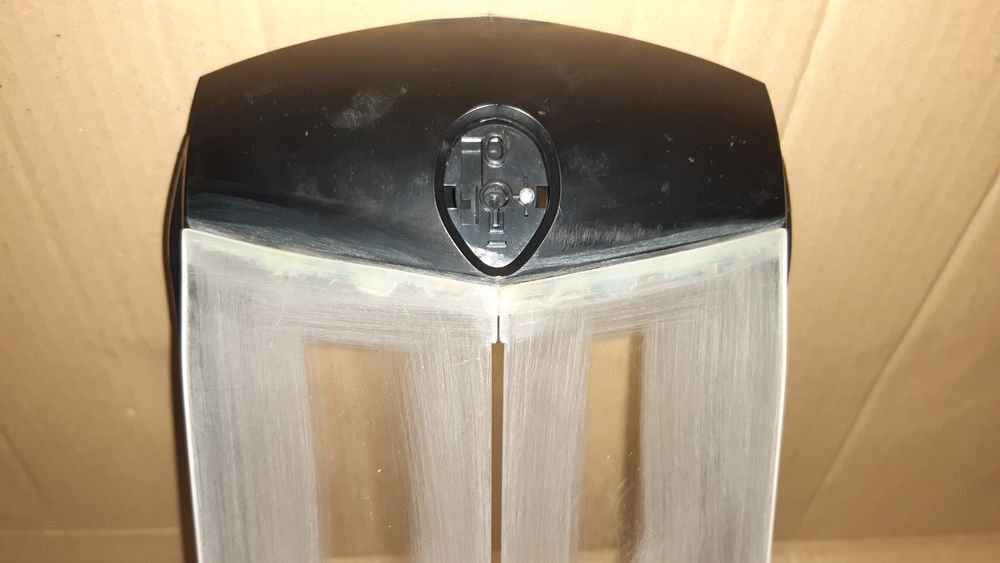

Removed the old button

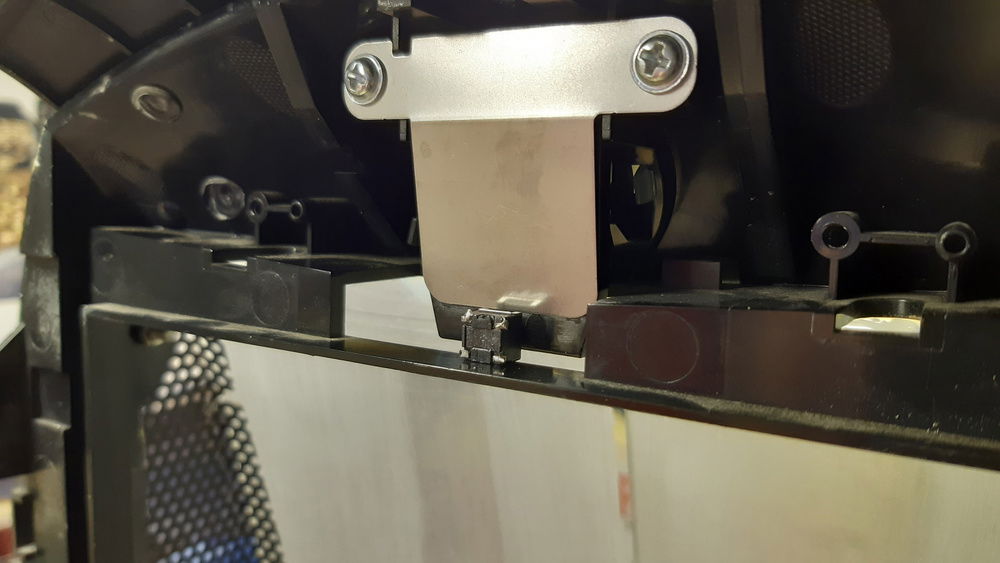

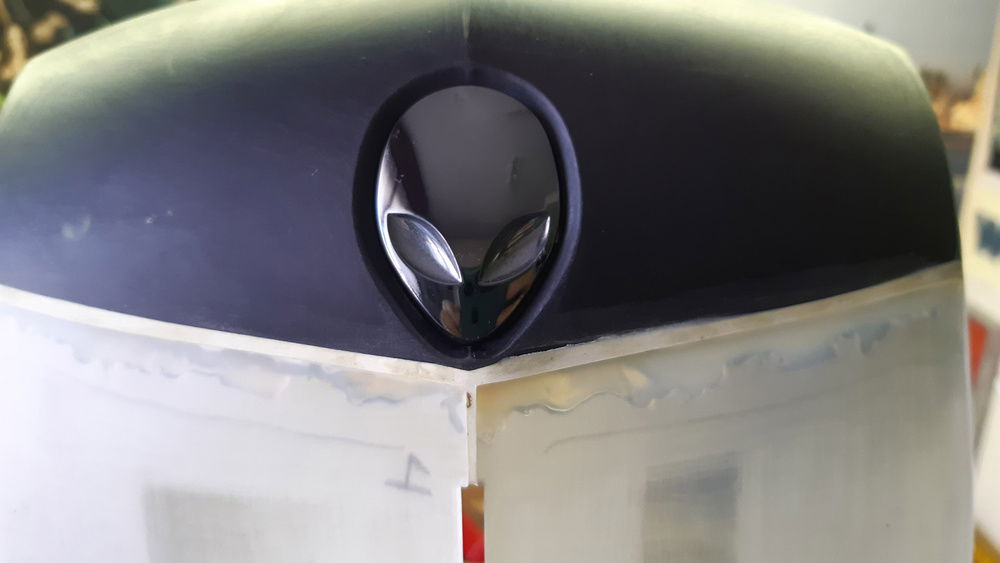

New position for the button

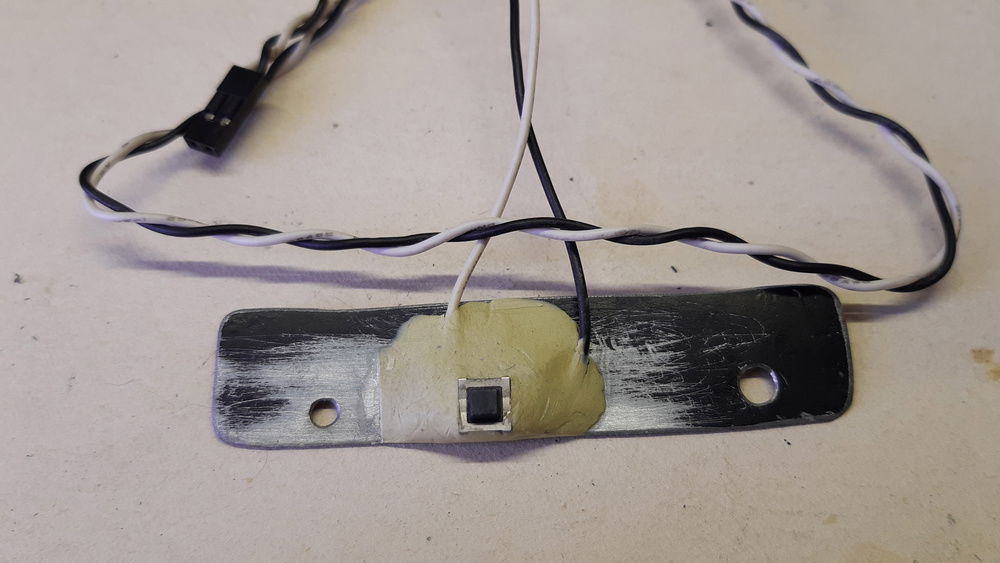

Fixed with epoxy on a metal support

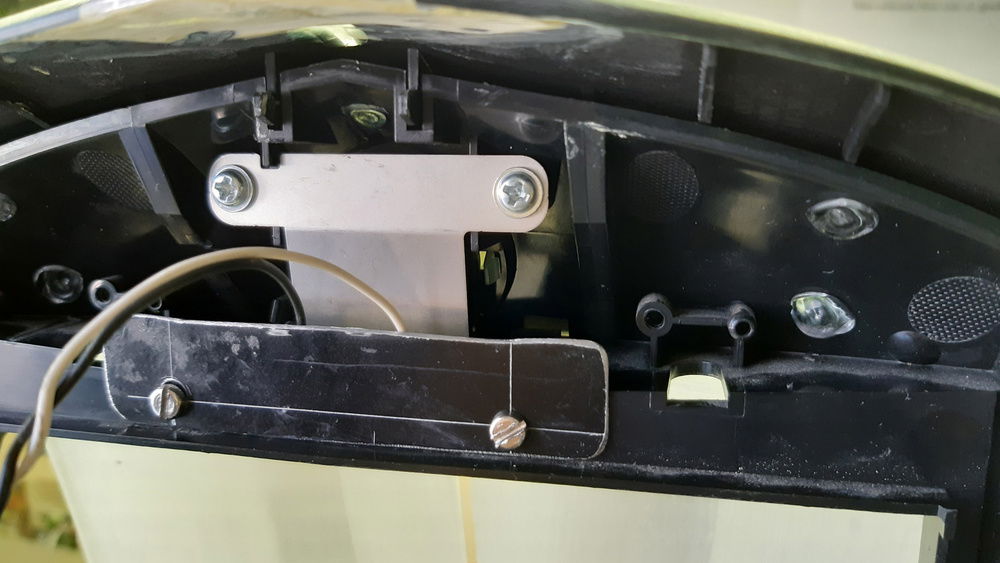

Fixed the support

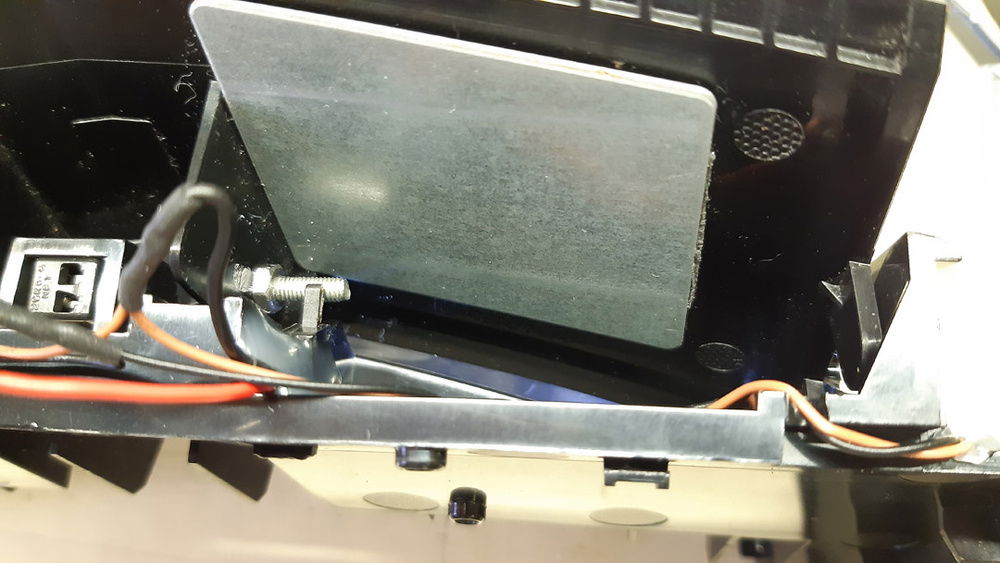

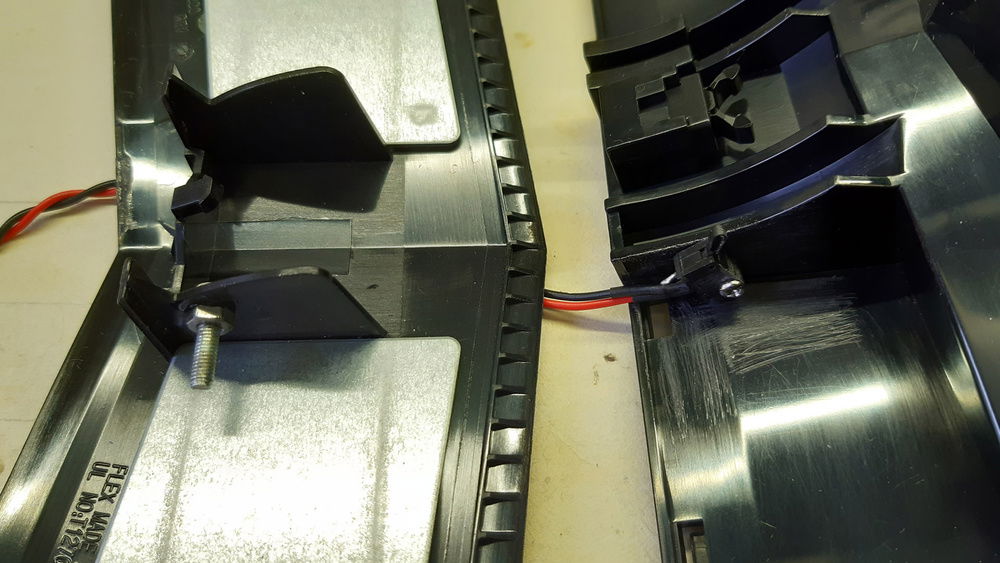

Microswitch for the LED
PART 10 - PSU side panels + aviator sleeving + case feets
In this part there are a lot of works done! You can seethe making of the side PSU panels and the new case feets.

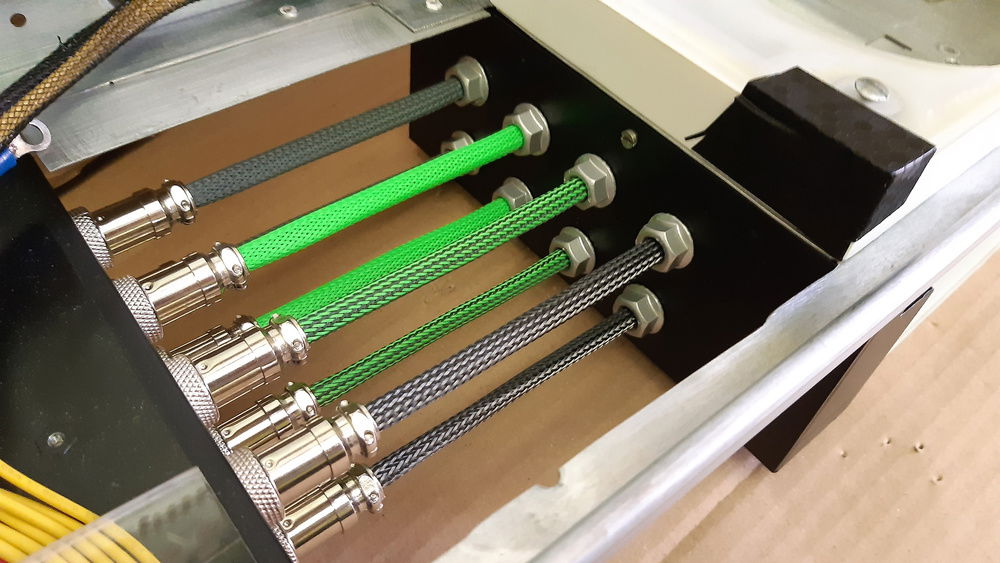

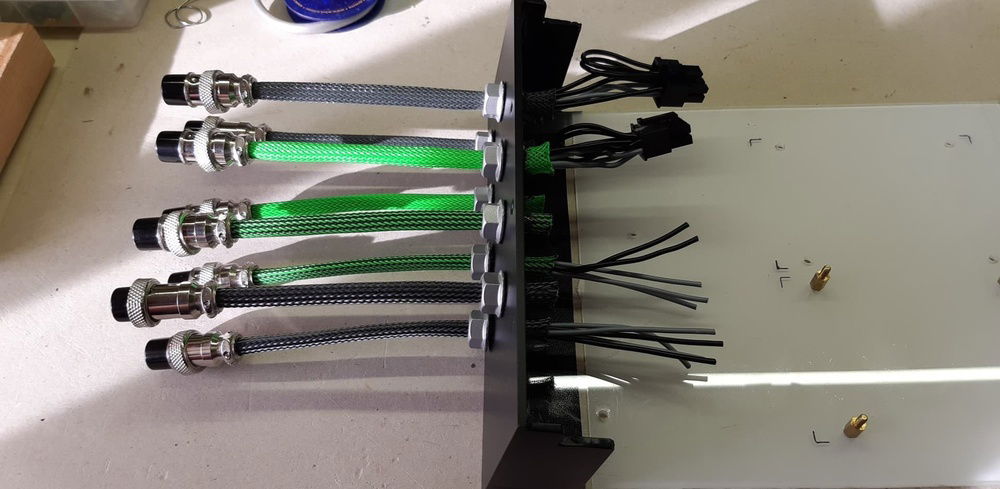

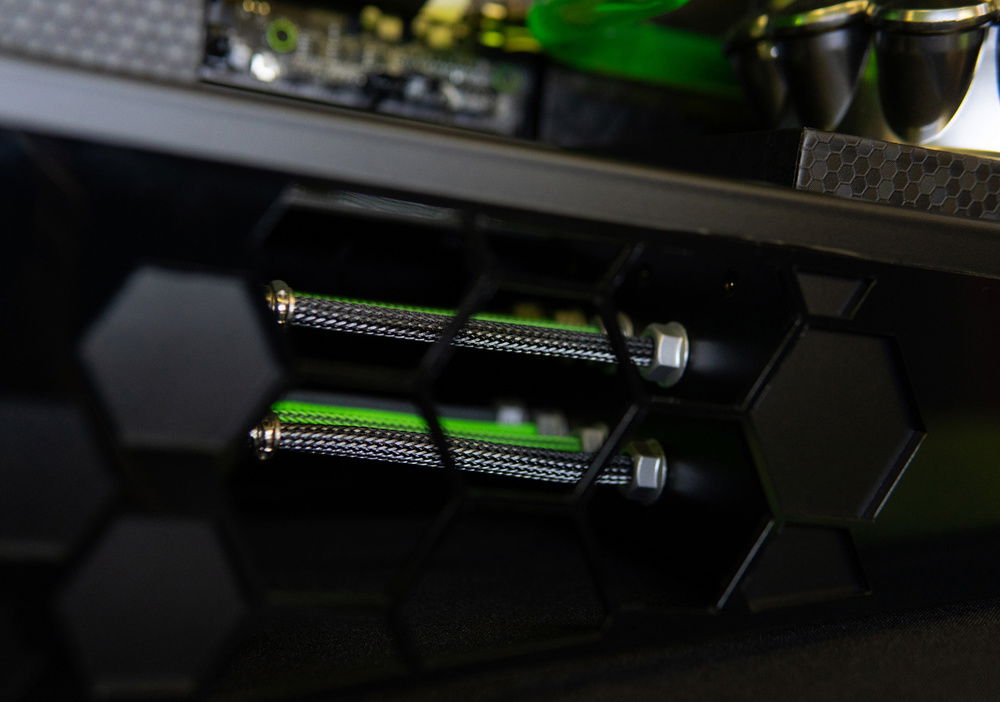

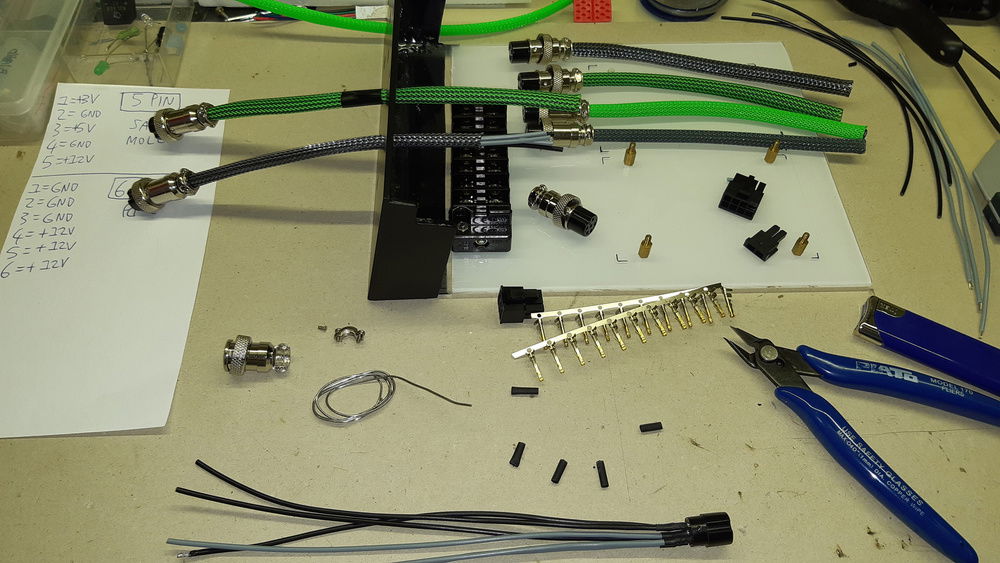

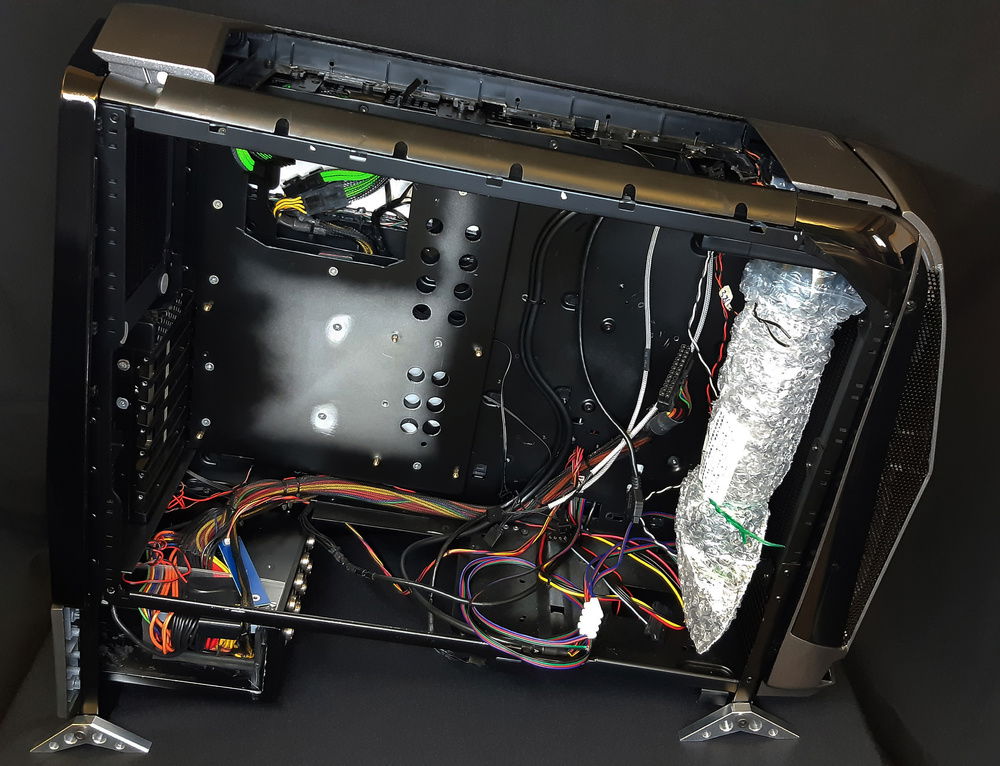

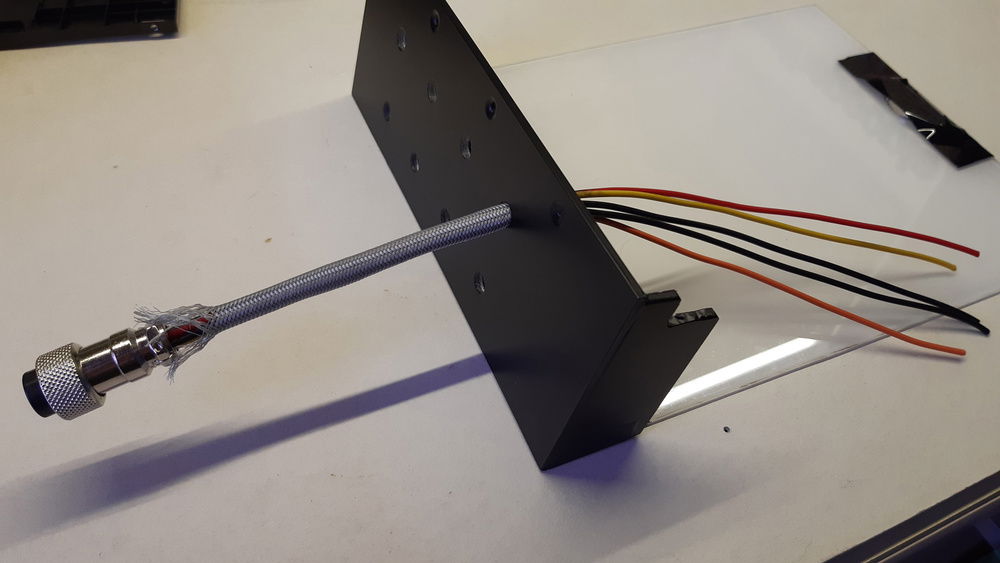

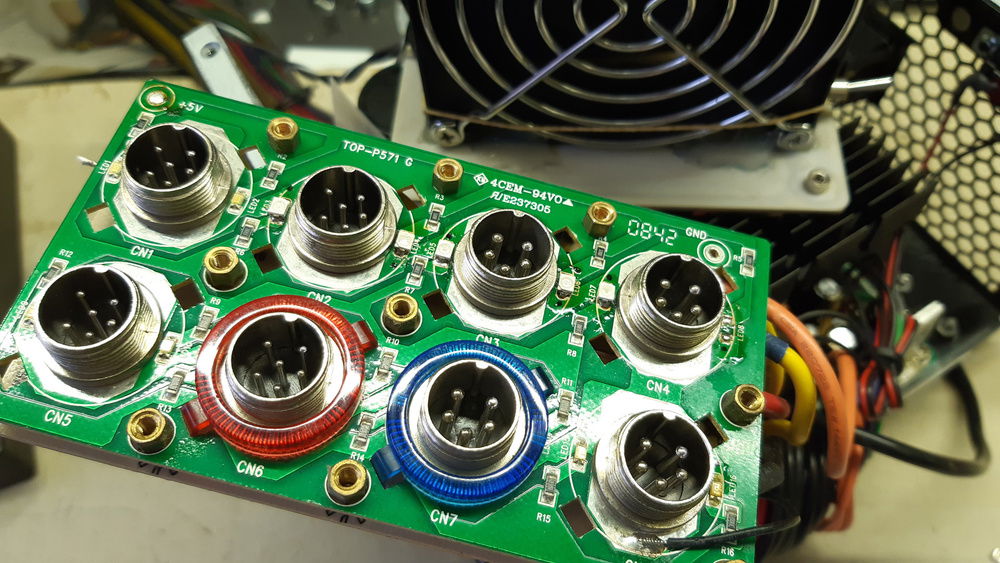

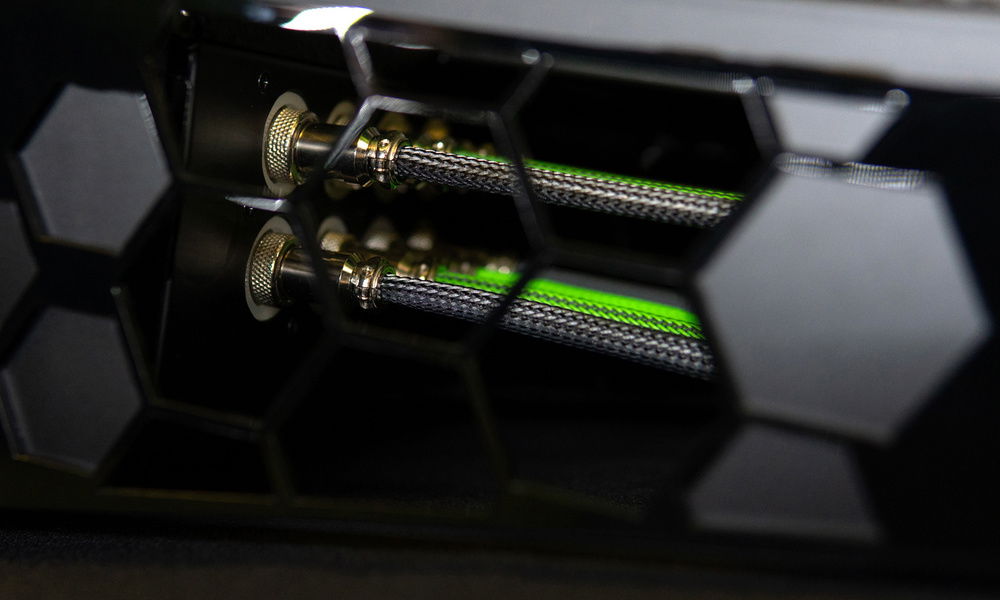

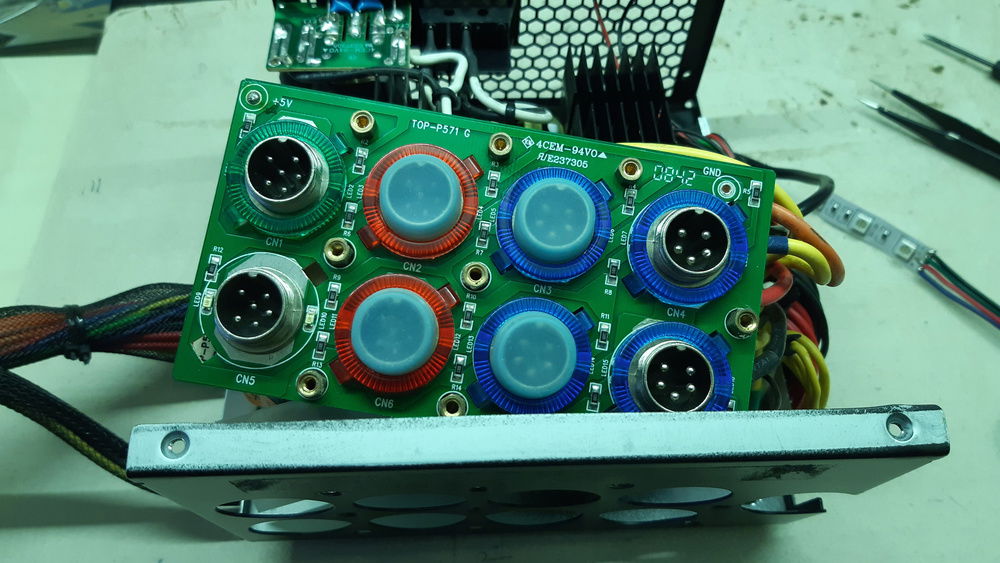

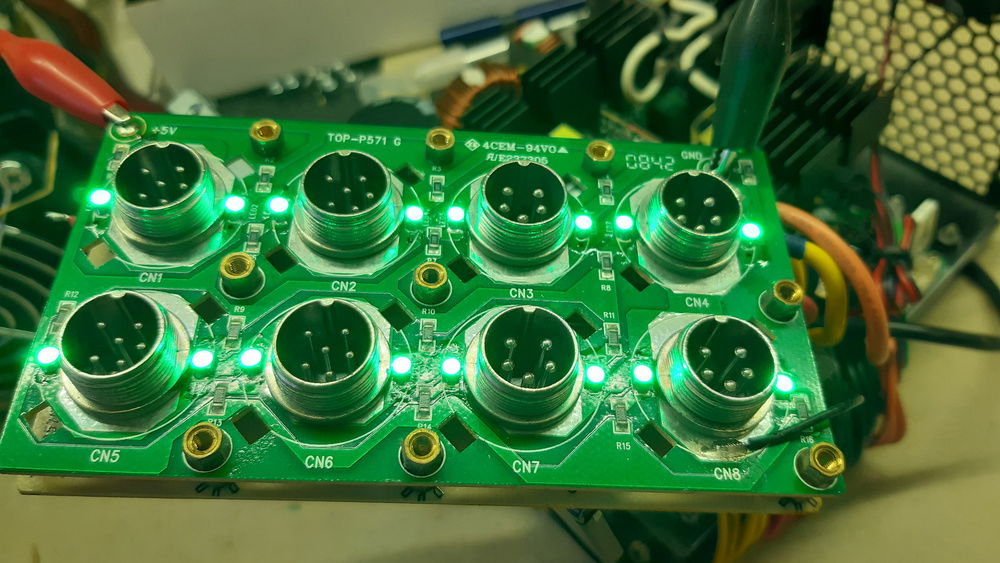

The other important work its the main wires distribution area with SSD 2.5" support and the sleeving of the aviator connectors.

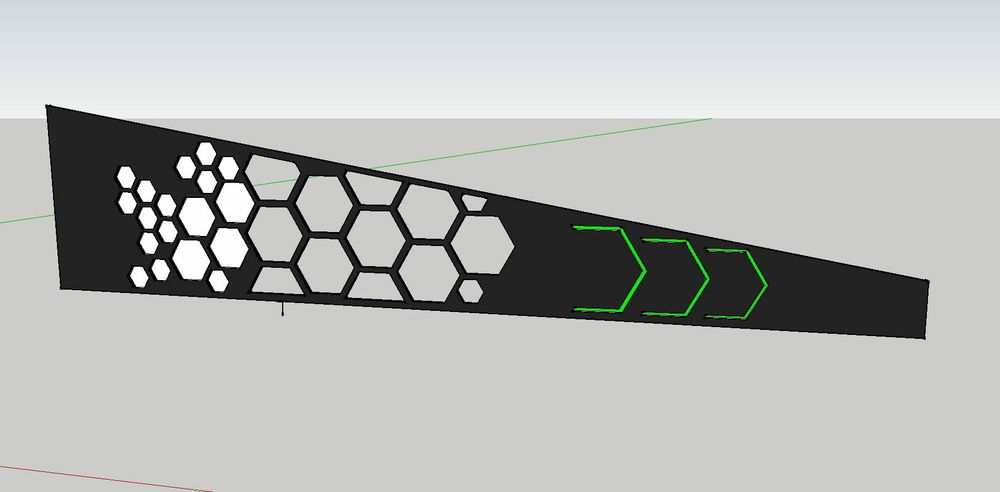

Side panels rendering

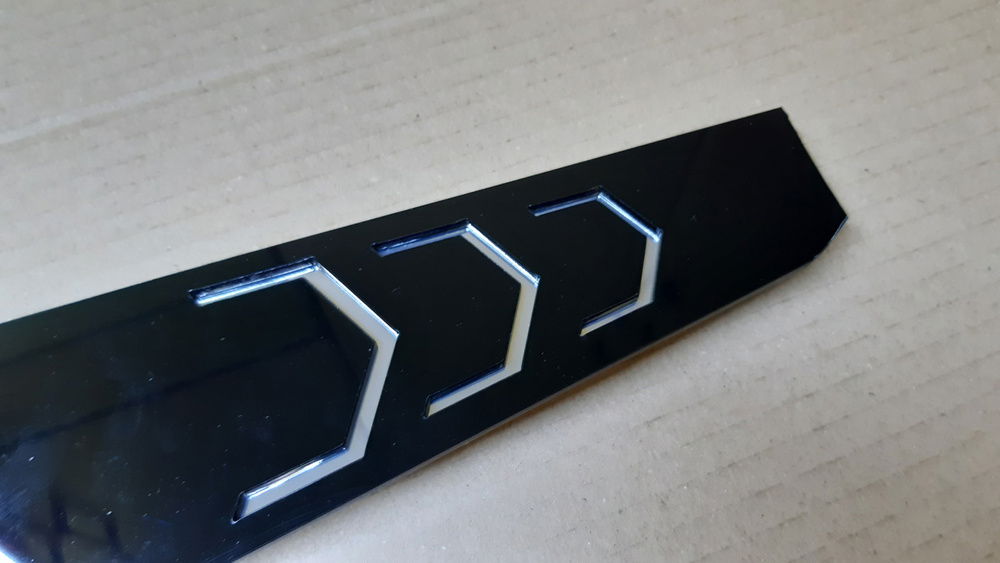

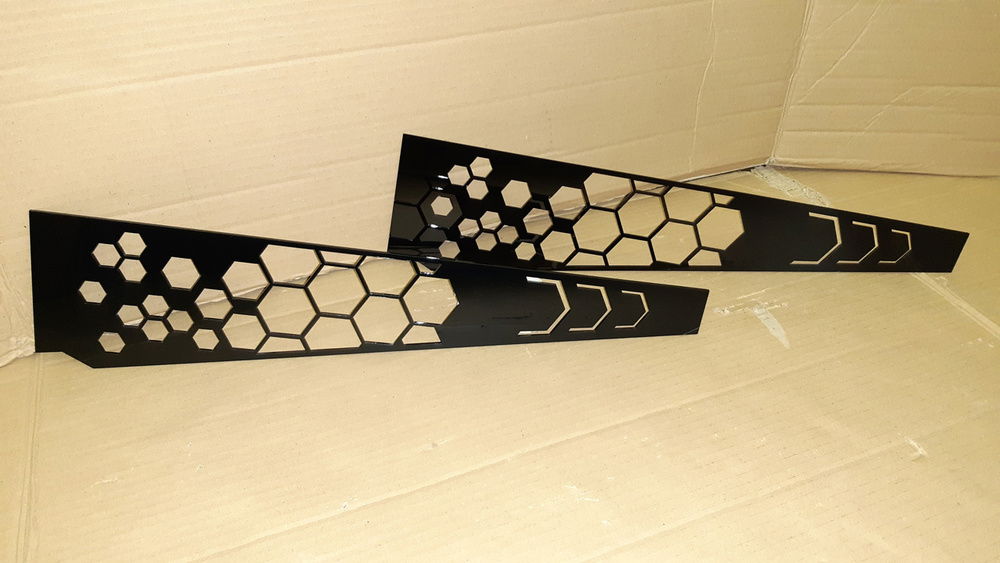

Laser cutted from glossy plexiglas

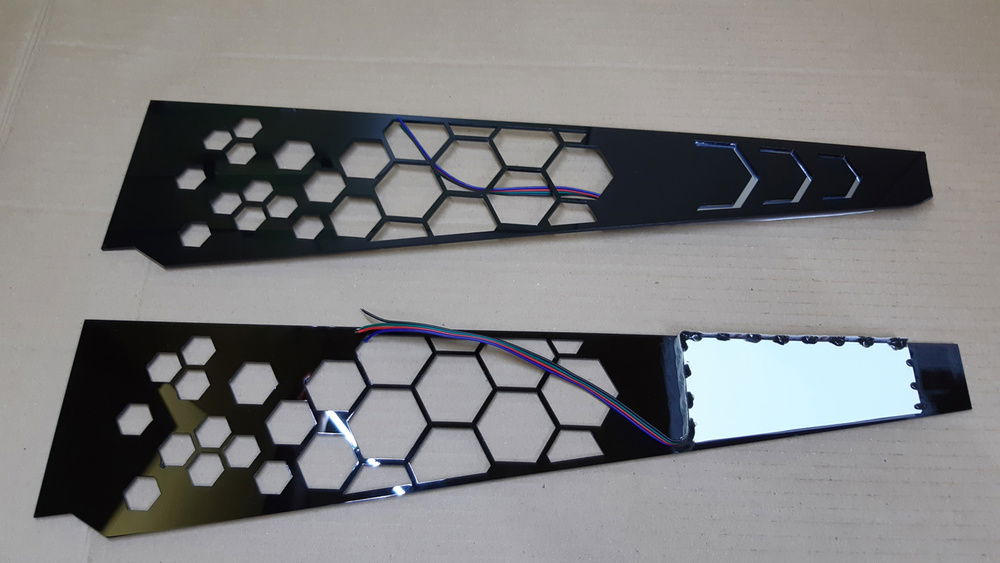

Making backlight panels

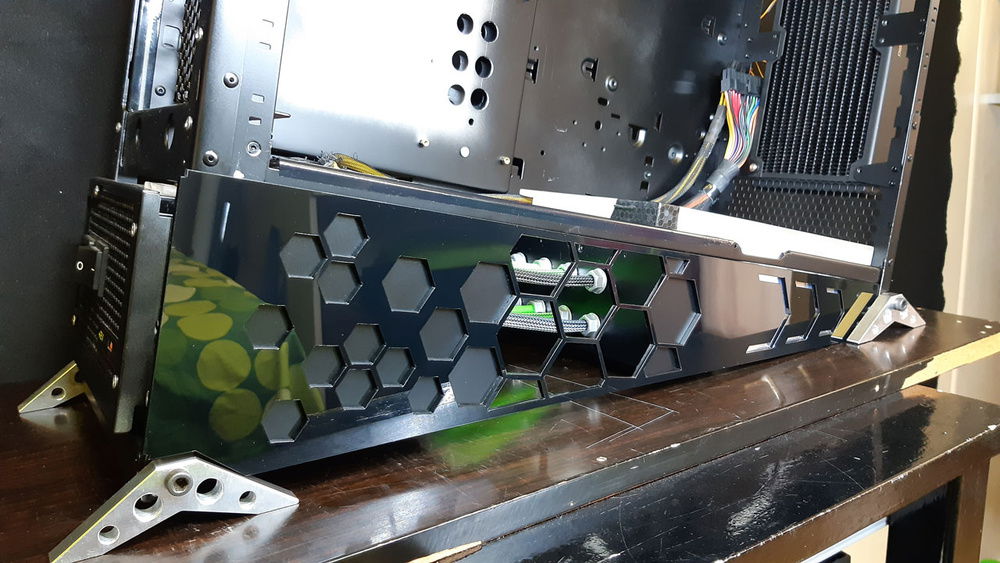

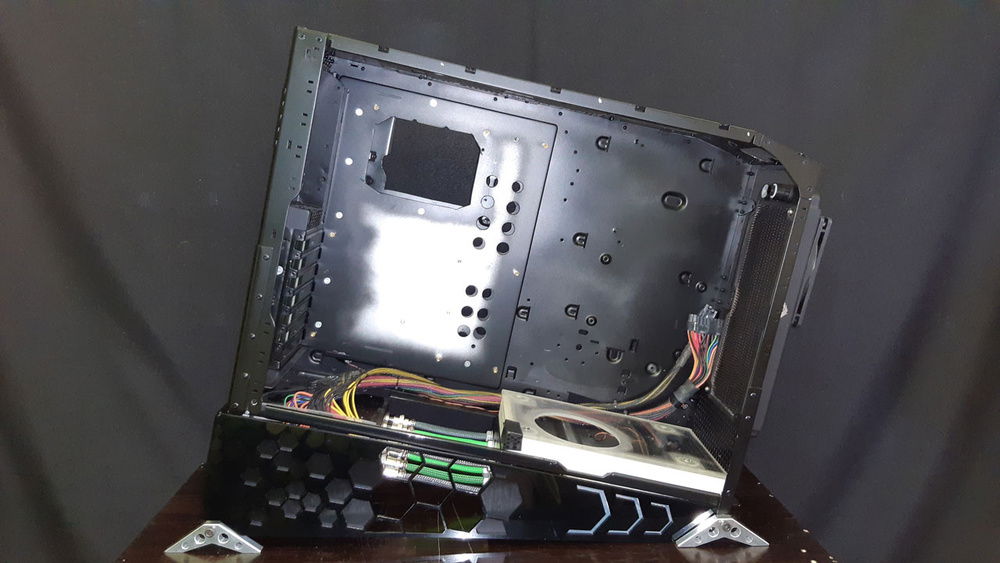

Testing how it fit; these panels are fixed with magnets, so i can easily remove them for maintenance

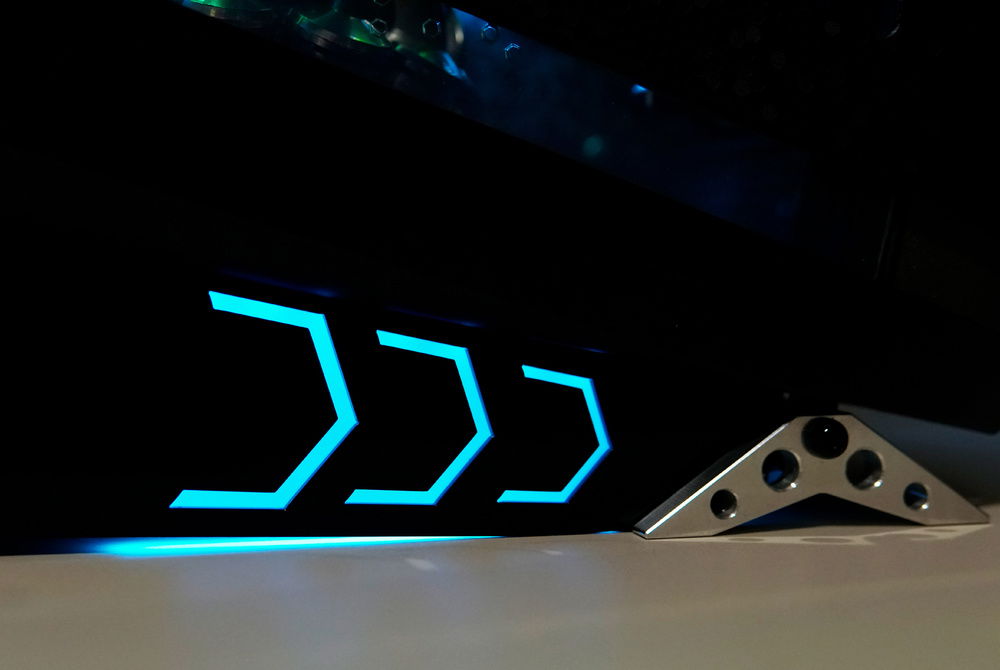

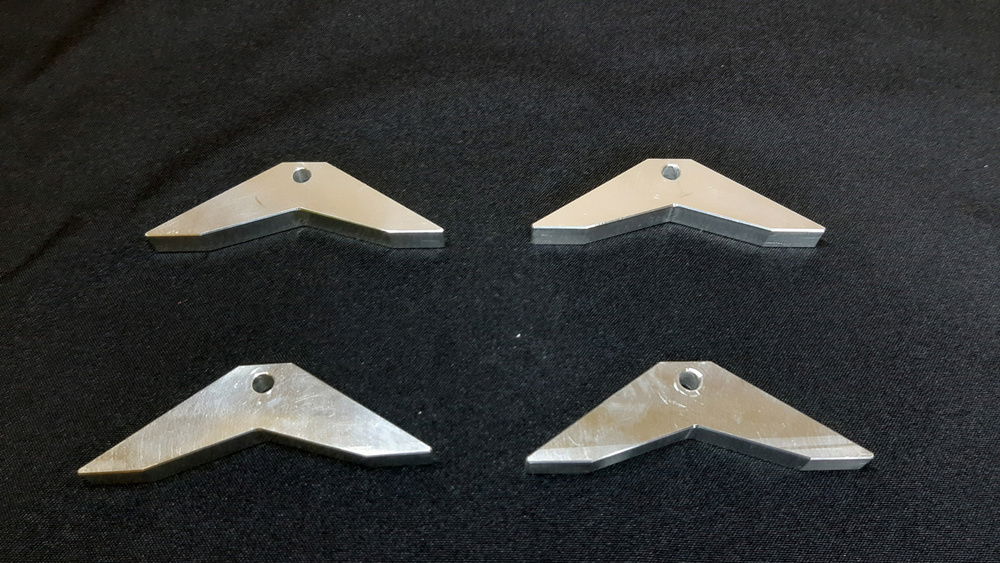

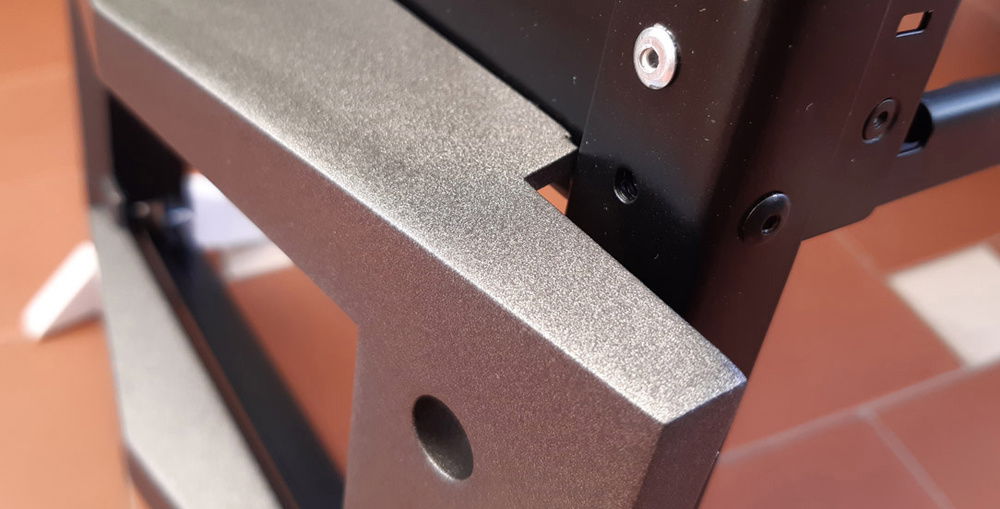

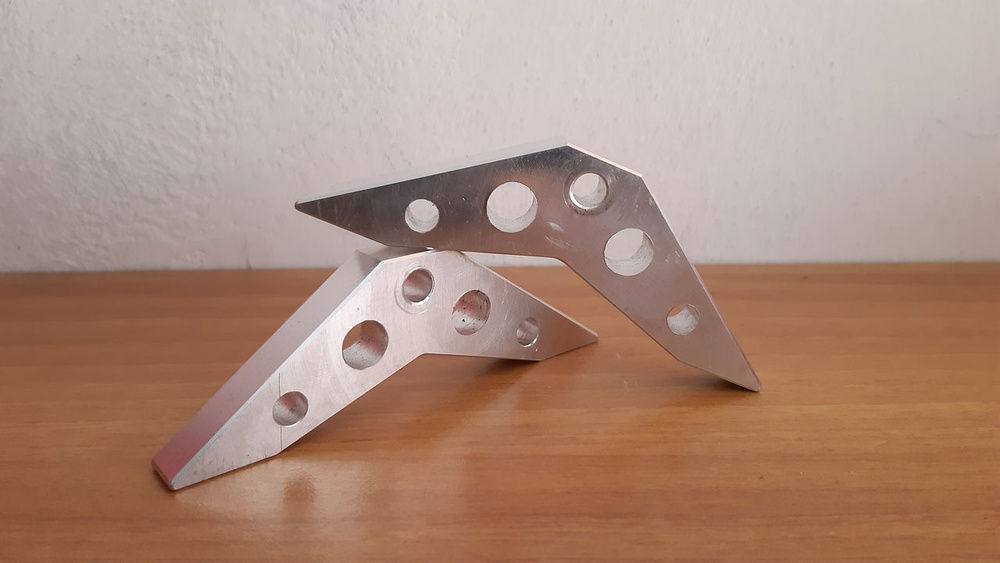

New feets maked with CNC milling

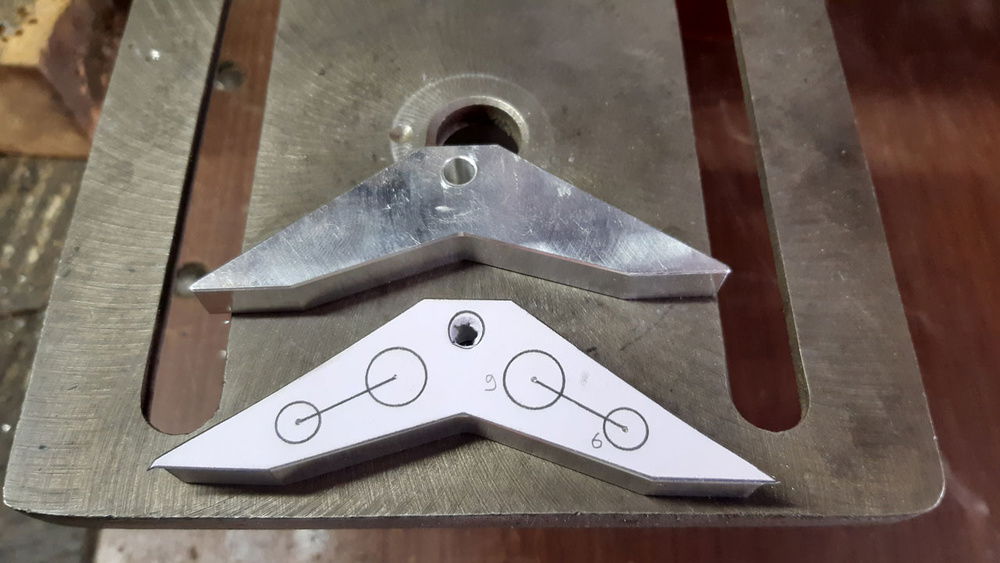

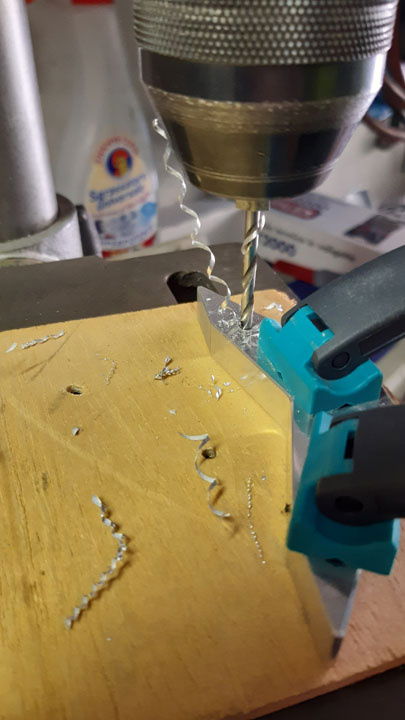

After i decided to add holes...

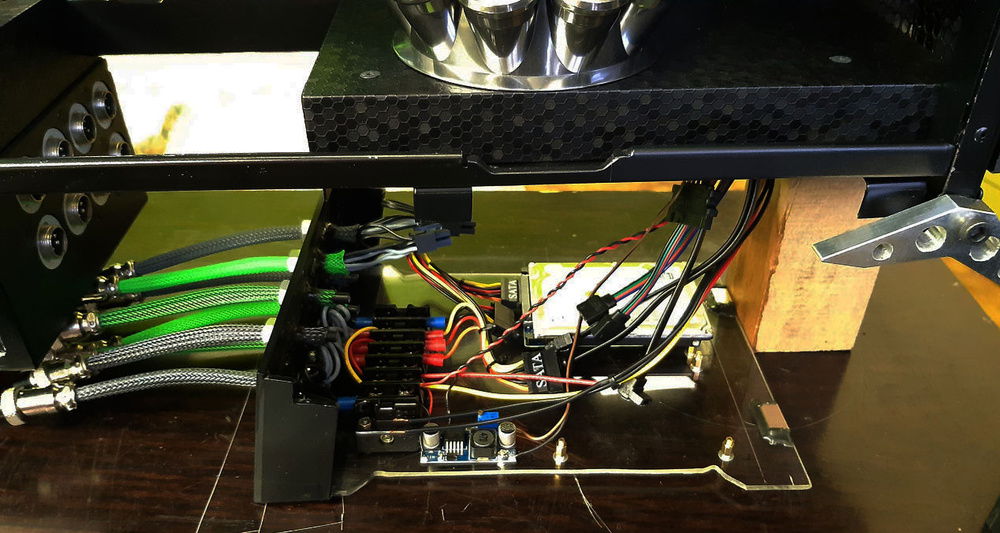

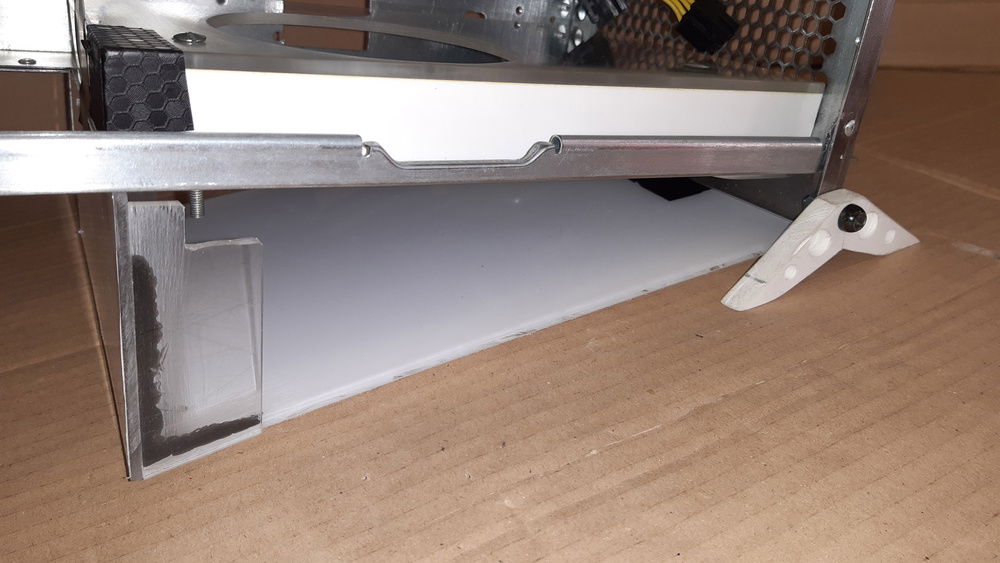

The wires distribution cover

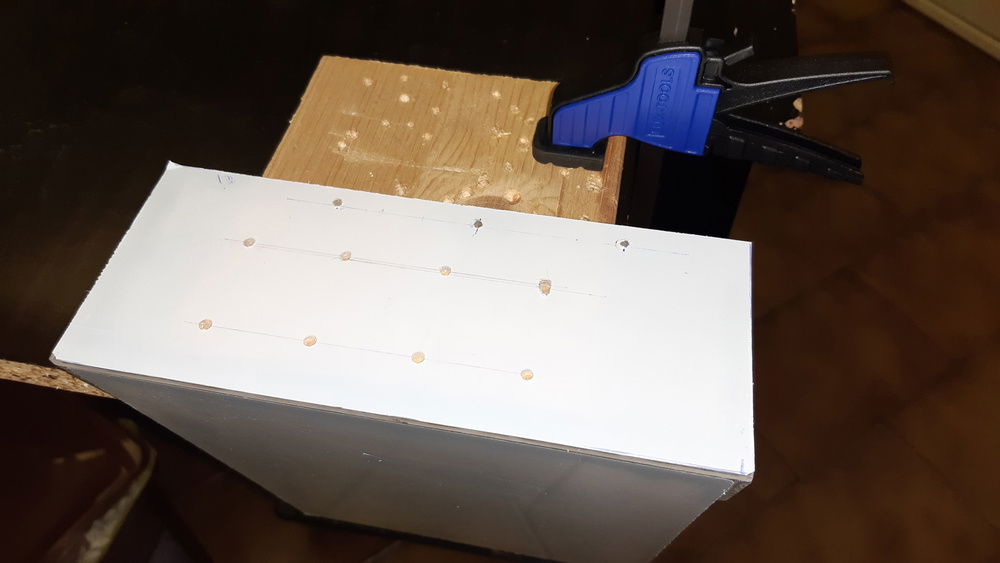

Making holes for the wires from PSU

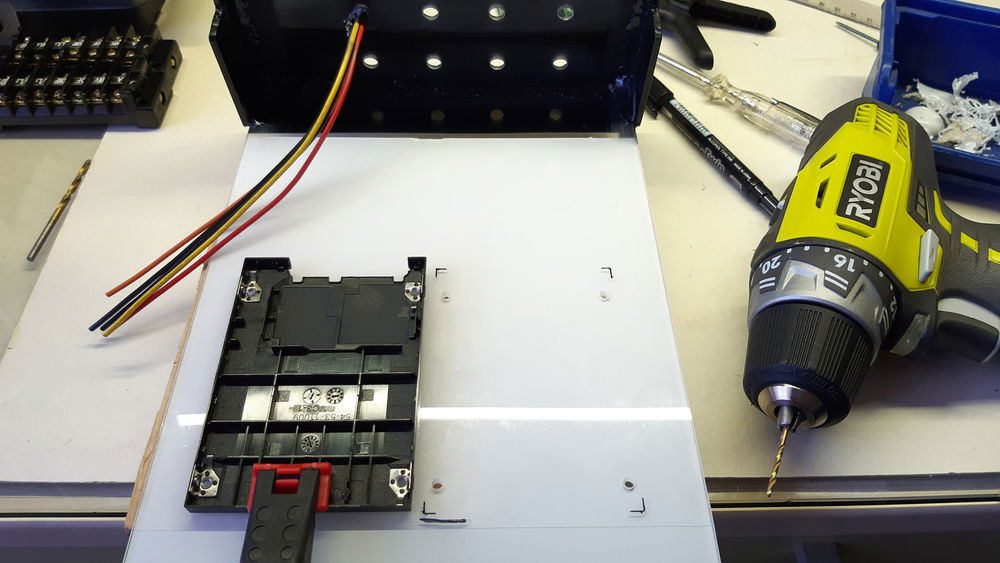

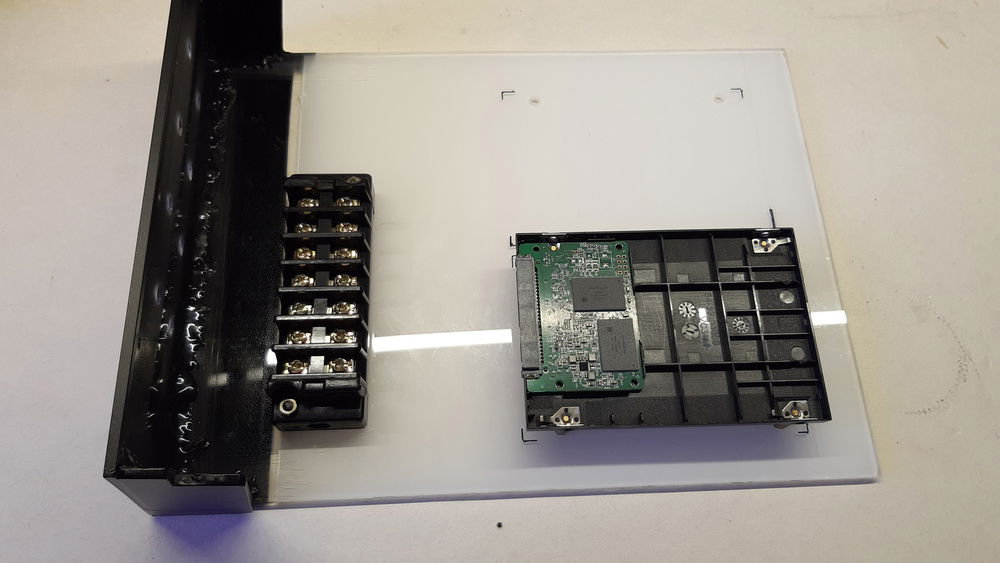

2.5" HDD/SSD support

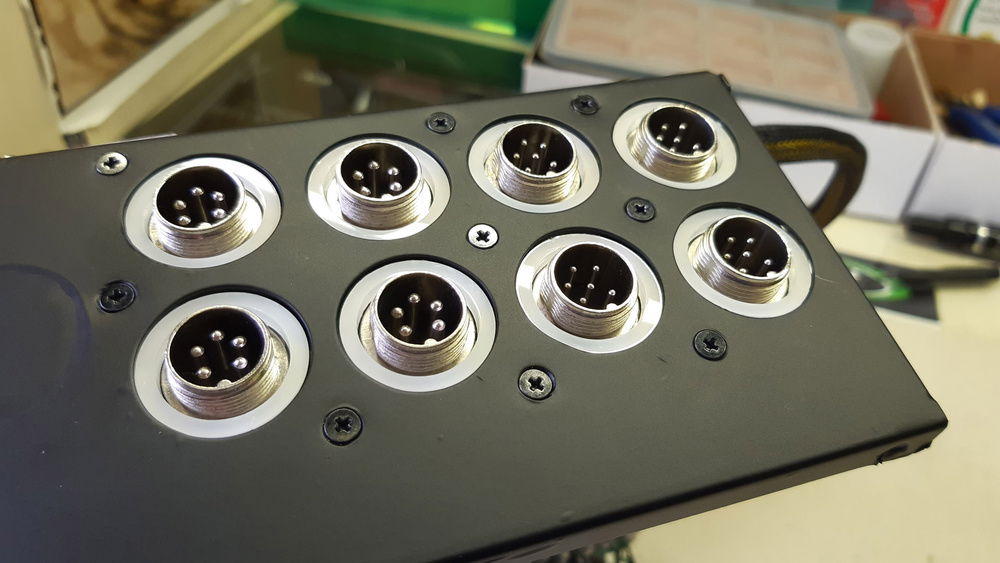

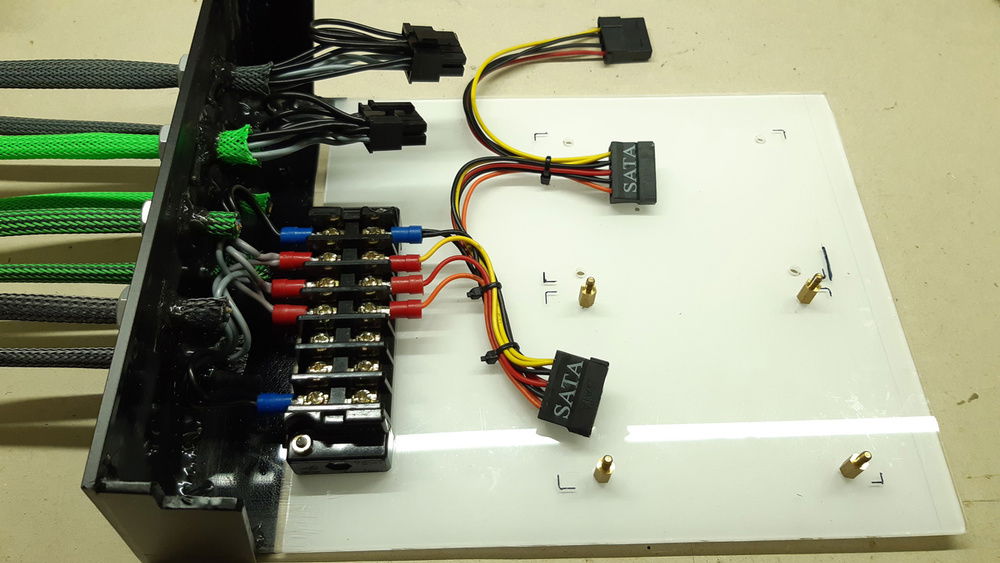

With this connector i can take power for all i need, like LEDs, SATA, MOLEX, etc

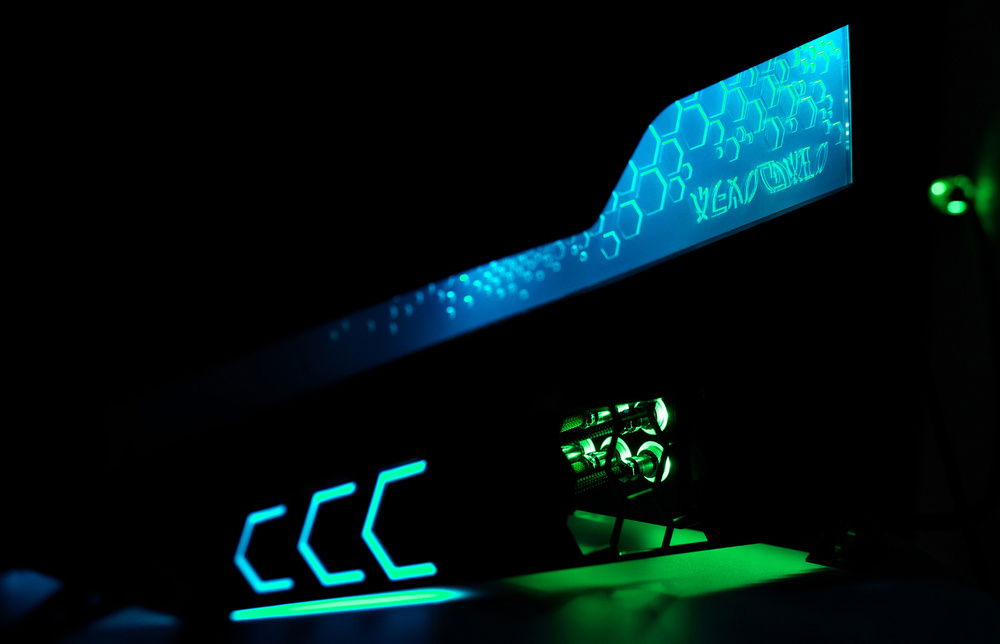

PART 11 - Making of the ALIENBASE side panel

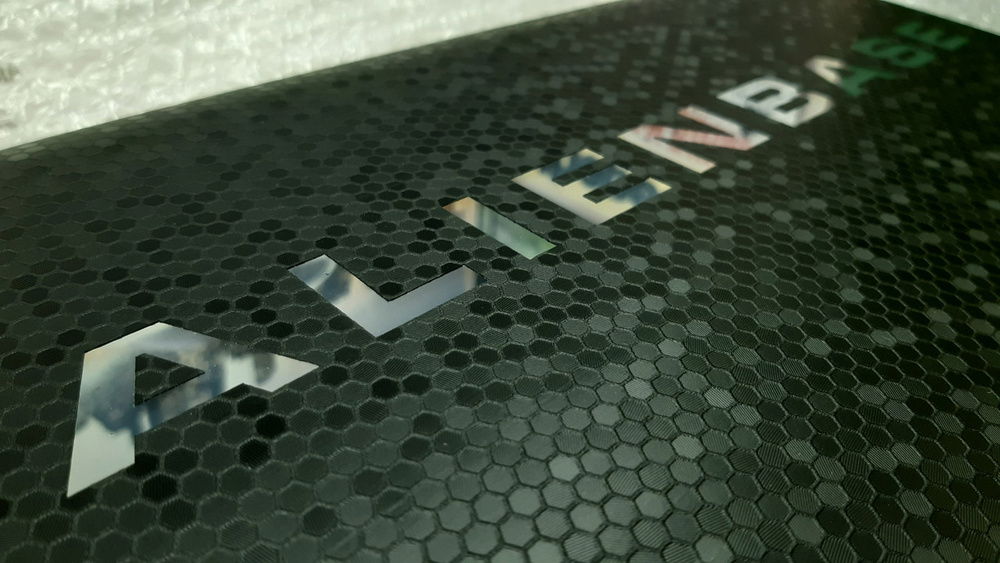

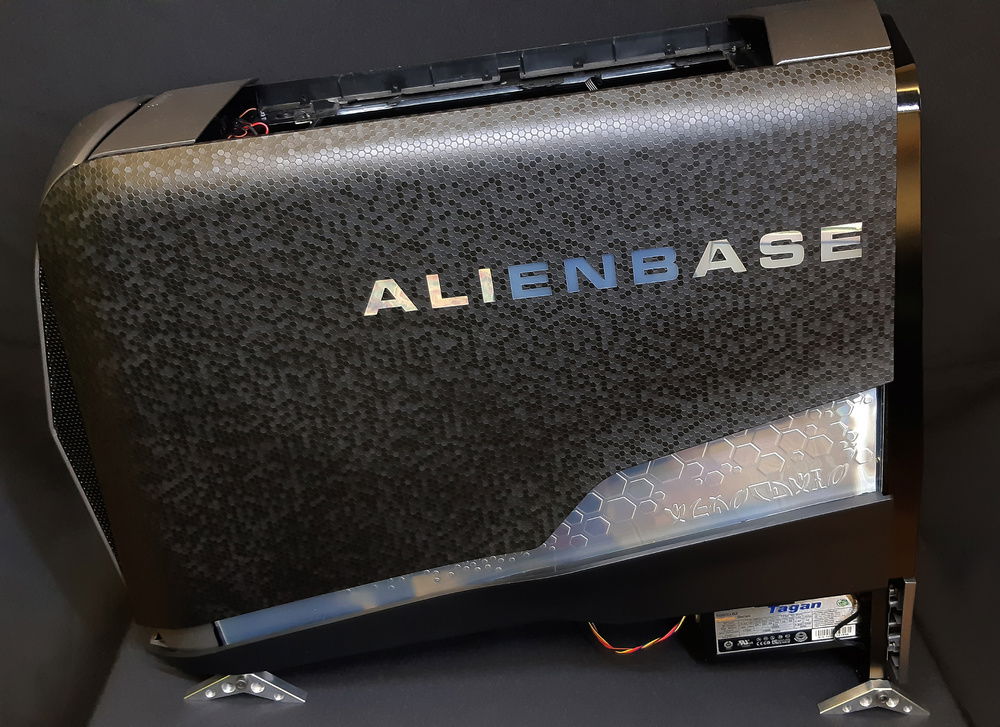

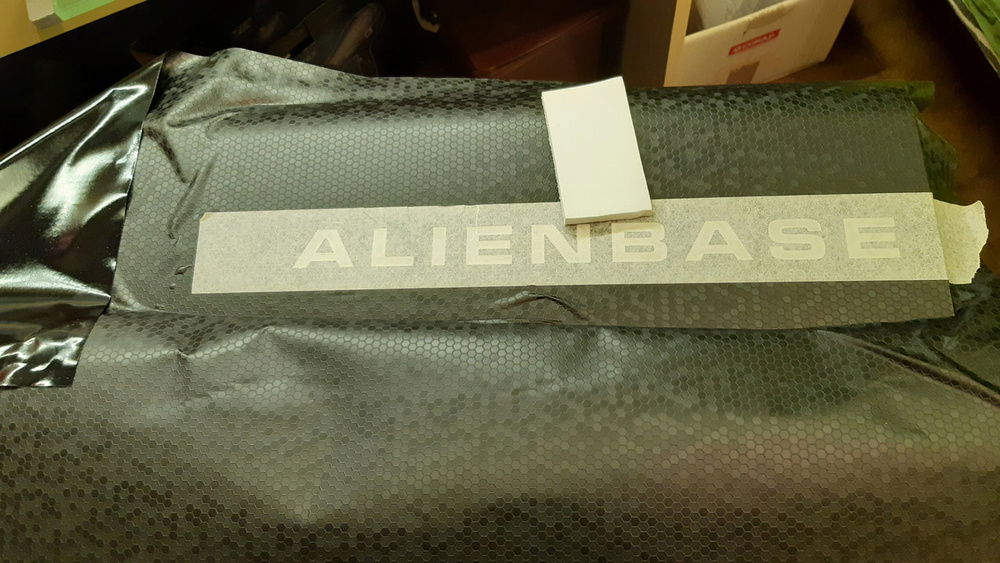

In this part i'm showing the making of the side ALIENBASE panel

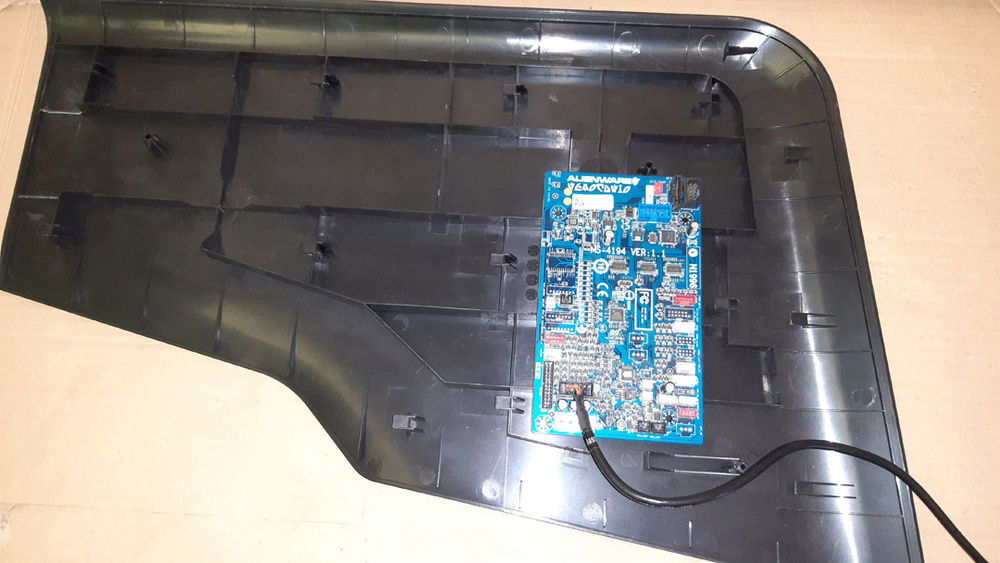

Taking measurement for placing the Alienware LED control board

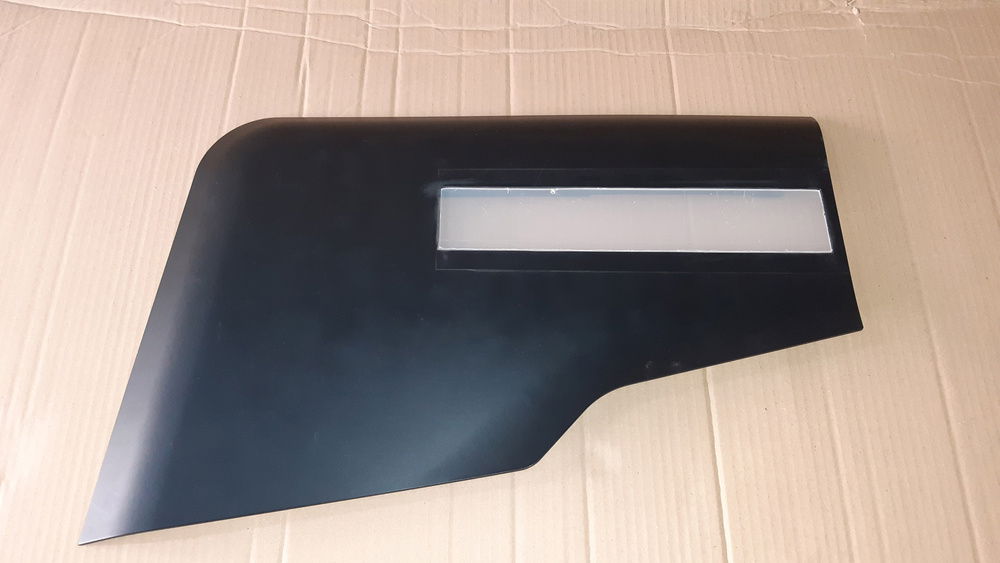

Maked an hole with plexiglas panel

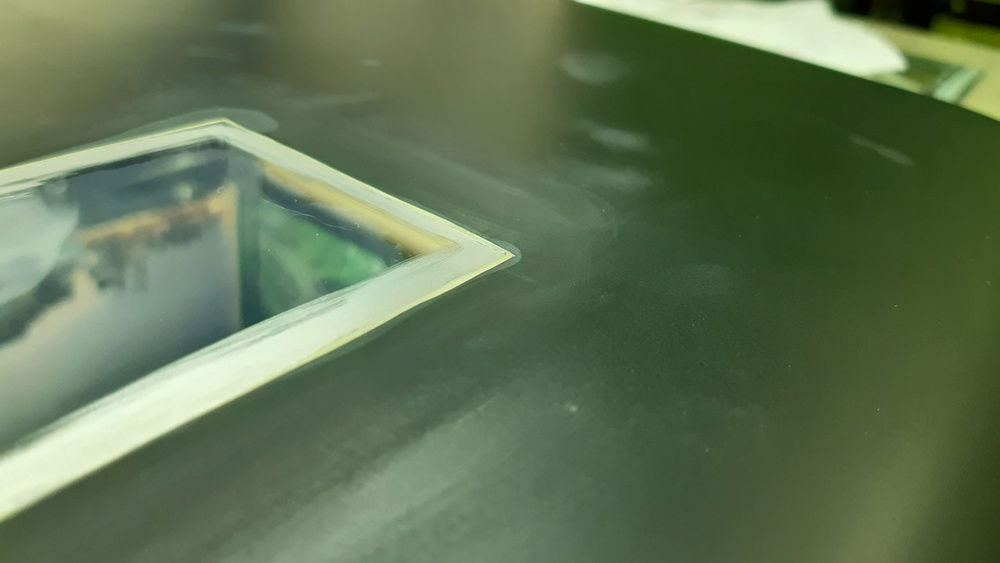

Filled the gaps

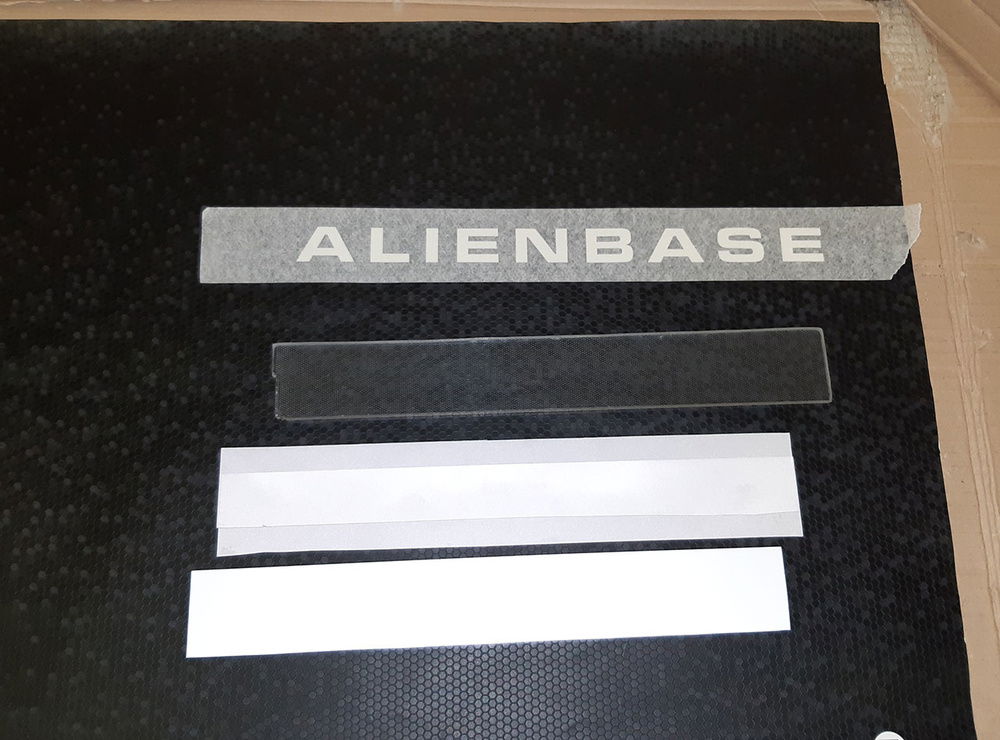

Ready to wrap and install the backlight plexi panel

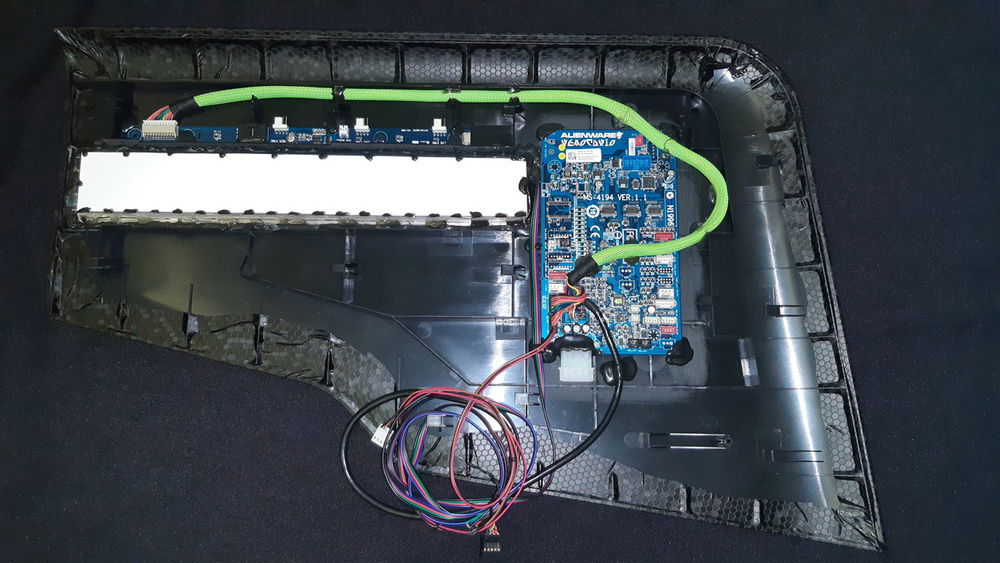

All the control boards are installed

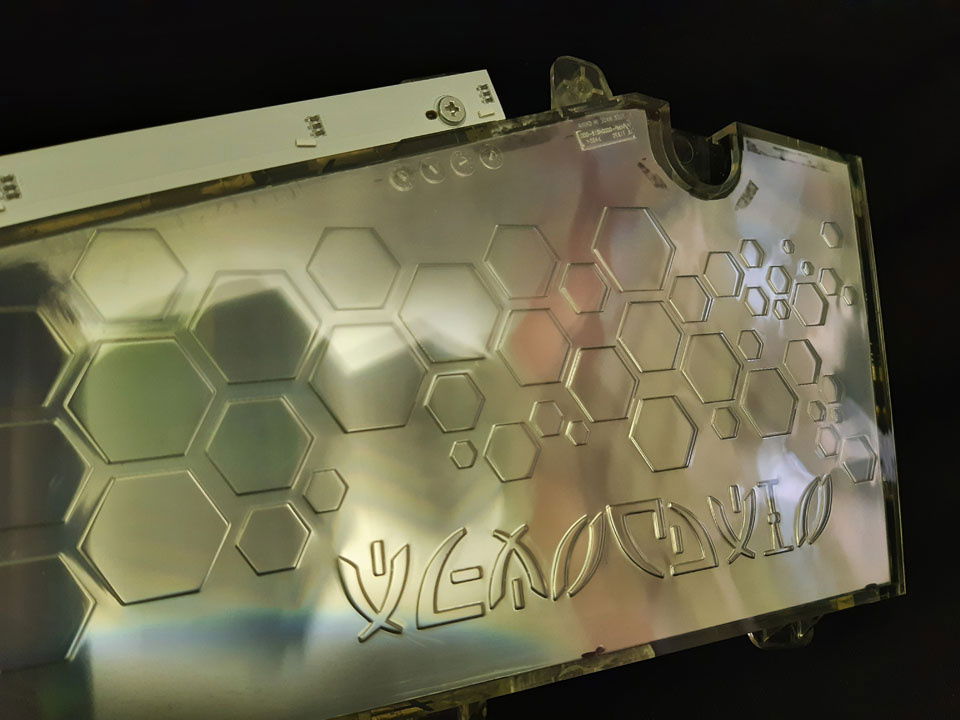

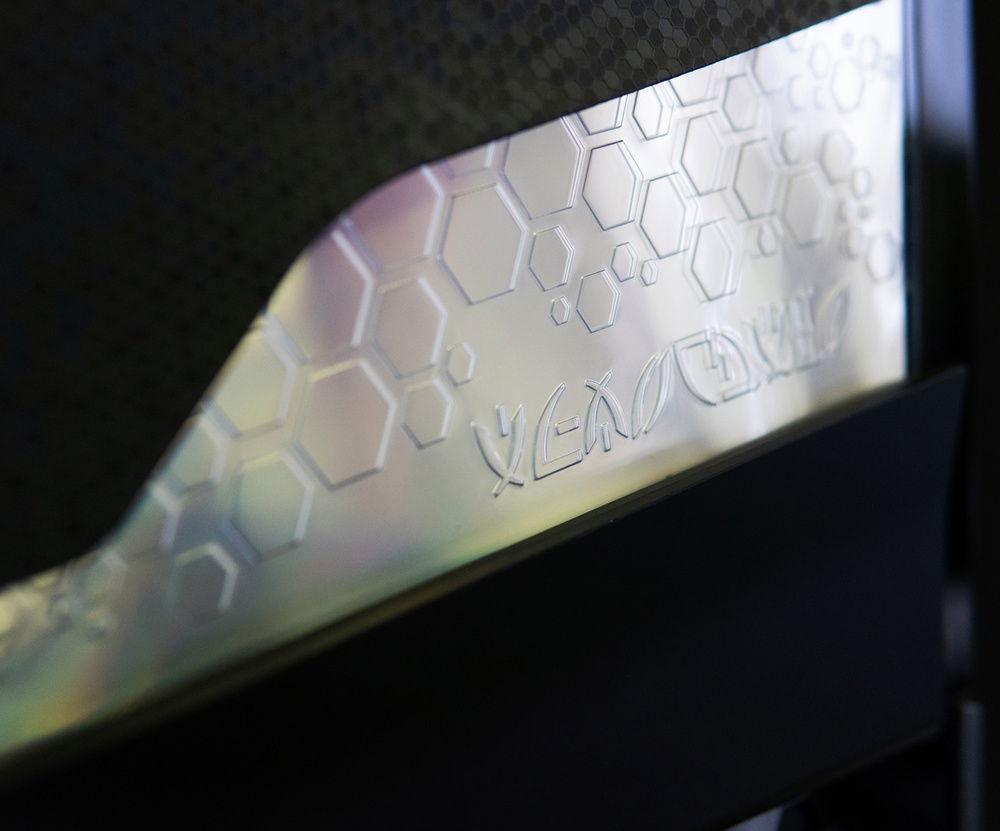

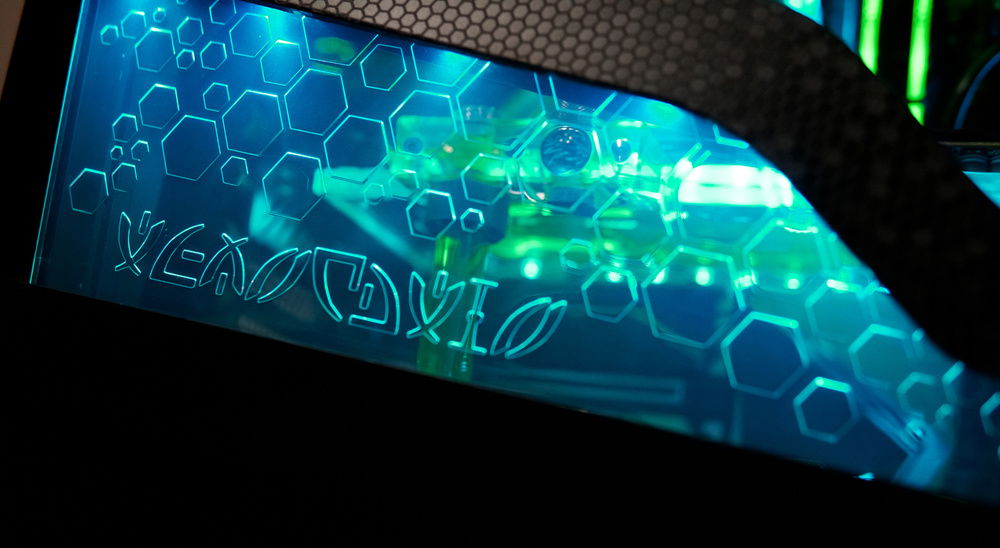

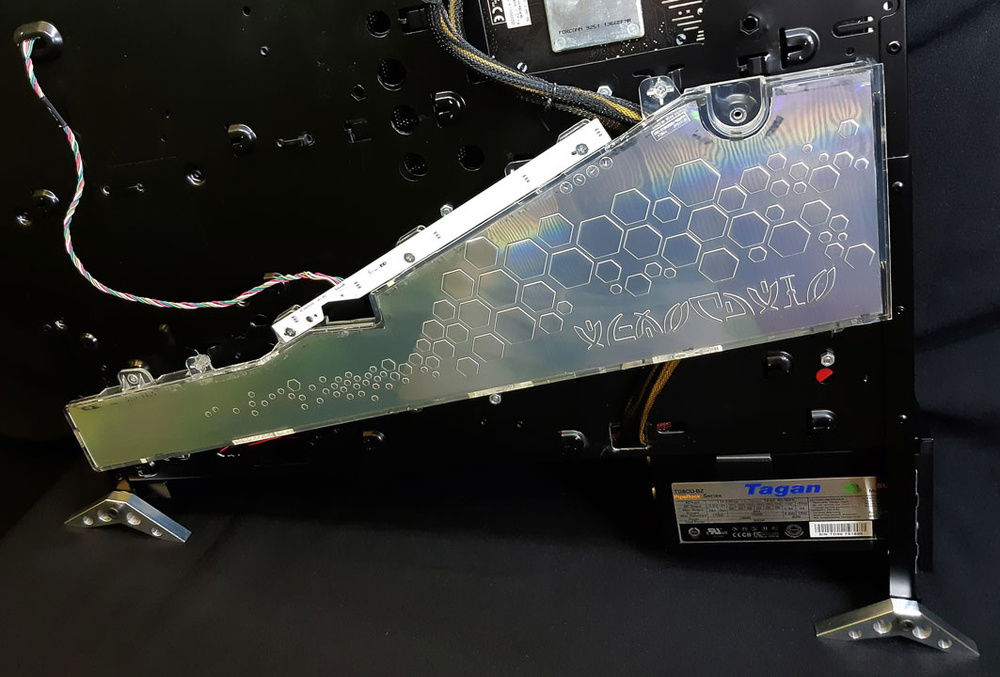

Here i've placed behind this plexiglas a sheet of reflective material from broken LCD that give a cool aluminium effect
