Patience

Bought for a total of ~300€ with separately bought used components. Minus the case. I overpaid for that. Ye.

MODS:
CPU is at 4.40GHz @ 1.12 Vcore - ran 1h of IBT@High with no crashes. Max temp. = 72°C (Completely unrealistic load)
Under reasonable loads such as Cinebench R15 or AIDA64, max temp was 65°C, while cpu fan is completely silent.
RX480 is bios flashed to RX580 and slightly under-clocked with a custom fan curve for better temps,

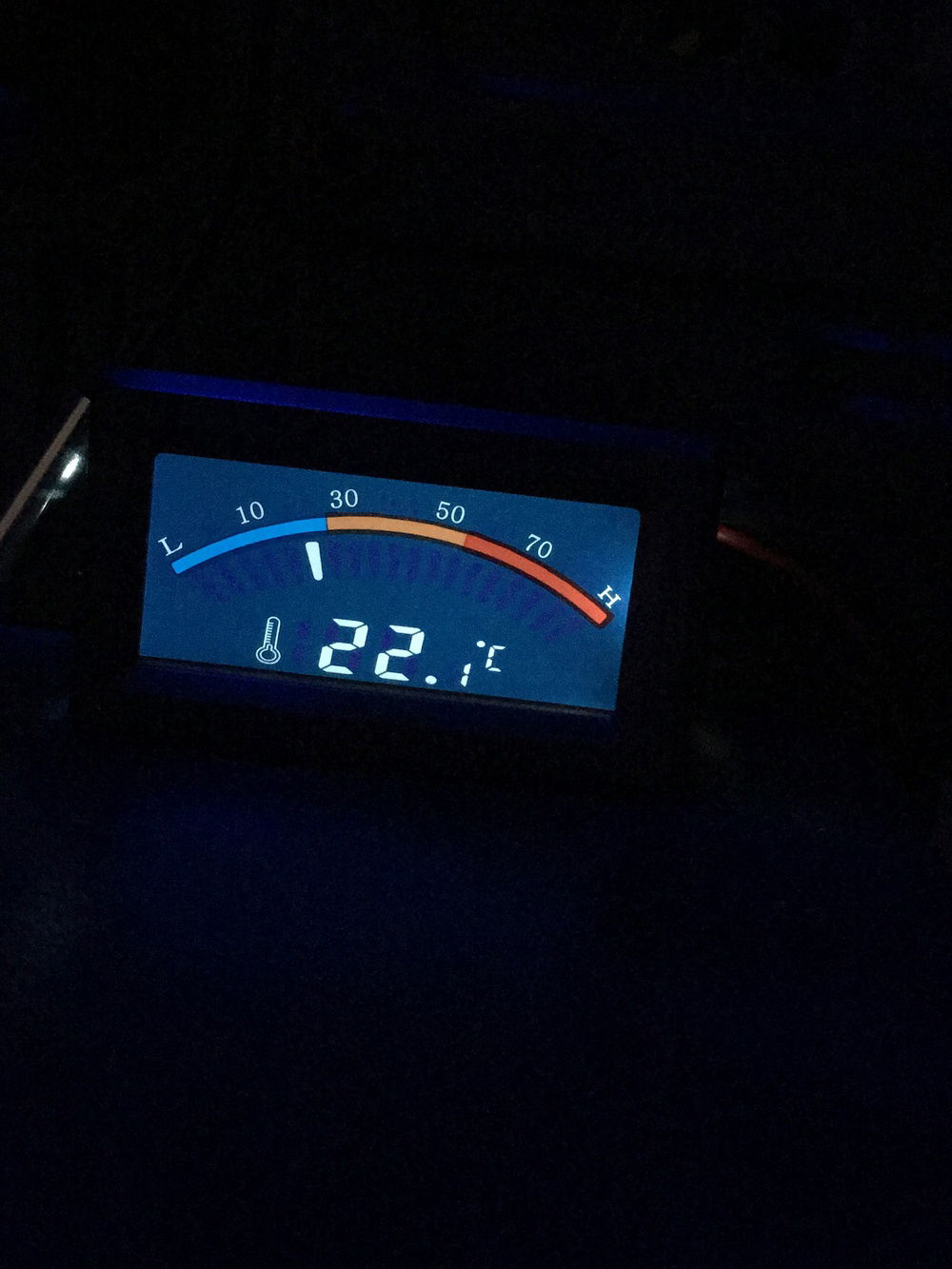

Added case thermometer (see pic),

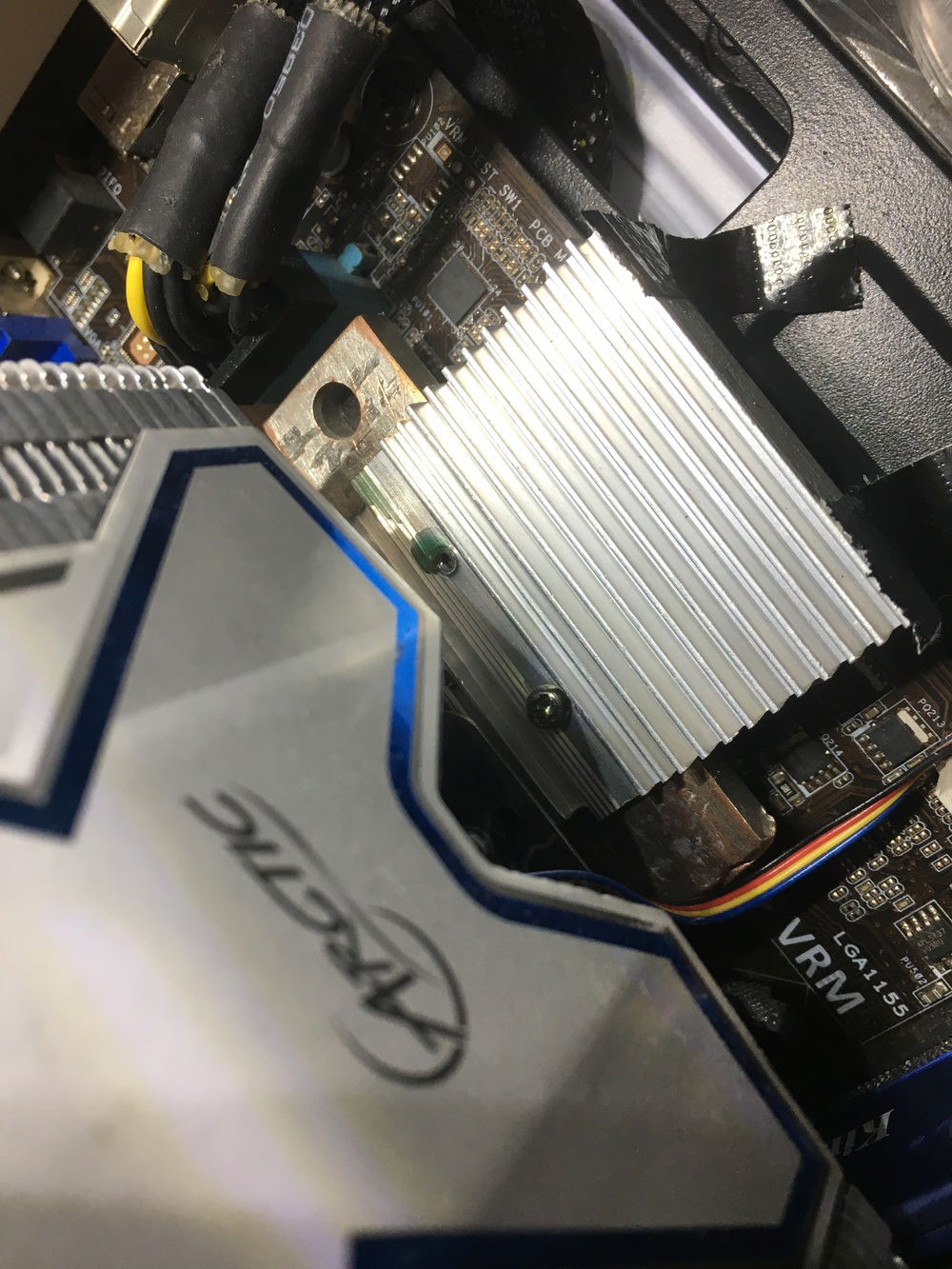

I also made a custom VRM cooling solution (see pic),
Made a simple switch to turn off top mounted fans for less noise and light.

BENCHMARKS:
Cinebench R15 Multi-threaded:...................614
Cinebench R15 Single-threaded:...................158
3D Mark: Fire Strike.........................................11510

AUDIO Setup:
USB OUT ---> 120dB DAC ---> TEAC A-R650 MKII ---> MB Quart QL SP 2 or AKG K271 MKII
Color(s): Blue
RGB Lighting? No
Theme: Retro
Cooling: Air Cooling
Size: ATX
Type: General Build

Contests

This build participated in 2 contests.

Hardware

CPU
$ 136.00
Intel - Core i5 3570K
Socket: LGA 1155
Cores: 4
Motherboard
$ 215.09
ASUS - P8Z77-V PRO
Chipset: Z77
CPU Socket: LGA 1155
Size: ATX
Memory
Kingston - HyperX Savage
Type: DDR3
Capacity: 16 GB
Graphics
Sapphire - Radeon Nitro+
Chip Manufacturer: AMD
Chip: RX 480
Interface: PCIe x16
Storage
$ 48.99
Crucial - MX500
Form Factor: 2.5 Inch
Interface: SATA 6 Gb/s
Capacity: 500 GB
Storage
$ 29.99
Western Digital - Caviar Green
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
Storage
$ 29.99
Western Digital - Caviar Green
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 1 TB
PSU
Gigabyte - ODIN Pro
Wattage: 550
Form Factor: ATX
Efficiency: 80+
Case
$ 69.99
Zalman - Z9 Neo
Type: Mid-Tower
Side Panel: Acrylic
Cooling
$ 51.15
ARCTIC - Freezer Xtreme
Type: Air Cooler
Size (WxHxD): 120 mm
Accessories
$ 136.60
Monitor
$ 114.99
AOC - 24V2H
Size: 23.8 Inch
Panel: IPS
Refresh Rate: 75 Hz
Keyboard
$ 132.57
Razer - BlackWidow Ultimate 2013
Interface: Wired
Key Switch Type: Cherry MX Blue
Type: Full Size
