Nr200 X Unraid

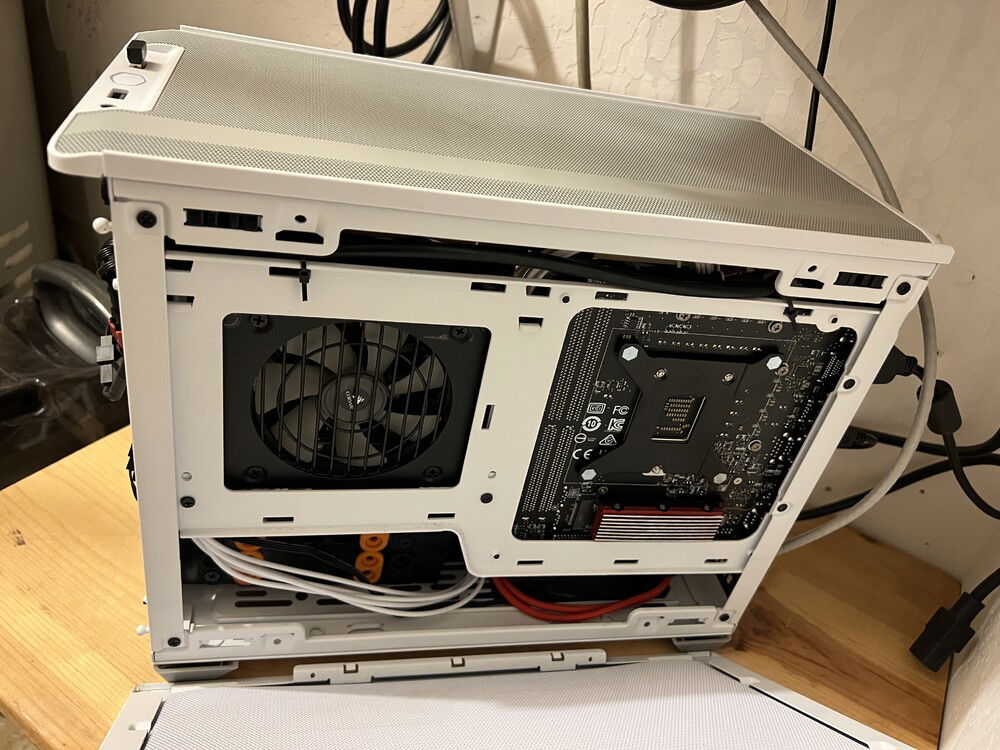

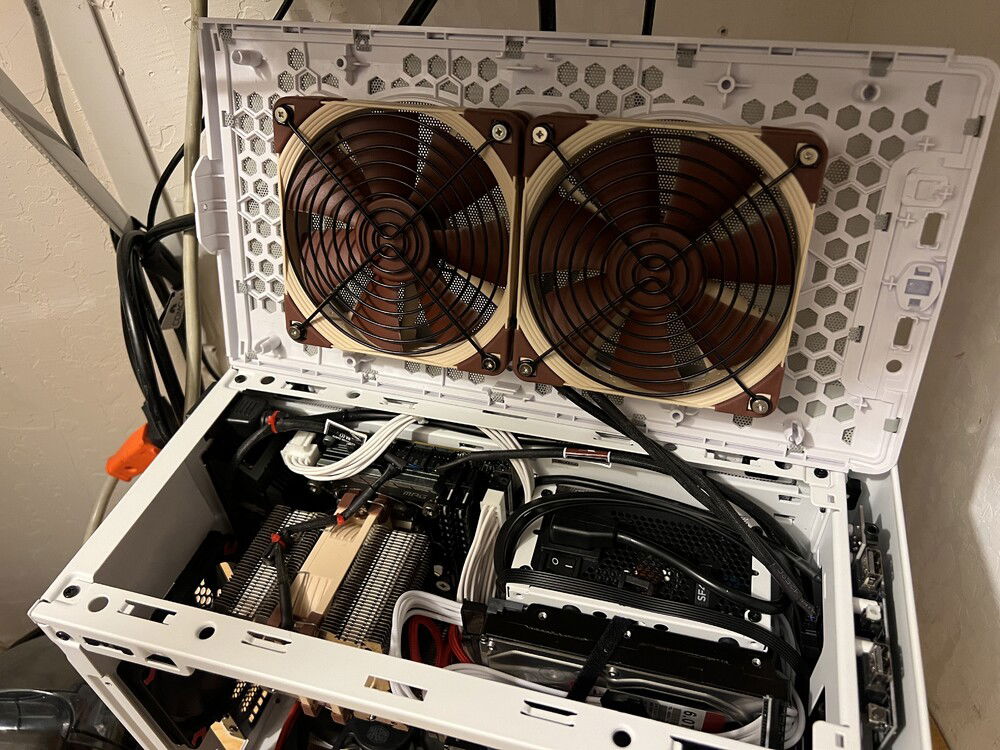

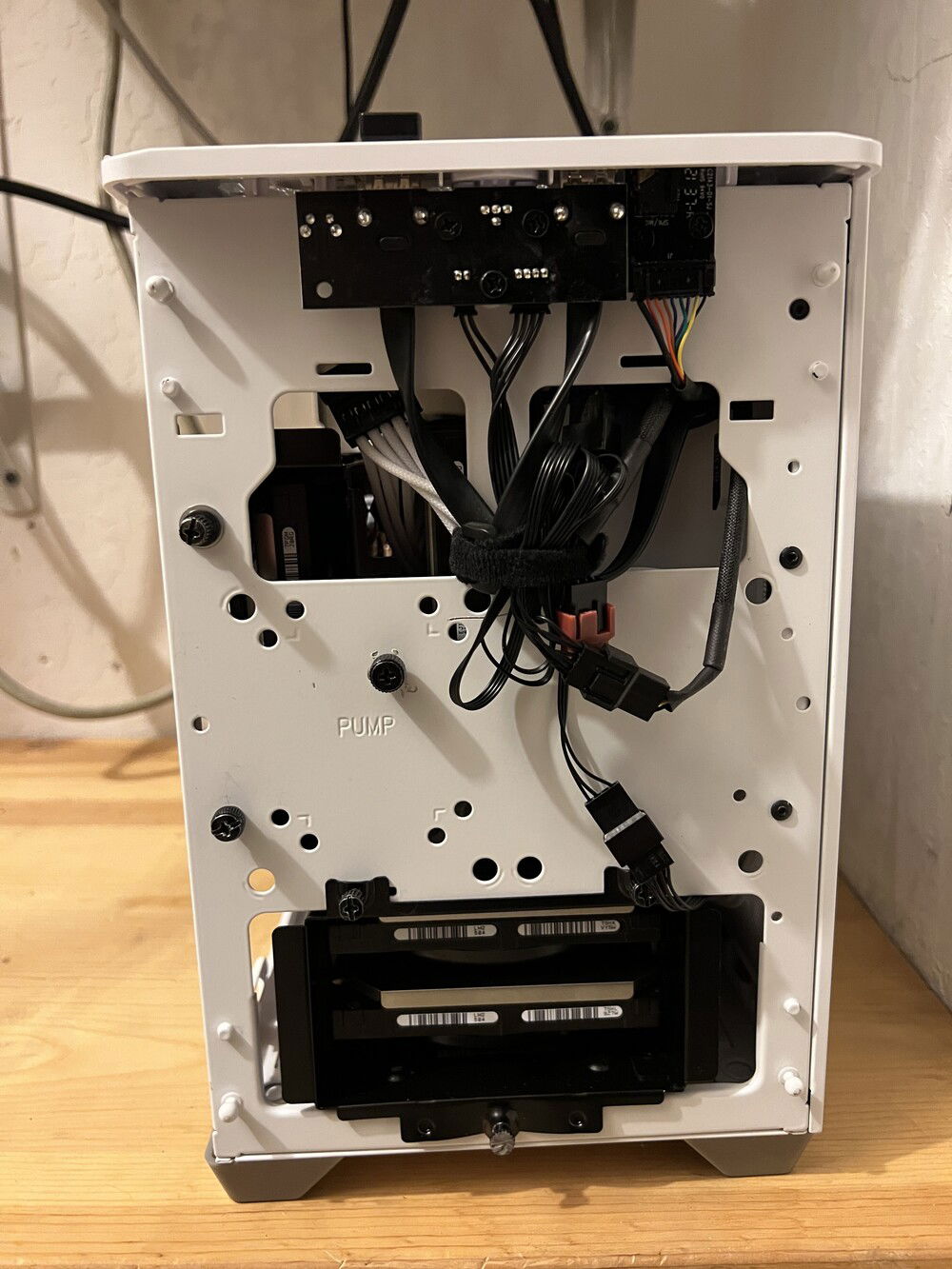

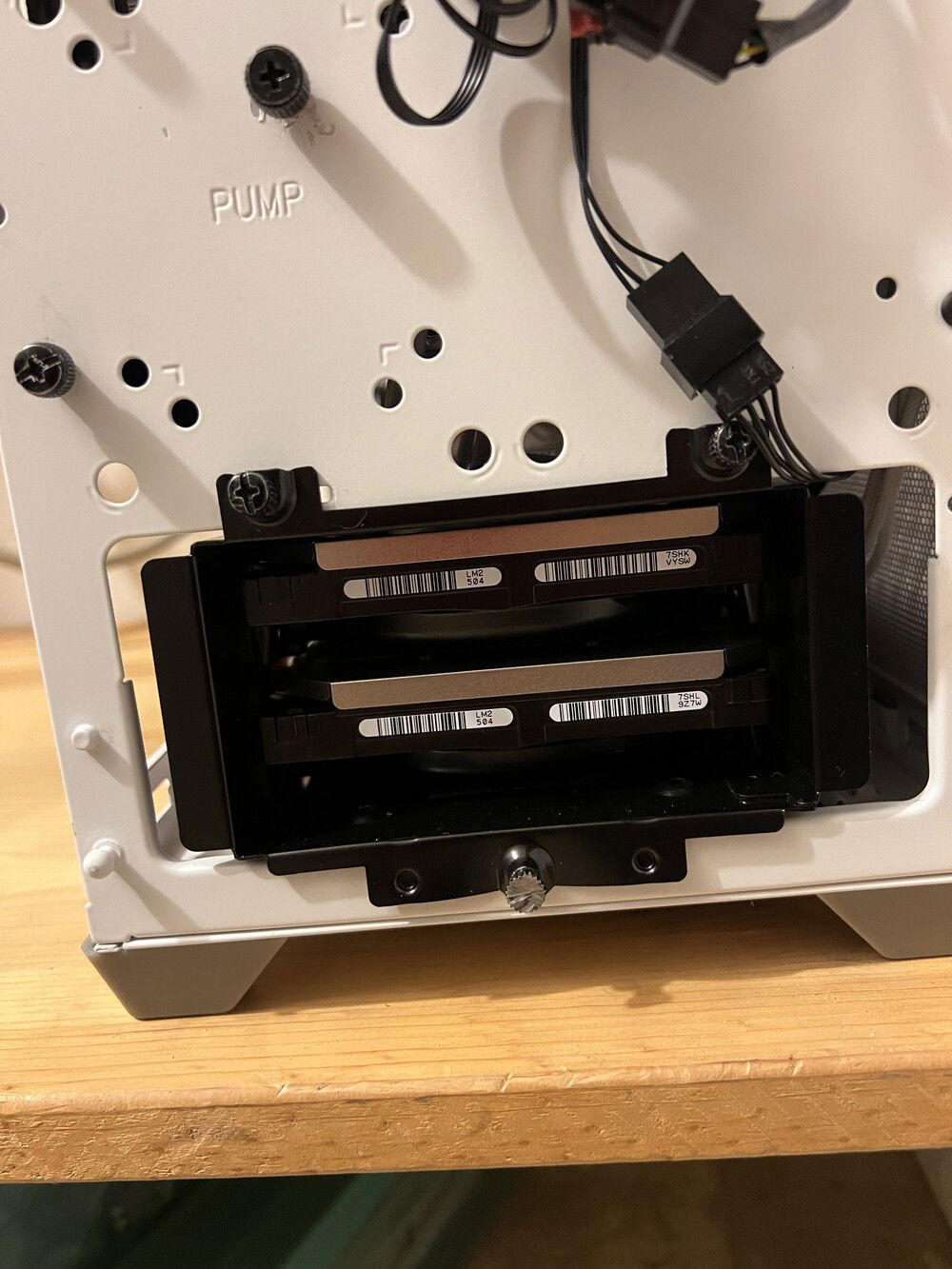

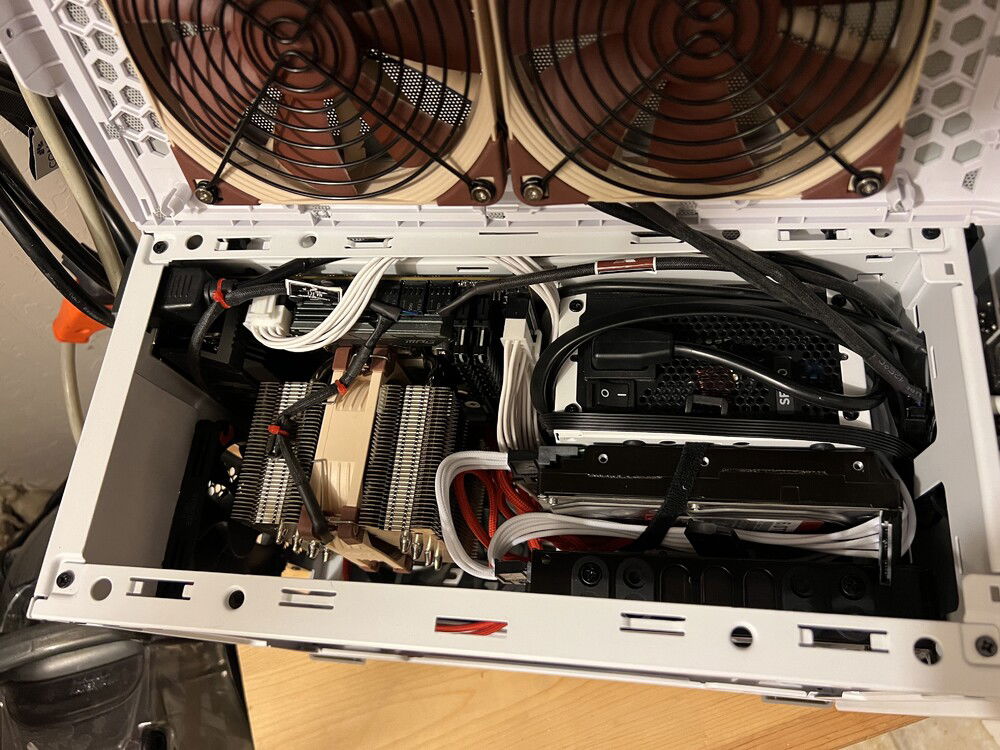

This was an unholy build combining two things that shouldn’t go together. Unraid NAS with a NR 200 from coolermaster. I love the NR200 but it lacks hard drive space with space for only 2x 3.5in drives stock, I changed that with the help of bequiet drive cages which fit perfectly in the case with minimal drilling and cutting. I now have room for 4x 3.5in hard drives with room for 1-2 more if needed. I think I am one of the few who tried this sense there are better itx server chases on the market but I had the case with custom cables on hand and needed a small form factor NAS with the chops to run VMs and multiple dockers plus be a backup, game, and media server. I was running an AMD 5700g before but the idle power draw was pretty bad at around 100w. So I got a 10600T with an msi b560 itx the power dropped to 40w and I didn’t notice any performance hit. This shouldn’t surprise anyone sense intel is best for NAS setups. I personally find unraid working better with intel. Although I haven’t tried any chips with E/P cores.
Color(s): White
RGB Lighting? No
Theme: none
Cooling: Air Cooling
Size: SFF
Type: General Build

Hardware

CPU
$ 529.95
Intel - Core i5-10600
Socket: LGA 1200
Cores: 6
Integrated Graphics: Yes
Motherboard
$ 199.99
MSI - MPG Gaming Edge (B560I) (WiFi)
Chipset: B560
CPU Socket: LGA 1200
Size: Mini-ITX
Memory
$ 39.99
Corsair - Vengeance LPX (3200Mhz) (Black)
Type: DDR4
Capacity: 16 GB
Memory
$ 39.99
Corsair - Vengeance LPX (3200MHz) (Black)
Type: DDR4
Capacity: 16 GB
Graphics
Storage
$ 199.99
Samsung - 960 EVO
Form Factor: M.2
Interface: M.2 (M)
Capacity: 1 TB
Storage
$ 119.99
Samsung - 980 Pro
Form Factor: M.2
Interface: M.2 (M)
Capacity: 2 TB
Storage
$ 225.00
Western Digital - WD Gold Enterprise
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 8 TB
Storage
$ 225.00
Western Digital - WD Gold Enterprise
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 8 TB
Storage
$ 317.45
Western Digital - WD Gold Enterprise
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 10 TB
Storage
$ 178.44
Western Digital - WD Red NAS
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 6 TB
Storage
$ 178.44
Western Digital - WD Red NAS
Form Factor: 3.5 Inch
Interface: SATA 6 Gb/s
Capacity: 6 TB
PSU
$ 165.30
Corsair - SF450
Wattage: 450
Form Factor: SFX
Efficiency: 80+ Gold
Case
$ 118.96
Cooler Master - MasterBox NR200
Type: Mini-ITX
Side Panel: Mesh
Case Fan
$ 34.95
Case Fan
$ 19.90
Cooling
$ 64.95
Noctua - NH-D9L
Type: Air Cooler
Size (WxHxD): 110 mm
CableMod
CableMod - Custom Cable Kit Corsair - SF750 (Platinum)
Mode: Custom
Sleeve: ModFlex
Color: Gray, White, Yellow
